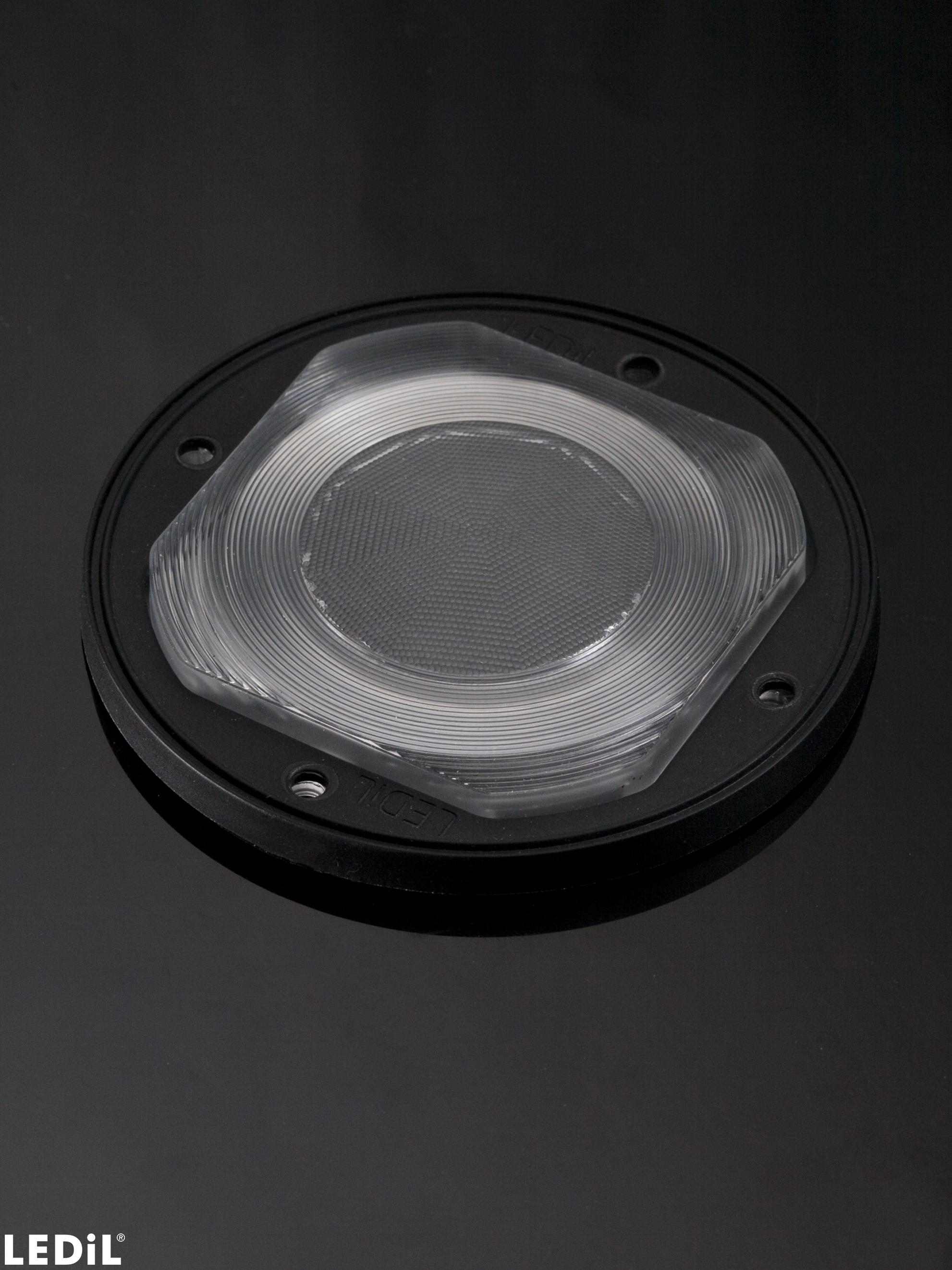

~100° very wide beam for warehouse and outdoor lighting. Compatible with up to 30 mm LES size COBs.

Specification
  • Dimensions:
    90 mm
  • Height:
    11.3 mm
  • Fastening:
    screw
  • Colour:
    black
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials
  • STELLA-HB-WWW, Single lens, Silicone
  • STELLA-FRAME, Holder, PA66

WARNING: Cancer – www.P65Warnings.ca.gov

Packing information
  • Quantity in box:
    135 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    5.0 kg
  • MPQ:
    15 pcs
  • MOQ:
    135 pcs
  • MOQ size:
    480 x 280 x 300 mm
  • MOQ weight:
    5.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






Typical Applications

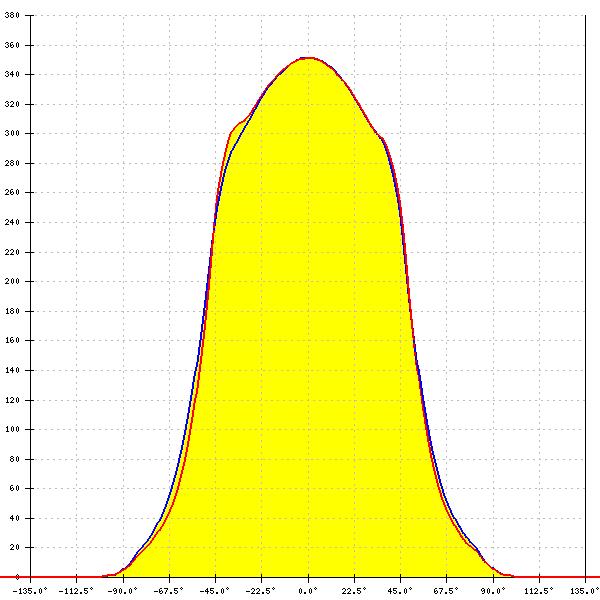

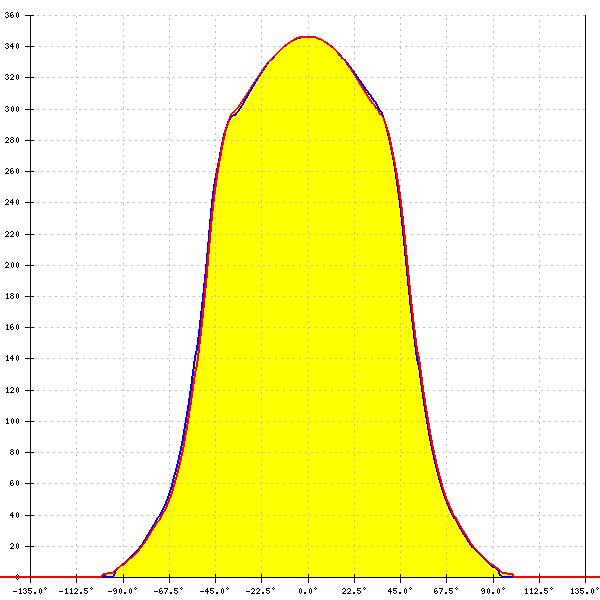

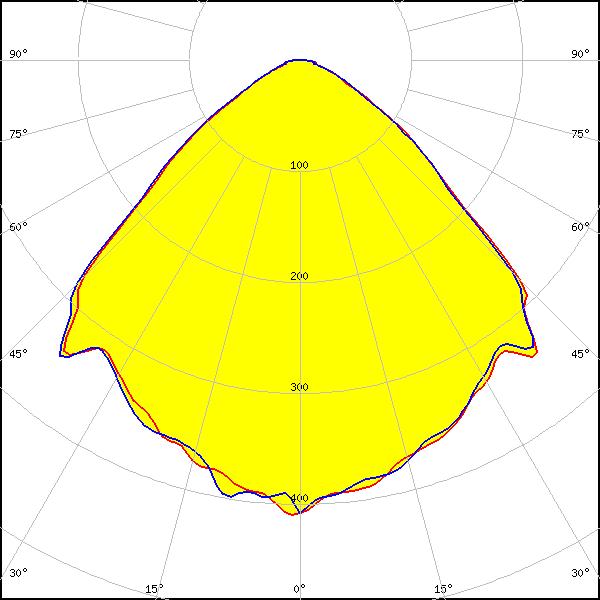

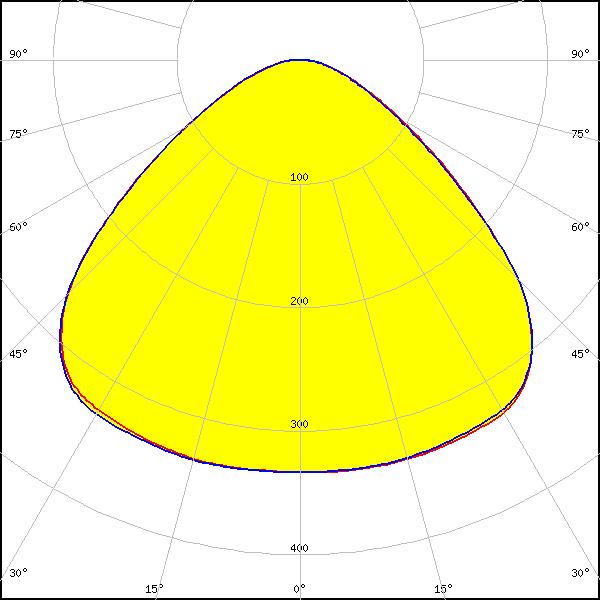

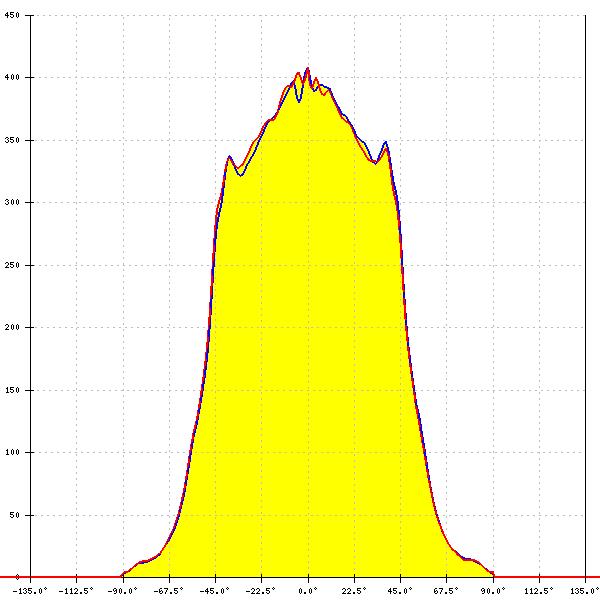

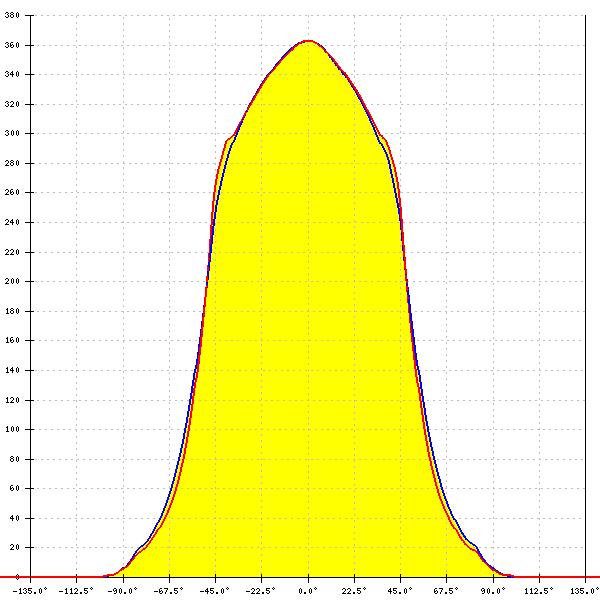

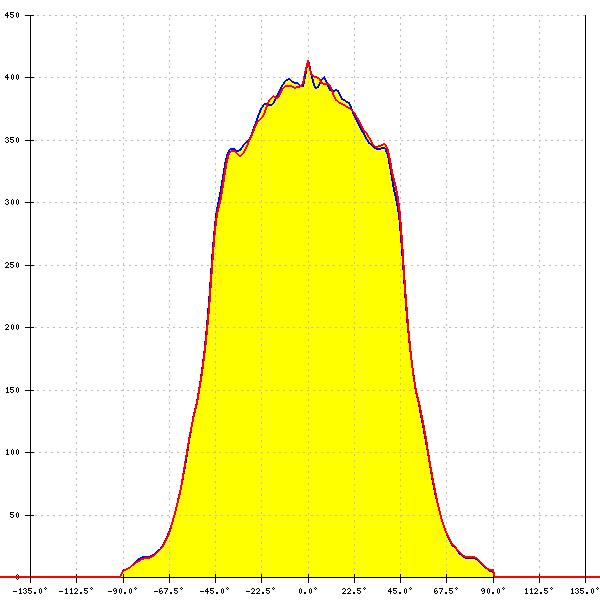

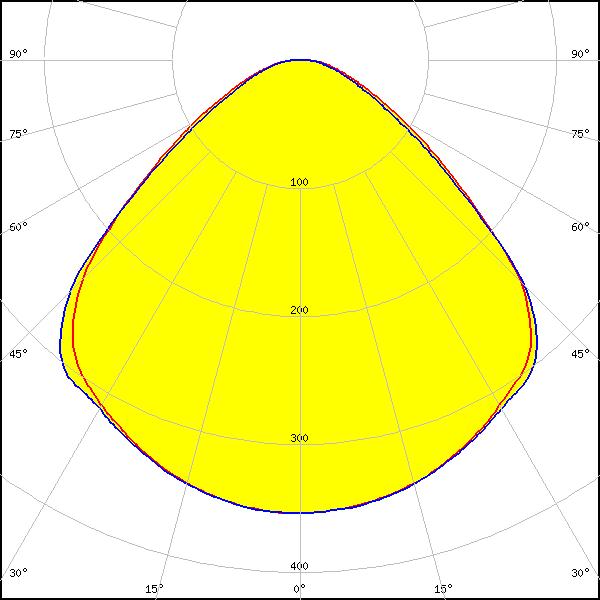

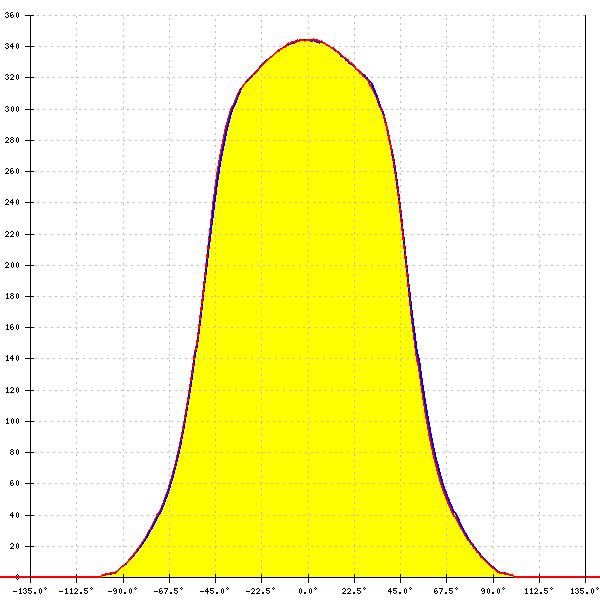

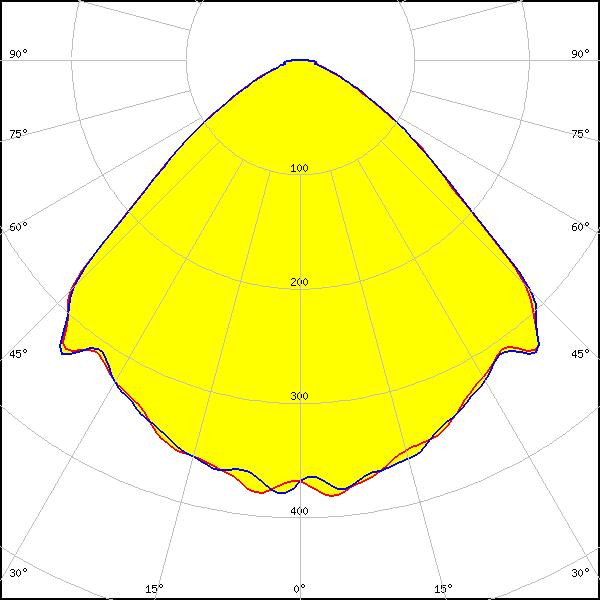

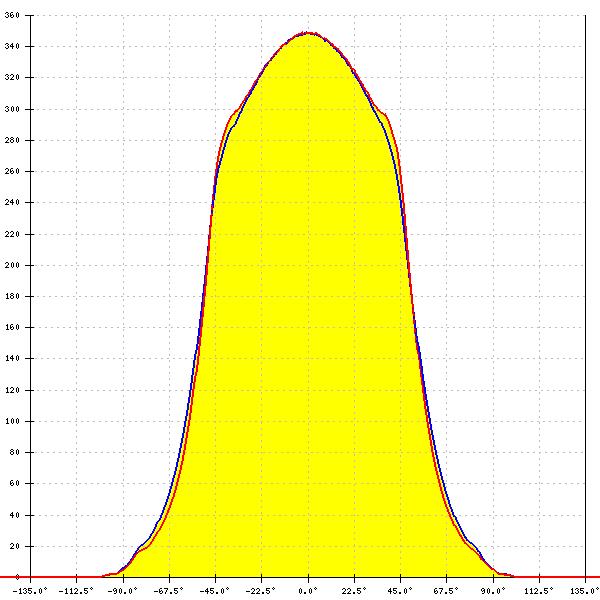

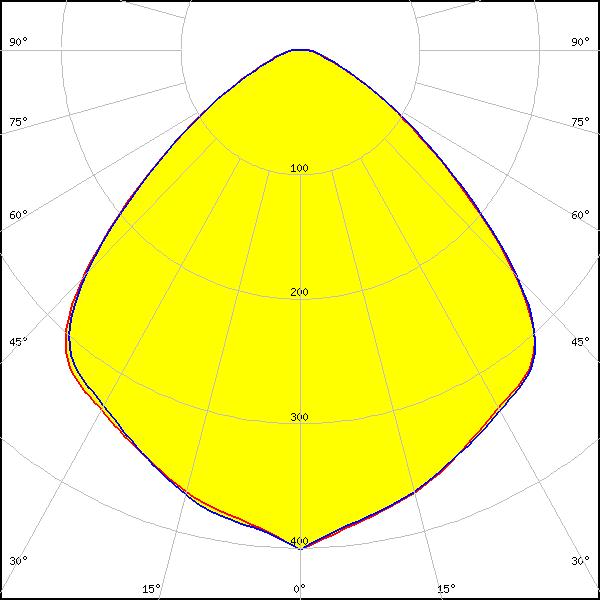

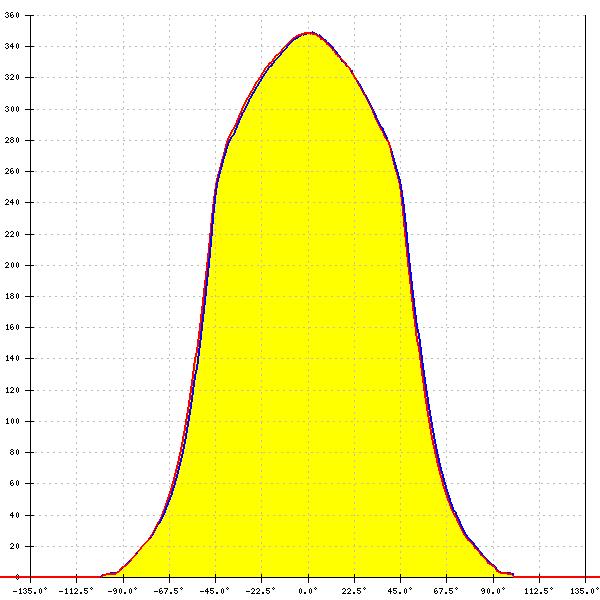

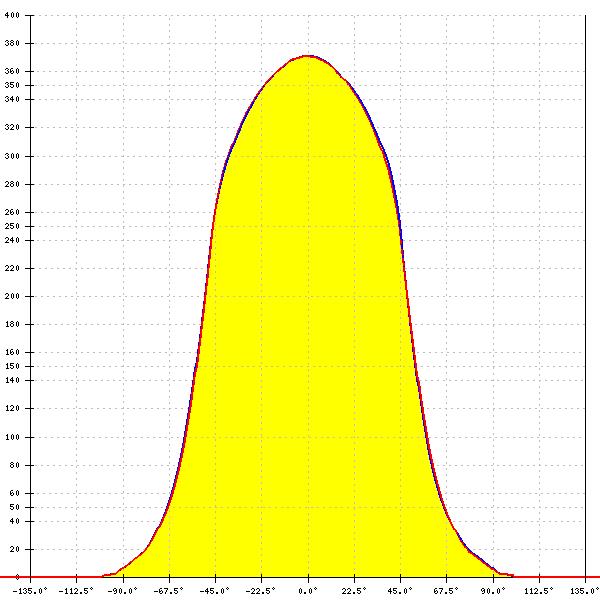

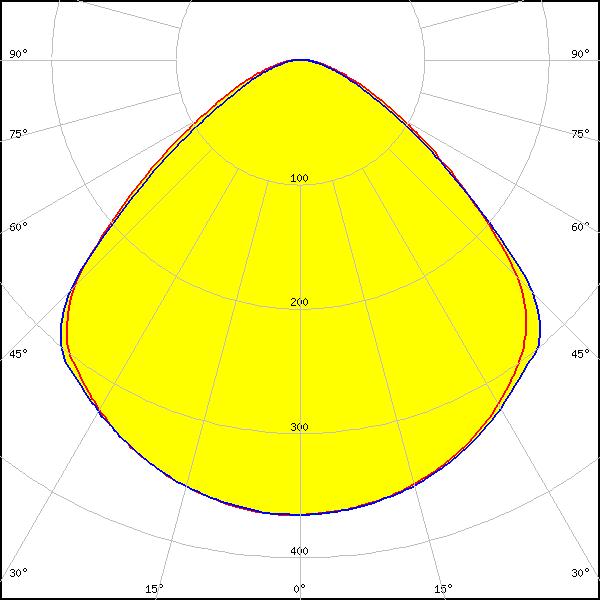

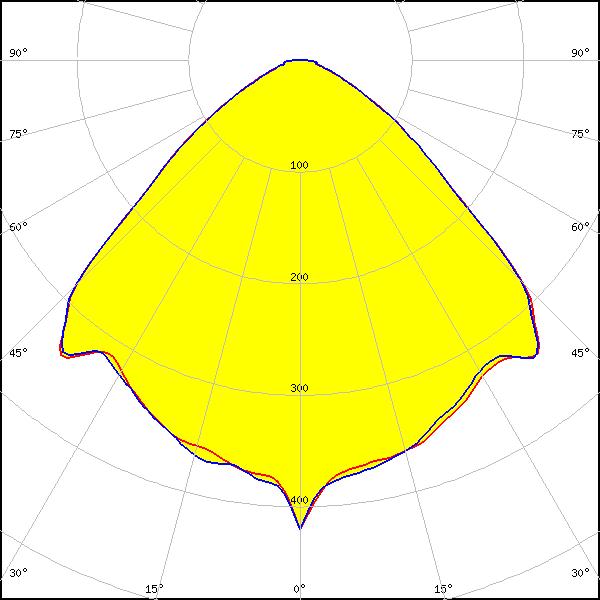

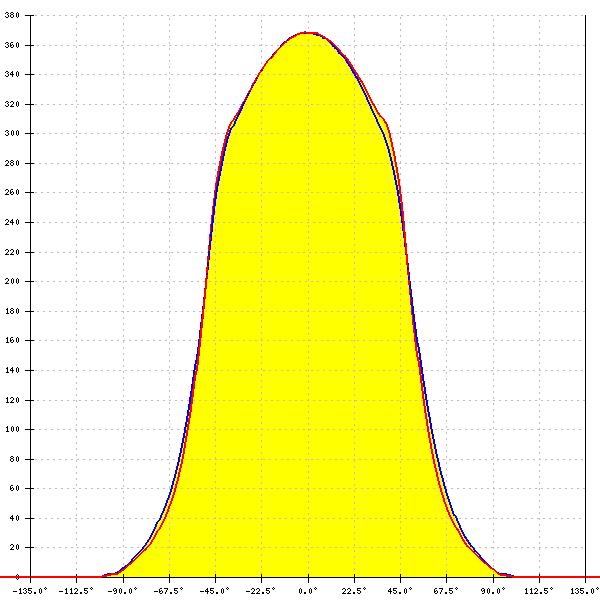

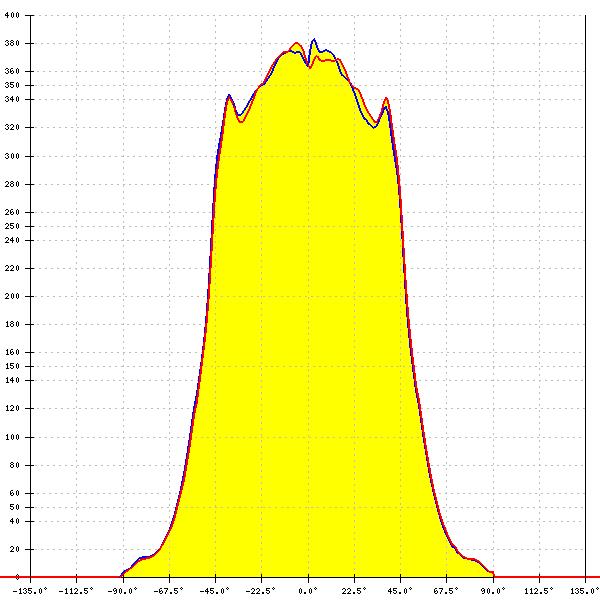

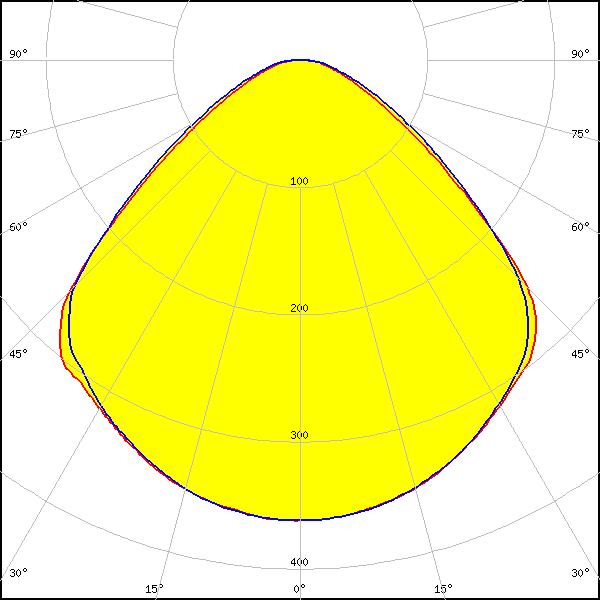

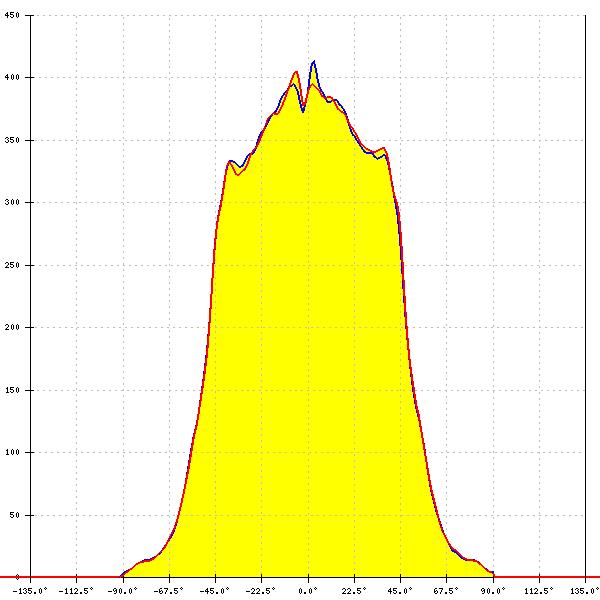

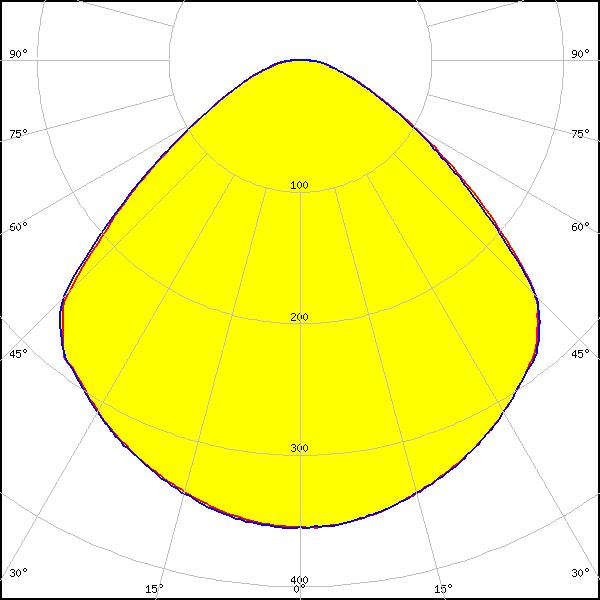

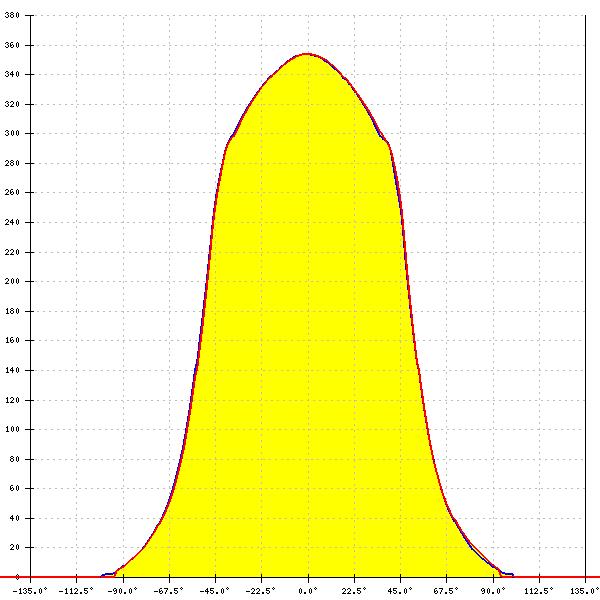

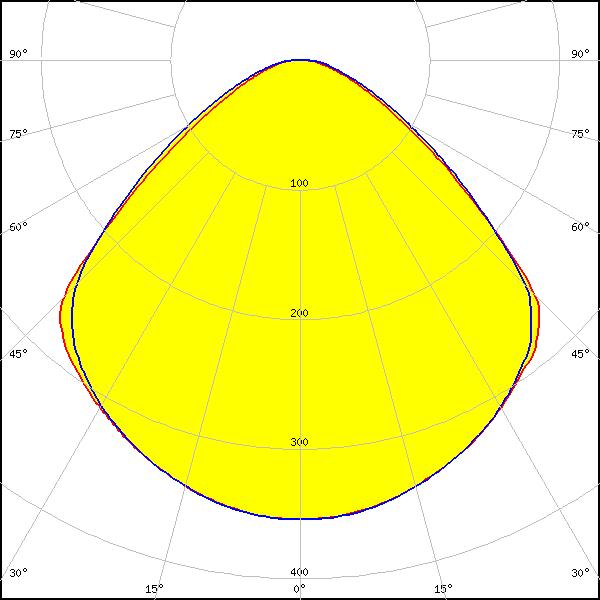

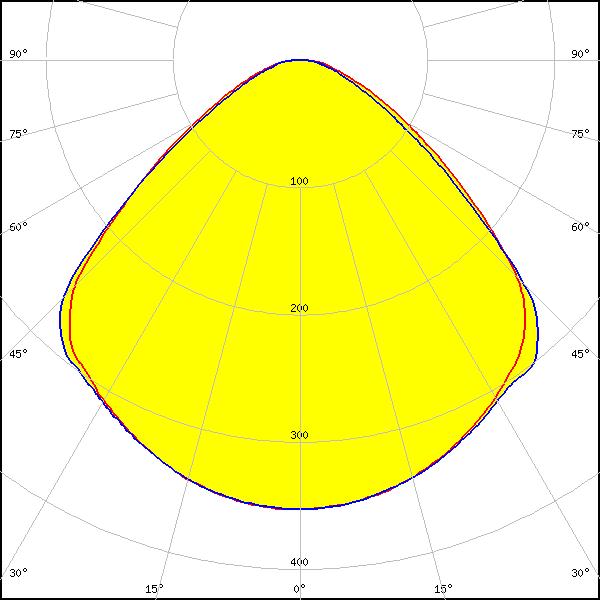

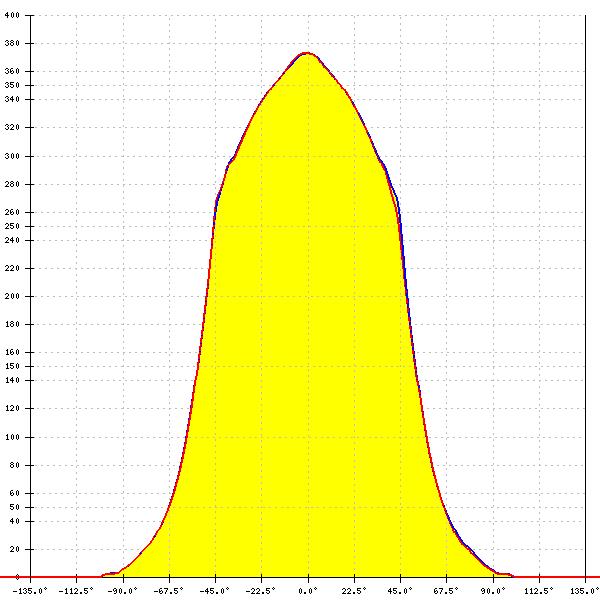

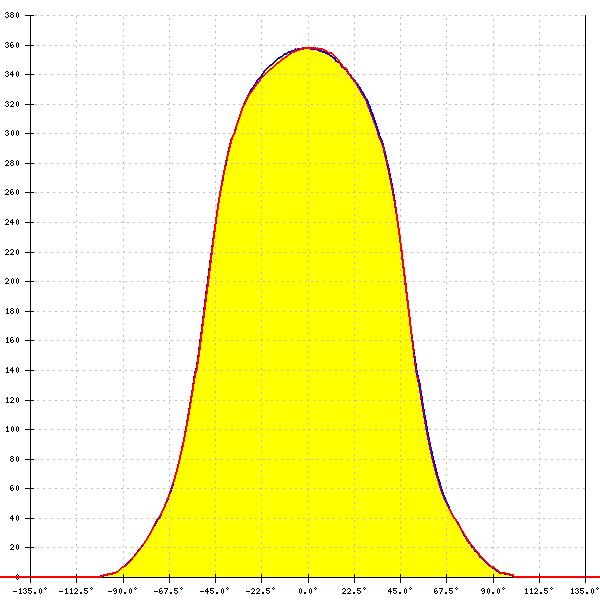

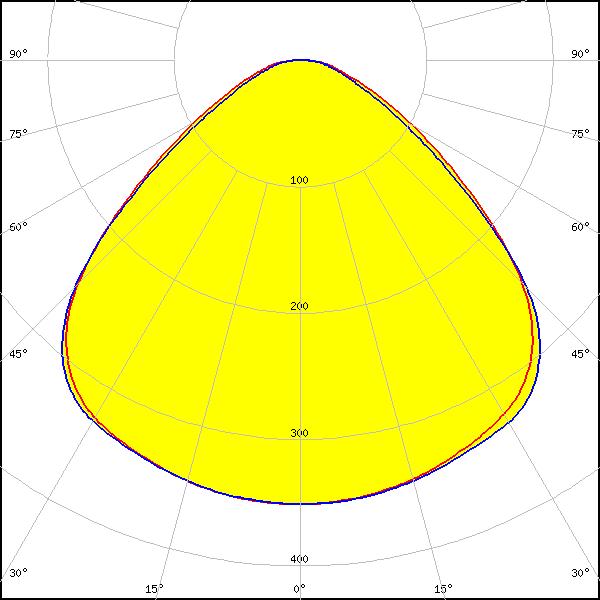

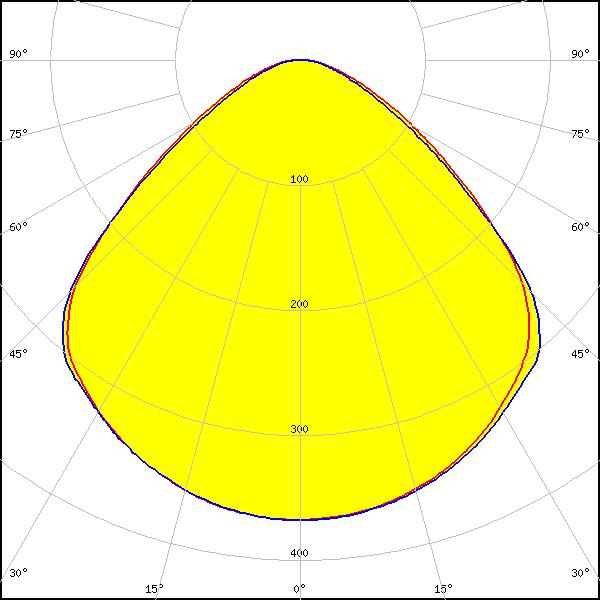

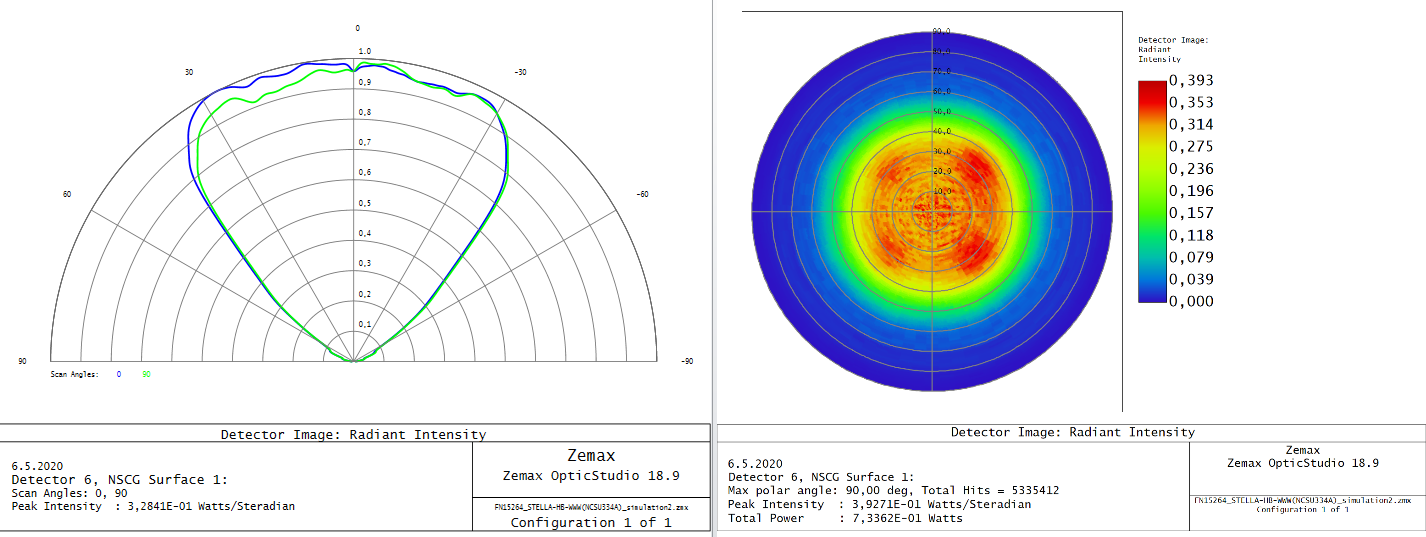

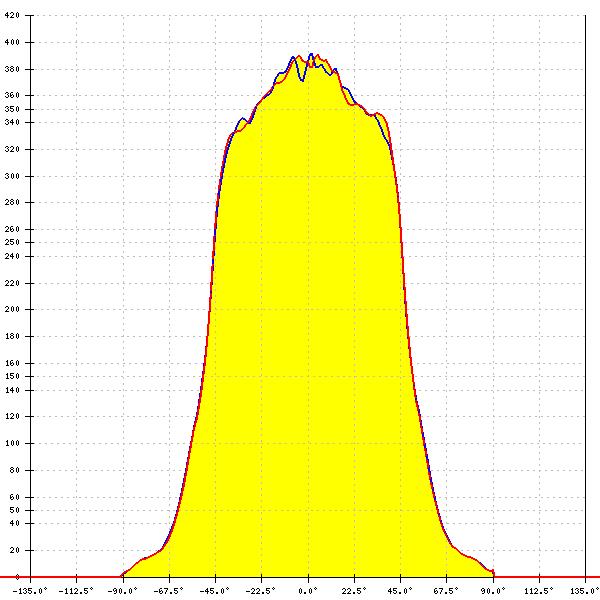

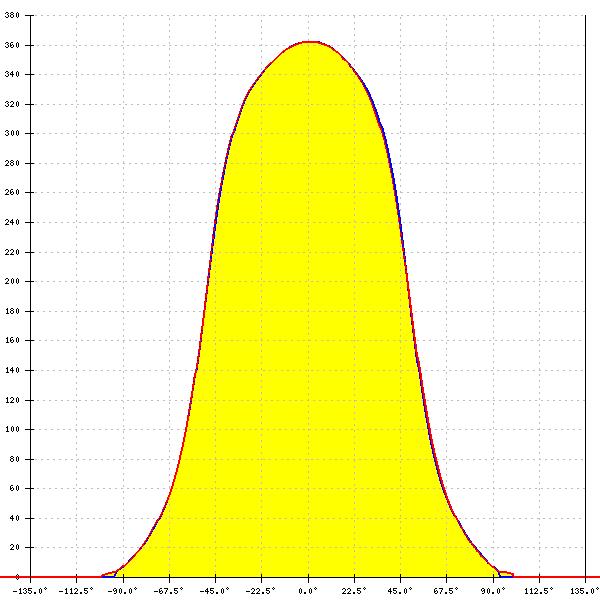

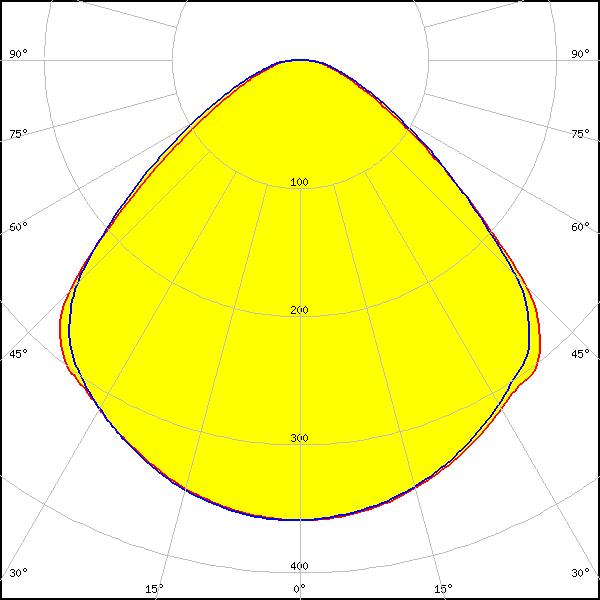

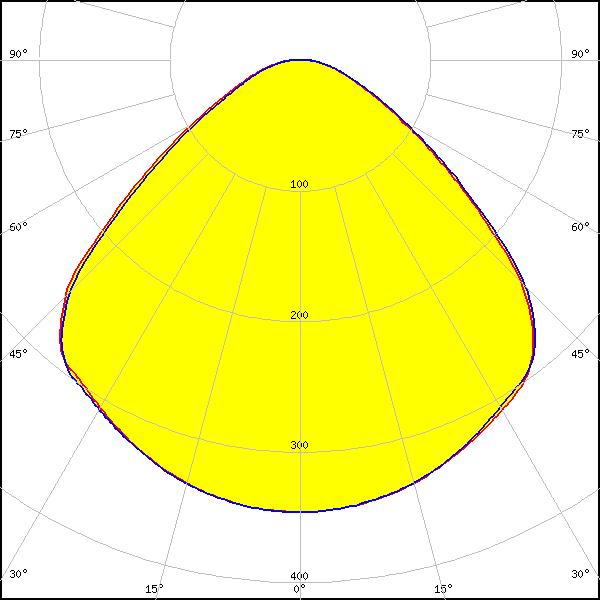

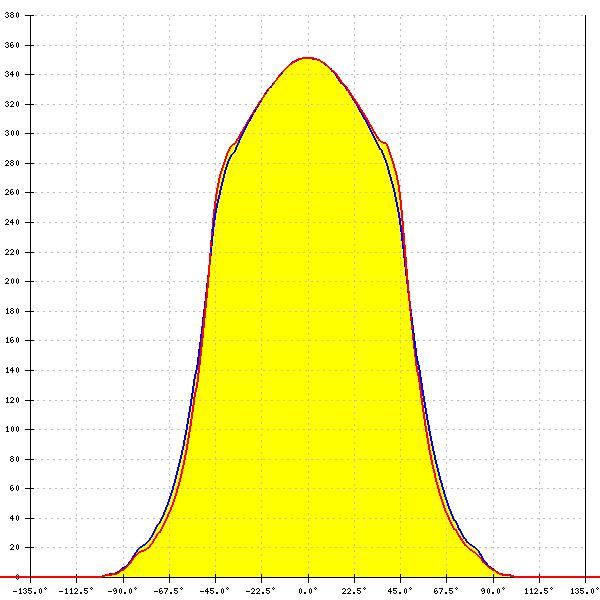

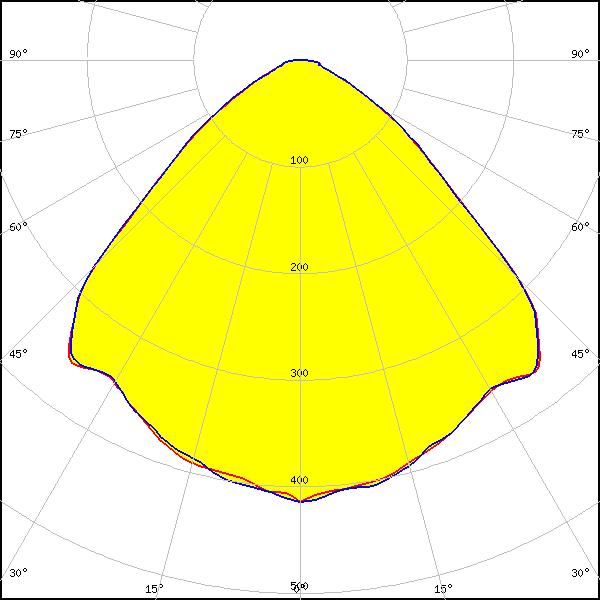

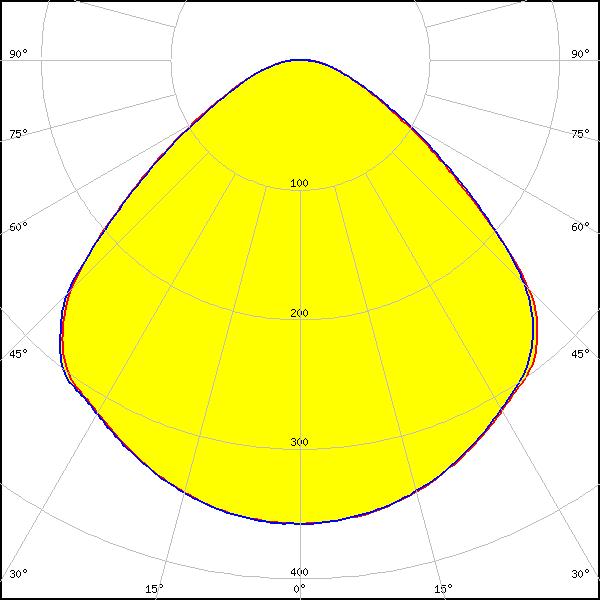

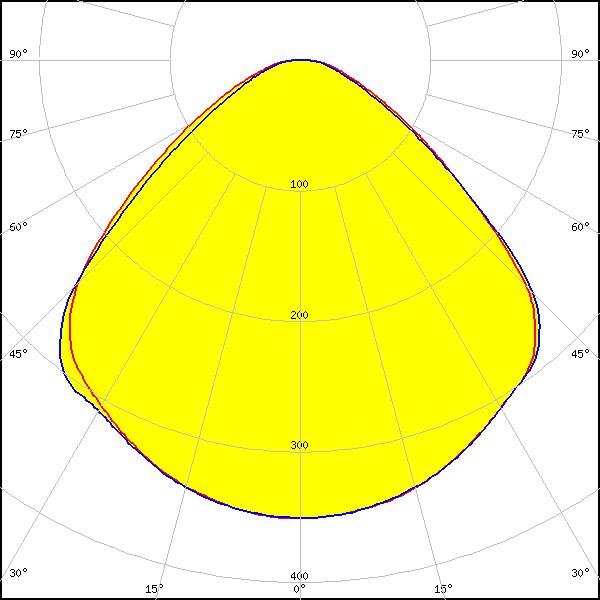

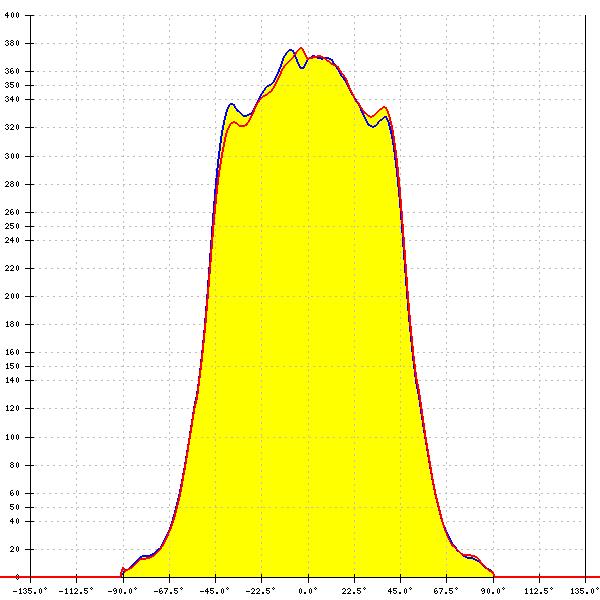

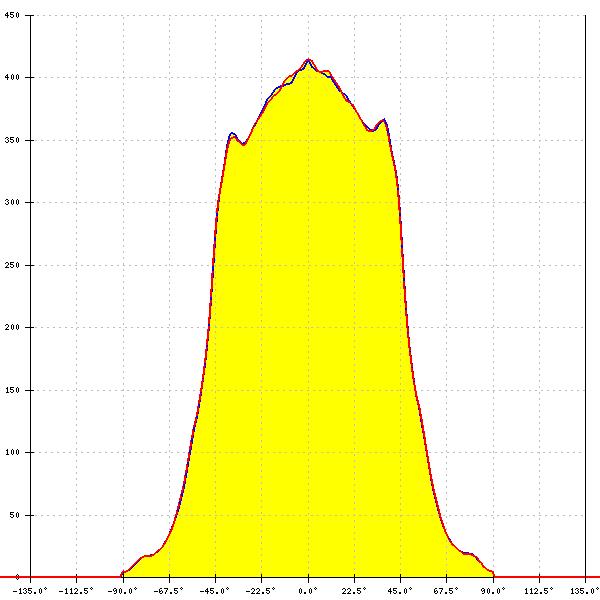

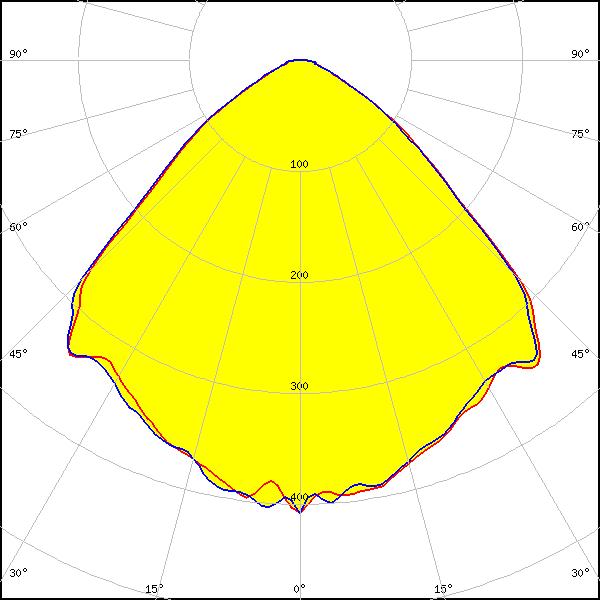

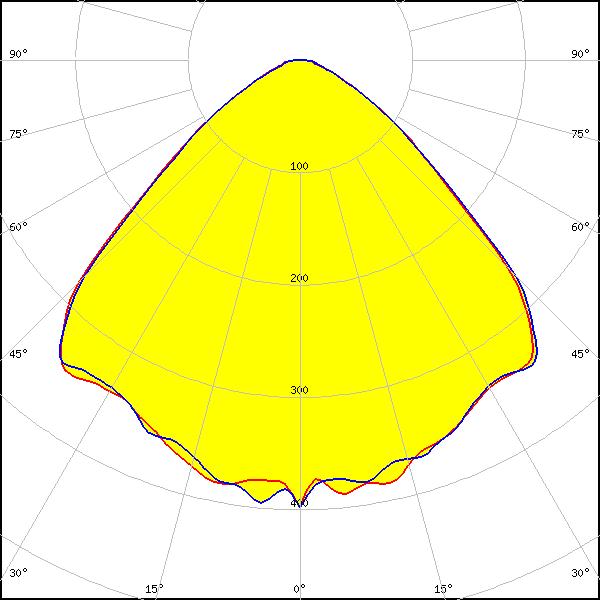

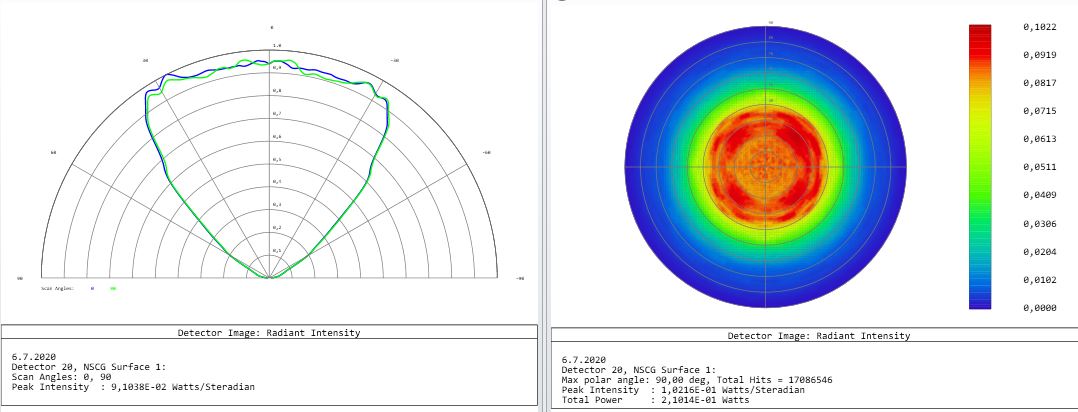

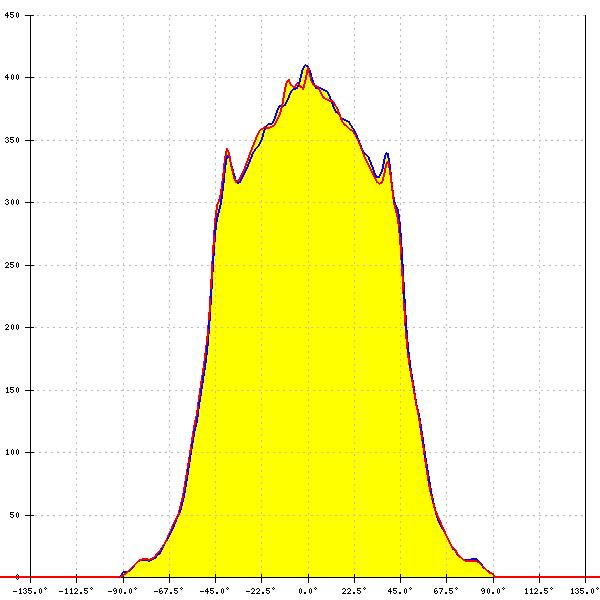

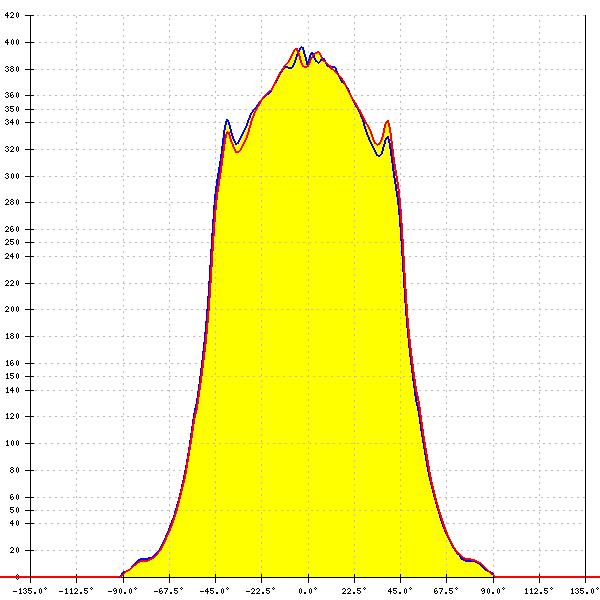

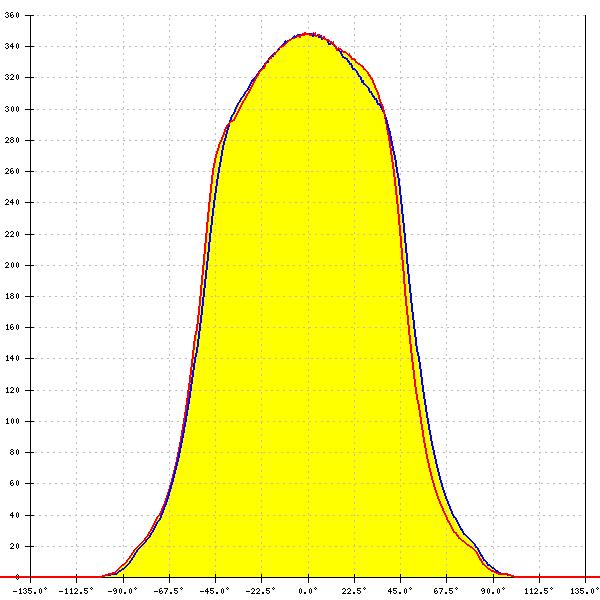

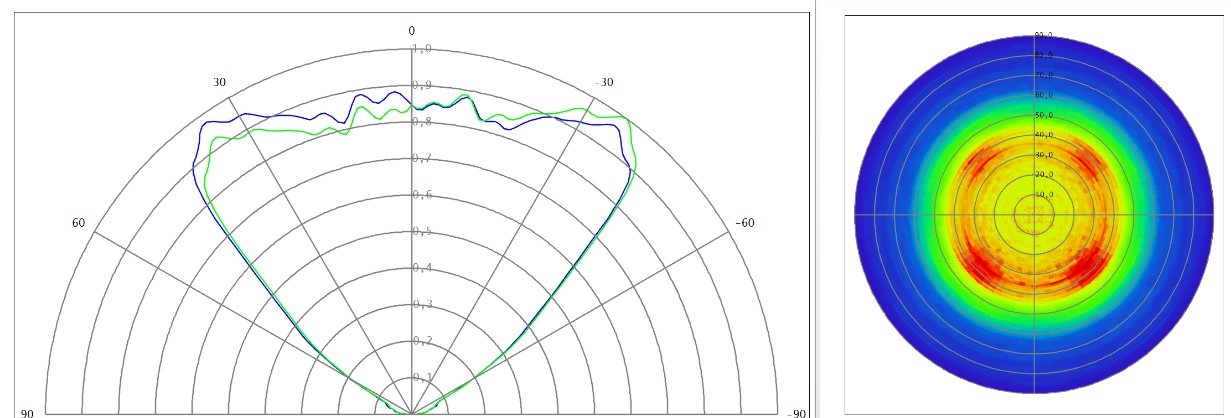

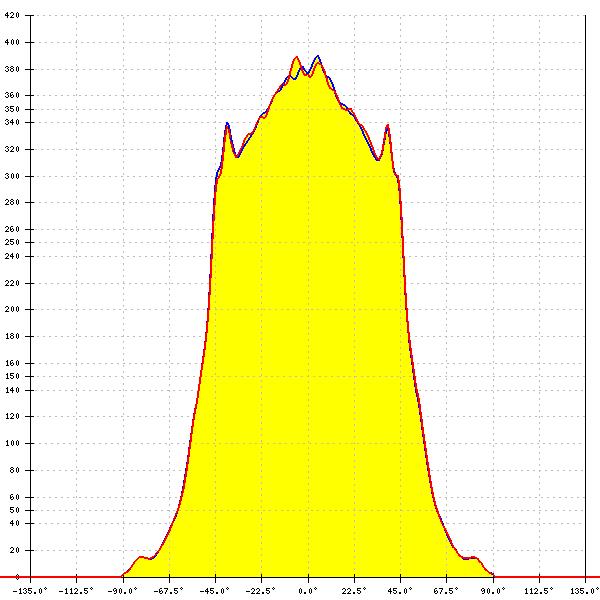

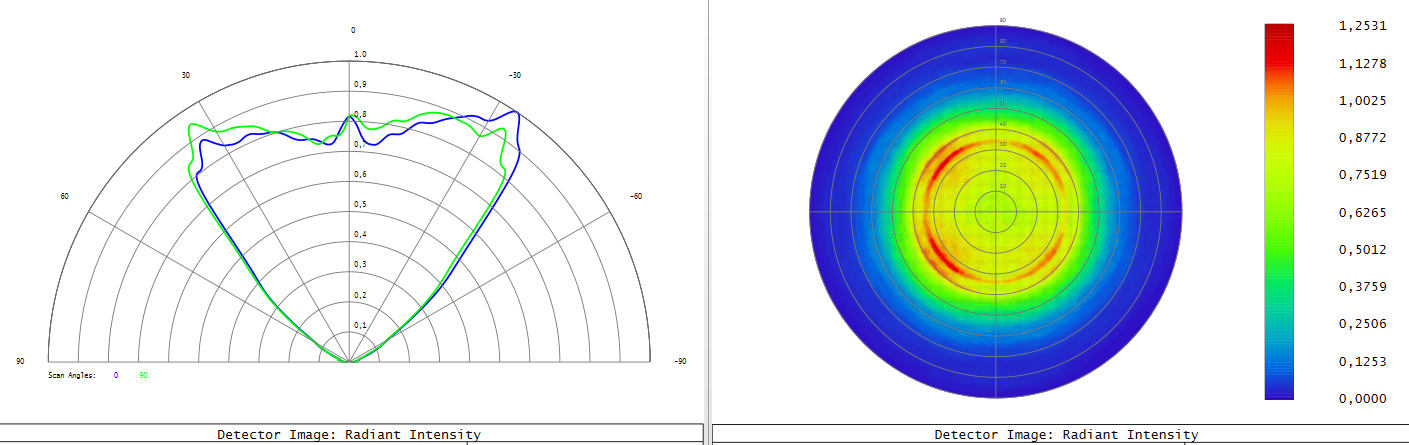

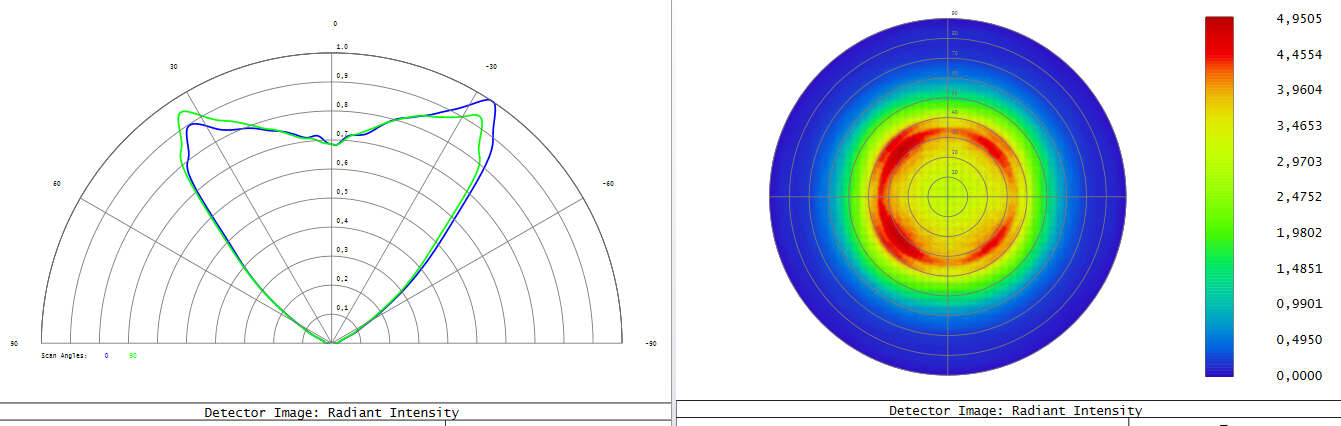

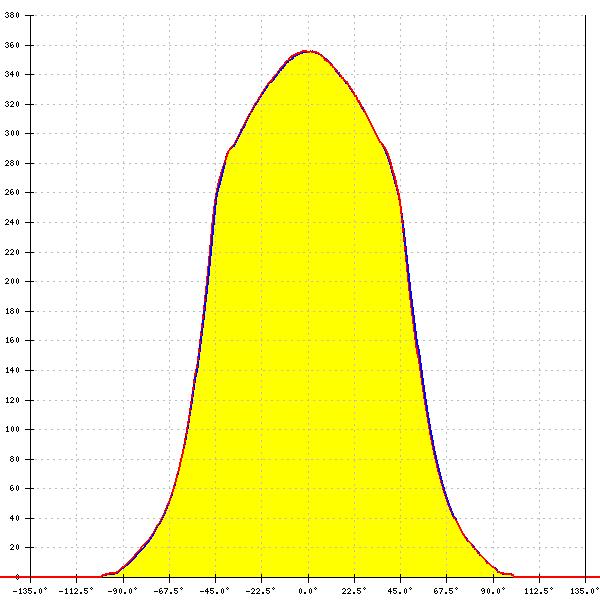

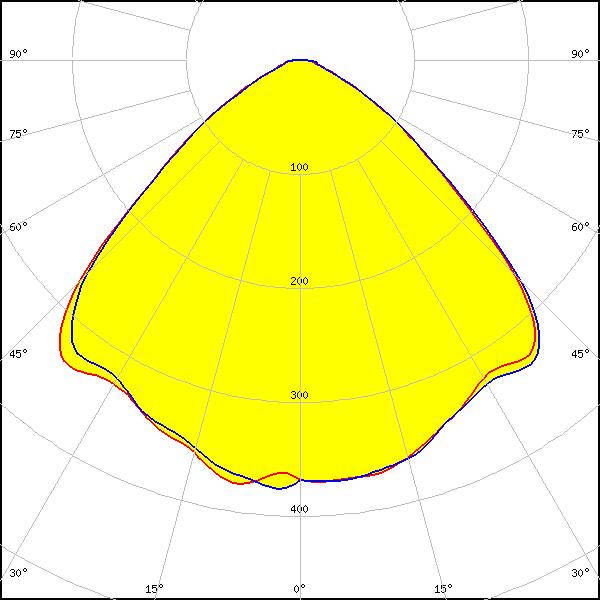

Optical results

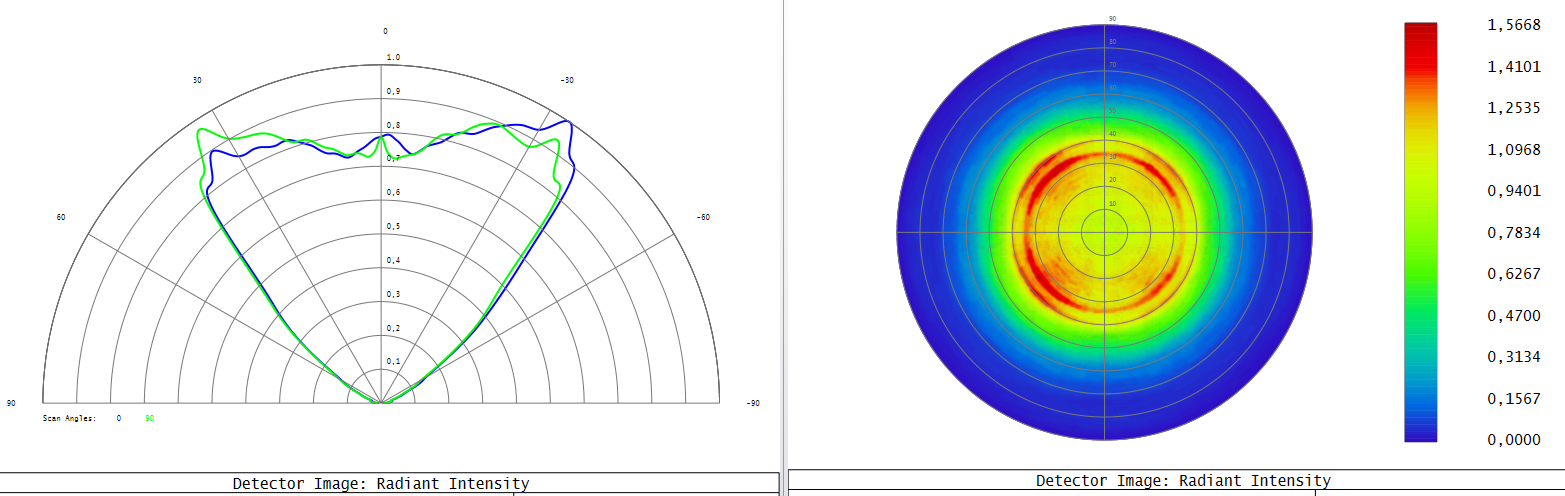

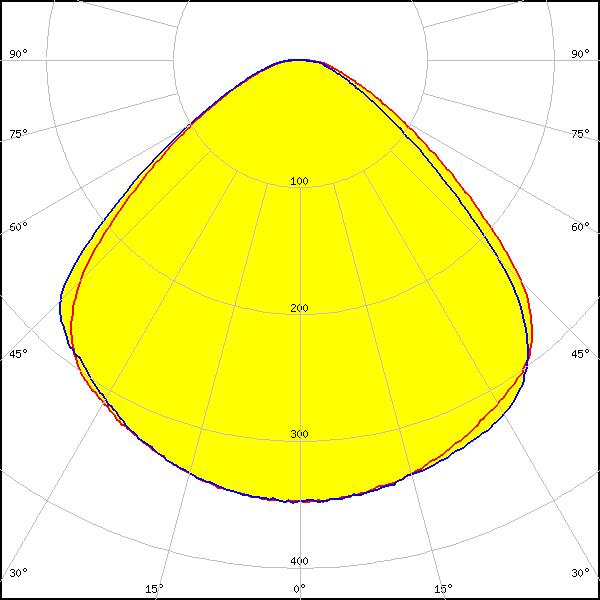

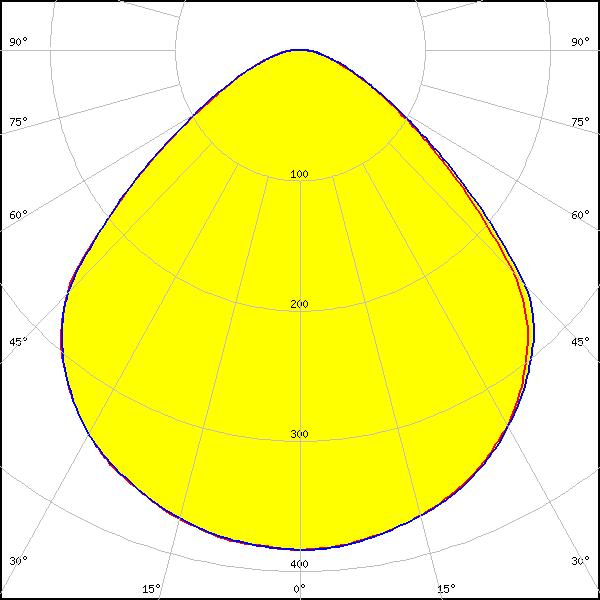

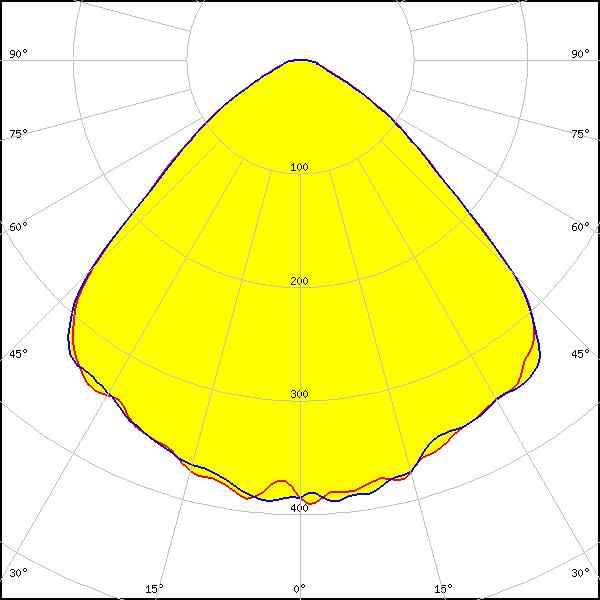

LED: V10 Gen7
Required components:
Bender Wirth: 486 Typ L1
FWHM: 95°
Peak intensity: 0.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

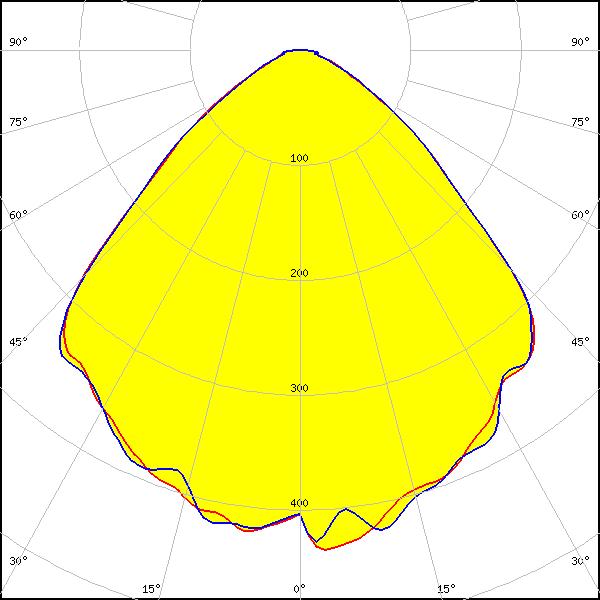

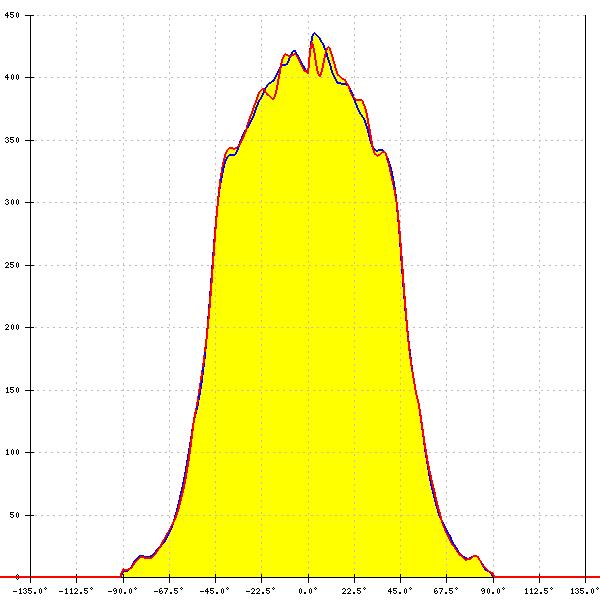

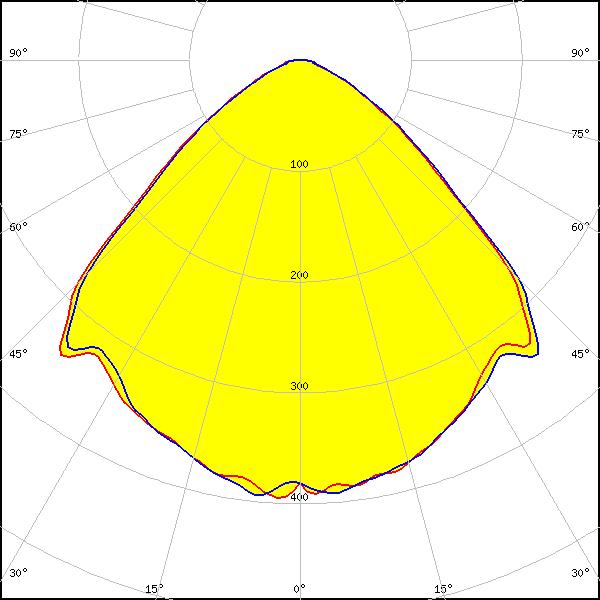

LED: V13 Gen7
Required components:
Bender Wirth: 477 Typ Z1
FWHM: 94°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: V13 Gen7
FWHM: 94°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: V18 Gen7
Required components:
BJB: 47.319.2350
FWHM: 102°
Peak intensity: 0.4 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: V18 Gen7
FWHM: 101°
Peak intensity: 0.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

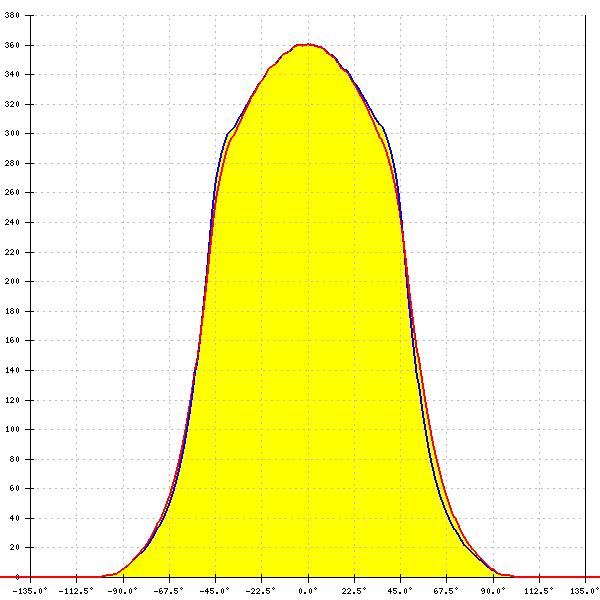

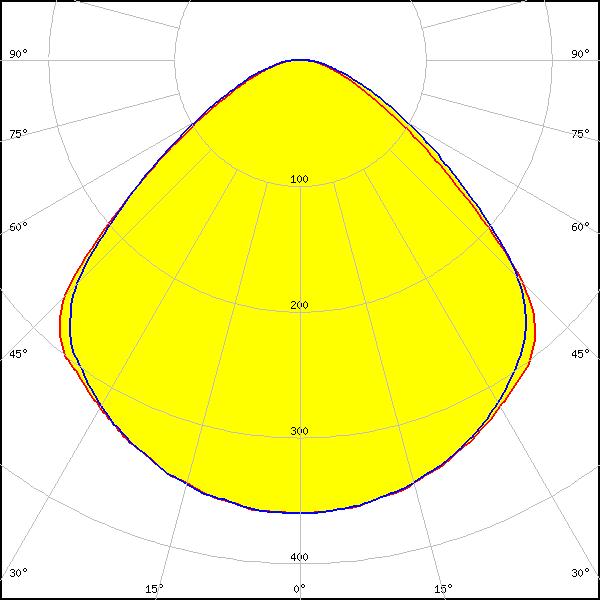

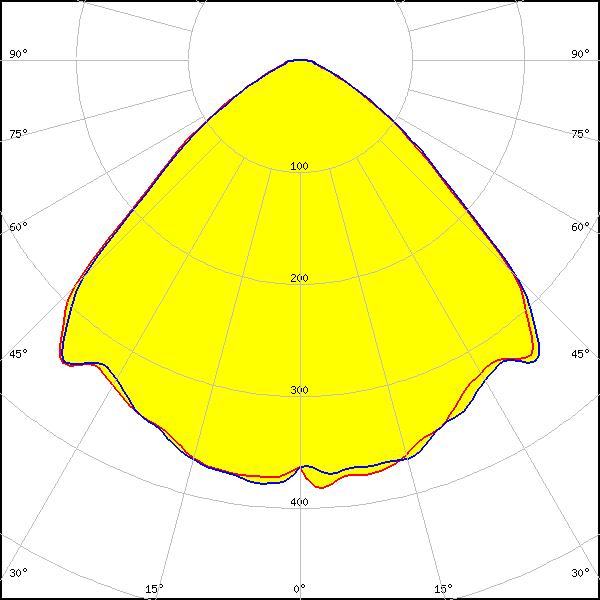

LED: V18 Gen7
Required components:
Bender Wirth: 439 Typ L3
FWHM: 102°
Peak intensity: 0.4 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

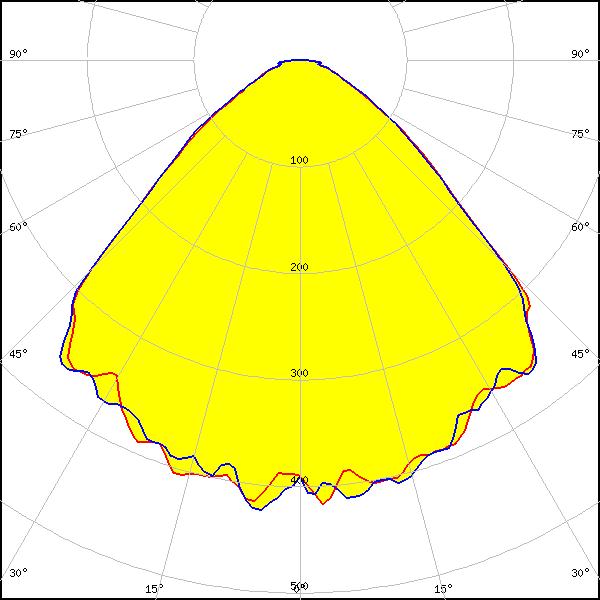

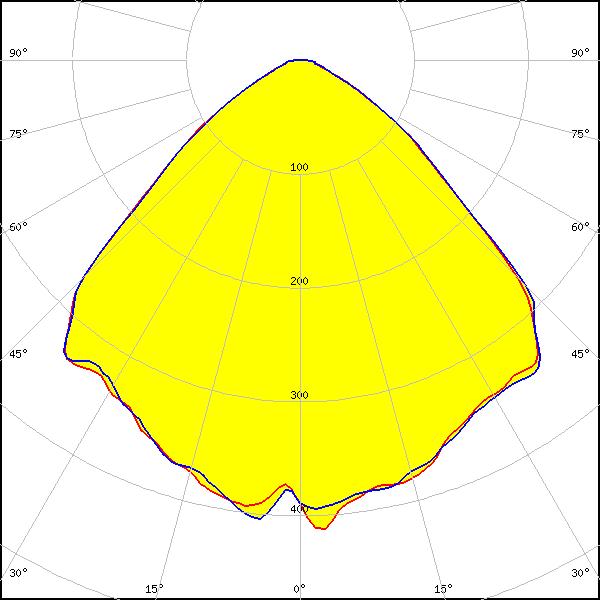

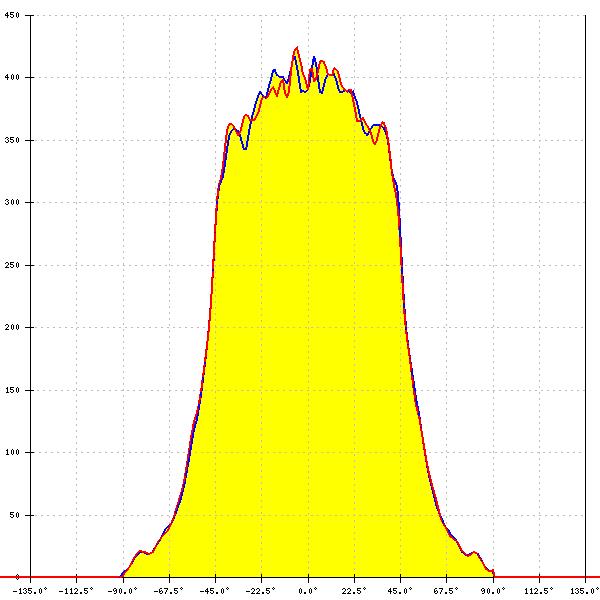

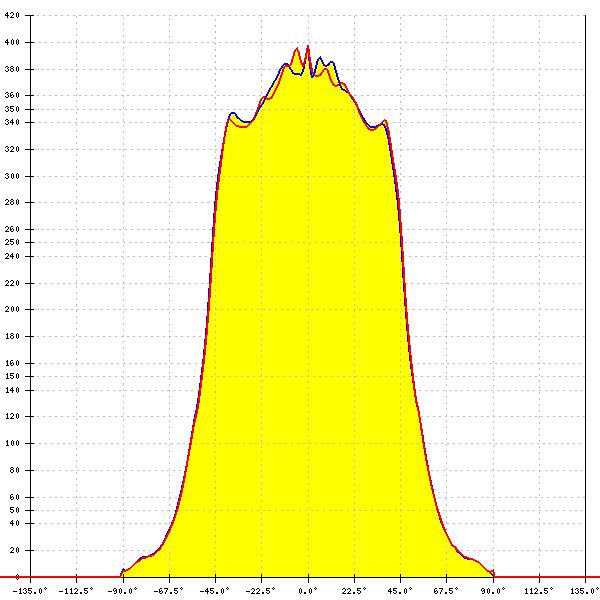

LED: V22 Gen7
FWHM: 101°
Peak intensity: 0.4 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: V22 Gen7
Required components:
IDEAL: 50-2204CT
FWHM: 96°
Peak intensity: 0.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

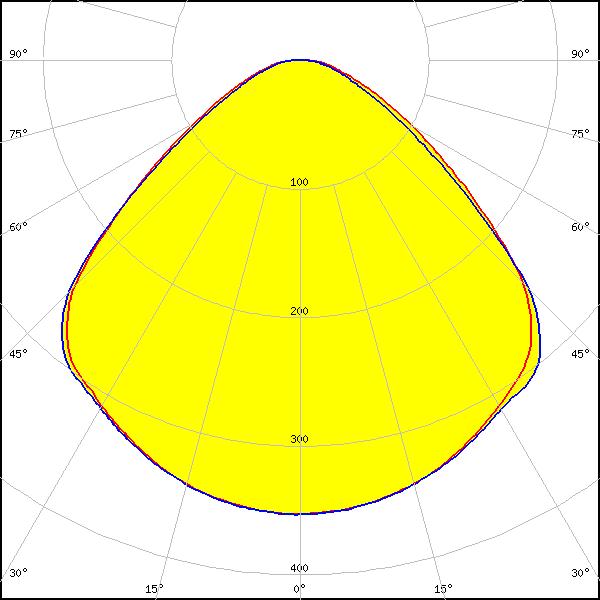

LED: V22 Gen7
Required components:
Bender Wirth: 431 Typ Z1
FWHM: 94°
Peak intensity: 0.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: V22 Gen7
Required components:
TE: 2213480-1
FWHM: 102°
Peak intensity: 0.4 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: V22 Gen7
Required components:
Bender Wirth: 431 Typ Z1
FWHM: 102°
Peak intensity: 0.4 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

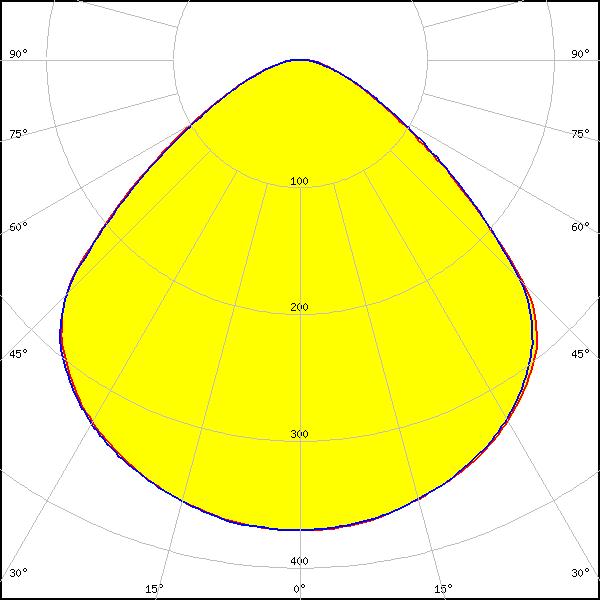

LED: Vero SE 13
FWHM: 101°
Peak intensity: 0.4 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

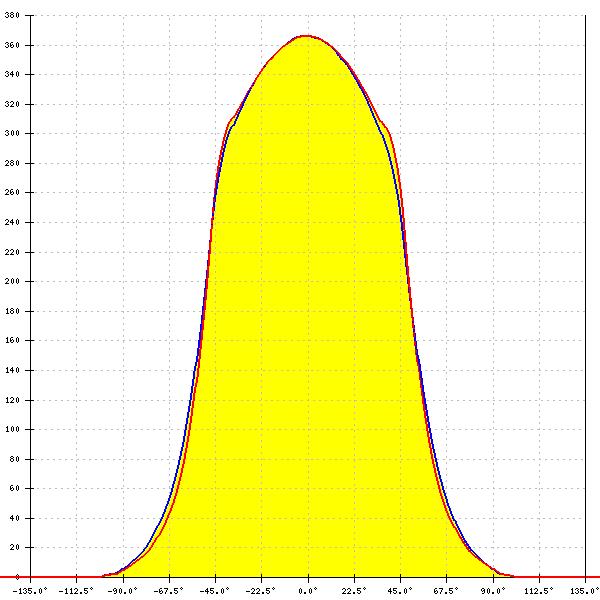

LED: Vero SE 18
FWHM: 101°
Peak intensity: 0.4 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

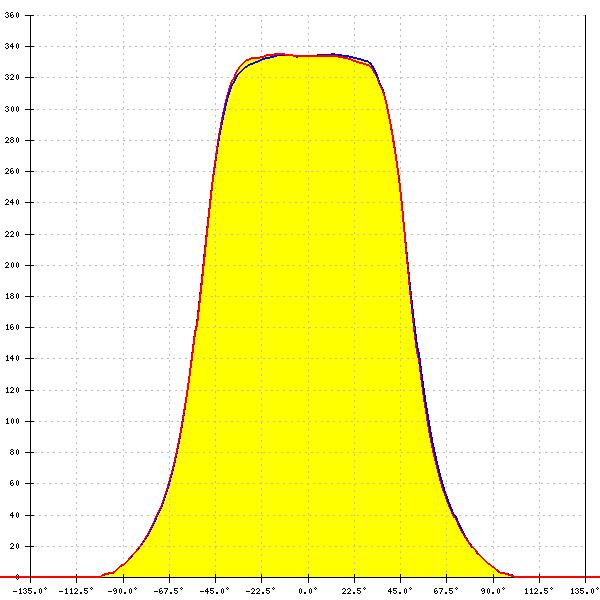

LED: Vero SE 29
FWHM: 105°
Peak intensity: 0.3 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

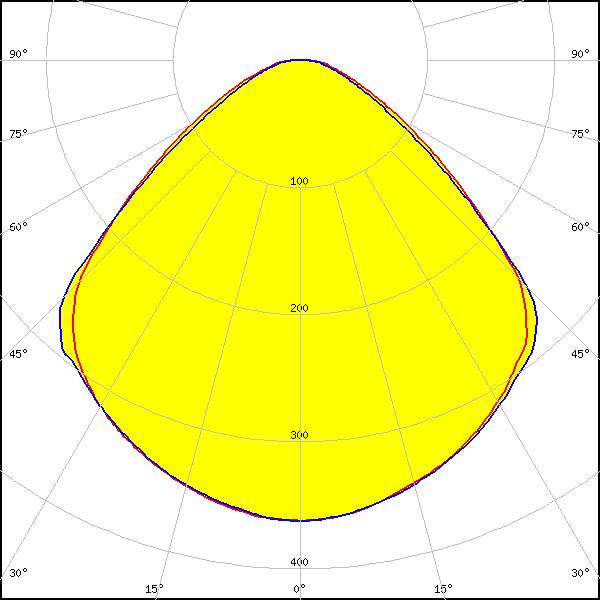

LED: VERO13
FWHM: 100°
Peak intensity: 0.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

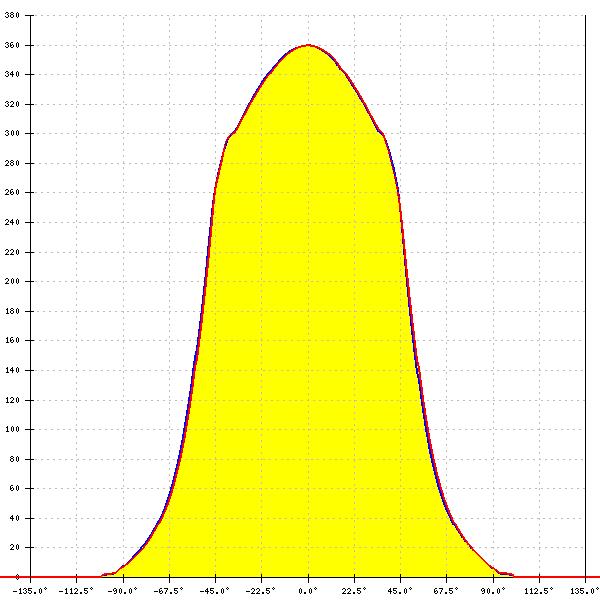

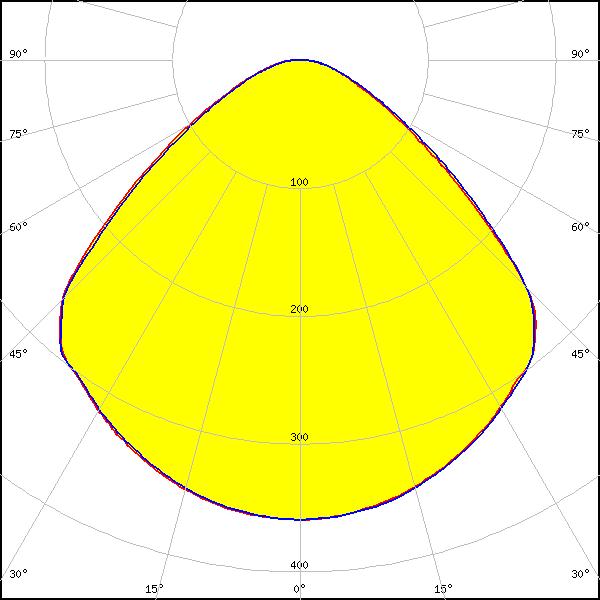

LED: VERO18
FWHM: 102°
Peak intensity: 0.4 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

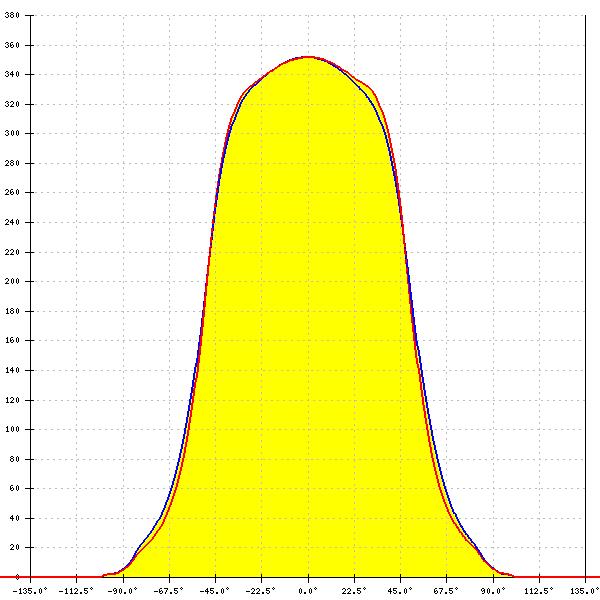

LED: VERO29
FWHM: 103°
Peak intensity: 0.4 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

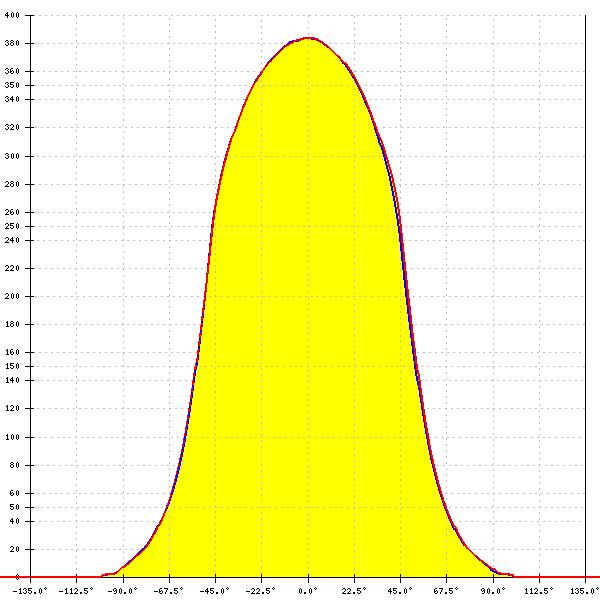

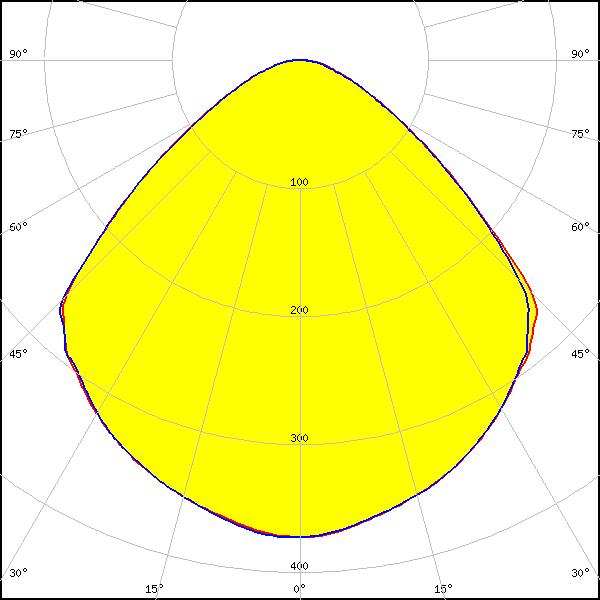

LED: CLL02x/CLU02x (LES10)
FWHM: 100°
Peak intensity: 0.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: CLL02x/CLU02x (LES10)
Required components:
FWHM: 100°
Peak intensity: 0.4 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

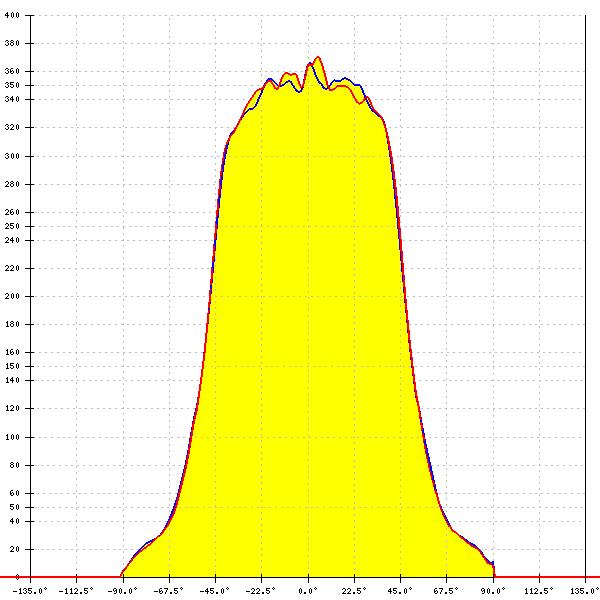

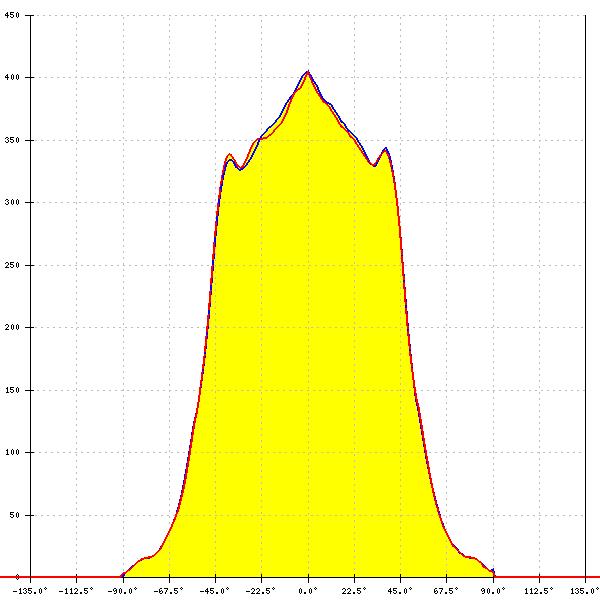

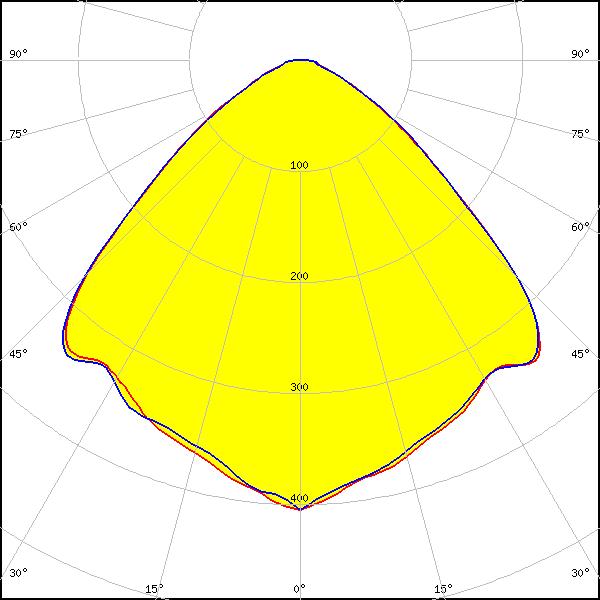

LED: CLL03x/CLU03x
FWHM: 98°
Peak intensity: 0.4 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

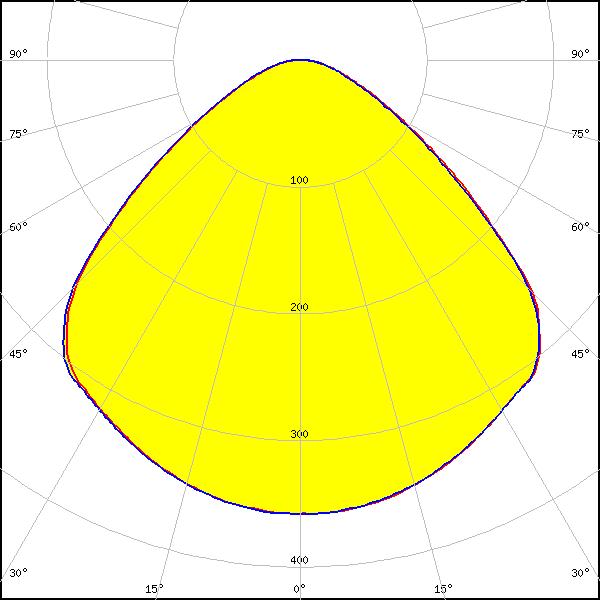

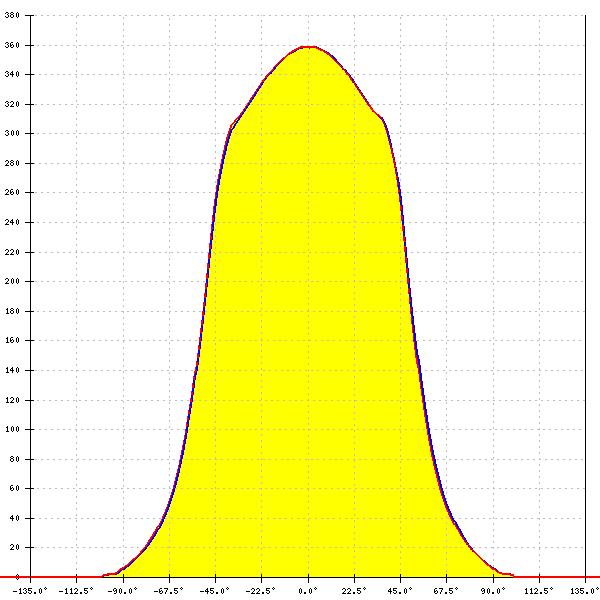

LED: CLL04x/CLU04x
FWHM: 102°
Peak intensity: 0.4 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

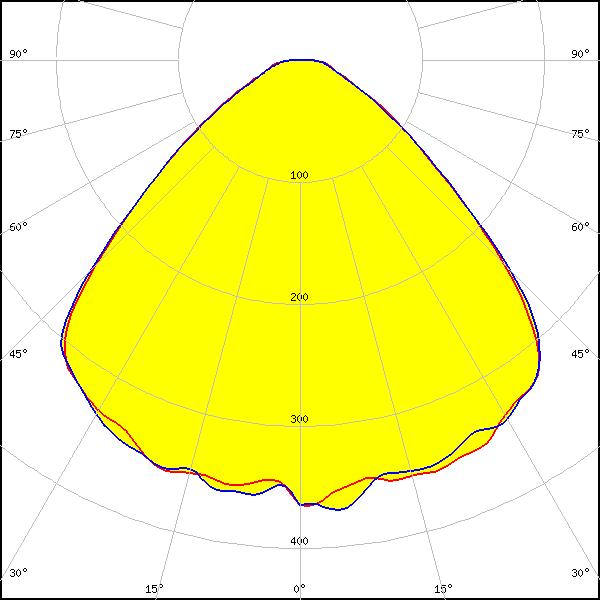

LED: CLL05x/CLU05x
FWHM: 97°
Peak intensity: 0.4 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

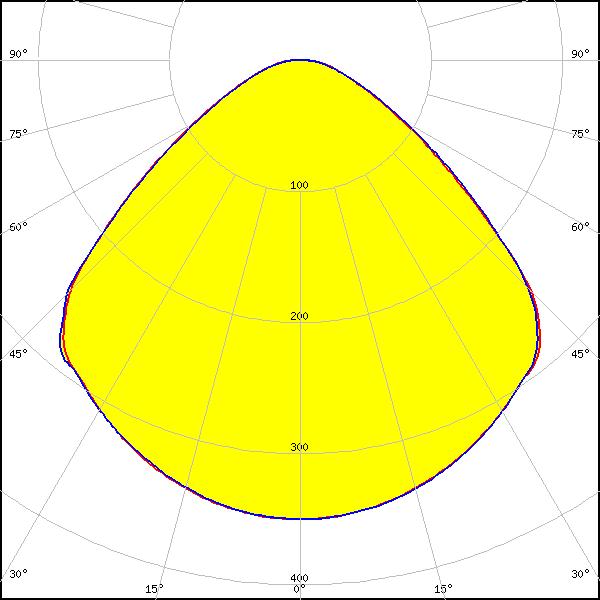

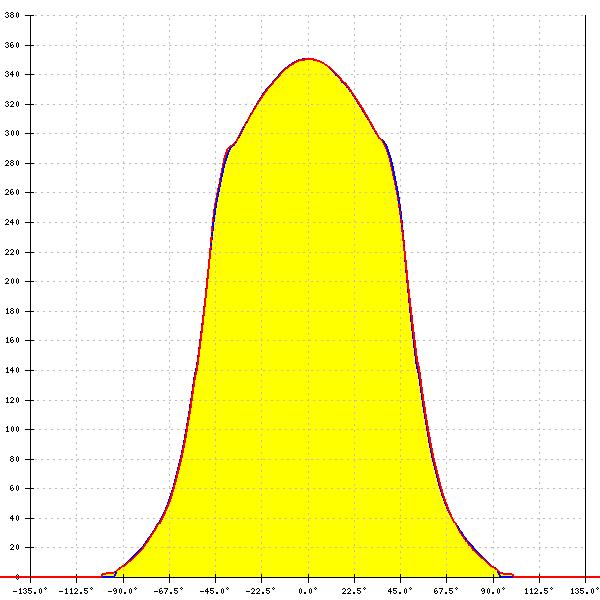

LED: CMA2550
FWHM: 102°
Peak intensity: 0.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

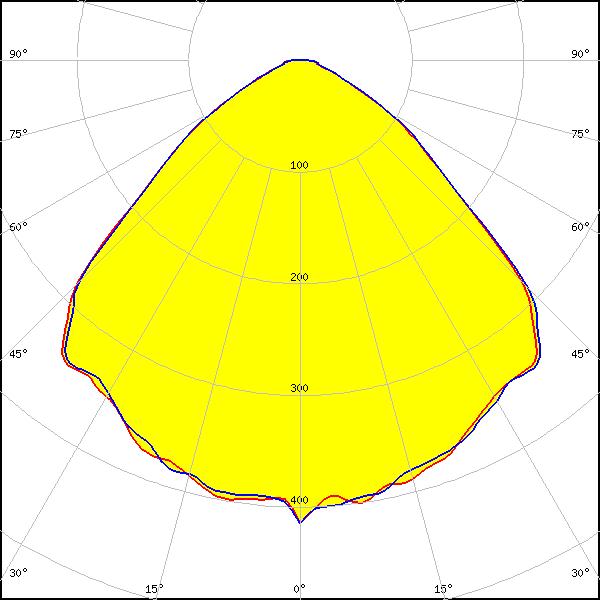

LED: CMA3090
FWHM: 97°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: CMA3090
FWHM: 102°
Peak intensity: 0.3 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

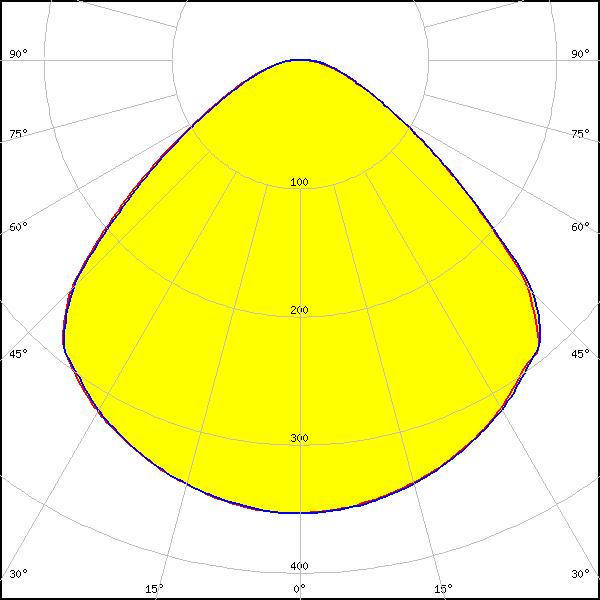

LED: CMT19xx
Required components:
Bender Wirth: 477 Typ Z1
FWHM: 101°
Peak intensity: 0.4 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

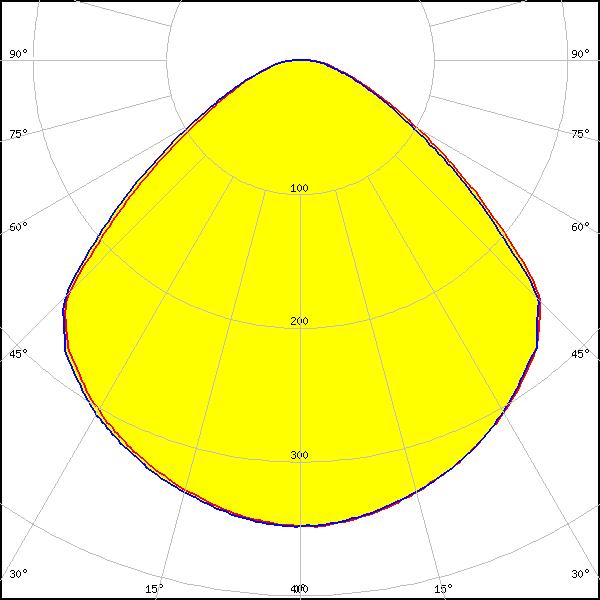

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
FWHM: 102°
Peak intensity: 0.4 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

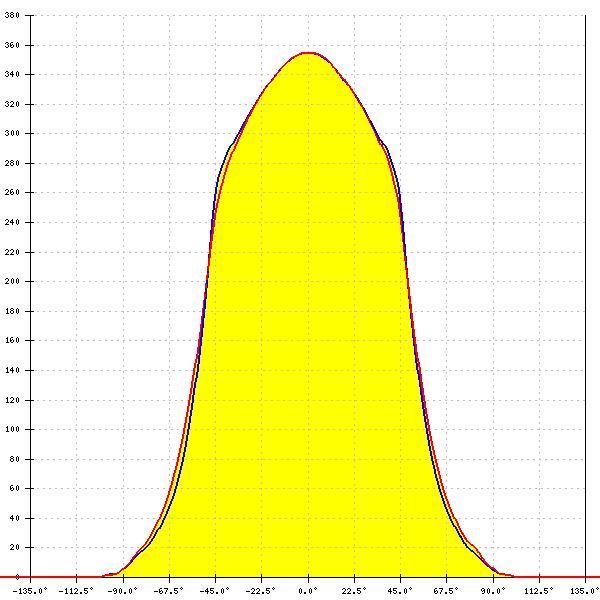

LED: CXA/B 1830
Required components:
FWHM: 102°
Peak intensity: 0.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

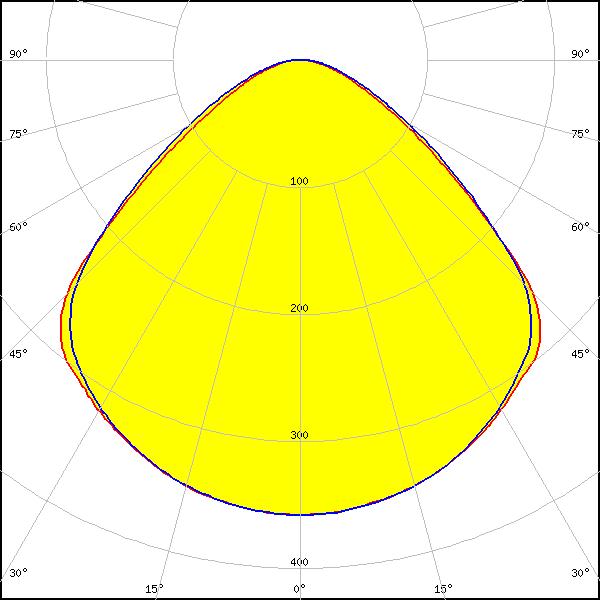

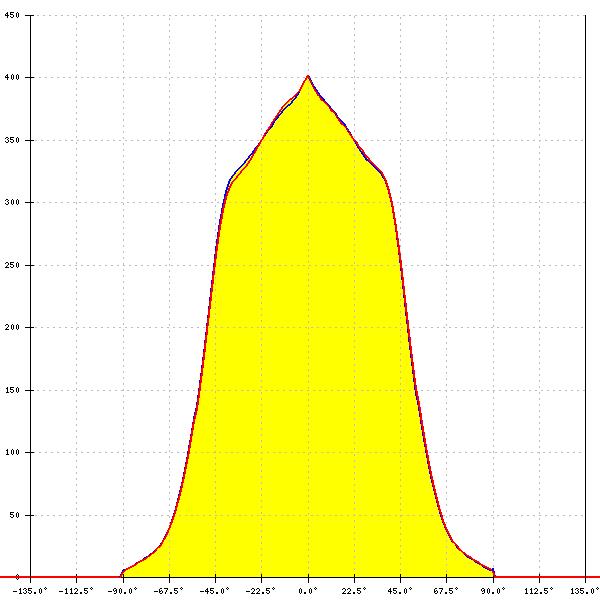

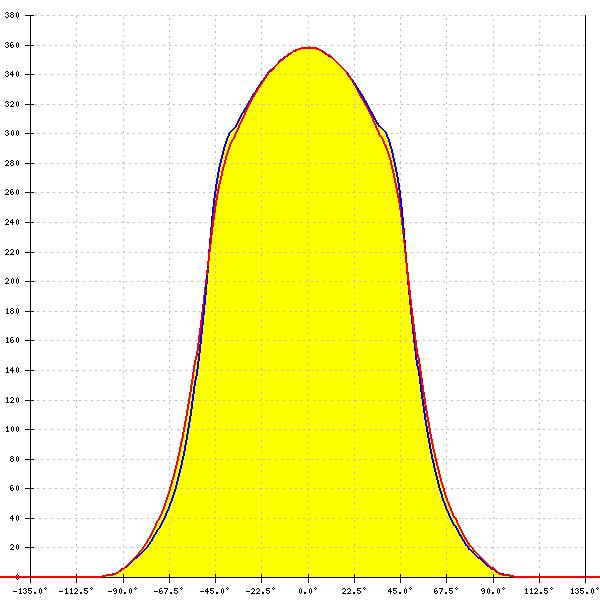

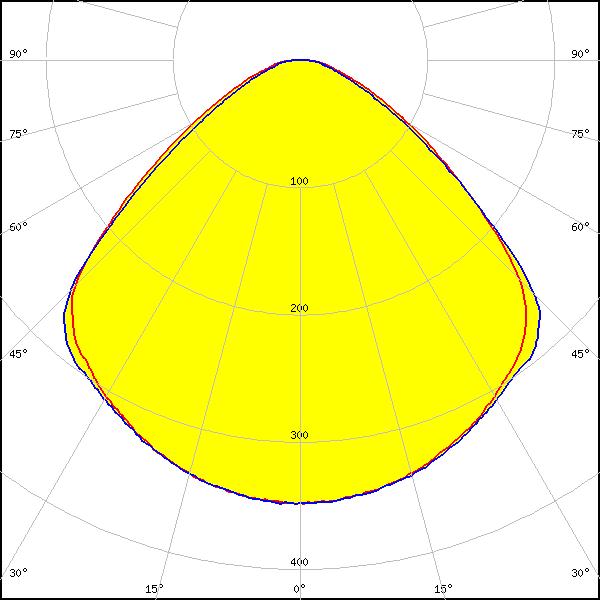

LED: CXA/B 25xx
Required components:
Bender Wirth: 439 Typ L3
FWHM: 101°
Peak intensity: 0.4 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: CXA/B 25xx
FWHM: 102°
Peak intensity: 0.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: CXA/B 25xx
FWHM: 98°
Peak intensity: 0.4 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

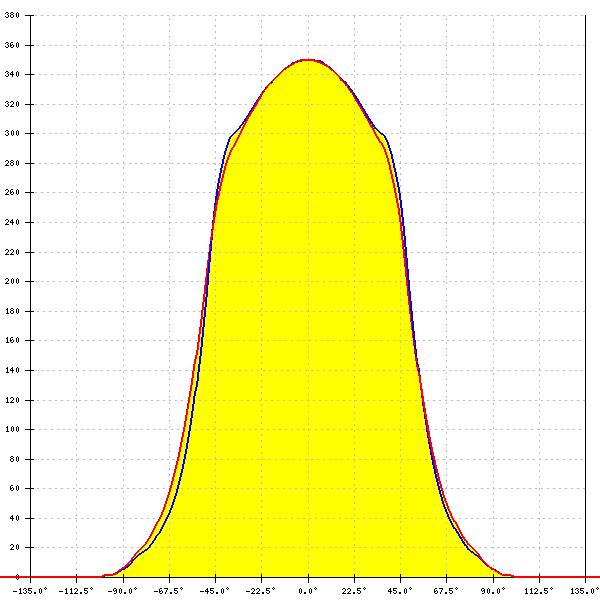

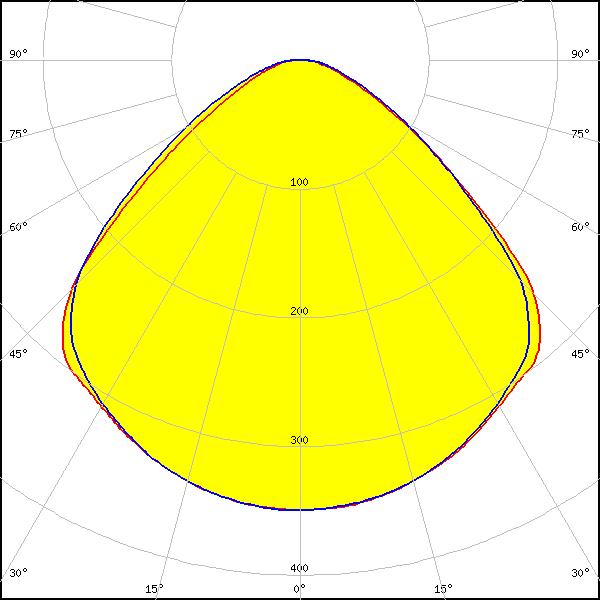

LED: CXA/B 30xx
FWHM: 102°
Peak intensity: 0.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

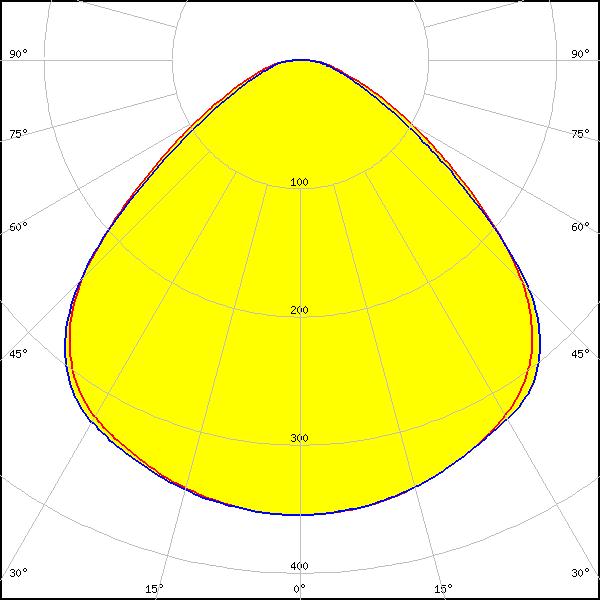

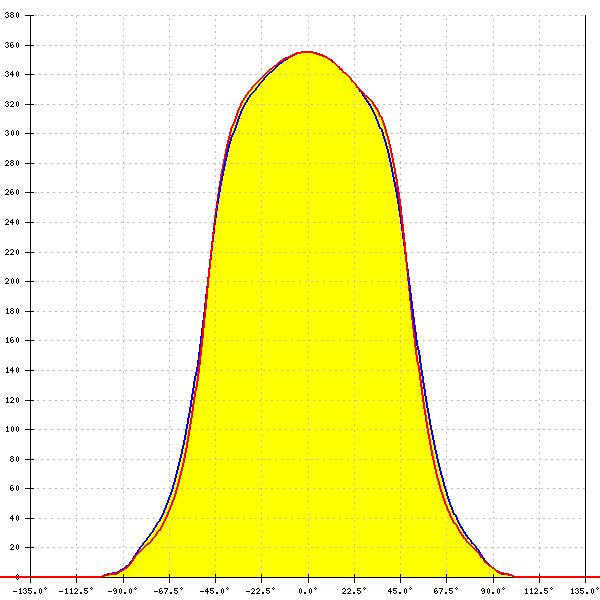

LED: CXA/B 3590
FWHM: 102°
Peak intensity: 0.4 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

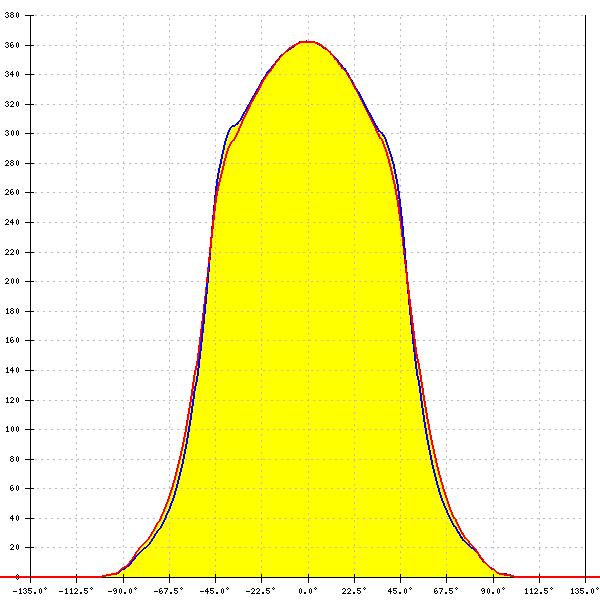

LED: LUXEON CoB 1211
Required components:
Bender Wirth: 431 Typ L3
FWHM: 101°
Peak intensity: 0.4 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CoB 1216/1812
Required components:
Bender Wirth: 431 Typ L4
FWHM: 99°
Peak intensity: 0.4 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

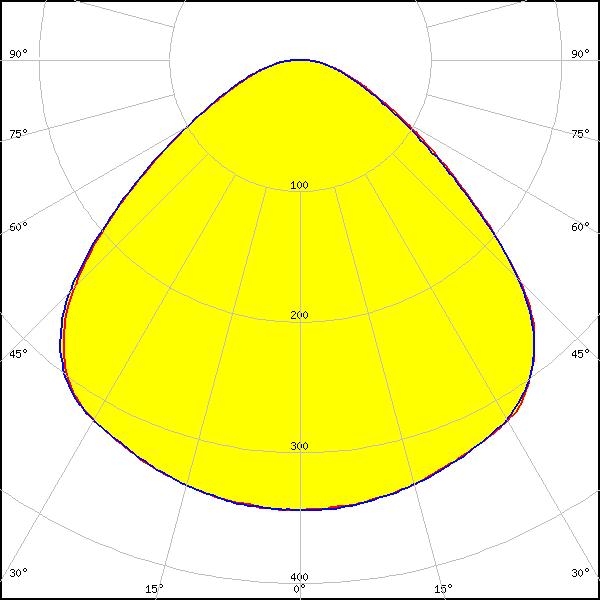

LED: LUXEON CoB 1321
FWHM: 102°
Peak intensity: 0.3 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

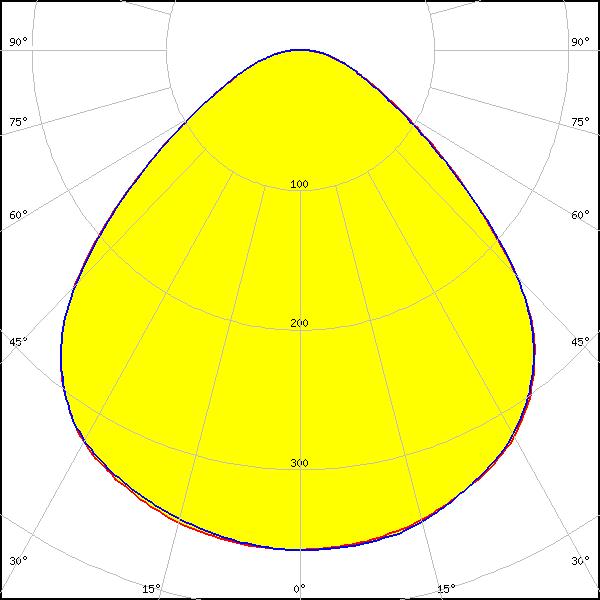

LED: LUXEON CoB 1825
FWHM: 100°
Peak intensity: 0.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: COB H-Type
FWHM: 101°
Peak intensity: 0.4 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: COB J-Type
FWHM: 102°
Peak intensity: 0.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

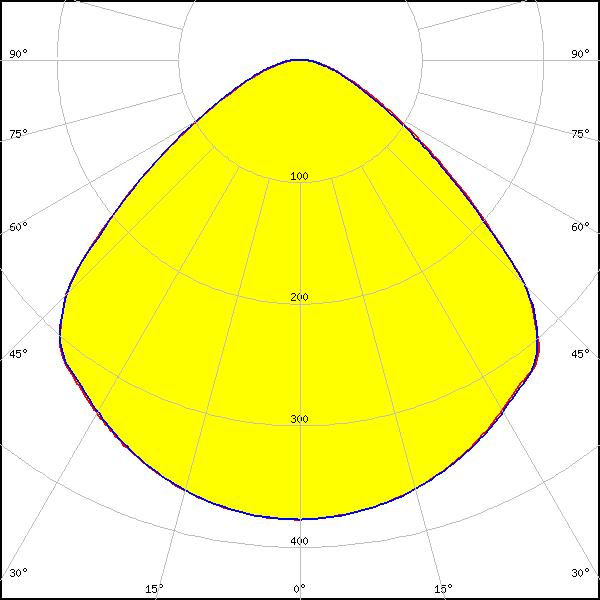

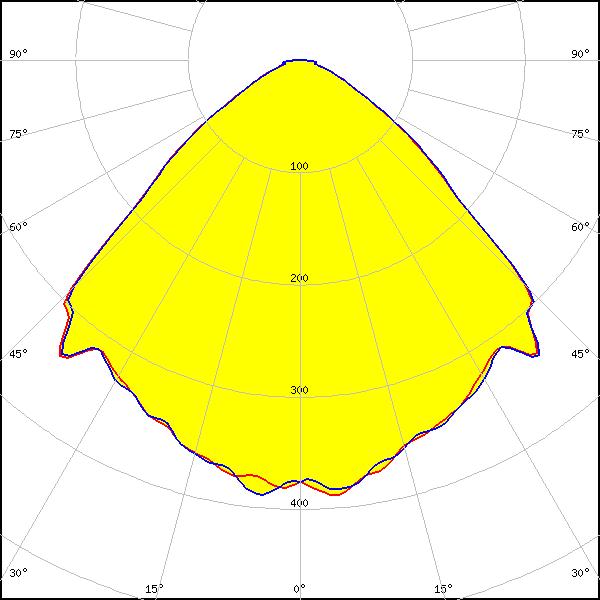

LED: Fortimo SLM L19 + SLM holder (PI)
FWHM: 101°
Peak intensity: 0.4 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

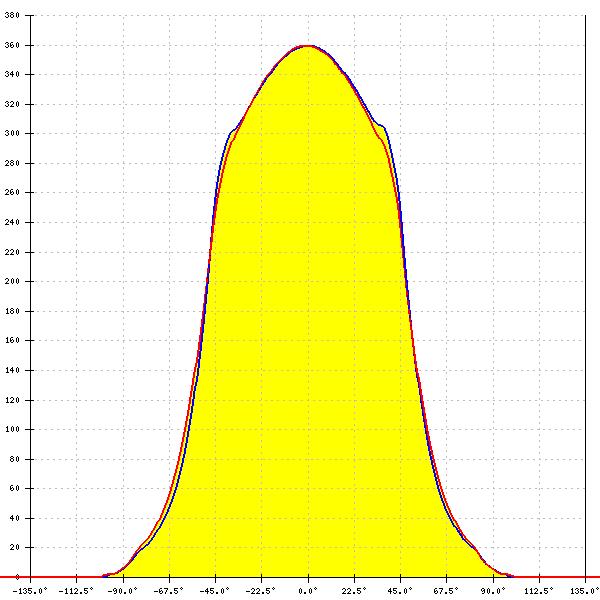

LED: Fortimo SLM L19 CoB
Required components:
Bender Wirth: 431 Typ Z1
FWHM: 100°
Peak intensity: 0.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

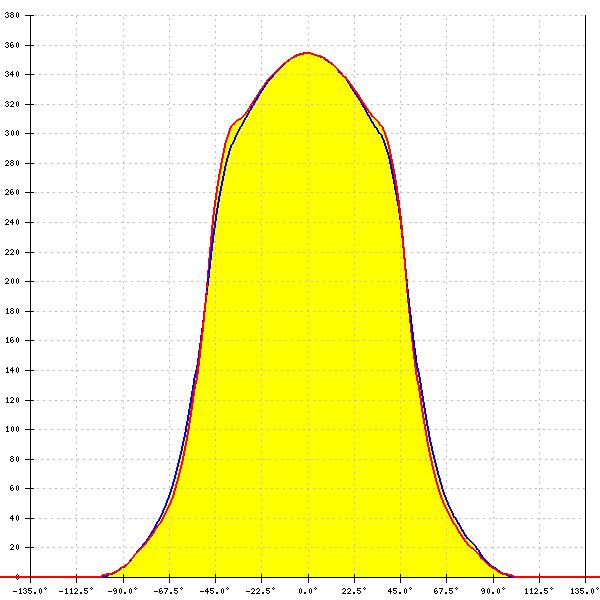

LED: Fortimo SLM L23 CoB
Required components:
Bender Wirth: 431 Typ Z1
FWHM: 145°
Peak intensity: 0.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: COB D Series LES 22 mm
FWHM: 102°
Peak intensity: 0.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

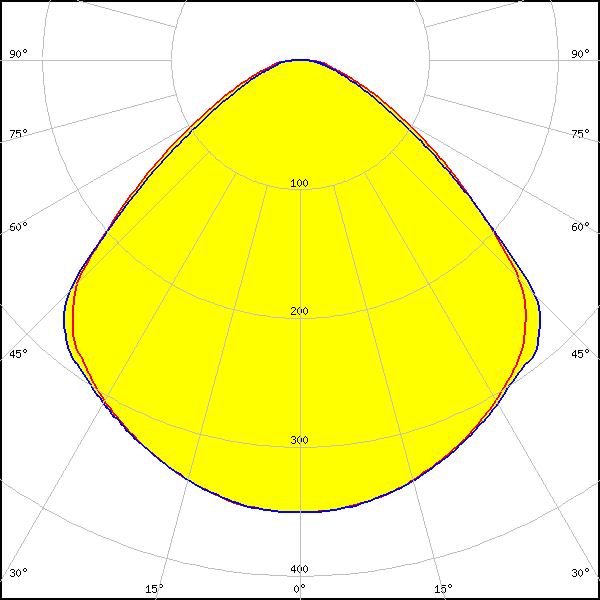

LED: MJT COB LES 14.5
Required components:
Bender Wirth: 433 Typ Z1
FWHM: 101°
Peak intensity: 0.5 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: MJT COB LES 14.5
FWHM: 101°
Peak intensity: 0.4 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

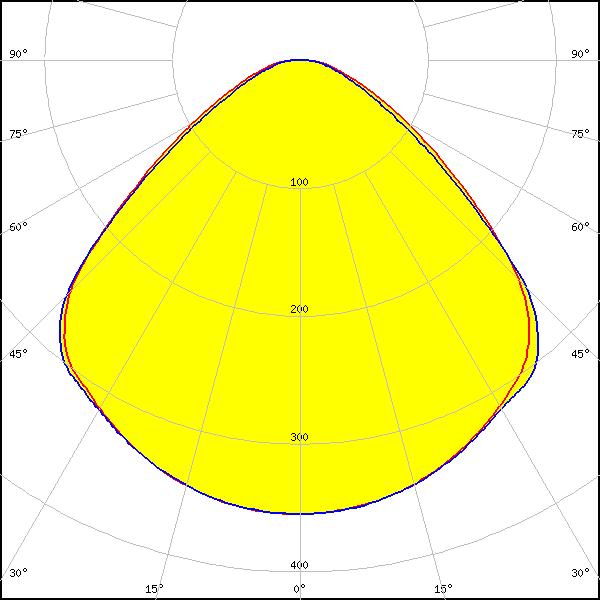

LED: MJT COB LES 22
Required components:
Bender Wirth: 431 Typ Z1
FWHM: 101°
Peak intensity: 0.4 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: MJT COB LES 22
Required components:
Bender Wirth: 431 Typ Z1
FWHM: 101°
Peak intensity: 0.4 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

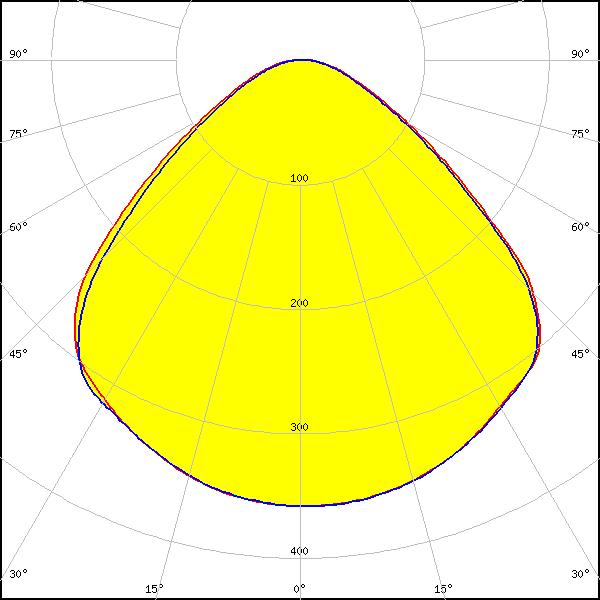

LED: MJT COB LES 22
Required components:
IDEAL: 50-2204CT
FWHM: 101°
Peak intensity: 0.4 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: MJT COB LES 22
Required components:
IDEAL: 50-2204CT
FWHM: 101°
Peak intensity: 0.4 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

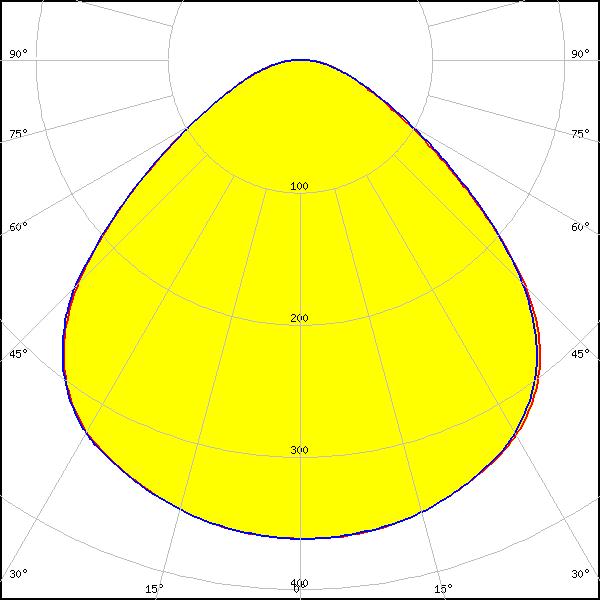

LED: MJT COB LES 33
Required components:
Bender Wirth: 458 Typ L4
FWHM: 101°
Peak intensity: 0.4 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

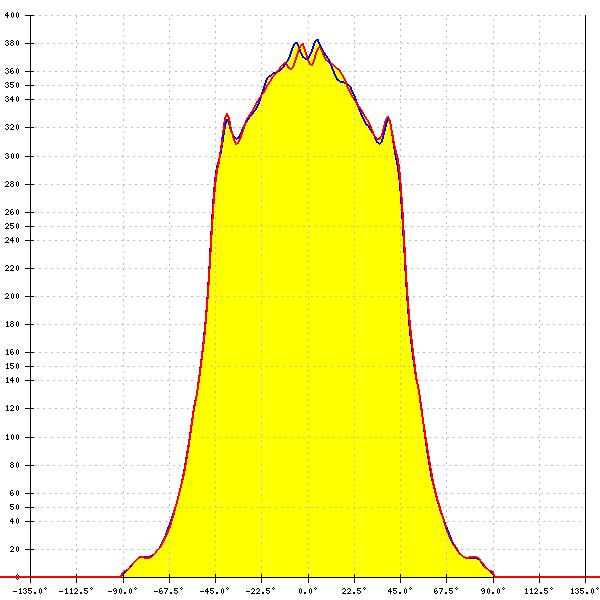

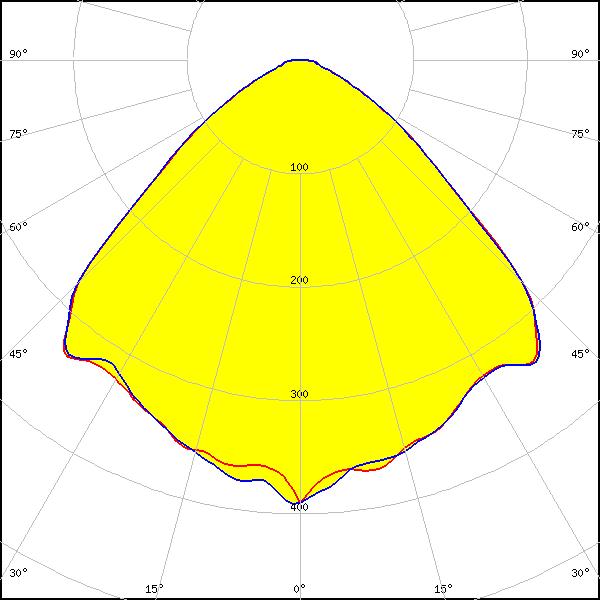

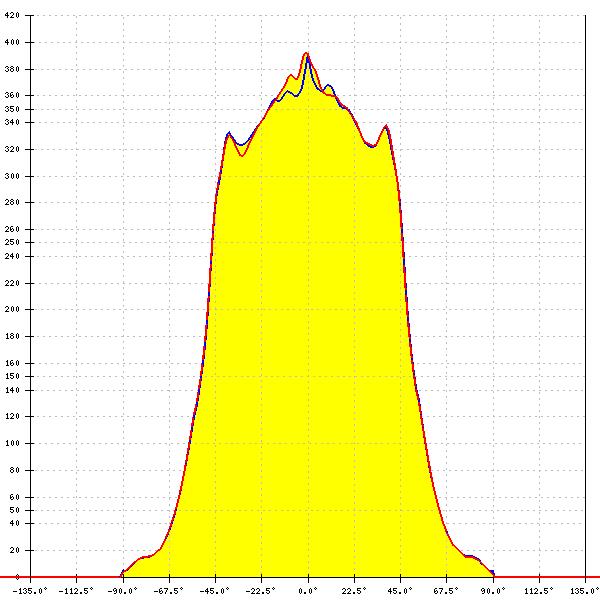

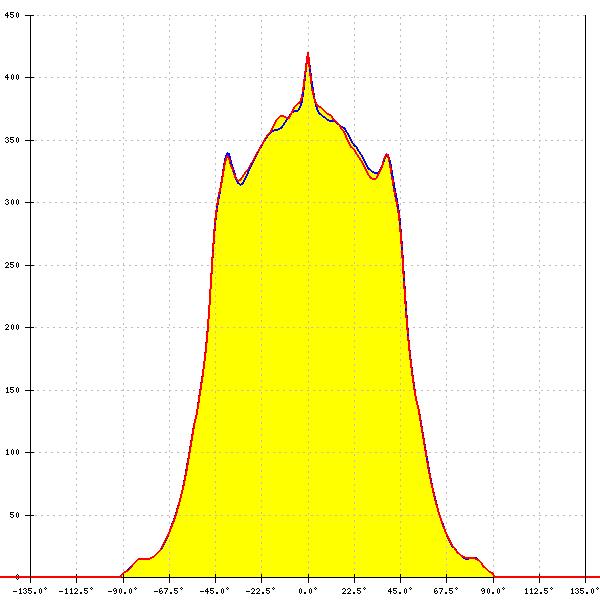

LED: SLE G6 LES19
Required components:
Bender Wirth: 466 Typ L4
FWHM: 96°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
