RONDA-WWW-C

Print

~90° wide beam with holder C compatible with LEDiL HEKLA

Note! This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
  • Dimensions:
    54 mm
  • Height:
    17.00 mm
  • Fastening:
    socket
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Single lens
    1 pcs
  • Holder
    1 pcs
  • Single lens
  • F15157_RONDA-WWW
    clear
  • Quantity in box:
    420 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.30 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 100 mm
  • MOQ Weight:
    1.80 kg
  • Holder
  • F15635_RONDA-HLD-C
    white
  • Quantity in box:
    420 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    4.10 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 120 mm
  • MOQ Weight:
    1.30 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F15157_RONDA-WWW
    F15635_RONDA-HLD-C

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

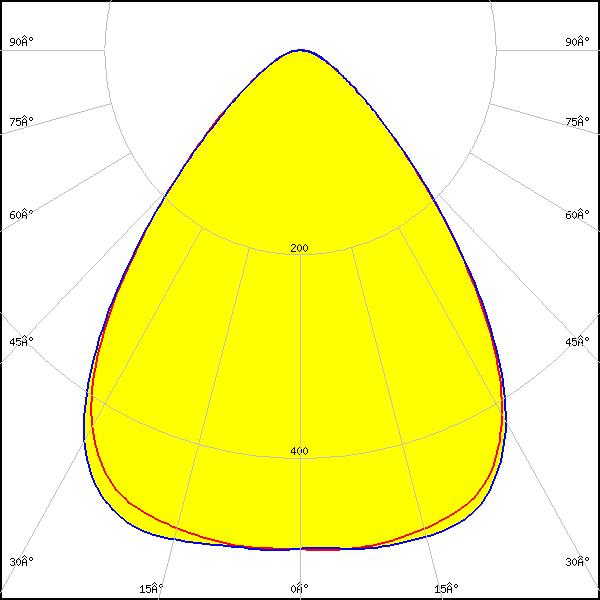

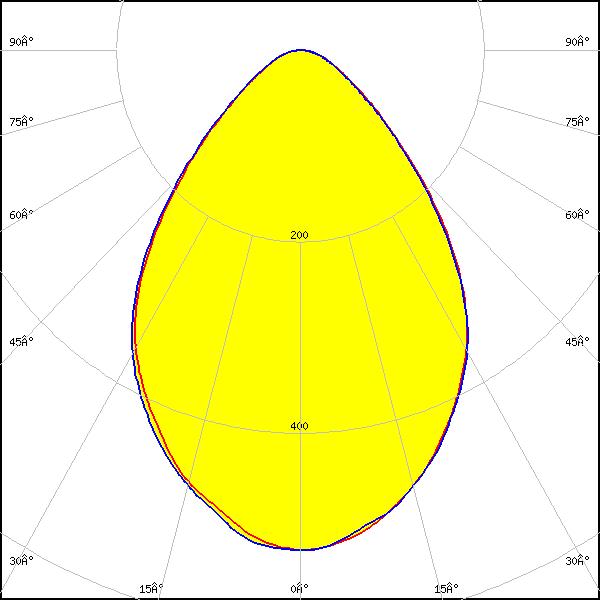

Optical results

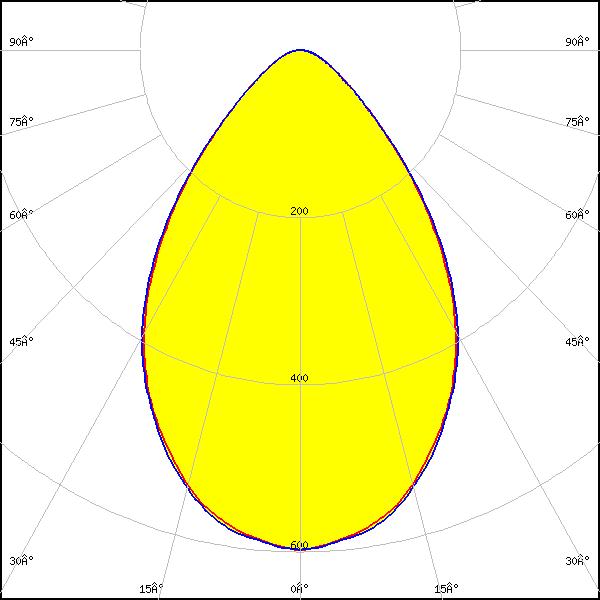

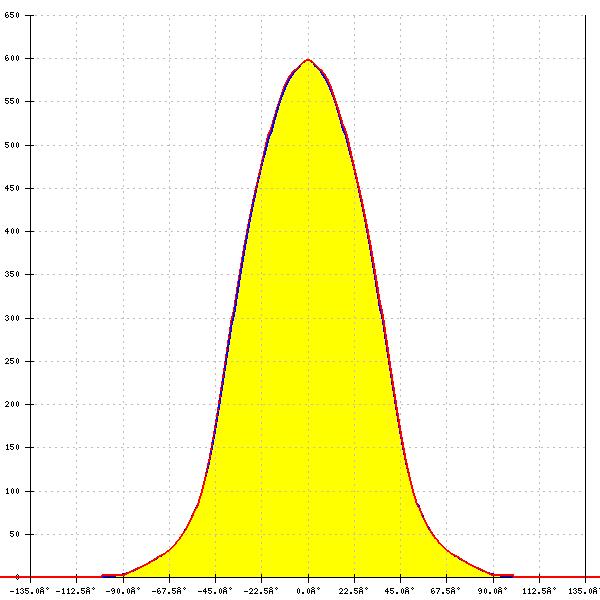

LED: V11 HD Gen 8
Required components:
Bender Wirth: 633d Hekla
FWHM: 73°
FWTM: 116°
Peak intensity: 0.598 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

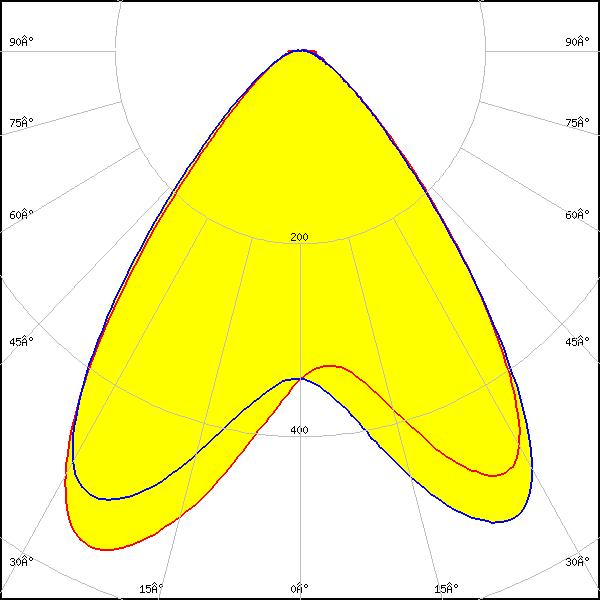

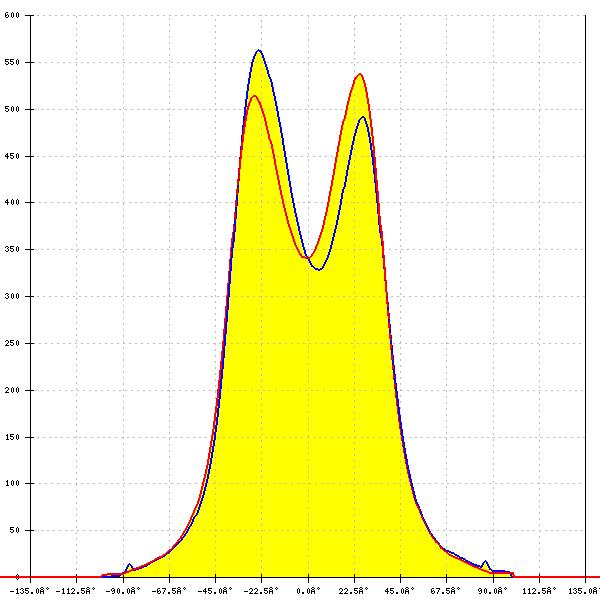

LED: V6 Gen6
Required components:
FWHM: 89°
FWTM: 129°
Peak intensity: 0.560 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

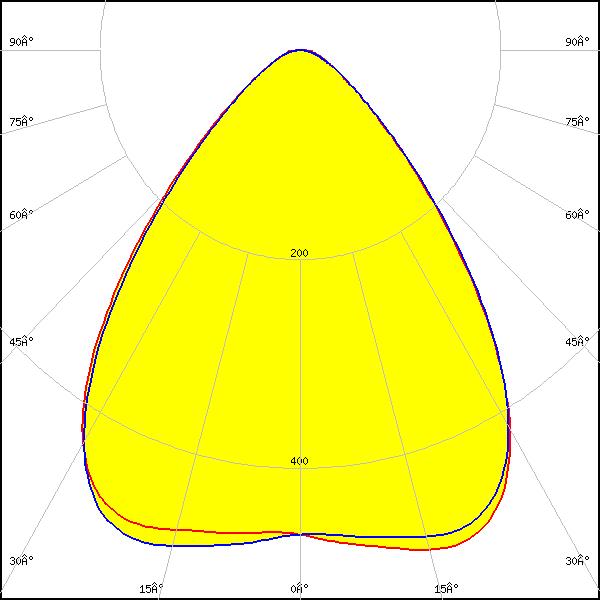

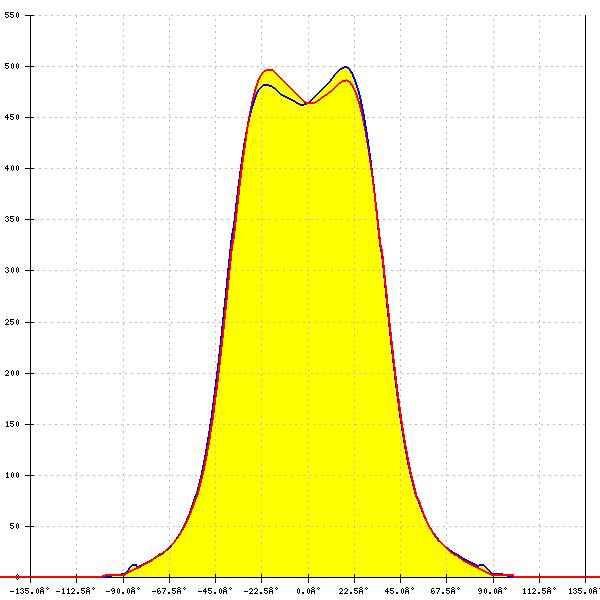

LED: V9 HD Gen7
Required components:
FWHM: 83°
FWTM: 121°
Peak intensity: 0.500 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

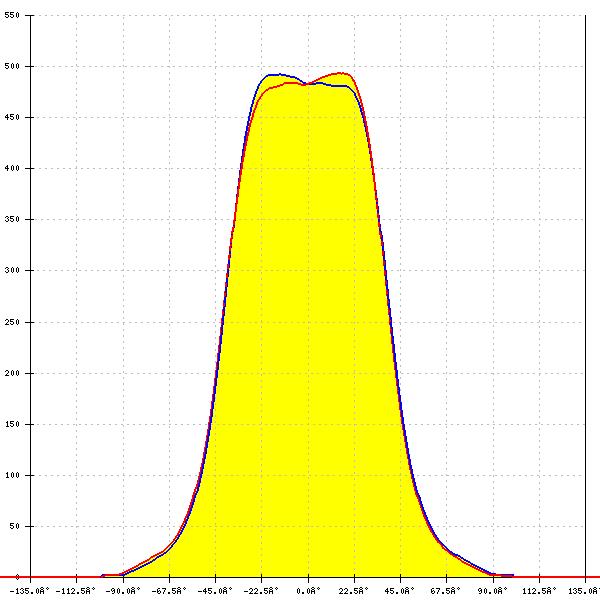

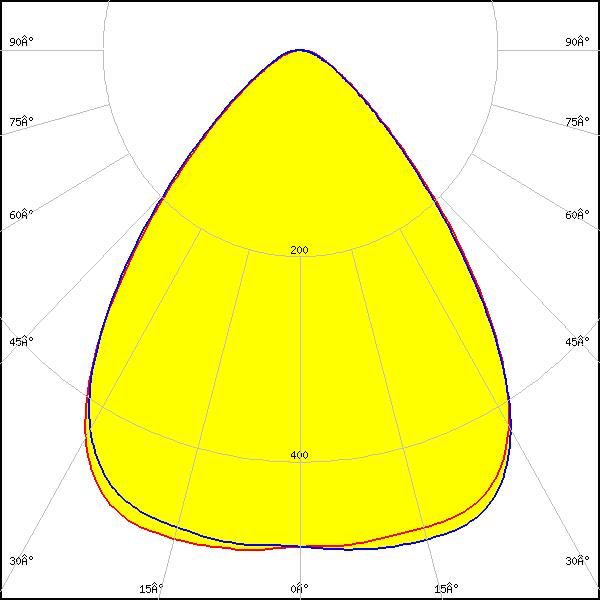

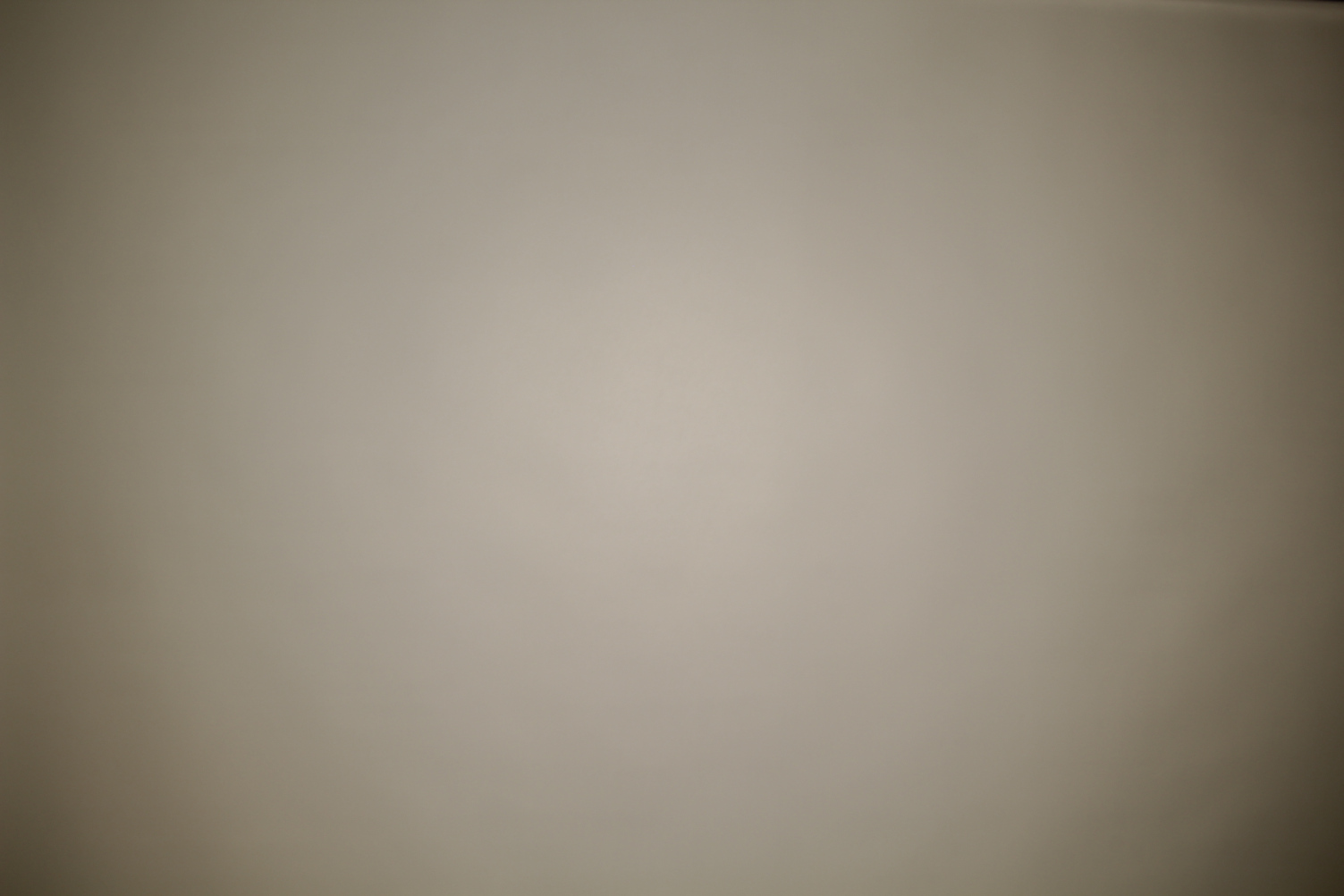

LED: VERO10
Required components:
FWHM: 82°
FWTM: 120°
Peak intensity: 0.490 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

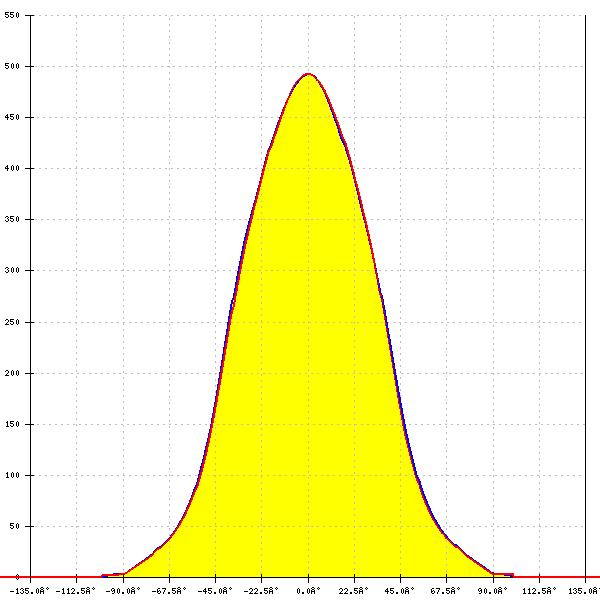

LED: Vesta DTW 13mm (21W)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 77°
FWTM: 127°
Peak intensity: 0.493 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: Tunable White

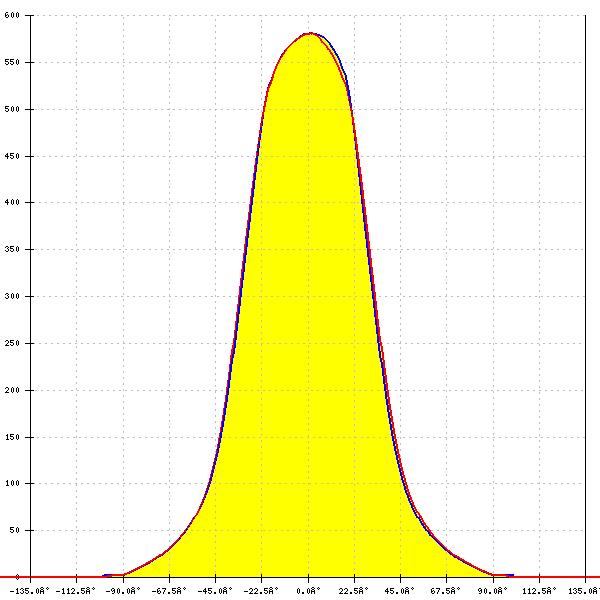

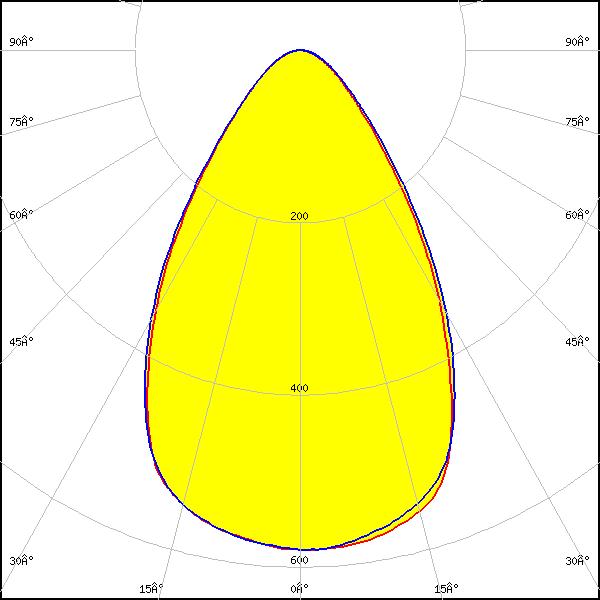

LED: Vesta DTW 15mm (33W)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 67°
FWTM: 112°
Peak intensity: 0.580 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White

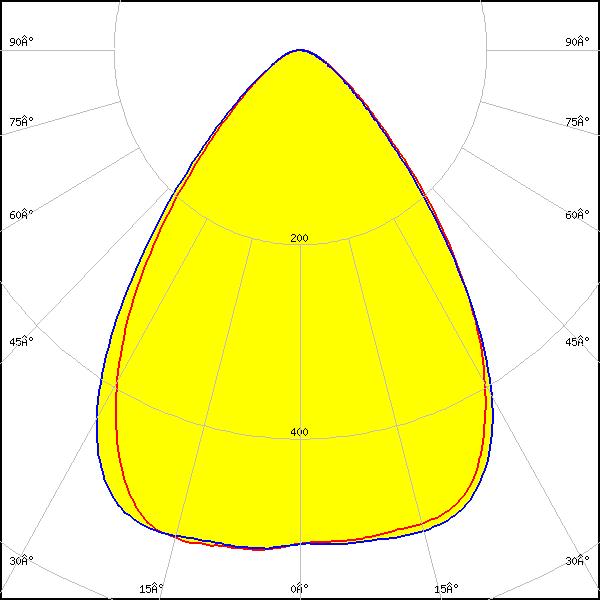

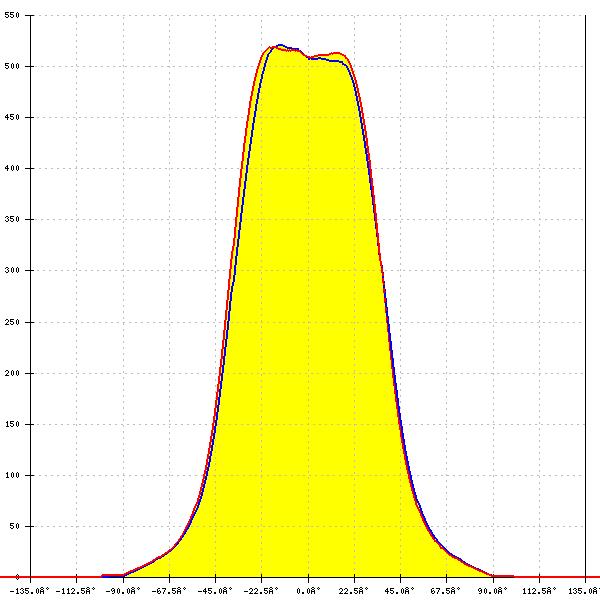

LED: Vesta DTW 9mm (4W/6W/12W)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 77°
FWTM: 115°
Peak intensity: 0.520 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

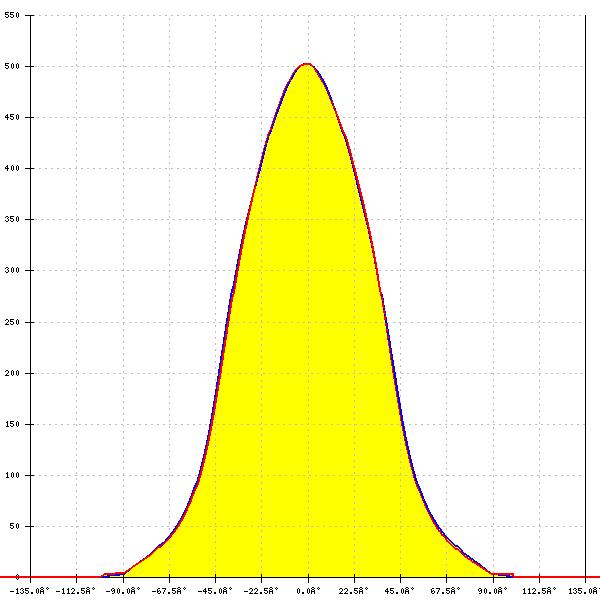

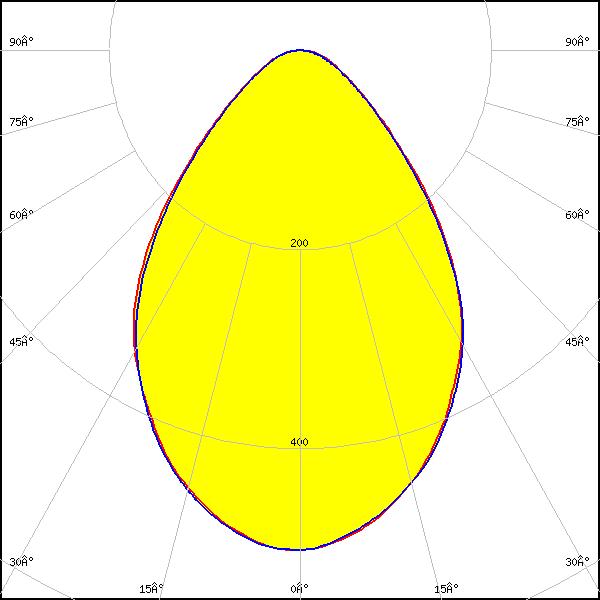

LED: Vesta TW 13mm (25W) CSP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 492 Typ L8
FWHM: 77°
FWTM: 126°
Peak intensity: 0.500 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 6mm DP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 504 Typ L8
FWHM: 80°
FWTM: 116°
Peak intensity: 0.514 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

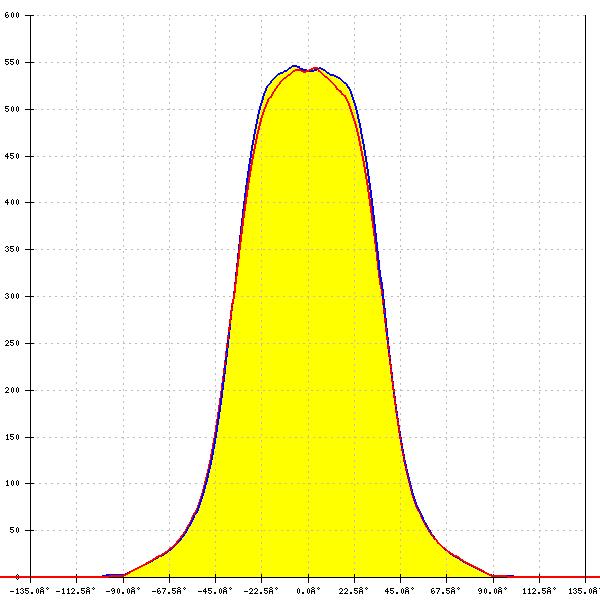

LED: Vesta TW 9mm (12W) CSP
Required components:
FWHM: 75°
FWTM: 115°
Peak intensity: 0.550 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

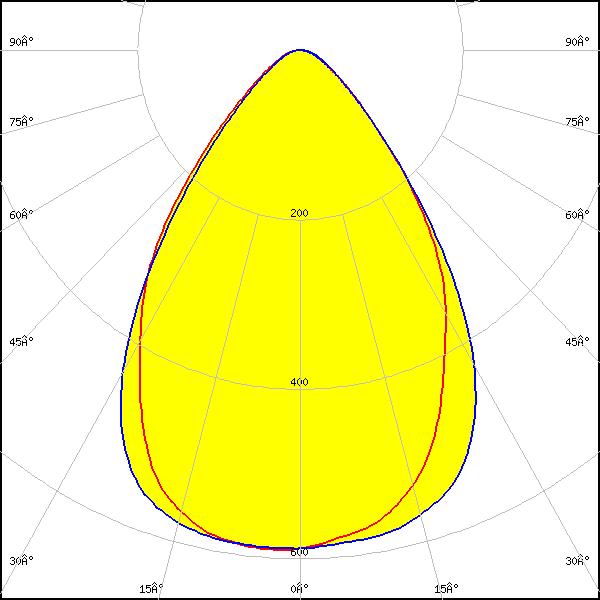

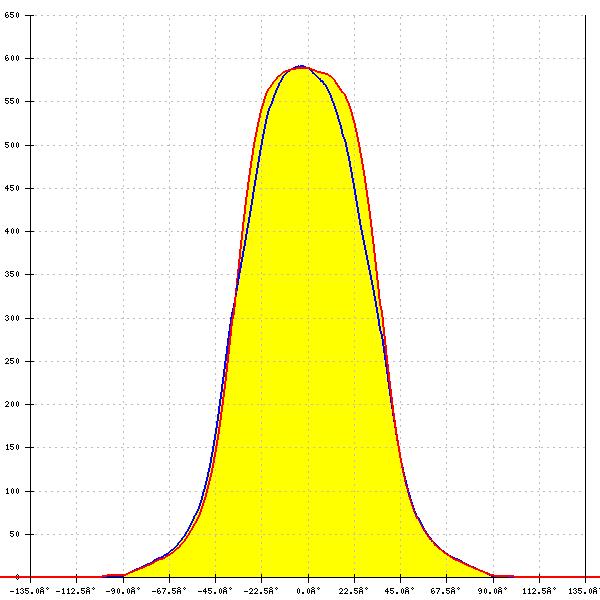

LED: CLC020 Series (Dim-To-Warm)
Required components:
FWHM: 73°
FWTM: 112°
Peak intensity: 0.590 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

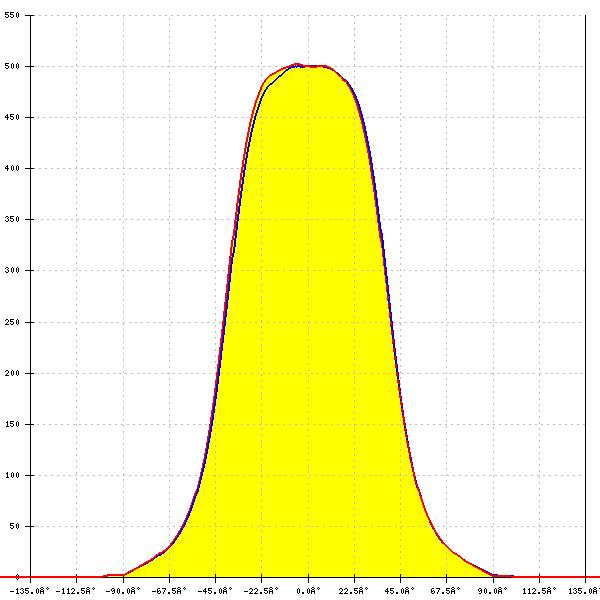

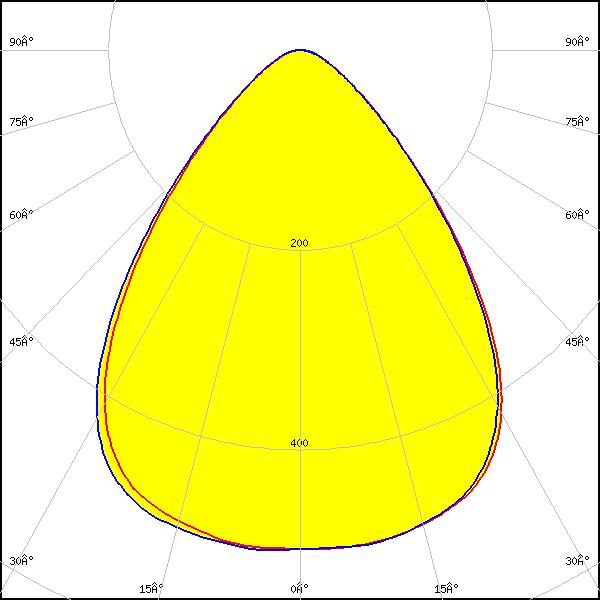

LED: CLL02x/CLU02x (LES10)
Required components:
FWHM: 81°
FWTM: 121°
Peak intensity: 0.500 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

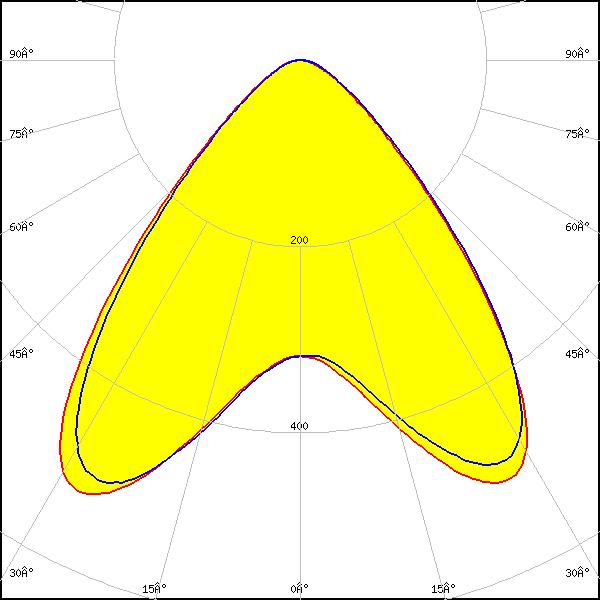

LED: CLU700/701/702/703
Required components:
FWHM: 93°
FWTM: 132°
Peak intensity: 0.520 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

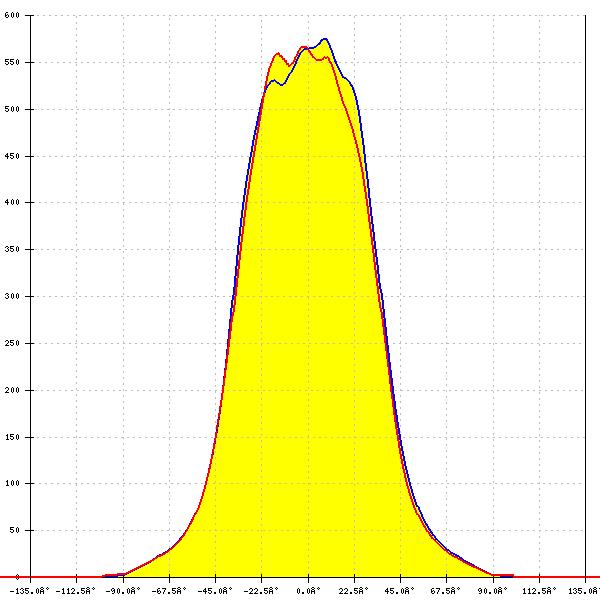

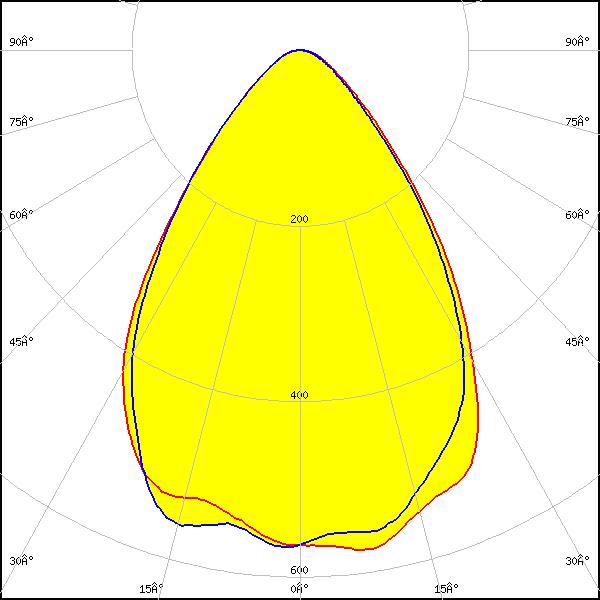

LED: LCN-C01B (Tunable White)
Required components:
FWHM: 74°
FWTM: 114°
Peak intensity: 0.570 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

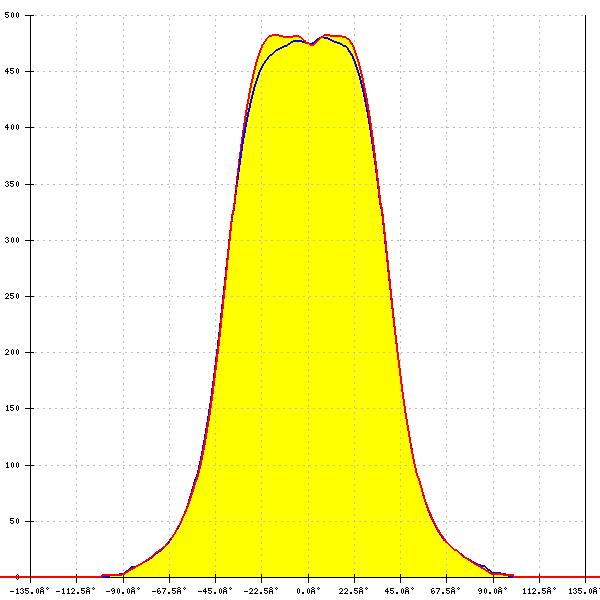

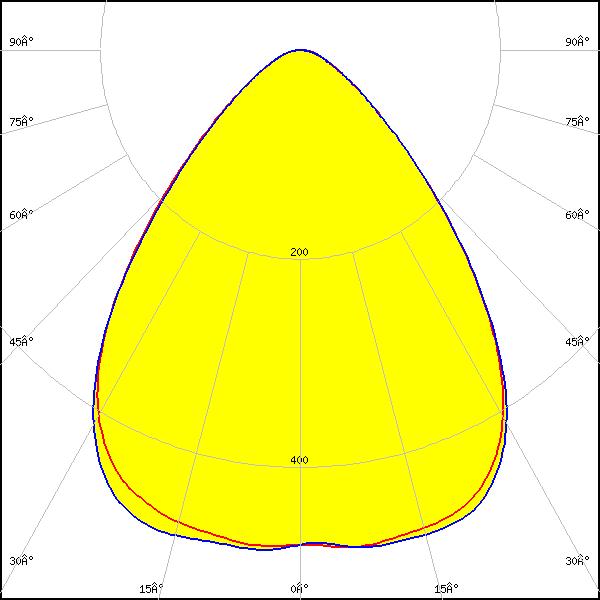

LED: CMA1516
Required components:
FWHM: 83°
FWTM: 123°
Peak intensity: 0.480 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

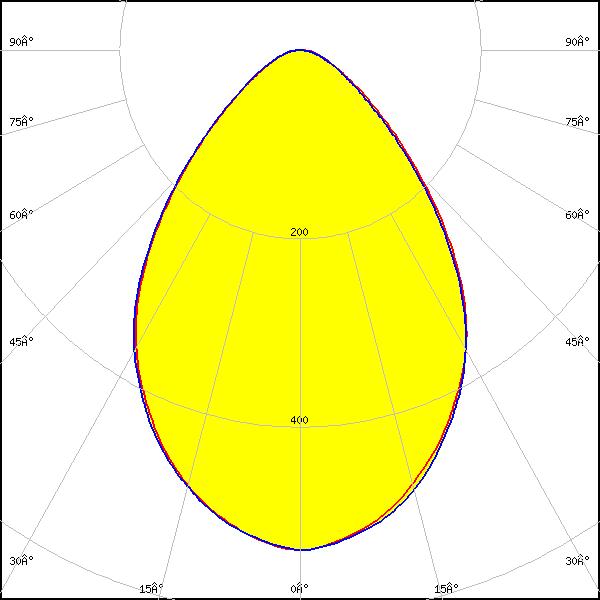

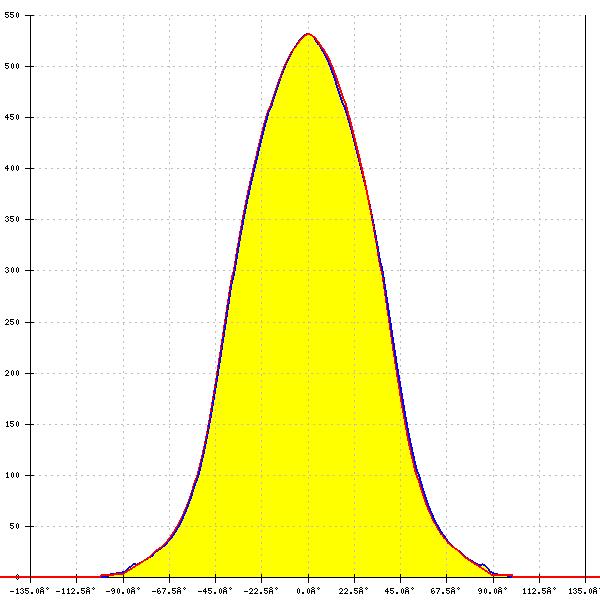

LED: CMA1825
Required components:
FWHM: 77°
FWTM: 124°
Peak intensity: 0.530 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

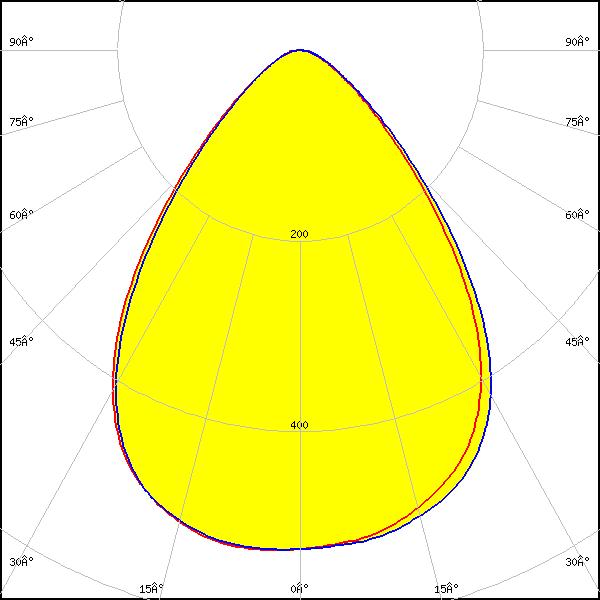

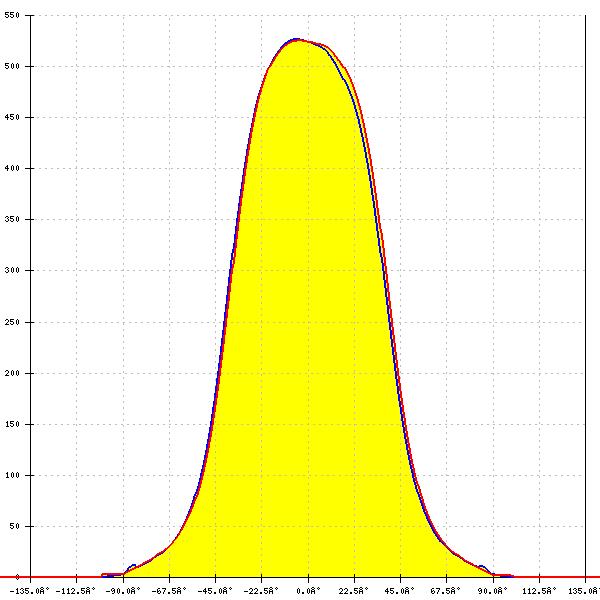

LED: CMT14xx
Required components:
FWHM: 79°
FWTM: 119°
Peak intensity: 0.500 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

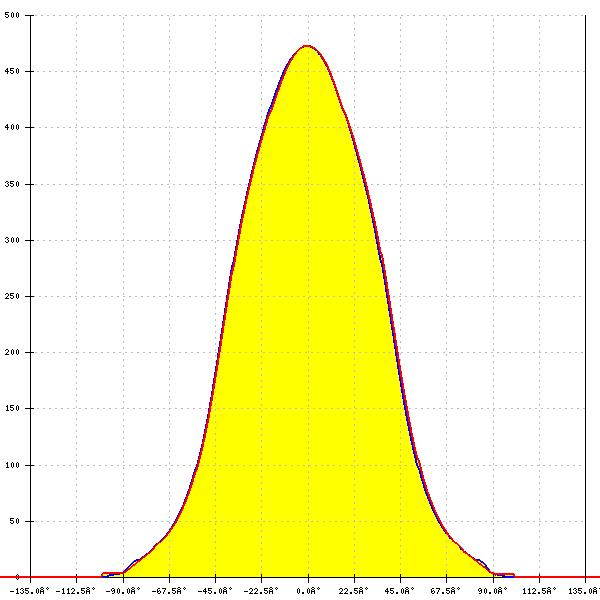

LED: CMT19xx
Required components:
FWHM: 80°
FWTM: 129°
Peak intensity: 0.473 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

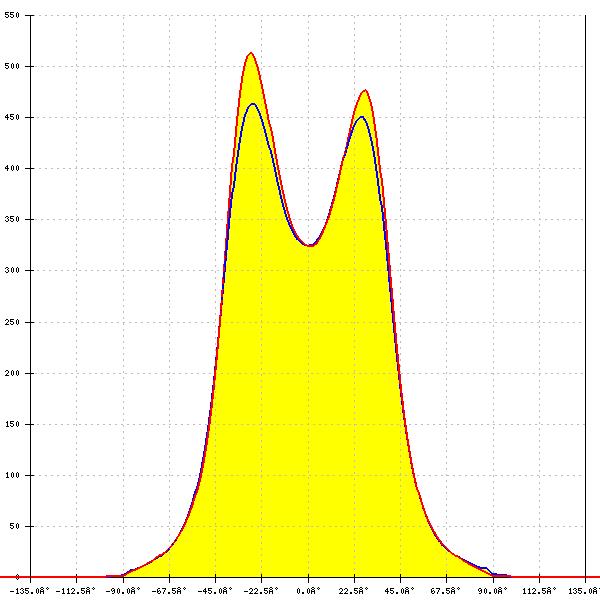

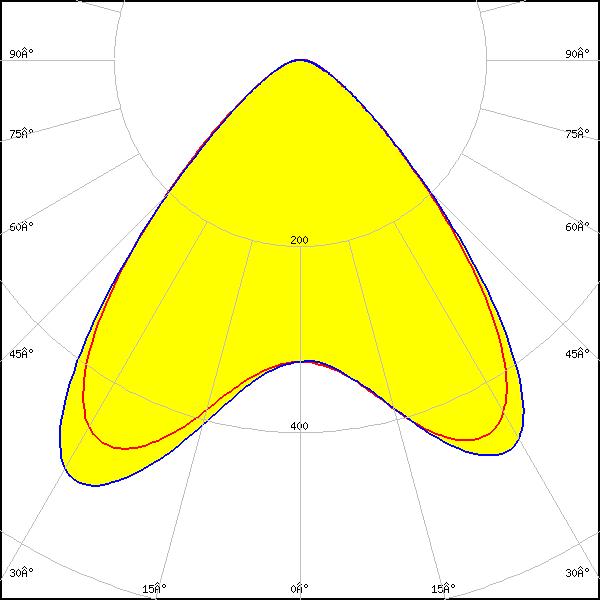

LED: CXA/B 13xx
Required components:
FWHM: 94°
FWTM: 131°
Peak intensity: 0.500 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

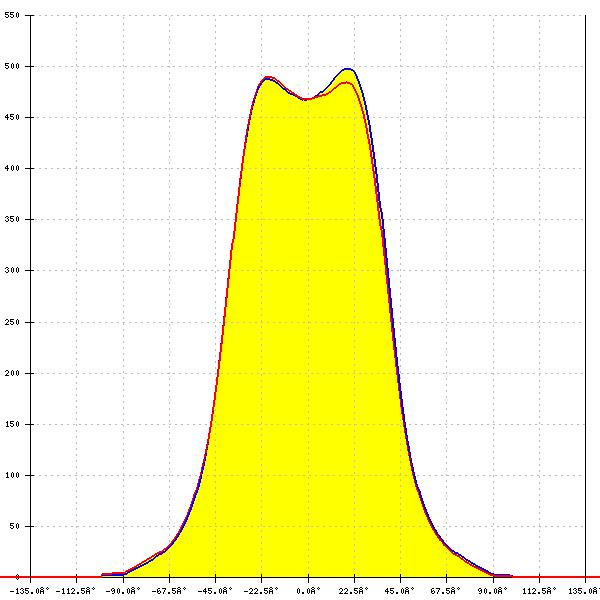

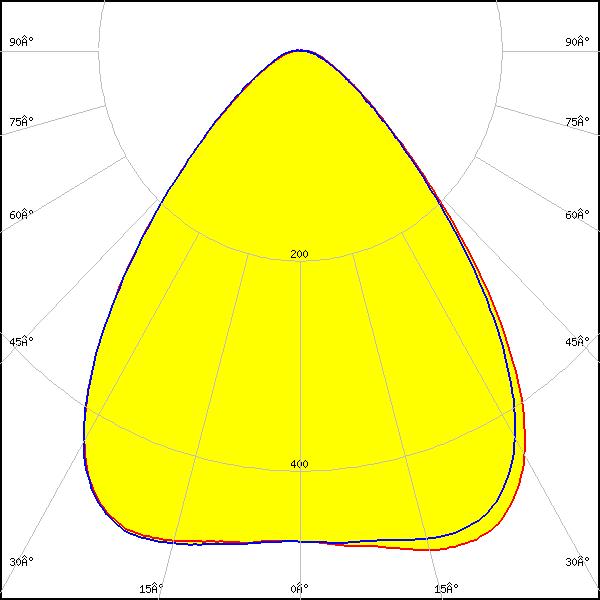

LED: CXA/B 15xx
Required components:
FWHM: 84°
FWTM: 123°
Peak intensity: 0.500 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

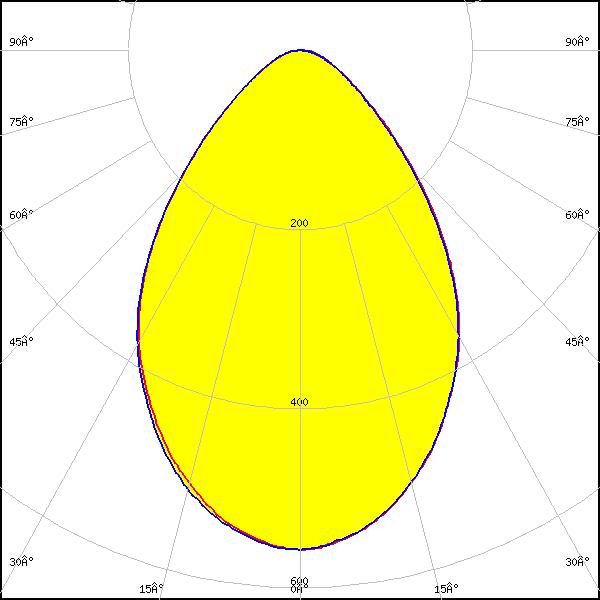

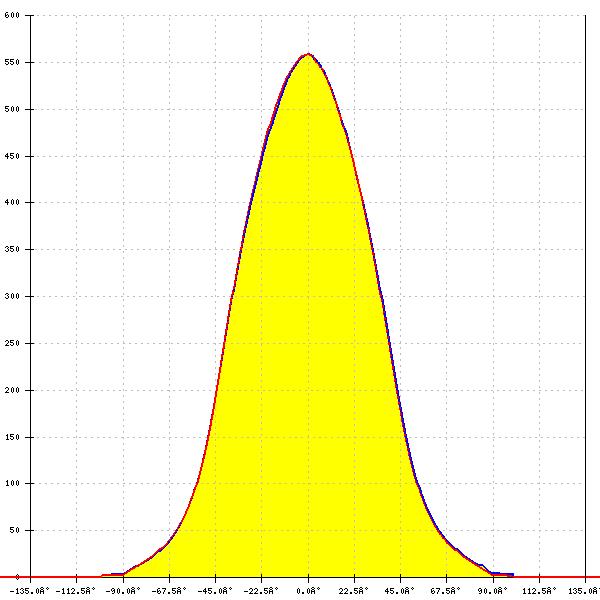

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
Required components:
FWHM: 76°
FWTM: 124°
Peak intensity: 0.559 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

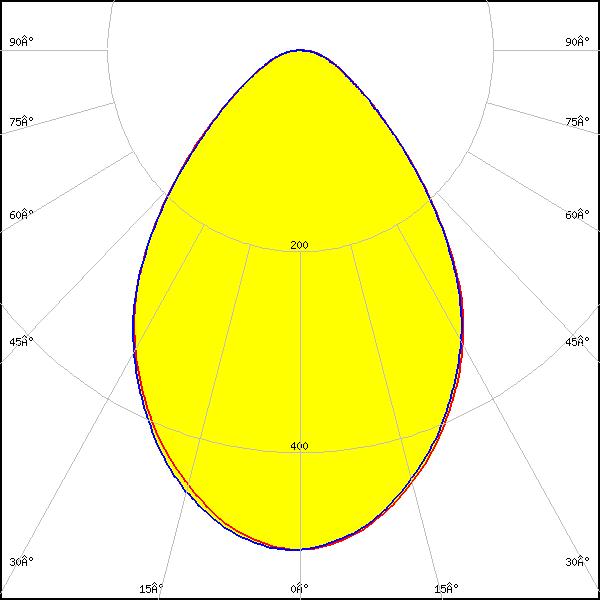

LED: LUXEON CX Plus CoB L08 (Gen2)
Required components:
Bender Wirth: 637a Hekla
FWHM: 78°
FWTM: 129°
Peak intensity: 0.498 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

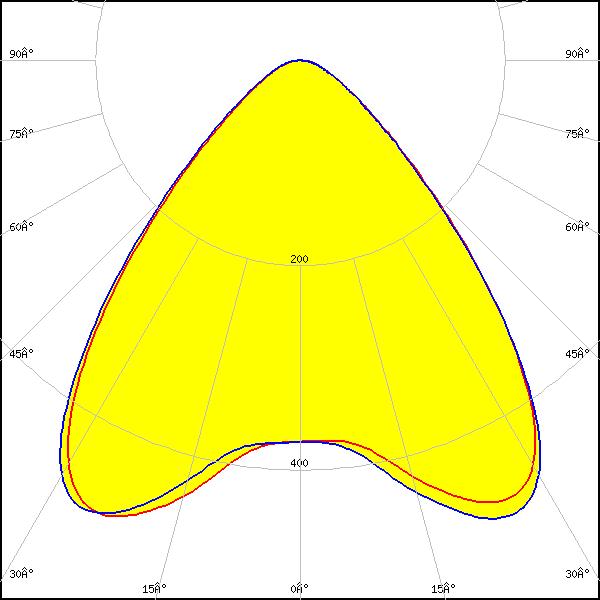

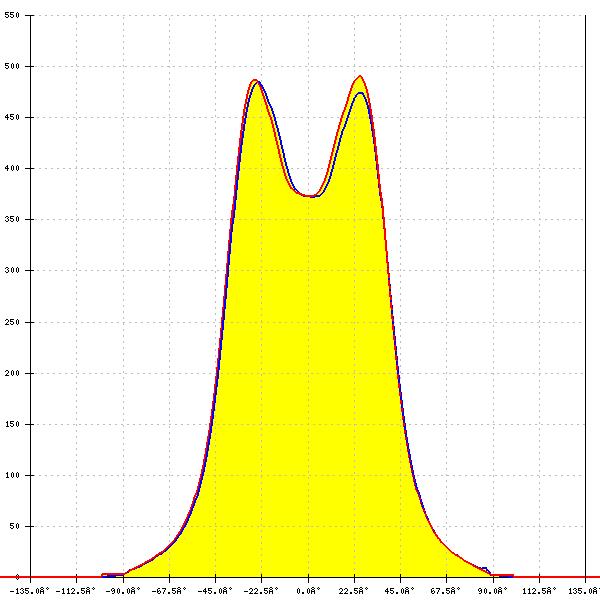

LED: LUXEON CoB 1202HD
Required components:
FWHM: 89°
FWTM: 128°
Peak intensity: 0.500 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

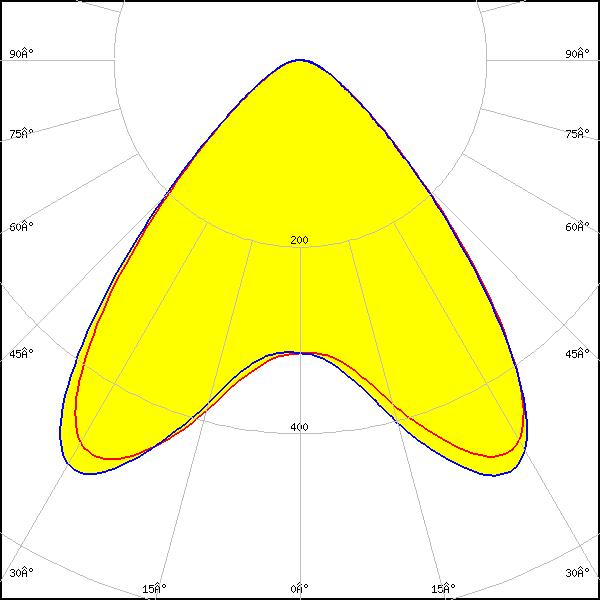

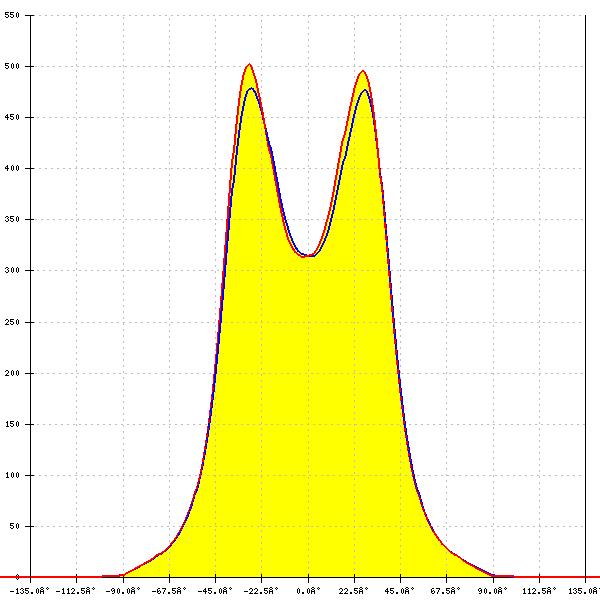

LED: LUXEON CoB 1202s
Required components:
FWHM: 94°
FWTM: 133°
Peak intensity: 0.500 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

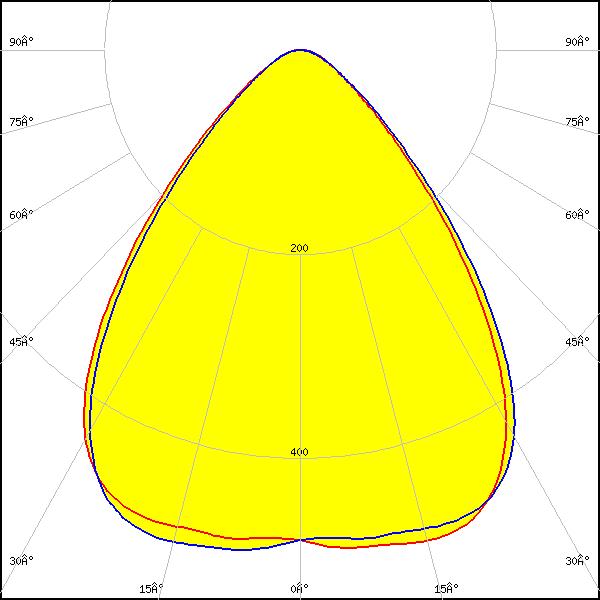

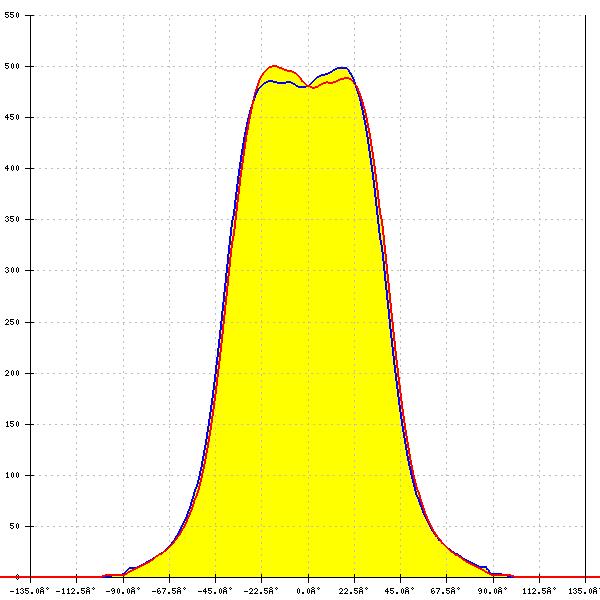

LED: LUXEON CoB 1204HD
Required components:
FWHM: 83°
FWTM: 131°
Peak intensity: 0.500 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

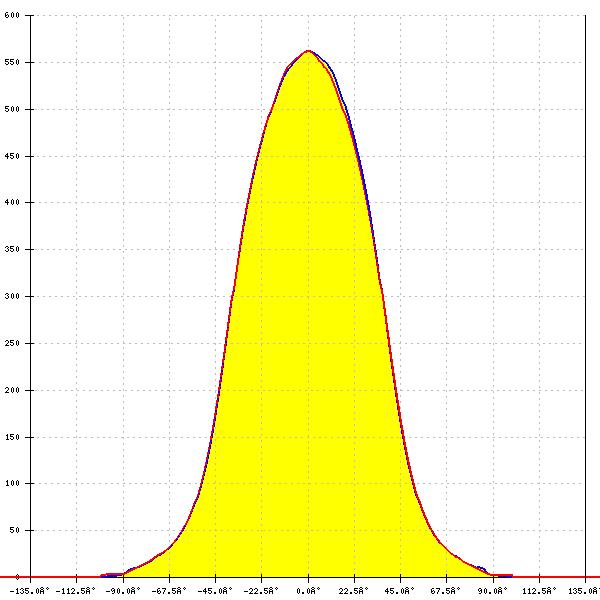

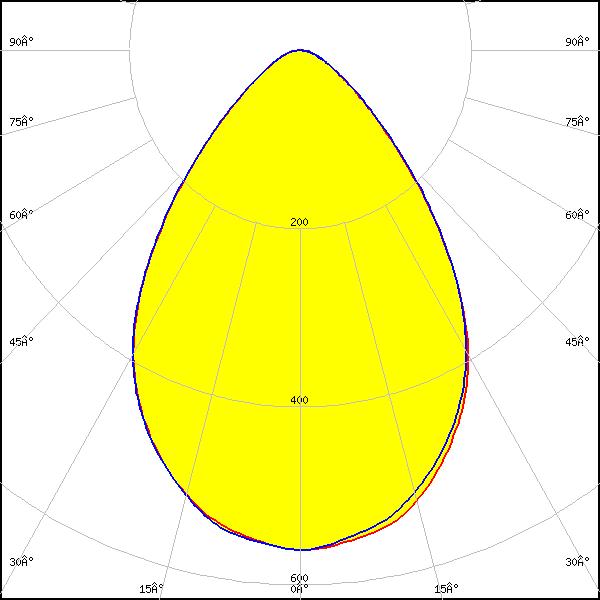

LED: LUXEON CoB 1205HD
Required components:
FWHM: 75°
FWTM: 118°
Peak intensity: 0.560 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

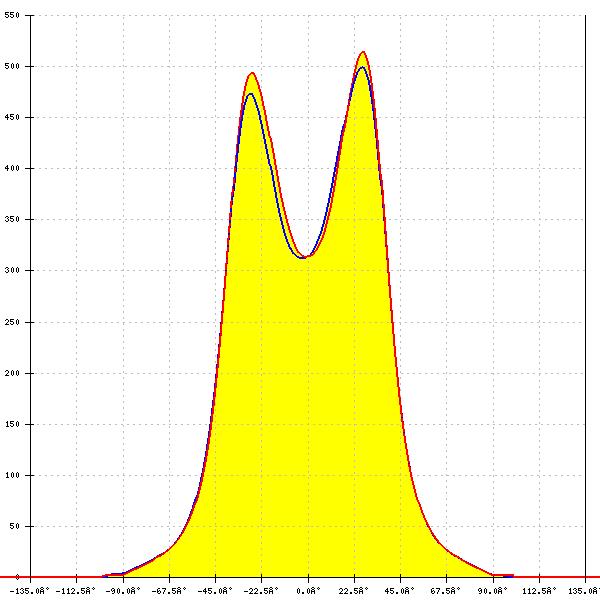

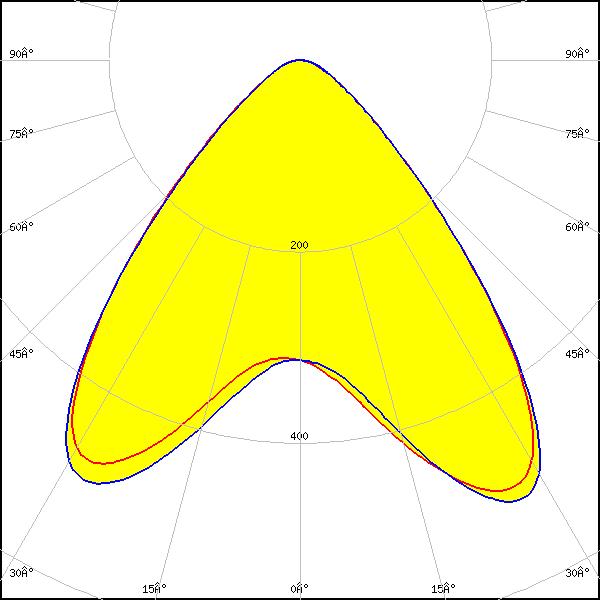

LED: LUXEON CX Plus CoB - HD S01H4
Required components:
Bender Wirth: 634c Hekla
FWHM: 83°
FWTM: 118°
Peak intensity: 0.520 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

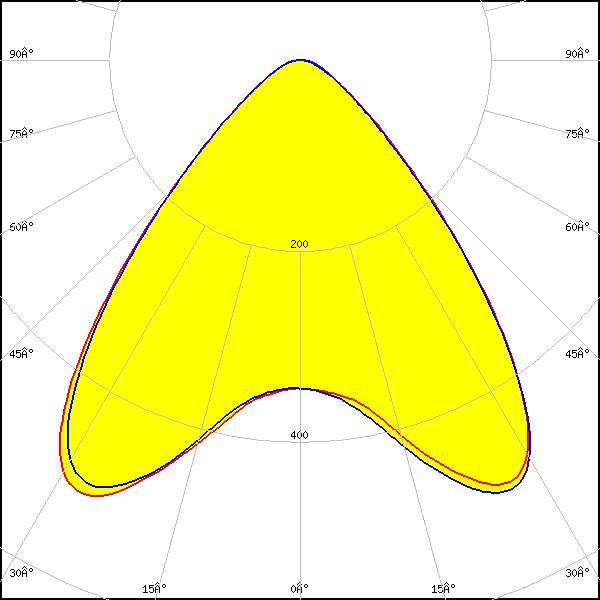

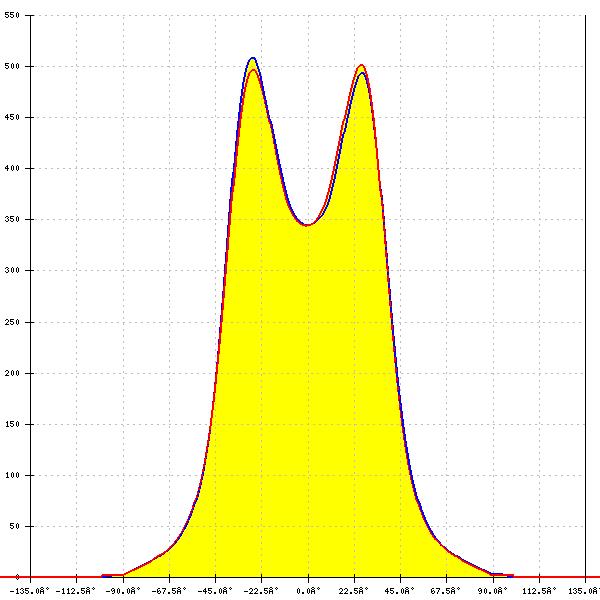

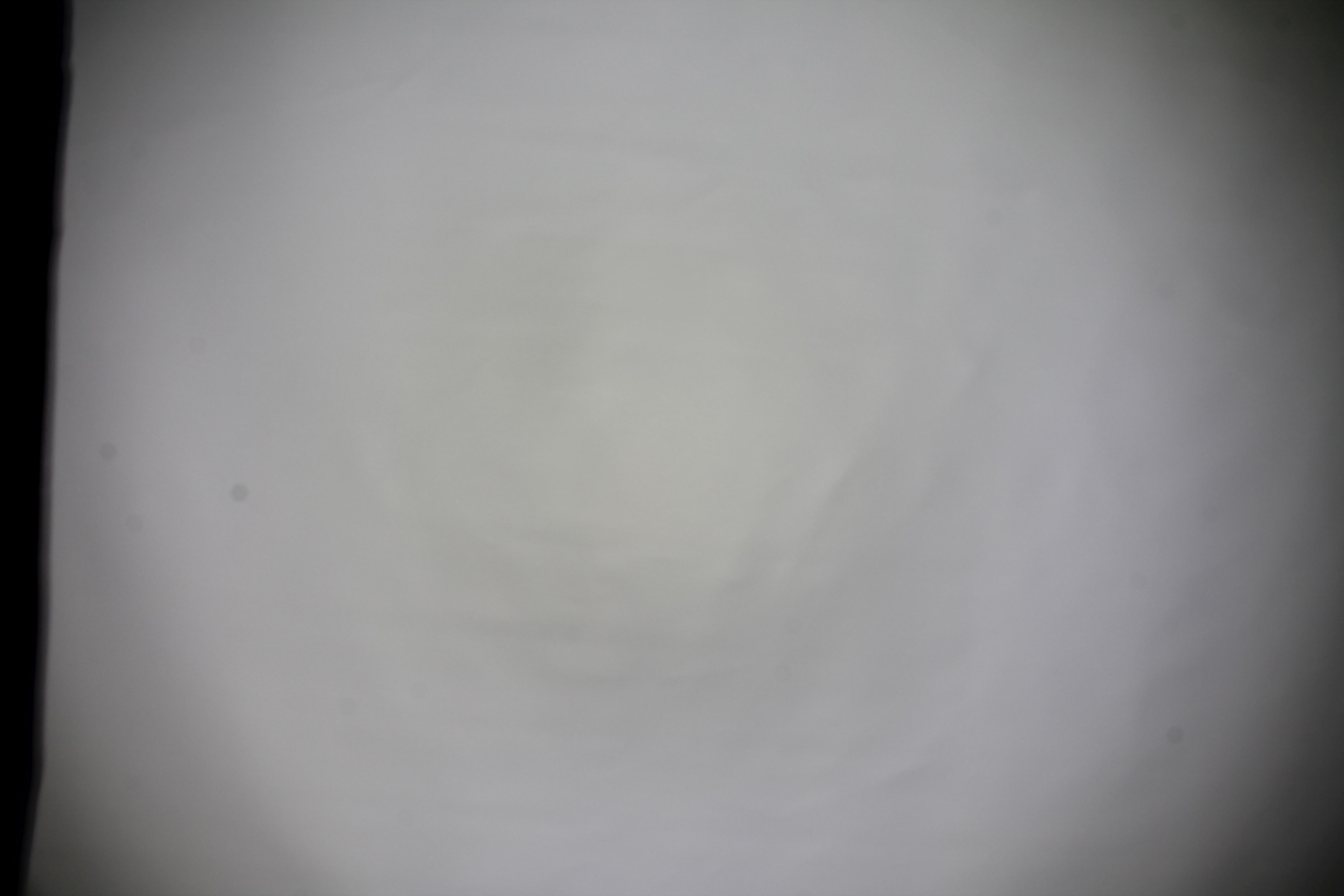

LED: LUXEON CX Plus CoB - HD S01H6 / HD S02H6
Required components:
Bender Wirth: 634c Hekla
FWHM: 83°
FWTM: 118°
Peak intensity: 0.510 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB - HD S04H9
Required components:
Bender Wirth: 634c Hekla
FWHM: 80°
FWTM: 118°
Peak intensity: 0.524 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
Required components:
Bender Wirth: 637a Hekla
FWHM: 76°
FWTM: 118°
Peak intensity: 0.563 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

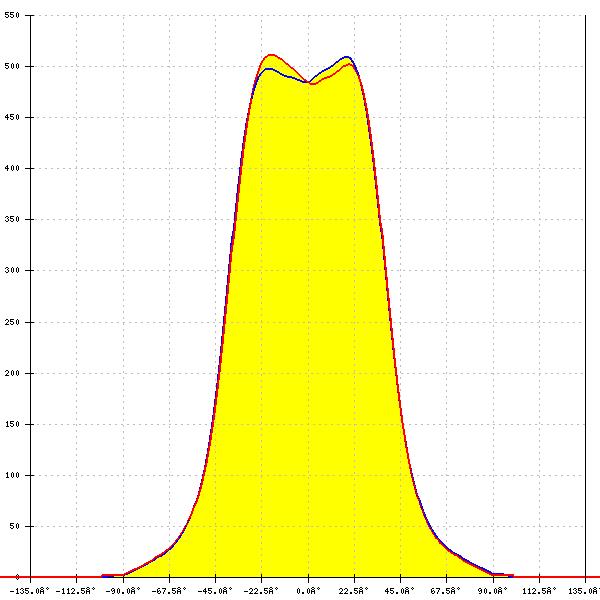

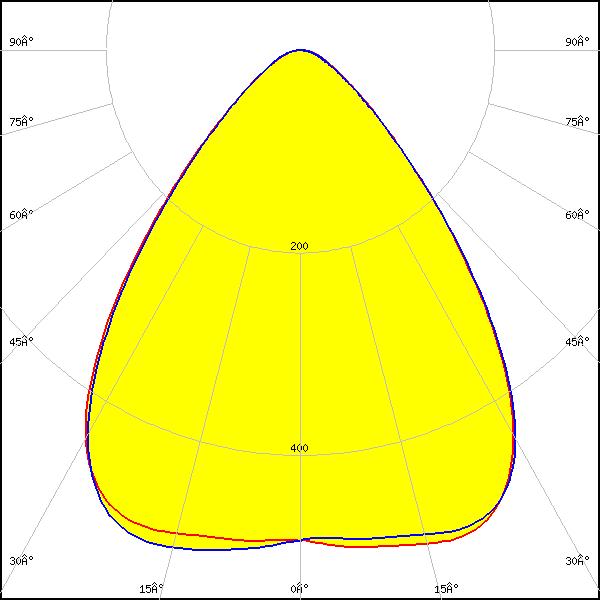

LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
Required components:
Bender Wirth: 641a Hekla
FWHM: 80°
FWTM: 118°
Peak intensity: 0.512 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

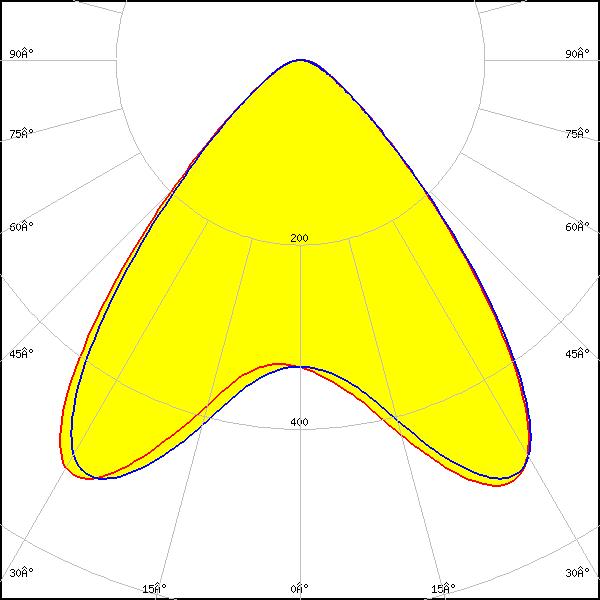

LED: LUXEON CX Plus CoB S01 (Gen2)
Required components:
Bender Wirth: 634c Hekla
FWHM: 83°
FWTM: 117°
Peak intensity: 0.515 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

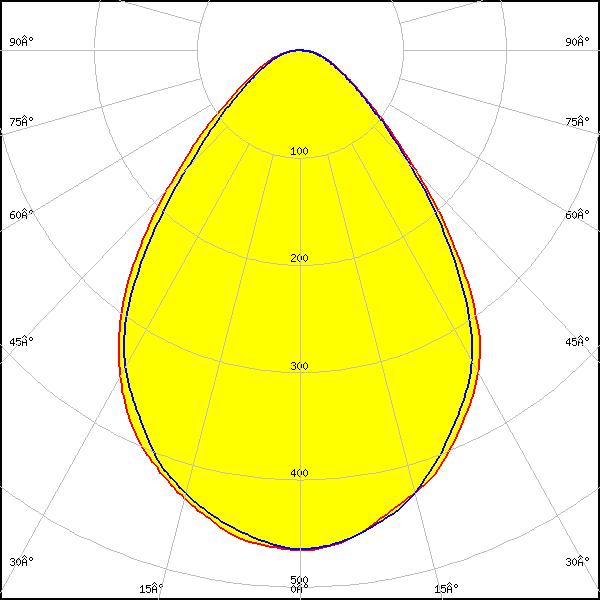

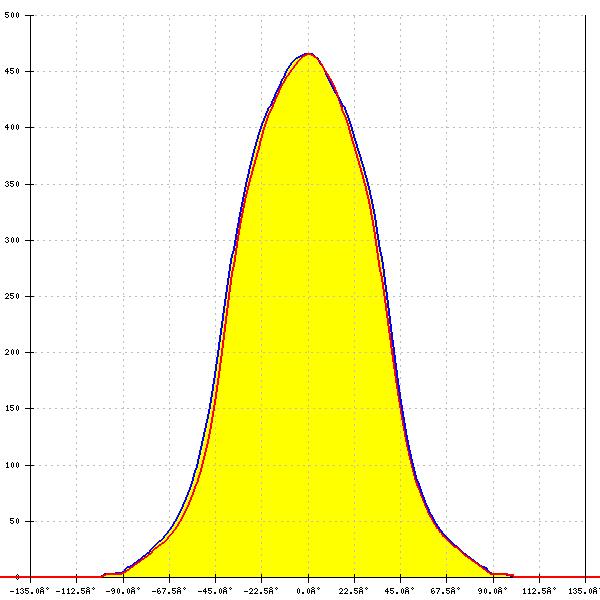

LED: CDM-14 (Dim-To-Warm)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 81°
FWTM: 128°
Peak intensity: 0.500 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

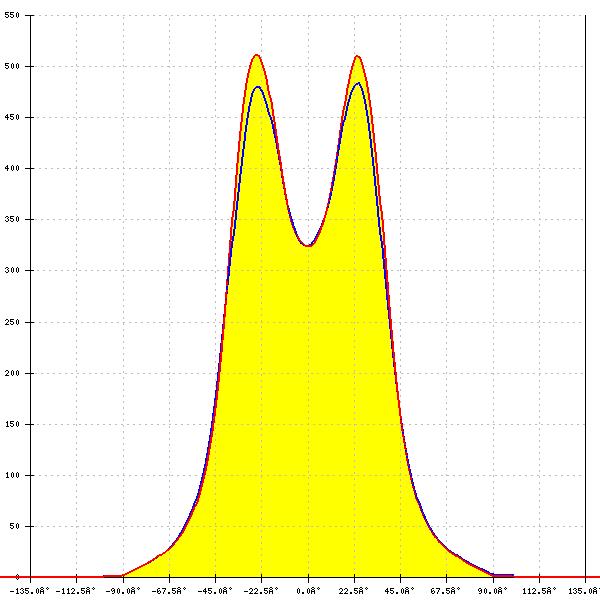

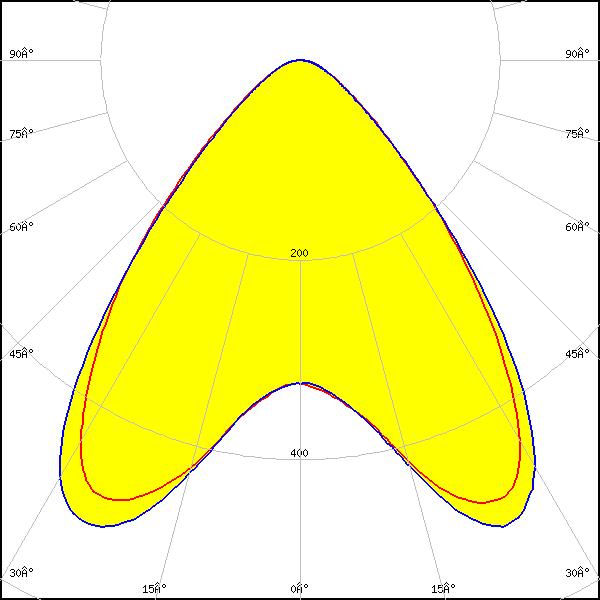

LED: CDM-6 (Dim-To-Warm)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 90°
FWTM: 131°
Peak intensity: 0.510 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

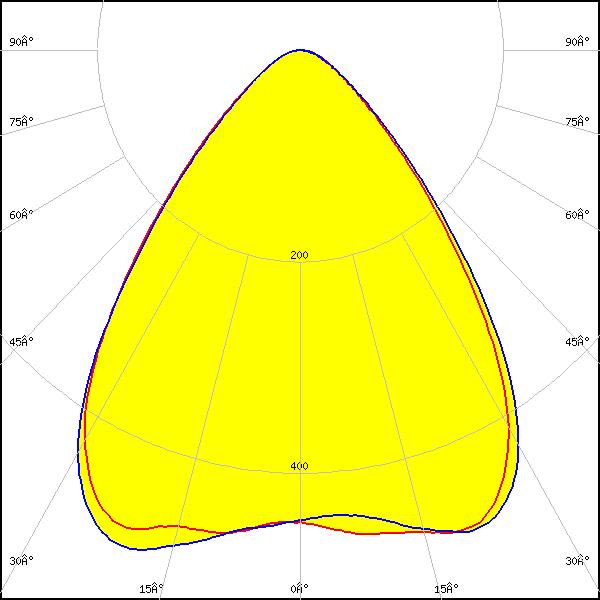

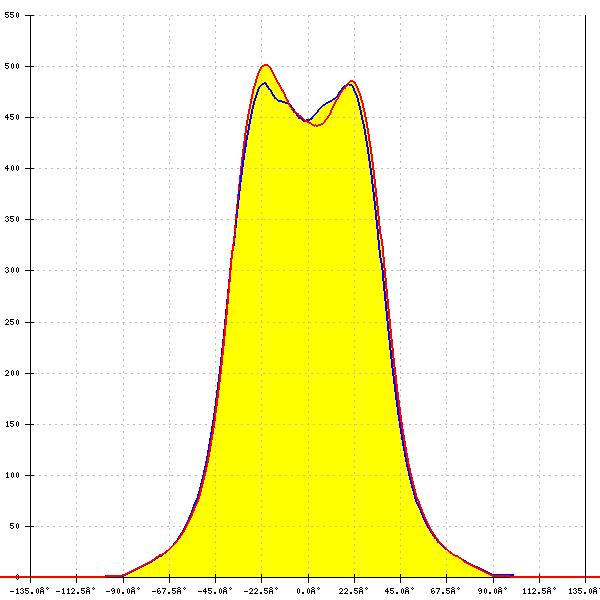

LED: CDM-9 (Dim-To-Warm)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 82°
FWTM: 121°
Peak intensity: 0.500 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

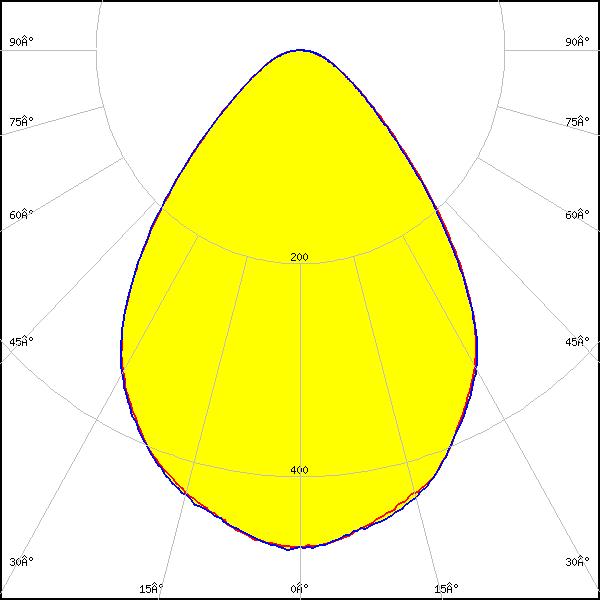

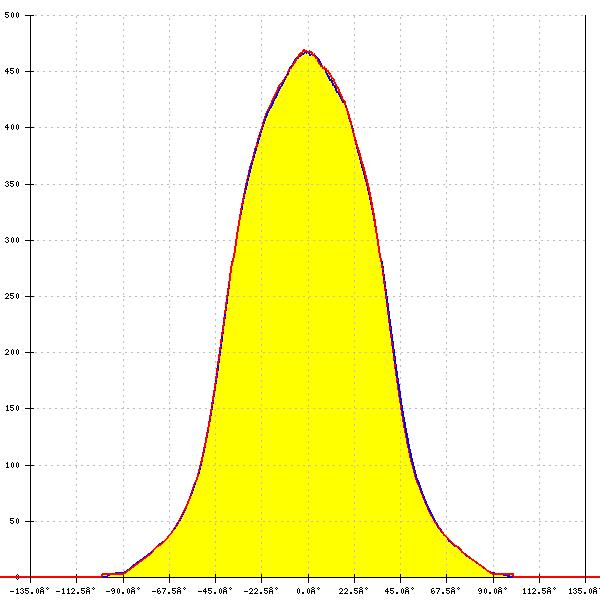

LED: CTM-14 (Tunable White)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 442 Typ L8
FWHM: 79°
FWTM: 126°
Peak intensity: 0.470 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour: White

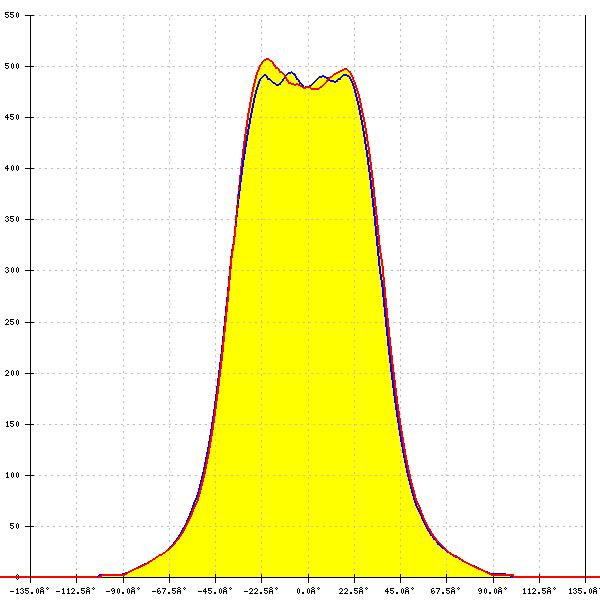

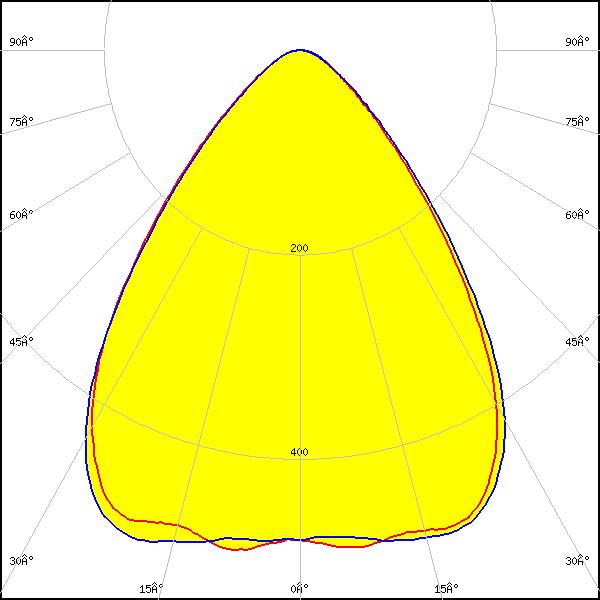

LED: CTM-9 (Tunable White)
FWHM: 79°
FWTM: 118°
Peak intensity: 0.500 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

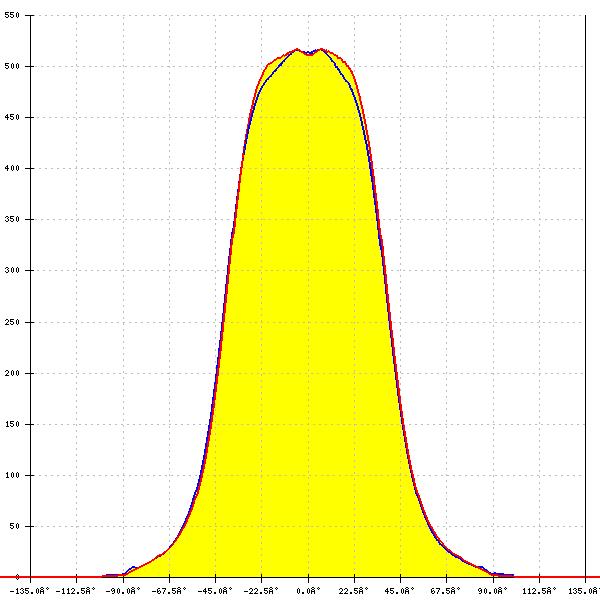

LED: CxM-9 (13.5x13.5)
Required components:
FWHM: 80°
FWTM: 119°
Peak intensity: 0.520 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

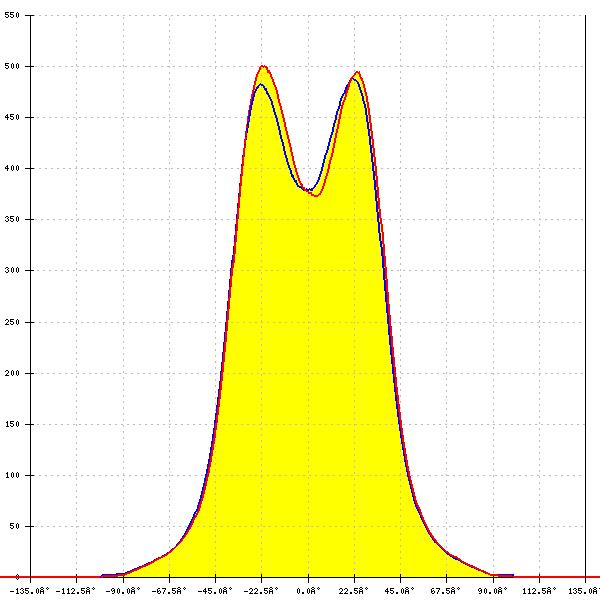

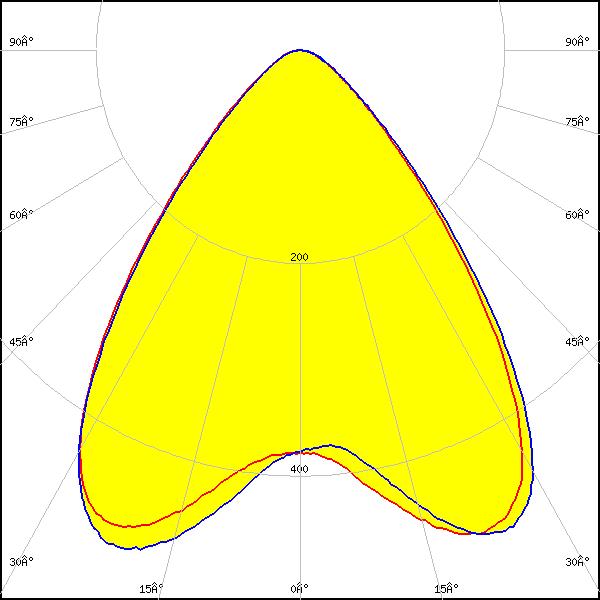

LED: NJCWL024Z-V1MT: COB L-Type Tunable White
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 497 Typ L8
FWHM: 85°
FWTM: 122°
Peak intensity: 0.500 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

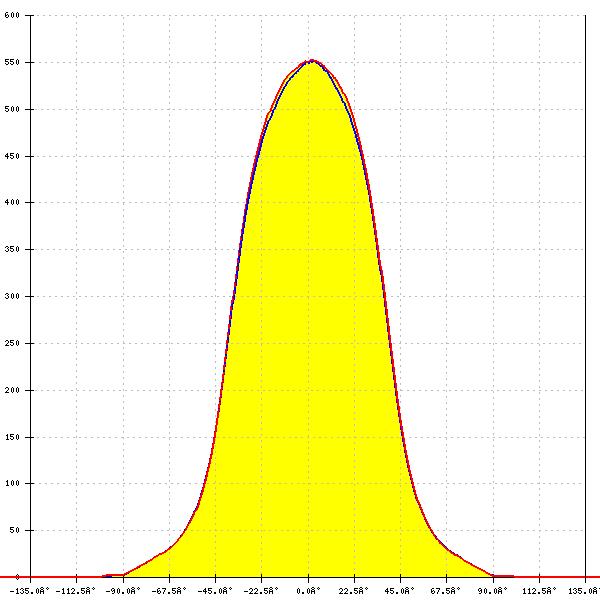

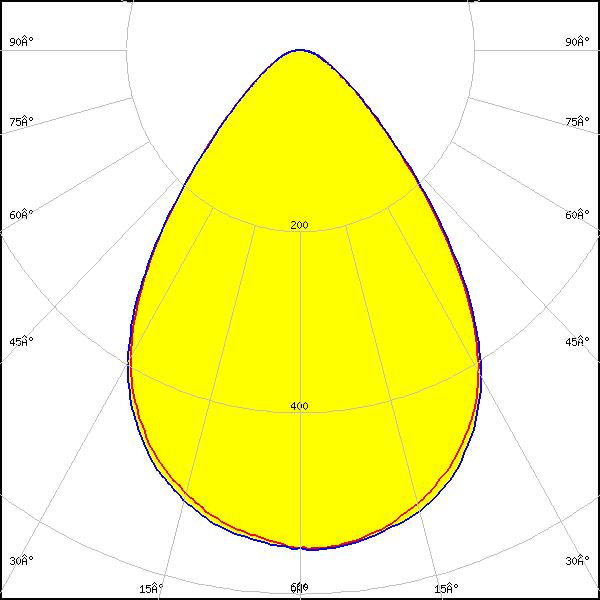

LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 498 Typ L8
FWHM: 76°
FWTM: 117°
Peak intensity: 0.552 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

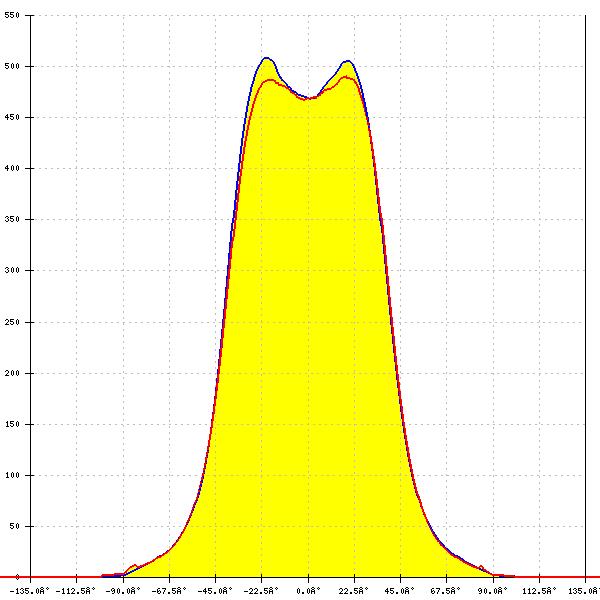

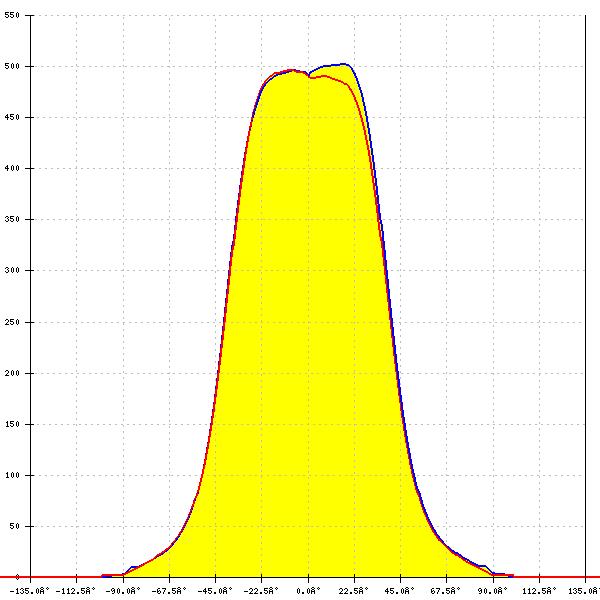

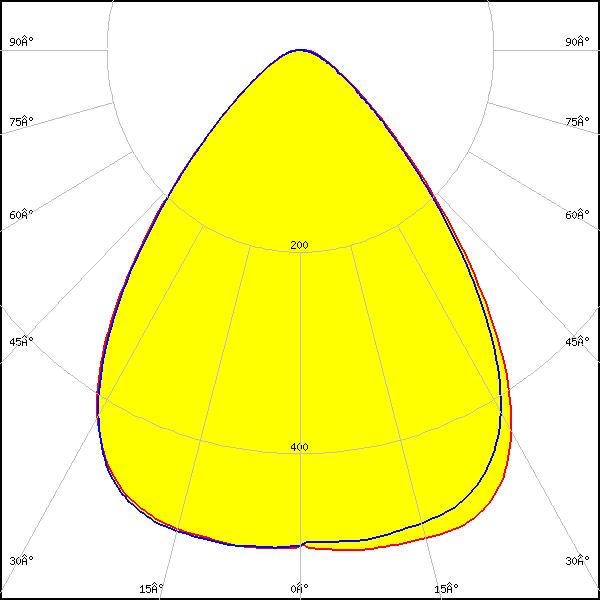

LED: Fortimo SLM L09 CoB
Required components:
FWHM: 81°
FWTM: 120°
Peak intensity: 0.500 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

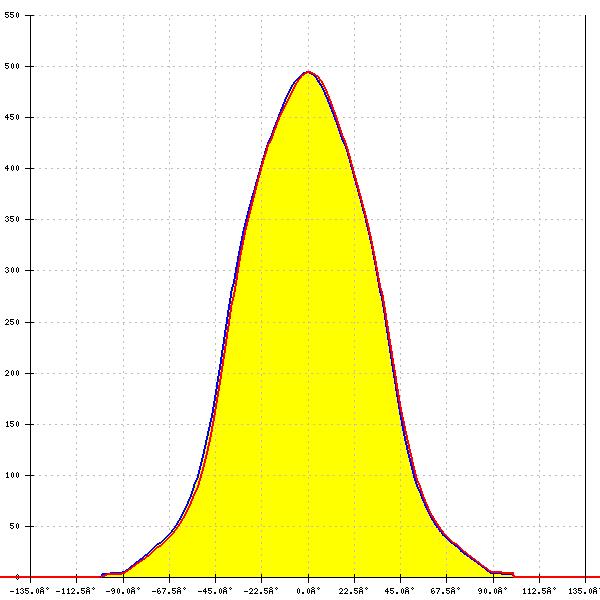

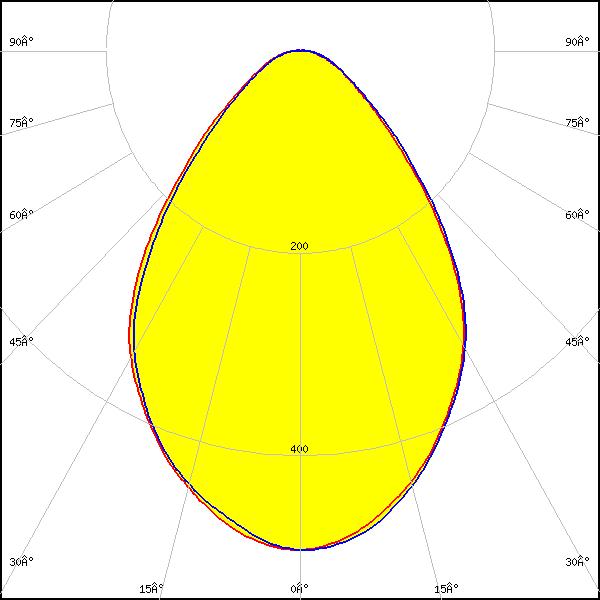

LED: Fortimo SLM L13 CoB
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 432 Typ L8
FWHM: 77°
FWTM: 127°
Peak intensity: 0.500 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo SLM L13 CoB
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 432 Typ L8
FWHM: 77°
FWTM: 127°
Peak intensity: 0.490 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: LC003D / LC006D / LC009D / LC013D
Required components:
FWHM: 81°
FWTM: 121°
Peak intensity: 0.510 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

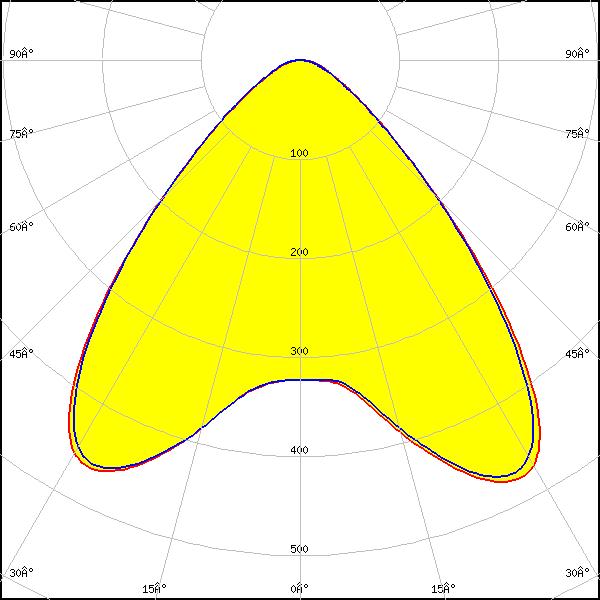

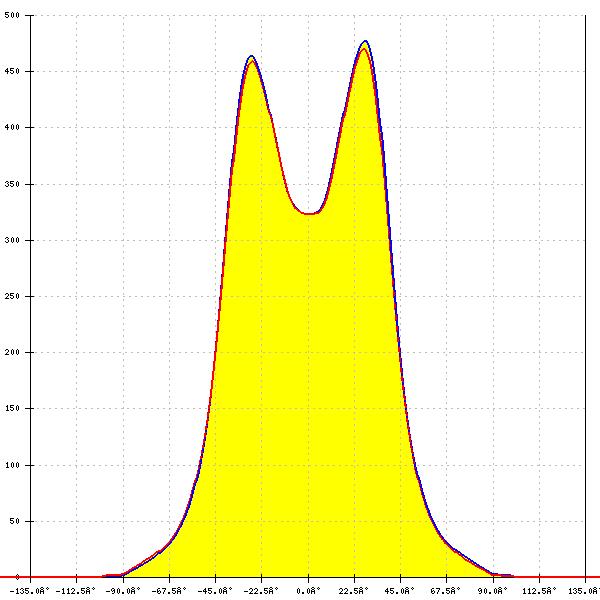

LED: LC010C
Required components:
FWHM: 94°
FWTM: 133°
Peak intensity: 0.480 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

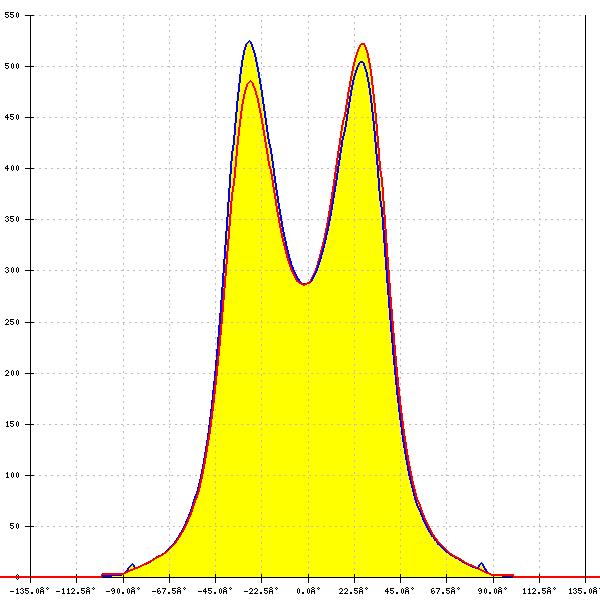

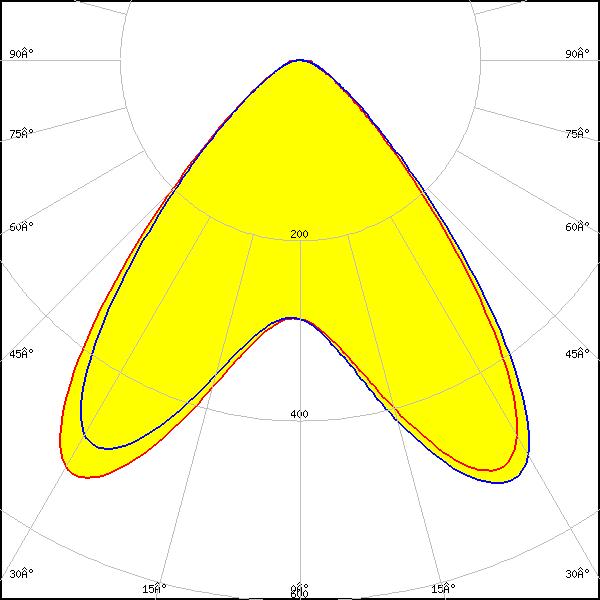

LED: LC010C G2
Required components:
FWHM: 94°
FWTM: 133°
Peak intensity: 0.520 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

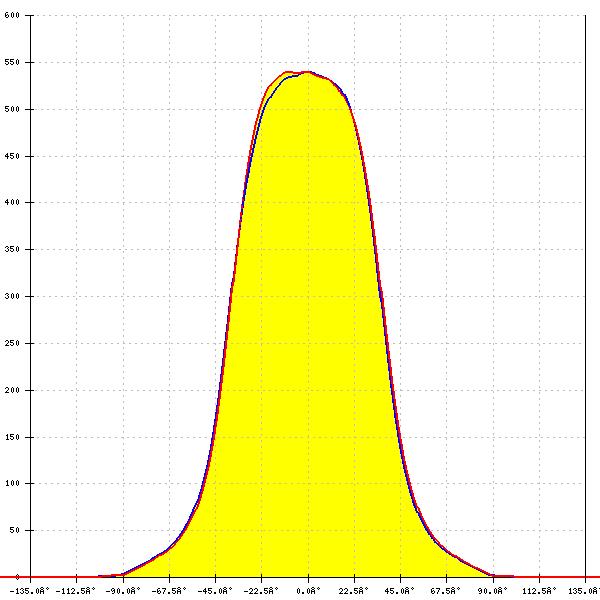

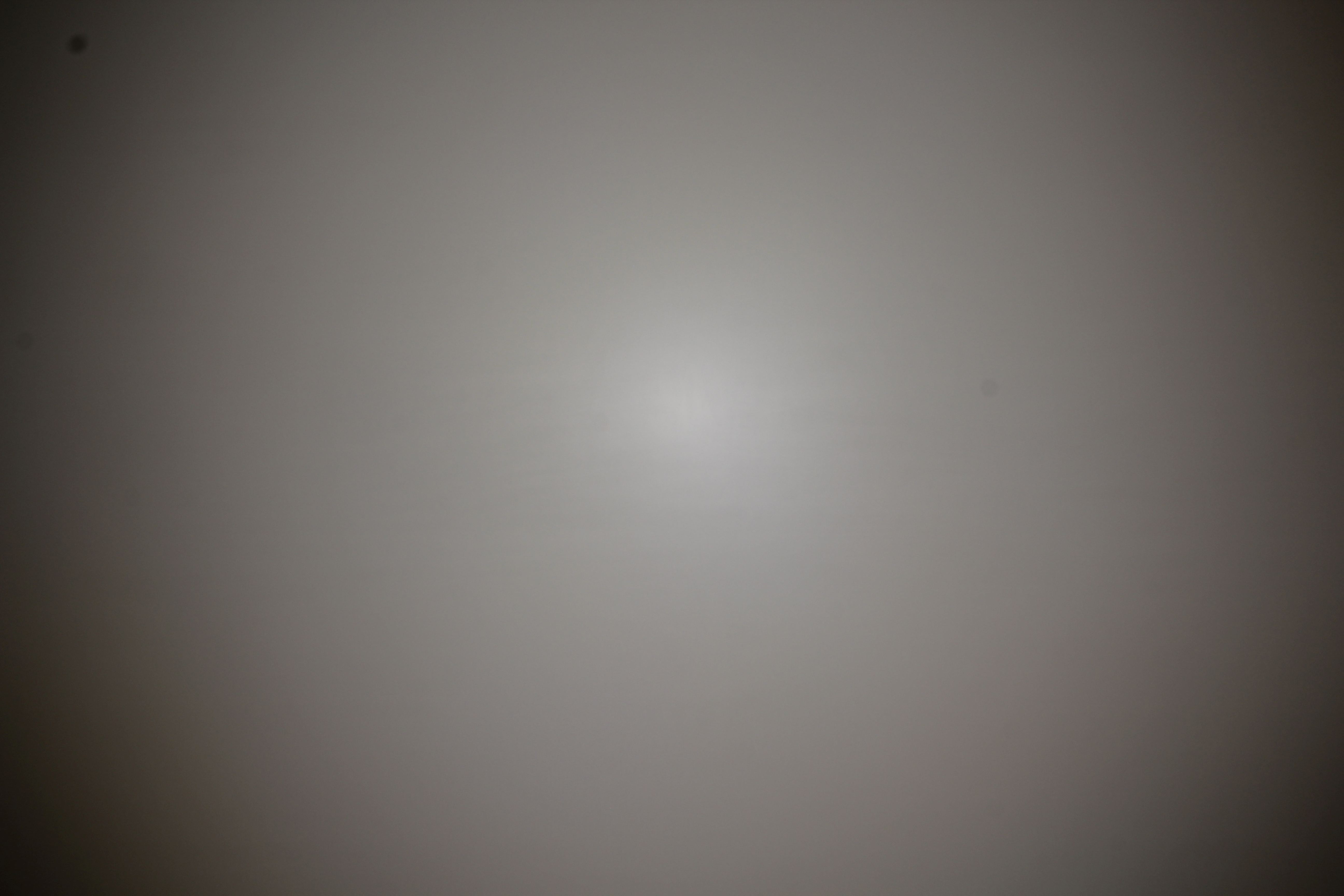

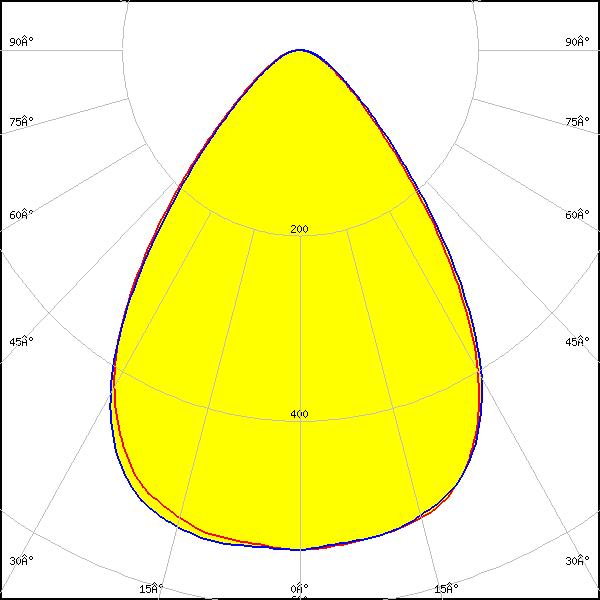

LED: LC010T (Tunable White)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 76°
FWTM: 117°
Peak intensity: 0.540 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: Tunable White
LED: LC016D / LC019D / LC026D / LC033D
Required components:
FWHM: 80°
FWTM: 131°
Peak intensity: 0.470 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

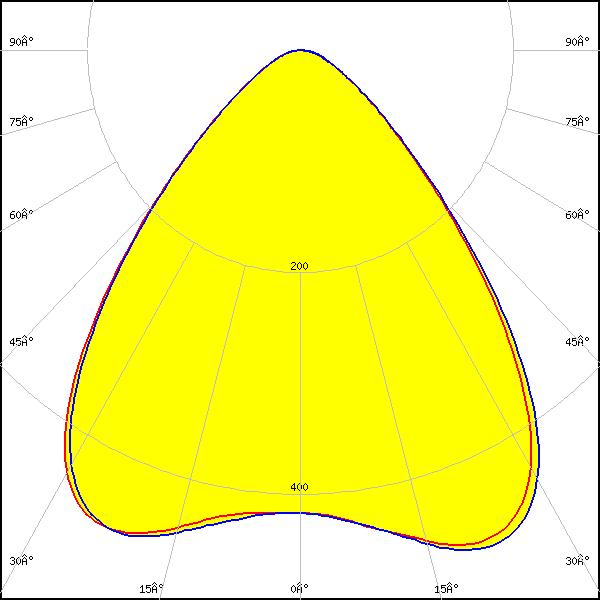

LED: LC020C
Required components:
FWHM: 87°
FWTM: 127°
Peak intensity: 0.480 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

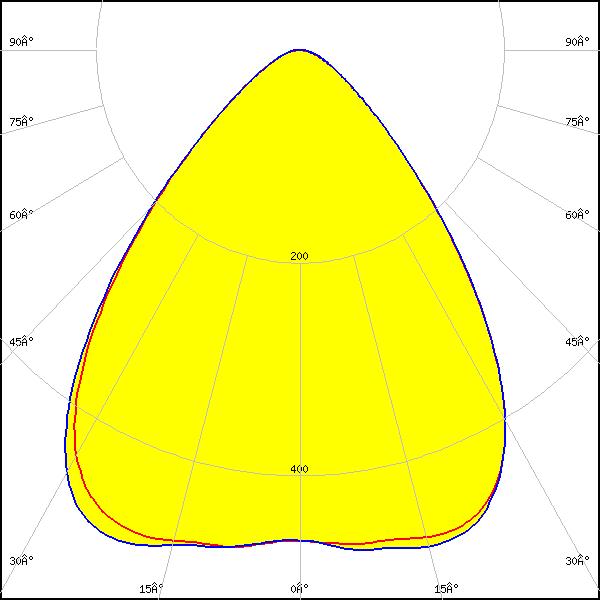

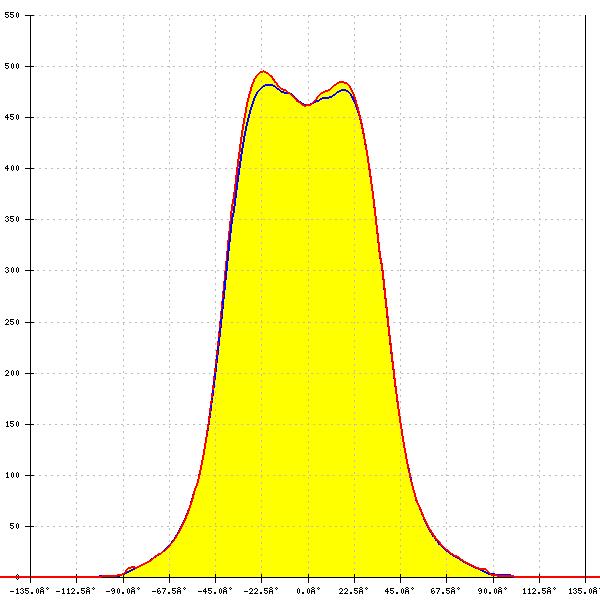

LED: LC020C G2
Required components:
FWHM: 82°
FWTM: 120°
Peak intensity: 0.495 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

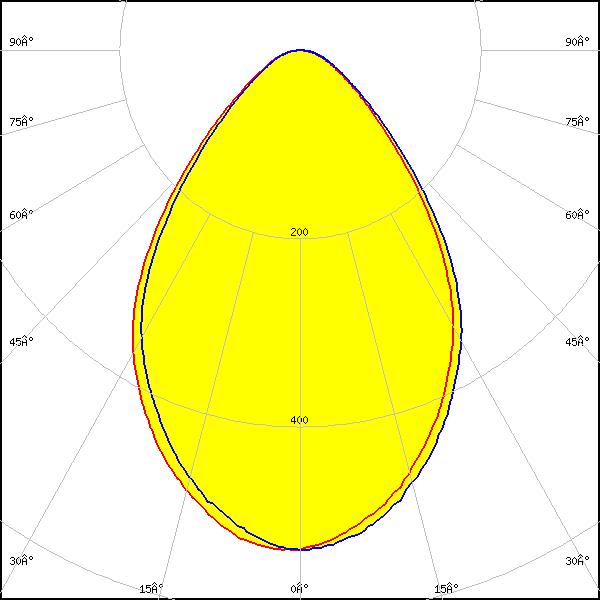

LED: LC020T (Tunable white)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 75°
FWTM: 122°
Peak intensity: 0.532 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: Tunable White

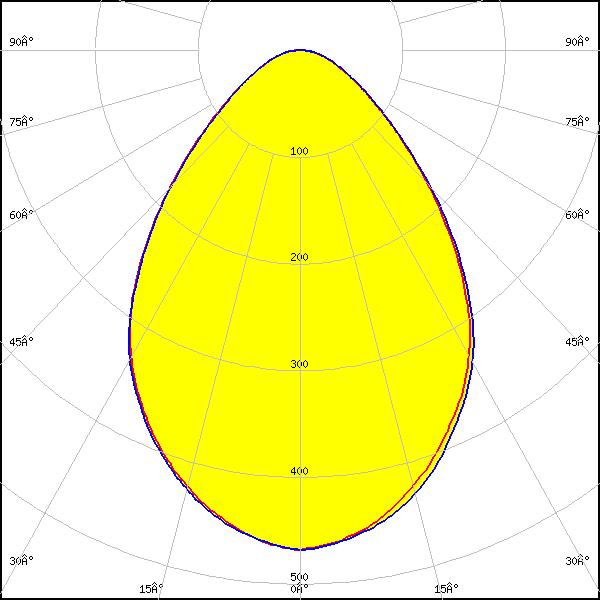

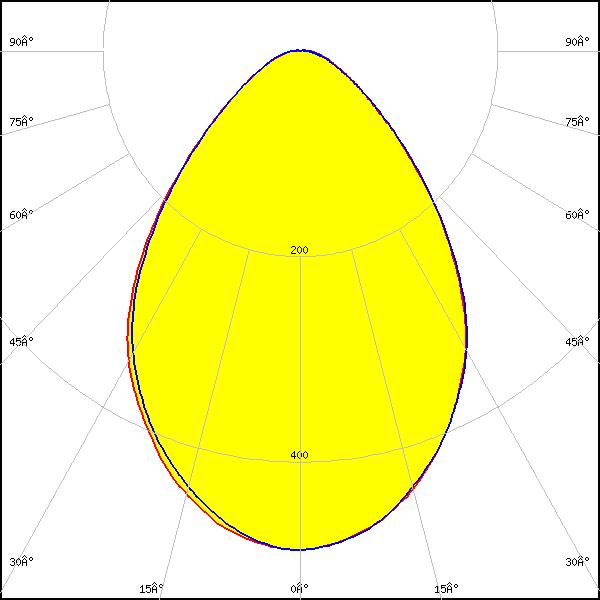

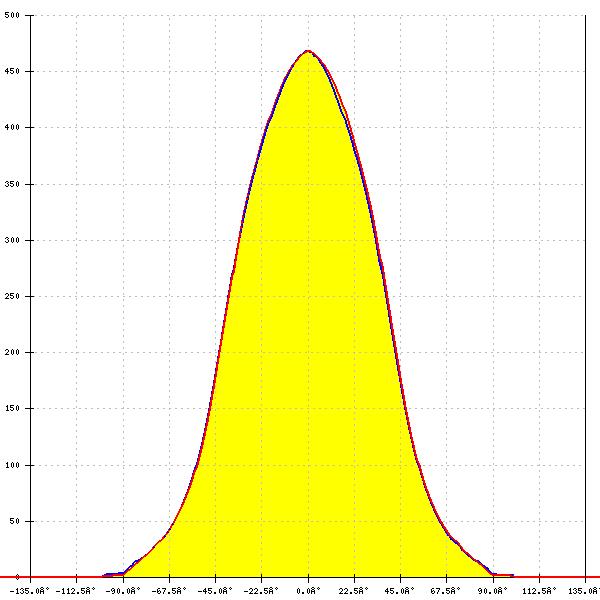

LED: MJT COB LES 14.5
Required components:
FWHM: 79°
FWTM: 133°
Peak intensity: 0.426 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour: White

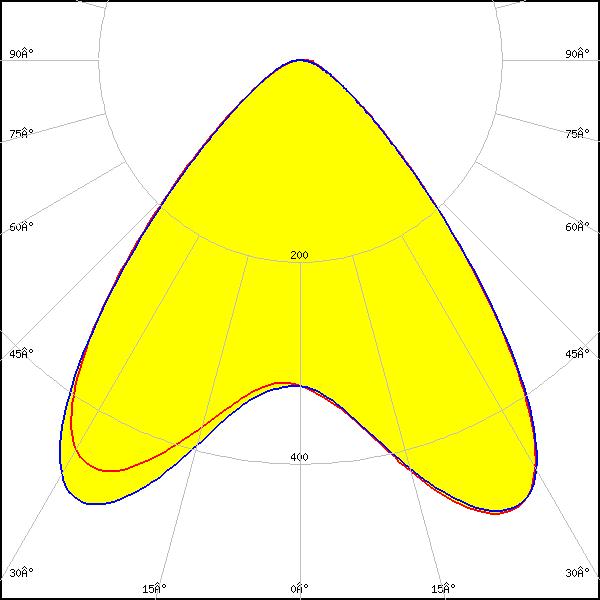

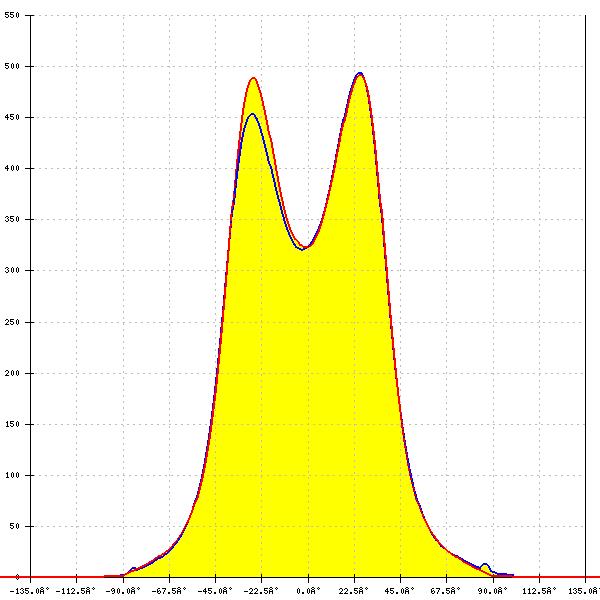

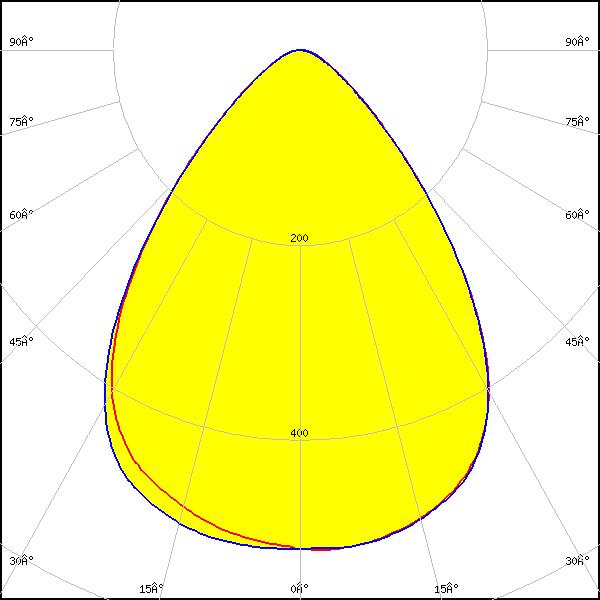

LED: MJT COB LES 6
Required components:
FWHM: 91°
FWTM: 129°
Peak intensity: 0.510 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

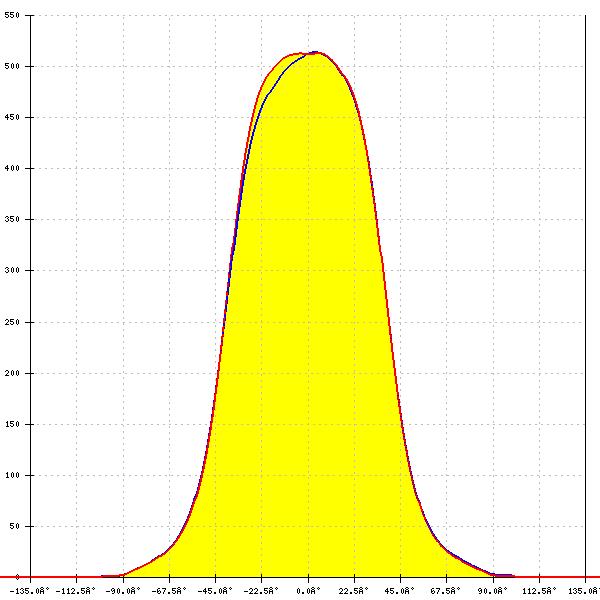

LED: MJT COB LES 9.8
Required components:
FWHM: 79°
FWTM: 118°
Peak intensity: 0.510 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

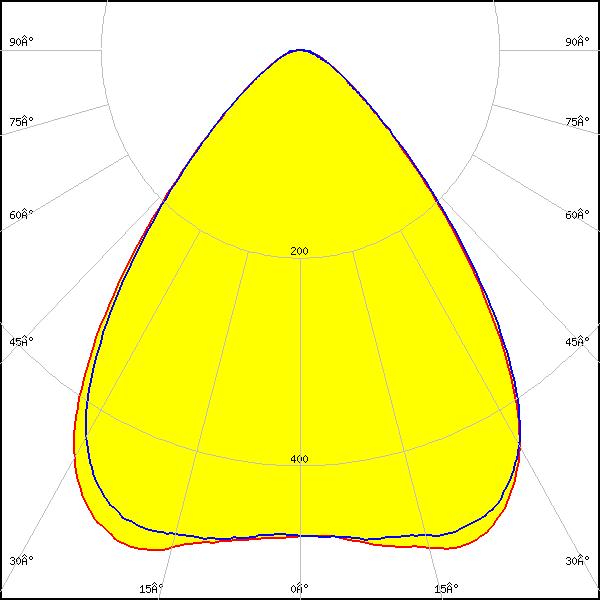

LED: SLE G7 LES09
Required components:
FWHM: 83°
FWTM: 120°
Peak intensity: 0.510 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

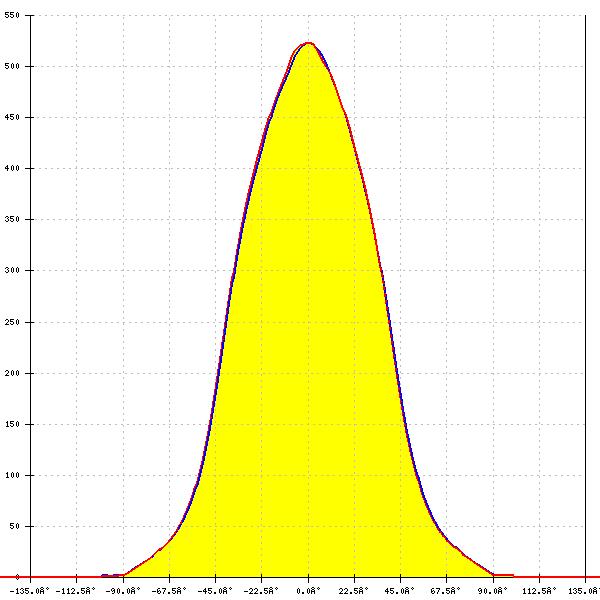

LED: SLE G7 LES13
Required components:
FWHM: 78°
FWTM: 124°
Peak intensity: 0.500 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

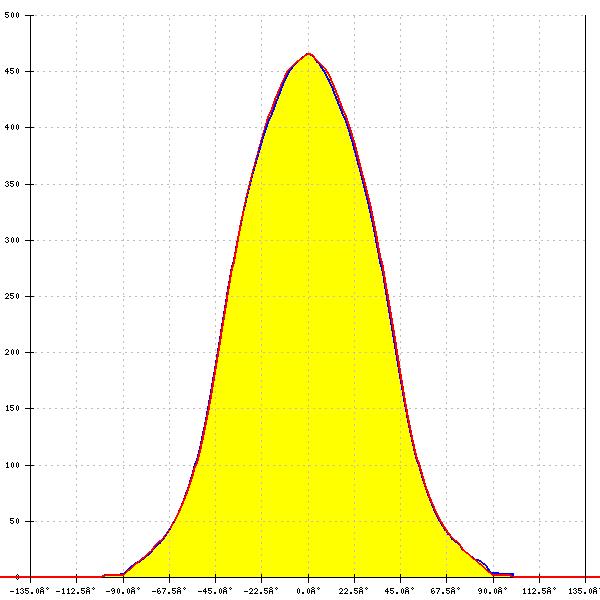

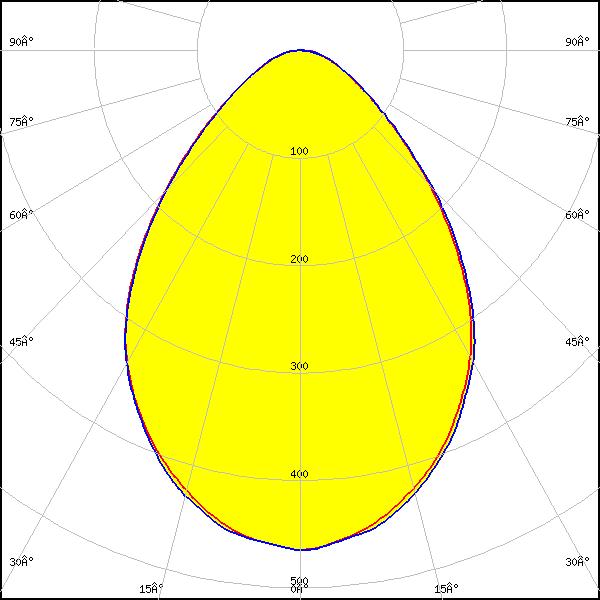

LED: SLE G7 LES15
Required components:
FWHM: 81°
FWTM: 132°
Peak intensity: 0.500 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White
LED: XOB 14.5 mm
Required components:
FWHM: 78°
FWTM: 128°
Peak intensity: 0.486 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White
LED: XOB 9.8 mm
Required components:
FWHM: 81°
FWTM: 121°
Peak intensity: 0.499 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

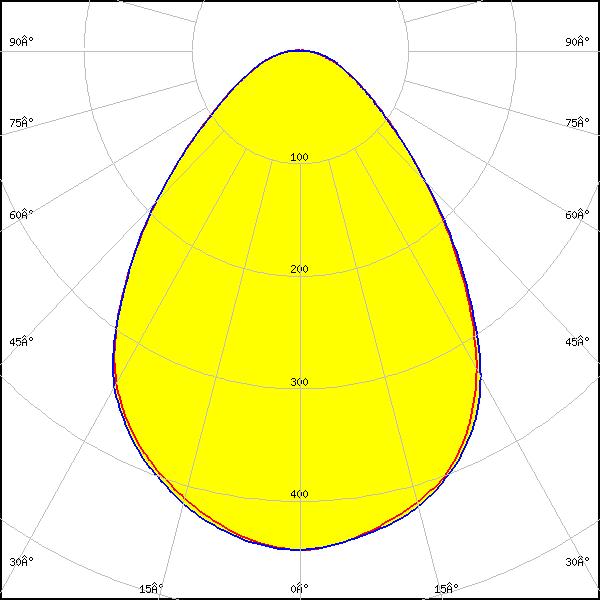

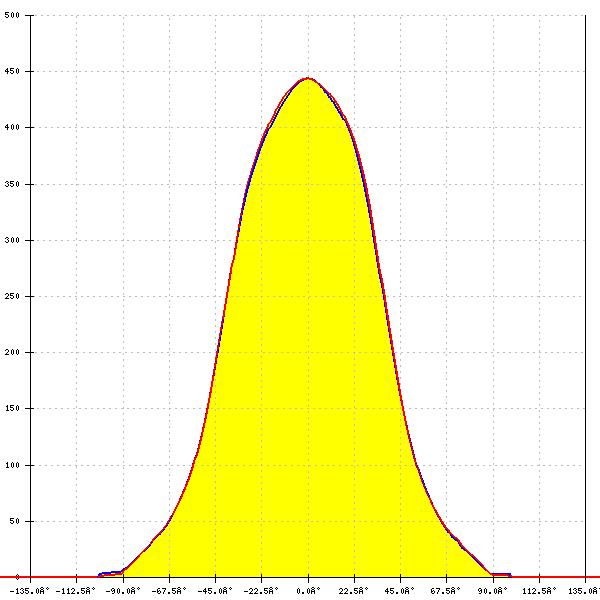

LED: XTM - 19mm LES
Required components:
FWHM: 81°
FWTM: 137°
Peak intensity: 0.440 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
