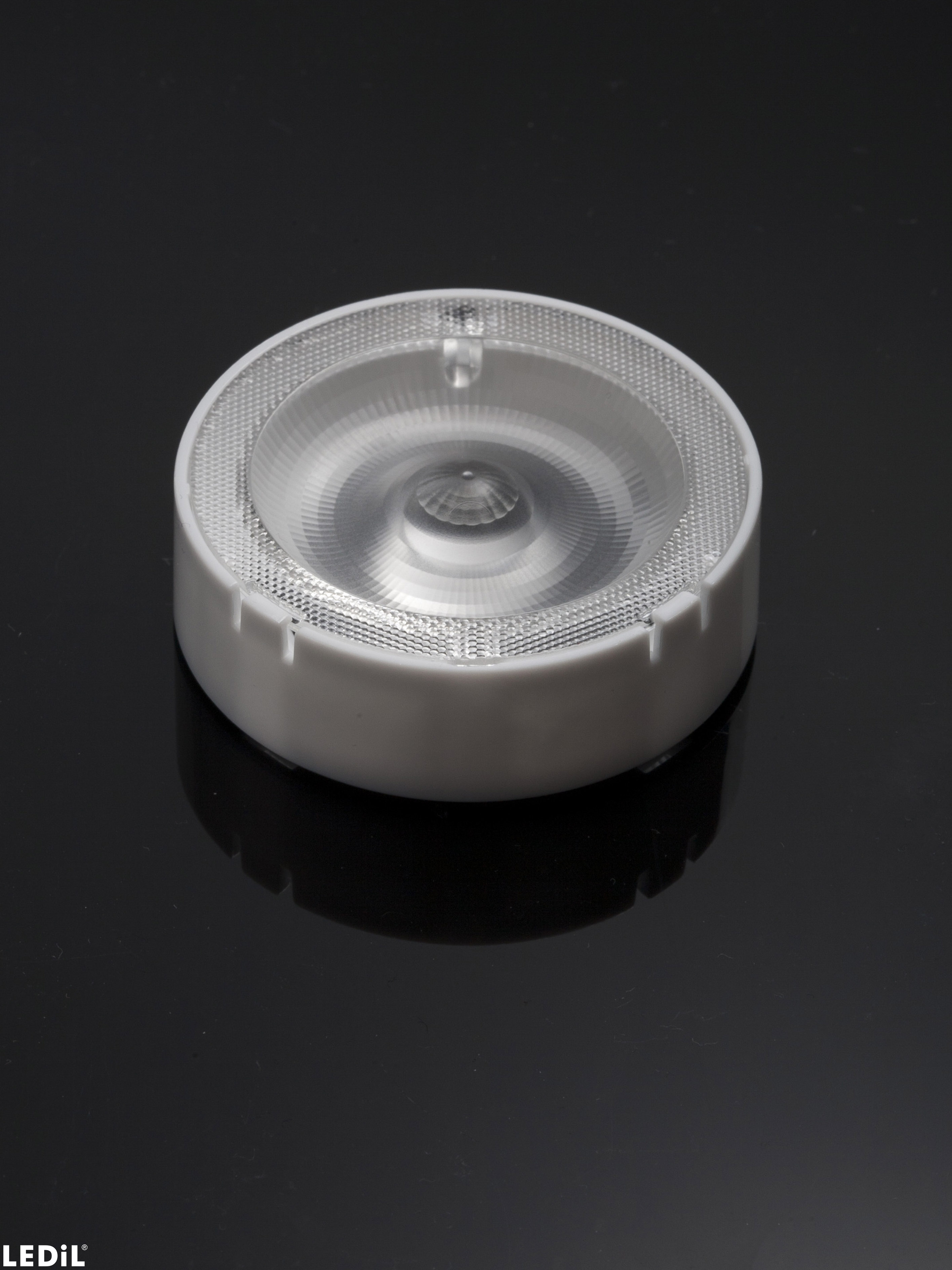

RONDA-W-C

Print

~45° wide beam with holder C compatible with LEDiL HEKLA

Note! This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
  • Dimensions:
    52 mm
  • Height:
    16.98 mm
  • Fastening:
    socket
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Single lens
    1 pcs
  • Holder
    1 pcs
  • Single lens
  • F15443_RONDA-W
    clear
  • Quantity in box:
    420 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    5.50 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 100 mm
  • MOQ Weight:
    1.60 kg
  • Holder
  • F15635_RONDA-HLD-C
    white
  • Quantity in box:
    420 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    4.10 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 120 mm
  • MOQ Weight:
    1.30 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F15443_RONDA-W
    F15635_RONDA-HLD-C

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

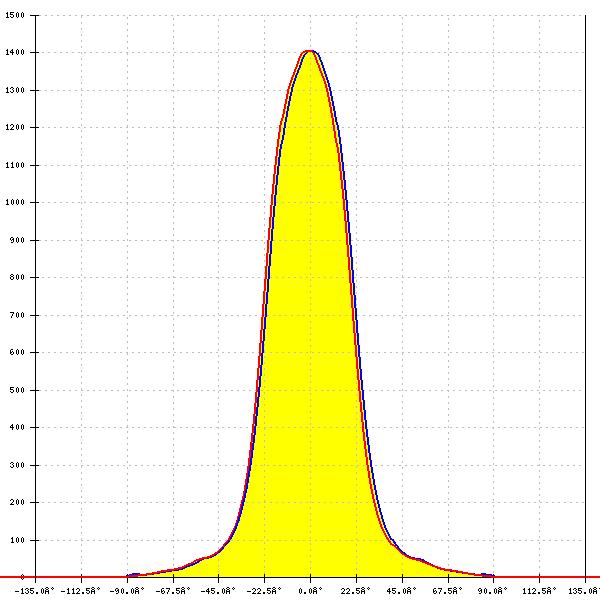

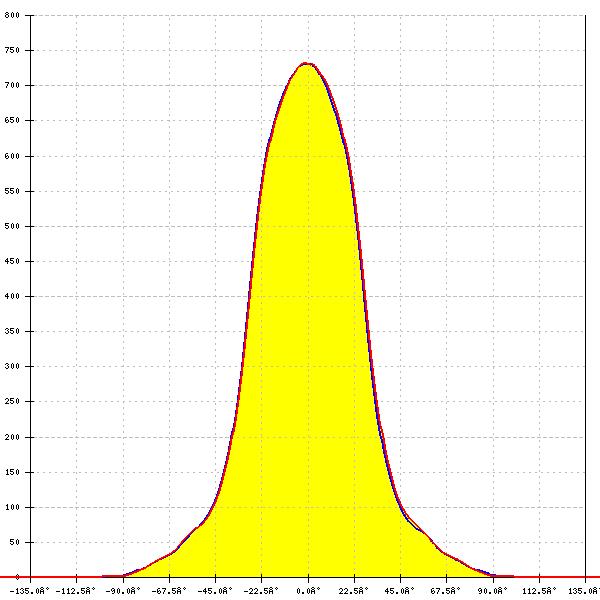

Optical results

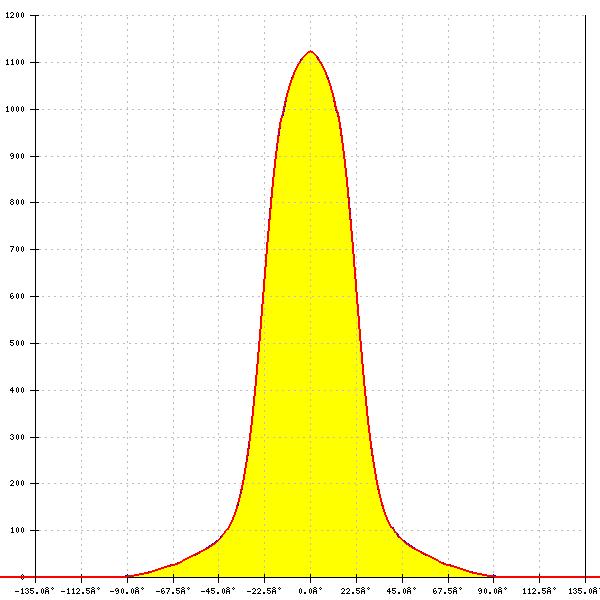

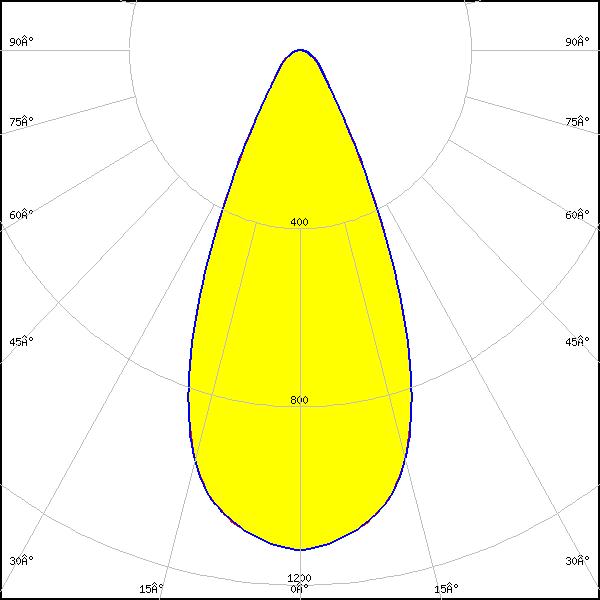

LED: V11 HD Gen 8
Required components:
Bender Wirth: 633d Hekla
FWHM: 48°
FWTM: 79°
Peak intensity: 1.122 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

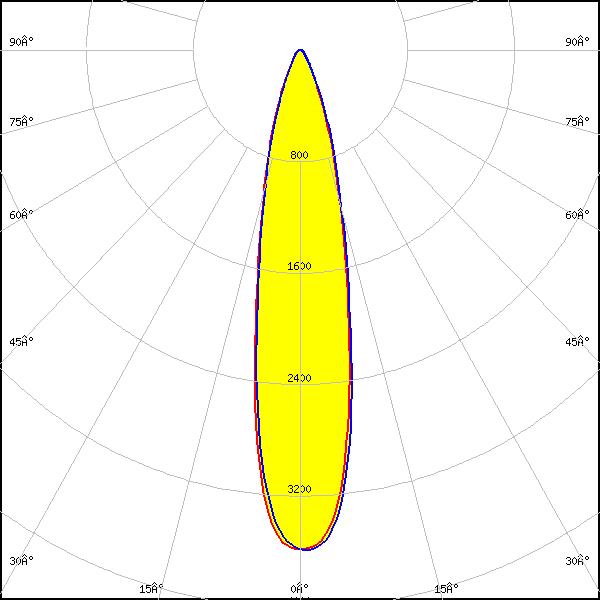

LED: V4 HD Gen 7
Required components:
FWHM: 22°
FWTM: 49°
Peak intensity: 3.600 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

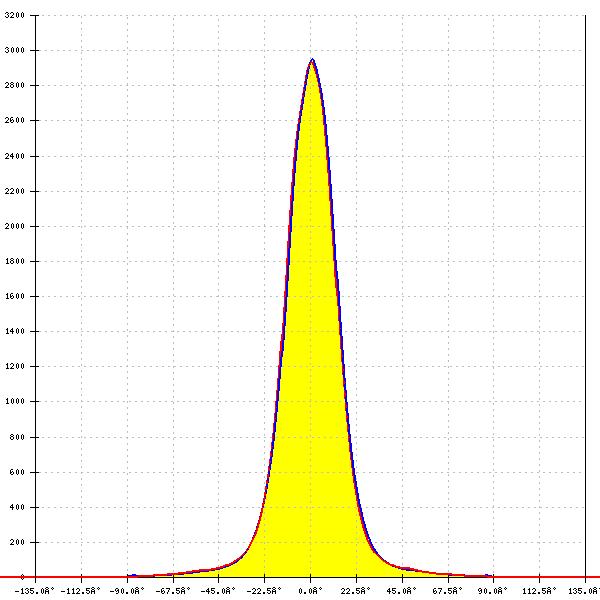

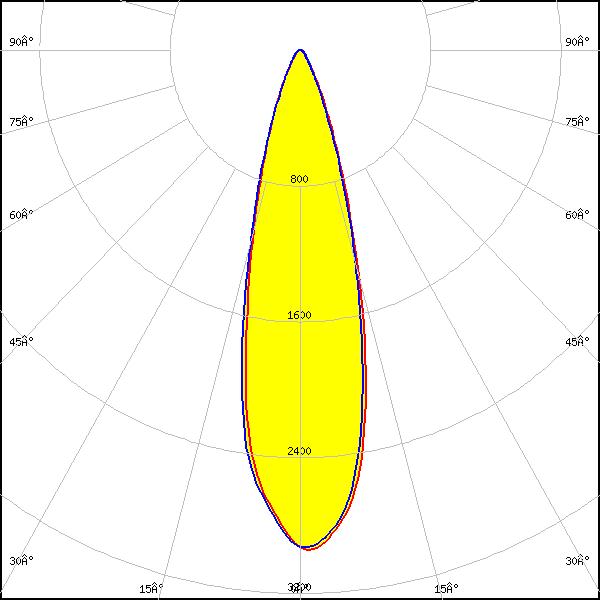

LED: V6 Gen6
Required components:
FWHM: 27°
FWTM: 52°
Peak intensity: 2.950 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

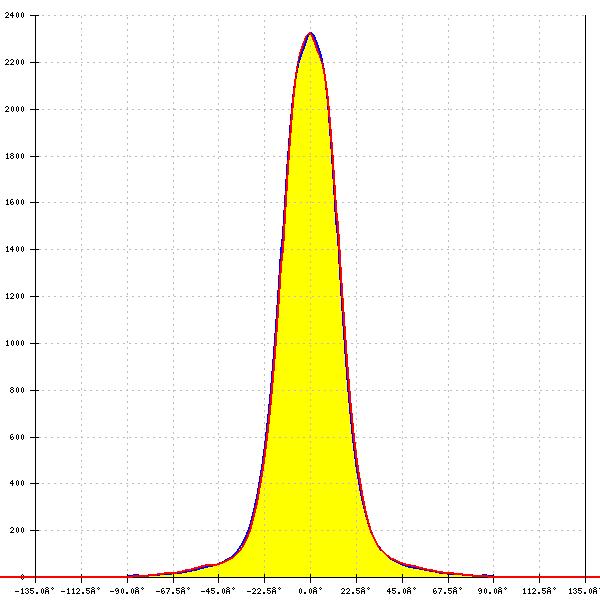

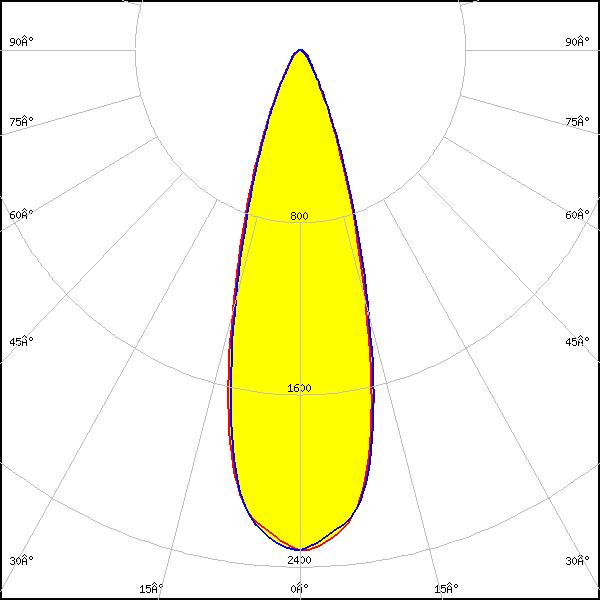

LED: V6 HD Gen 7
Required components:
FWHM: 31°
FWTM: 58°
Peak intensity: 2.300 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

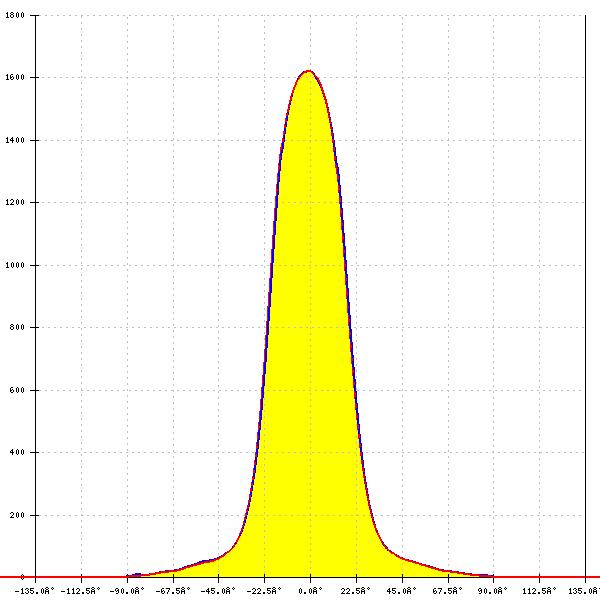

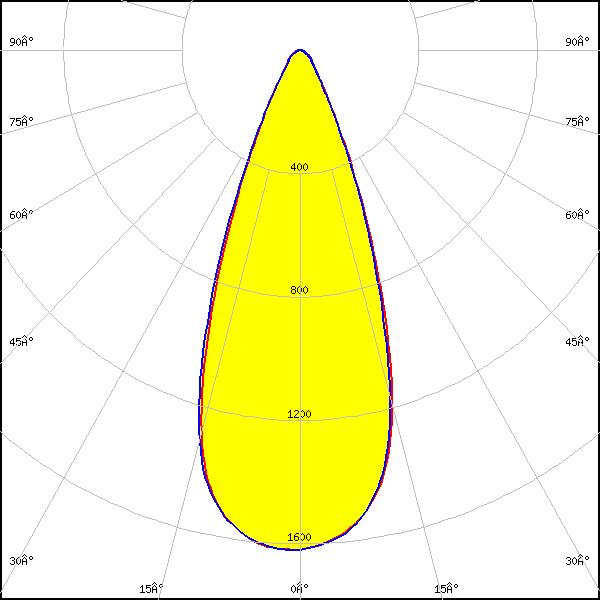

LED: V9 HD Gen7
Required components:
FWHM: 40°
FWTM: 65°
Peak intensity: 1.600 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

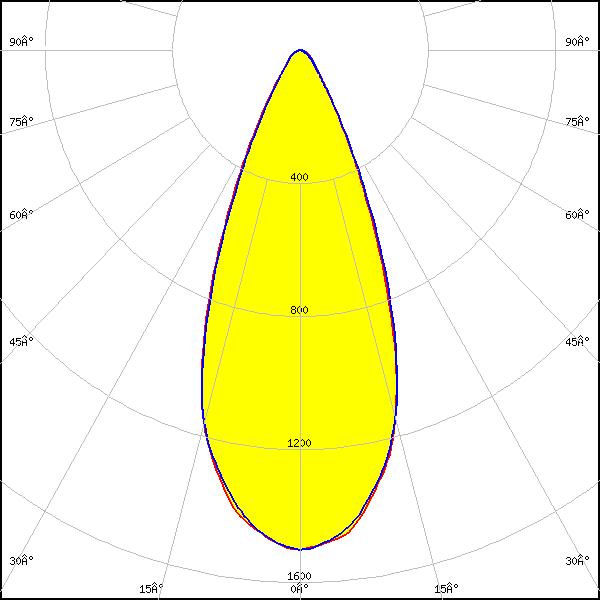

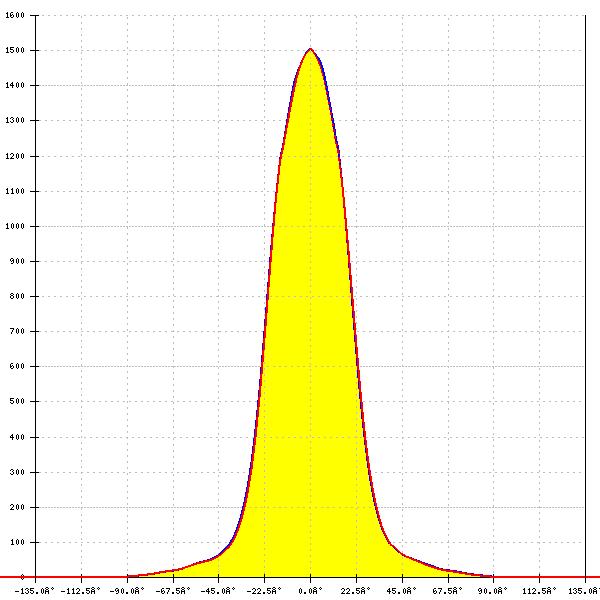

LED: VERO10
Required components:
FWHM: 43°
FWTM: 70°
Peak intensity: 1.500 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 6mm DP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 504 Typ L8
FWHM: 31°
FWTM: 55°
Peak intensity: 2.418 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

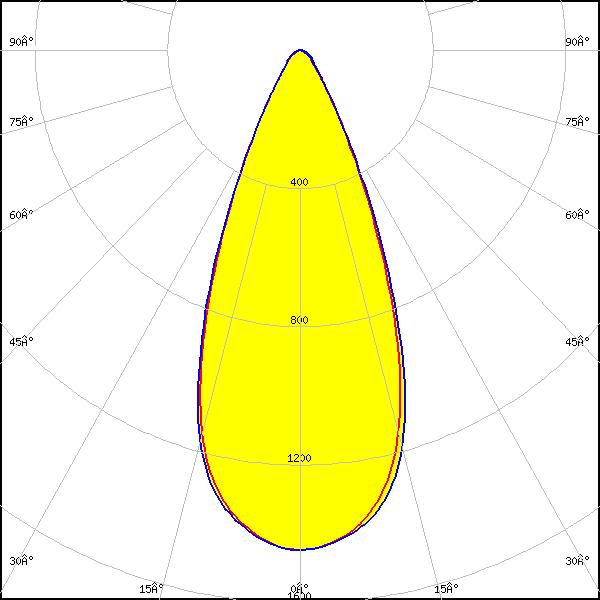

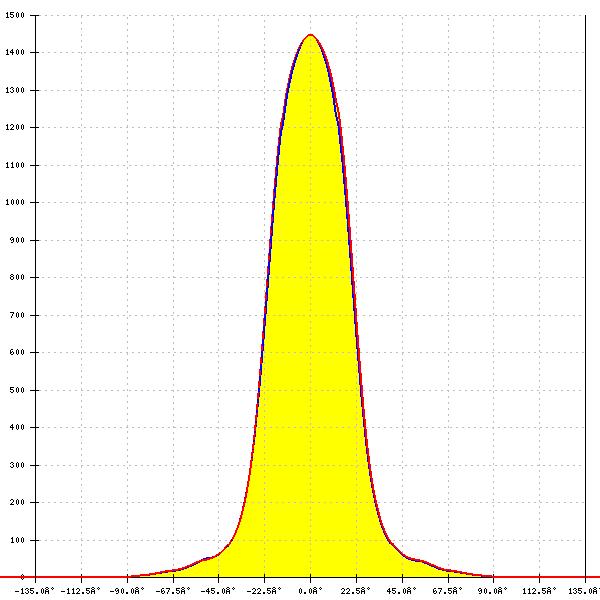

LED: CLL02x/CLU02x (LES10)
Required components:
FWHM: 44°
FWTM: 70°
Peak intensity: 1.400 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

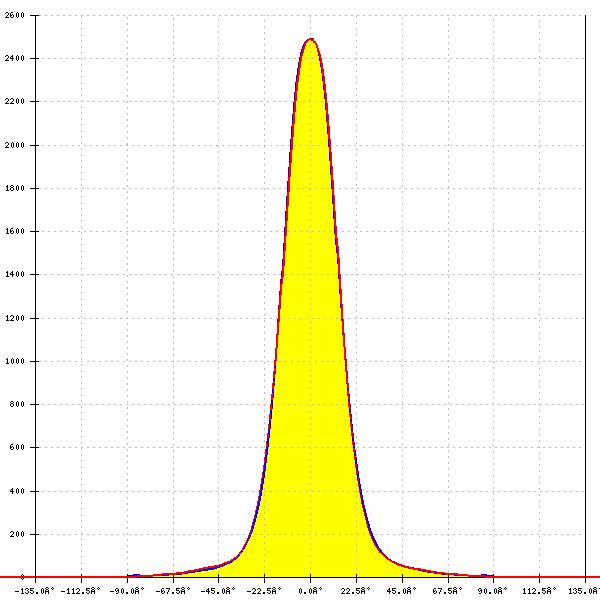

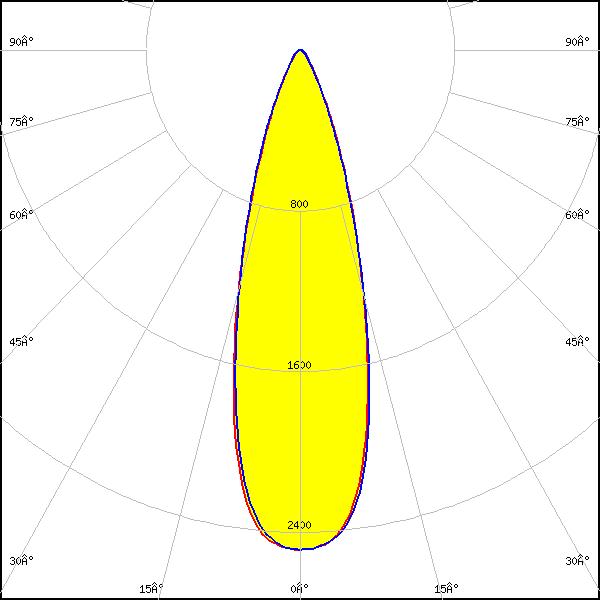

LED: CLU700/701/702/703
Required components:
FWHM: 30°
FWTM: 56°
Peak intensity: 2.500 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

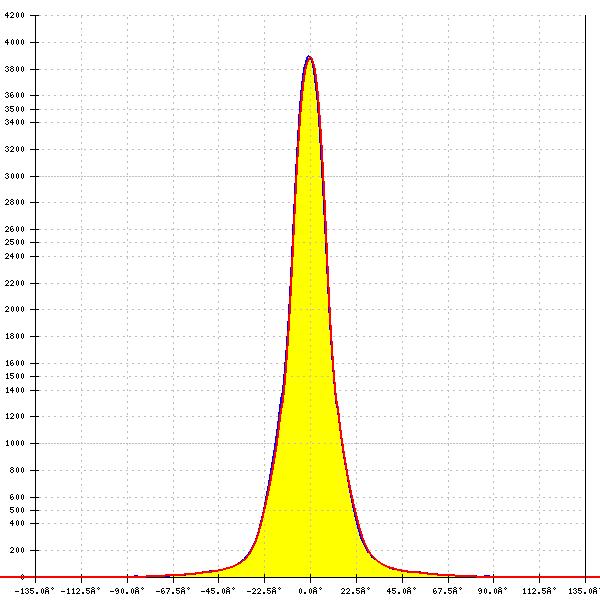

LED: CLU7A2/7A3
Required components:
FWHM: 21°
FWTM: 48°
Peak intensity: 3.900 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

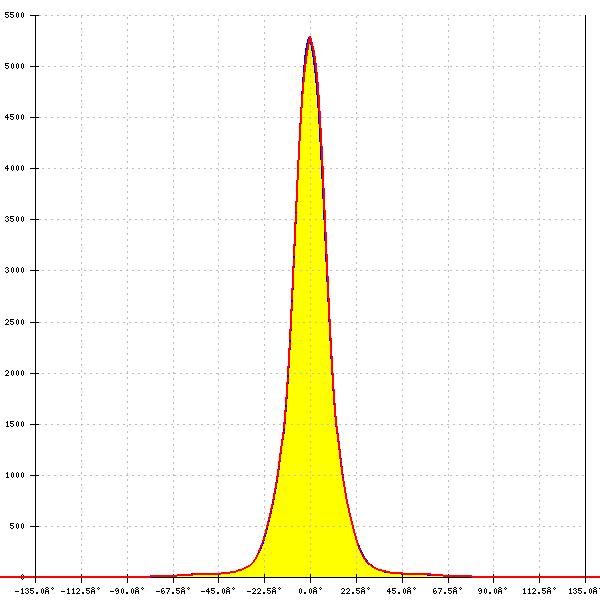

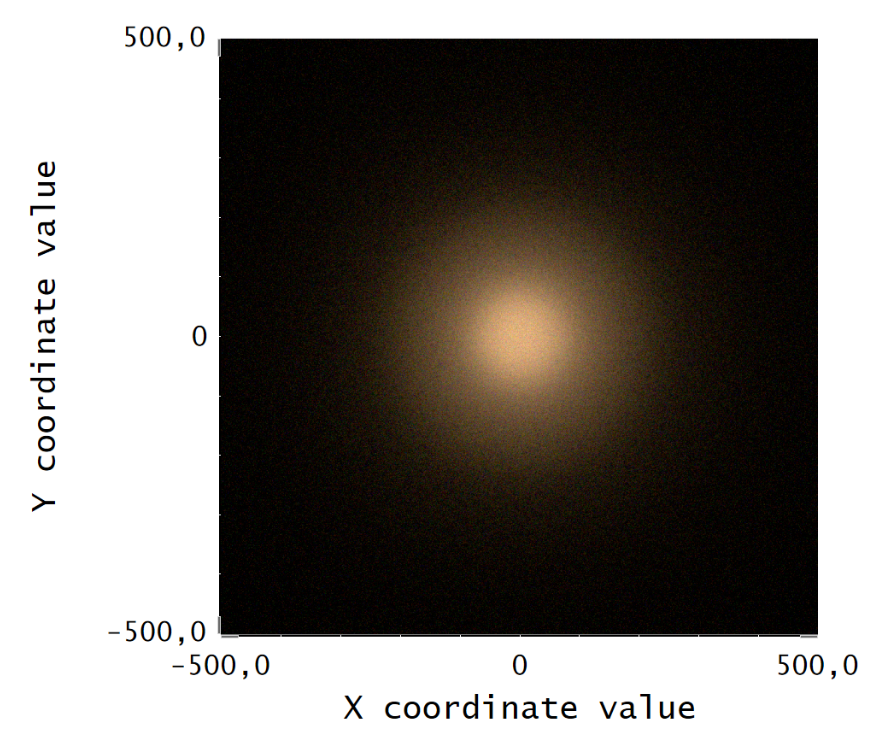

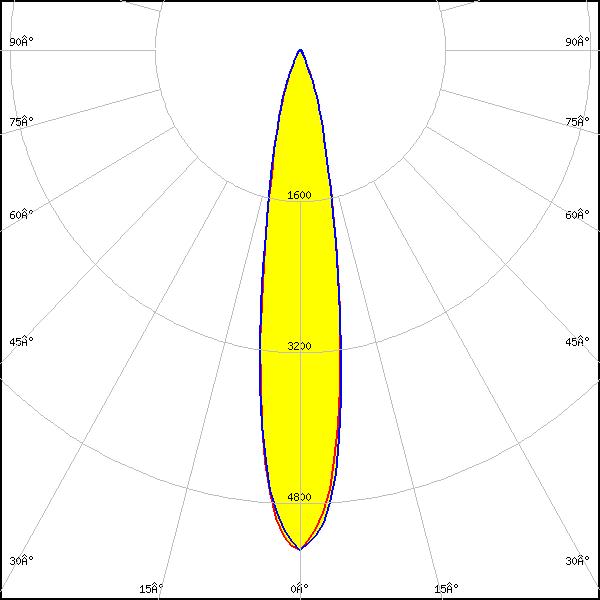

LED: CLU7B2
Required components:
FWHM: 18°
FWTM: 41°
Peak intensity: 5.293 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

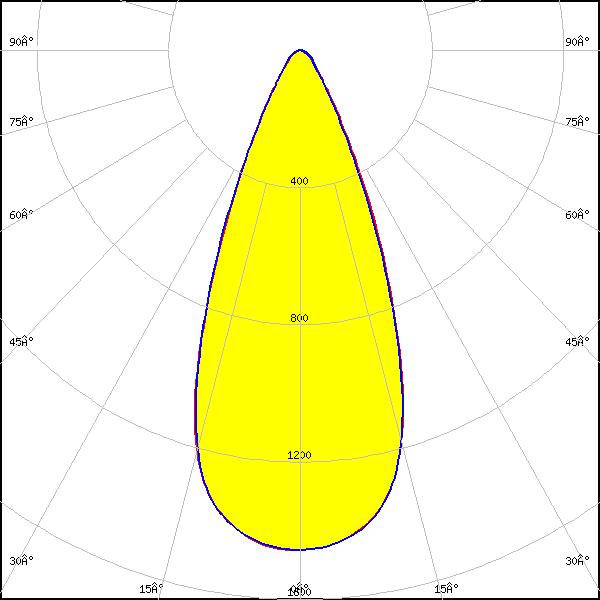

LED: CMA1516
Required components:
FWHM: 43°
FWTM: 70°
Peak intensity: 1.500 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

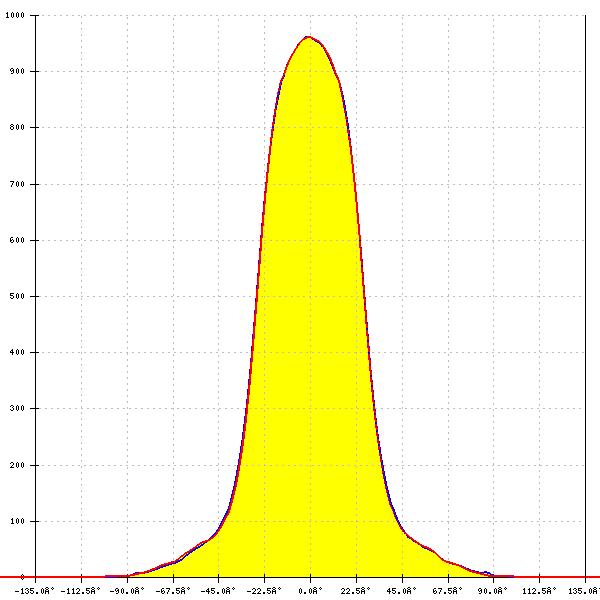

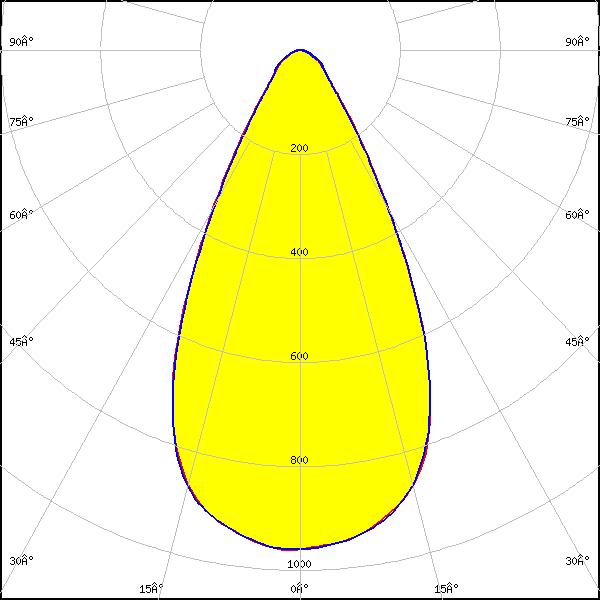

LED: CMA1825
Required components:
FWHM: 54°
FWTM: 86°
Peak intensity: 0.960 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

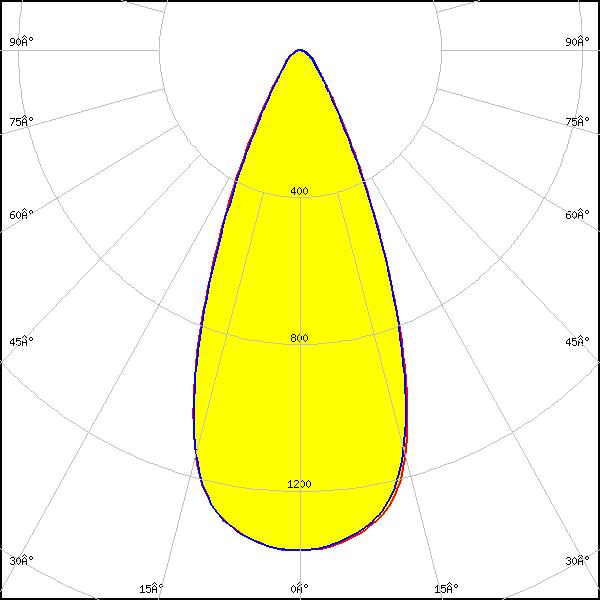

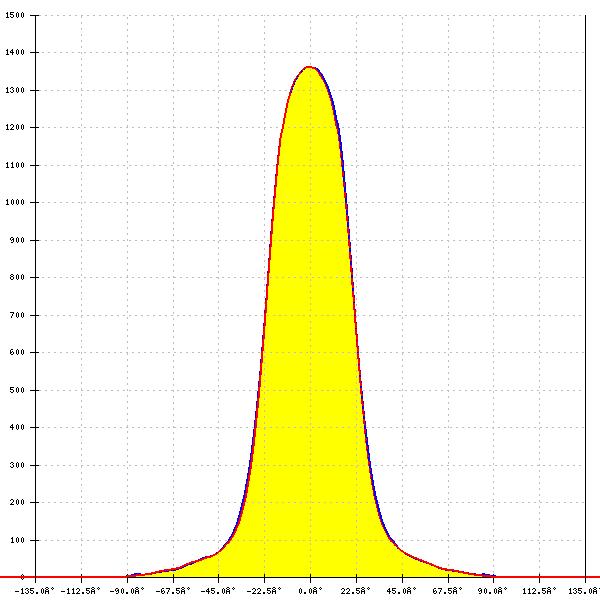

LED: CMT14xx
Required components:
FWHM: 44°
FWTM: 72°
Peak intensity: 1.350 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

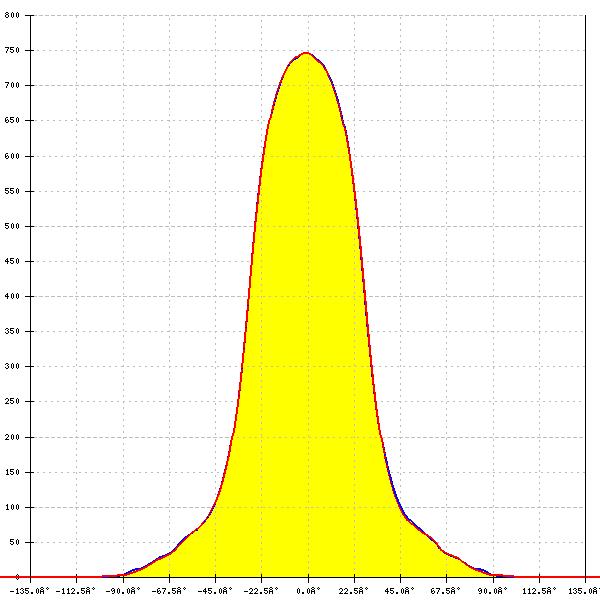

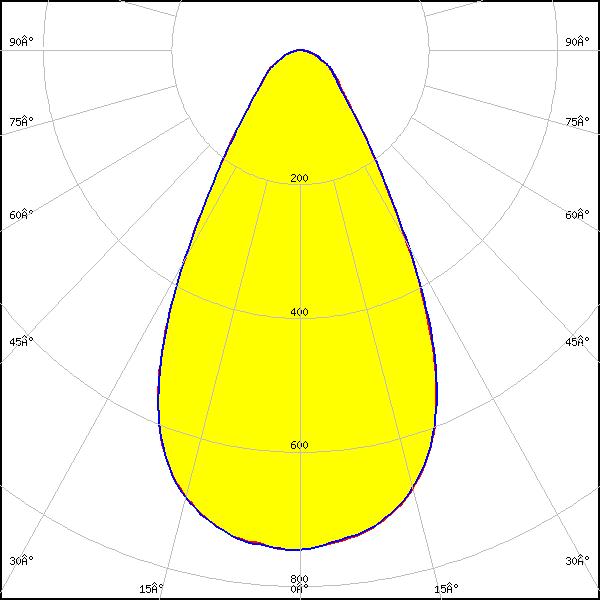

LED: CMT19xx
Required components:
FWHM: 58°
FWTM: 103°
Peak intensity: 0.747 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

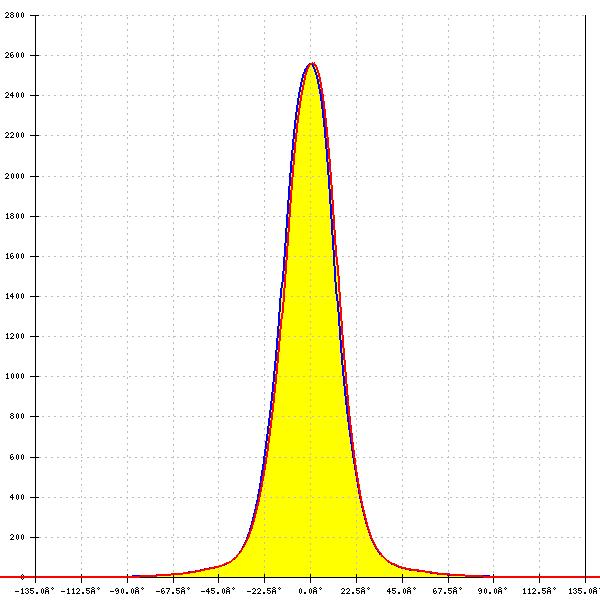

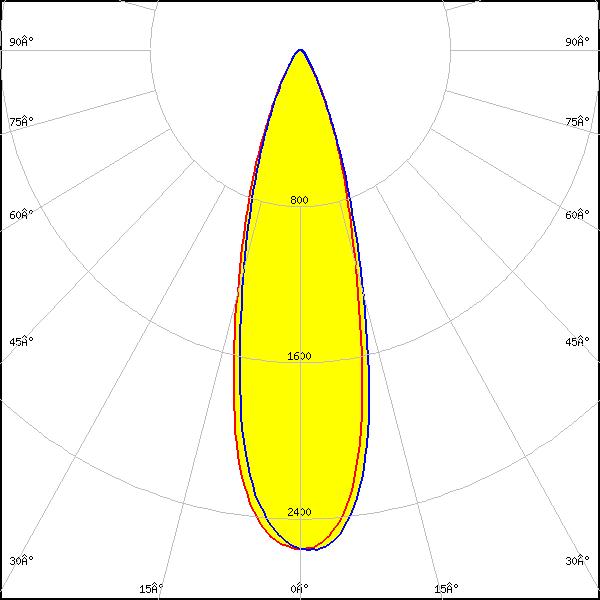

LED: CXA/B 13xx
Required components:
FWHM: 29°
FWTM: 57°
Peak intensity: 2.600 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

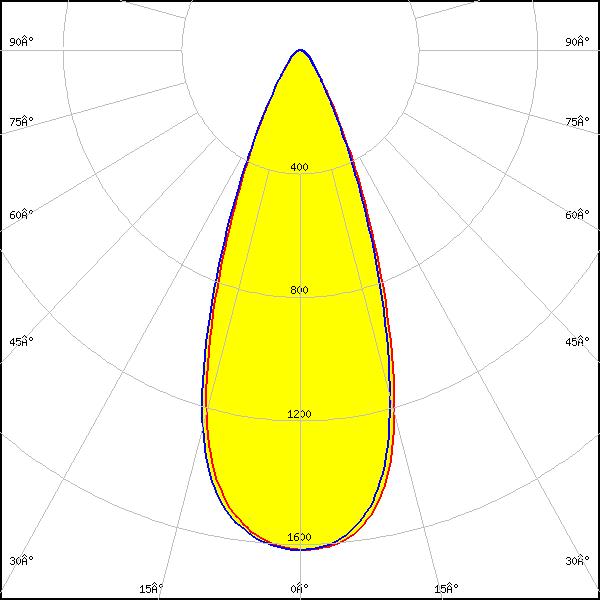

LED: CXA/B 15xx
Required components:
FWHM: 40°
FWTM: 67°
Peak intensity: 1.600 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

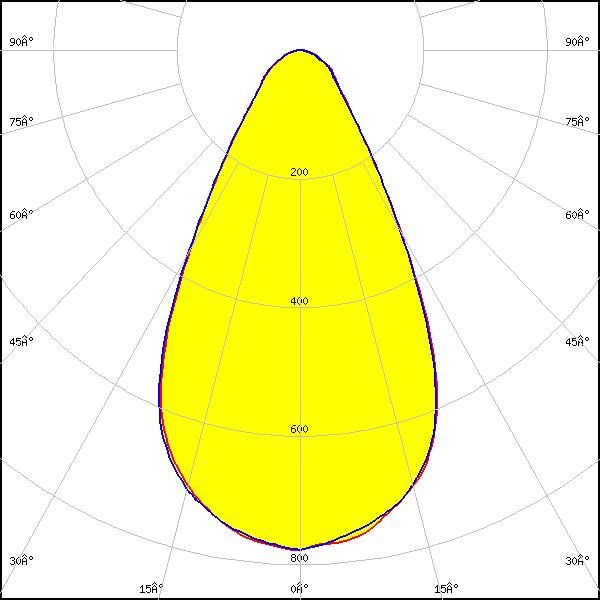

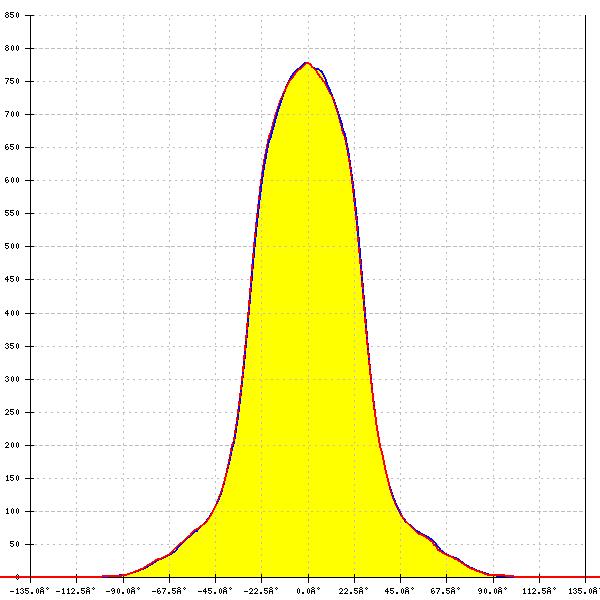

LED: LUXEON CX Plus CoB L08 (Gen2)
Required components:
Bender Wirth: 637a Hekla
FWHM: 57°
FWTM: 102°
Peak intensity: 0.778 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

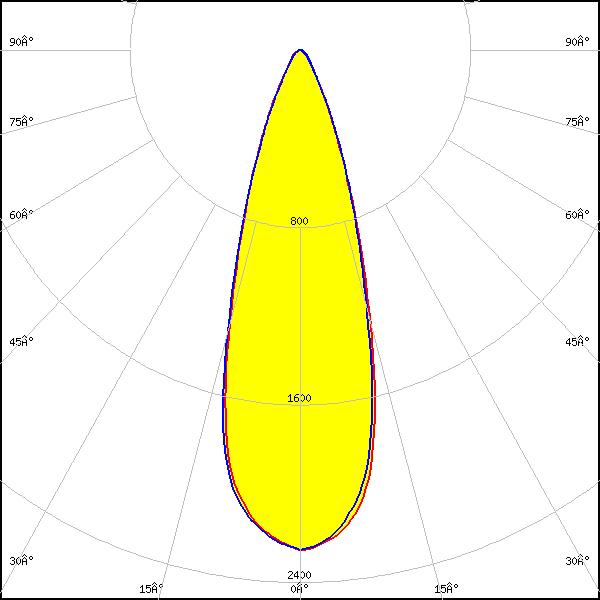

LED: LUXEON CoB 1202HD
Required components:
FWHM: 32°
FWTM: 58°
Peak intensity: 2.250 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

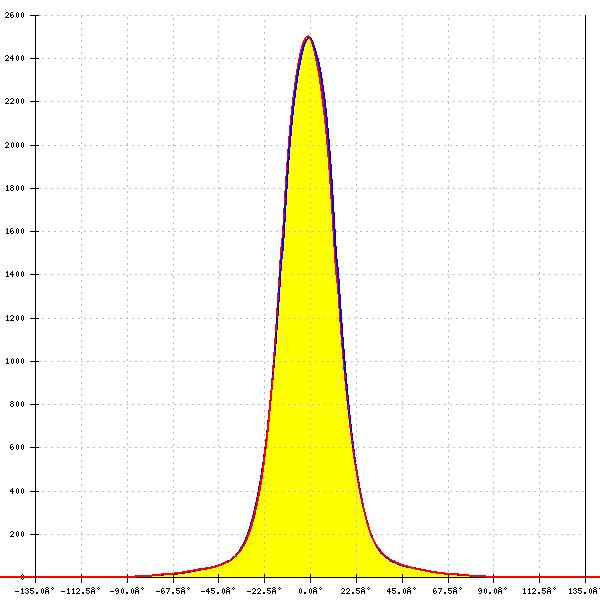

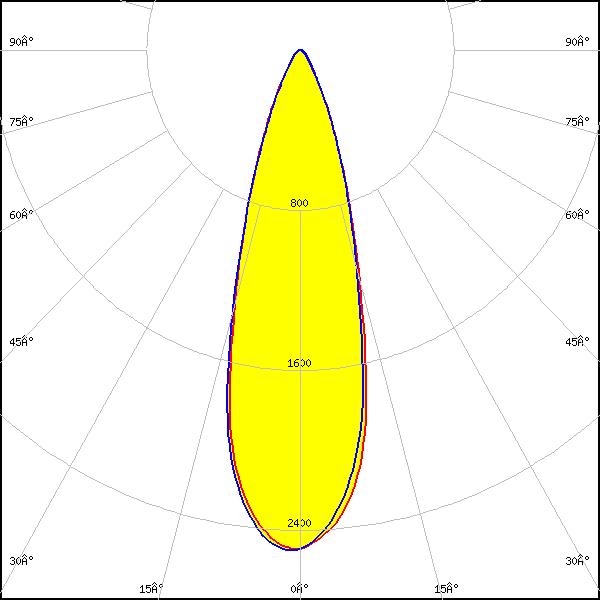

LED: LUXEON CoB 1202s
Required components:
FWHM: 30°
FWTM: 57°
Peak intensity: 2.500 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

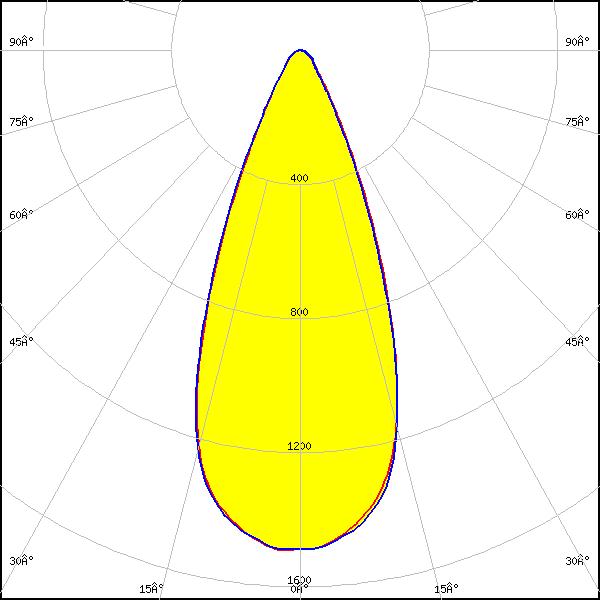

LED: LUXEON CoB 1204HD
Required components:
FWHM: 42°
FWTM: 69°
Peak intensity: 1.500 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

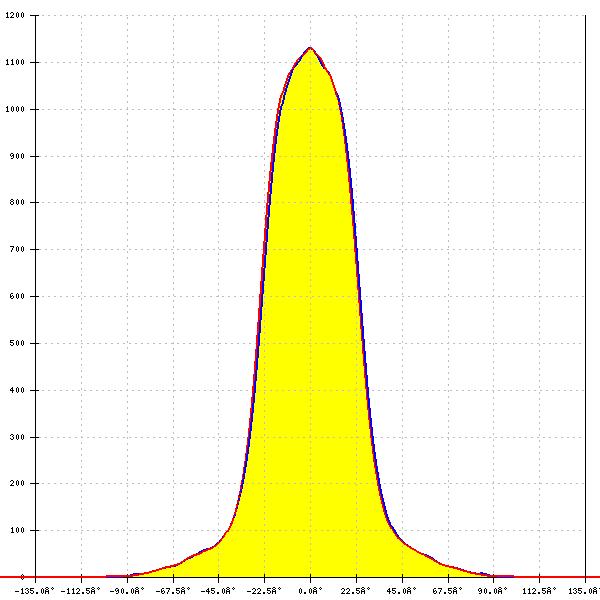

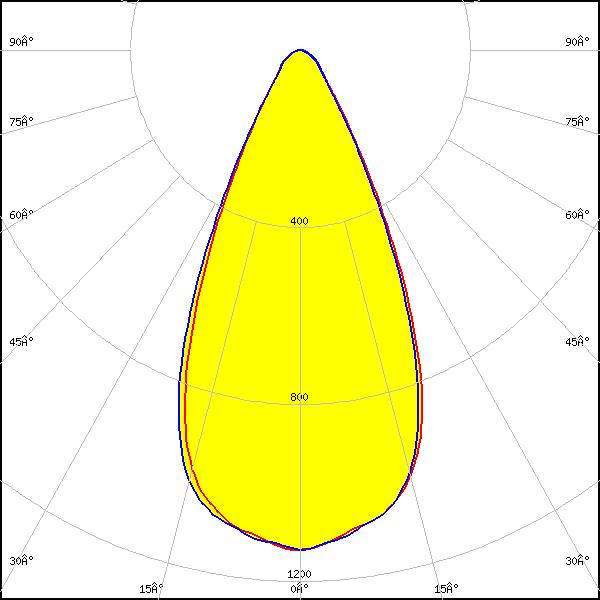

LED: LUXEON CoB 1205HD
Required components:
FWHM: 49°
FWTM: 78°
Peak intensity: 1.130 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

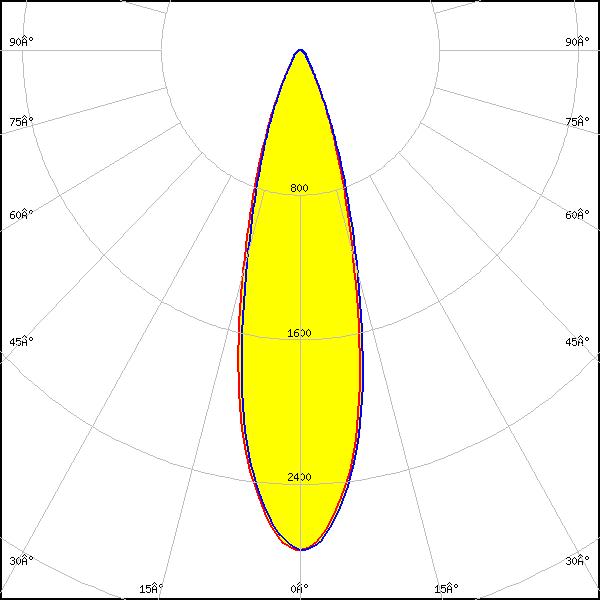

LED: LUXEON CX Plus CoB - HD S01H4
Required components:
Bender Wirth: 634c Hekla
FWHM: 28°
FWTM: 54°
Peak intensity: 2.765 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

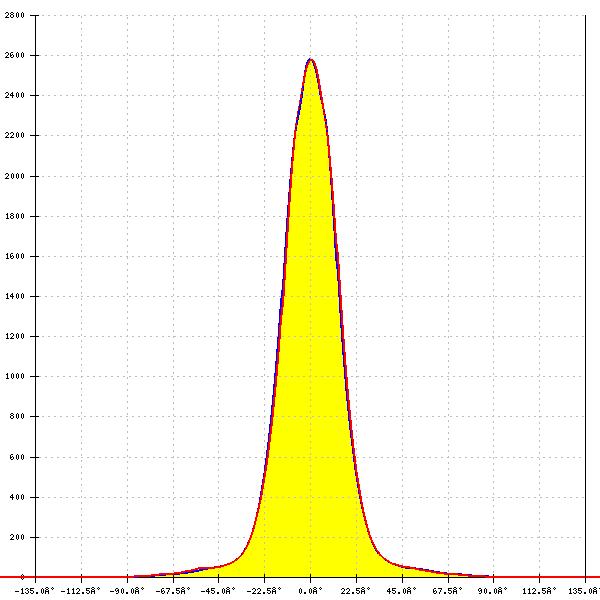

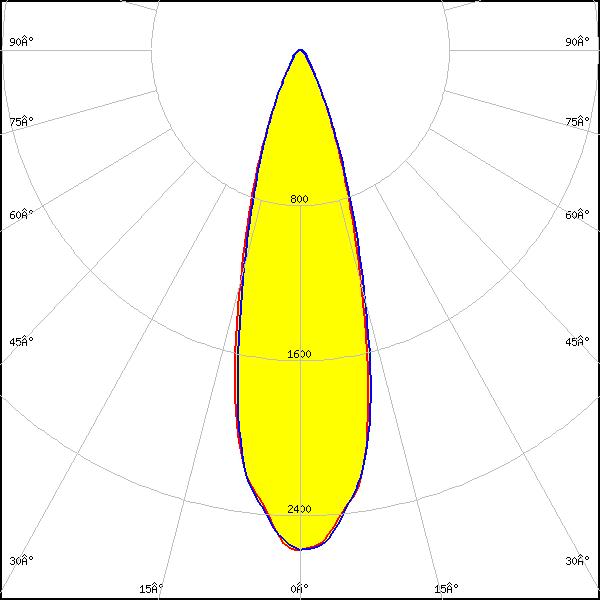

LED: LUXEON CX Plus CoB - HD S01H6 / HD S02H6
Required components:
Bender Wirth: 634c Hekla
FWHM: 30°
FWTM: 56°
Peak intensity: 2.578 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB - HD S04H9
Required components:
Bender Wirth: 634c Hekla
FWHM: 42°
FWTM: 68°
Peak intensity: 1.518 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
Required components:
Bender Wirth: 637a Hekla
FWHM: 49°
FWTM: 80°
Peak intensity: 1.115 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

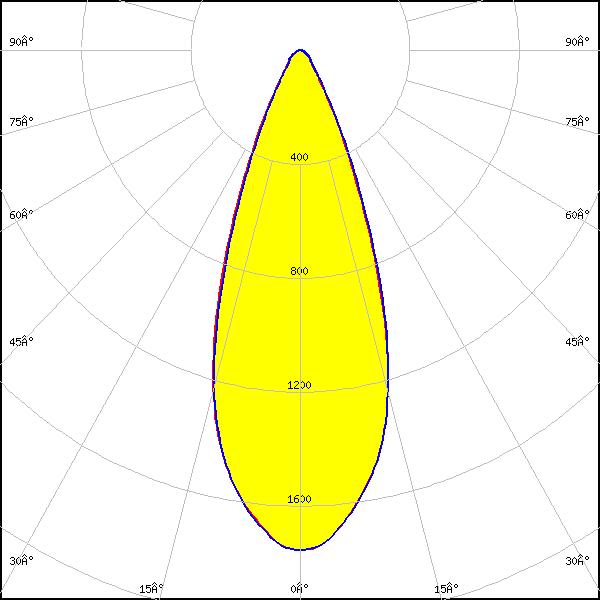

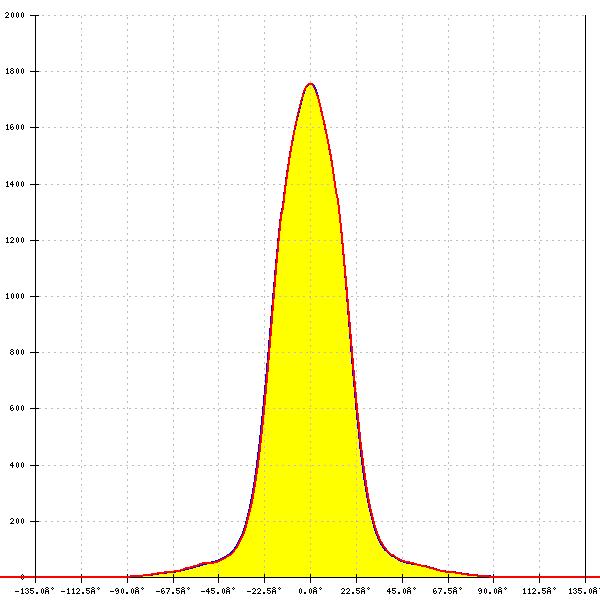

LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
Required components:
Bender Wirth: 641a Hekla
FWHM: 39°
FWTM: 64°
Peak intensity: 1.756 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

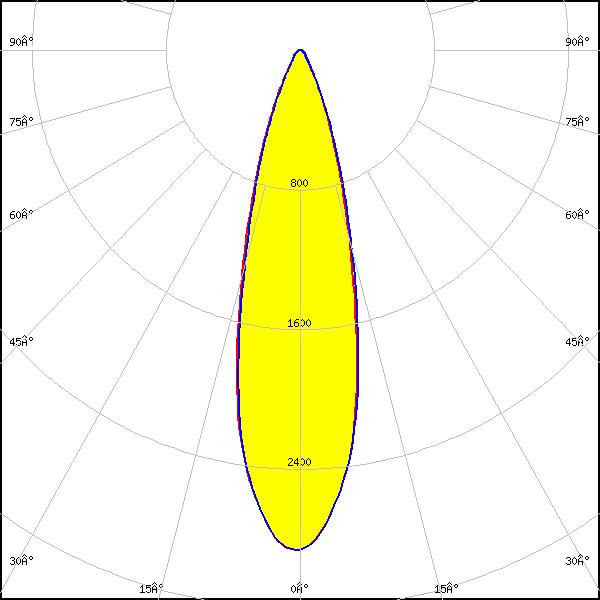

LED: LUXEON CX Plus CoB S01 (Gen2)
Required components:
Bender Wirth: 634c Hekla
FWHM: 28°
FWTM: 54°
Peak intensity: 2.865 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

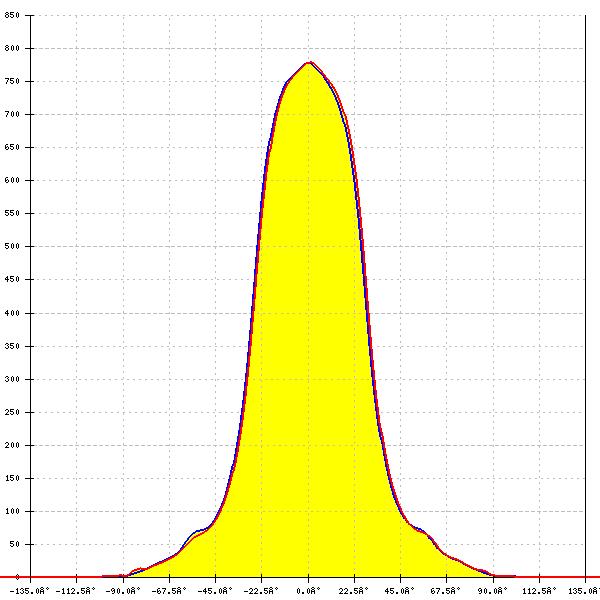

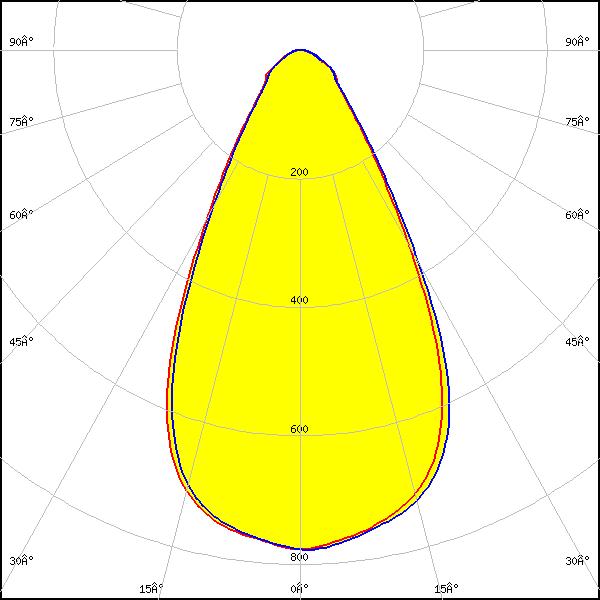

LED: CxM-14 (19x19)
Required components:
FWHM: 57°
FWTM: 98°
Peak intensity: 0.780 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

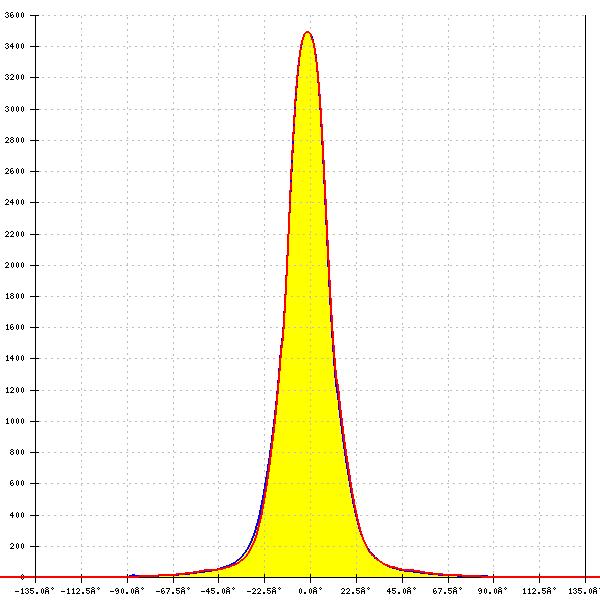

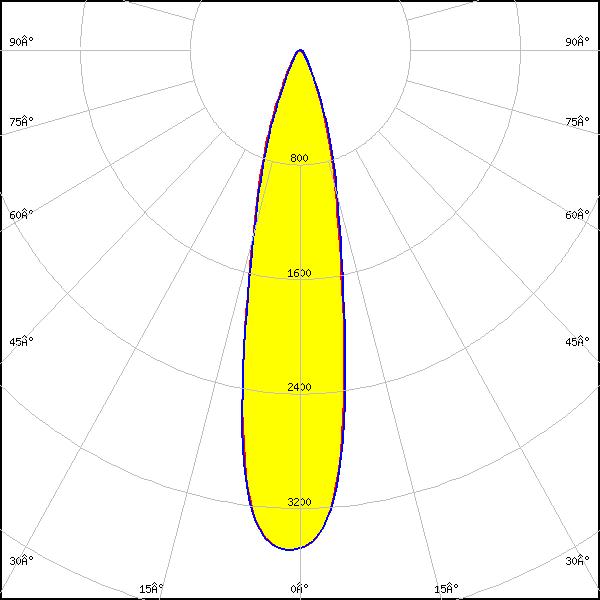

LED: CXM-4
Required components:
FWHM: 23°
FWTM: 49°
Peak intensity: 3.503 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

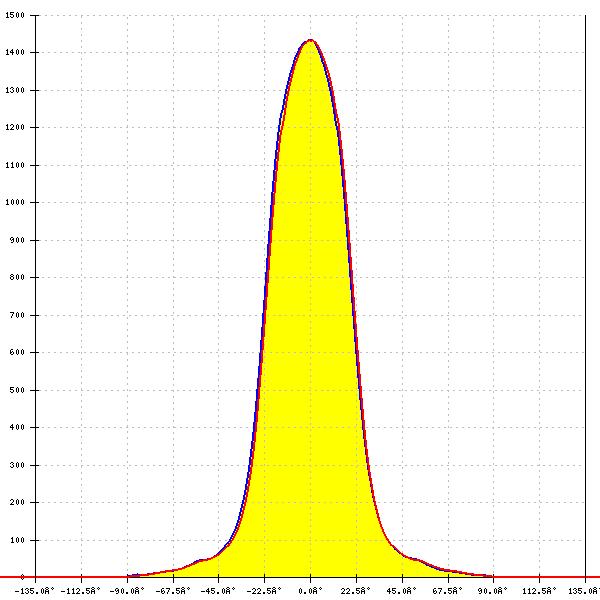

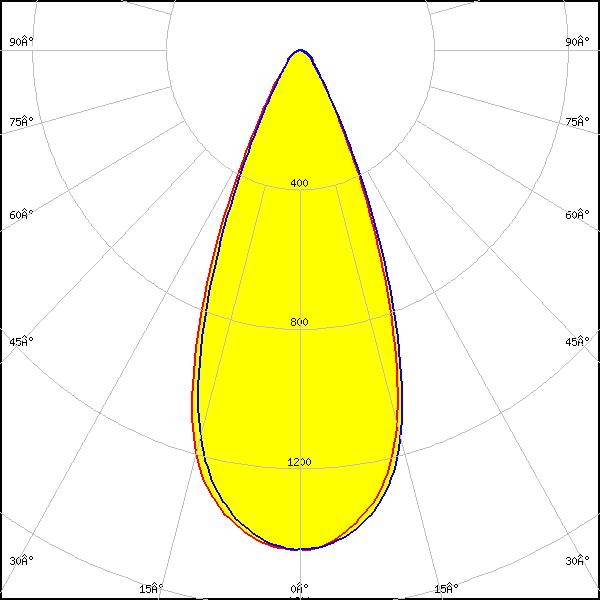

LED: CxM-9 (13.5x13.5)
Required components:
FWHM: 44°
FWTM: 71°
Peak intensity: 1.400 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: COB T-Type
Required components:
FWHM: 32°
FWTM: 53°
Peak intensity: 2.540 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

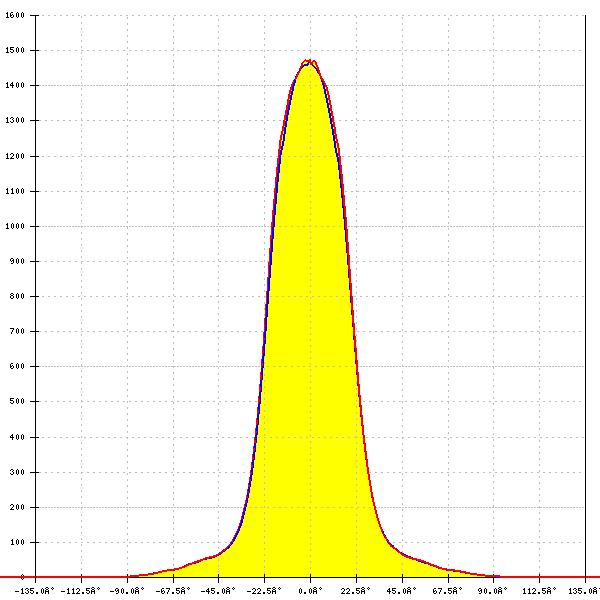

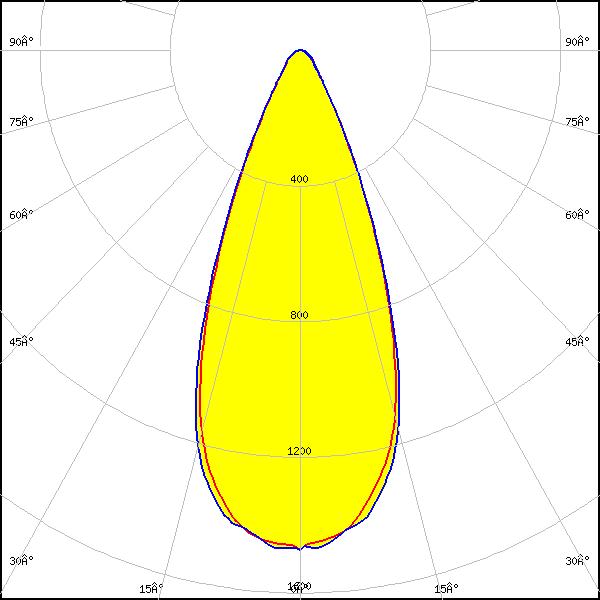

LED: Fortimo SLM L09 CoB
Required components:
FWHM: 42°
FWTM: 69°
Peak intensity: 1.470 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

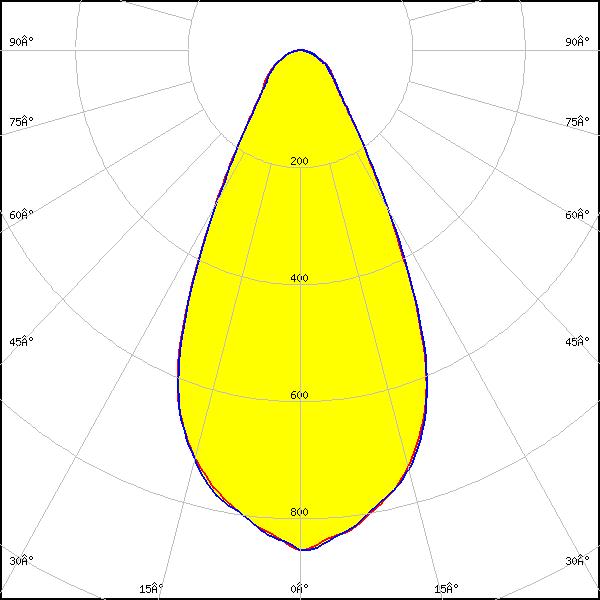

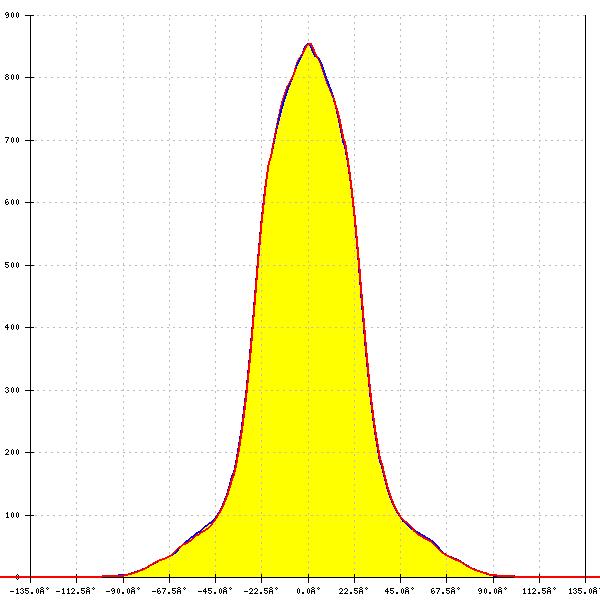

LED: Fortimo SLM L13 CoB
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 432 Typ L8
FWHM: 53°
FWTM: 95°
Peak intensity: 0.860 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo SLM L13 CoB
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 432 Typ L8
FWHM: 53°
FWTM: 95°
Peak intensity: 0.860 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White
LED: LC003D / LC006D / LC009D / LC013D
Required components:
FWHM: 44°
FWTM: 72°
Peak intensity: 1.400 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

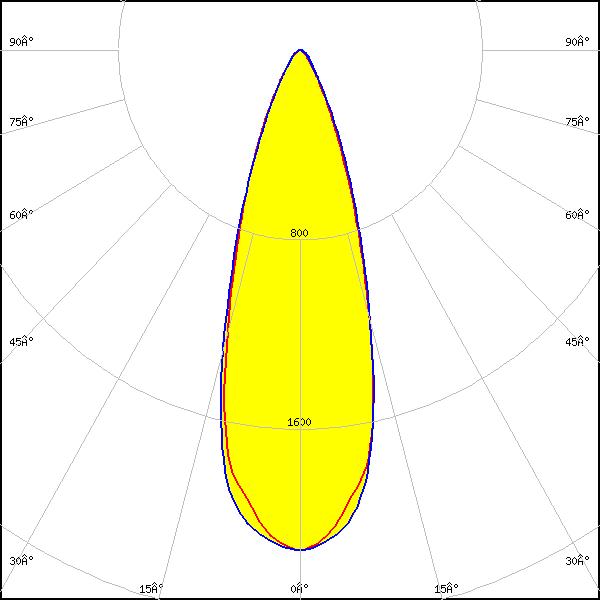

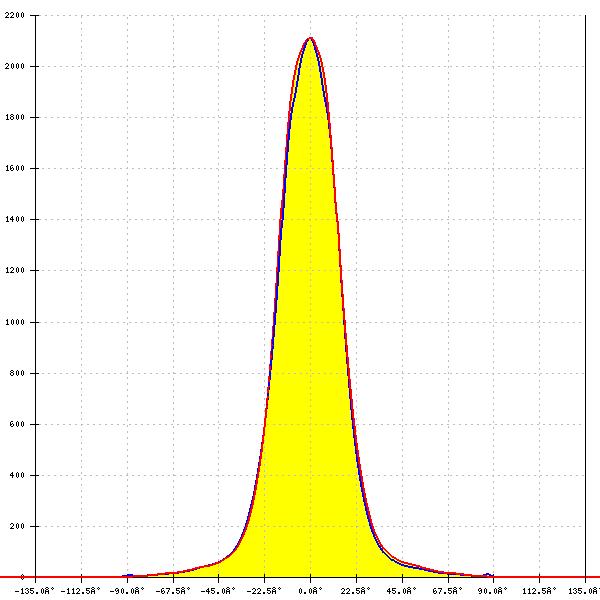

LED: LC010C
Required components:
FWHM: 33°
FWTM: 61°
Peak intensity: 2.100 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

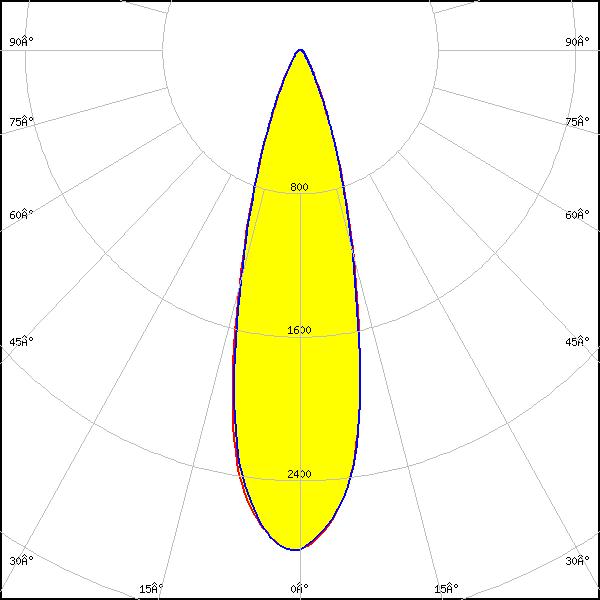

LED: LC010C G2
Required components:
FWHM: 28°
FWTM: 53°
Peak intensity: 2.800 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: LC016D / LC019D / LC026D / LC033D
Required components:
FWHM: 58°
FWTM: 104°
Peak intensity: 0.700 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

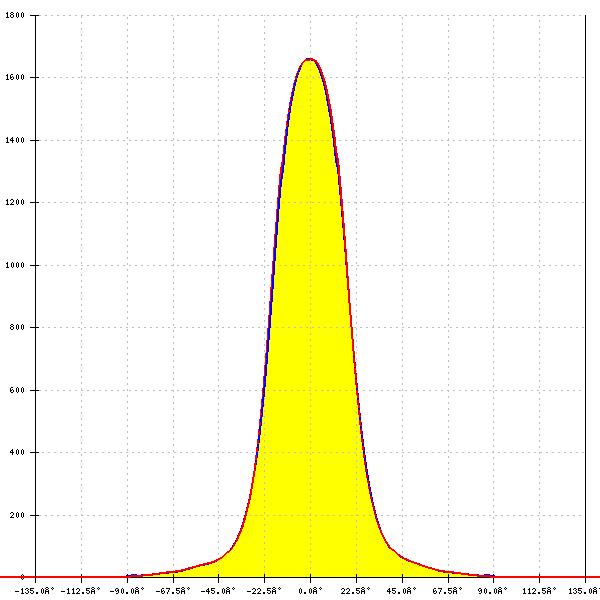

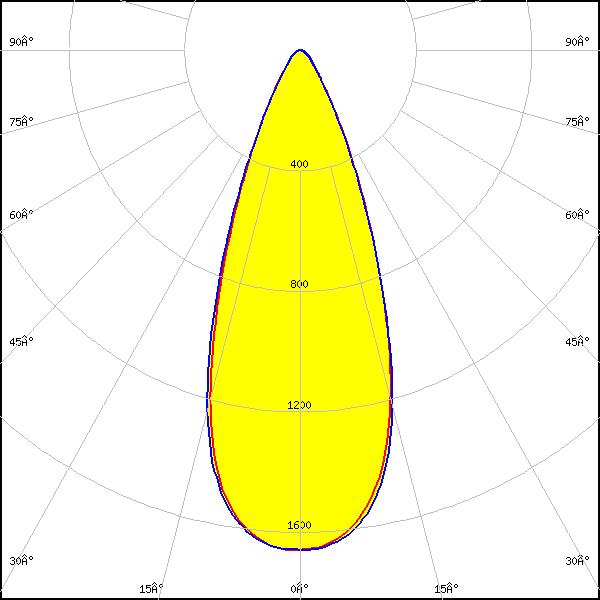

LED: LC020C
Required components:
FWHM: 40°
FWTM: 67°
Peak intensity: 1.700 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

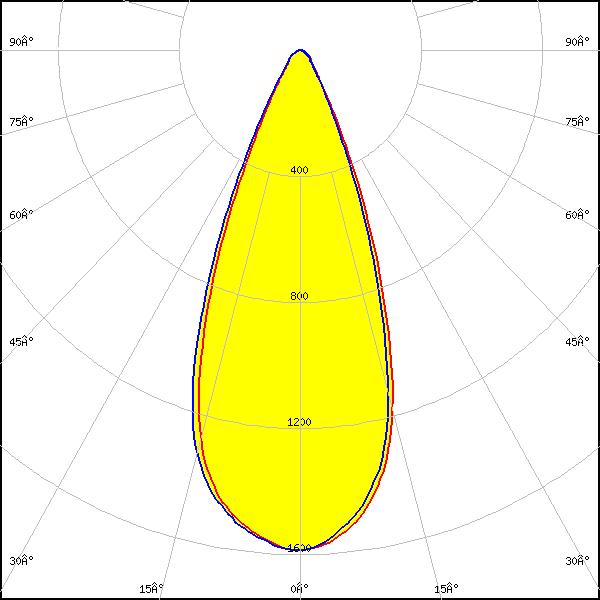

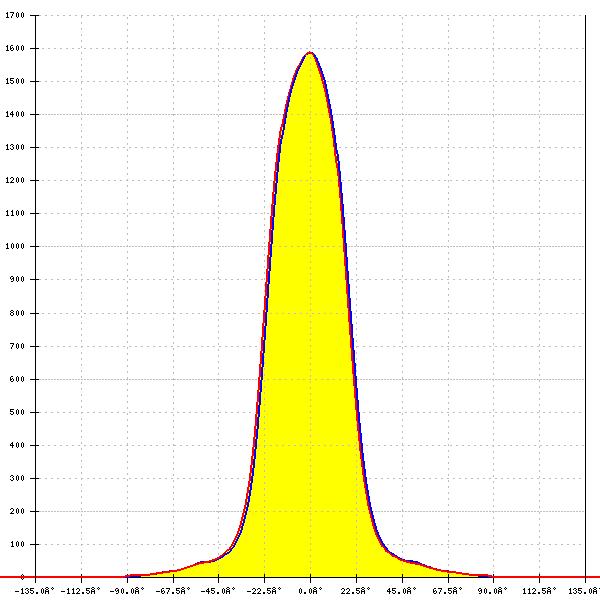

LED: LC020C G2
Required components:
FWHM: 42°
FWTM: 65°
Peak intensity: 1.587 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

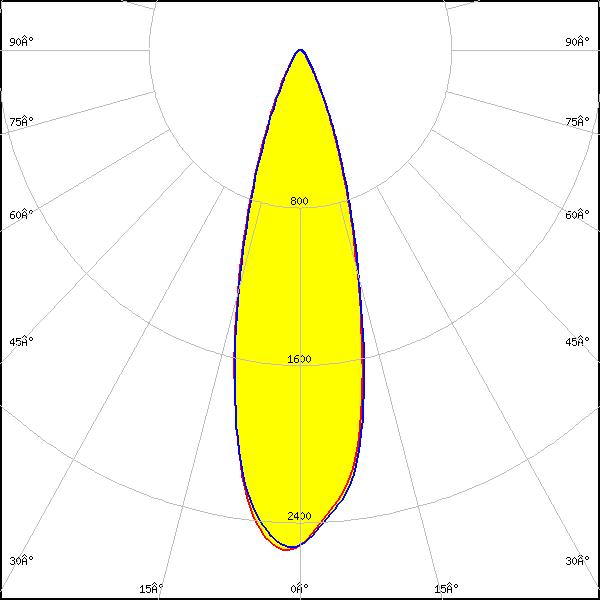

LED: MJT COB LES 6
Required components:
FWHM: 29°
FWTM: 55°
Peak intensity: 2.600 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

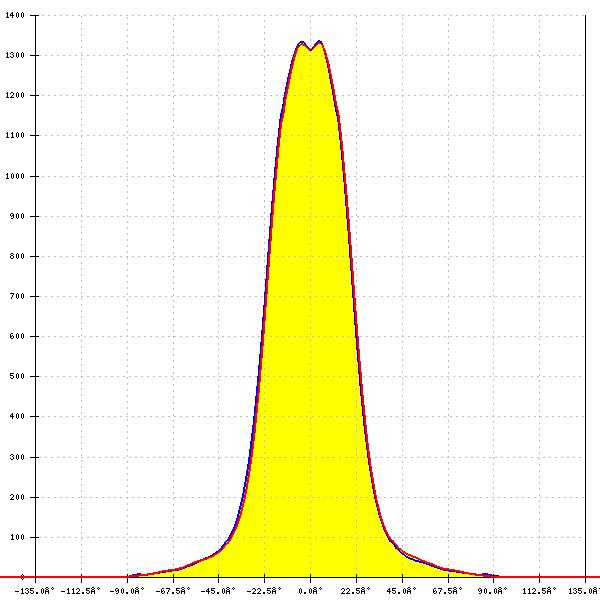

LED: MJT COB LES 9.8
Required components:
FWHM: 44°
FWTM: 72°
Peak intensity: 1.300 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

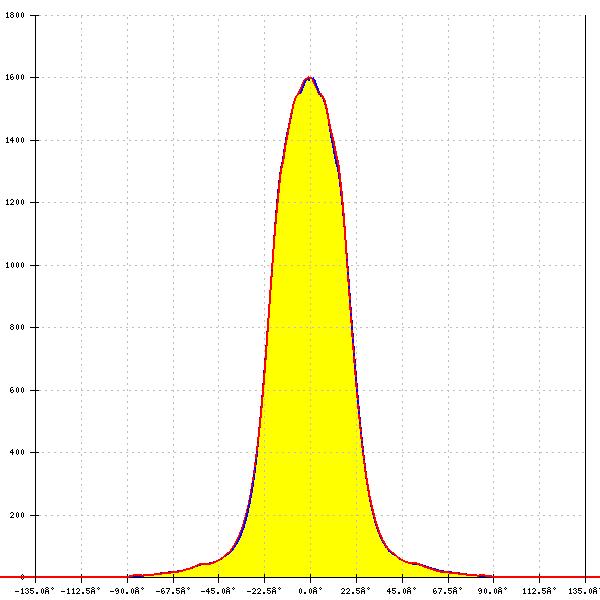

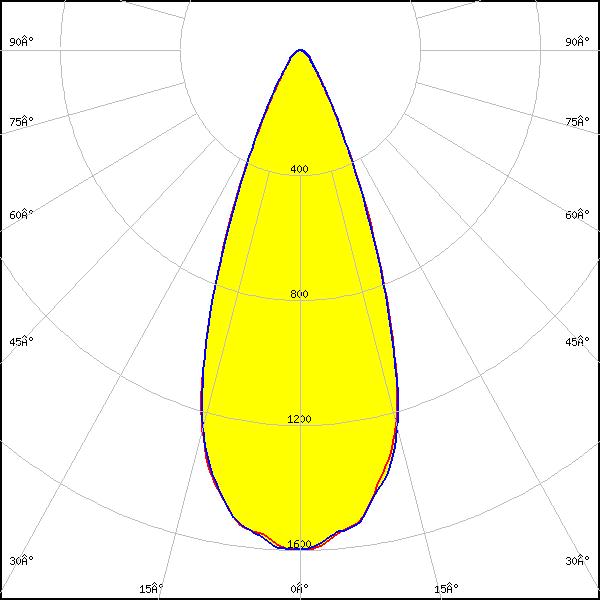

LED: SLE G7 LES09
Required components:
FWHM: 41°
FWTM: 66°
Peak intensity: 1.600 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

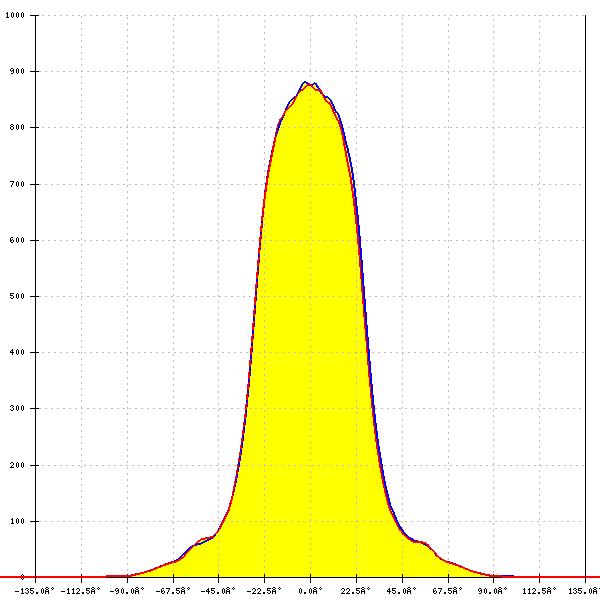

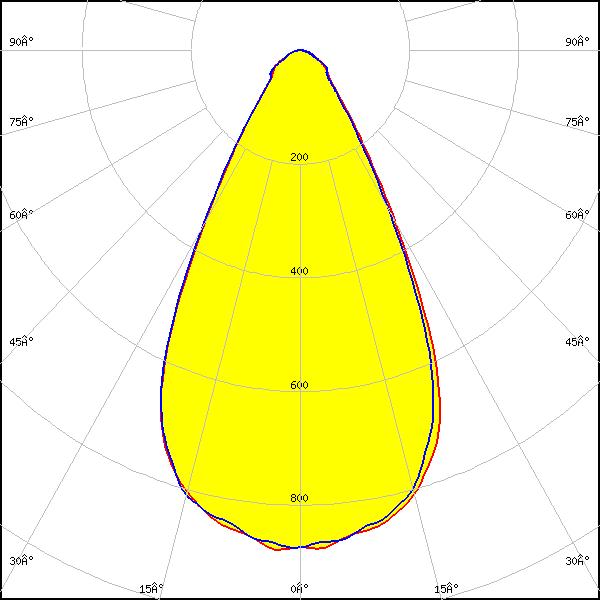

LED: SLE G7 LES13
Required components:
FWHM: 56°
FWTM: 88°
Peak intensity: 0.900 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

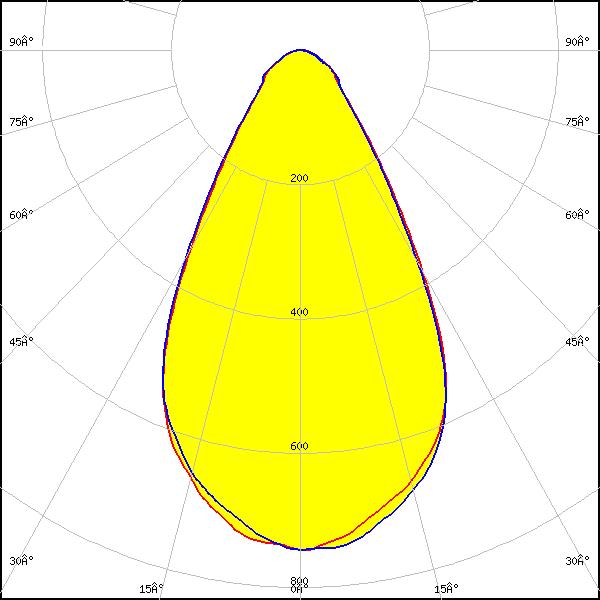

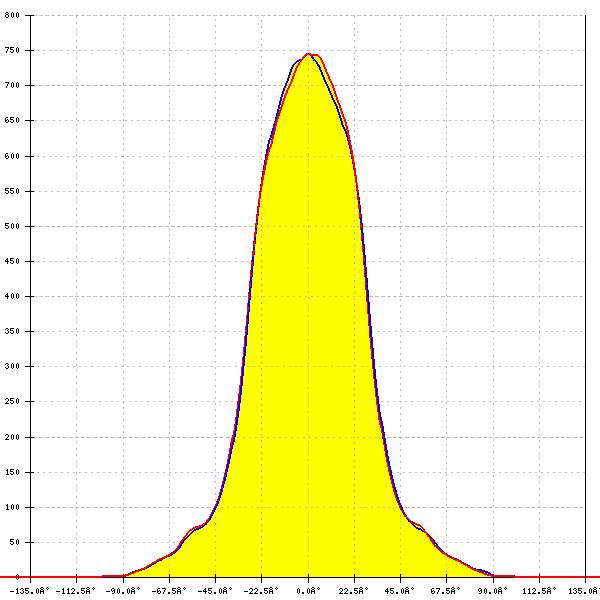

LED: SLE G7 LES15
Required components:
FWHM: 59°
FWTM: 103°
Peak intensity: 0.750 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

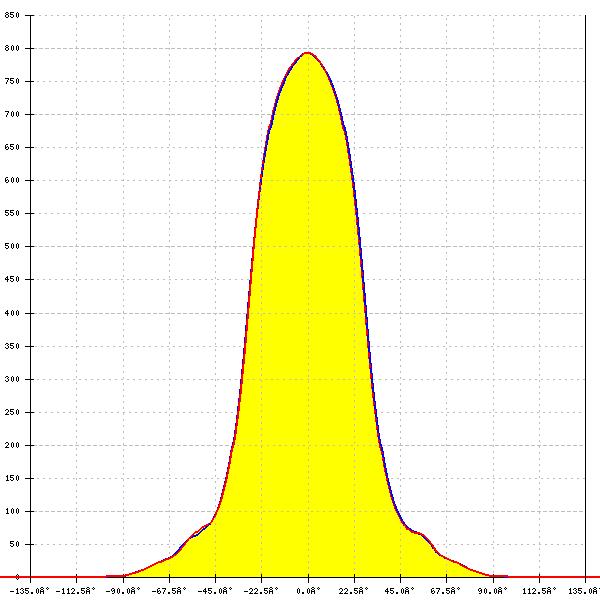

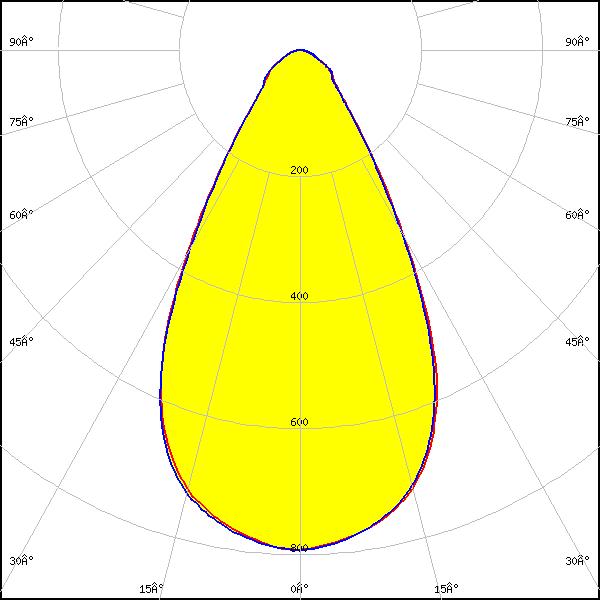

LED: XOB 14.5 mm
Required components:
FWHM: 58°
FWTM: 96°
Peak intensity: 0.793 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

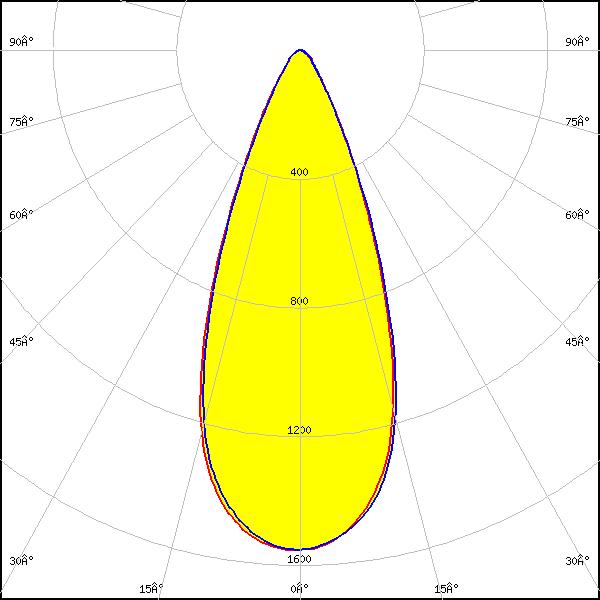

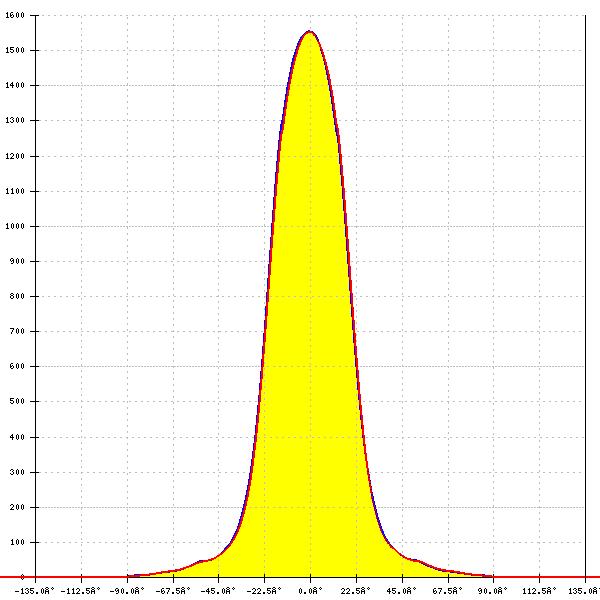

LED: XOB 9.8 mm
Required components:
FWHM: 42°
FWTM: 69°
Peak intensity: 1.553 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

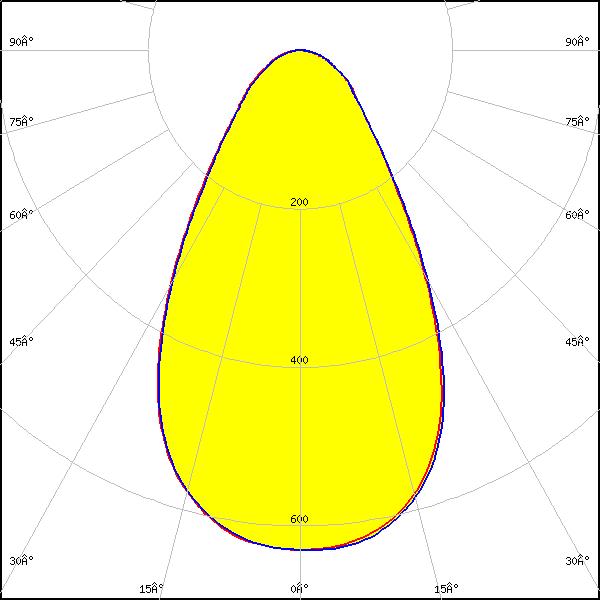

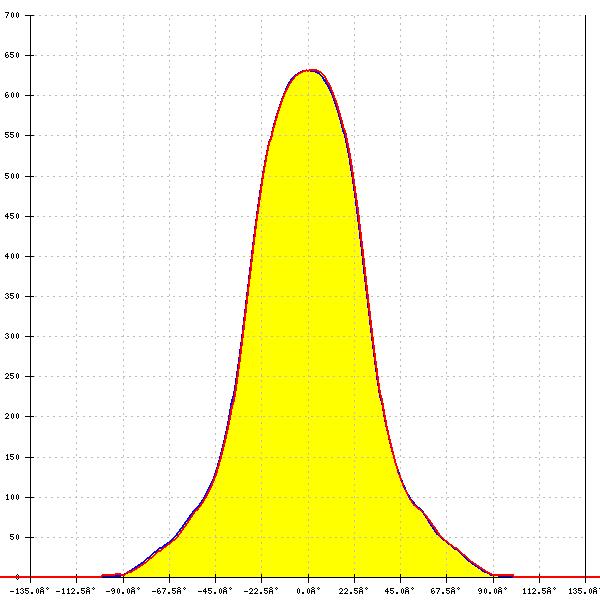

LED: XTM - 19mm LES
Required components:
FWHM: 62°
FWTM: 121°
Peak intensity: 0.630 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White
