RONDA-REC-60-C

Print

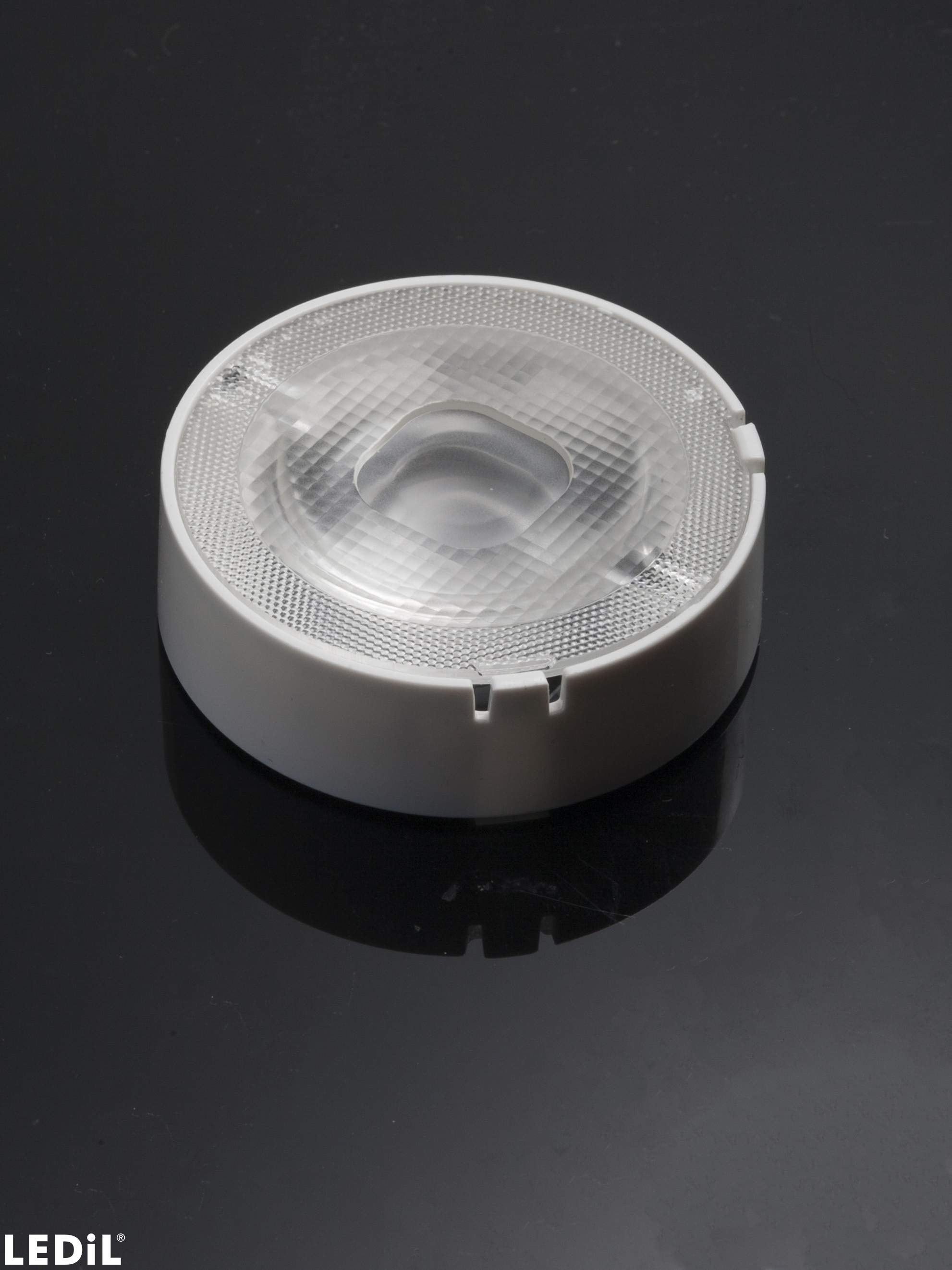

~60° + 60° rectangular beam with holder C compatible with LEDiL HEKLA

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    54 mm
  • Height:
    16.60 mm
  • Fastening:
    socket
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Single lens
    1 pcs
  • Holder
    1 pcs
  • Single lens
  • F15556_RONDA-REC-60
    clear
  • Quantity in box:
    420 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.70 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 100 mm
  • MOQ Weight:
    2.00 kg
  • Holder
  • F15635_RONDA-HLD-C
    white
  • Quantity in box:
    420 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    4.10 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 120 mm
  • MOQ Weight:
    1.30 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F15556_RONDA-REC-60
    F15635_RONDA-HLD-C

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

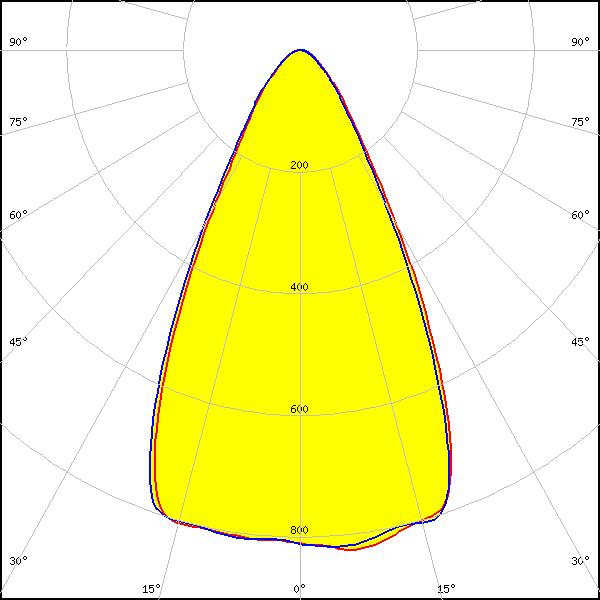

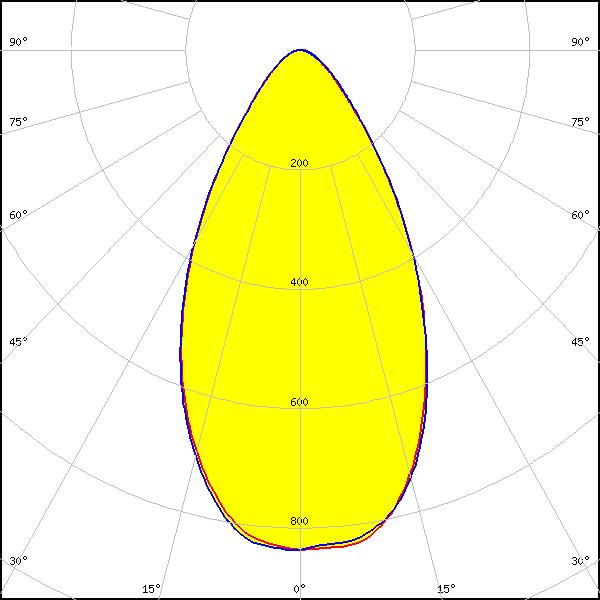

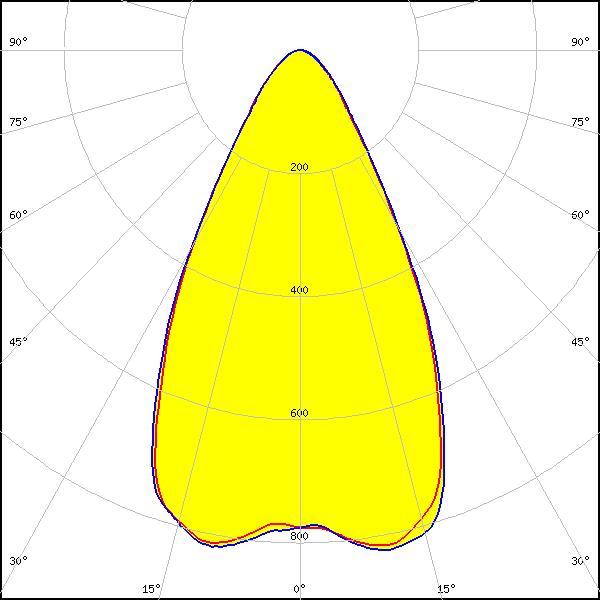

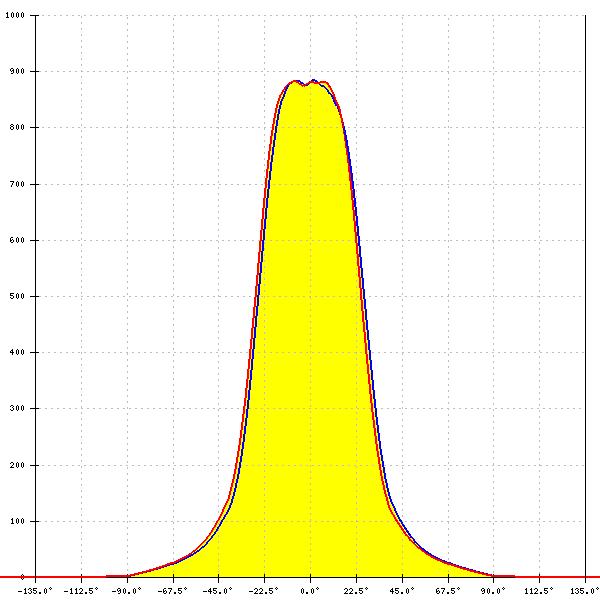

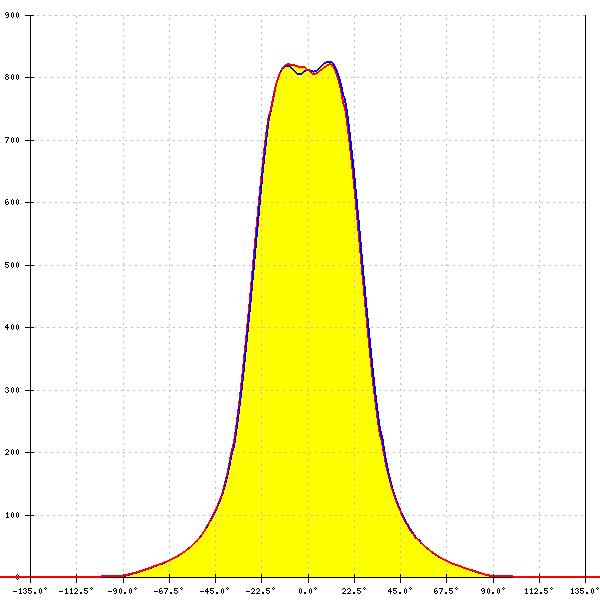

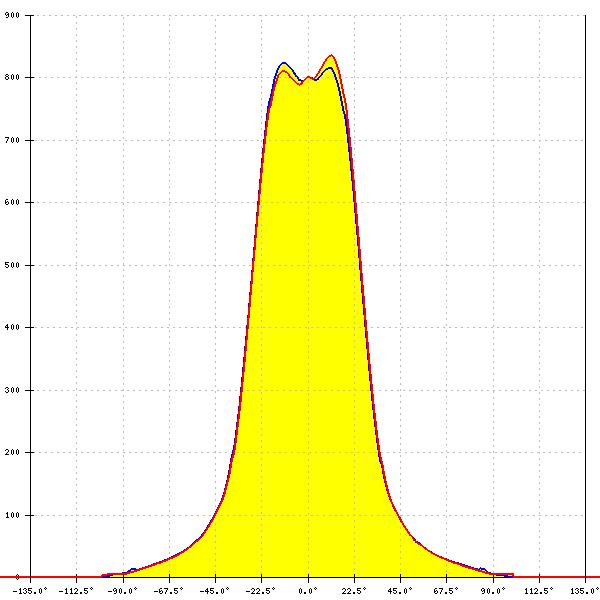

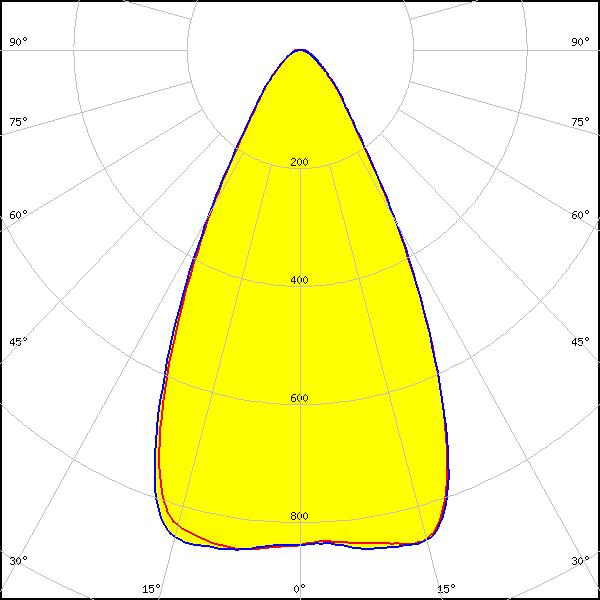

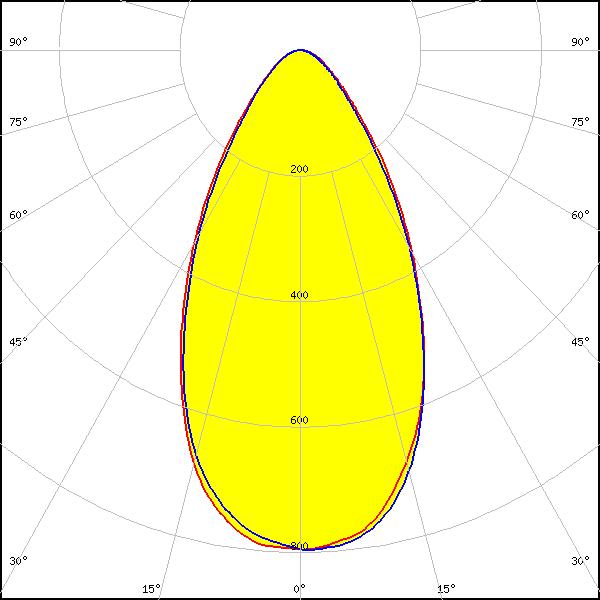

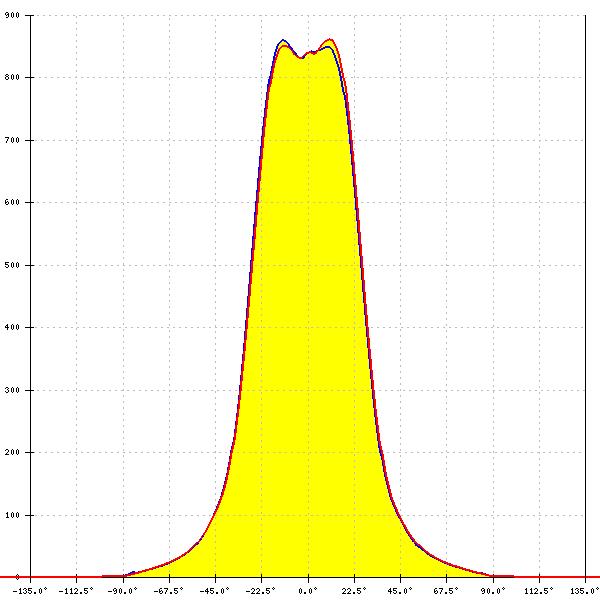

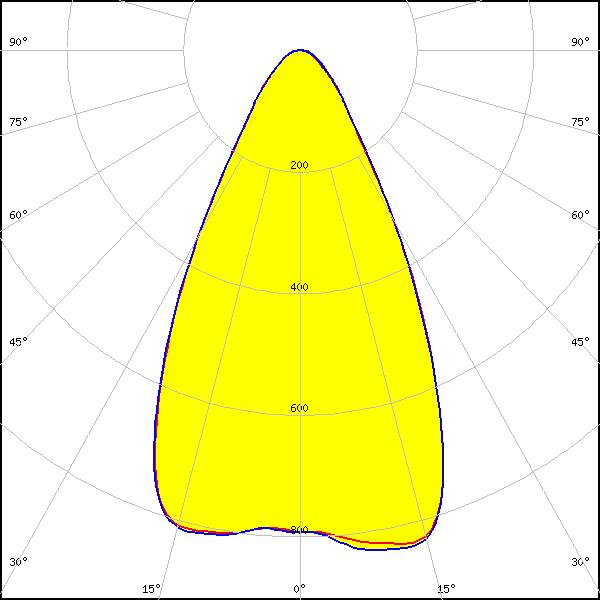

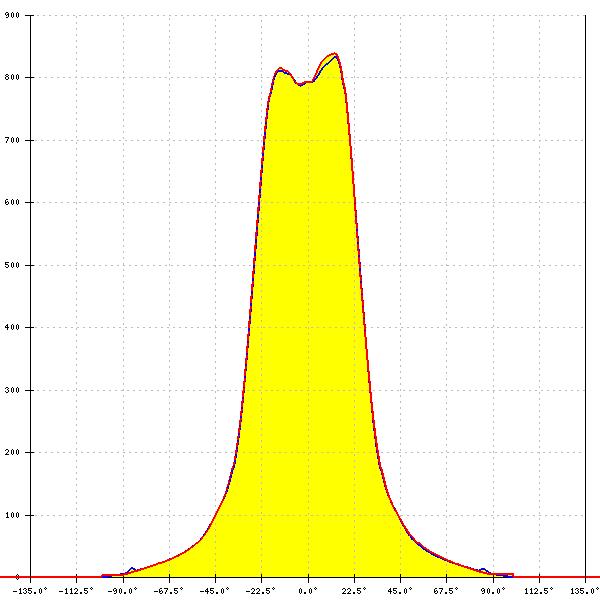

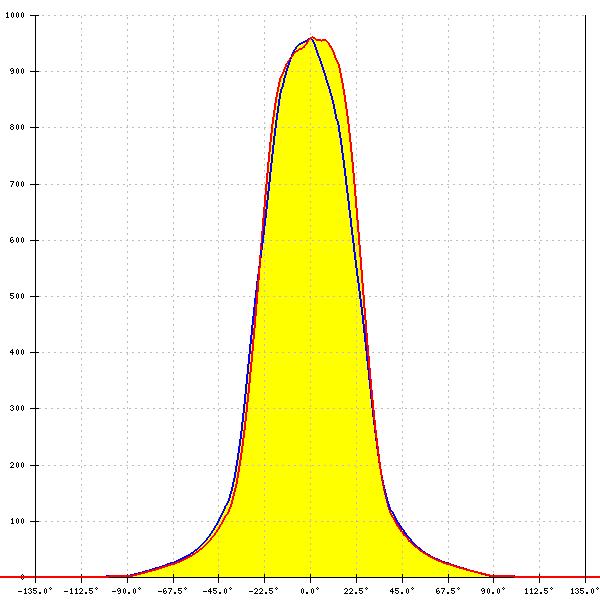

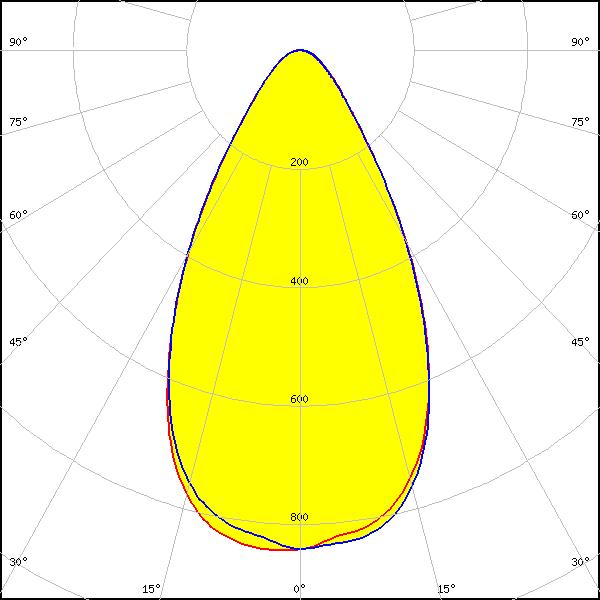

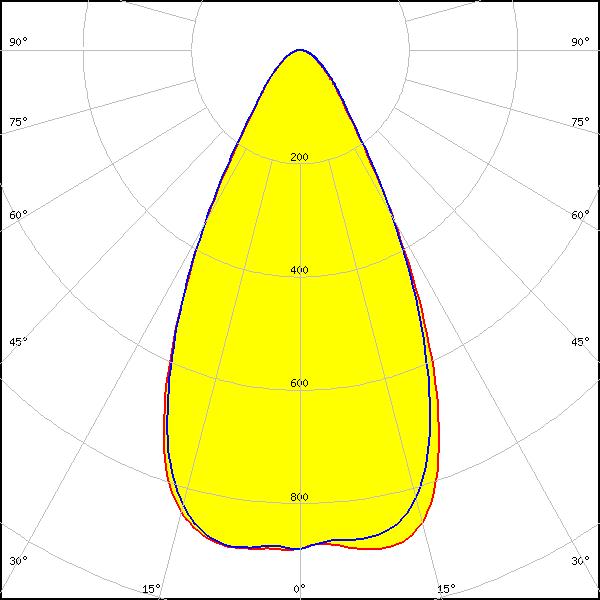

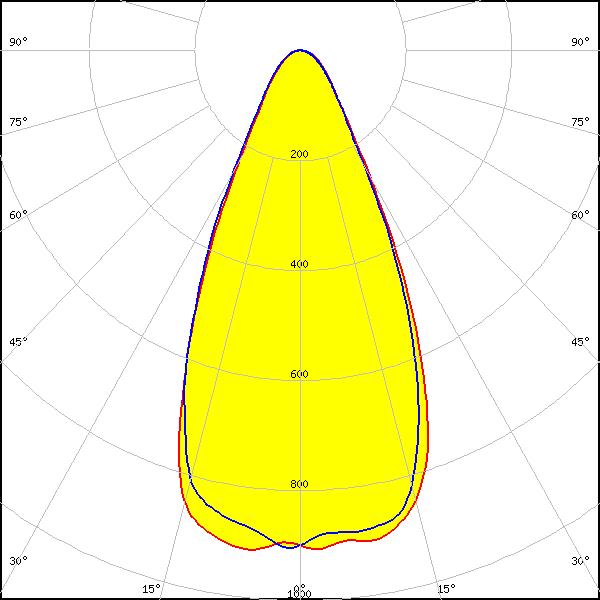

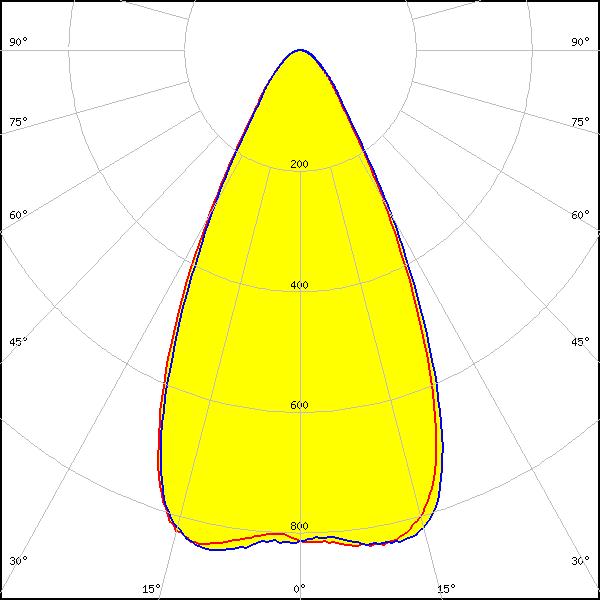

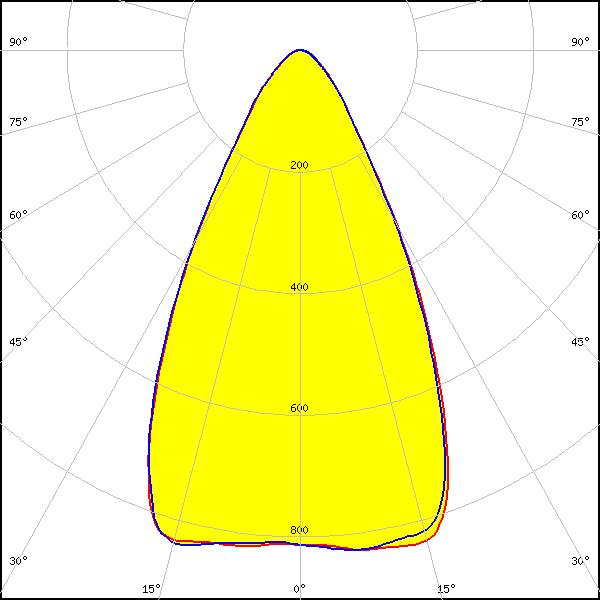

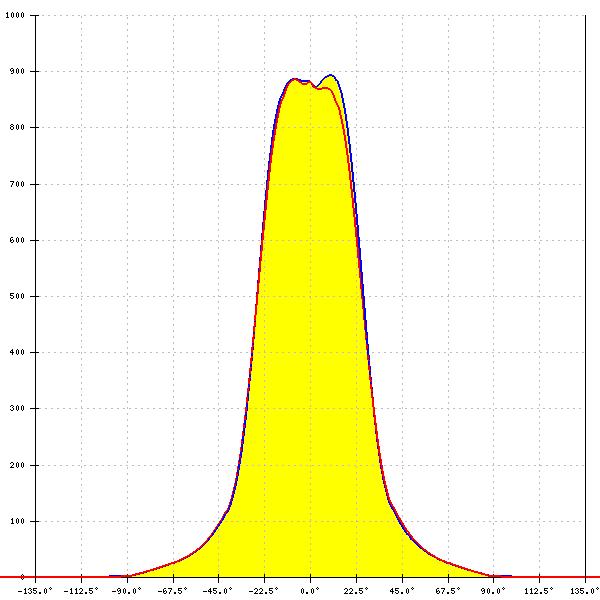

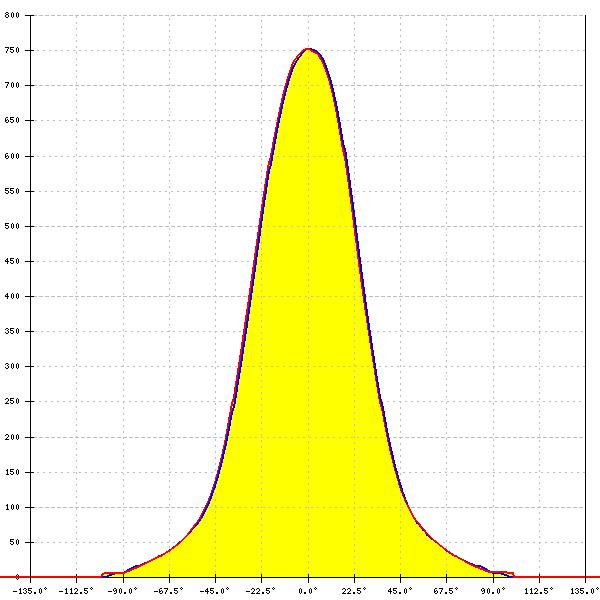

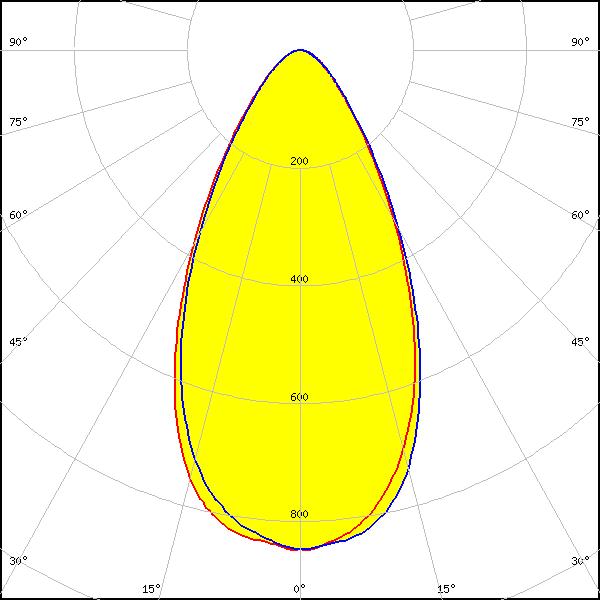

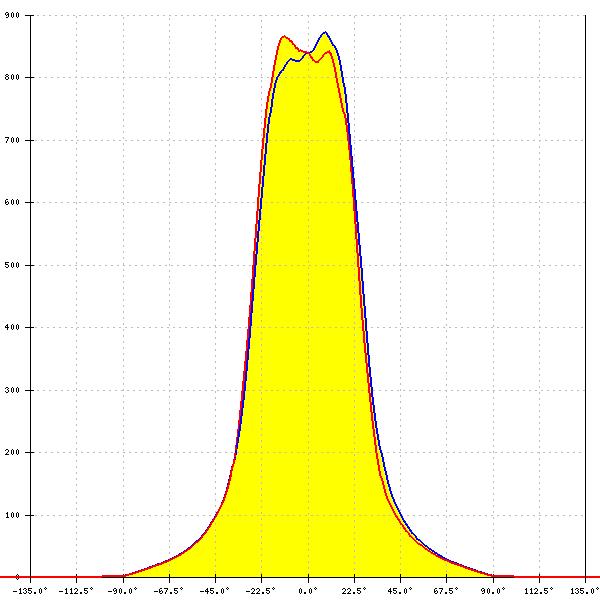

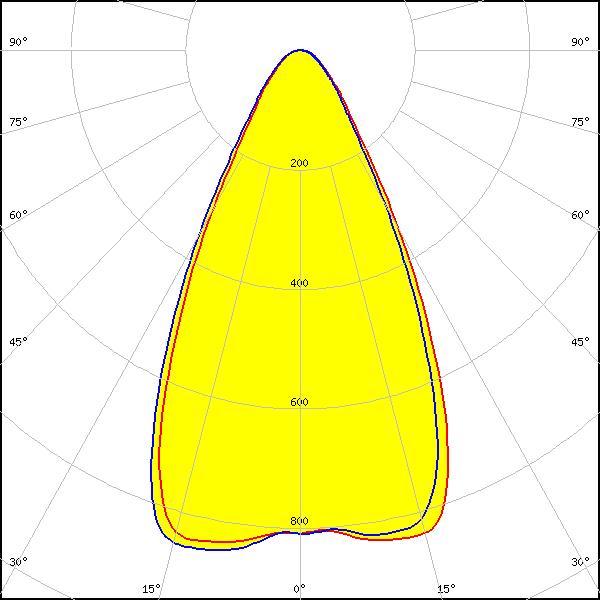

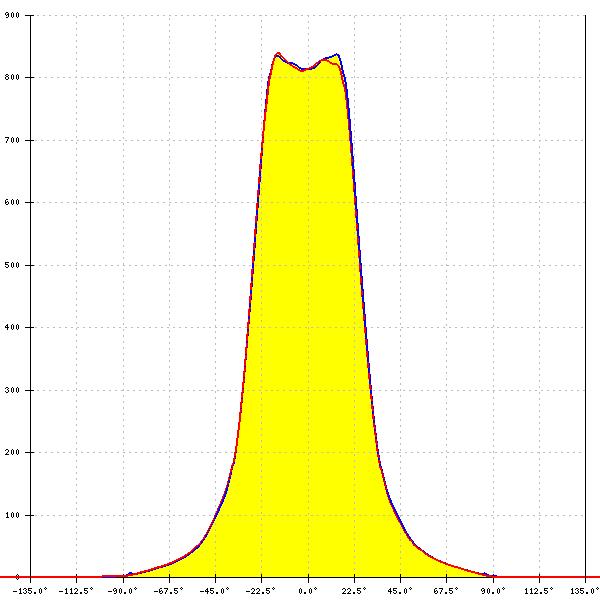

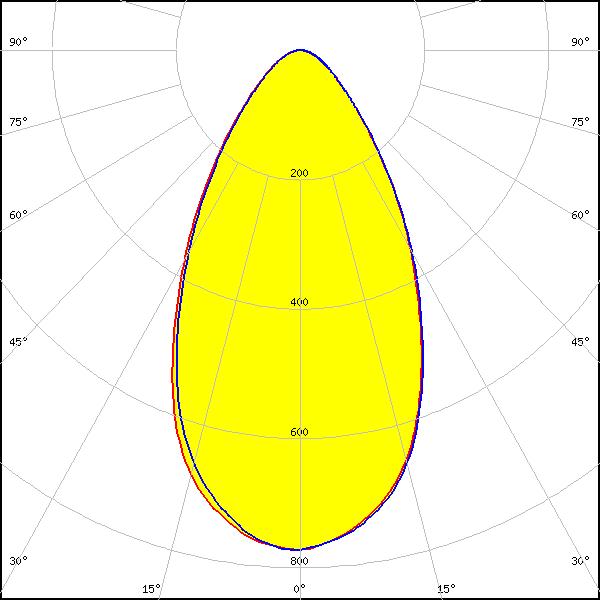

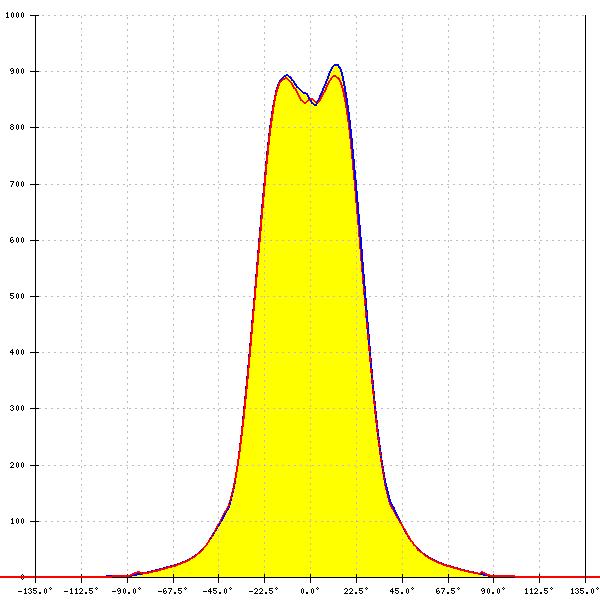

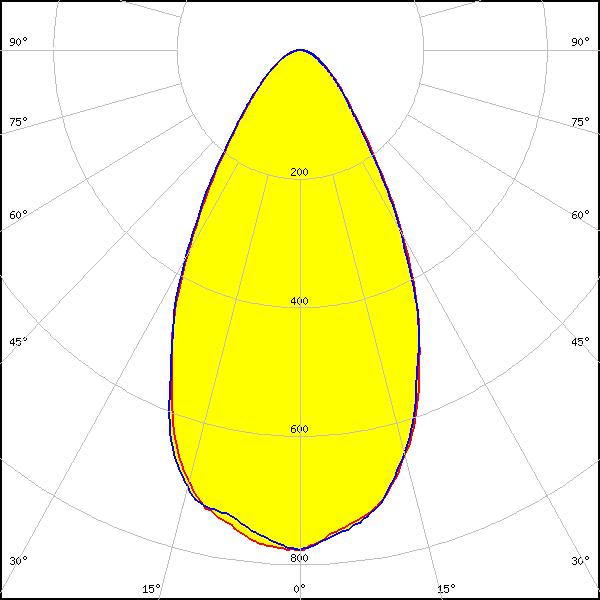

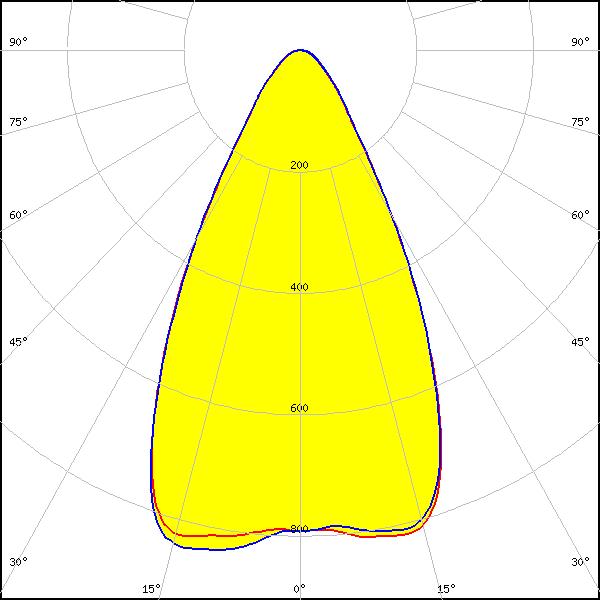

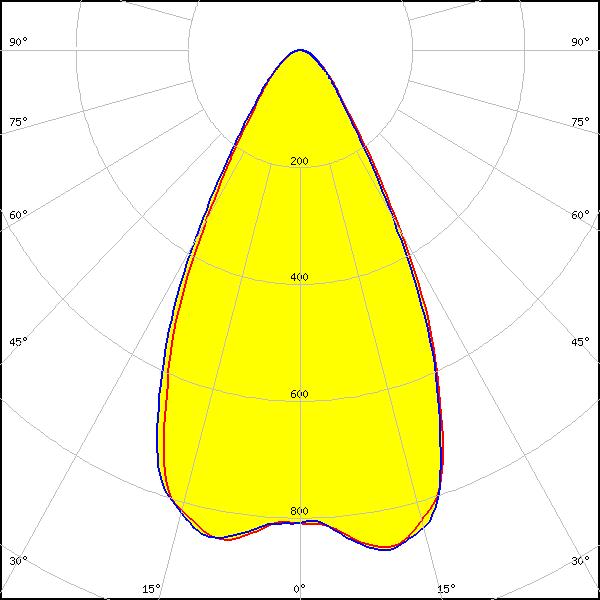

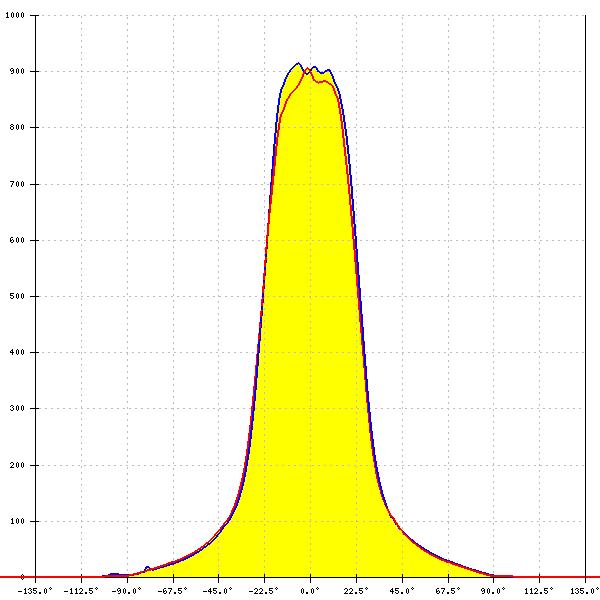

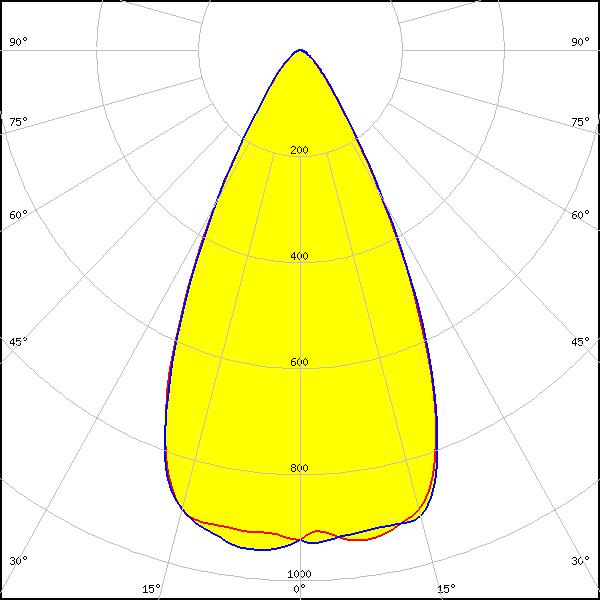

Optical results

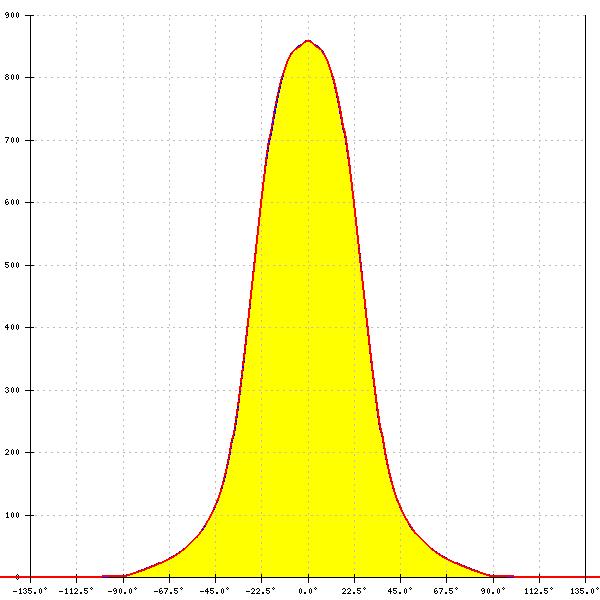

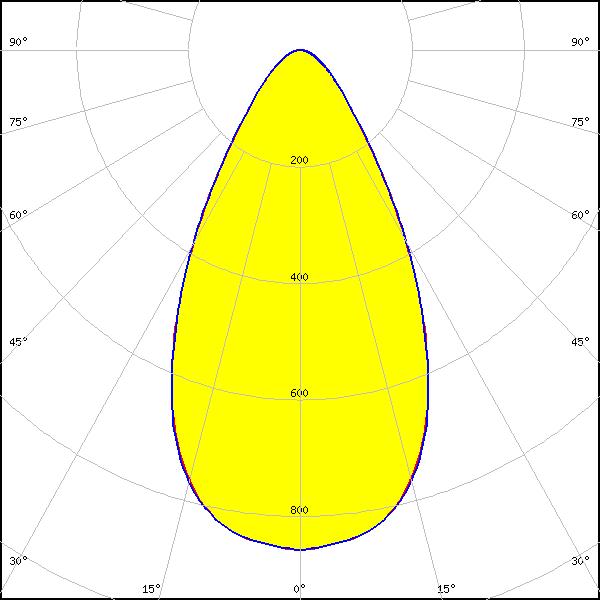

LED: V11 HD Gen 8
LES size: 11.3 mm
Required components:
Bender Wirth: 633d Hekla
FWHM: 57°
FWTM: 99°
Peak intensity: 0.860 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

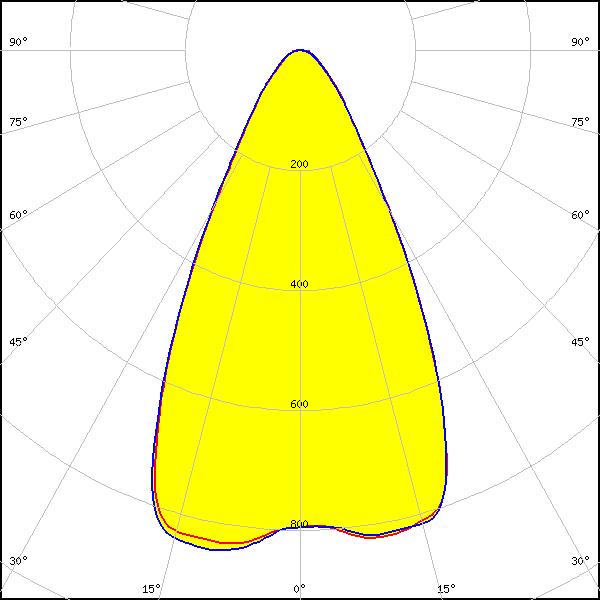

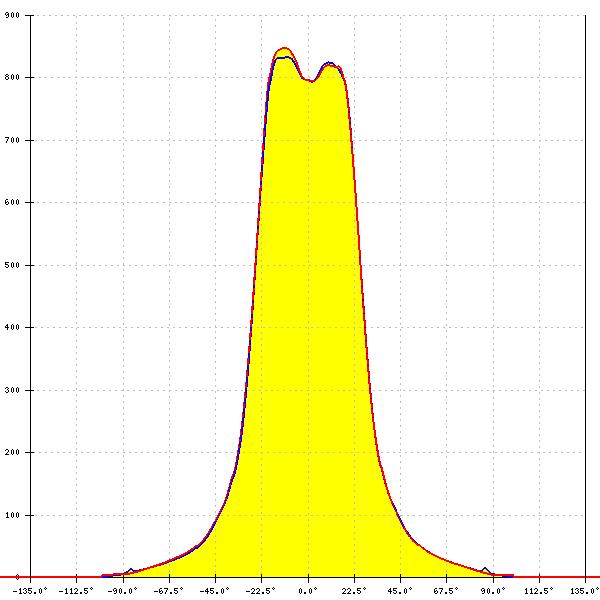

LED: V4 HD Gen 7
LES size: 5.2 mm
Required components:
FWHM: 55° + 54°
FWTM: 92° + 92°
Peak intensity: 0.900 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

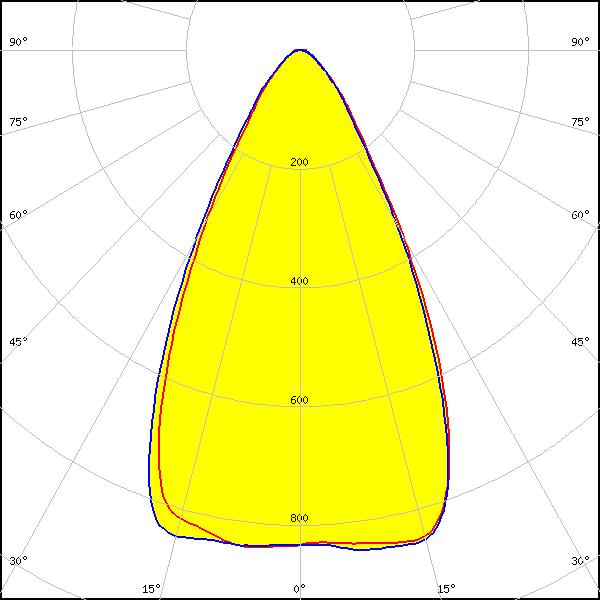

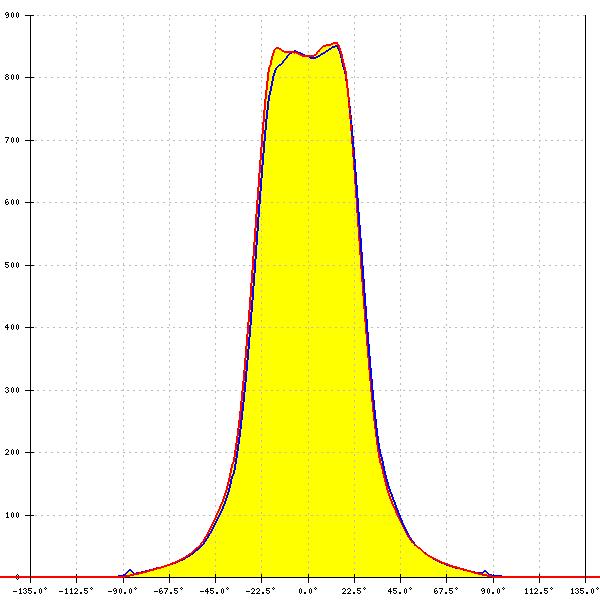

LED: V6 Gen6
LES size: 6.0 mm
Required components:
FWHM: 56° + 57°
FWTM: 92° + 93°
Peak intensity: 0.900 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: V6 HD Gen 7
LES size: 7.0 mm
Required components:
FWHM: 56° + 57°
FWTM: 95° + 96°
Peak intensity: 0.860 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

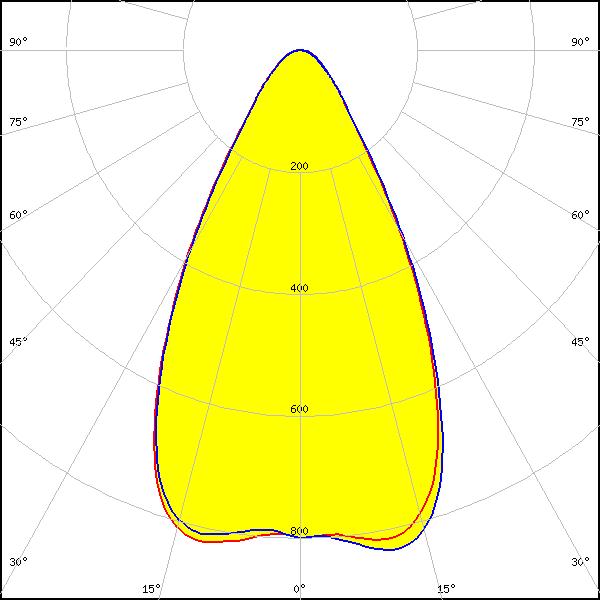

LED: V9 HD Gen7
LES size: 9.2 mm
FWHM: 58° + 57°
FWTM: 96° + 95°
Peak intensity: 0.830 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

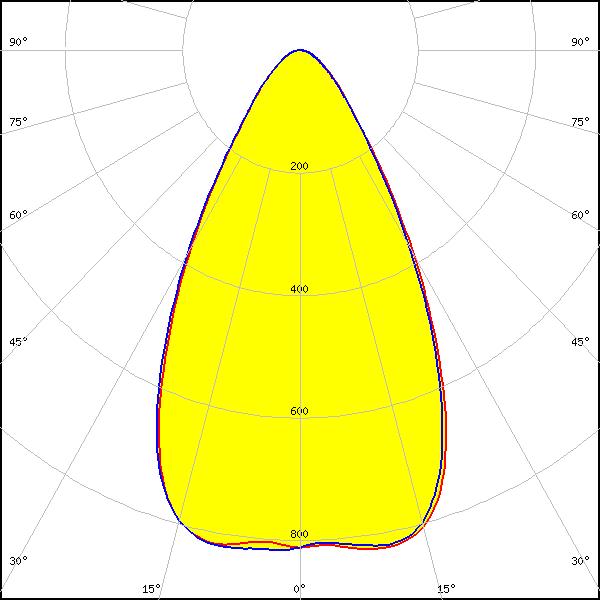

LED: VERO10
LES size: 9.9 mm
Required components:
FWHM: 59°
FWTM: 98°
Peak intensity: 0.830 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

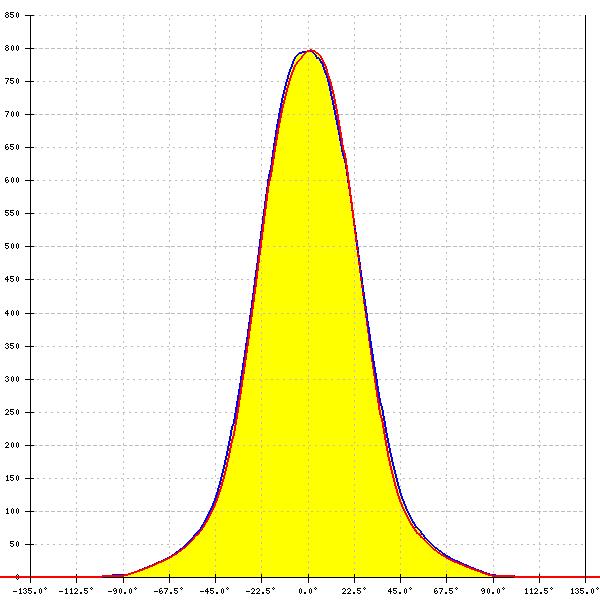

LED: Vesta DTW 13mm (21W)
LES size: 14.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 56°
FWTM: 102°
Peak intensity: 0.797 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: Tunable White

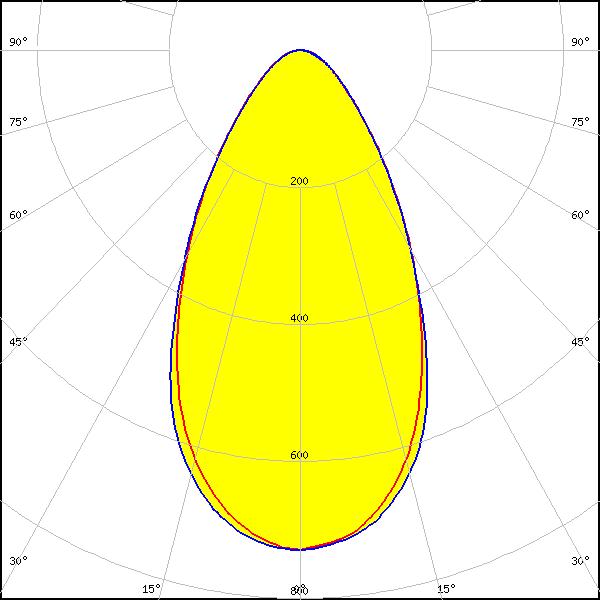

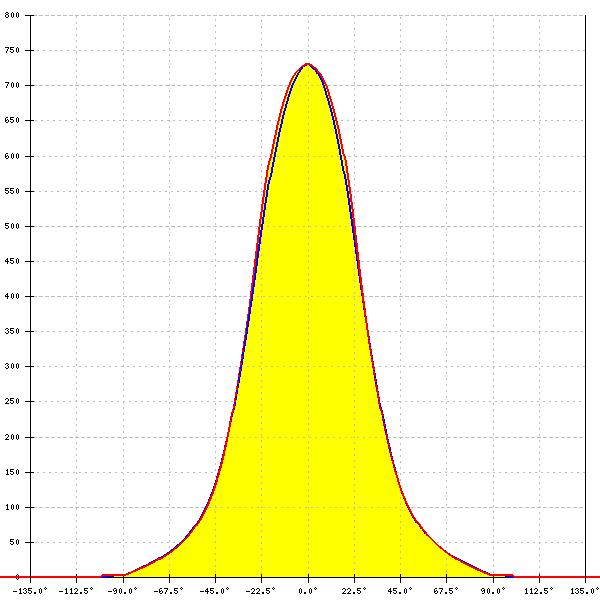

LED: Vesta DTW 15mm (33W)
LES size: 16.2 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 58°
FWTM: 109°
Peak intensity: 0.730 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

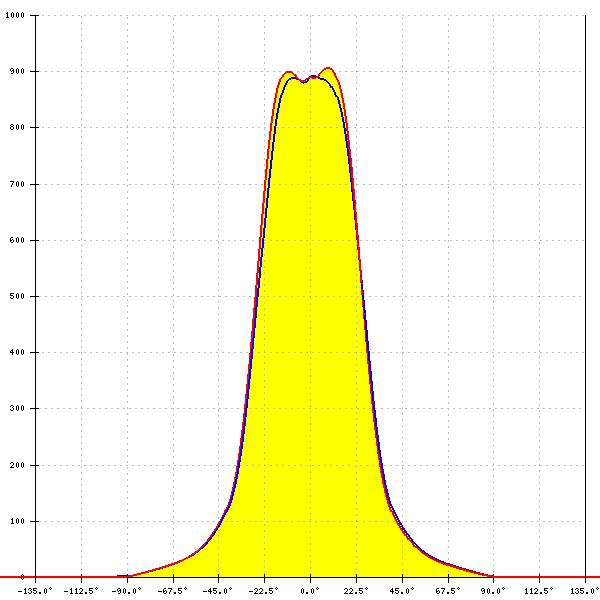

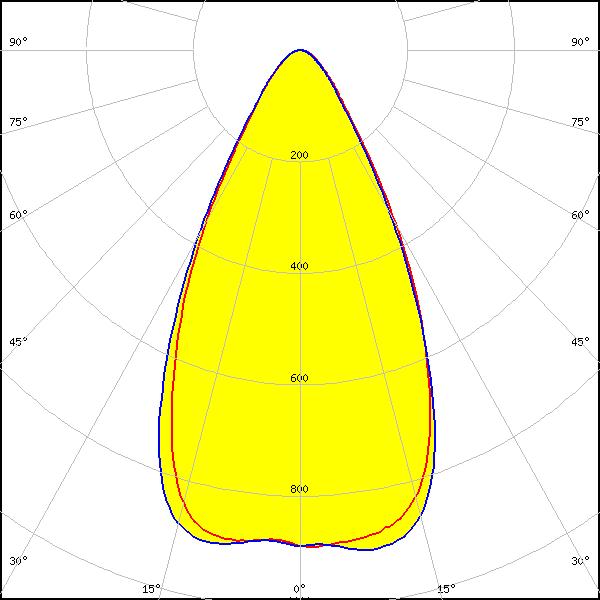

LED: Vesta DTW 9mm (4W/6W/12W)
LES size: 9.3 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 55°
FWTM: 90°
Peak intensity: 0.910 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

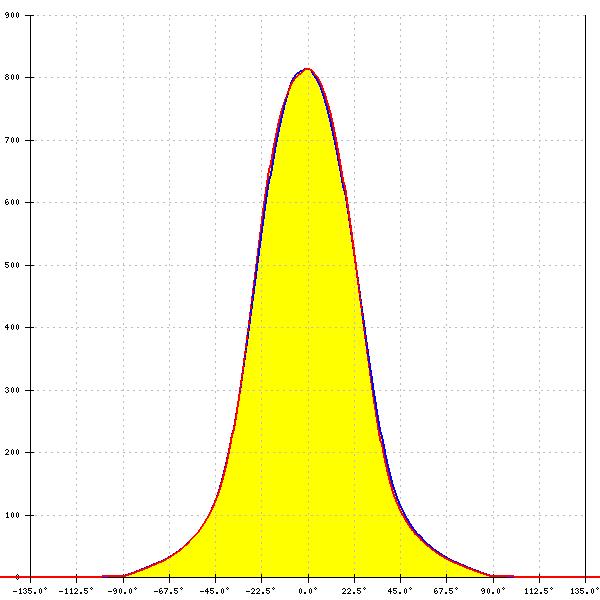

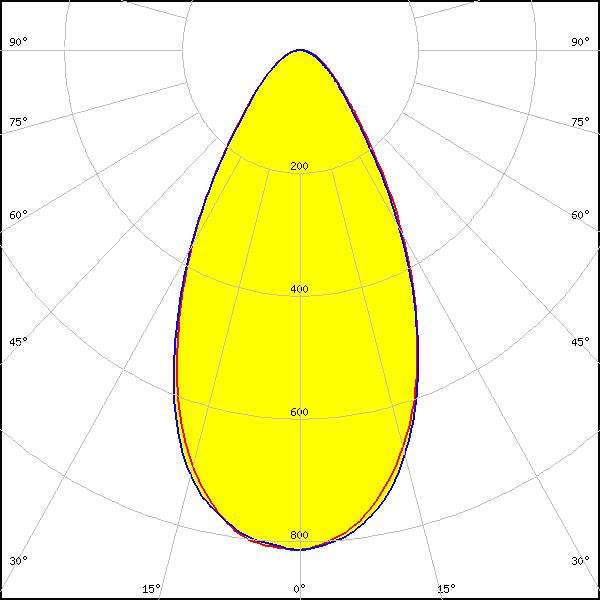

LED: Vesta TW 13mm (25W) CSP
LES size: 14.3 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 492 Typ L8
FWHM: 56°
FWTM: 102°
Peak intensity: 0.810 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: Vesta TW 6mm DP
LES size: 6.3 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 504 Typ L8
FWHM: 55°
FWTM: 90°
Peak intensity: 0.874 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: Vesta TW 9mm (12W) CSP
LES size: 9.8 mm
Required components:
FWHM: 55°
FWTM: 90°
Peak intensity: 0.900 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

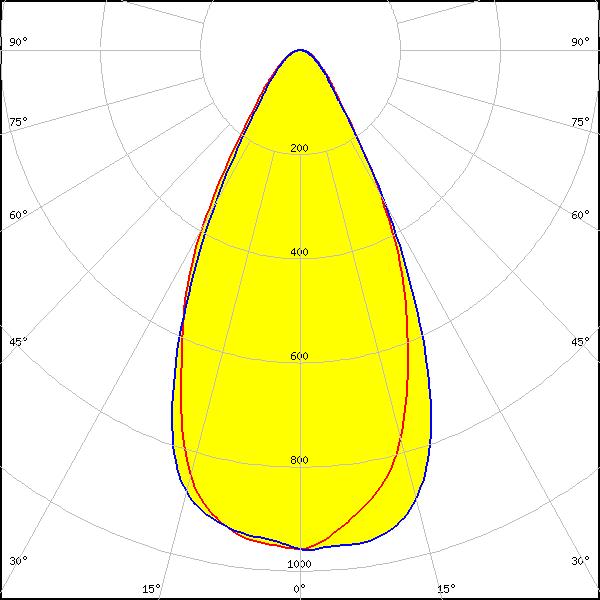

LED: CLC020 Series (Dim-To-Warm)
LES size: 9.8 mm
Required components:
FWHM: 53°
FWTM: 89°
Peak intensity: 0.960 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

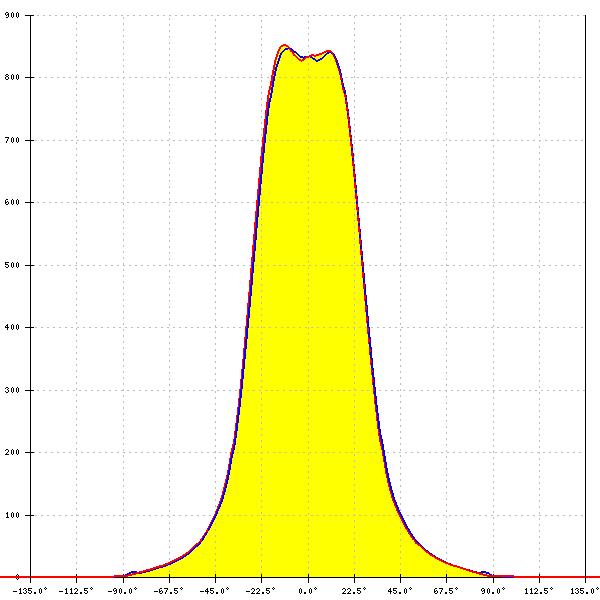

LED: CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM: 58°
FWTM: 95°
Peak intensity: 0.850 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

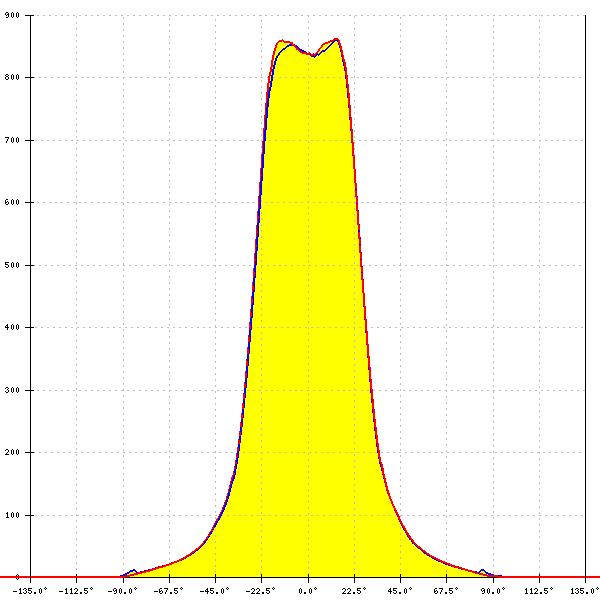

LED: CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM: 55° + 56°
FWTM: 90° + 90°
Peak intensity: 0.910 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

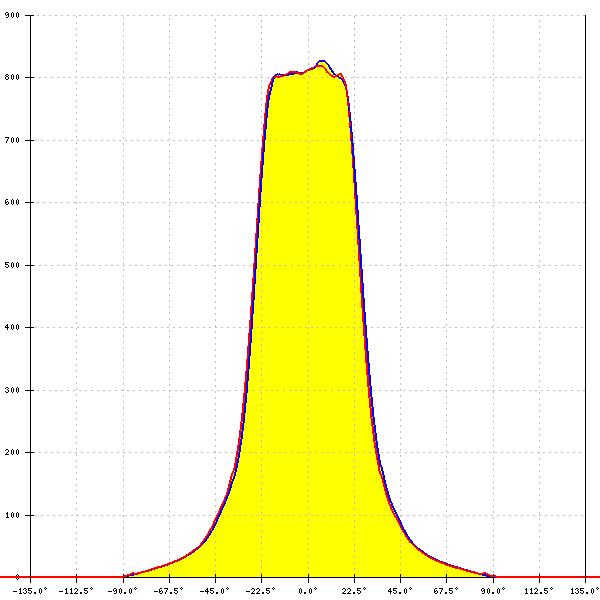

LED: CLU7A2/7A3
LES size: 4.2 mm
Required components:
FWHM: 55°
FWTM: 91°
Peak intensity: 0.930 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

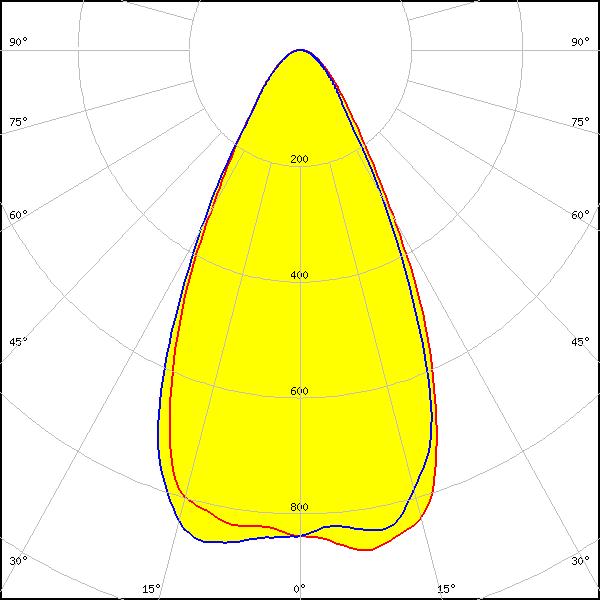

LED: LCN-C01B (Tunable White)
LES size: 10.9 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 481 Typ L8
FWHM: 54°
FWTM: 92°
Peak intensity: 0.900 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

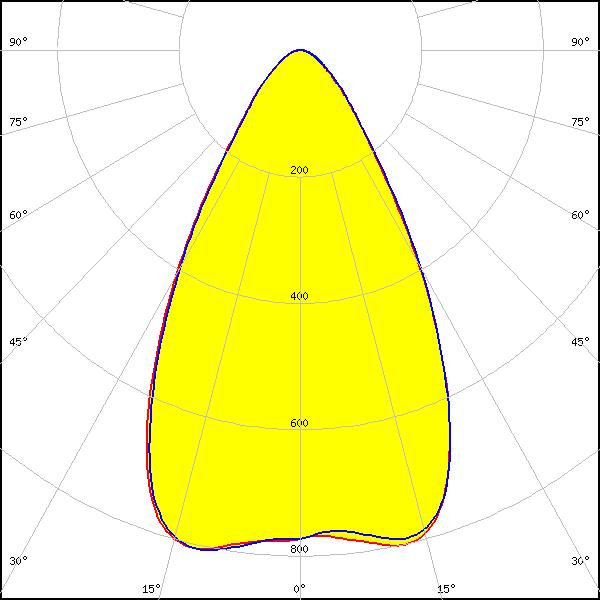

LED: CMA1516
LES size: 9.0 mm
Required components:
FWHM: 61°
FWTM: 100°
Peak intensity: 0.820 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

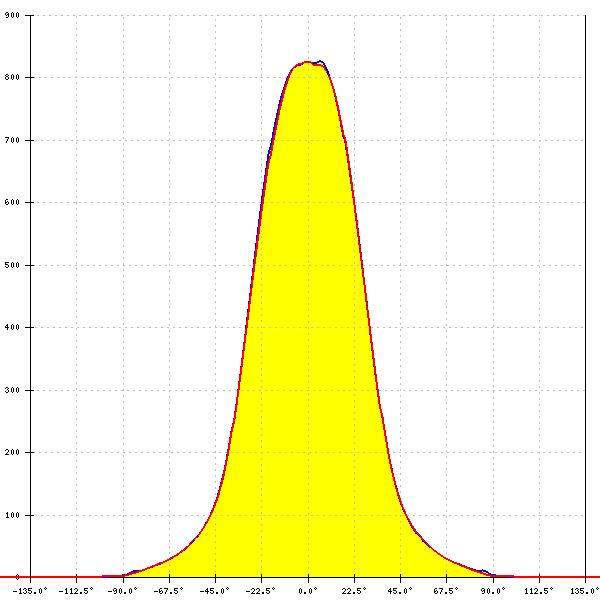

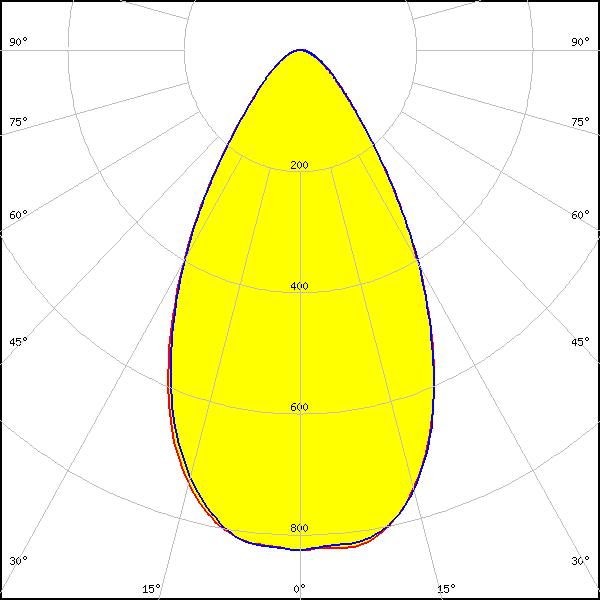

LED: CMA1825
LES size: 12.0 mm
Required components:
FWHM: 59°
FWTM: 101°
Peak intensity: 0.820 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

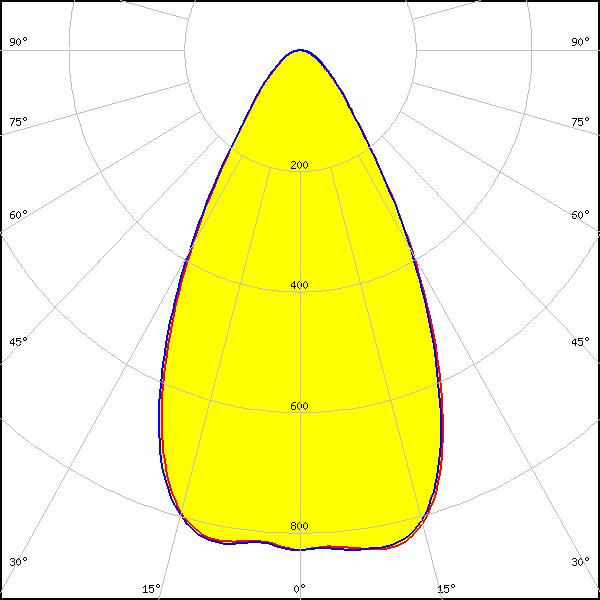

LED: CMT14xx
LES size: 9.8 mm
Required components:
F15255_HEKLA-SOCKET-C
F15176_ANGELETTE-LENS
FWHM: 58°
FWTM: 97°
Peak intensity: 0.850 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

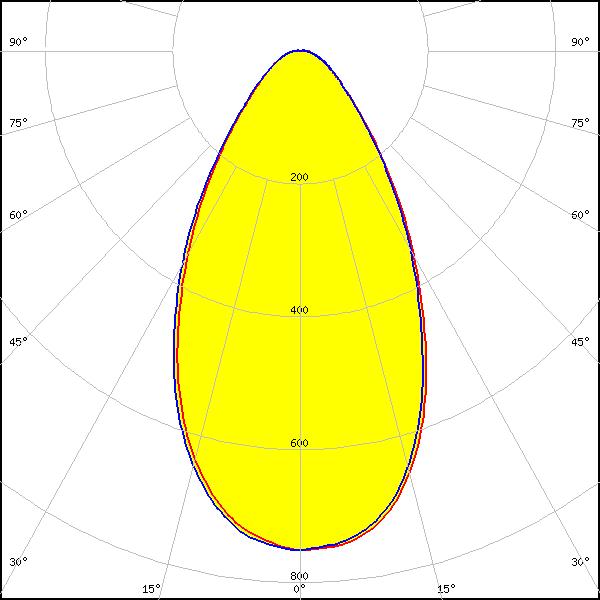

LED: CMT19xx
LES size: 14.5 mm
Required components:
FWHM: 58°
FWTM: 108°
Peak intensity: 0.752 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

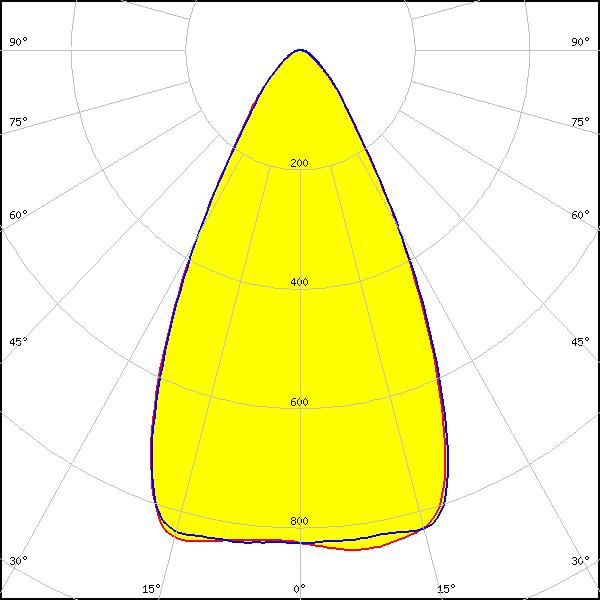

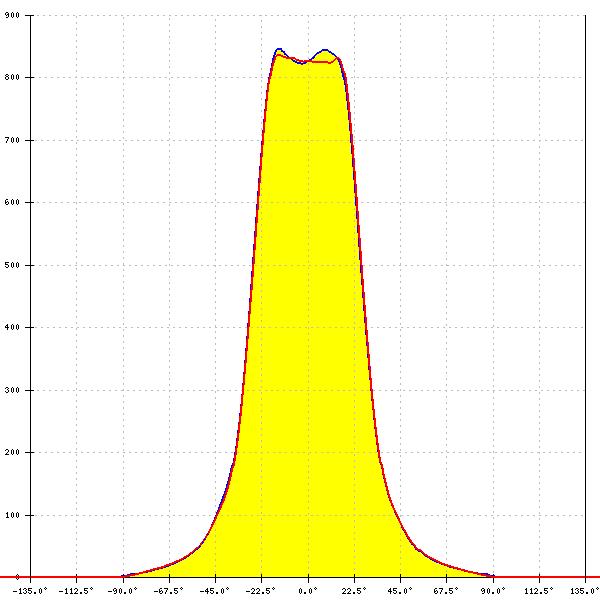

LED: CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM: 57°
FWTM: 92°
Peak intensity: 0.890 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

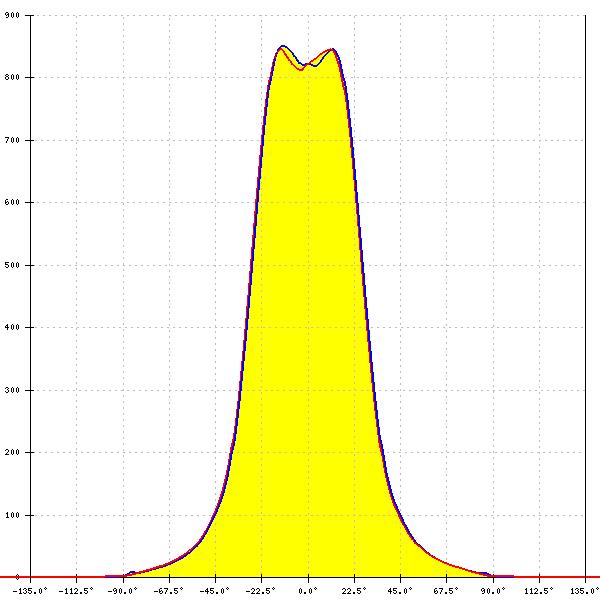

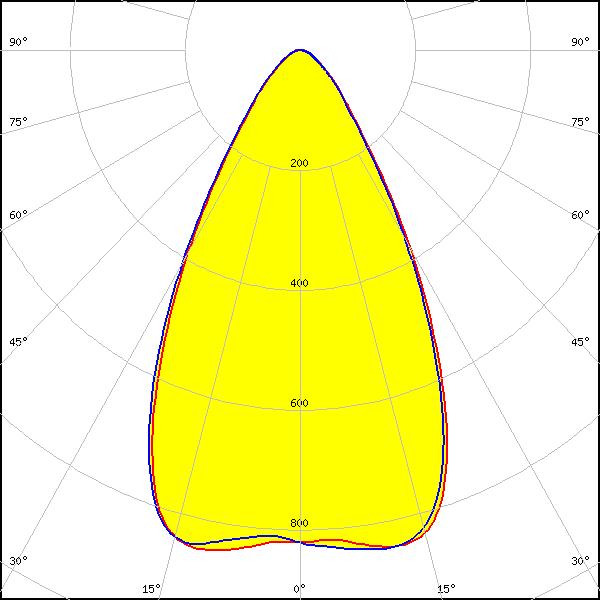

LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: 59°
FWTM: 95°
Peak intensity: 0.850 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

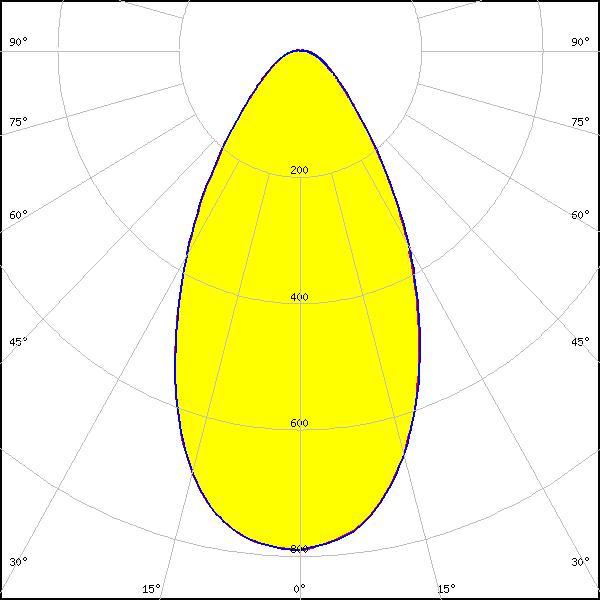

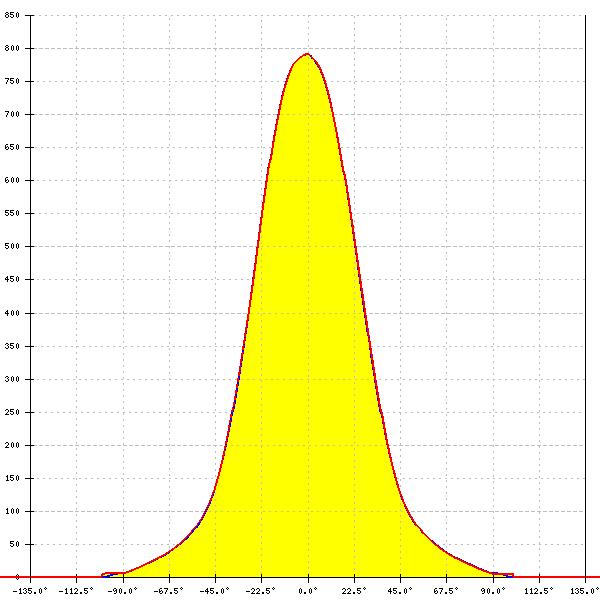

LED: LUXEON CX Plus CoB L08 (Gen2)
LES size: 14.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM: 57°
FWTM: 107°
Peak intensity: 0.791 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

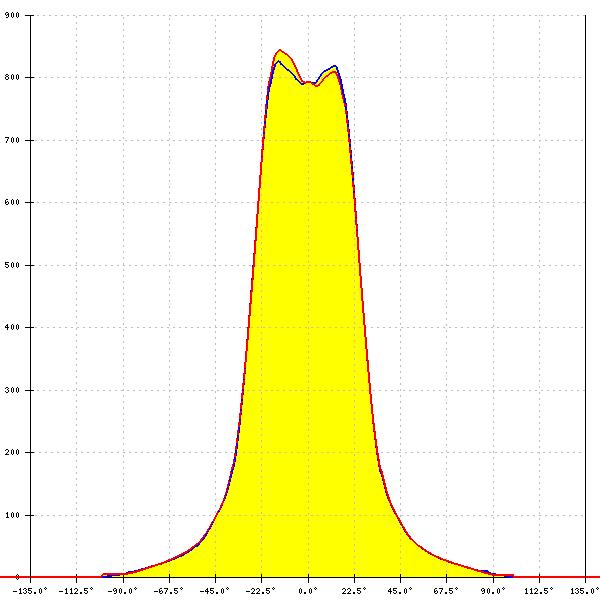

LED: LUXEON CoB 1202HD
LES size: 6.5 mm
Required components:
FWHM: 57° + 55°
FWTM: 94° + 92°
Peak intensity: 0.850 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM: 57°
FWTM: 83°
Peak intensity: 0.890 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

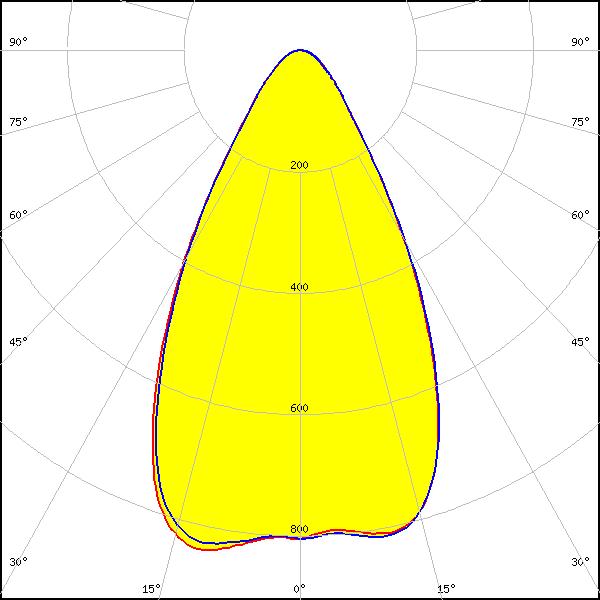

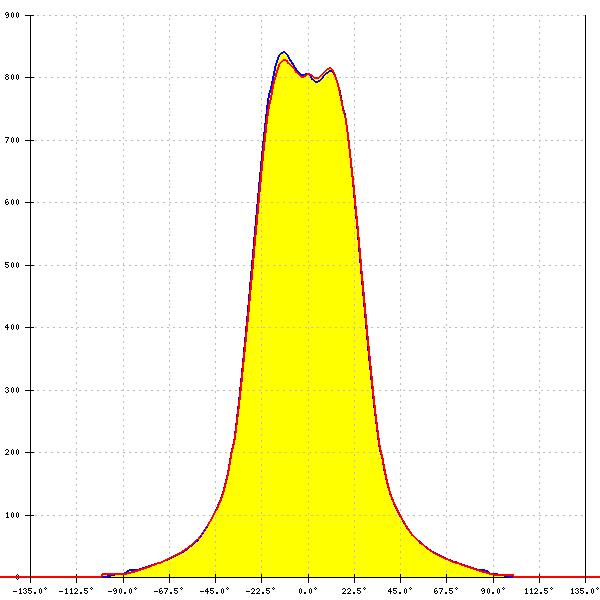

LED: LUXEON CoB 1204HD
LES size: 9.0 mm
Required components:
FWHM: 57° + 58°
FWTM: 96° + 97°
Peak intensity: 0.840 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

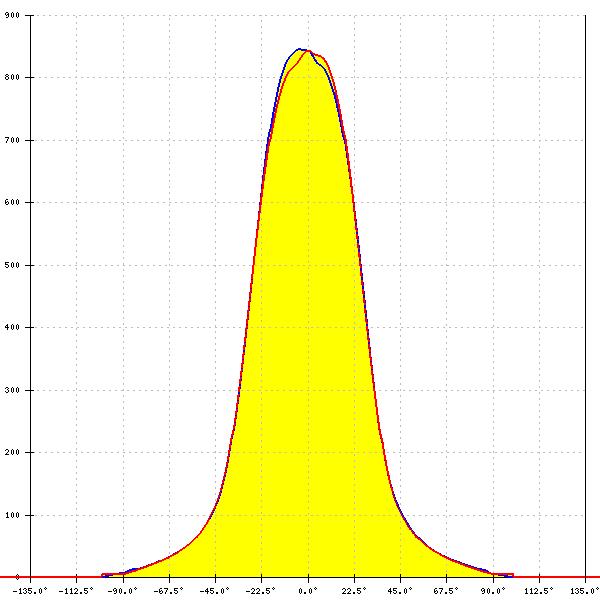

LED: LUXEON CoB 1205HD
LES size: 11.0 mm
Required components:
FWHM: 57° + 57°
FWTM: 98° + 98°
Peak intensity: 0.840 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

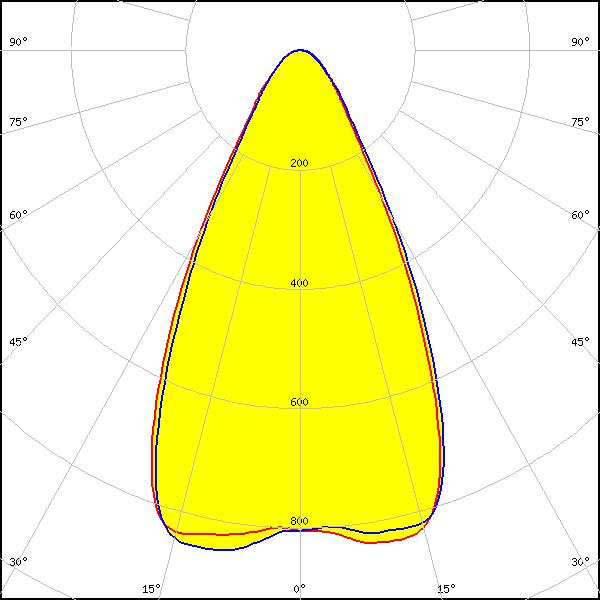

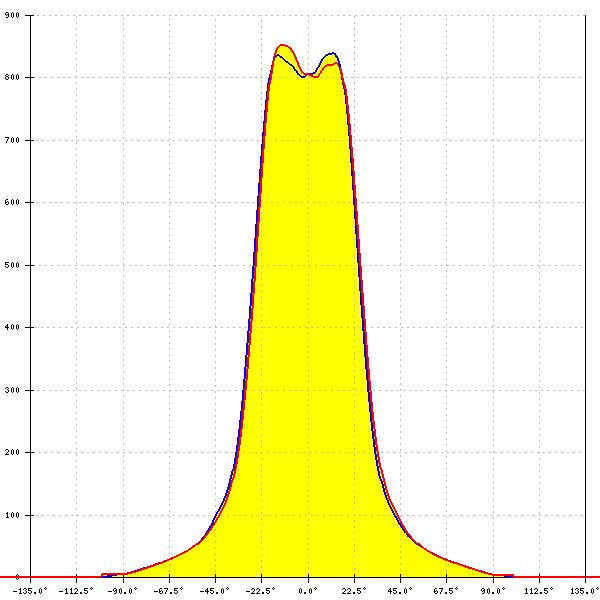

LED: LUXEON CX Plus CoB - HD S01H4
LES size: 4.5 mm
Required components:
Bender Wirth: 634c Hekla
FWHM: 55°
FWTM: 92°
Peak intensity: 0.879 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

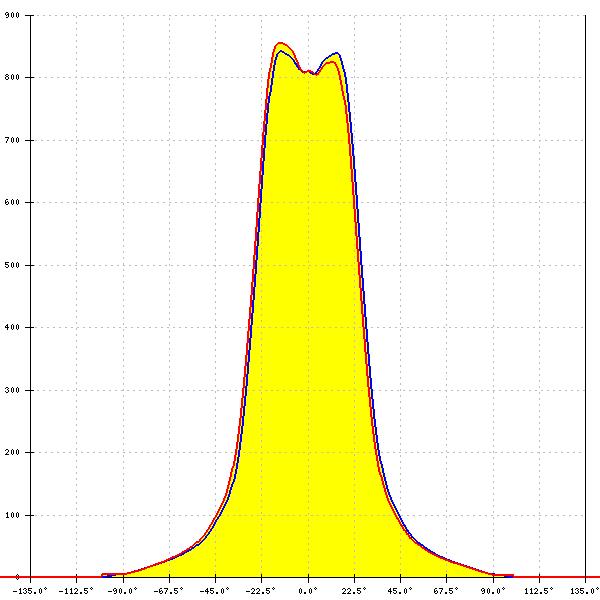

LED: LUXEON CX Plus CoB - HD S02H6
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM: 55°
FWTM: 93°
Peak intensity: 0.881 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CX Plus CoB - HD S04H9
LES size: 9.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM: 58°
FWTM: 95°
Peak intensity: 0.848 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
LES size: 12.0 mm
Required components:
Bender Wirth: 637a Hekla
FWHM: 57°
FWTM: 100°
Peak intensity: 0.842 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

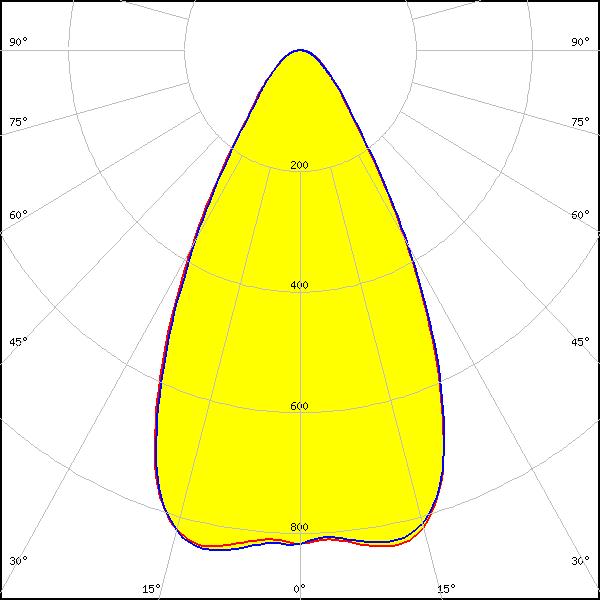

LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
LES size: 9.0 mm
Required components:
Bender Wirth: 641a Hekla
FWHM: 57°
FWTM: 95°
Peak intensity: 0.843 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

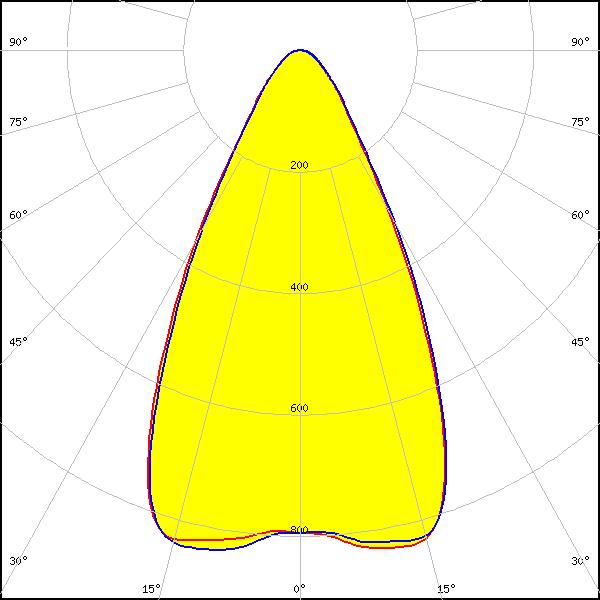

LED: LUXEON CX Plus CoB S01 (Gen2)
LES size: 6.0 mm
Required components:
Bender Wirth: 634c Hekla
FWHM: 55°
FWTM: 92°
Peak intensity: 0.877 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

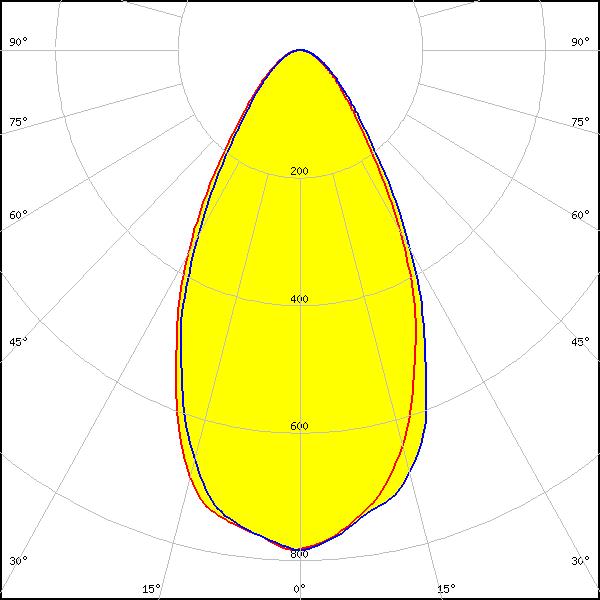

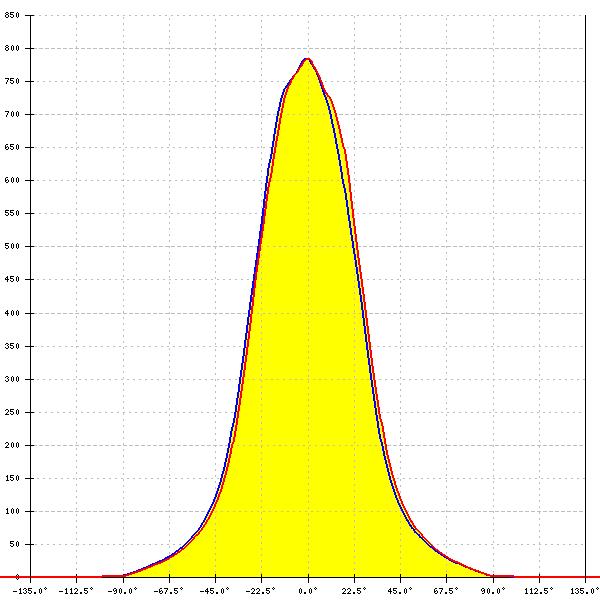

LED: CDM-14 (Dim-To-Warm)
LES size: 15.5 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: 56°
FWTM: 102°
Peak intensity: 0.800 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: CDM-6 (Dim-To-Warm)
LES size: 6.8 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 49°
FWTM: 85°
Peak intensity: 0.920 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

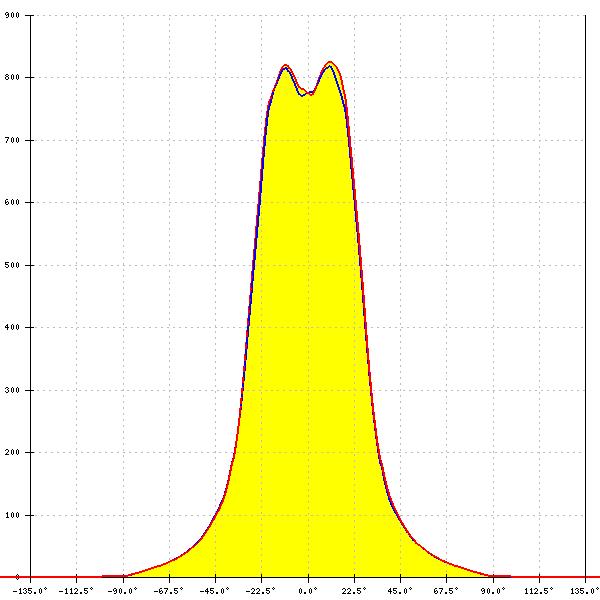

LED: CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: 58°
FWTM: 96°
Peak intensity: 0.830 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: CTM-14 (Tunable White)
LES size: 14.5 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 442 Typ L8
FWHM: 57°
FWTM: 102°
Peak intensity: 0.790 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

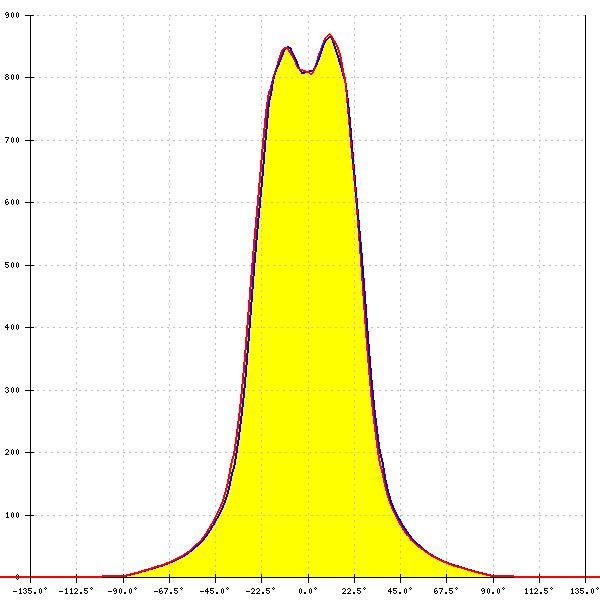

LED: CTM-9 (Tunable White)
LES size: 9.5 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 495 Typ L8
FWHM: 56°
FWTM: 91°
Peak intensity: 0.870 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

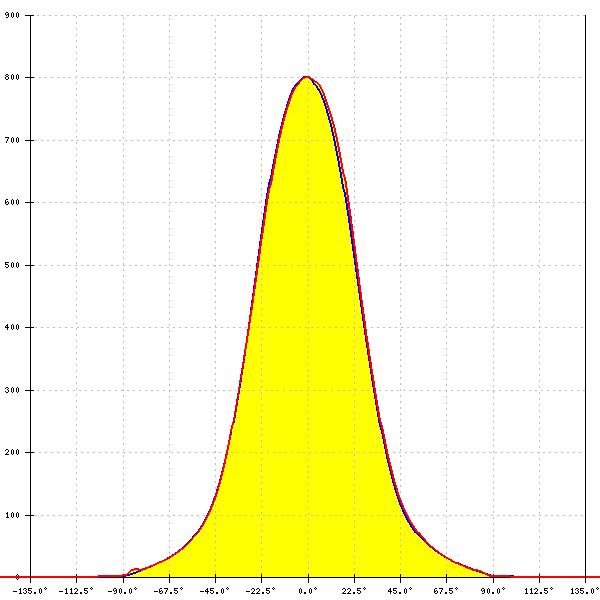

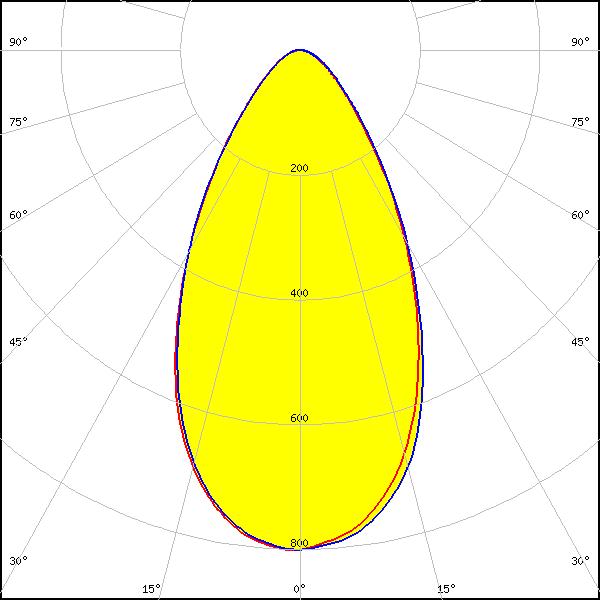

LED: CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM: 57°
FWTM: 103°
Peak intensity: 0.800 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

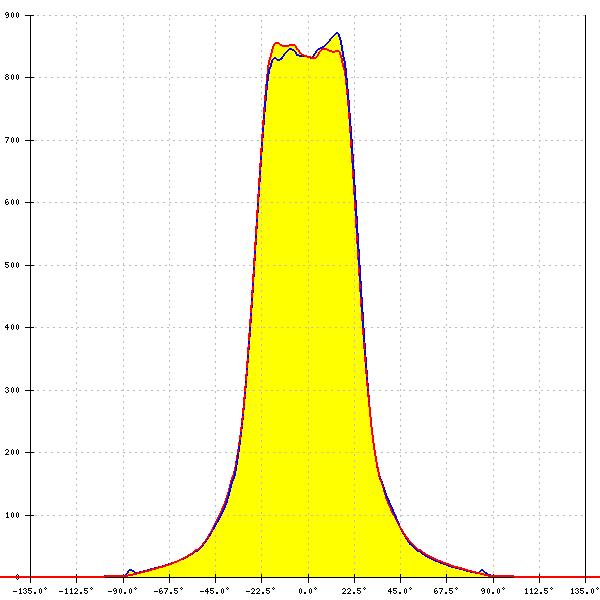

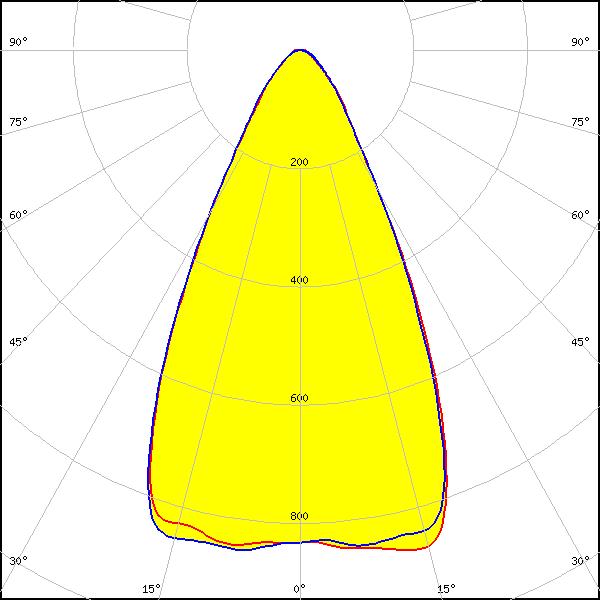

LED: CXM-4
LES size: 4.5 mm
Required components:
FWHM: 54°
FWTM: 88°
Peak intensity: 0.999 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

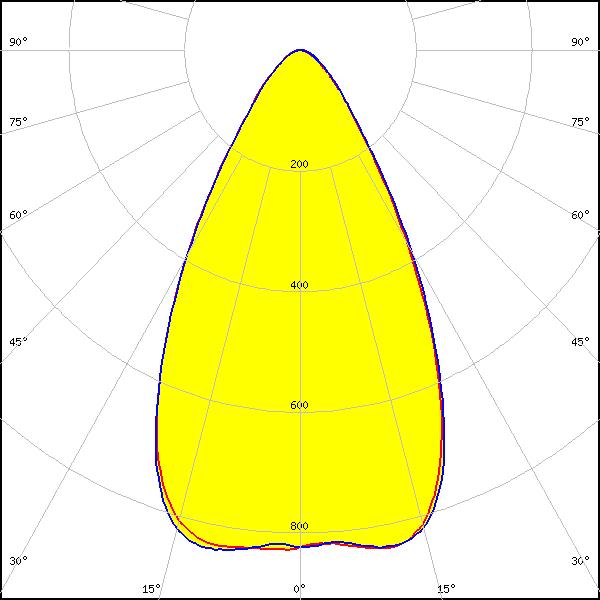

LED: CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM: 58°
FWTM: 95°
Peak intensity: 0.850 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: COB T-Type
LES size: 5.9 mm
Required components:
FWHM: 54°
FWTM: 81°
Peak intensity: 0.950 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: NJCWL024Z-V1MT: COB L-Type Tunable White
LES size: 7.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 497 Typ L8
FWHM: 56°
FWTM: 89°
Peak intensity: 0.850 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

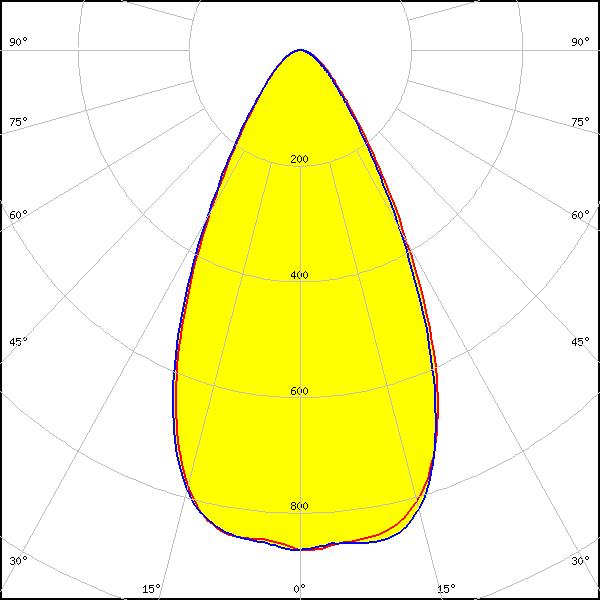

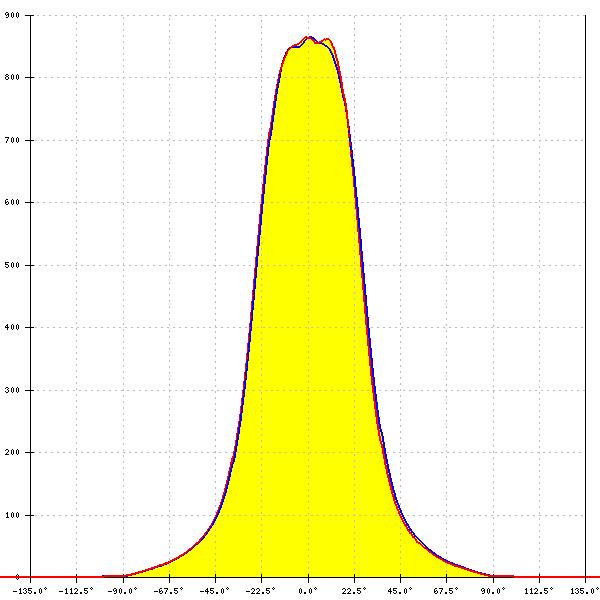

LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 498 Typ L8
FWHM: 55°
FWTM: 94°
Peak intensity: 0.870 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

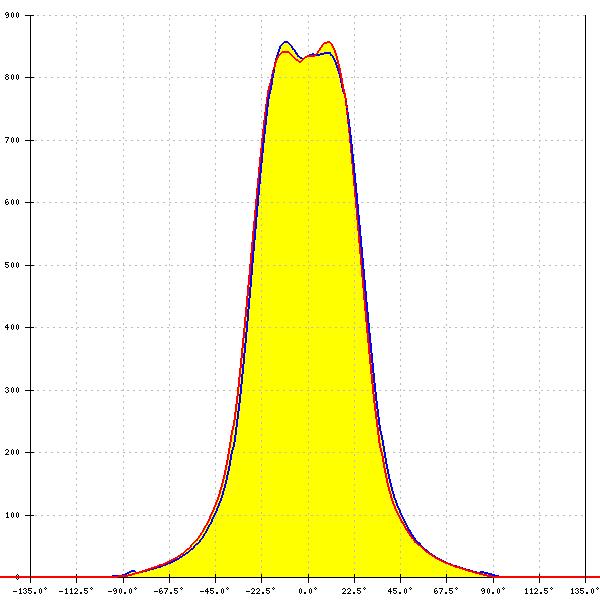

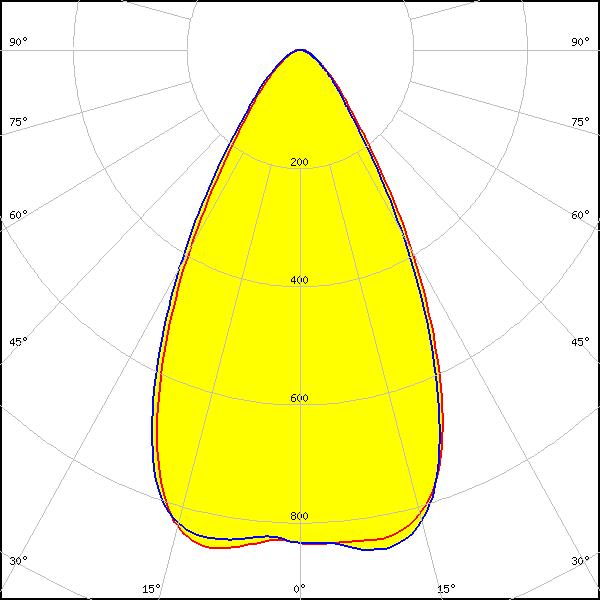

LED: LC003D / LC006D / LC009D / LC013D
LES size: 9.8 mm
Required components:
FWHM: 58°
FWTM: 95°
Peak intensity: 0.860 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

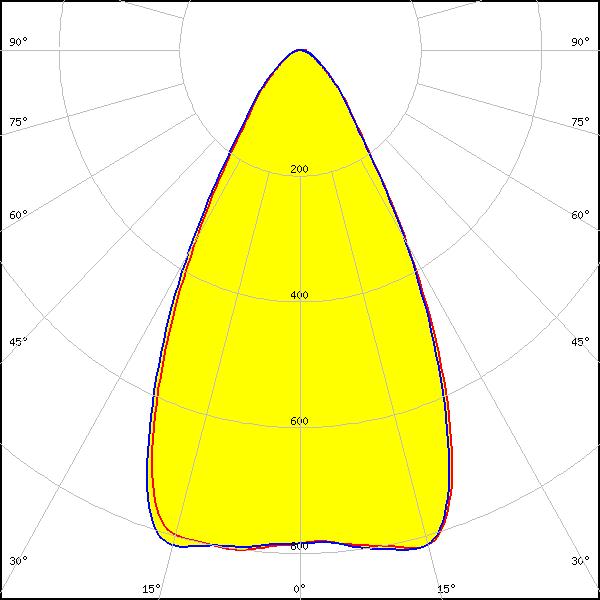

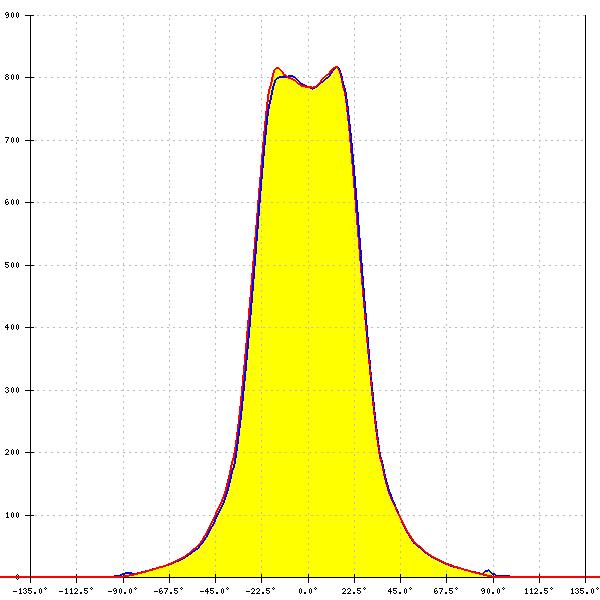

LED: LC010C
LES size: 6.0 mm
Required components:
FWHM: 58°
FWTM: 95°
Peak intensity: 0.860 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

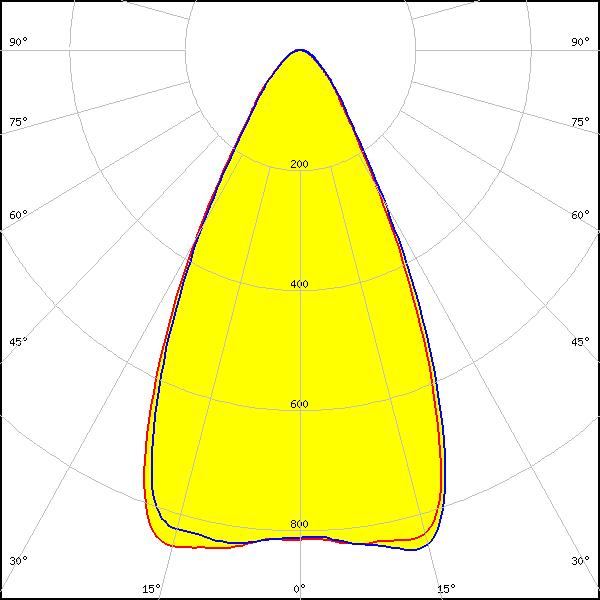

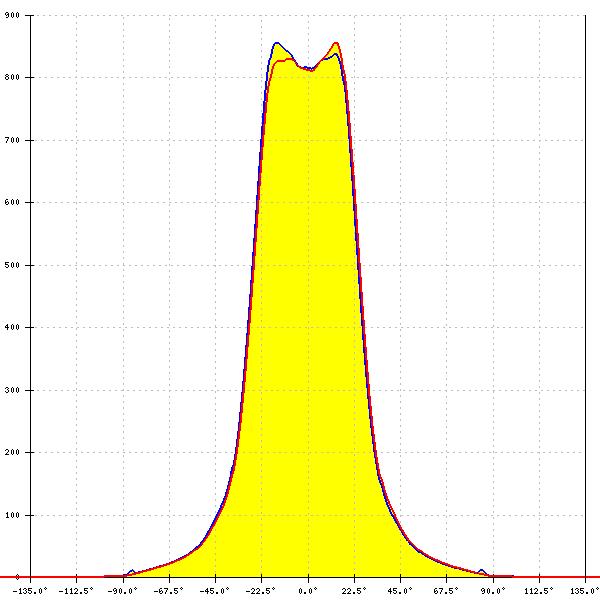

LED: LC010C G2
LES size: 6.0 mm
Required components:
FWHM: 55°
FWTM: 91°
Peak intensity: 0.930 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: LC010T (Tunable White)
LES size: 9.8 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 55°
FWTM: 92°
Peak intensity: 0.889 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: Tunable White

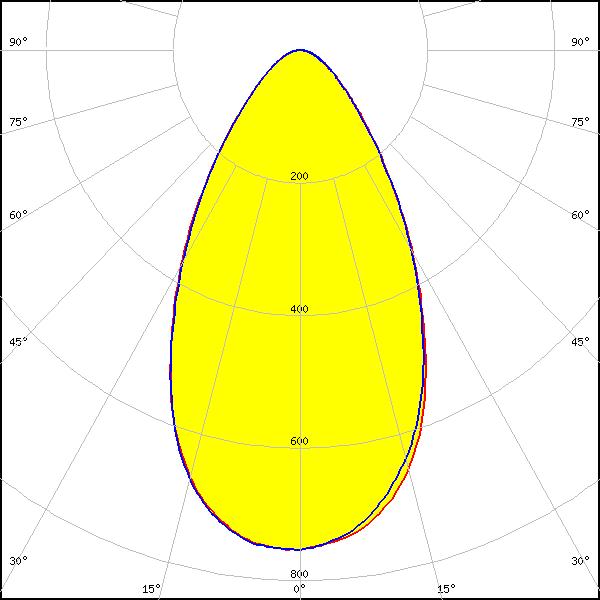

LED: LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM: 59° + 58°
FWTM: 107° + 107°
Peak intensity: 0.760 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

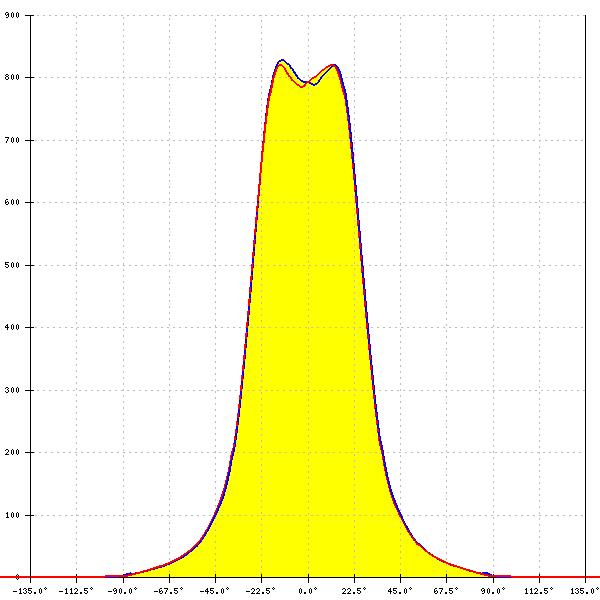

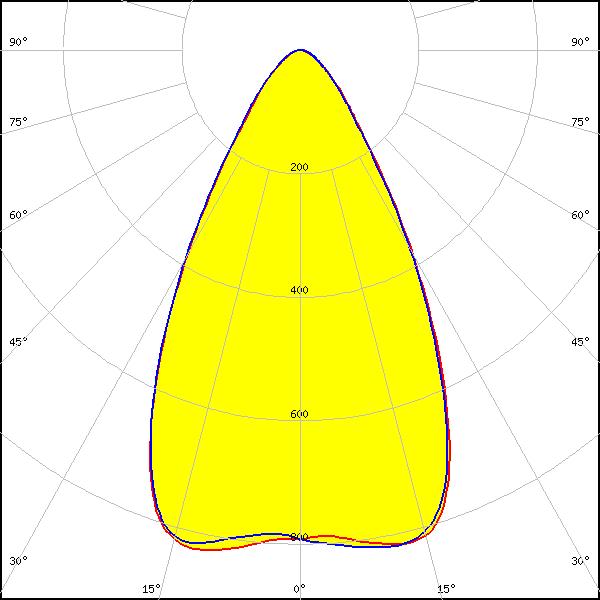

LED: LC020C
LES size: 8.0 mm
Required components:
FWHM: 59°
FWTM: 97°
Peak intensity: 0.840 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

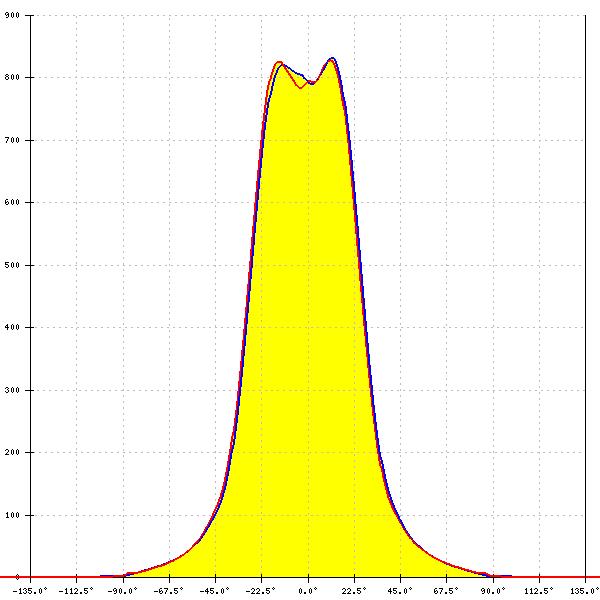

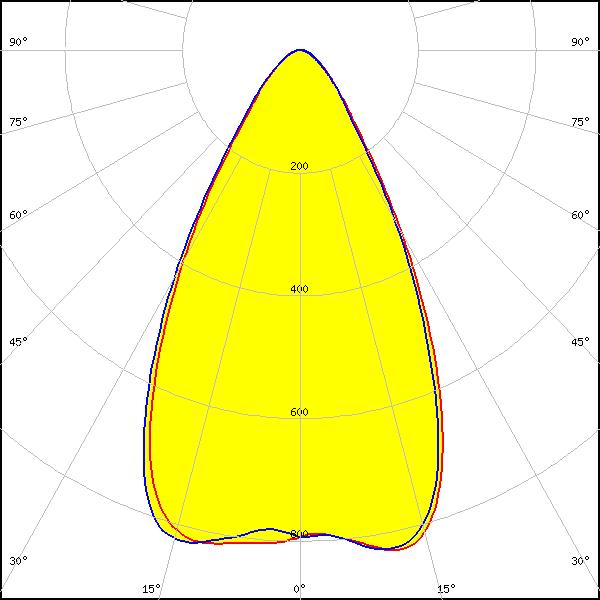

LED: LC020C G2
LES size: 8.5 mm
Required components:
FWHM: 58°
FWTM: 95°
Peak intensity: 0.847 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

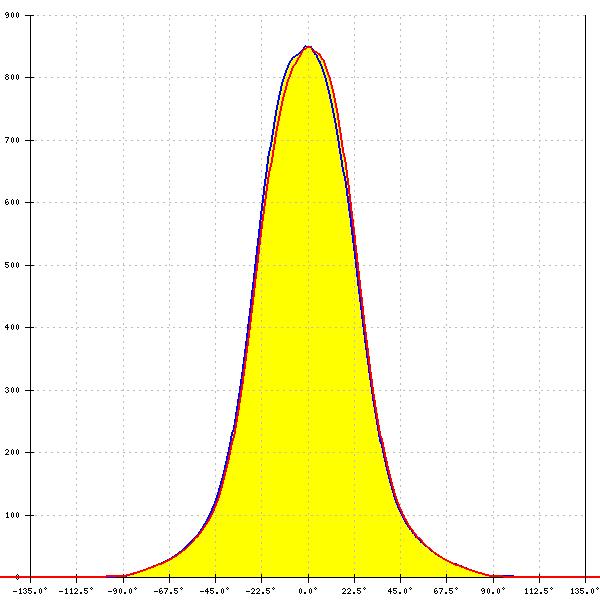

LED: LC020T (Tunable white)
LES size: 13.0 mm
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: 55°
FWTM: 99°
Peak intensity: 0.850 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: Tunable White
LED: SLE G7 LES09
LES size: 9.0 mm
Required components:
FWHM: 58°
FWTM: 92°
Peak intensity: 0.920 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

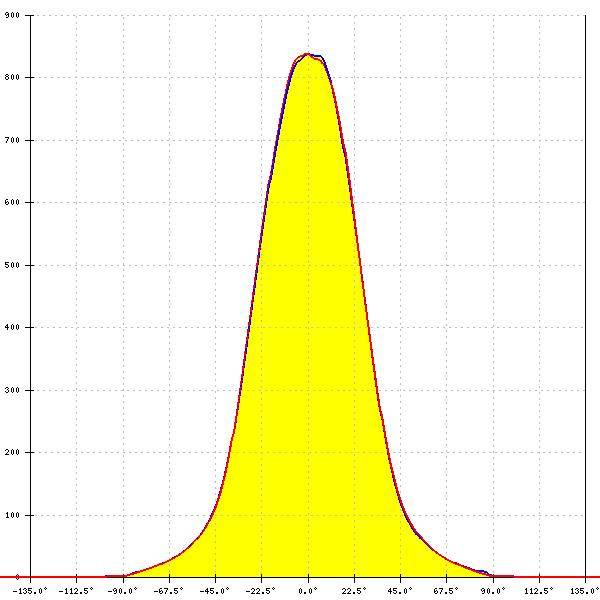

LED: SLE G7 LES13
LES size: 13.0 mm
Required components:
FWHM: 57°
FWTM: 99°
Peak intensity: 0.840 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

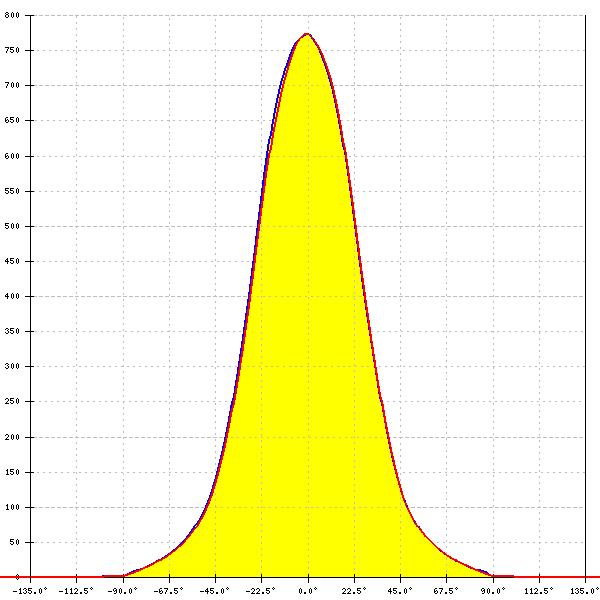

LED: SLE G7 LES15
LES size: 15.0 mm
Required components:
FWHM: 58°
FWTM: 106°
Peak intensity: 0.800 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

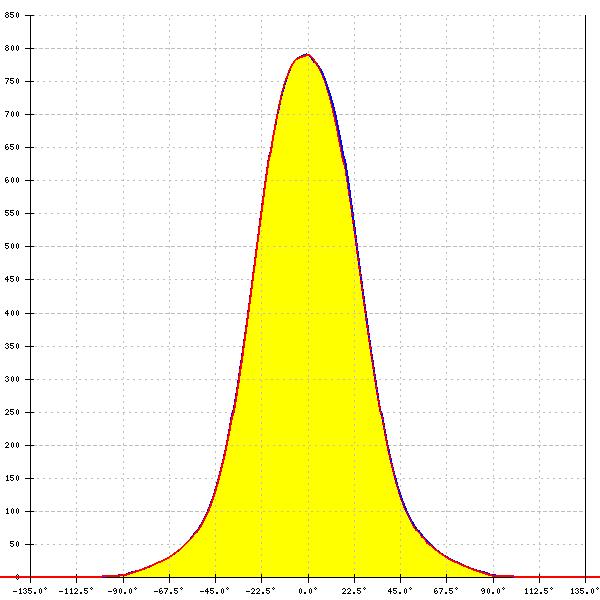

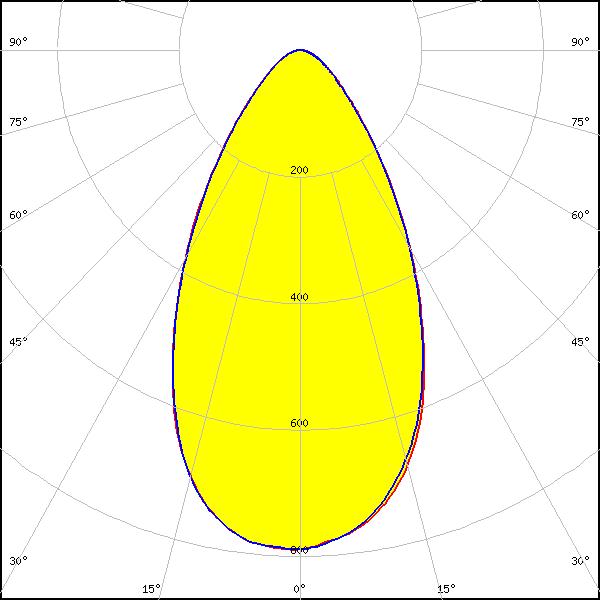

LED: XOB 14.5 mm
LES size: 14.5 mm
Required components:
FWHM: 57°
FWTM: 104°
Peak intensity: 0.790 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

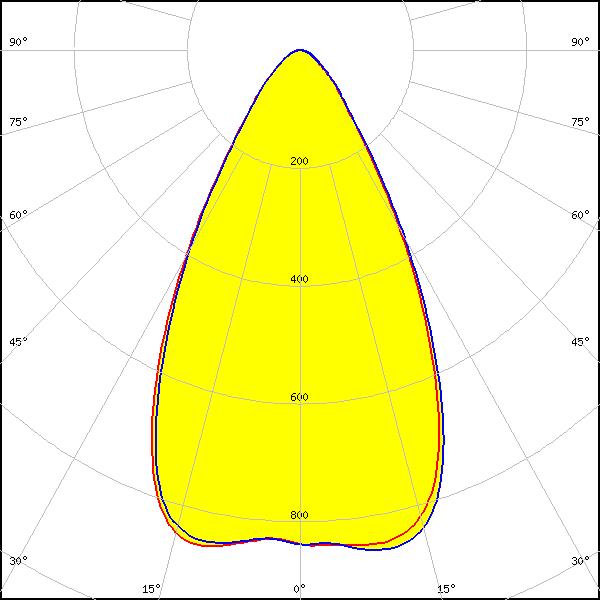

LED: XOB 9.8 mm
LES size: 9.8 mm
Required components:
FWHM: 58°
FWTM: 94°
Peak intensity: 0.864 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

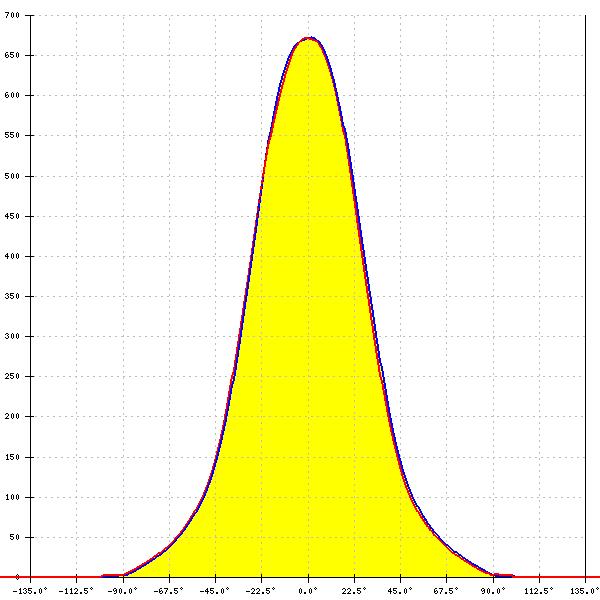

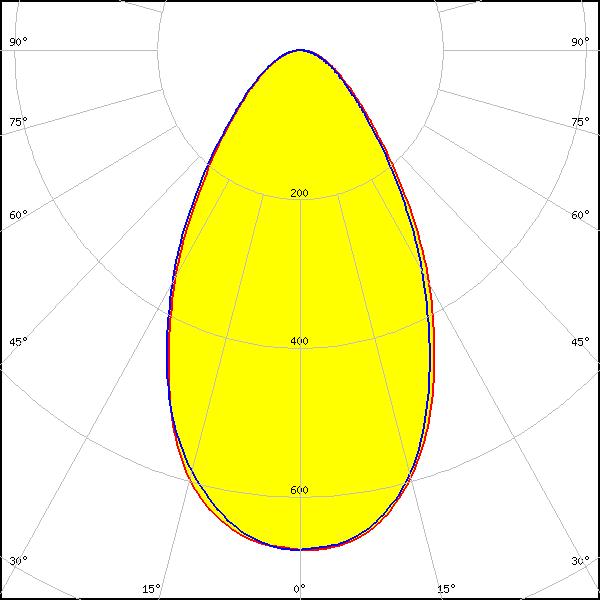

LED: XTM - 19mm LES
LES size: 19.0 mm
Required components:
FWHM: 62°
FWTM: 115°
Peak intensity: 0.670 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
