RONDA-WAS2-C

Print

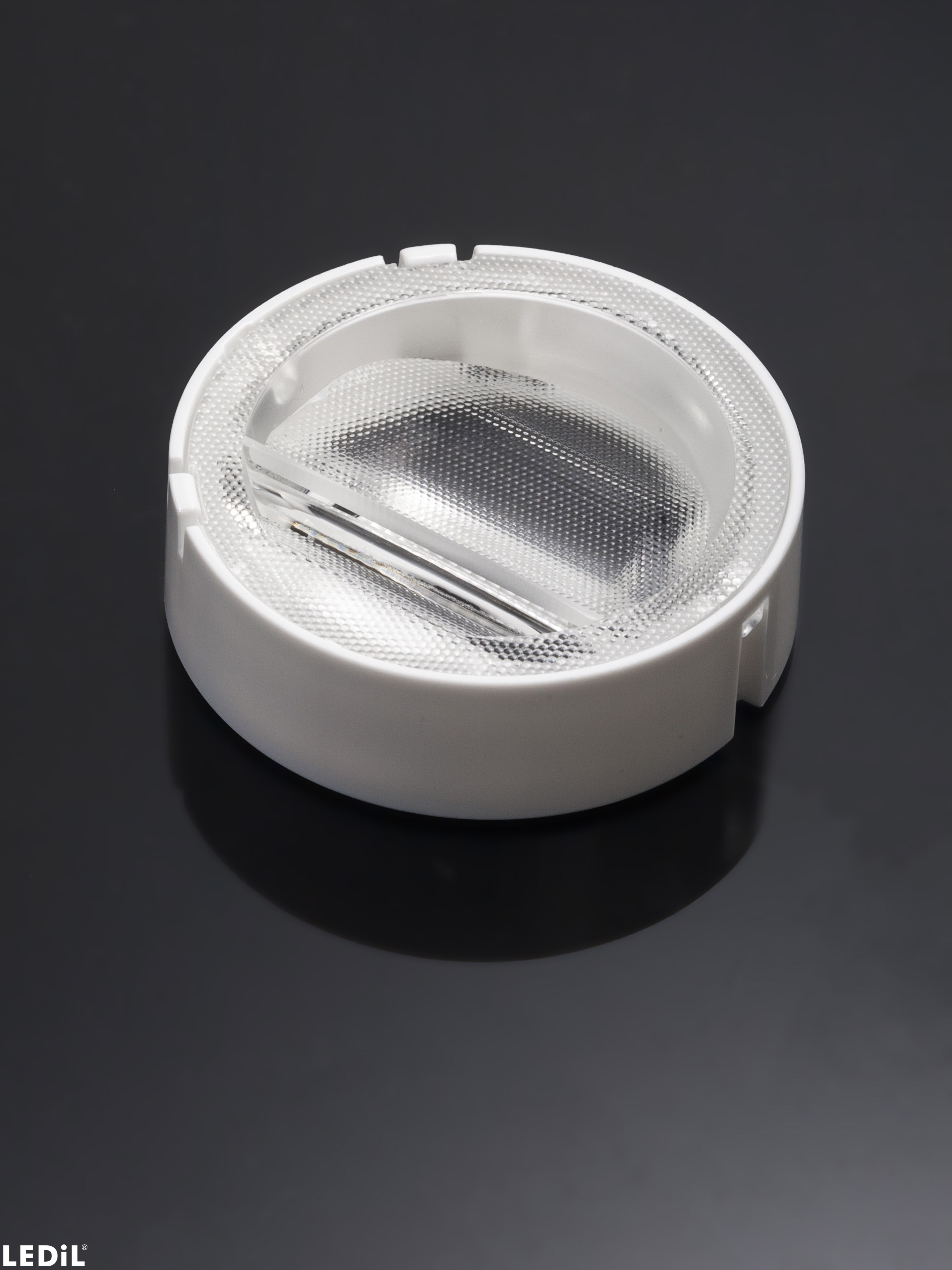

Asymmetric beam ideal for floor installations with holder C compatible with LEDiL HEKLA

Note! This product consists of multiple parts that need to be ordered separately. See ordering information.
Specification
  • Dimensions:
    54 mm
  • Height:
    16.00 mm
  • Fastening:
    socket
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Single lens
    1 pcs
  • Holder
    1 pcs
  • Single lens
  • F15862_RONDA-WAS2
    clear
  • Quantity in box:
    420 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.30 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 100 mm
  • MOQ Weight:
    2.40 kg
  • Holder
  • F15635_RONDA-HLD-C
    white
  • Quantity in box:
    420 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    4.10 kg
  • MPQ:
    30 pcs
  • MOQ:
    120 pcs
  • MOQ Size:
    480 x 280 x 120 mm
  • MOQ Weight:
    1.30 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    F15862_RONDA-WAS2
    F15635_RONDA-HLD-C

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

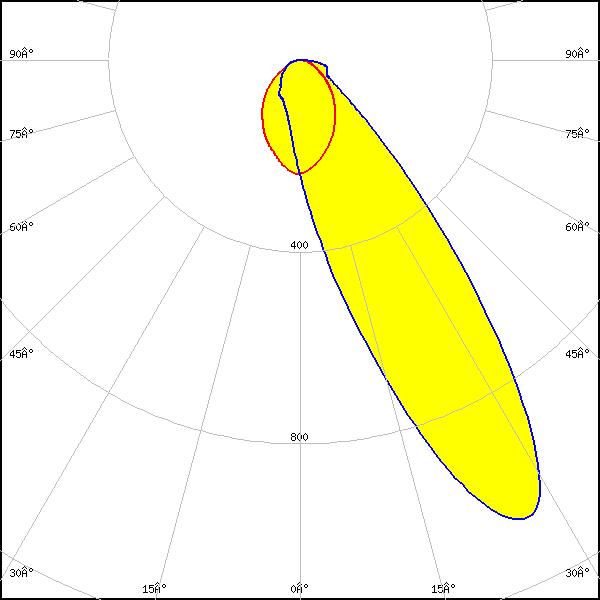

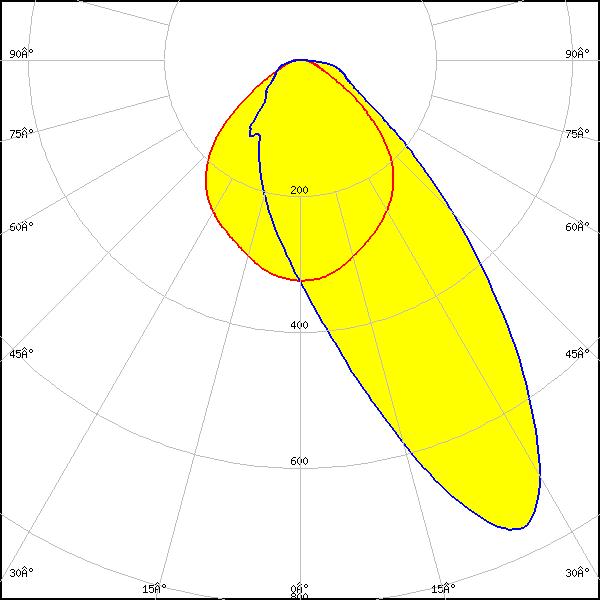

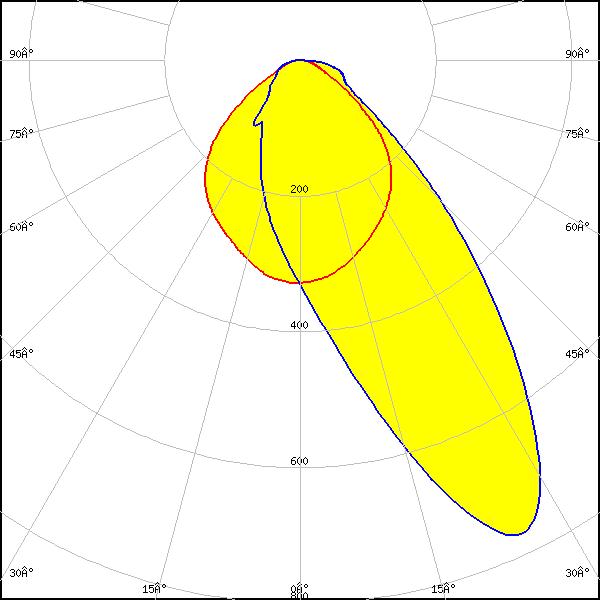

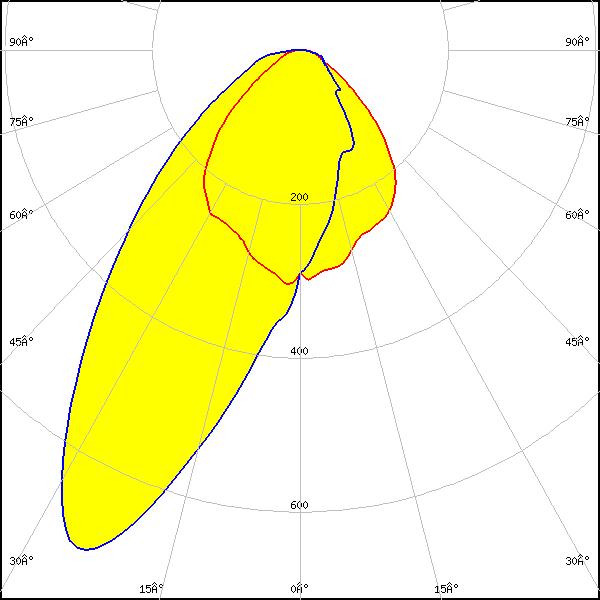

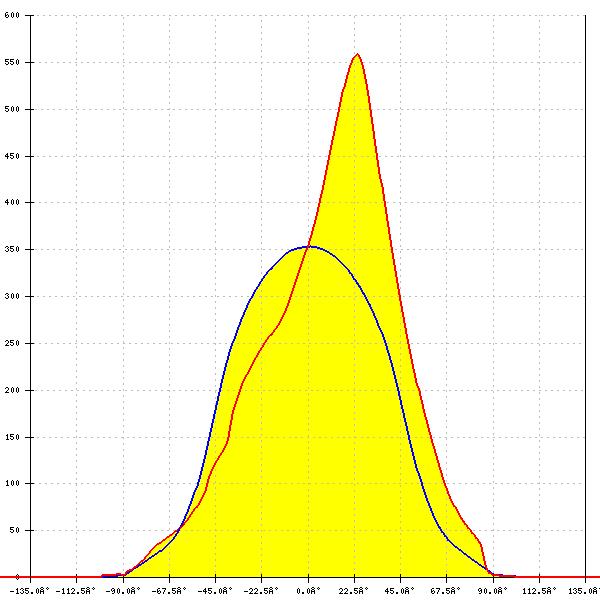

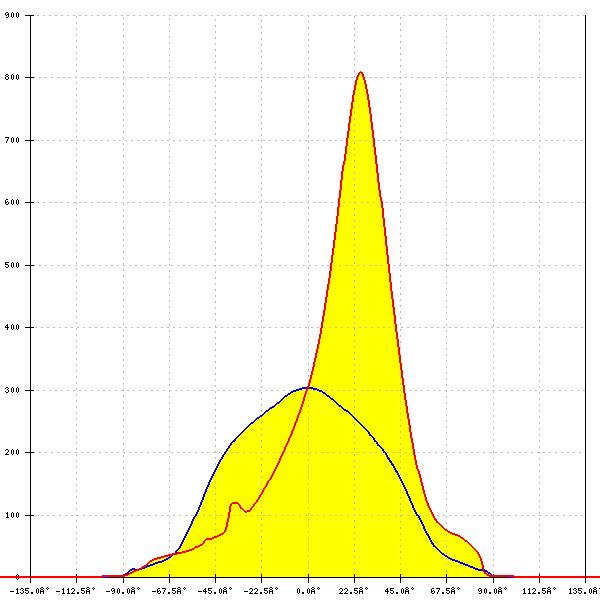

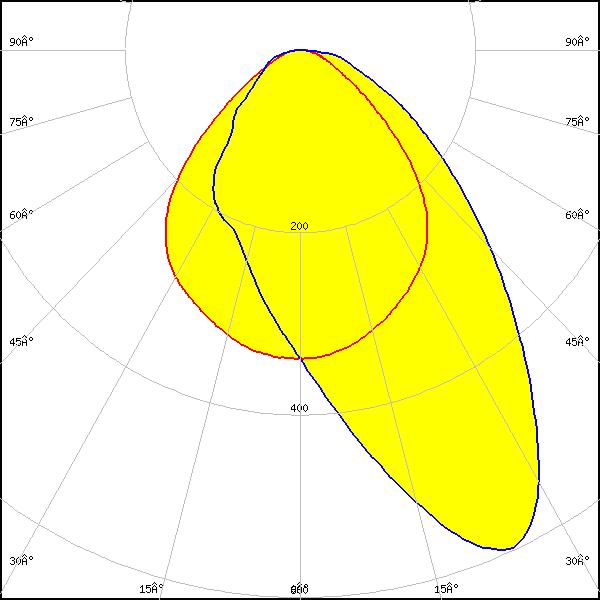

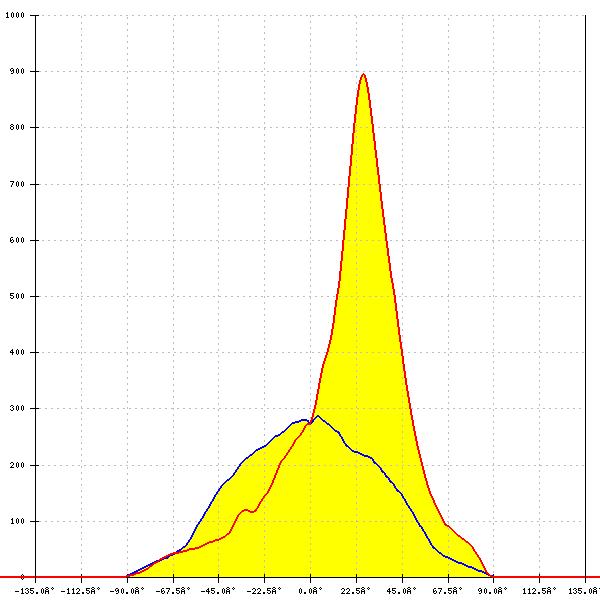

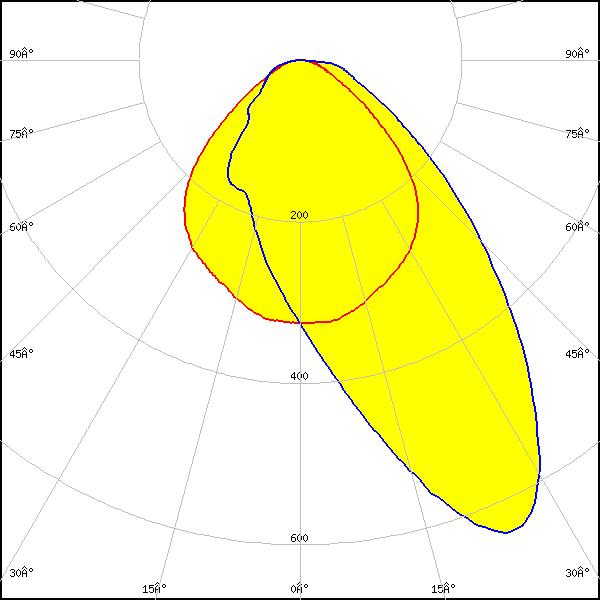

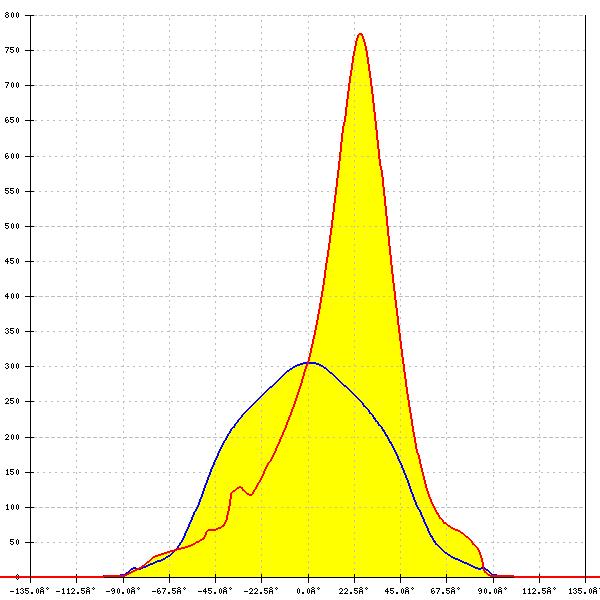

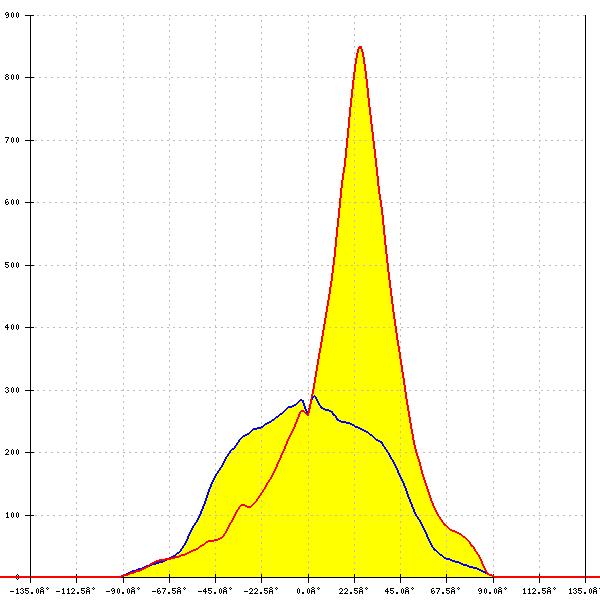

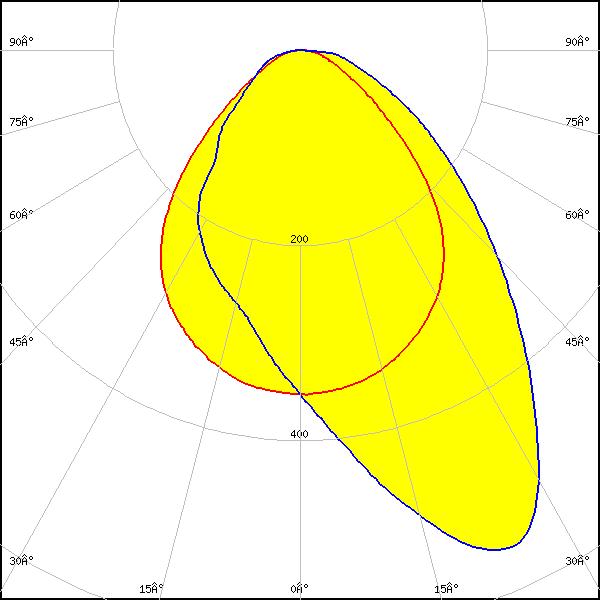

Optical results

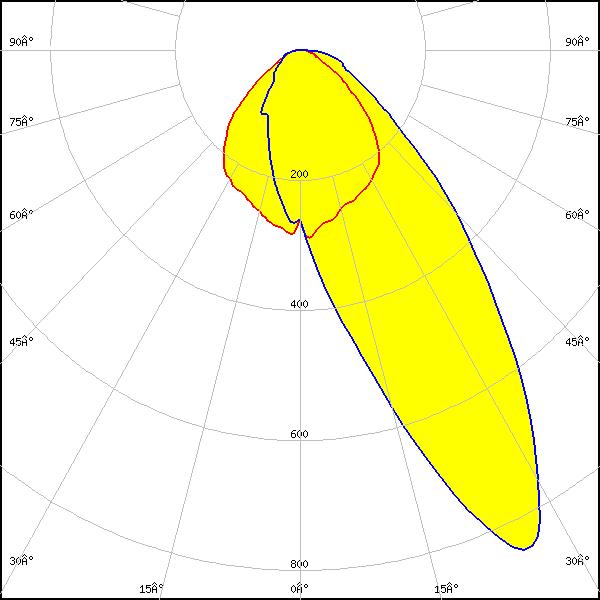

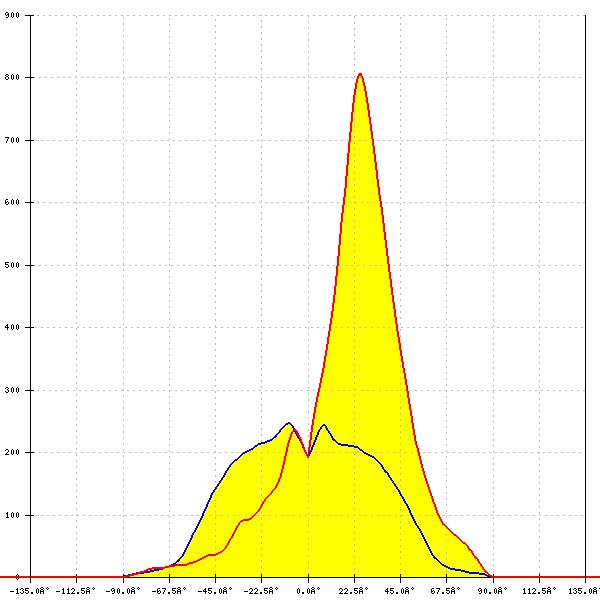

LED: V10 Gen7
Required components:
FWHM: asymmetric
Peak intensity: 0.800 cd/lm
LEDs/each optic: 1
Light colour: White

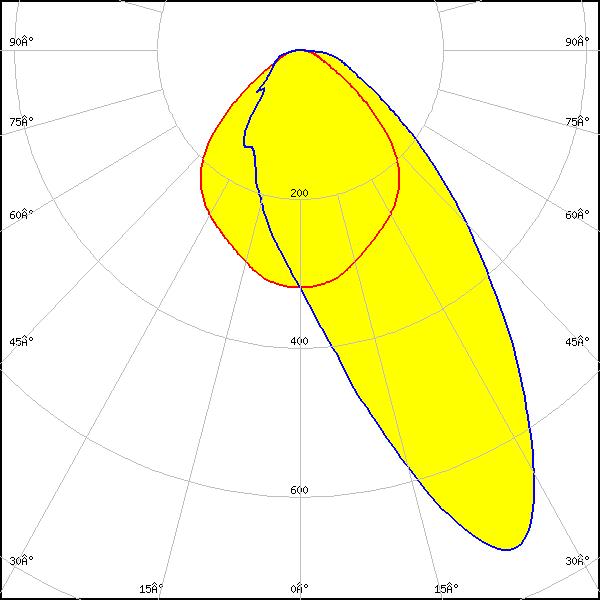

LED: V11 HD Gen 8
Required components:
Bender Wirth: 633d Hekla
FWHM: asymmetric
Peak intensity: 0.734 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

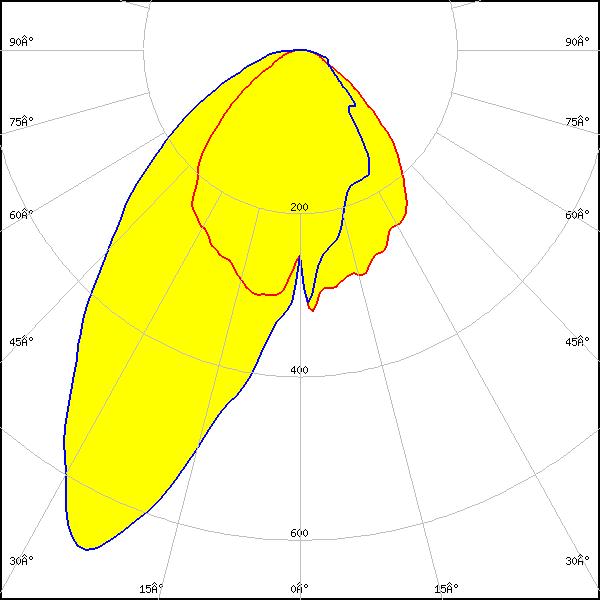

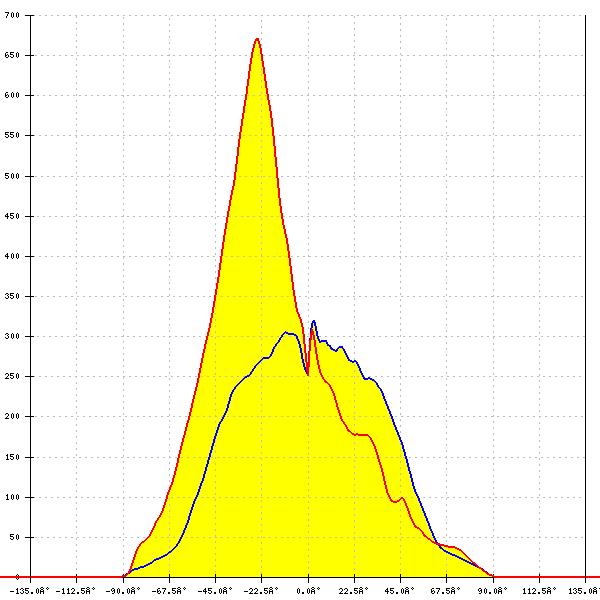

LED: V13 Gen7
Required components:
FWHM: asymmetric
Peak intensity: 0.671 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

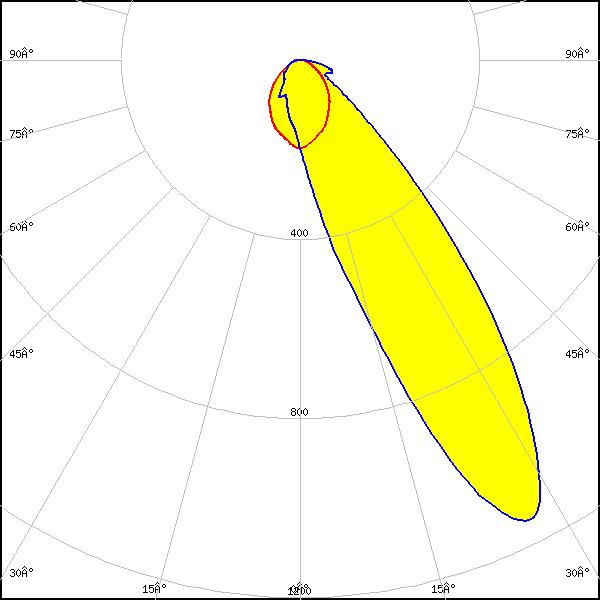

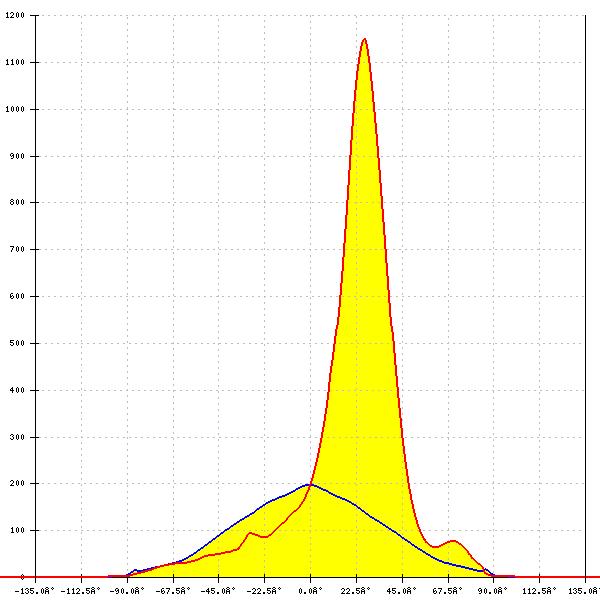

LED: V4 HD Gen 7
Required components:
FWHM: asymmetric
Peak intensity: 1.200 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

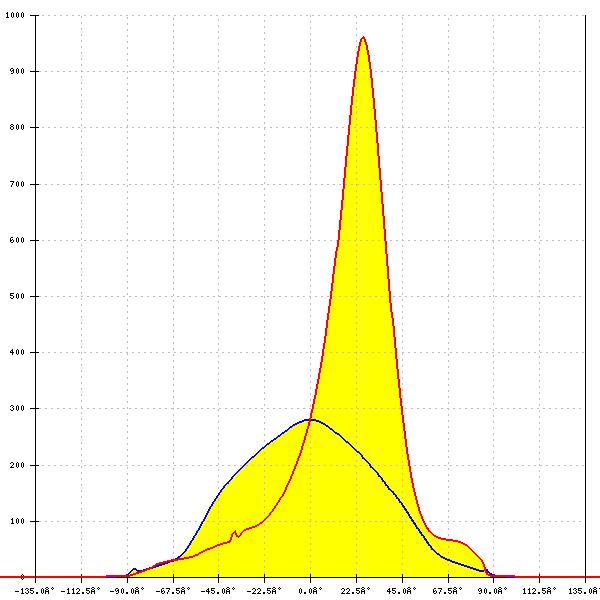

LED: V6 Gen6
Required components:
FWHM: asymmetric
Peak intensity: 0.960 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

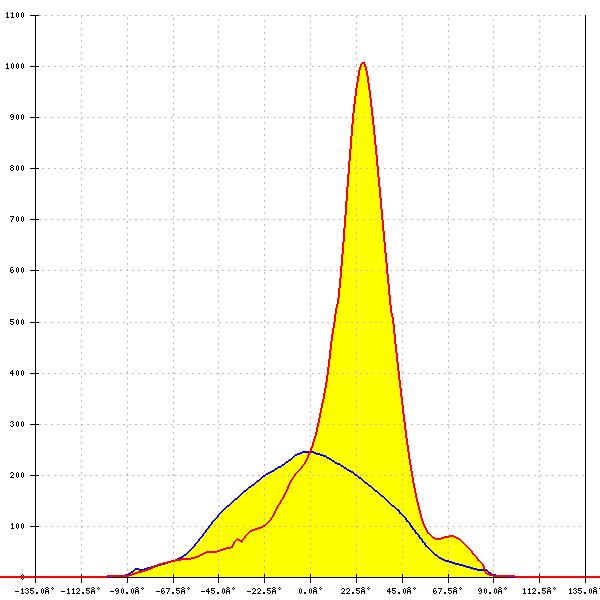

LED: V6 HD Gen 7
Required components:
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

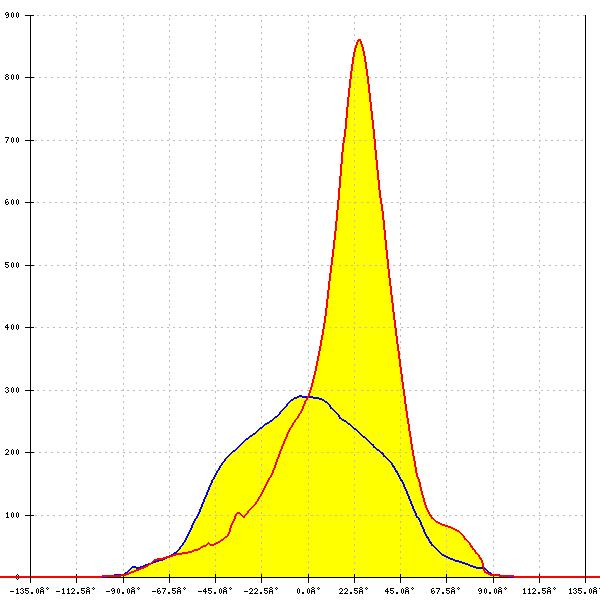

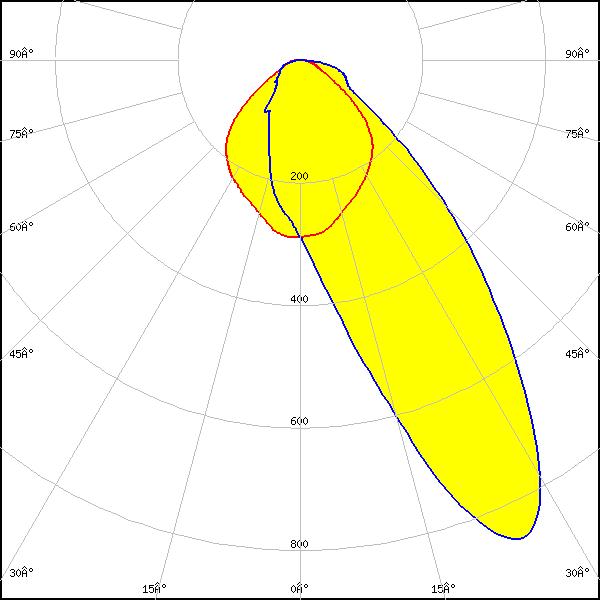

LED: V9 HD Gen7
Required components:
FWHM: asymmetric
Peak intensity: 0.860 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

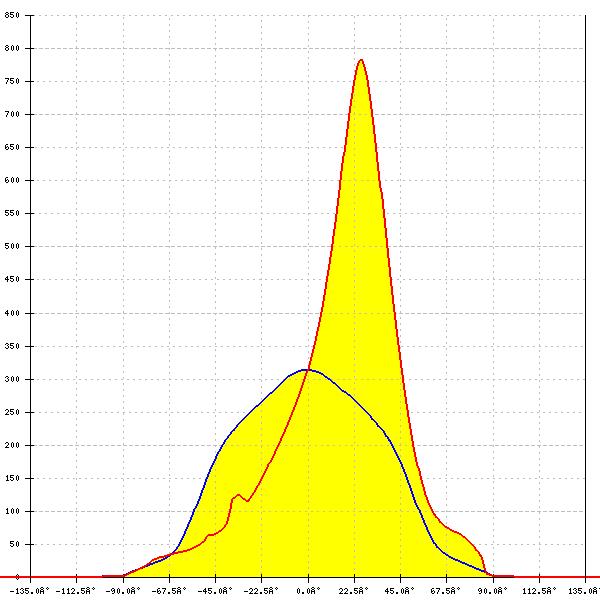

LED: VERO10
Required components:
FWHM: asymmetric
Peak intensity: 0.780 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: VERO13
Required components:
FWHM: asymmetric
Peak intensity: 0.714 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

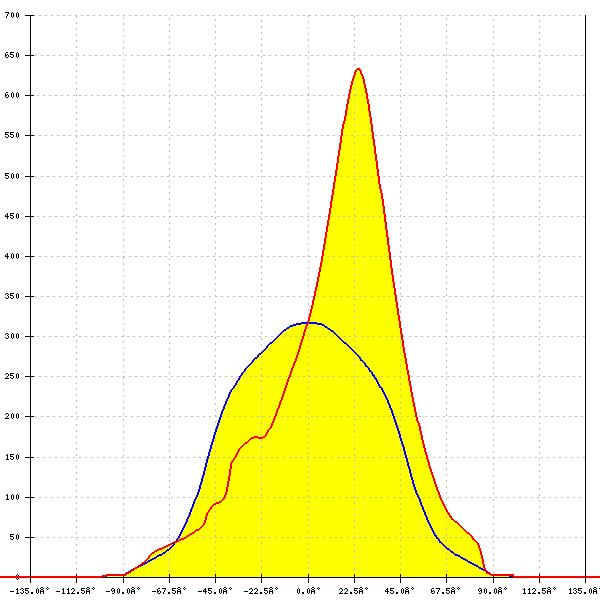

LED: Vesta DTW 13mm (21W)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: asymmetric
Peak intensity: 0.633 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: Tunable White

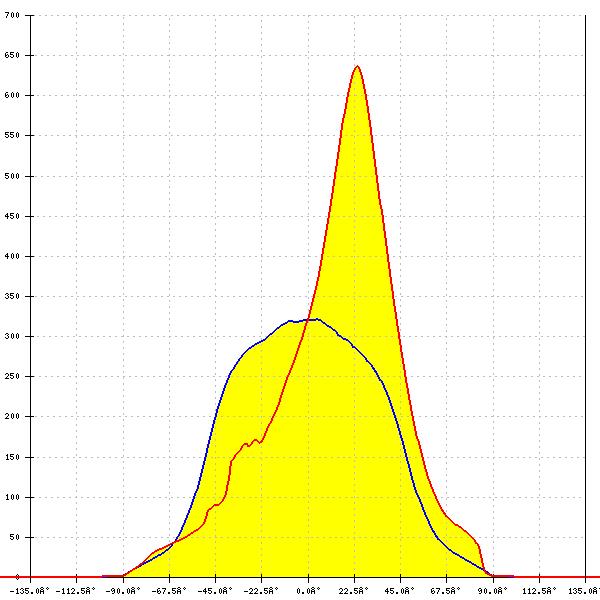

LED: Vesta TW 13mm (25W) CSP
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 6mm DP
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 504 Typ L8
FWHM: asymmetric
Peak intensity: 0.895 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White
LED: Vesta TW 9mm (12W) CSP
Required components:
FWHM: asymmetric
Peak intensity: 0.740 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

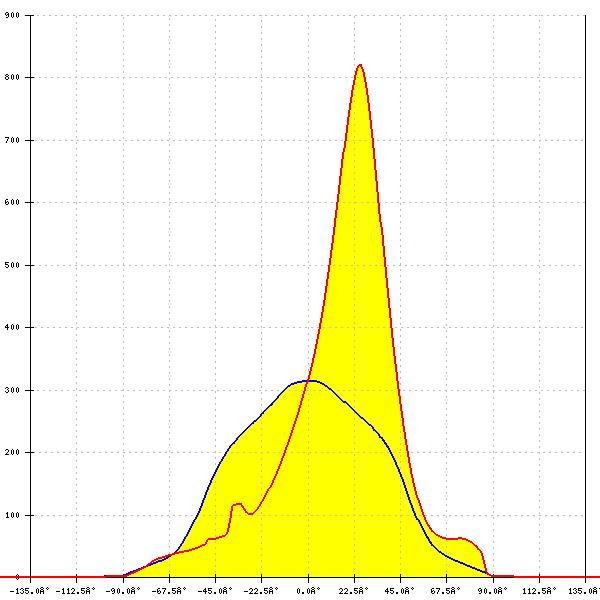

LED: CLC020 Series (Dim-To-Warm)
Required components:
FWHM: asymmetric
Peak intensity: 0.820 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

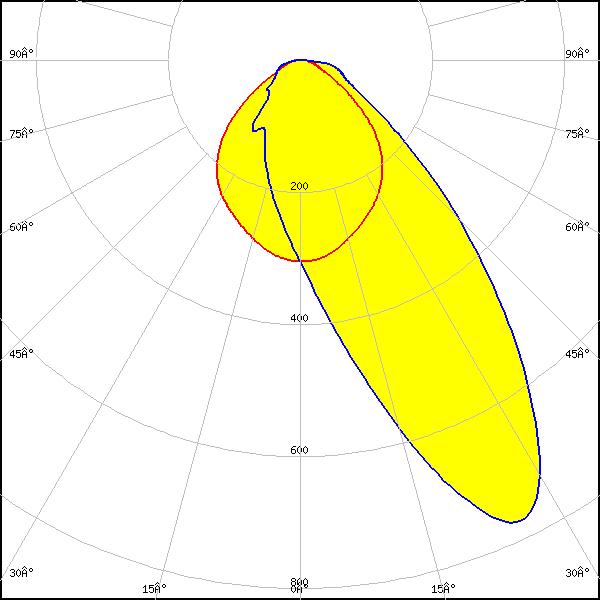

LED: CLL02x/CLU02x (LES10)
Required components:
FWHM: asymmetric
Peak intensity: 0.770 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: CLL03x/CLU03x
Required components:
FWHM: asymmetric
Peak intensity: 0.610 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

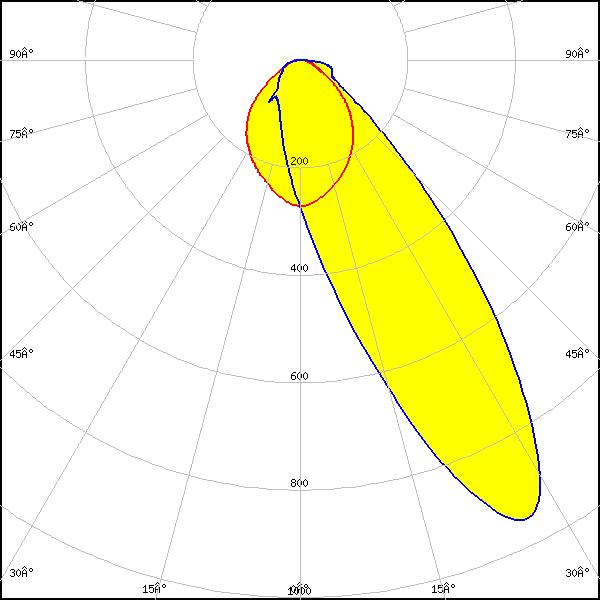

LED: CLU700/701/702/703
Required components:
FWHM: asymmetric
Peak intensity: 0.960 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: CLU7A2/7A3
Required components:
FWHM: asymmetric
Peak intensity: 1.100 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

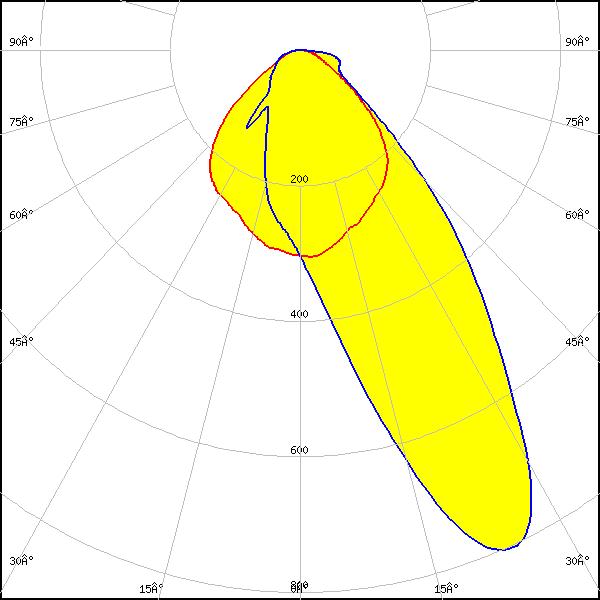

LED: LCN-C01B (Tunable White)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 481 Typ L8
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

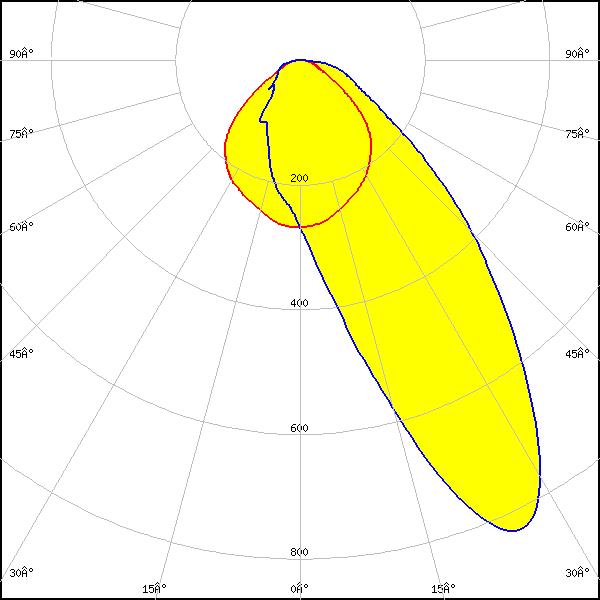

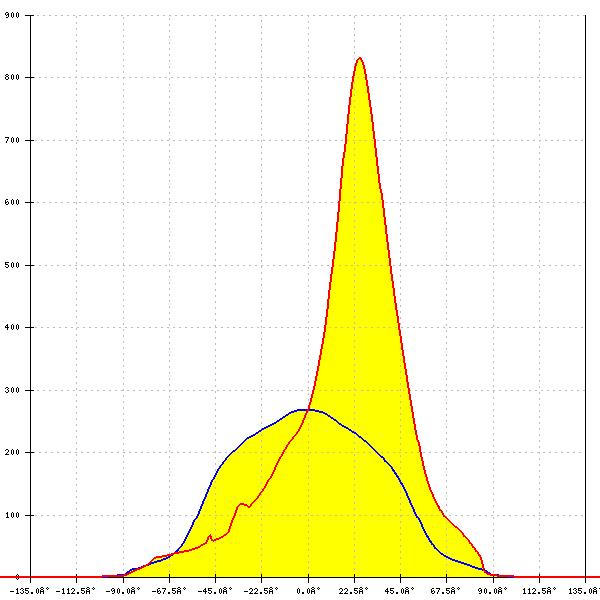

LED: CMA1516
Required components:
FWHM: asymmetric
Peak intensity: 0.800 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

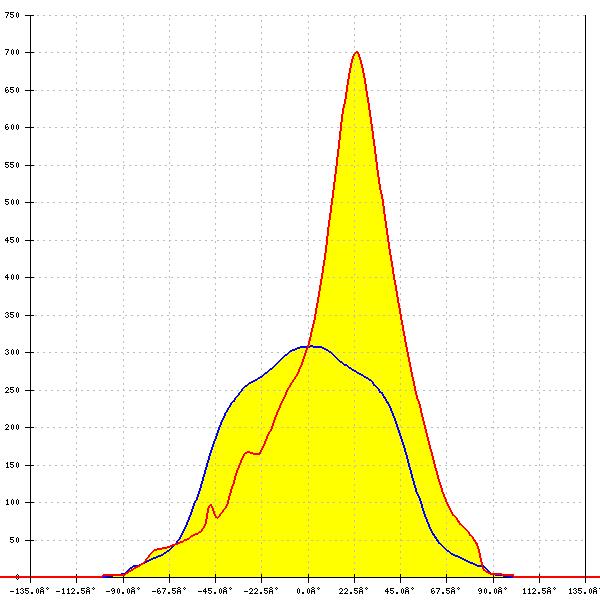

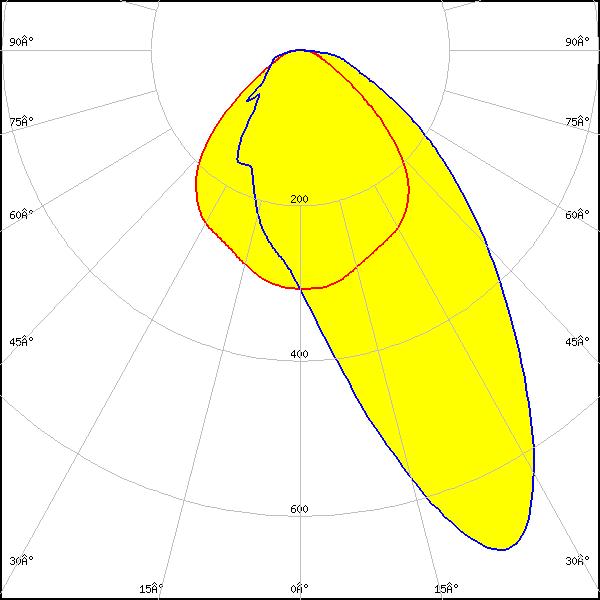

LED: CMA1825
Required components:
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

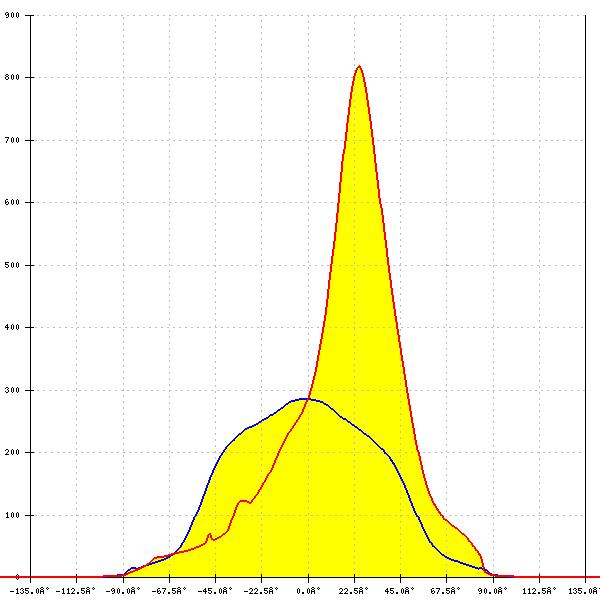

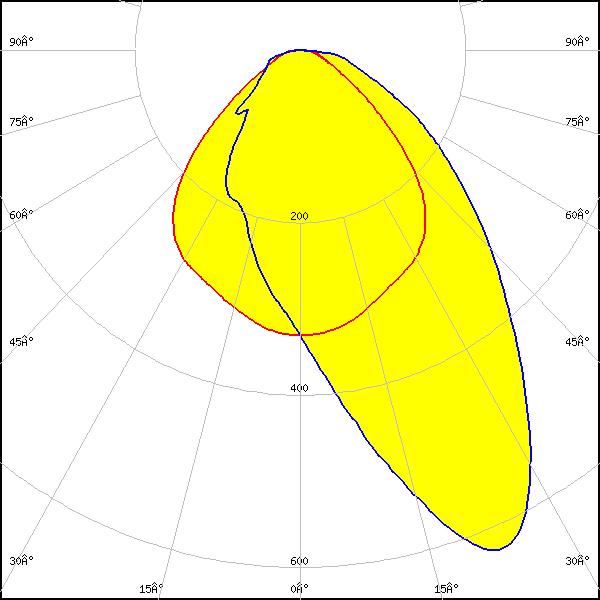

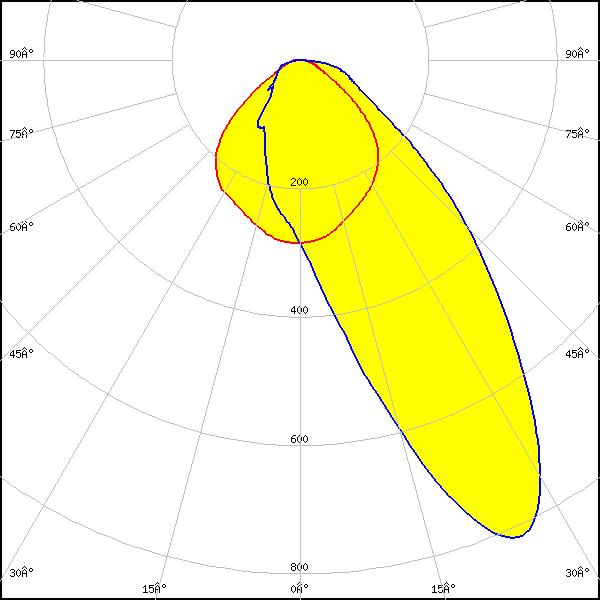

LED: CMT14xx
Required components:
FWHM: asymmetric
Peak intensity: 0.800 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: CMT19xx
Required components:
FWHM: asymmetric
Peak intensity: 0.629 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

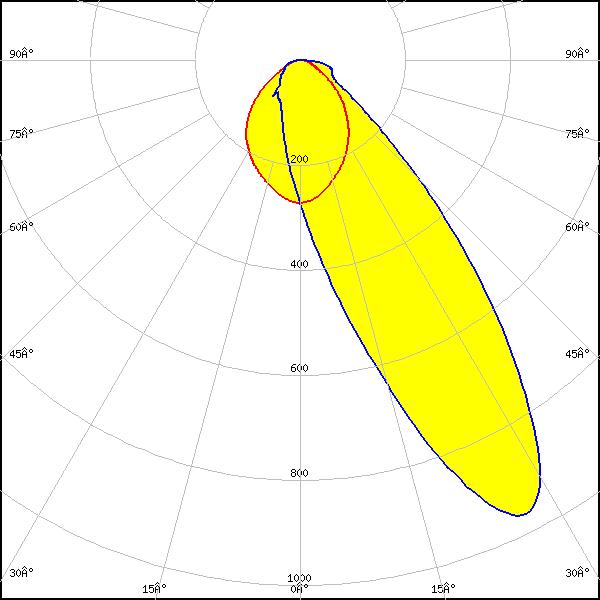

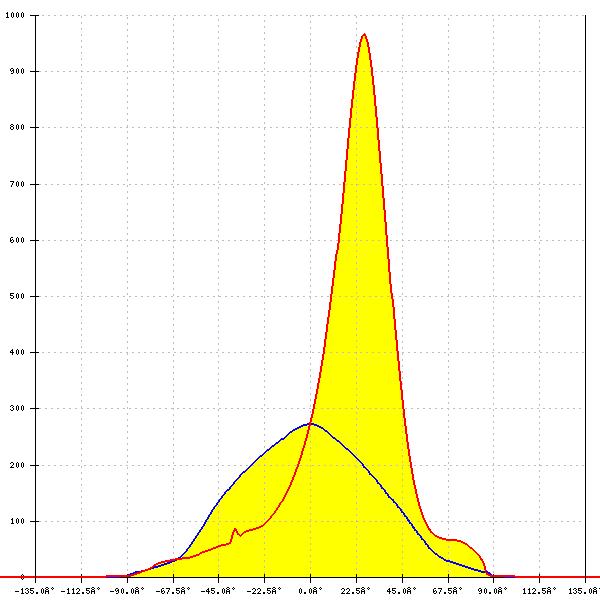

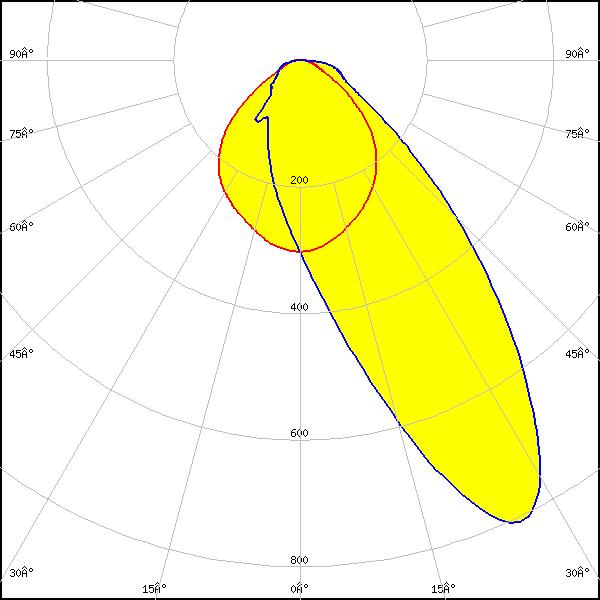

LED: CXA/B 13xx
Required components:
FWHM: asymmetric
Peak intensity: 0.970 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: CXA/B 15xx
Required components:
FWHM: asymmetric
Peak intensity: 0.810 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

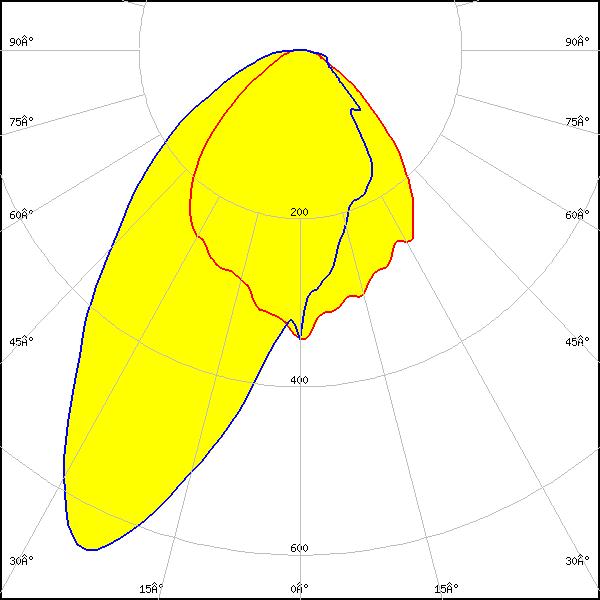

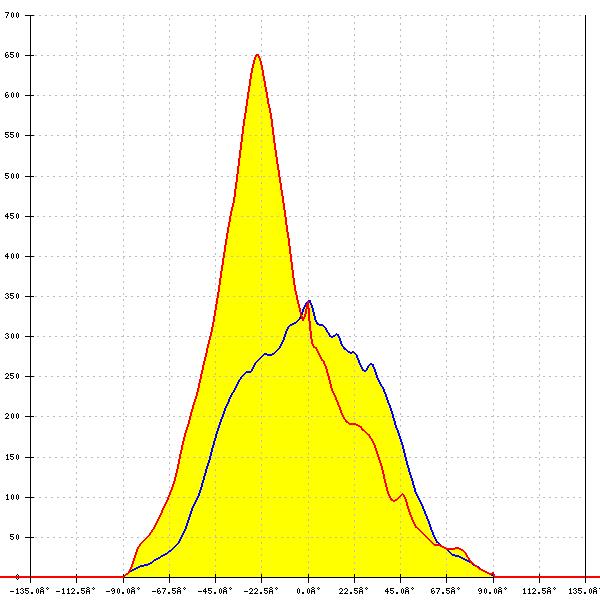

LED: CXA/B 1830
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 457 Typ L8
FWHM: asymmetric
Peak intensity: 0.650 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

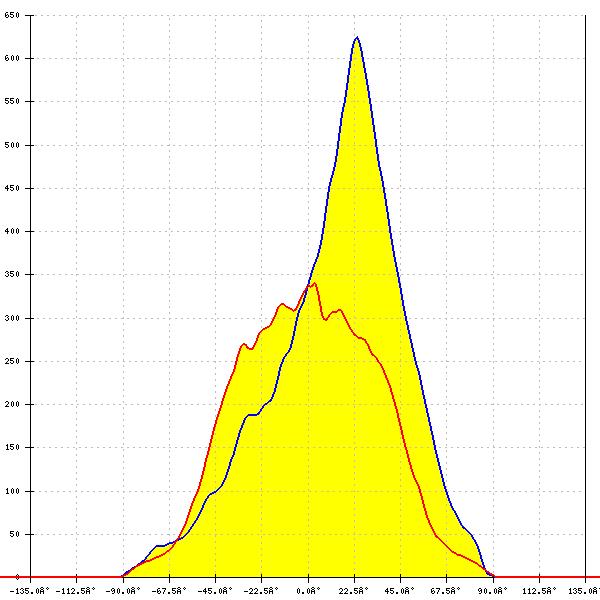

LED: LUXEON CX Plus CoB L08 (Gen2)
Required components:
Bender Wirth: 637a Hekla
FWHM: asymmetric
Peak intensity: 0.650 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

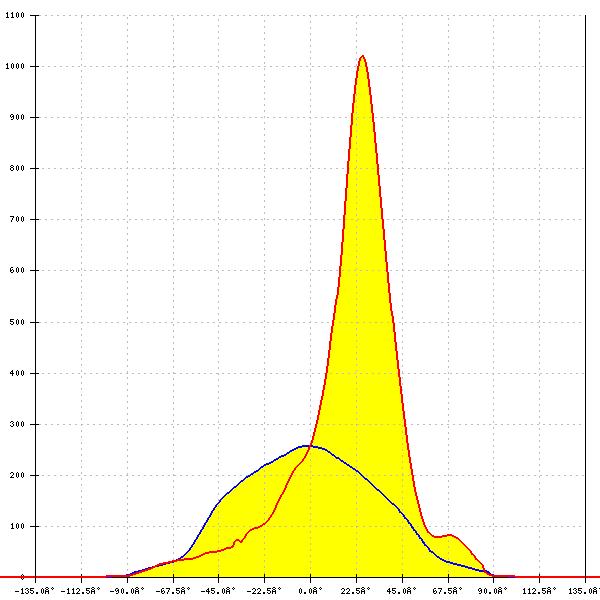

LED: LUXEON CoB 1202HD
Required components:
FWHM: asymmetric
Peak intensity: 1.020 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CoB 1202s
Required components:
FWHM: asymmetric
Peak intensity: 0.940 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

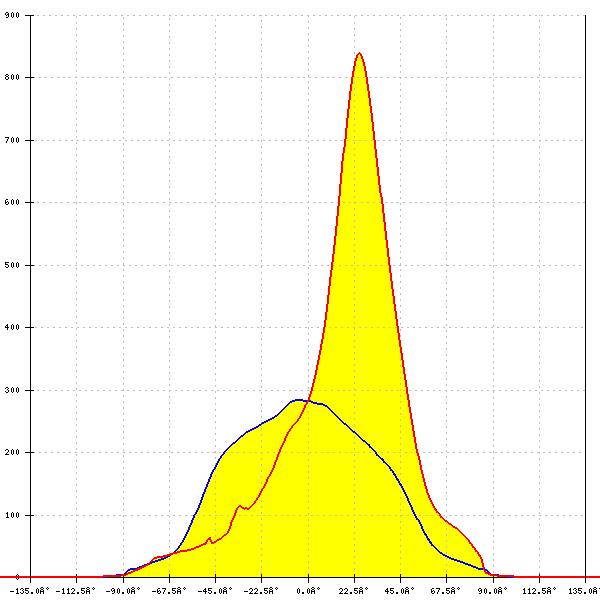

LED: LUXEON CoB 1204HD
Required components:
FWHM: asymmetric
Peak intensity: 0.840 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

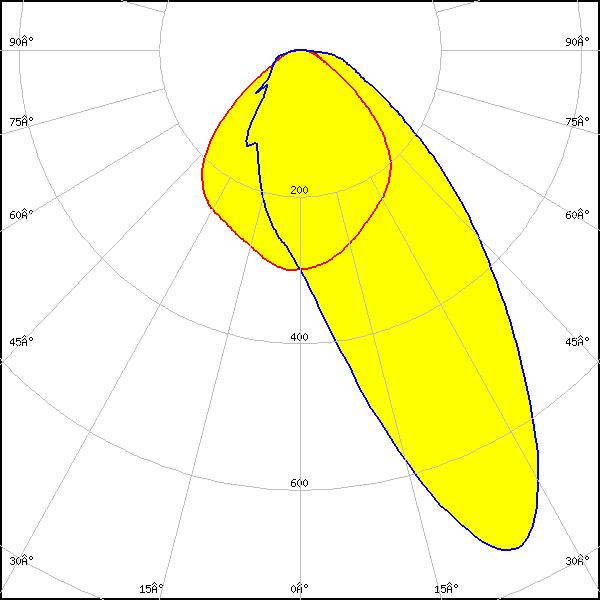

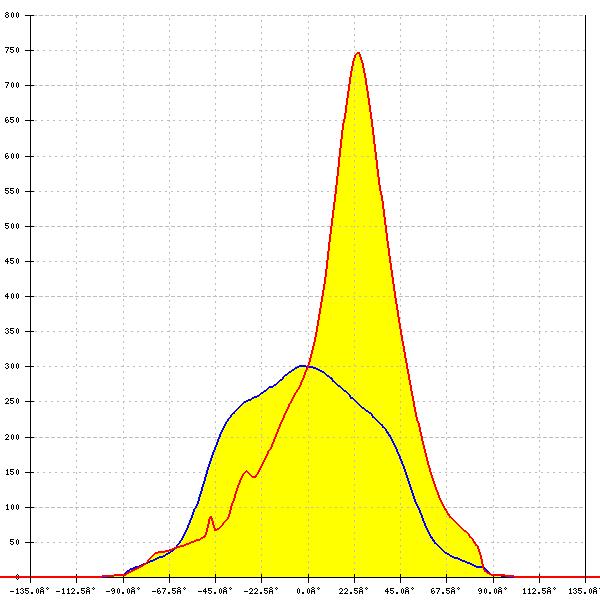

LED: LUXEON CoB 1205HD
Required components:
FWHM: asymmetric
Peak intensity: 0.750 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CoB L04/L05
Required components:
FWHM: asymmetric
Peak intensity: 0.718 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CoB L08
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 457 Typ L8
FWHM: asymmetric
Peak intensity: 0.626 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CoB M02/M03
Required components:
FWHM: asymmetric
Peak intensity: 0.908 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CoB S01
Required components:
FWHM: asymmetric
Peak intensity: 1.124 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

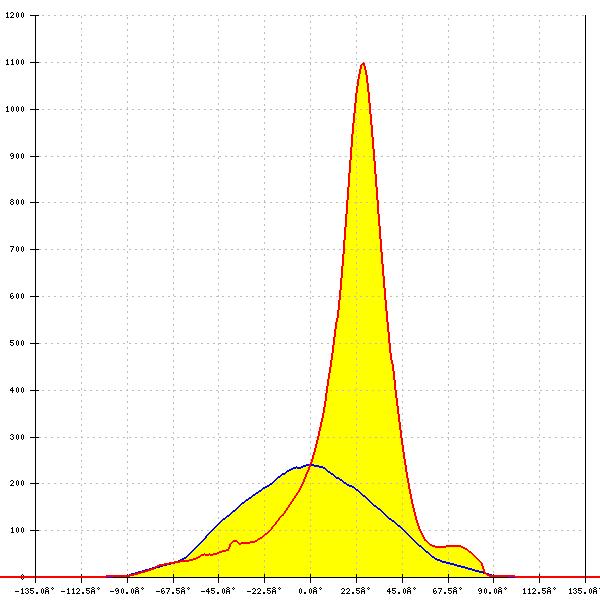

LED: LUXEON CX Plus CoB - HD S01H4
Required components:
Bender Wirth: 634c Hekla
FWHM: asymmetric
Peak intensity: 1.104 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

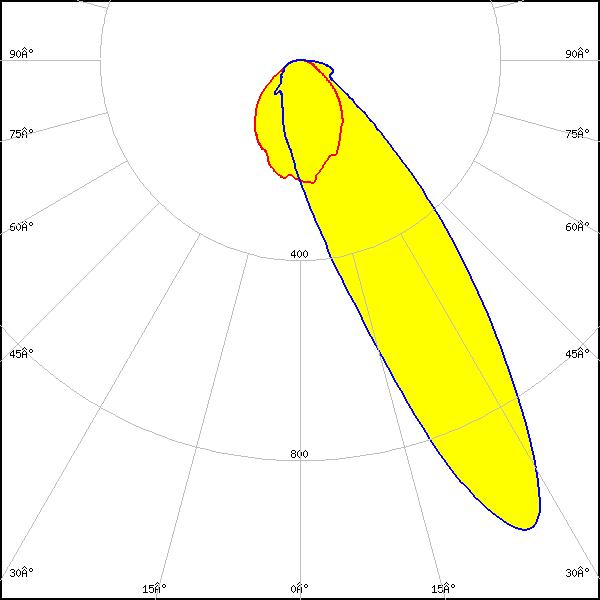

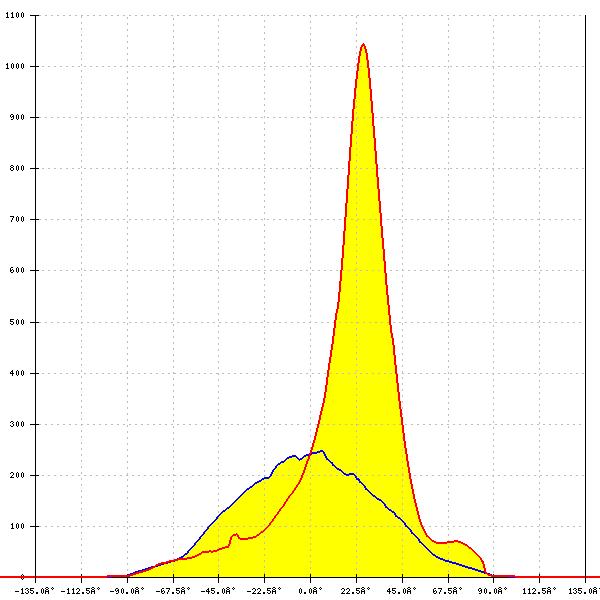

LED: LUXEON CX Plus CoB - HD S01H6 / HD S02H6
Required components:
Bender Wirth: 634c Hekla
FWHM: asymmetric
Peak intensity: 1.054 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB - HD S04H9
Required components:
Bender Wirth: 634c Hekla
FWHM: asymmetric
Peak intensity: 0.872 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

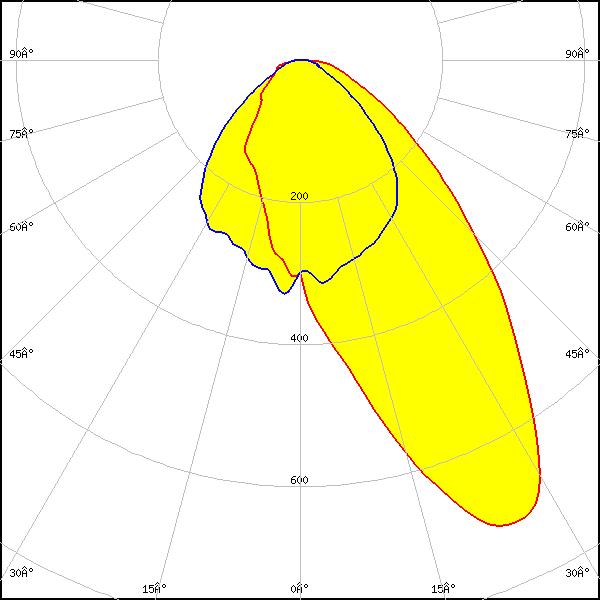

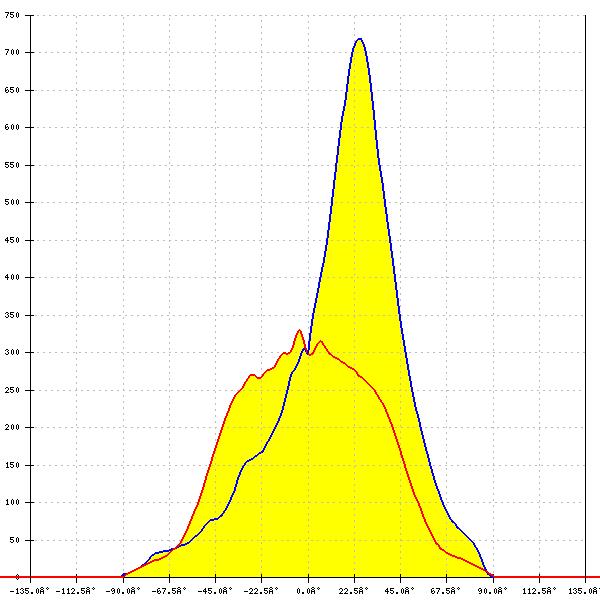

LED: LUXEON CX Plus CoB L04 / L05 (Gen2)
Required components:
Bender Wirth: 637a Hekla
FWHM: asymmetric
Peak intensity: 0.753 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB M02 / M03 (Gen2)
Required components:
Bender Wirth: 641a Hekla
FWHM: asymmetric
Peak intensity: 0.898 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CX Plus CoB S01 (Gen2)
Required components:
Bender Wirth: 634c Hekla
FWHM: asymmetric
Peak intensity: 1.101 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

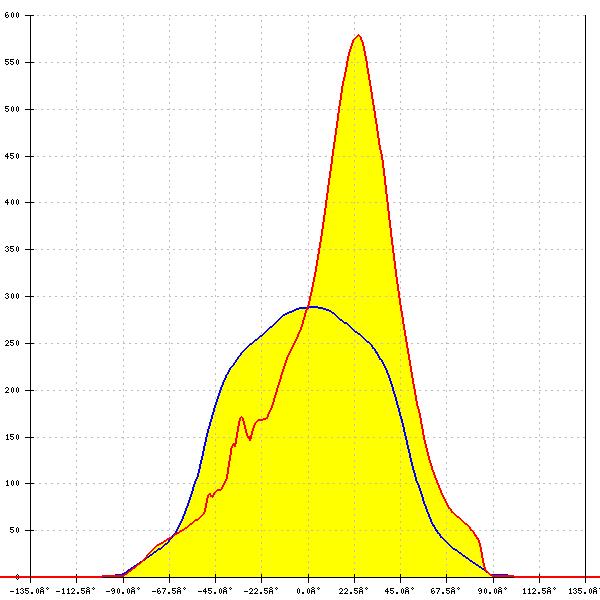

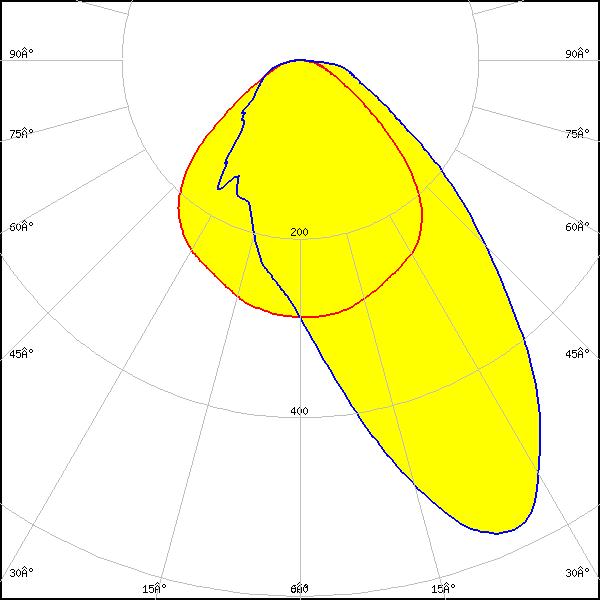

LED: CDM-14 (Dim-To-Warm)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 491 Typ L8
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

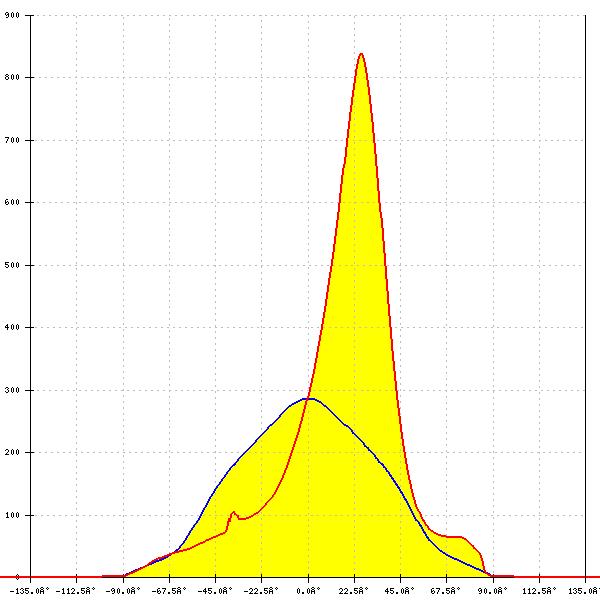

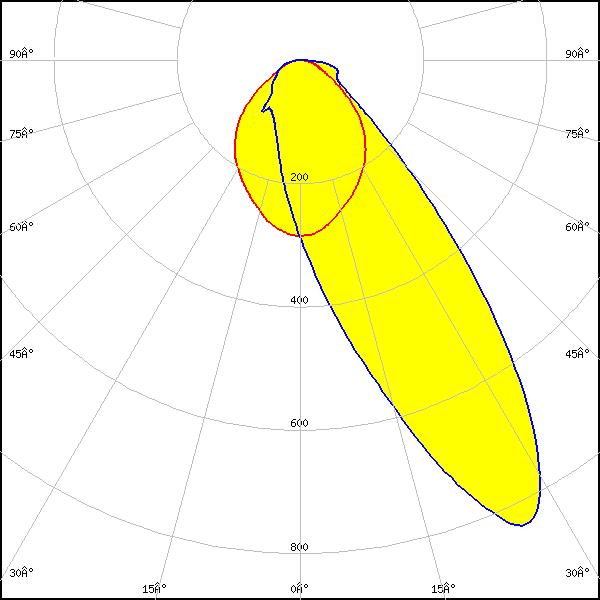

LED: CDM-6 (Dim-To-Warm)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: asymmetric
Peak intensity: 0.840 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

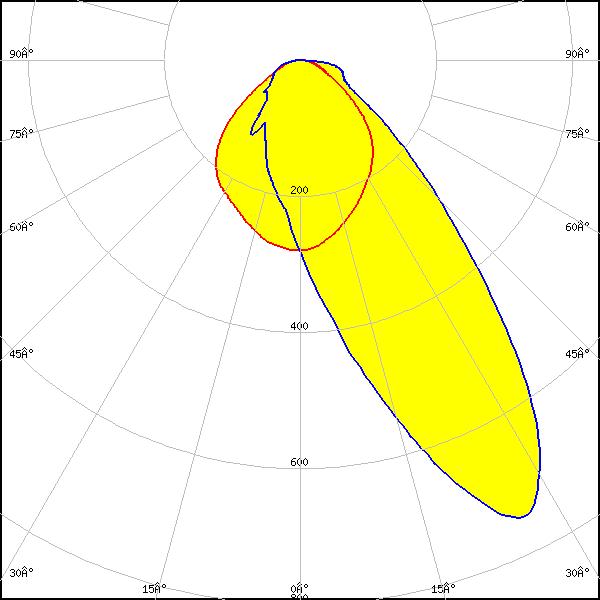

LED: CDM-9 (Dim-To-Warm)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 490 Typ L8
FWHM: asymmetric
Peak intensity: 0.750 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

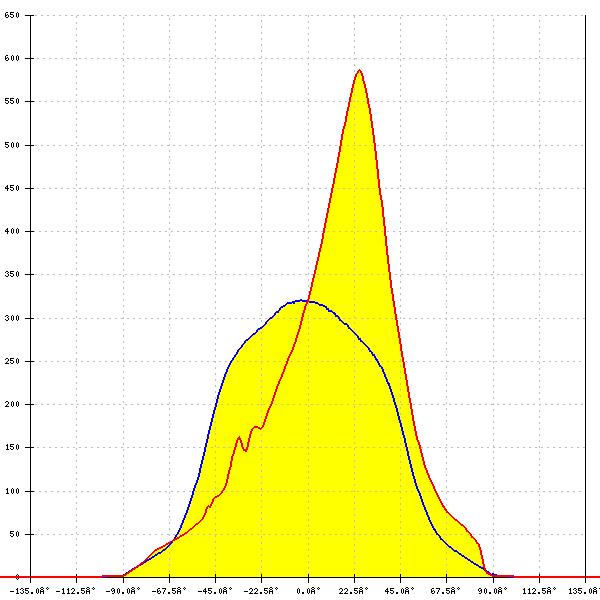

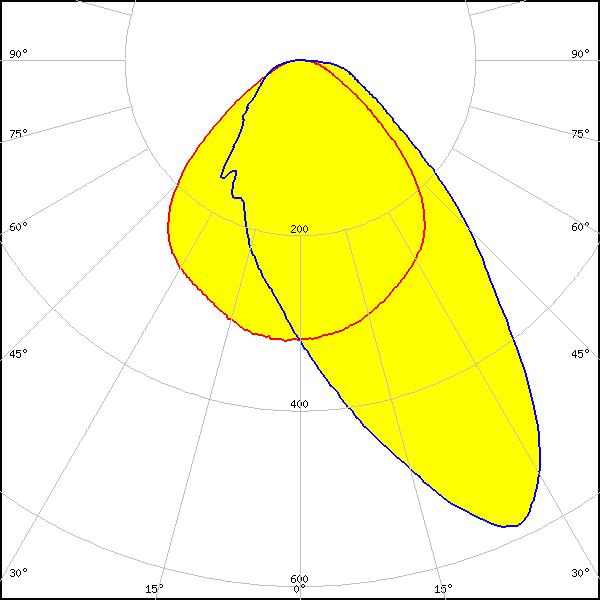

LED: CTM-14 (Tunable White)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 442 Typ L8
FWHM: asymmetric
Peak intensity: 0.590 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

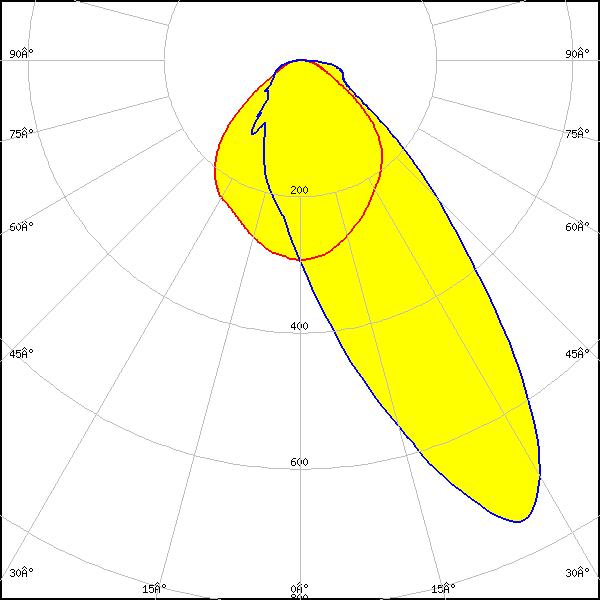

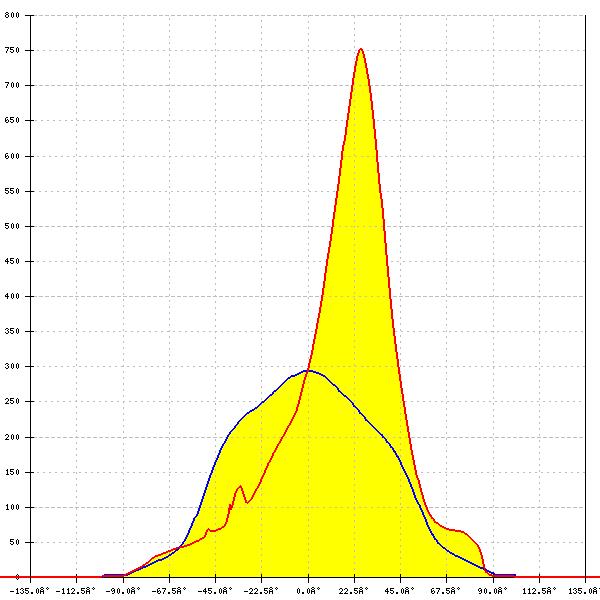

LED: CTM-9 (Tunable White)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 495 Typ L8
FWHM: asymmetric
Peak intensity: 0.750 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

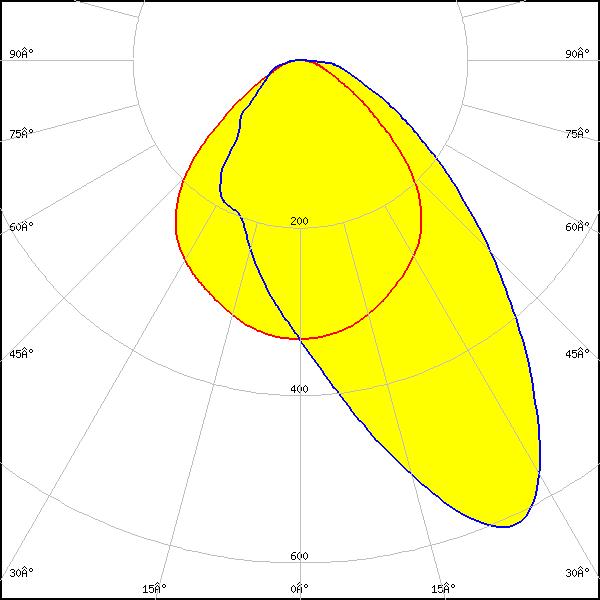

LED: CxM-14 (19x19)
Required components:
FWHM: asymmetric
Peak intensity: 0.610 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

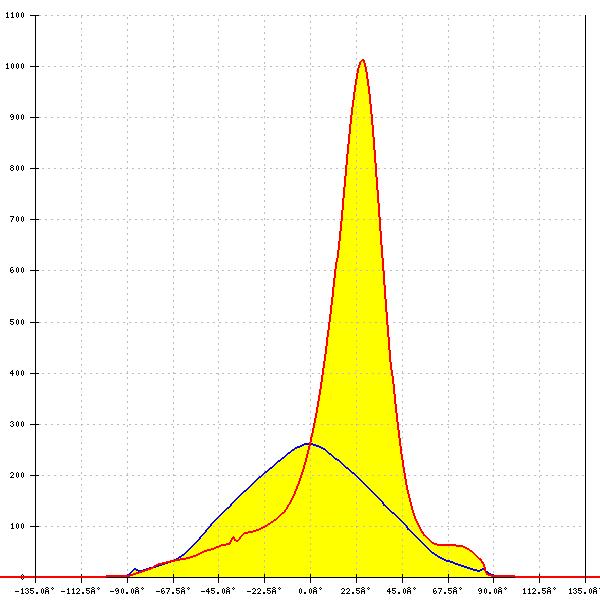

LED: CXM-4
Required components:
FWHM: asymmetric
Peak intensity: 1.021 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

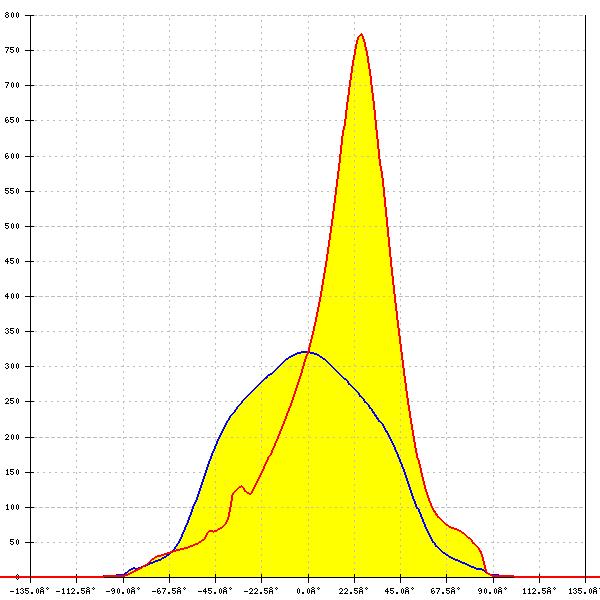

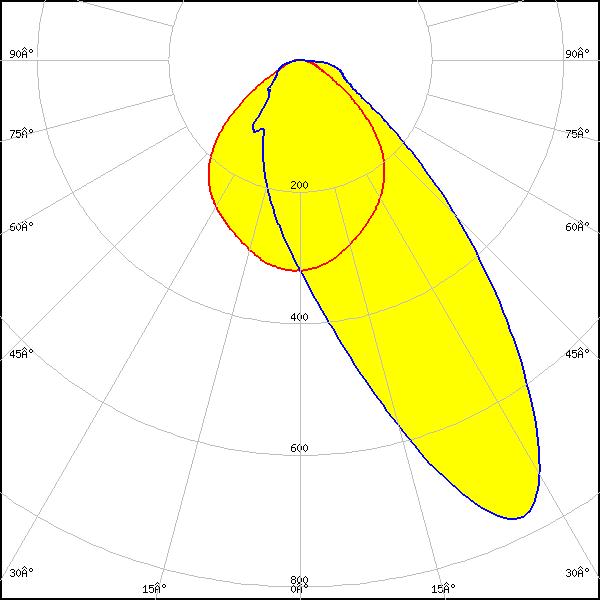

LED: CxM-9 (13.5x13.5)
Required components:
FWHM: asymmetric
Peak intensity: 0.770 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: COB T-Type
Required components:
FWHM: asymmetric
Peak intensity: 1.070 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

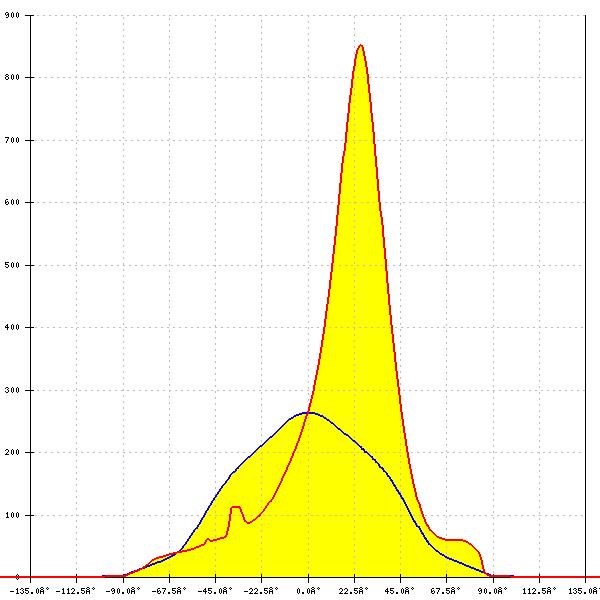

LED: NJCWL024Z-V1MT: COB L-Type Tunable White
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 497 Typ L8
FWHM: asymmetric
Peak intensity: 0.855 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 498 Typ L8
FWHM: asymmetric
Peak intensity: 0.743 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

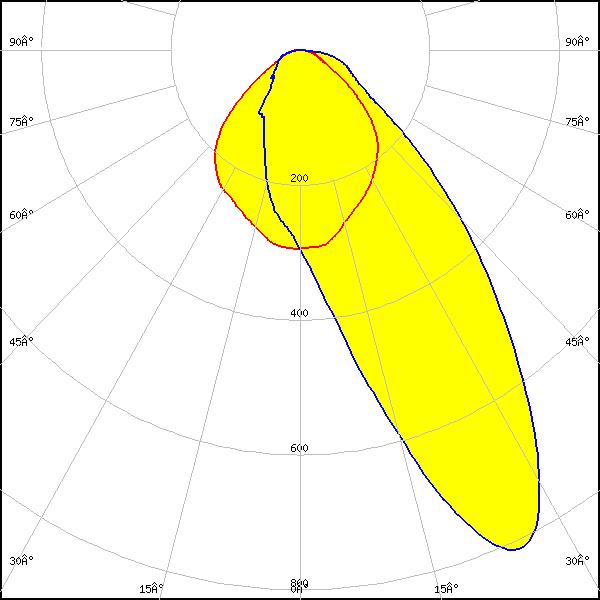

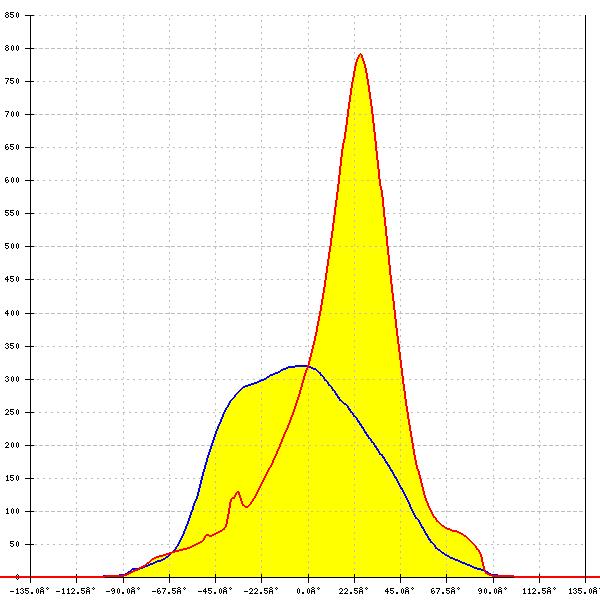

LED: Fortimo SLM L09 CoB
Required components:
FWHM: asymmetric
Peak intensity: 0.800 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

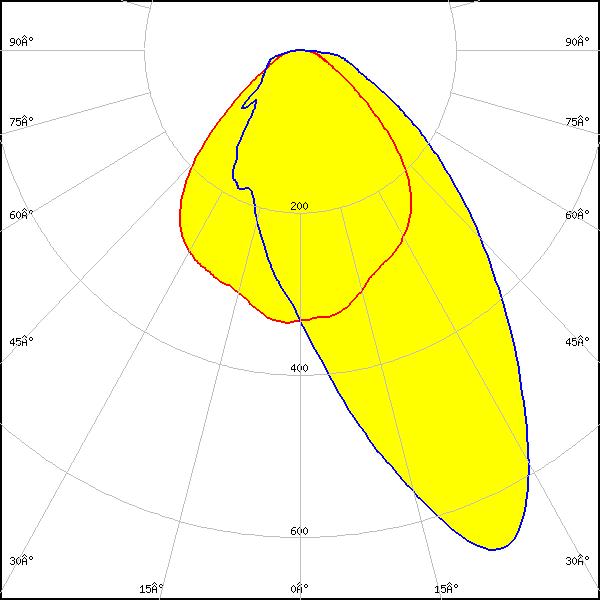

LED: Fortimo SLM L13 CoB
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 432 Typ L8
FWHM: asymmetric
Peak intensity: 0.670 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: LC003D / LC006D / LC009D / LC013D
Required components:
FWHM: asymmetric
Peak intensity: 0.760 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

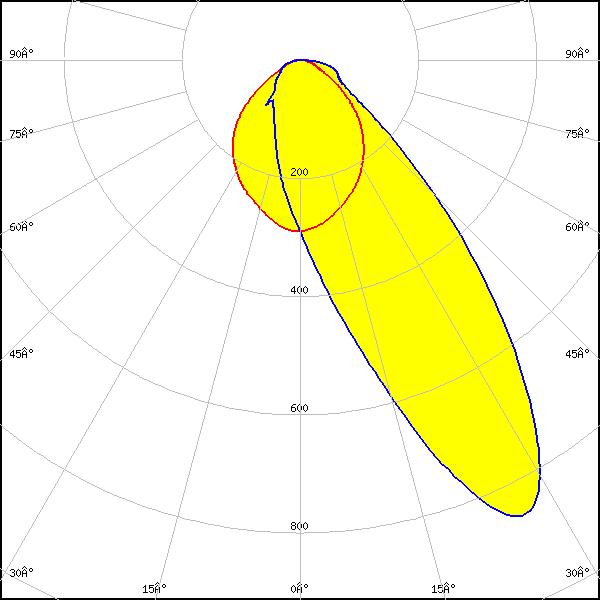

LED: LC010C
Required components:
FWHM: asymmetric
Peak intensity: 0.860 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

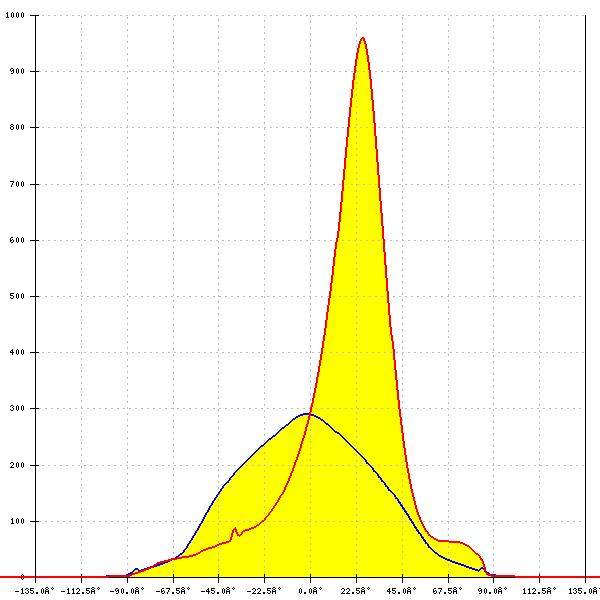

LED: LC010C G2
Required components:
FWHM: asymmetric
Peak intensity: 1.000 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

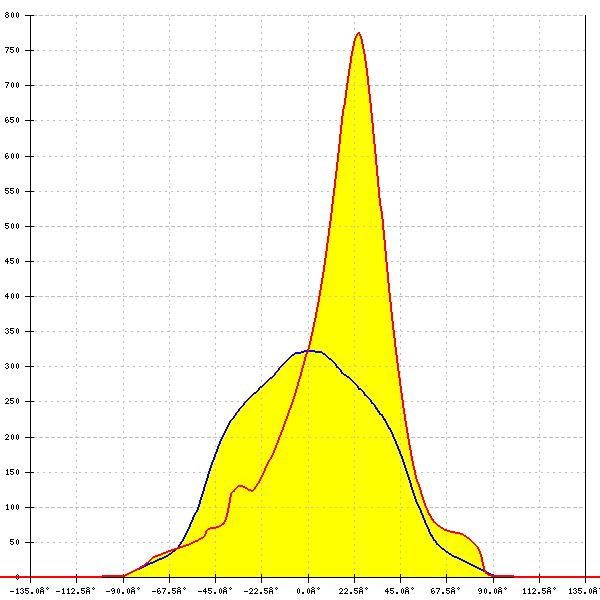

LED: LC010T (Tunable White)

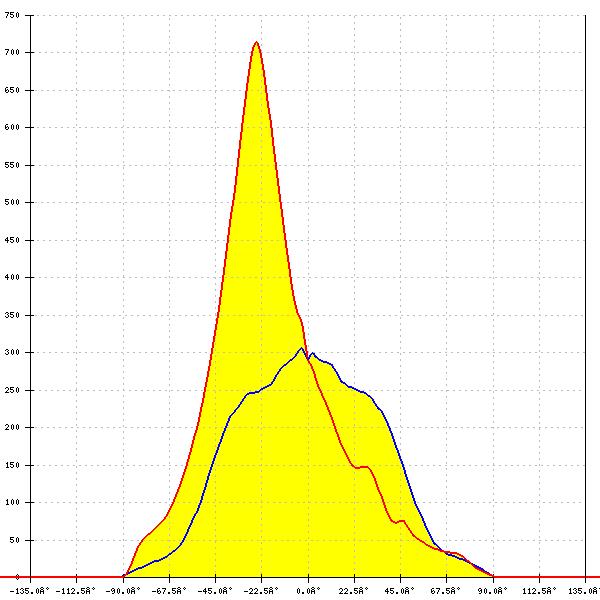

Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: asymmetric
Peak intensity: 0.774 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: Tunable White
LED: LC016D / LC019D / LC026D / LC033D
Required components:
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

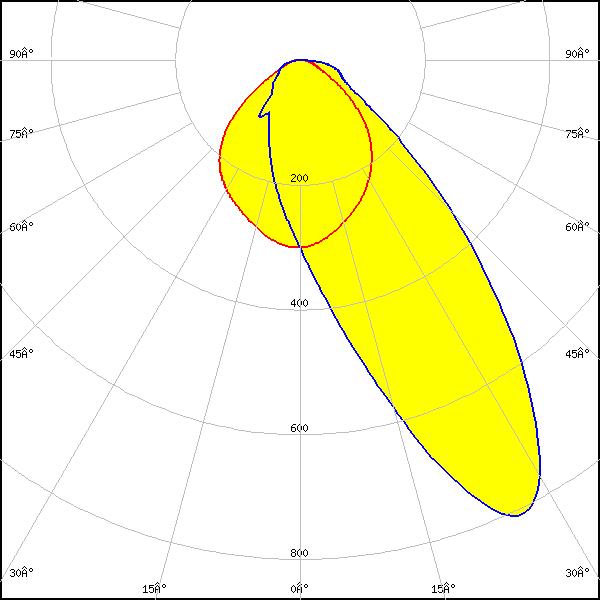

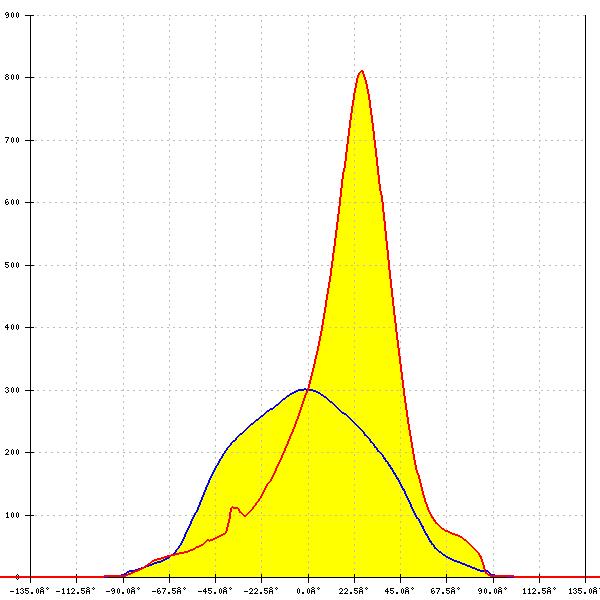

LED: LC020C
Required components:
FWHM: asymmetric
Peak intensity: 0.810 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

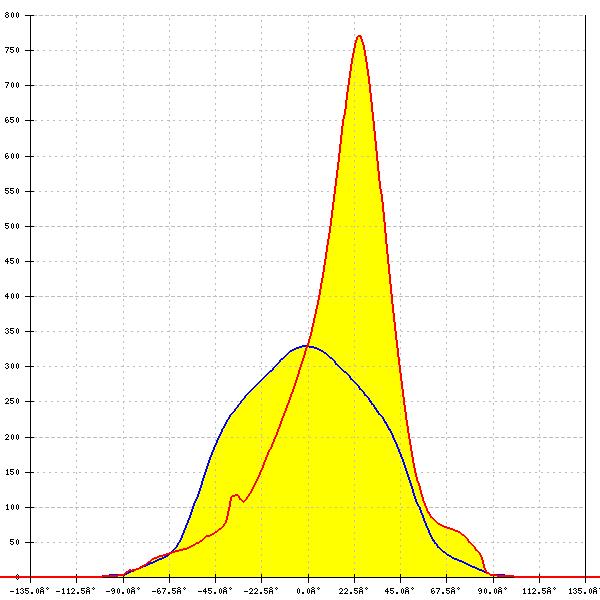

LED: LC020C G2
Required components:
FWHM: asymmetric
Peak intensity: 0.770 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

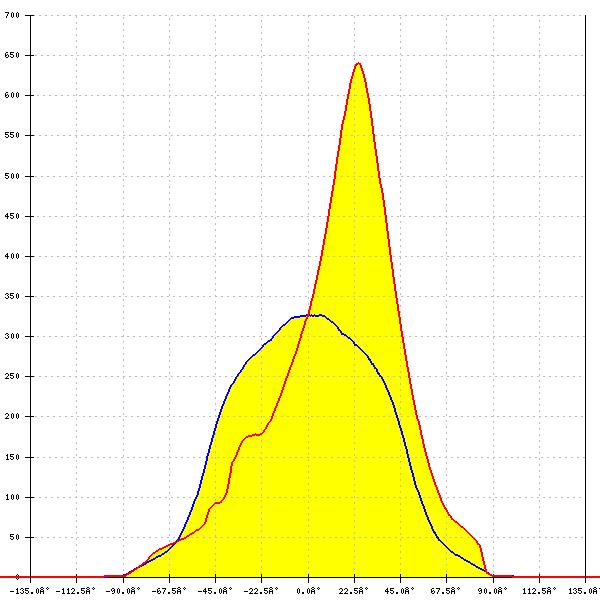

LED: LC020T (Tunable white)
Required components:
C16142_HEKLA-SOCKET-K
Bender Wirth: 501 Typ L8
FWHM: asymmetric
Peak intensity: 0.642 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: Tunable White

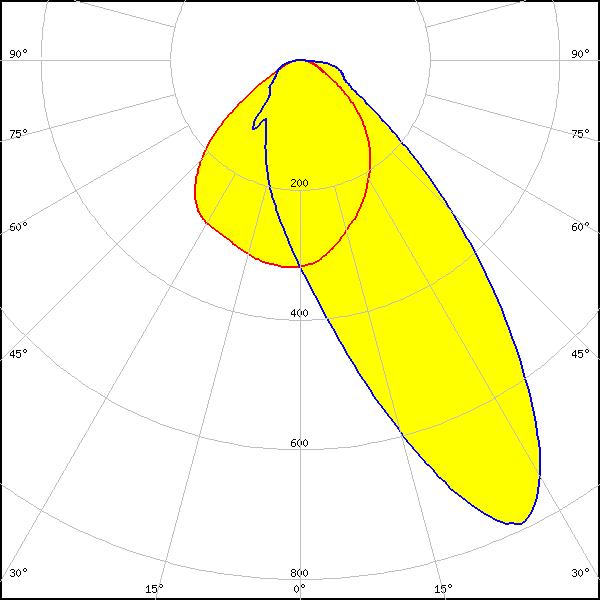

LED: SLE G7 LES09
Required components:
FWHM: asymmetric
Peak intensity: 0.800 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

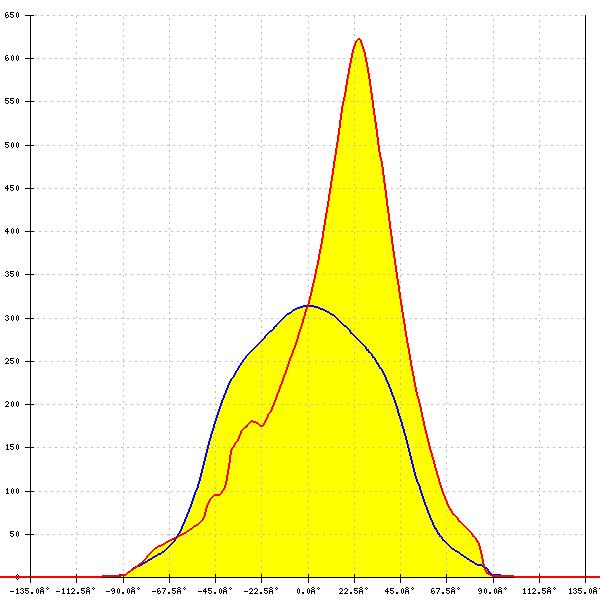

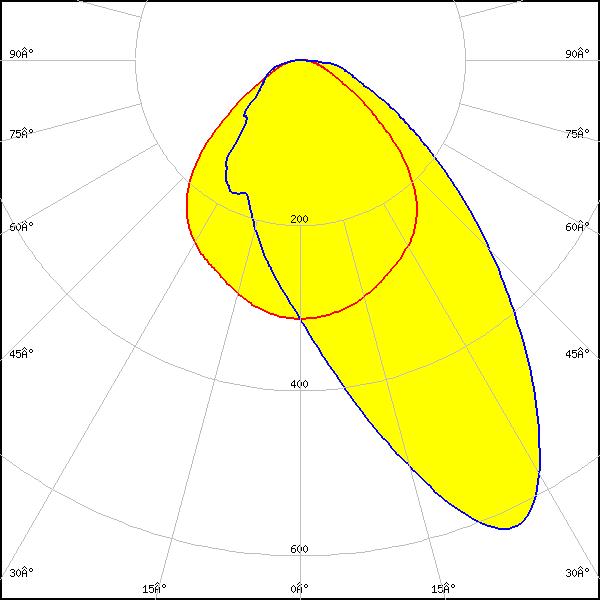

LED: SLE G7 LES13
Required components:
FWHM: asymmetric
Peak intensity: 0.620 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White
LED: SLE G7 LES15
Required components:
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

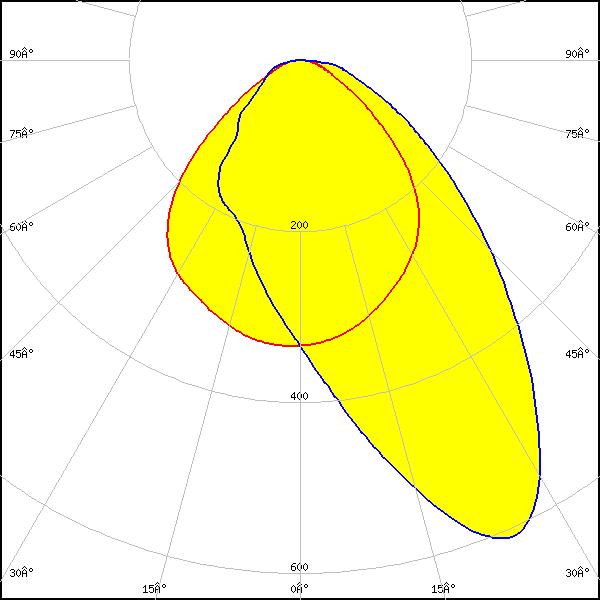

LED: XOB 14.5 mm
Required components:
FWHM: asymmetric
Peak intensity: 0.612 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: XTM - 19mm LES
Required components:
FWHM: asymmetric
Peak intensity: 0.530 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

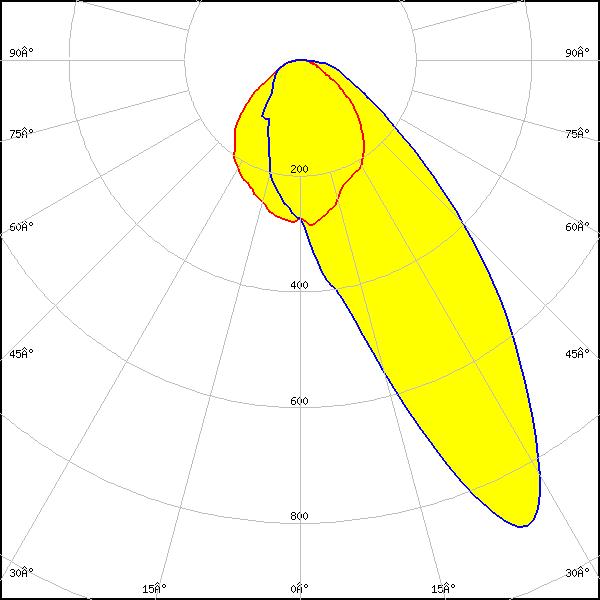

LED: XTM - 9mm LES
Required components:
FWHM: asymmetric
Peak intensity: 0.900 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
