FN16258_STELLA-RS

Print

~25° spot beam. Compatible with up to 30 mm LES size COBs.

Specification
  • Dimensions:
    90 mm
  • Height:
    39.2 mm
  • Fastening:
    screw
  • Colour:
    black
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

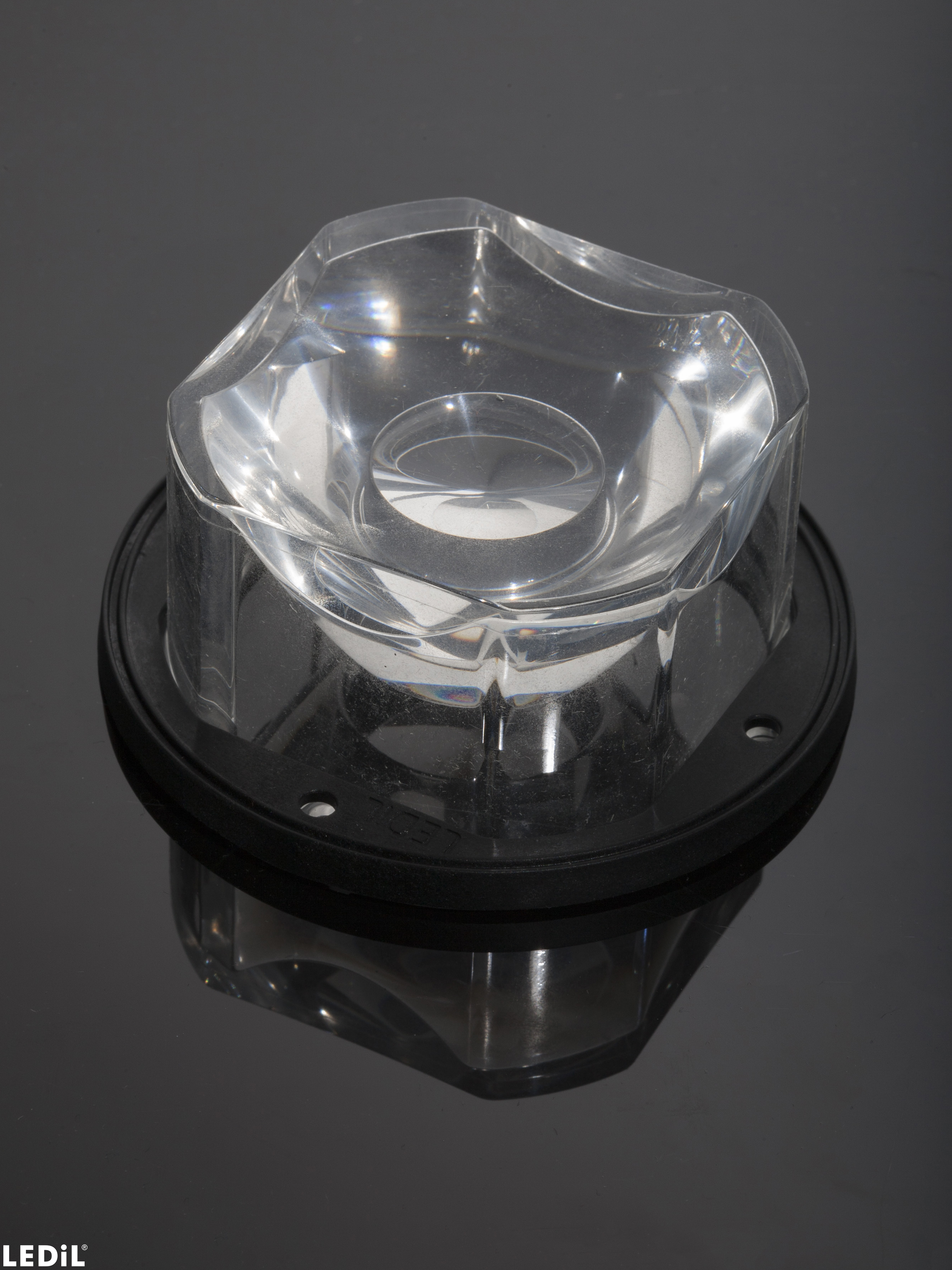

  • STELLA-RS, Single lens, Silicone
  • STELLA-FRAME, Holder, PA66

WARNING: Cancer – www.P65Warnings.ca.gov

Packing information
  • Quantity in box:
    90 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    9.8 kg
  • MPQ:
    15 pcs
  • MOQ:
    90 pcs
  • MOQ size:
    480 x 280 x 300 mm
  • MOQ weight:
    9.8 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






Typical Applications

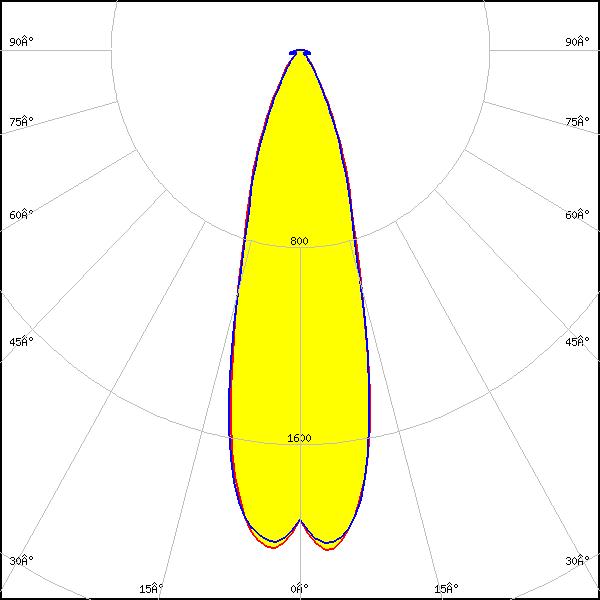

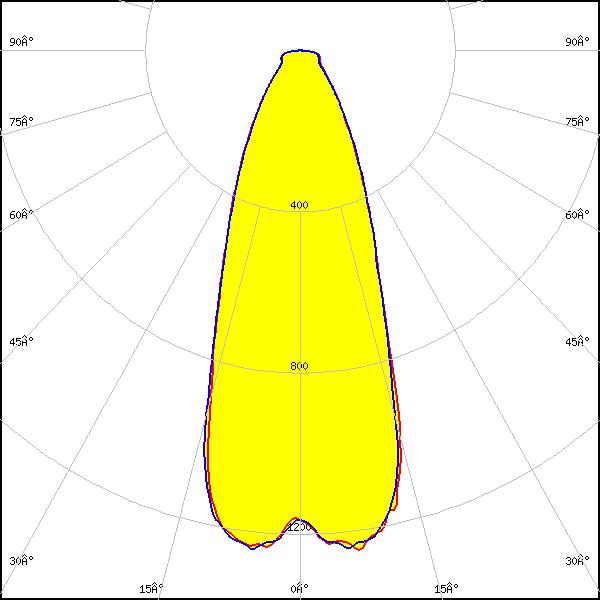

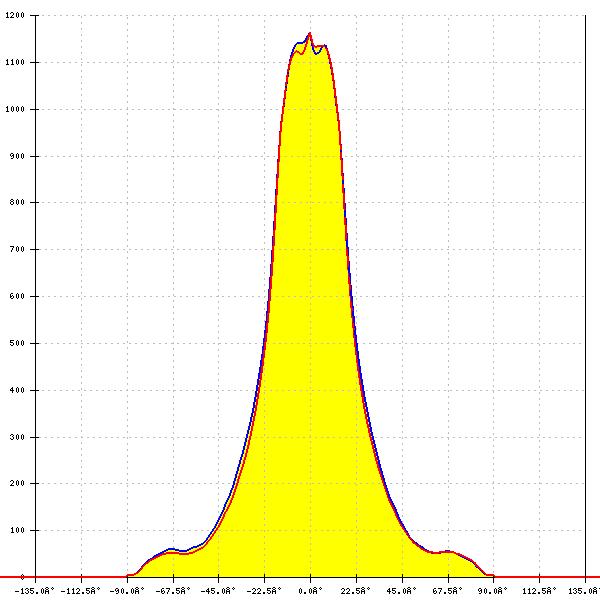

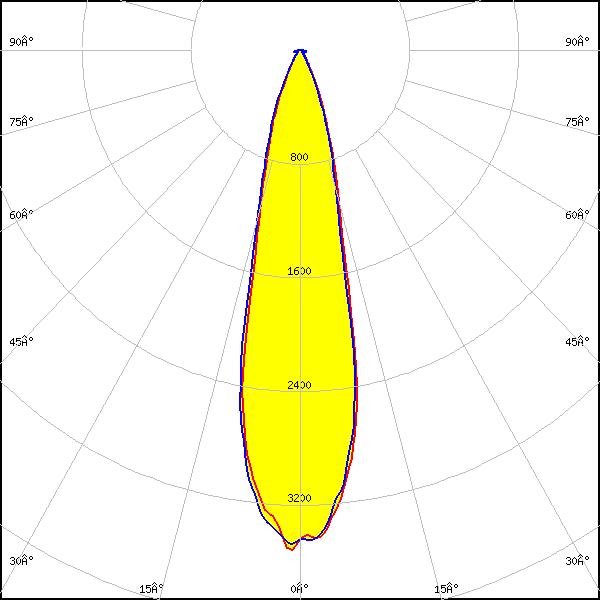

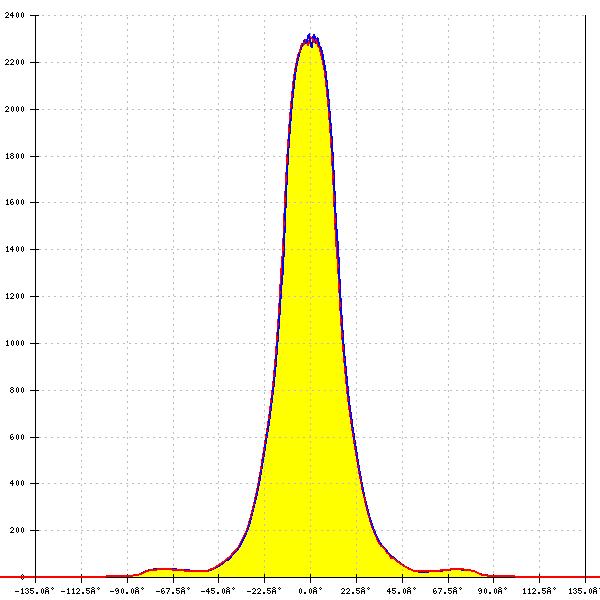

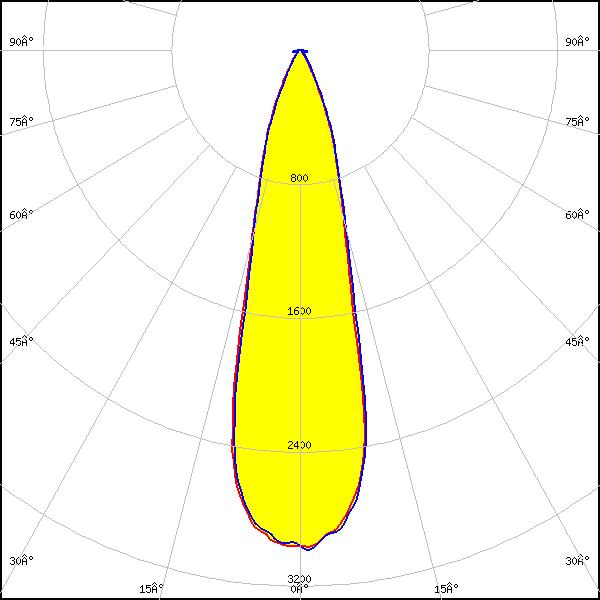

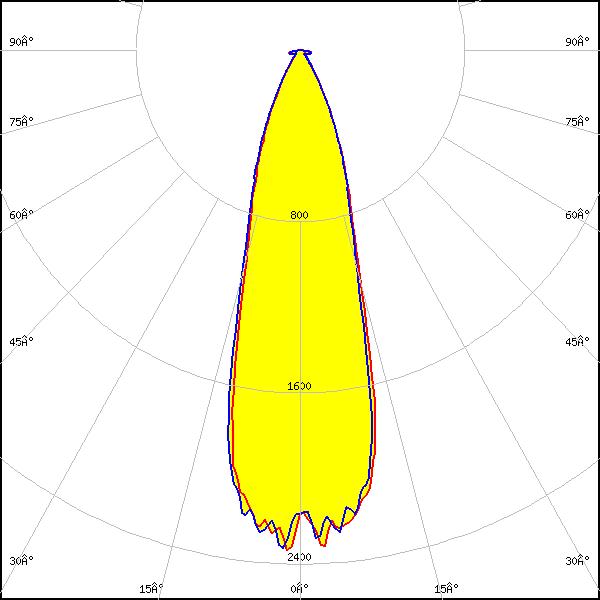

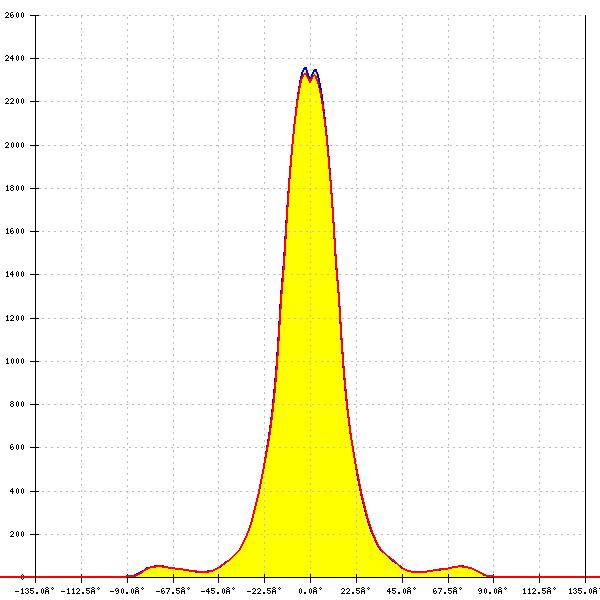

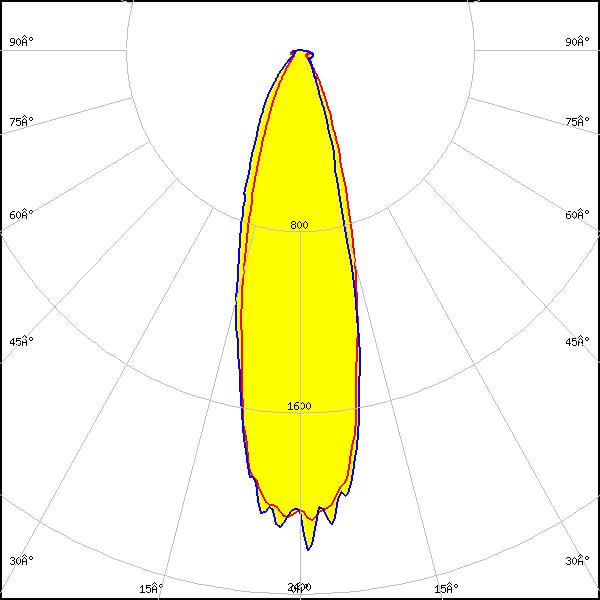

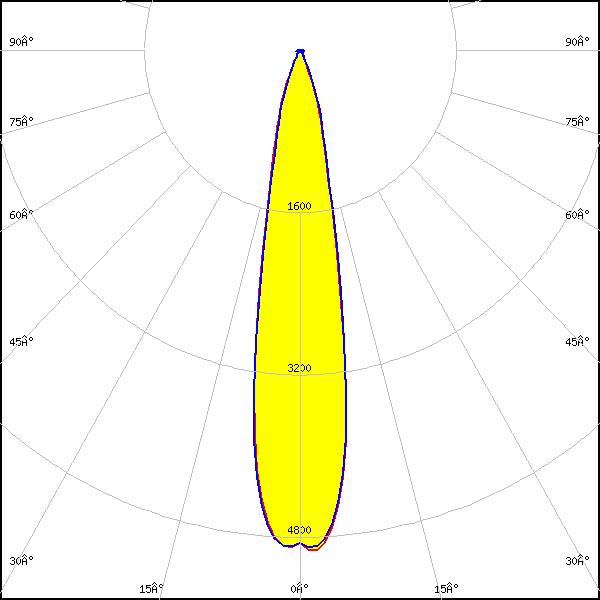

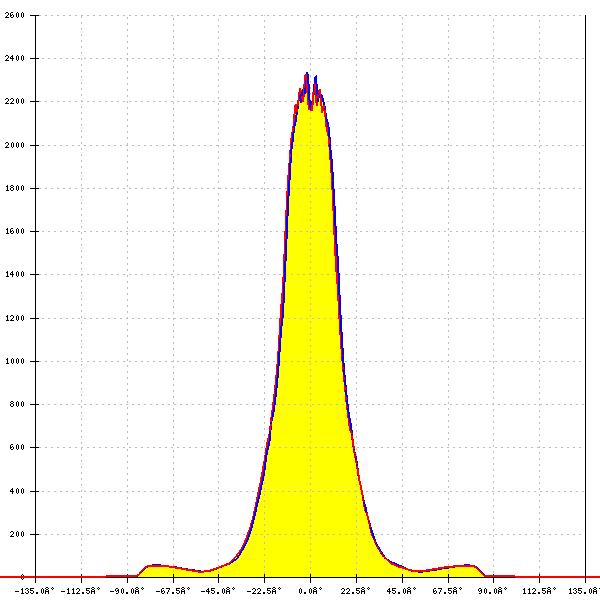

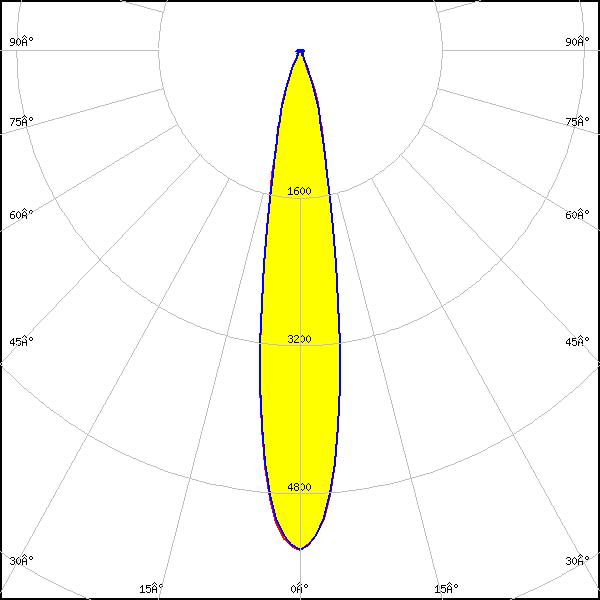

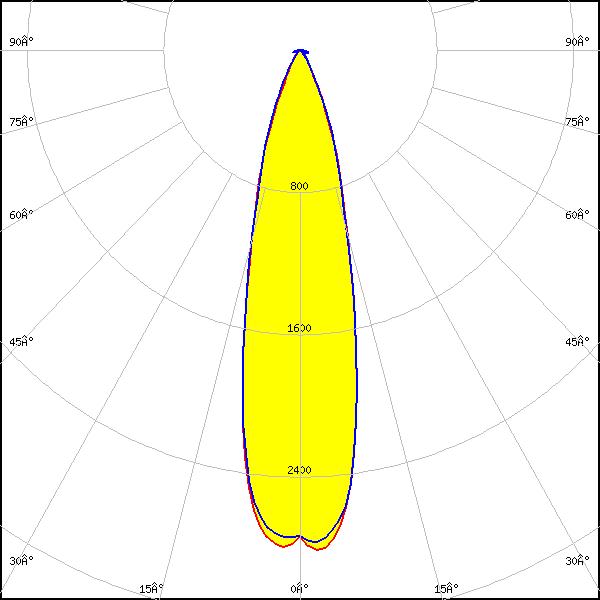

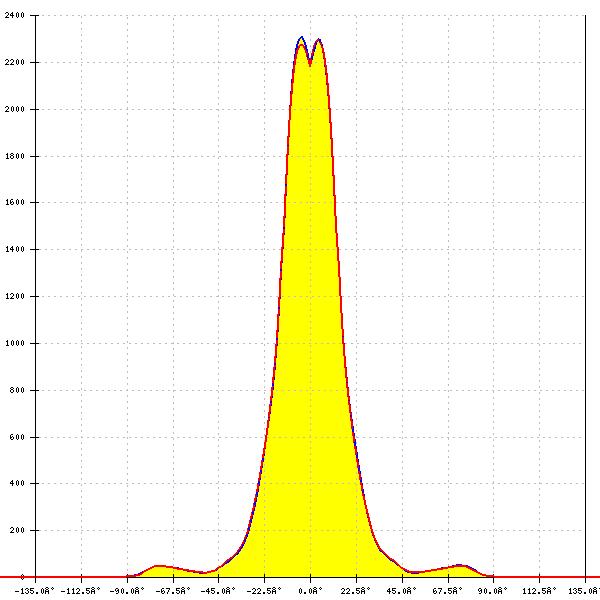

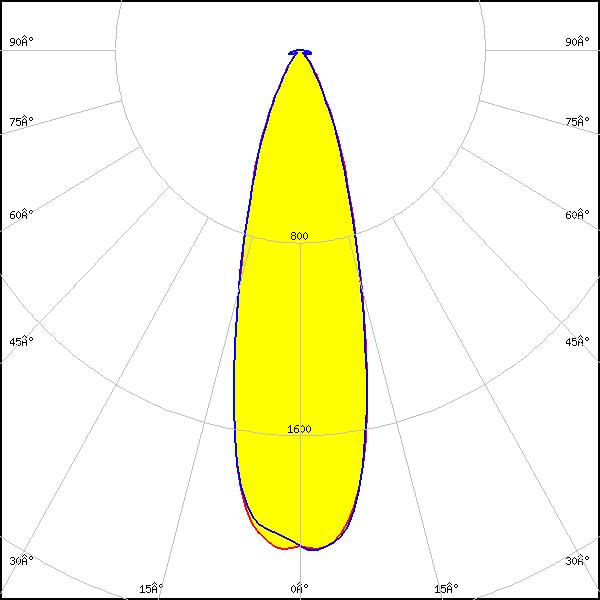

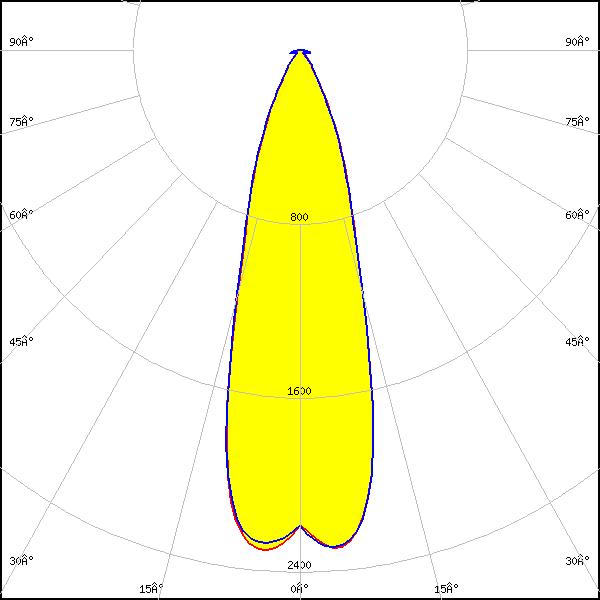

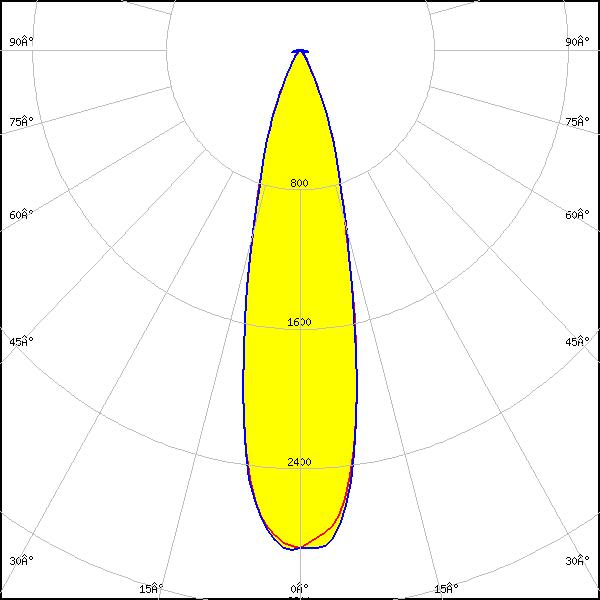

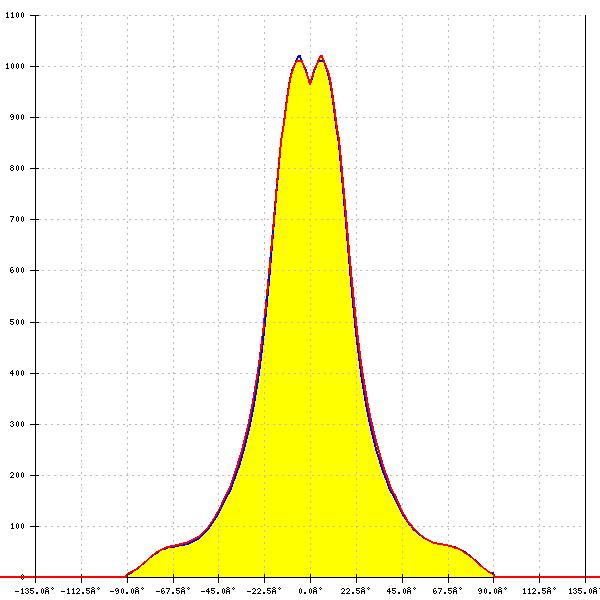

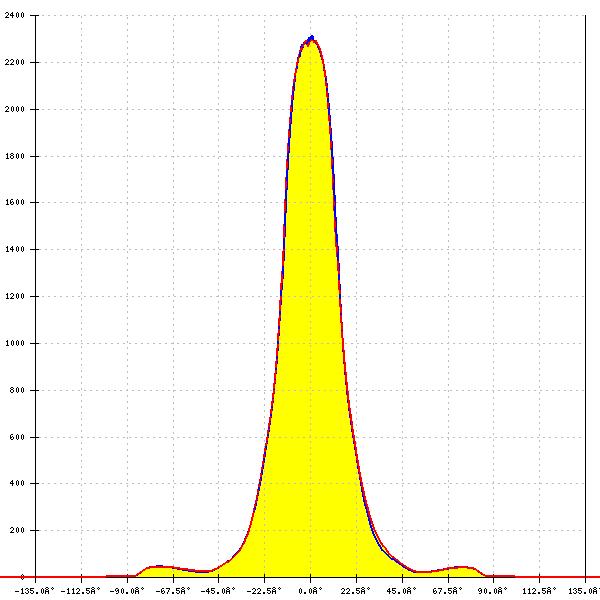

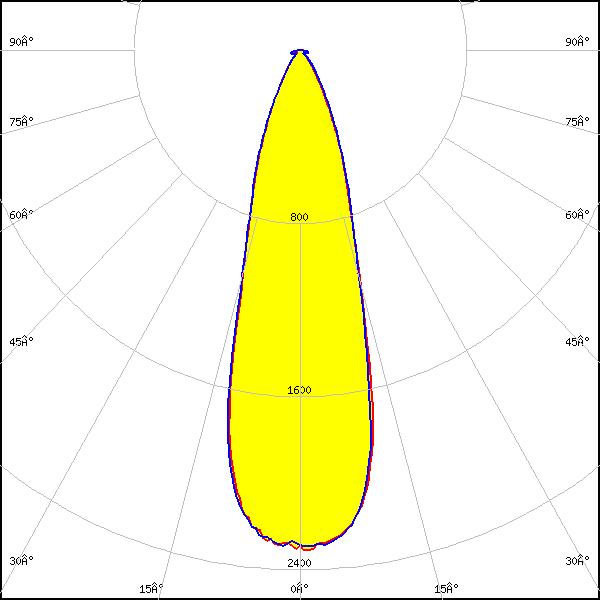

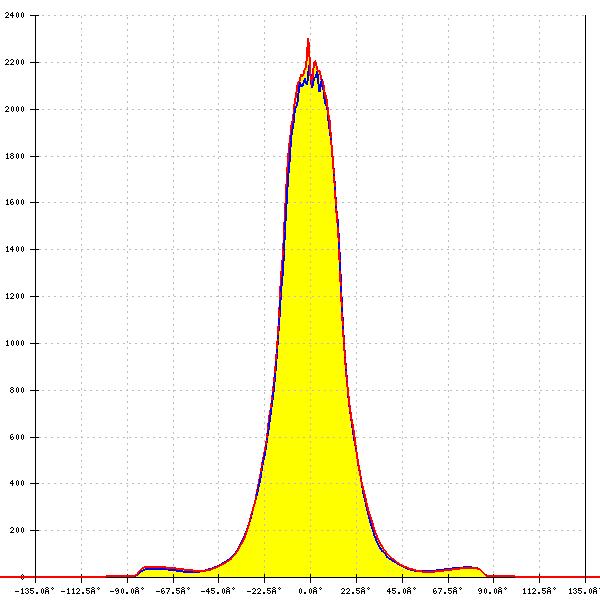

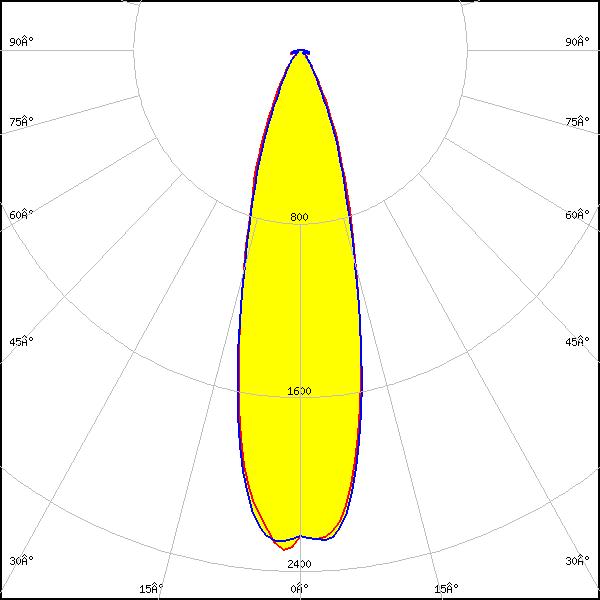

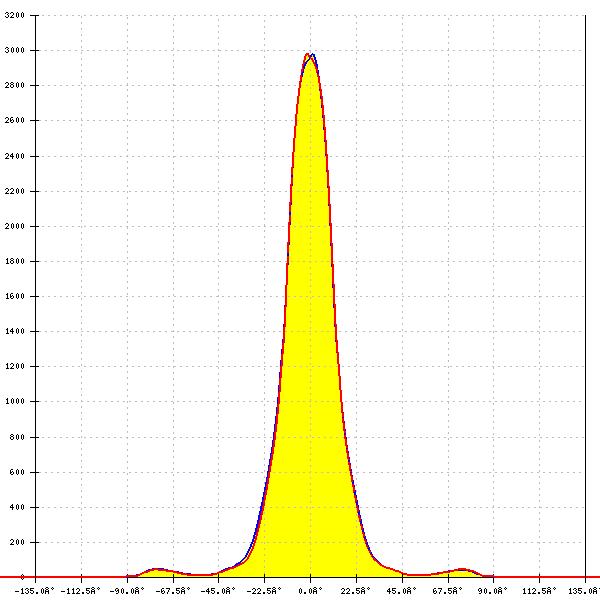

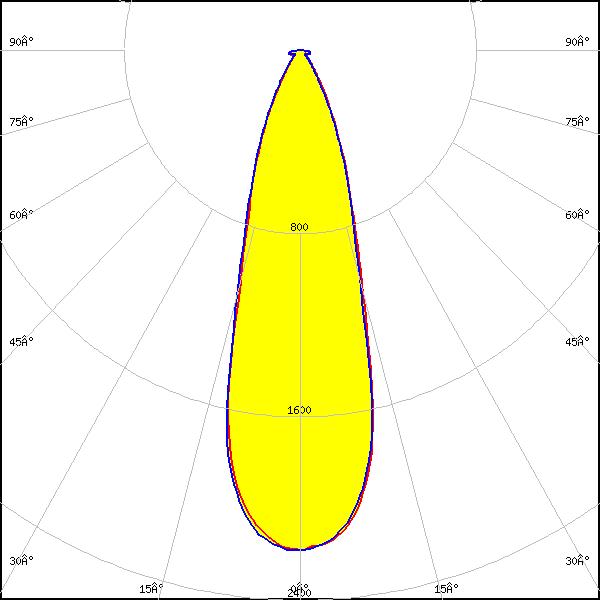

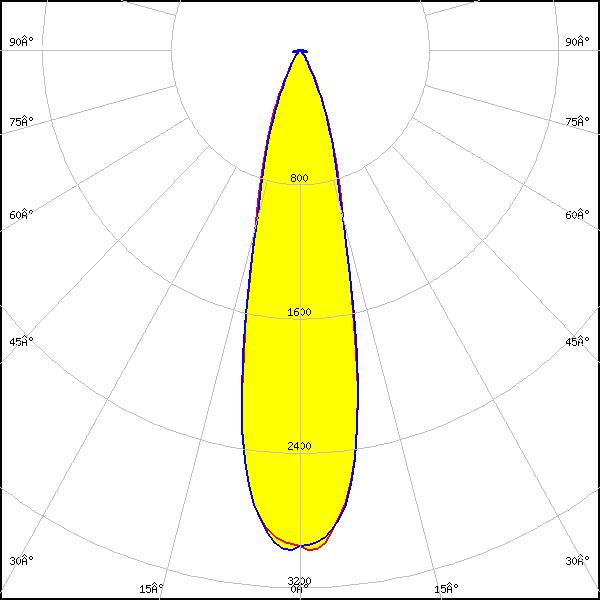

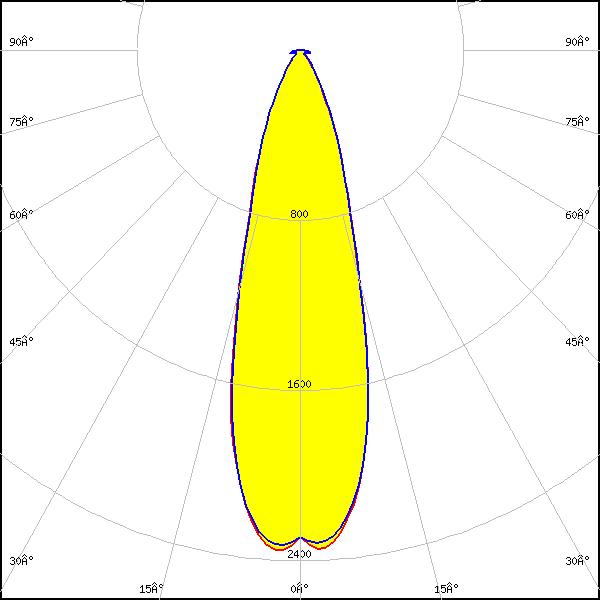

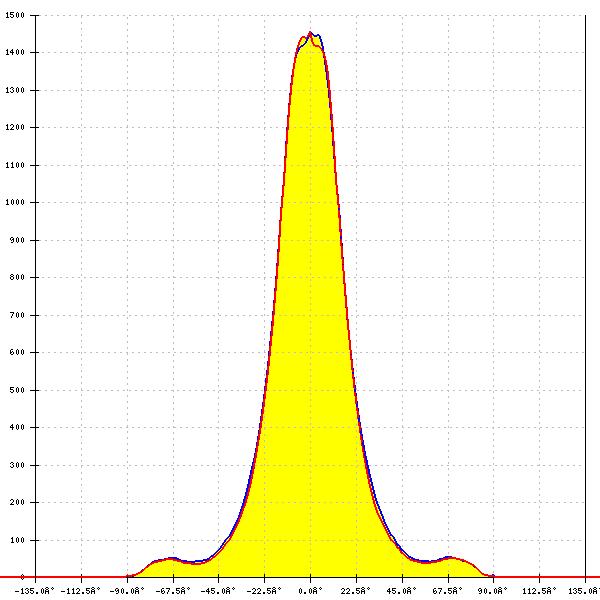

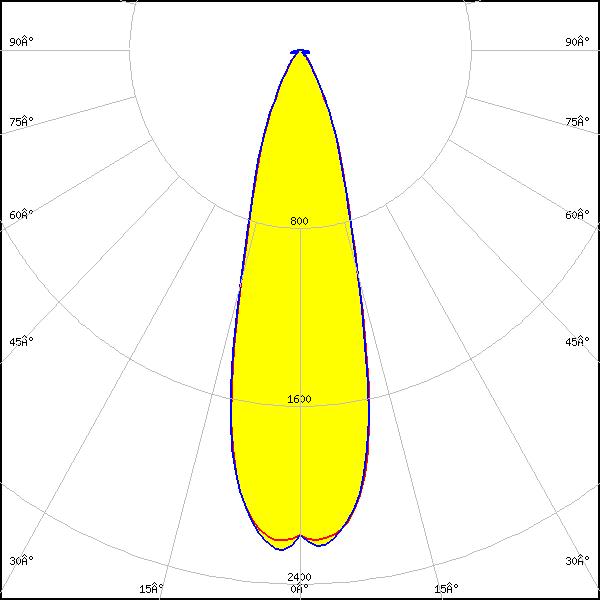

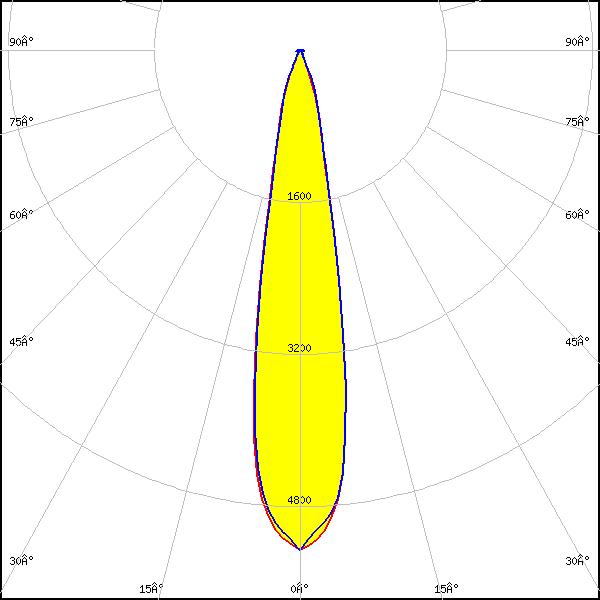

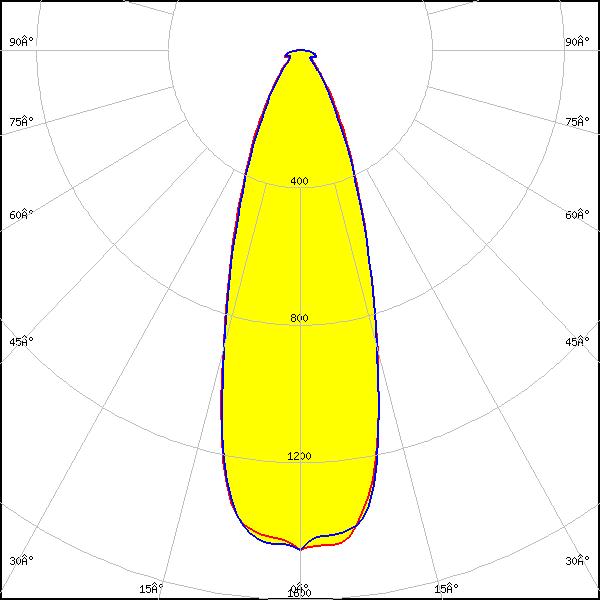

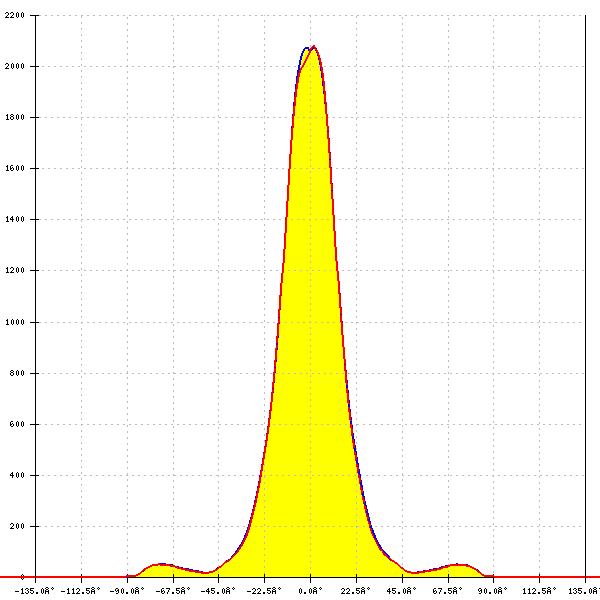

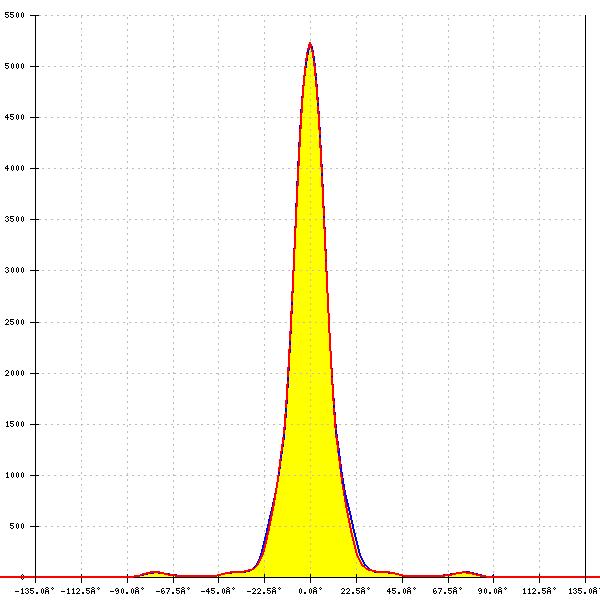

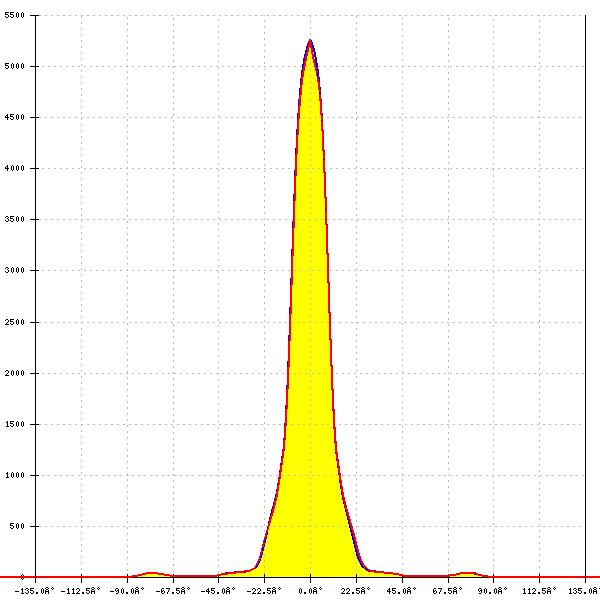

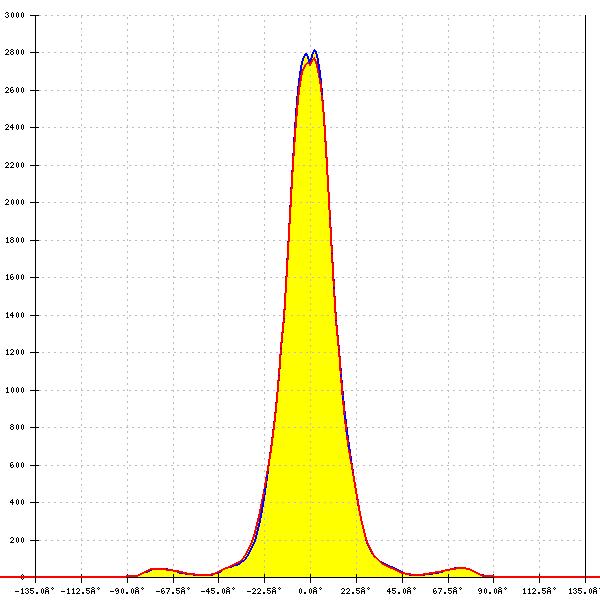

Optical results

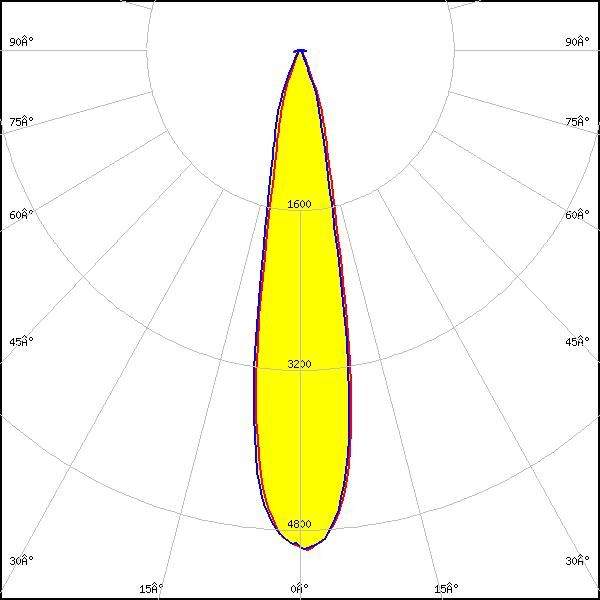

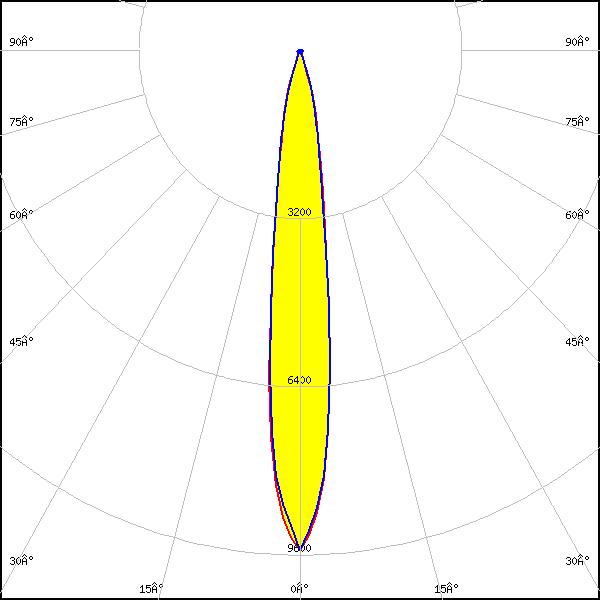

LED: V10 Gen7
Required components:
Bender Wirth: 486 Typ L1
FWHM: 14°
Peak intensity: 9.9 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

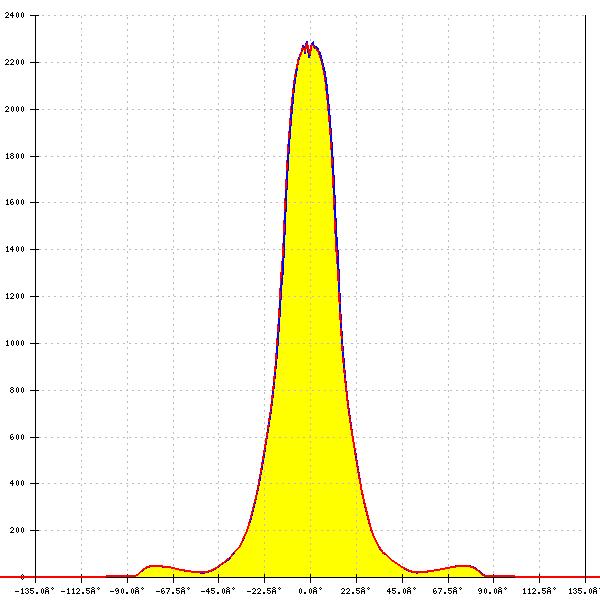

LED: V22 Gen7
Required components:
Bender Wirth: 431 Typ Z1
FWHM: 29°
Peak intensity: 2.3 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

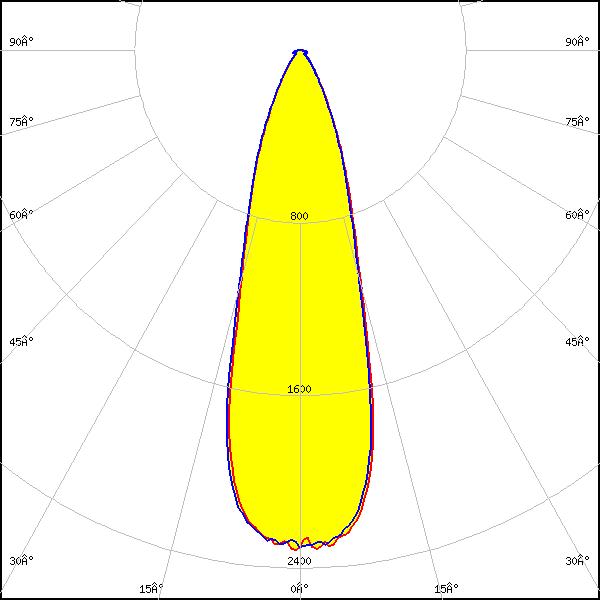

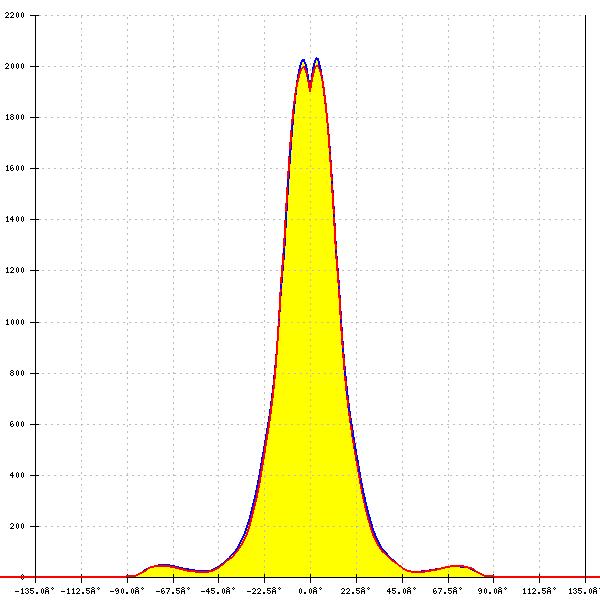

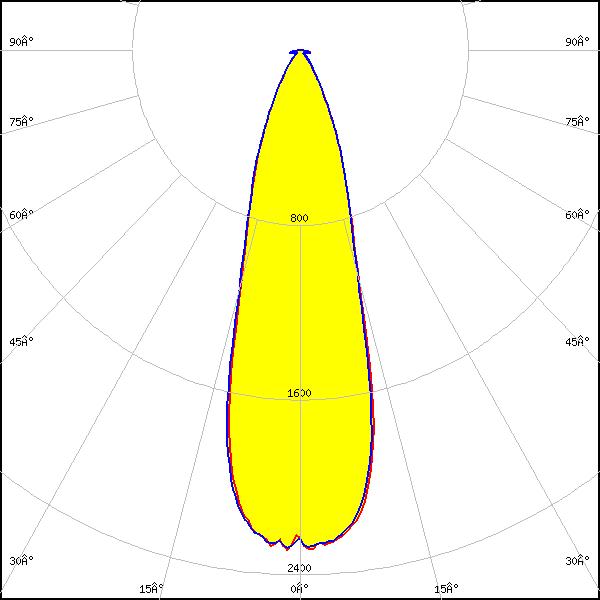

LED: V22 Gen7
FWHM: 29°
Peak intensity: 2.3 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: V22 Gen7
Required components:
TE: 2213480-1
FWHM: 29°
Peak intensity: 2.3 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

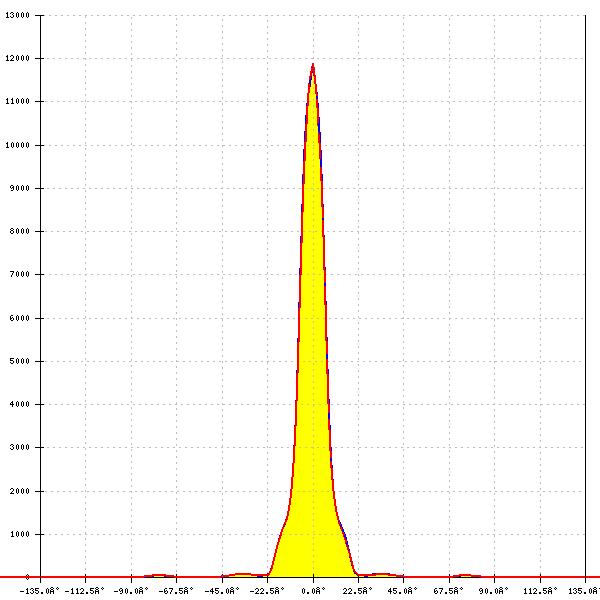

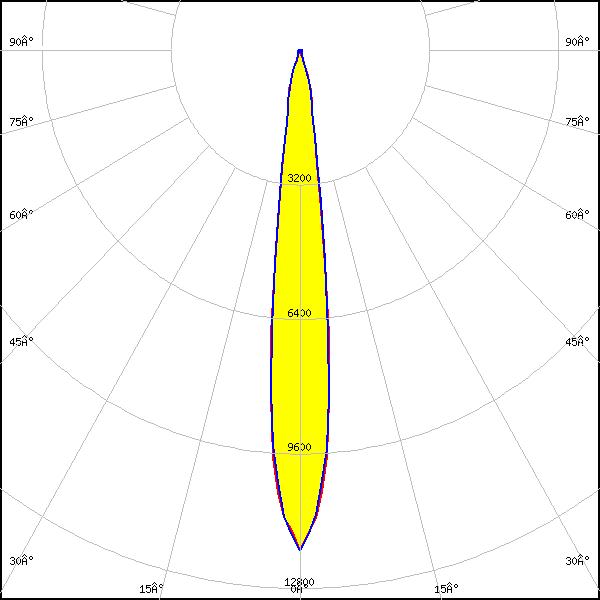

LED: VERO10
FWHM: 13°
Peak intensity: 11.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

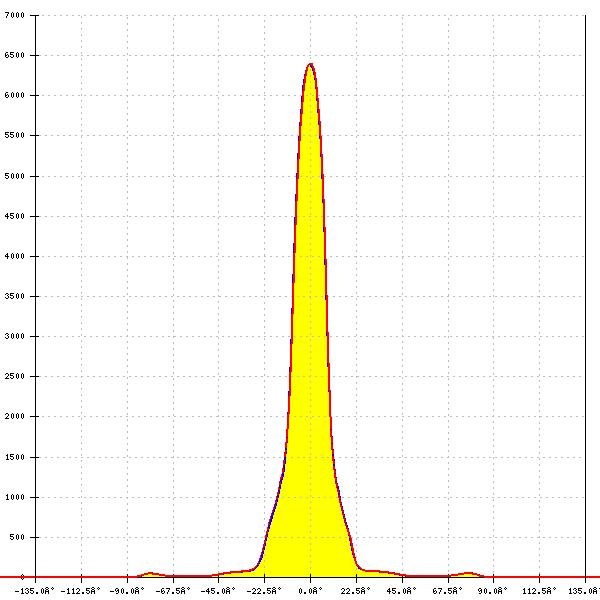

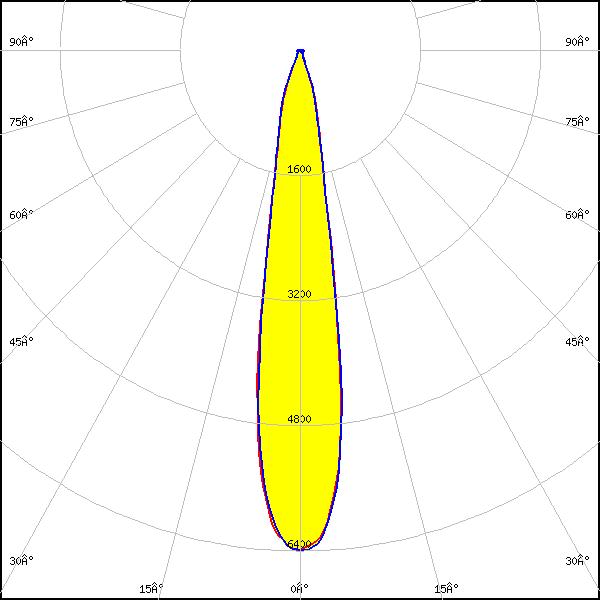

LED: VERO13
FWHM: 18°
Peak intensity: 6.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: VERO18
FWHM: 24°
Peak intensity: 3.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

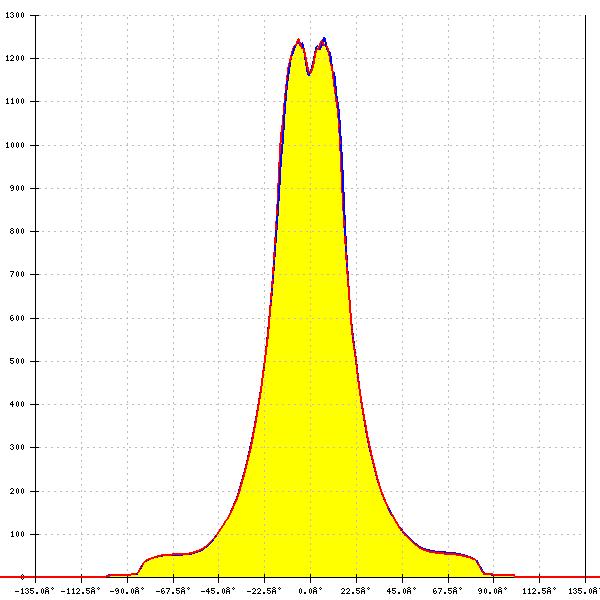

LED: VERO29
FWHM: 39°
Peak intensity: 1.3 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

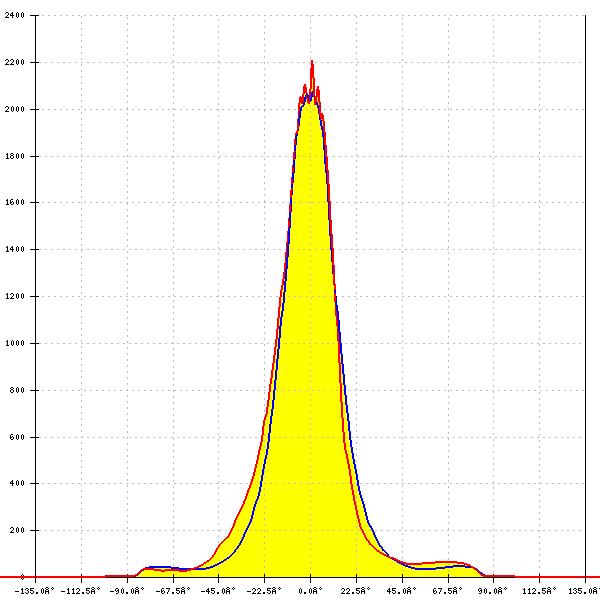

LED: CLL04x/CLU04x
FWHM: 29°
Peak intensity: 2.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

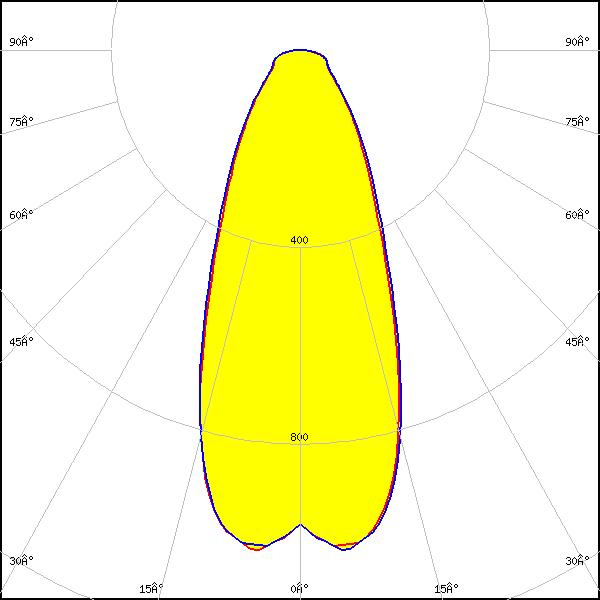

LED: CLL05x/CLU05x
FWHM: 43°
Peak intensity: 1.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

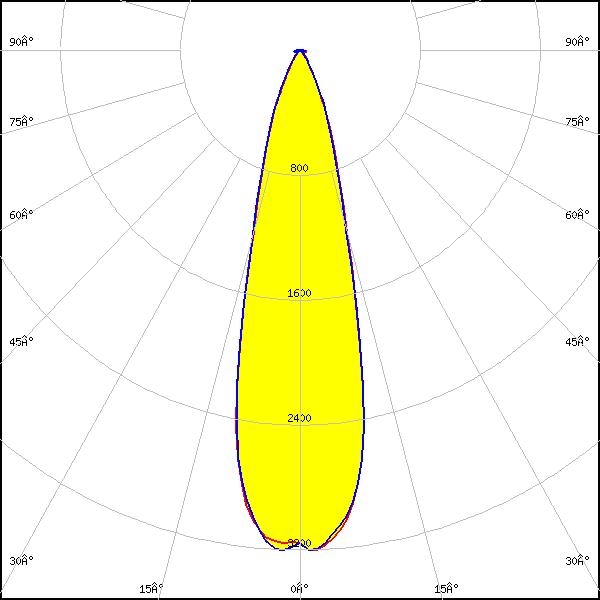

LED: CMA2550
FWHM: 27°
Peak intensity: 3.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

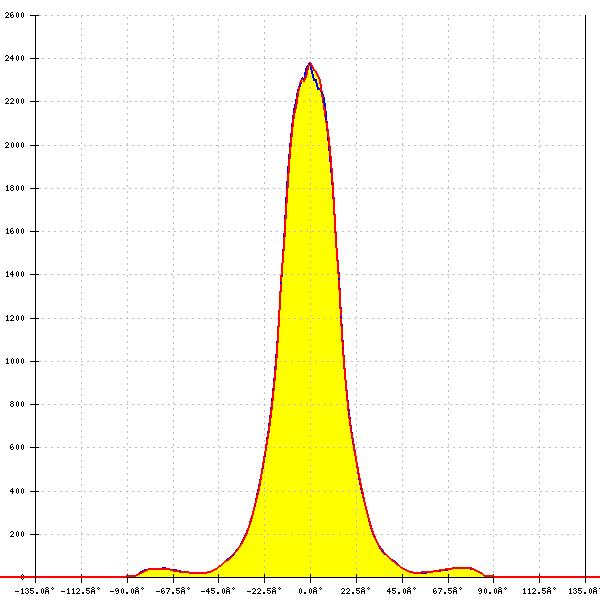

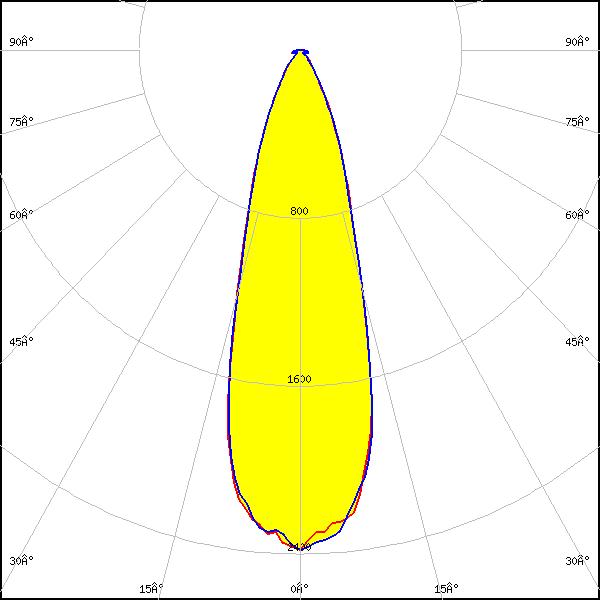

LED: CMA3090
FWHM: 30°
Peak intensity: 2.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
FWHM: 18°
Peak intensity: 6.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

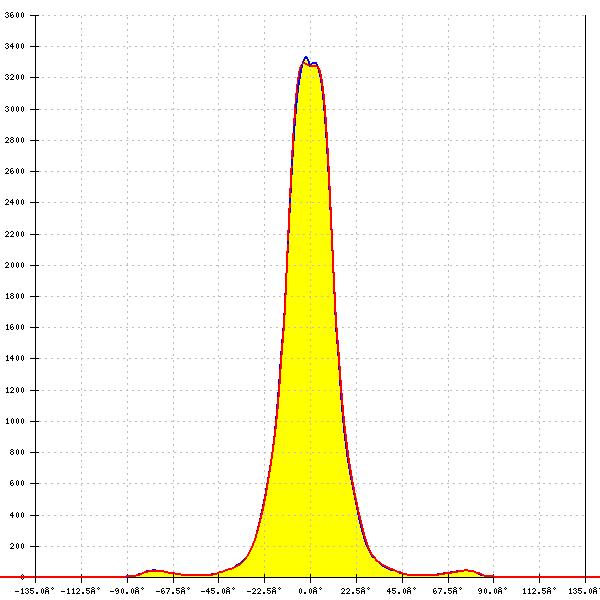

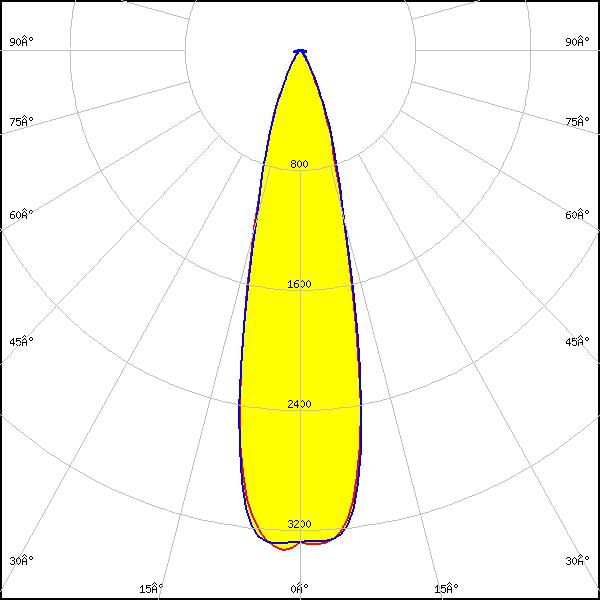

LED: CXA/B 25xx
FWHM: 25°
Peak intensity: 3.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

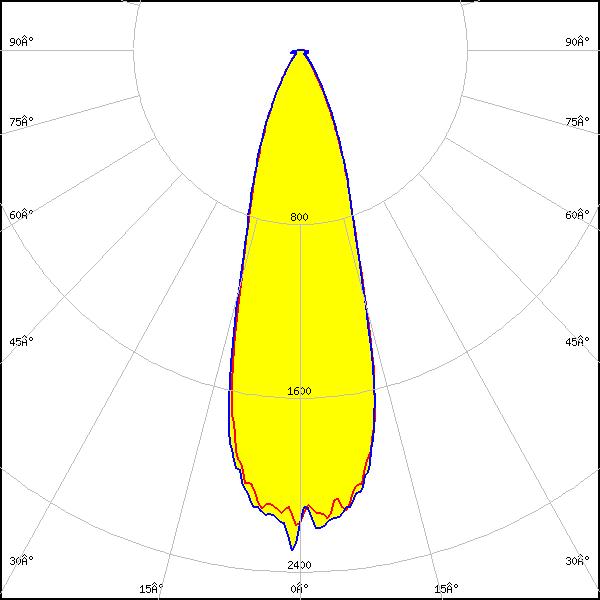

LED: CXA/B 30xx
FWHM: 31°
Peak intensity: 2.3 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON CoB 1211
Required components:
Bender Wirth: 431 Typ L3
FWHM: 26°
Peak intensity: 3.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

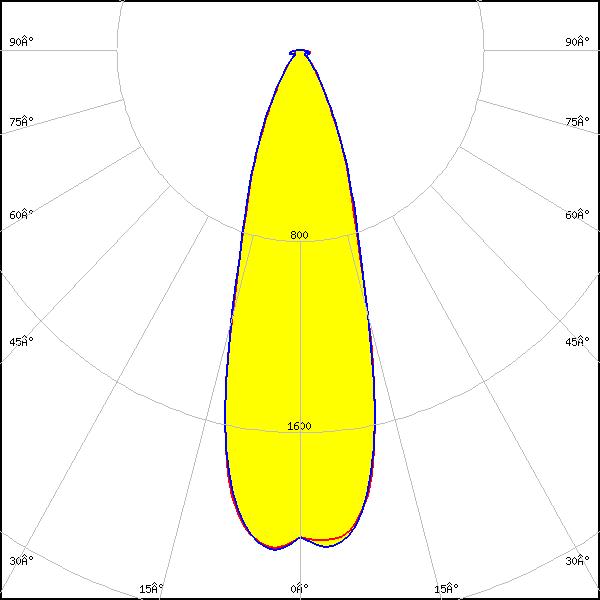

LED: LUXEON CoB 1216/1812
FWHM: 31°
Peak intensity: 2.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

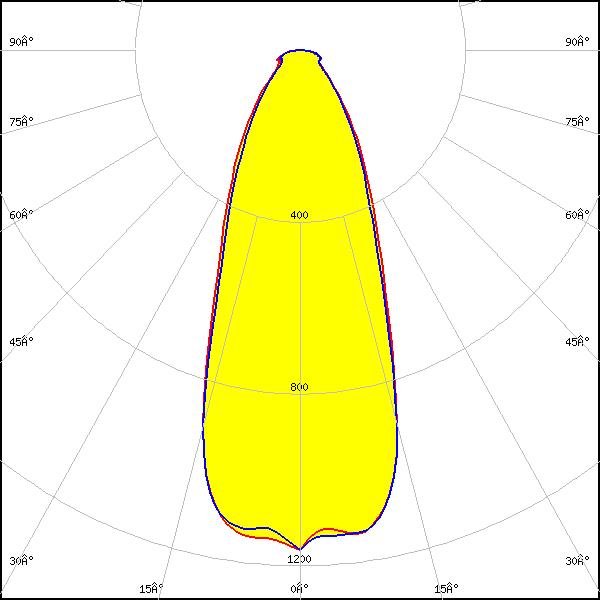

LED: LUXEON CoB 1321
FWHM: 41°
Peak intensity: 1.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

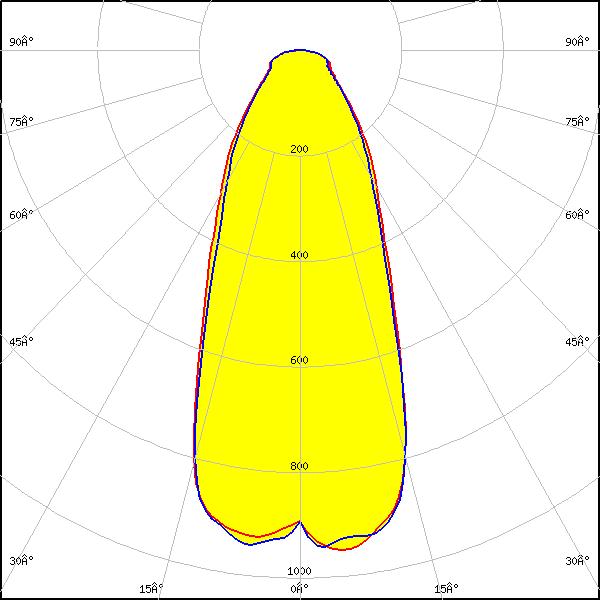

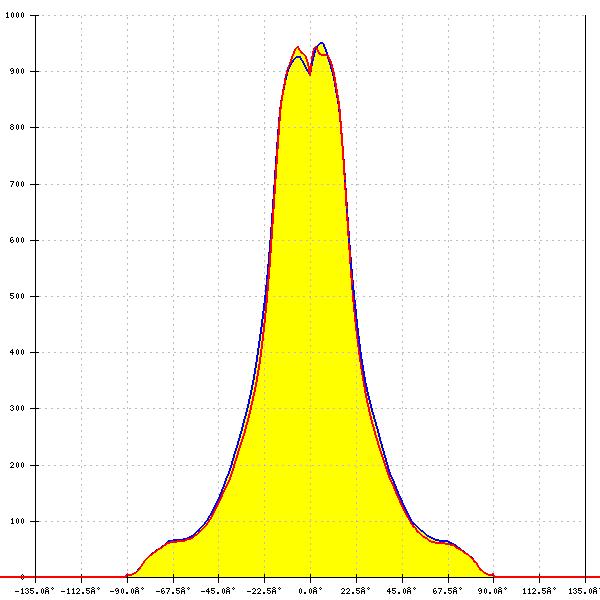

LED: LUXEON CoB 1825
FWHM: 44°
Peak intensity: 0.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: COB H-Type
FWHM: 30°
Peak intensity: 2.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

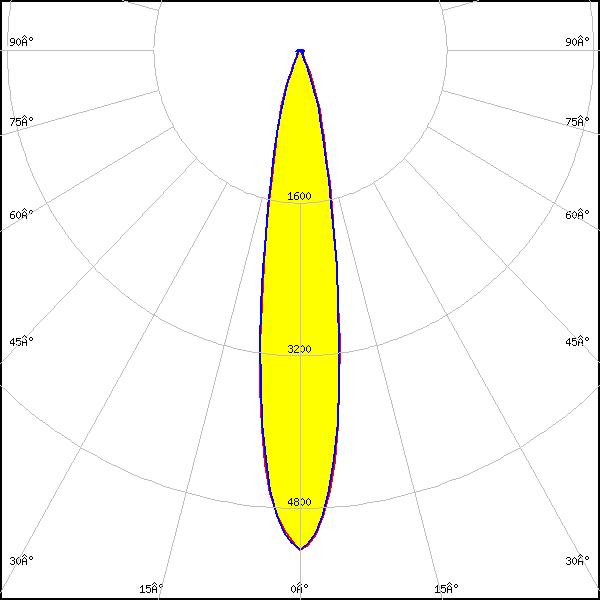

LED: COB J-Type
FWHM: 20°
Peak intensity: 5.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

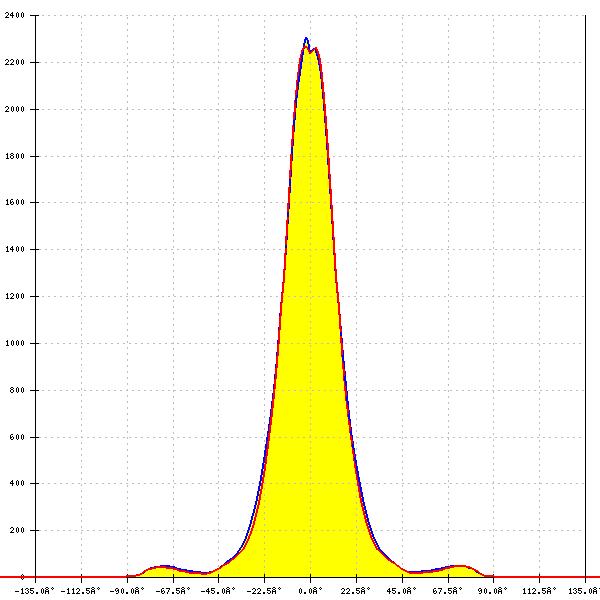

LED: COB D Series LES 22 mm
FWHM: 29°
Peak intensity: 2.2 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

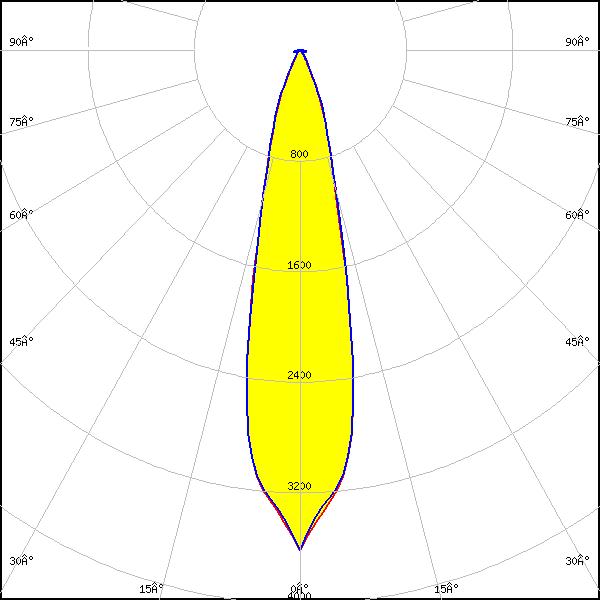

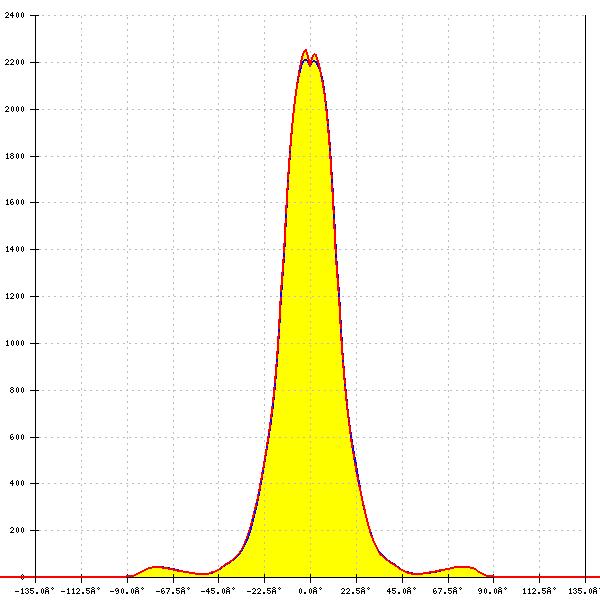

LED: SLE G6 LES19
Required components:
Bender Wirth: 466 Typ L4
FWHM: 23°
Peak intensity: 4.1 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
