FN16358_STELLA-G2-T4
Print

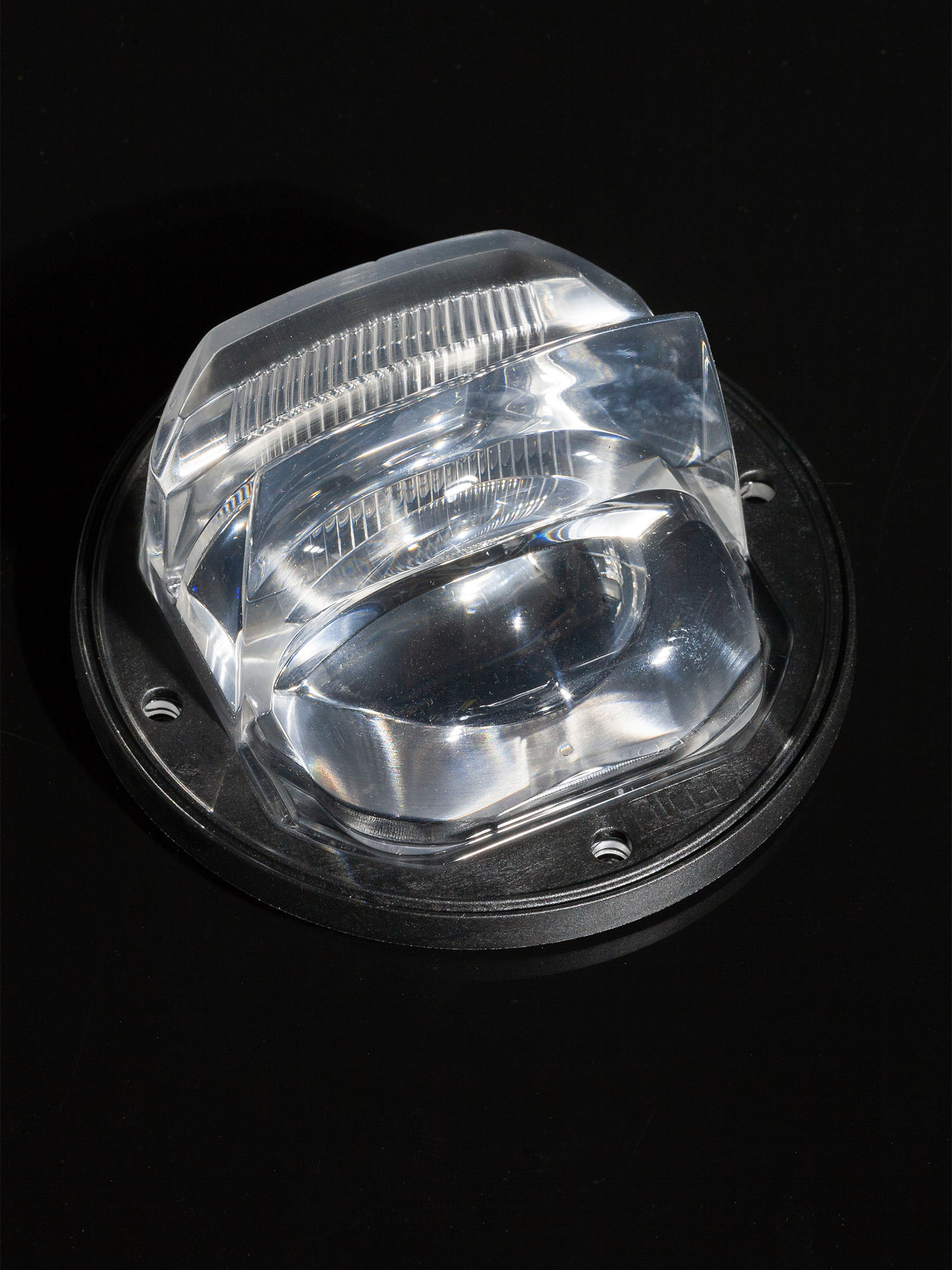

IESNA Type IV light distribution for wider roads and large outdoor areas. Compatible with up to 30 mm LES size COBs. Variant with black frame.
Component Materials
- STELLA-G2-T4Single lensSilicone
- STELLA-FRAMEHolderPA66
- Request material files from Tech Support
WARNING: Cancer – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results
LED:

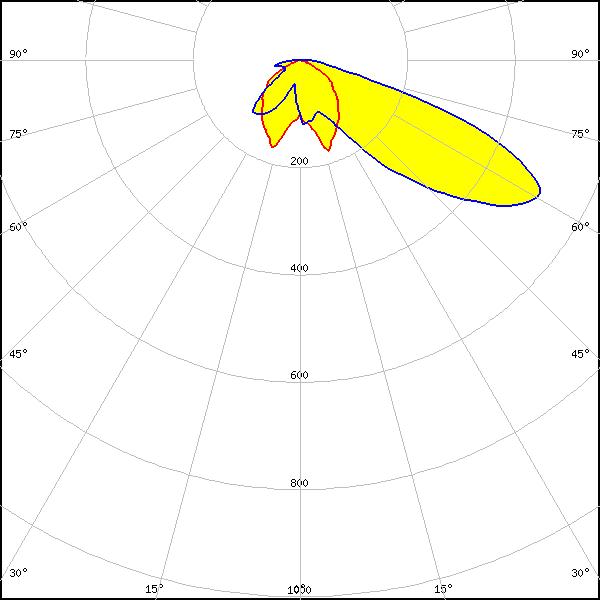

V13 Gen 8-9
LES size: 14.8 mm
Required components:
Bender Wirth: 477 Typ Z1
FWHM: asymmetric
Peak intensity:
0.750 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

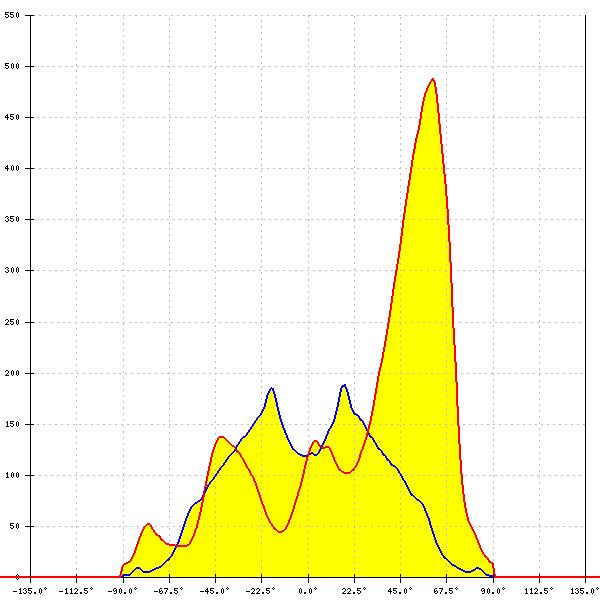

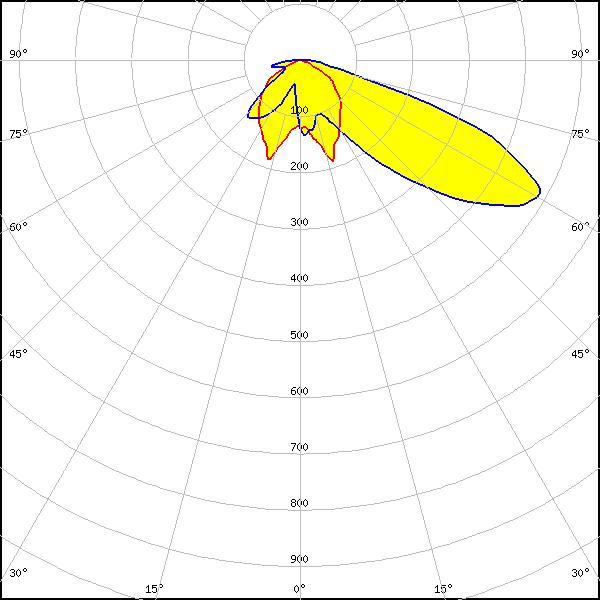

V13 Gen7
LES size: 14.0 mm
Required components:
Bender Wirth: 477 Typ Z1
FWHM: asymmetric
Peak intensity:
0.770 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

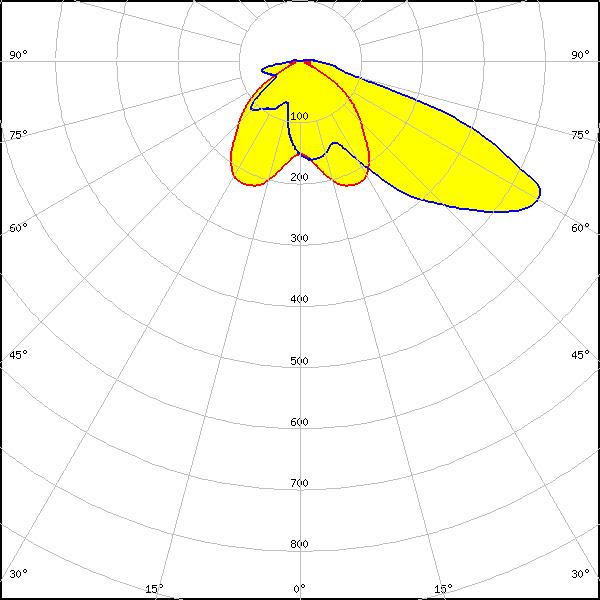

LED:

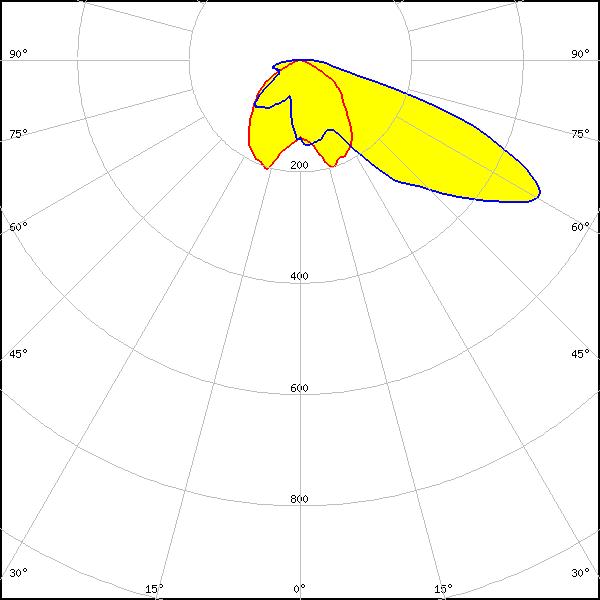

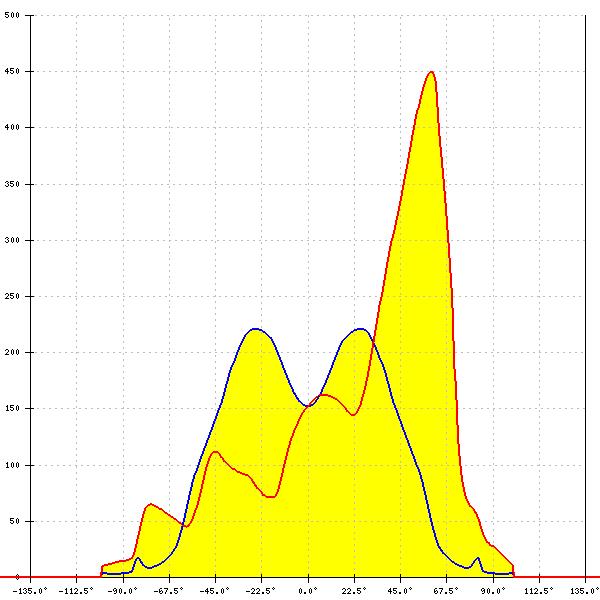

V18 Gen 8-9
LES size: 19.6 mm
Required components:
Bender Wirth: 462 Typ Z1
FWHM: asymmetric
Peak intensity:
0.618 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V18 Gen 8-9
LES size: 19.6 mm
FWHM: asymmetric
Peak intensity:
0.681 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

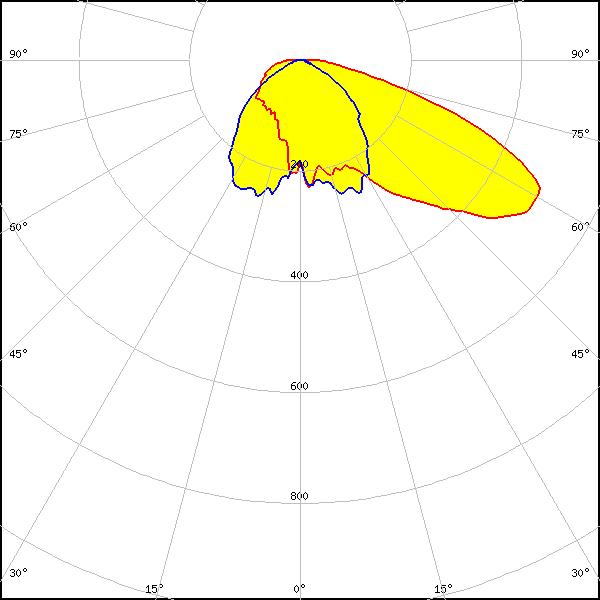

LED:

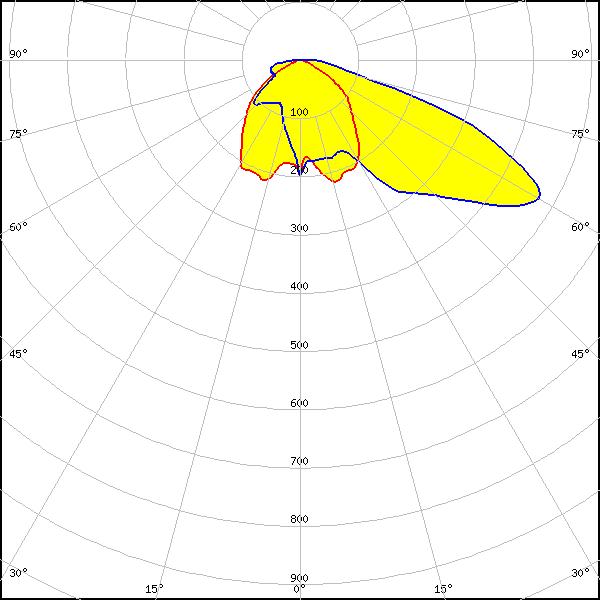

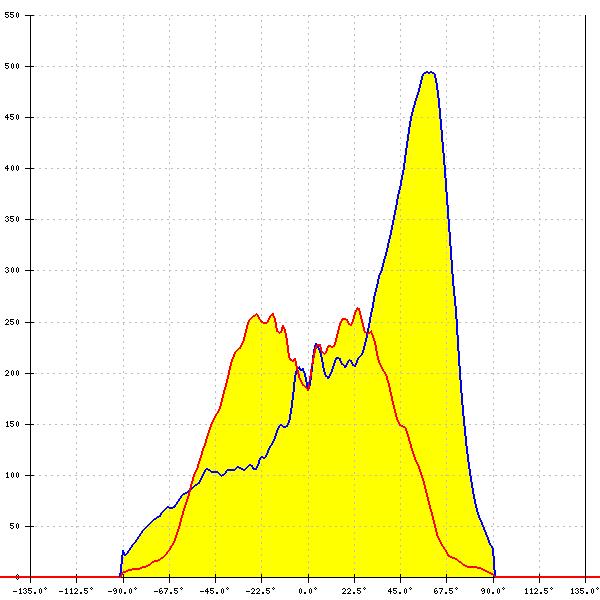

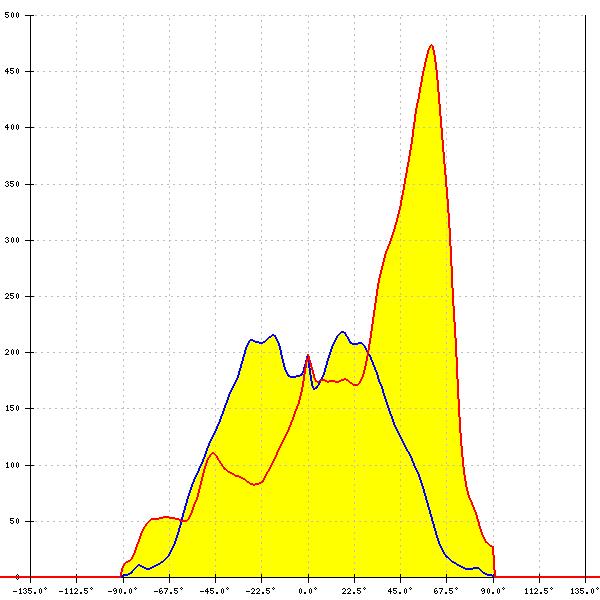

V22 Gen 8-9
LES size: 23.3 mm
Required components:
Bender Wirth: 431 Typ Z1
FWHM: asymmetric
Peak intensity:
0.519 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V22 Gen6
LES size: 22.0 mm
LEDs/each optic:
1
Light colour/type:
White

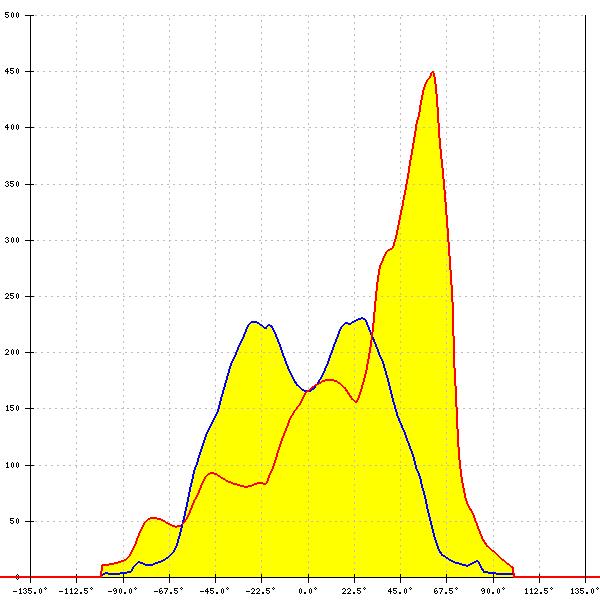

LED:

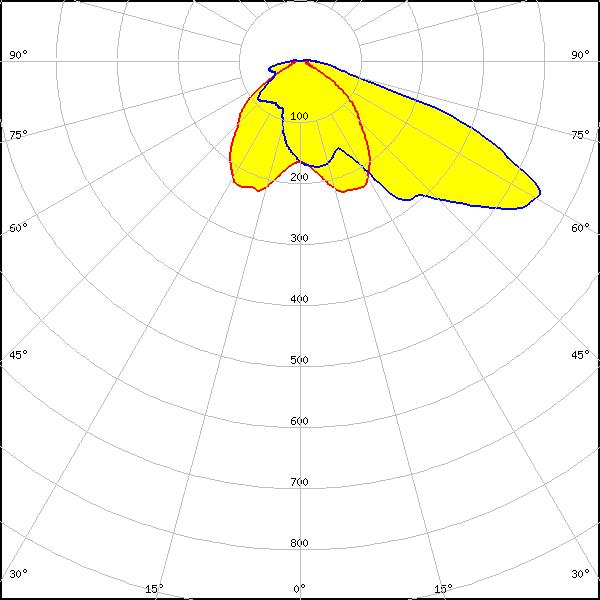

V22 Gen7
LES size: 22.6 mm
FWHM: asymmetric
Peak intensity:
0.630 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

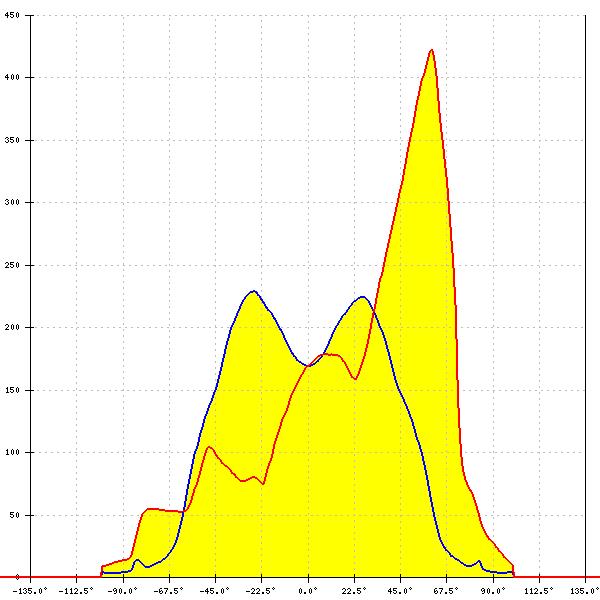

LED:
V22 Gen7
LES size: 22.6 mm
Required components:
Bender Wirth: 431 Typ Z1
FWHM: asymmetric
Peak intensity:
0.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

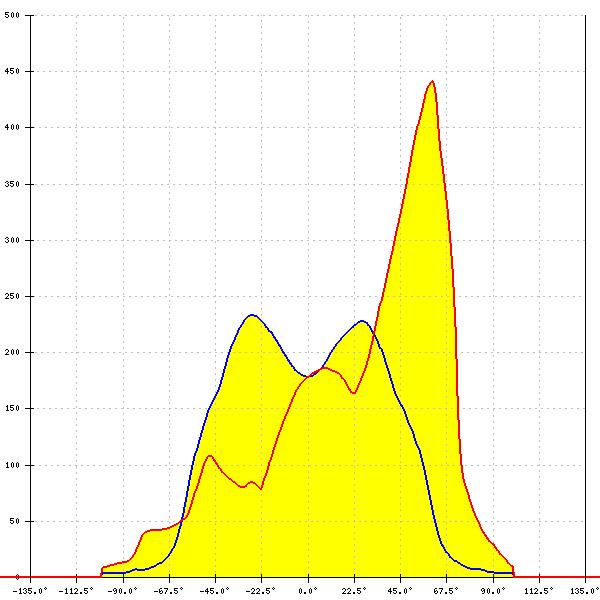

V22 Gen7
LES size: 22.6 mm
Required components:
TE Connectivity: 2213480-1
FWHM: asymmetric
Peak intensity:
0.600 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

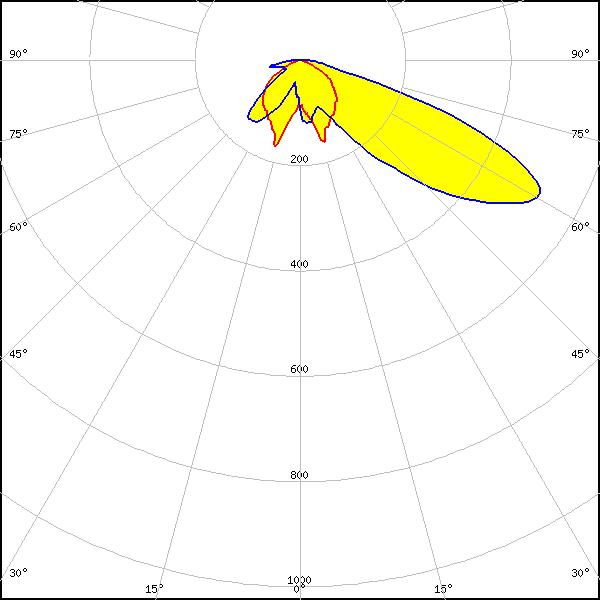

LED:

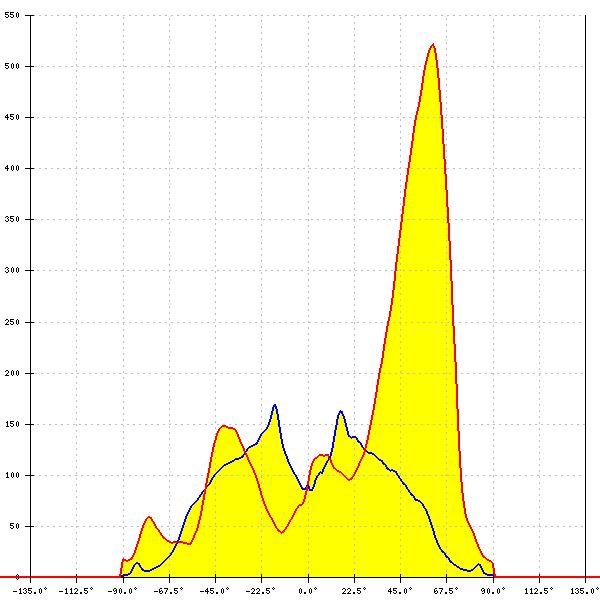

VERO13
LES size: 13.4 mm
FWHM: asymmetric
Peak intensity:
0.940 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

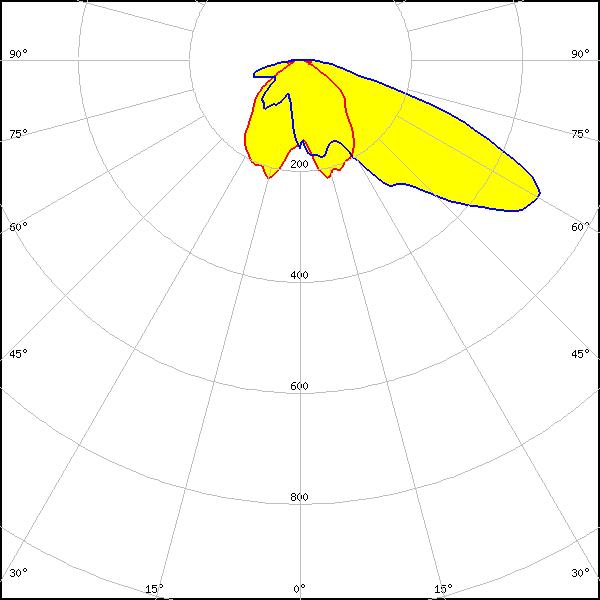

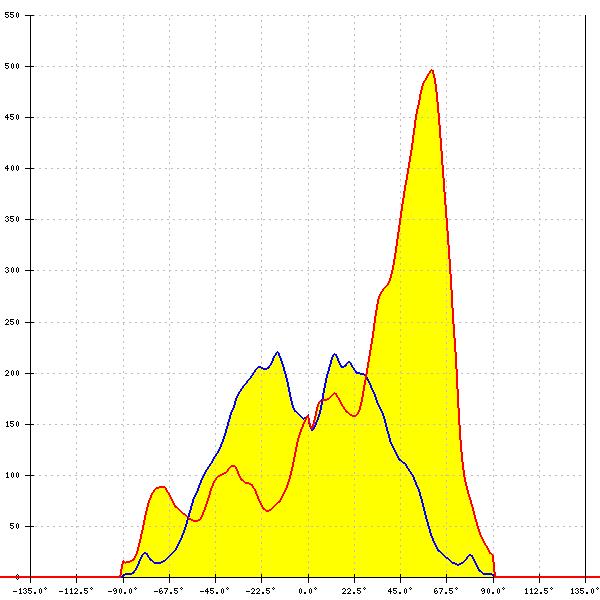

VERO18
LES size: 18.6 mm
FWHM: asymmetric
Peak intensity:
0.690 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

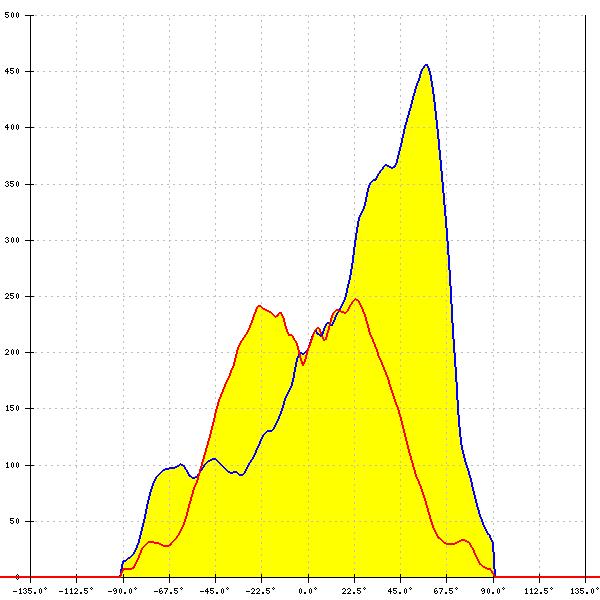

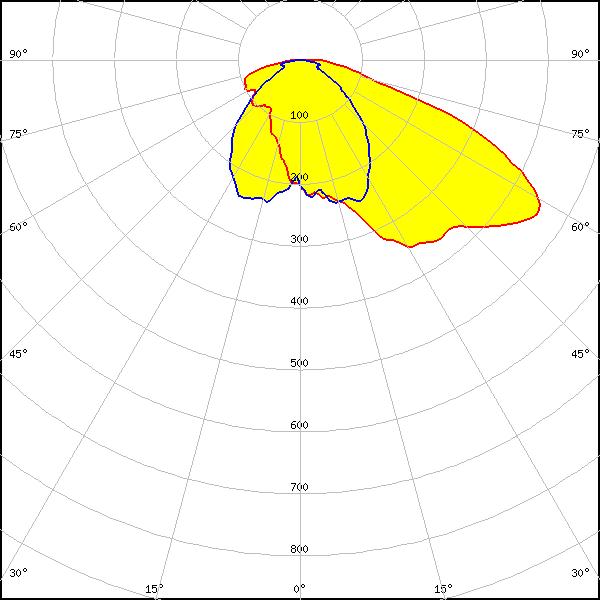

VERO29
LES size: 29.2 mm
FWHM: asymmetric
Peak intensity:
0.456 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

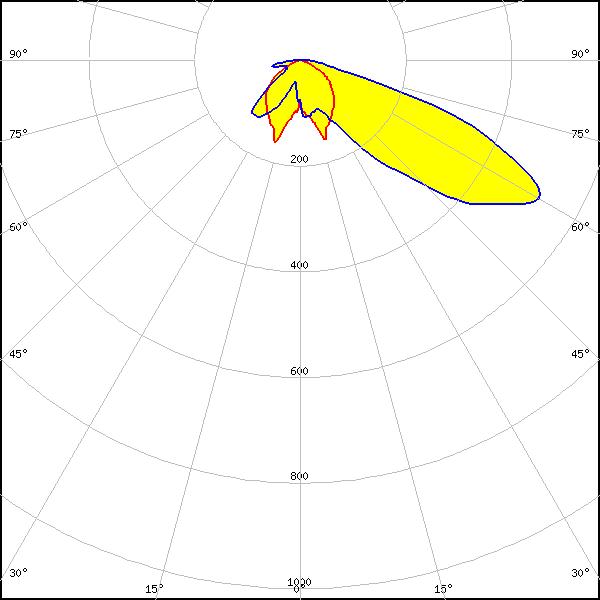

LED:

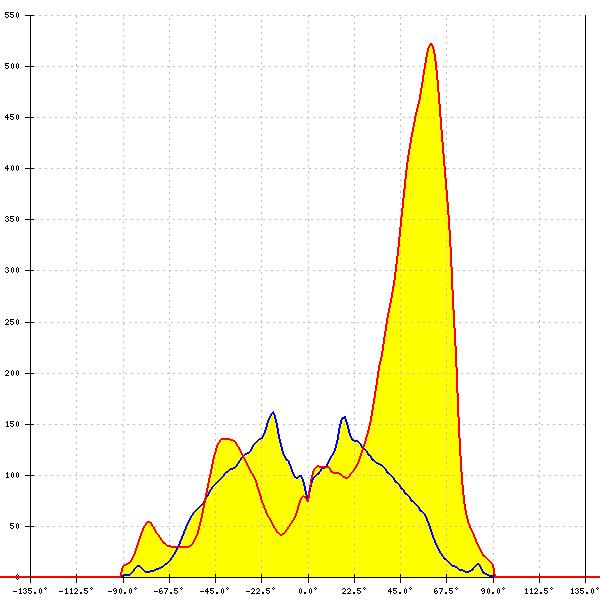

Vesta TW 13mm (18W) DP
LES size: 14.0 mm
FWHM: asymmetric
Peak intensity:
0.808 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:
Vesta TW 18mm (31W) DP
LES size: 19.7 mm
FWHM: asymmetric
Peak intensity:
0.608 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

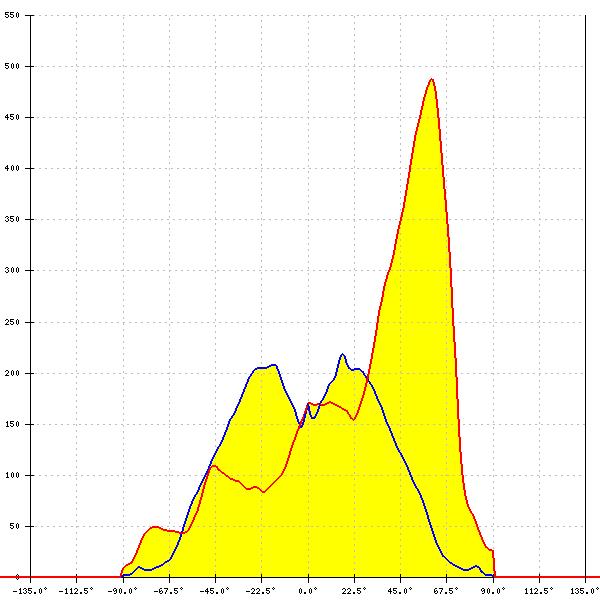

Vesta TW 22mm DP
LES size: 23.1 mm
FWHM: asymmetric
Peak intensity:
0.569 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
Tunable White
LED:

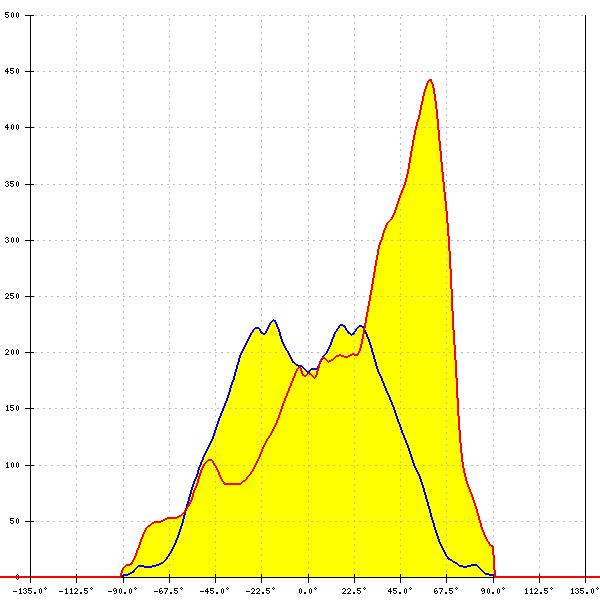

Vesta TW 29mm DP
LES size: 29.6 mm
FWHM: asymmetric
Peak intensity:
0.443 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
Tunable White

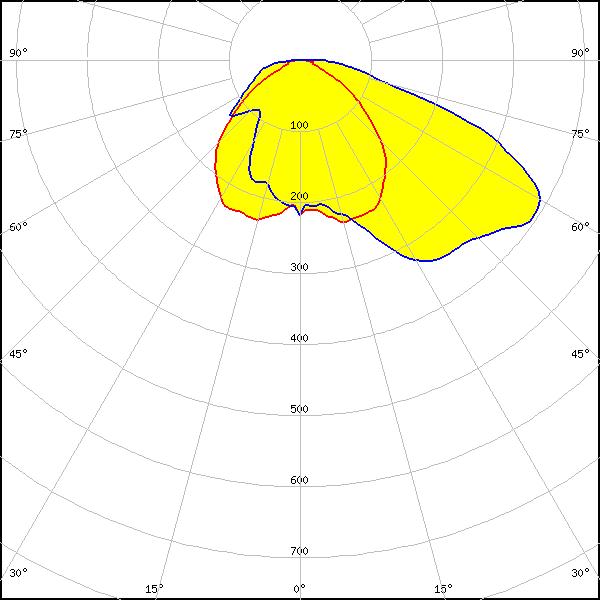

LED:

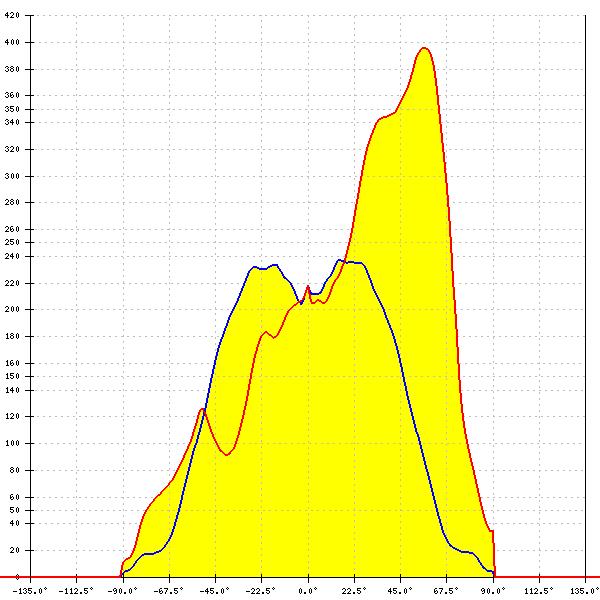

CLL05x/CLU05x
LES size: 32.8 mm
FWHM: asymmetric
Peak intensity:
0.396 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

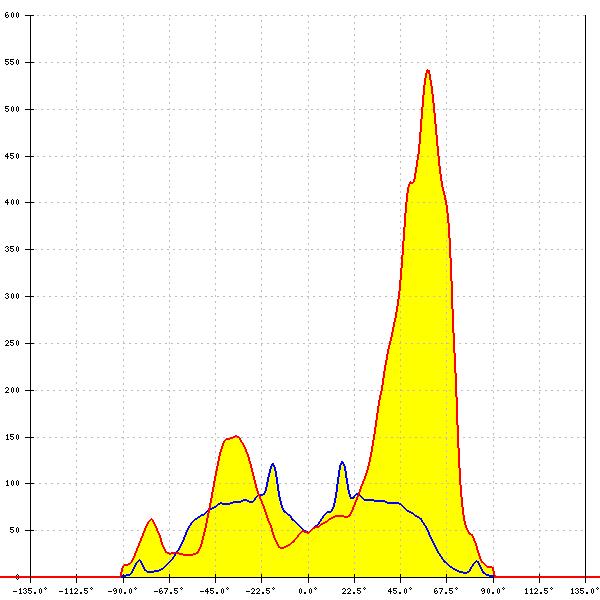

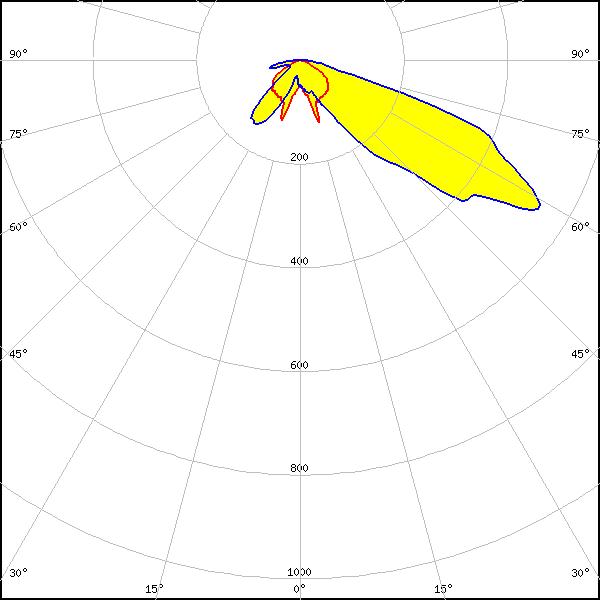

CLU02x (LES10)
LES size: 9.8 mm
FWHM: asymmetric
Peak intensity:
0.948 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU03x
LES size: 14.5 mm
FWHM: asymmetric
Peak intensity:
0.754 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

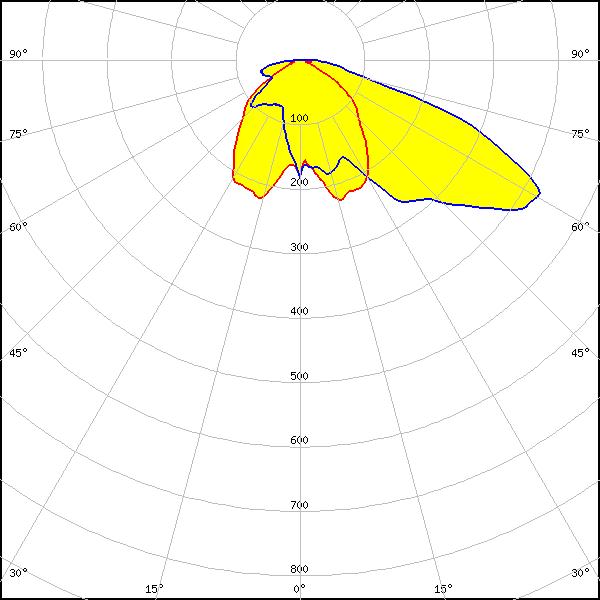

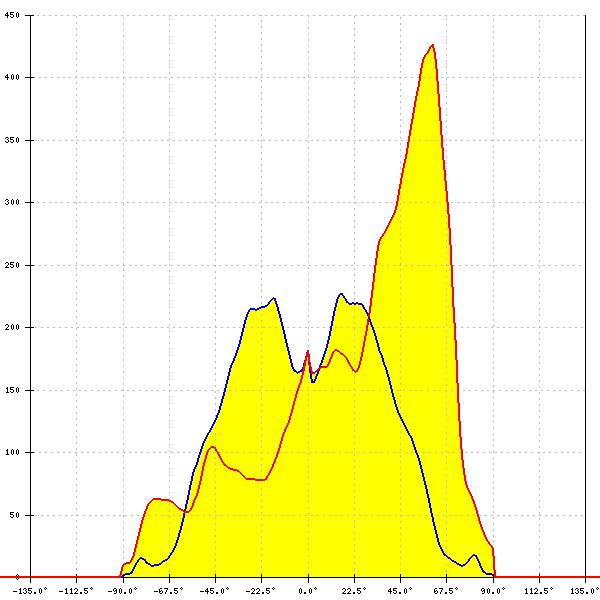

CLU04x
LES size: 22.0 mm
FWHM: asymmetric
Peak intensity:
0.523 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

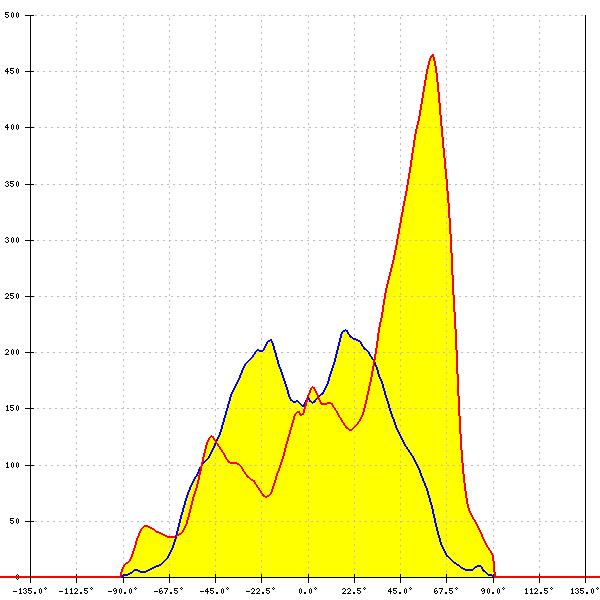

LED:

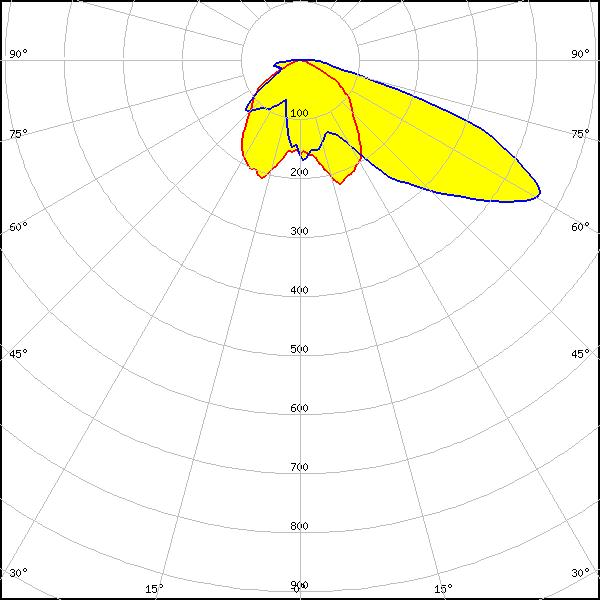

CMA2550
LES size: 19.0 mm
FWHM: asymmetric
Peak intensity:
0.603 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT19xx
LES size: 14.5 mm
FWHM: asymmetric
Peak intensity:
0.791 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

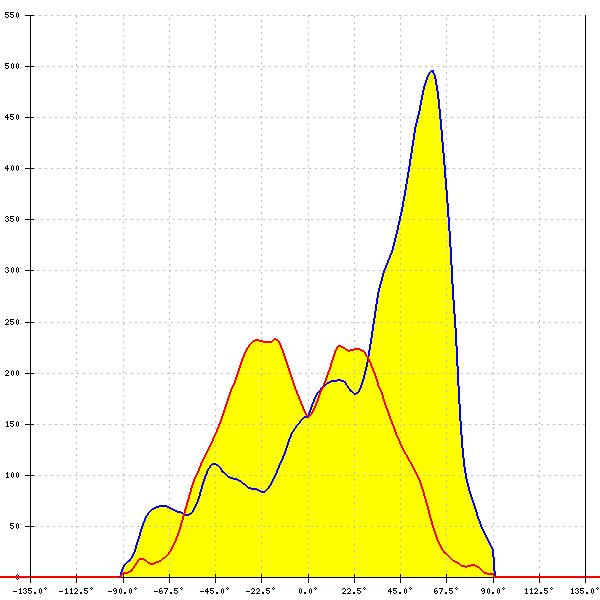

LED:
CMT28xx
LES size: 22.0 mm
FWHM: asymmetric
Peak intensity:
0.578 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

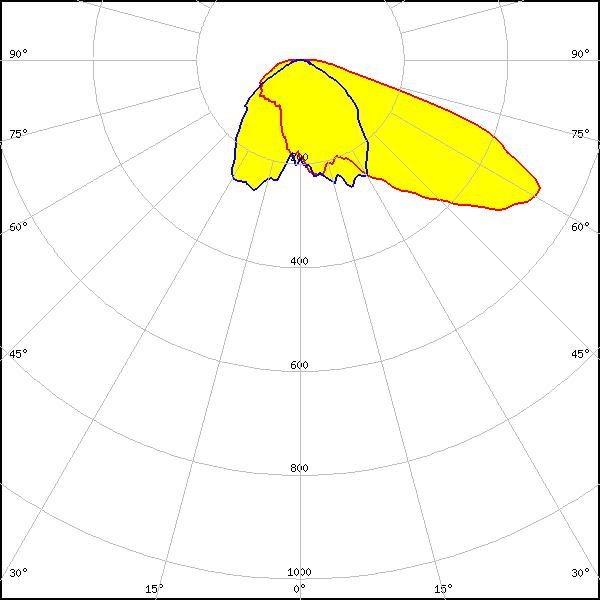

LED:

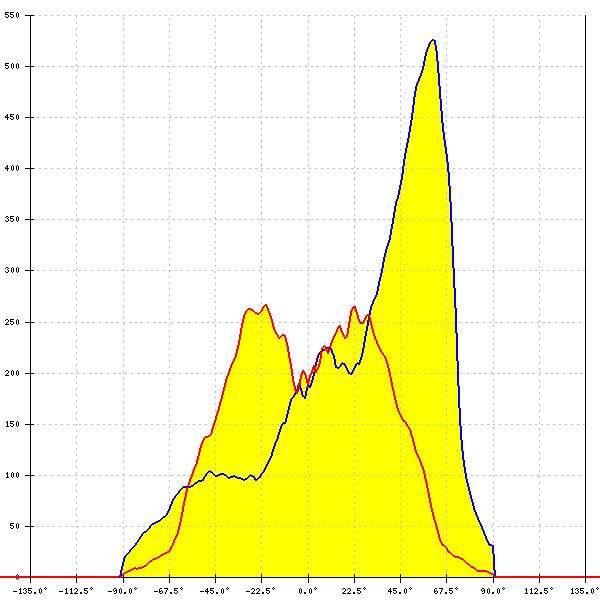

CXA/B 30xx
LES size: 23.0 mm
LEDs/each optic:
1
Light colour/type:
White

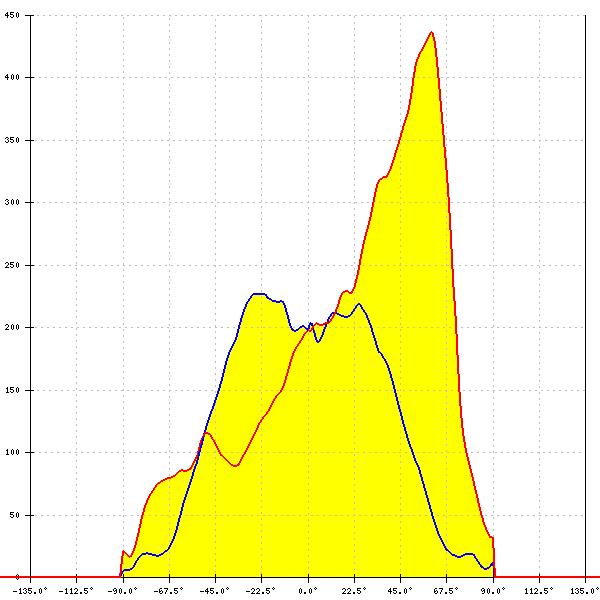

LED:
CXA/B 3590
LES size: 30.0 mm
FWHM: asymmetric
Peak intensity:
0.440 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

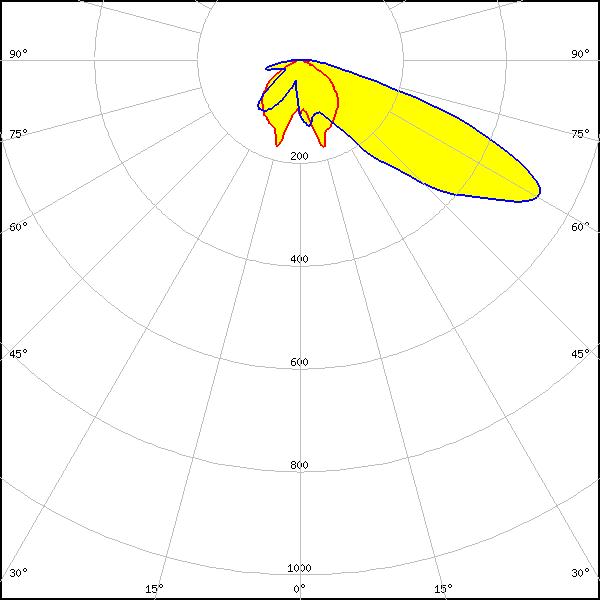

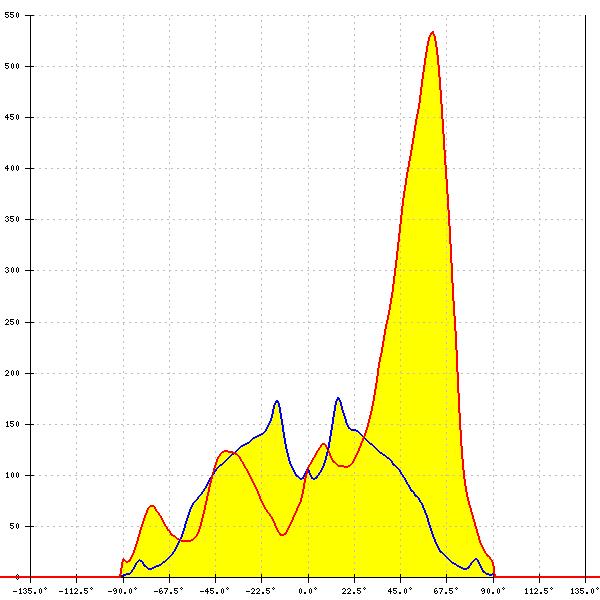

LUXEON CoB 1204/1205
LES size: 13.0 mm
FWHM: asymmetric
Peak intensity:
0.830 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

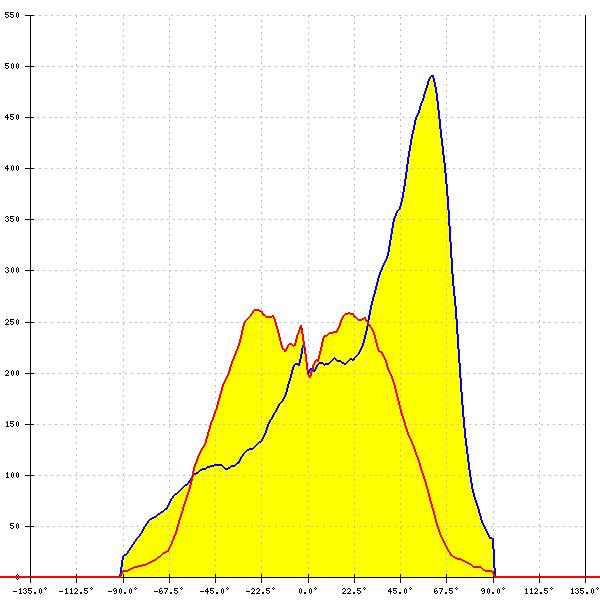

LED:

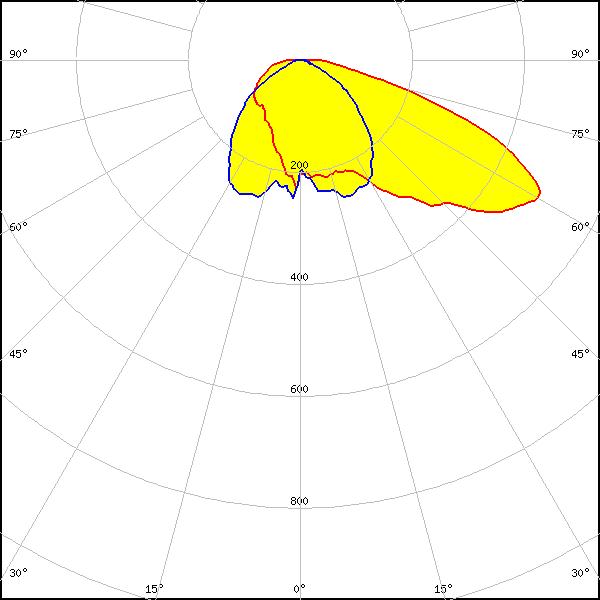

LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
LEDs/each optic:
1
Light colour/type:
White

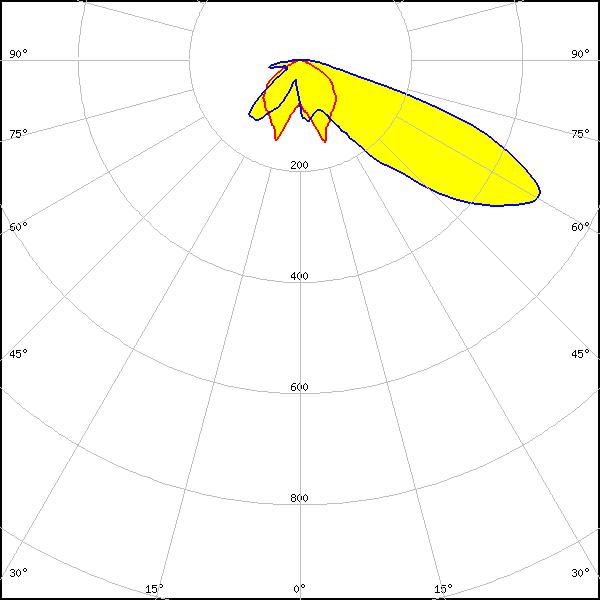

LED:

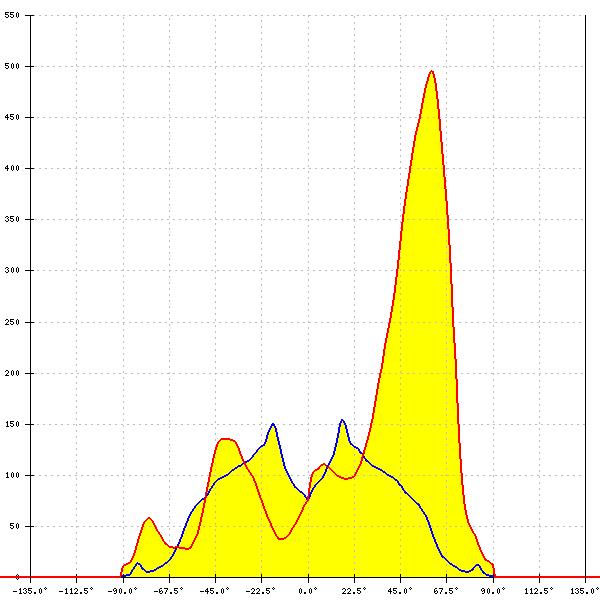

Fortimo SLM L13 CoB
LES size: 13.0 mm
FWHM: asymmetric
Peak intensity:
0.808 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

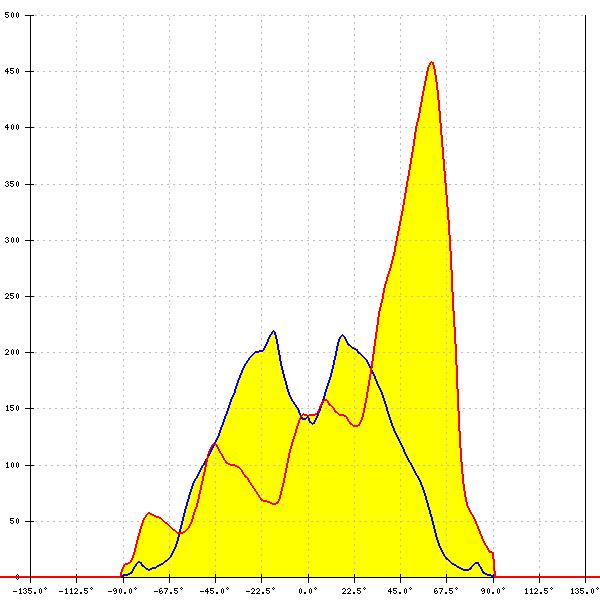

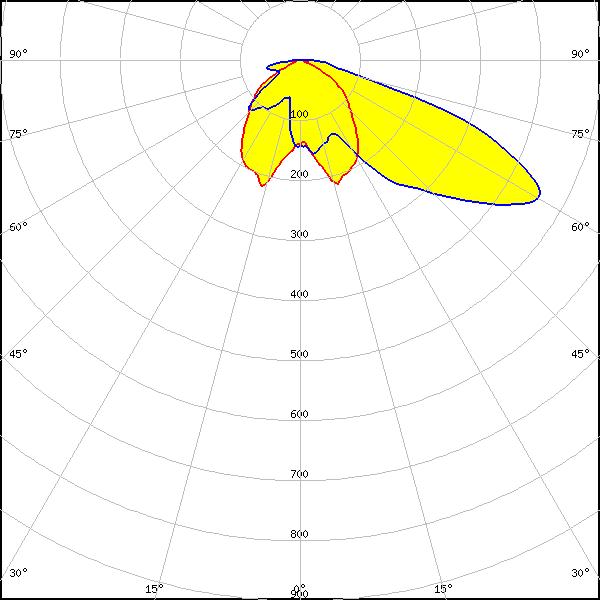

Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
Bender Wirth: 631b LowProfile
FWHM: asymmetric
Peak intensity:
0.642 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L19 CoB
LES size: 19.0 mm
FWHM: asymmetric
Peak intensity:
0.612 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L23 CoB
LES size: 23.0 mm
FWHM: asymmetric
Peak intensity:
0.529 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

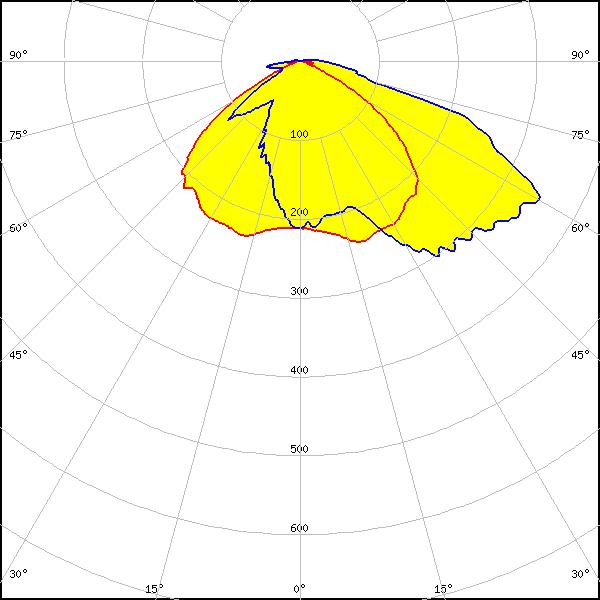

LED:

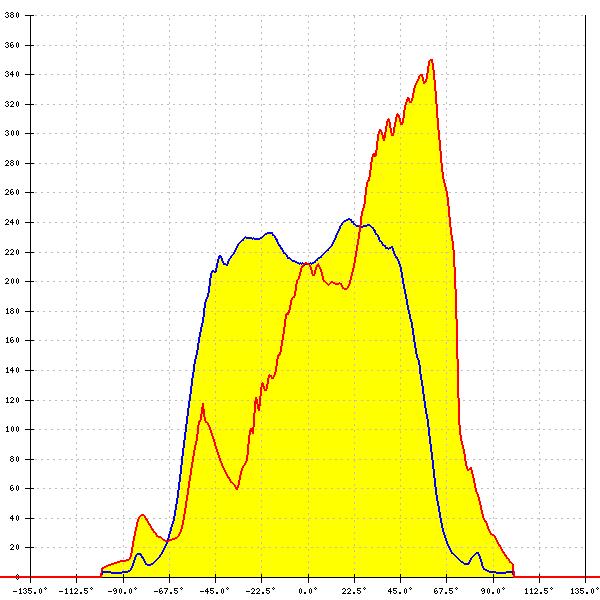

LC040D / LC060D / LC080D
LES size: 22.0 mm
FWHM: asymmetric
Peak intensity:
0.500 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

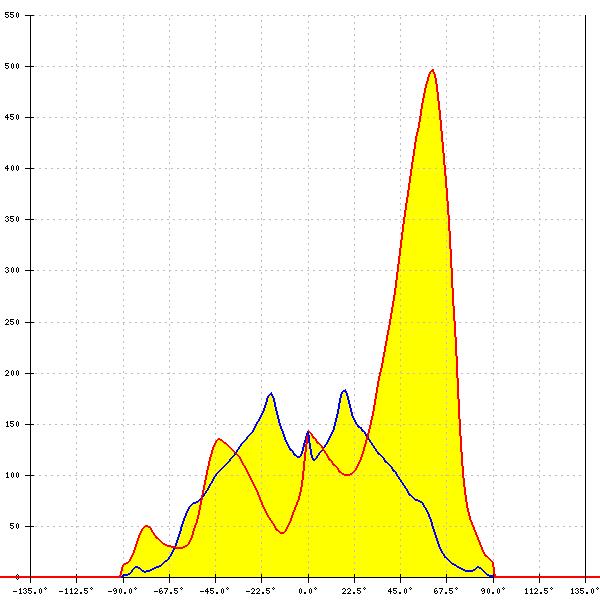

SLE 13mm 3000lm xxx R ADV8
LES size: 13.0 mm
Required components:
Bender Wirth: 433 Typ Z1
FWHM: asymmetric
Peak intensity:
0.751 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

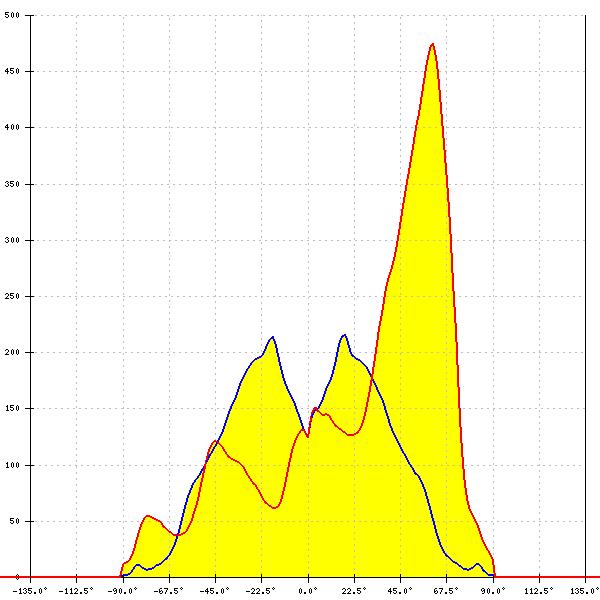

LED:

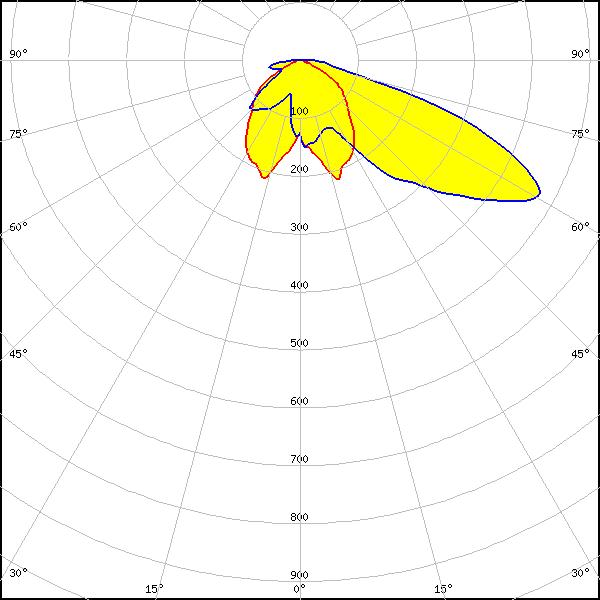

SLE 17mm 5000lm xxx R ADV8
LES size: 16.5 mm
Required components:
Bender Wirth: 466 Typ Z1
FWHM: asymmetric
Peak intensity:
0.639 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

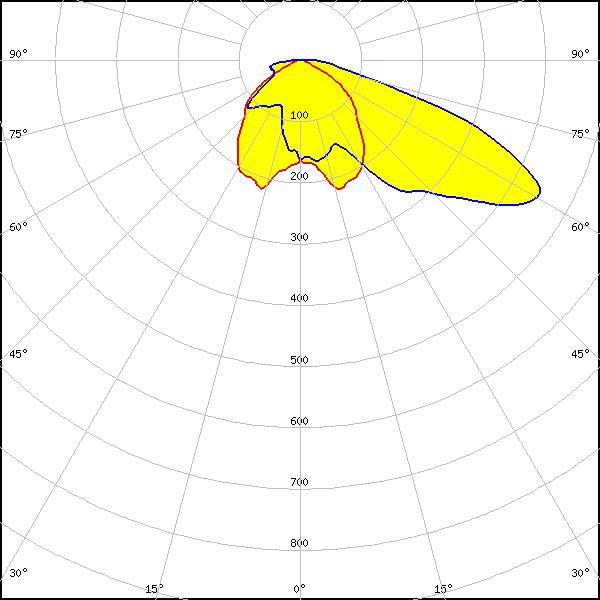

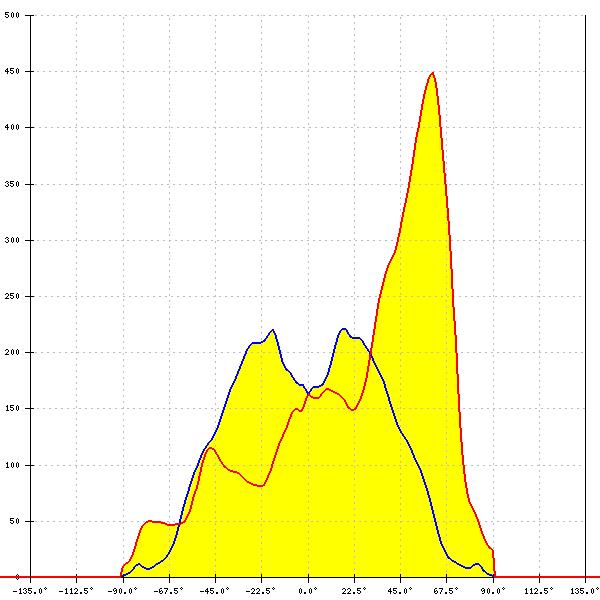

SLE 21mm 6000lm xxx R ADV8
LES size: 20.5 mm
Required components:
Bender Wirth: 466 Typ Z1
FWHM: asymmetric
Peak intensity:
0.531 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

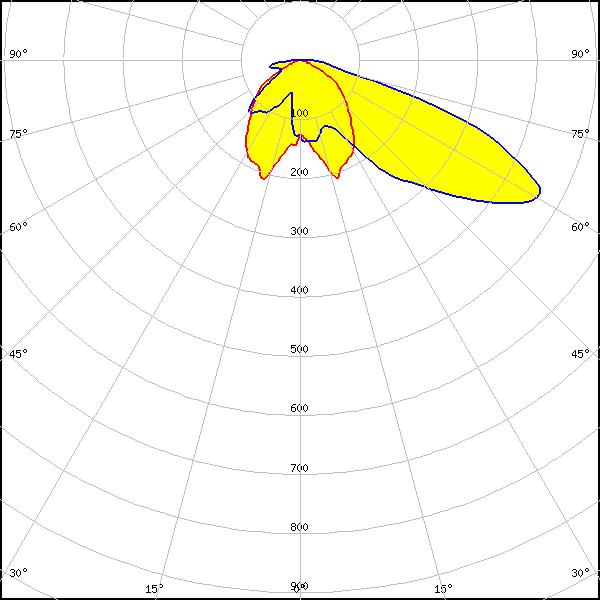

LED:

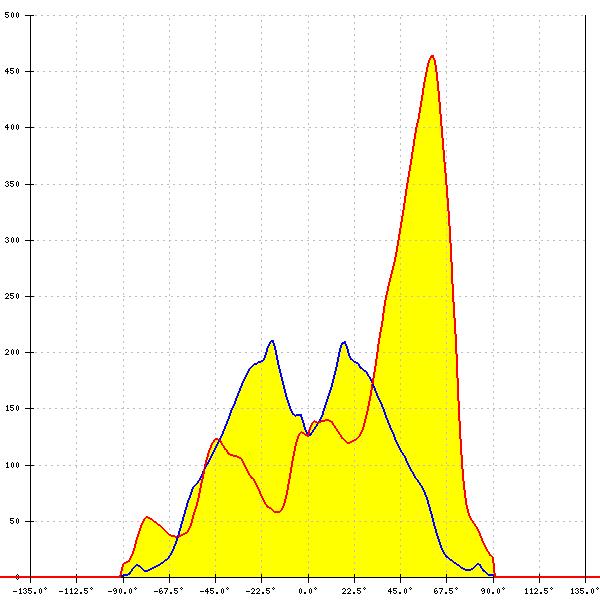

SLE G7 LES17
LES size: 16.5 mm
Required components:
Bender Wirth: 466 Typ Z1
FWHM: asymmetric
Peak intensity:
0.670 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
