FN16441_STELLA-G2-T3

Print

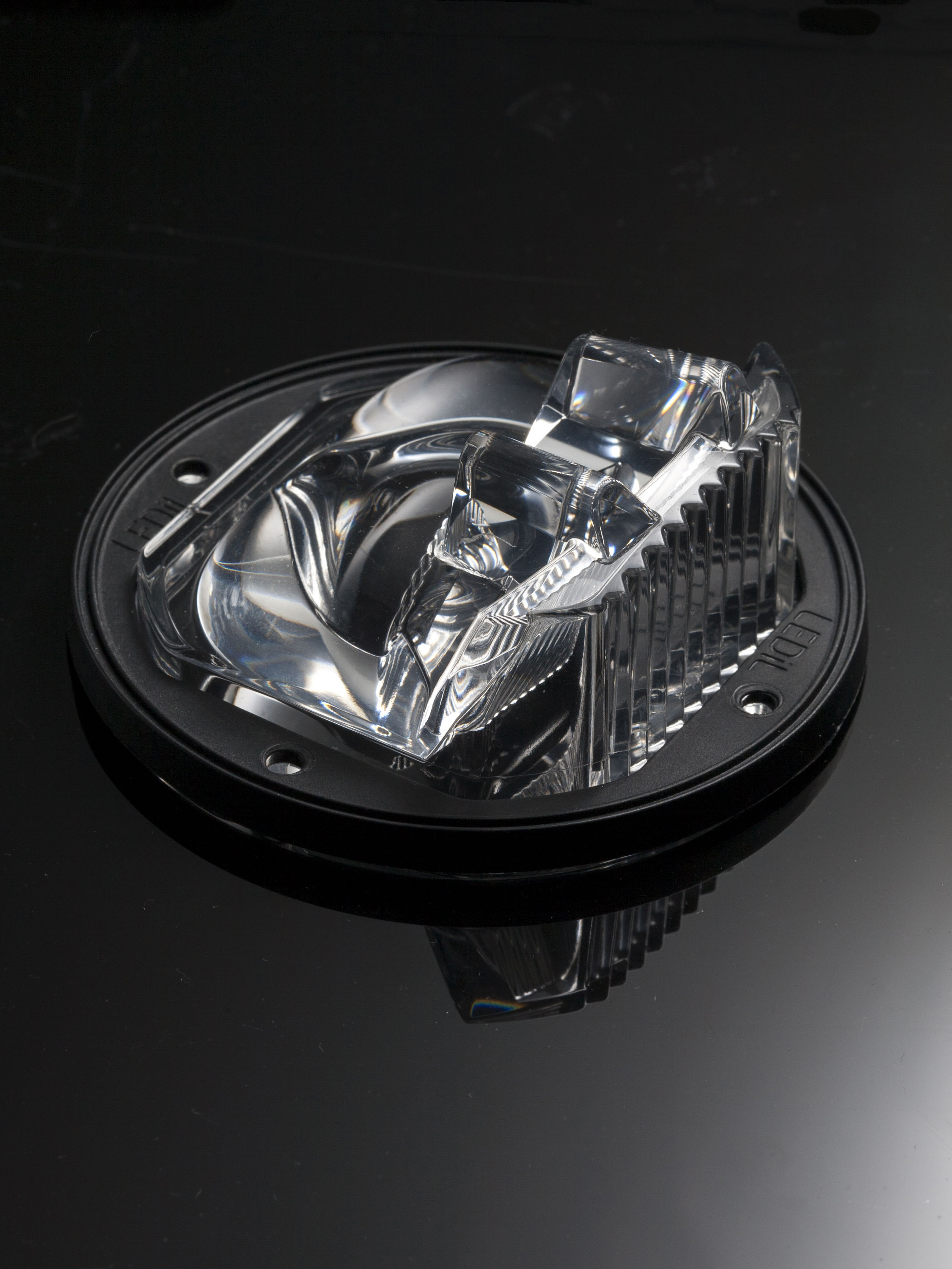

IESNA Type III (medium) beam for roads that are equal to or wider than mounting height. Compatible with up to 30 mm LES size COBs. Variant with black frame.

Specification
  • Dimensions:
    90 mm
  • Height:
    40.20 mm
  • Fastening:
    socket
  • Colour:
    black
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    90 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    5.6 kg
  • MPQ:
    15 pcs
  • MOQ:
    90 pcs
  • MOQ size:
    480 x 280 x 300 mm
  • MOQ weight:
    5.6 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    FN16441_STELLA-G2-T3

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

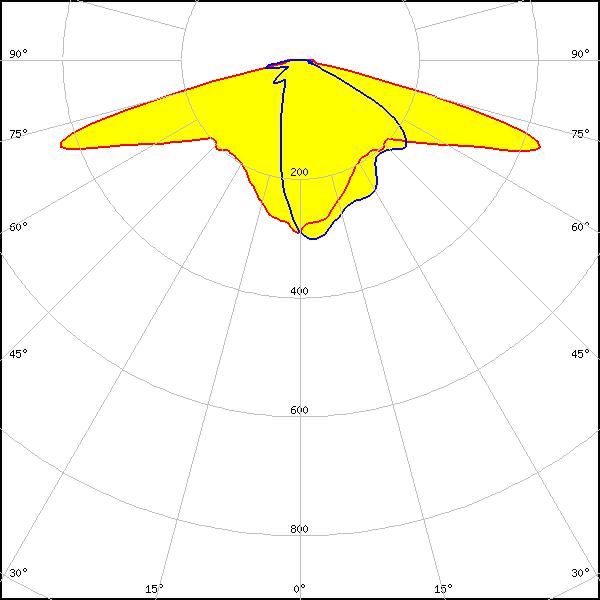

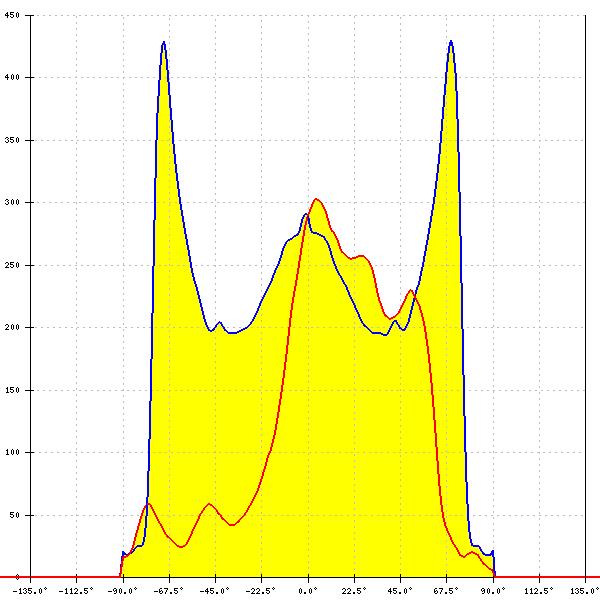

LED: V13 Gen7
Required components:
Bender Wirth: 477 Typ Z1
FWHM: asymmetric
Peak intensity: 0.455 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

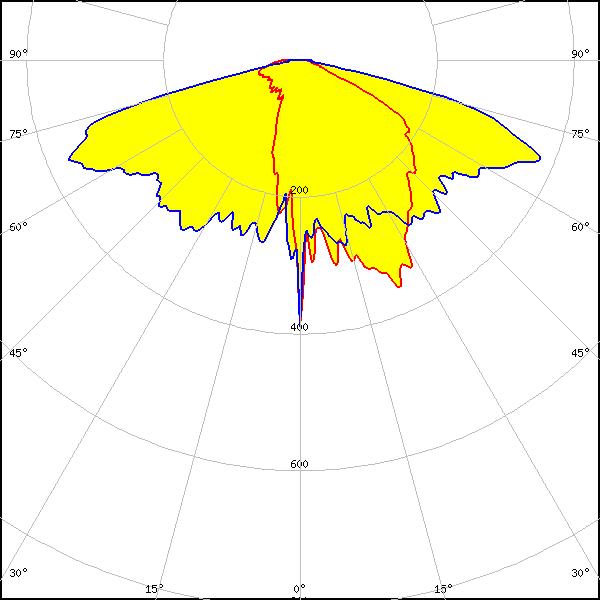

LED: V22 Gen7
LEDs/each optic: 1
Light colour: White

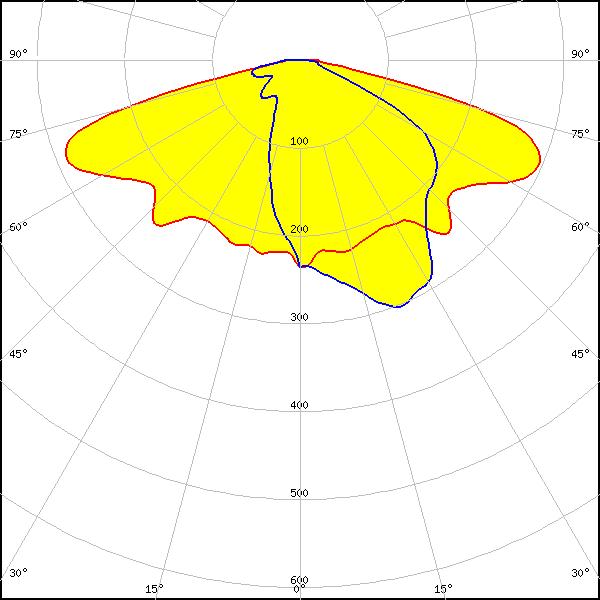

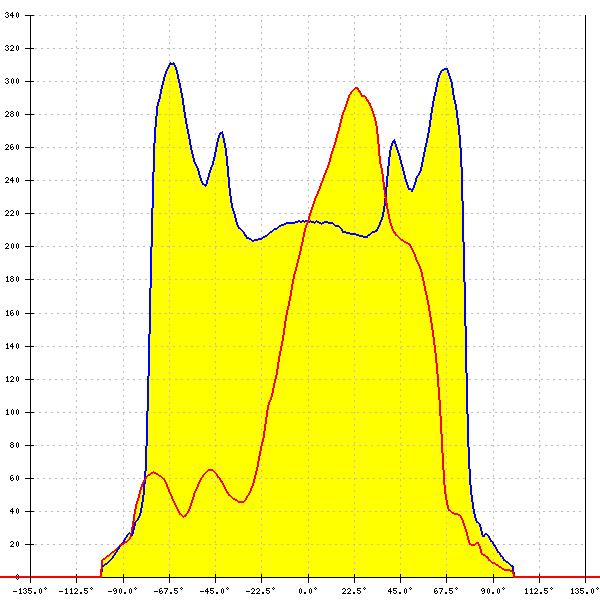

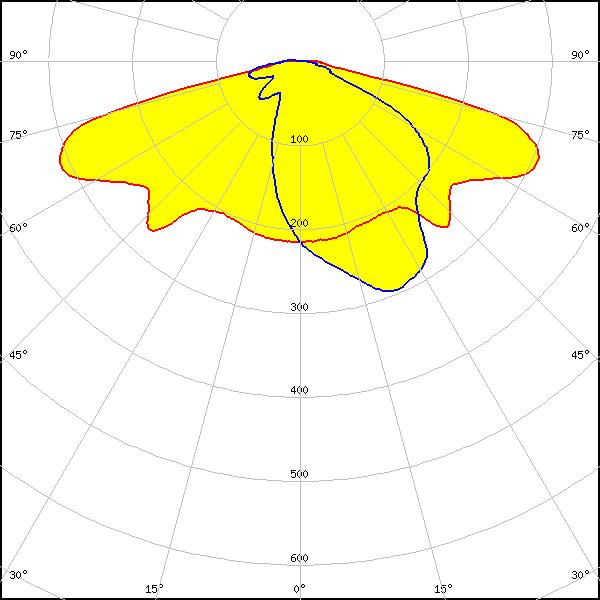

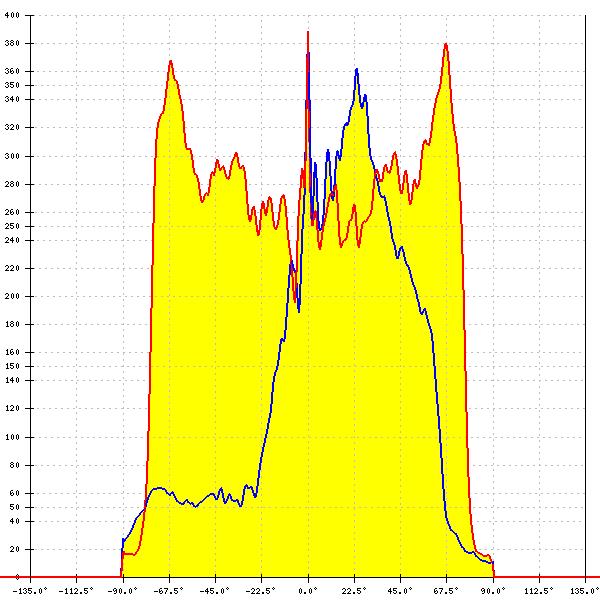

LED: V22 Gen7
Required components:
Bender Wirth: 431 Typ Z1
FWHM: asymmetric
Peak intensity: 0.400 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

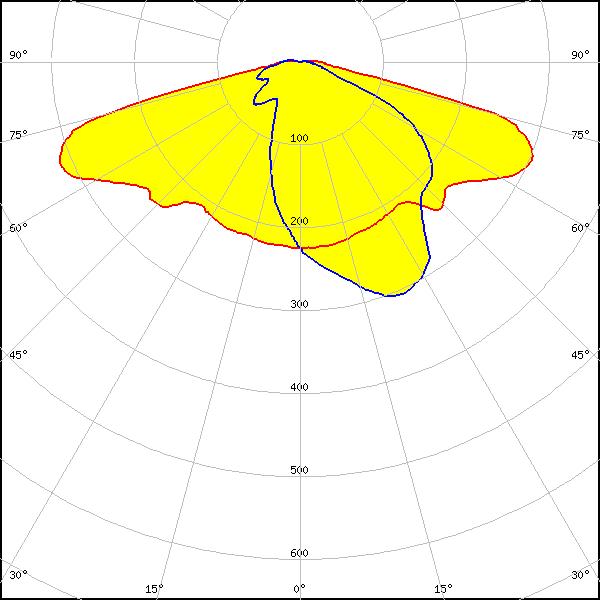

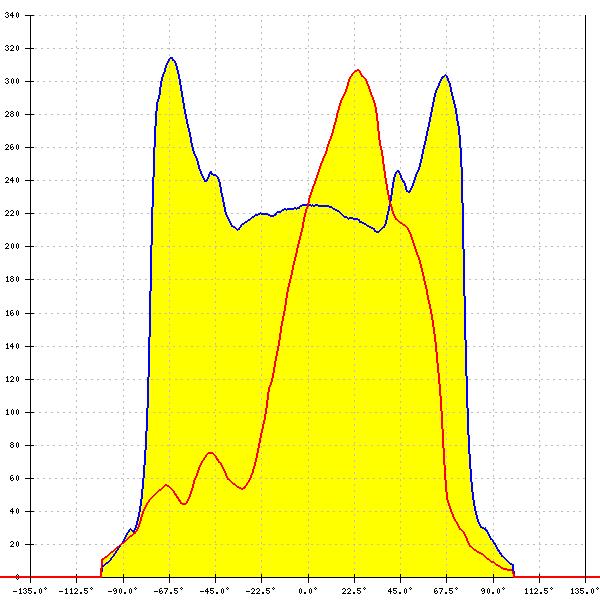

LED: V22 Gen7
Required components:
BJB: 47.319.2030
FWHM: asymmetric
Peak intensity: 0.400 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

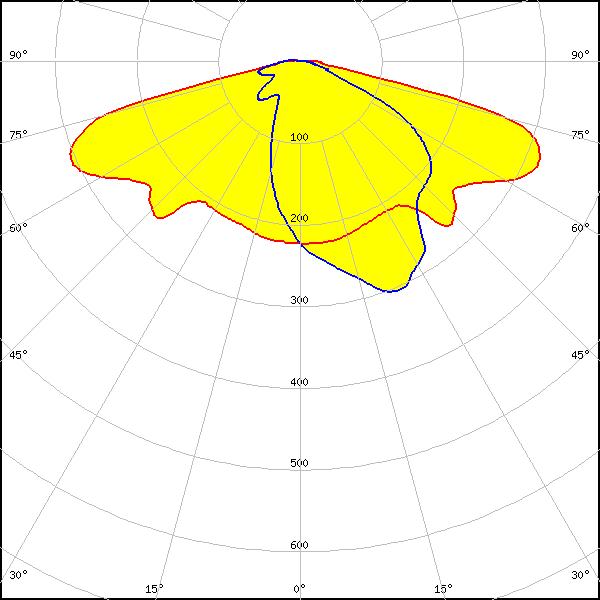

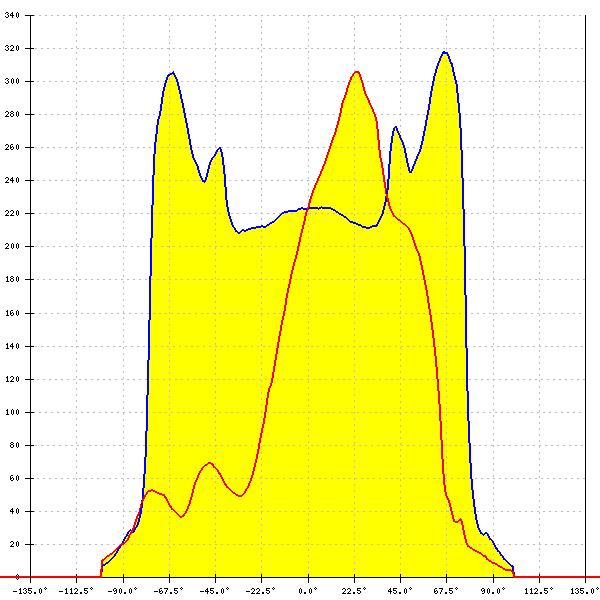

LED: V22 Gen7
Required components:
TE Connectivity: 2213480-1
FWHM: asymmetric
Peak intensity: 0.400 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

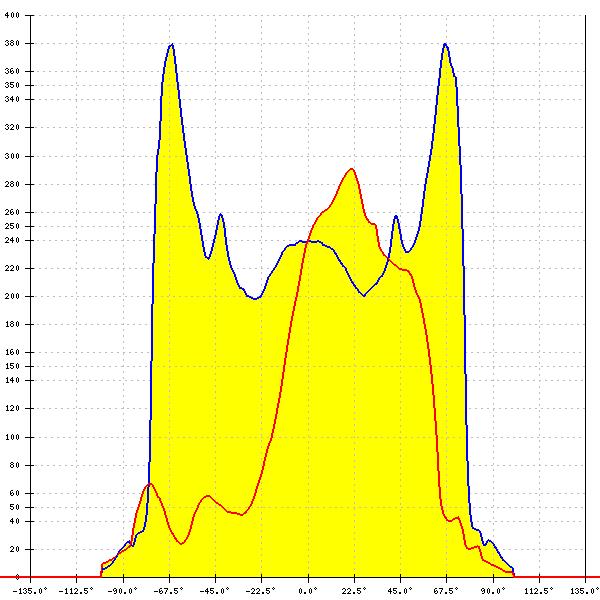

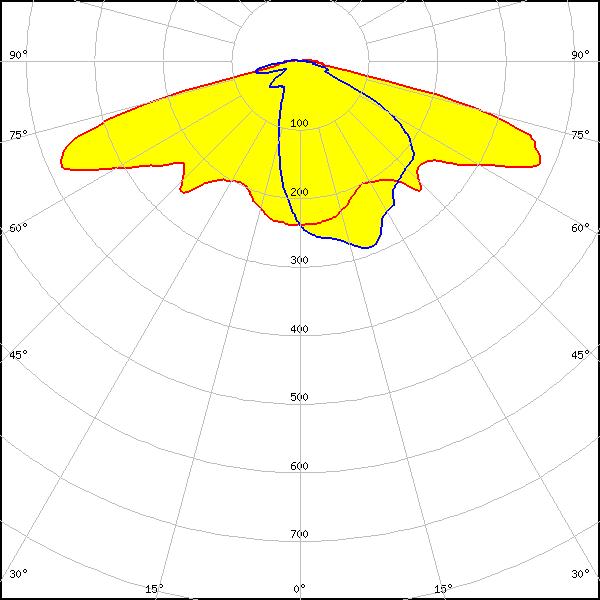

LED: VERO18
FWHM: asymmetric
Peak intensity: 0.430 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

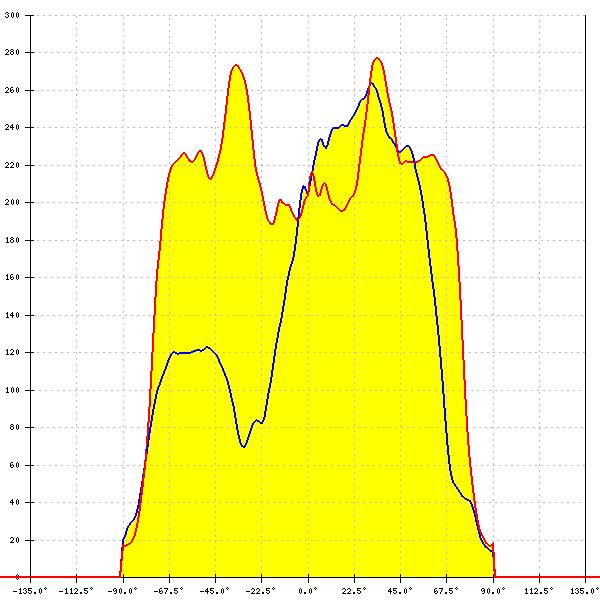

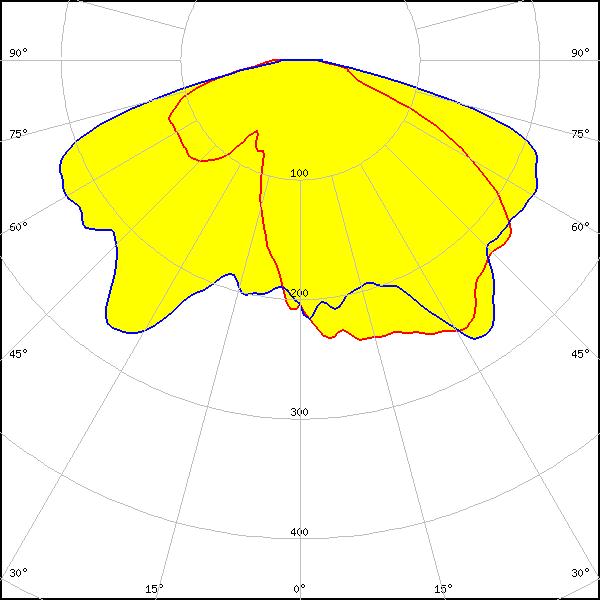

LED: VERO29
FWHM: asymmetric
Peak intensity: 0.354 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

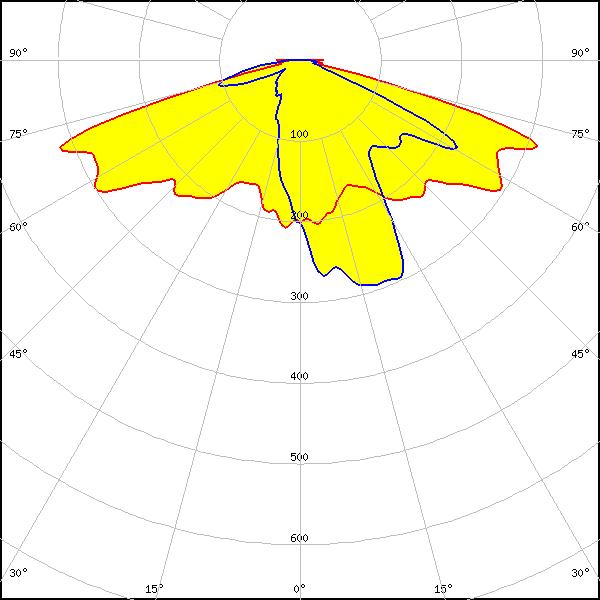

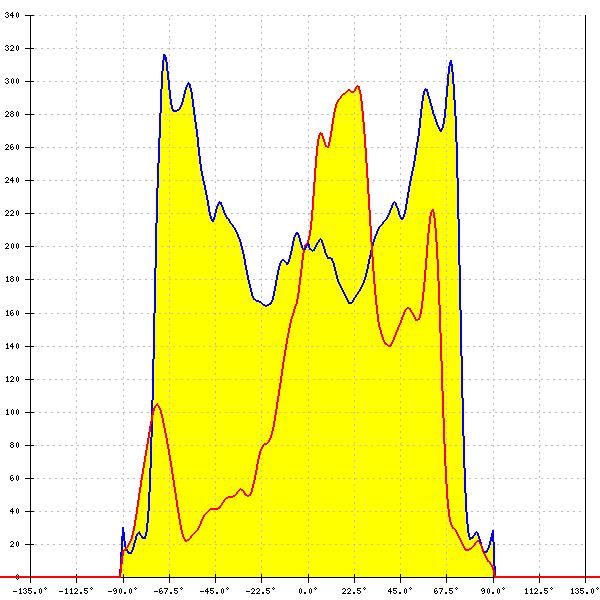

LED: CLL02x/CLU02x (LES10)
FWHM: asymmetric
Peak intensity: 0.638 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

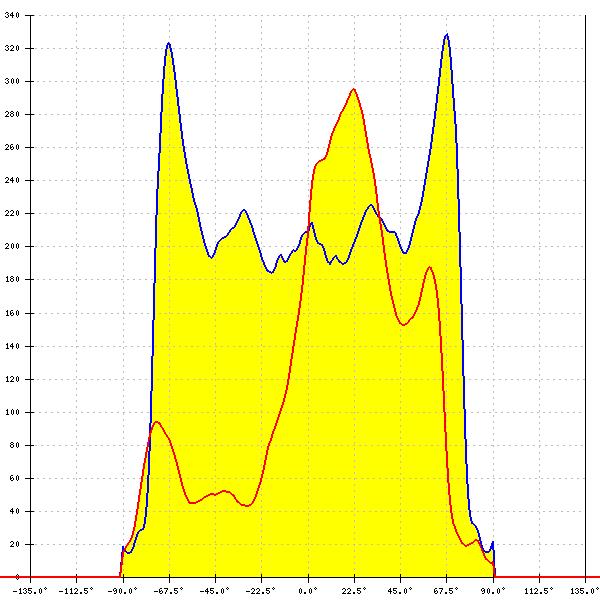

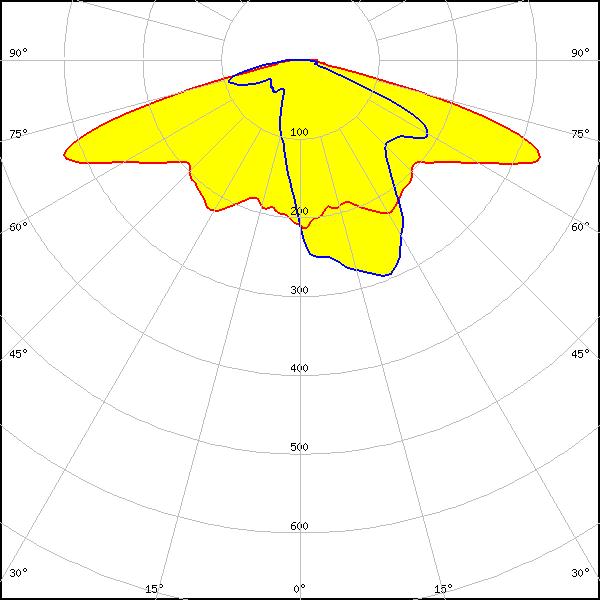

LED: CLL03x/CLU03x
FWHM: asymmetric
Peak intensity: 0.483 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

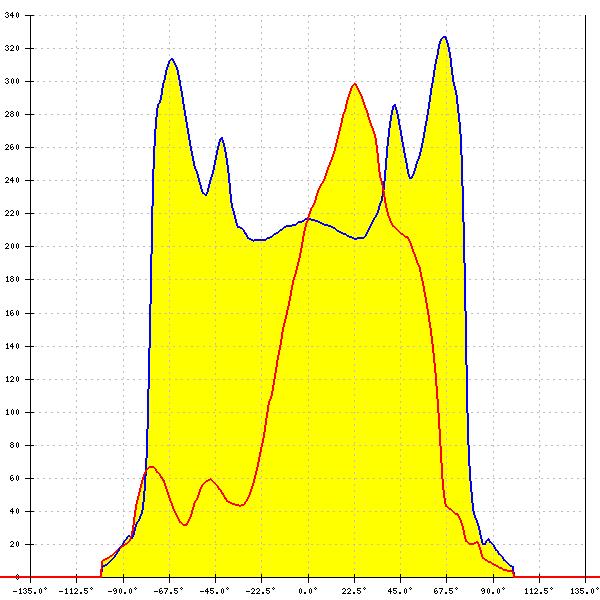

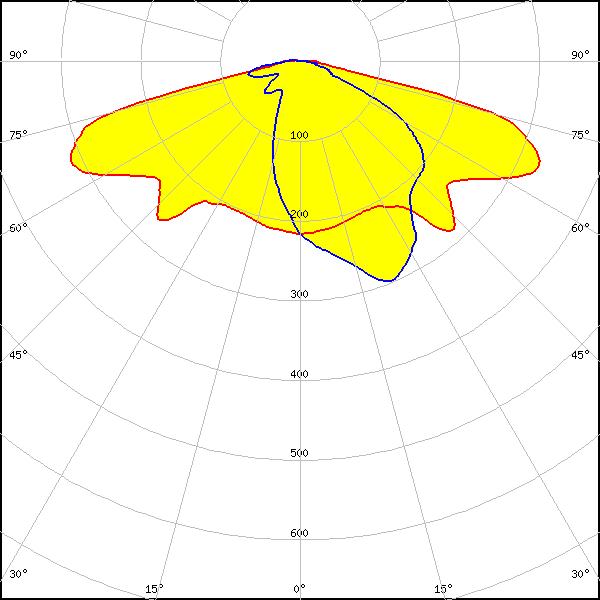

LED: CLL04x/CLU04x
FWHM: asymmetric
Peak intensity: 0.360 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

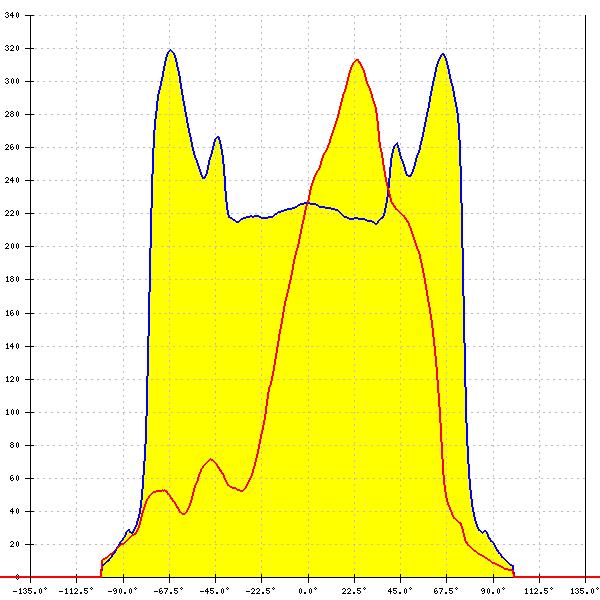

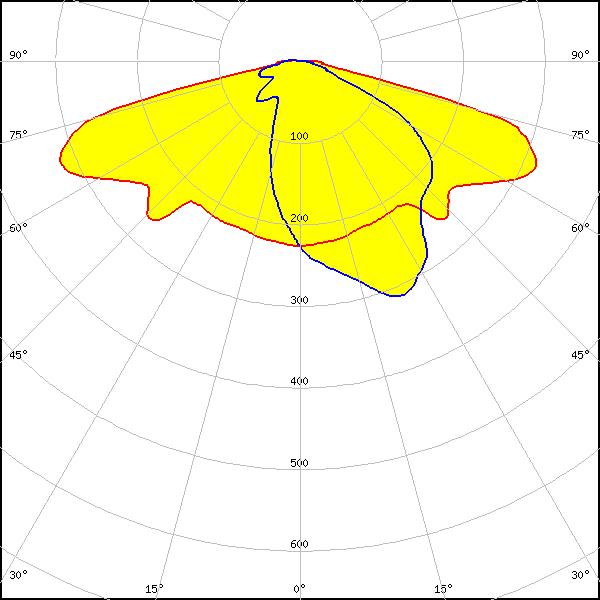

LED: CLL04x/CLU04x
Required components:
BJB: 47.319.2030
FWHM: asymmetric
Peak intensity: 0.370 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

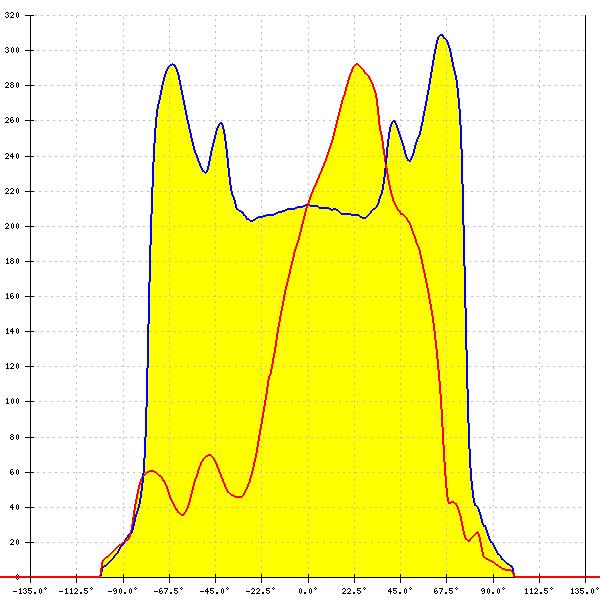

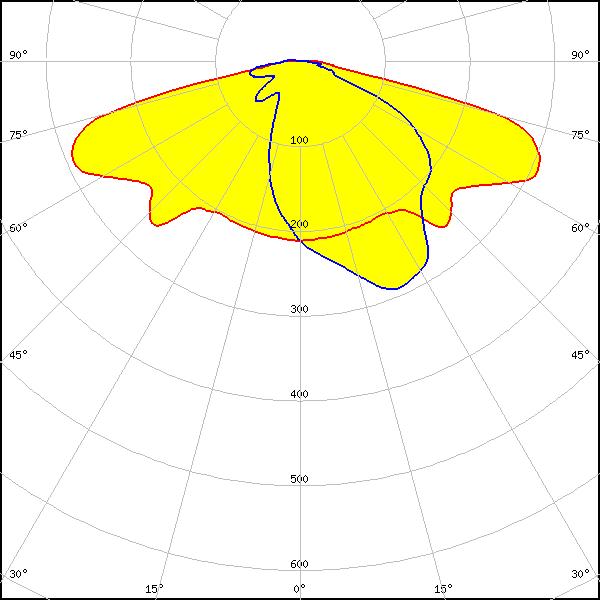

LED: CMA3090
FWHM: asymmetric
Peak intensity: 0.300 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

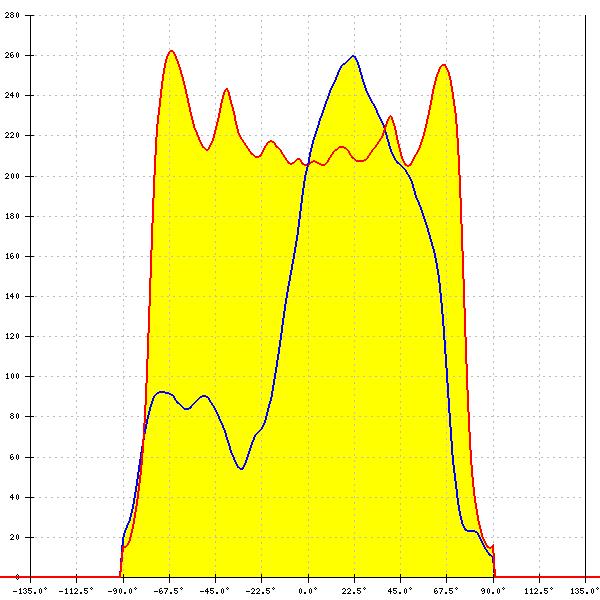

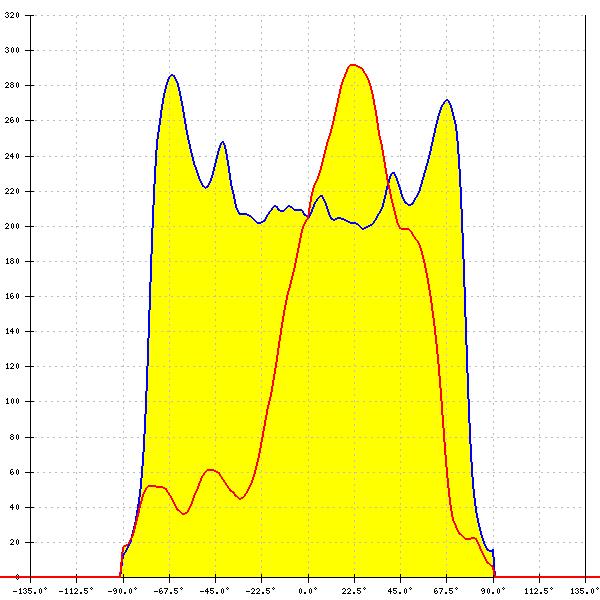

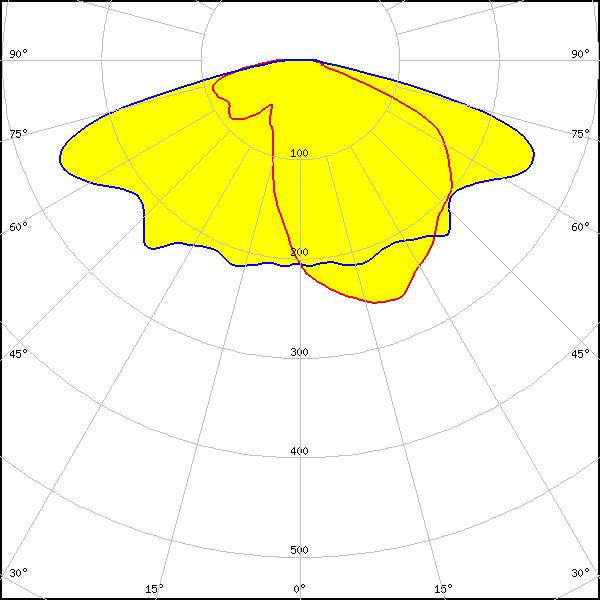

LED: CMT28xx
FWHM: asymmetric
Peak intensity: 0.352 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White
LED: CMT28xx
FWHM: asymmetric
Peak intensity: 0.332 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

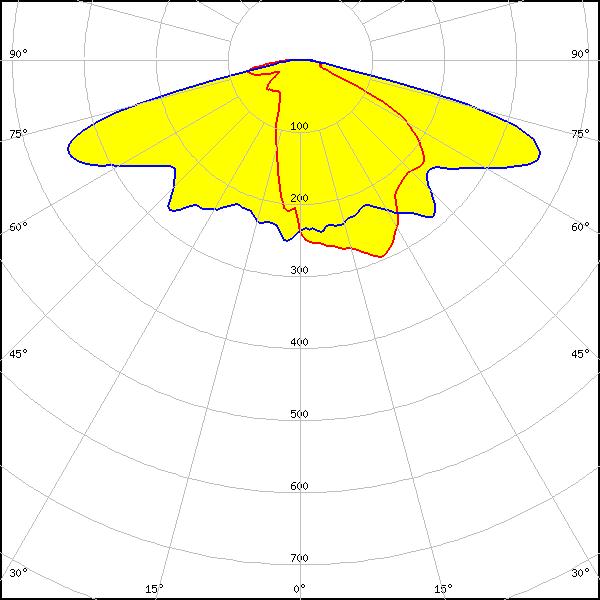

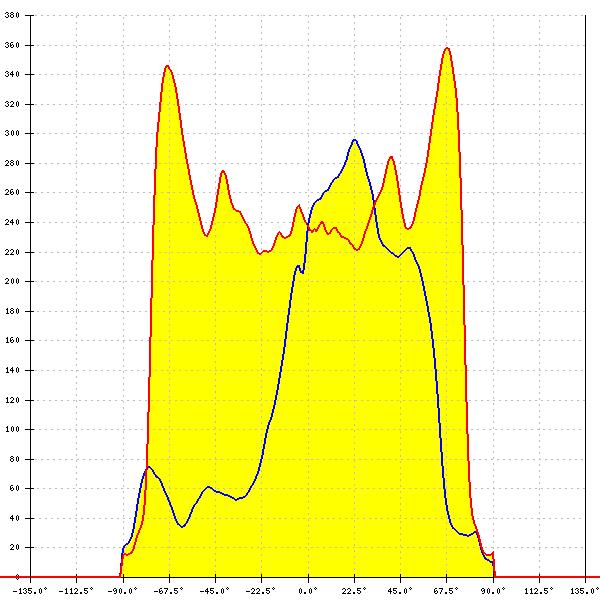

LED: LUXEON CoB 1211
FWHM: asymmetric
Peak intensity: 0.410 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

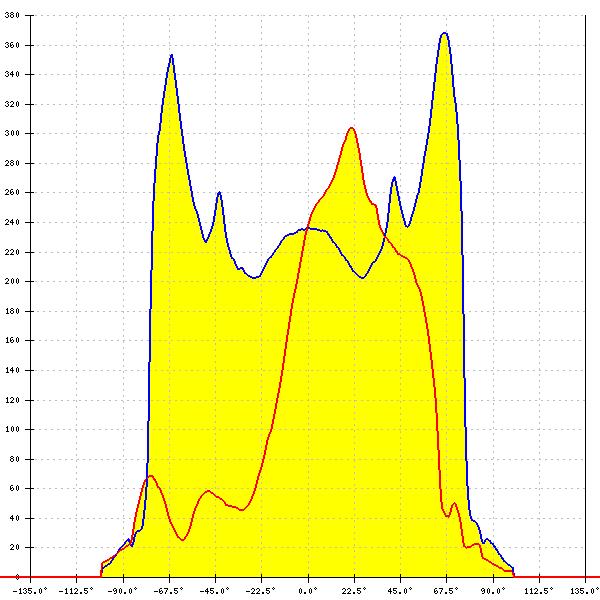

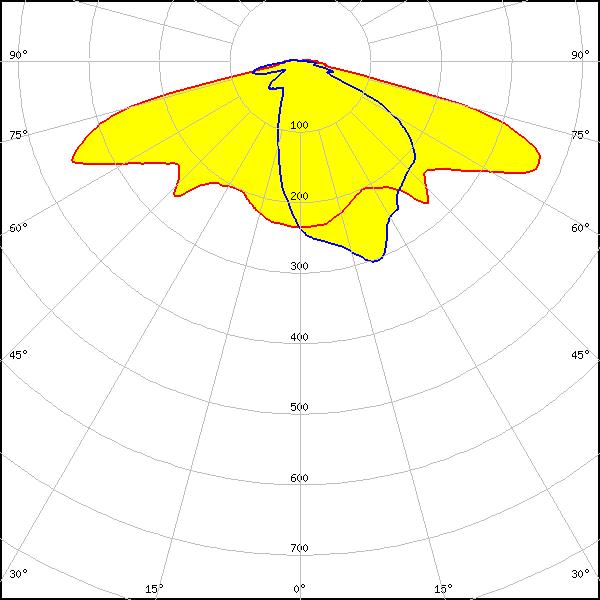

LED: LUXEON CoB 1211
Required components:
Bender Wirth: 431 Typ L3
FWHM: asymmetric
Peak intensity: 0.410 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

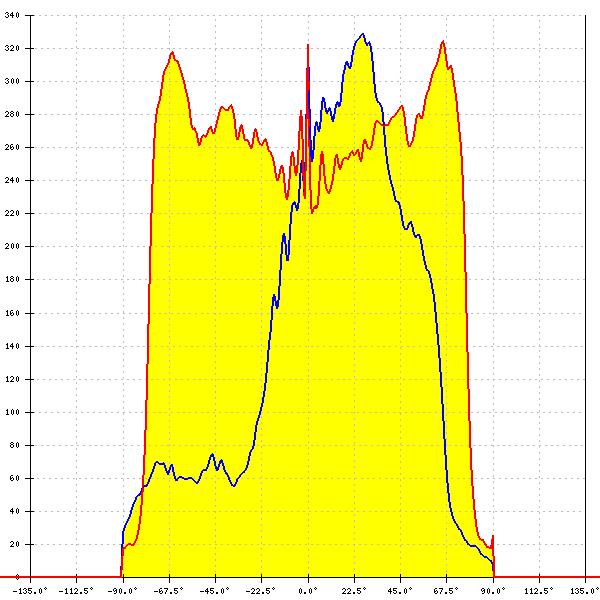

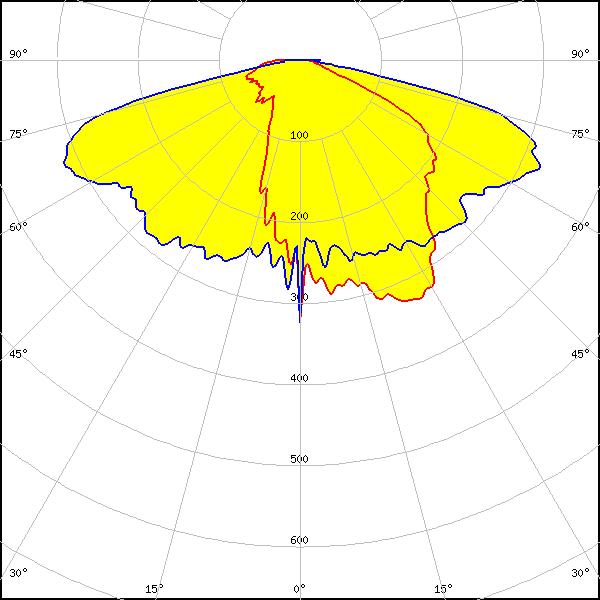

LED: LUXEON CoB 1216/1812
LEDs/each optic: 1
Light colour: White

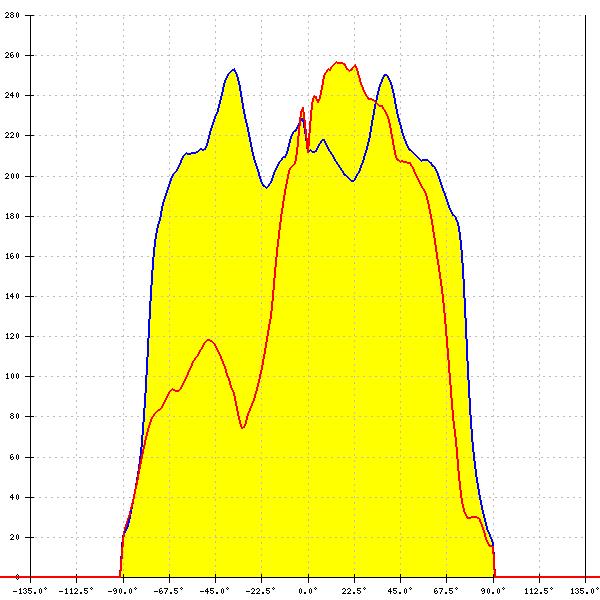

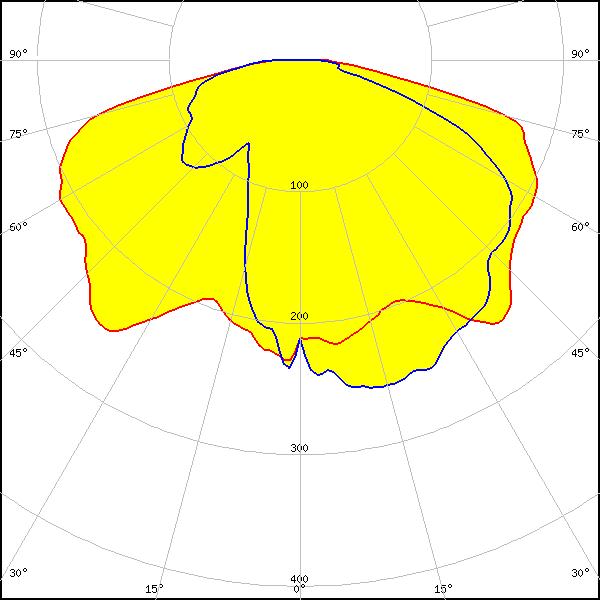

LED: LUXEON CoB 1321
FWHM: asymmetric
Peak intensity: 0.307 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

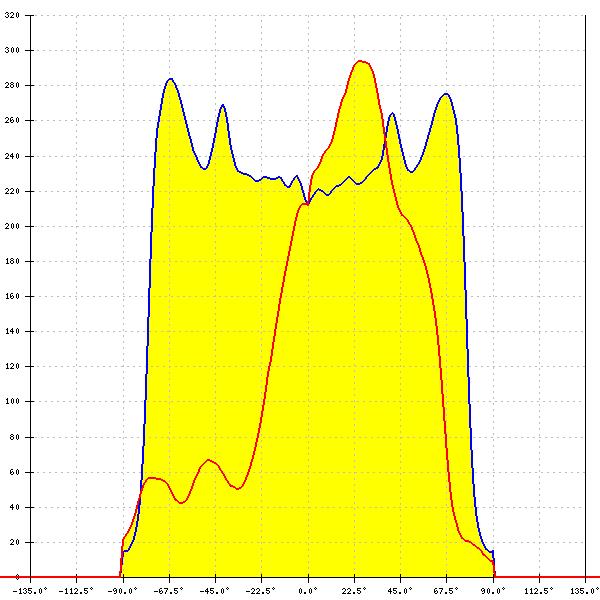

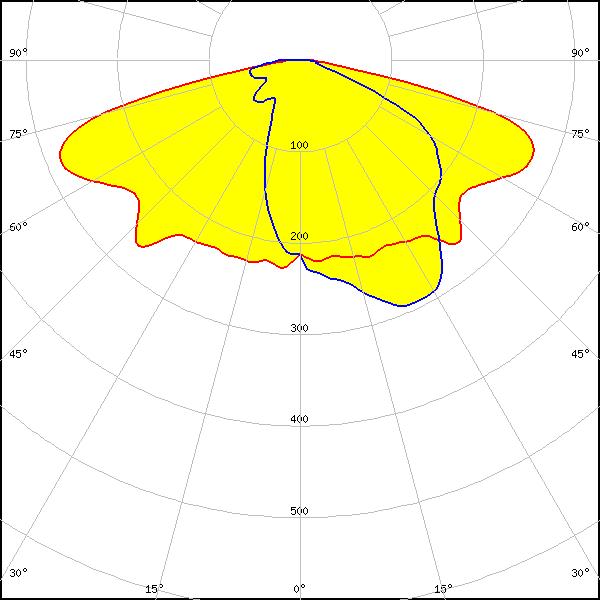

LED: Fortimo SLM L23 + SLM holder (PI)
FWHM: asymmetric
Peak intensity: 0.340 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

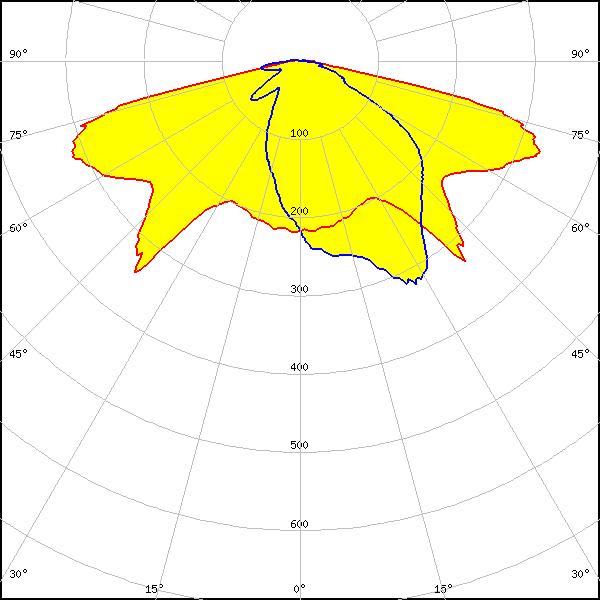

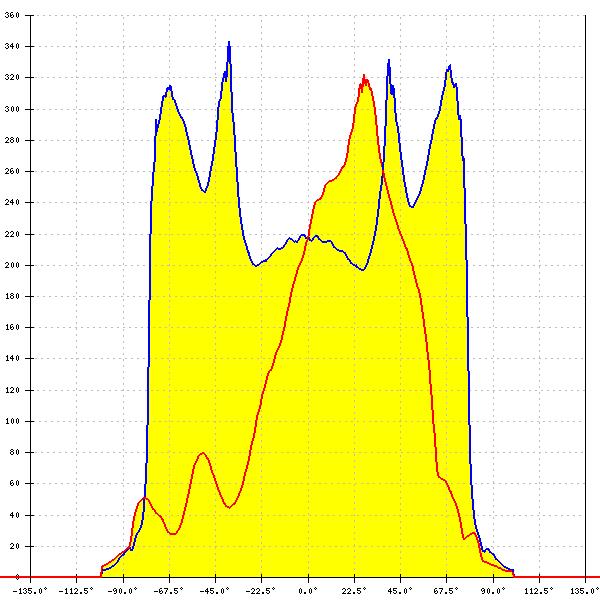

LED: LC040D / LC060D / LC080D
FWHM: asymmetric
Peak intensity: 0.370 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

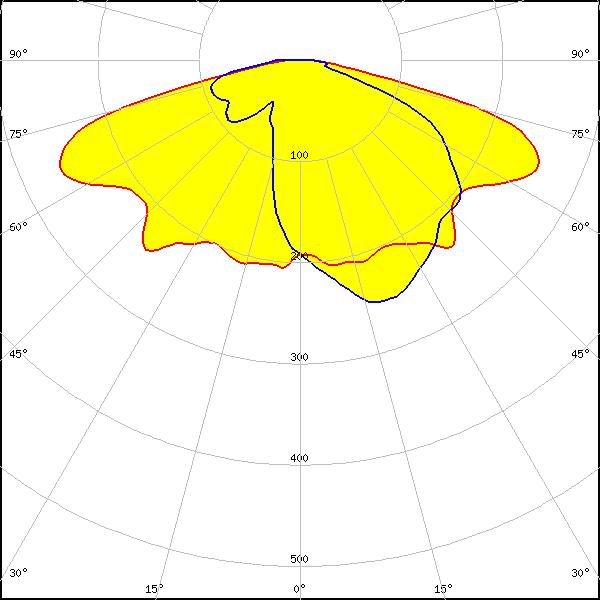

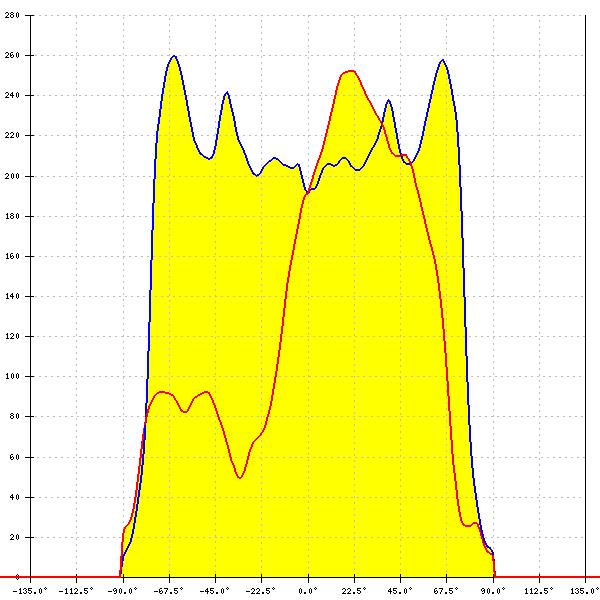

LED: MJT COB LES 22
FWHM: asymmetric
Peak intensity: 0.347 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

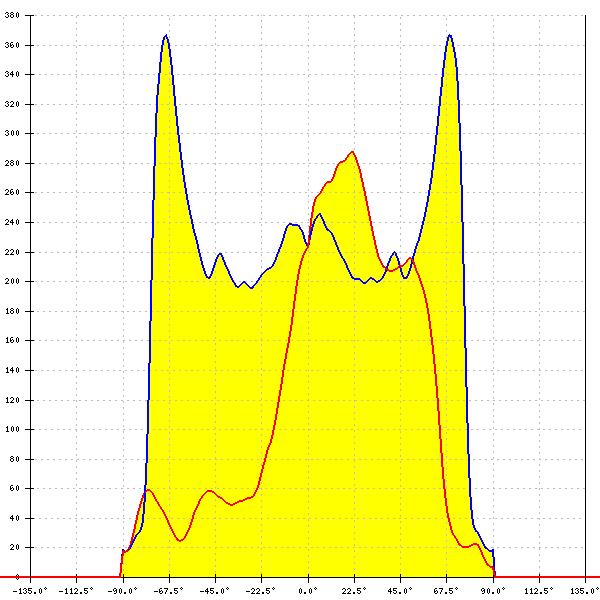

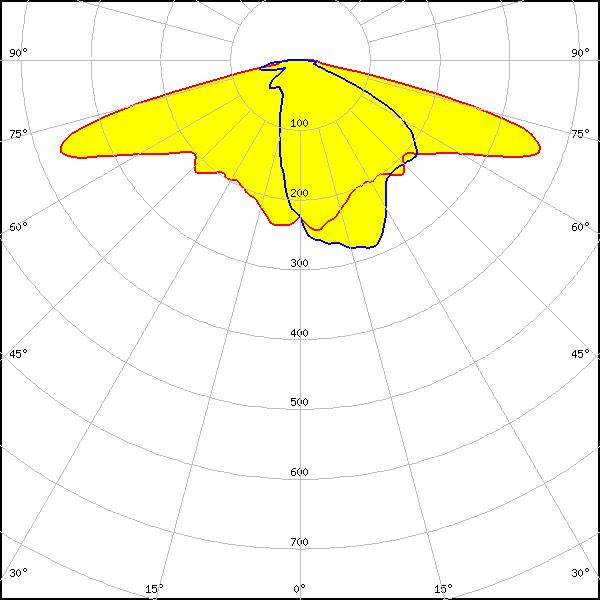

LED: SLE G7 LES17
Required components:
Bender Wirth: 466 Typ Z1
FWHM: asymmetric
Peak intensity: 0.408 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White
