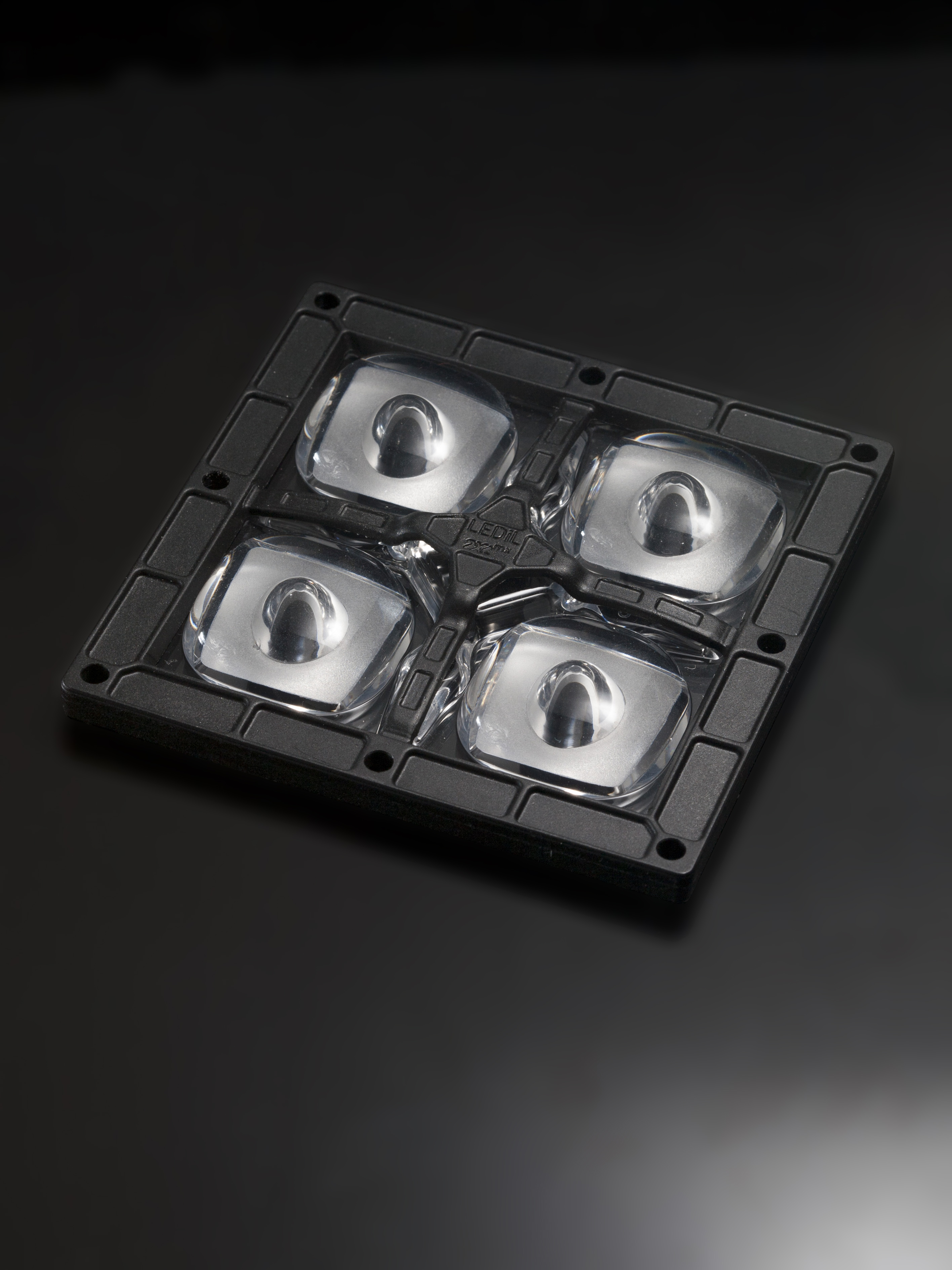

FP15812_STRADA-2X2MXS-VSM

Print

IESNA Type V (square) for wide areas lighting such as car parks. New revision.

Specification
  • Dimensions:
    90 x  90 mm
  • Height:
    13.00 mm
  • Fastening:
    screw
  • Colour:
    black
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    192 pcs
  • Box size:
    398 x 298 x 265 mm
  • Box weight:
    10.8 kg
  • MPQ:
    12 pcs
  • MOQ:
    24 pcs
  • MOQ size:
    480 x 280 x 50 mm
  • MOQ weight:
    1.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    FP15812_STRADA-2X2MXS-VSM
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

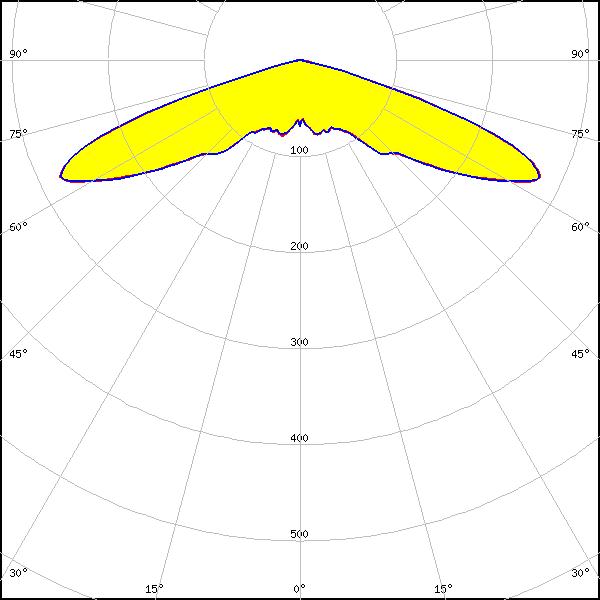

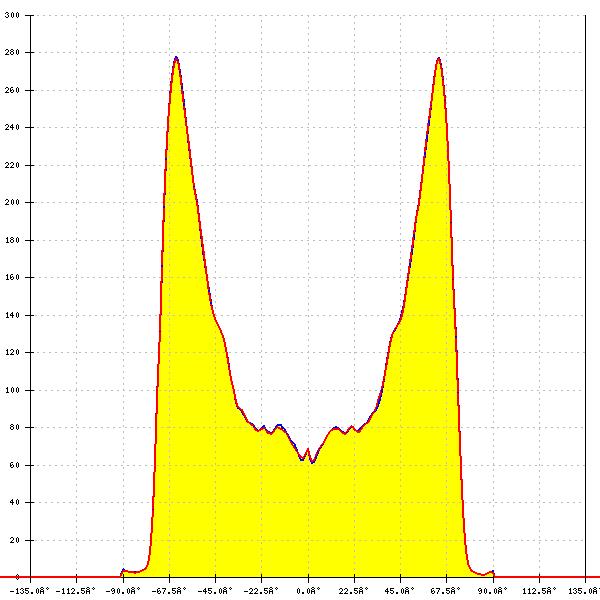

Optical results

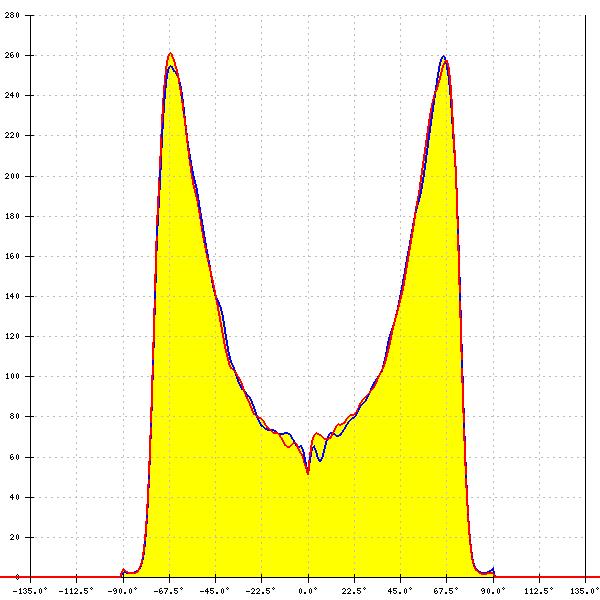

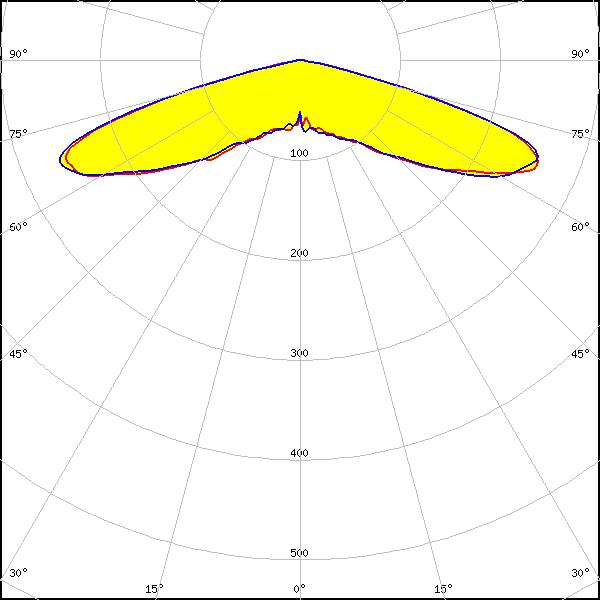

LED: Bridgelux SMD 5050
FWHM: asymmetric
Peak intensity: 0.380 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

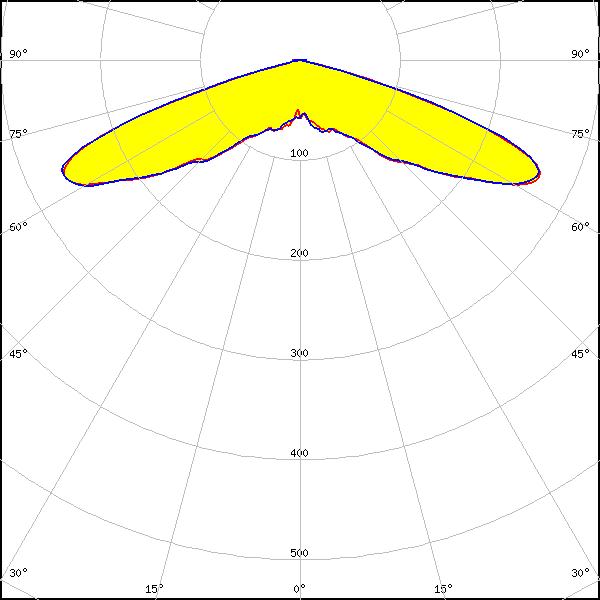

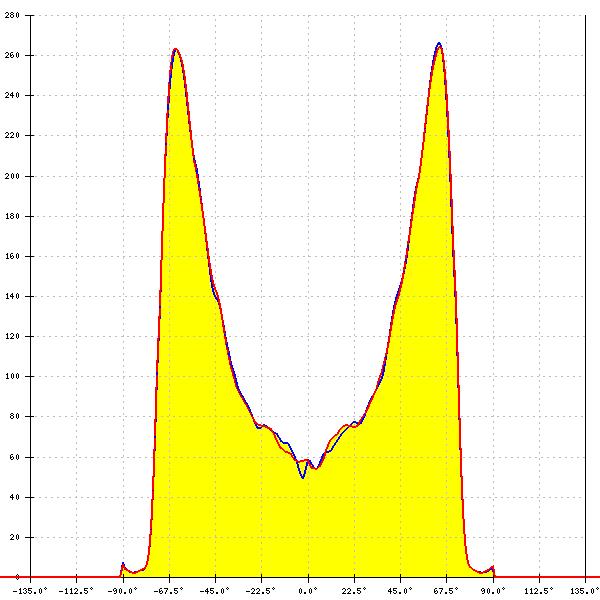

LED: V3 HD Gen 8
Required components:
Bender Wirth: 460 Typ 2x2MX HV
FWHM: 144°
FWTM: 152°
Peak intensity: 0.393 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

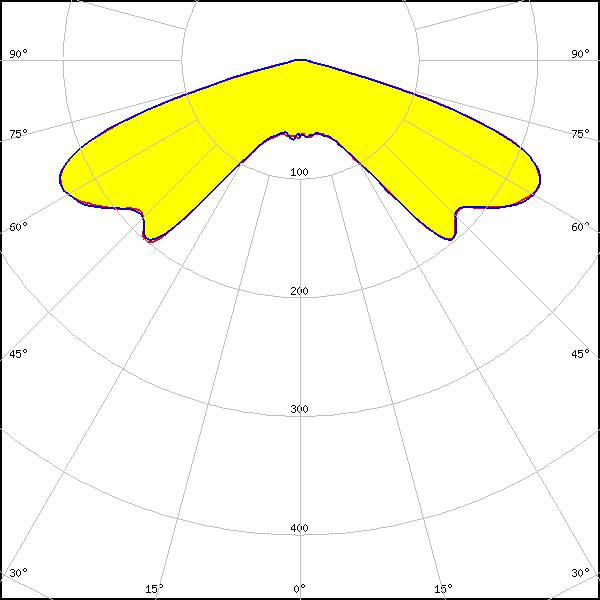

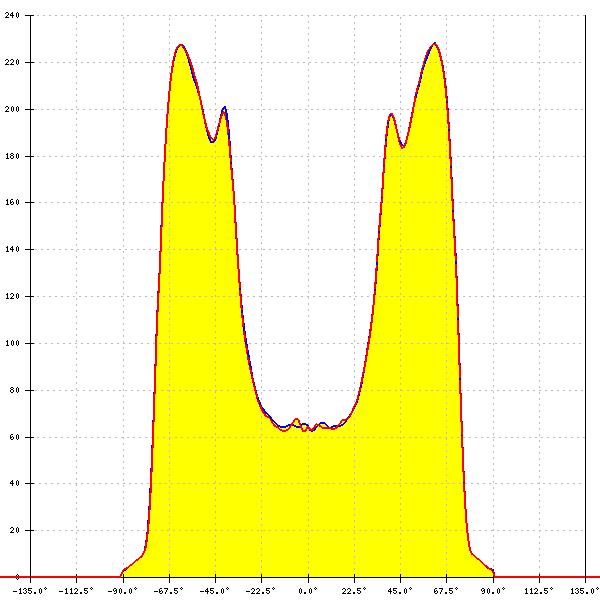

LED: CLL02x/CLU02x (LES10)
Required components:
Bender Wirth: 434 Typ 2x2MX HV
FWHM: asymmetric
Peak intensity: 0.307 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

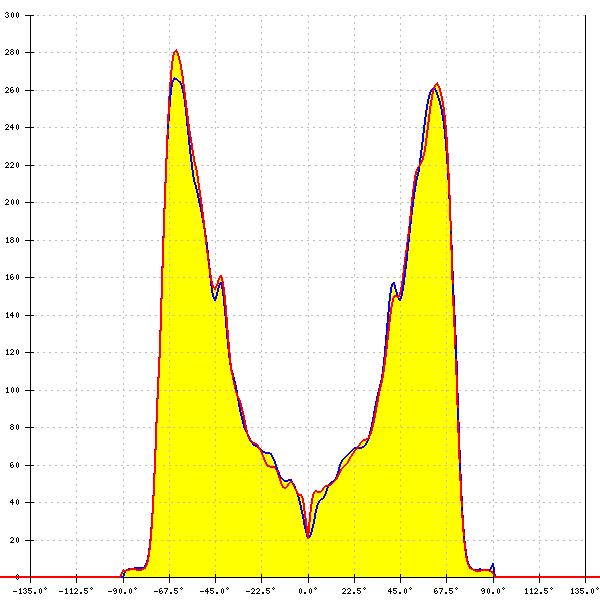

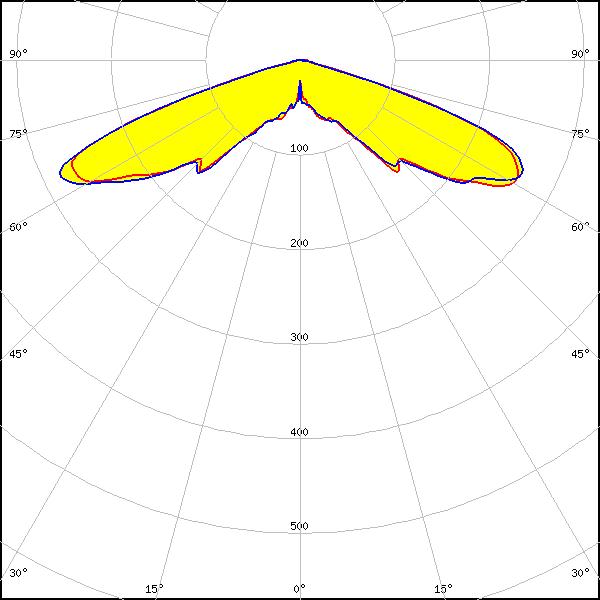

LED: CLU700/701/702/703
Required components:
Bender Wirth: 434 Typ 2x2MX HV
FWHM: asymmetric
Peak intensity: 0.400 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

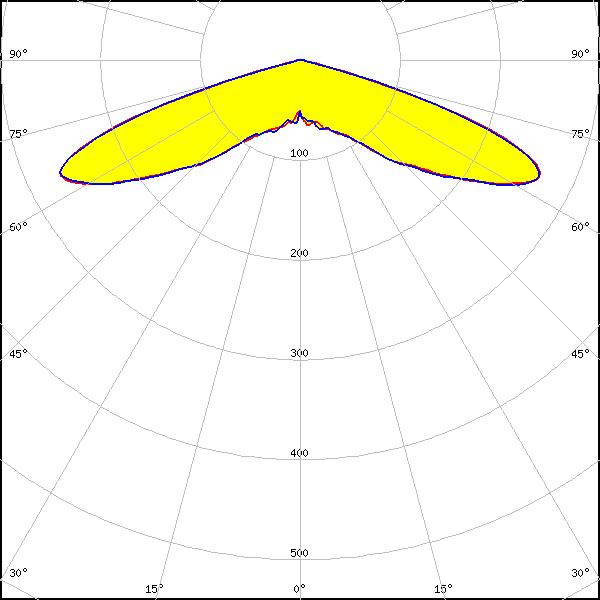

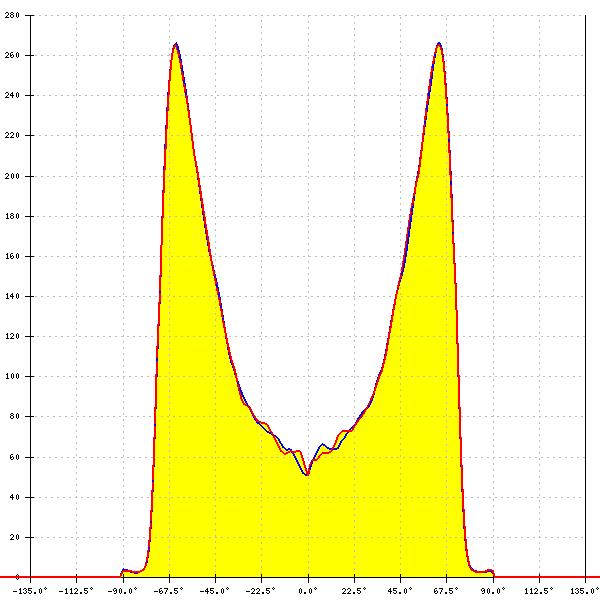

LED: CMA1303
Required components:
Bender Wirth: 448 Typ 2x2MX HV
FWHM: 144°
FWTM: 152°
Peak intensity: 0.386 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

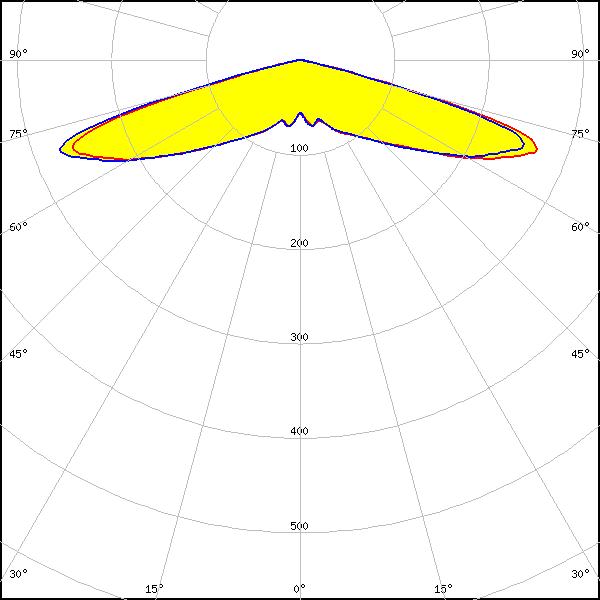

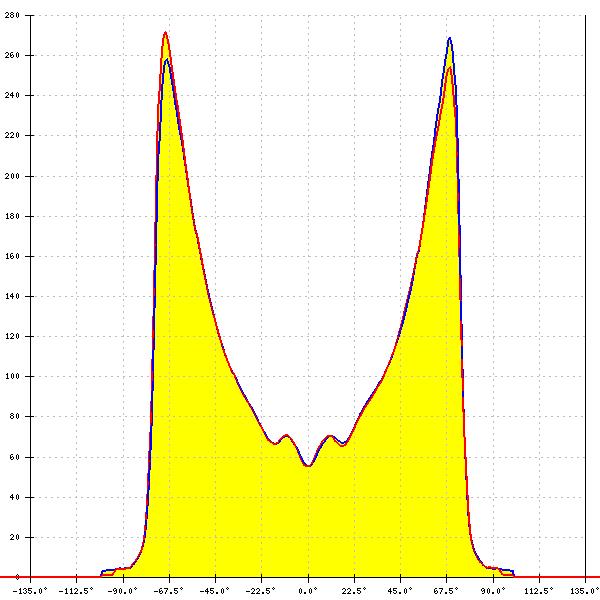

LED: XHP50
FWHM: asymmetric
Peak intensity: 0.380 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

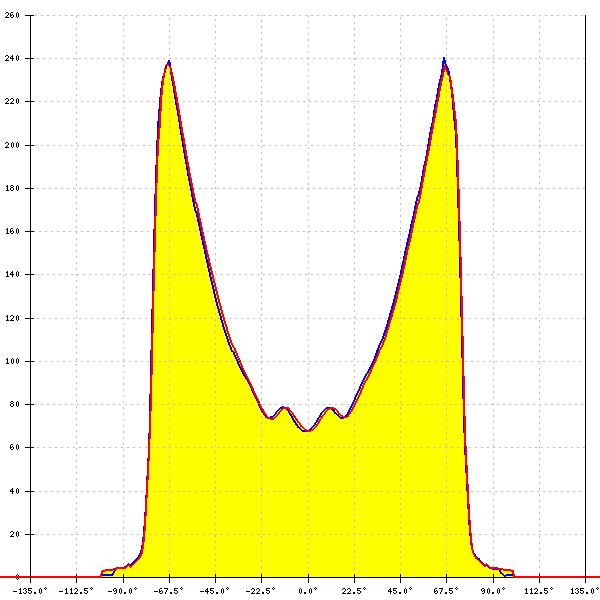

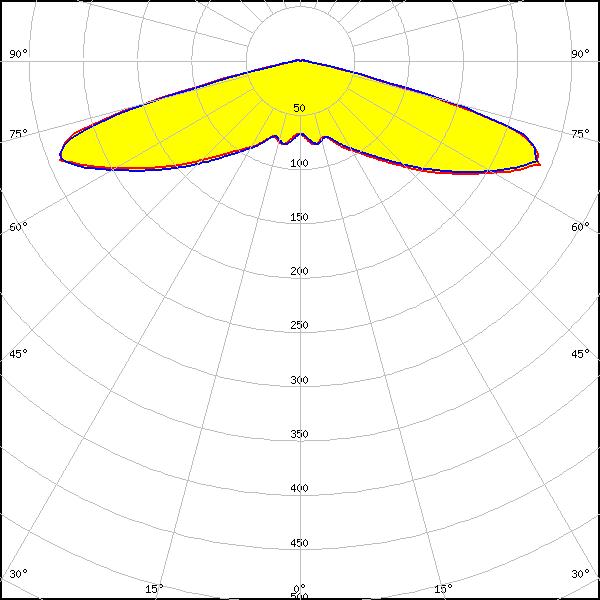

LED: XHP50.2
FWHM: asymmetric
Peak intensity: 0.360 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP70
FWHM: asymmetric
Peak intensity: 0.520 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

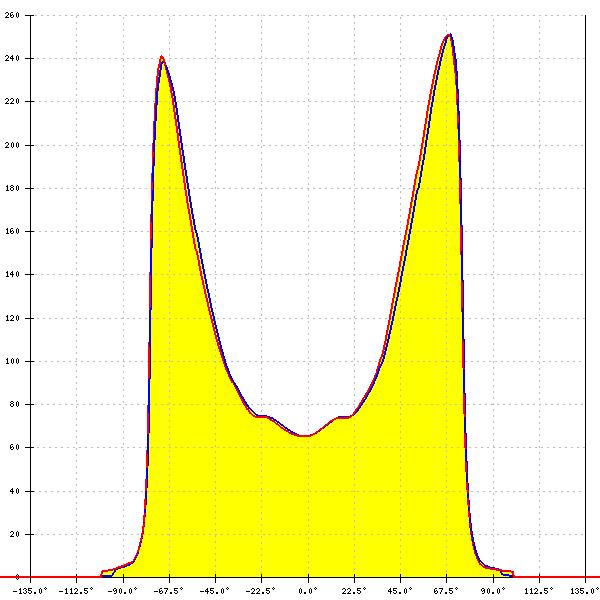

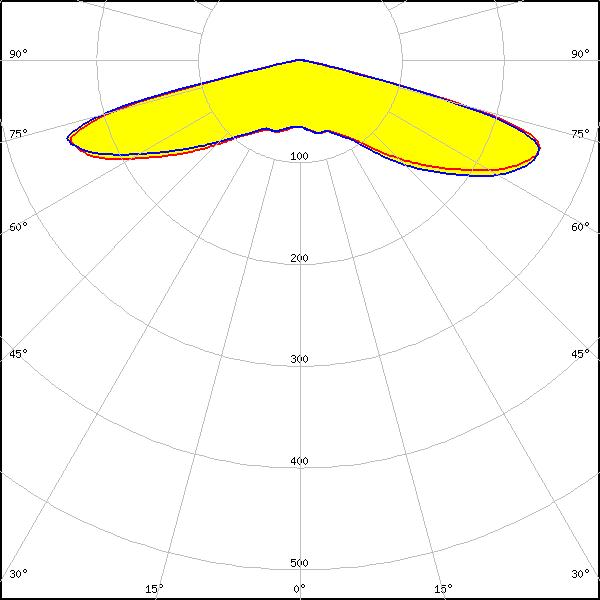

LED: XHP70.2
FWHM: asymmetric
Peak intensity: 0.600 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

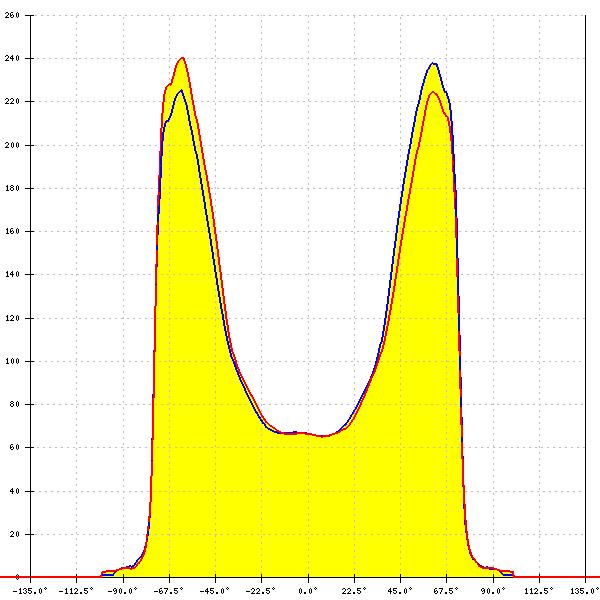

LED: XT-E HE
FWHM: 148°
FWTM: 154°
Peak intensity: 0.350 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

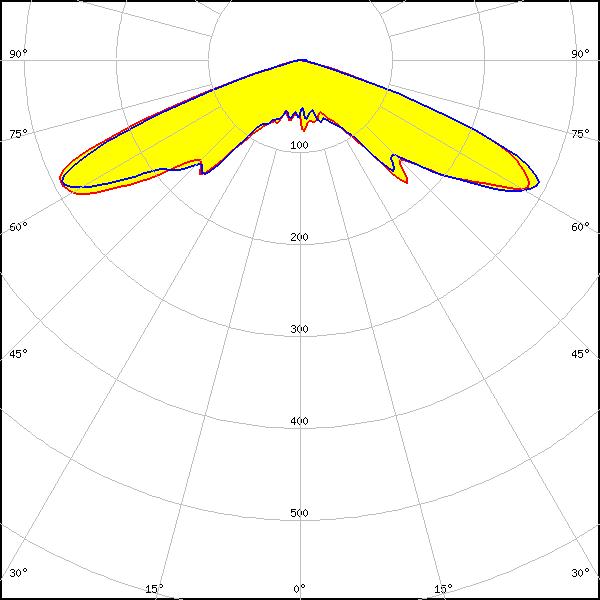

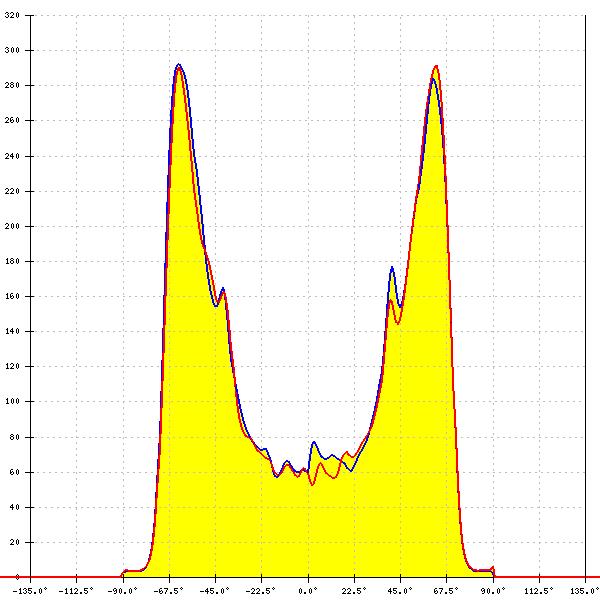

LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.418 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

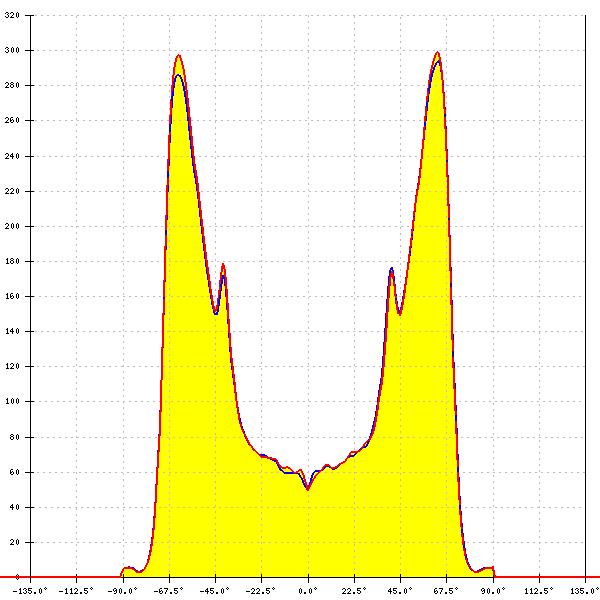

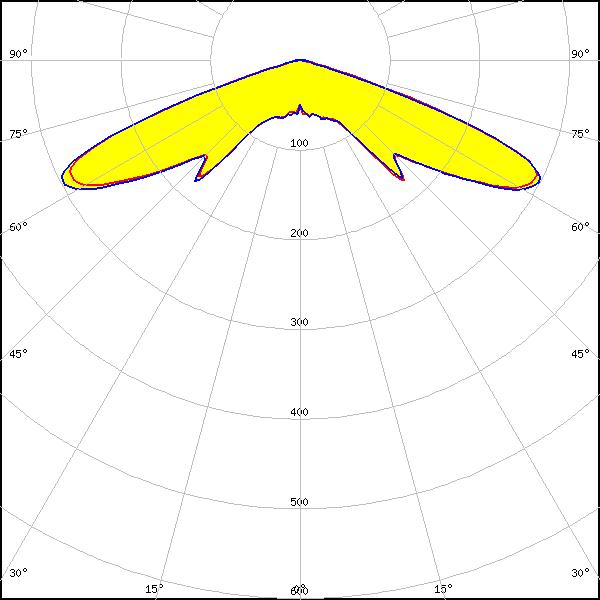

LED: LUXEON 5050 Square LES
FWHM: 141°
FWTM: 150°
Peak intensity: 0.445 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

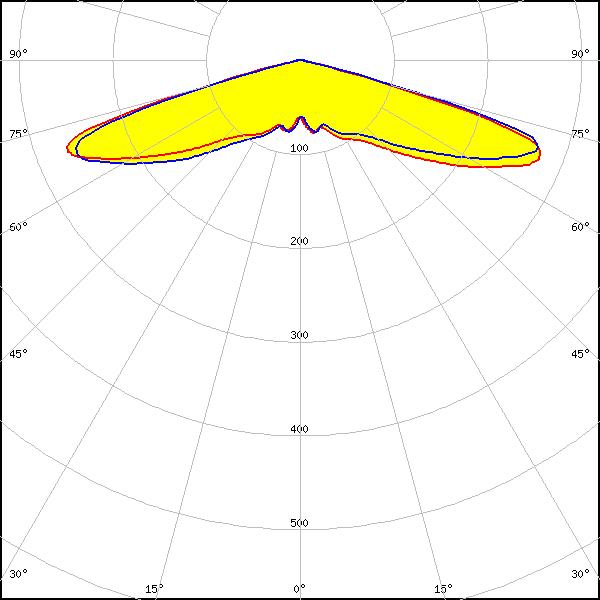

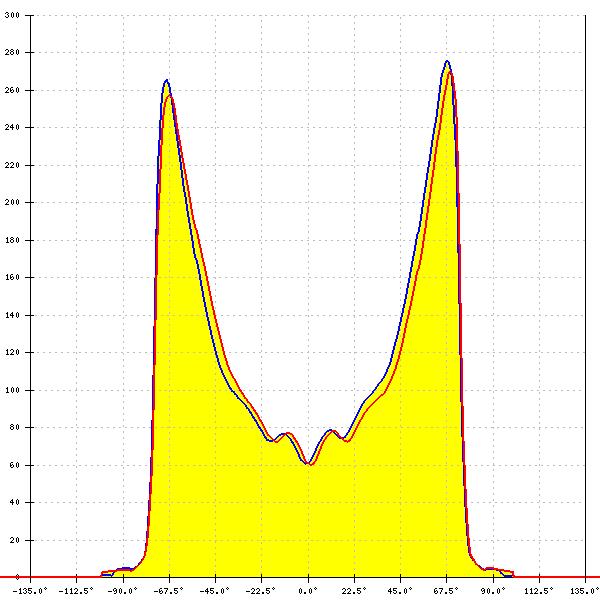

LED: LUXEON M/MX
FWHM: asymmetric
Peak intensity: 0.410 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

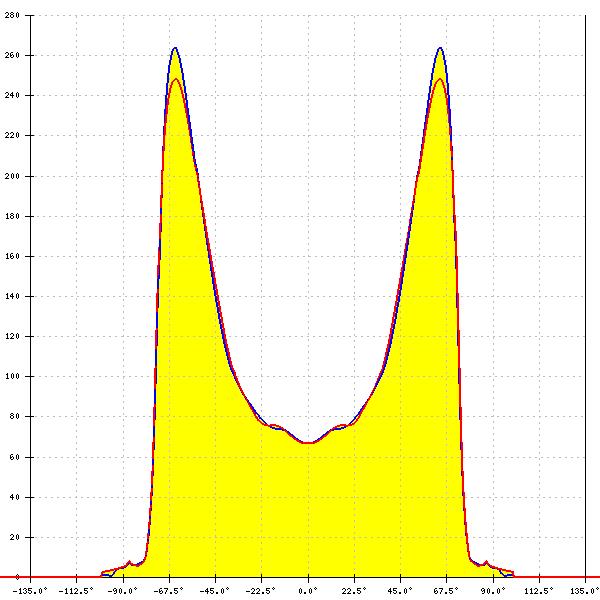

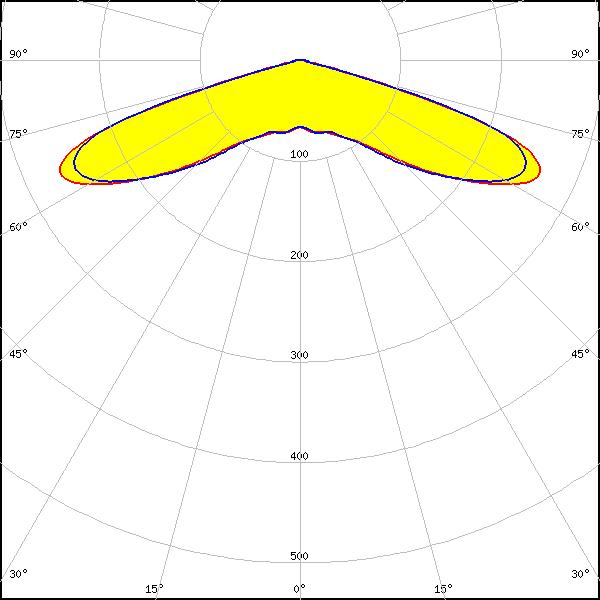

LED: LUXEON XR-7070 (L224-xxxx004MLU010)
FWHM: 146°
FWTM: 154°
Peak intensity: 0.385 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

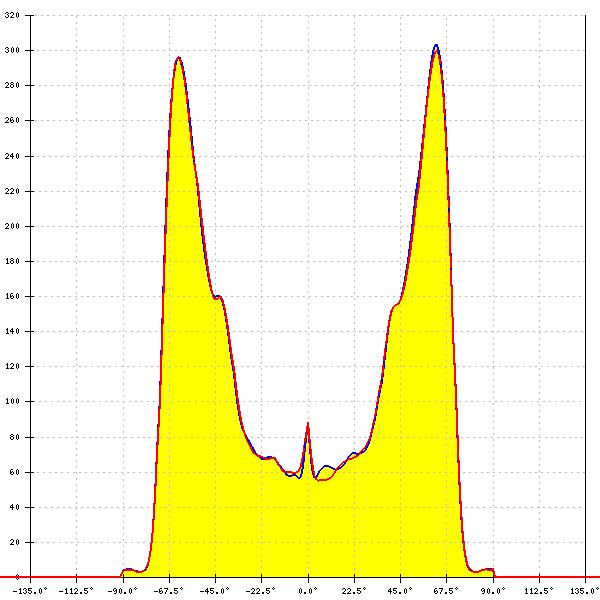

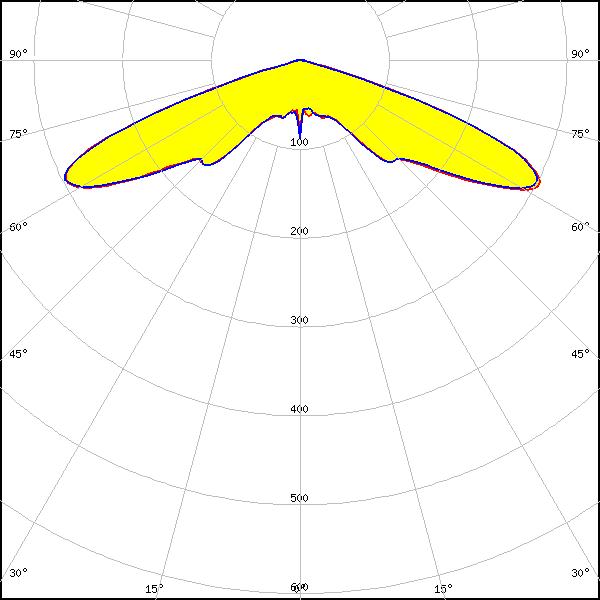

LED: NFMW48xA
FWHM: asymmetric
Peak intensity: 0.430 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

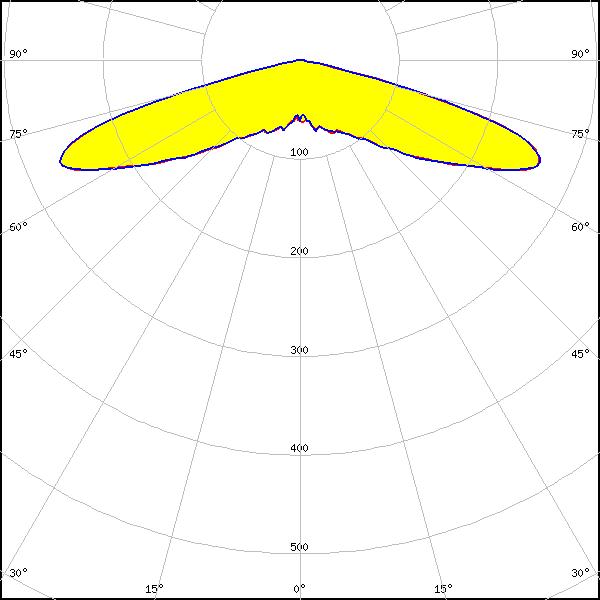

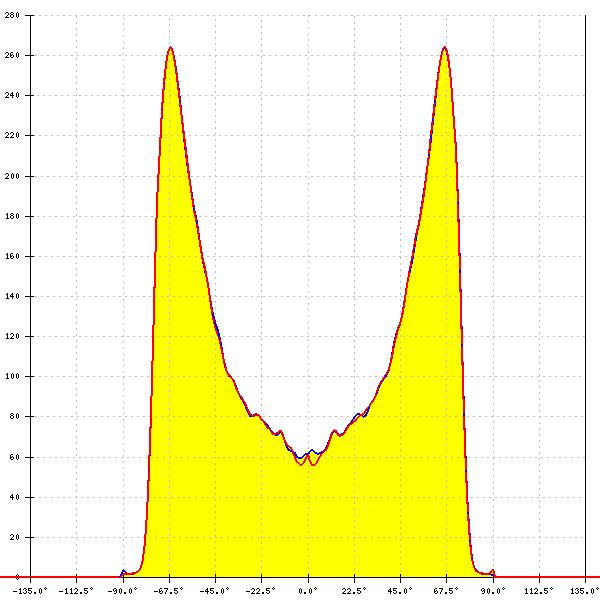

LED: NV4WB35AM
FWHM: 150°
FWTM: 156°
Peak intensity: 0.401 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

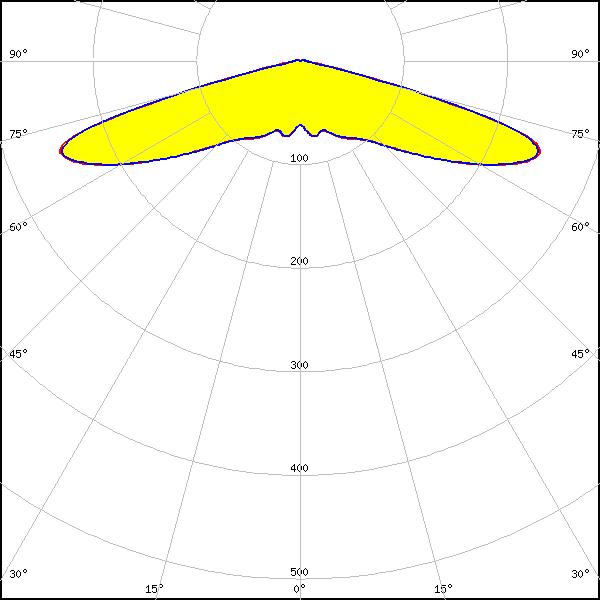

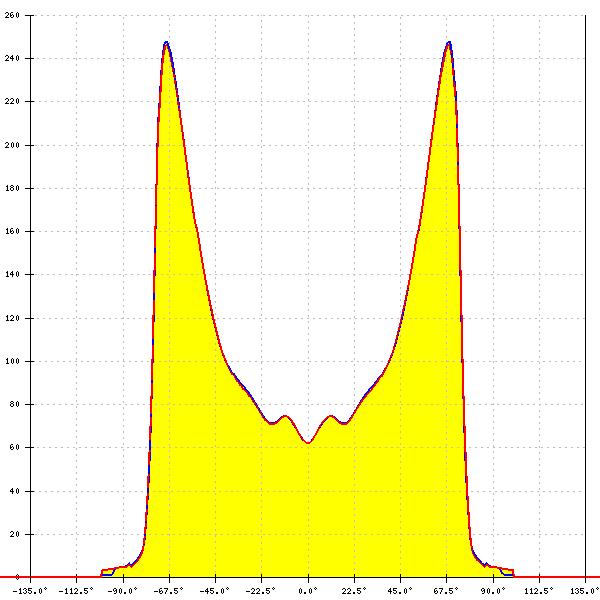

LED: NV4x144A
FWHM: 149°
FWTM: 157°
Peak intensity: 0.389 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

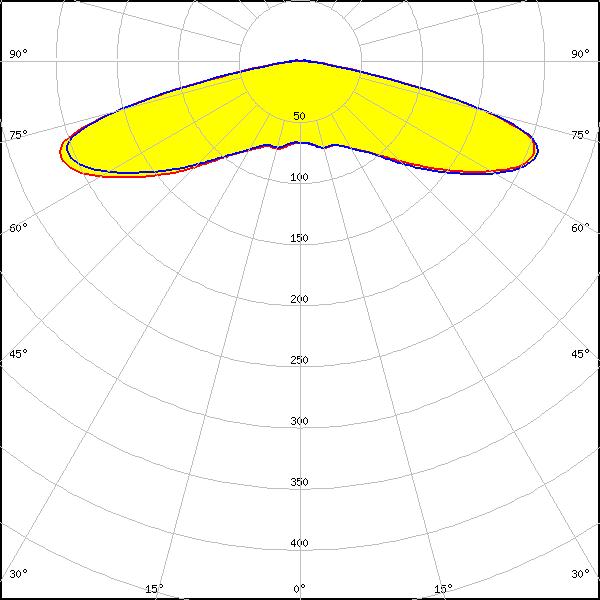

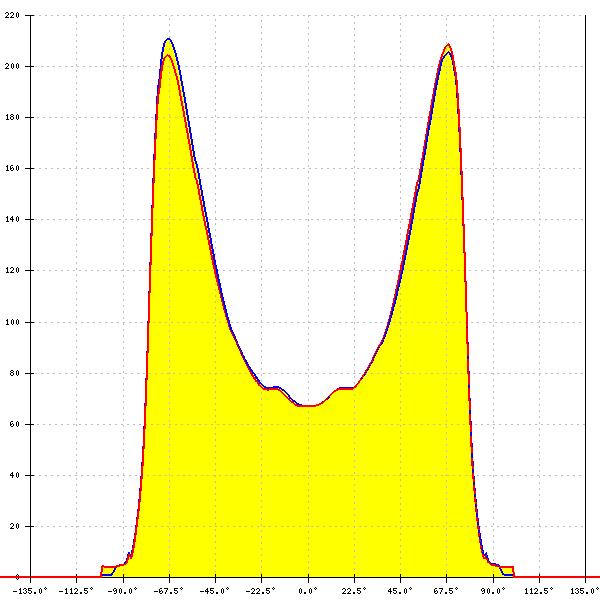

LED: NV9W149AM
FWHM: asymmetric
Peak intensity: 0.320 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

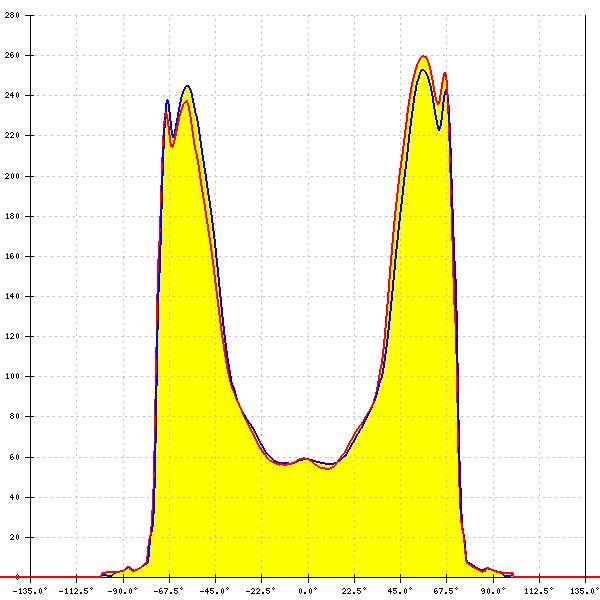

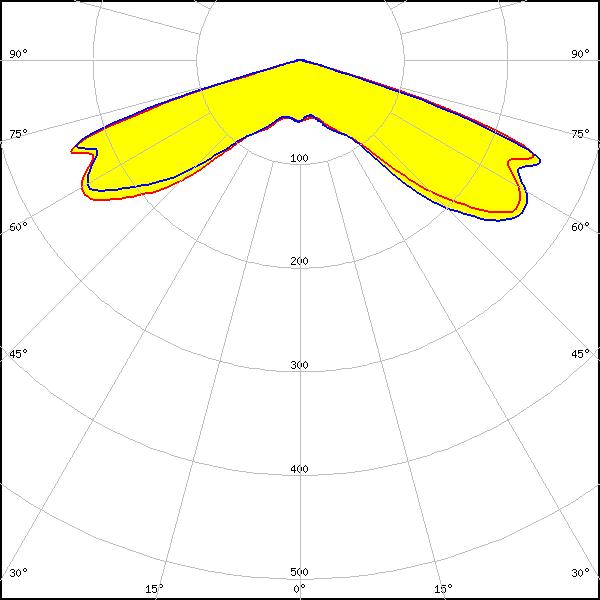

LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.400 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour/type: White

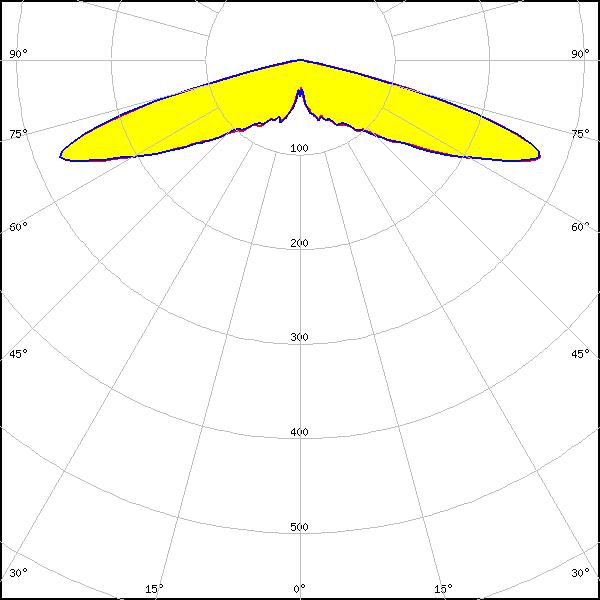

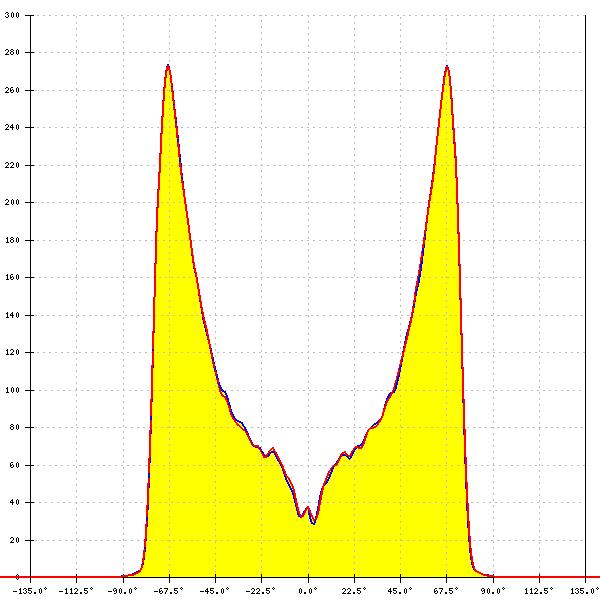

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 150°
FWTM: 156°
Peak intensity: 0.416 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: Hyper Red

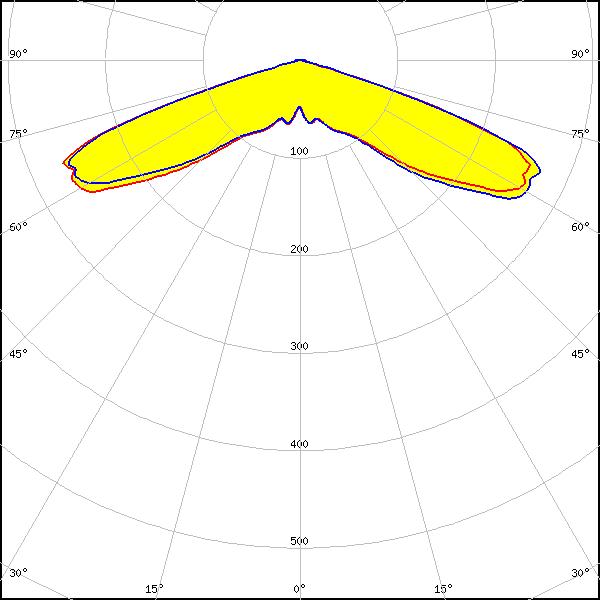

LED: HiLOM SC16 (LH181B)
FWHM: asymmetric
Peak intensity: 0.430 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

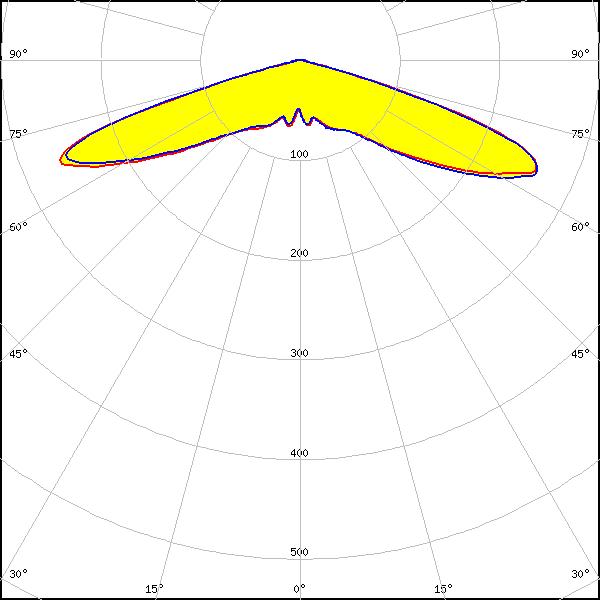

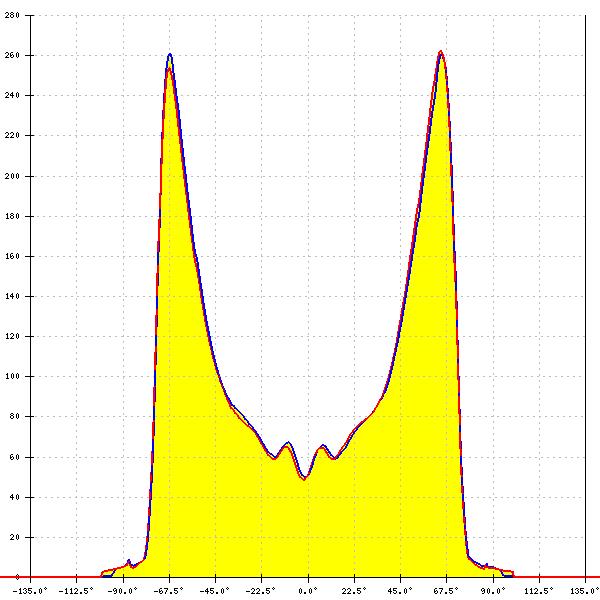

LED: XLE-S22C4XD16 (XD16)
FWHM: asymmetric
Peak intensity: 0.452 cd/lm
Efficiency: 88 %
LEDs/each optic: 4
Light colour/type: White

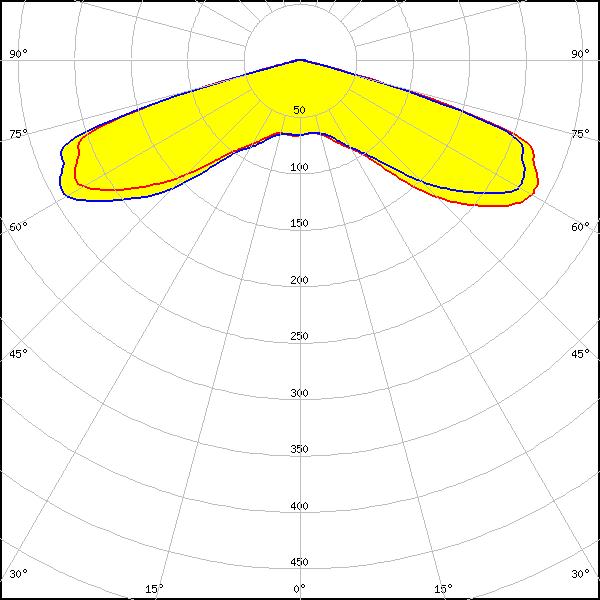

LED: XLE-S22C4XTEHE (XT-E HE)
FWHM: 148°
FWTM: 154°
Peak intensity: 0.350 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

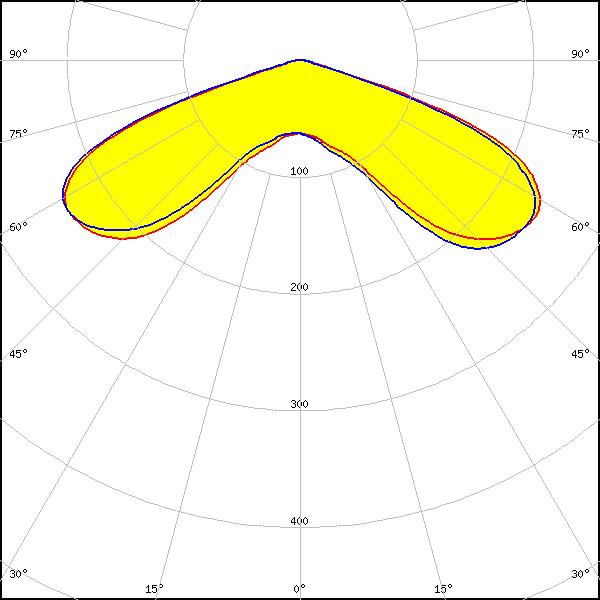

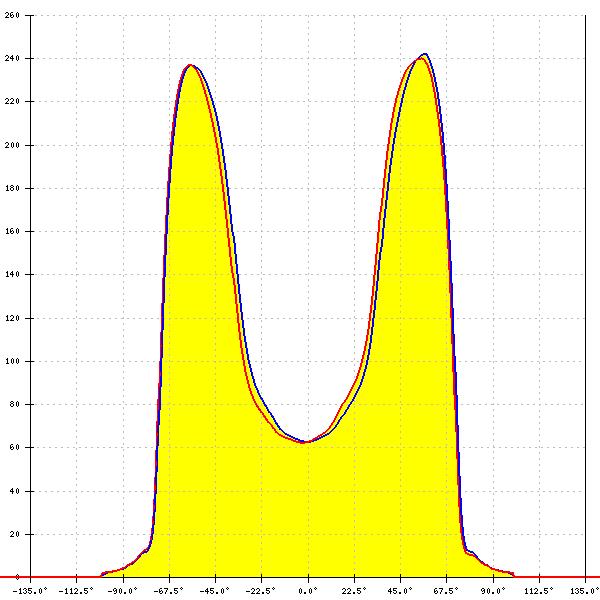

LED: MJT COB LES 9.8
FWHM: asymmetric
Peak intensity: 0.300 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

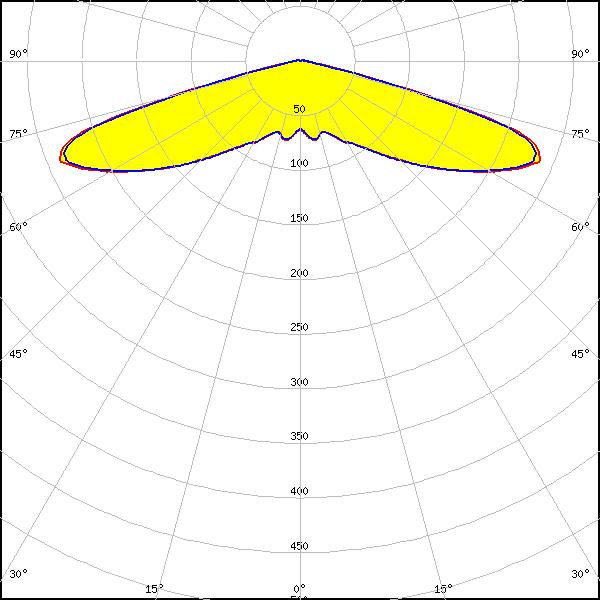

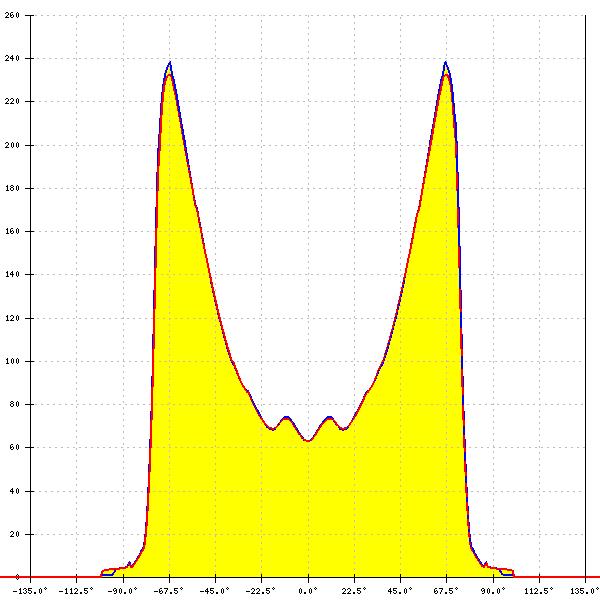

LED: WICOP 5050
FWHM: 149°
FWTM: 157°
Peak intensity: 0.381 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
