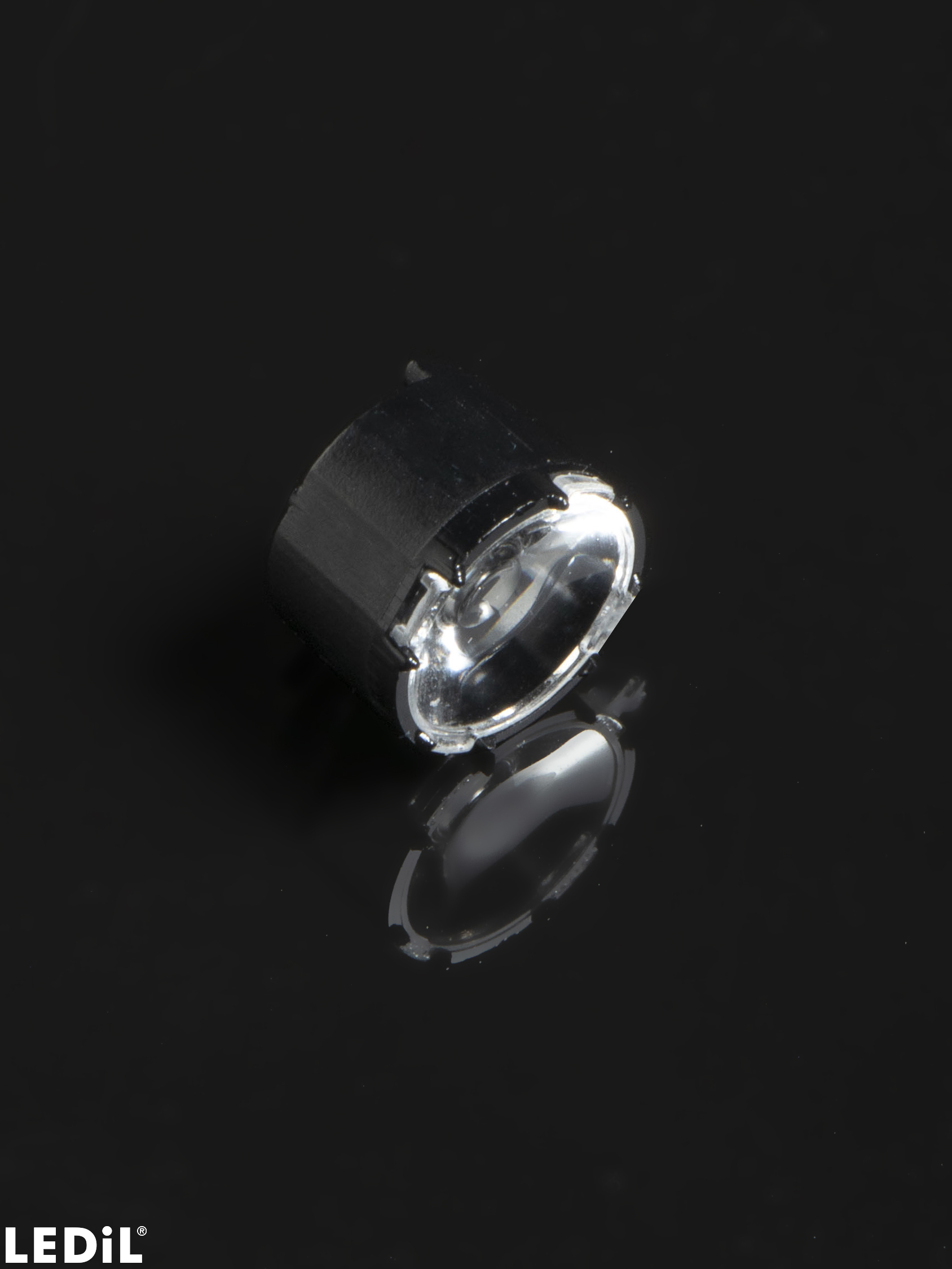

    FP16607_LISA3CSP-RS-PIN

    Print

    ~15° spot beam

    Specification
    • Dimensions:
      10 mm
    • Height:
      7.20 mm
    • Fastening:
      glue, pin
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      2000 pcs
    • Box size:
      310 x 230 x 60 mm
    • Box weight:
      1.2 kg
    • MPQ:
      100 pcs
    • MOQ:
      300 pcs
    • MOQ size:
      230 x 160 x 30 mm
    • MOQ weight:
      0.3 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      •
      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      FP16607_LISA3CSP-RS-PIN

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR157 - Change of LISA3 MPQ, MOQ

    News

    New Products - 2019-01-31

    Application guide

    LEDiL guide for retail lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    LuxR landscape lighting

    Application area

    Special Indoor Applications

    Application area

    Indoor Architectural Lighting

    Optical results

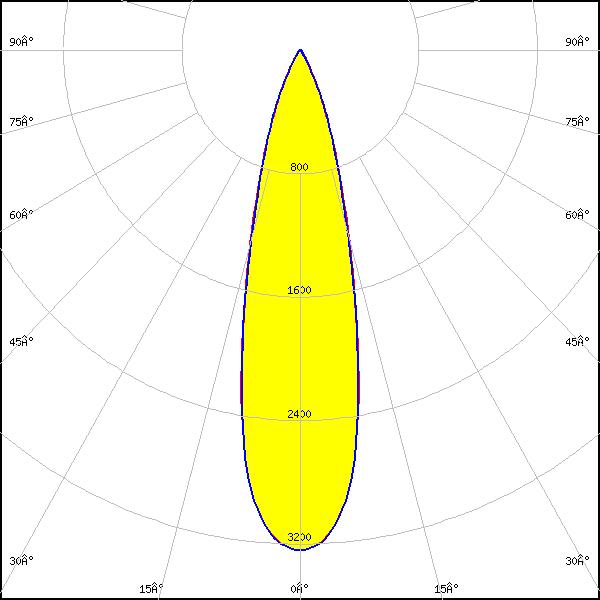

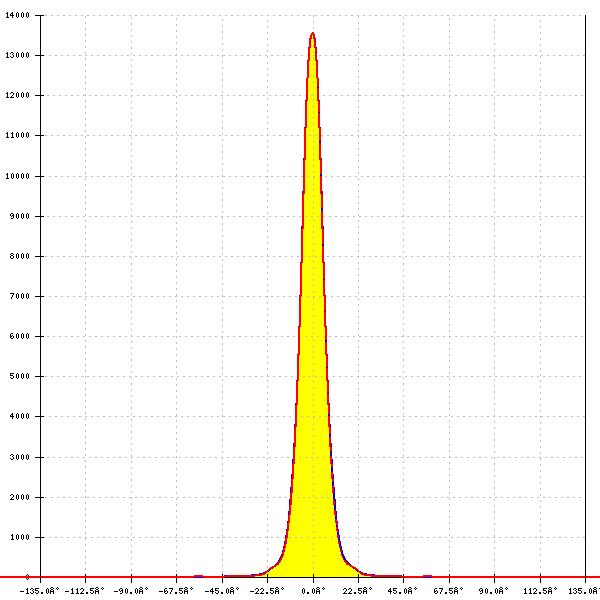

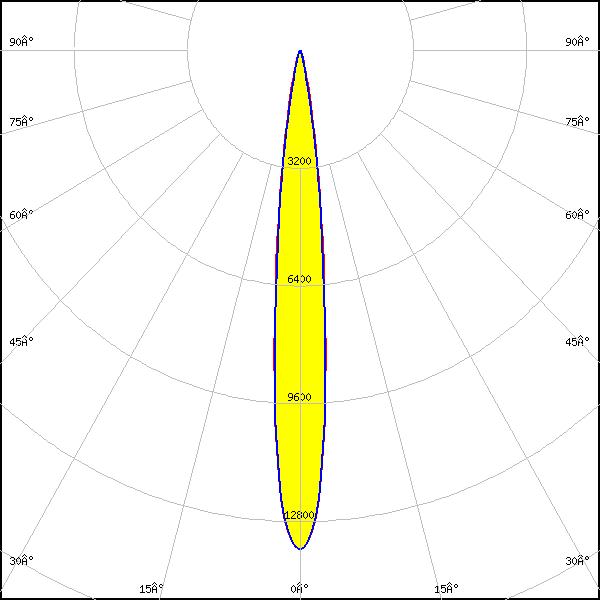

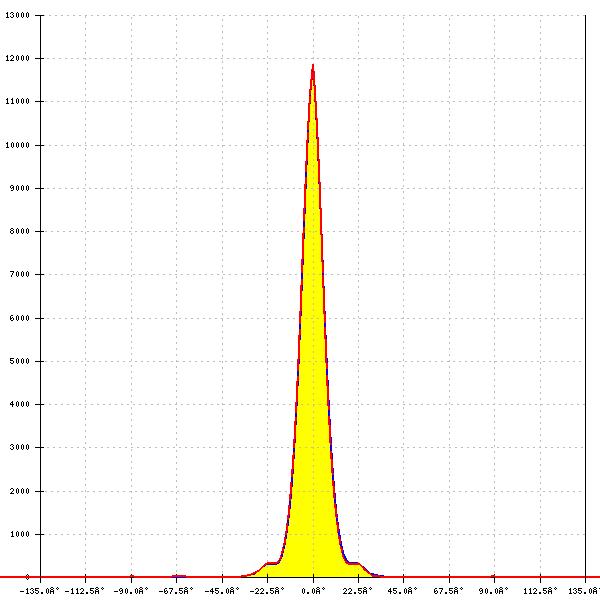

    LED: CSP 1111 (BXCP)
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 13.582 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

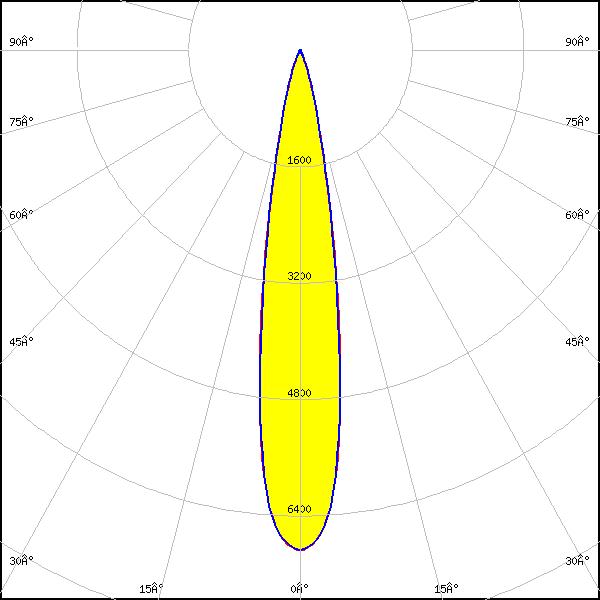

    LED: CSP 1919 (BXCP)
    FWHM: 18°
    FWTM: 34°
    Peak intensity: 6.888 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

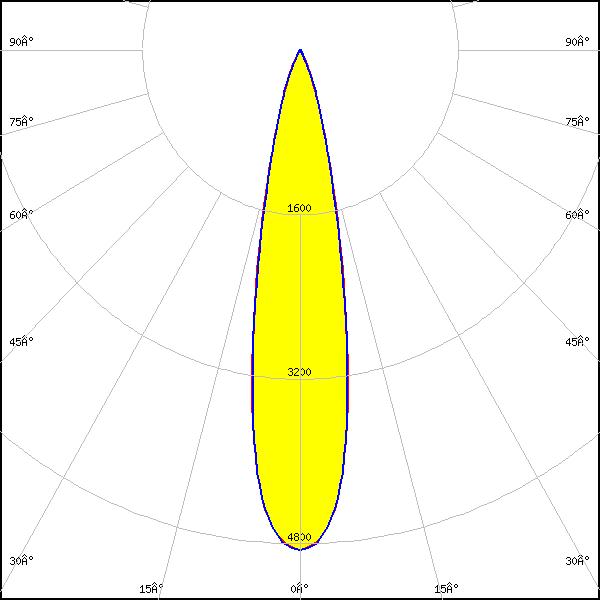

    LED: CSP 2323 (BXCP)
    FWHM: 22°
    FWTM: 42°
    Peak intensity: 4.871 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CSP 2727 (BXCP)
    FWHM: 26°
    FWTM: 51°
    Peak intensity: 3.246 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

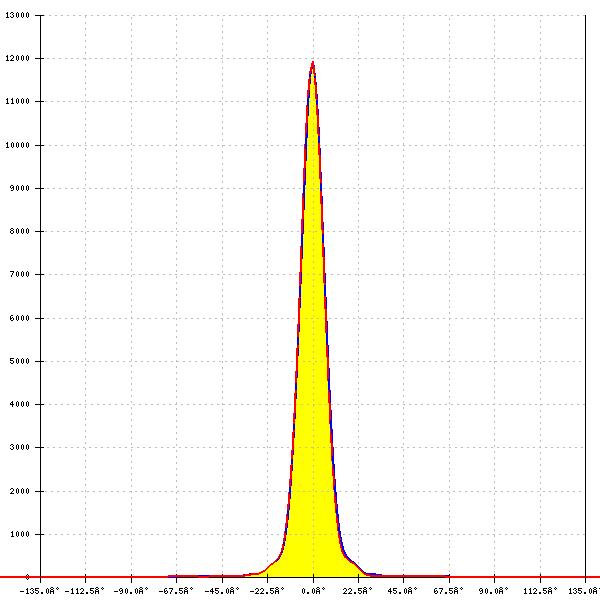

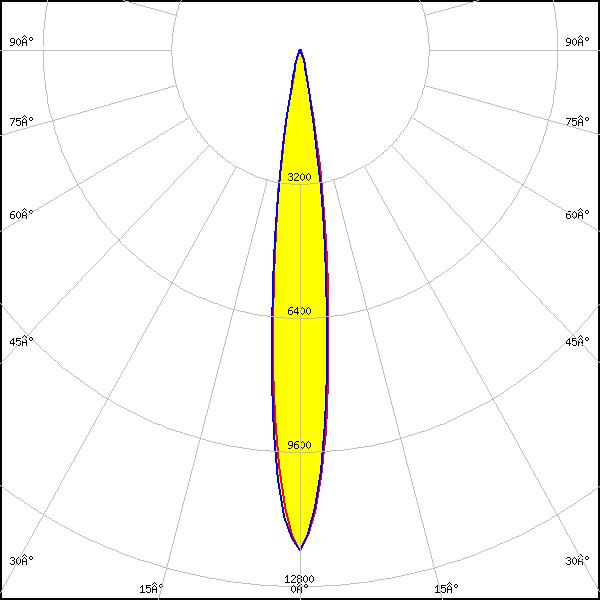

    LED: LUXEON CSP HL1
    FWHM: 13°
    FWTM: 26°
    Peak intensity: 11.942 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

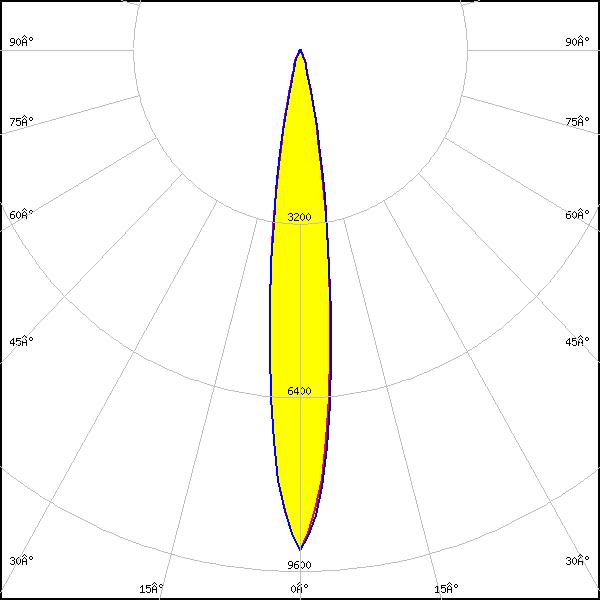

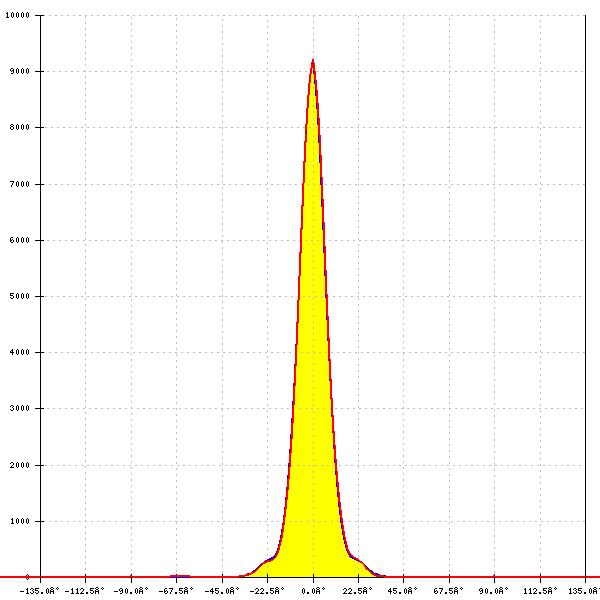

    LED: LUXEON HL1Z
    FWHM: 14°
    FWTM: 29°
    Peak intensity: 9.209 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

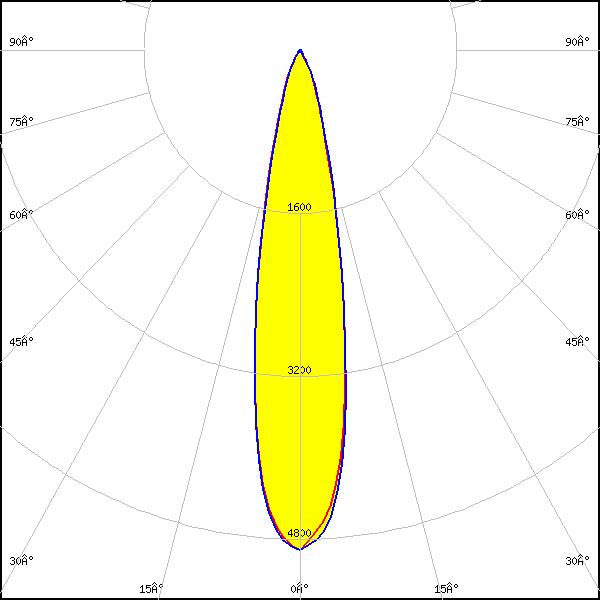

    LED: LUXEON HL2Z
    FWHM: 20°
    FWTM: 42°
    Peak intensity: 4.907 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

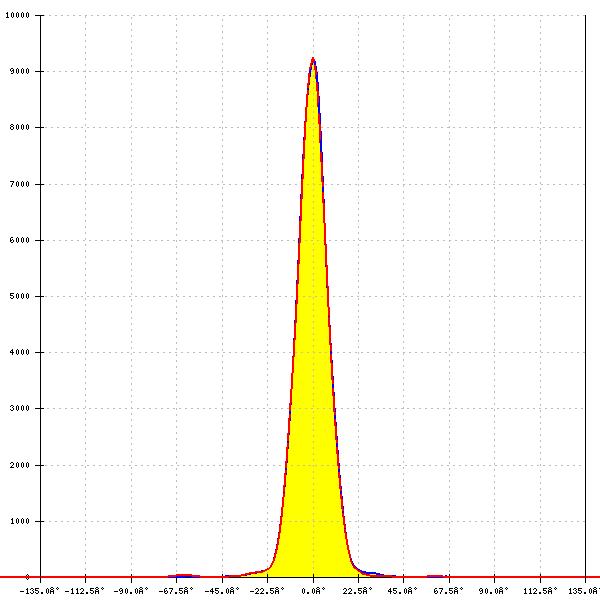

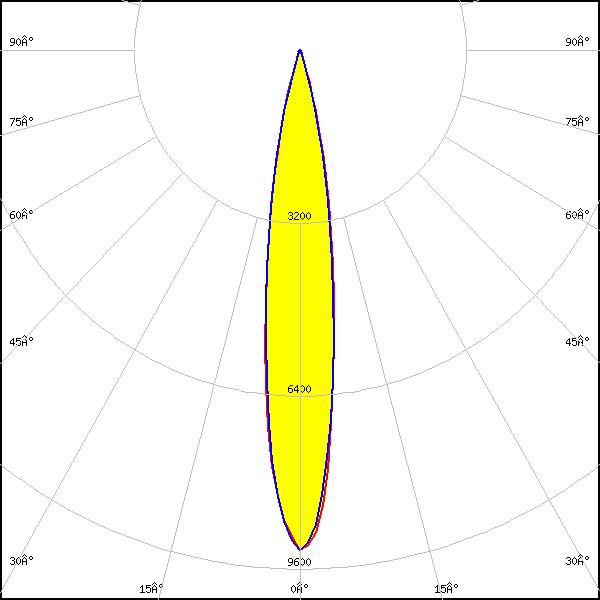

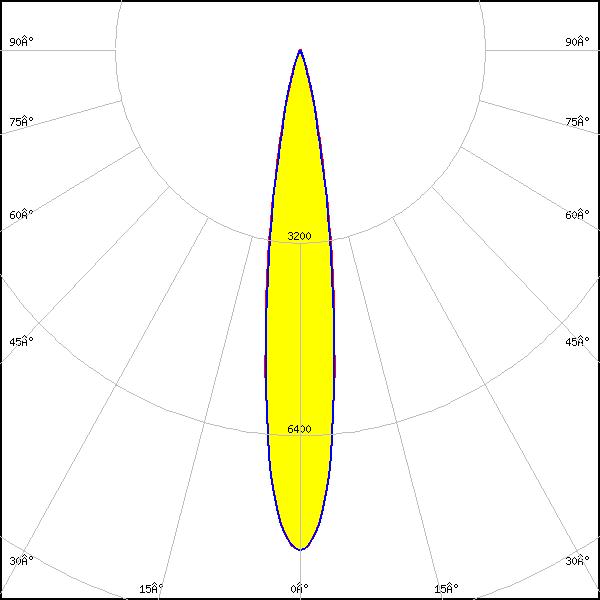

    LED: NCSxE17A
    FWHM: 15°
    FWTM: 30°
    Peak intensity: 8.100 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NCSxE17A
    FWHM: 16°
    FWTM: 31°
    Peak intensity: 8.354 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

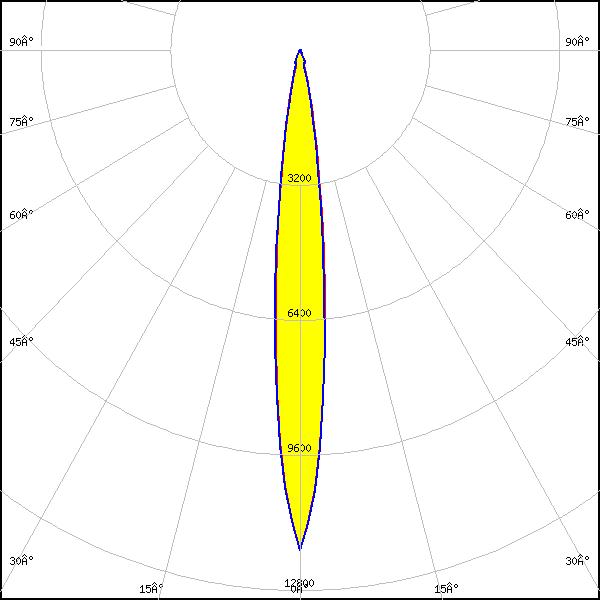

    LED: NFSWE11A
    FWHM: 12°
    FWTM: 25°
    Peak intensity: 11.855 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

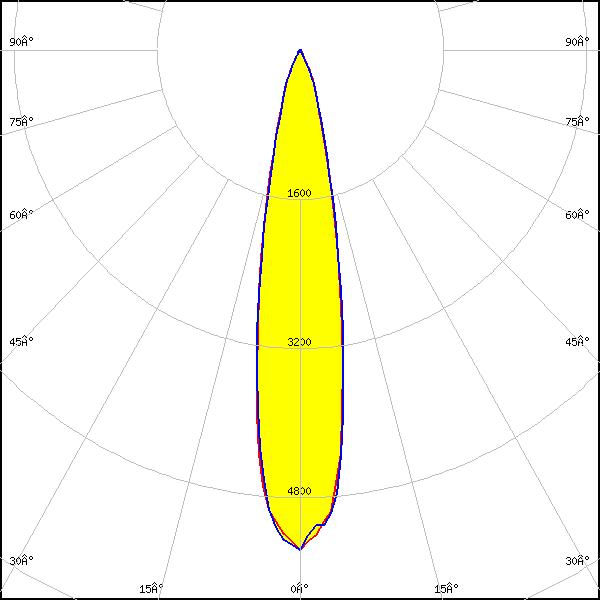

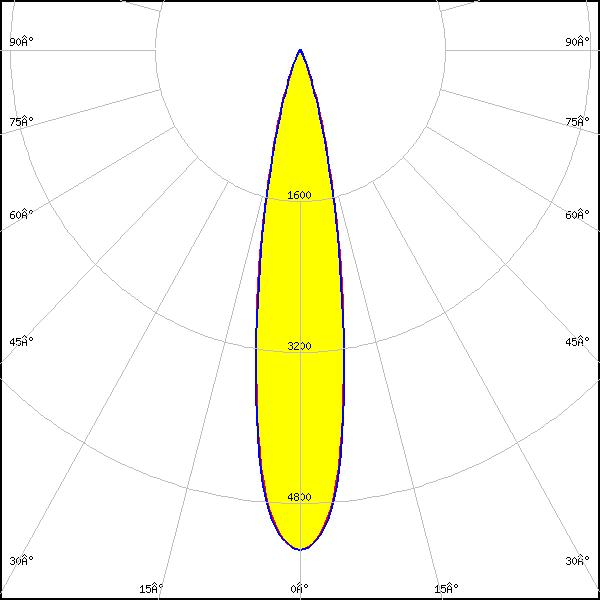

    LED: NVSxE21A
    FWHM: 20°
    FWTM: 40°
    Peak intensity: 5.430 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxE21A
    FWHM: 21°
    FWTM: 39°
    Peak intensity: 5.297 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

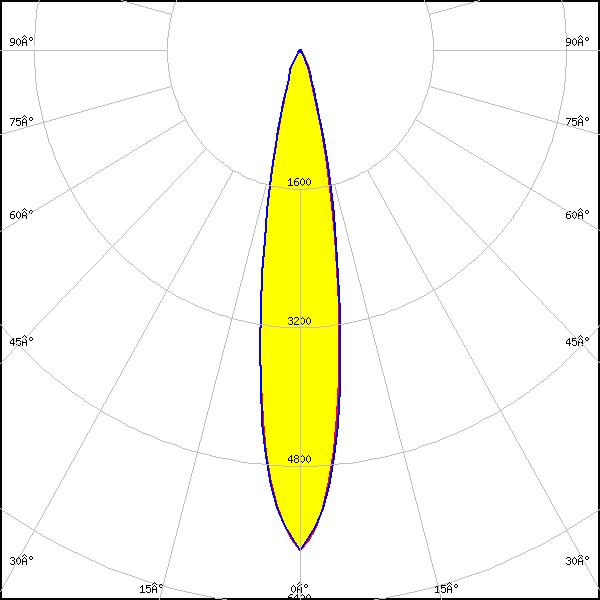

    LED: OSCONIQ C 2424
    FWHM: 18°
    FWTM: 38°
    Peak intensity: 5.772 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

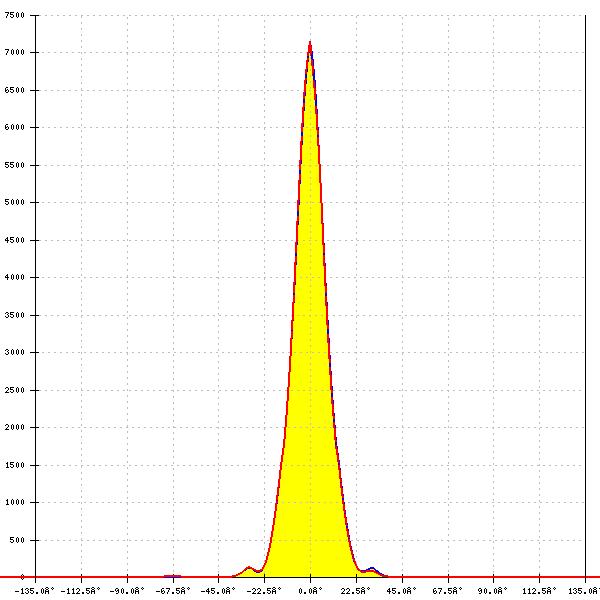

    LED: OSLON Pure 1414
    FWHM: 16°
    FWTM: 36°
    Peak intensity: 7.155 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

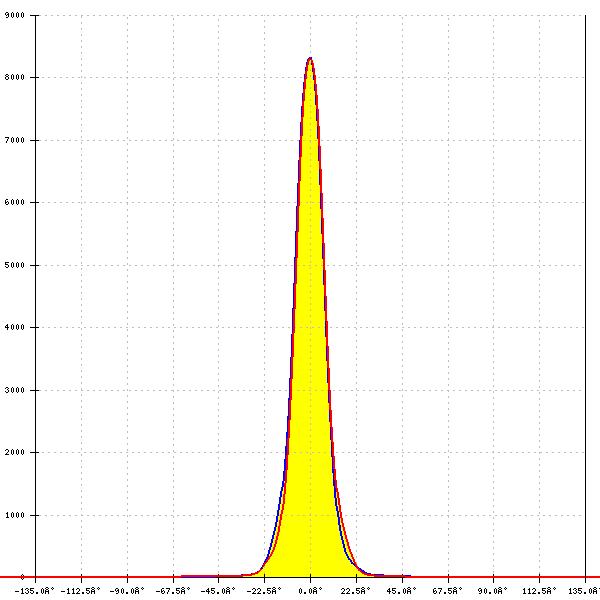

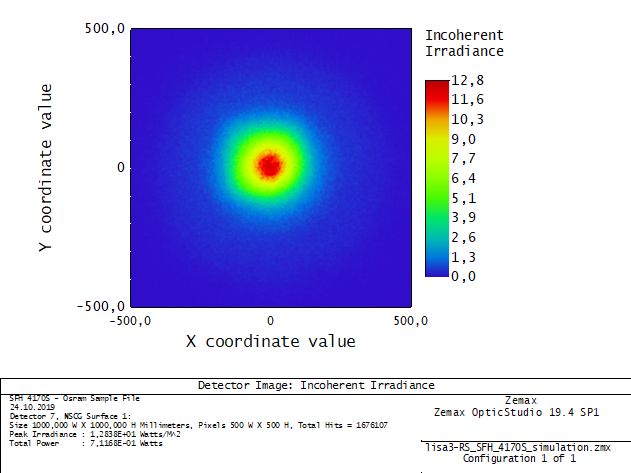

    LED: SFH 4170S
    FWHM: 16°
    FWTM: -
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: IR

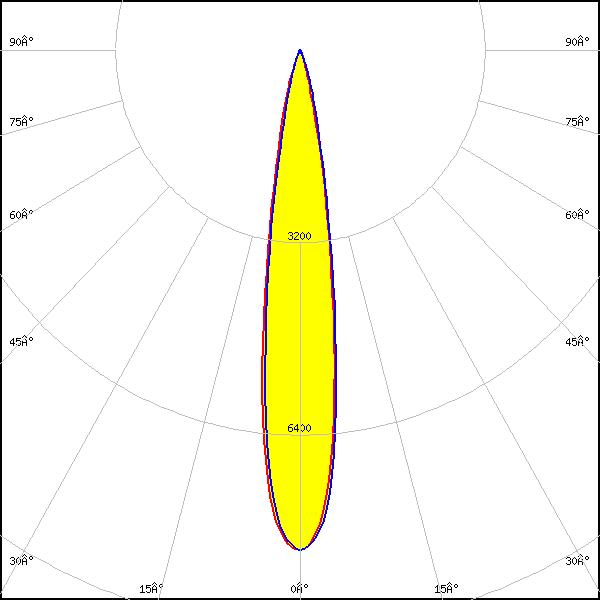

    LED: LH151B
    FWHM: 16°
    FWTM: 31°
    Peak intensity: 8.322 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

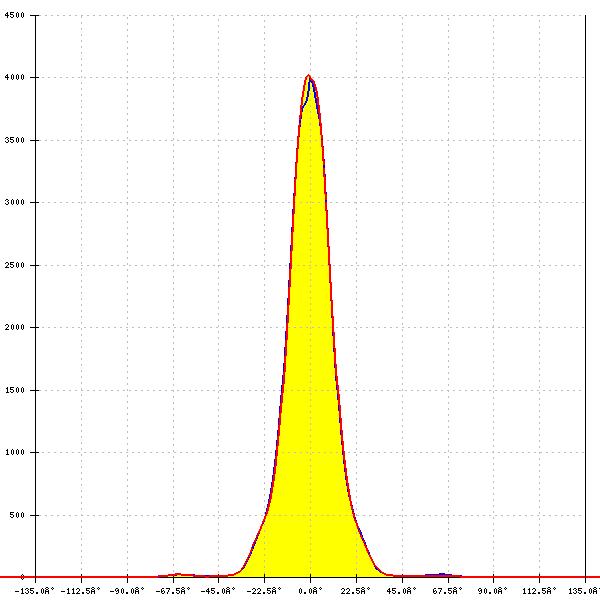

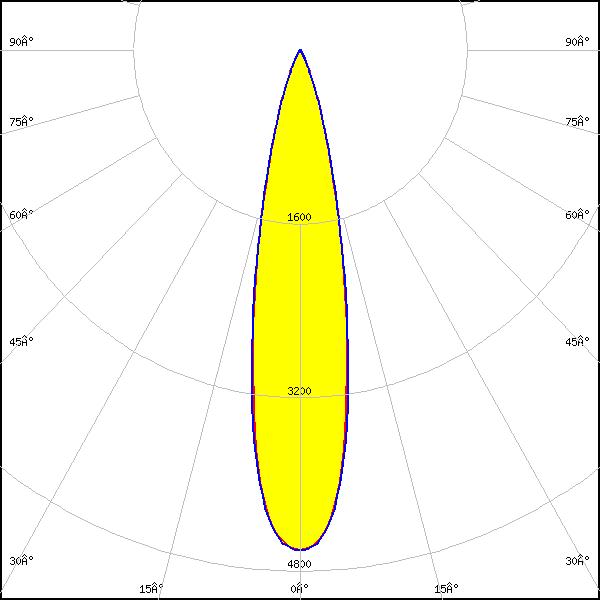

    LED: LH181B
    FWHM: 22°
    FWTM: 44°
    Peak intensity: 4.170 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

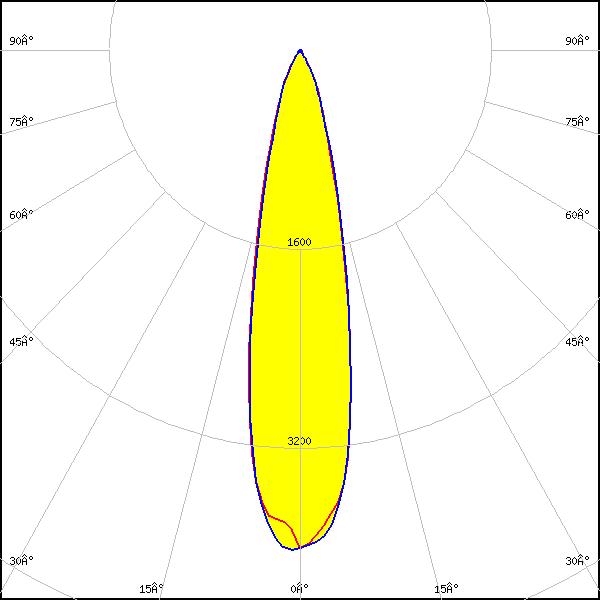

    LED: LH181B
    FWHM: 22°
    FWTM: 42°
    Peak intensity: 4.649 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

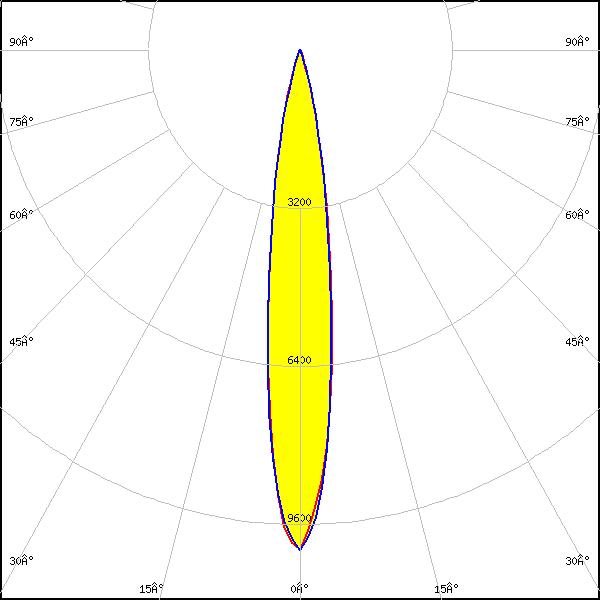

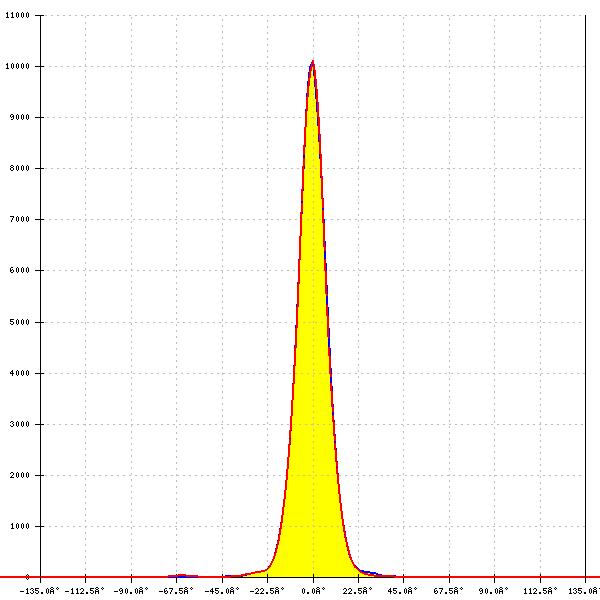

    LED: LM101B
    FWHM: 14°
    FWTM: 30°
    Peak intensity: 8.830 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

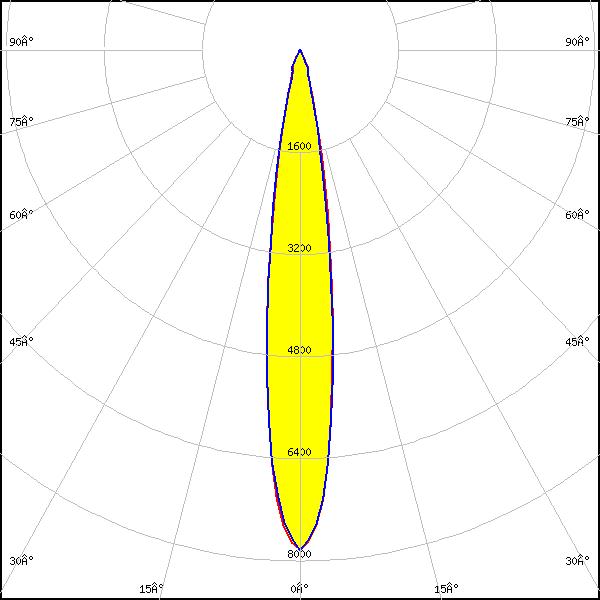

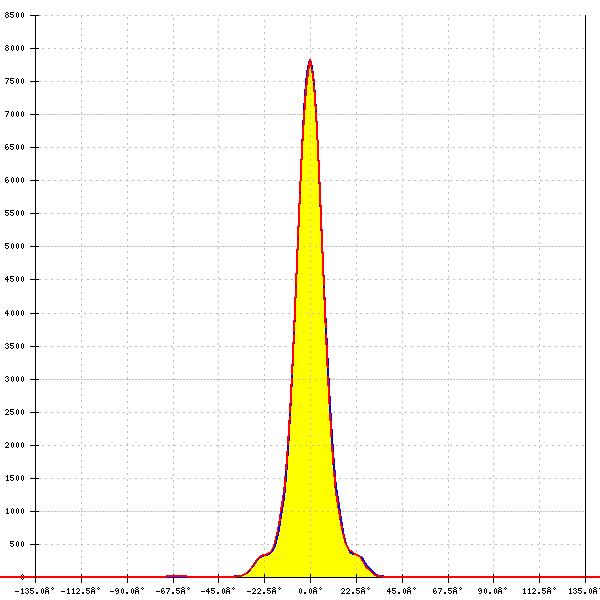

    LED: Z8Y11
    FWHM: 16°
    FWTM: 30°
    Peak intensity: 7.900 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

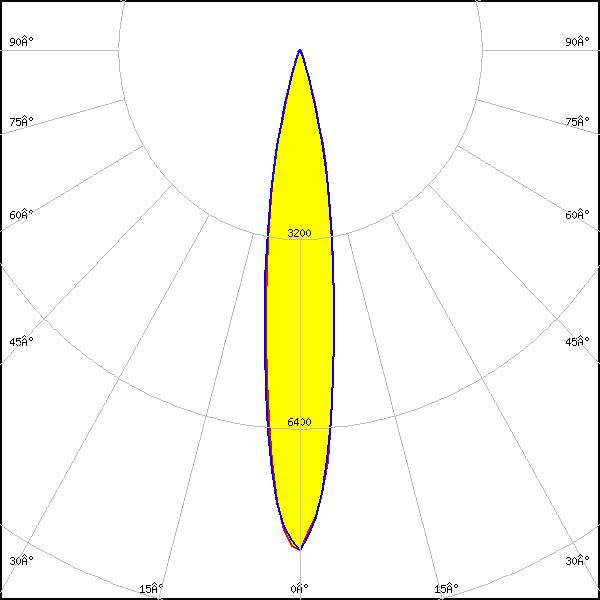

    LED: Z8Y15
    FWHM: 16°
    FWTM: 31°
    Peak intensity: 7.210 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
