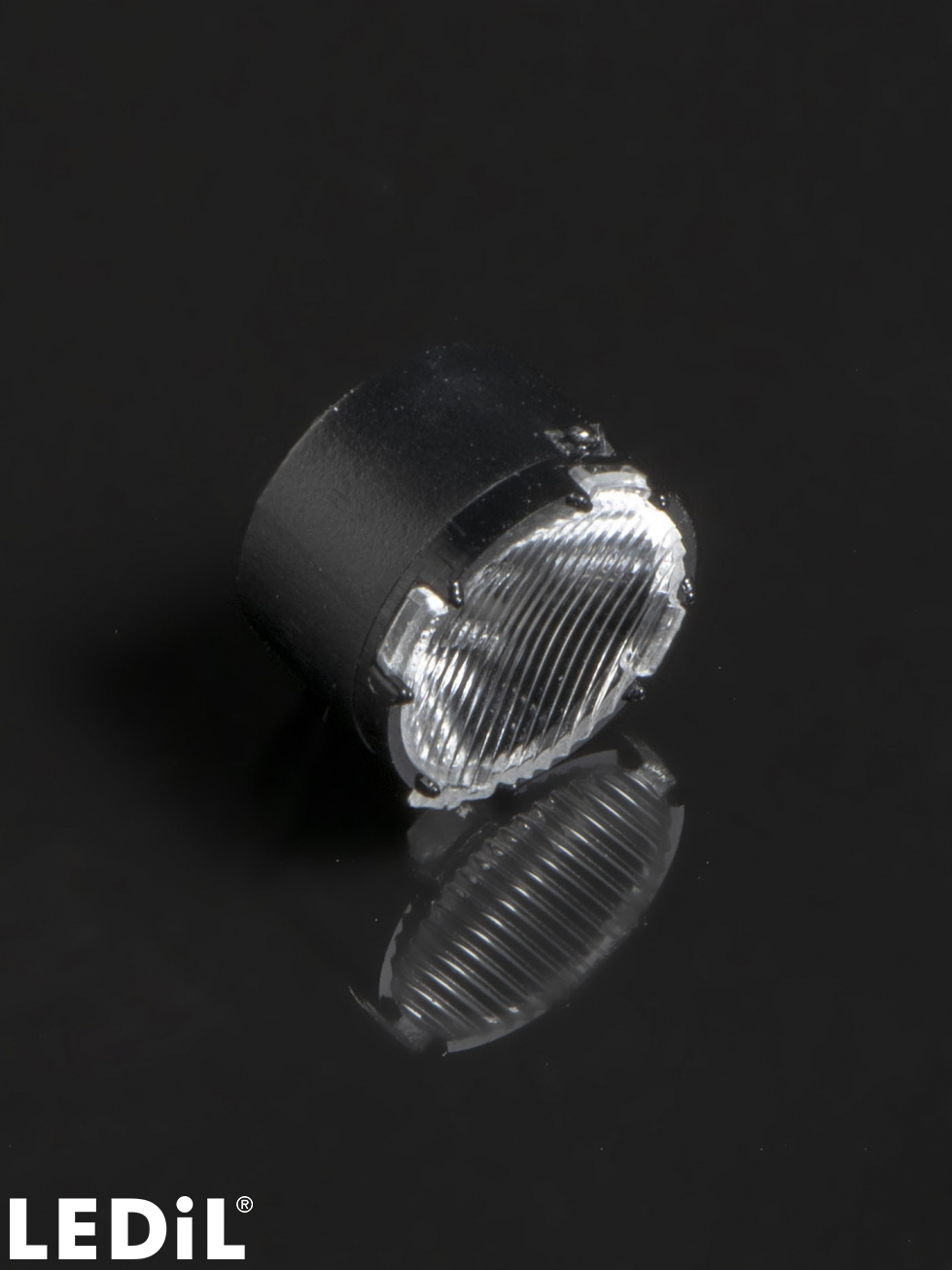

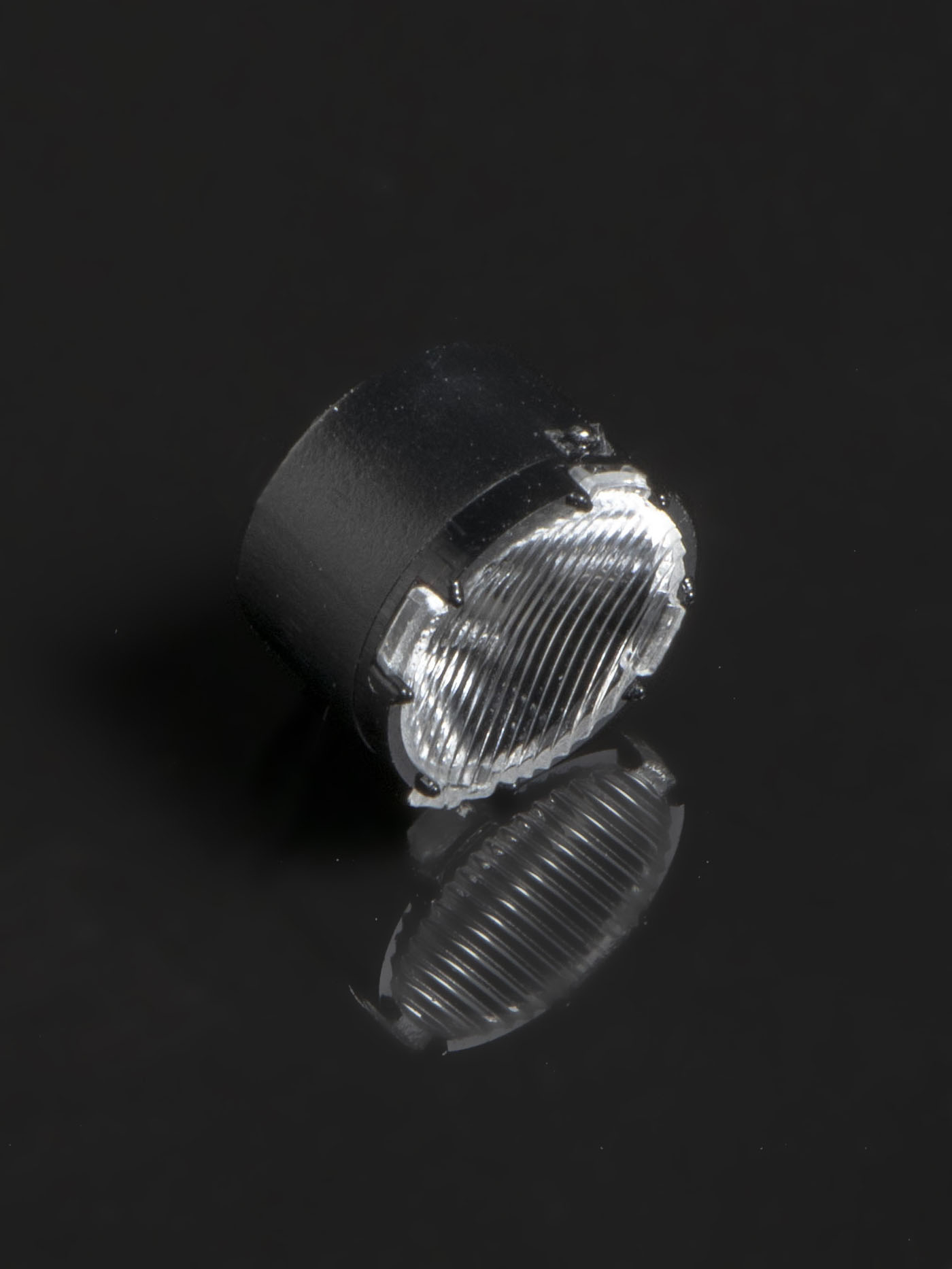

FP18591_LISA3CSP-O-90-CLIP16
Print
~15° x 50° oval beam with clip installation. Variant with beam direction rotated 90°.
Materials
- LISA3-O, Single lens, PMMA
- LISA3-HLD2-CLIP16, Holder, PC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

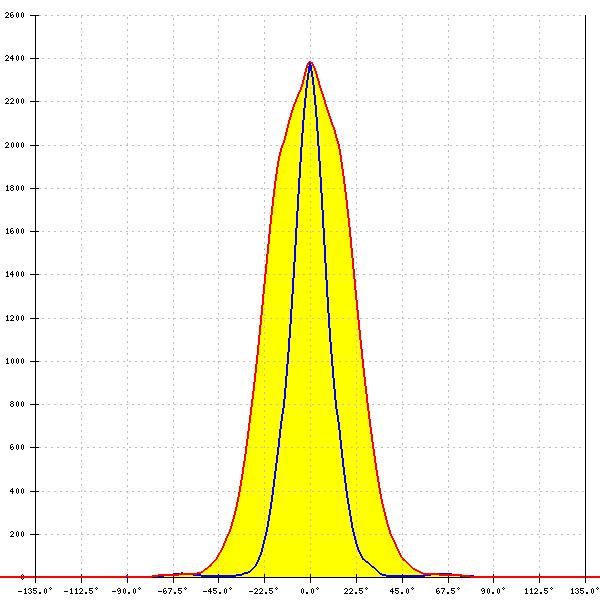

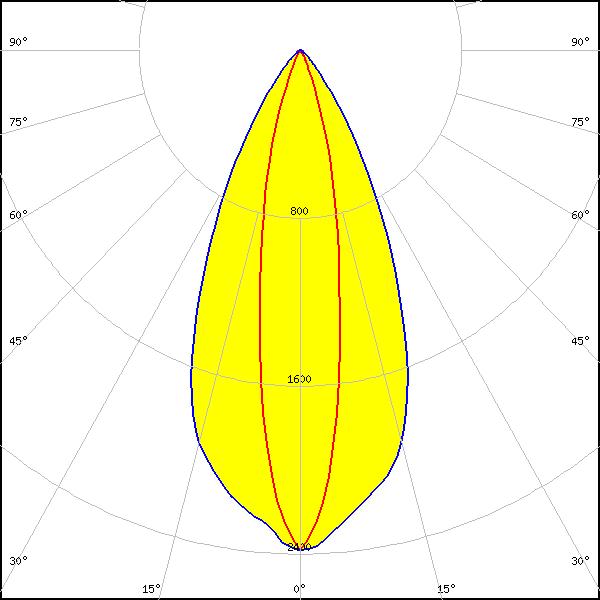

LED:
NCSxE17A
FWHM:
19° + 48°
FWTM:
42° + 78°
Peak intensity:
2.383 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

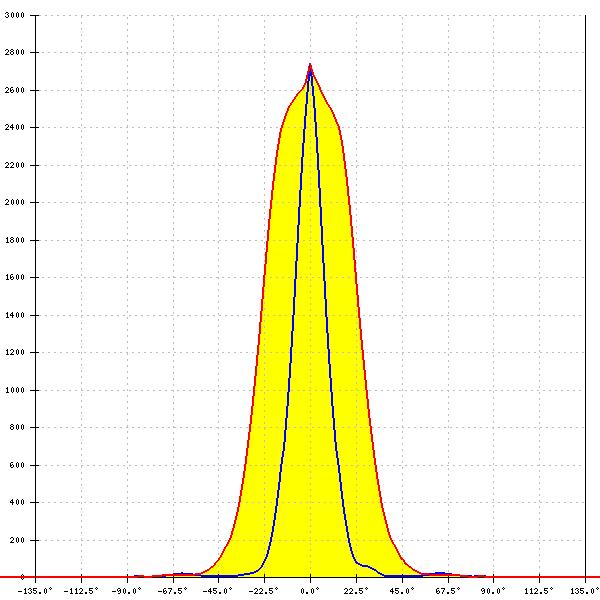

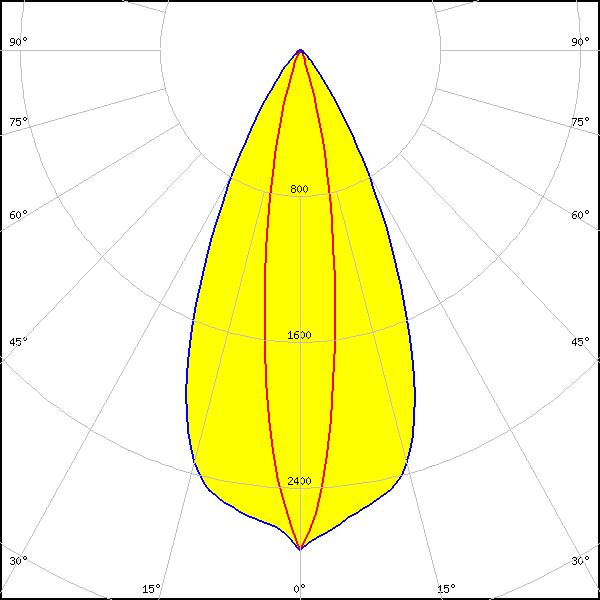

LED:
LH151B
FWHM:
16° + 48°
FWTM:
36° + 75°
Peak intensity:
2.742 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

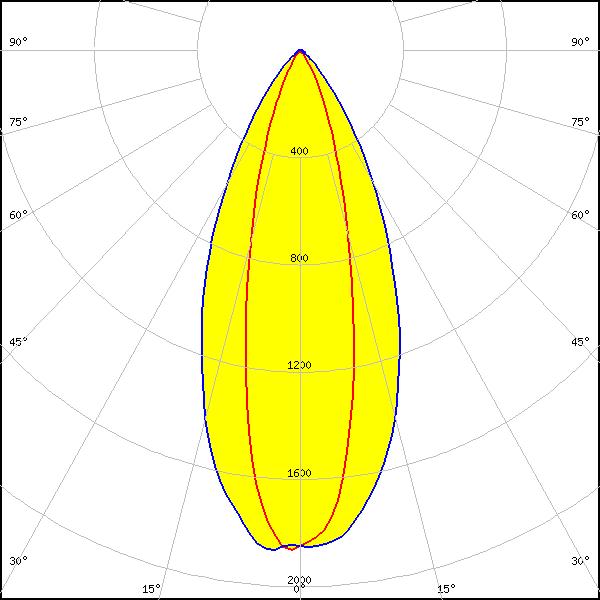

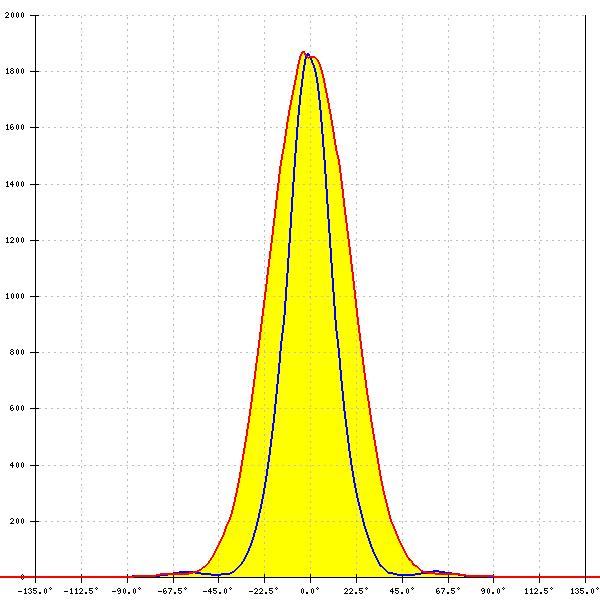

LED:
LH181B
FWHM:
26° + 46°
FWTM:
53° + 82°
Peak intensity:
1.902 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
