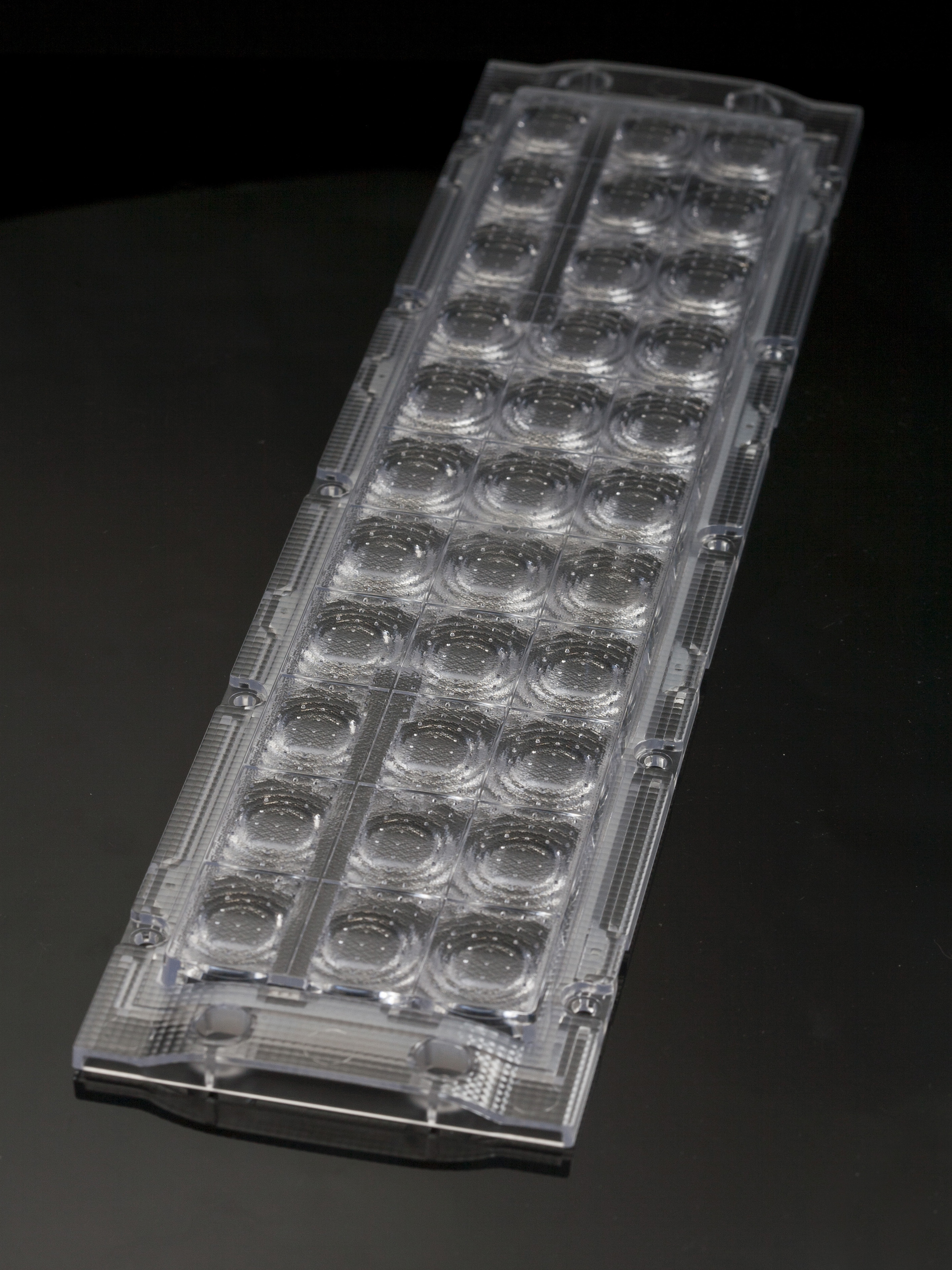

FS15626_FLORENCE-3R-IP-Z90

Print

~90° wide beam

Specification
  • Dimensions:
    321 x  79 mm
  • Height:
    9.4 mm
  • Fastening:
    screw
  • Colour:
    clear
  • Ingress protection classes:
    IP67
  • RoHS and REACH compliant:
    Yes
Materials
  • FLORENCE-3R-IP-Z90, Linear lens, PC
  • FLORENCE-3R-IP-SEAL, Seal, Silicone

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    80 pcs
  • Box size:
    356 x 356 x 292 mm
  • Box weight:
    12.2 kg
  • MPQ:
    4 pcs
  • MOQ:
    80 pcs
  • MOQ size:
    356 x 356 x 292 mm
  • MOQ weight:
    12.1 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    FS15626_FLORENCE-3R-IP-Z90

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

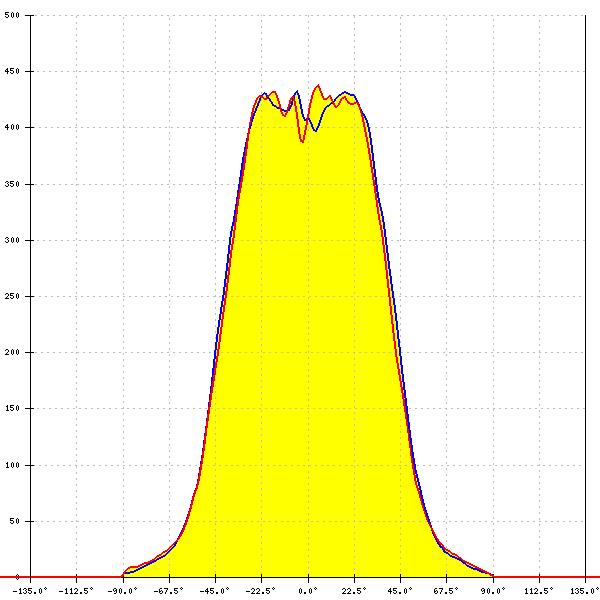

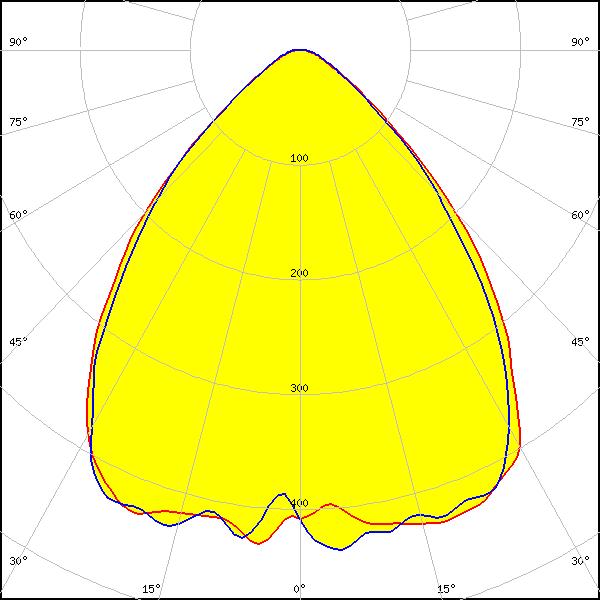

LED: Bridgelux SMD 5050
FWHM: 86°
FWTM: 121°
Peak intensity: 0.5 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

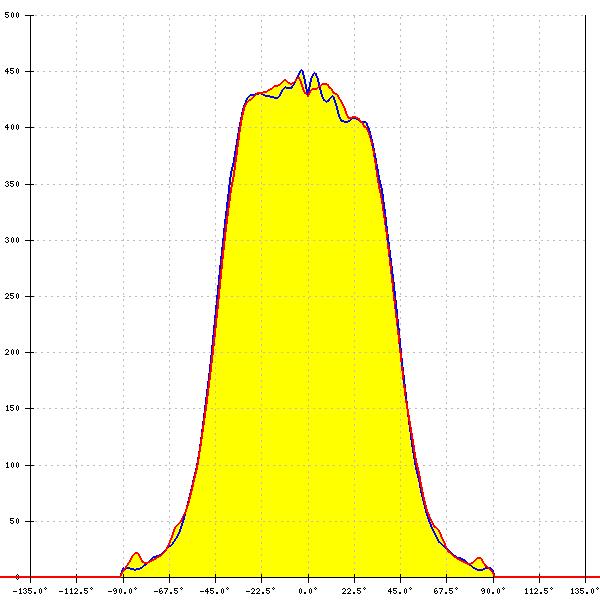

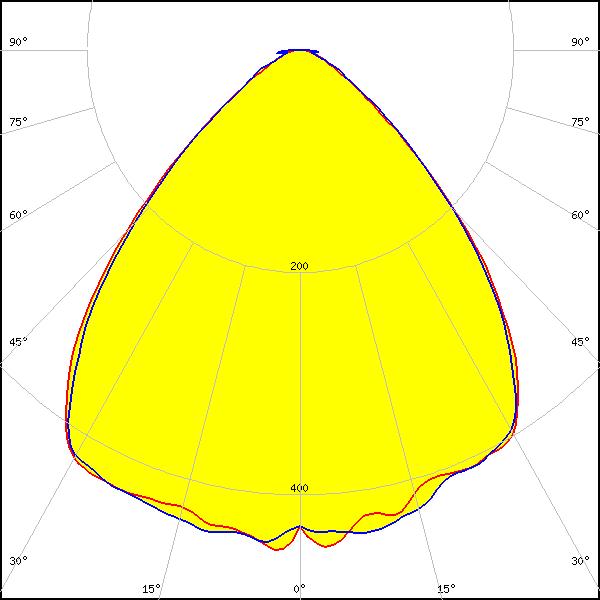

LED: XP-E
FWHM: 89°
FWTM: 124°
Peak intensity: 0.5 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

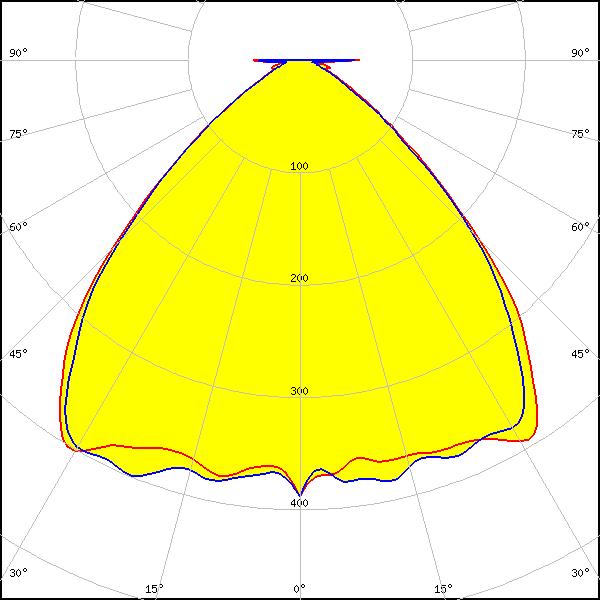

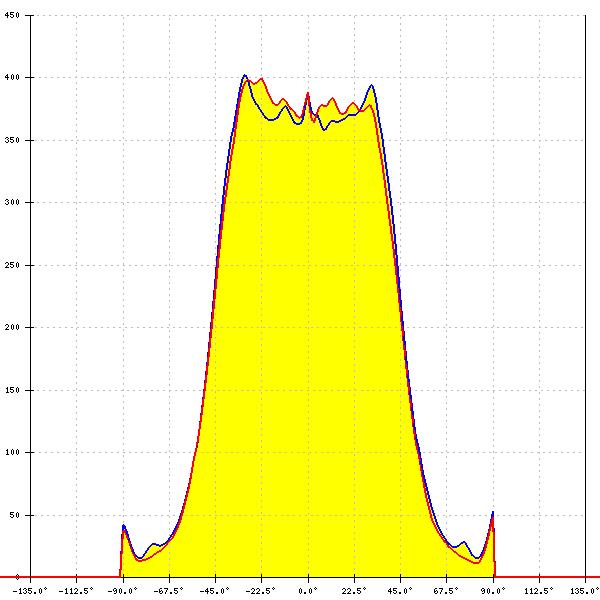

LED: XP-G3
FWHM: 95°
FWTM: 124°
Peak intensity: 0.4 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

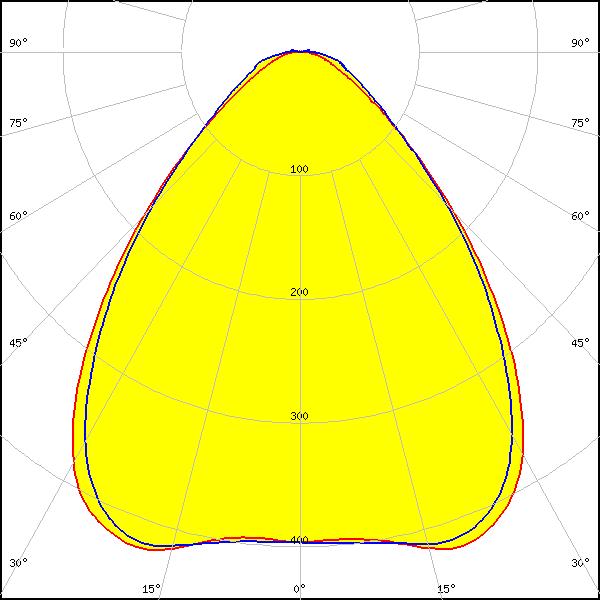

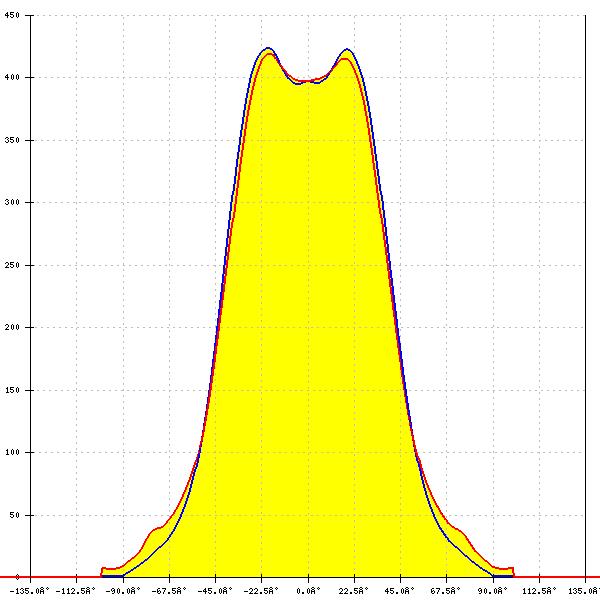

LED: LUXEON 5050 Round LES
FWHM: 87°
FWTM: 136°
Peak intensity: 0.4 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

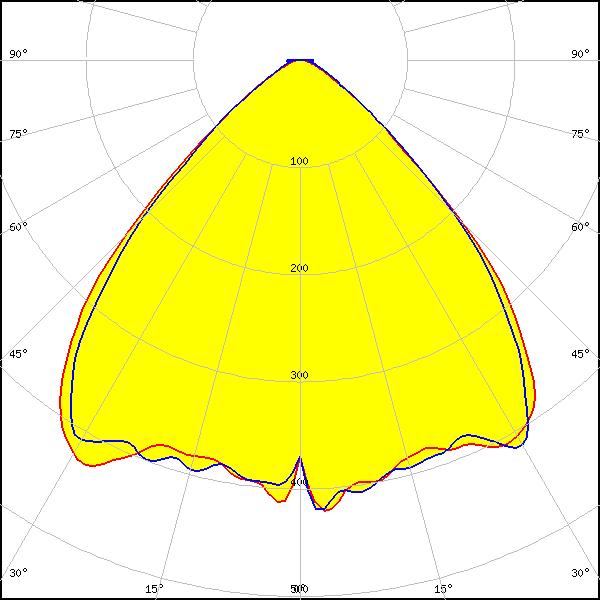

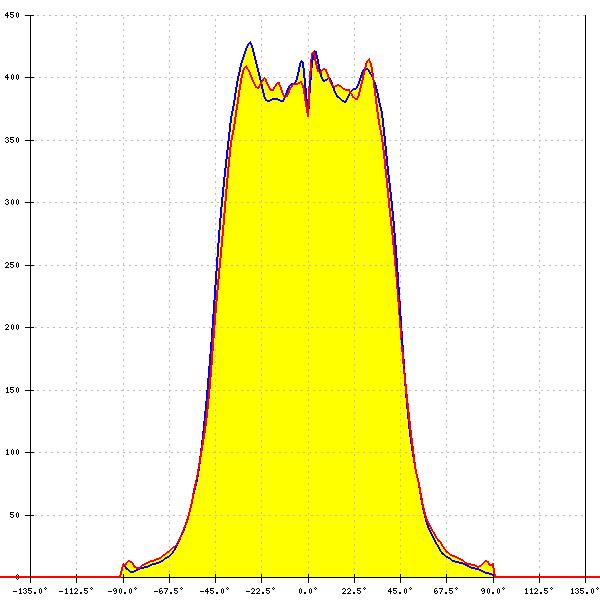

LED: LUXEON CZ
FWHM: 92°
FWTM: 120°
Peak intensity: 0.4 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON XR-3535L (L202 - xxxx033C30001)
LEDs/each optic: 1
Light colour: White

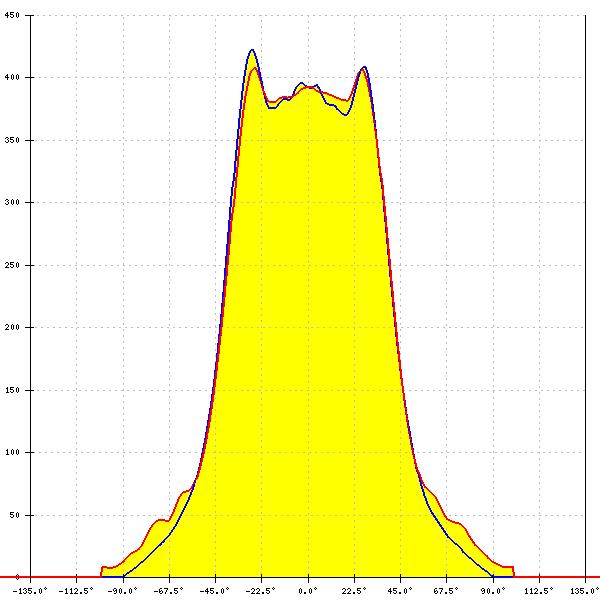

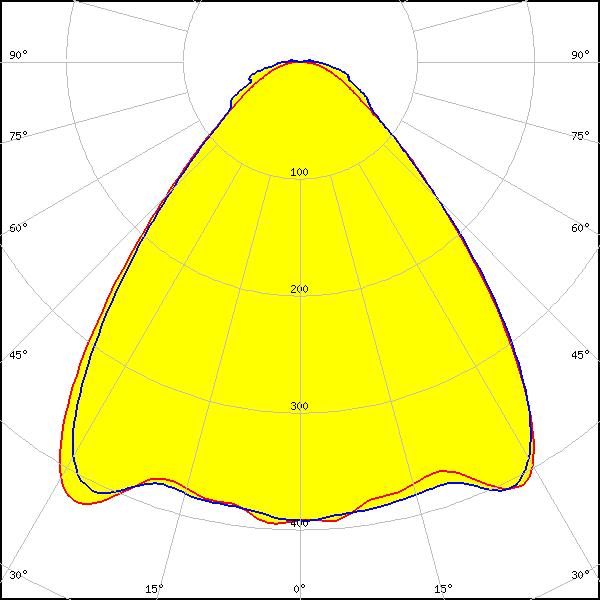

LED: SST-10-B130
FWHM: 84°
FWTM: 129°
Peak intensity: 0.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: Deep Red

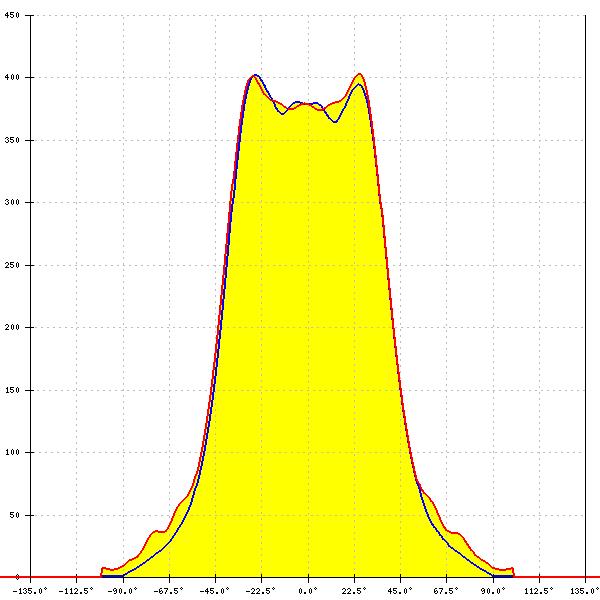

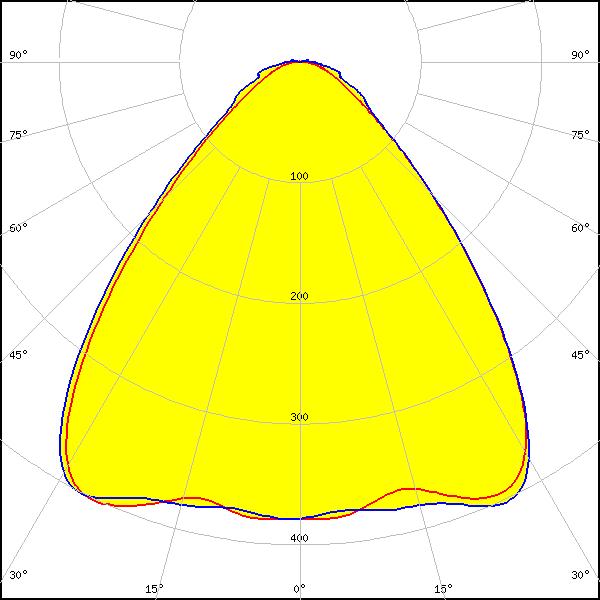

LED: LinLED 280x55mm 1100lm 840 3x11 33V Opt G2
FWHM: 84° + 85°
FWTM: 124° + 134°
Peak intensity: 0.4 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

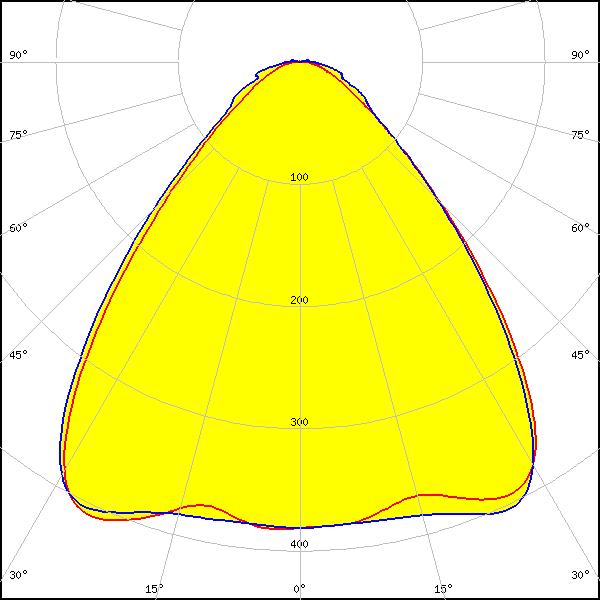

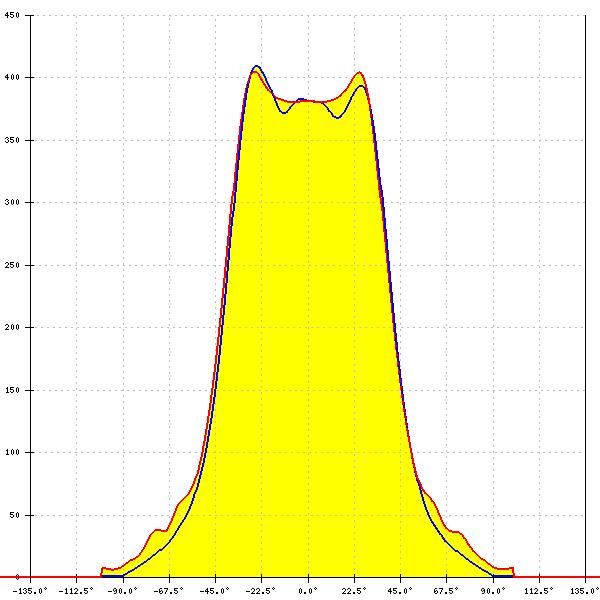

LED: LinLED 280x55mm 2000lm 830 33V Opt G1
FWHM: 83° + 85°
FWTM: 124° + 135°
Peak intensity: 0.4 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

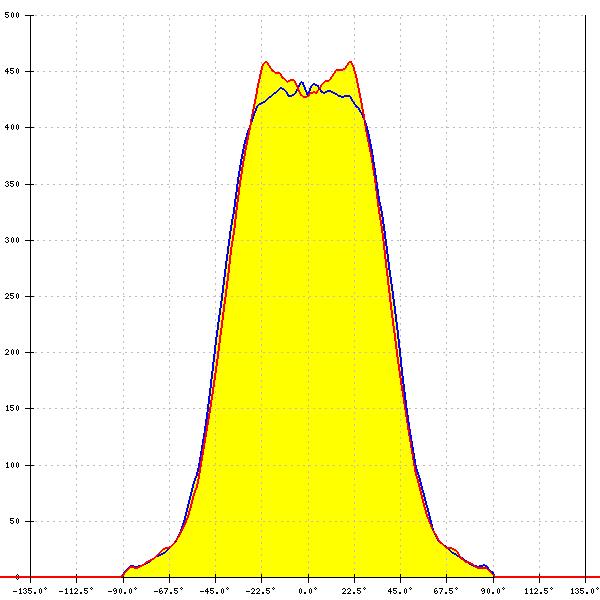

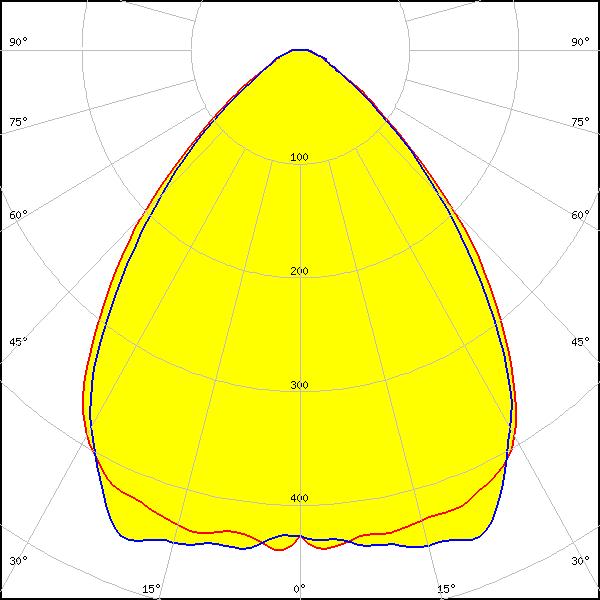

LED: NF2x757G
FWHM: 88° + 82°
FWTM: 122° + 120°
Peak intensity: 0.5 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

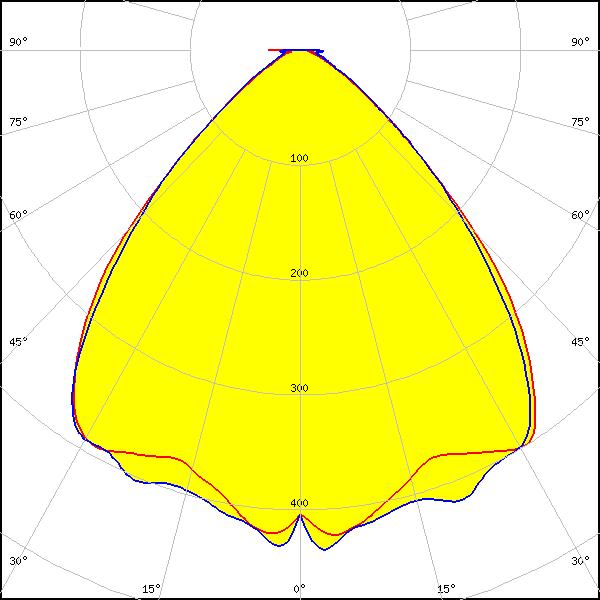

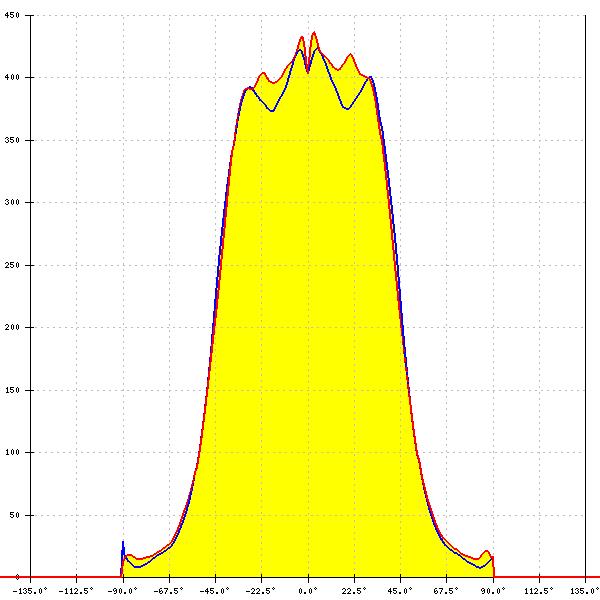

LED: NVSxx19B/NVSxx19C
FWHM: 89°
FWTM: 123°
Peak intensity: 0.4 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White
LED: PLG2-BAR-1100-xxx-280x55-DC
LEDs/each optic: 1
Light colour: White

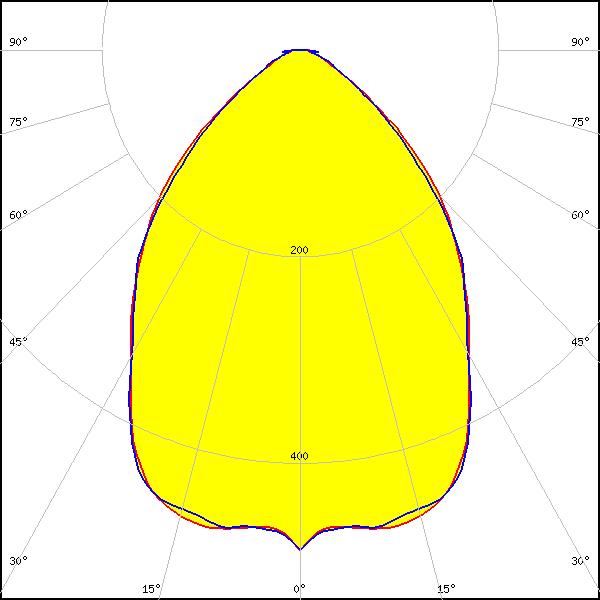

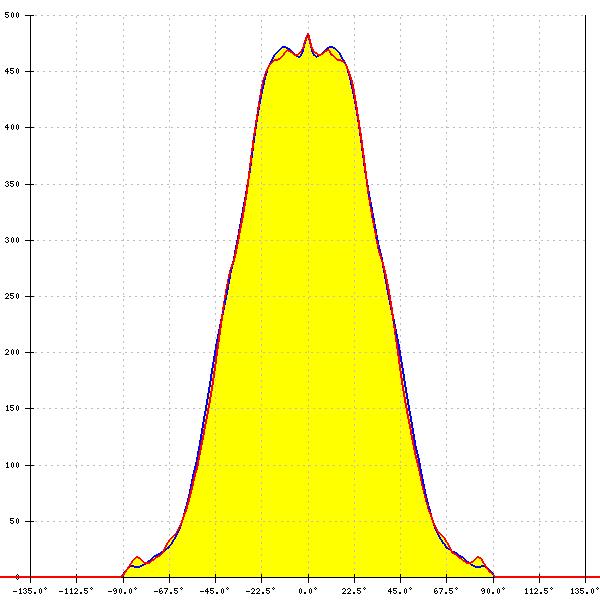

LED: Duris E 2835
FWHM: 81°
FWTM: 122°
Peak intensity: 0.5 cd/lm
LEDs/each optic: 4
Light colour: White

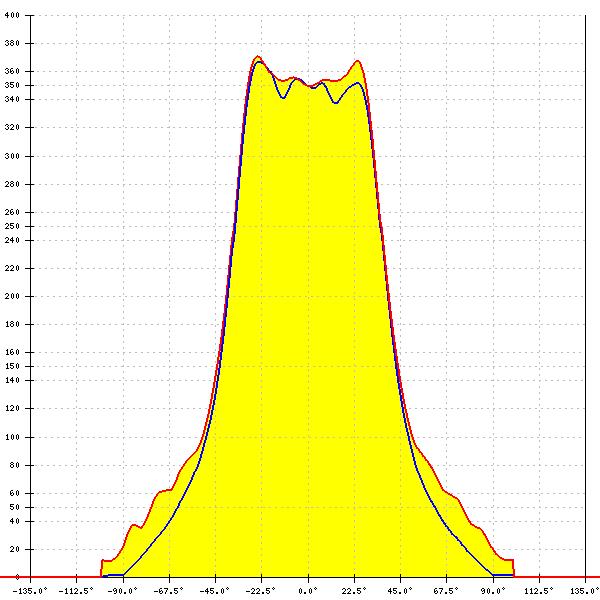

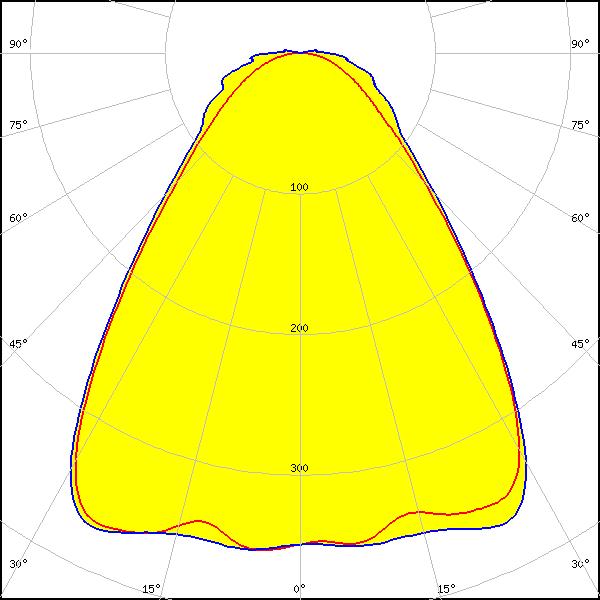

LED: Duris S2
FWHM: 82°
FWTM: 154°
Peak intensity: 0.4 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

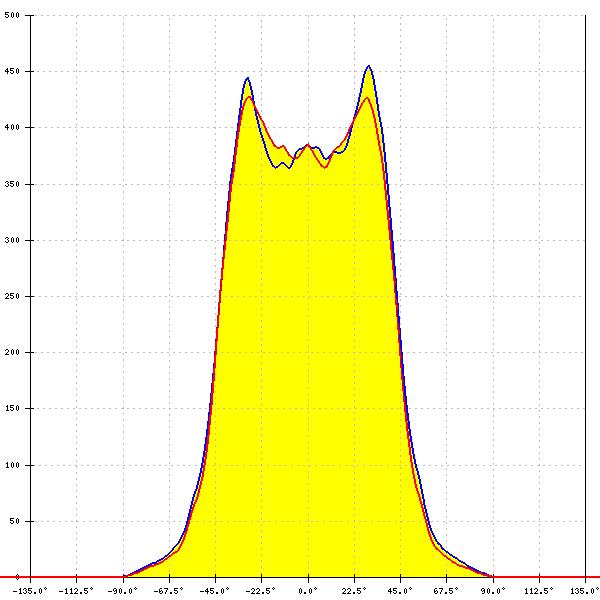

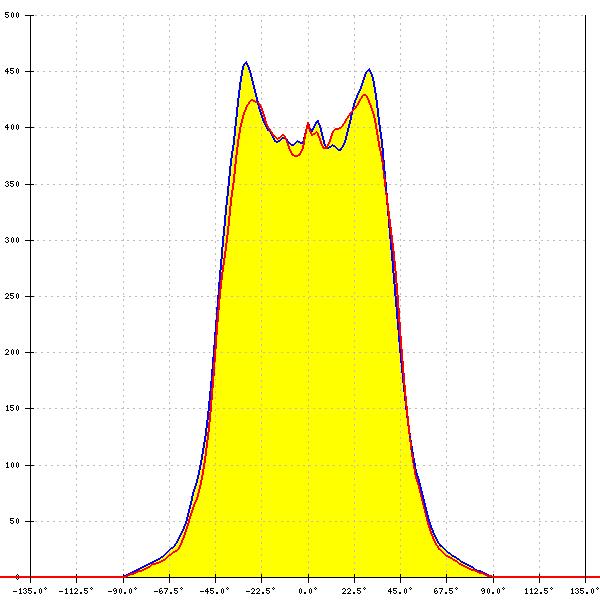

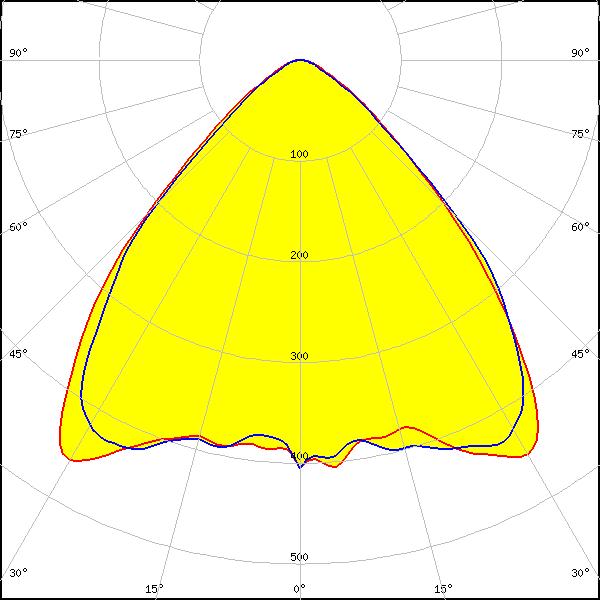

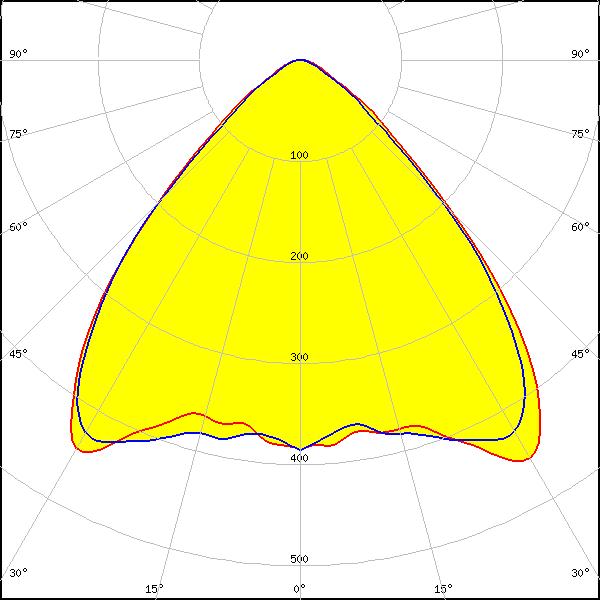

LED: OSCONIQ P 3030
FWHM: 89°
FWTM: 118°
Peak intensity: 0.5 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: Hyper Red

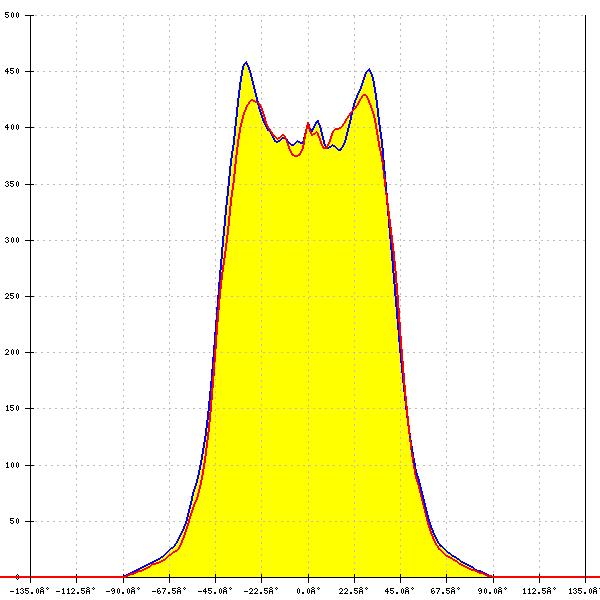

LED: OSCONIQ P 3030
FWHM: 89°
FWTM: 119°
Peak intensity: 0.5 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

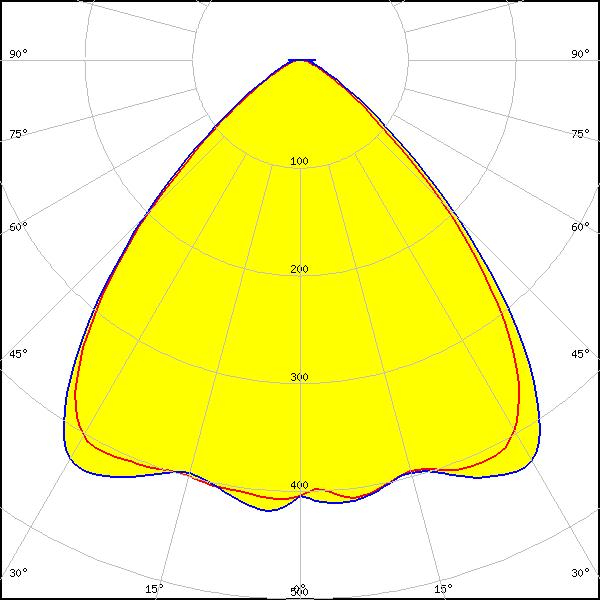

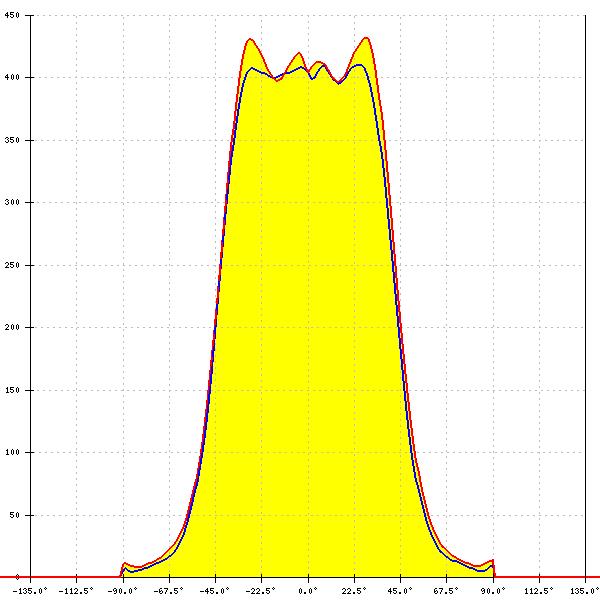

LED: OSCONIQ P 3737 (2W version)
FWHM: 90°
FWTM: 121°
Peak intensity: 0.4 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

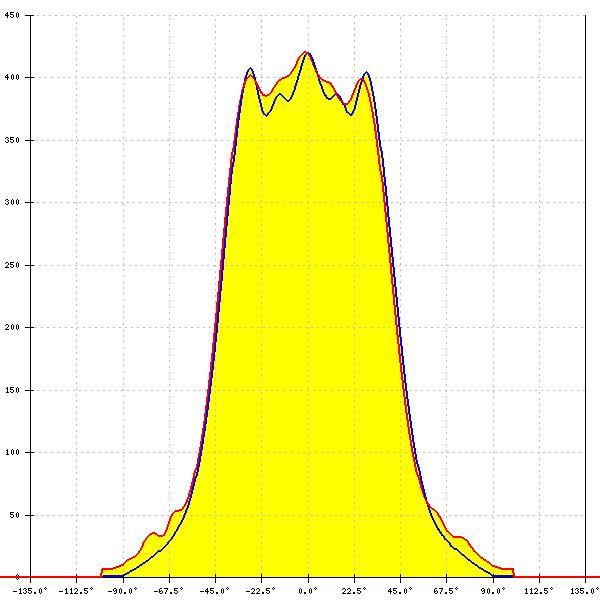

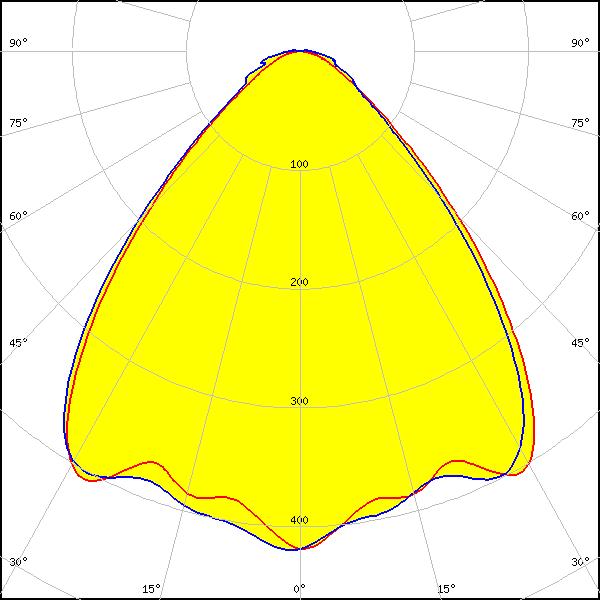

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 89°
FWTM: 131°
Peak intensity: 0.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

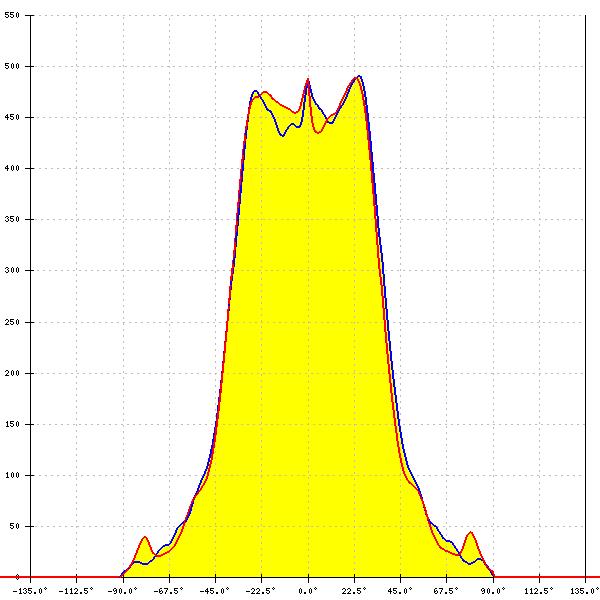

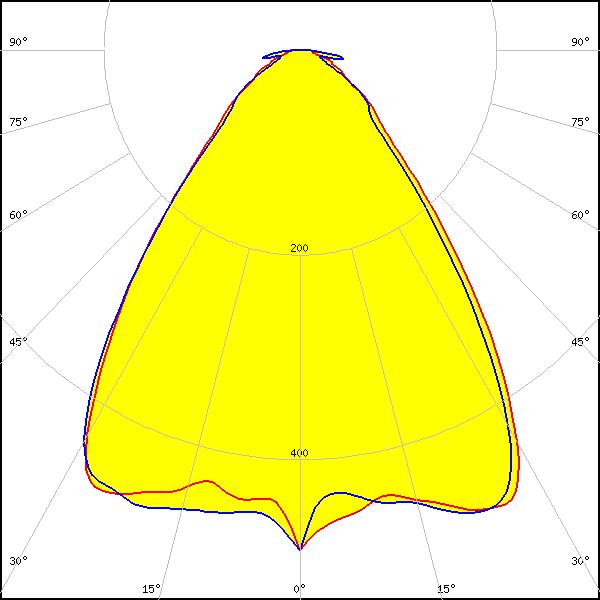

LED: LM302Z
FWHM: 78°
FWTM: 123°
Peak intensity: 0.5 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: LT-R286A
LEDs/each optic: 1
Light colour: White

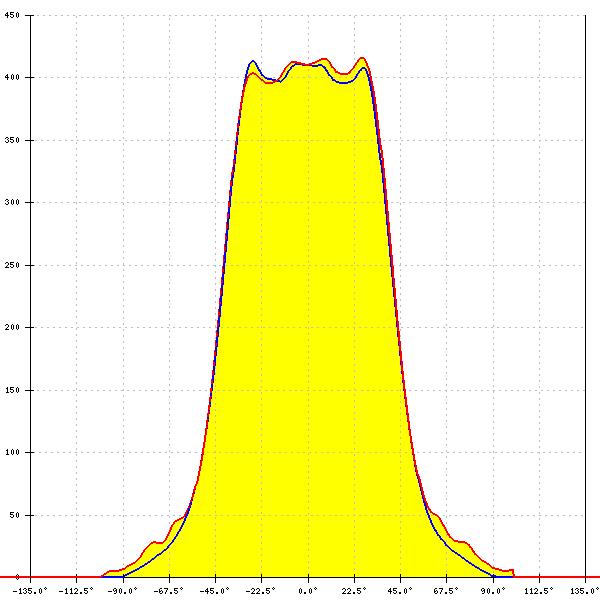

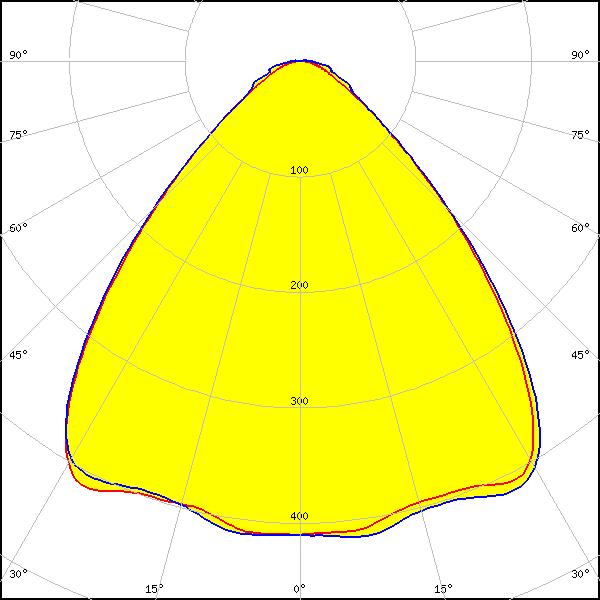

LED: SEOUL 5630C
FWHM: 87°
FWTM: 127°
Peak intensity: 0.4 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: SEOUL DC 3030
FWHM: 86°
FWTM: 123°
Peak intensity: 0.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

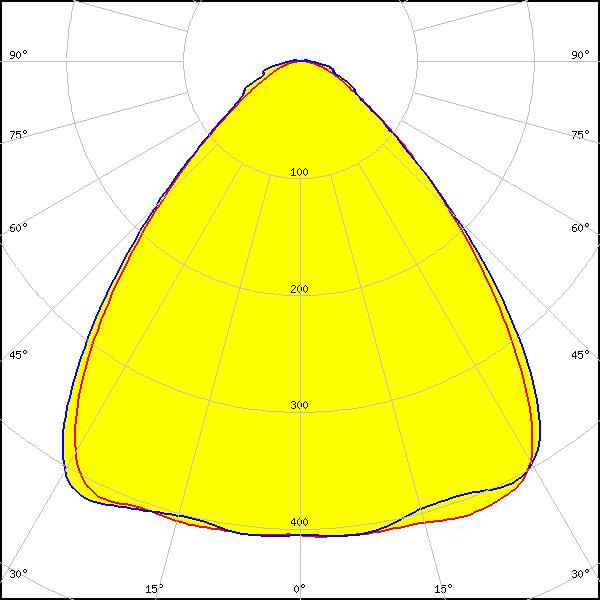

LED: LLE G2 55x280mm 2000lm
FWHM: 86°
FWTM: 130°
Peak intensity: 0.4 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
