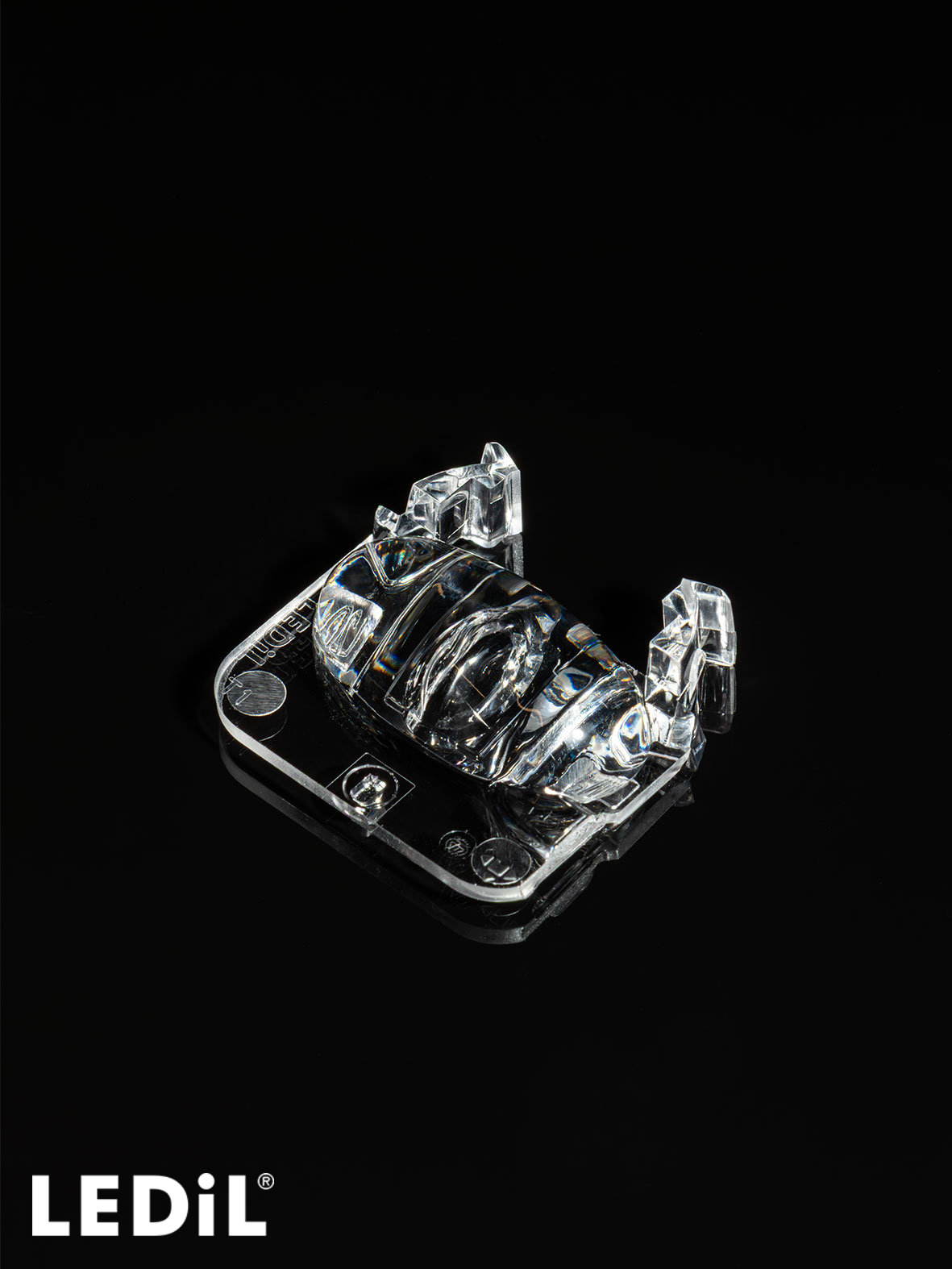

    L20414_STRADA-SQ-SC2-T1-M

    Print

    IESNA Type I (medium) beam applicable for European P-class standard for pedestrian lighting and bicycle paths.

    Specification
    • Dimensions:
      28 x  29 mm
    • Height:
      9.49 mm
    • Fastening:
      pin, solder clip
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      891 pcs
    • Box size:
      480 x 280 x 165 mm
    • Box weight:
      4.2 kg
    • MPQ:
      891 pcs
    • MOQ:
      891 pcs
    • MOQ size:
      480 x 280 x 170 mm
    • MOQ weight:
      4.2 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      L20414_STRADA-SQ-SC2-T1-M
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application guide

    Guide for Urban lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    AVAILABLE LEDiL ACCESSORIES

    SOLDER-CLIP-2

    Reel with 2nd generation of solder clips for easy lens mounting

    SQ-SC2-SHD

    Black shade for additional backlight control.

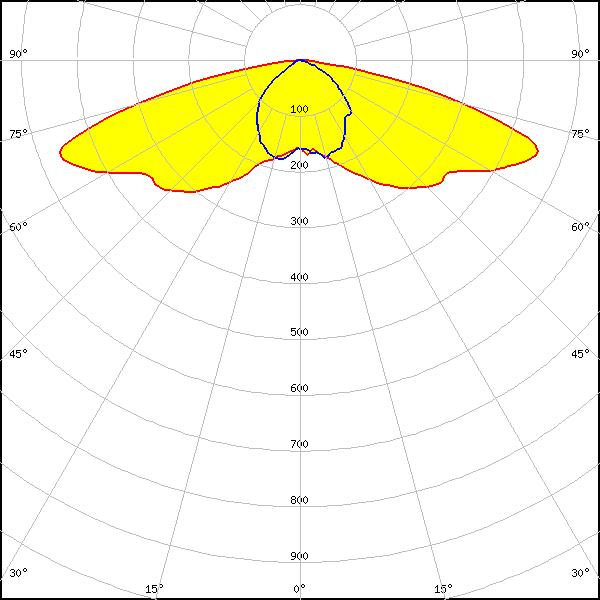

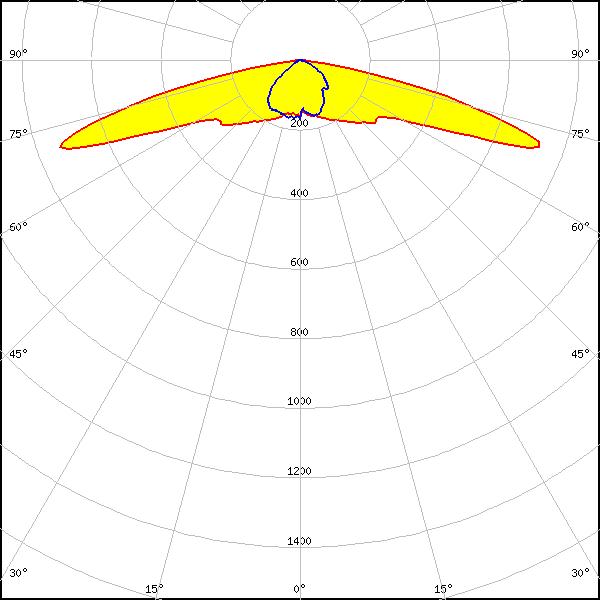

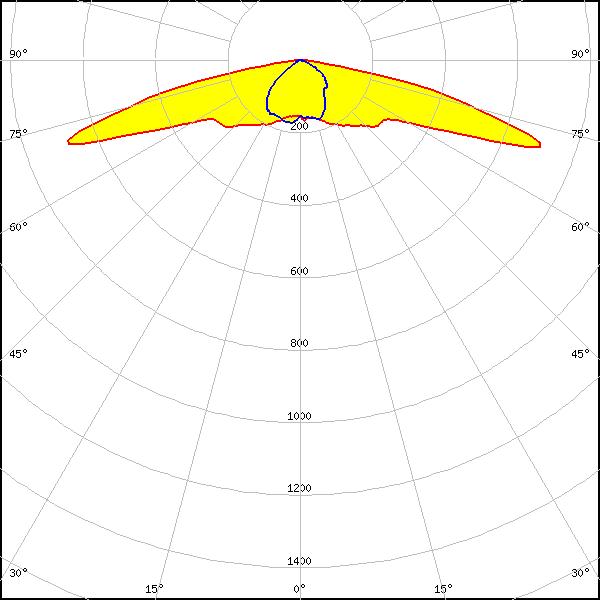

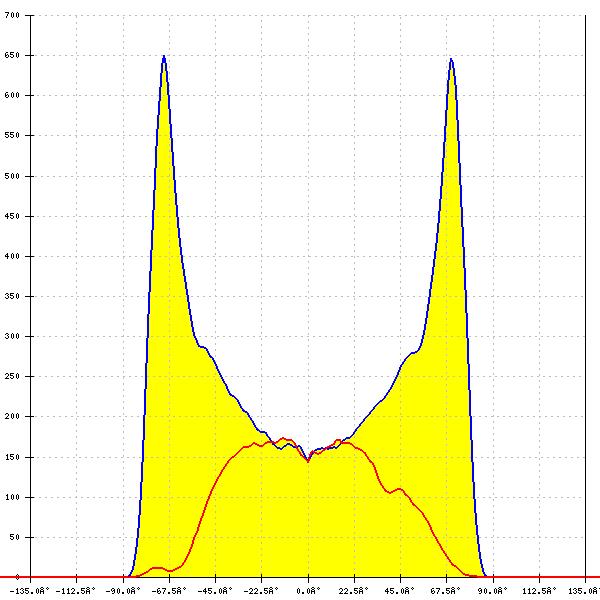

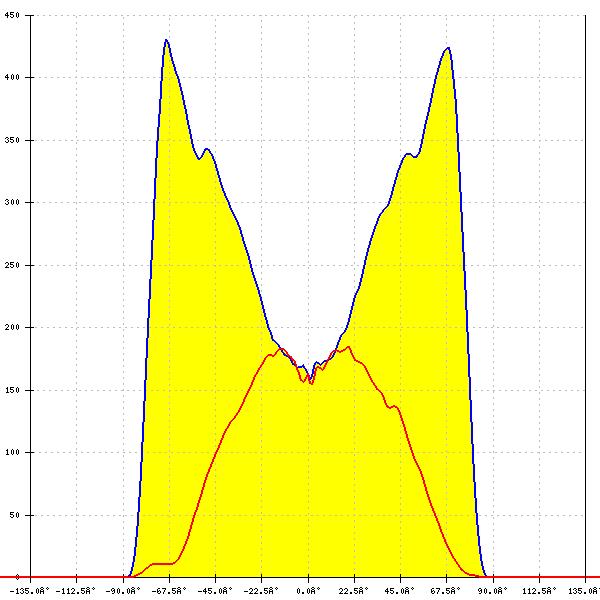

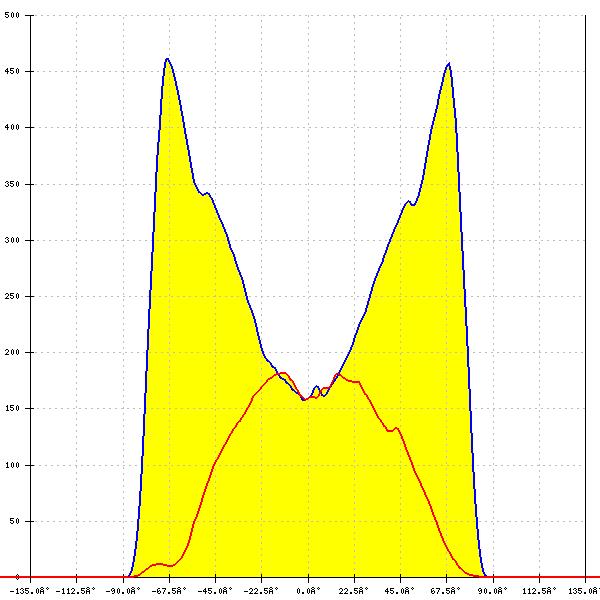

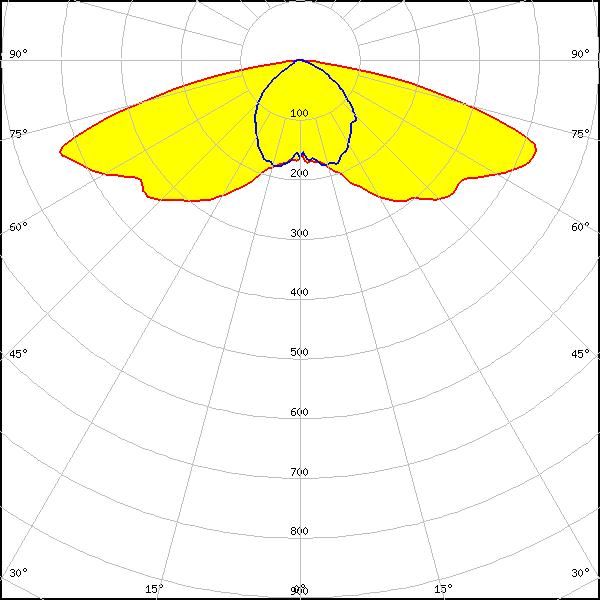

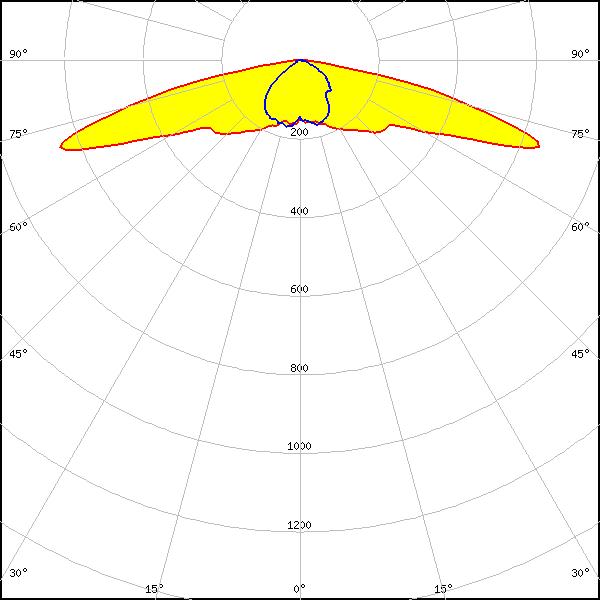

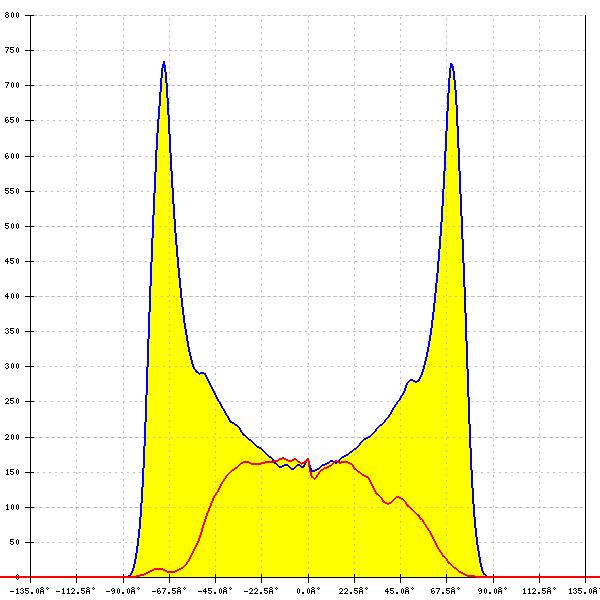

    Optical results

    LED: J Series 5050C 6V E Class
    Required components:
    C18696_SOLDER-CLIP-2
    FWHM: 154° + 104°
    FWTM: 164° + 130°
    Peak intensity: 0.761 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

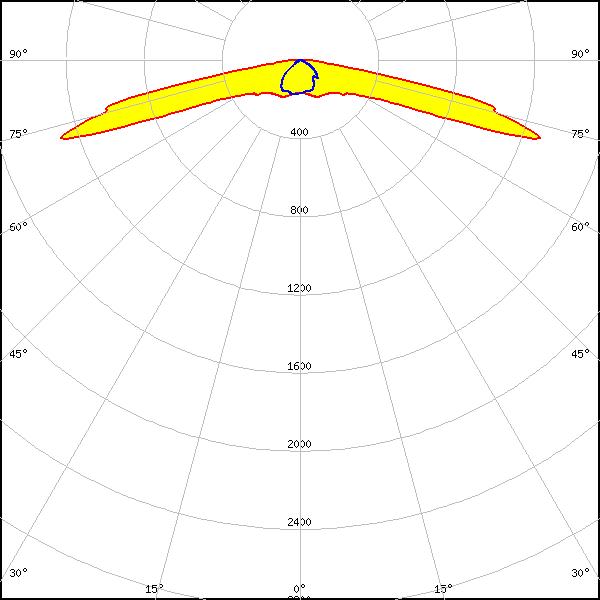

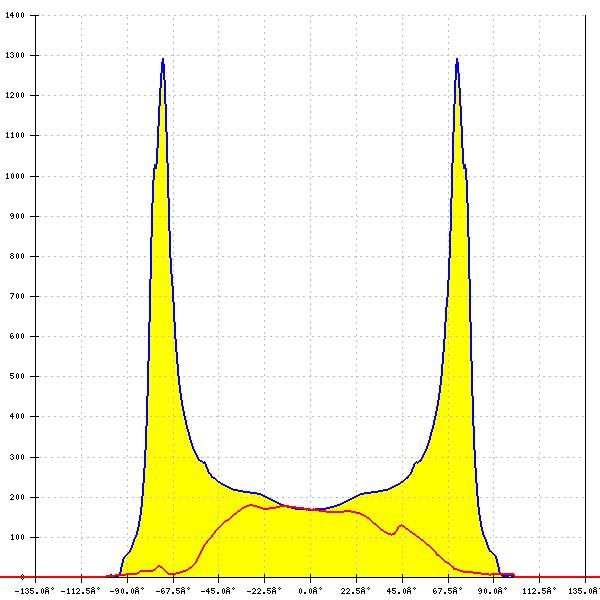

    LED: J Series 5050C 6V E Class
    FWHM: asymmetric
    Peak intensity: 1.380 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 7070B K Class
    Required components:
    C18696_SOLDER-CLIP-2
    FWHM: 154° + 99°
    FWTM: 166° + 132°
    Peak intensity: 0.440 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

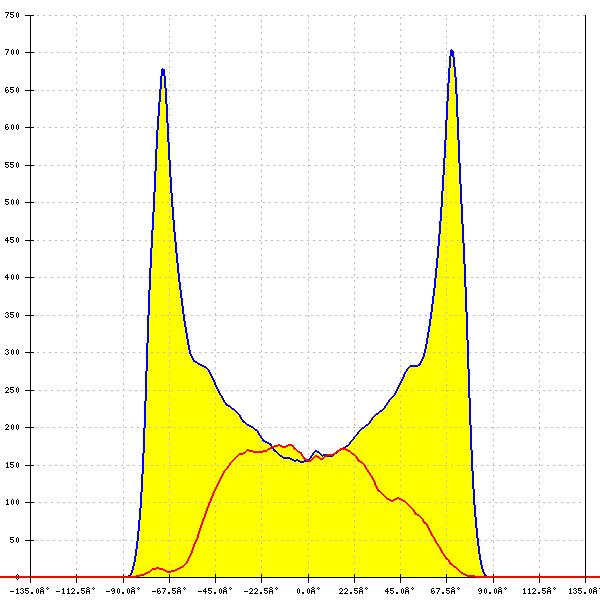

    LED: LUXEON 5050 HE Plus
    Required components:
    C18696_SOLDER-CLIP-2
    FWHM: 154° + 103°
    FWTM: 164° + 130°
    Peak intensity: 0.674 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    Required components:
    C18696_SOLDER-CLIP-2
    FWHM: 154° + 101°
    FWTM: 164° + 129°
    Peak intensity: 0.722 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 7070 HE
    Required components:
    C18696_SOLDER-CLIP-2
    FWHM: 154° + 100°
    FWTM: 166° + 131°
    Peak intensity: 0.474 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

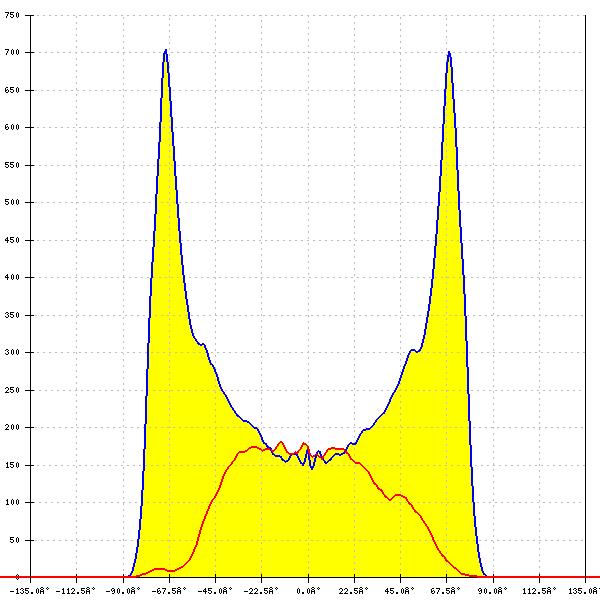

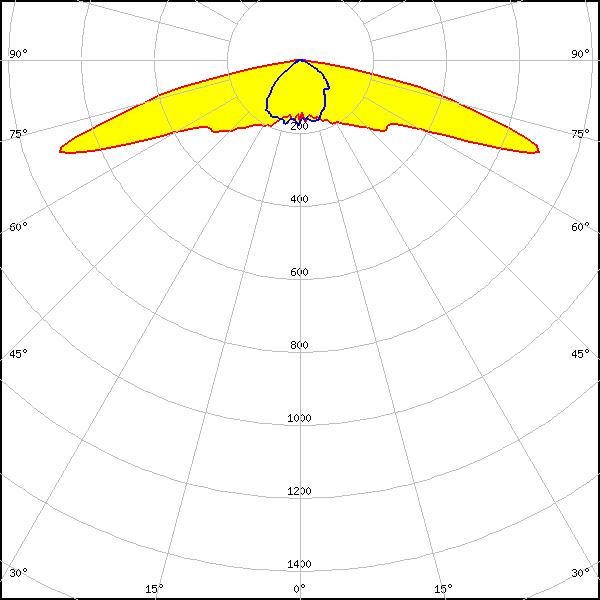

    LED: OSCONIQ S 5050 (Q9LR32)
    Required components:
    C18696_SOLDER-CLIP-2
    FWHM: 154° + 100°
    FWTM: 164° + 128°
    Peak intensity: 0.727 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
