    LP20249_OLGA-SC2-SS2

    Print

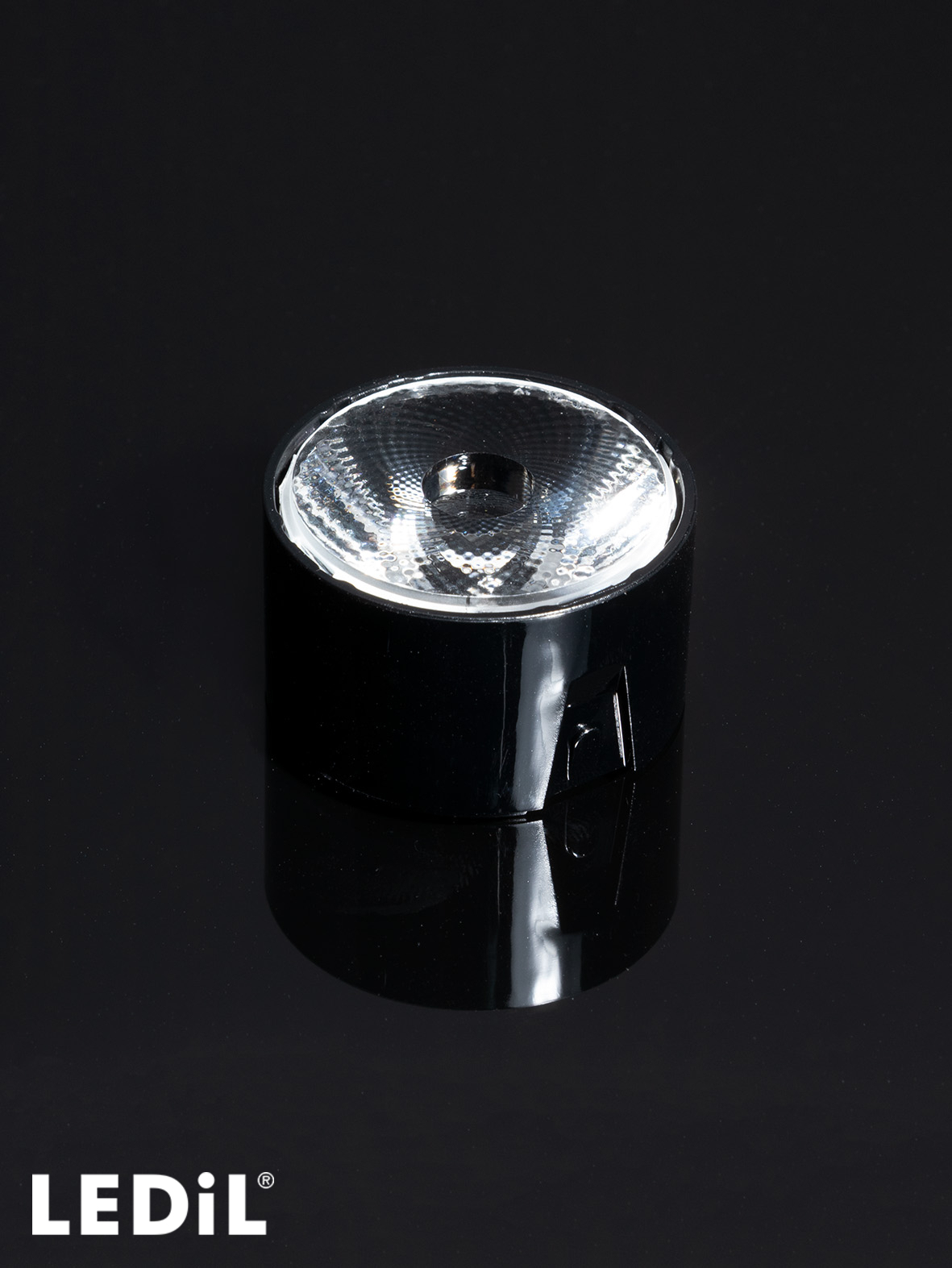

    ~8° smooth spot beam. Optimized for high-power 3535 size LED packages. Assembly with black SC2-holder.

    Specification
    • Dimensions:
      32 mm
    • Height:
      18.99 mm
    • Fastening:
      solder clip
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      792 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.8 kg
    • MPQ:
      66 pcs
    • MOQ:
      132 pcs
    • MOQ size:
      480 x 280 x 60 mm
    • MOQ weight:
      1.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      LP20249_OLGA-SC2-SS2
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New solder clip connection for fast and secure lens installation

    Application guide

    Guide for Retail Lighting Optics

    News

    OLGA – Expanding possibilities in architectural lighting

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    Moscow Paleontological Museum

    News

    PRODUCT NEWS - OLGA

    Application area

    Indoor Architectural Lighting

    AVAILABLE LEDiL ACCESSORIES

    SOLDER-CLIP-2

    Reel with 2nd generation of solder clips for easy lens mounting

    Optical results

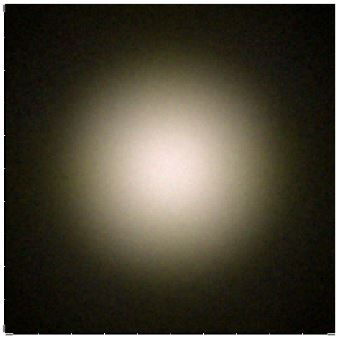

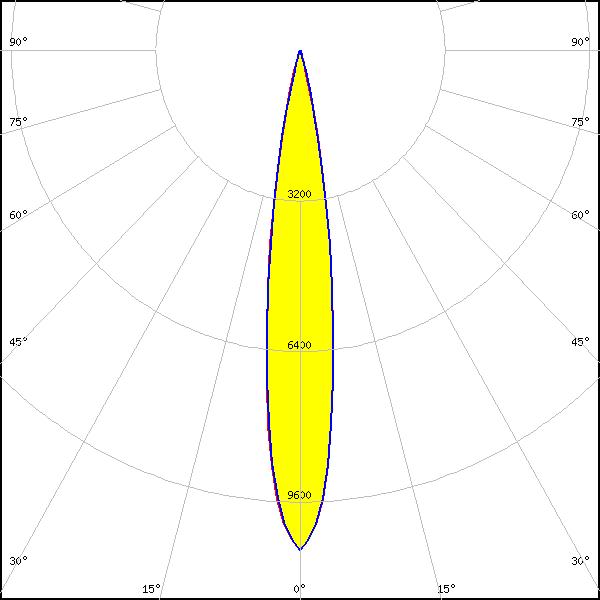

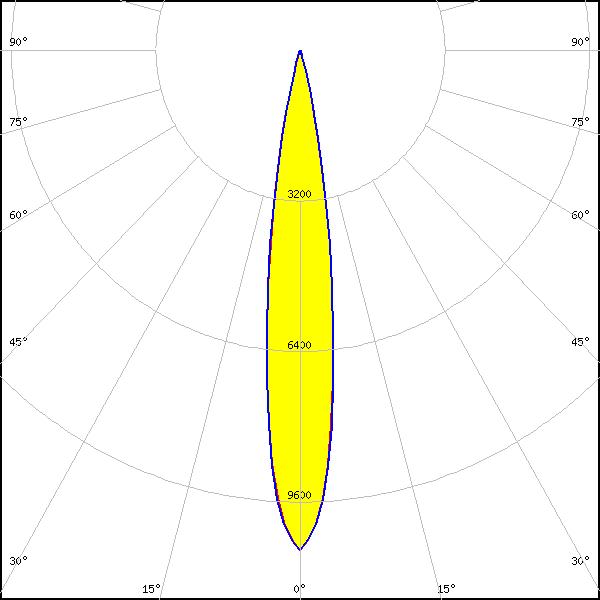

    LED: XHP35.2 HD
    FWHM: 16°
    FWTM: 28°
    Peak intensity: 10.628 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

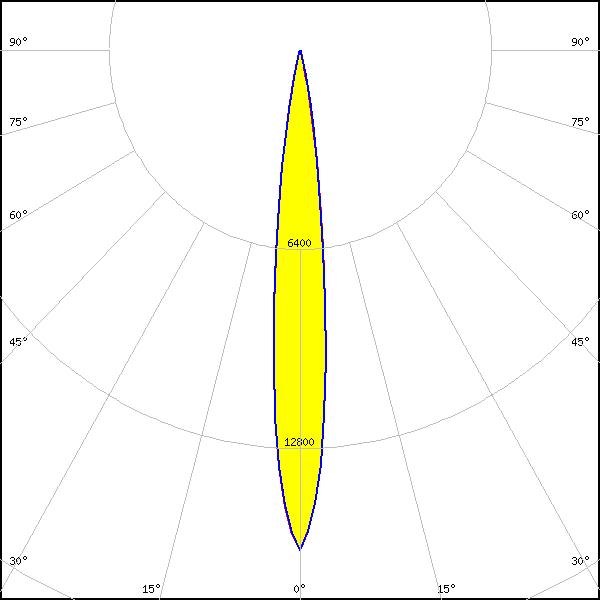

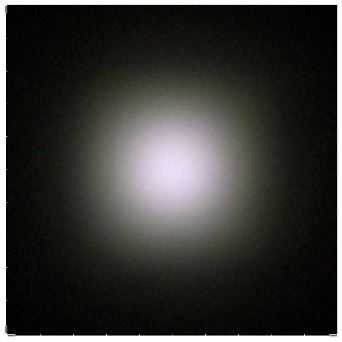

    LED: XHP35.2 HI
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 16.069 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

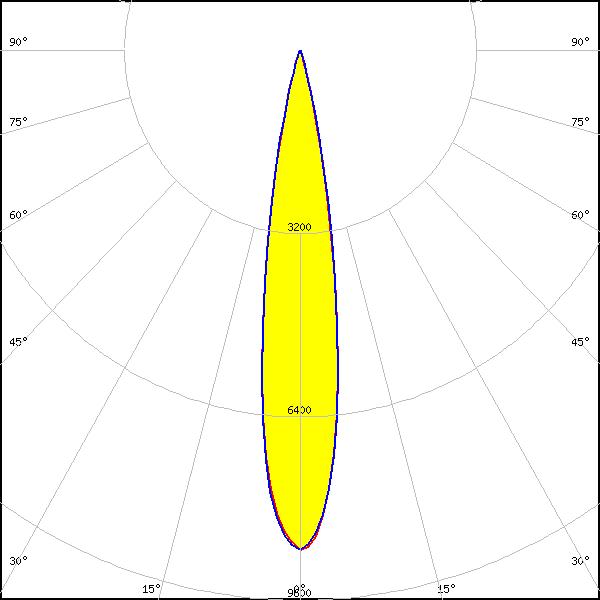

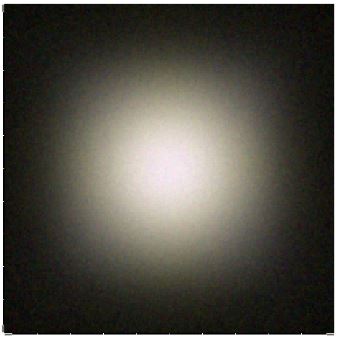

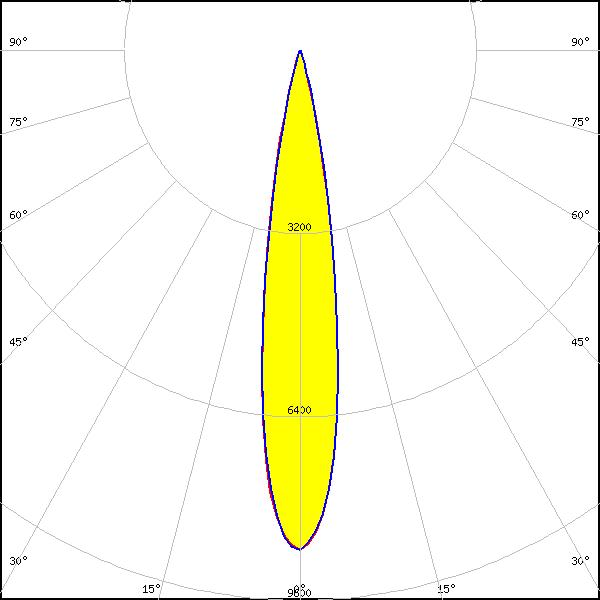

    LED: XHP50.3 HD
    FWHM: 18°
    FWTM: 30°
    Peak intensity: 8.731 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

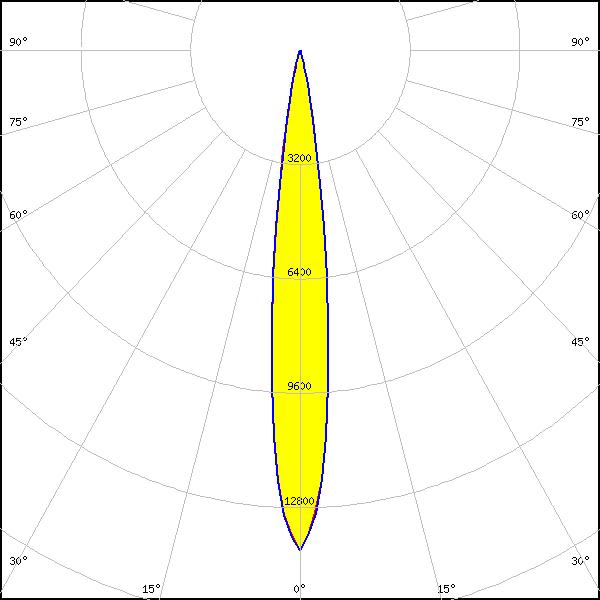

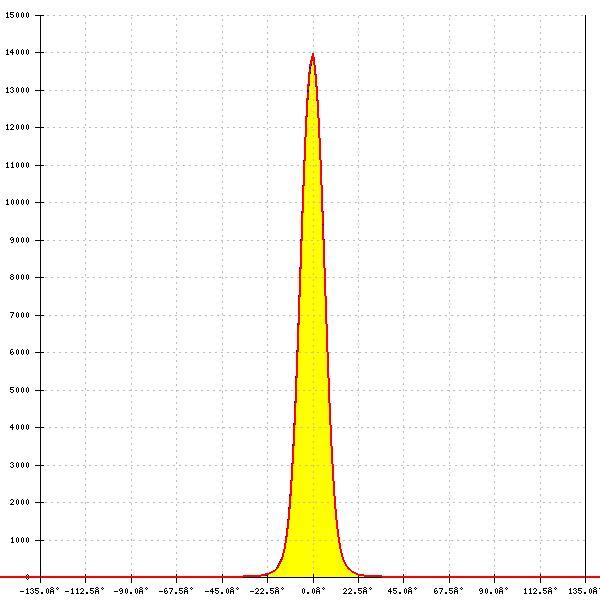

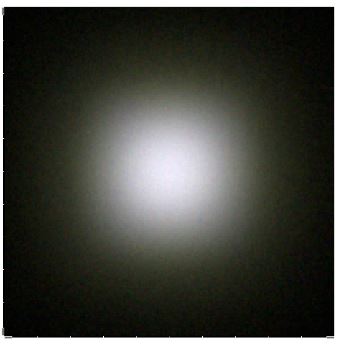

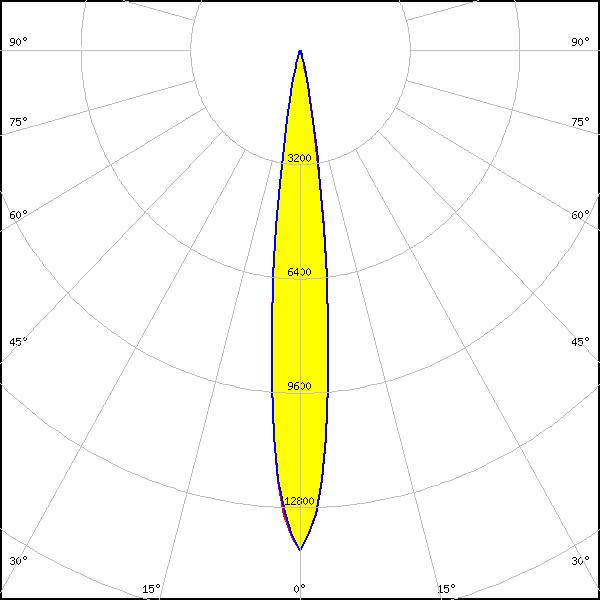

    LED: XHP50.3 HI
    FWHM: 14°
    FWTM: 24°
    Peak intensity: 13.997 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

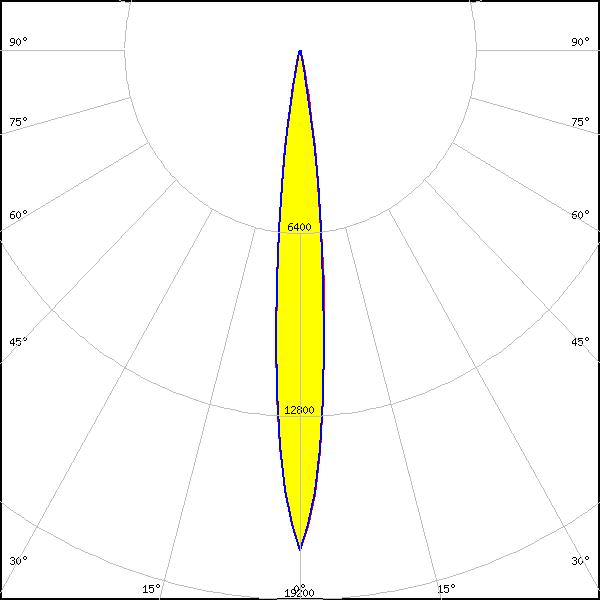

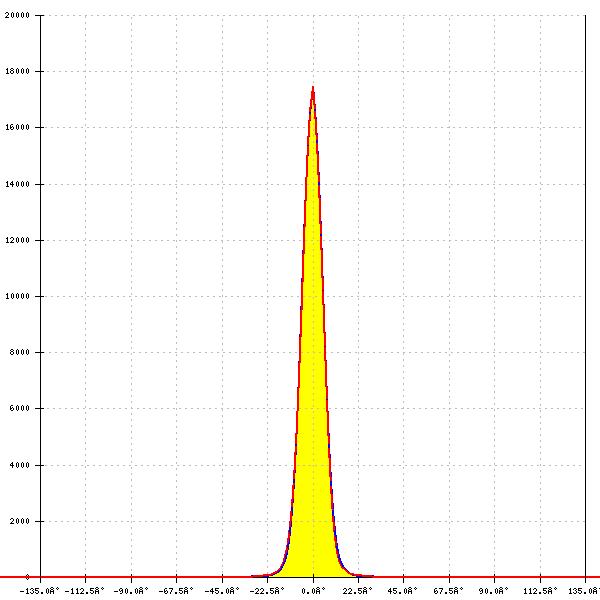

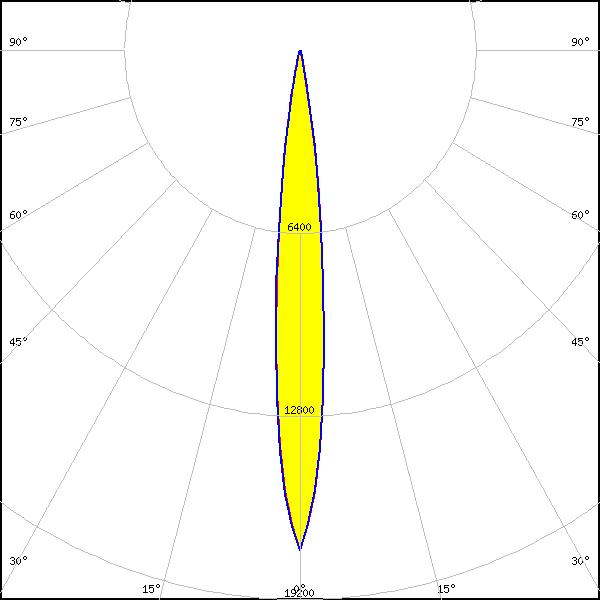

    LED: XM-L3
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 17.482 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

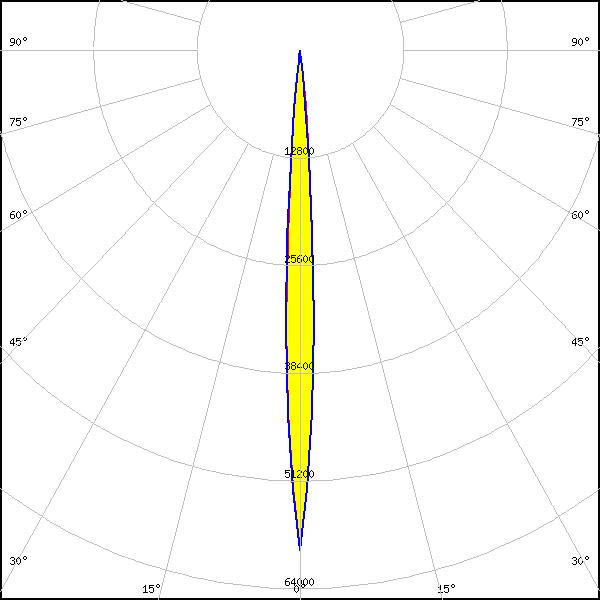

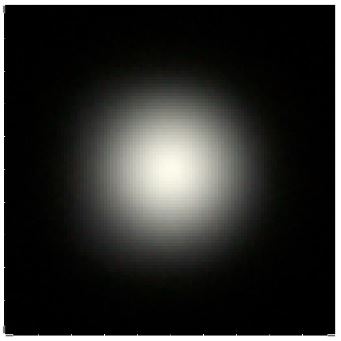

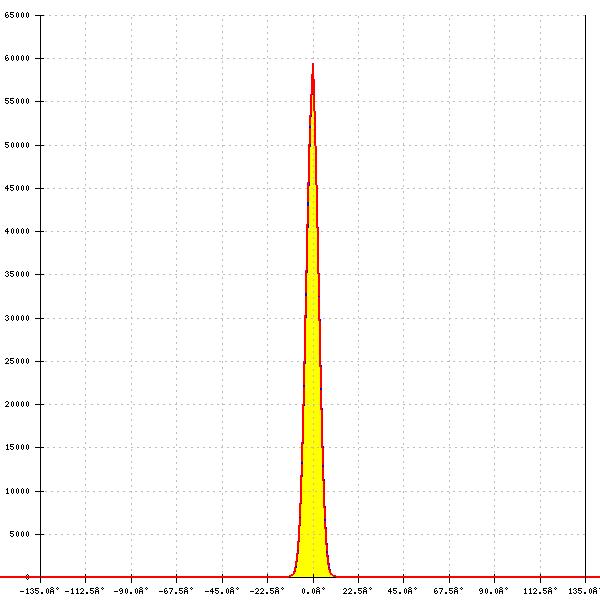

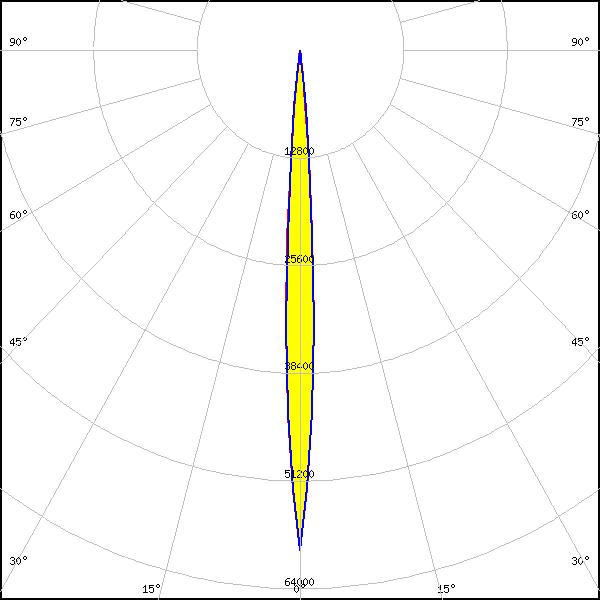

    LED: XP-E2
    FWHM: 6°
    FWTM: 12°
    Peak intensity: 59.450 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

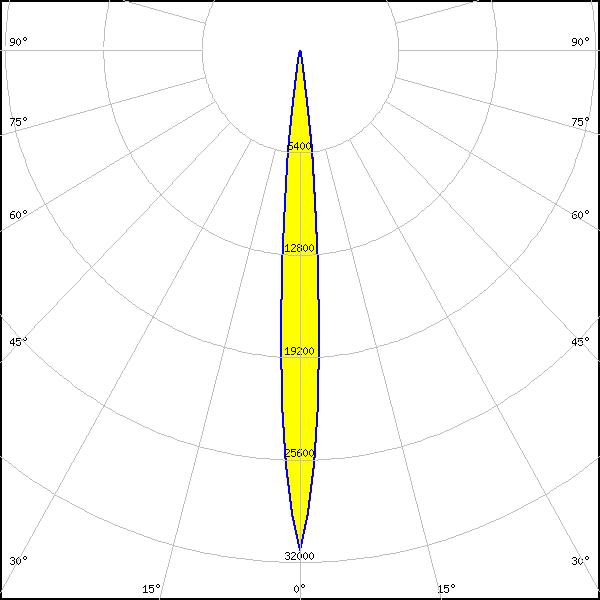

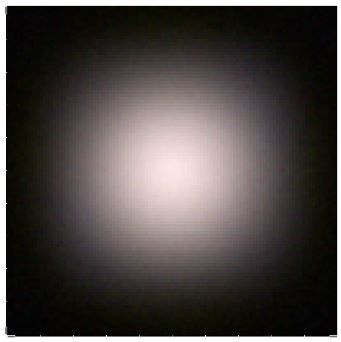

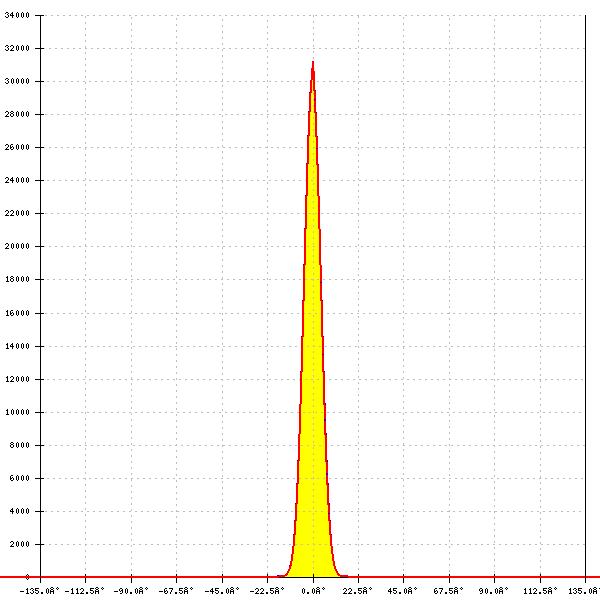

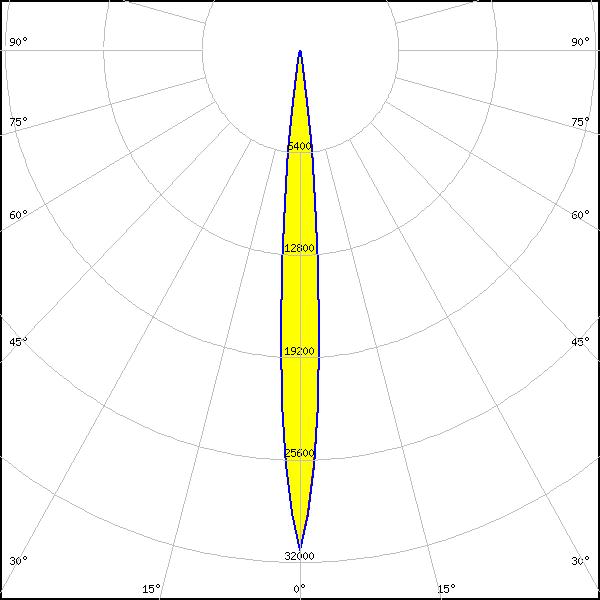

    LED: XP-G4
    FWHM: 9°
    FWTM: 16°
    Peak intensity: 31.238 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

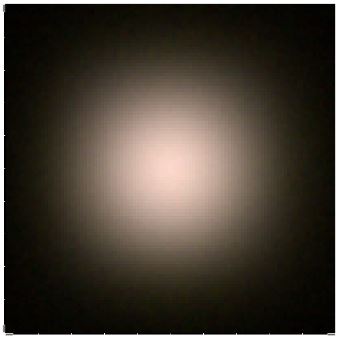

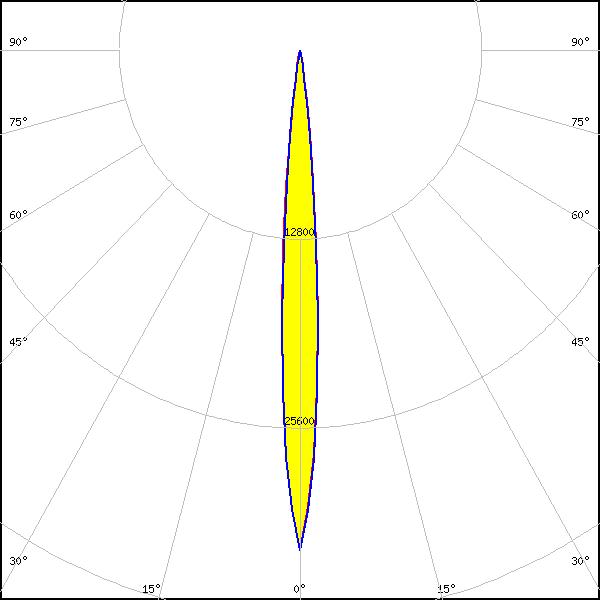

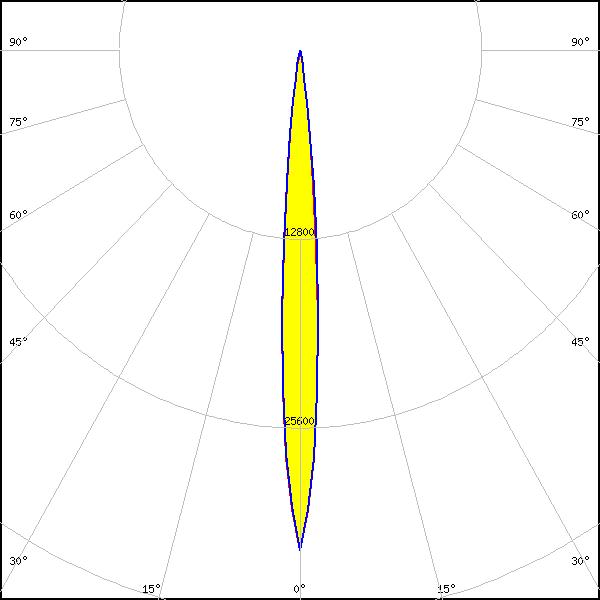

    LED: XP-L HI
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 33.901 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

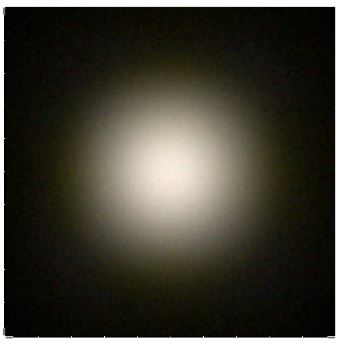

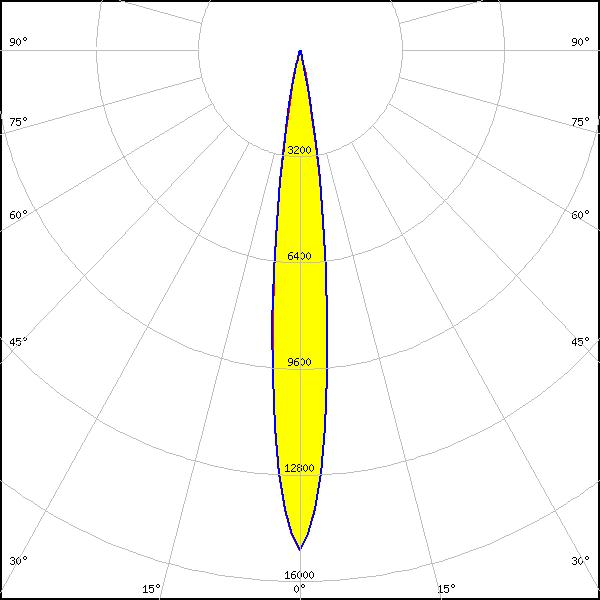

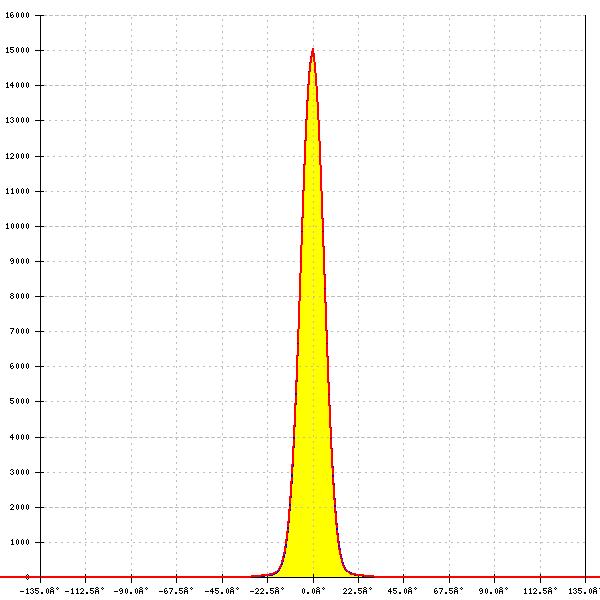

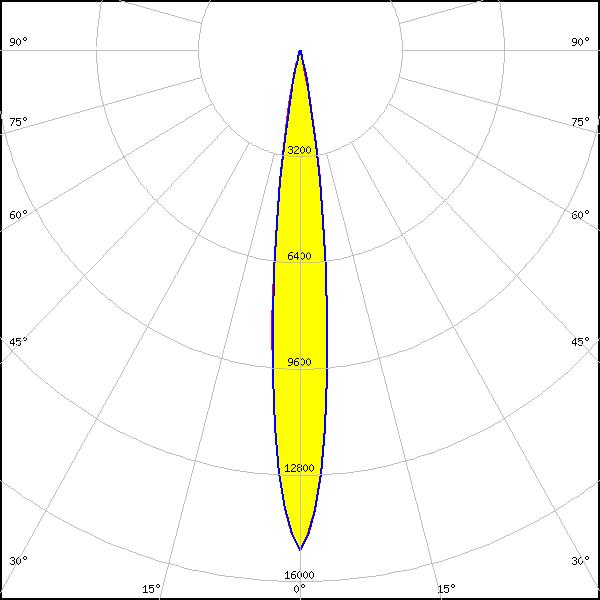

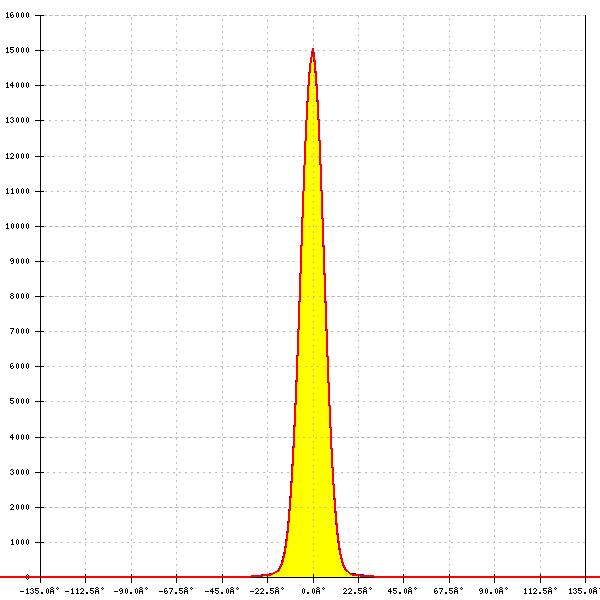

    LED: XP-L2
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 15.060 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

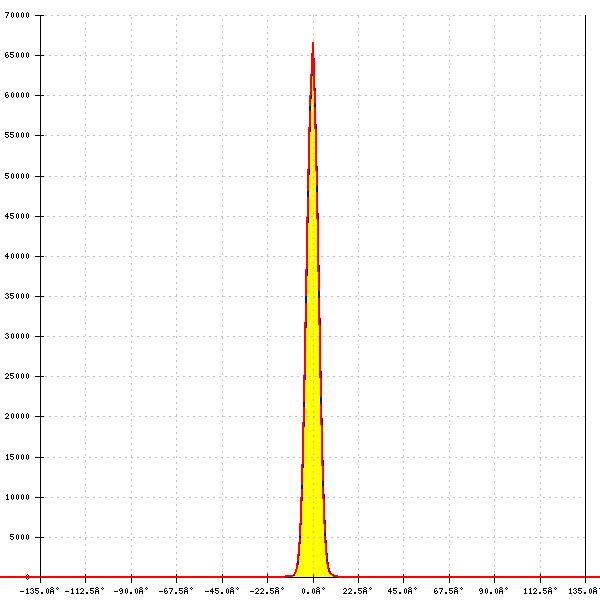

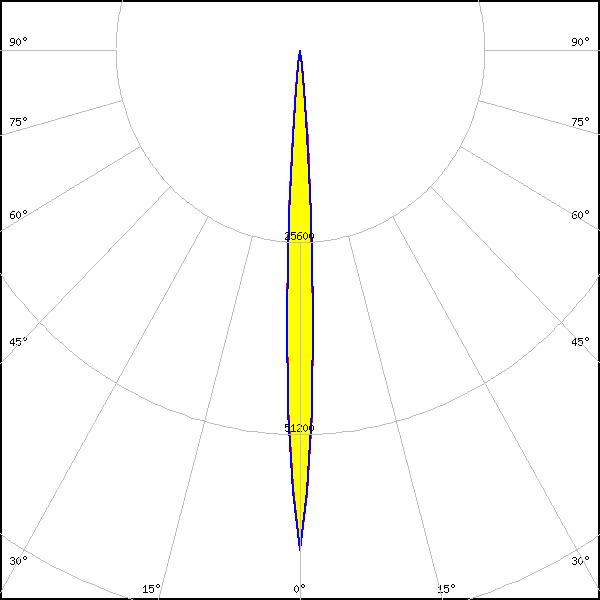

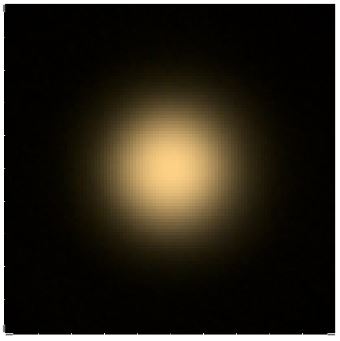

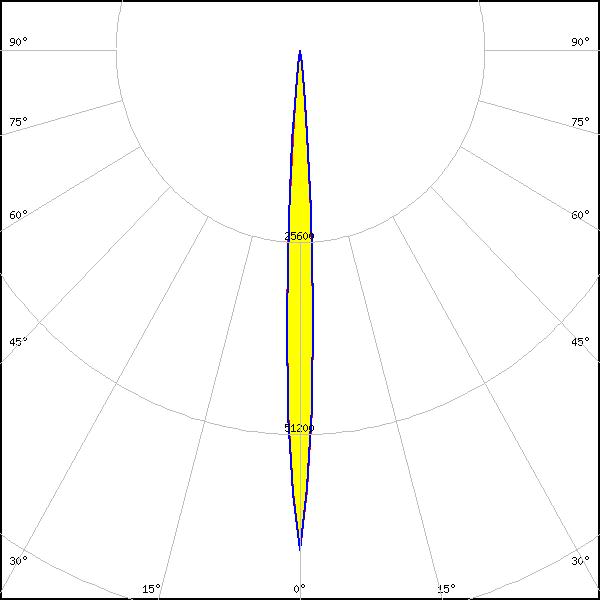

    LED: XQ-E HI
    FWHM: 6°
    FWTM: 12°
    Peak intensity: 66.616 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

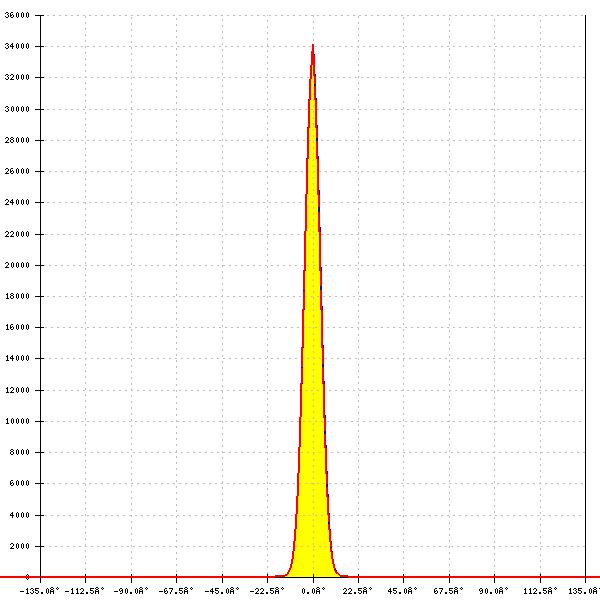

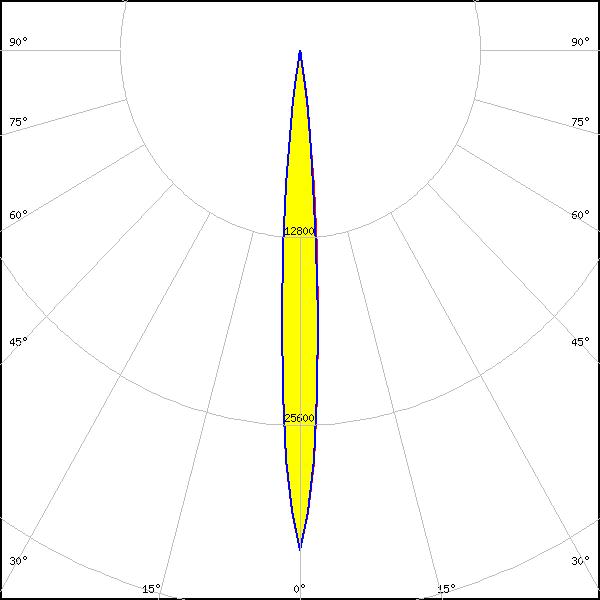

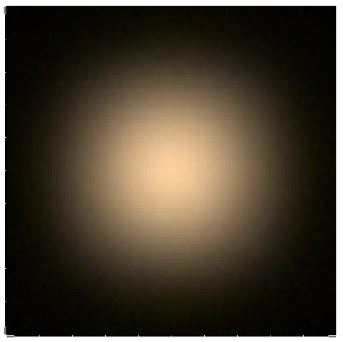

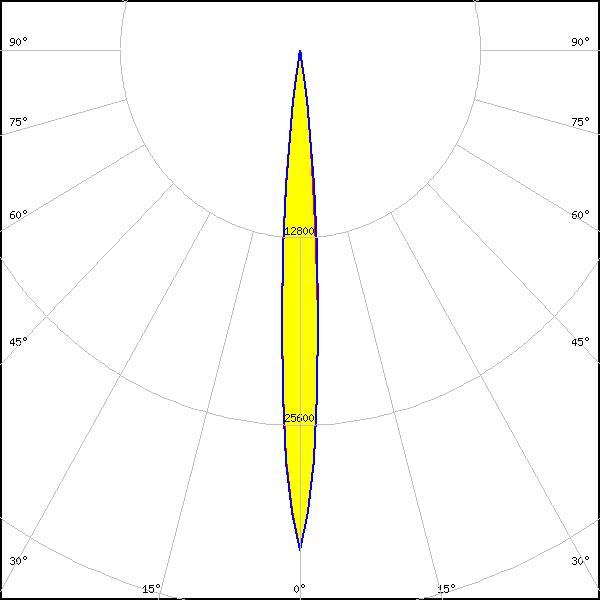

    LED: LUXEON TX
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 34.139 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

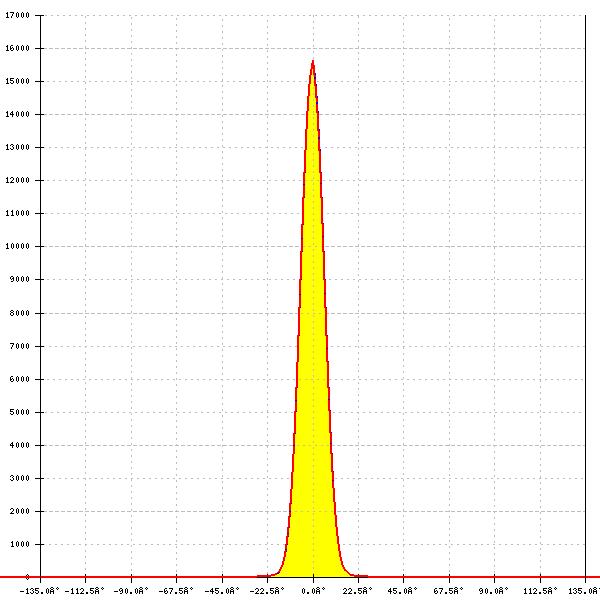

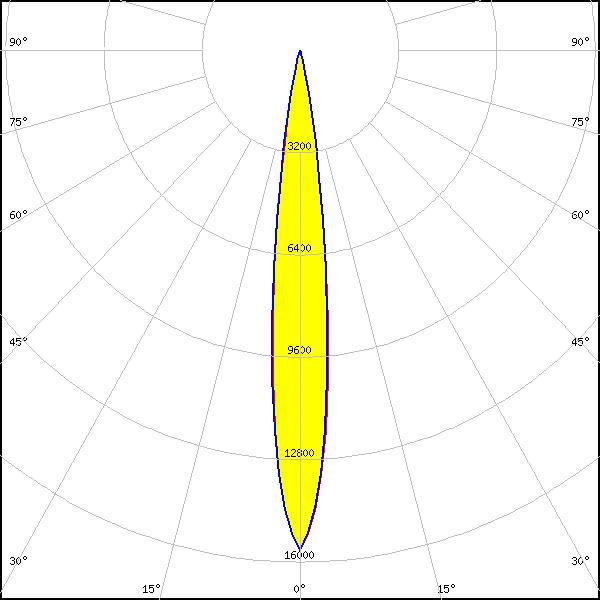

    LED: NV4WB35AM
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 15.639 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

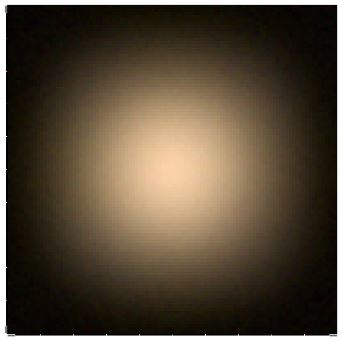

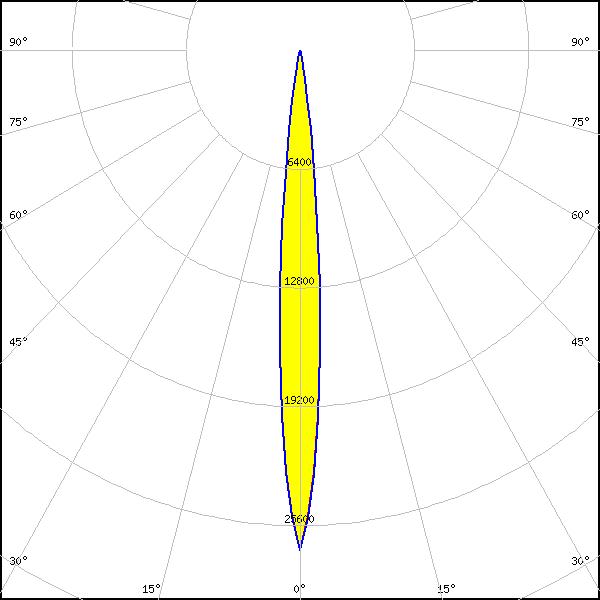

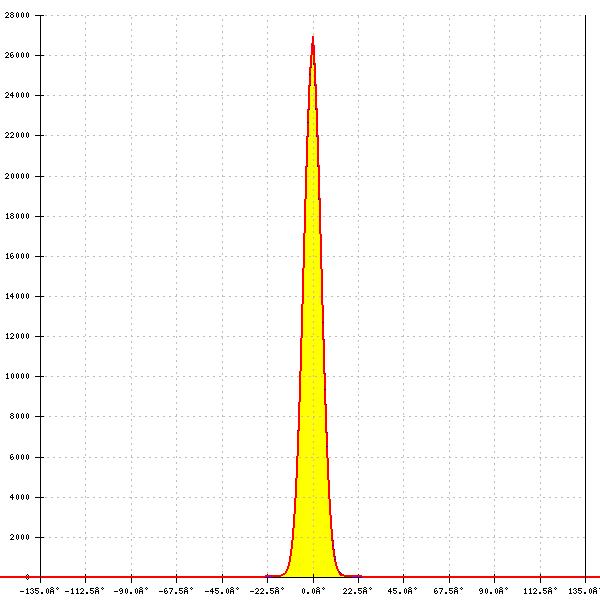

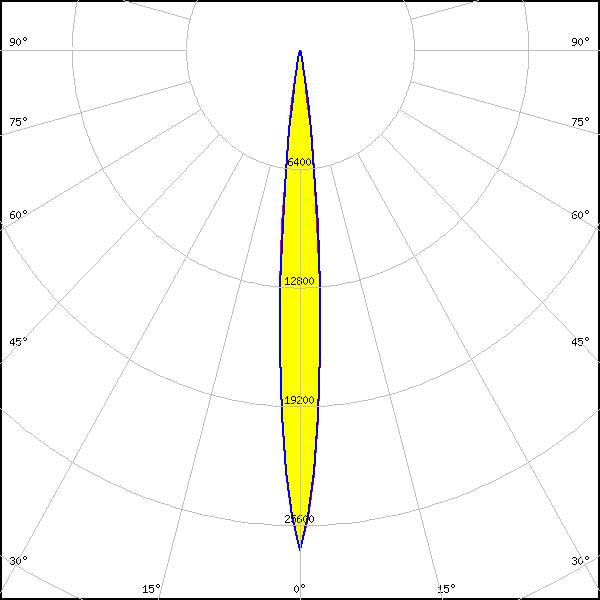

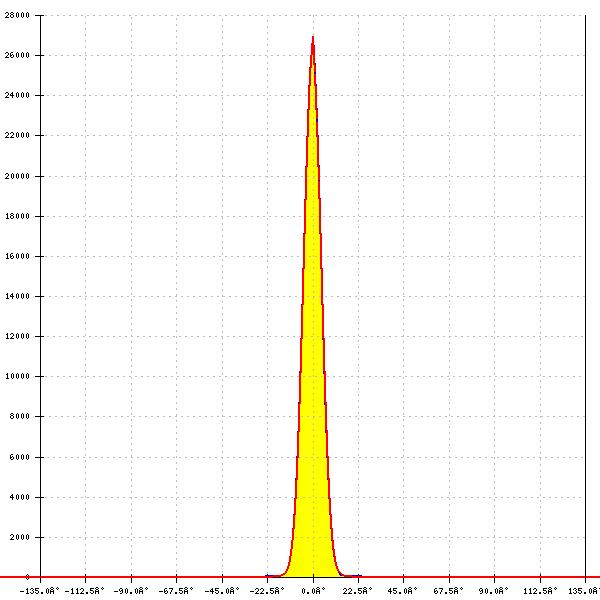

    LED: NVSW219F-V2
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 26.936 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

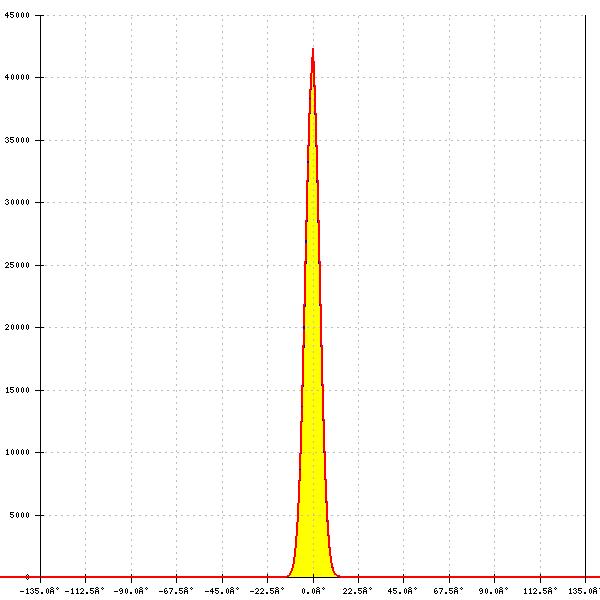

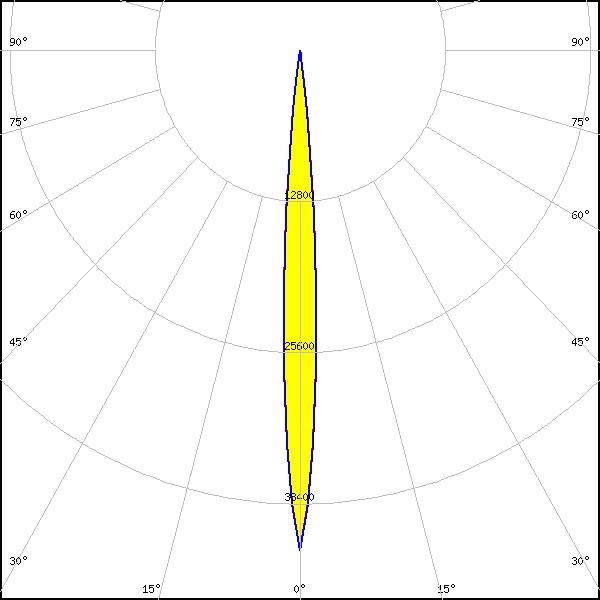

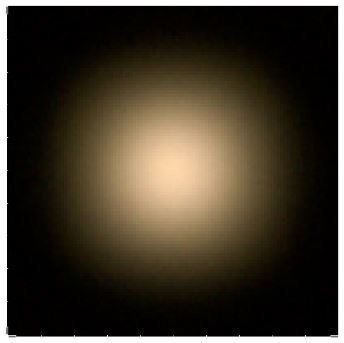

    LED: OSCONIQ C 2424 Gen1
    FWHM: 8°
    FWTM: 14°
    Peak intensity: 42.318 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

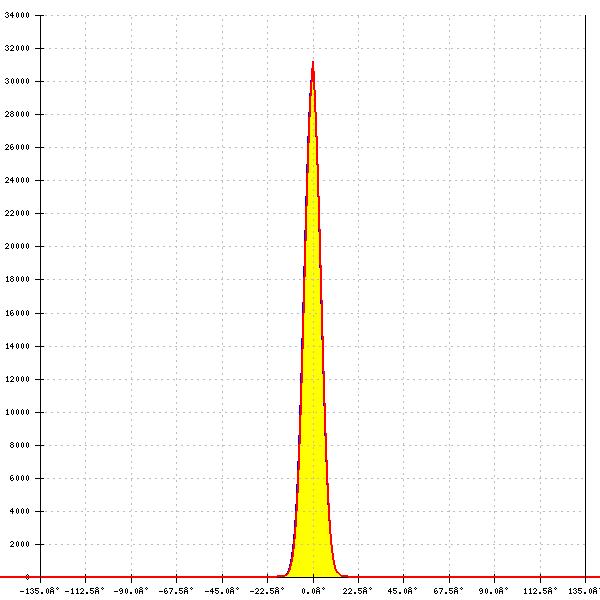

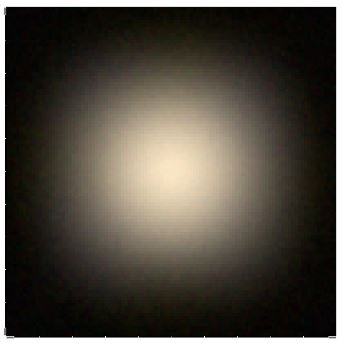

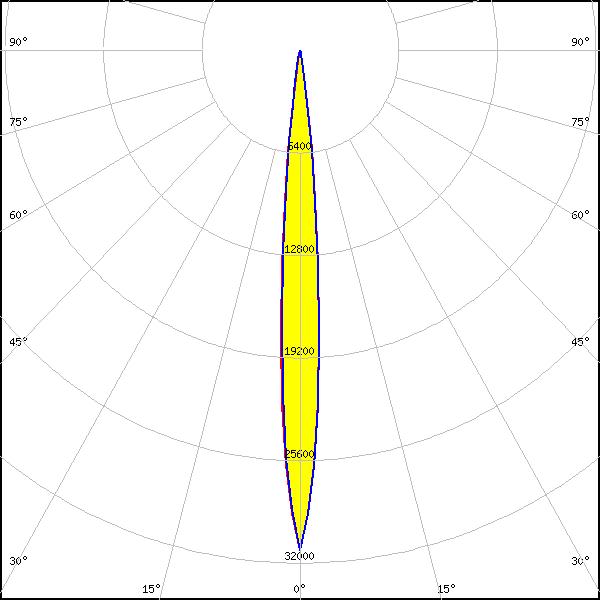

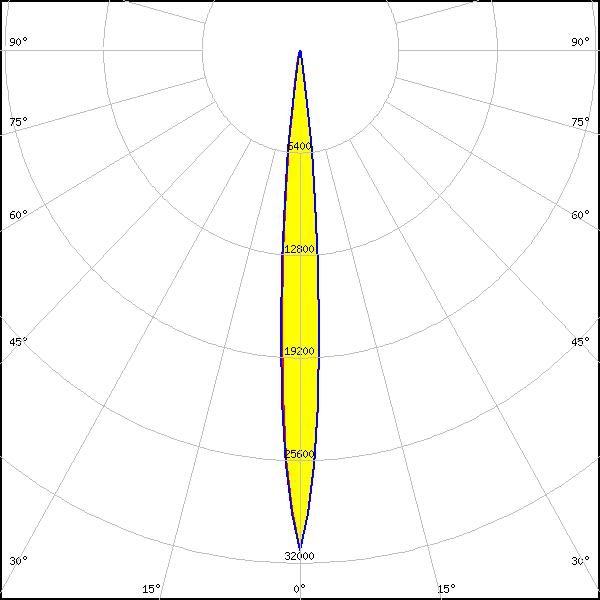

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 31.206 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

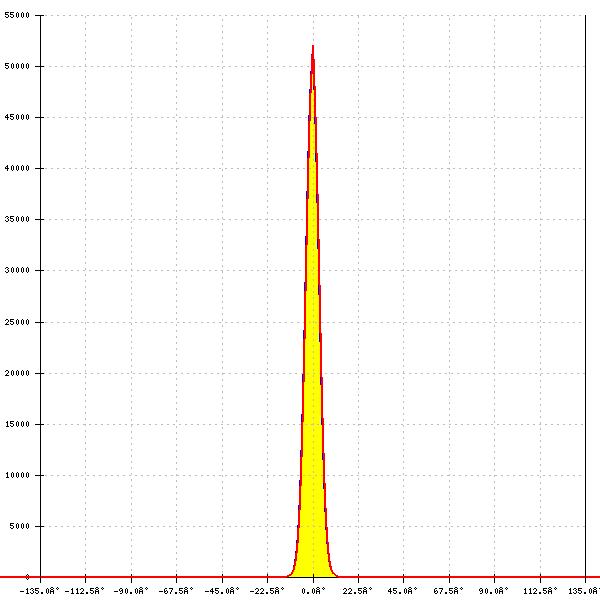

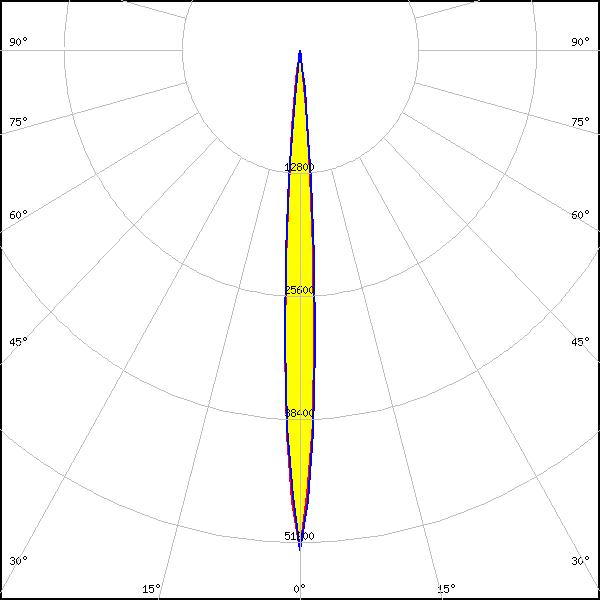

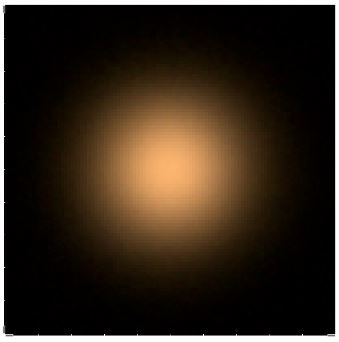

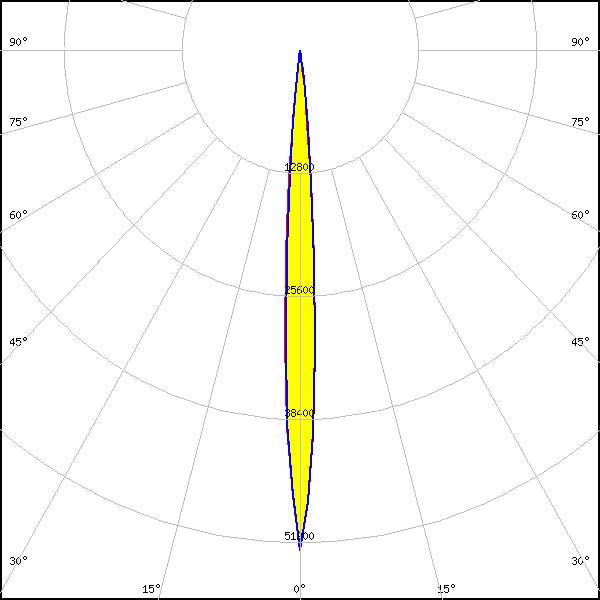

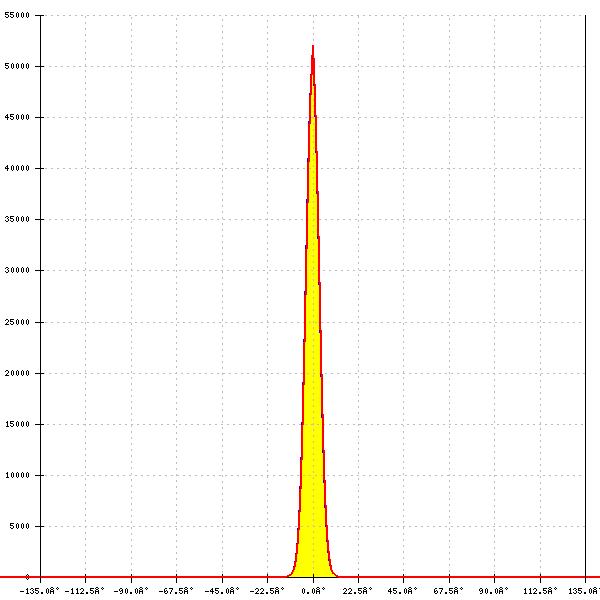

    LED: OSLON SSL 150
    FWHM: 7°
    FWTM: 14°
    Peak intensity: 52.030 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
