LP20253_OLGA-SC2-WW
Print

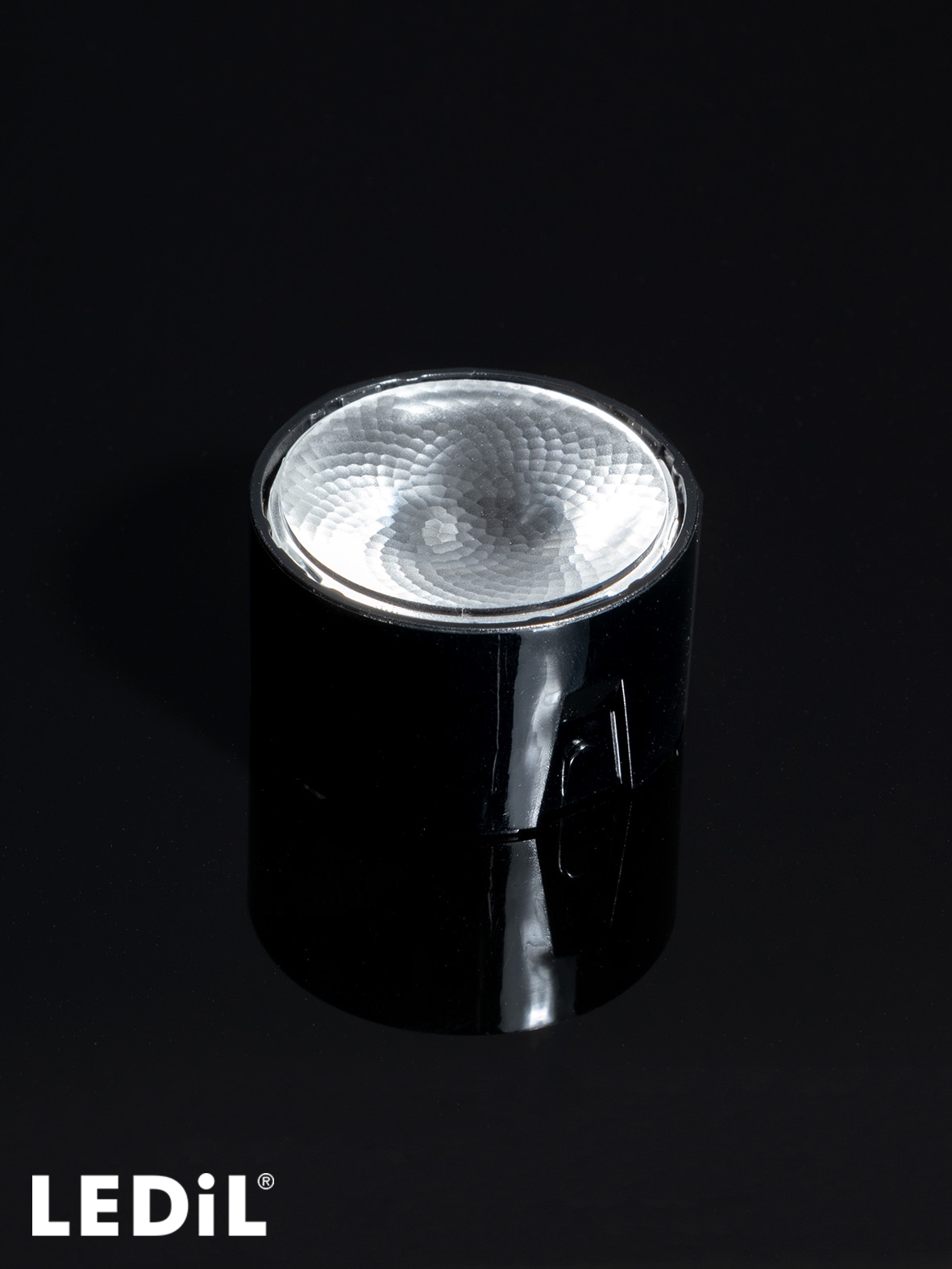

~60° wide beam with flange. Assembly with black SC2-holder.
Component Materials
- OLGA-WWSingle lensPMMA
- OLGA-SC2-HLDHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES
Optical results

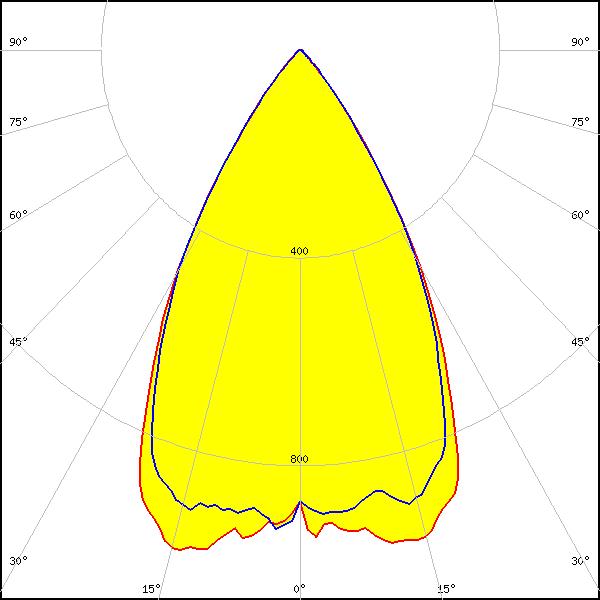

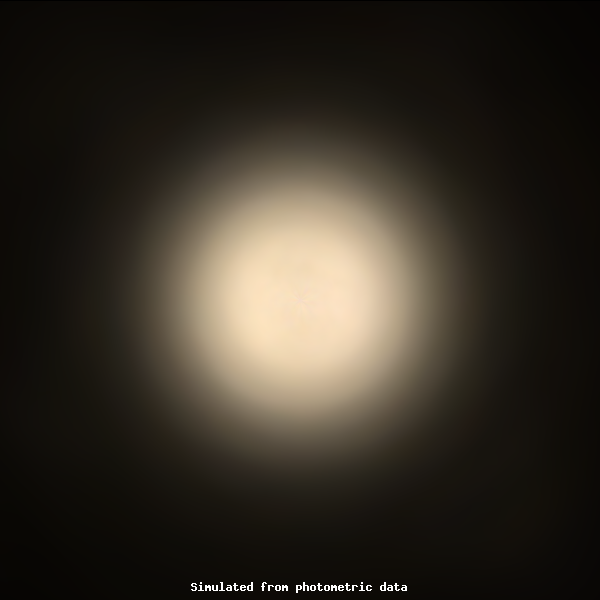

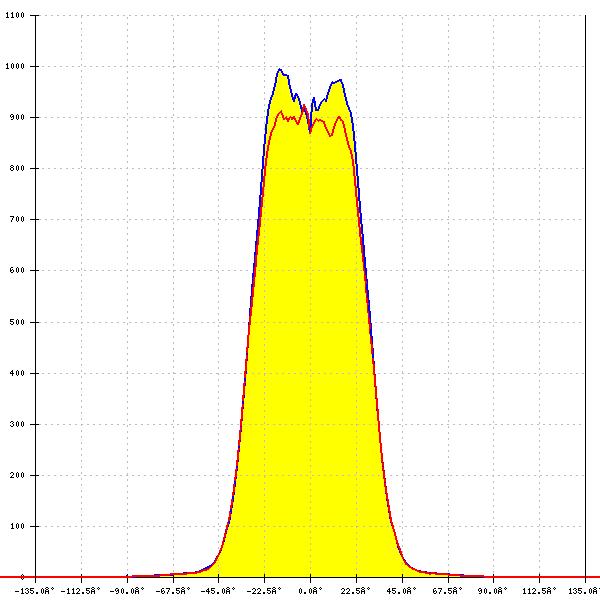

LED:
J Series 5050C 6V E Class
FWHM:
60° + 61°
FWTM:
81° + 82°
Peak intensity:
1.012 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

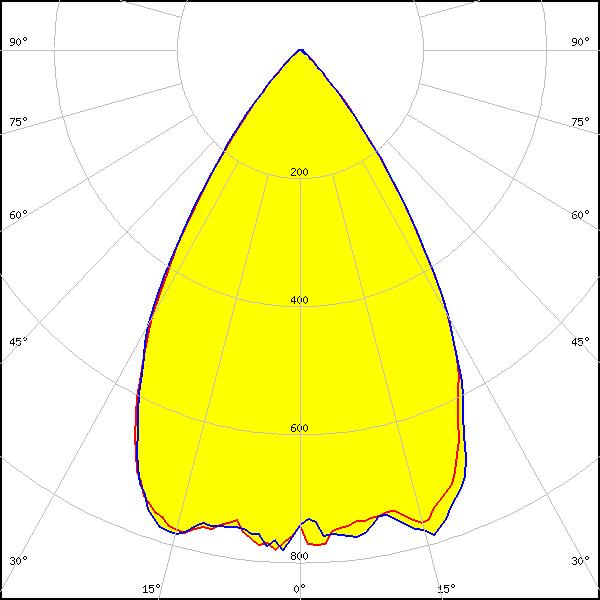

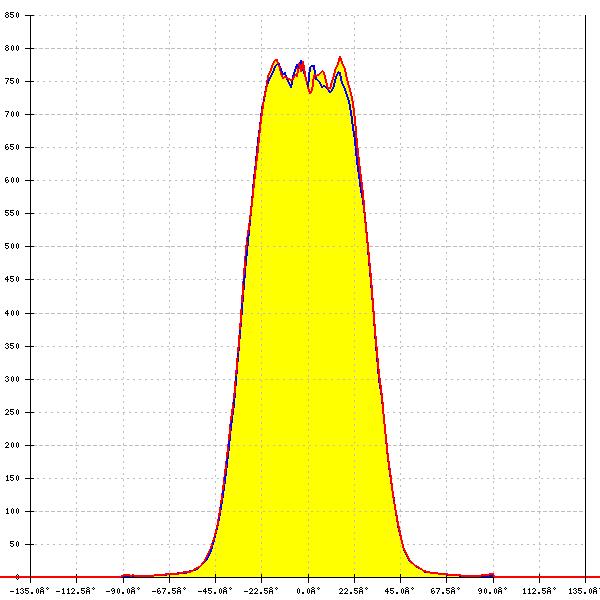

LED:

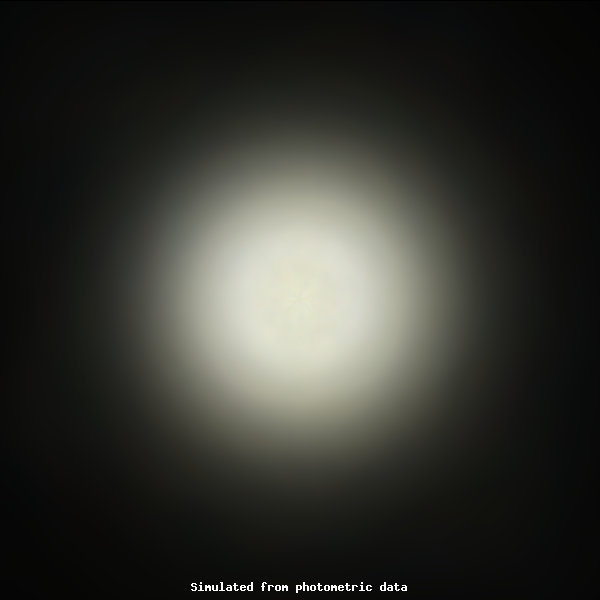

XHP35.2 HD
FWHM:
64° + 65°
FWTM:
88° + 88°
Peak intensity:
0.816 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

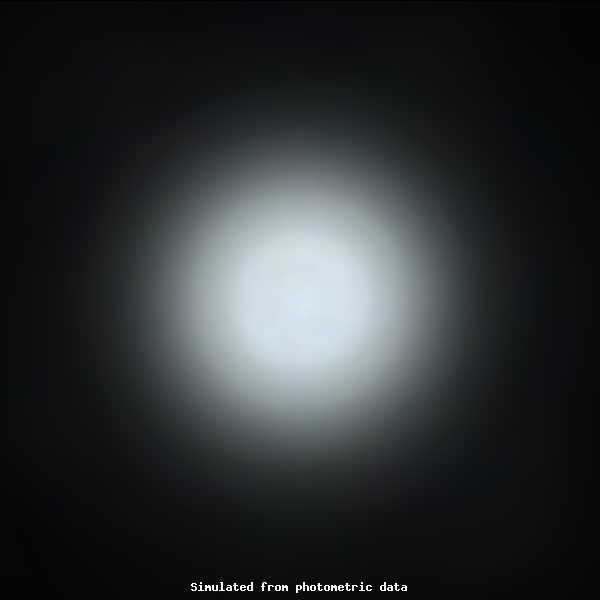

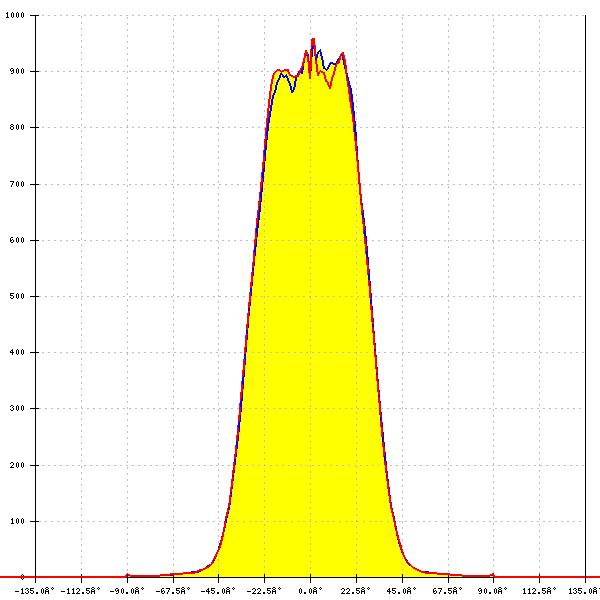

LED:
XHP35.2 HI
FWHM:
60°
FWTM:
83°
Peak intensity:
0.974 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

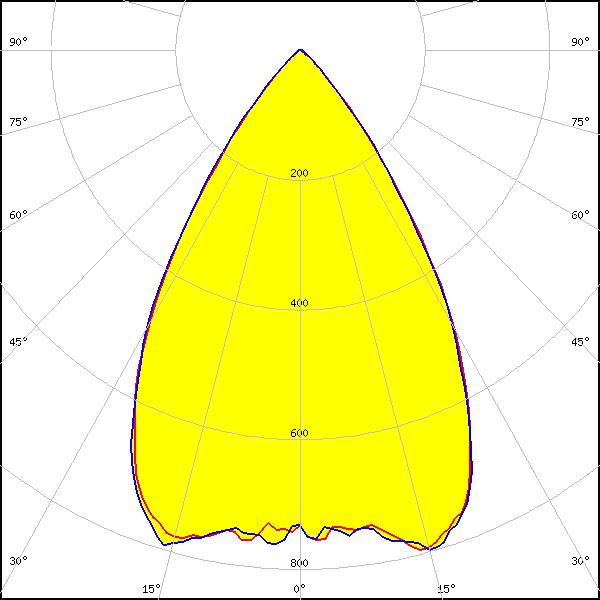

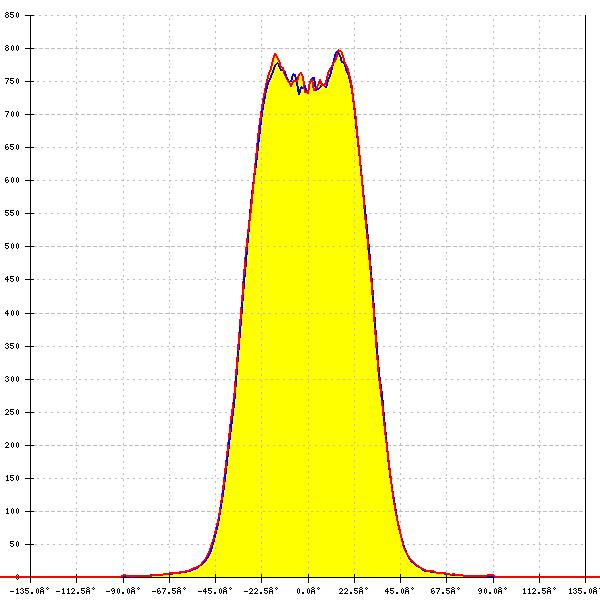

LED:
XHP50.3 HD
FWHM:
65°
FWTM:
88°
Peak intensity:
0.814 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

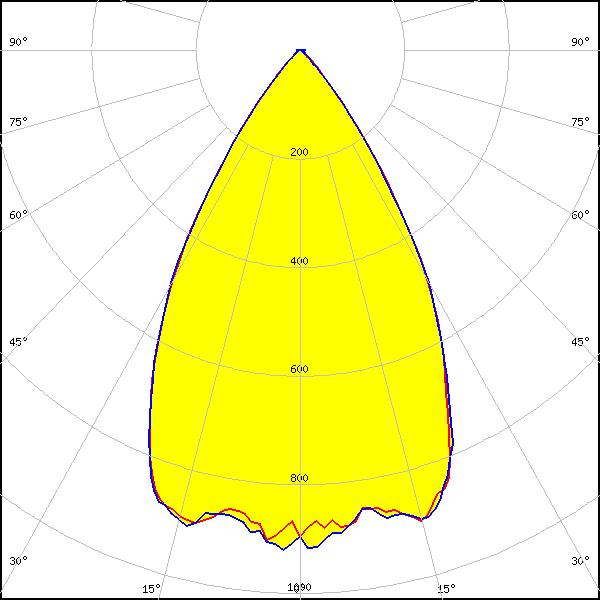

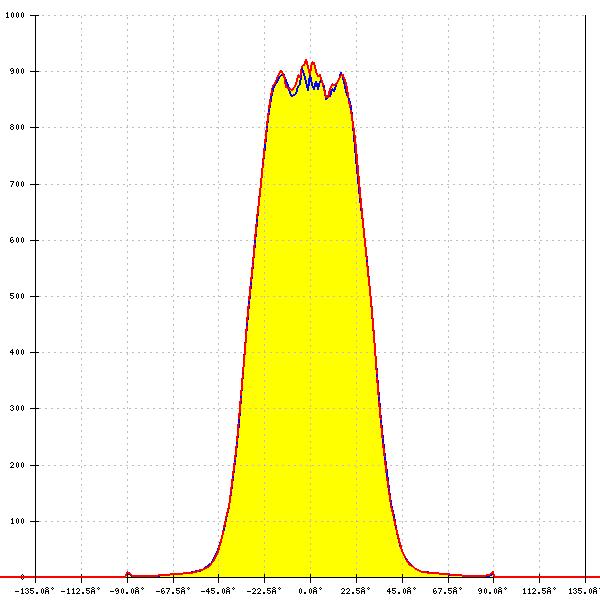

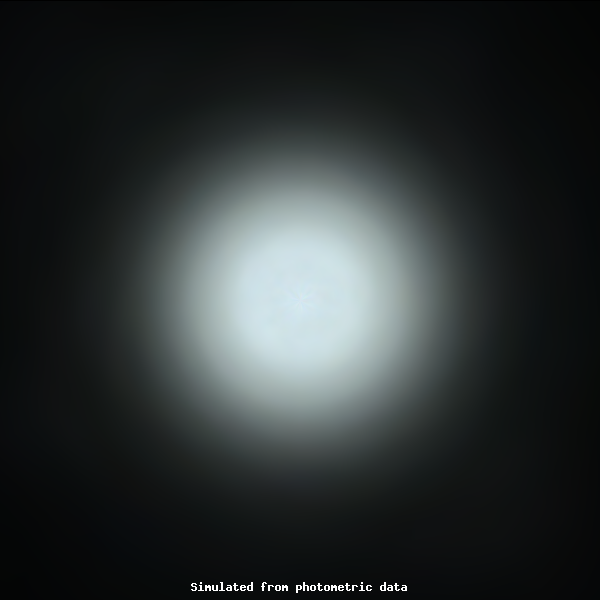

LED:
XHP50.3 HI
FWHM:
62°
FWTM:
84°
Peak intensity:
0.952 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

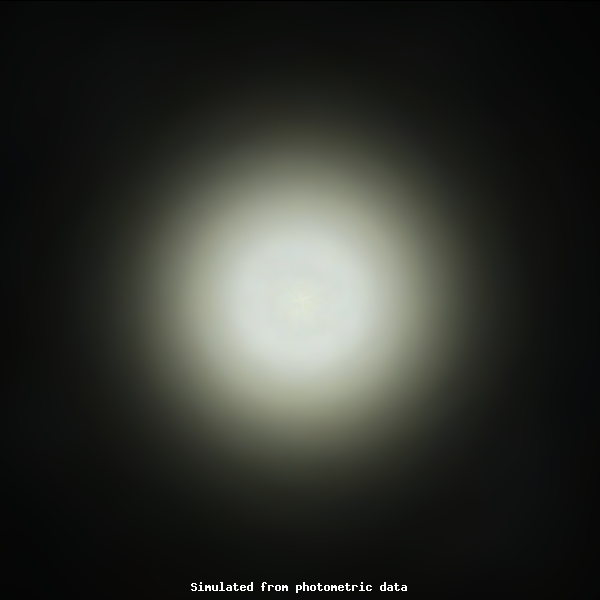

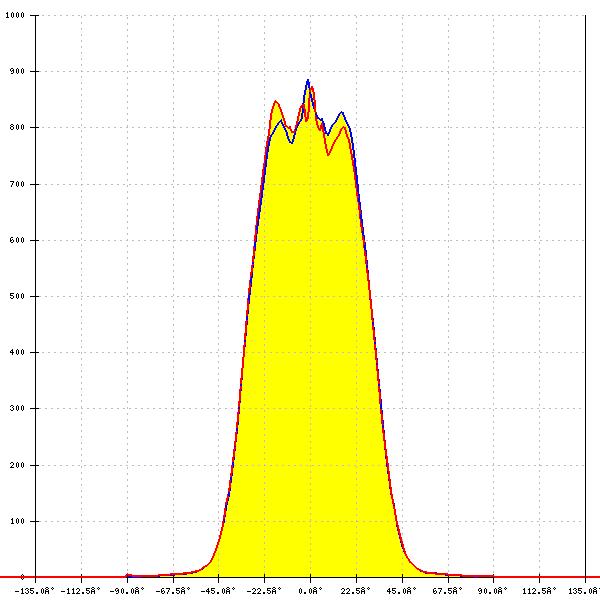

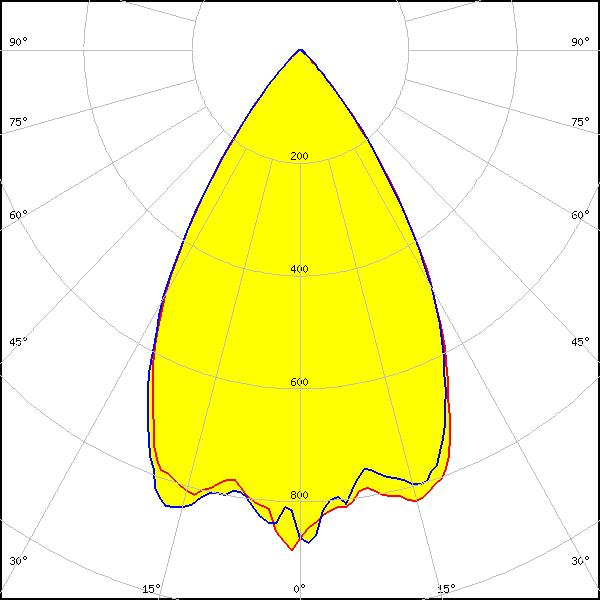

LED:
XP-L2
FWHM:
62° + 63°
FWTM:
86° + 86°
Peak intensity:
0.888 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

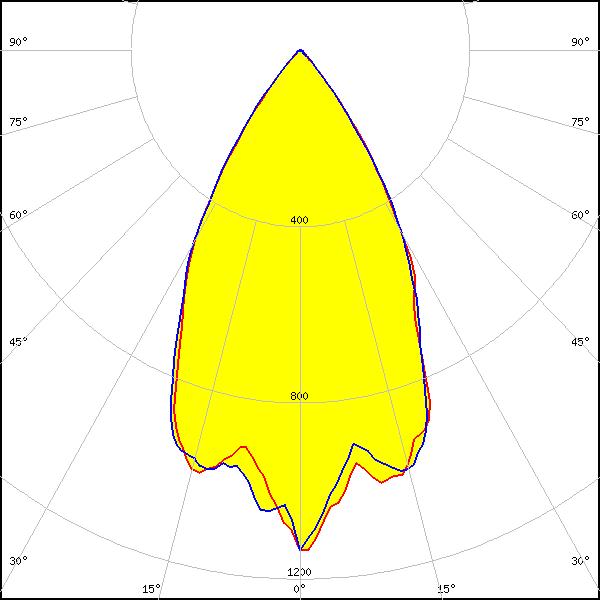

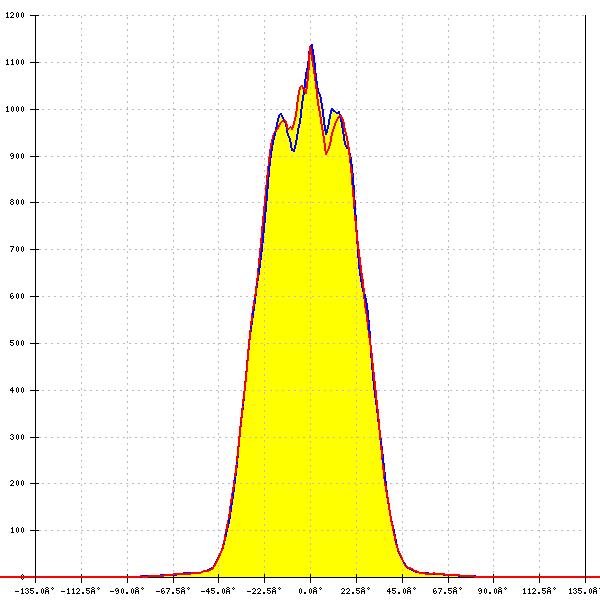

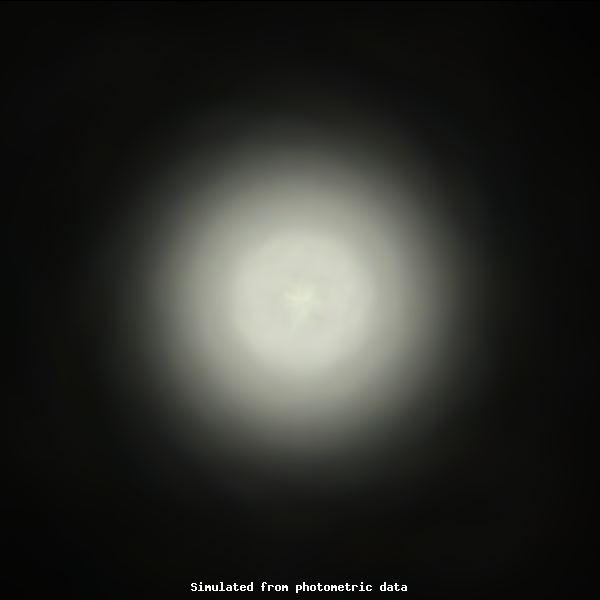

XP-LR
FWHM:
56°
FWTM:
80°
Peak intensity:
1.168 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 3535L HE
FWHM:
58°
FWTM:
80°
Peak intensity:
1.074 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

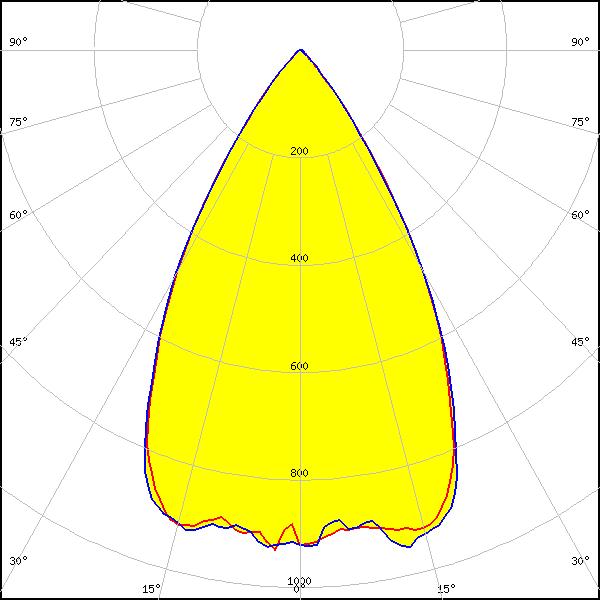

LED:

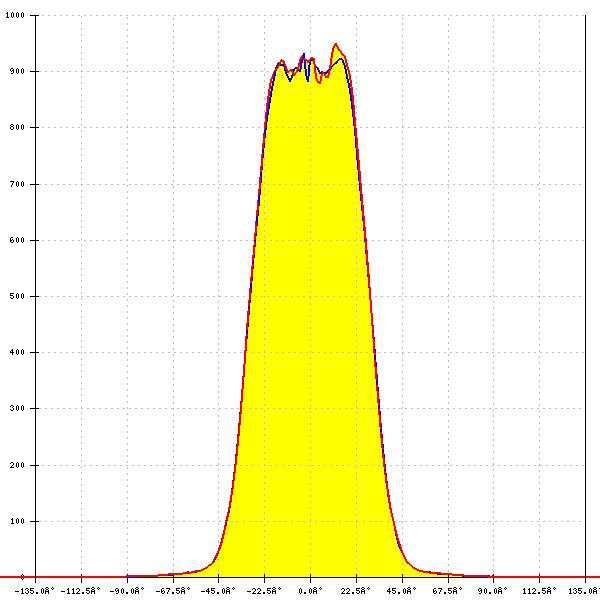

LUXEON 5050 HE
FWHM:
60°
FWTM:
82°
Peak intensity:
0.987 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

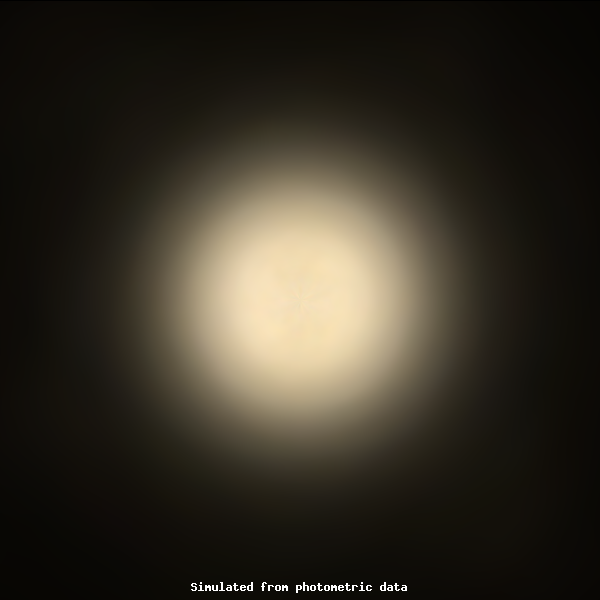

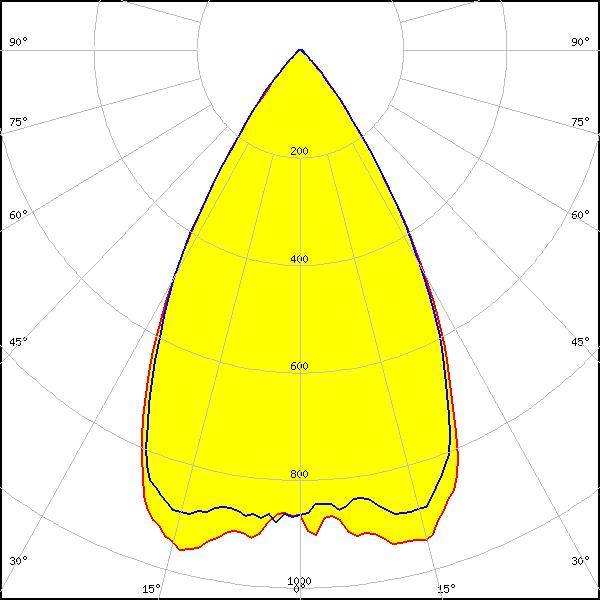

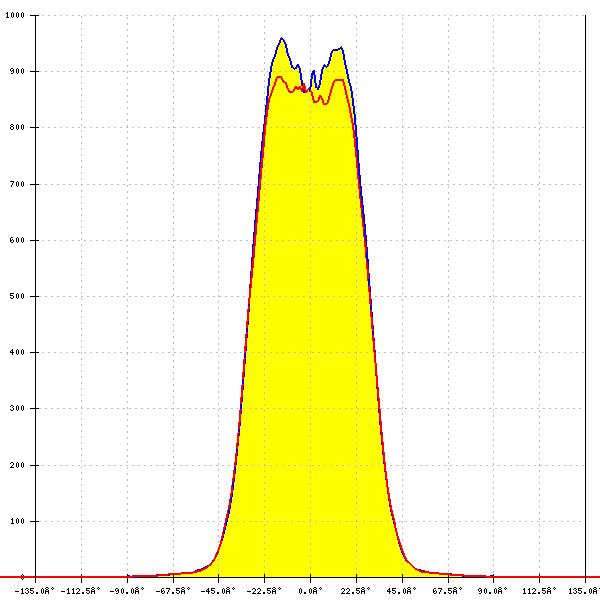

LED:
LUXEON 5050 HE Plus
FWHM:
60° + 62°
FWTM:
82° + 84°
Peak intensity:
0.976 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

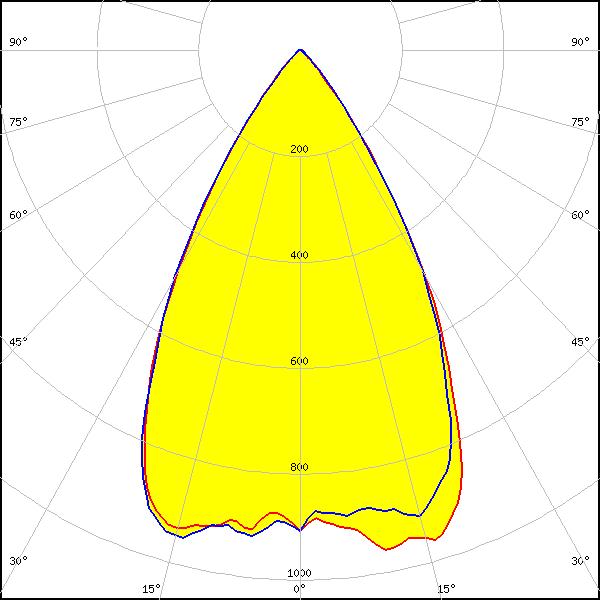

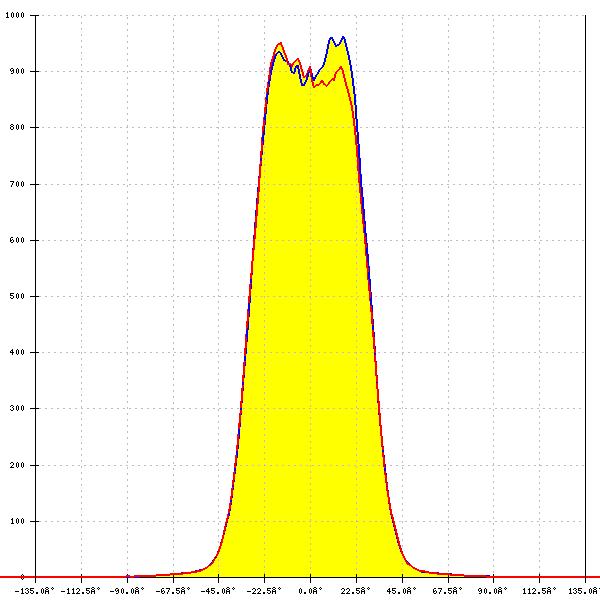

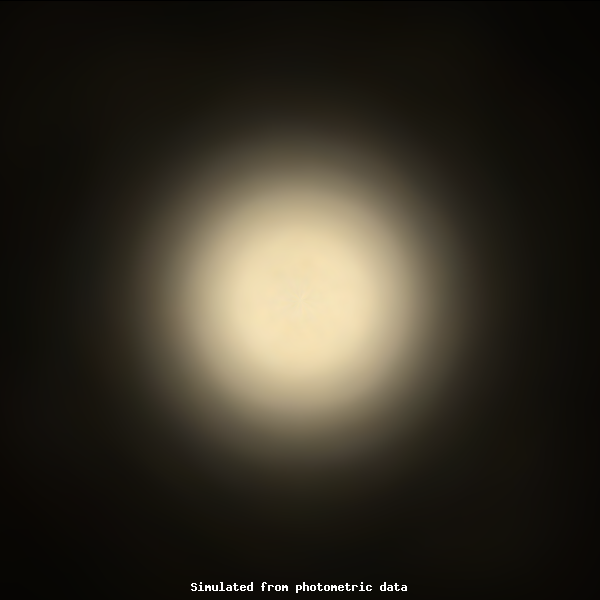

LED:
LUXEON 5050 Round LES
FWHM:
60°
FWTM:
82°
Peak intensity:
0.971 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

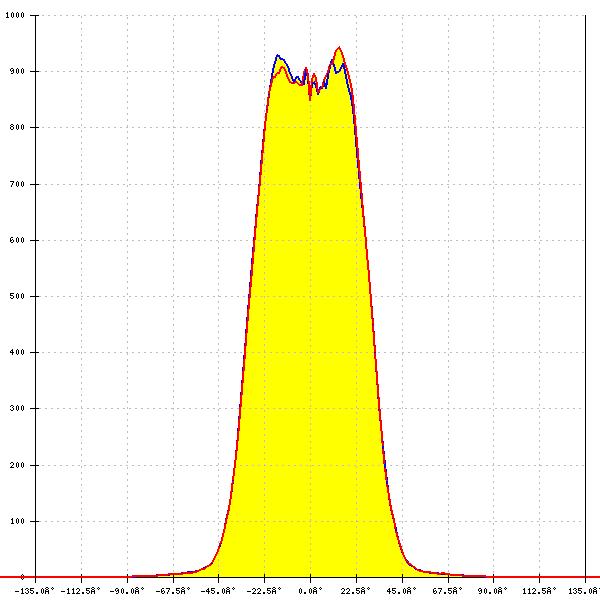

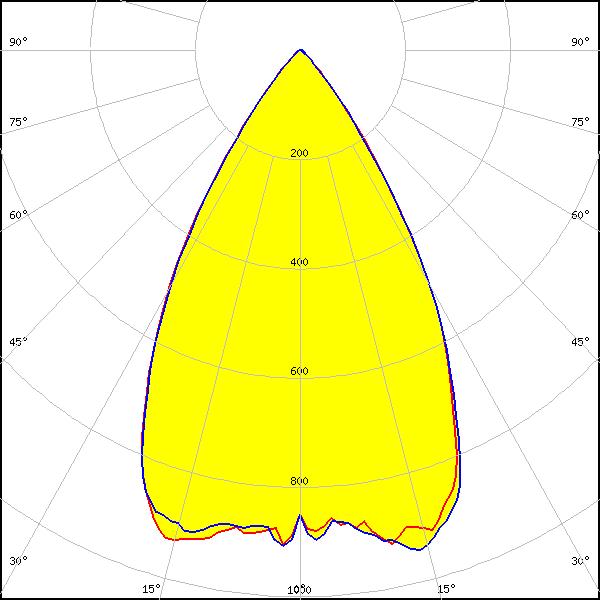

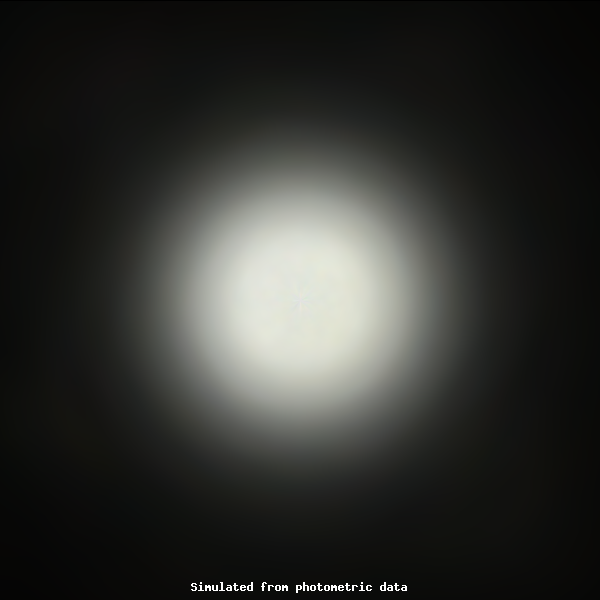

LED:
NFMW486AM-V2
FWHM:
62° + 60°
FWTM:
83° + 82°
Peak intensity:
0.968 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

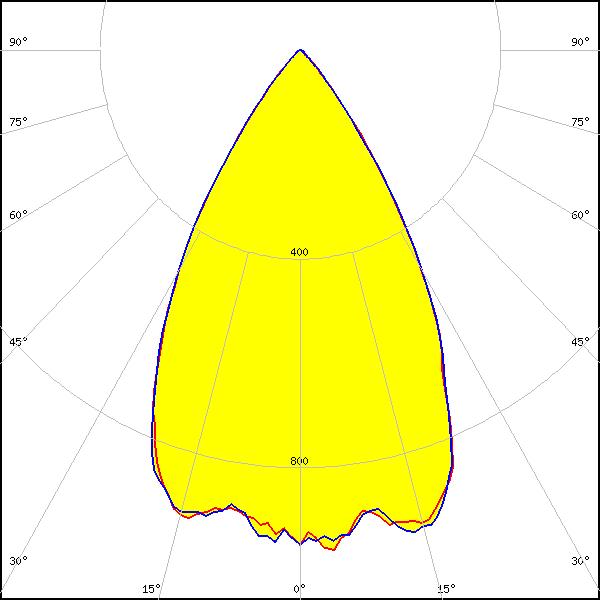

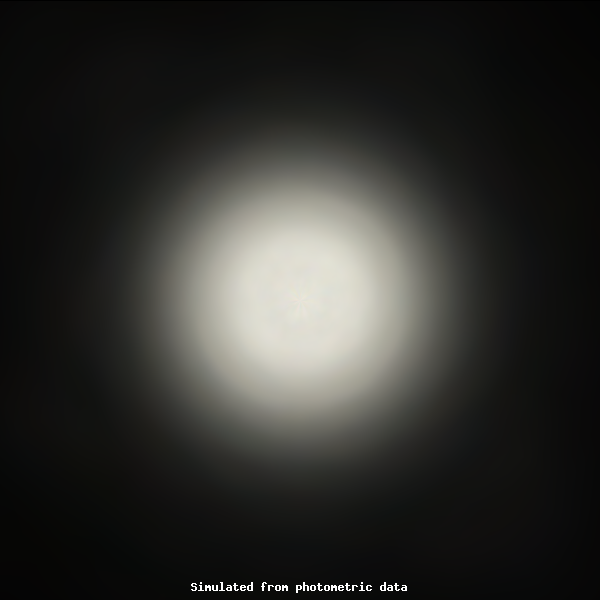

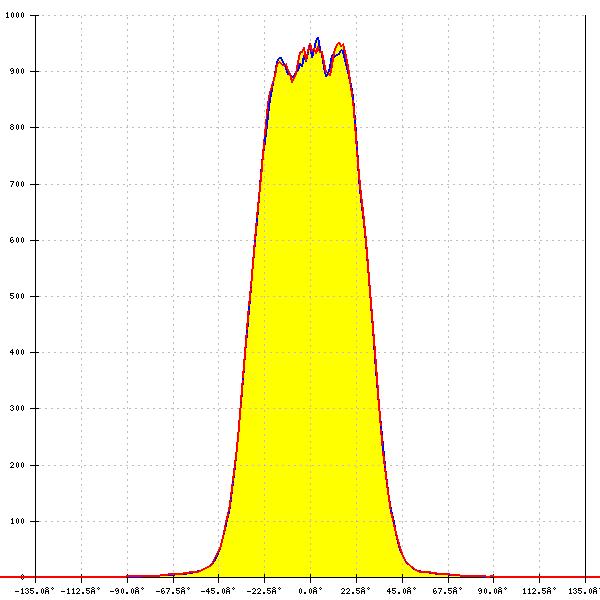

LED:
NV4WB35AM
FWHM:
60°
FWTM:
82°
Peak intensity:
0.994 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

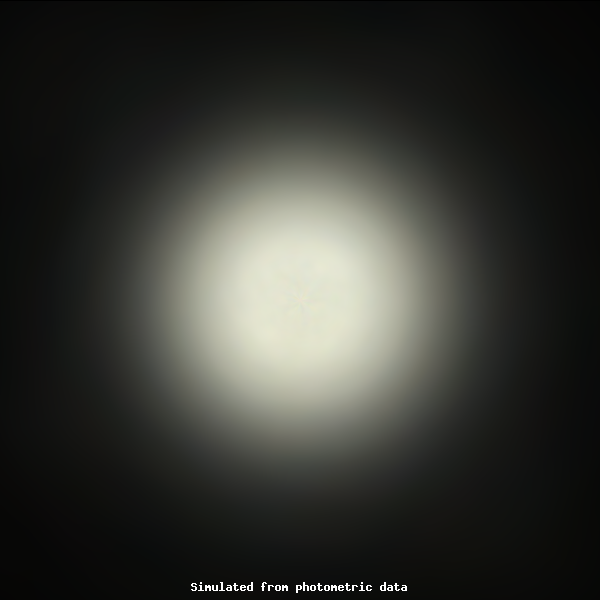

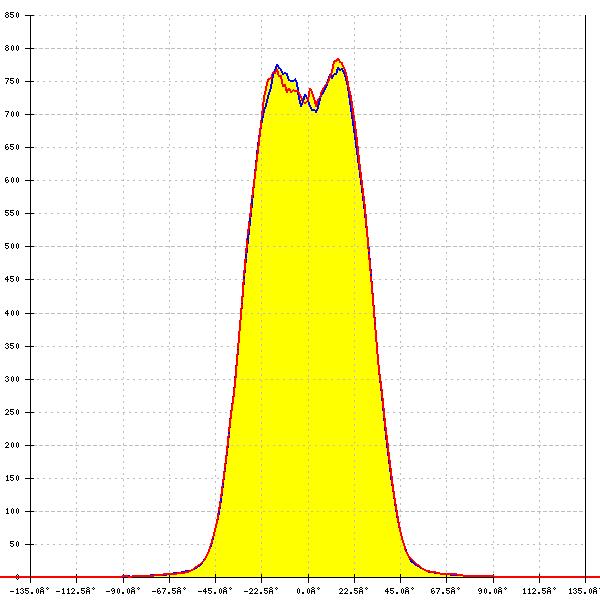

NV4x144A
FWHM:
66°
FWTM:
89°
Peak intensity:
0.815 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

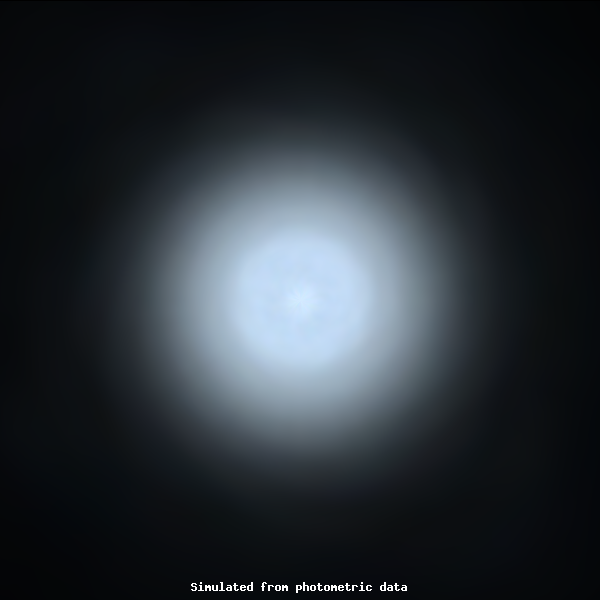

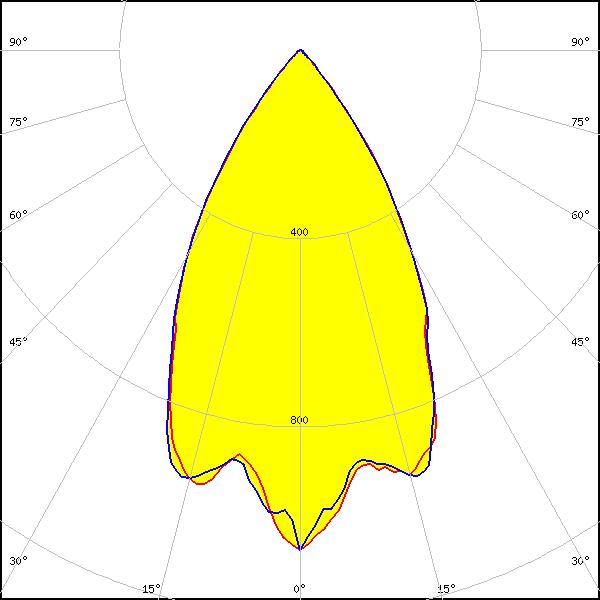

LED:

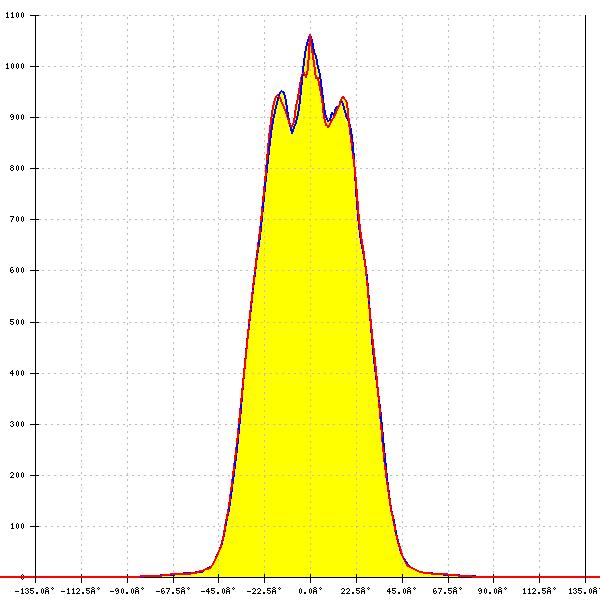

NVSW719AC
FWHM:
58°
FWTM:
82°
Peak intensity:
1.084 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 (Q9LR33)
FWHM:
60°
FWTM:
83°
Peak intensity:
0.986 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 (Q9LR35)
FWHM:
60°
FWTM:
82°
Peak intensity:
0.976 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
