APPLICATION EXAMPLE
Marketplace and a church – ELISABETH
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
One ELISABETH lightguide lens has 10 sections, with three beam areas on each side: forward throw, medium throw and side throw. By activating these sections individually or in different combinations, the luminaire can dynamically change not only how much light it delivers, but also where the light goes.
Read more about ELISABETH here.
Setup:
| Application: | Urban lighting |
| Optics: | ELISABETH-300-A |
| Luminaire lumen output: | 5 000 - 20 000 lm |
| ELISABETH beam patterns used: | MT 1.1, 1.2 / ST 1.1, 1.2 |
| ST 1.1, 1.2 / FT 1.1 | |
| MT-ALL | |
| MT-ALL / ST 1.1, 1.2 / FT 2.1 | |
| MT 2.1, 2.2 / ST 1.1, 1.2 / FT-ALL |

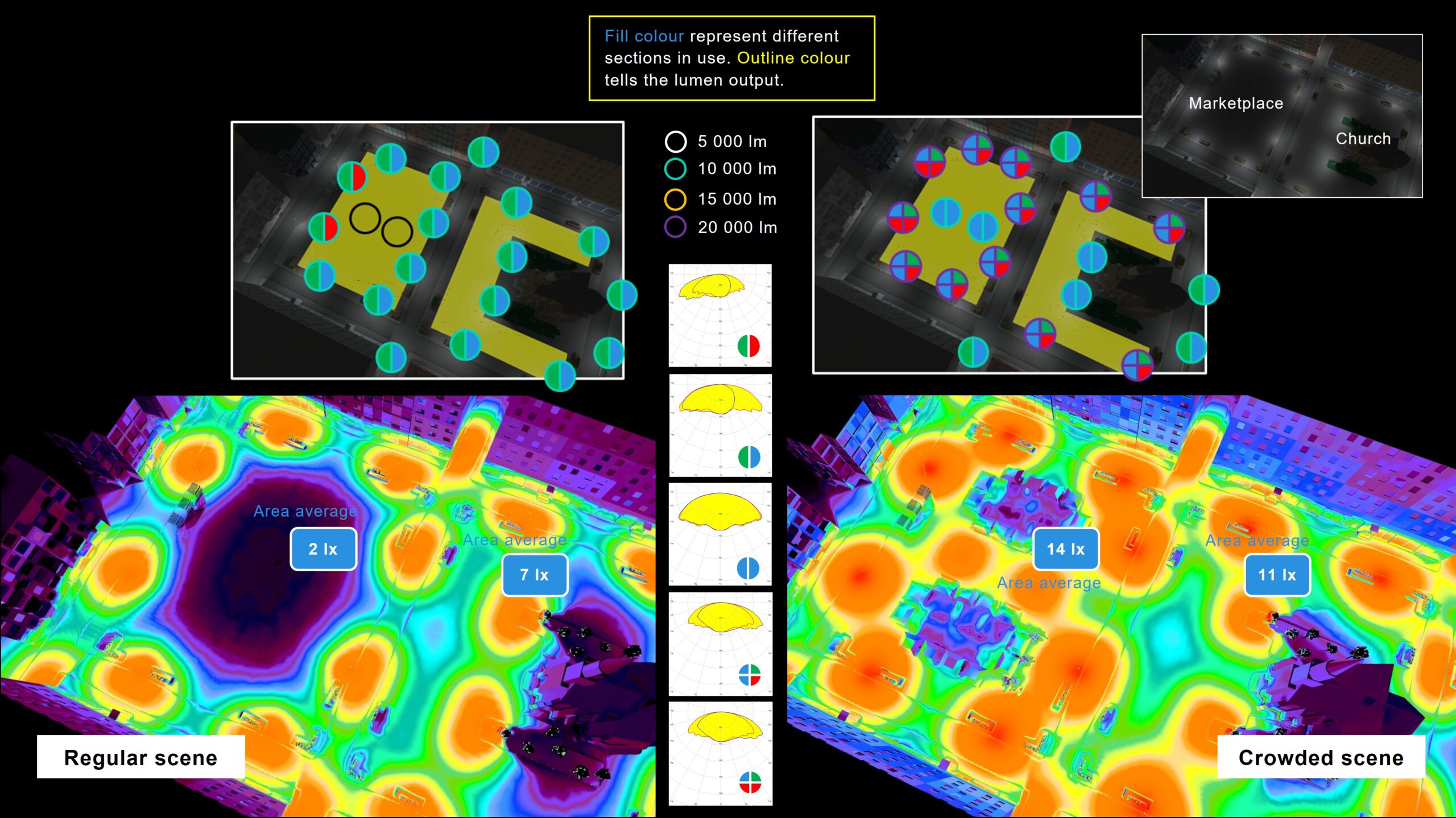

Results:

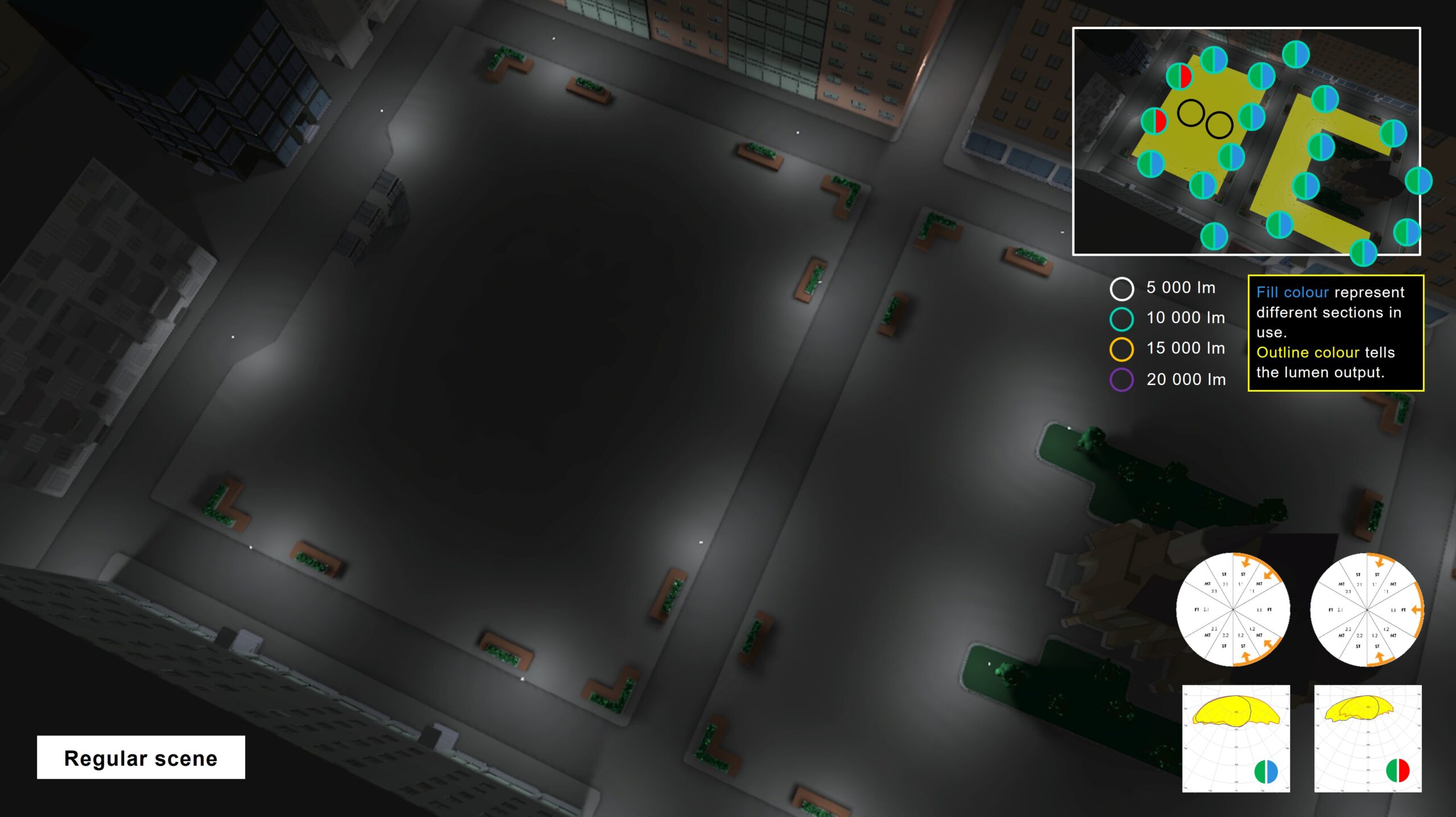

| Regular scene | |
| Martketplace, area average: | 2 lx |
| Church area, area average: | 7 lx |

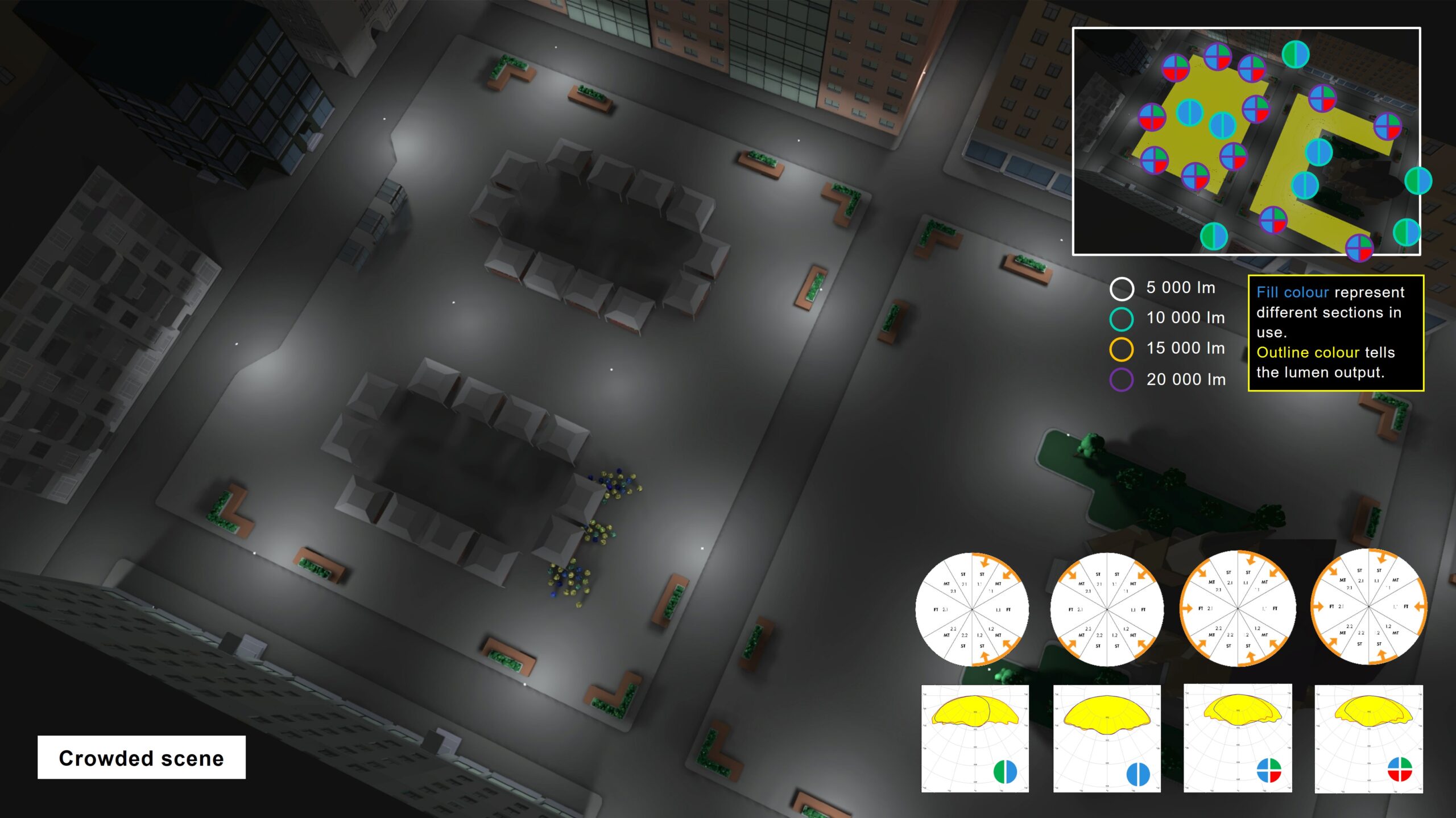

| Crowded scene | |
| Martketplace, area average: | 14 lx |
| Church area, area average: | 11 lx |
Marketplace and a church – ELISABETH
