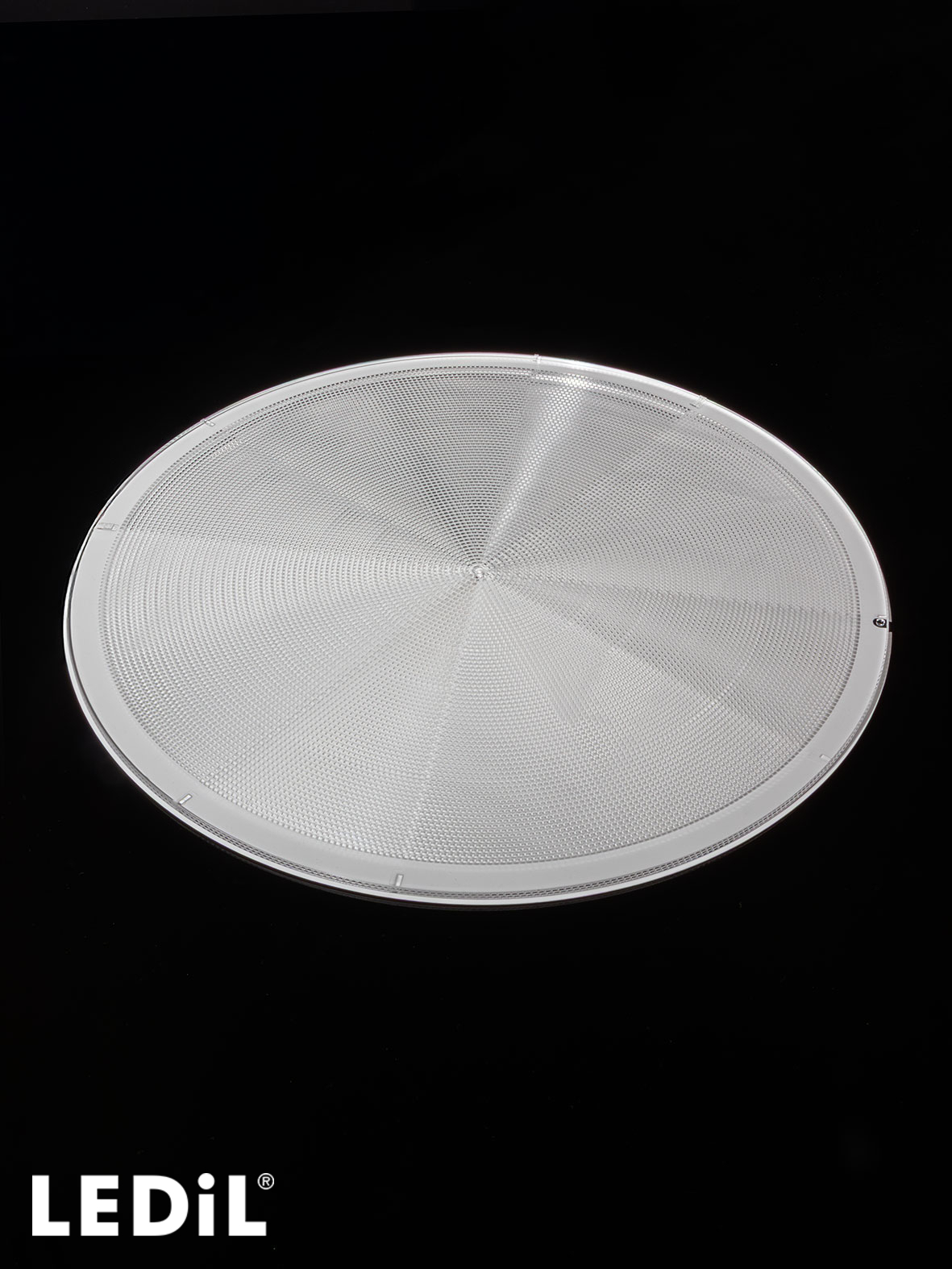

ELISABETH-300-A

Print

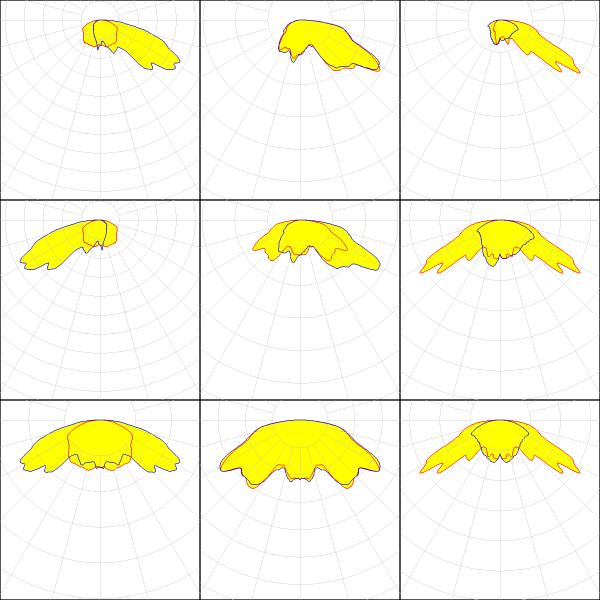

Adaptive lighting with 10 individually controllable sections. Each side includes three dedicated beam areas: forward throw, medium throw, and side throw.

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    300 mm
  • Height:
    4.23 mm
  • Fastening:
    pin
  • RoHS and REACH compliant:
    Yes
Component Materials
Ordering information
  • Quantities for one set:
  • Lightguide pl.
    1 pcs
  • Accessory
    1 pcs
  • Lightguide pl.
  • L20500_ELISABETH-300-A
    clear
  • Quantity in box:
    36 pcs
  • Box size:
    356 x 356 x 292 mm
  • Box weight:
    11.50 kg
  • MPQ:
    36 pcs
  • MOQ:
    36 pcs
  • MOQ Size:
    356 x 356 x 292 mm
  • MOQ Weight:
    11.50 kg
  • Accessory
  • L20502_ELISABETH-300-REF-SHEET
    white,gloss
  • Quantity in box:
    360 pcs
  • Box size:
    400 x 300 x 122 mm
  • Box weight:
    5.70 kg
  • MPQ:
    36 pcs
  • MOQ:
    36 pcs
  • MOQ Size:
    400 x 300 x 50 mm
  • MOQ Weight:
    0.80 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • 3D mechanical model
