APPLICATION EXAMPLE

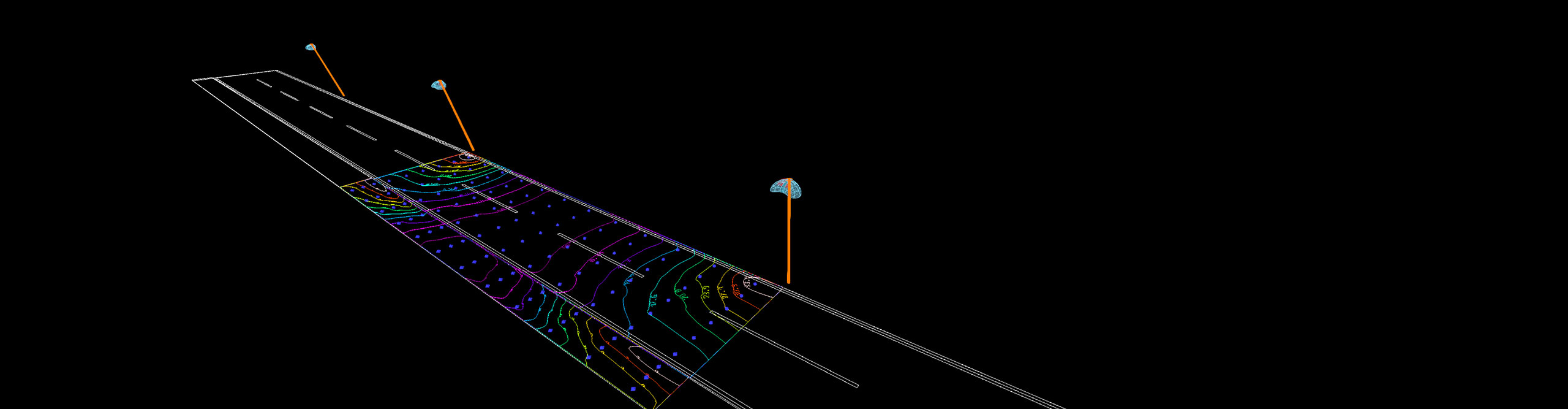

P2 street and P4 pathway lighting with ELISABETH
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
One ELISABETH lightguide lens has 10 sections, with three beam areas on each side: forward throw, medium throw and side throw. By activating these sections individually or in different combinations, the luminaire can dynamically change not only how much light it delivers, but also where the light goes.
Read more about ELISABETH here.

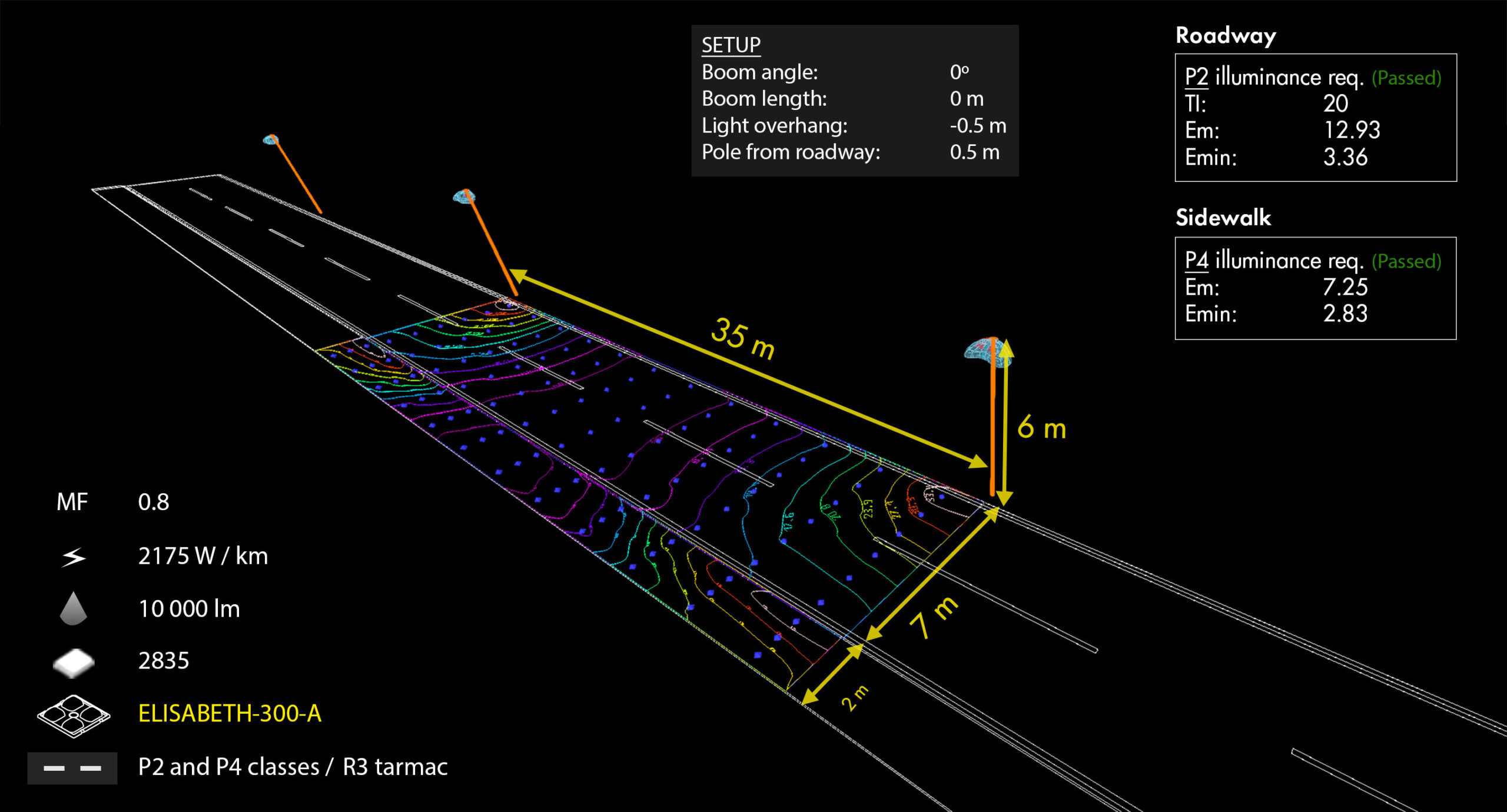

Setup:
| Application: | Street lighting |
| Roadway class: | P2 and P4 |
| Tarmac: | R3 |
| Optics: | ELISABETH-300-A |
| LED: | 2835 |
| Road width: | 7+2 m |
| Number of lanes: | 2+1 |
| Arrangement: | single side, bottom |
| Pole distance: | 35 m |
| Mounting height: | 6 m |
| Overhang: | -0.5 m |
| Boom angle: | 0° |
| Boom lenght: | 0 m |
| Pole distance from roadway: | 0.5 m |
| Maintenance factor: | 0.8 |
| Total lumen output/luminaire: | 10 000 lm |
| Power consumption/km: | 2175 W/km |
Results:
| P2 illuminance requirements | Passed |
| TI: | 20 |
| Em: | 12.93 |
| Emin: | 3.36 |
| P4 illuminance requirements | Passed |
| Em: | 7.25 |
| Emin: | 2.83 |
