APPLICATION EXAMPLE
Park area lighting with ELISABETH
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
One ELISABETH lightguide lens has 10 sections, with three beam areas on each side: forward throw, medium throw and side throw. By activating these sections individually or in different combinations, the luminaire can dynamically change not only how much light it delivers, but also where the light goes.
Read more about ELISABETH here.
Setup:
| Application: | Park lighting |
| Optics: | ELISABETH-300-A |
| Luminaire lumen output: | 5 000 - 15 000 lm |
| ELISABETH beam patterns used: | FT1.1 |
| MT 1.1, 1.2 | |
| ST 1.1, 1.2 | |
| MT 1.1, 1.2 / ST 1.1, 1.2 | |
| FT 1.1 / MT 1.1, 1.2 | |
| MT-ALL | |
| FT 1.1 / MT 1.1, 1.2 / ST 1.1, 1.2 |

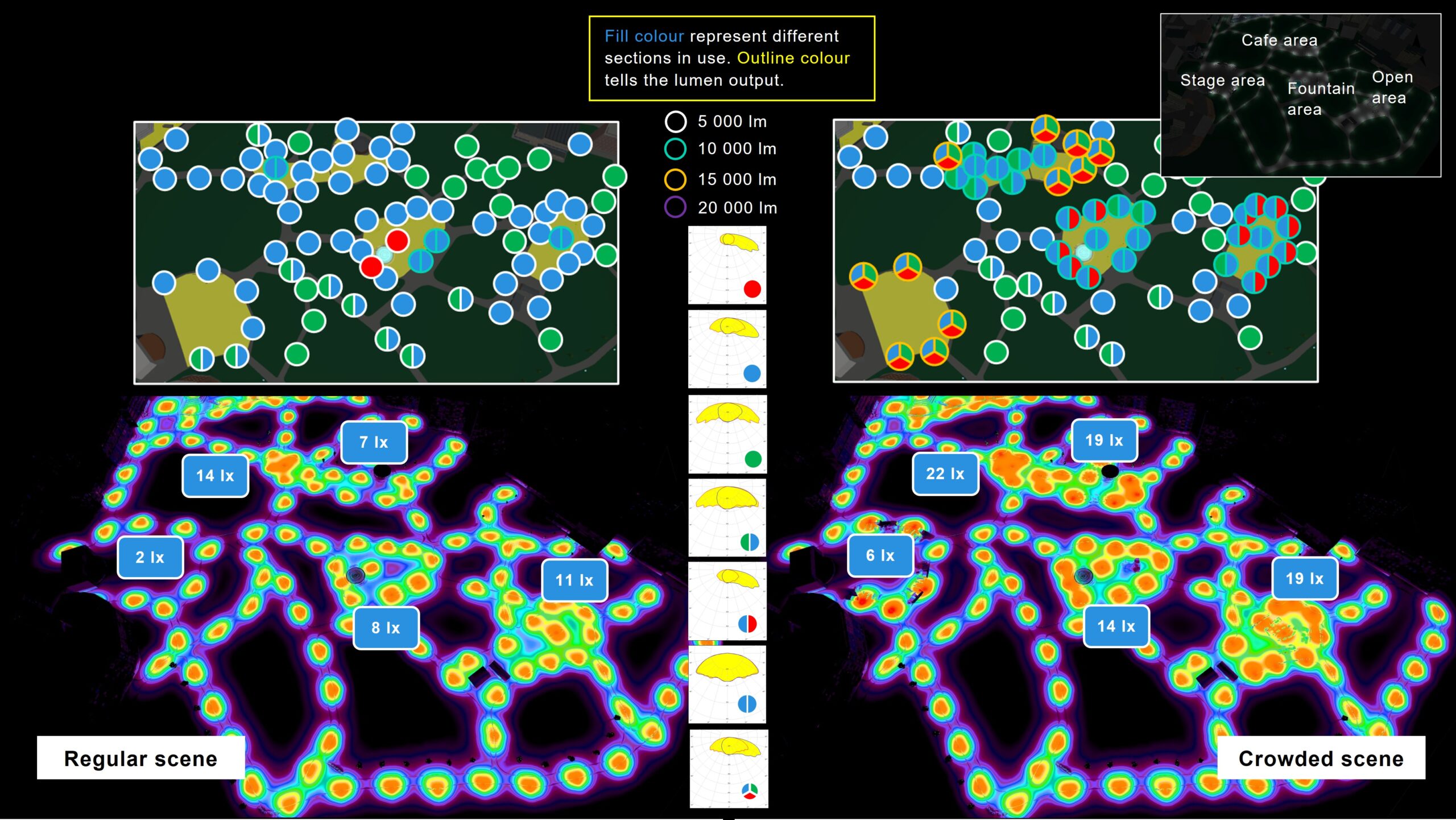

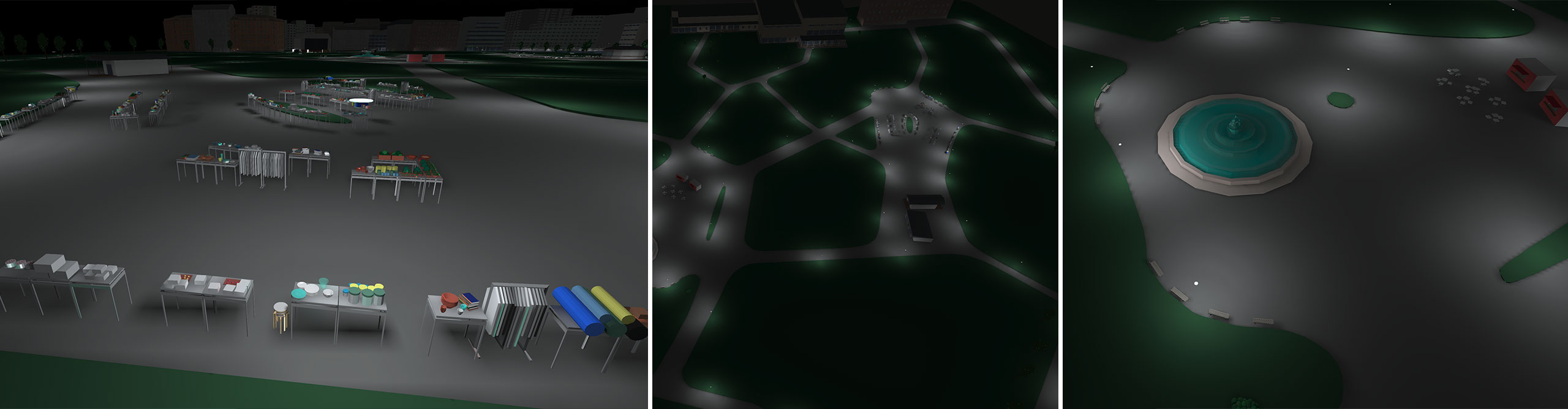

Results:

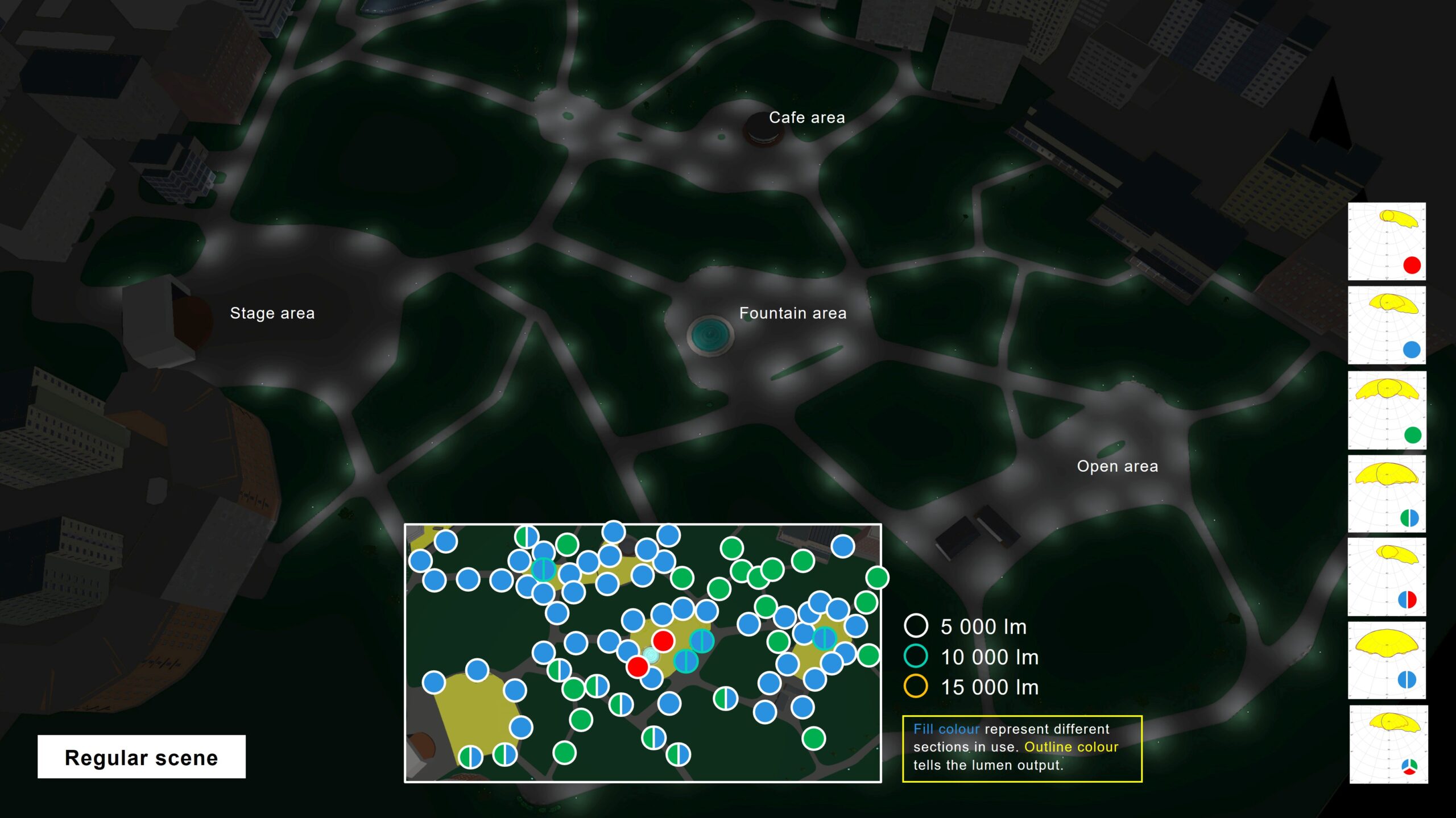

| Regular scene | |
| Stage area, average: | 2 lx |
| Fountain area, average: | 8 lx |
| Cafe area, average: | 7-14 lx |
| Open area, average: | 11 lx |

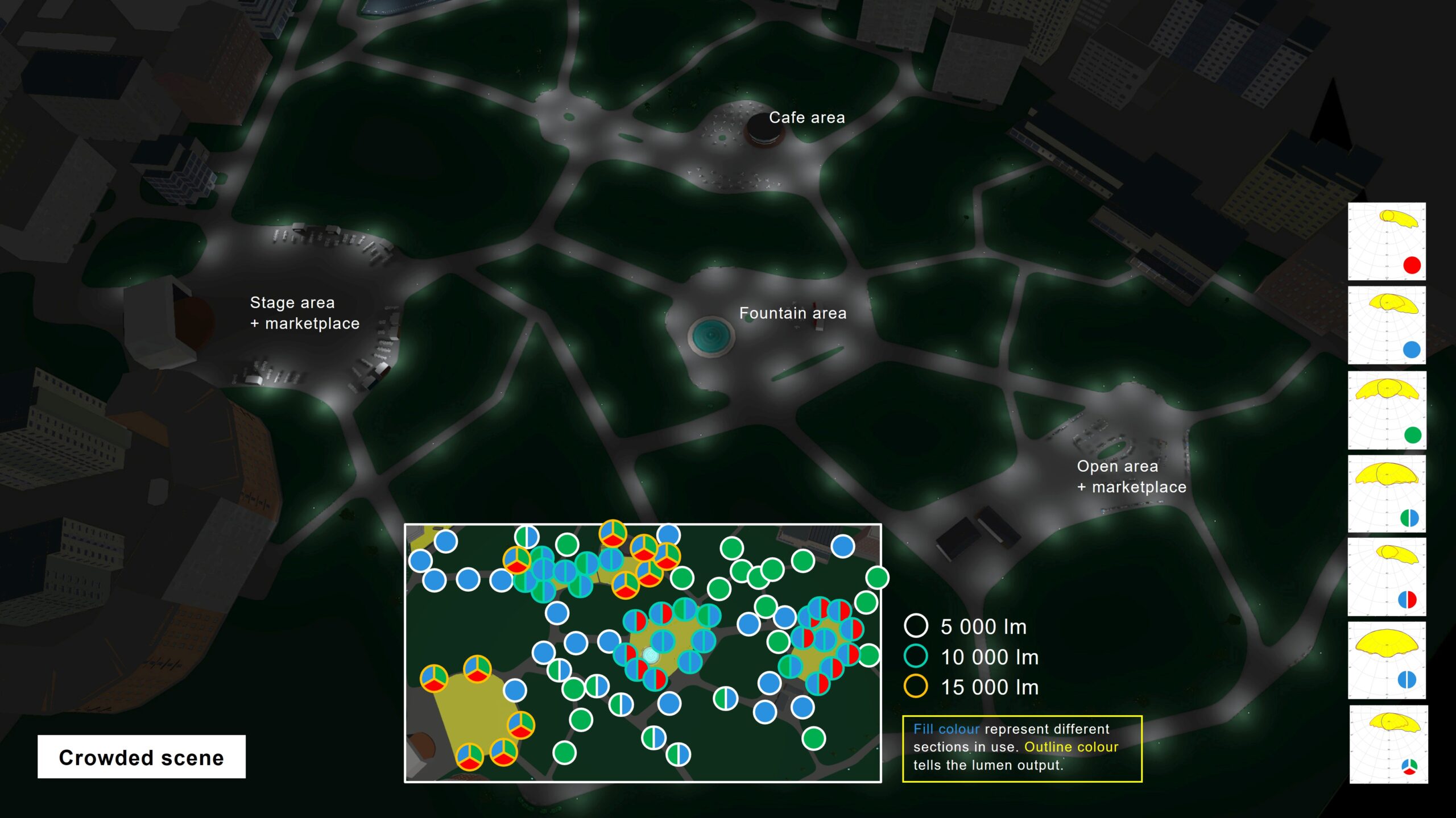

| Crowded scene | |
| Stage area, average: | 6 lx |
| Fountain area, average: | 14 lx |
| Cafe area, average: | 19-22 lx |
| Open area, average: | 19 lx |
