APPLICATION EXAMPLE
Skate park and outdoor gym – ELISABETH
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
One ELISABETH lightguide lens has 10 sections, with three beam areas on each side: forward throw, medium throw and side throw. By activating these sections individually or in different combinations, the luminaire can dynamically change not only how much light it delivers, but also where the light goes.
Read more about ELISABETH here.
Setup:
| Application: | Outdoor area lighting |
| Optics: | ELISABETH-300-A |
| Luminaire lumen output: | 5 000 - 15 000 lm |
| ELISABETH beam patterns used: | FT1.1 |
| MT 1.1, 1.2 | |
| MT 1.1, 1.2 / ST 1.1, 1.2 | |
| FT 1.1 / MT 1.1, 1.2 | |
| MT-ALL | |
| FT 1.1 / MT 1.1, 1.2 / ST 1.1, 1.2 |

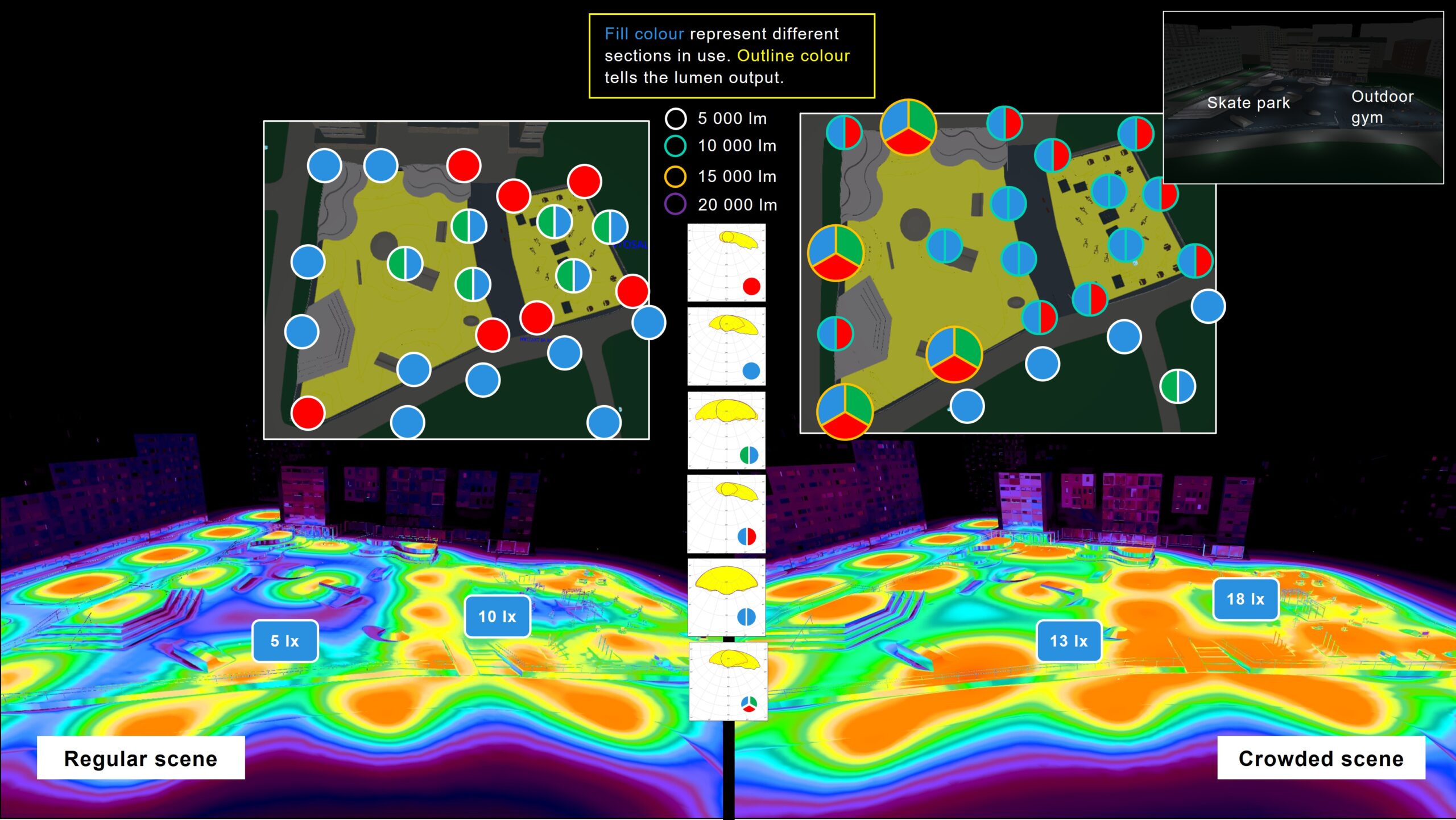

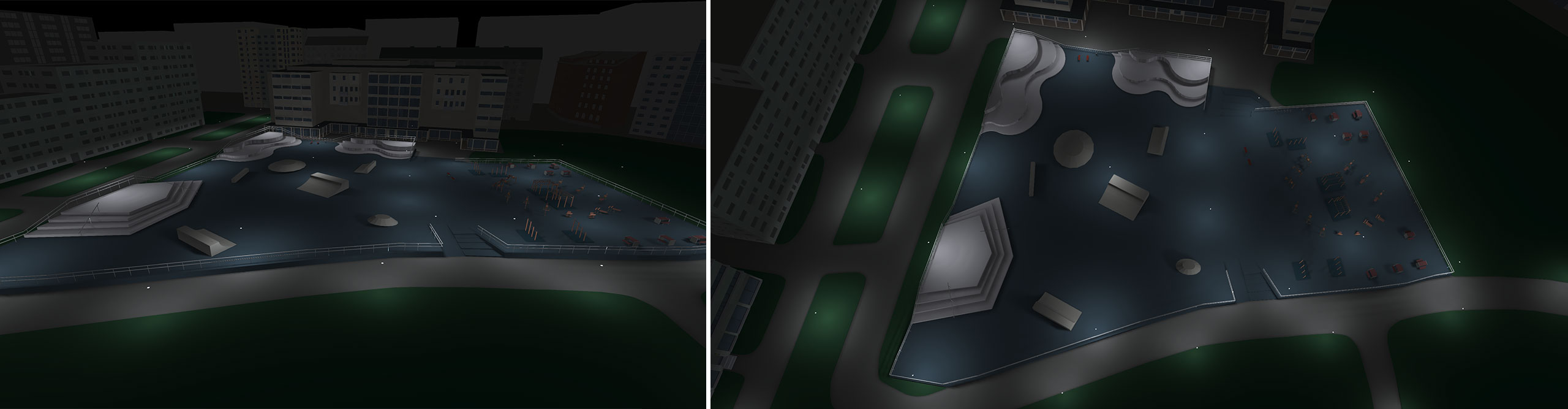

Results:

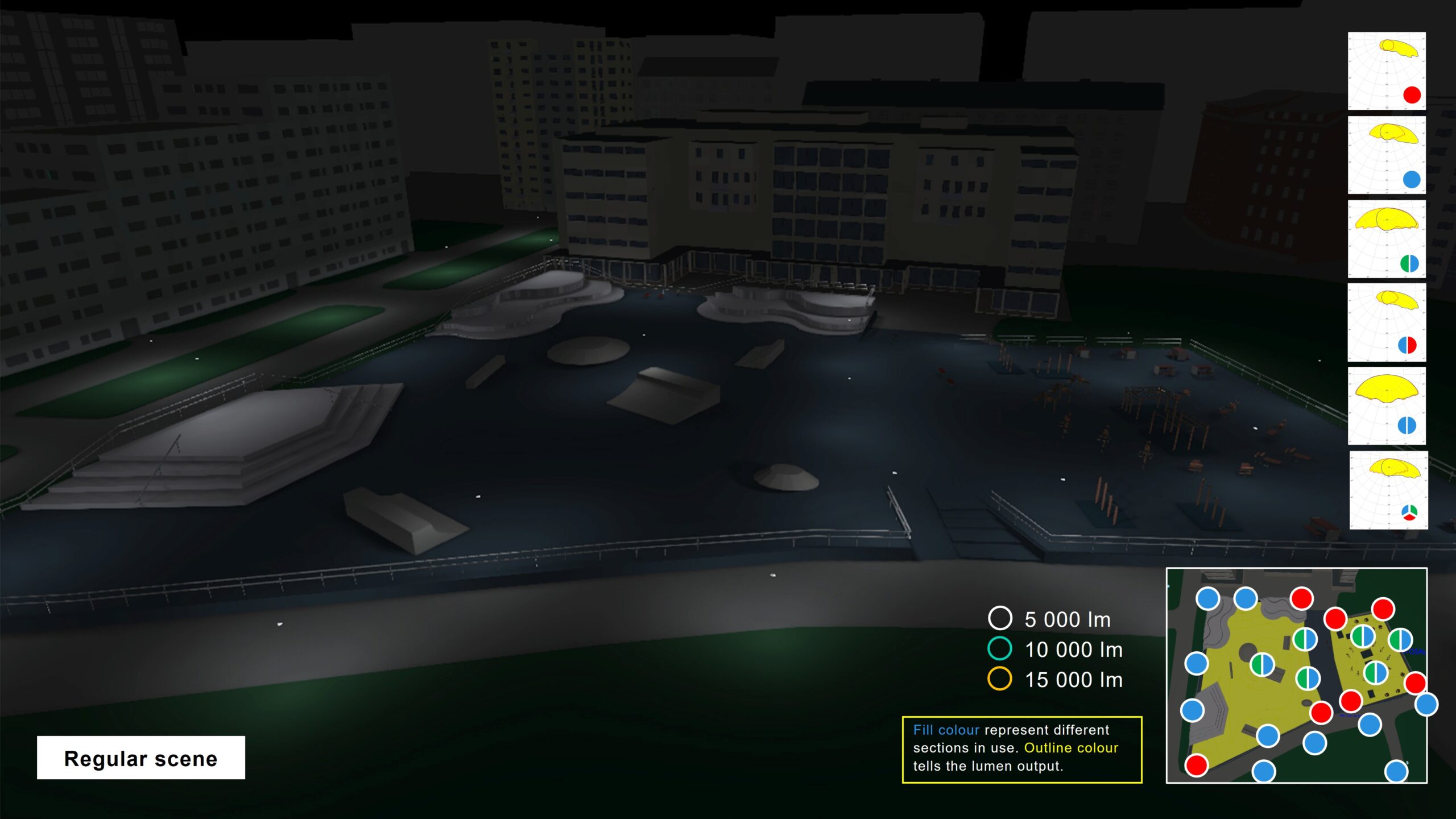

| Regular scene | |
| Skate park, average: | 5 lx |
| Outdoor gym, average: | 10 lx |

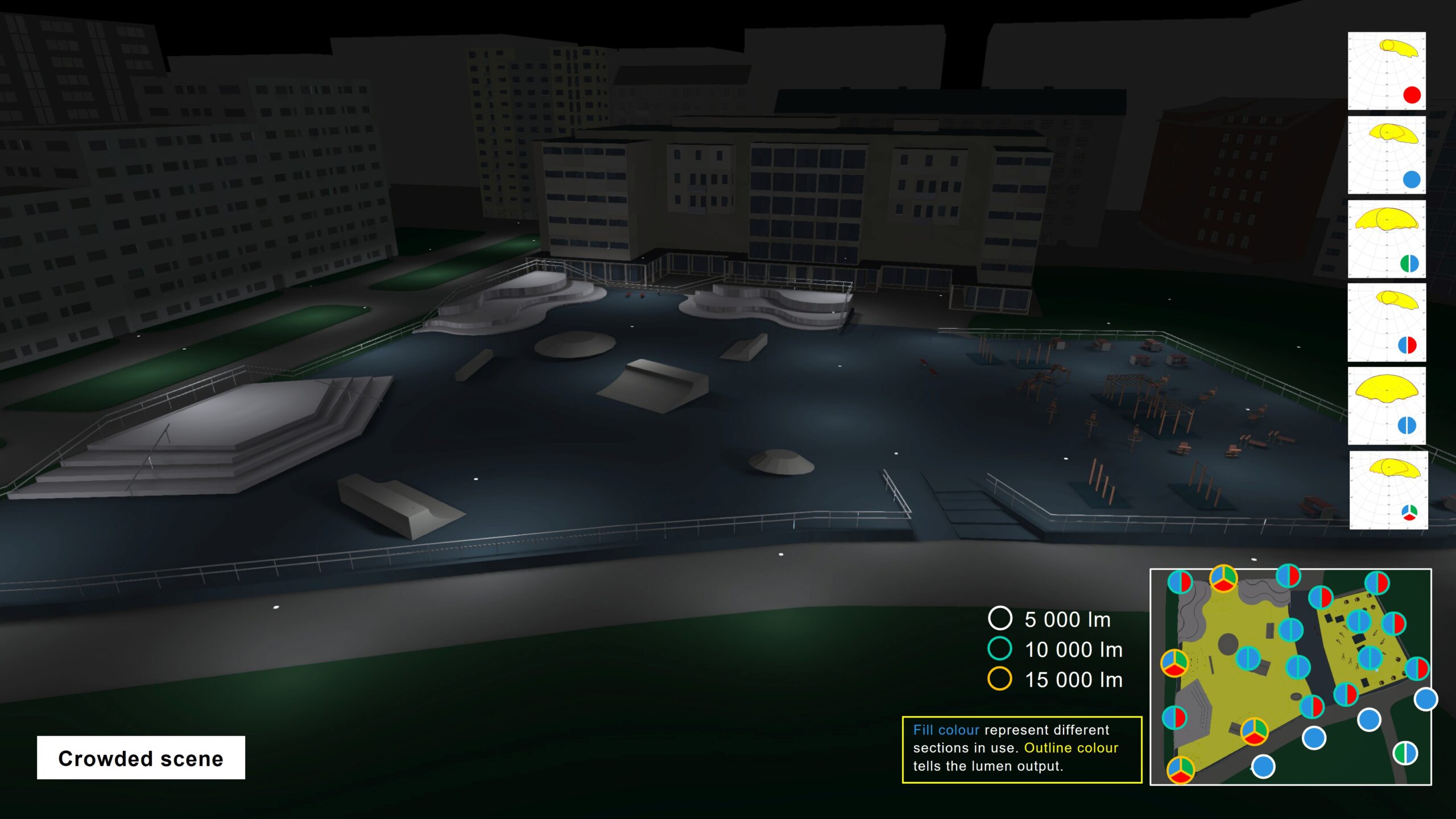

| Crowded scene | |
| Skate park, average: | 13 lx |
| Outdoor gym, average: | 18 lx |
Skate park and outdoor gym – ELISABETH
For help with an application simulation using our optics, or to make a request about what application you want us to cover next, contact Tech support
The information contained herein is the property of LEDiL Oy, Joensuunkatu 7, FI-24100 SALO, Finland and is subject to change without notice. Please visit www.ledil.com for additional information, such as the latest photometric files, 3D mechanical models, and application notes relating to handling, gluing and taping.
