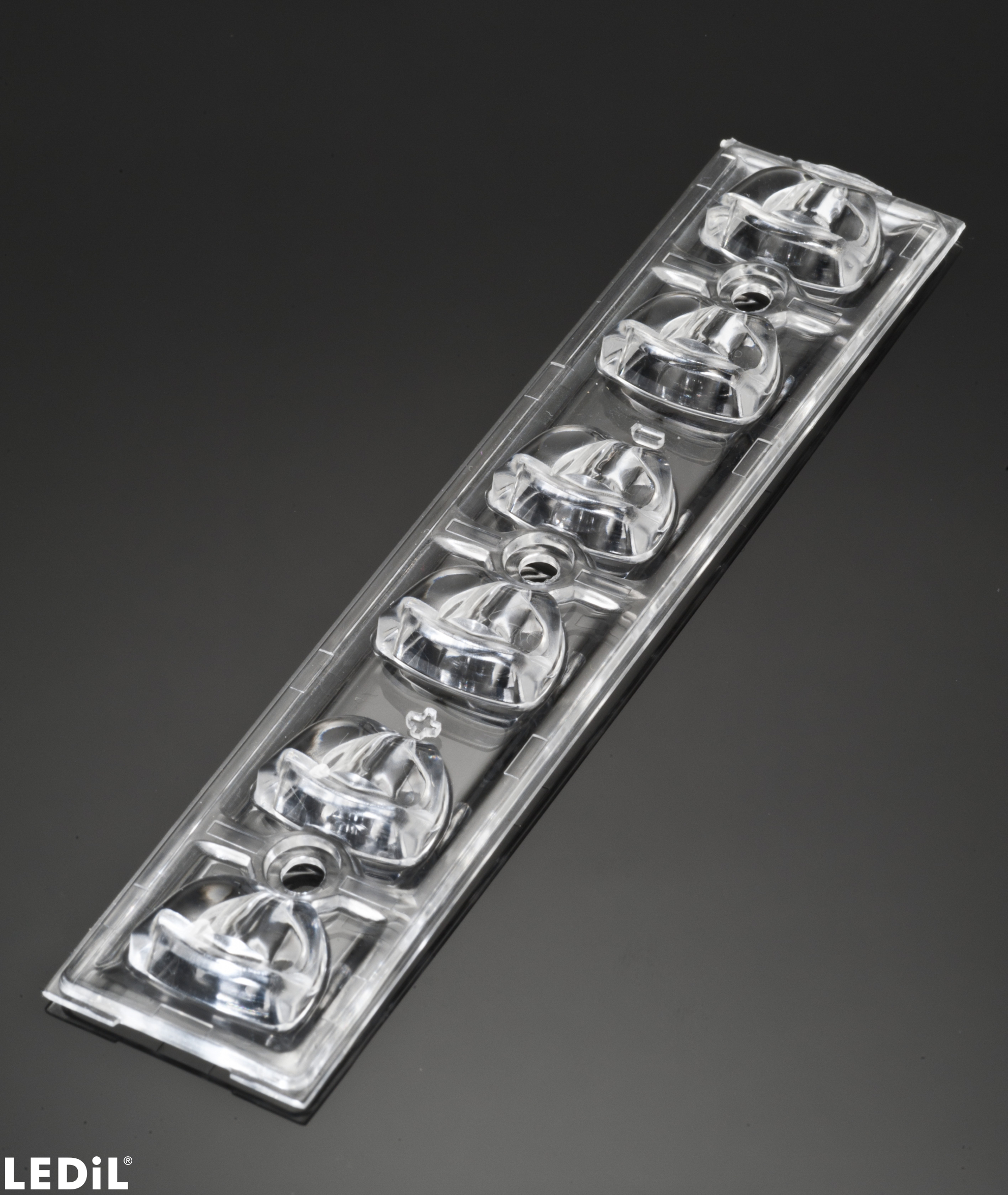

C12449_STRADA-T-6X1-DWC

Print

Universal road lighting (IESNA Type II medium) beam with excellent mixed illuminance and luminance uniformity

Specification
  • Dimensions:
    120 x  25 mm
  • Height:
    5.50 mm
  • Fastening:
    glue, pin, screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    858 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    9.2 kg
  • MPQ:
    26 pcs
  • MOQ:
    104 pcs
  • MOQ size:
    480 x 280 x 50 mm
  • MOQ weight:
    1.5 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C12449_STRADA-T-6X1-DWC

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

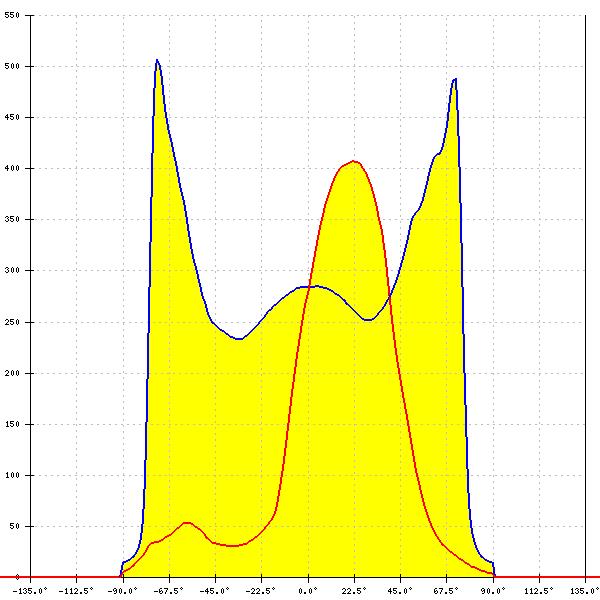

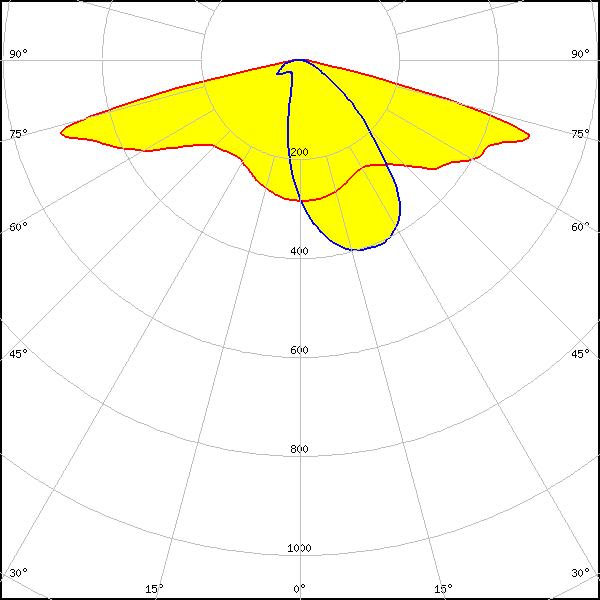

LED: XP-E
FWHM: asymmetric
Peak intensity: 0.300 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

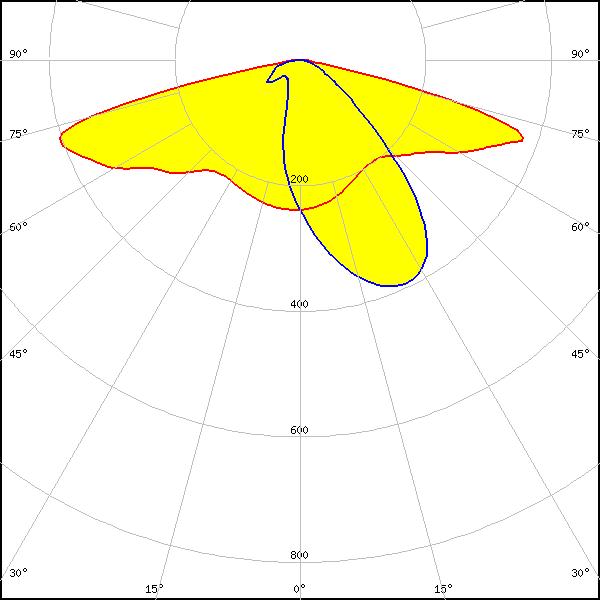

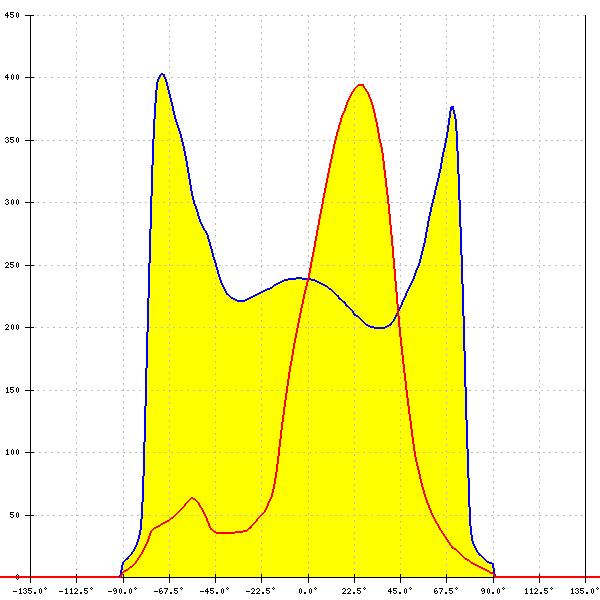

LED: XP-G
FWHM: asymmetric
Peak intensity: 0.270 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

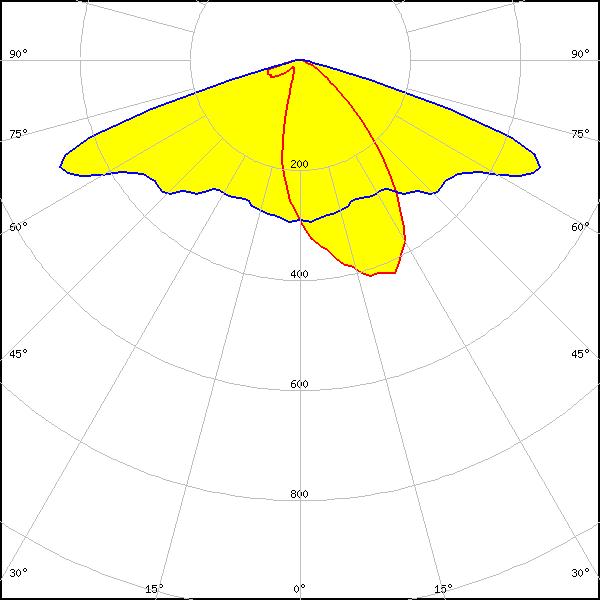

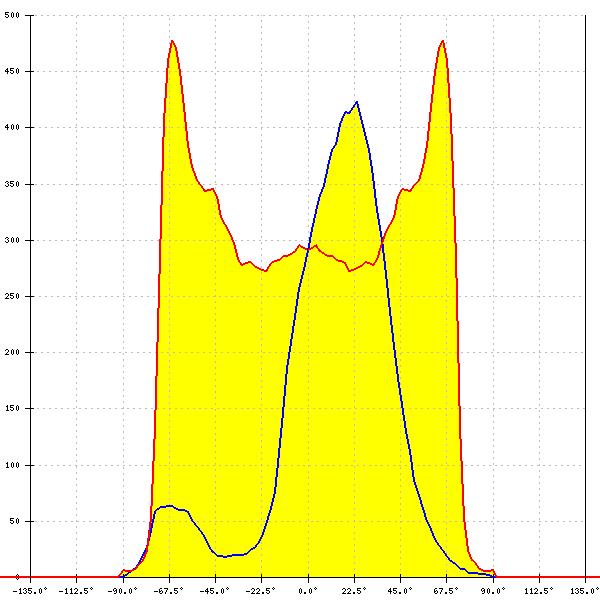

LED: LUXEON Rebel ES
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

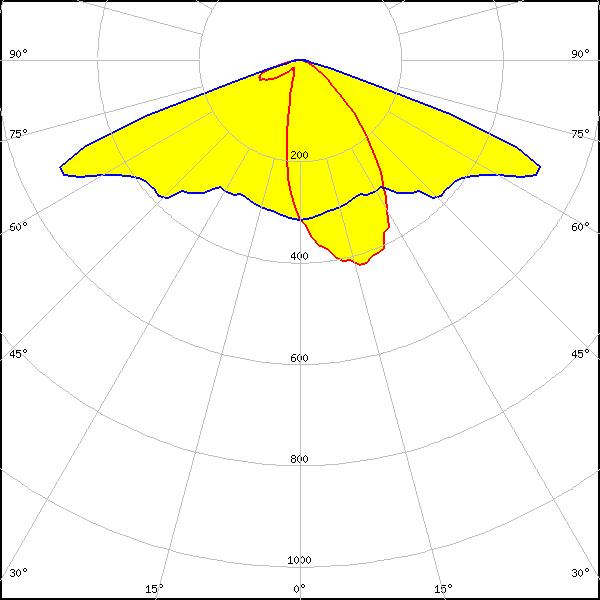

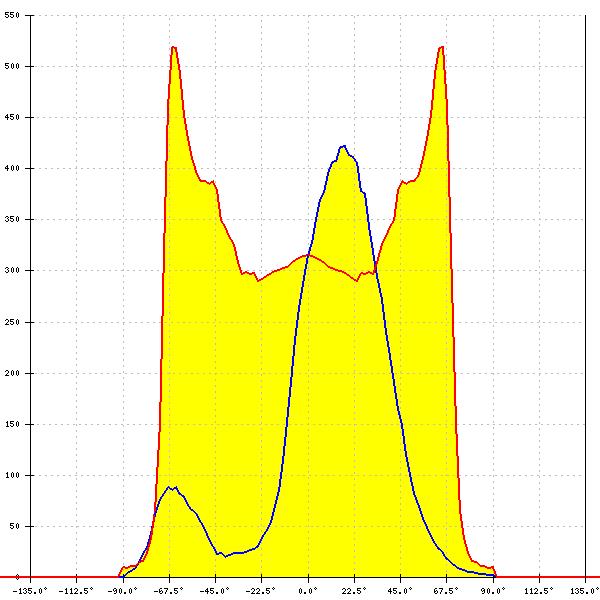

LED: NCSxx19A
FWHM: asymmetric
Peak intensity: 0.500 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
