C12597_LENINA-S

Print

~19° spot beam

Specification
  • Dimensions:
    74 mm
  • Height:
    40.00 mm
  • Colour:
    metal
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    60 pcs
  • Box size:
    476 x 273 x 197 mm
  • Box weight:
    2.0 kg
  • MPQ:
    60 pcs
  • MOQ:
    120 pcs
  • MOQ size:
    480 x 280 x 200 mm
  • MOQ weight:
    2.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C12597_LENINA-S

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

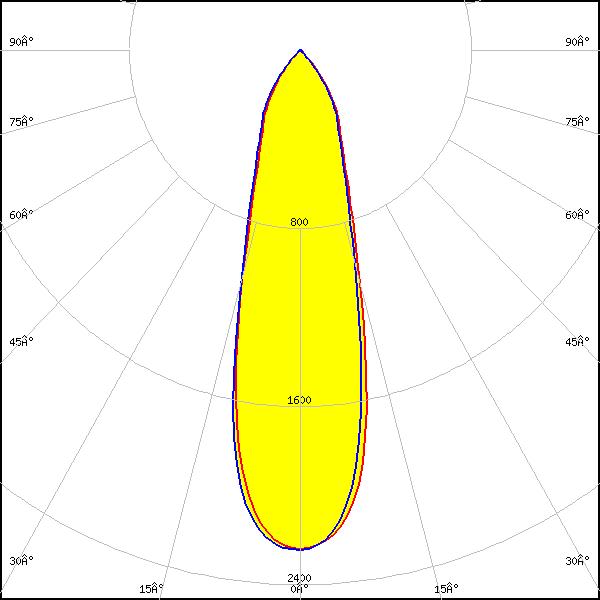

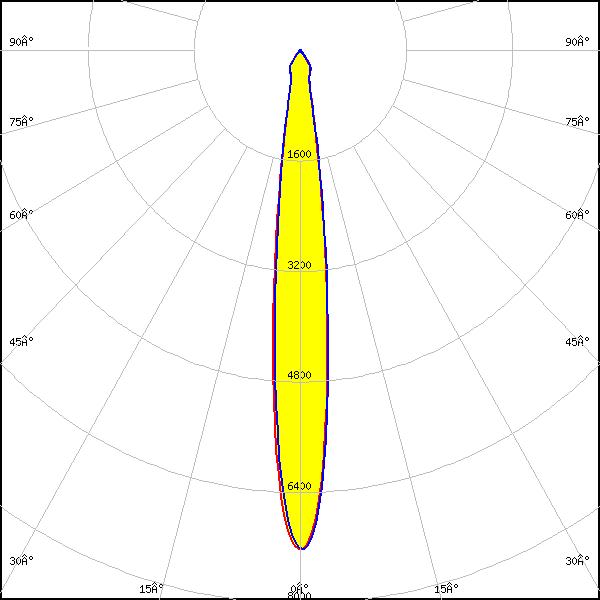

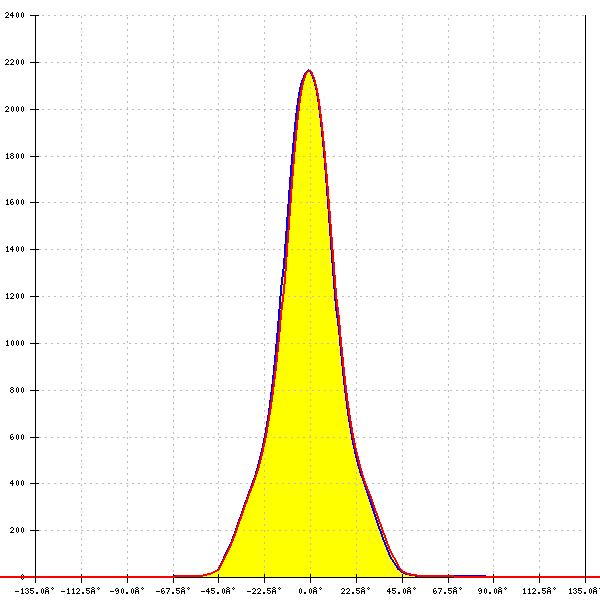

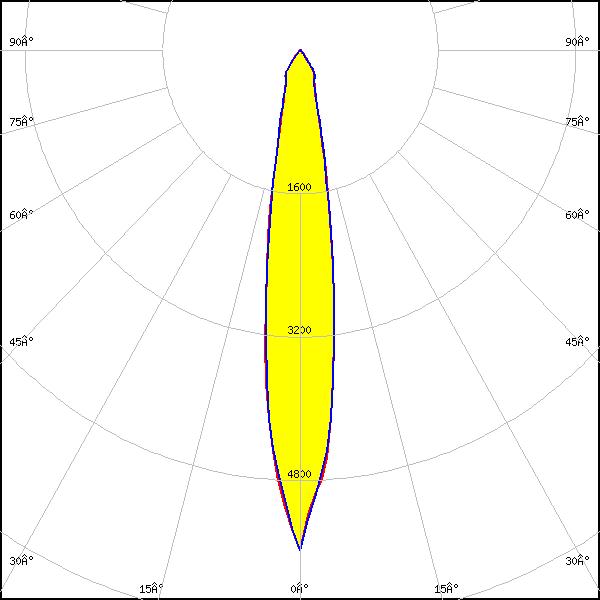

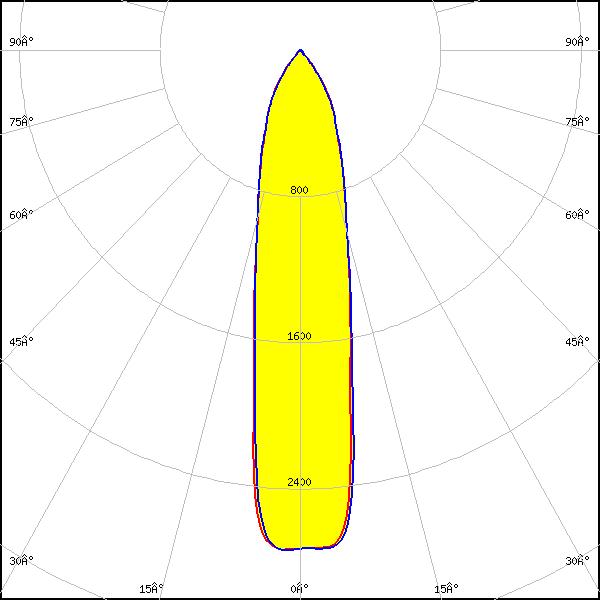

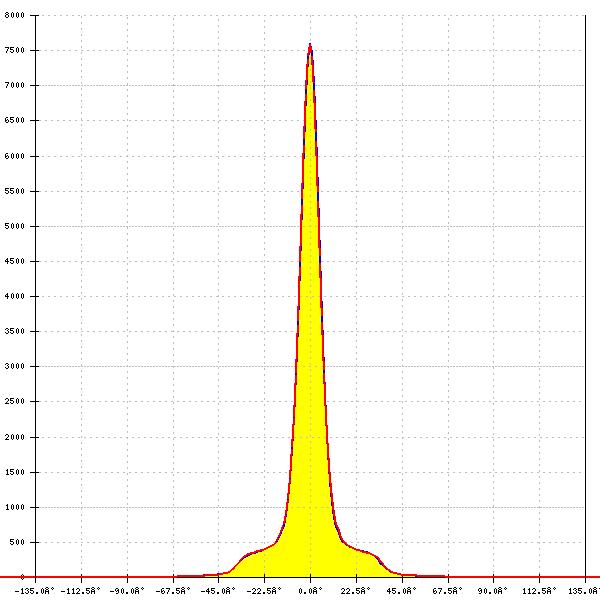

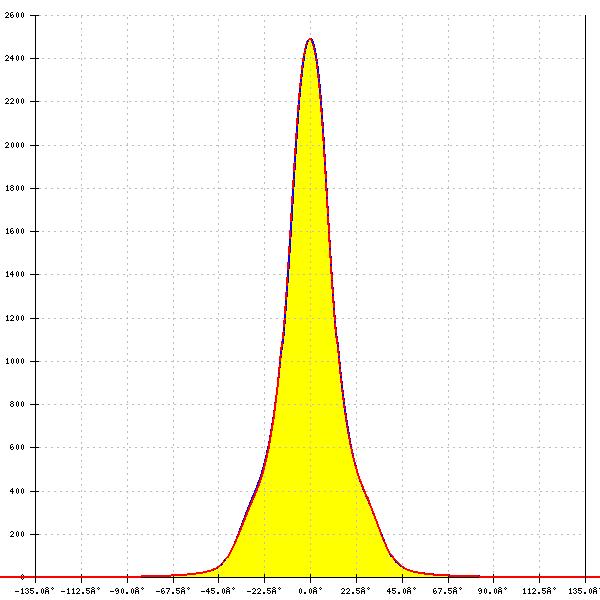

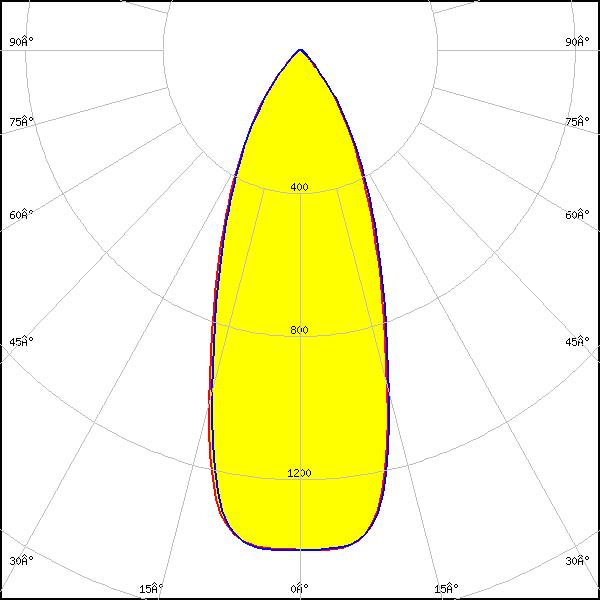

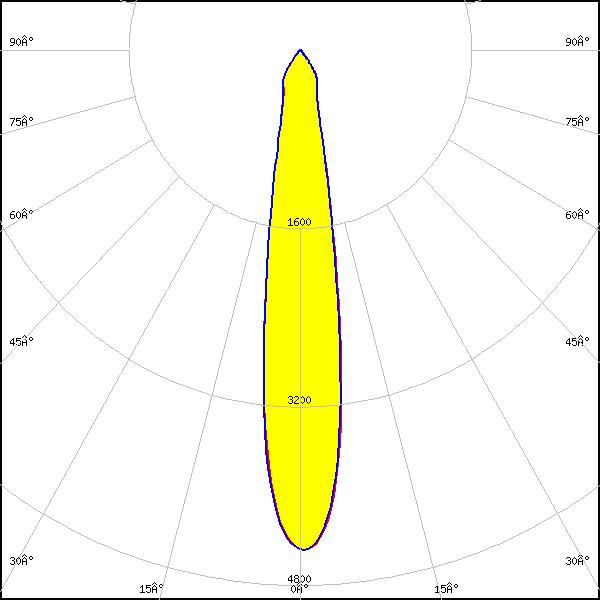

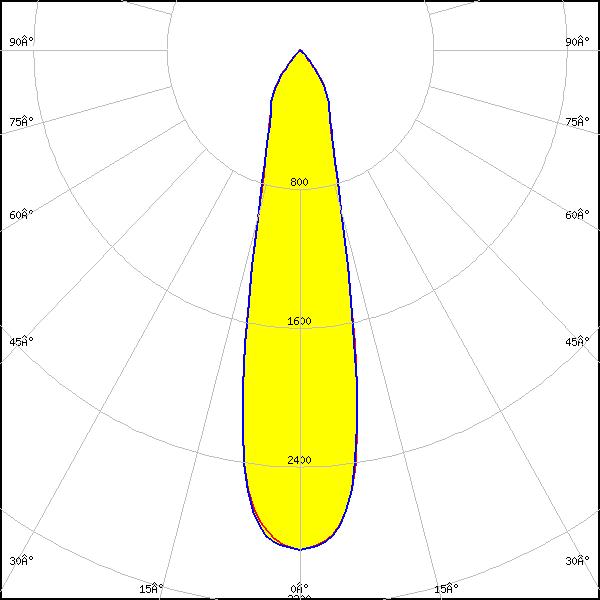

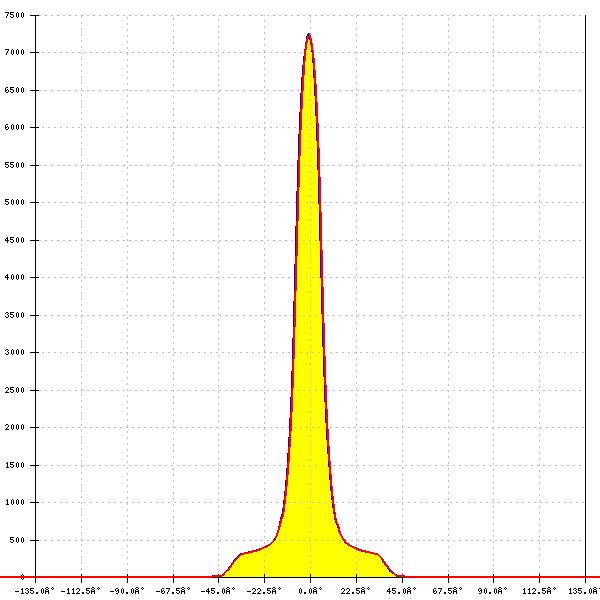

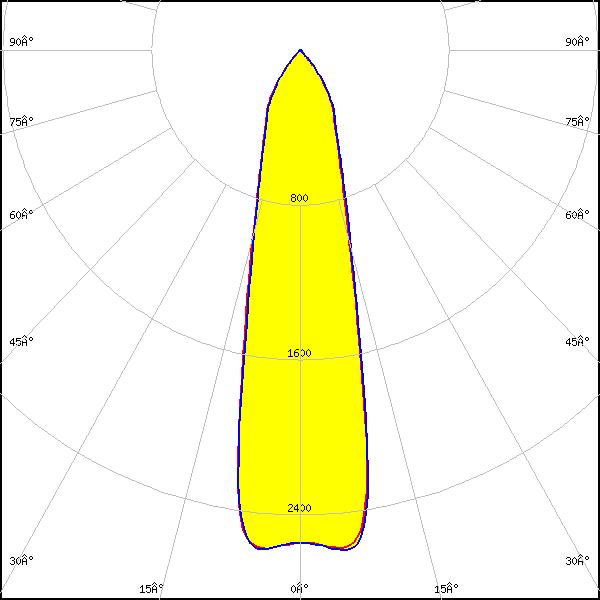

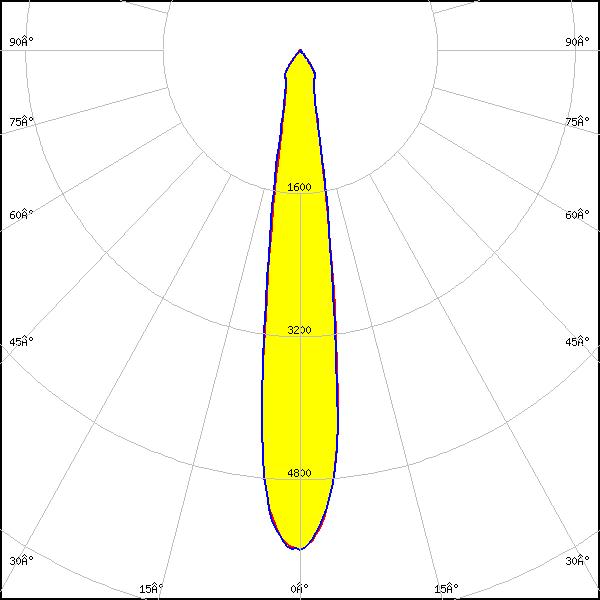

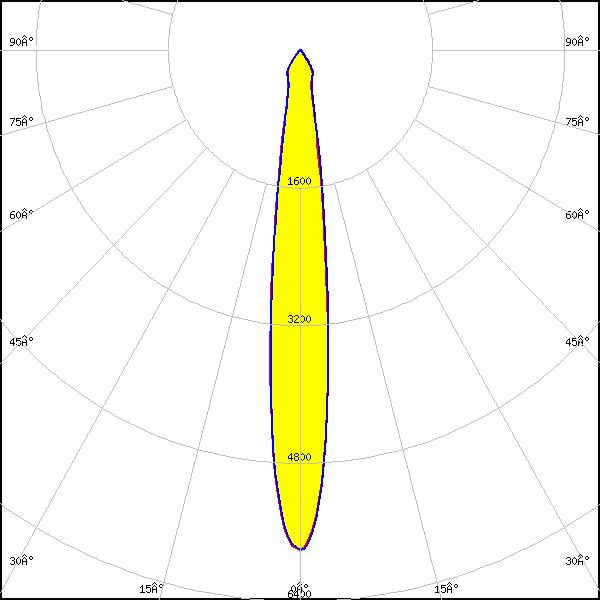

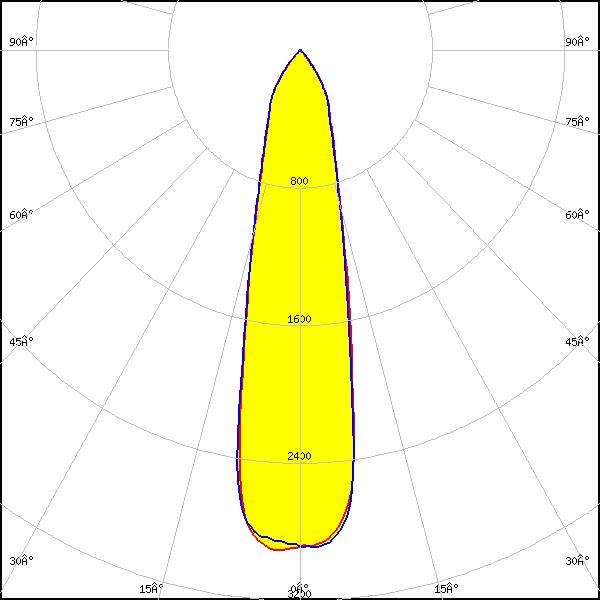

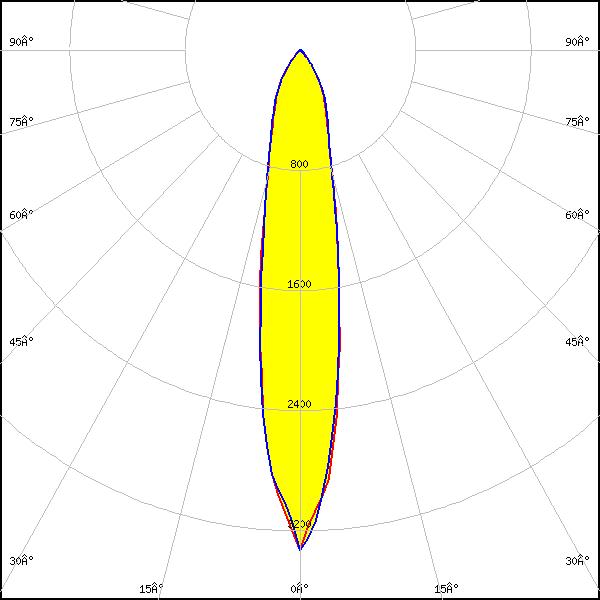

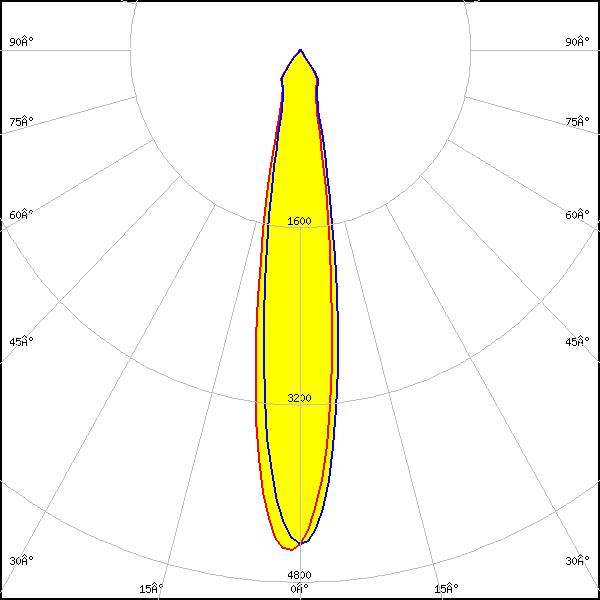

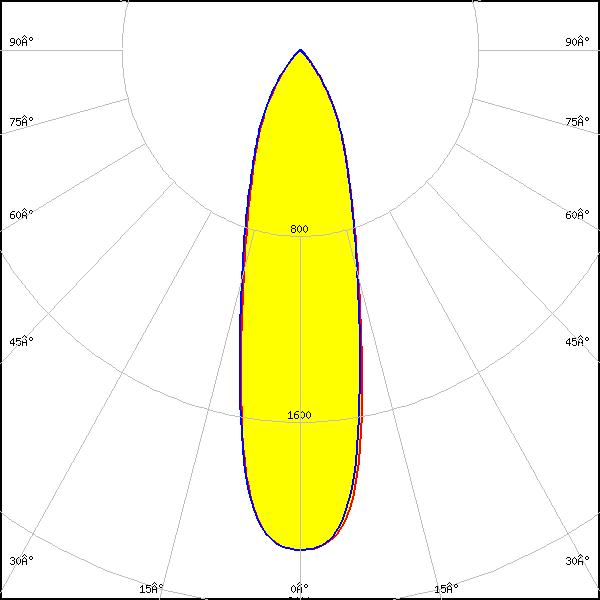

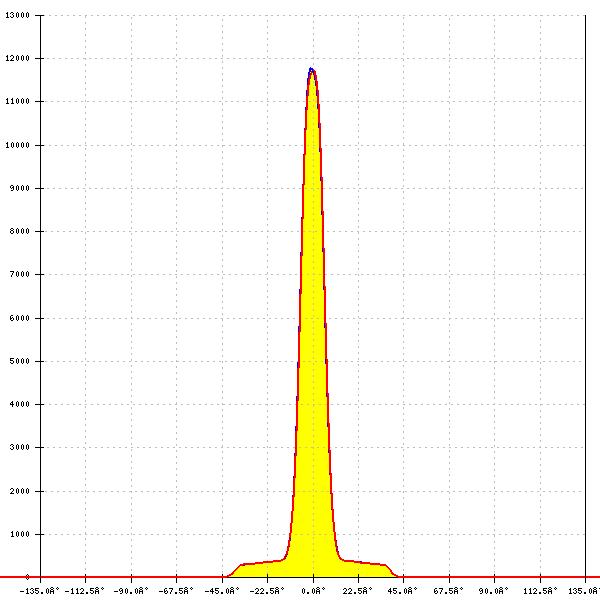

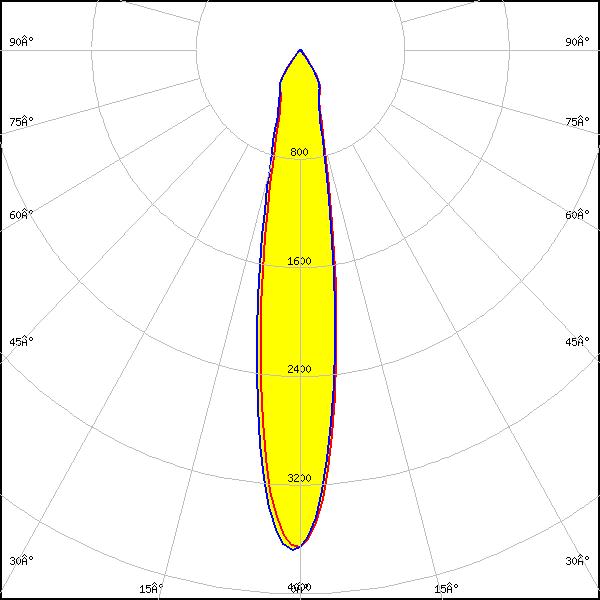

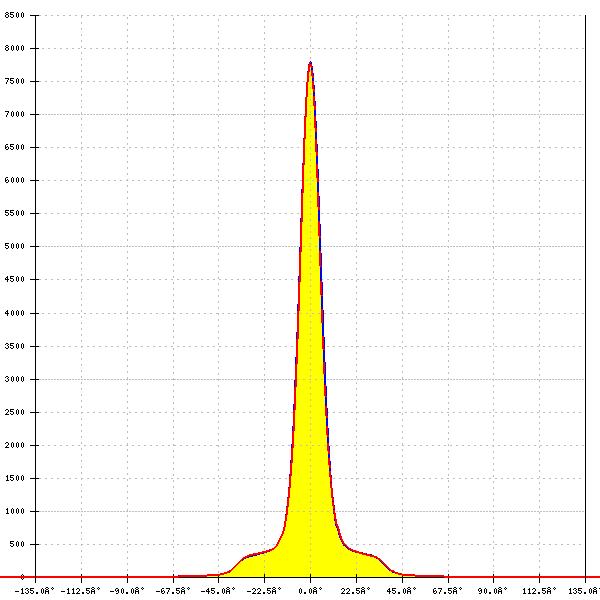

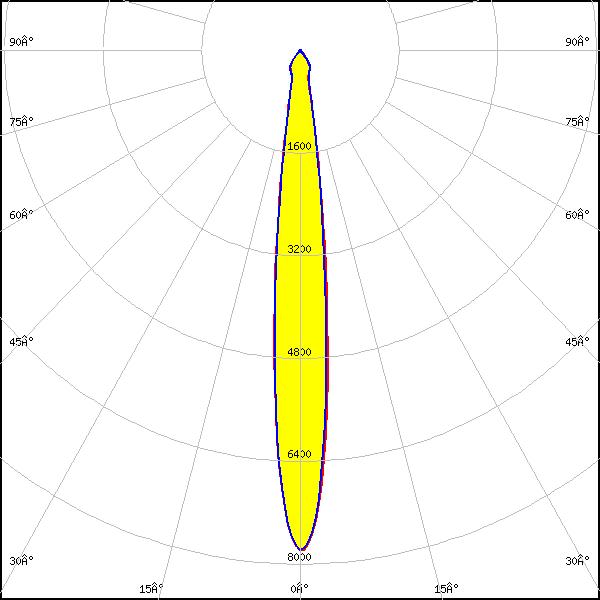

Optical results

LED: BXRA ES Rectangle
LES size: 19.2 mm
Required components:
FWHM: 15°
FWTM: 36°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: BXRA ES Rectangle
LES size: 19.2 mm
Required components:
FWHM: 20°
FWTM: 60°
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: BXRA RS
LES size: 35.3 mm
Required components:
FWHM: 28°
FWTM: 70°
Peak intensity: 2.292 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: BXRA RS
LES size: 35.3 mm
Required components:
FWHM: 32°
FWTM: 72°
Peak intensity: 2.000 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: V10 Gen6
LES size: 9.9 mm
Required components:
FWHM: 13°
FWTM: 30°
Peak intensity: 7.200 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: V10 Gen7
LES size: 10.2 mm
Required components:
C13868_LENA-STD-BASE-VERO13-18
Bender Wirth: 486 Typ L1
FWHM: 11°
FWTM: 24°
Peak intensity: 10.560 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: V10 Gen7
LES size: 10.2 mm
Required components:
FWHM: 16°
FWTM: 33°
Peak intensity: 5.510 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: V13 Gen7
LES size: 14.0 mm
Required components:
C13868_LENA-STD-BASE-VERO13-18
Bender Wirth: 477 Typ L1
FWHM: 16°
FWTM: 32°
Peak intensity: 6.070 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: V13 Gen7
LES size: 14.0 mm
Required components:
FWHM: 18°
FWTM: 41°
Peak intensity: 4.480 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: V13 Gen7
LES size: 14.0 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
C12606_LENINA-DL
FWHM: 22°
FWTM: 62°
Peak intensity: 3.000 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: V13 Gen7
LES size: 14.0 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
FWHM: 18°
FWTM: 52°
Peak intensity: 4.080 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

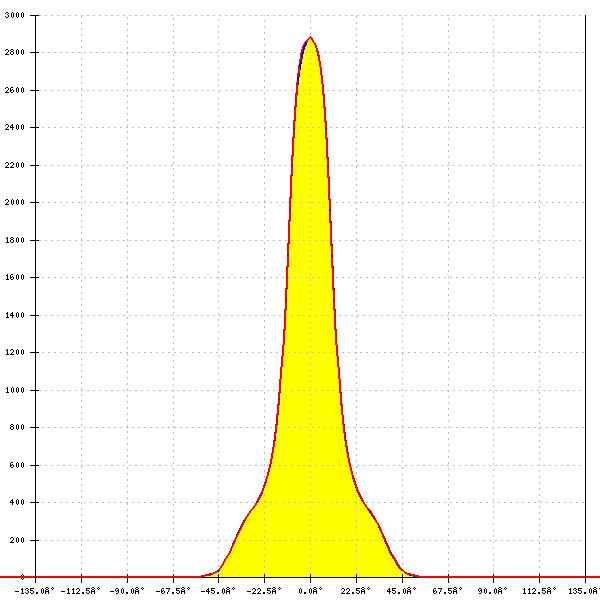

LED: V22 Gen7
LES size: 22.6 mm
Required components:
C13867_LENA-STD-BASE-VERO29
Bender Wirth: 431 Typ L3
FWHM: 27°
FWTM: 70°
Peak intensity: 2.682 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

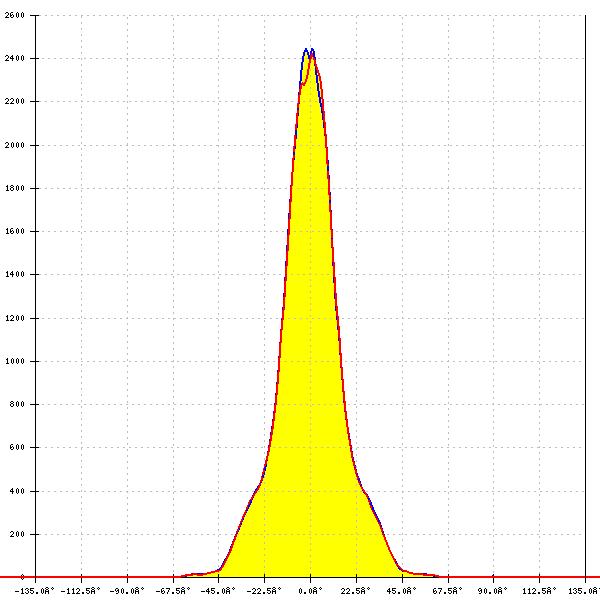

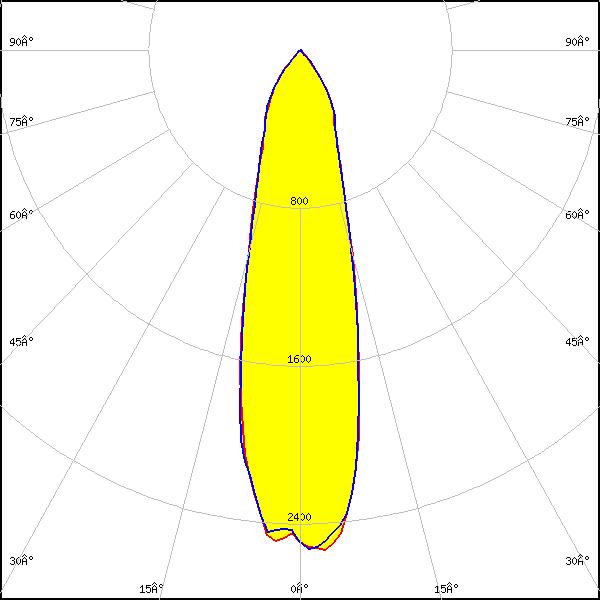

LED: V22 Gen7
LES size: 22.6 mm
Required components:
FWHM: 26°
FWTM: 68°
Peak intensity: 2.528 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

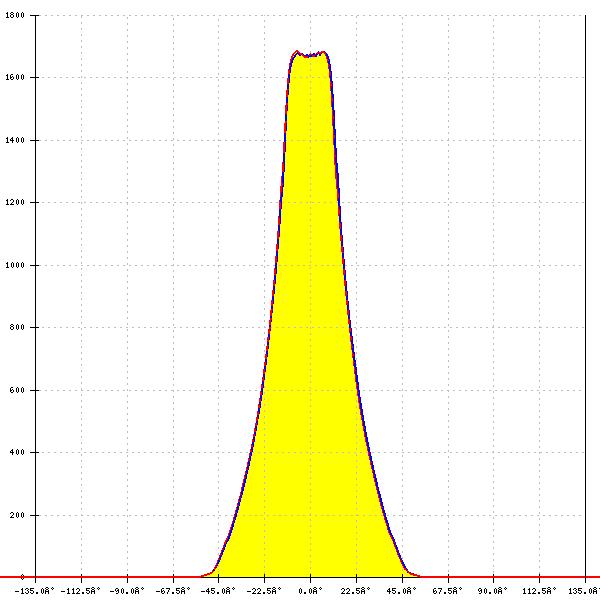

LED: Vero SE 29
LES size: 29.2 mm
Required components:
FWHM: 38°
FWTM: 76°
Peak intensity: 1.700 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

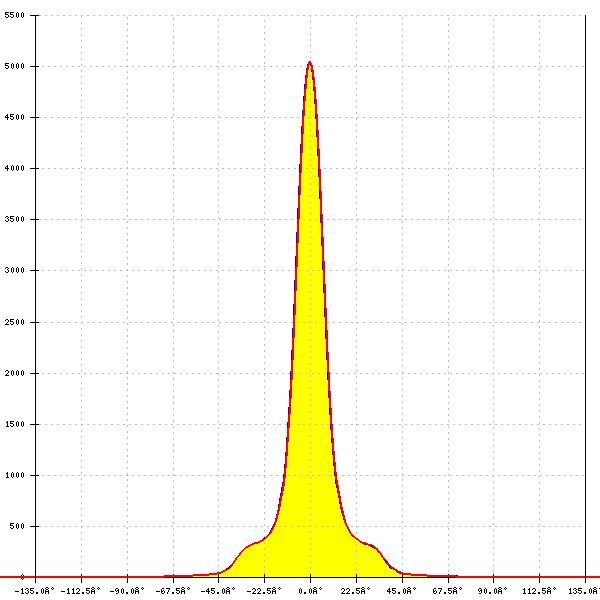

LED: VERO13
LES size: 13.4 mm
Required components:
FWHM: 16°
FWTM: 35°
Peak intensity: 5.050 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: VERO13
LES size: 13.4 mm
Required components:
FWHM: 15°
FWTM: 29°
Peak intensity: 6.780 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

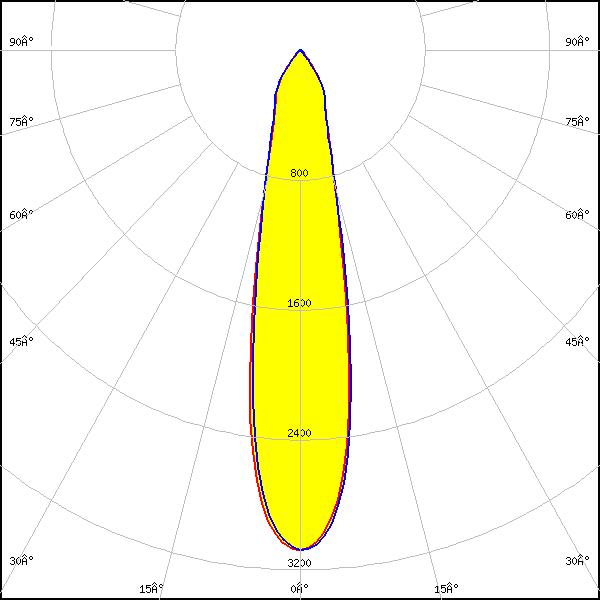

LED: VERO18
LES size: 18.6 mm
Required components:
FWHM: 22°
FWTM: 60°
Peak intensity: 3.060 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

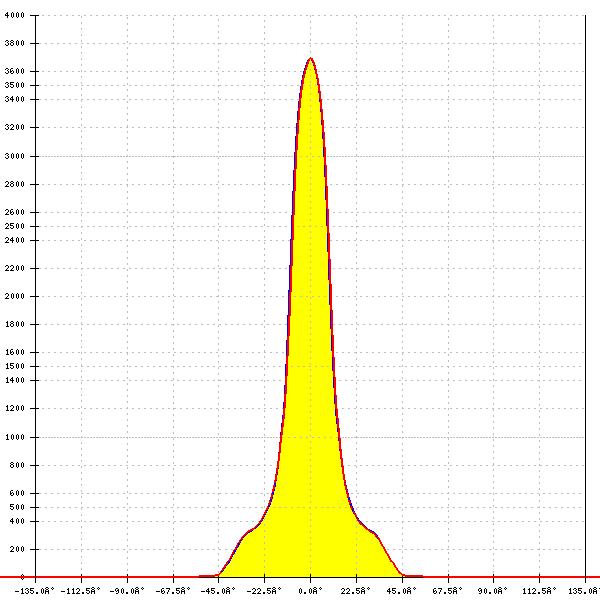

LED: VERO18
LES size: 18.6 mm
Required components:
FWHM: 21°
FWTM: 52°
Peak intensity: 3.700 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: VERO29
LES size: 29.2 mm
Required components:
FWHM: 40°
FWTM: 78°
Peak intensity: 1.560 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: VERO29
LES size: 29.2 mm
Required components:
FWHM: 40°
FWTM: 78°
Peak intensity: 1.500 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: CL-L340
LES size: 20.0 mm
Required components:
FWHM: 17°
FWTM: 44°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CL-L340
LES size: 20.0 mm
Required components:
FWHM: 22°
FWTM: 62°
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

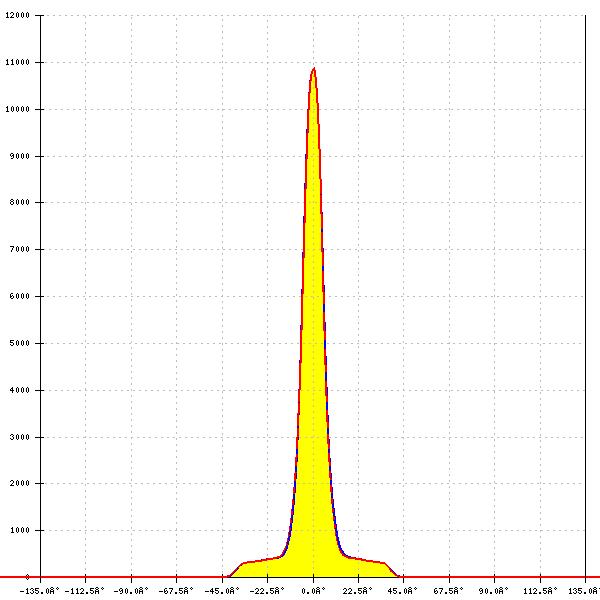

LED: CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
C13868_LENA-STD-BASE-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 11°
FWTM: 22°
Peak intensity: 10.900 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

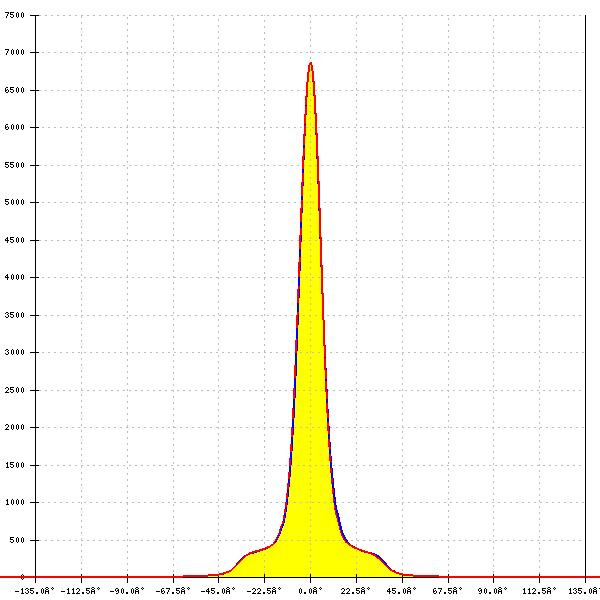

LED: CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM: 13°
FWTM: 28°
Peak intensity: 6.900 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM: 17°
FWTM: 41°
Peak intensity: 4.500 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

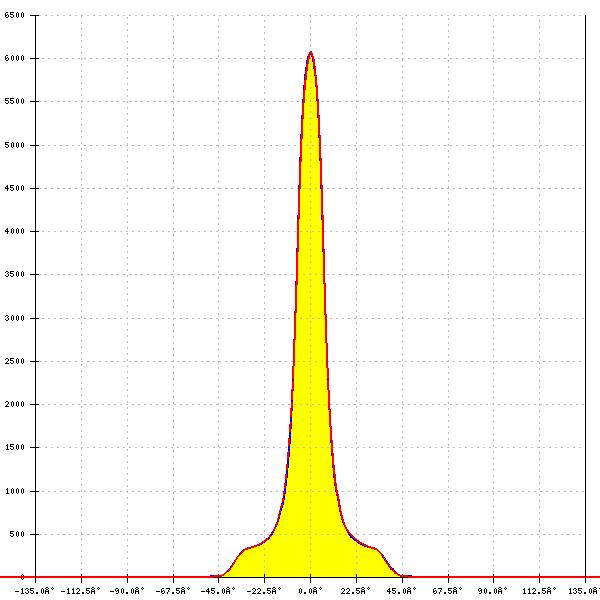

LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM: 15°
FWTM: 33°
Peak intensity: 6.100 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM: 17°
FWTM: 43°
Peak intensity: 4.500 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

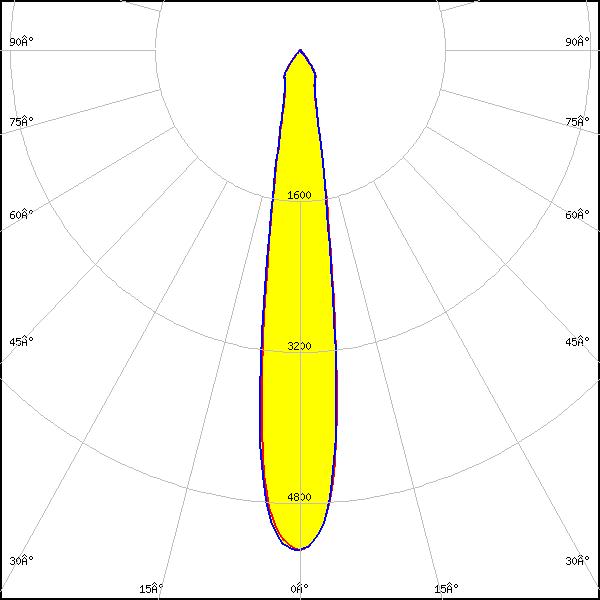

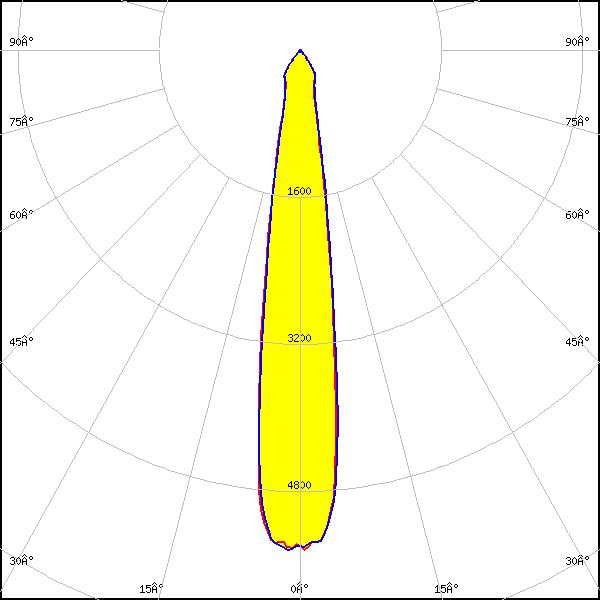

LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM: 16°
FWTM: 36°
Peak intensity: 5.449 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
C13868_LENA-STD-BASE-VERO13-18
Bender Wirth: 433 Typ L1
FWHM: 17°
FWTM: 34°
Peak intensity: 5.500 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

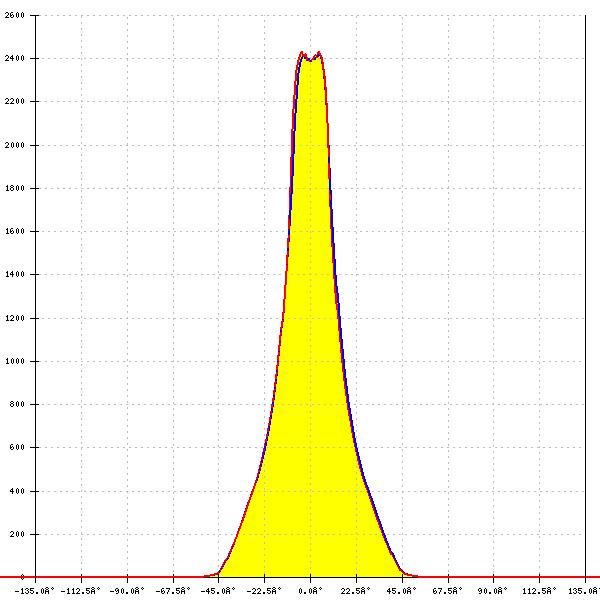

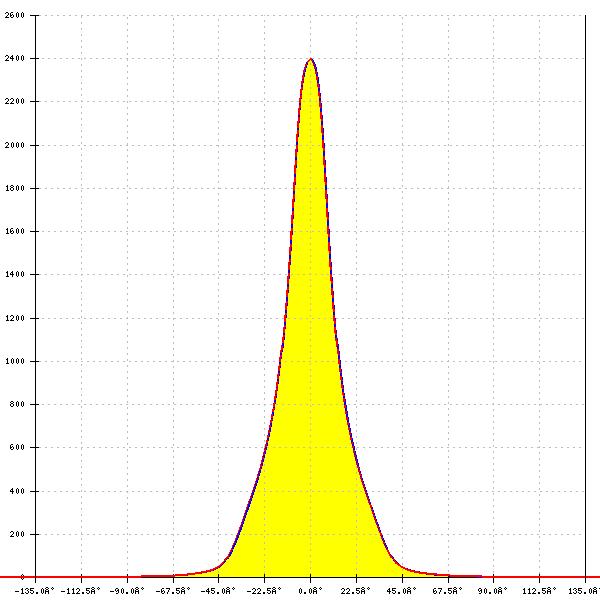

LED: CLL04x/CLU04x
LES size: 22.0 mm
Required components:
IDEAL: 50-2204CT
IDEAL: 50-2100LN
C12606_LENINA-DL
FWHM: 25°
FWTM: 67°
Peak intensity: 2.400 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

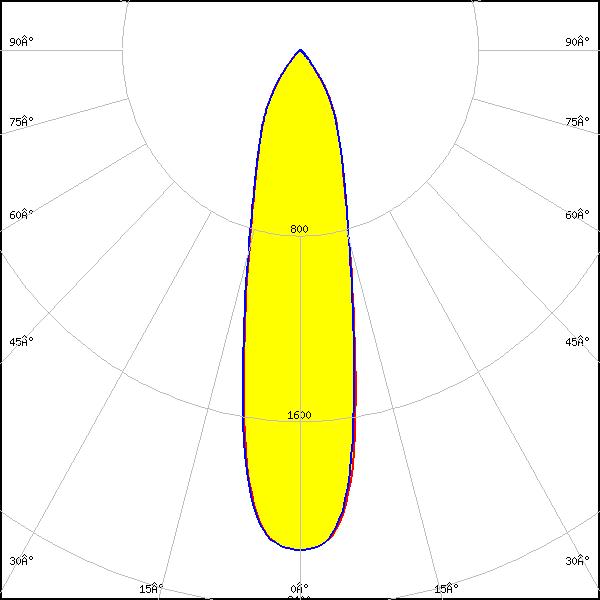

LED: CLL04x/CLU04x
LES size: 22.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
A.A.G. STUCCHI: S-8000-12
C12606_LENINA-DL
FWHM: 26°
FWTM: 68°
Peak intensity: 2.200 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL04x/CLU04x
LES size: 22.0 mm
Required components:
IDEAL: 50-2204CT
IDEAL: 50-2100LN
FWHM: 23°
FWTM: 66°
Peak intensity: 2.700 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

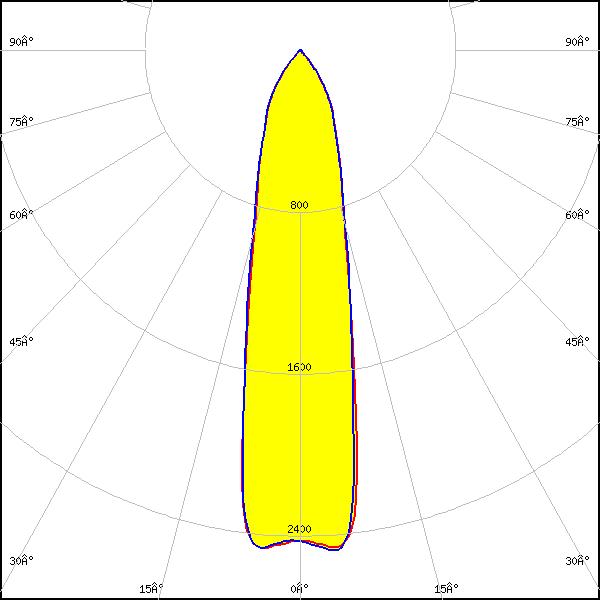

LED: CLL04x/CLU04x
LES size: 22.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
A.A.G. STUCCHI: S-8000-12
FWHM: 24°
FWTM: 67°
Peak intensity: 2.500 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM: 26°
FWTM: 68°
Peak intensity: 2.600 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

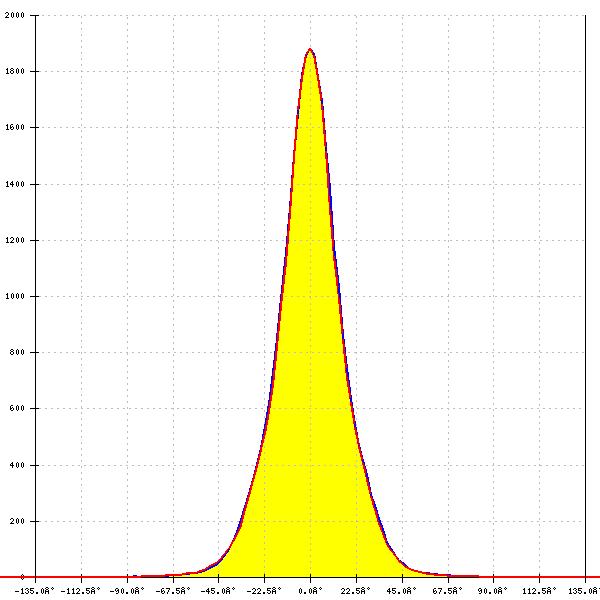

LED: CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM: 30°
FWTM: 70°
Peak intensity: 1.900 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL04x/CLU04x
LES size: 22.0 mm
Required components:
C13867_LENA-STD-BASE-VERO29
Bender Wirth: 431 Typ L3
FWHM: 26°
FWTM: 68°
Peak intensity: 2.600 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM: 27°
FWTM: 69°
Peak intensity: 2.200 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

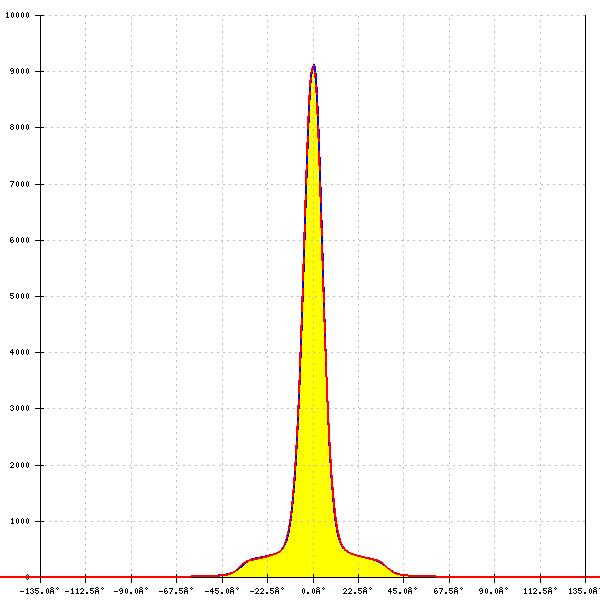

LED: CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM: 11°
FWTM: 23°
Peak intensity: 9.100 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

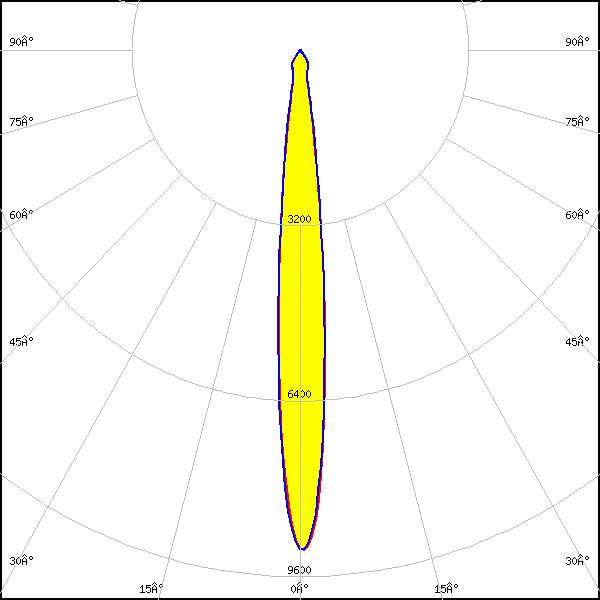

LED: CLU700/701/702/703
LES size: 6.0 mm
Required components:
C13868_LENA-STD-BASE-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 8°
FWTM: 17°
Peak intensity: 17.800 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

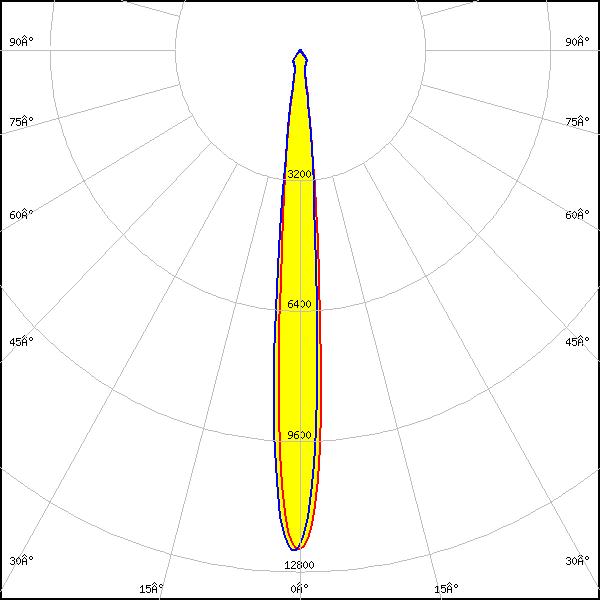

LED: CLU710/711
LES size: 8.5 mm
Required components:
FWHM: 10°
FWTM: 20°
Peak intensity: 12.300 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

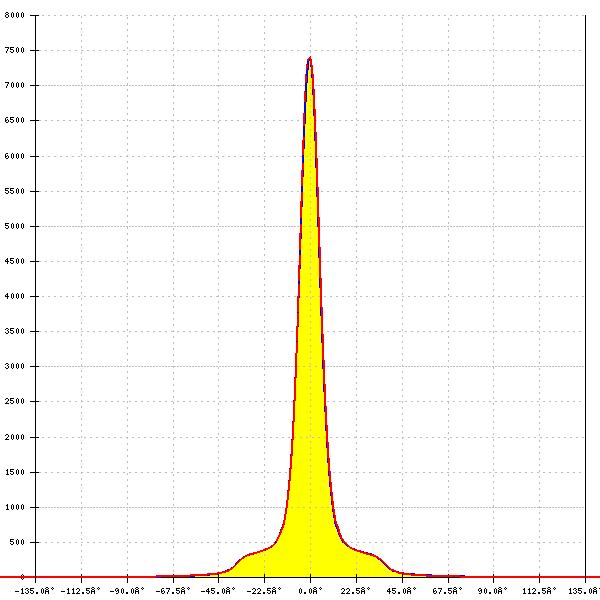

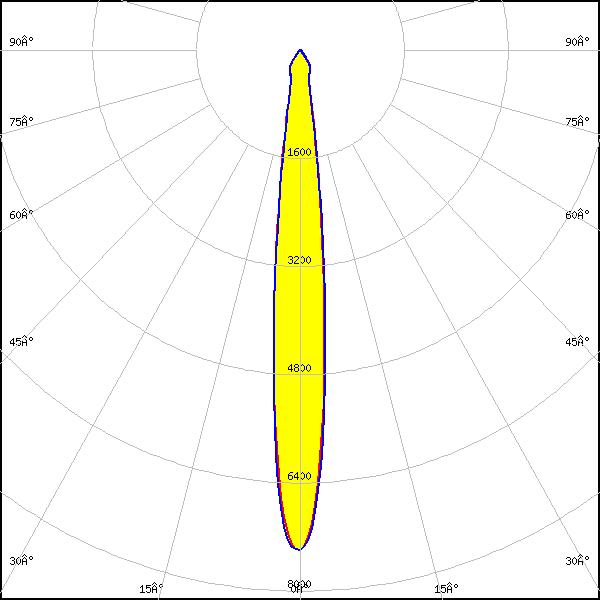

LED: CLU710/711
LES size: 8.5 mm
Required components:
FWHM: 12°
FWTM: 26°
Peak intensity: 7.400 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM: 12°
FWTM: 24°
Peak intensity: 8.200 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM: 13°
FWTM: 30°
Peak intensity: 5.800 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU730/731/733
LES size: 13.0 mm
Required components:
FWHM: 14°
FWTM: 30°
Peak intensity: 6.500 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU730/731/733
LES size: 13.0 mm
Required components:
FWHM: 15°
FWTM: 39°
Peak intensity: 4.600 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: CMA1840
LES size: 14.0 mm
Required components:
FWHM: 25°
FWTM: 70°
Peak intensity: 2.700 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CMA1840
LES size: 14.0 mm
Required components:
FWHM: 15°
FWTM: 37°
Peak intensity: 5.700 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

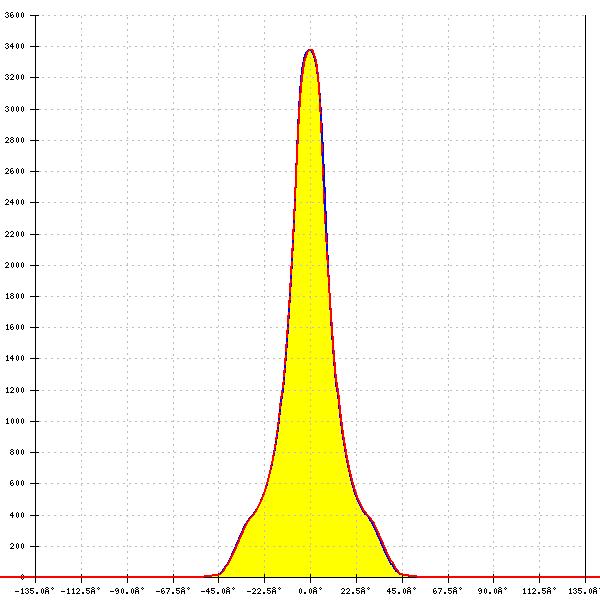

LED: CMA2550
LES size: 19.0 mm
Required components:
FWHM: 21°
FWTM: 63°
Peak intensity: 3.400 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

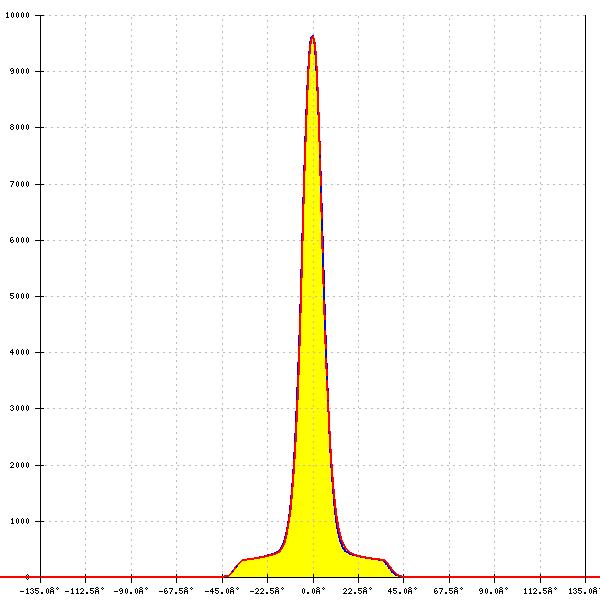

LED: CMT14xx
LES size: 9.8 mm
Required components:
C13868_LENA-STD-BASE-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 11°
FWTM: 24°
Peak intensity: 9.700 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

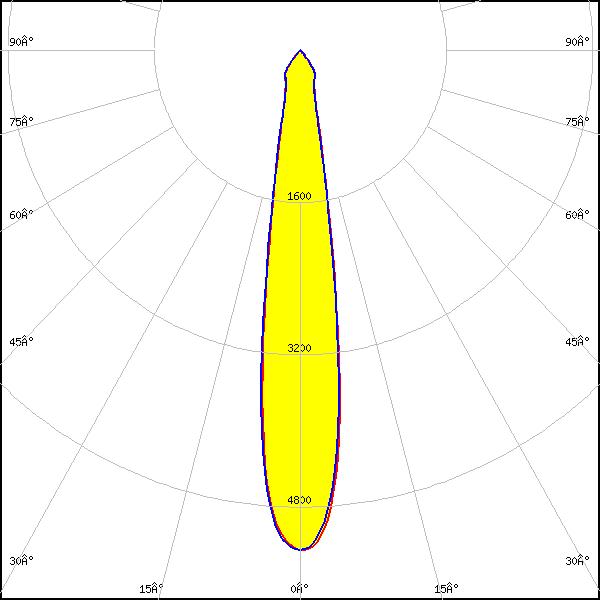

LED: CMT19xx
LES size: 14.5 mm
Required components:
C13868_LENA-STD-BASE-VERO13-18
Bender Wirth: 477 Typ L1
FWHM: 17°
FWTM: 37°
Peak intensity: 5.257 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

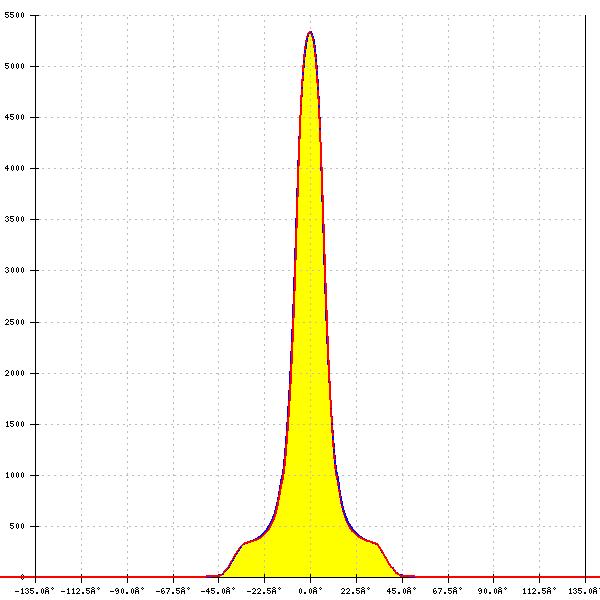

LED: CMT19xx
LES size: 14.5 mm
Required components:
FWHM: 16°
FWTM: 37°
Peak intensity: 5.337 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CMT28xx
LES size: 22.0 mm
Required components:
FWHM: 26°
FWTM: 68°
Peak intensity: 2.600 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

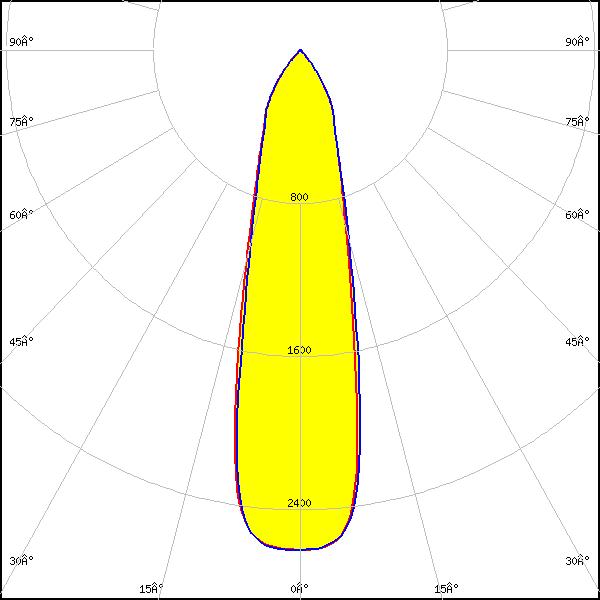

LED: CMT28xx
LES size: 22.0 mm
Required components:
C13867_LENA-STD-BASE-VERO29
Bender Wirth: 471 Typ L3
FWHM: 26°
FWTM: 68°
Peak intensity: 2.600 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

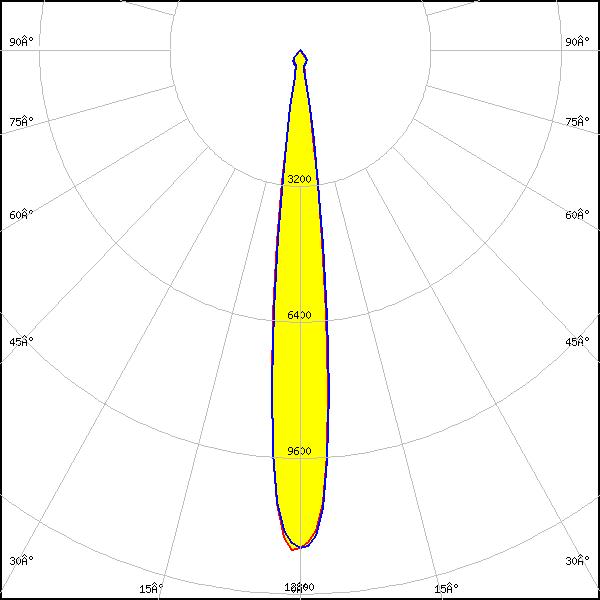

LED: CXA/B 13xx
LES size: 6.0 mm
Required components:
C13868_LENA-STD-BASE-VERO13-18
Bender Wirth: 448 Typ L1
FWHM: 12°
FWTM: 21°
Peak intensity: 11.830 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

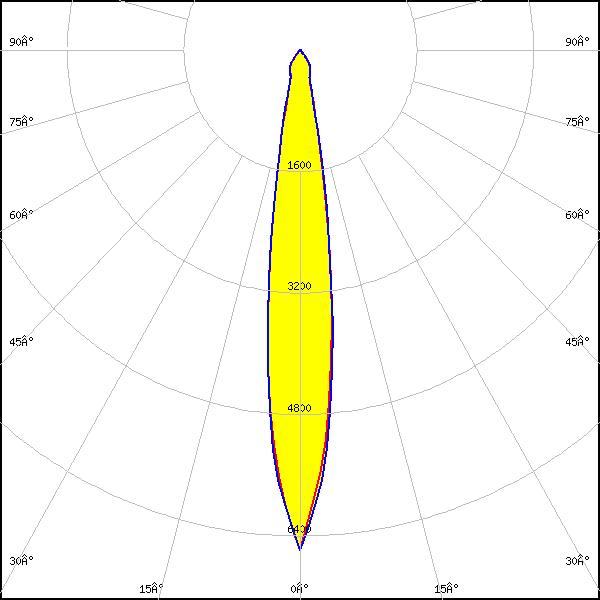

LED: CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM: 15°
FWTM: 31°
Peak intensity: 6.590 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

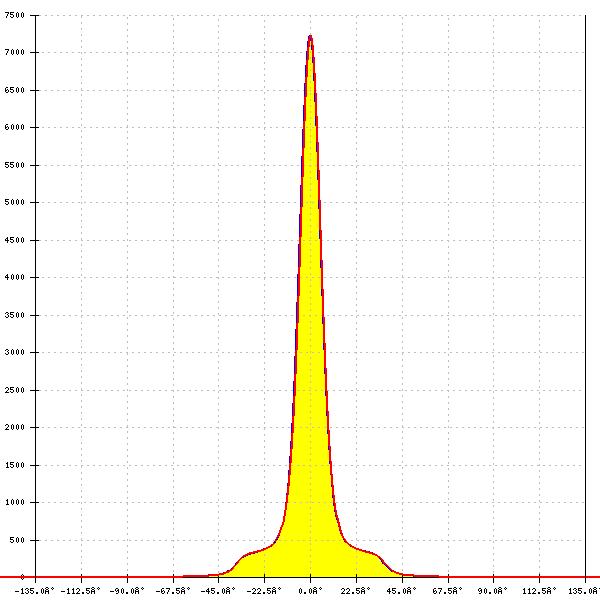

LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: 13°
FWTM: 27°
Peak intensity: 7.200 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

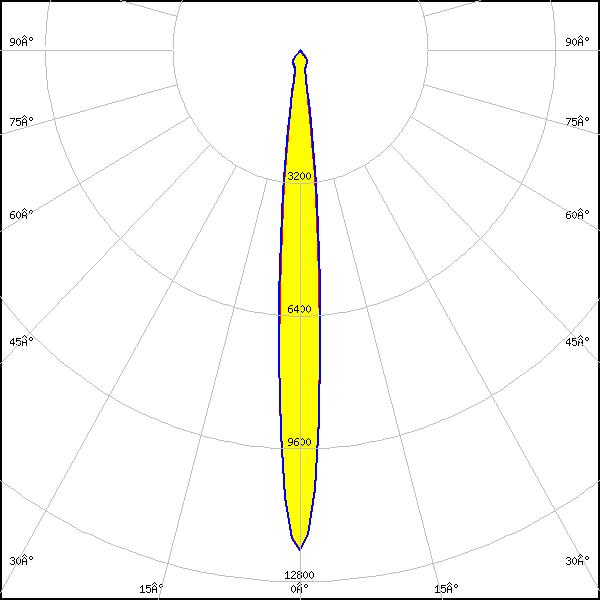

LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: 10°
FWTM: 20°
Peak intensity: 12.050 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: 12°
FWTM: 26°
Peak intensity: 7.600 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

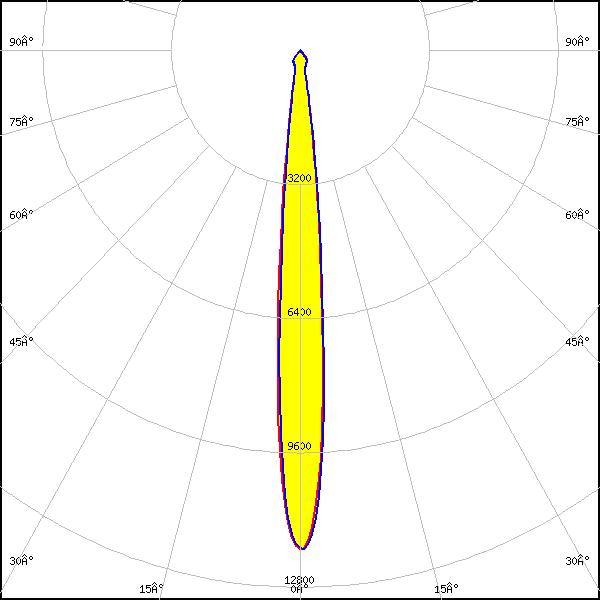

LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
C13868_LENA-STD-BASE-VERO13-18
Bender Wirth: 441 Typ L1
FWHM: 10°
FWTM: 21°
Peak intensity: 11.900 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

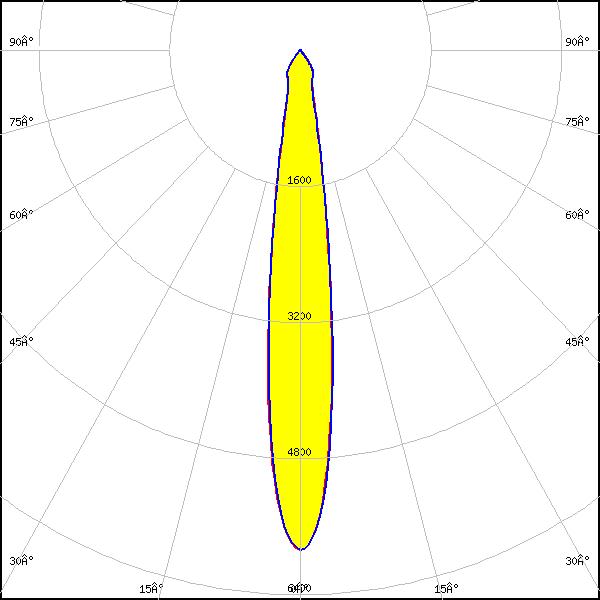

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM: 15°
FWTM: 32°
Peak intensity: 5.900 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM: 12°
FWTM: 28°
Peak intensity: 9.600 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

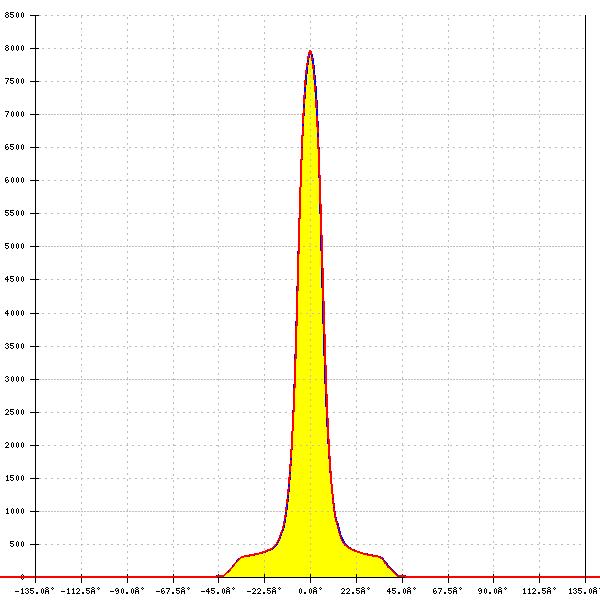

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
C13868_LENA-STD-BASE-VERO13-18
Bender Wirth: 437 Typ L1
FWHM: 13°
FWTM: 26°
Peak intensity: 8.000 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 1830
LES size: 14.0 mm
Required components:
FWHM: 16°
FWTM: -
Peak intensity: 5.580 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

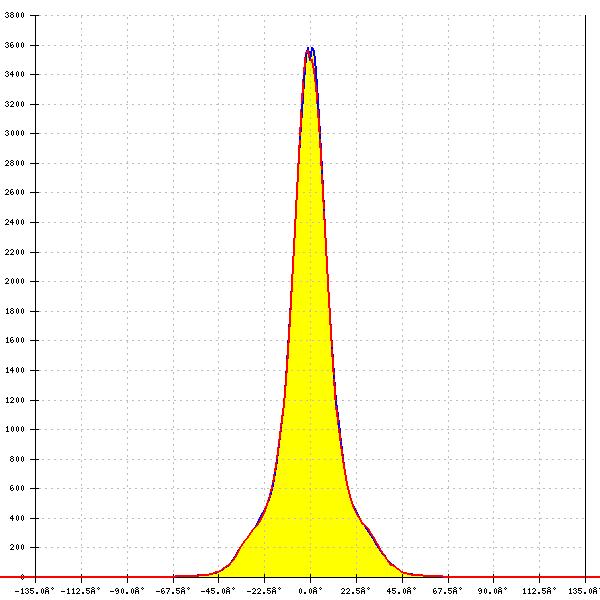

LED: CXA/B 1830
LES size: 14.0 mm
Required components:
FWHM: 19°
FWTM: 52°
Peak intensity: 3.640 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

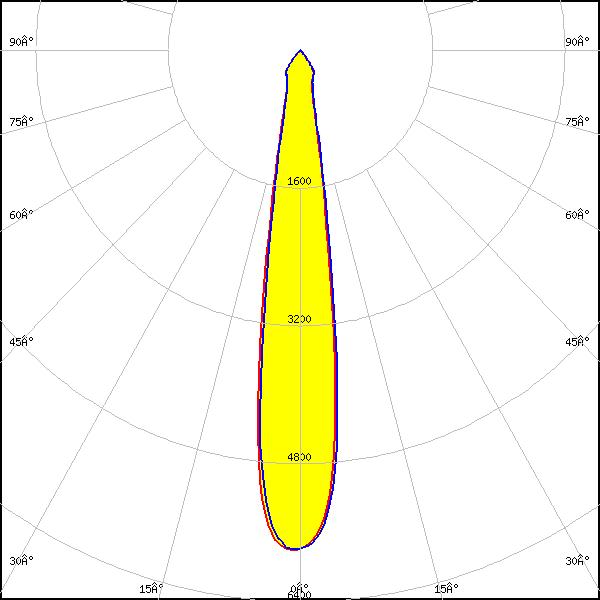

LED: CXA/B 1830
LES size: 14.0 mm
Required components:
C13868_LENA-STD-BASE-VERO13-18
Bender Wirth: 437 Typ L1
FWHM: 16°
FWTM: 33°
Peak intensity: 5.800 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

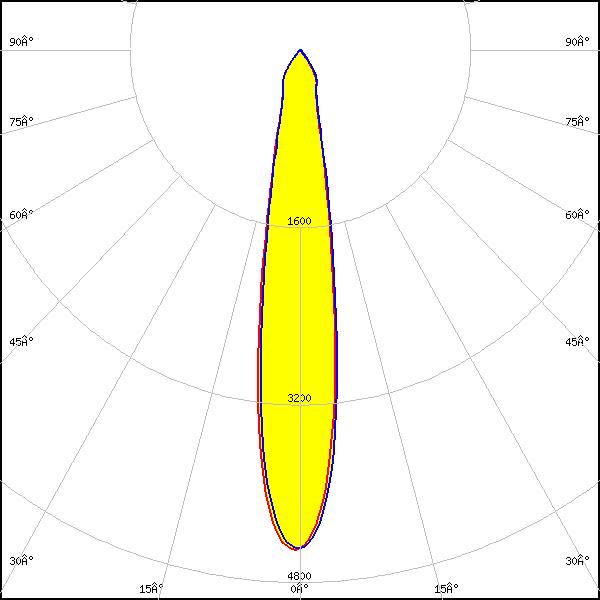

LED: CXA/B 1830
LES size: 14.0 mm
Required components:
FWHM: 18°
FWTM: 41°
Peak intensity: 4.500 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

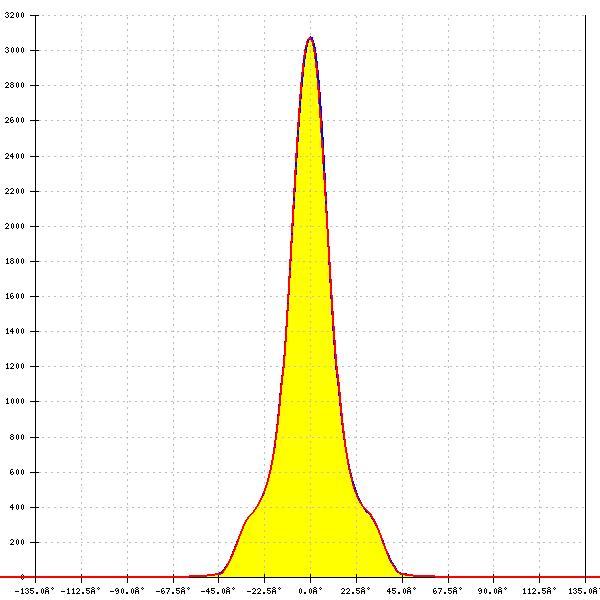

LED: CXA/B 25xx
LES size: 19.0 mm
Required components:
FWHM: 22°
FWTM: 63°
Peak intensity: 3.200 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

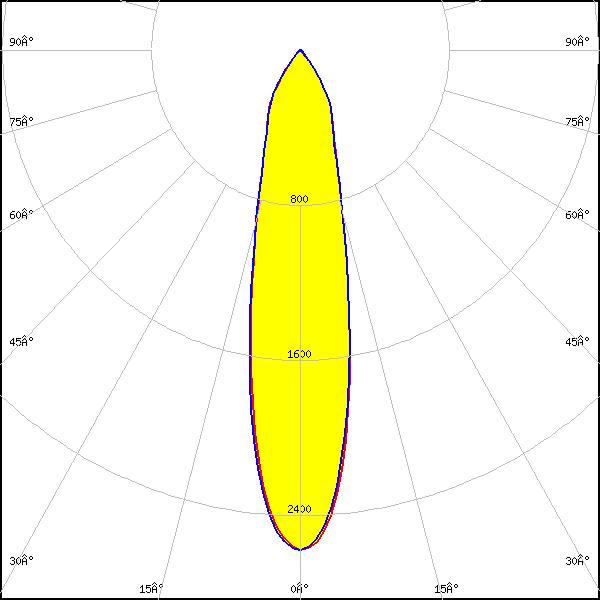

LED: CXA/B 25xx
LES size: 19.0 mm
Required components:
FWHM: 23°
FWTM: 65°
Peak intensity: 2.700 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 30xx
LES size: 23.0 mm
Required components:
IDEAL: 50-2234C
IDEAL: 50-2100LN
C12606_LENINA-DL
FWHM: 19°
FWTM: 58°
Peak intensity: 3.300 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

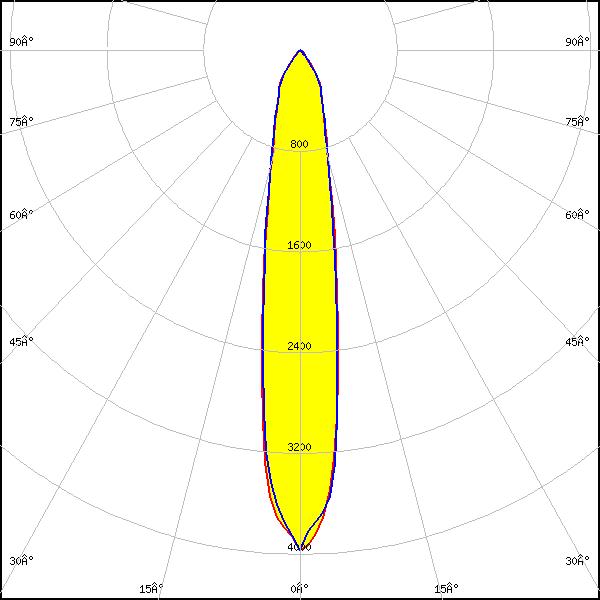

LED: CXA/B 30xx
LES size: 23.0 mm
Required components:
IDEAL: 50-2234C
IDEAL: 50-2100LN
FWHM: 18°
FWTM: 53°
Peak intensity: 4.000 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

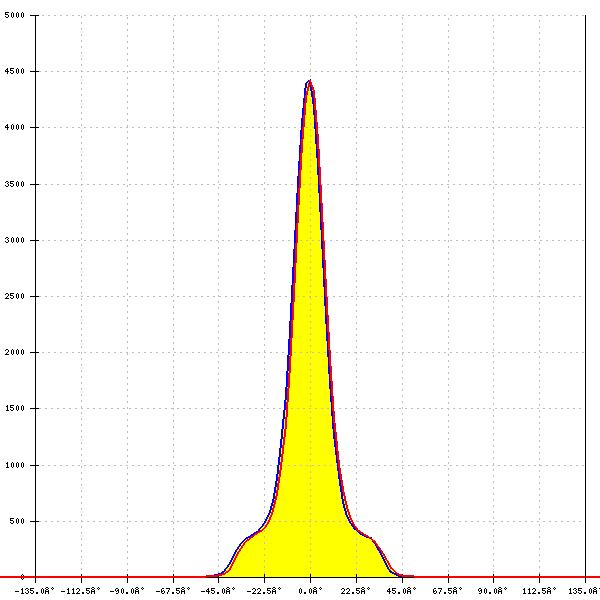

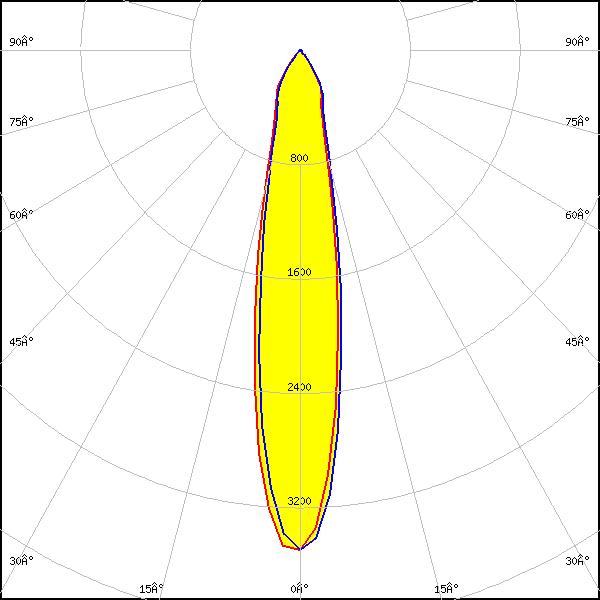

LED: CXA2011
LES size: 14.5 mm
Required components:
FWHM: 16°
FWTM: 38°
Peak intensity: 4.400 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA2011
LES size: 14.5 mm
Required components:
FWHM: 20°
FWTM: 60°
Peak intensity: 3.500 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: CHI3030 19W
LES size: 20.0 mm
Required components:
FWHM: 25°
FWTM: 68°
Peak intensity: 2.600 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: CHI3030 29W
LES size: 26.0 mm
Required components:
FWHM: 33°
FWTM: 76°
Peak intensity: 1.700 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

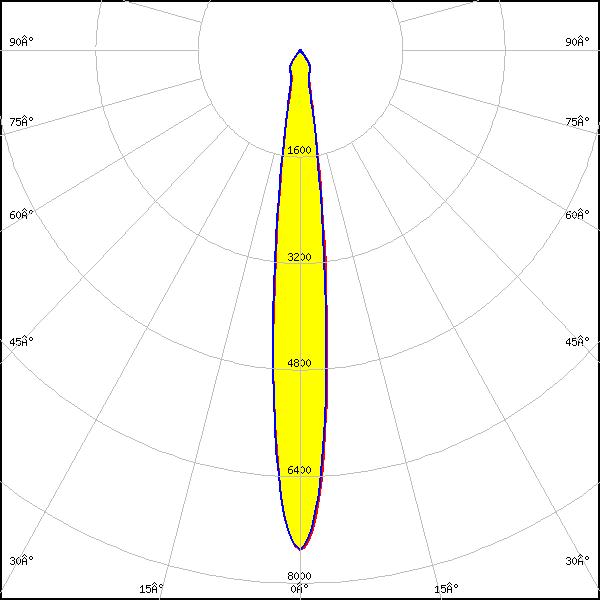

LED: LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM: 13°
FWTM: 27°
Peak intensity: 7.500 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
C13868_LENA-STD-BASE-VERO13-18
Bender Wirth: 438 Typ L1
FWHM: 11°
FWTM: 21°
Peak intensity: 11.500 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1204/1205
LES size: 13.0 mm
Required components:
FWHM: 18°
FWTM: 42°
Peak intensity: 4.500 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

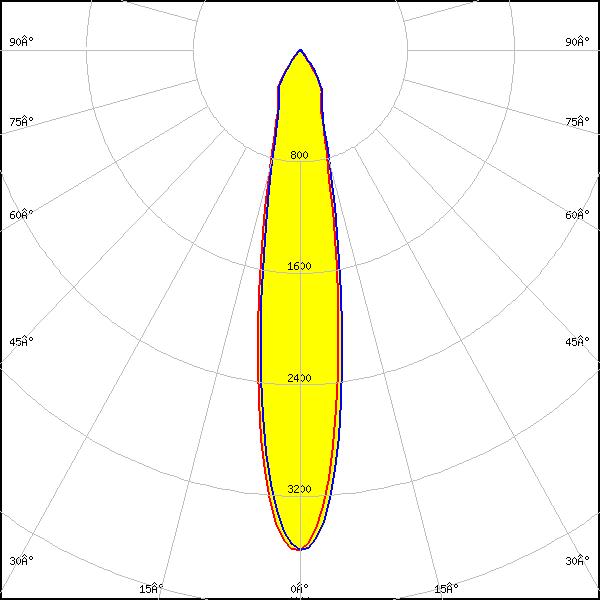

LED: LUXEON CoB 1204/1205
LES size: 13.0 mm
Required components:
FWHM: 19°
FWTM: 53°
Peak intensity: 3.600 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1204HD
LES size: 9.0 mm
Required components:
FWHM: 10°
FWTM: 22°
Peak intensity: 10.900 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1205HD
LES size: 11.0 mm
Required components:
FWHM: 12°
FWTM: 27°
Peak intensity: 8.200 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1208
LES size: 15.0 mm
Required components:
FWHM: 20°
FWTM: 50°
Peak intensity: 3.900 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

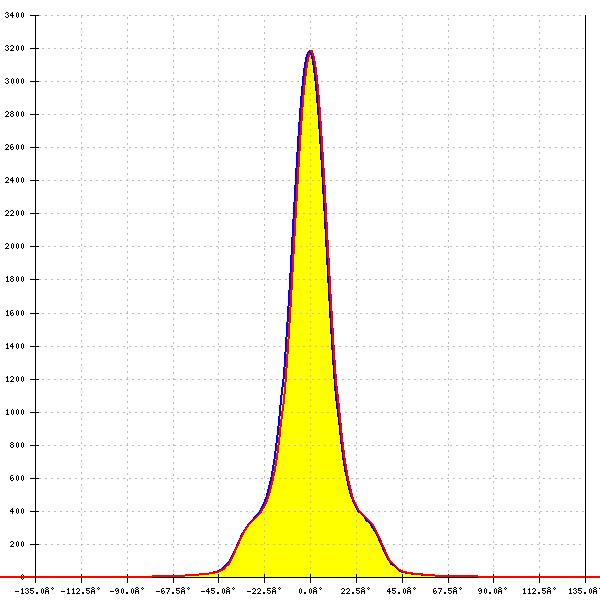

LED: LUXEON CoB 1208
LES size: 15.0 mm
Required components:
FWHM: 21°
FWTM: 61°
Peak intensity: 3.200 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

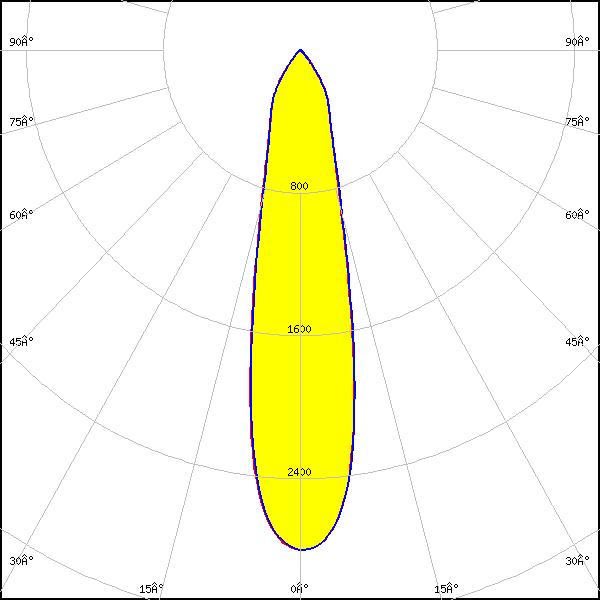

LED: LUXEON CoB 1211
LES size: 18.5 mm
Required components:
C13867_LENA-STD-BASE-VERO29
Bender Wirth: 431 Typ L3
FWHM: 22°
FWTM: 61°
Peak intensity: 3.400 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1211
LES size: 18.5 mm
Required components:
FWHM: 23°
FWTM: 64°
Peak intensity: 2.800 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

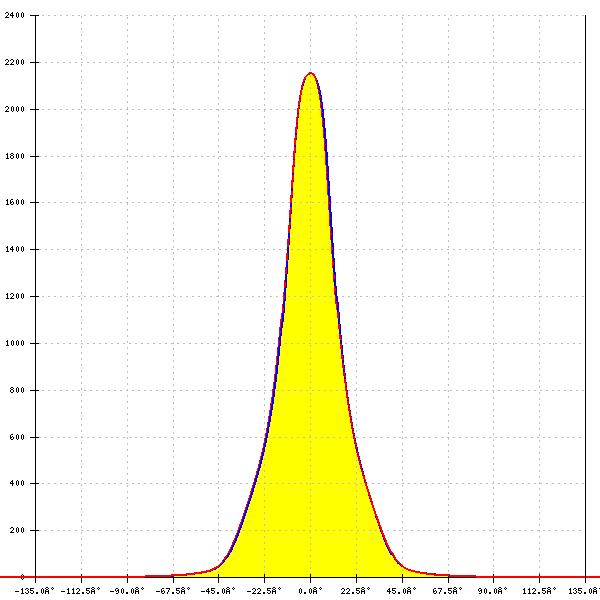

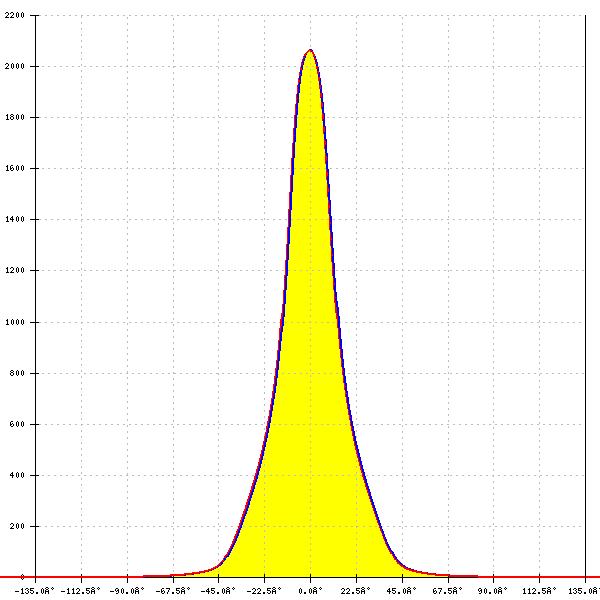

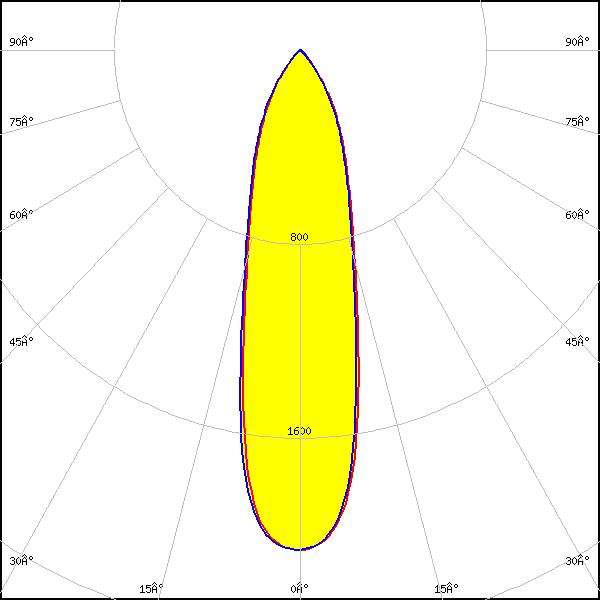

LED: LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
A.A.G. STUCCHI: S-8000-12
C12606_LENINA-DL
FWHM: 27°
FWTM: 69°
Peak intensity: 2.060 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

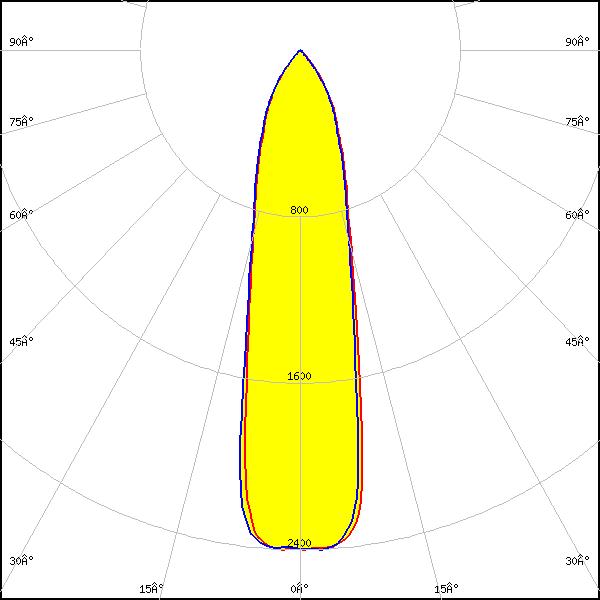

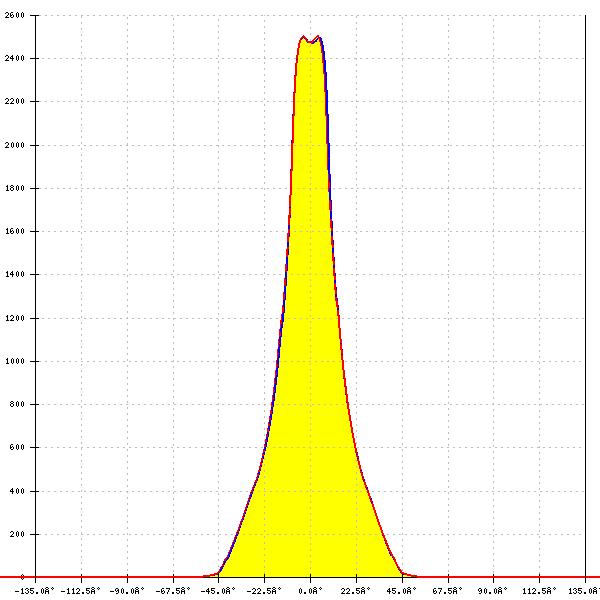

LED: LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
FWHM: 27°
FWTM: 68°
Peak intensity: 2.500 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
A.A.G. STUCCHI: S-8000-12
FWHM: 25°
FWTM: 68°
Peak intensity: 2.410 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
FWHM: 28°
FWTM: 69°
Peak intensity: 2.200 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

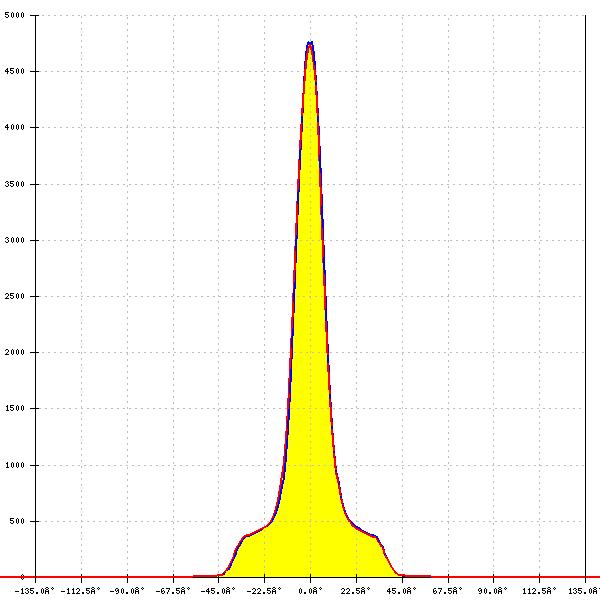

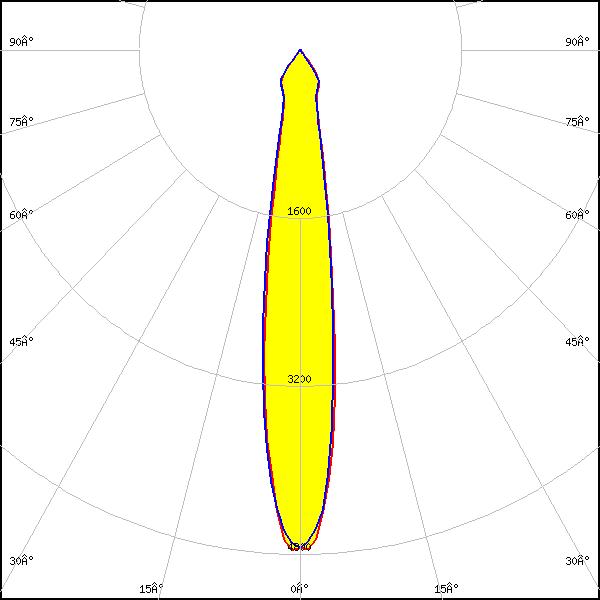

LED: LUXEON K12
LES size: 13.5 mm
Required components:
FWHM: 16°
FWTM: 41°
Peak intensity: 4.800 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON K12
LES size: 13.5 mm
Required components:
FWHM: 18°
FWTM: 57°
Peak intensity: 3.700 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

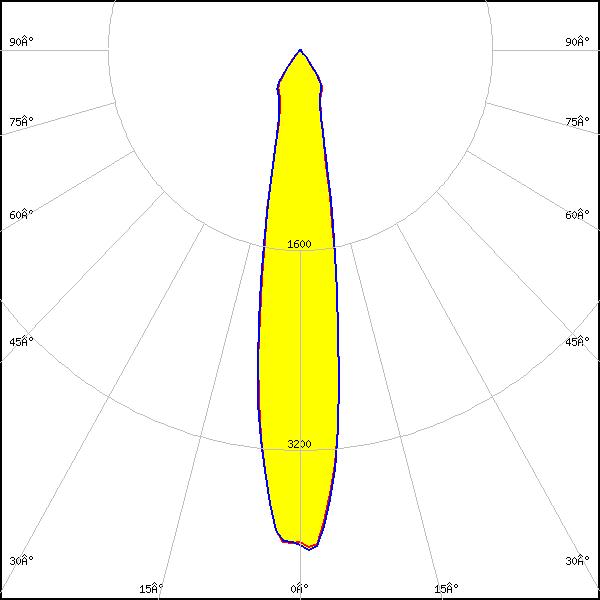

LED: LUXEON K16
LES size: 17.0 mm
Required components:
FWHM: 18°
FWTM: 50°
Peak intensity: 4.000 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON K16
LES size: 17.0 mm
Required components:
FWHM: 22°
FWTM: 64°
Peak intensity: 2.600 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: CDM-14 (Dim-To-Warm)
LES size: 15.5 mm
Required components:
FWHM: 16°
FWTM: 38°
Peak intensity: 4.900 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CDM-18 (Dim-To-Warm)
LES size: 16.8 mm
Required components:
FWHM: 21°
FWTM: 51°
Peak intensity: 3.600 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

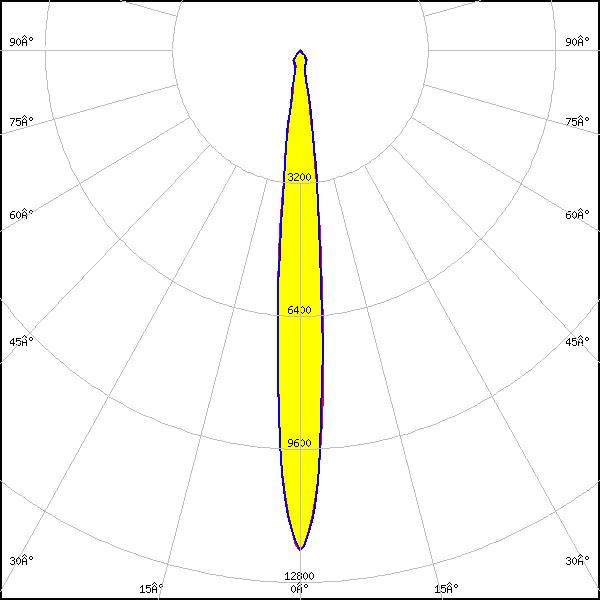

LED: CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
C13868_LENA-STD-BASE-VERO13-18
Bender Wirth: 490 Typ L1
FWHM: 11°
FWTM: 21°
Peak intensity: 12.000 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
FWHM: 13°
FWTM: 27°
Peak intensity: 7.400 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

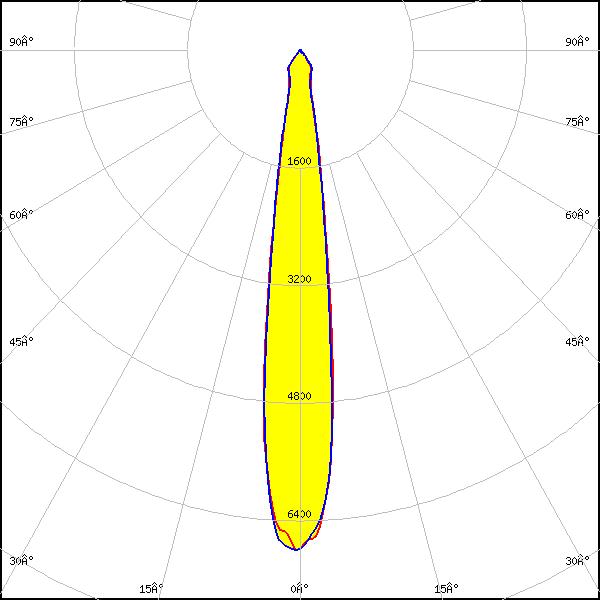

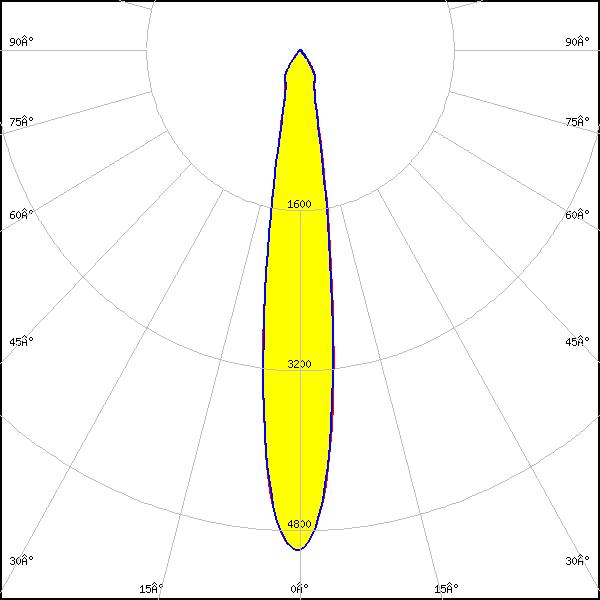

LED: CTM-14 (Tunable White)
LES size: 14.5 mm
Required components:
C13867_LENA-STD-BASE-VERO29
Bender Wirth: 442 Typ L3
FWHM: 15°
FWTM: 29°
Peak intensity: 6.800 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CTM-14 (Tunable White)
LES size: 14.5 mm
Required components:
FWHM: 16°
FWTM: 37°
Peak intensity: 5.000 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

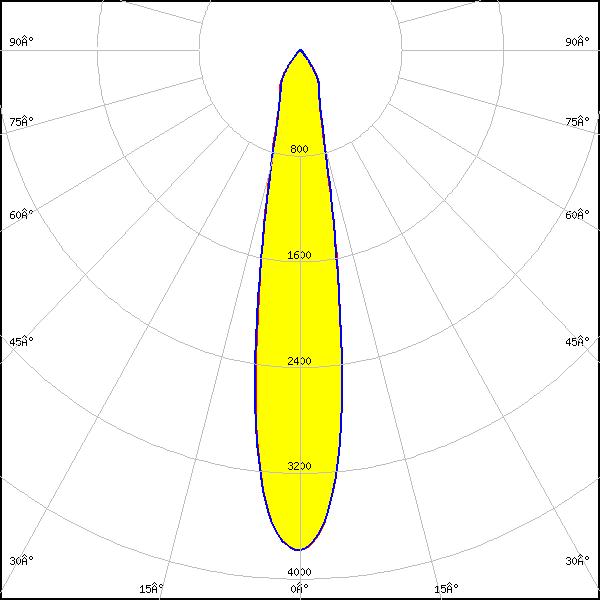

LED: CTM-18 (Tunable White)
LES size: 17.5 mm
Required components:
C13867_LENA-STD-BASE-VERO29
Bender Wirth: 442 Typ L3
FWHM: 18°
FWTM: 39°
Peak intensity: 4.800 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: CTM-18 (Tunable White)
LES size: 17.5 mm
Required components:
FWHM: 19°
FWTM: 48°
Peak intensity: 3.800 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: CTM-22 (Tunable White)
LES size: 22.0 mm
Required components:
FWHM: 26°
FWTM: 67°
Peak intensity: 2.400 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-14 (19x19)
LES size: 14.5 mm
Required components:
C13868_LENA-STD-BASE-VERO13-18
Bender Wirth: 433 Typ L1
FWHM: 17°
FWTM: 94°
Peak intensity: 5.500 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM: 17°
FWTM: 41°
Peak intensity: 4.500 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM: 16°
FWTM: 32°
Peak intensity: 6.200 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM: 17°
FWTM: 40°
Peak intensity: 4.900 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-22 (28x28)
LES size: 22.0 mm
Required components:
FWHM: 28°
FWTM: 72°
Peak intensity: 2.300 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
C13868_LENA-STD-BASE-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 11°
FWTM: 22°
Peak intensity: 10.900 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM: 13°
FWTM: 28°
Peak intensity: 6.900 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: COB J-Type
LES size: 14.6 mm
Required components:
FWHM: 18°
FWTM: 44°
Peak intensity: 4.200 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: COB J-Type
LES size: 14.6 mm
Required components:
FWHM: 20°
FWTM: 51°
Peak intensity: 3.790 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: COB J-Type
LES size: 14.6 mm
Required components:
FWHM: 21°
FWTM: 61°
Peak intensity: 3.060 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

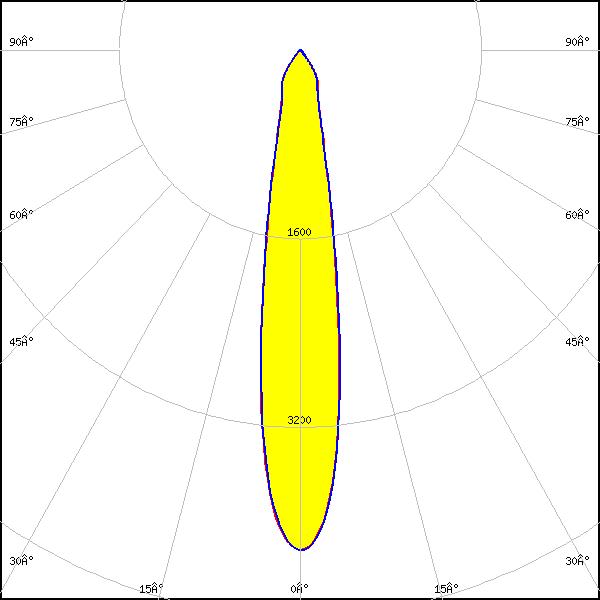

LED: COB J-Type
LES size: 14.6 mm
Required components:
C13868_LENA-STD-BASE-VERO13-18
Bender Wirth: 463 Typ L2
FWHM: 17°
FWTM: 35°
Peak intensity: 5.600 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM: 15°
FWTM: 32°
Peak intensity: 5.800 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM: 17°
FWTM: 38°
Peak intensity: 4.700 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM: 18°
FWTM: 49°
Peak intensity: 3.700 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
C13868_LENA-STD-BASE-VERO13-18
Bender Wirth: 438 Typ L1
FWHM: 13°
FWTM: 26°
Peak intensity: 8.300 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

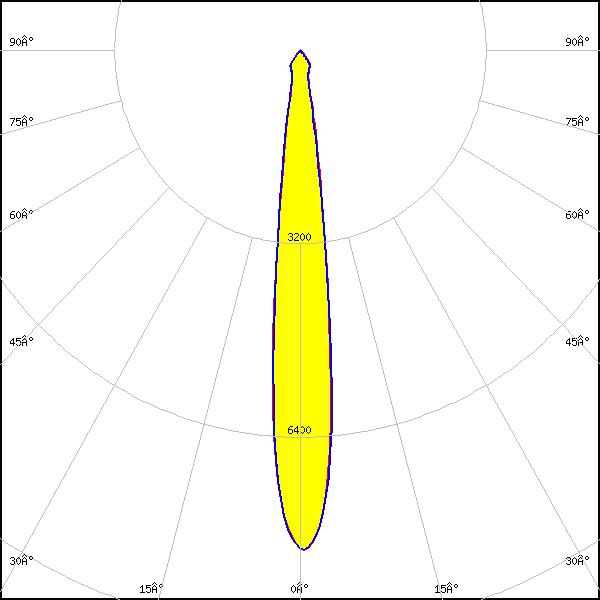

LED: COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM: 12°
FWTM: 26°
Peak intensity: 7.800 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
C13868_LENA-STD-BASE-VERO13-18
Bender Wirth: 438 Typ L1
FWHM: 10°
FWTM: 21°
Peak intensity: 12.100 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White
LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
C13868_LENA-STD-BASE-VERO13-18
Bender Wirth: 498 Typ L2
FWHM: 12°
FWTM: 25°
Peak intensity: 9.000 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
FWHM: 14°
FWTM: 32°
Peak intensity: 6.000 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

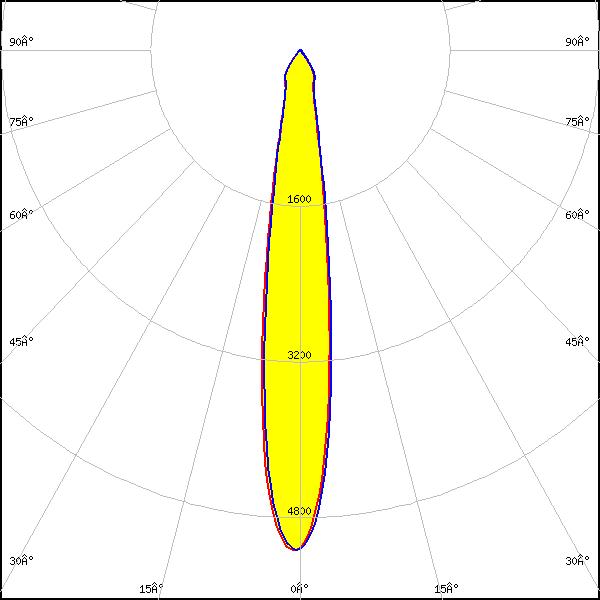

LED: Soleriq S13
LES size: 13.2 mm
Required components:
FWHM: 16°
FWTM: 36°
Peak intensity: 5.100 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

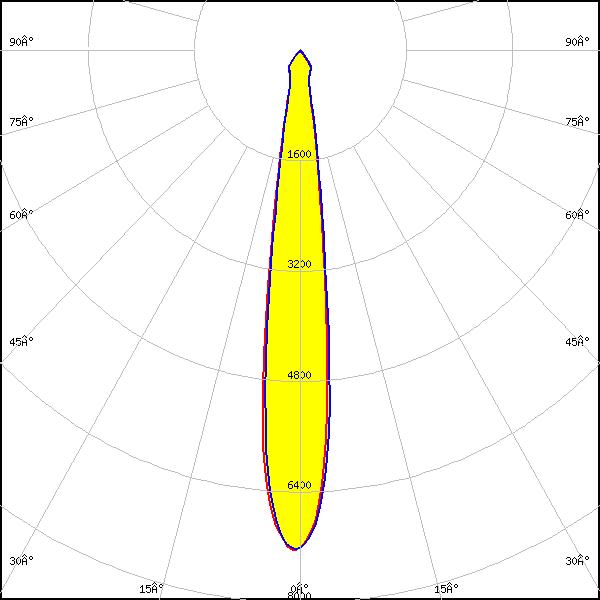

LED: Soleriq S13
LES size: 13.2 mm
Required components:
C13868_LENA-STD-BASE-VERO13-18
Bender Wirth: 437 Typ L1
FWHM: 14°
FWTM: 28°
Peak intensity: 7.200 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

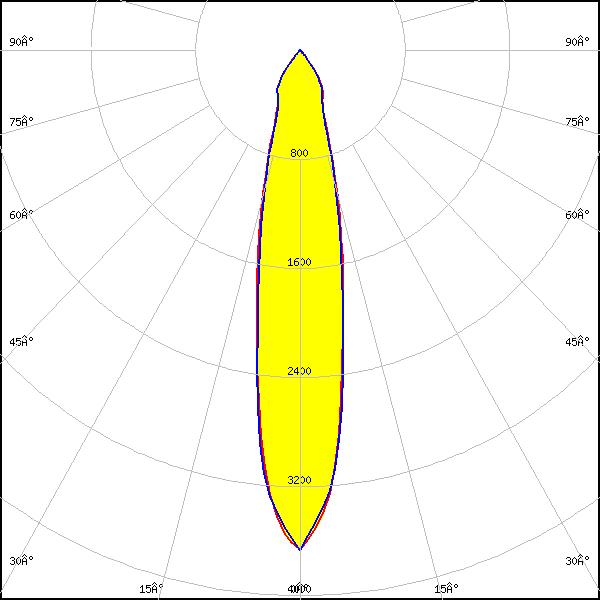

LED: Soleriq S15
LES size: 14.7 mm
Required components:
FWHM: 20°
FWTM: 56°
Peak intensity: 3.660 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

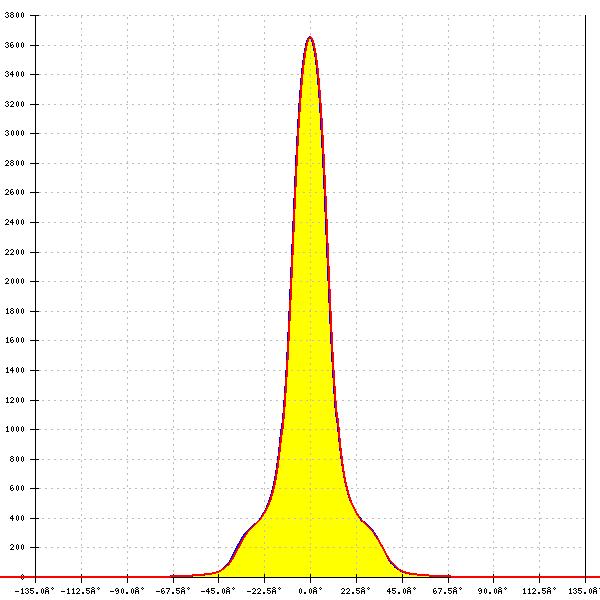

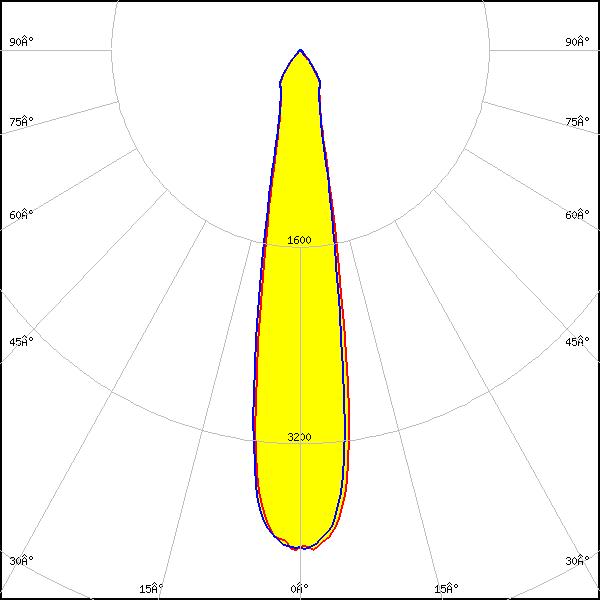

LED: Soleriq S19
LES size: 17.9 mm
Required components:
C13867_LENA-STD-BASE-VERO29
Bender Wirth: 462 Typ L3
FWHM: 19°
FWTM: 47°
Peak intensity: 4.100 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: Soleriq S19
LES size: 17.9 mm
Required components:
FWHM: 20°
FWTM: 53°
Peak intensity: 3.700 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM: 18°
FWTM: 49°
Peak intensity: 3.950 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM: 15°
FWTM: 34°
Peak intensity: 6.000 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

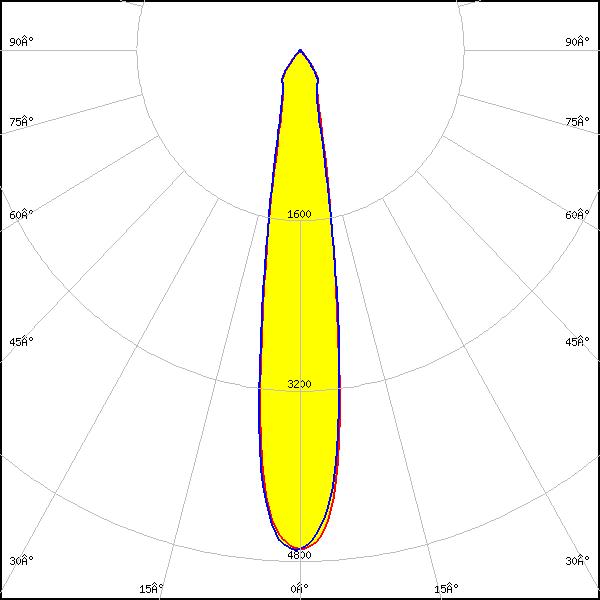

LED: Fortimo SLM L15 CoB
LES size: 15.0 mm
Required components:
FWHM: 18°
FWTM: 42°
Peak intensity: 4.700 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

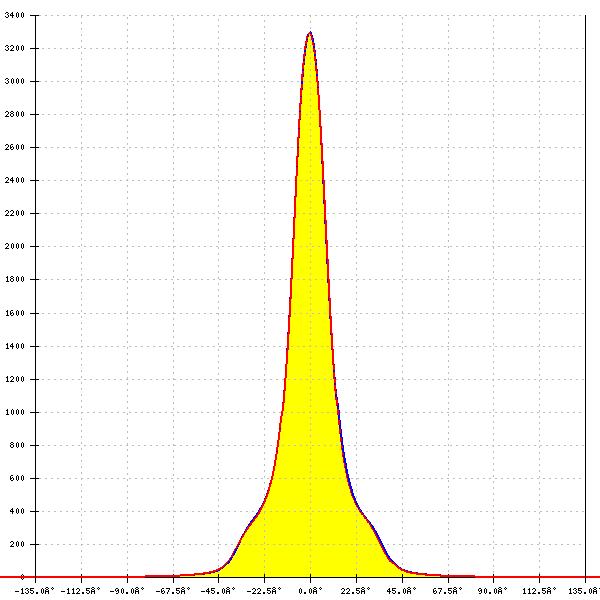

LED: Fortimo SLM L15 CoB
LES size: 15.0 mm
Required components:
FWHM: 20°
FWTM: 58°
Peak intensity: 3.300 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
FWHM: 24°
FWTM: 66°
Peak intensity: 2.500 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
FWHM: 22°
FWTM: 64°
Peak intensity: 3.200 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
FWHM: 29°
FWTM: 70°
Peak intensity: 2.000 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

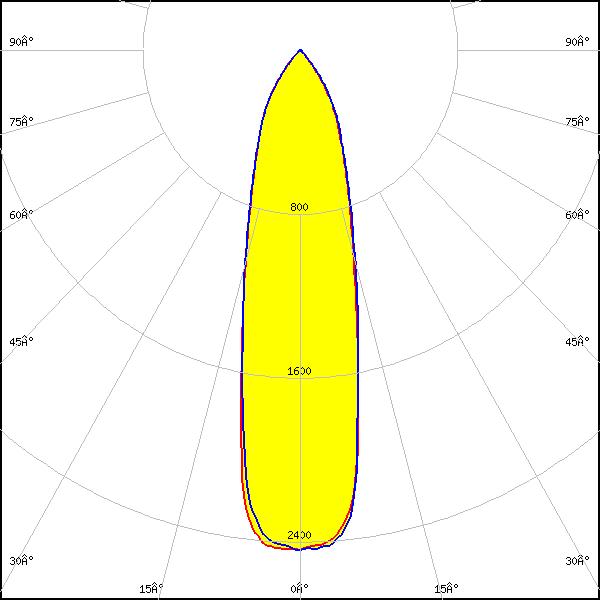

LED: Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
FWHM: 27°
FWTM: 69°
Peak intensity: 2.400 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM: 16°
FWTM: 37°
Peak intensity: 5.300 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

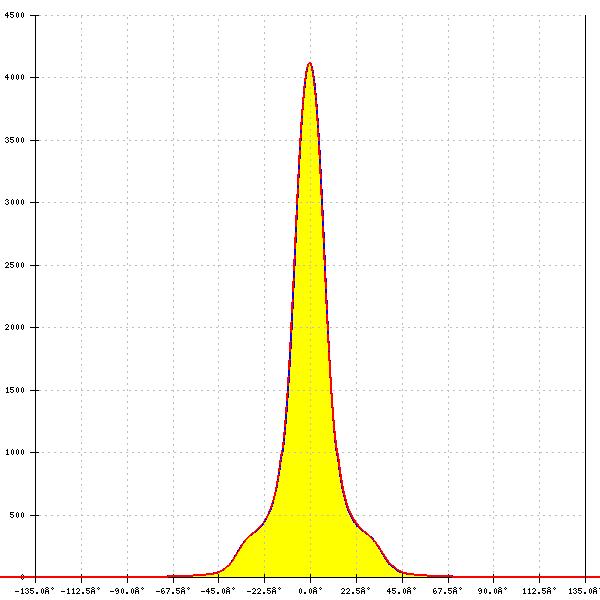

LED: LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM: 18°
FWTM: 47°
Peak intensity: 4.100 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

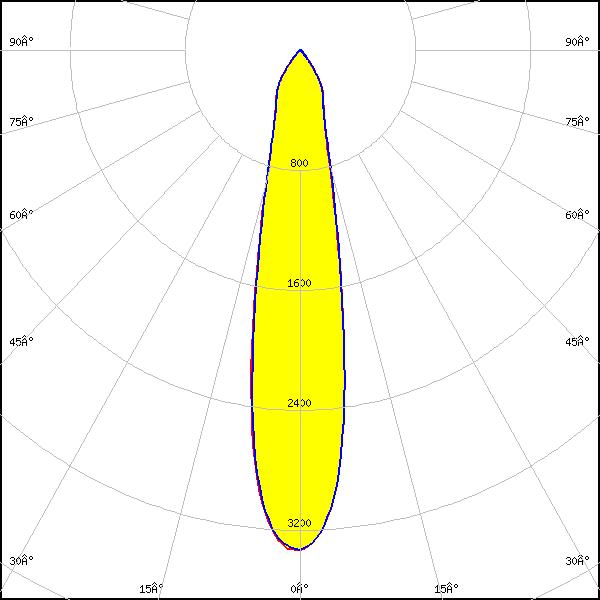

LED: LC026B / 033B / 040B
LES size: 17.0 mm
Required components:
C13868_LENA-STD-BASE-VERO13-18
Bender Wirth: 450 Typ L2
FWHM: 20°
FWTM: 48°
Peak intensity: 4.000 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: LC026B / 033B / 040B
LES size: 17.0 mm
Required components:
FWHM: 21°
FWTM: 58°
Peak intensity: 3.300 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: LC040D / LC060D / LC080D
LES size: 22.0 mm
Required components:
FWHM: 28°
FWTM: 69°
Peak intensity: 2.400 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: LC040D / LC060D / LC080D
LES size: 22.0 mm
Required components:
FWHM: 29°
FWTM: 70°
Peak intensity: 2.100 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: ZC12/18
LES size: 14.6 mm
Required components:
C13868_LENA-STD-BASE-VERO13-18
Bender Wirth: 433 Typ L1
FWHM: 17°
FWTM: 34°
Peak intensity: 5.500 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

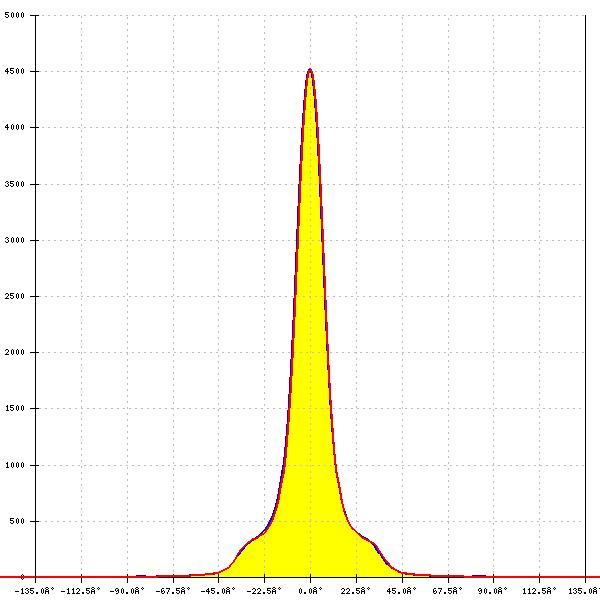

LED: ZC12/18
LES size: 14.6 mm
Required components:
FWHM: 17°
FWTM: 41°
Peak intensity: 4.500 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

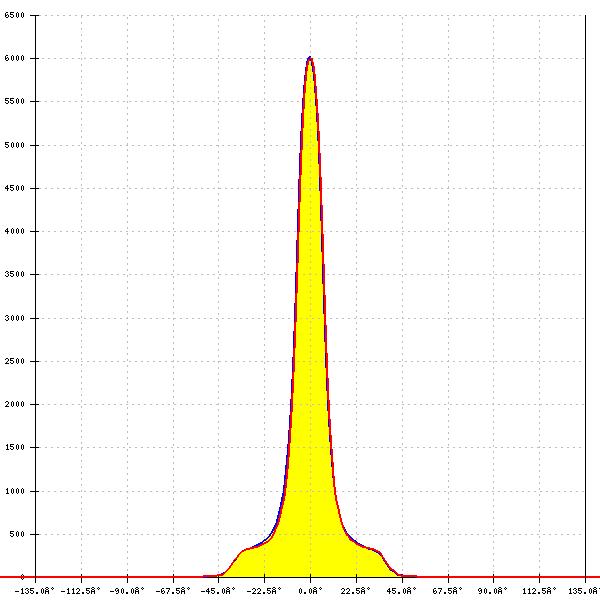

LED: ZC12/18
LES size: 14.6 mm
Required components:
FWHM: 15°
FWTM: 32°
Peak intensity: 6.000 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: ZC12/18
LES size: 14.6 mm
Required components:
FWHM: 16°
FWTM: 41°
Peak intensity: 4.530 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

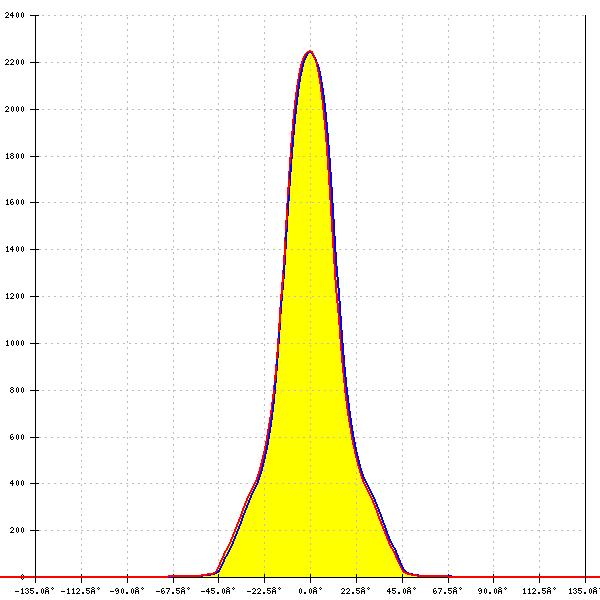

LED: ZC25/40/60
LES size: 22.6 mm
Required components:
FWHM: 29°
FWTM: 70°
Peak intensity: 2.200 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

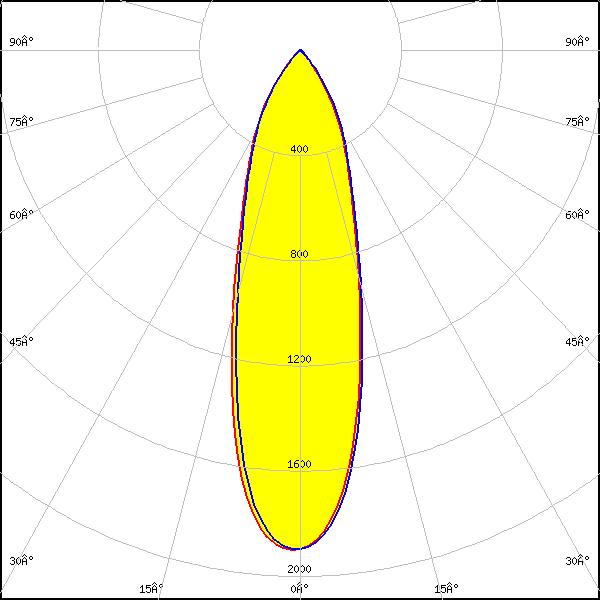

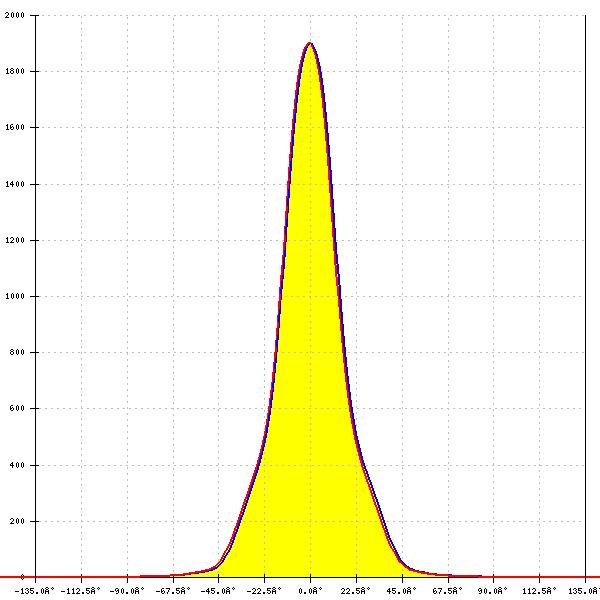

LED: ZC25/40/60
LES size: 22.6 mm
Required components:
FWHM: 30°
FWTM: 71°
Peak intensity: 1.900 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: ZC4/6
LES size: 8.6 mm
Required components:
C13868_LENA-STD-BASE-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 11°
FWTM: 22°
Peak intensity: 10.900 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: ZC4/6
LES size: 8.6 mm
Required components:
FWHM: 13°
FWTM: 28°
Peak intensity: 6.900 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

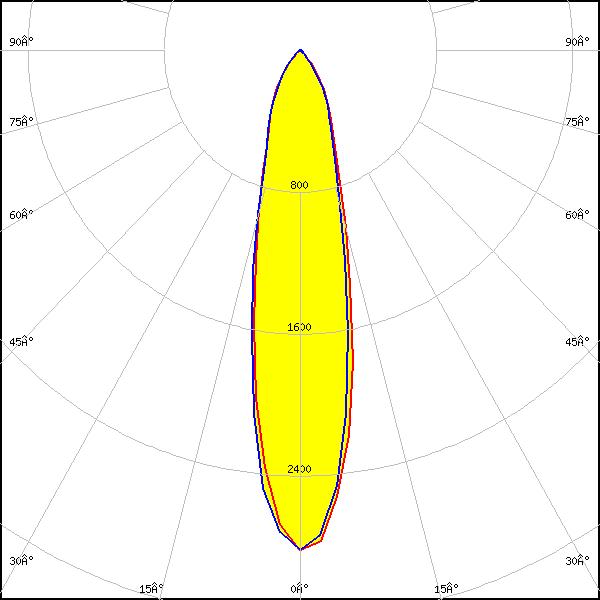

LED: Mega Zenigata (GW5DGC)
LES size: 16.0 mm
Required components:
FWHM: 17°
FWTM: 46°
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: Mega Zenigata (GW5DGC)
LES size: 16.0 mm
Required components:
FWHM: 24°
FWTM: 62°
Peak intensity: 2.800 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

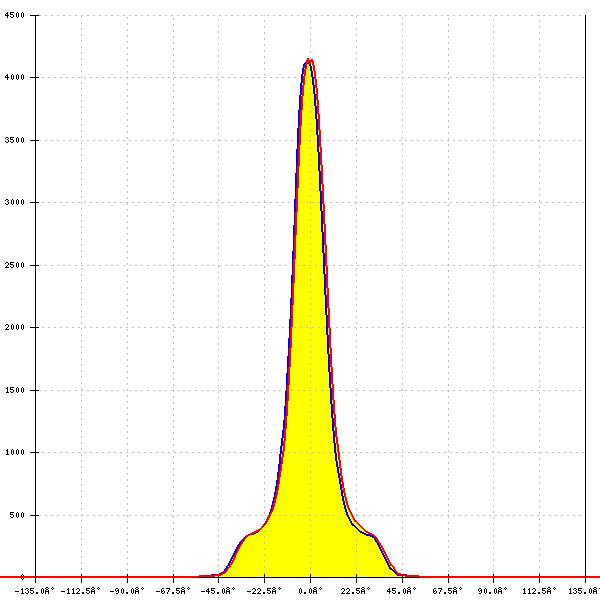

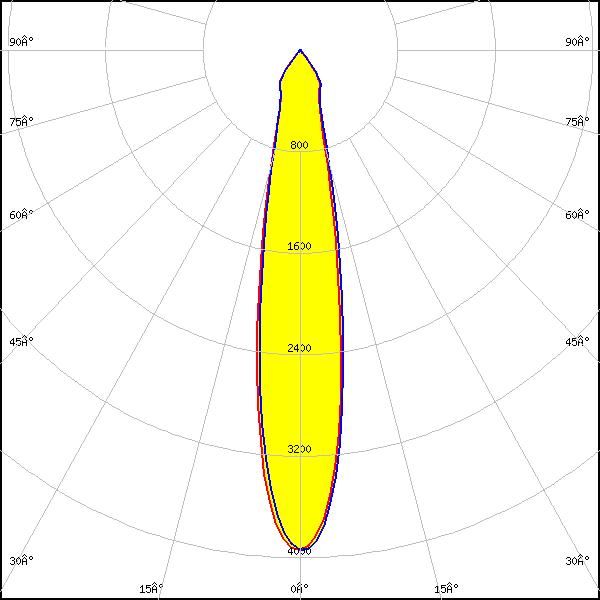

LED: Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
FWHM: 19°
FWTM: 47°
Peak intensity: 3.940 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
FWHM: 21°
FWTM: 60°
Peak intensity: 3.170 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

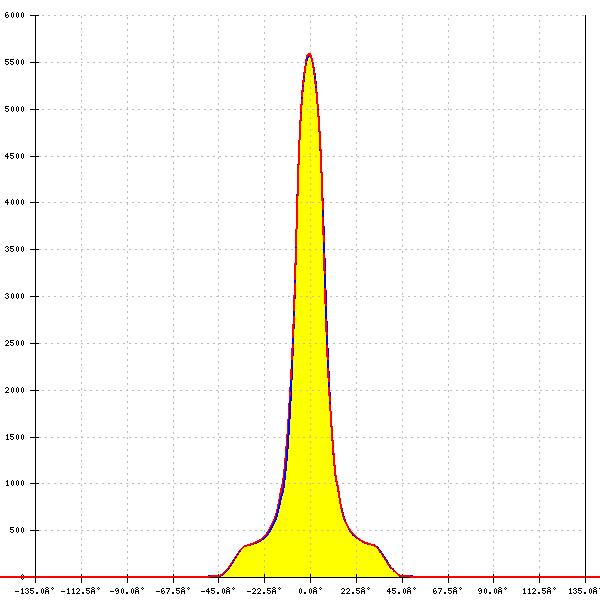

LED: SLE G7 LES15
LES size: 15.0 mm
Required components:
FWHM: 16°
FWTM: 36°
Peak intensity: 5.600 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: SLE G7 LES17 H
Required components:
FWHM: 19°
FWTM: 46°
Peak intensity: 4.300 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

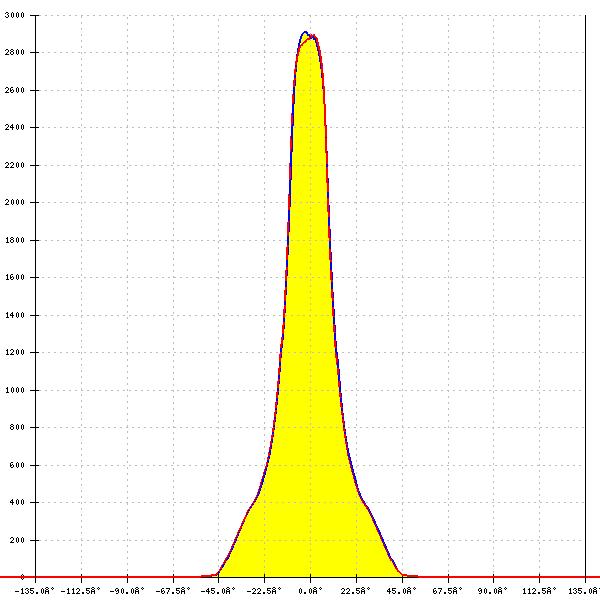

LED: SLE G7 LES21 H
Required components:
FWHM: 24°
FWTM: 65°
Peak intensity: 2.900 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: XOB 14.5 mm
LES size: 14.5 mm
Required components:
FWHM: 16°
FWTM: 34°
Peak intensity: 5.899 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
