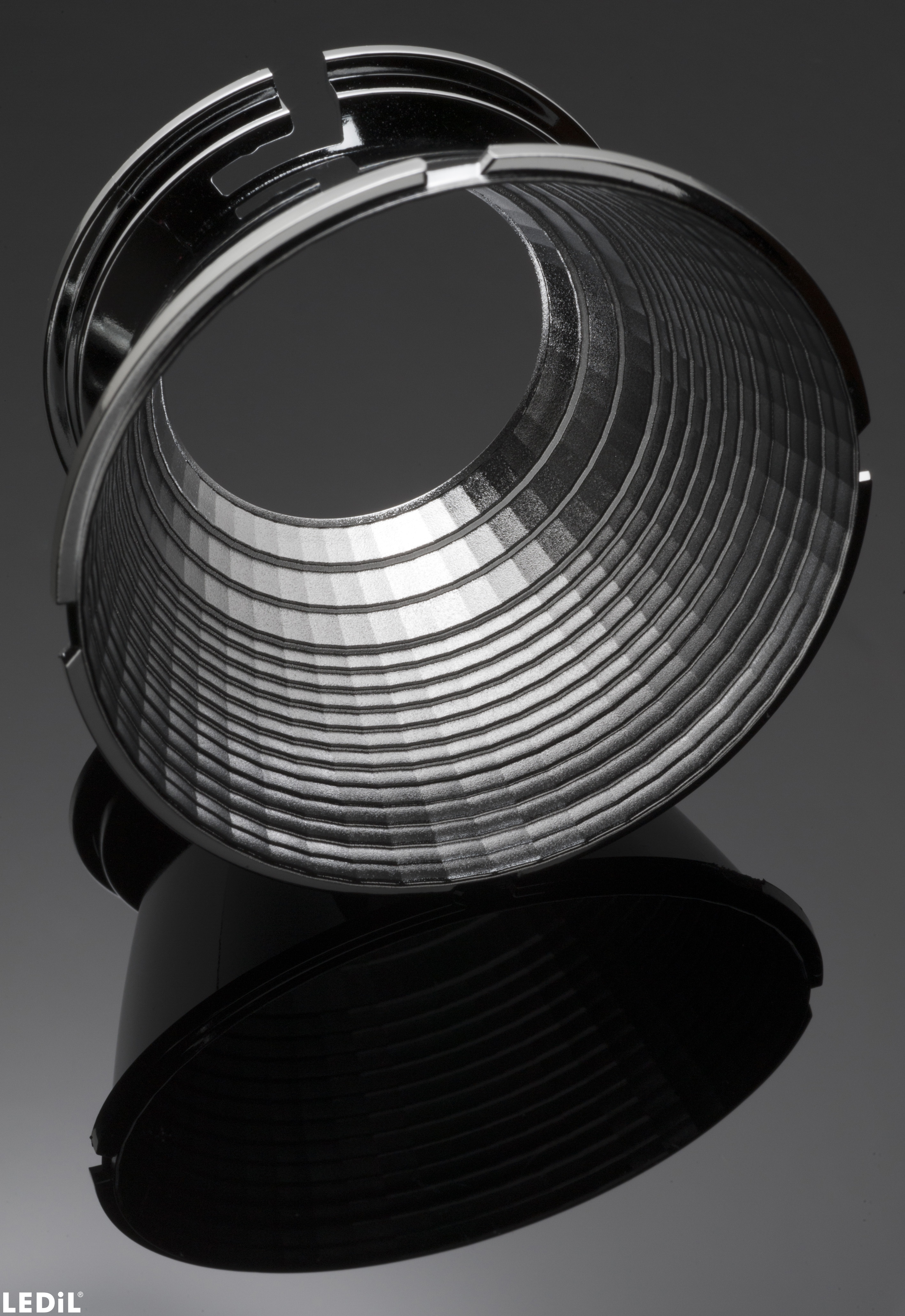

C12599_LENINA-W
Print
~55° wide beam
Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

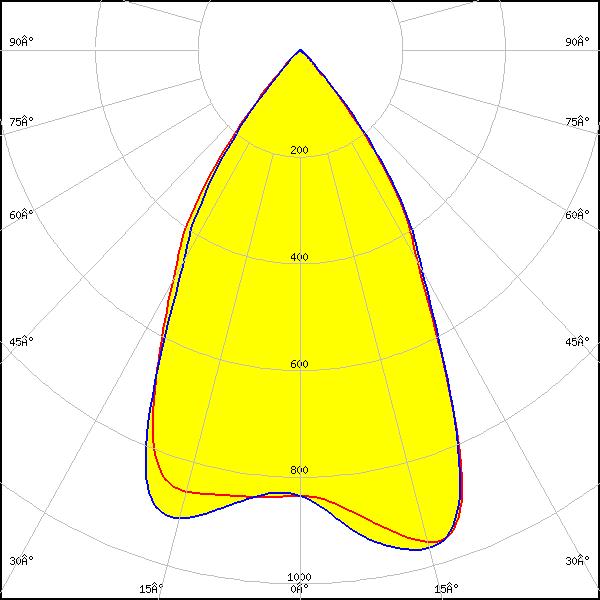

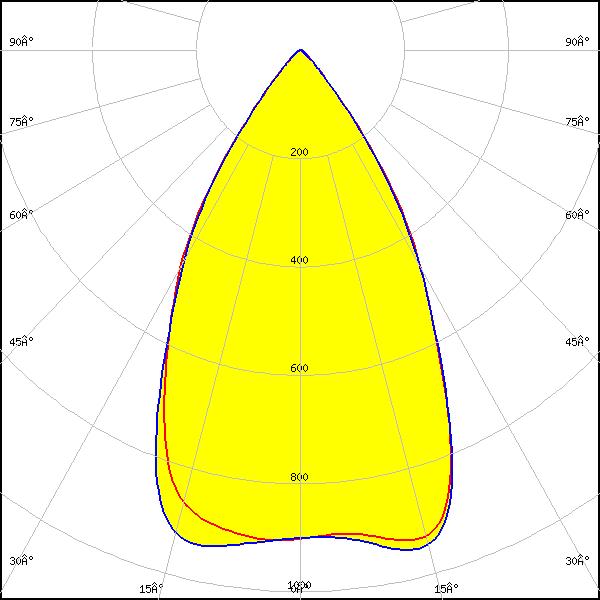

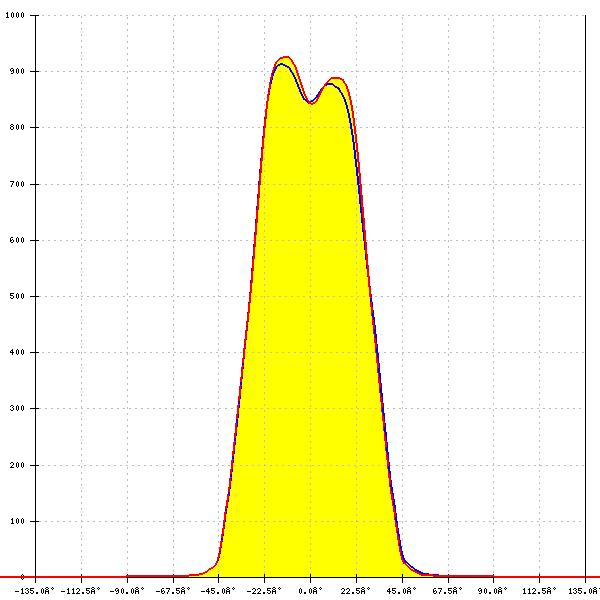

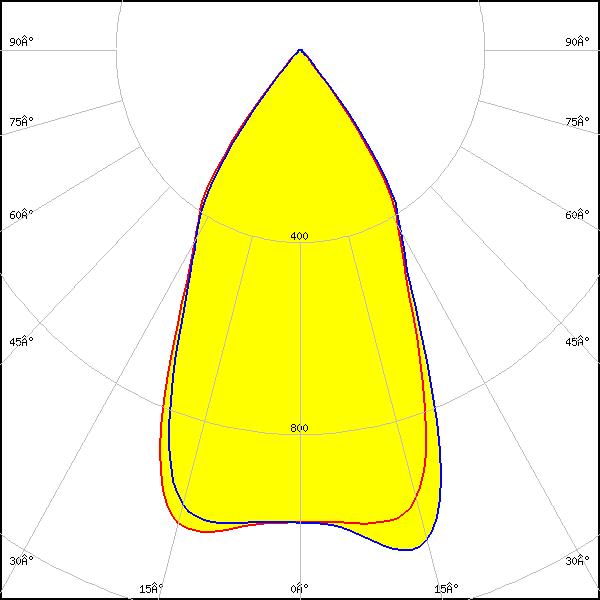

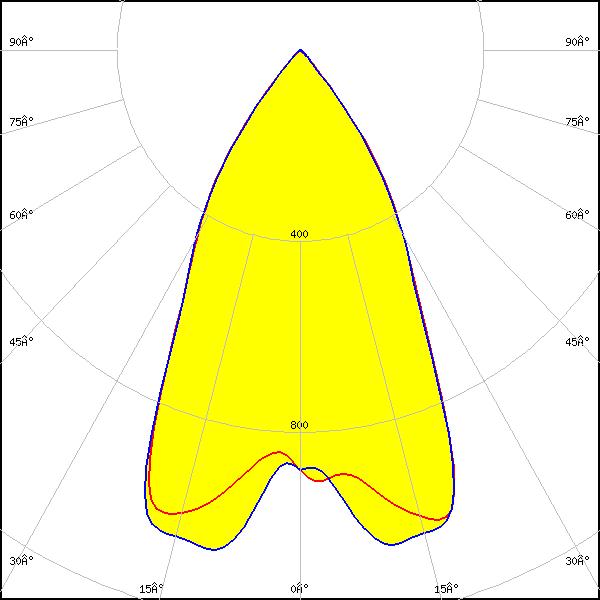

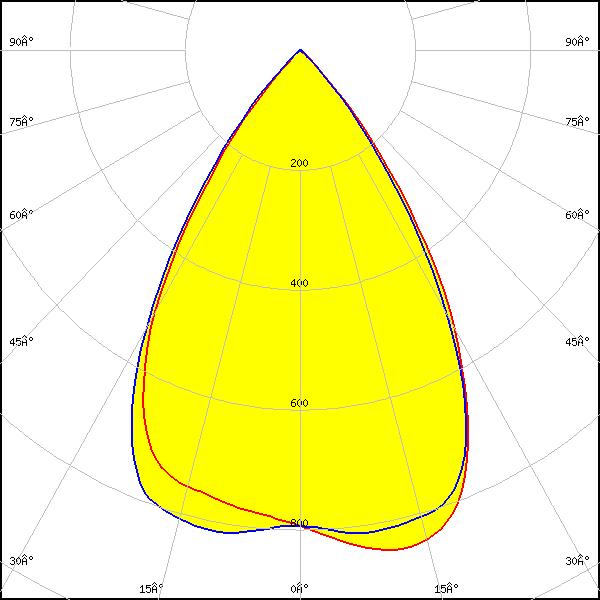

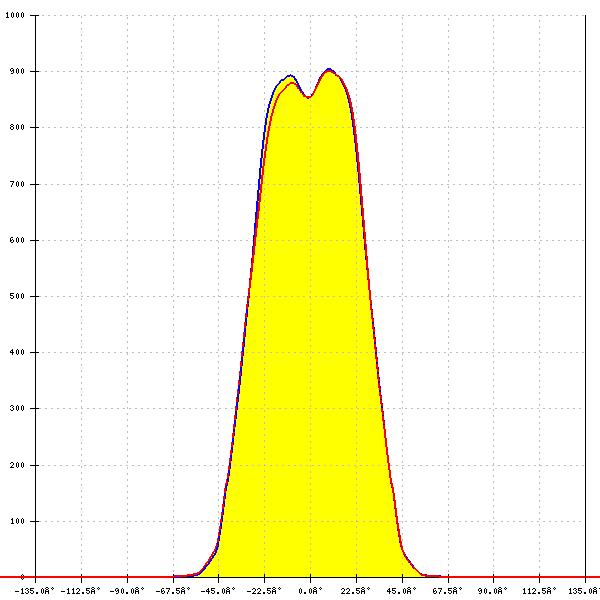

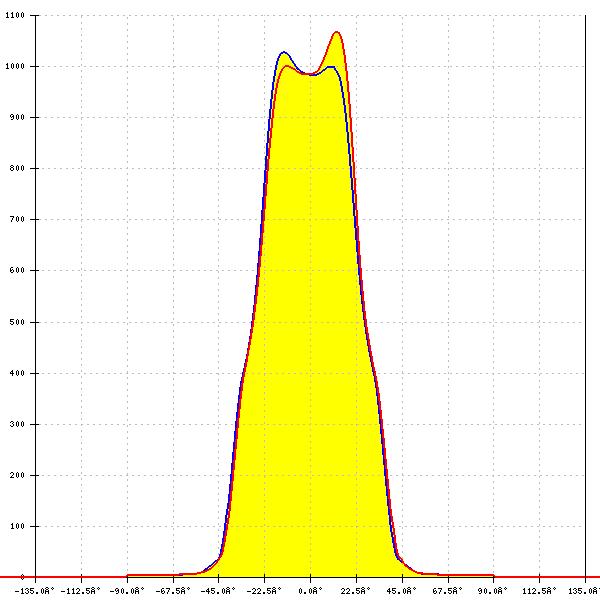

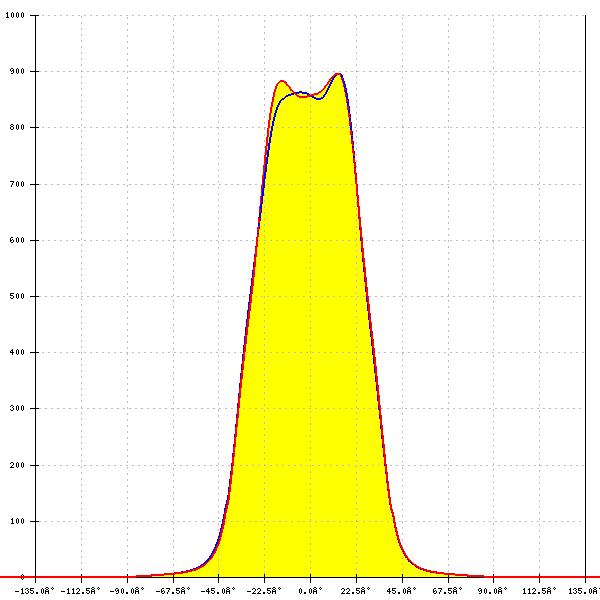

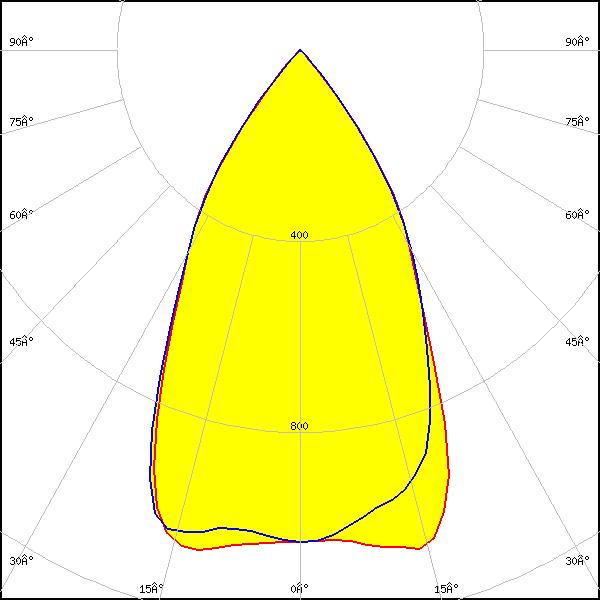

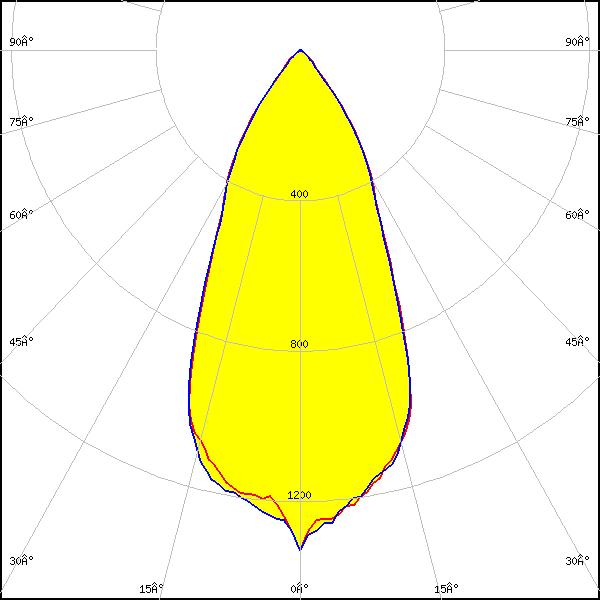

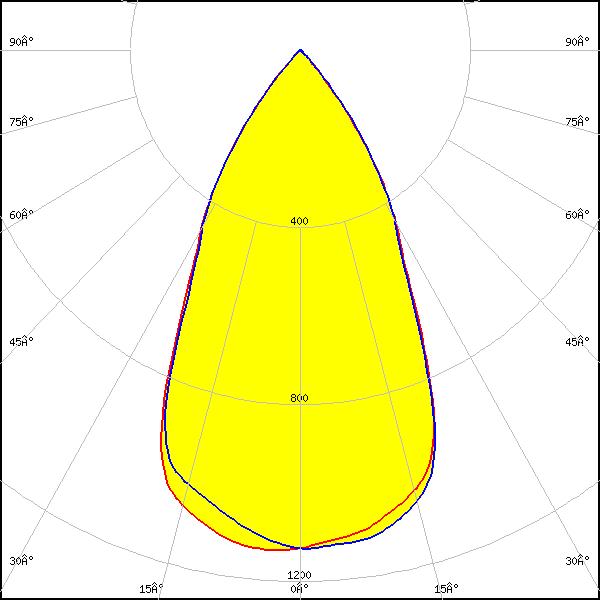

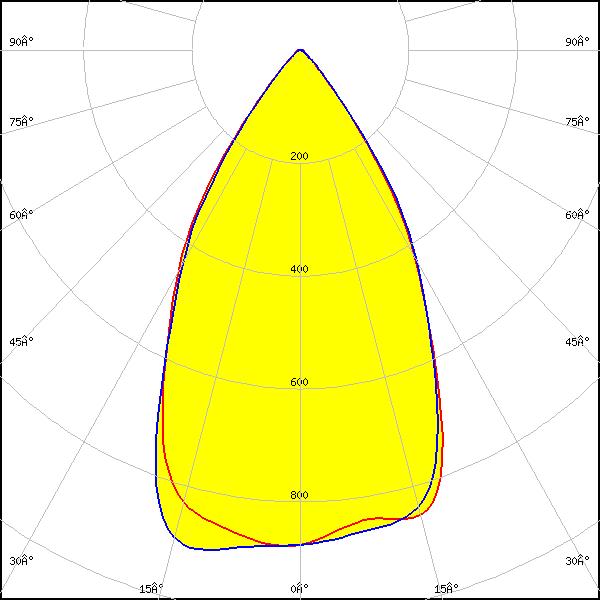

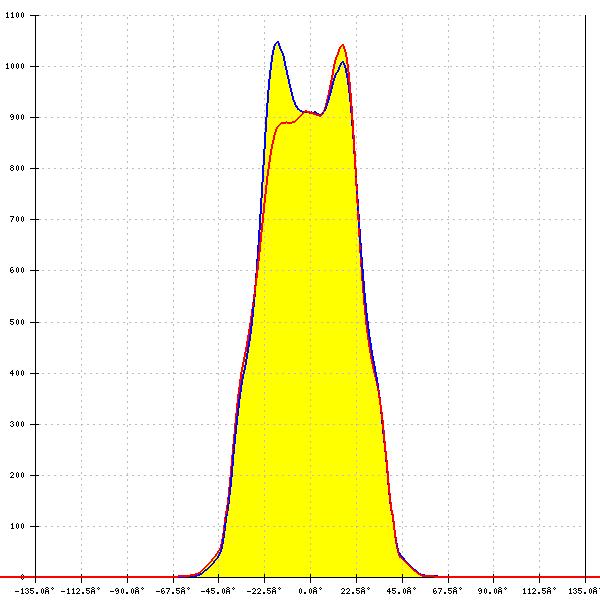

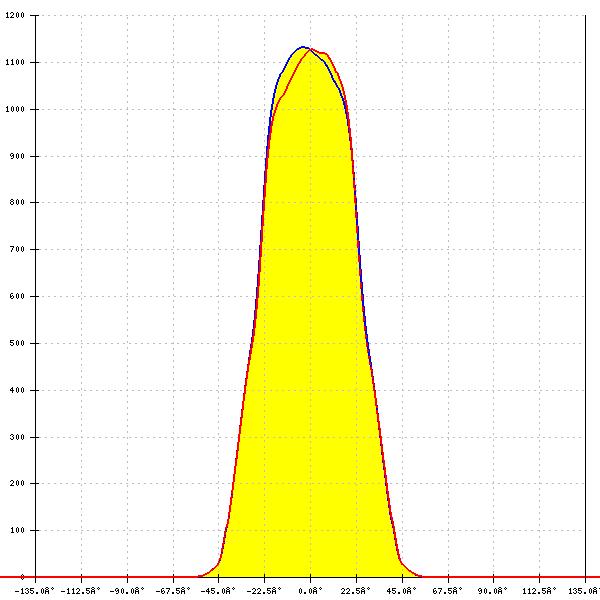

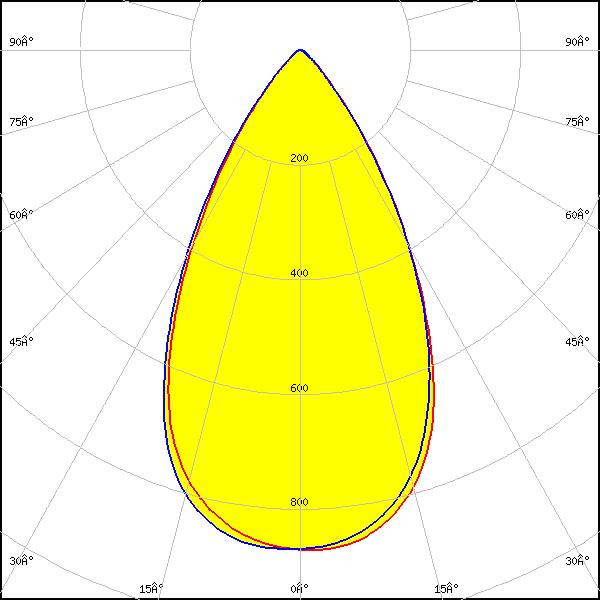

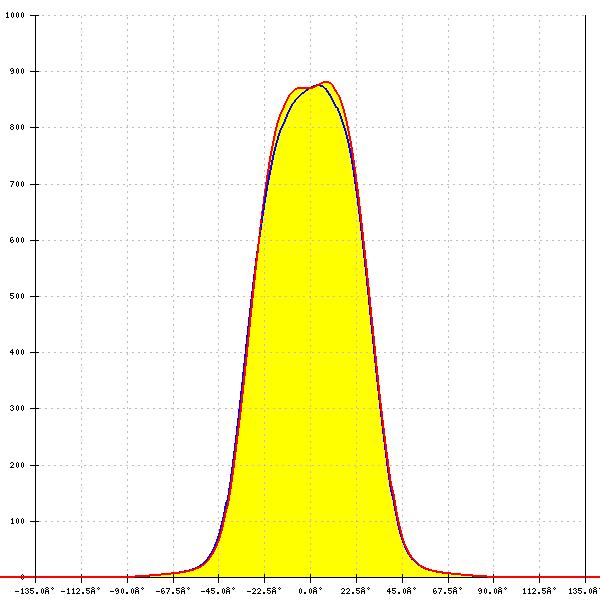

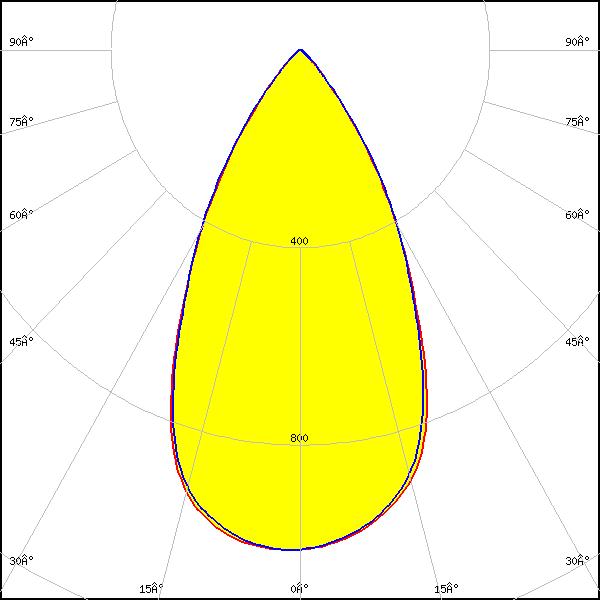

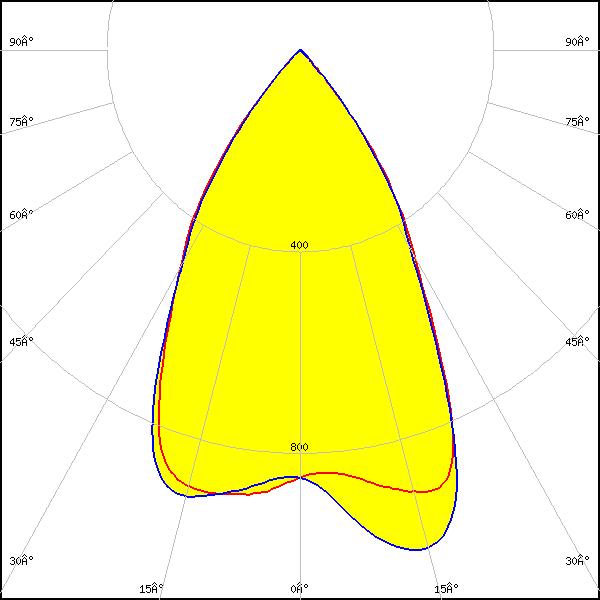

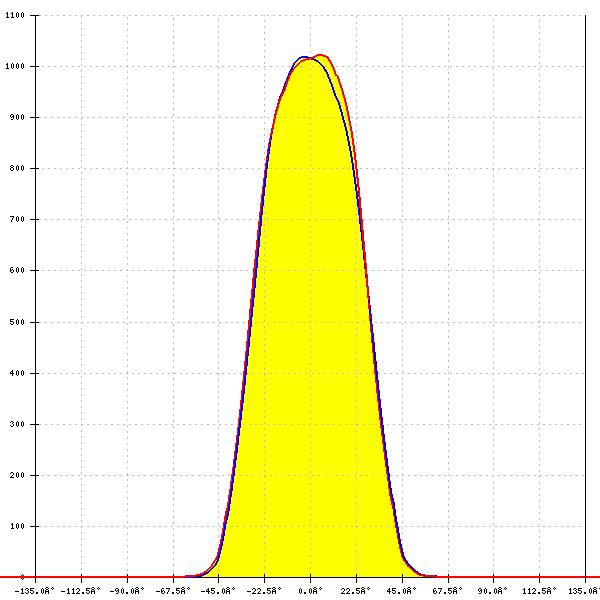

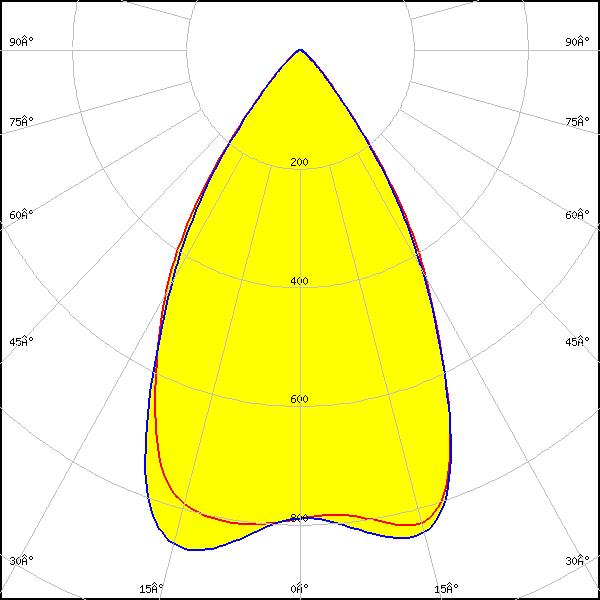

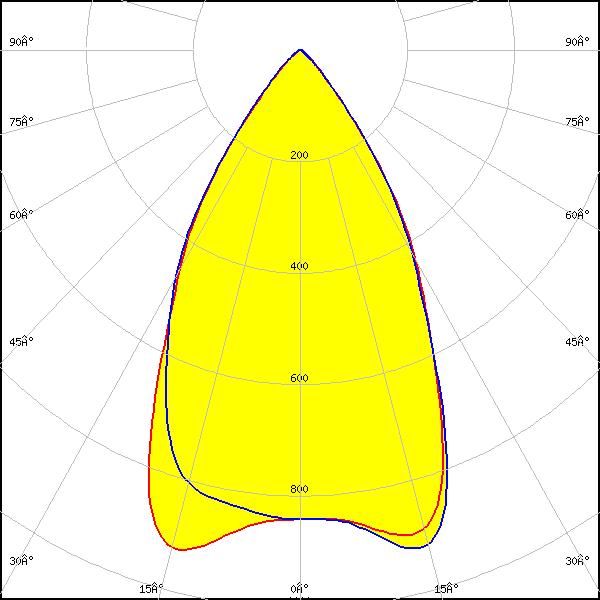

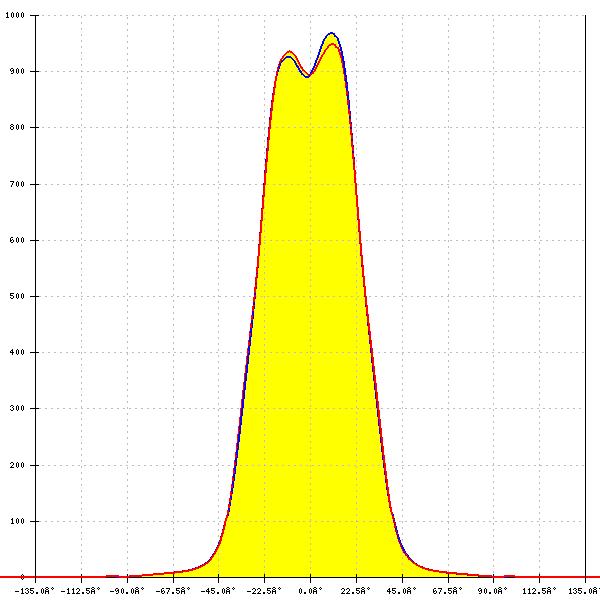

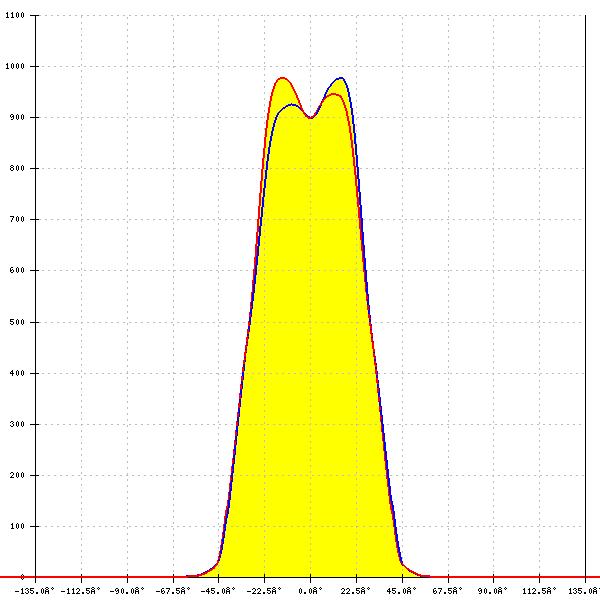

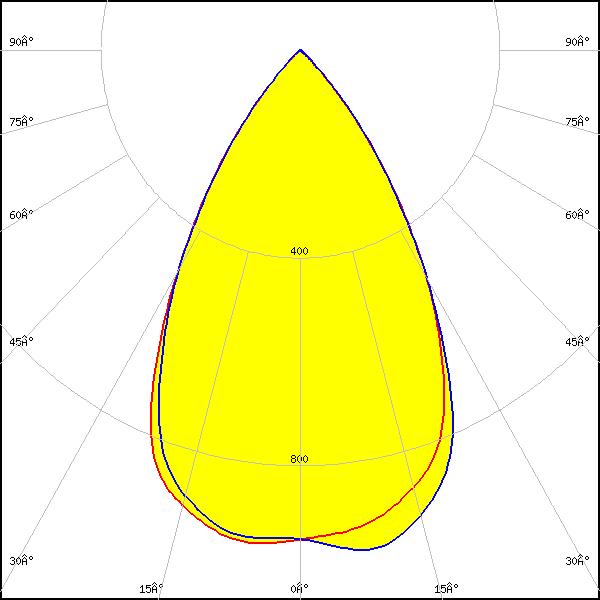

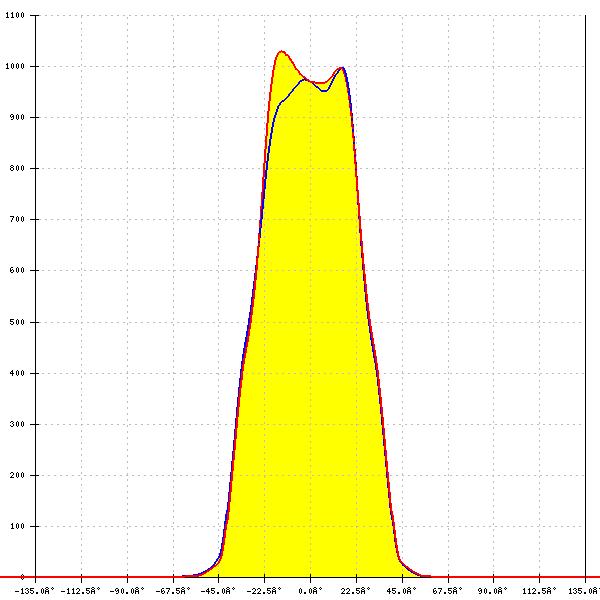

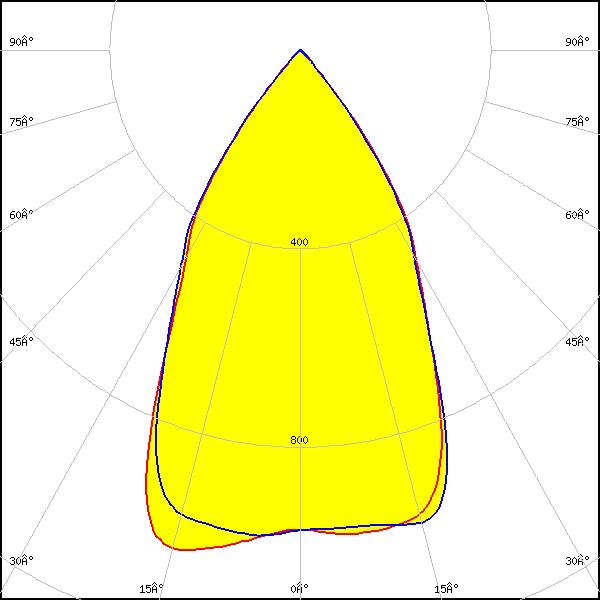

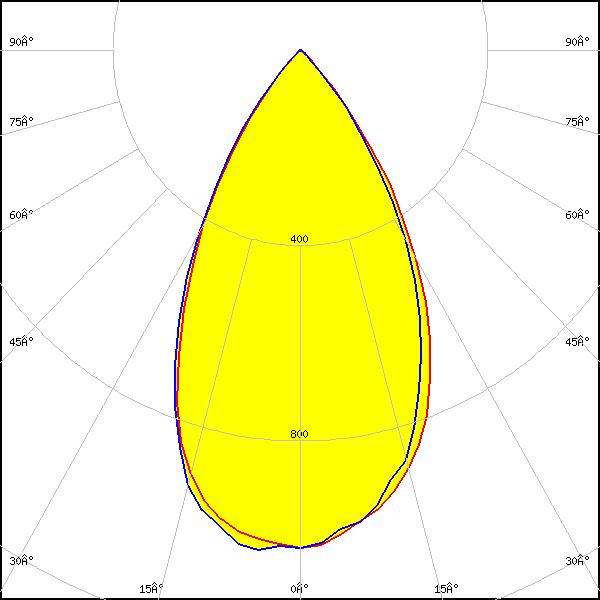

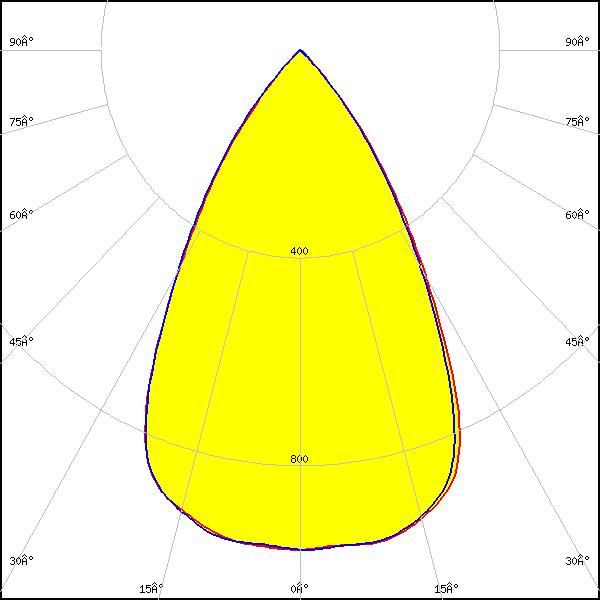

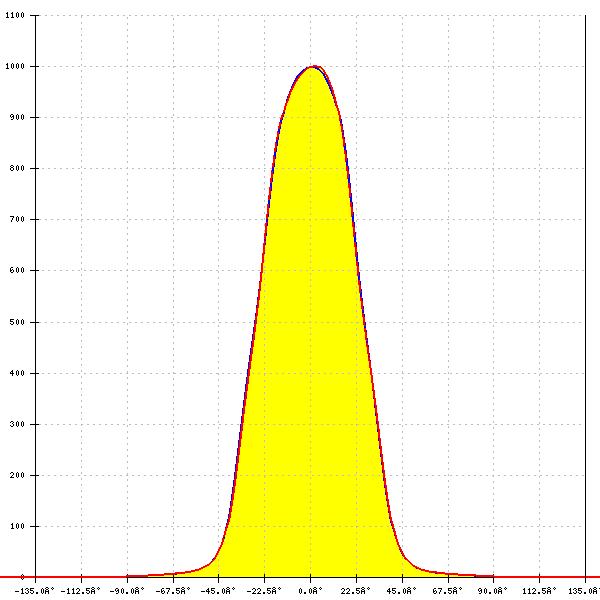

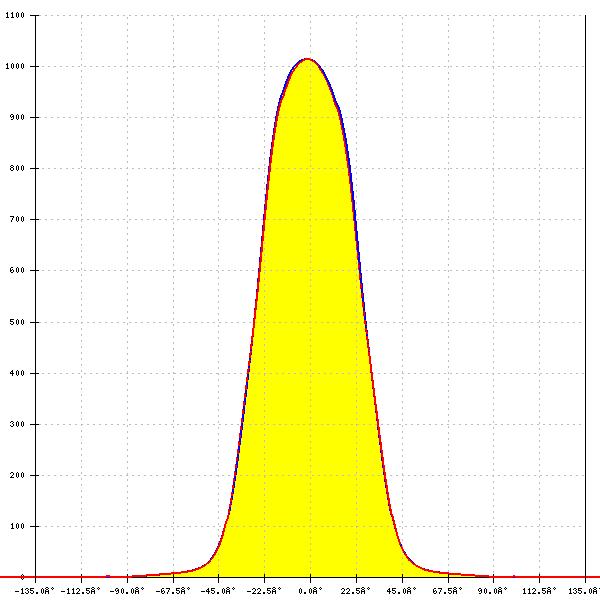

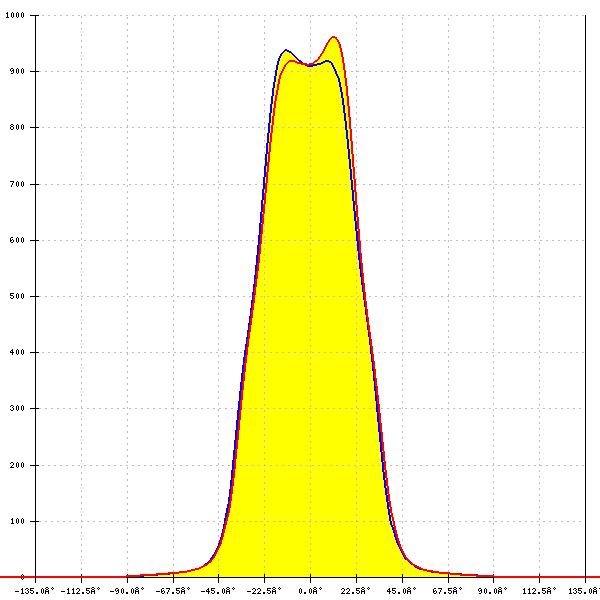

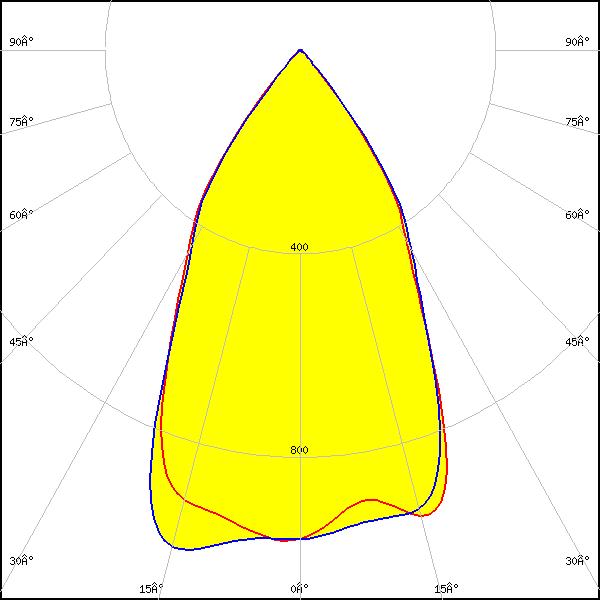

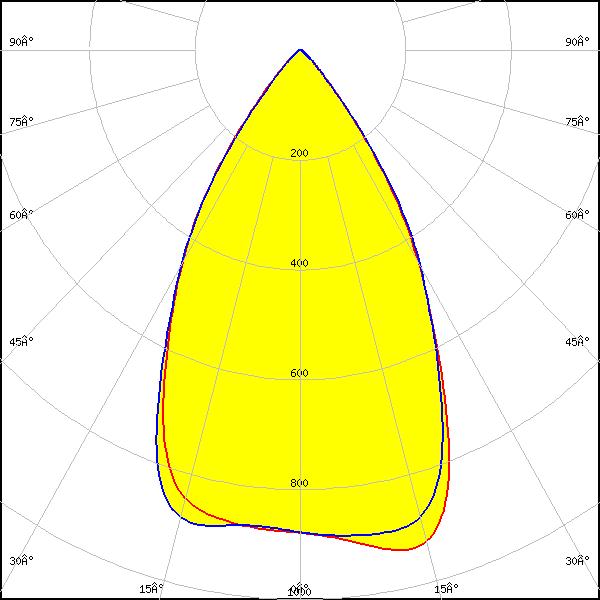

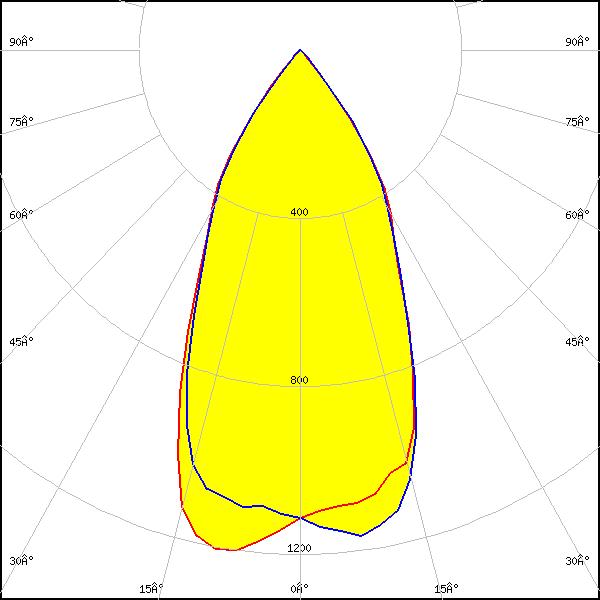

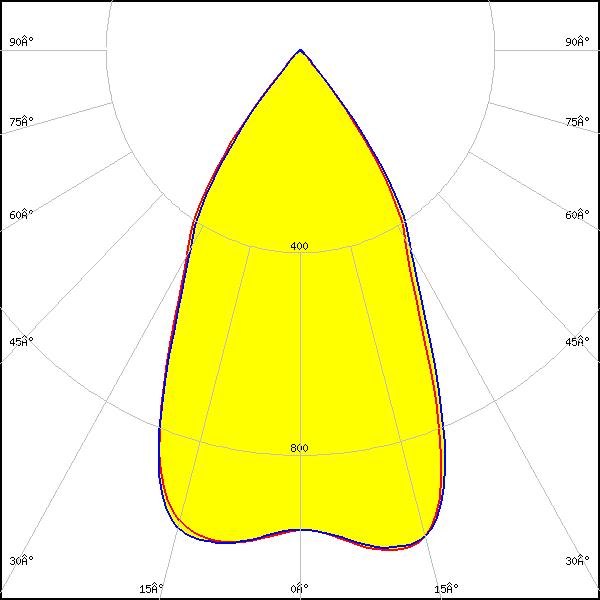

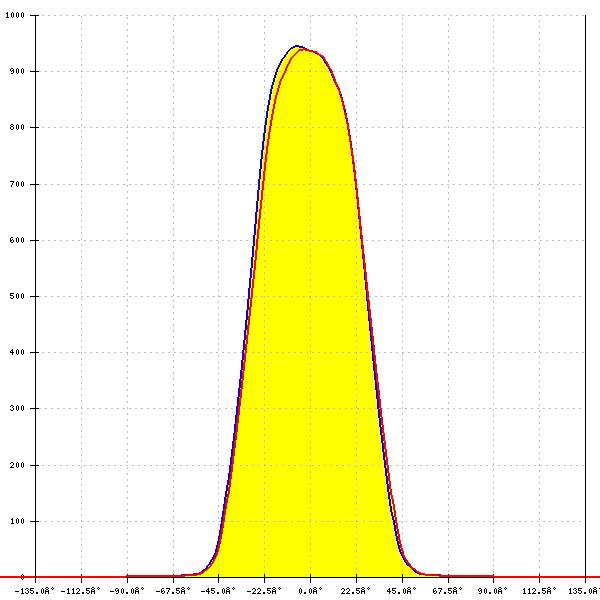

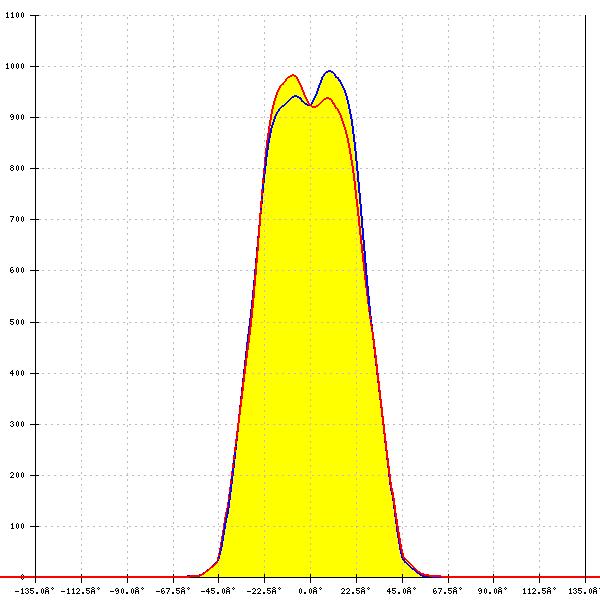

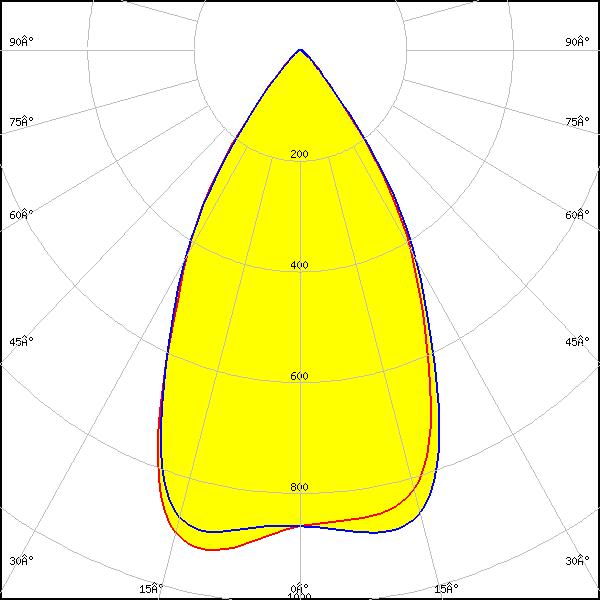

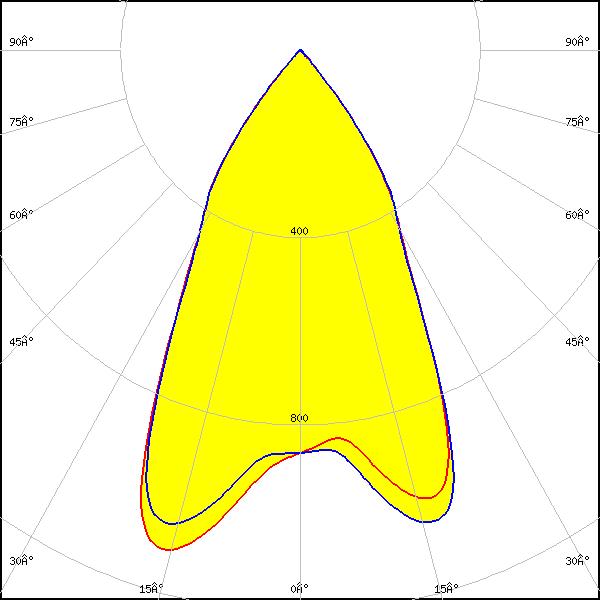

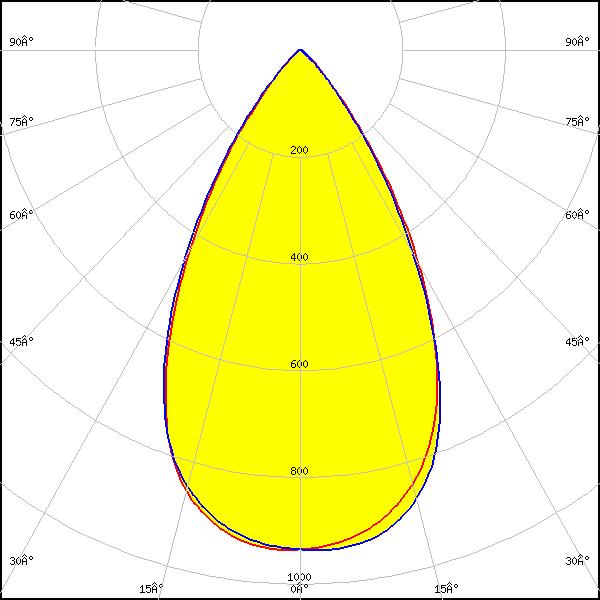

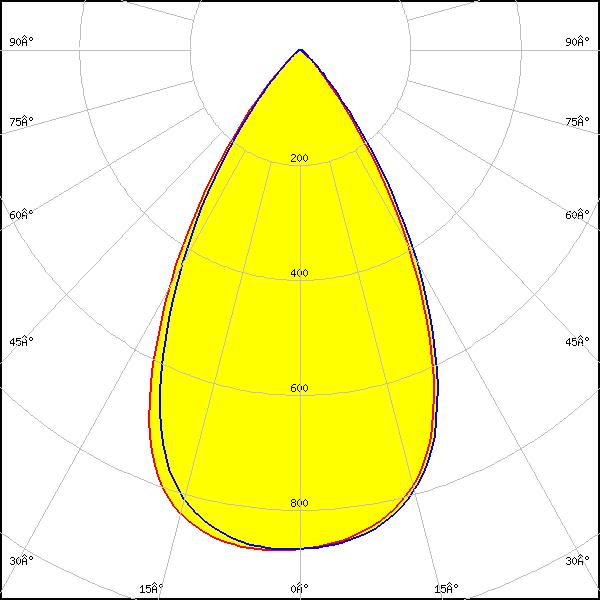

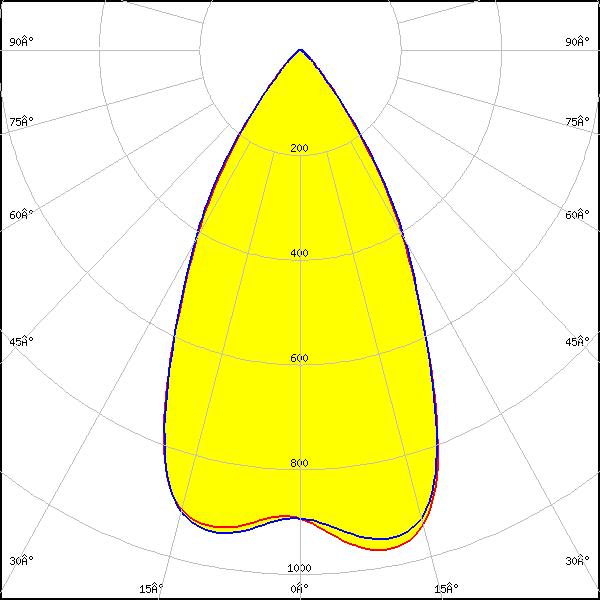

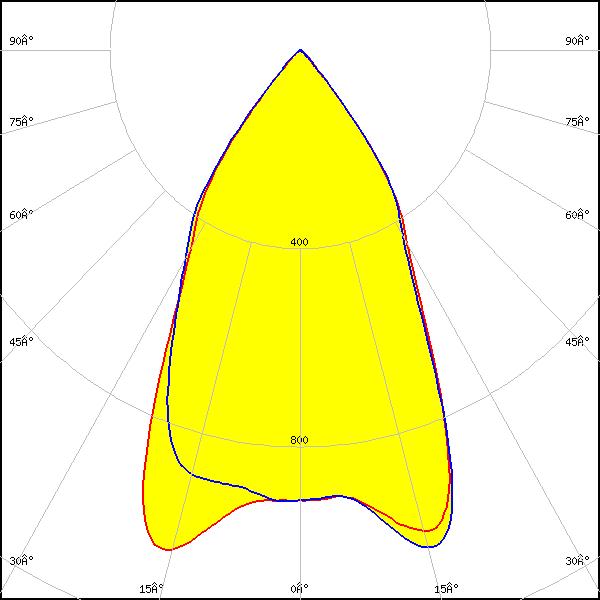

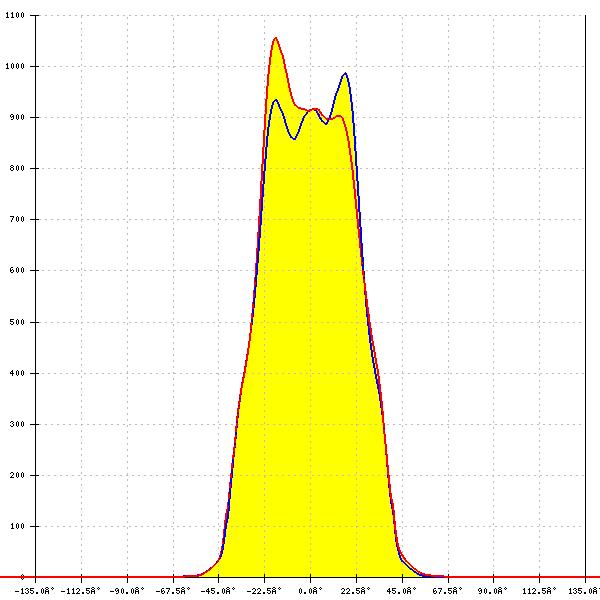

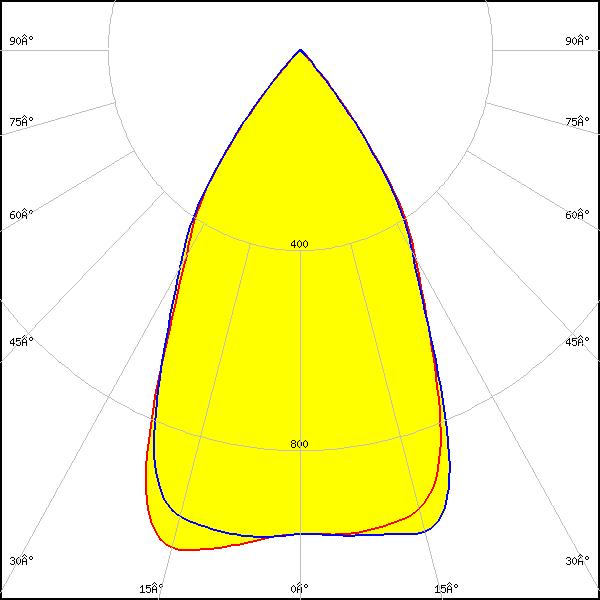

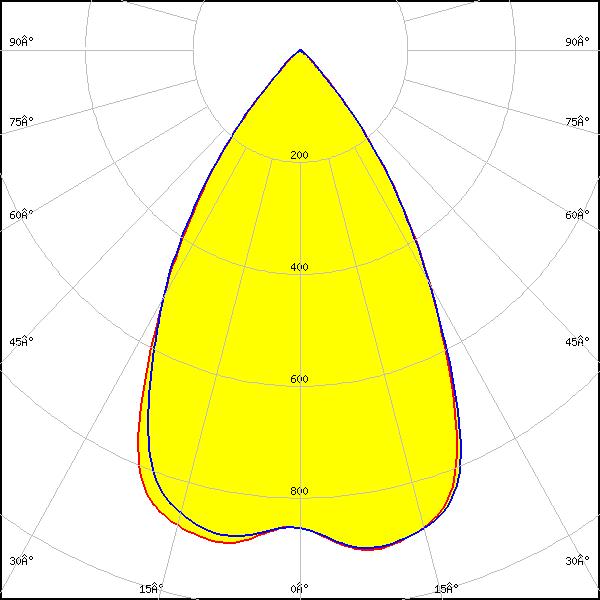

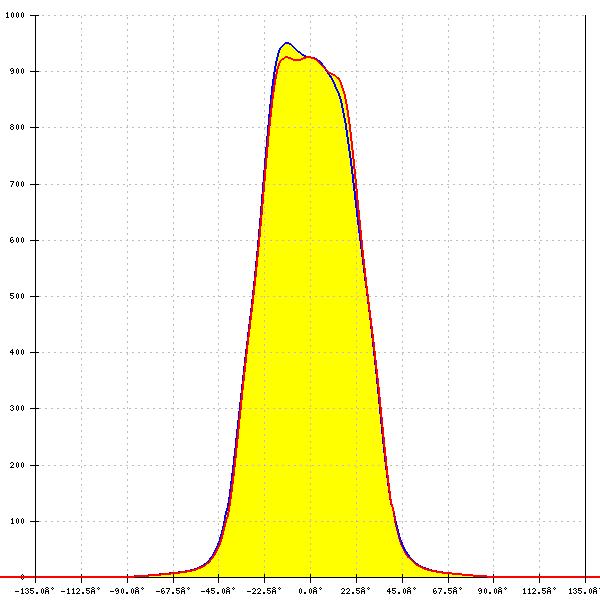

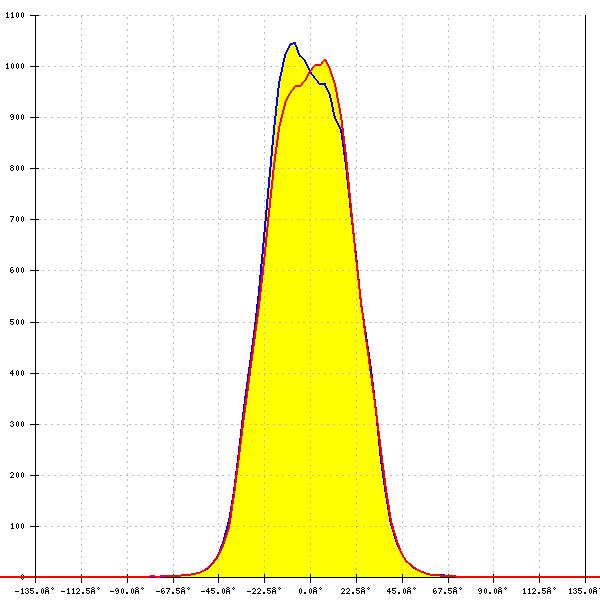

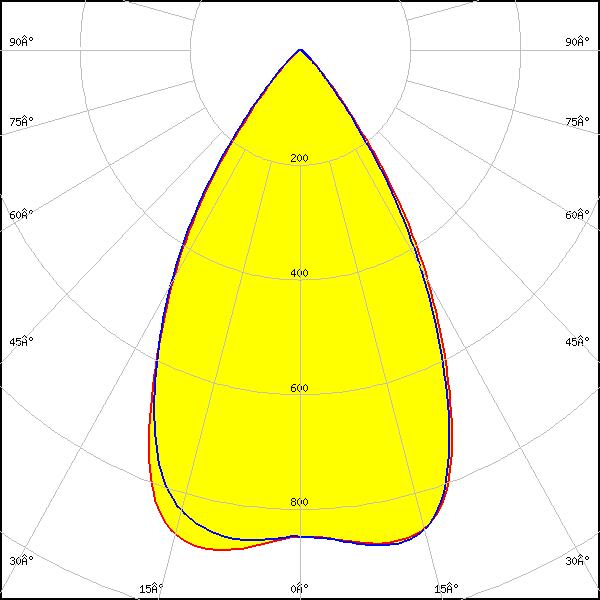

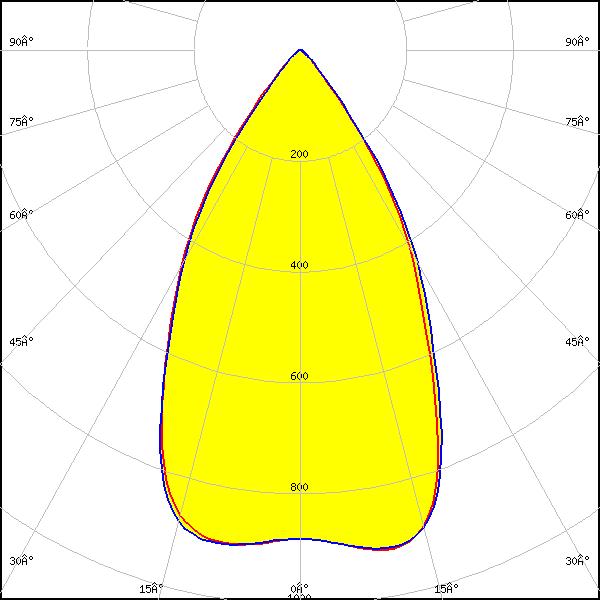

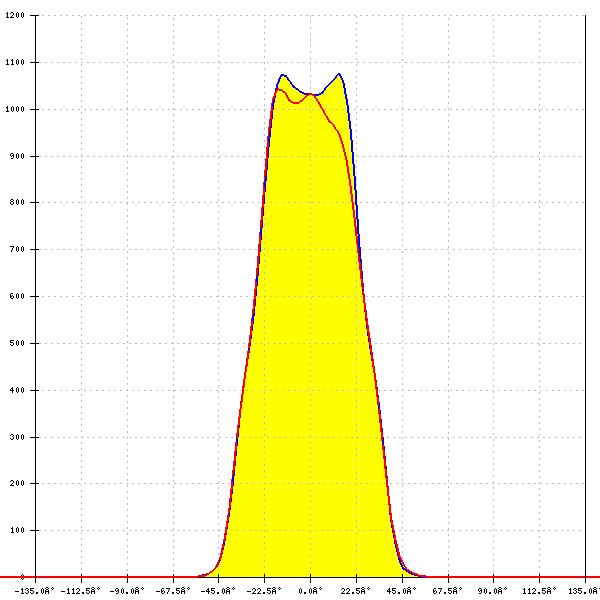

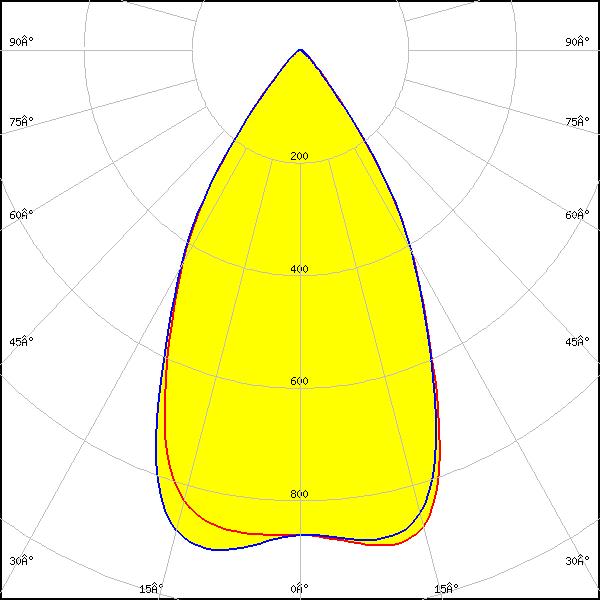

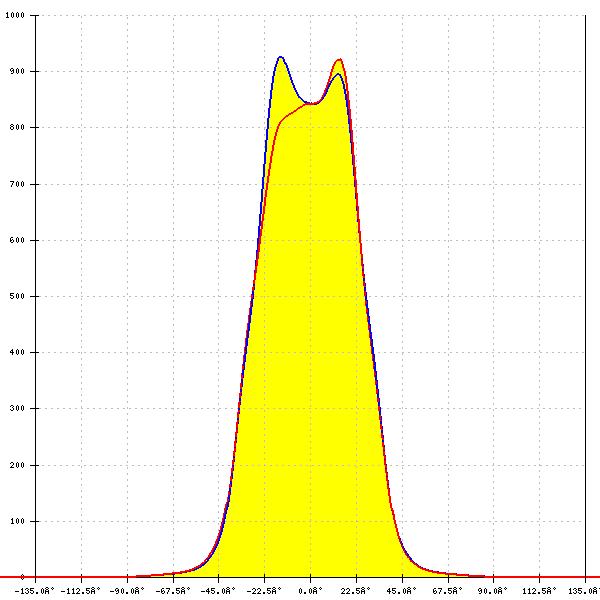

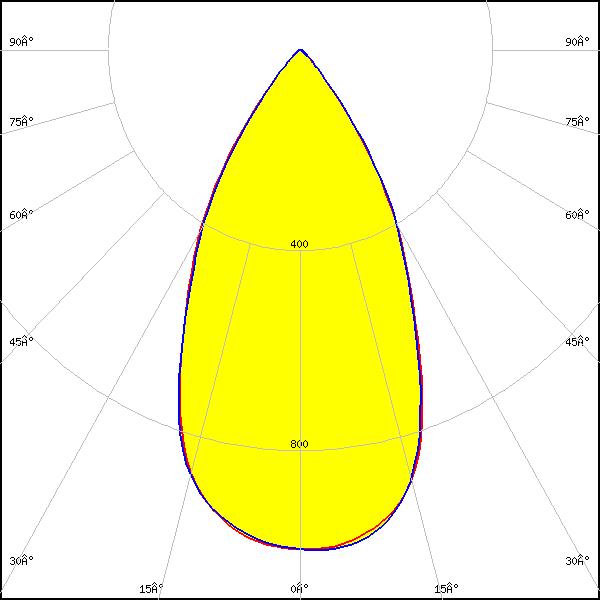

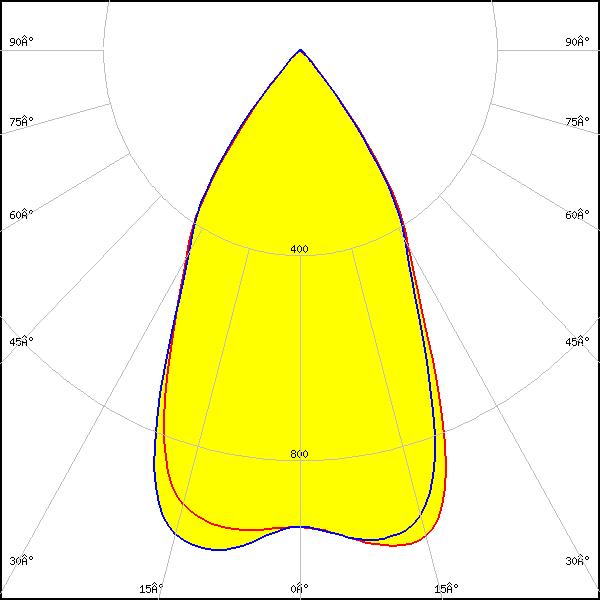

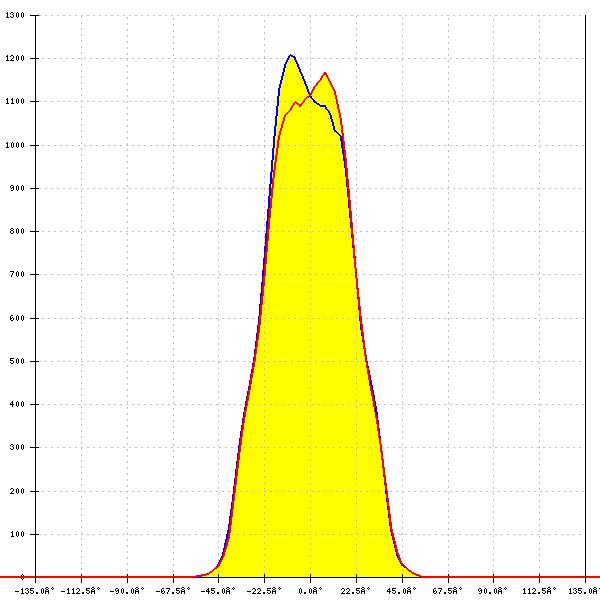

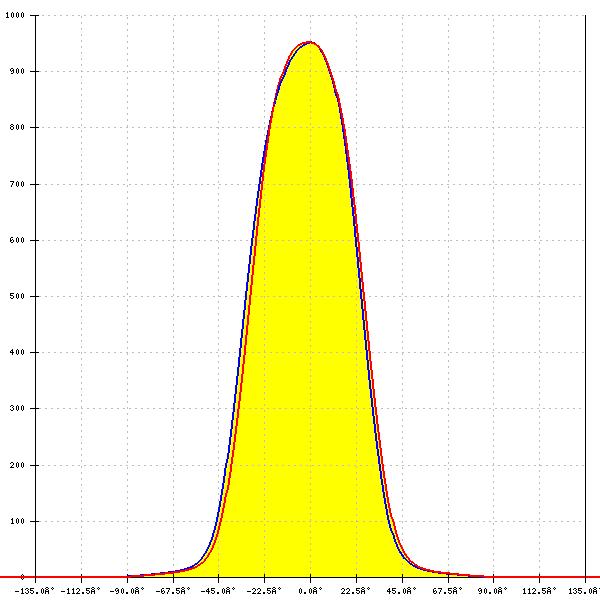

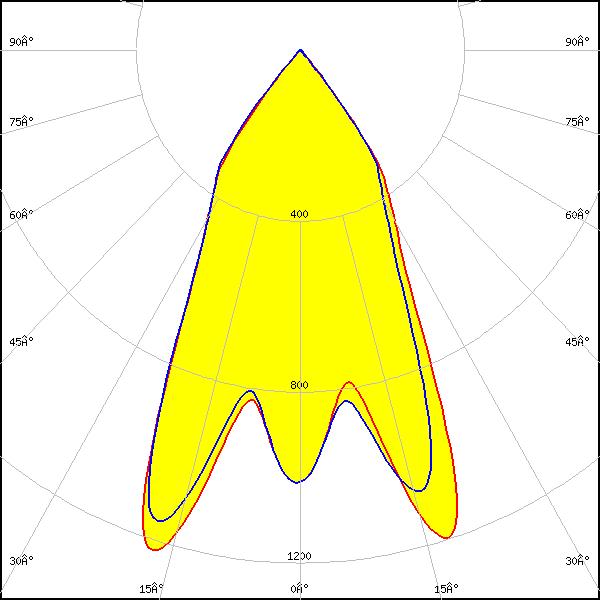

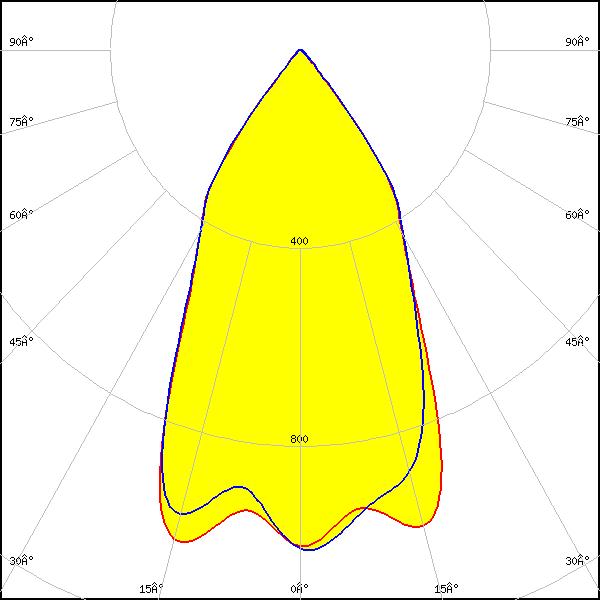

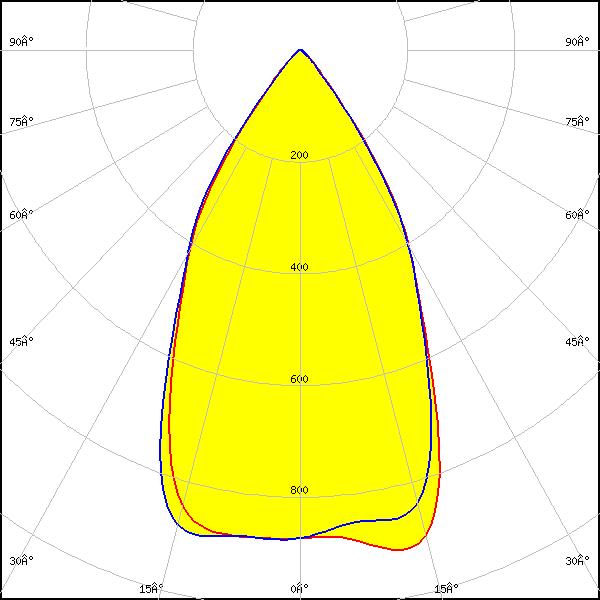

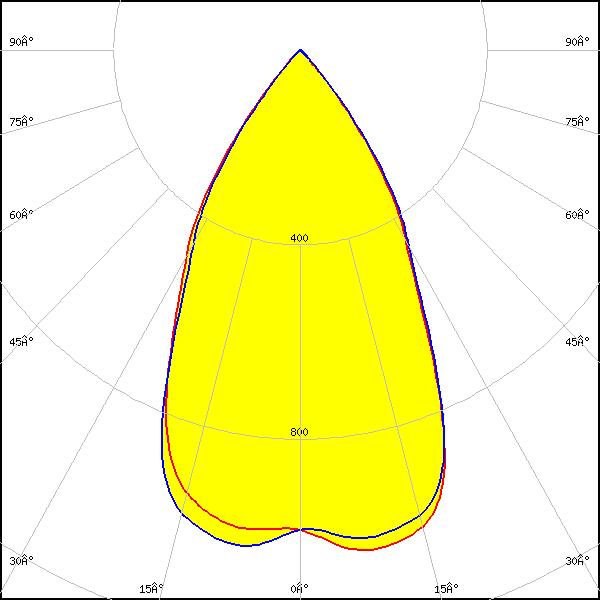

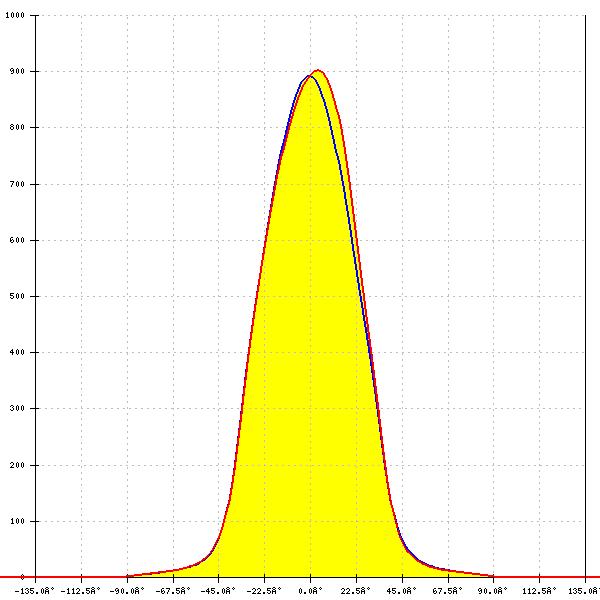

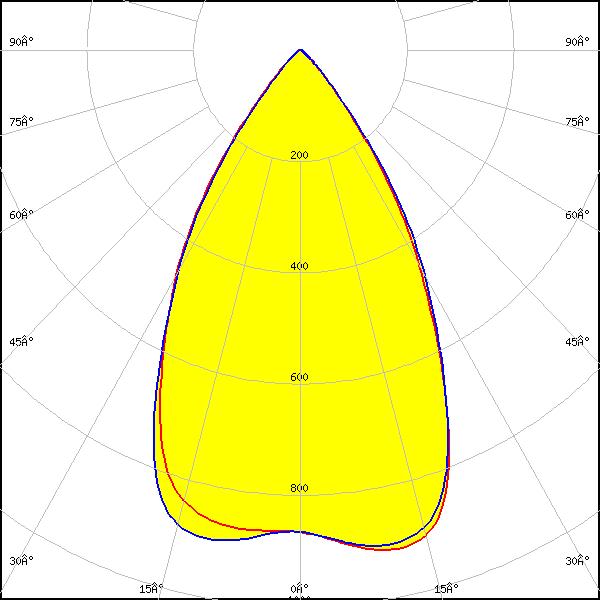

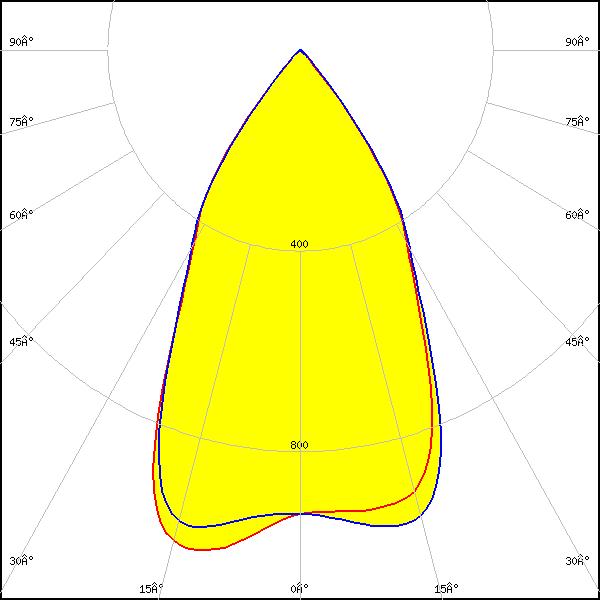

Optical results

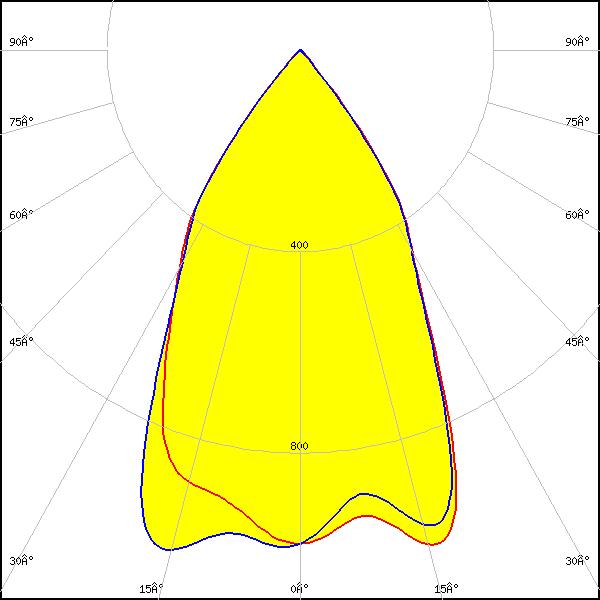

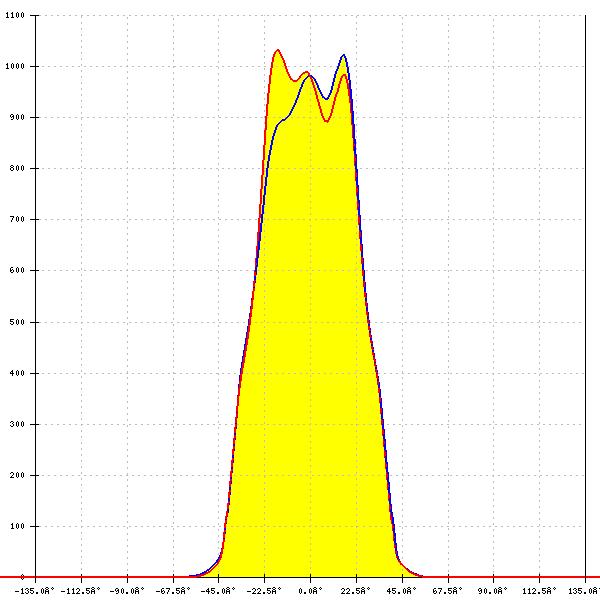

LED:

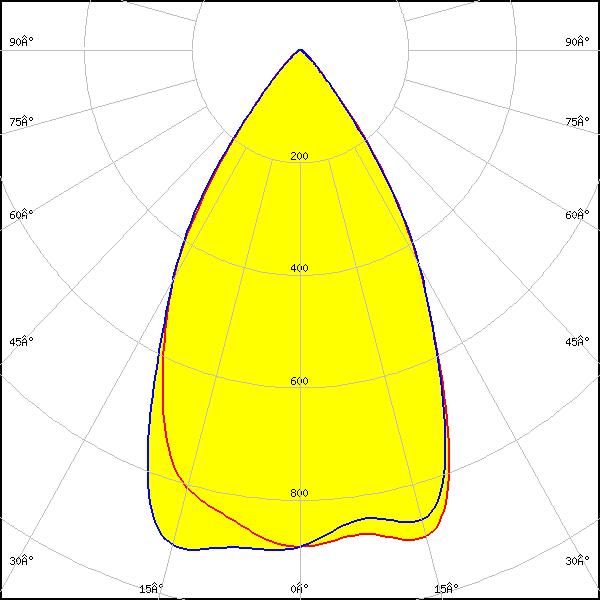

BXRA ES Rectangle
LES size: 19.2 mm
Required components:
FWHM:
58°
FWTM:
82°
Peak intensity:
1.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
BXRA ES Rectangle
LES size: 19.2 mm
Required components:
FWHM:
60°
FWTM:
84°
Peak intensity:
0.920 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
BXRA RS
LES size: 35.3 mm
Required components:
FWHM:
64°
FWTM:
87°
Peak intensity:
0.888 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
BXRA RS
LES size: 35.3 mm
Required components:
FWHM:
60°
FWTM:
89°
Peak intensity:
0.816 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V10 Gen6
LES size: 9.9 mm
Required components:
FWHM:
47°
FWTM:
80°
Peak intensity:
1.300 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V10 Gen7
LES size: 10.2 mm
Required components:
FWHM:
55°
FWTM:
81°
Peak intensity:
1.060 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen7
LES size: 14.0 mm
Required components:
FWHM:
50°
FWTM:
79°
Peak intensity:
1.100 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen7
LES size: 14.0 mm
Required components:
FWHM:
63°
FWTM:
91°
Peak intensity:
0.900 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V13 Gen7
LES size: 14.0 mm
Required components:
FWHM:
48°
FWTM:
82°
Peak intensity:
1.200 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

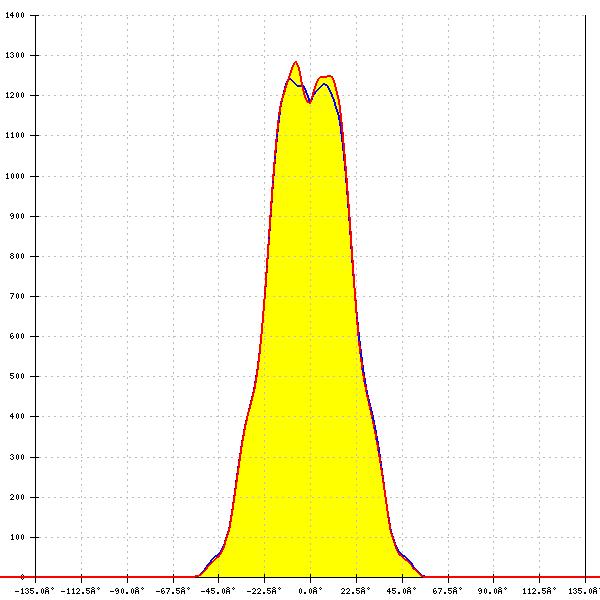

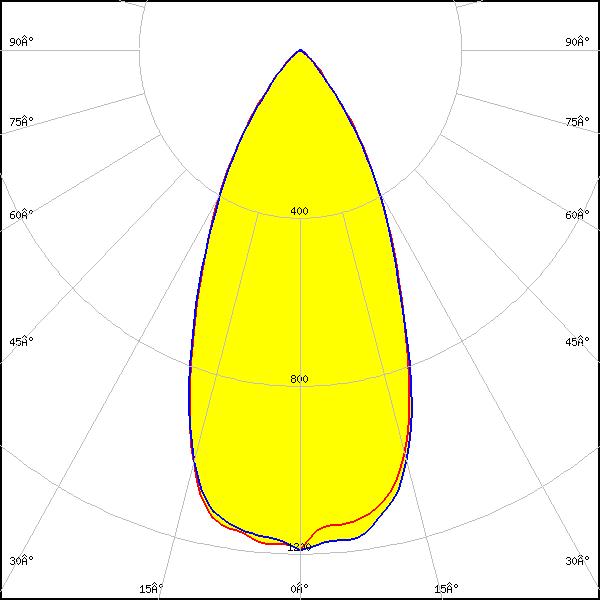

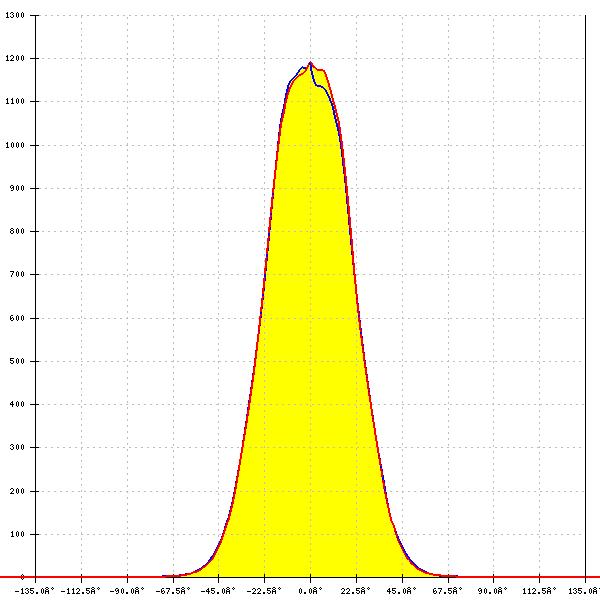

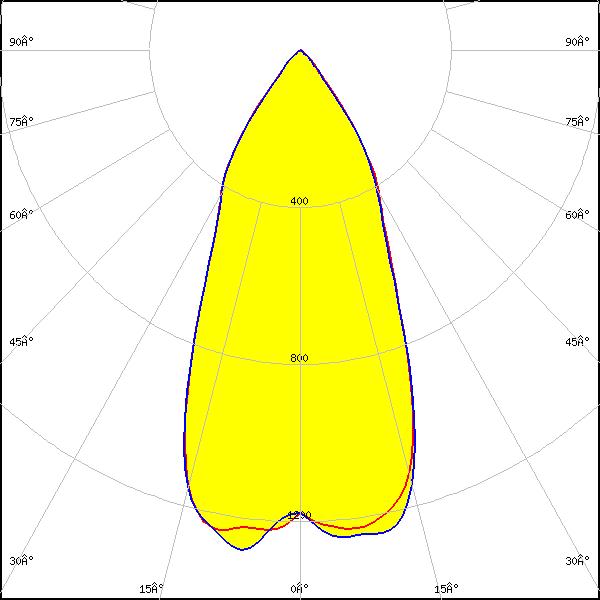

LED:
V13 Gen7
LES size: 14.0 mm
Required components:
IDEAL: 50-2103CT
IDEAL: 50-2100AN
IDEAL: 50-2100AN
FWHM:
46°
FWTM:
79°
Peak intensity:
1.280 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

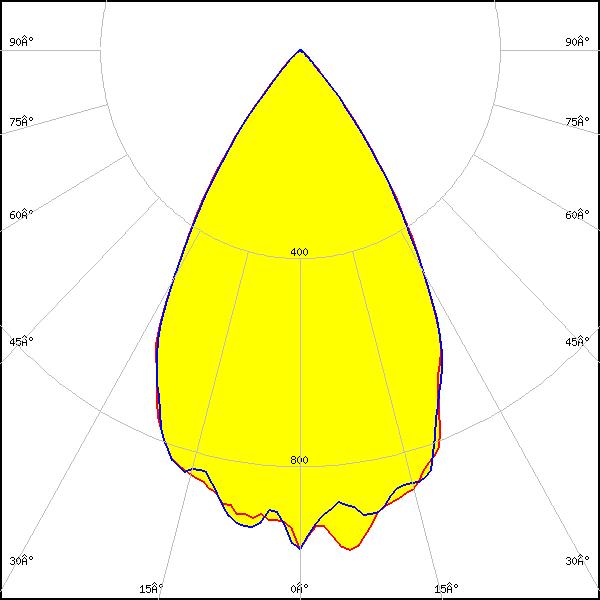

LED:
V22 Gen7
LES size: 22.6 mm
Required components:
FWHM:
61°
FWTM:
84°
Peak intensity:
1.014 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V22 Gen7
LES size: 22.6 mm
Required components:
FWHM:
61°
FWTM:
82°
Peak intensity:
1.041 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V4 HD Gen 7
LES size: 5.2 mm
Required components:
FWHM:
48°
FWTM:
79°
Peak intensity:
1.200 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

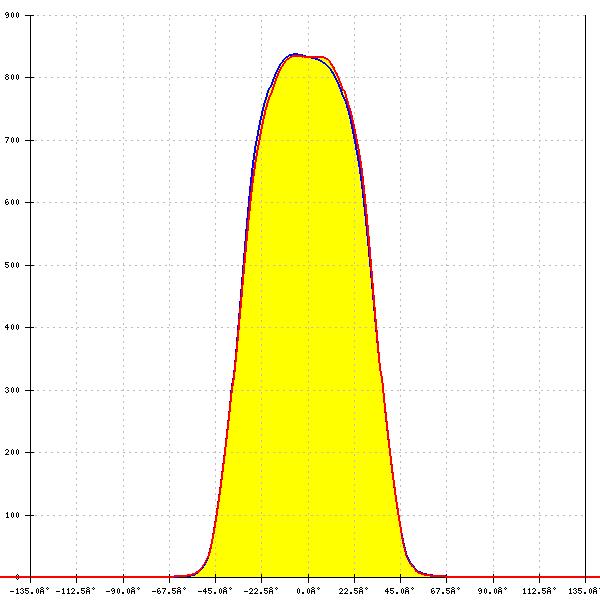

LED:
Vero SE 29
LES size: 29.2 mm
Required components:
FWHM:
66°
FWTM:
90°
Peak intensity:
0.840 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

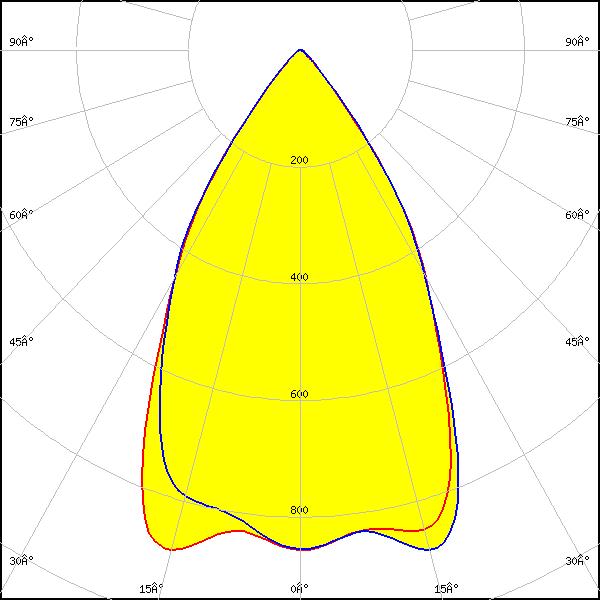

VERO13
LES size: 13.4 mm
Required components:
FWHM:
60°
FWTM:
84°
Peak intensity:
0.890 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

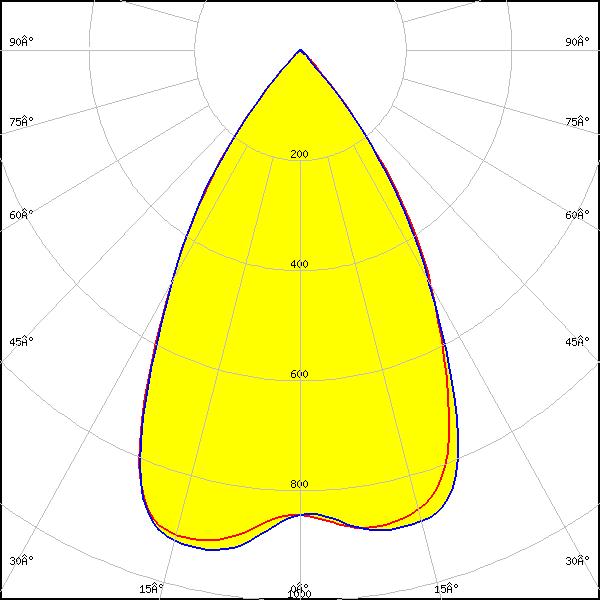

LED:

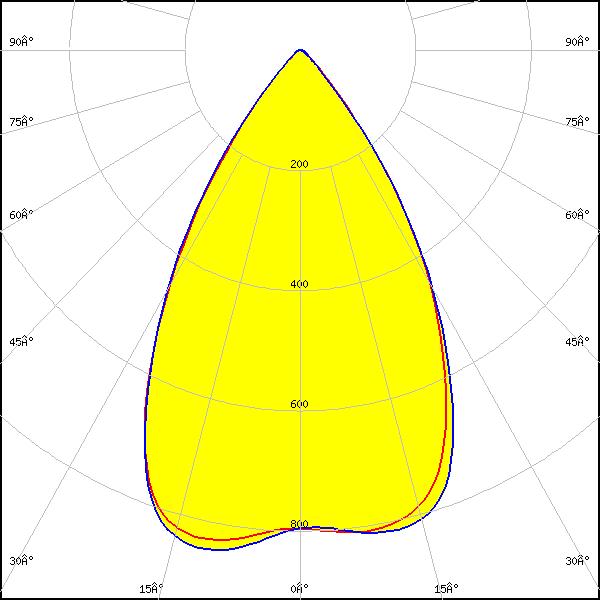

VERO18
LES size: 18.6 mm
Required components:
FWHM:
64°
FWTM:
86°
Peak intensity:
0.850 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO18
LES size: 18.6 mm
Required components:
FWHM:
64°
FWTM:
85°
Peak intensity:
0.930 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

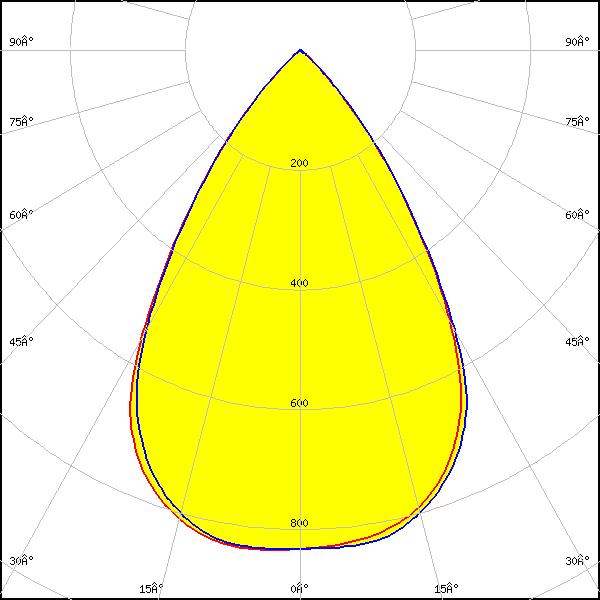

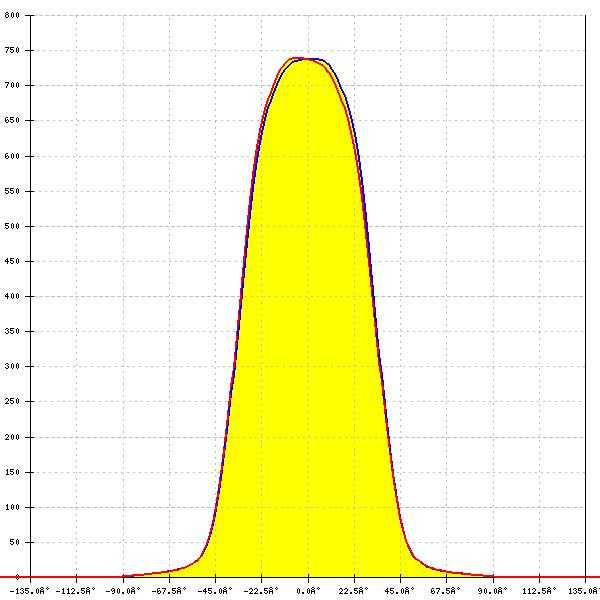

LED:

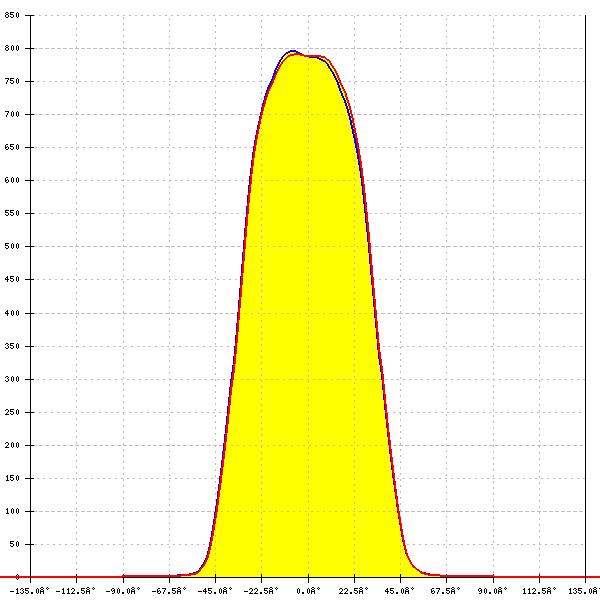

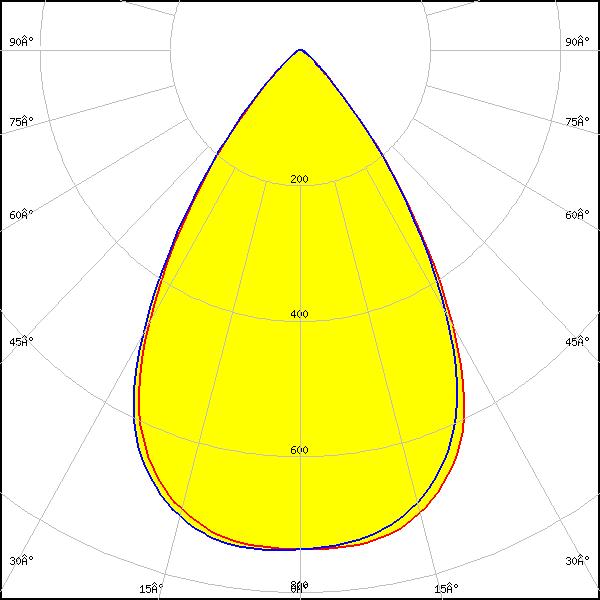

VERO29
LES size: 29.2 mm
Required components:
FWHM:
67°
FWTM:
91°
Peak intensity:
0.800 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO29
LES size: 29.2 mm
Required components:
FWHM:
67°
FWTM:
92°
Peak intensity:
0.740 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

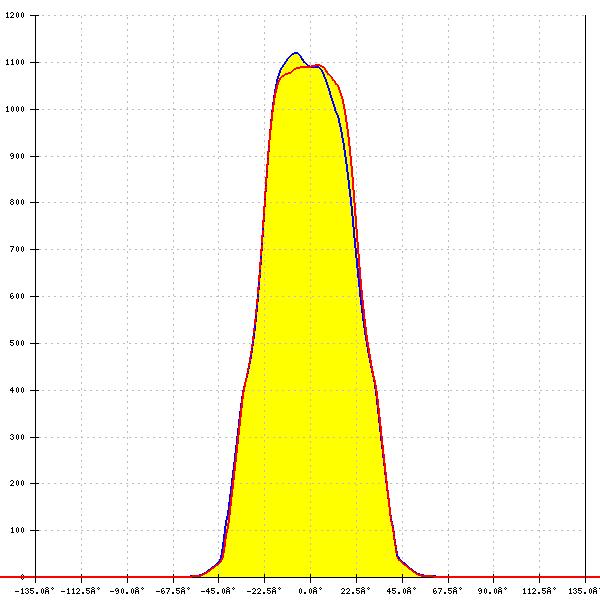

CL-L340
LES size: 20.0 mm
Required components:
FWHM:
53°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CL-L340
LES size: 20.0 mm
Required components:
FWHM:
48°
FWTM:
80°
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CL-L340
LES size: 20.0 mm
Required components:
FWHM:
50°
FWTM:
83°
Peak intensity:
0.000 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
57°
FWTM:
82°
Peak intensity:
0.980 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
60°
FWTM:
83°
Peak intensity:
0.950 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
56°
FWTM:
82°
Peak intensity:
1.100 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL03x/CLU03x
LES size: 14.5 mm
Required components:
FWHM:
58°
FWTM:
84°
Peak intensity:
0.950 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

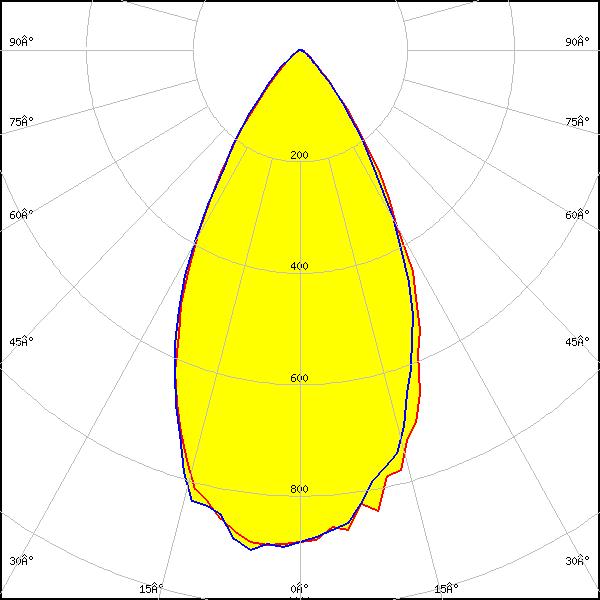

LED:

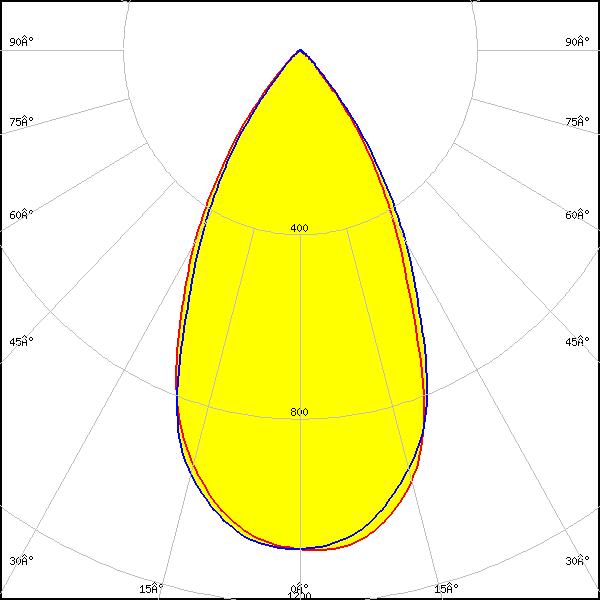

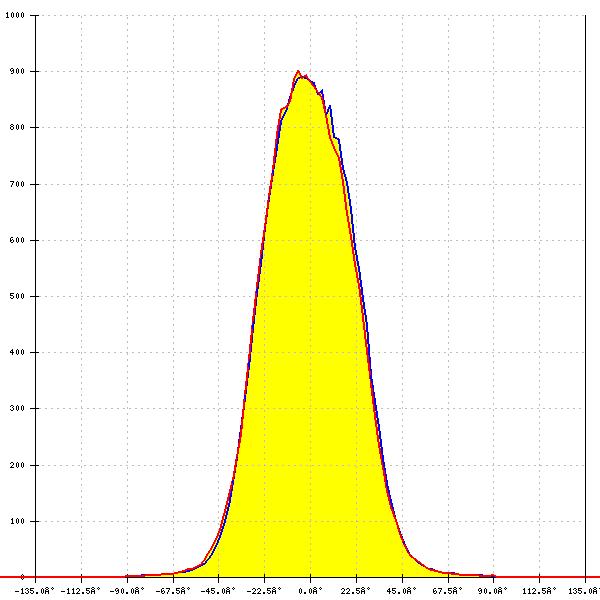

CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM:
55°
FWTM:
84°
Peak intensity:
1.000 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM:
58°
FWTM:
85°
Peak intensity:
0.900 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
IDEAL: 50-2204CT
IDEAL: 50-2100LN
IDEAL: 50-2100LN
FWHM:
54°
FWTM:
83°
Peak intensity:
1.100 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

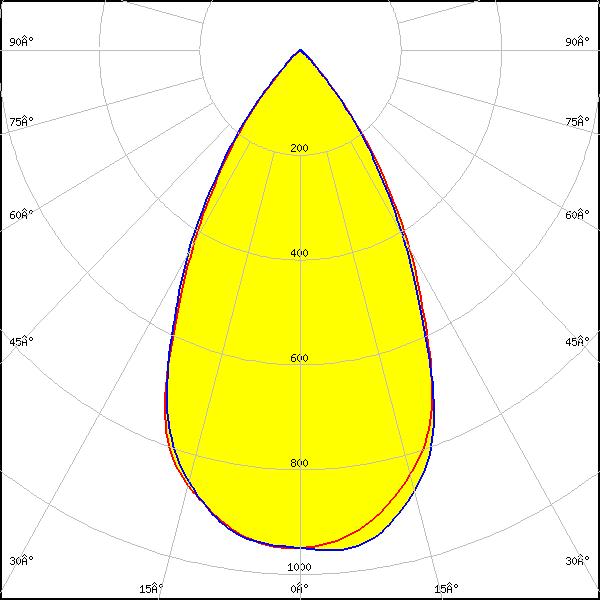

CLL04x/CLU04x
LES size: 22.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
A.A.G. STUCCHI: S-8000-12
A.A.G. STUCCHI: S-8000-12
FWHM:
57°
FWTM:
84°
Peak intensity:
1.000 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM:
59°
FWTM:
85°
Peak intensity:
1.000 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM:
56°
FWTM:
87°
Peak intensity:
0.900 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM:
61°
FWTM:
85°
Peak intensity:
0.970 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL04x/CLU04x
LES size: 22.0 mm
Required components:
FWHM:
61°
FWTM:
87°
Peak intensity:
0.880 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL173
LES size: 13.3 mm
Required components:
LEDs/each optic:
1
Light colour/type:
White

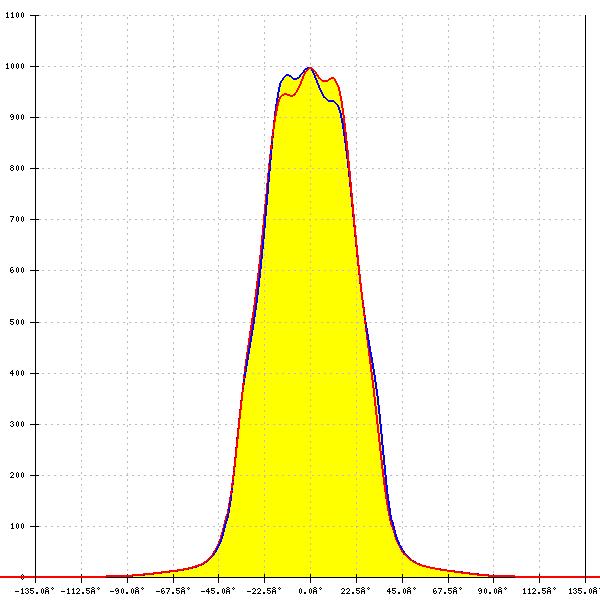

LED:
CLU710/711
LES size: 8.5 mm
Required components:
FWHM:
55°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

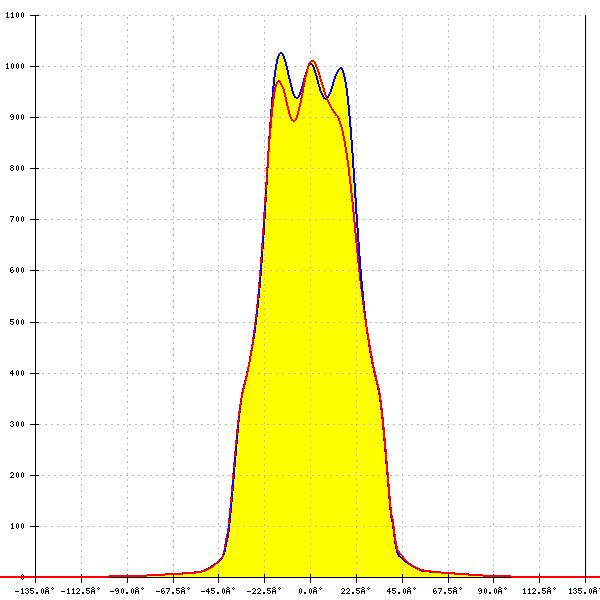

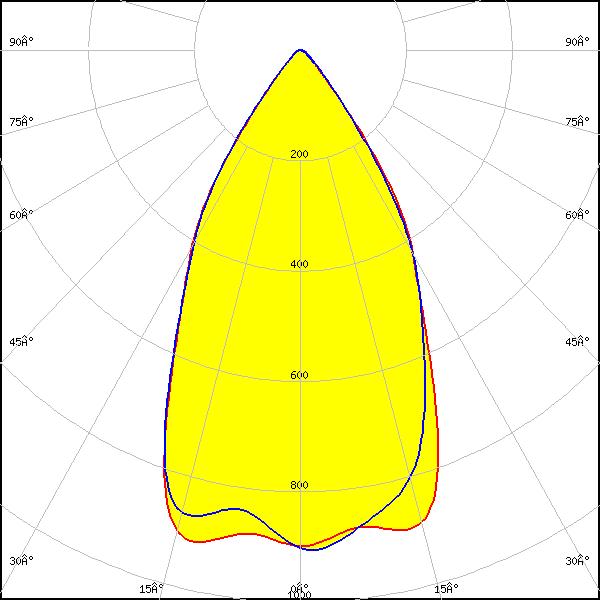

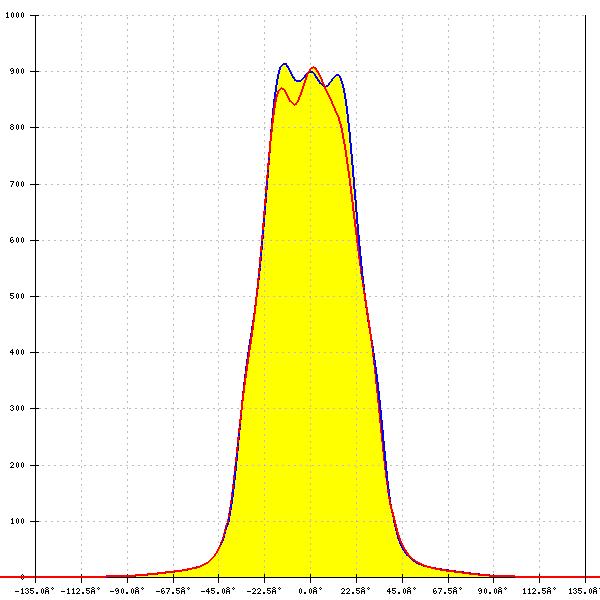

CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM:
54°
FWTM:
81°
Peak intensity:
1.000 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM:
57°
FWTM:
83°
Peak intensity:
0.910 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:

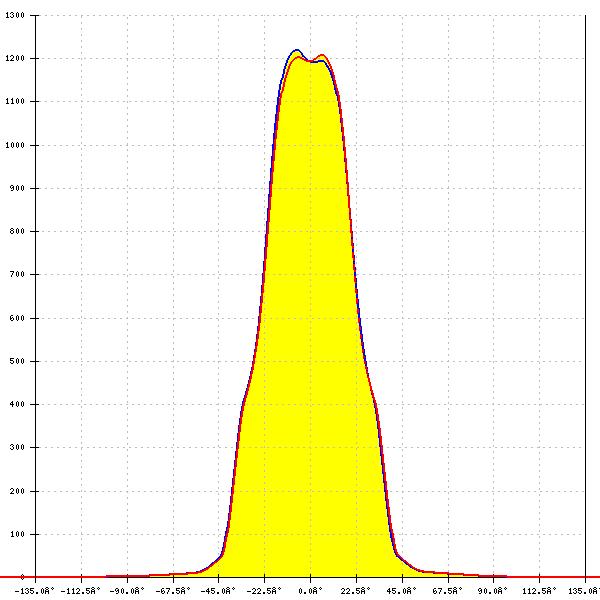

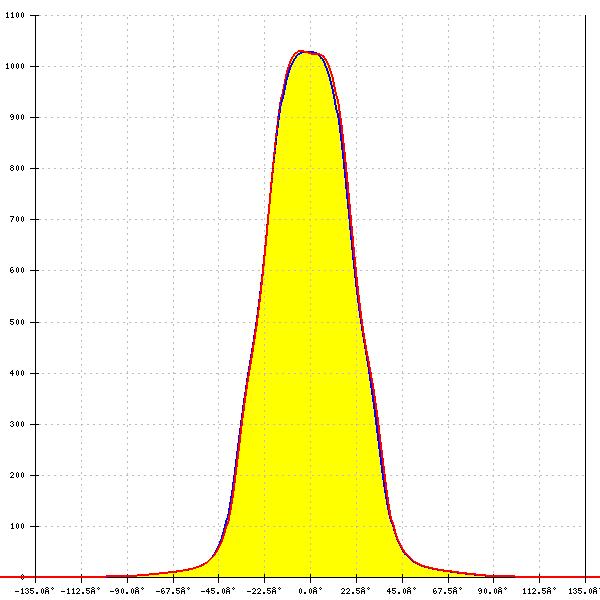

CLU730/731/733
LES size: 13.0 mm
Required components:
FWHM:
49°
FWTM:
80°
Peak intensity:
1.200 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU730/731/733
LES size: 13.0 mm
Required components:
FWHM:
50°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMA1840
LES size: 14.0 mm
Required components:
FWHM:
48°
FWTM:
79°
Peak intensity:
1.200 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

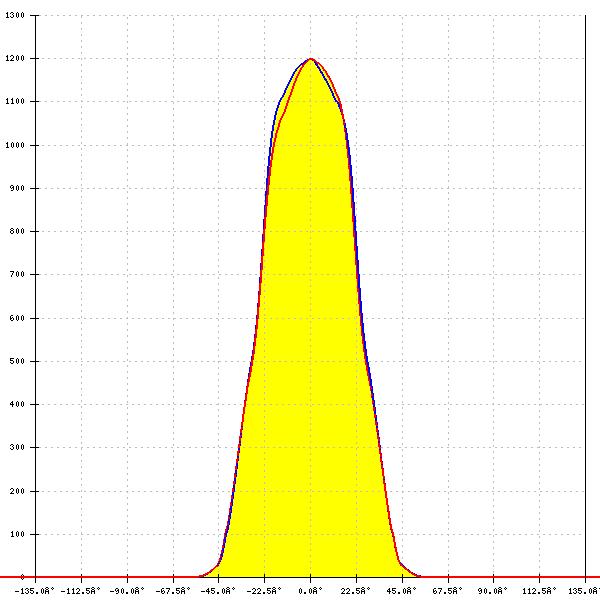

LED:
CMA2550
LES size: 19.0 mm
Required components:
FWHM:
51°
FWTM:
80°
Peak intensity:
1.200 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

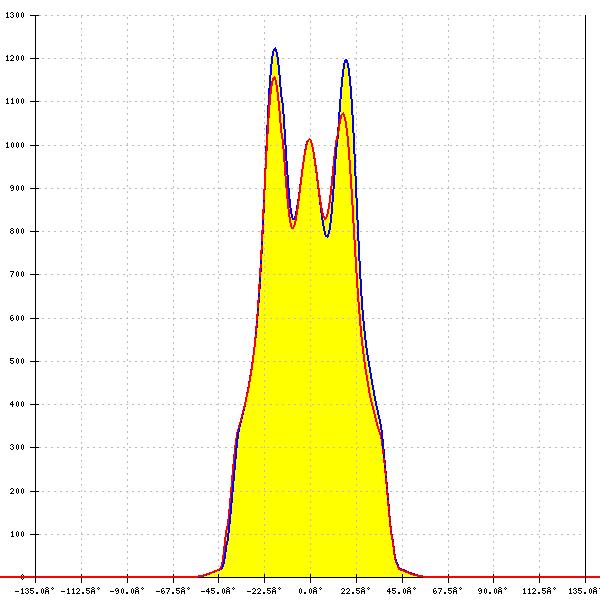

LED:
CMT14xx
LES size: 9.8 mm
Required components:
FWHM:
55°
FWTM:
81°
Peak intensity:
1.200 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT19xx
LES size: 14.5 mm
Required components:
FWHM:
55°
FWTM:
82°
Peak intensity:
1.111 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT19xx
LES size: 14.5 mm
Required components:
FWHM:
54°
FWTM:
81°
Peak intensity:
1.141 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CMT28xx
LES size: 22.0 mm
Required components:
FWHM:
56°
FWTM:
82°
Peak intensity:
1.100 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

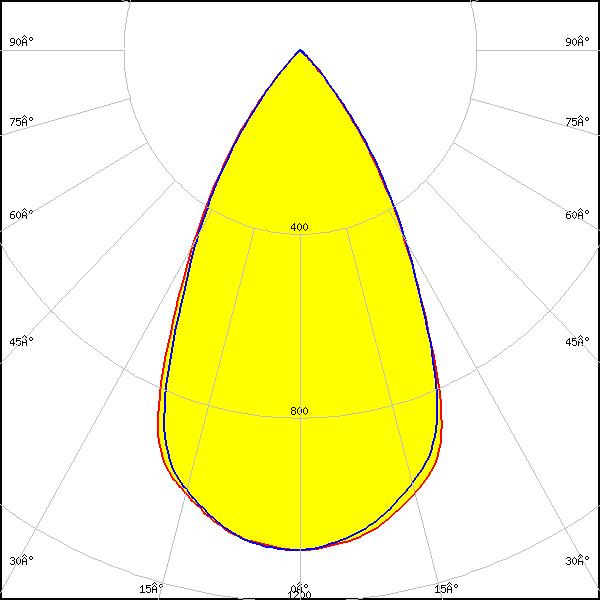

LED:
CMT28xx
LES size: 22.0 mm
Required components:
FWHM:
60°
FWTM:
84°
Peak intensity:
0.950 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
57°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
48°
FWTM:
79°
Peak intensity:
1.300 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
LEDs/each optic:
1
Light colour/type:
White

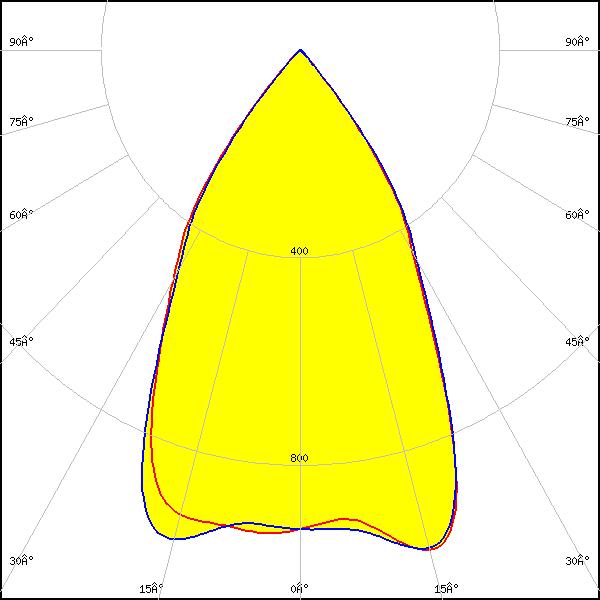

LED:
CXA/B 1830
LES size: 14.0 mm
Required components:
FWHM:
60°
FWTM:
83°
Peak intensity:
1.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1830
LES size: 14.0 mm
Required components:
FWHM:
61°
FWTM:
85°
Peak intensity:
0.900 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
FWHM:
51°
FWTM:
80°
Peak intensity:
1.200 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 25xx
LES size: 19.0 mm
Required components:
FWHM:
52°
FWTM:
80°
Peak intensity:
1.100 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 30xx
LES size: 23.0 mm
Required components:
FWHM:
49°
FWTM:
81°
Peak intensity:
1.200 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

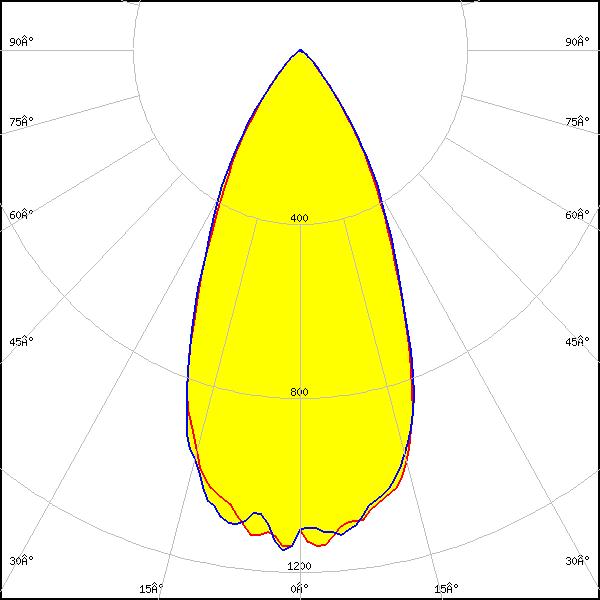

LED:
CXA/B 30xx
LES size: 23.0 mm
Required components:
IDEAL: 50-2234C
IDEAL: 50-2100LN
IDEAL: 50-2100LN
FWHM:
46°
FWTM:
80°
Peak intensity:
1.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA2011
LES size: 14.5 mm
Required components:
FWHM:
50°
FWTM:
80°
Peak intensity:
1.200 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA2011
LES size: 14.5 mm
Required components:
FWHM:
52°
FWTM:
83°
Peak intensity:
1.000 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CHI3030 19W
LES size: 20.0 mm
Required components:
FWHM:
62°
FWTM:
88°
Peak intensity:
0.900 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CHI3030 29W
LES size: 26.0 mm
Required components:
FWHM:
63°
FWTM:
92°
Peak intensity:
0.800 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204/1205
LES size: 13.0 mm
Required components:
FWHM:
55°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204/1205
LES size: 13.0 mm
Required components:
FWHM:
57°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1204HD
LES size: 9.0 mm
Required components:
FWHM:
51°
FWTM:
79°
Peak intensity:
1.370 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1205HD
LES size: 11.0 mm
Required components:
FWHM:
54°
FWTM:
80°
Peak intensity:
1.255 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
LES size: 15.0 mm
Required components:
FWHM:
58°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1208
LES size: 15.0 mm
Required components:
FWHM:
60°
FWTM:
83°
Peak intensity:
0.900 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1211
LES size: 18.5 mm
Required components:
FWHM:
60°
FWTM:
84°
Peak intensity:
1.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1211
LES size: 18.5 mm
Required components:
FWHM:
60°
FWTM:
86°
Peak intensity:
0.900 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
FWHM:
58°
FWTM:
86°
Peak intensity:
0.870 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
FWHM:
58°
FWTM:
84°
Peak intensity:
1.000 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
A.A.G. STUCCHI: 8102-G2
A.A.G. STUCCHI: S-8000-12
A.A.G. STUCCHI: S-8000-12
FWHM:
58°
FWTM:
85°
Peak intensity:
0.960 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1213/1216/1812
LES size: 23.0 mm
Required components:
FWHM:
58°
FWTM:
85°
Peak intensity:
0.950 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

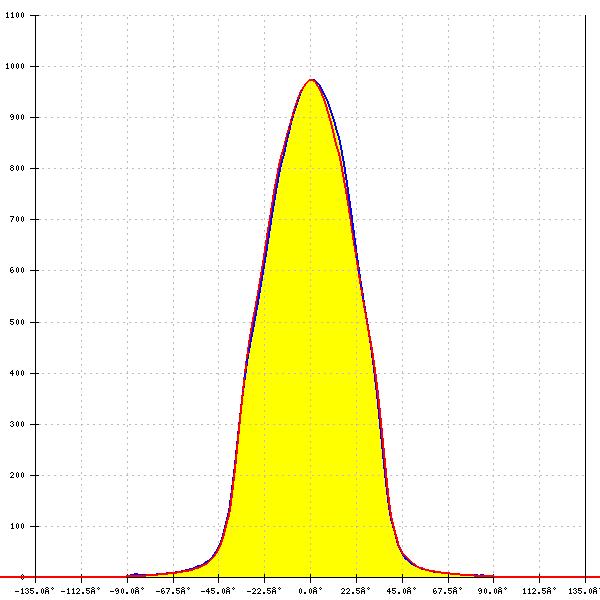

LED:
LUXEON K12
LES size: 13.5 mm
Required components:
FWHM:
54°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K12
LES size: 13.5 mm
Required components:
FWHM:
57°
FWTM:
83°
Peak intensity:
1.000 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K16
LES size: 17.0 mm
Required components:
FWHM:
55°
FWTM:
81°
Peak intensity:
1.050 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K16
LES size: 17.0 mm
Required components:
FWHM:
56°
FWTM:
85°
Peak intensity:
0.900 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-14 (Dim-To-Warm)
LES size: 15.5 mm
Required components:
FWHM:
60°
FWTM:
85°
Peak intensity:
0.900 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-14 (Dim-To-Warm)
LES size: 15.5 mm
Required components:
FWHM:
58°
FWTM:
83°
Peak intensity:
1.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-18 (Dim-To-Warm)
LES size: 16.8 mm
Required components:
FWHM:
64°
FWTM:
85°
Peak intensity:
1.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-18 (Dim-To-Warm)
LES size: 16.8 mm
Required components:
FWHM:
62°
FWTM:
86°
Peak intensity:
0.900 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
FWHM:
55°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CDM-9 (Dim-To-Warm)
LES size: 9.5 mm
Required components:
FWHM:
59°
FWTM:
83°
Peak intensity:
0.960 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-14 (Tunable White)
LES size: 14.5 mm
Required components:
FWHM:
58°
FWTM:
83°
Peak intensity:
1.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-14 (Tunable White)
LES size: 14.5 mm
Required components:
FWHM:
60°
FWTM:
85°
Peak intensity:
0.950 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-18 (Tunable White)
LES size: 17.5 mm
Required components:
FWHM:
32°
FWTM:
76°
Peak intensity:
2.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-18 (Tunable White)
LES size: 17.5 mm
Required components:
FWHM:
63°
FWTM:
87°
Peak intensity:
0.900 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-22 (Tunable White)
LES size: 22.0 mm
Required components:
FWHM:
63°
FWTM:
87°
Peak intensity:
0.900 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CTM-22 (Tunable White)
LES size: 22.0 mm
Required components:
FWHM:
63°
FWTM:
89°
Peak intensity:
0.800 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

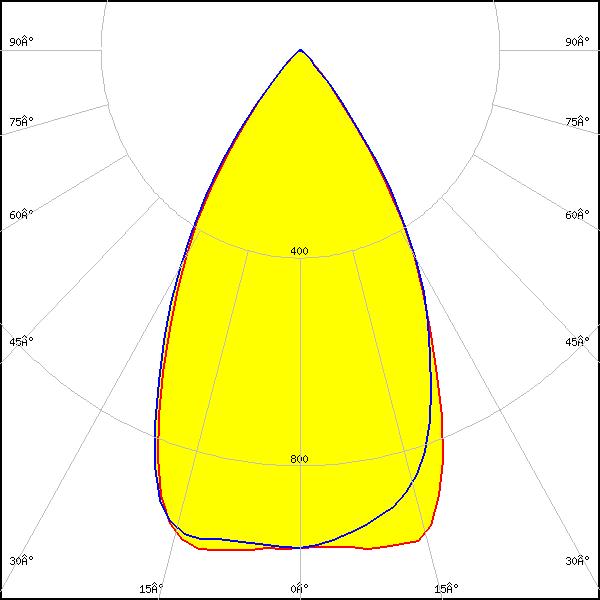

CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
57°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
60°
FWTM:
83°
Peak intensity:
0.950 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
58°
FWTM:
82°
Peak intensity:
1.100 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM:
59°
FWTM:
84°
Peak intensity:
1.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-22 (28x28)
LES size: 22.0 mm
Required components:
FWHM:
58°
FWTM:
86°
Peak intensity:
1.100 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-22 (28x28)
LES size: 22.0 mm
Required components:
FWHM:
58°
FWTM:
86°
Peak intensity:
1.000 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
54°
FWTM:
80°
Peak intensity:
1.100 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM:
57°
FWTM:
82°
Peak intensity:
0.980 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
LES size: 14.6 mm
Required components:
FWHM:
59°
FWTM:
84°
Peak intensity:
1.000 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
LES size: 14.6 mm
Required components:
FWHM:
58°
FWTM:
82°
Peak intensity:
1.010 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
LES size: 14.6 mm
Required components:
FWHM:
59°
FWTM:
84°
Peak intensity:
0.910 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB J-Type
LES size: 14.6 mm
Required components:
FWHM:
59°
FWTM:
83°
Peak intensity:
1.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
56°
FWTM:
81°
Peak intensity:
1.000 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
58°
FWTM:
82°
Peak intensity:
0.900 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
FWHM:
56°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVCWJ024Z-V1MT: COB J-Type Tunable White
LES size: 10.6 mm
Required components:
FWHM:
60°
FWTM:
84°
Peak intensity:
0.900 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

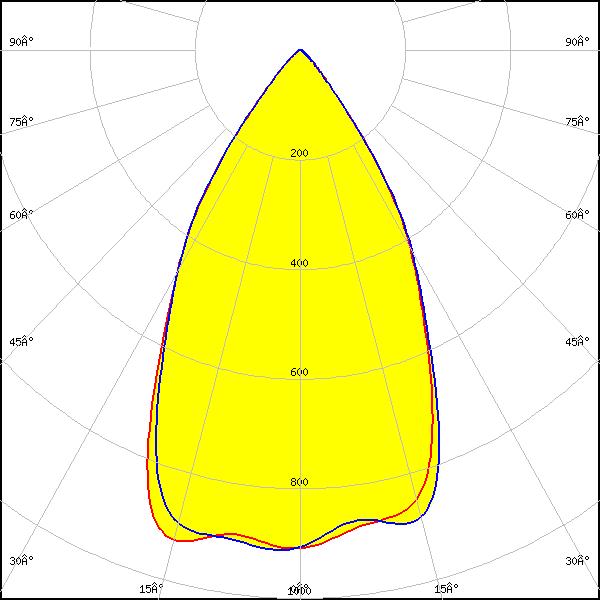

Soleriq S13
LES size: 13.2 mm
Required components:
FWHM:
59°
FWTM:
83°
Peak intensity:
0.940 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S13
LES size: 13.2 mm
Required components:
FWHM:
56°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S15
LES size: 14.7 mm
Required components:
FWHM:
56°
FWTM:
81°
Peak intensity:
1.068 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S19
LES size: 17.9 mm
Required components:
FWHM:
60°
FWTM:
84°
Peak intensity:
1.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S19
LES size: 17.9 mm
Required components:
FWHM:
60°
FWTM:
85°
Peak intensity:
0.930 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM:
57°
FWTM:
81°
Peak intensity:
1.200 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L13 CoB
LES size: 13.0 mm
Required components:
FWHM:
57°
FWTM:
83°
Peak intensity:
1.000 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L15 CoB
LES size: 15.0 mm
Required components:
FWHM:
59°
FWTM:
82°
Peak intensity:
1.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L15 CoB
LES size: 15.0 mm
Required components:
FWHM:
56°
FWTM:
83°
Peak intensity:
1.000 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
FWHM:
54°
FWTM:
83°
Peak intensity:
1.000 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L19 CoB
LES size: 19.0 mm
Required components:
FWHM:
53°
FWTM:
81°
Peak intensity:
1.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
FWHM:
57°
FWTM:
84°
Peak intensity:
1.000 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo SLM L23 CoB
LES size: 23.0 mm
Required components:
FWHM:
39°
FWTM:
76°
Peak intensity:
1.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
57°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC016D / LC019D / LC026D / LC033D
LES size: 14.5 mm
Required components:
FWHM:
59°
FWTM:
84°
Peak intensity:
0.950 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC026B / 033B / 040B
LES size: 17.0 mm
Required components:
FWHM:
61°
FWTM:
84°
Peak intensity:
0.980 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC026B / 033B / 040B
LES size: 17.0 mm
Required components:
FWHM:
61°
FWTM:
85°
Peak intensity:
0.890 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC040D / LC060D / LC080D
LES size: 22.0 mm
Required components:
FWHM:
59°
FWTM:
84°
Peak intensity:
1.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC040D / LC060D / LC080D
LES size: 22.0 mm
Required components:
FWHM:
59°
FWTM:
85°
Peak intensity:
0.940 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC12/18
LES size: 14.6 mm
Required components:
FWHM:
57°
FWTM:
82°
Peak intensity:
1.000 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC12/18
LES size: 14.6 mm
Required components:
FWHM:
60°
FWTM:
83°
Peak intensity:
0.950 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC12/18
LES size: 14.6 mm
Required components:
FWHM:
57°
FWTM:
82°
Peak intensity:
1.020 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC12/18
LES size: 14.6 mm
Required components:
FWHM:
59°
FWTM:
84°
Peak intensity:
0.910 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

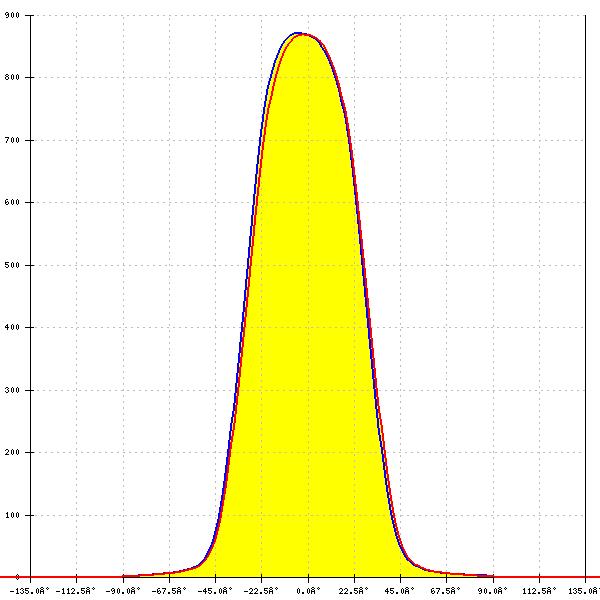

ZC25/40/60
LES size: 22.6 mm
Required components:
FWHM:
60°
FWTM:
85°
Peak intensity:
0.900 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC25/40/60
LES size: 22.6 mm
Required components:
FWHM:
60°
FWTM:
86°
Peak intensity:
0.900 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC4/6
LES size: 8.6 mm
Required components:
FWHM:
54°
FWTM:
80°
Peak intensity:
1.100 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC4/6
LES size: 8.6 mm
Required components:
FWHM:
57°
FWTM:
82°
Peak intensity:
0.980 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mega Zenigata (GW5DGC)
LES size: 16.0 mm
Required components:
FWHM:
41°
FWTM:
77°
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mega Zenigata (GW5DGC)
LES size: 16.0 mm
Required components:
FWHM:
45°
FWTM:
80°
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
FWHM:
57°
FWTM:
82°
Peak intensity:
1.050 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mega Zenigata (GW6DME)
LES size: 16.0 mm
Required components:
FWHM:
59°
FWTM:
83°
Peak intensity:
0.940 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES15
LES size: 15.0 mm
Required components:
FWHM:
59°
FWTM:
82°
Peak intensity:
1.100 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES17 H
Required components:
FWHM:
56°
FWTM:
82°
Peak intensity:
1.040 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SLE G7 LES21 H
Required components:
LEDs/each optic:
1
Light colour/type:
White
LED:
XOB 14.5 mm
LES size: 14.5 mm
Required components:
FWHM:
58°
FWTM:
82°
Peak intensity:
1.040 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
