C13085_MIRELLA-50-S-PF
Print
~15° spot beam
Component Materials
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
AVAILABLE LEDiL ACCESSORIES

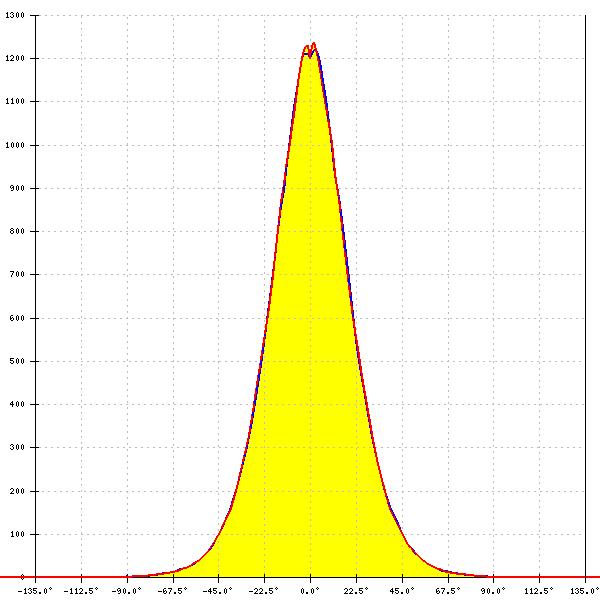

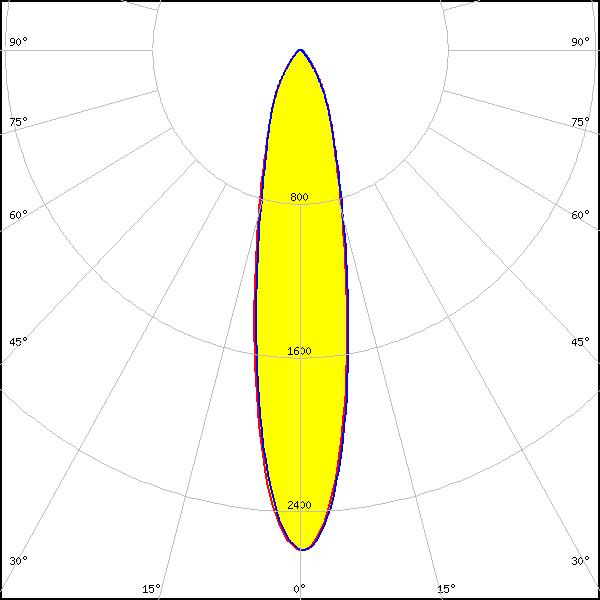

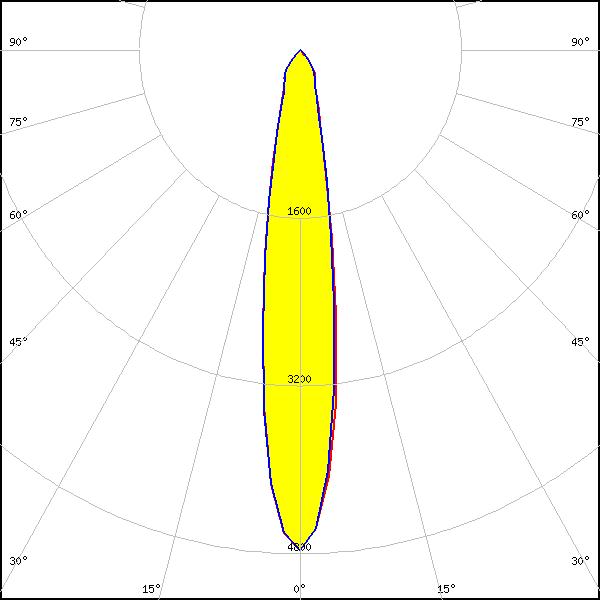

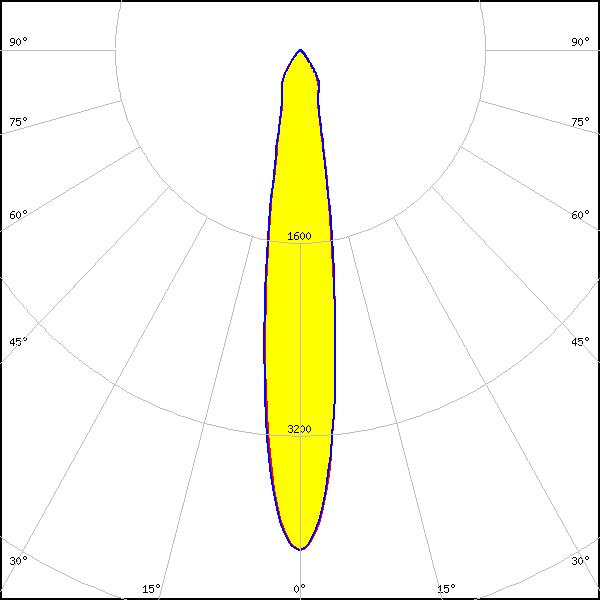

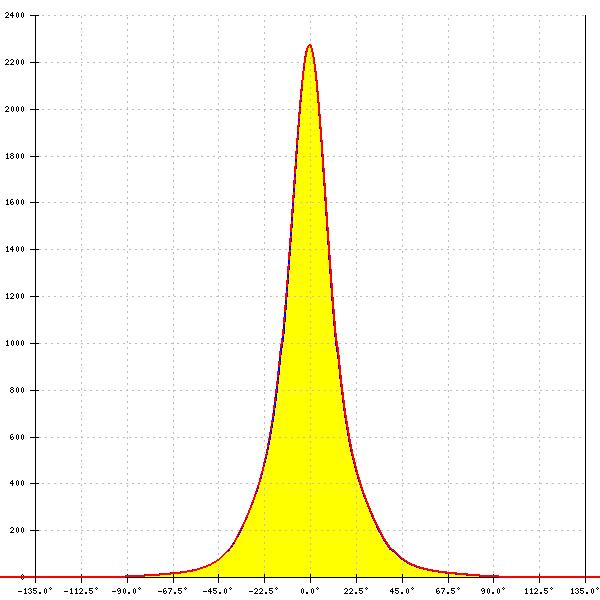

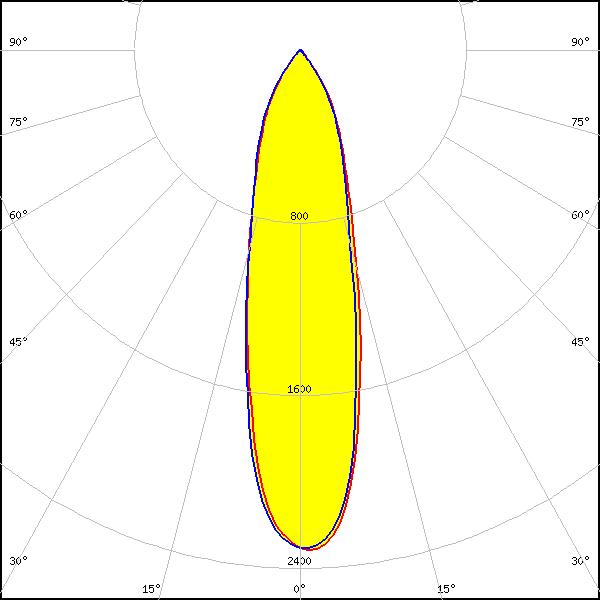

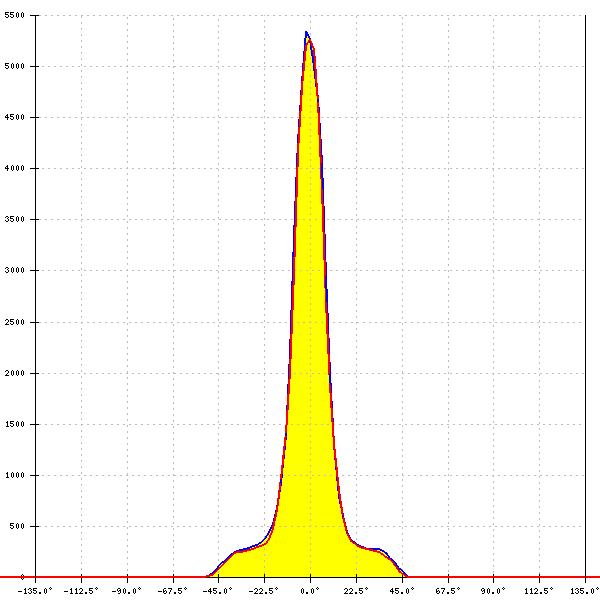

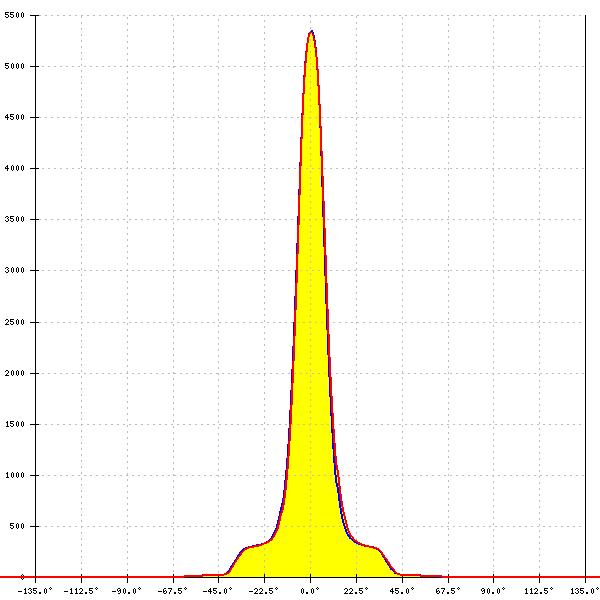

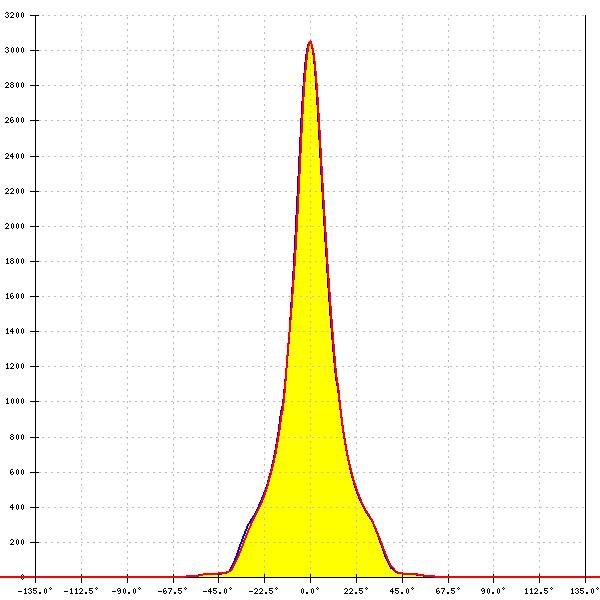

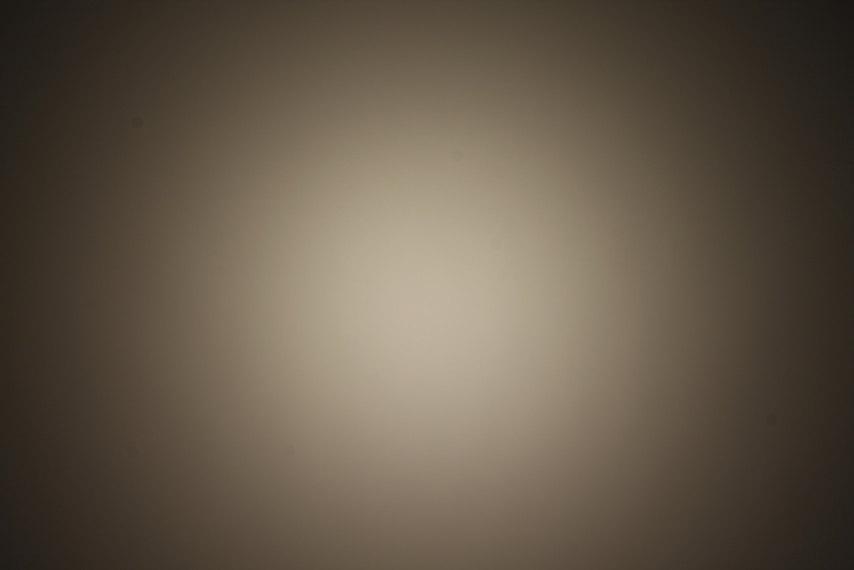

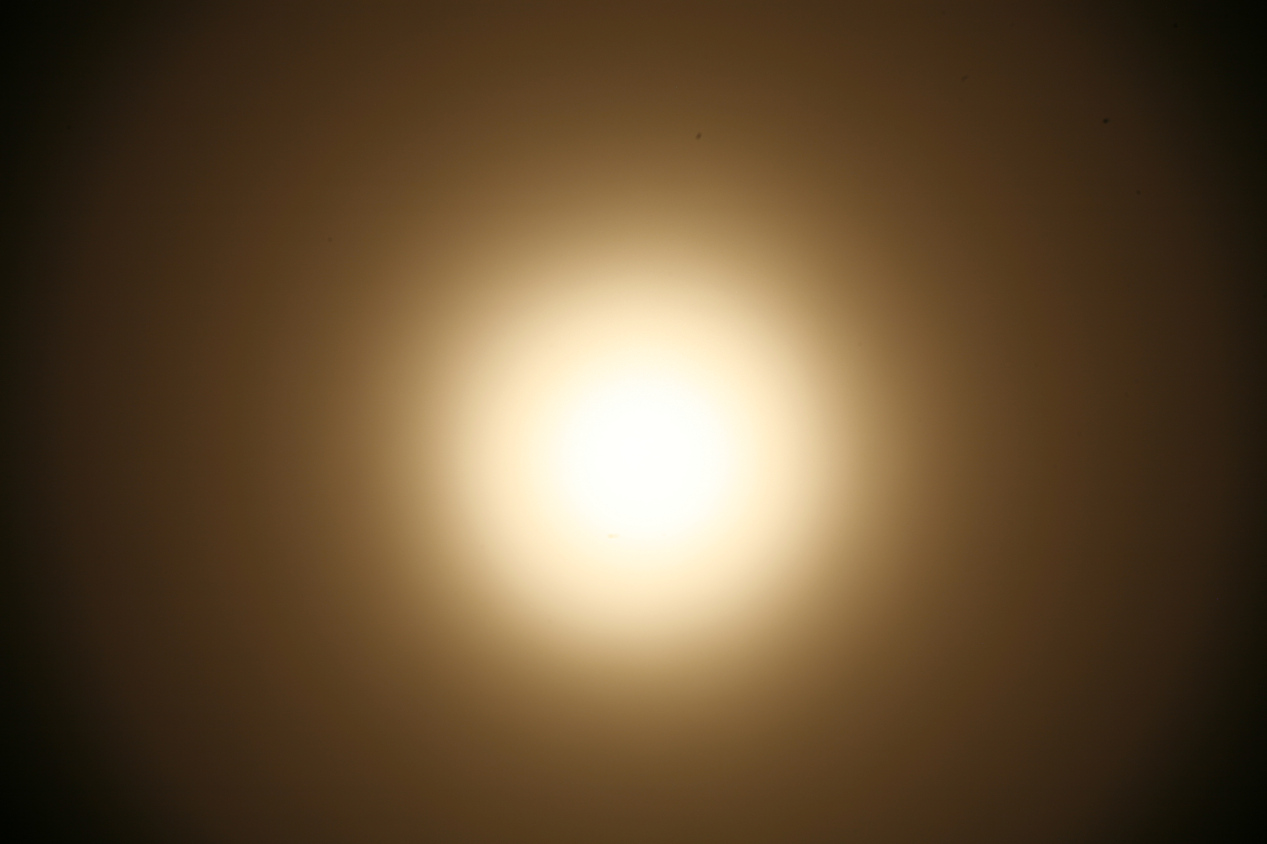

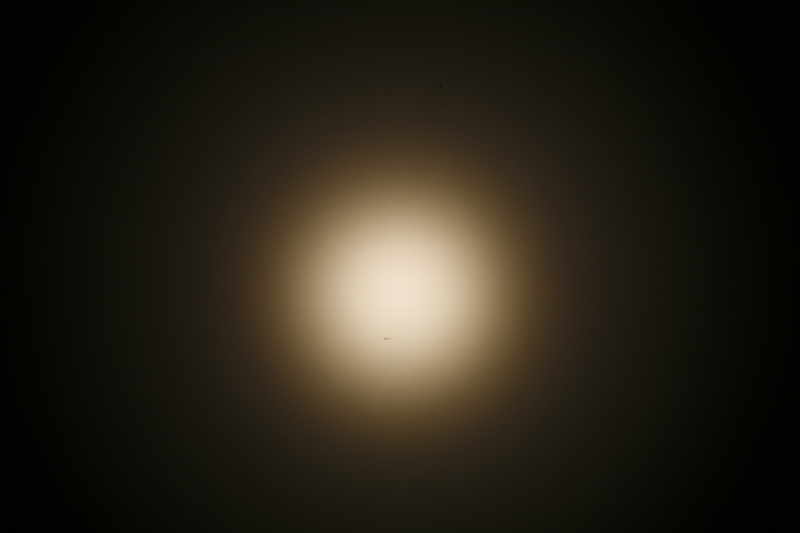

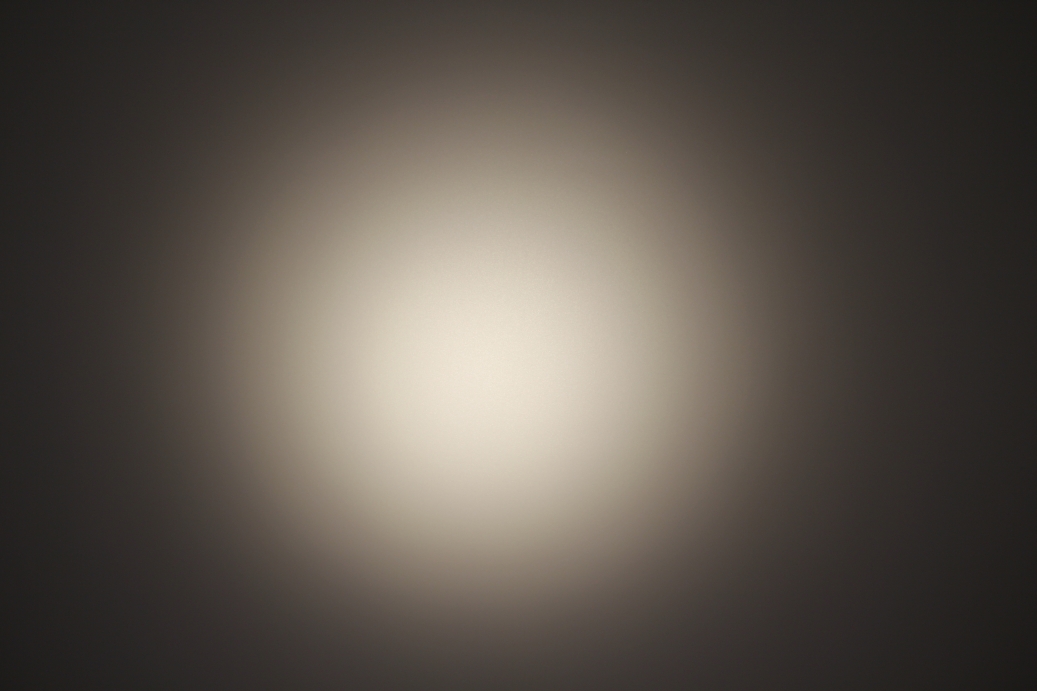

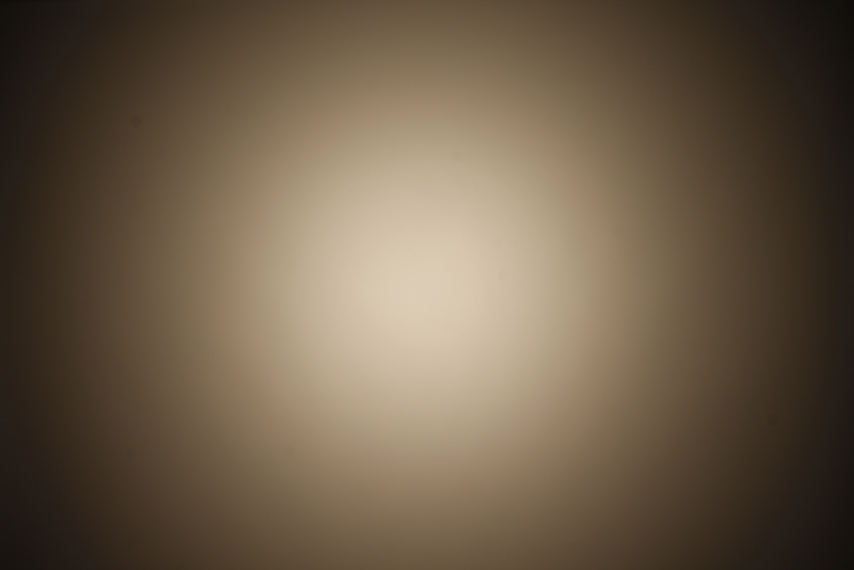

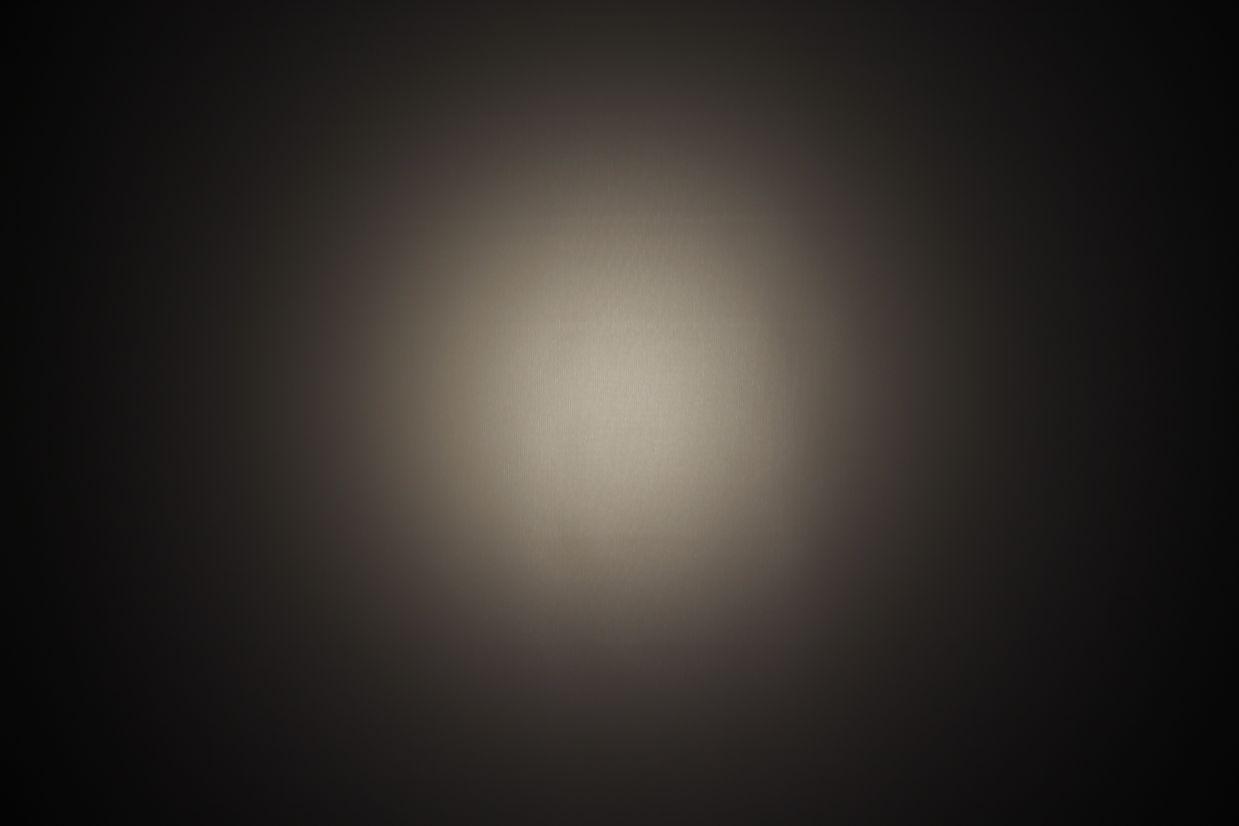

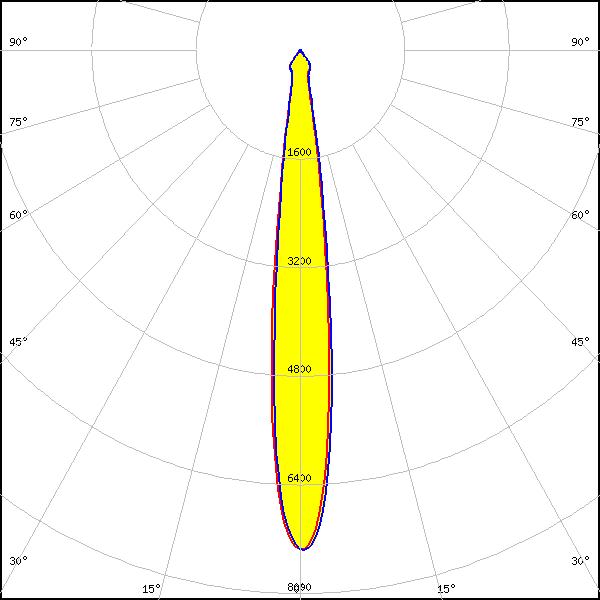

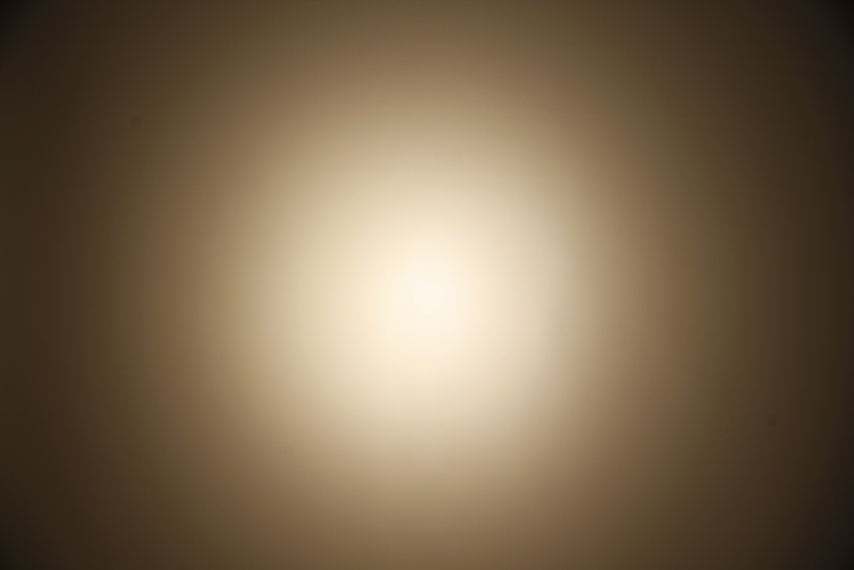

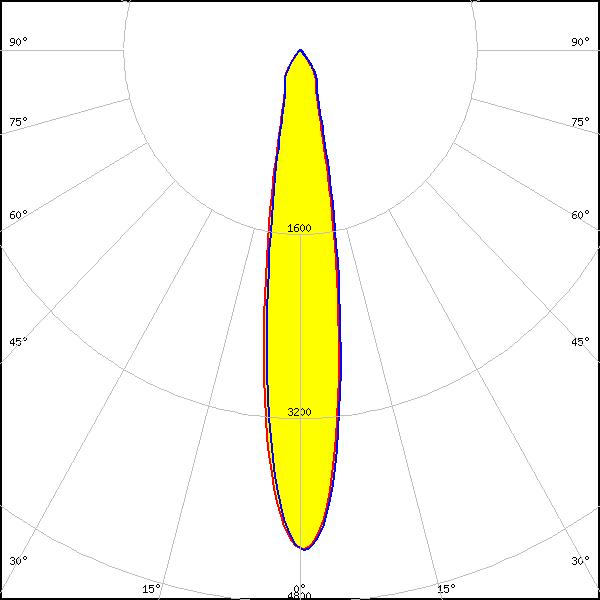

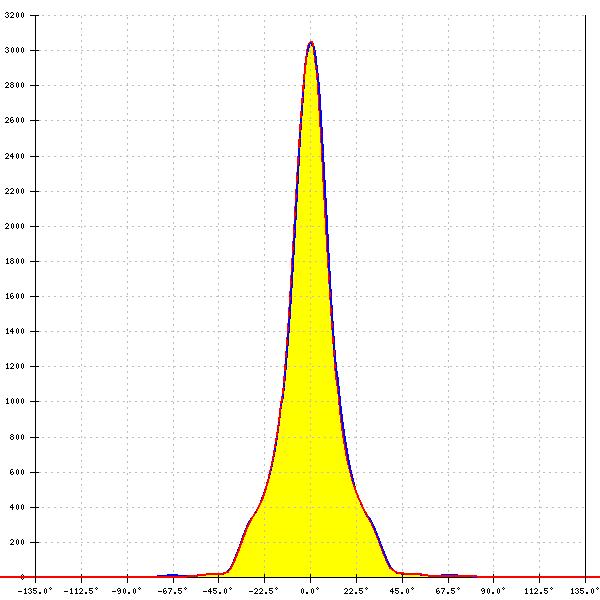

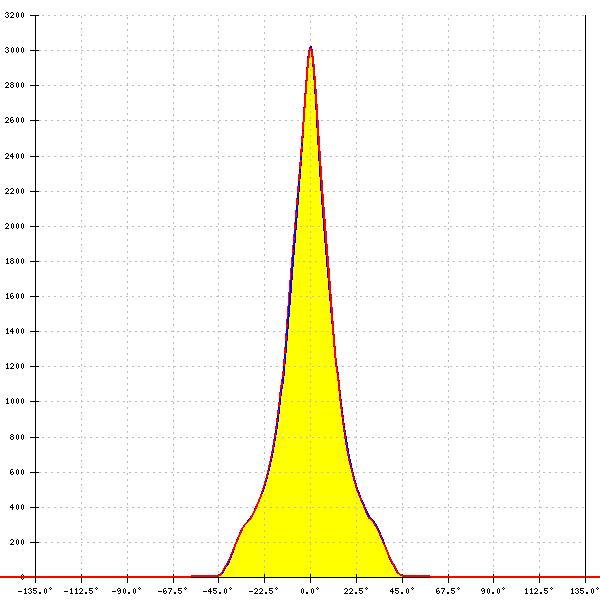

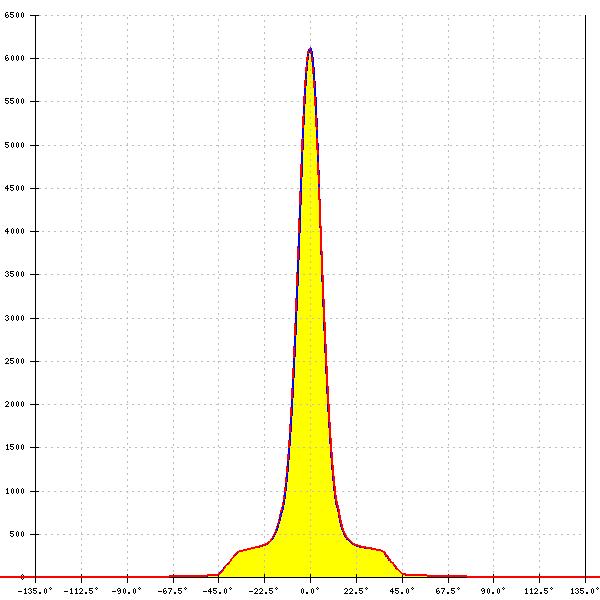

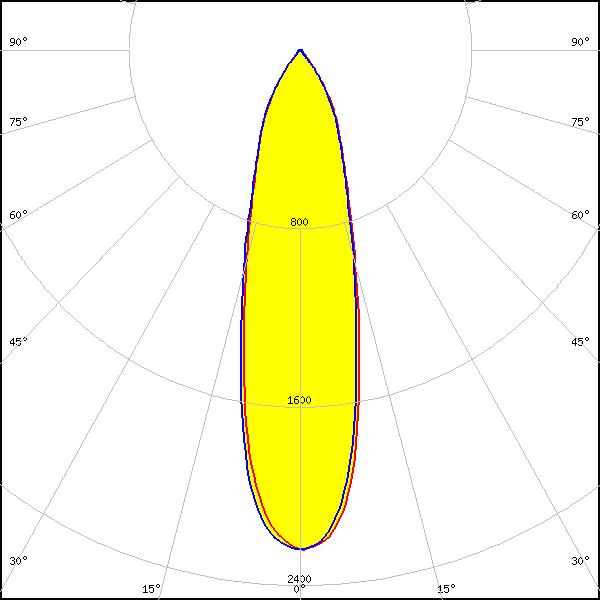

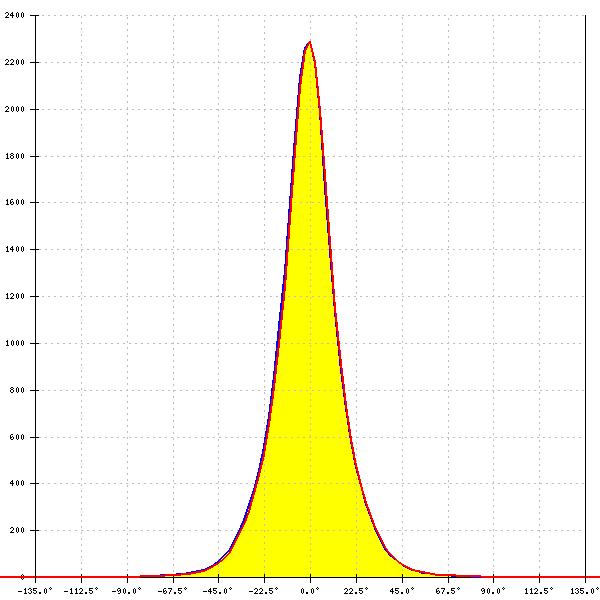

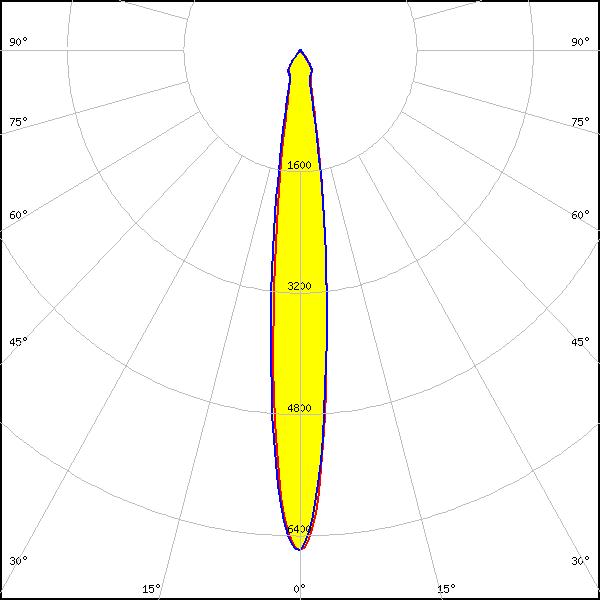

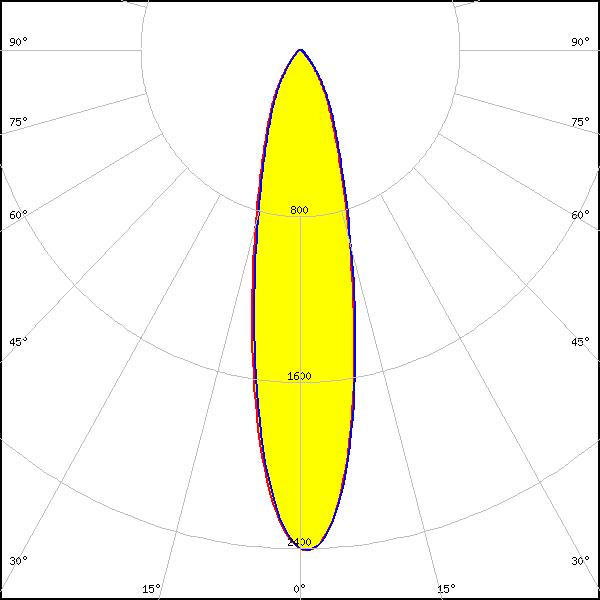

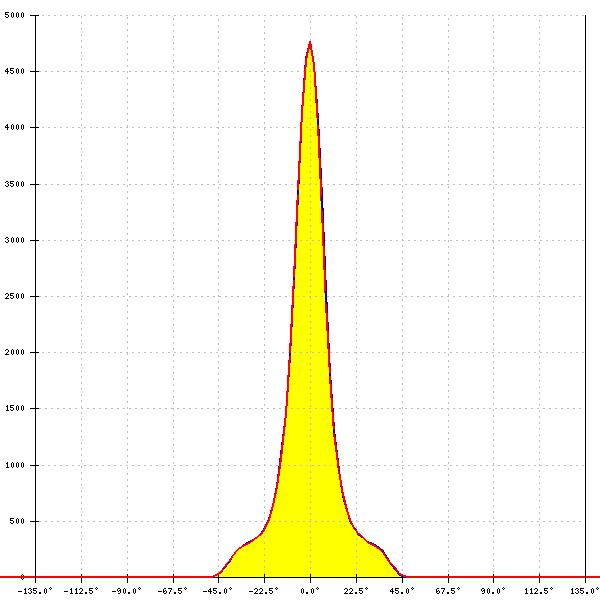

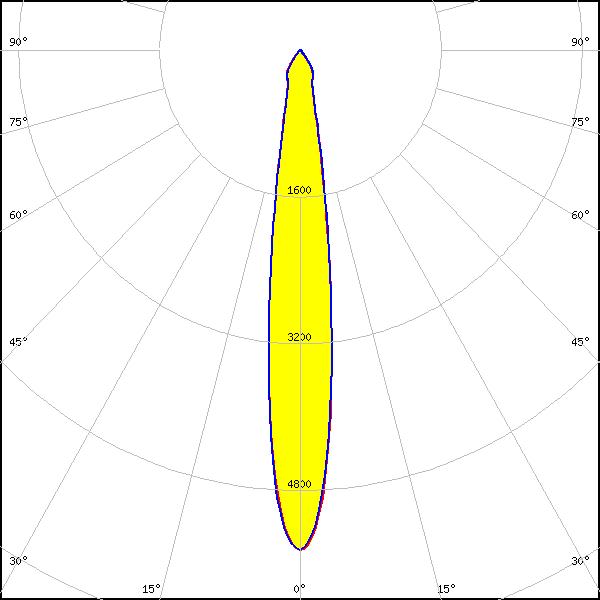

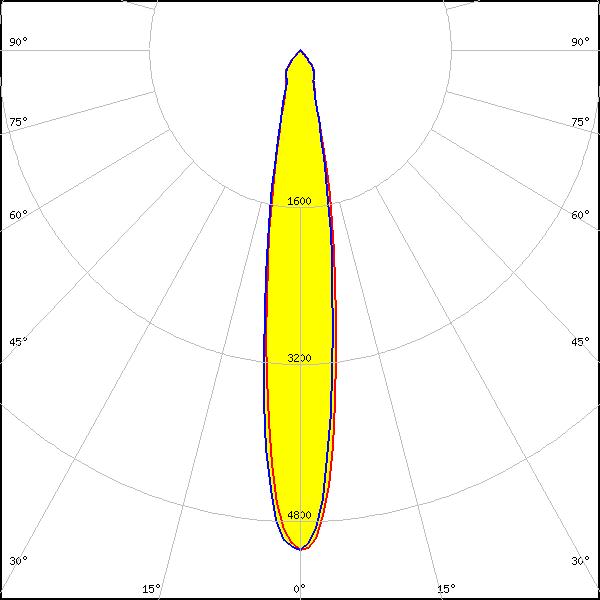

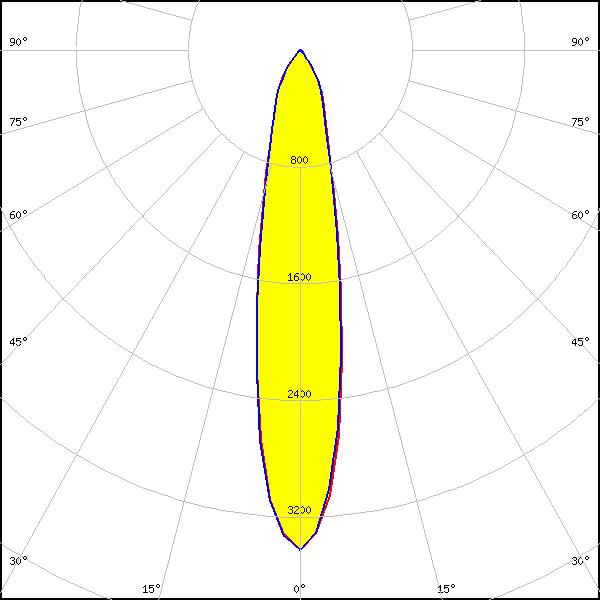

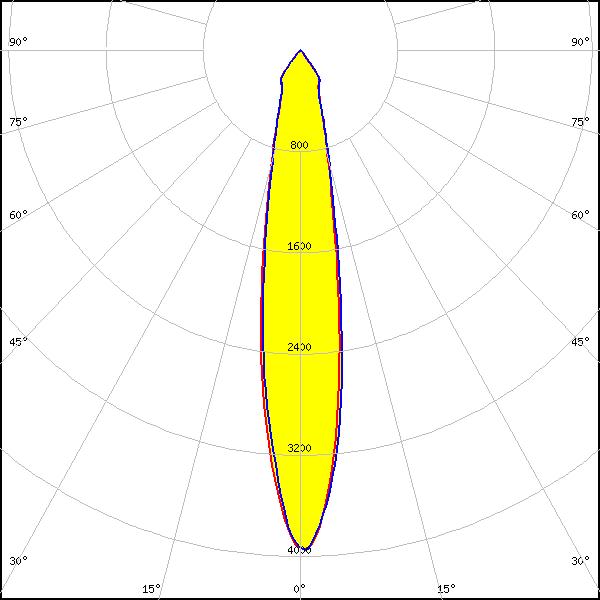

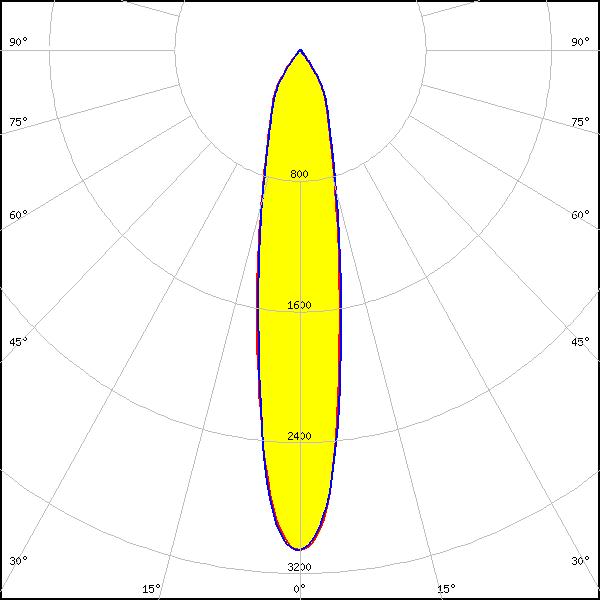

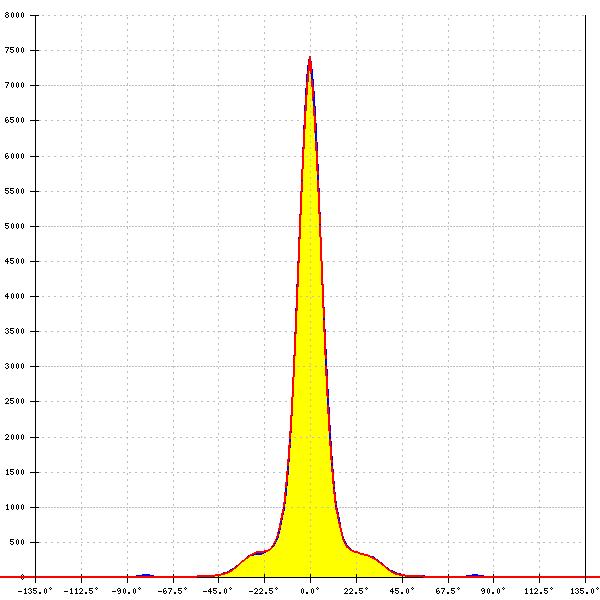

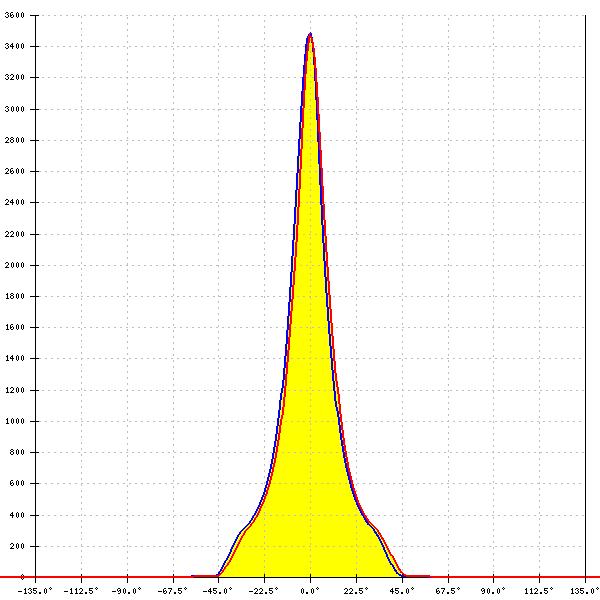

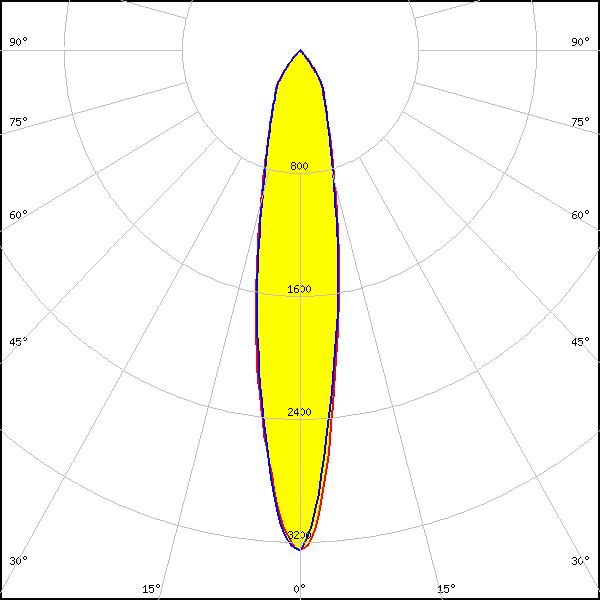

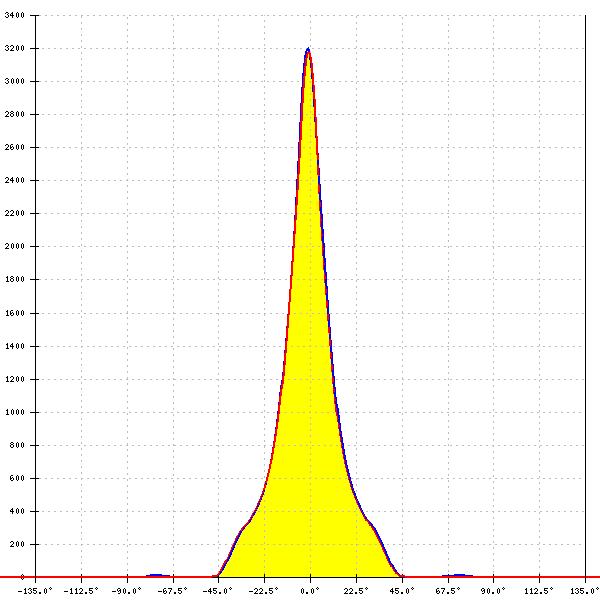

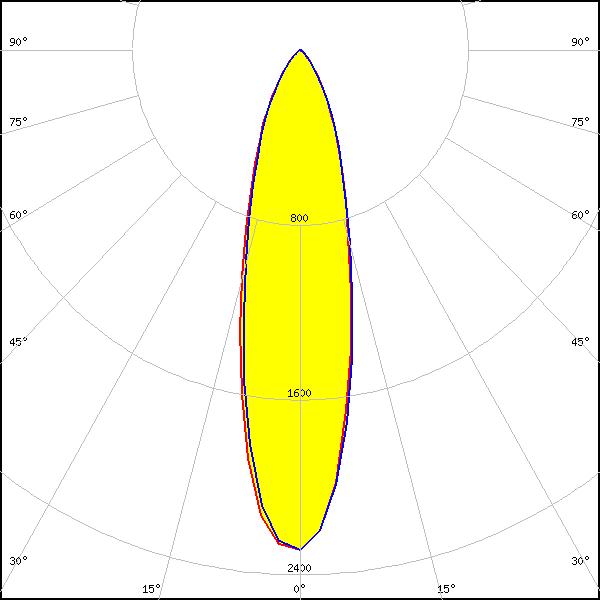

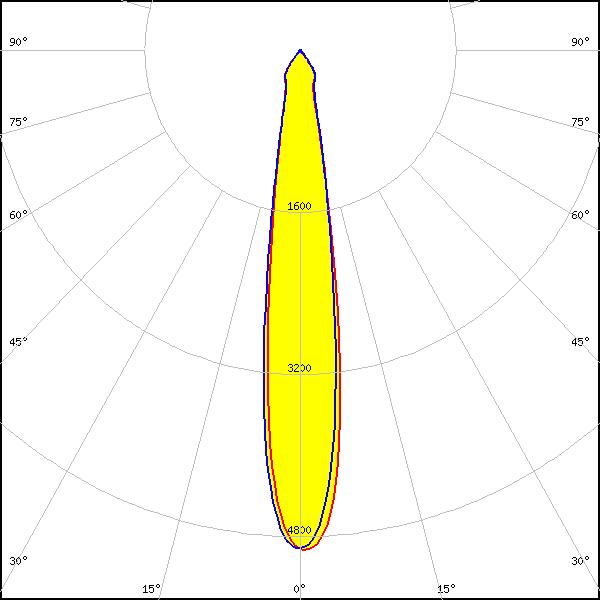

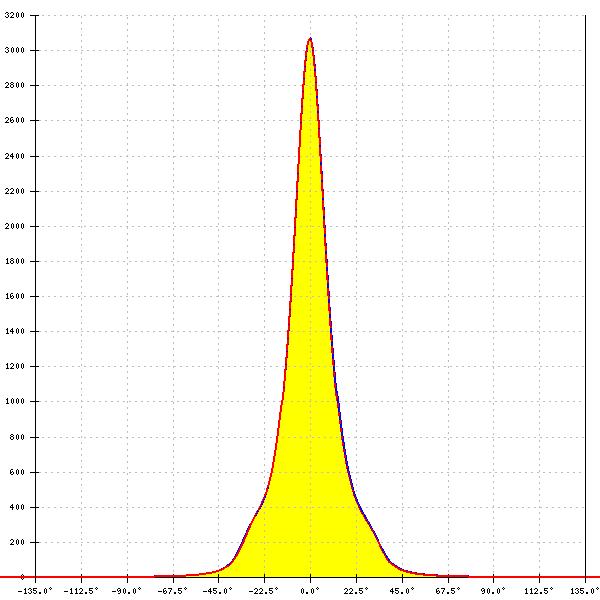

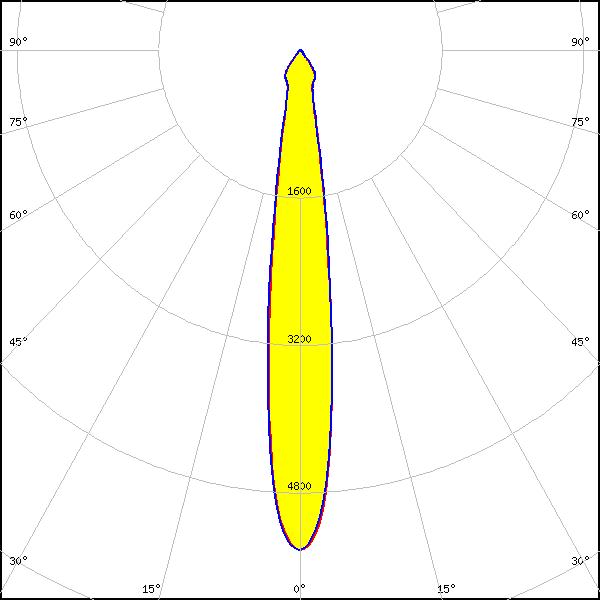

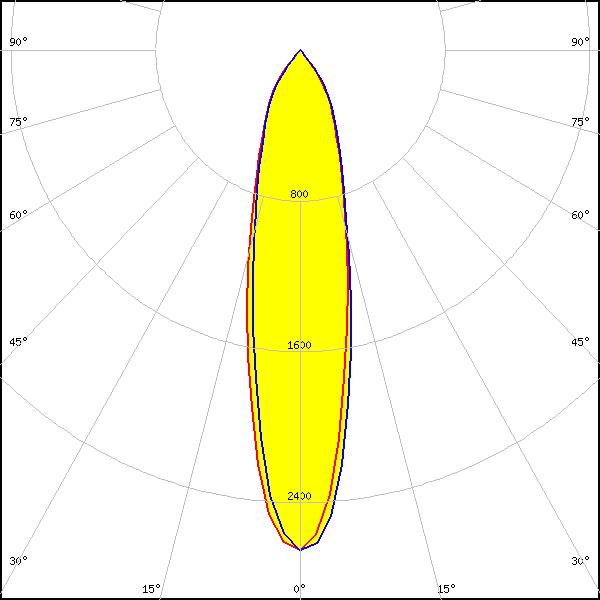

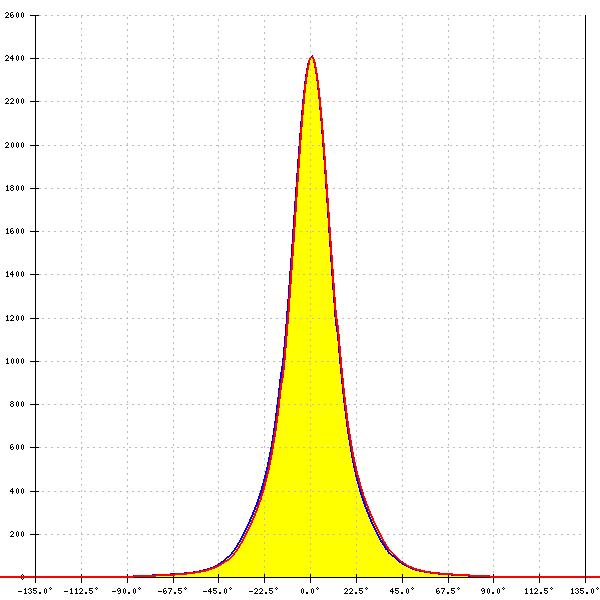

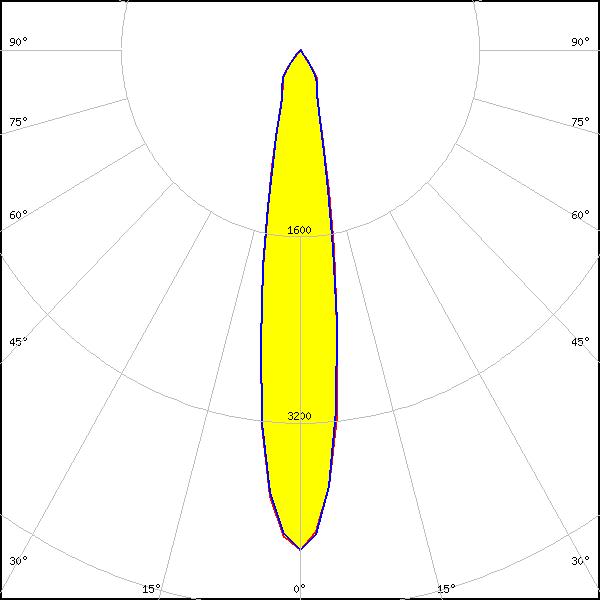

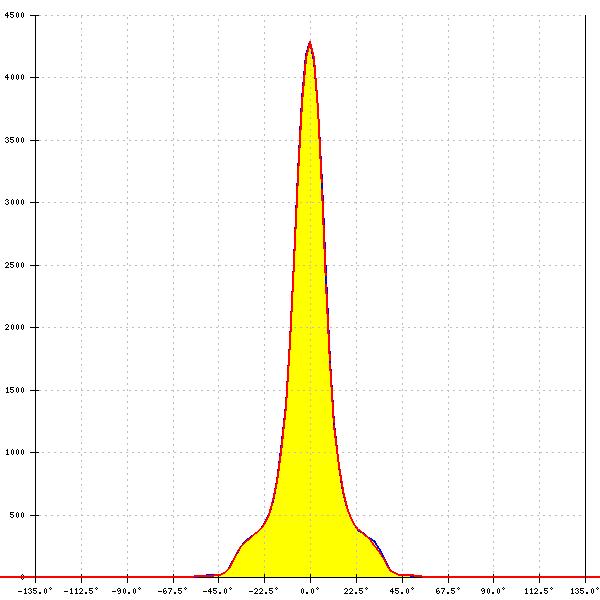

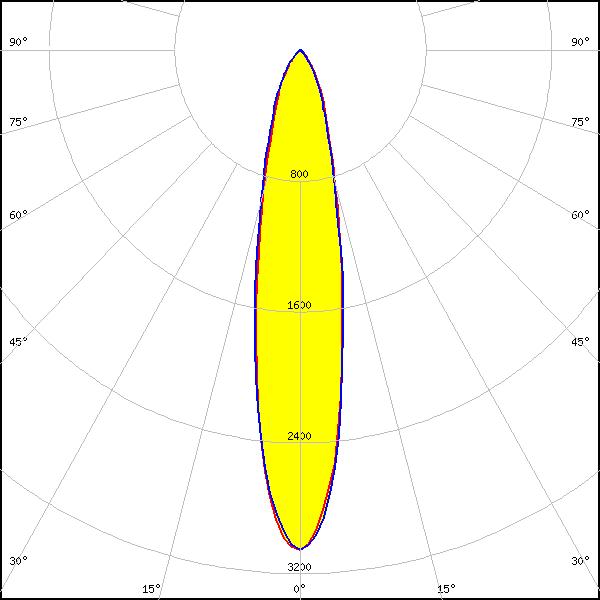

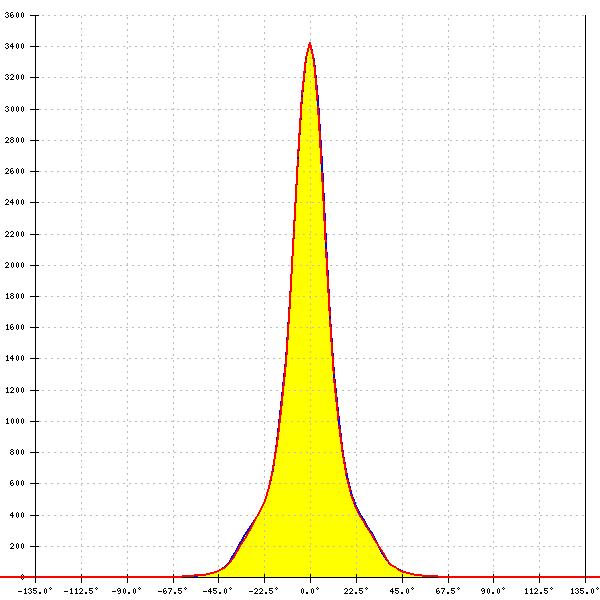

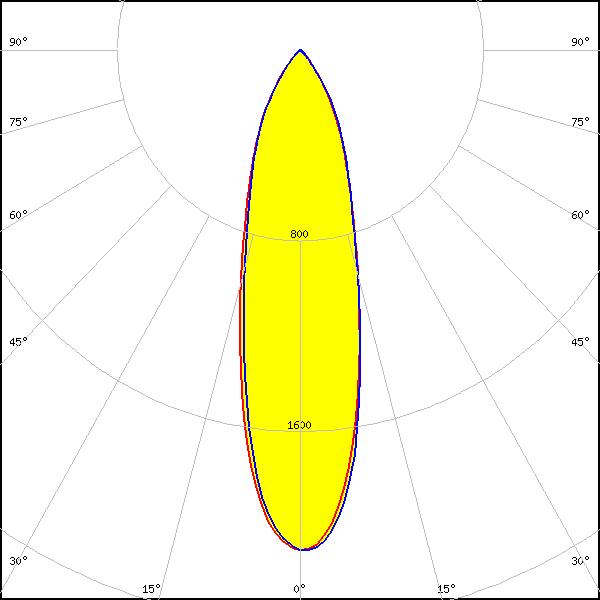

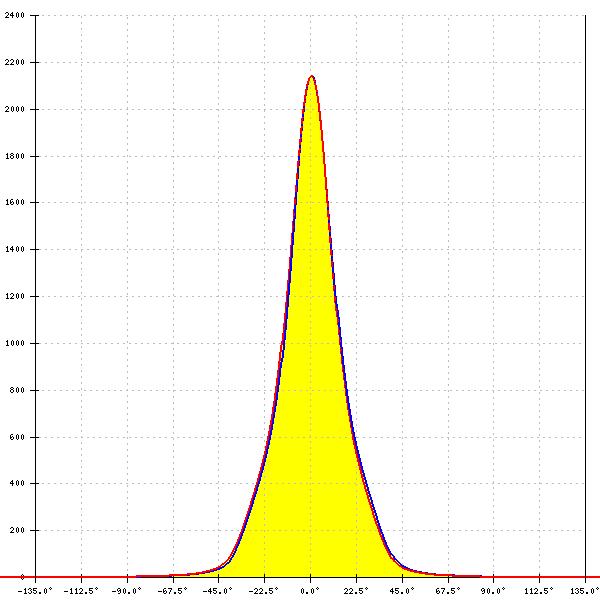

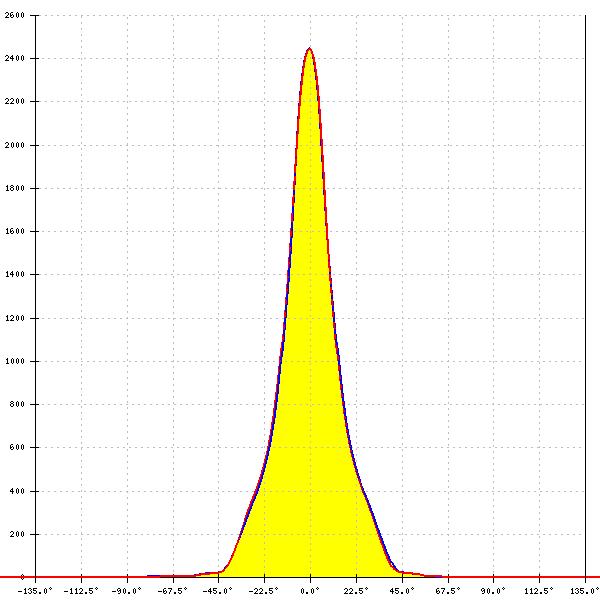

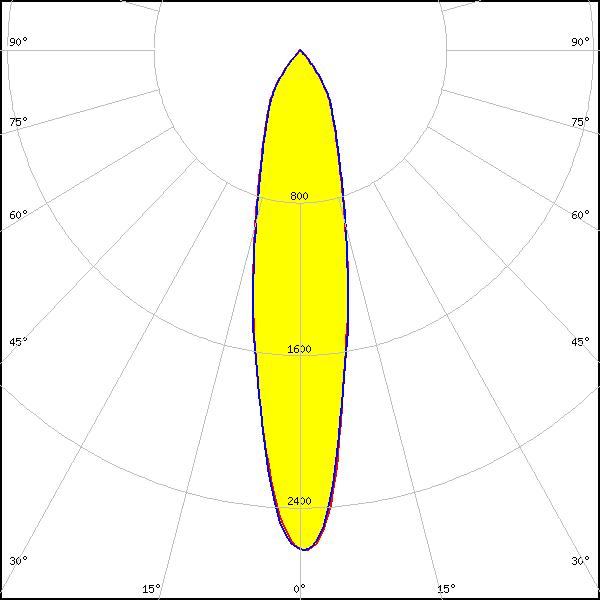

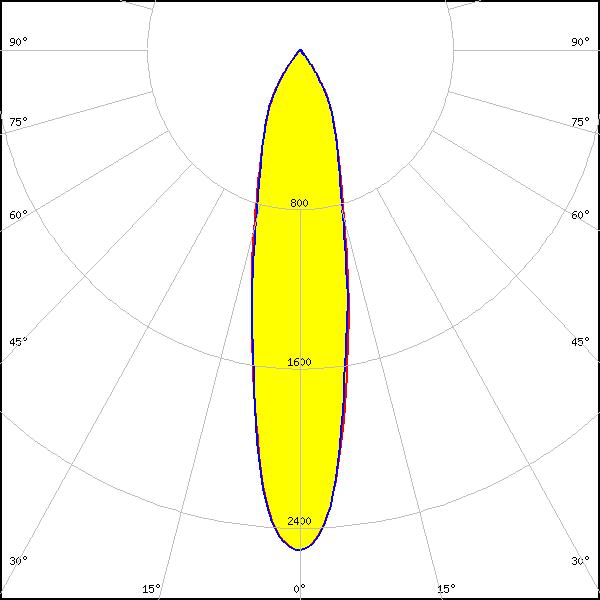

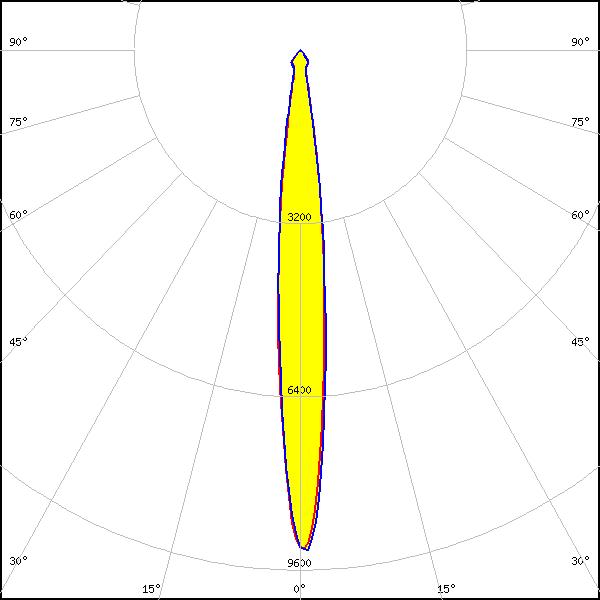

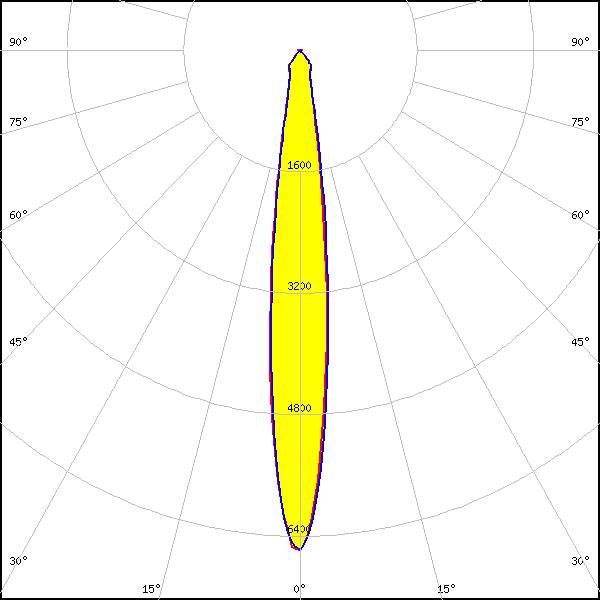

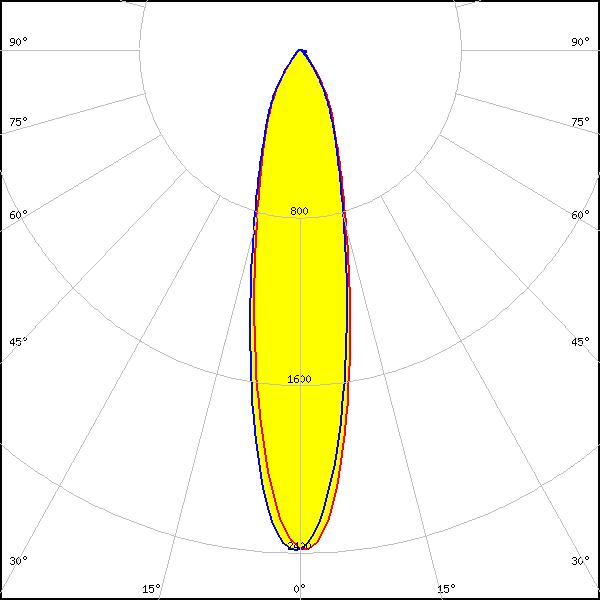

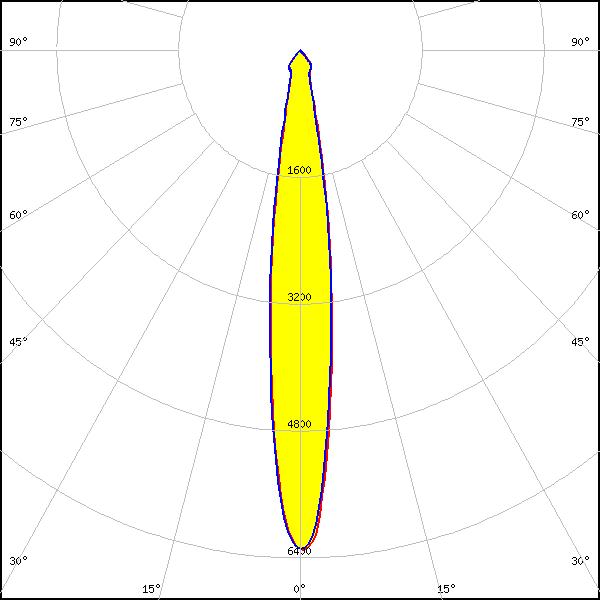

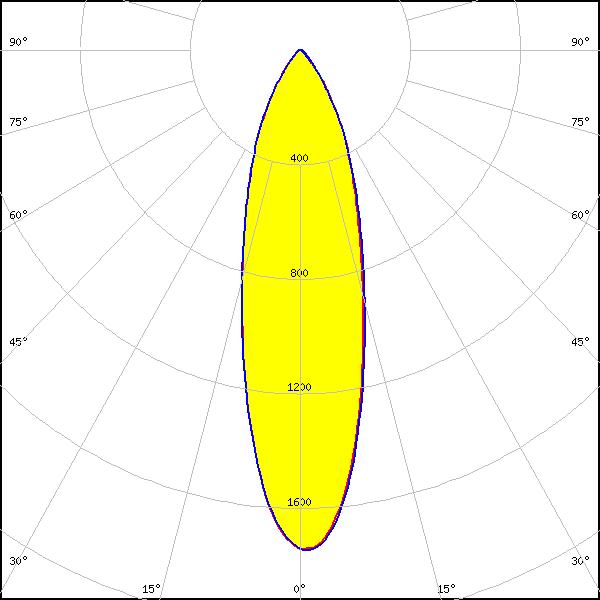

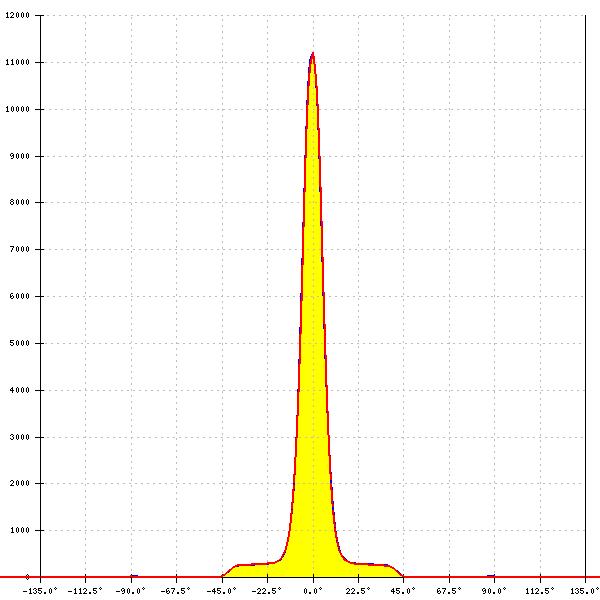

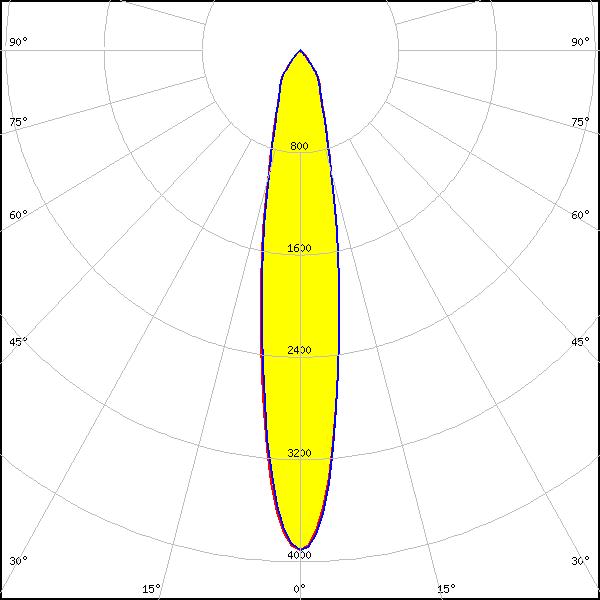

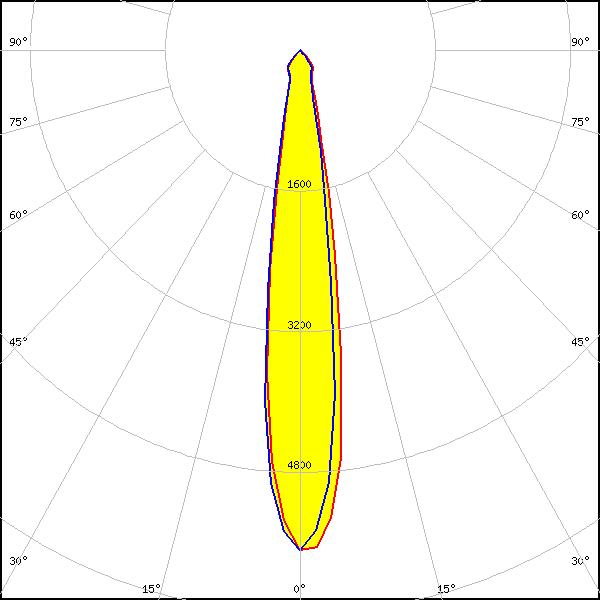

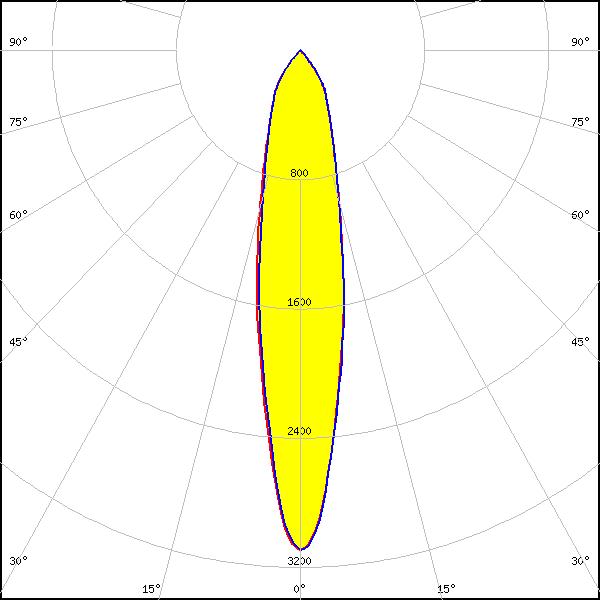

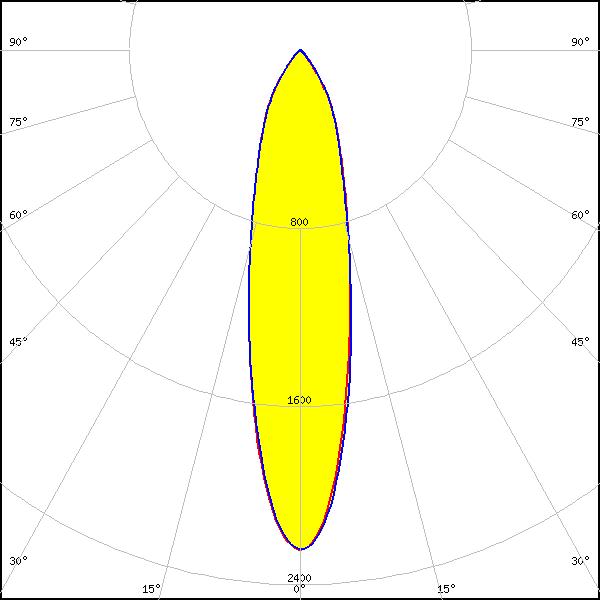

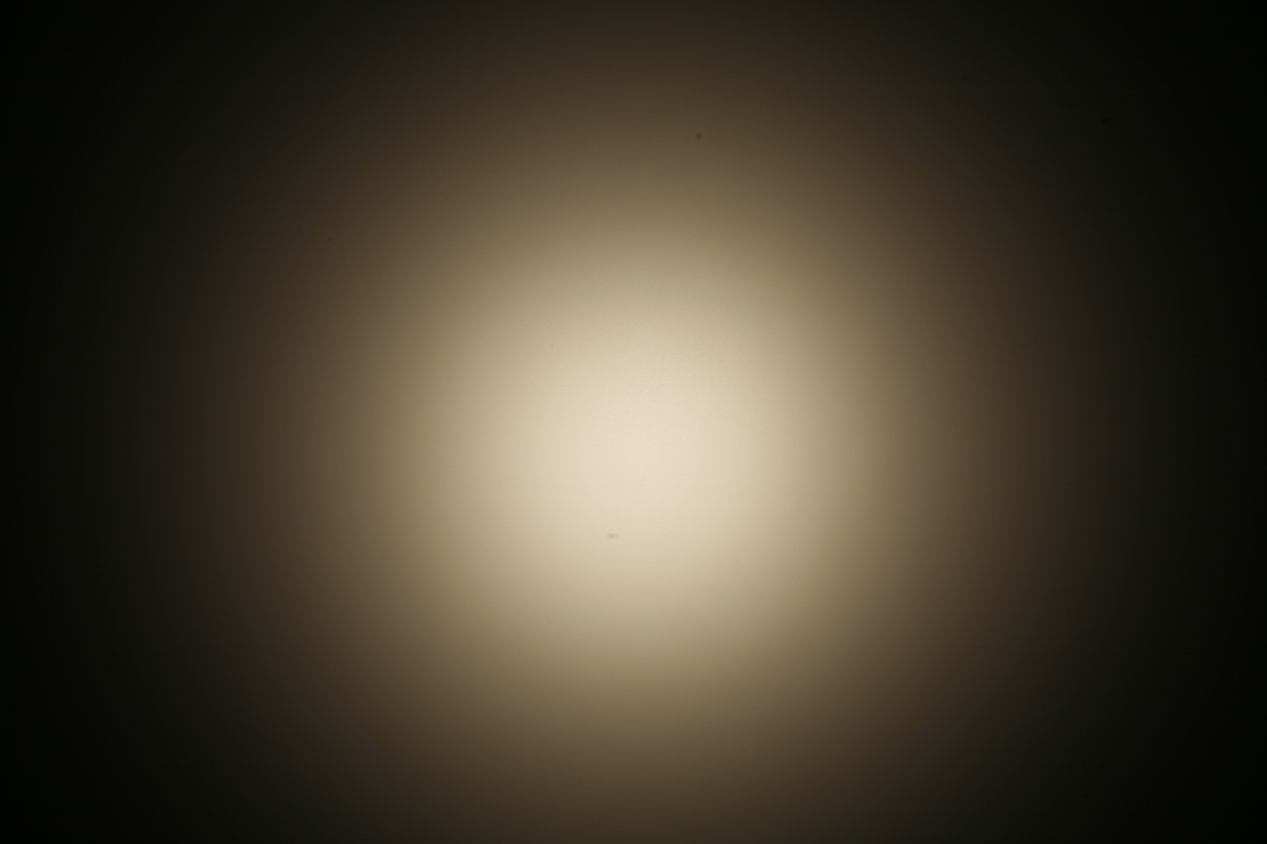

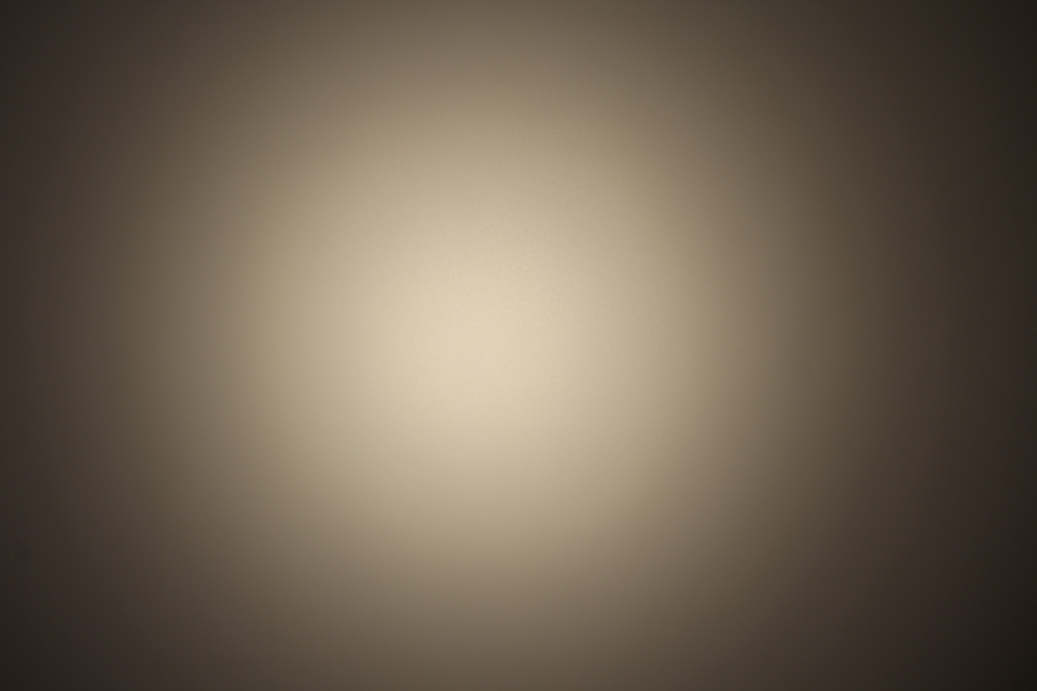

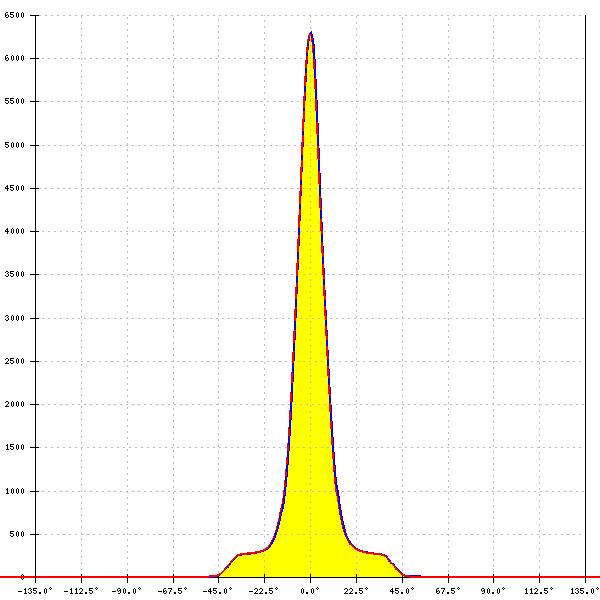

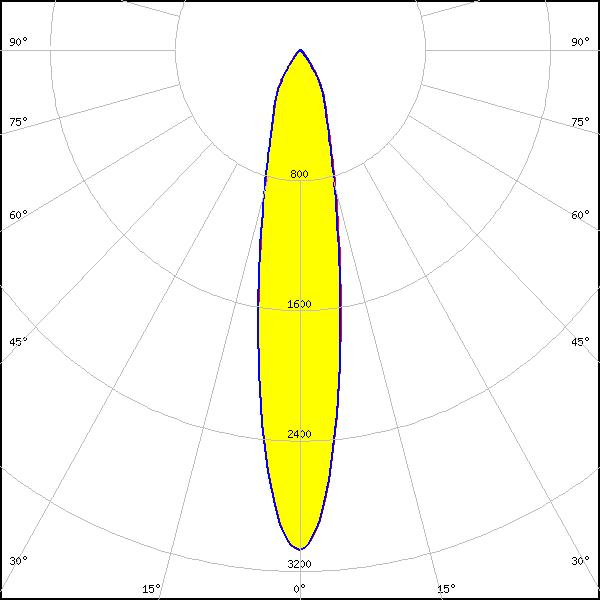

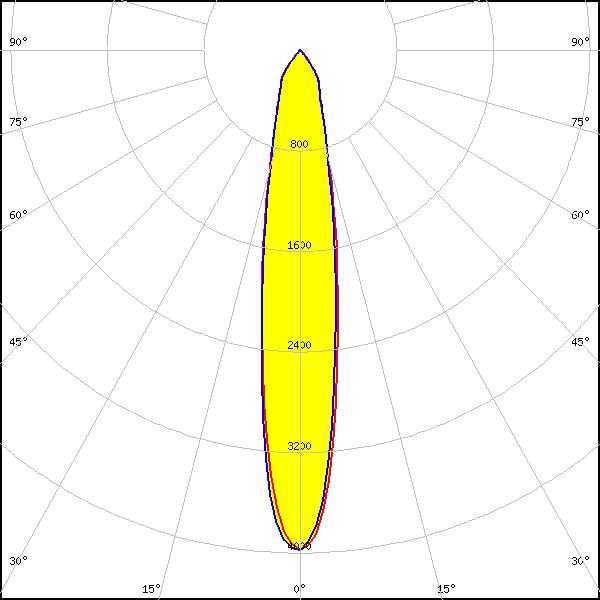

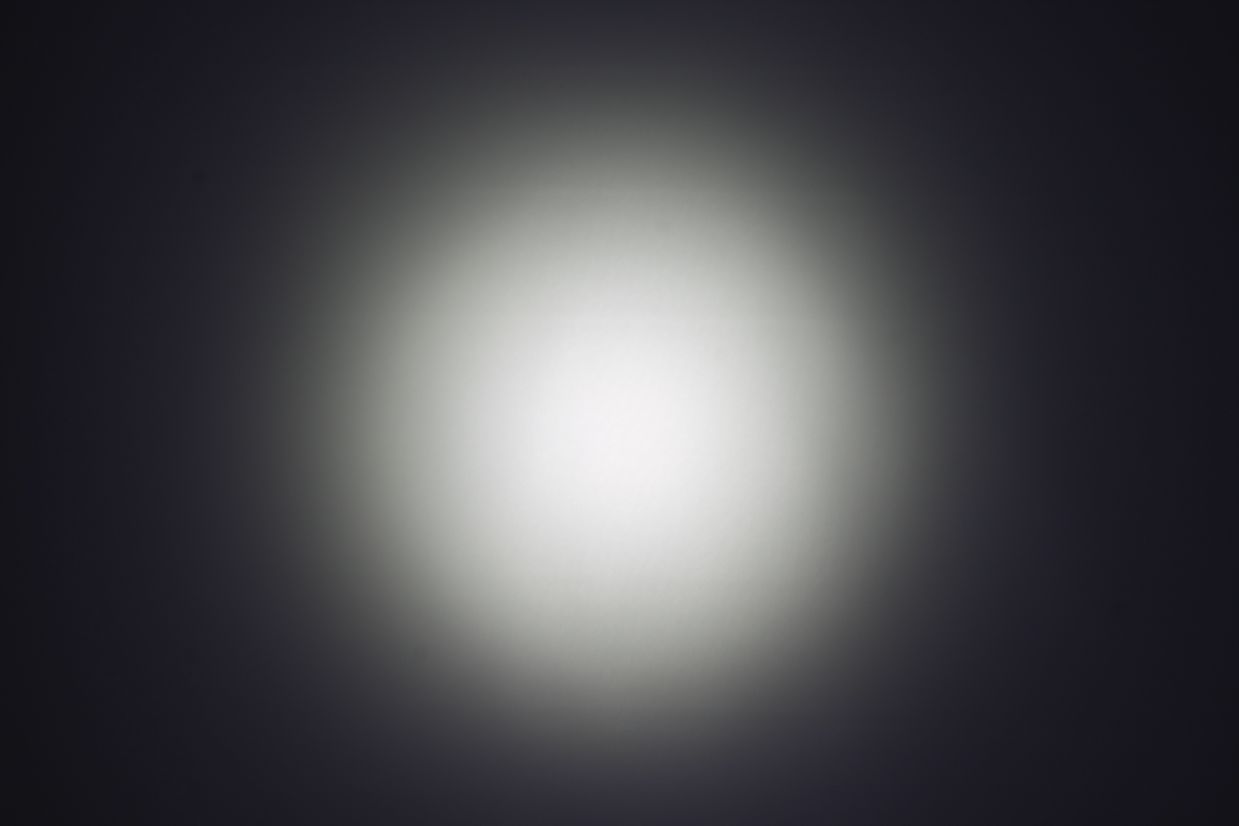

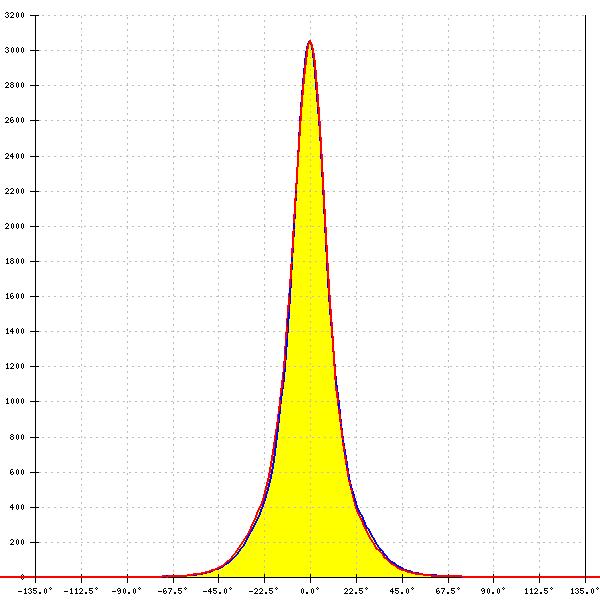

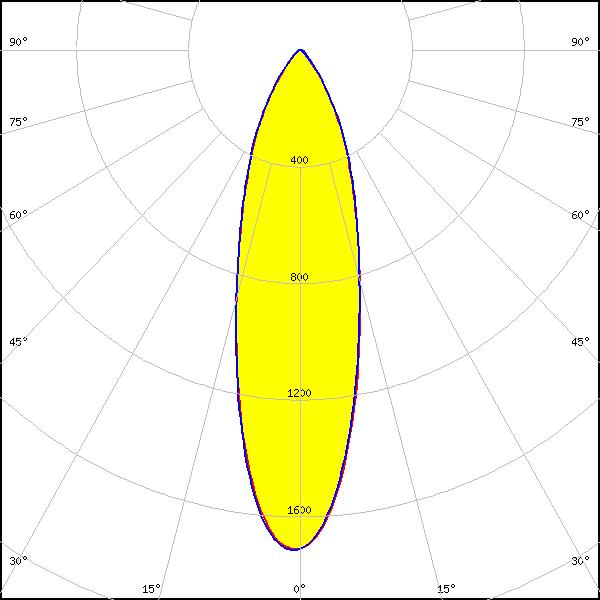

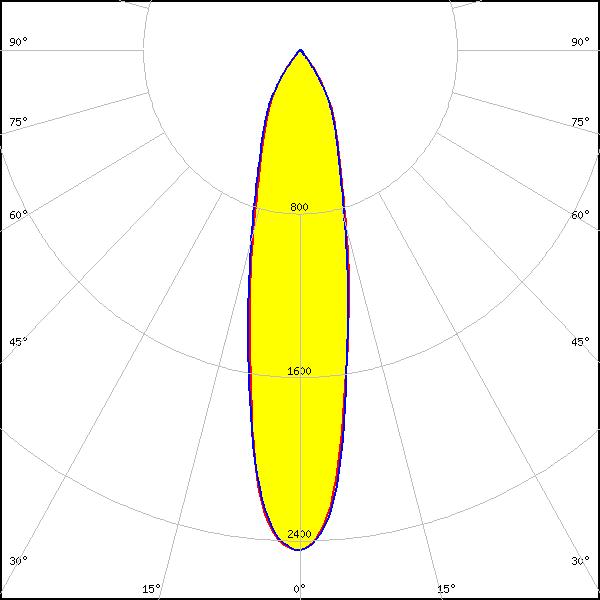

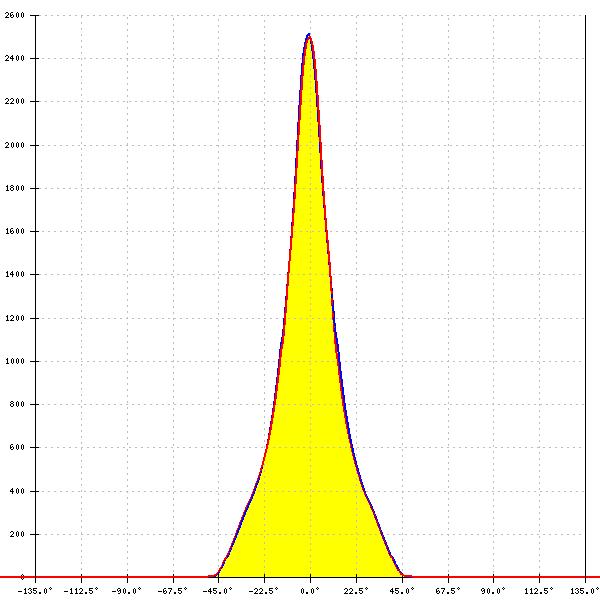

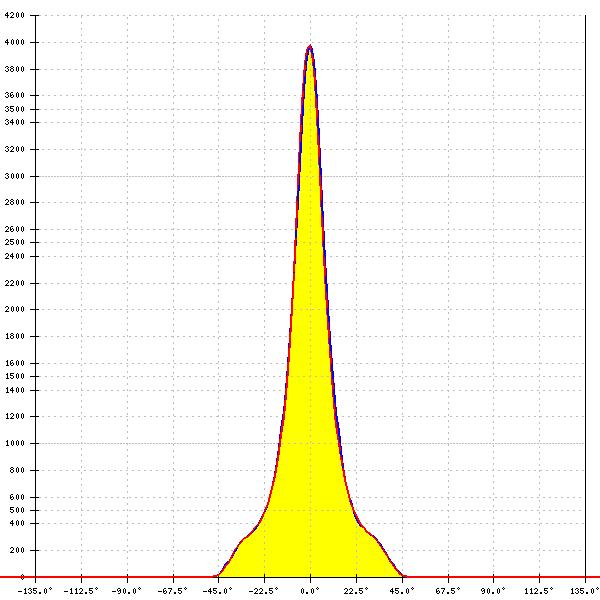

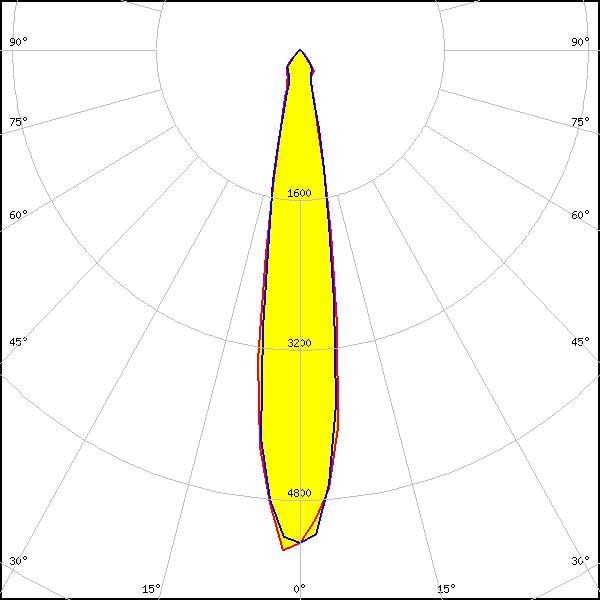

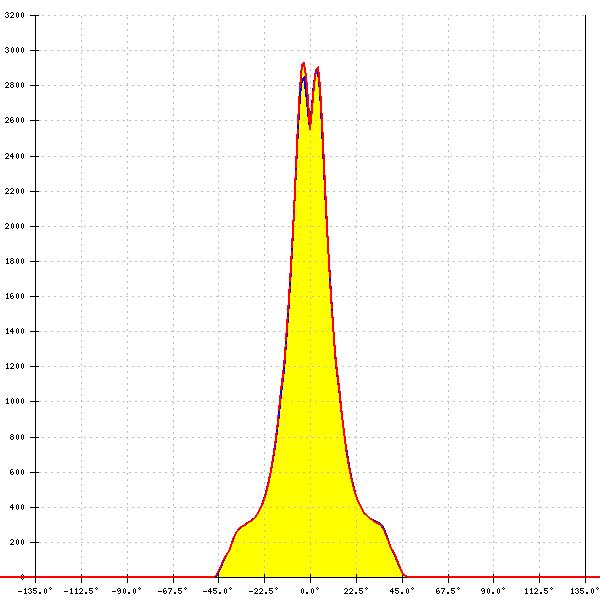

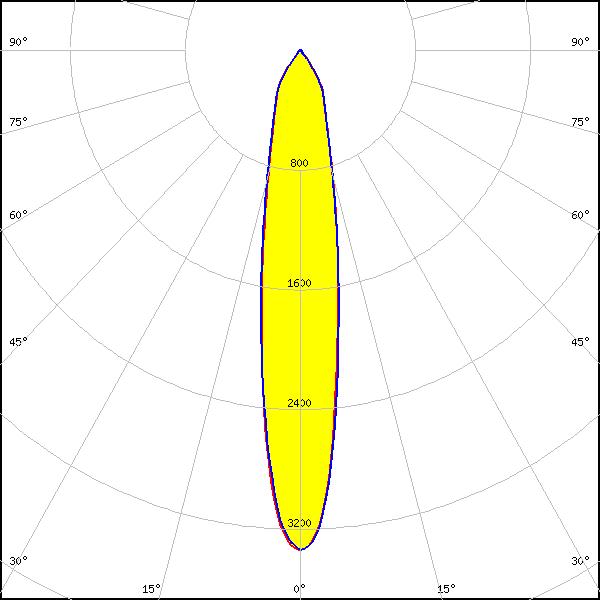

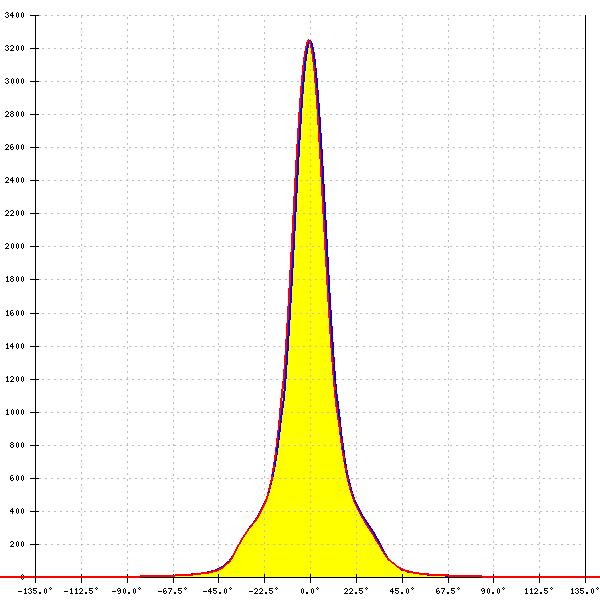

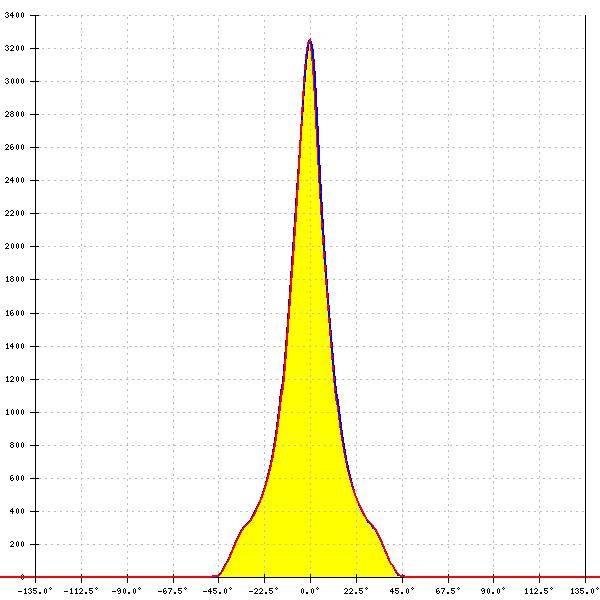

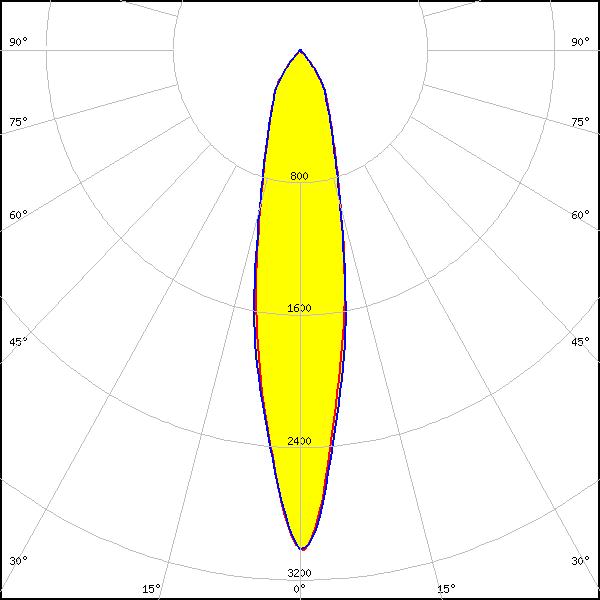

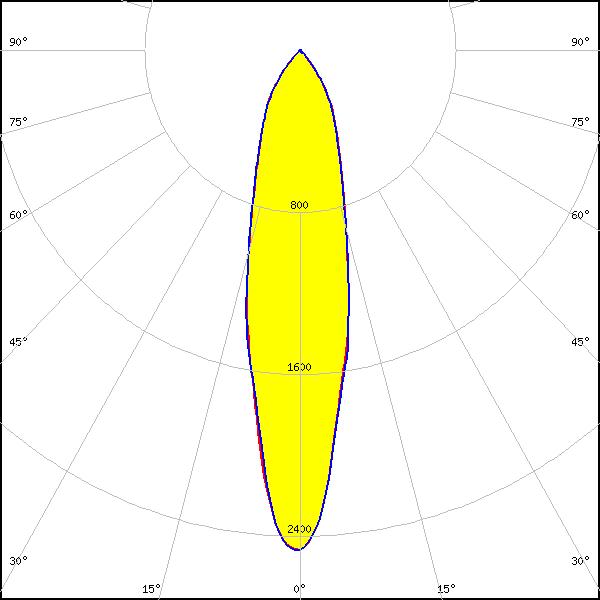

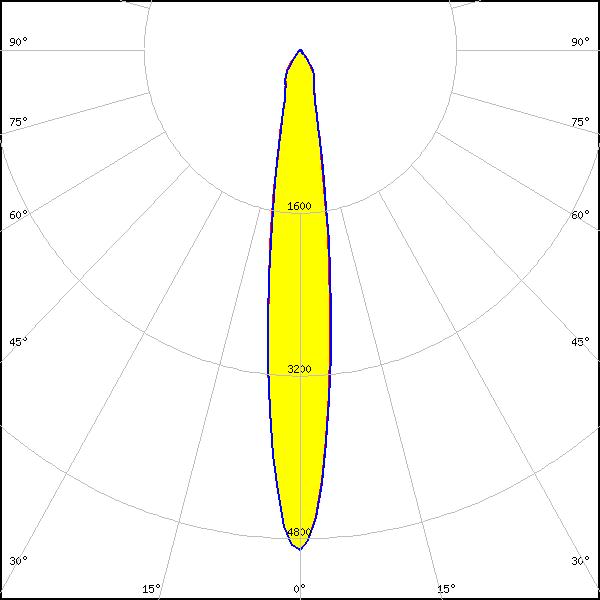

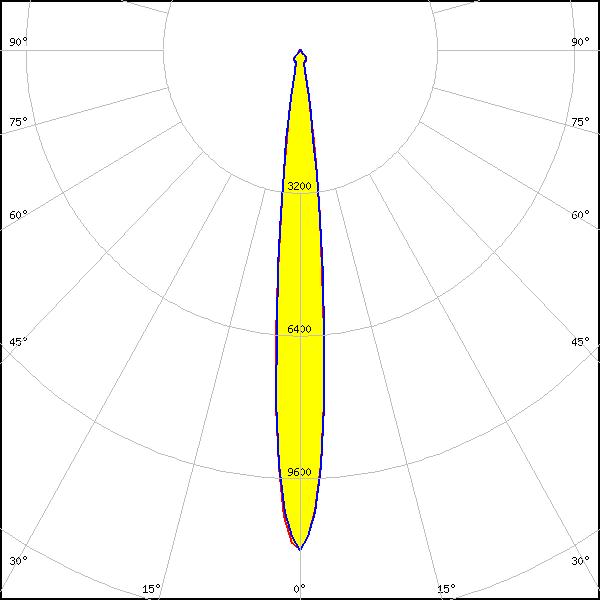

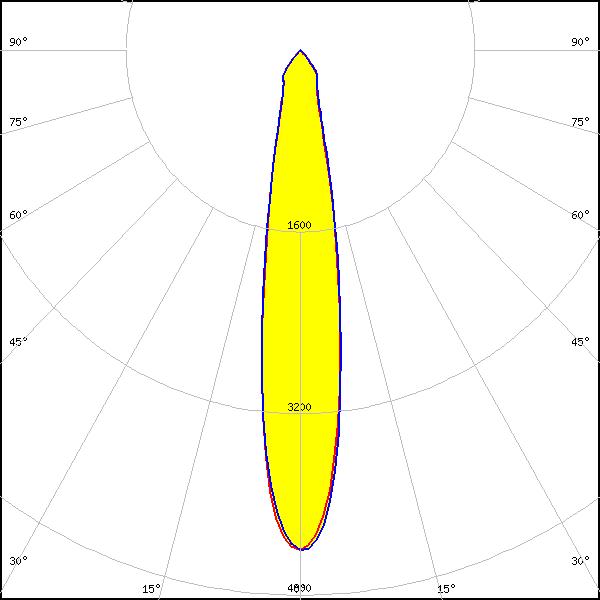

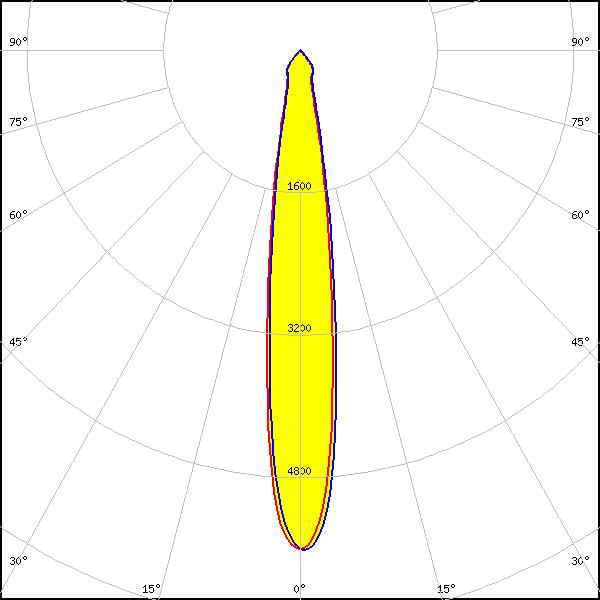

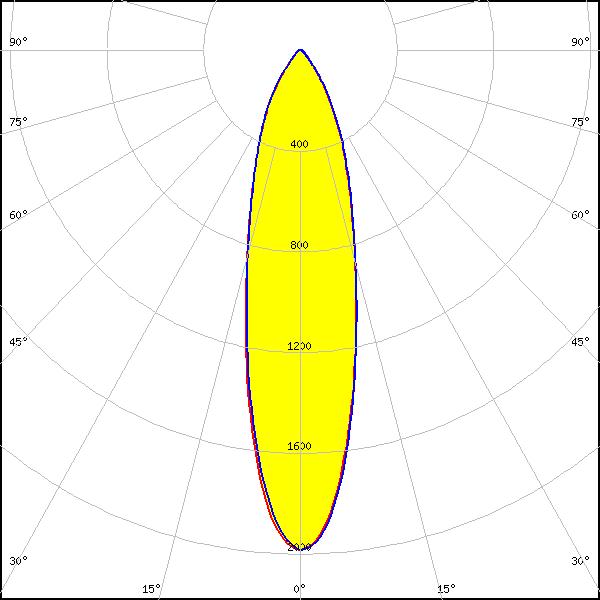

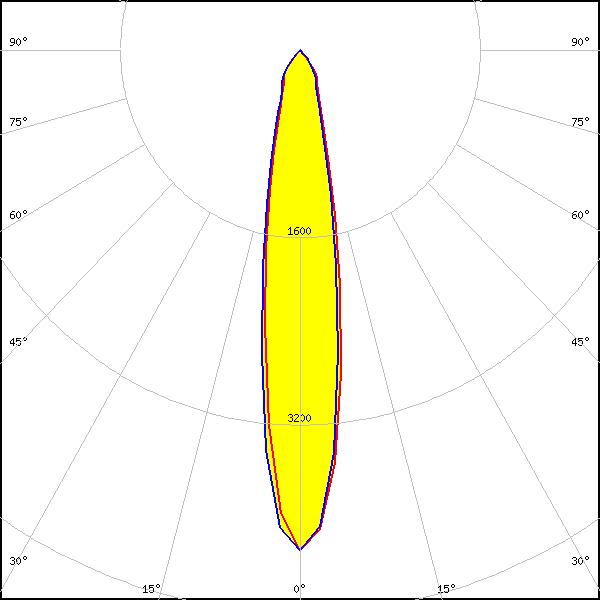

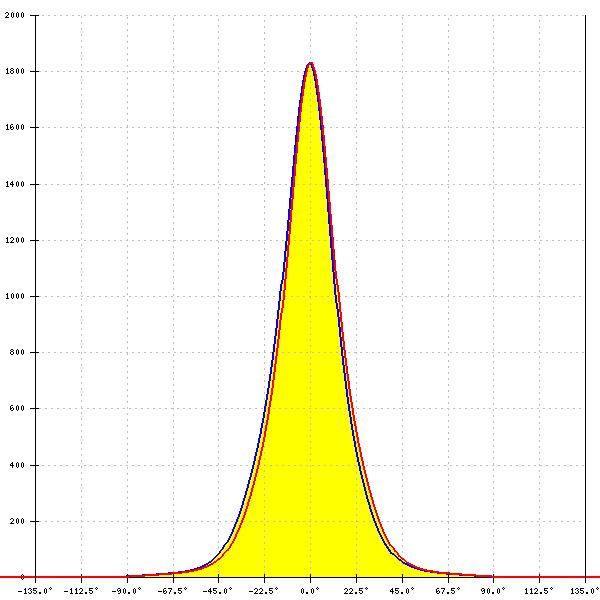

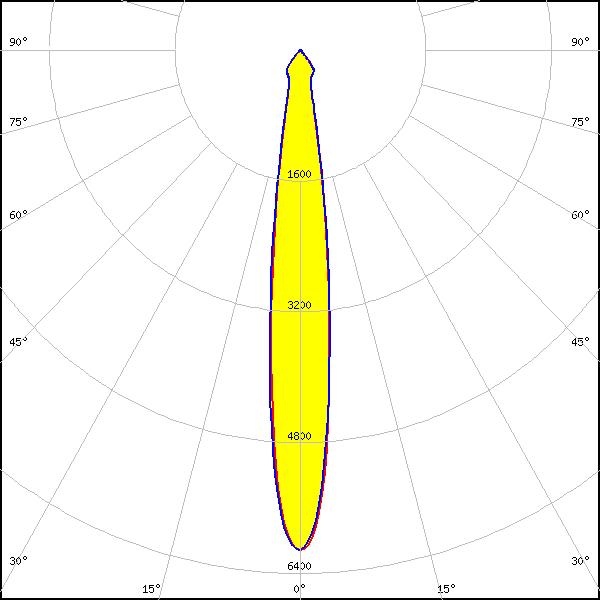

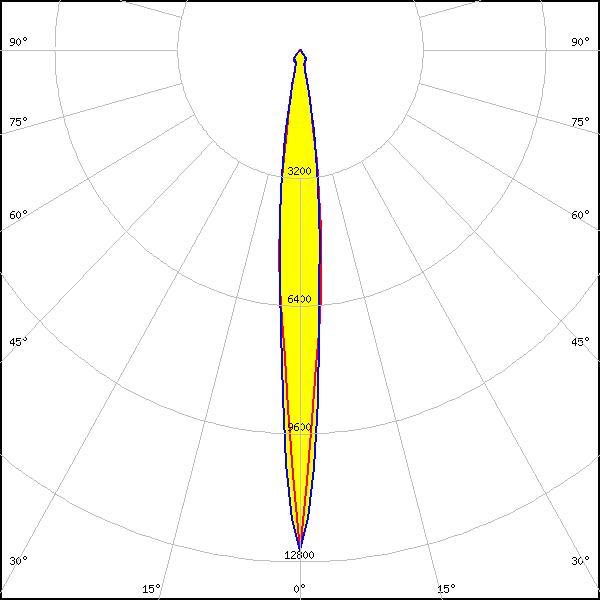

Optical results
LED:
V10 Gen7
LES size: 10.2 mm
Required components:
FWHM:
21°
FWTM:
61°
Peak intensity:
3.400 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V10 Gen7
LES size: 10.2 mm
Required components:
FWHM:
26°
FWTM:
66°
Peak intensity:
2.100 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V10 Gen7
LES size: 10.2 mm
Required components:
FWHM:
21°
FWTM:
61°
Peak intensity:
3.100 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 Gen6
LES size: 6.0 mm
Required components:
FWHM:
12°
FWTM:
25°
Peak intensity:
8.800 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 Gen6
LES size: 6.0 mm
Required components:
FWHM:
15°
FWTM:
33°
Peak intensity:
5.500 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 Gen6
LES size: 6.0 mm
Required components:
FWHM:
13°
FWTM:
26°
Peak intensity:
7.400 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V6 Gen6
LES size: 6.0 mm
Required components:
FWHM:
18°
FWTM:
52°
Peak intensity:
4.270 cd/lm
Efficiency:
73 %
LEDs/each optic:
1
Light colour/type:
White

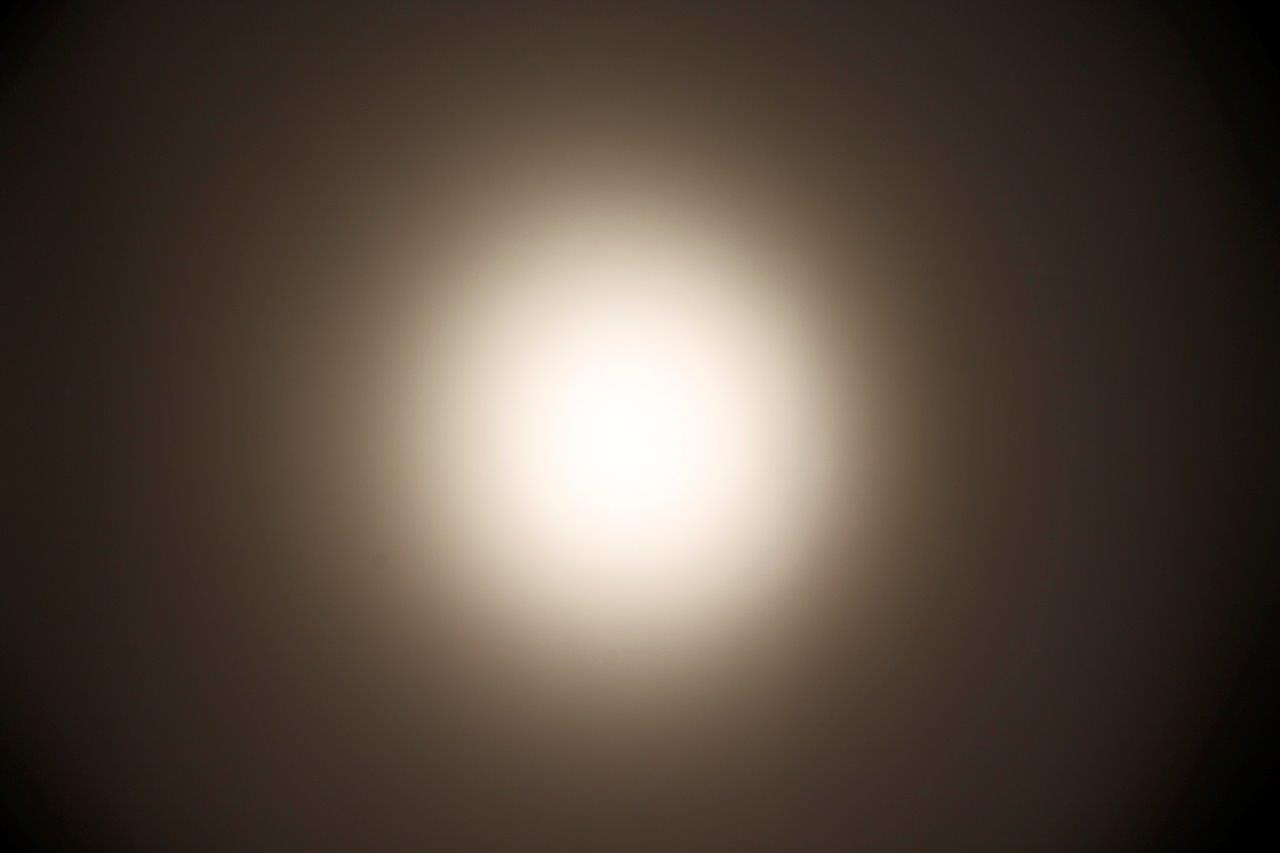

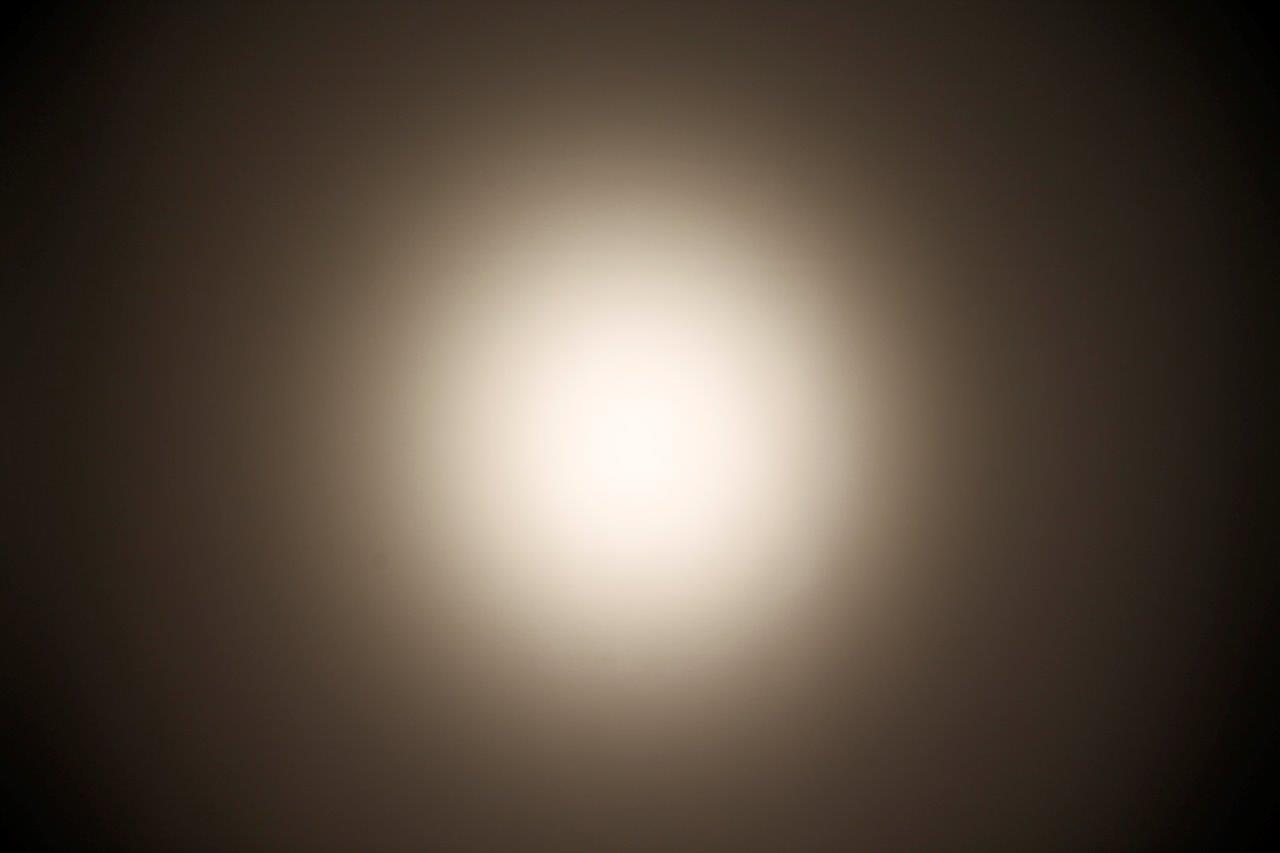

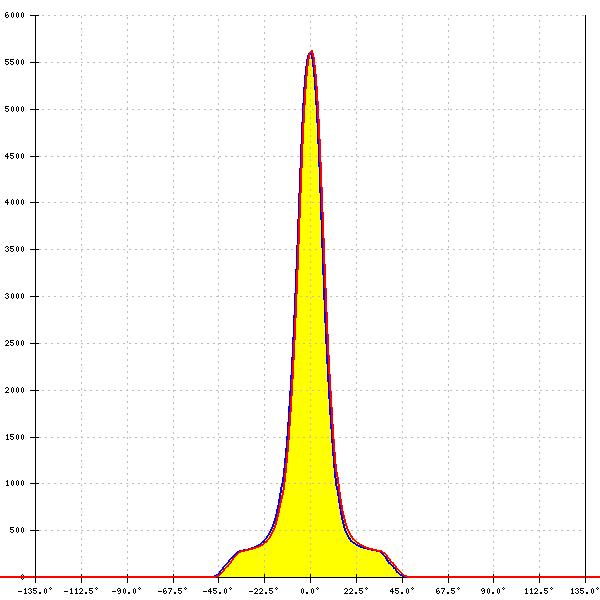

LED:
V8 Gen6
LES size: 8.1 mm
Required components:
FWHM:
15°
FWTM:
34°
Peak intensity:
5.600 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V8 Gen6
LES size: 8.1 mm
Required components:
FWHM:
18°
FWTM:
44°
Peak intensity:
4.100 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V8 Gen6
LES size: 8.1 mm
Required components:
FWHM:
16°
FWTM:
36°
Peak intensity:
4.900 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
V8 Gen6
LES size: 8.1 mm
Required components:
FWHM:
20°
FWTM:
62°
Peak intensity:
3.370 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White

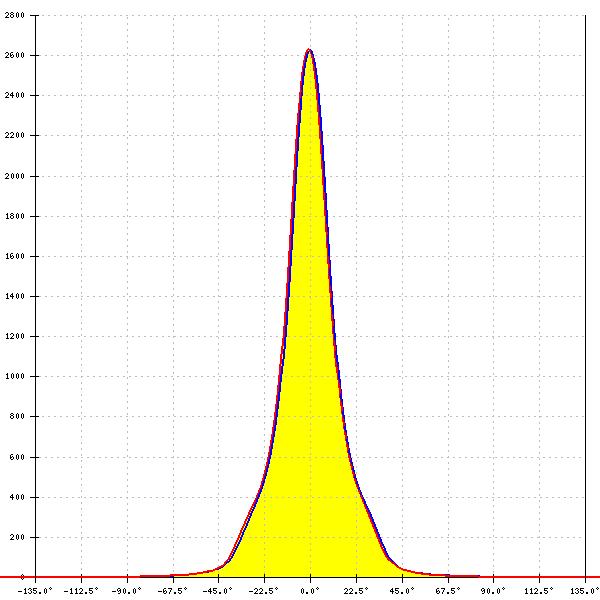

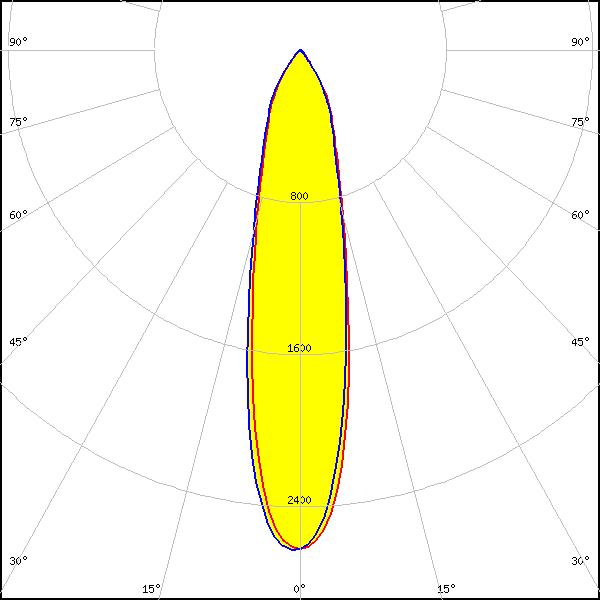

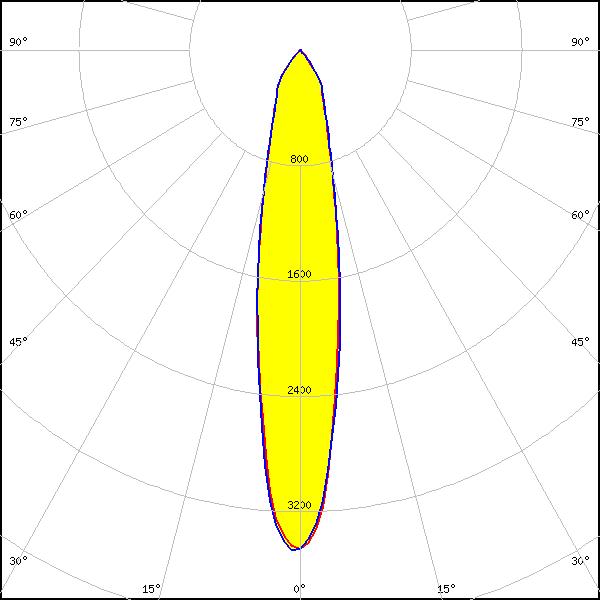

LED:
VERO10
LES size: 9.9 mm
Required components:
FWHM:
20°
FWTM:
57°
Peak intensity:
3.500 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO10
LES size: 9.9 mm
Required components:
FWHM:
23°
FWTM:
63°
Peak intensity:
2.600 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO10
LES size: 9.9 mm
Required components:
FWHM:
23°
FWTM:
63°
Peak intensity:
2.600 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

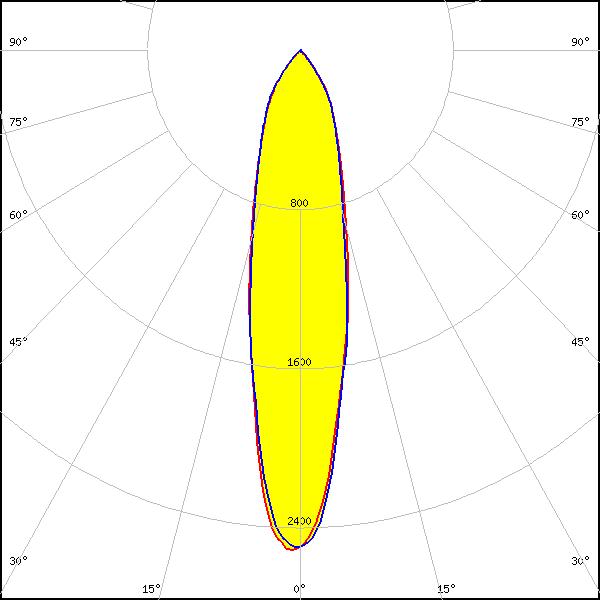

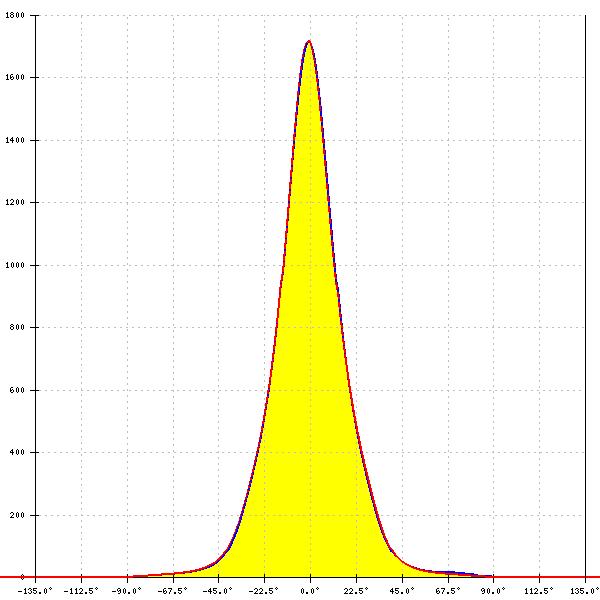

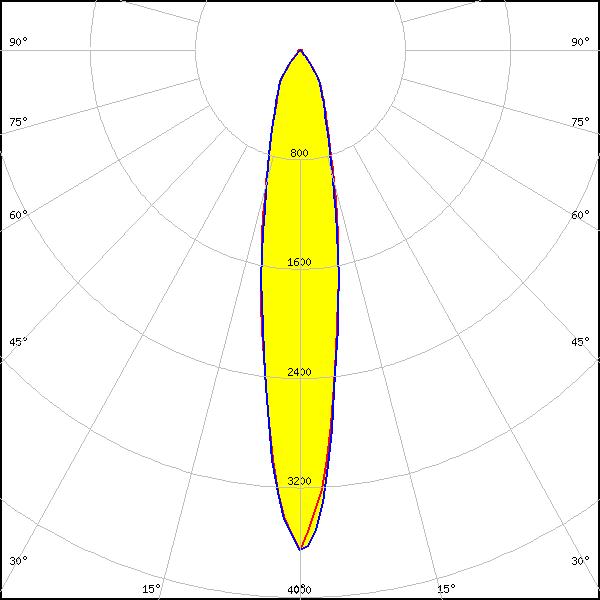

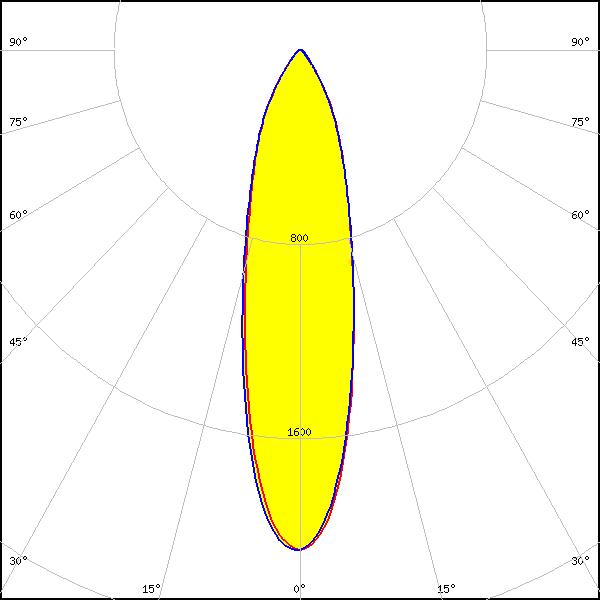

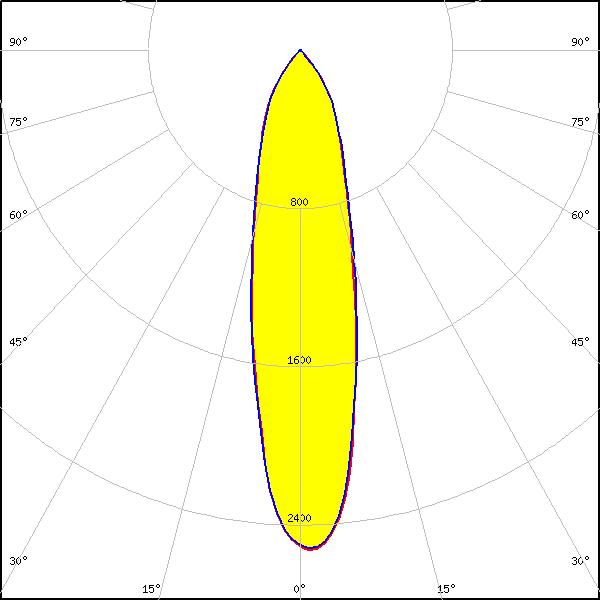

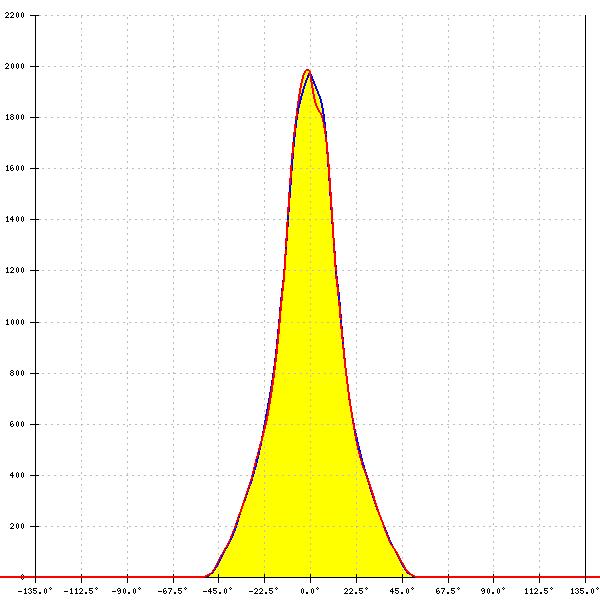

LED:
VERO13
LES size: 13.4 mm
Required components:
FWHM:
25°
FWTM:
69°
Peak intensity:
2.540 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO13
LES size: 13.4 mm
Required components:
FWHM:
28°
FWTM:
68°
Peak intensity:
2.100 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
VERO13
LES size: 13.4 mm
Required components:
FWHM:
26°
FWTM:
67°
Peak intensity:
2.320 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

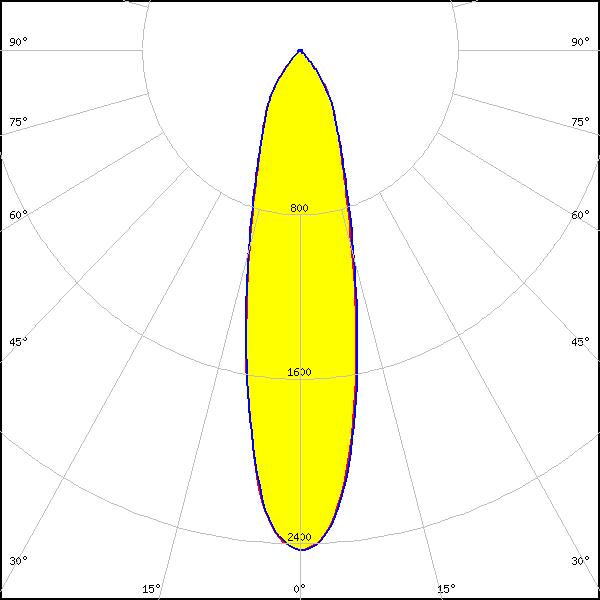

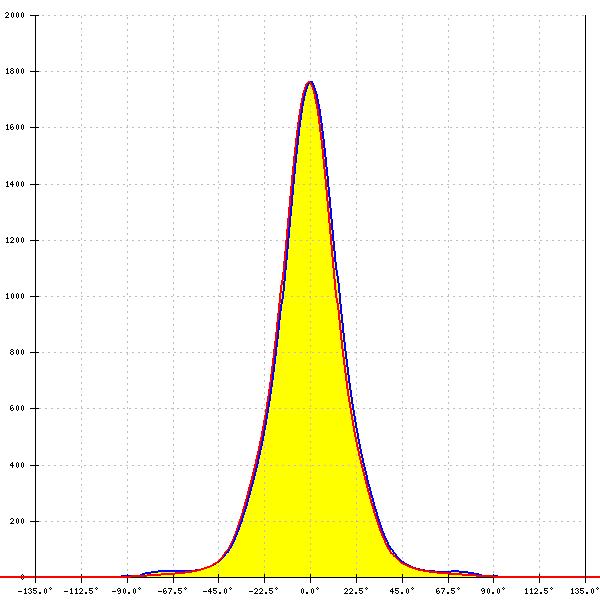

LED:
Xenio Point 13mm
LES size: 13.2 mm
Required components:
FWHM:
26°
FWTM:
69°
Peak intensity:
2.400 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Xenio Point 13mm
LES size: 13.2 mm
Required components:
FWHM:
31°
FWTM:
70°
Peak intensity:
1.760 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Xenio Point 13mm
LES size: 13.2 mm
Required components:
FWHM:
27°
FWTM:
67°
Peak intensity:
2.240 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

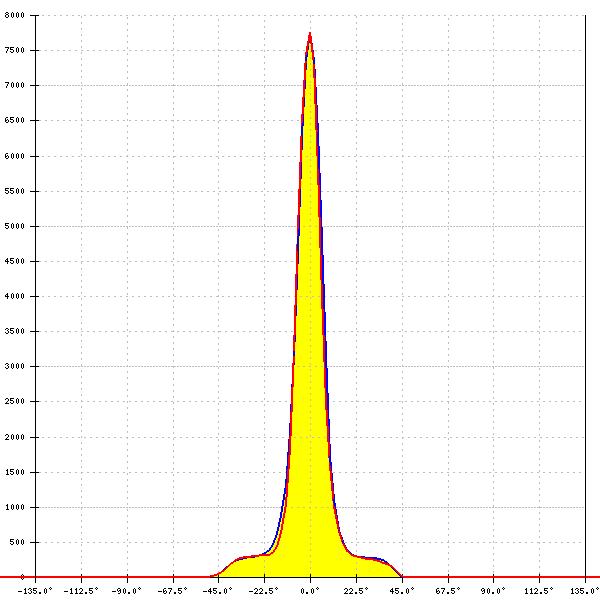

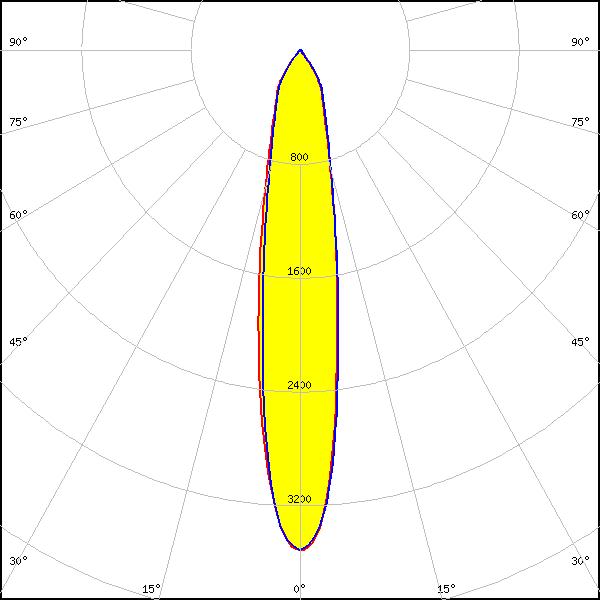

LED:
CLL01x
LES size: 6.0 mm
Required components:
FWHM:
14°
FWTM:
27°
Peak intensity:
7.700 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL01x
LES size: 6.0 mm
Required components:
FWHM:
15°
FWTM:
32°
Peak intensity:
5.800 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLL01x
LES size: 6.0 mm
Required components:
FWHM:
13°
FWTM:
27°
Peak intensity:
7.600 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
25°
FWTM:
64°
Peak intensity:
1.500 cd/lm
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
21°
FWTM:
63°
Peak intensity:
3.100 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
27°
FWTM:
67°
Peak intensity:
2.000 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
20°
FWTM:
61°
Peak intensity:
3.100 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
19°
FWTM:
46°
Peak intensity:
4.200 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
20°
FWTM:
54°
Peak intensity:
4.200 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM:
18°
FWTM:
43°
Peak intensity:
5.100 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

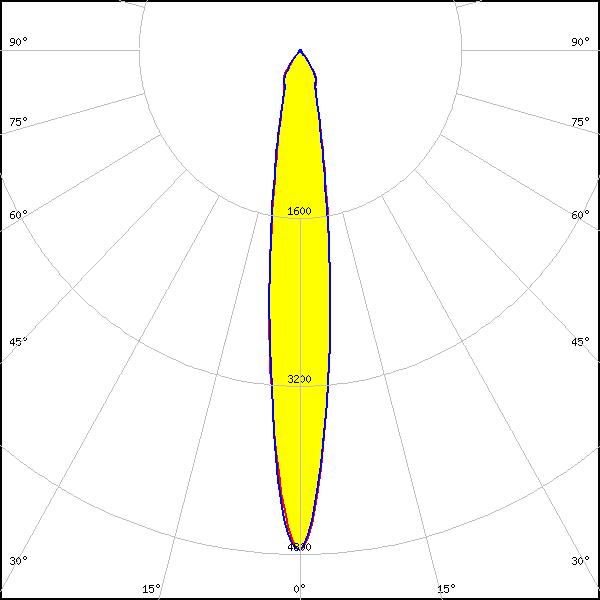

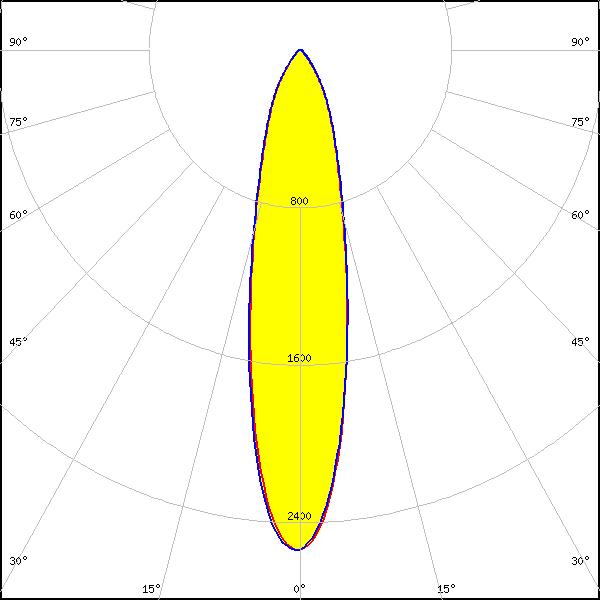

LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
23°
FWTM:
61°
Peak intensity:
2.500 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
19°
FWTM:
47°
Peak intensity:
4.000 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
20°
FWTM:
58°
Peak intensity:
3.100 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
14°
FWTM:
40°
Peak intensity:
4.800 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
13°
FWTM:
29°
Peak intensity:
7.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
17°
FWTM:
47°
Peak intensity:
4.000 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM:
13°
FWTM:
30°
Peak intensity:
6.600 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM:
23°
FWTM:
67°
Peak intensity:
2.600 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM:
29°
FWTM:
69°
Peak intensity:
1.700 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM:
23°
FWTM:
64°
Peak intensity:
2.500 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM:
15°
FWTM:
36°
Peak intensity:
5.400 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

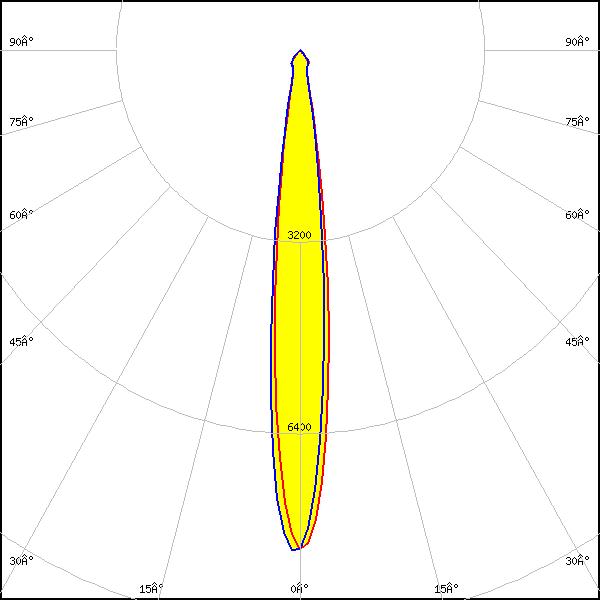

LED:
CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM:
12°
FWTM:
25°
Peak intensity:
8.500 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM:
12°
FWTM:
25°
Peak intensity:
9.500 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

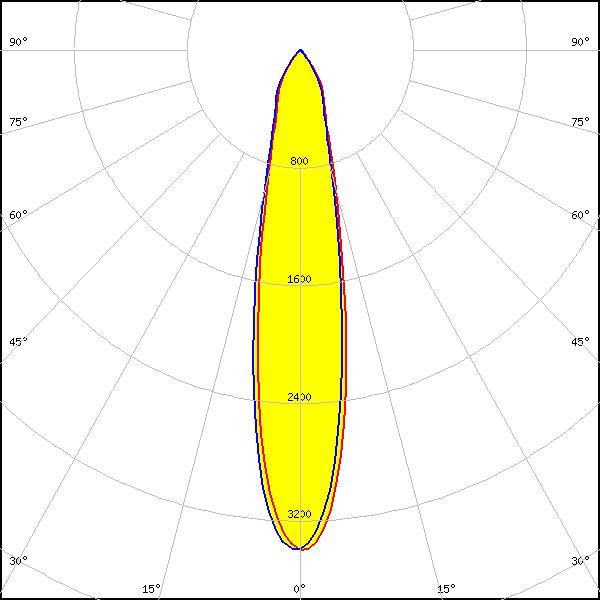

LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
21°
FWTM:
56°
Peak intensity:
3.400 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
19°
FWTM:
47°
Peak intensity:
4.300 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
27°
FWTM:
65°
Peak intensity:
2.300 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
20°
FWTM:
60°
Peak intensity:
3.300 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
26°
FWTM:
66°
Peak intensity:
2.100 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
19°
FWTM:
59°
Peak intensity:
3.300 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM:
18°
FWTM:
43°
Peak intensity:
4.400 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

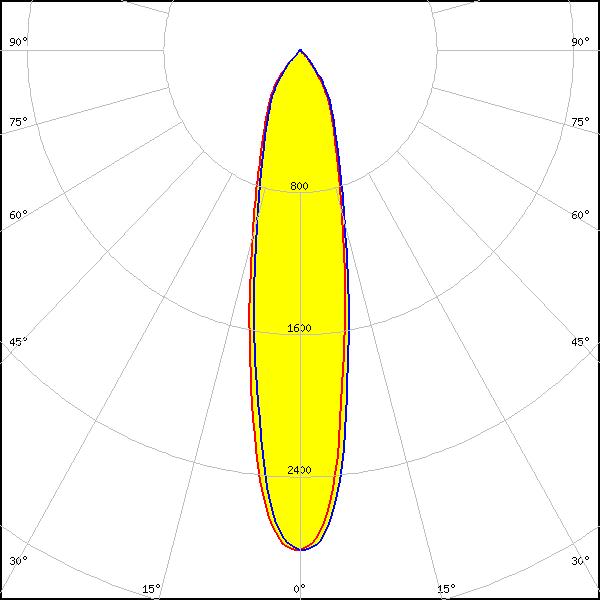

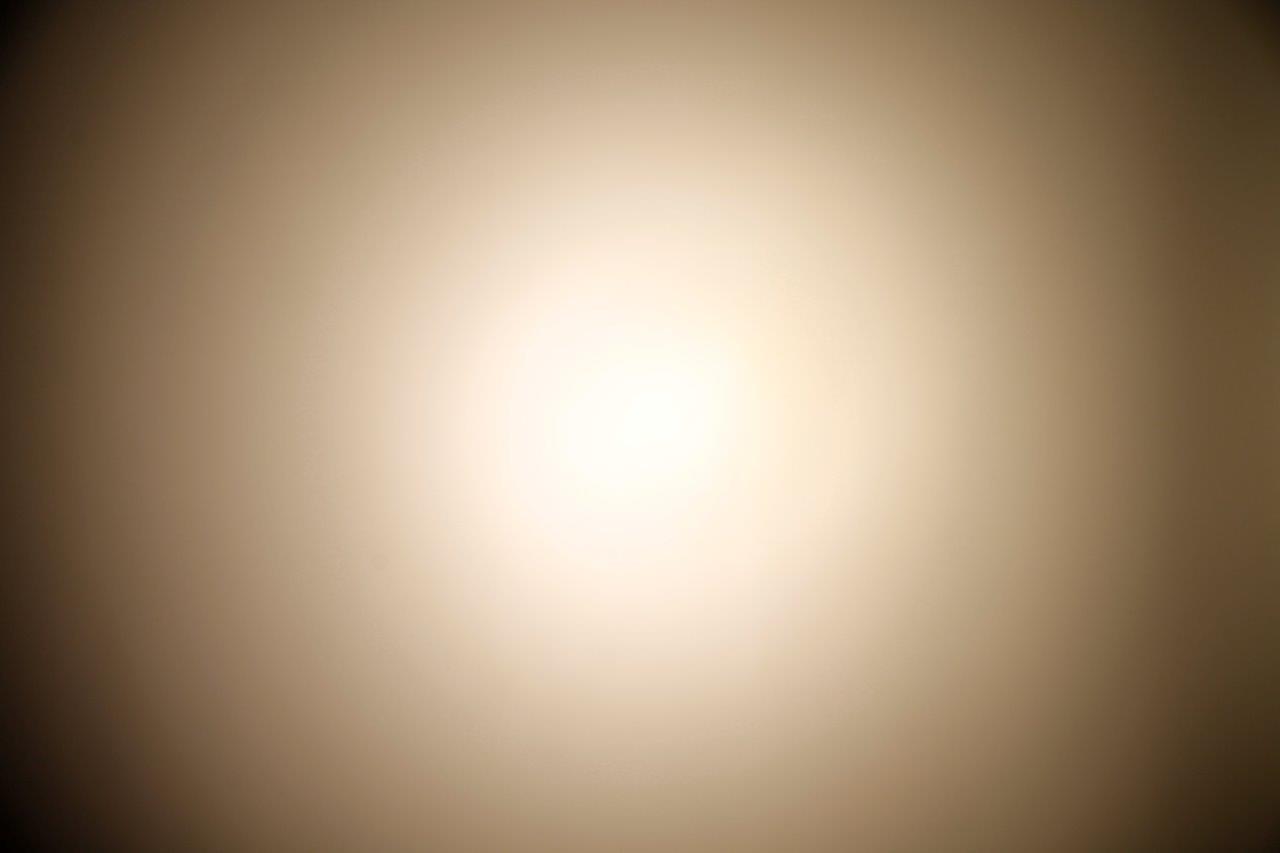

LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM:
25°
FWTM:
68°
Peak intensity:
2.700 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
IDEAL: 50-2101CR
IDEAL: 50-2100MR
IDEAL: 50-2100MR
FWHM:
23°
FWTM:
67°
Peak intensity:
2.800 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MHD-E/G
LES size: 0.0 mm
Required components:
FWHM:
24°
FWTM:
65°
Peak intensity:
2.300 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MHD-E/G
LES size: 0.0 mm
Required components:
FWHM:
14°
FWTM:
31°
Peak intensity:
6.100 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MHD-E/G
LES size: 0.0 mm
Required components:
FWHM:
17°
FWTM:
44°
Peak intensity:
4.100 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MHD-E/G
LES size: 0.0 mm
Required components:
FWHM:
15°
FWTM:
32°
Peak intensity:
5.400 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MK-R
LES size: 0.0 mm
Required components:
FWHM:
12°
FWTM:
27°
Peak intensity:
8.100 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MK-R
LES size: 0.0 mm
Required components:
FWHM:
15°
FWTM:
37°
Peak intensity:
4.900 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MT-G
LES size: 0.0 mm
Required components:
FWHM:
17°
FWTM:
34°
Peak intensity:
5.300 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MT-G
LES size: 0.0 mm
Required components:
FWHM:
19°
FWTM:
46°
Peak intensity:
4.400 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MT-G
LES size: 0.0 mm
Required components:
FWHM:
18°
FWTM:
34°
Peak intensity:
5.500 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MT-G2
LES size: 0.0 mm
Required components:
FWHM:
18°
FWTM:
35°
Peak intensity:
4.200 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MT-G2
LES size: 0.0 mm
Required components:
FWHM:
18°
FWTM:
43°
Peak intensity:
4.600 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MT-G2
LES size: 0.0 mm
Required components:
FWHM:
16°
FWTM:
33°
Peak intensity:
5.800 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP50
LES size: 0.0 mm
Required components:
FWHM:
22°
FWTM:
60°
Peak intensity:
2.600 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP50
LES size: 0.0 mm
Required components:
FWHM:
11°
FWTM:
23°
Peak intensity:
9.200 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP50
LES size: 0.0 mm
Required components:
FWHM:
15°
FWTM:
34°
Peak intensity:
5.300 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP50
LES size: 0.0 mm
Required components:
FWHM:
12°
FWTM:
25°
Peak intensity:
7.600 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP50.2
LES size: 0.0 mm
FWHM:
11°
FWTM:
22°
Peak intensity:
11.200 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP70
LES size: 0.0 mm
Required components:
FWHM:
24°
FWTM:
62°
Peak intensity:
2.400 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP70
LES size: 0.0 mm
Required components:
FWHM:
15°
FWTM:
31°
Peak intensity:
0.630 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP70
LES size: 0.0 mm
Required components:
FWHM:
17°
FWTM:
40°
Peak intensity:
4.300 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XHP70
LES size: 0.0 mm
Required components:
FWHM:
16°
FWTM:
32°
Peak intensity:
5.300 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L RGBW (XMLCTW)
LES size: 0.0 mm
Required components:
FWHM:
22°
FWTM:
55°
Peak intensity:
3.060 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XQ-E HI
LES size: 0.0 mm
Required components:
FWHM:
21°
FWTM:
58°
Peak intensity:
3.140 cd/lm
Efficiency:
86 %
LEDs/each optic:
4
Light colour/type:
RGBW
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
20°
FWTM:
61°
Peak intensity:
3.200 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
19°
FWTM:
50°
Peak intensity:
4.000 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
27°
FWTM:
67°
Peak intensity:
1.900 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
20°
FWTM:
61°
Peak intensity:
3.100 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
22°
FWTM:
61°
Peak intensity:
2.900 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM:
19°
FWTM:
59°
Peak intensity:
3.300 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
IDEAL: 50-2100NC +50-2100MR
FWHM:
19°
FWTM:
58°
Peak intensity:
3.500 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM:
13°
FWTM:
30°
Peak intensity:
7.900 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM:
15°
FWTM:
36°
Peak intensity:
5.900 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM:
13°
FWTM:
28°
Peak intensity:
7.600 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM:
23°
FWTM:
63°
Peak intensity:
2.400 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB Compact
LES size: 6.5 mm
Required components:
FWHM:
13°
FWTM:
30°
Peak intensity:
7.900 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB Compact
LES size: 6.5 mm
Required components:
FWHM:
15°
FWTM:
36°
Peak intensity:
4.800 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB Compact
LES size: 6.5 mm
Required components:
FWHM:
13°
FWTM:
28°
Peak intensity:
7.600 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CoB Compact
LES size: 6.5 mm
Required components:
FWHM:
23°
FWTM:
63°
Peak intensity:
2.400 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K4
LES size: 7.7 mm
Required components:
FWHM:
42°
FWTM:
87°
Peak intensity:
1.210 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON K4
LES size: 7.7 mm
Required components:
FWHM:
24°
FWTM:
72°
Peak intensity:
2.880 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Z
LES size: 0.0 mm
Required components:
FWHM:
21°
FWTM:
54°
Peak intensity:
3.200 cd/lm
Efficiency:
78 %
LEDs/each optic:
4
Light colour/type:
RGBW
LED:
CxM-14 (19x19)
LES size: 14.3 mm
Required components:
FWHM:
29°
FWTM:
72°
Peak intensity:
1.800 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.3 mm
Required components:
FWHM:
33°
FWTM:
72°
Peak intensity:
1.400 cd/lm
Efficiency:
69 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-14 (19x19)
LES size: 14.3 mm
Required components:
FWHM:
31°
FWTM:
70°
Peak intensity:
1.700 cd/lm
Efficiency:
72 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-6 (12x13)
LES size: 6.3 mm
Required components:
FWHM:
14°
FWTM:
32°
Peak intensity:
6.700 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CXM-7 (13x13)
LES size: 7.5 mm
Required components:
FWHM:
17°
FWTM:
38°
Peak intensity:
5.100 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.6 mm
Required components:
FWHM:
21°
FWTM:
63°
Peak intensity:
3.100 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.6 mm
Required components:
FWHM:
27°
FWTM:
67°
Peak intensity:
2.000 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.6 mm
Required components:
FWHM:
20°
FWTM:
61°
Peak intensity:
3.100 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.6 mm
Required components:
FWHM:
30°
FWTM:
70°
Peak intensity:
1.800 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.6 mm
Required components:
FWHM:
23°
FWTM:
61°
Peak intensity:
2.900 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CxM-9 (13.5x13.5)
LES size: 9.6 mm
Required components:
FWHM:
21°
FWTM:
58°
Peak intensity:
3.300 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
24°
FWTM:
68°
Peak intensity:
2.500 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
25°
FWTM:
68°
Peak intensity:
2.540 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
30°
FWTM:
70°
Peak intensity:
1.700 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
24°
FWTM:
65°
Peak intensity:
2.400 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
26°
FWTM:
67°
Peak intensity:
2.100 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM:
24°
FWTM:
65°
Peak intensity:
2.500 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
IDEAL: 50-2100NC +50-2100MR
FWHM:
25°
FWTM:
68°
Peak intensity:
2.500 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
19°
FWTM:
57°
Peak intensity:
3.400 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
19°
FWTM:
52°
Peak intensity:
3.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
27°
FWTM:
67°
Peak intensity:
2.000 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
18°
FWTM:
58°
Peak intensity:
3.300 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
24°
FWTM:
66°
Peak intensity:
2.200 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM:
18°
FWTM:
56°
Peak intensity:
3.500 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
IDEAL: 50-2100NC +50-2100MR
FWHM:
22°
FWTM:
64°
Peak intensity:
3.000 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 7)
LES size: 6.7 mm
Required components:
FWHM:
19°
FWTM:
49°
Peak intensity:
3.900 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 7)
LES size: 6.7 mm
Required components:
FWHM:
23°
FWTM:
63°
Peak intensity:
2.400 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
COB S-Type (LES 7)
LES size: 6.7 mm
Required components:
FWHM:
15°
FWTM:
41°
Peak intensity:
4.900 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NSCxL036A
LES size: 7.0 mm
Required components:
FWHM:
16°
FWTM:
38°
Peak intensity:
5.060 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S10
LES size: 0.0 mm
Required components:
FWHM:
22°
FWTM:
61°
Peak intensity:
3.000 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S10
LES size: 0.0 mm
Required components:
FWHM:
13°
FWTM:
31°
Peak intensity:
6.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S10
LES size: 0.0 mm
Required components:
FWHM:
18°
FWTM:
54°
Peak intensity:
3.600 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S10
LES size: 0.0 mm
Required components:
FWHM:
13°
FWTM:
30°
Peak intensity:
6.500 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
LES size: 0.0 mm
Required components:
FWHM:
10°
FWTM:
24°
Peak intensity:
12.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S8
LES size: 0.0 mm
Required components:
FWHM:
14°
FWTM:
29°
Peak intensity:
7.400 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSTAR Stage (S2WP)
LES size: 0.0 mm
Required components:
FWHM:
21°
FWTM:
58°
Peak intensity:
3.340 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Ostar-SMT RGB
LES size: 0.0 mm
Required components:
FWHM:
20°
FWTM:
55°
Peak intensity:
3.400 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S15
LES size: 14.7 mm
Required components:
FWHM:
28°
FWTM:
74°
Peak intensity:
1.990 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

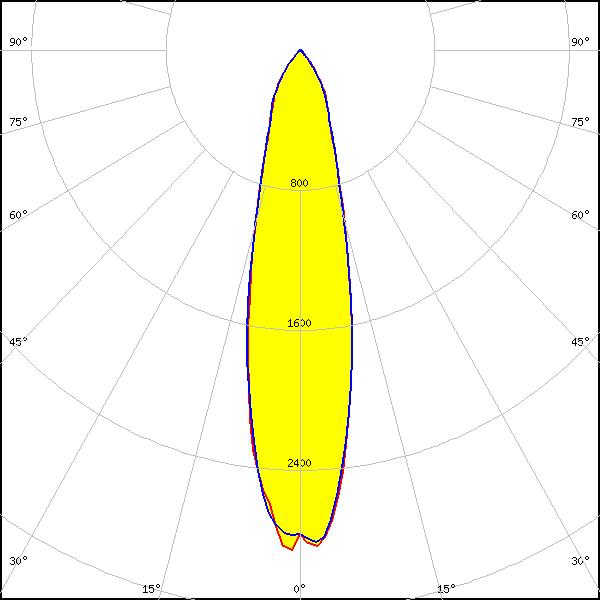

Soleriq S9
LES size: 9.8 mm
Required components:
FWHM:
19°
FWTM:
56°
Peak intensity:
3.700 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S9
LES size: 9.8 mm
Required components:
FWHM:
21°
FWTM:
54°
Peak intensity:
3.500 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S9
LES size: 9.8 mm
Required components:
FWHM:
24°
FWTM:
61°
Peak intensity:
2.900 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Soleriq S9
LES size: 9.8 mm
Required components:
FWHM:
24°
FWTM:
61°
Peak intensity:
2.900 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC010C
LES size: 6.0 mm
Required components:
FWHM:
16°
FWTM:
41°
Peak intensity:
4.800 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC020C
LES size: 8.0 mm
Required components:
FWHM:
16°
FWTM:
49°
Peak intensity:
4.100 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LC040C
LES size: 11.0 mm
Required components:
FWHM:
23°
FWTM:
66°
Peak intensity:
2.600 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC4/6
LES size: 8.6 mm
Required components:
FWHM:
21°
FWTM:
63°
Peak intensity:
3.100 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC4/6
LES size: 8.6 mm
Required components:
FWHM:
27°
FWTM:
67°
Peak intensity:
2.000 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC4/6
LES size: 8.6 mm
Required components:
FWHM:
20°
FWTM:
61°
Peak intensity:
3.100 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC4/6
LES size: 8.6 mm
Required components:
FWHM:
18°
FWTM:
42°
Peak intensity:
4.800 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC4/6
LES size: 8.6 mm
Required components:
FWHM:
21°
FWTM:
56°
Peak intensity:
3.400 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
ZC4/6
LES size: 8.6 mm
Required components:
FWHM:
19°
FWTM:
44°
Peak intensity:
4.300 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mini Zenigata (GW6BM)
LES size: 8.6 mm
Required components:
FWHM:
17°
FWTM:
41°
Peak intensity:
4.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Mini Zenigata (GW6BM)
LES size: 8.6 mm
Required components:
FWHM:
20°
FWTM:
56°
Peak intensity:
3.200 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XTM - 9mm LES
LES size: 9.0 mm
Required components:
FWHM:
20°
FWTM:
61°
Peak intensity:
3.200 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
