C13087_MIRELLA-50-W-PF

Print

~40° wide beam

Specification
  • Dimensions:
    50 mm
  • Height:
    24.00 mm
  • Fastening:
    socket
  • Colour:
    metal
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    336 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    2.8 kg
  • MPQ:
    28 pcs
  • MOQ:
    112 pcs
  • MOQ size:
    480 x 280 x 120 mm
  • MOQ weight:
    1.2 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C13087_MIRELLA-50-W-PF

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

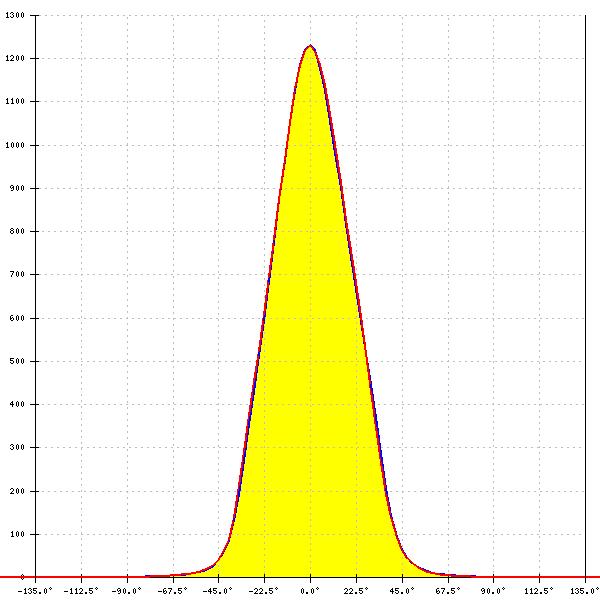

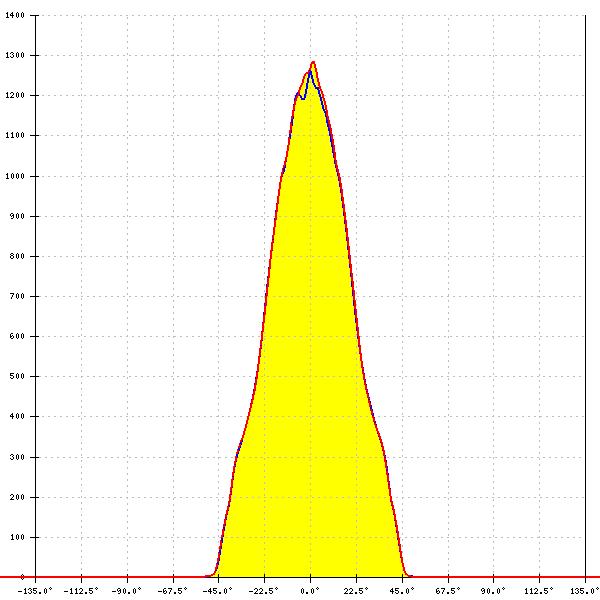

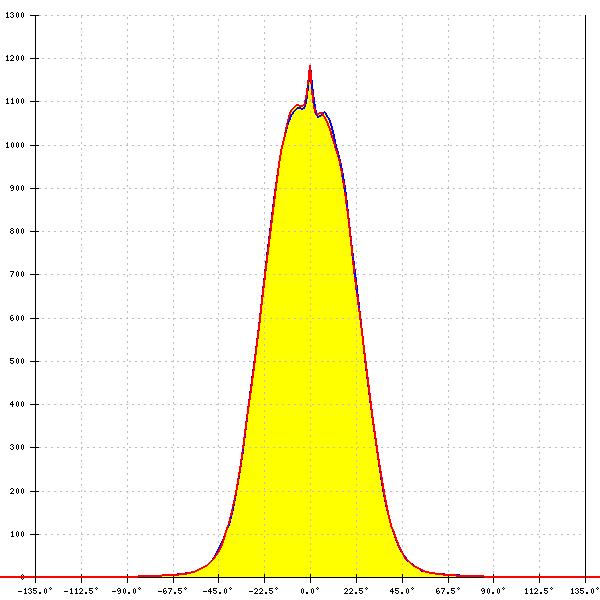

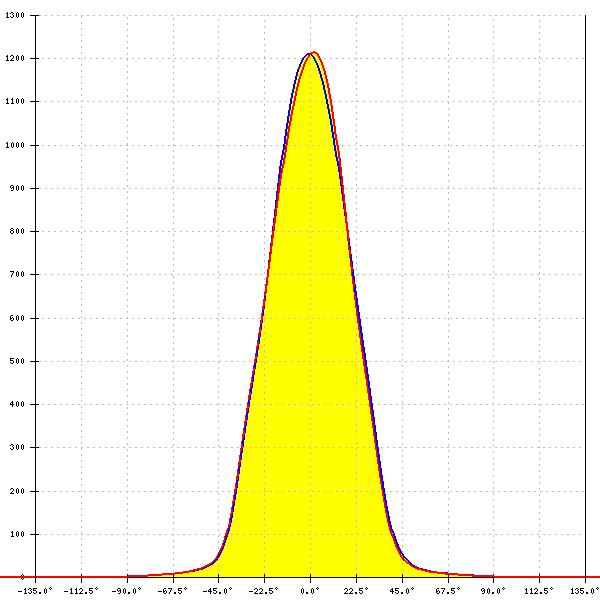

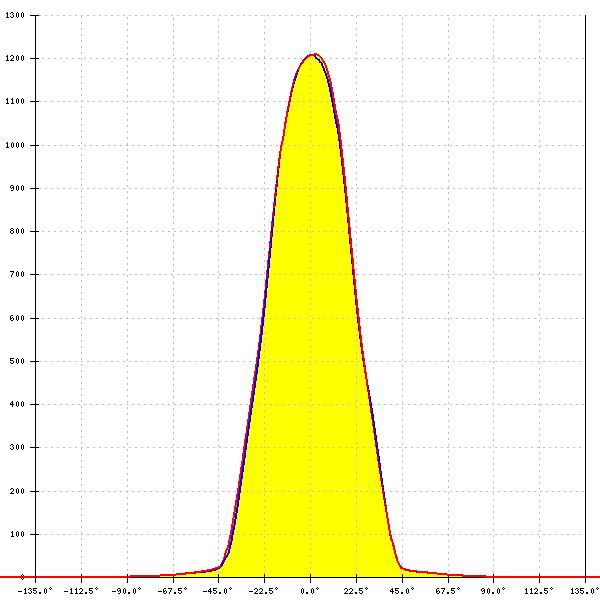

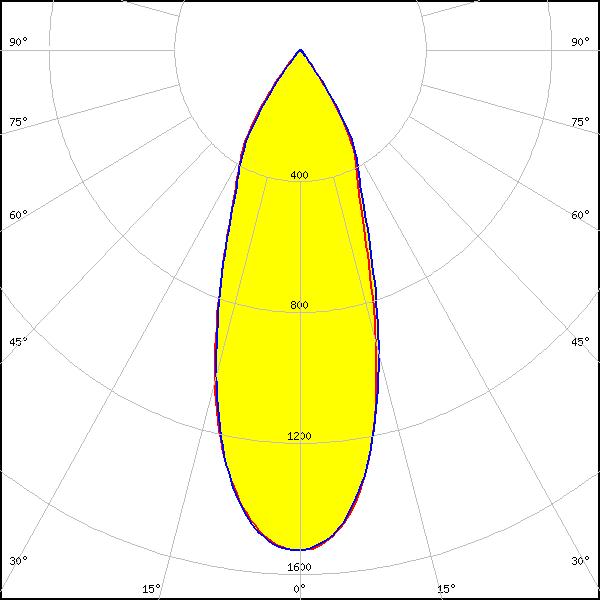

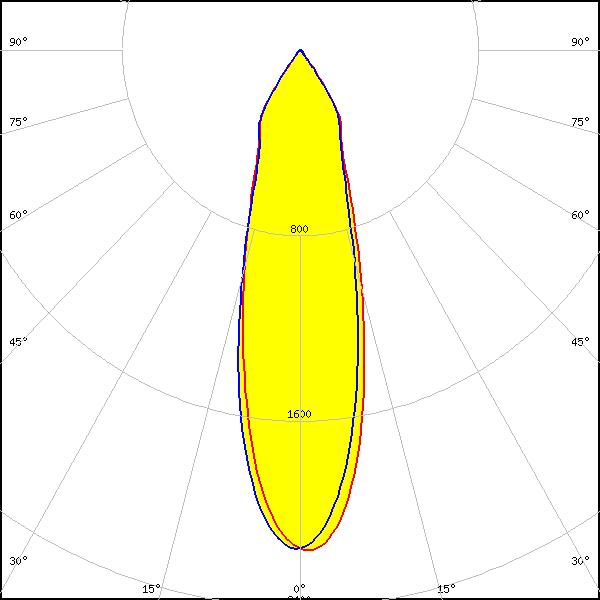

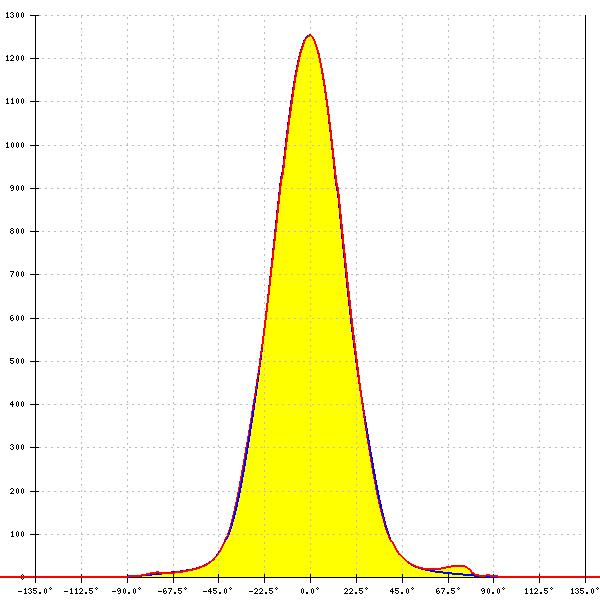

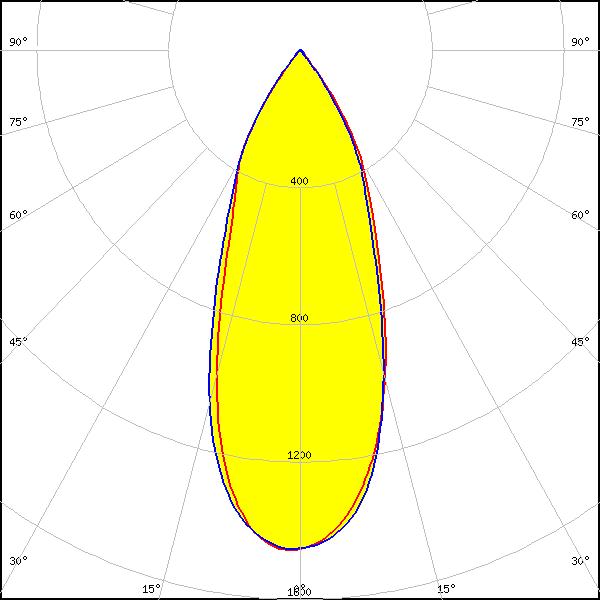

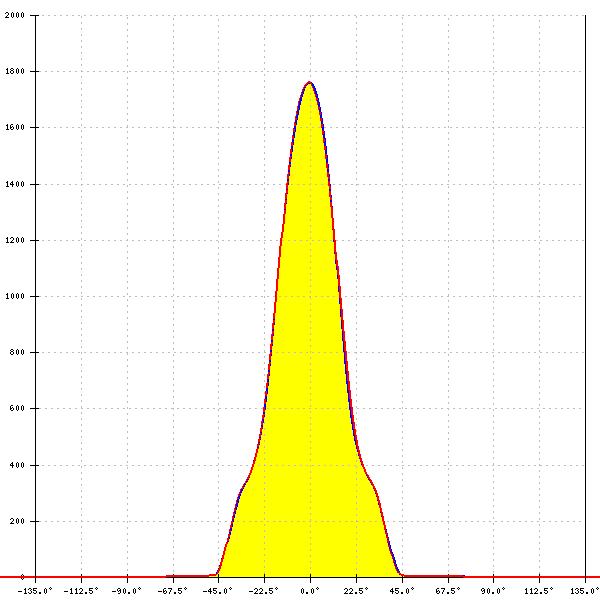

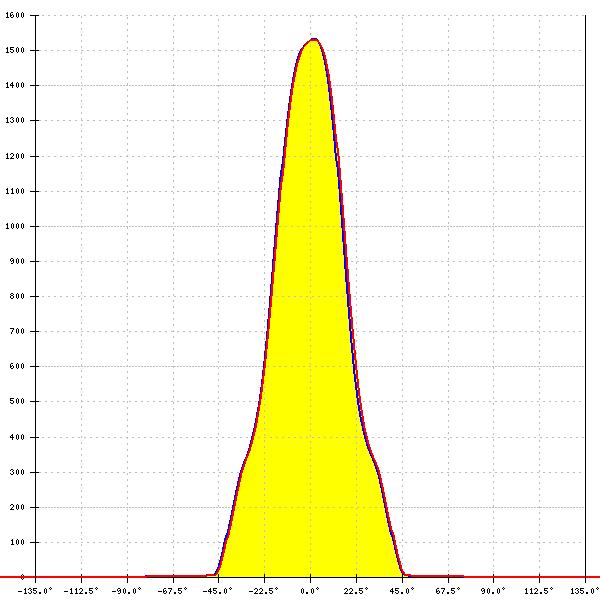

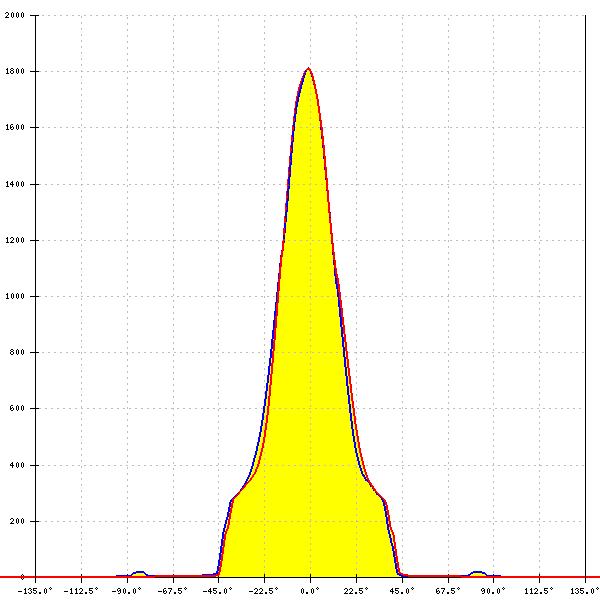

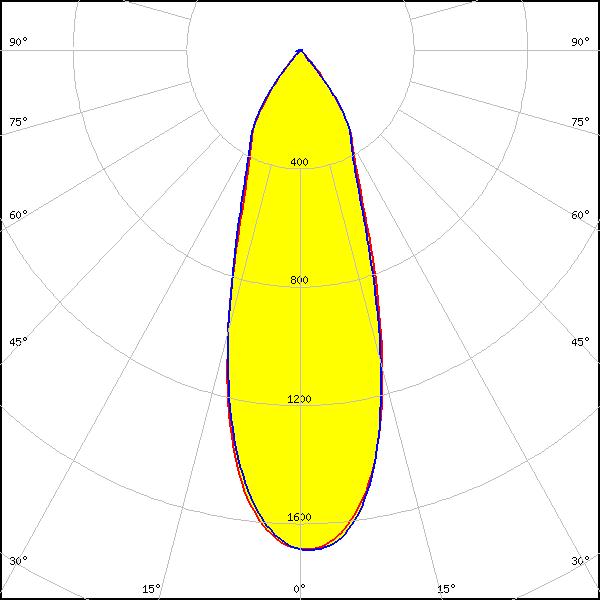

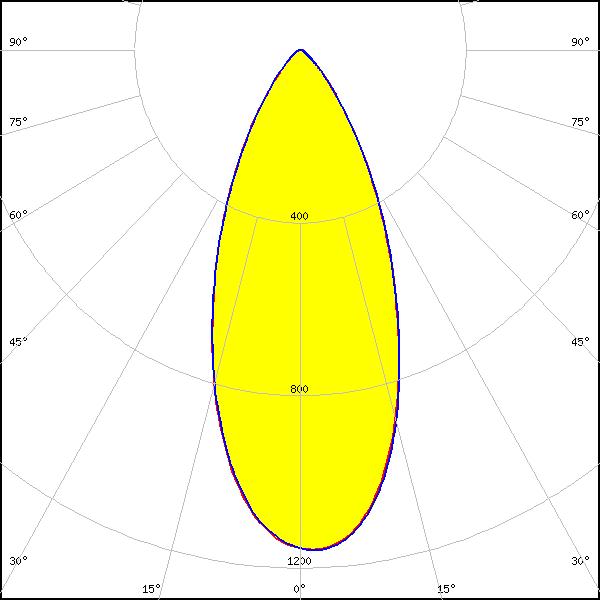

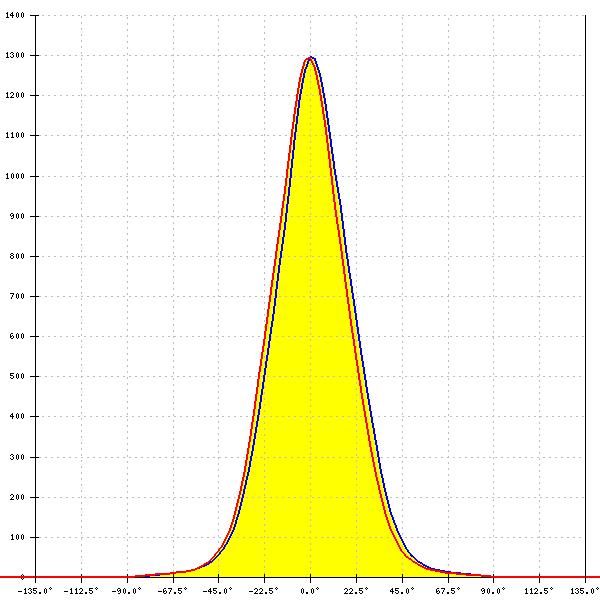

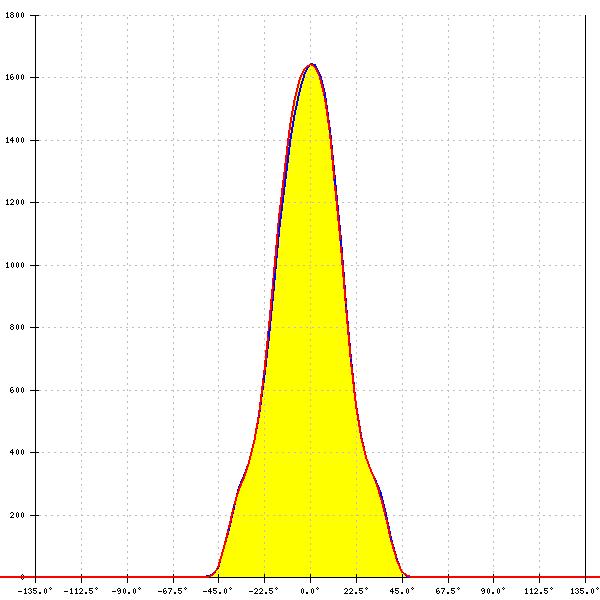

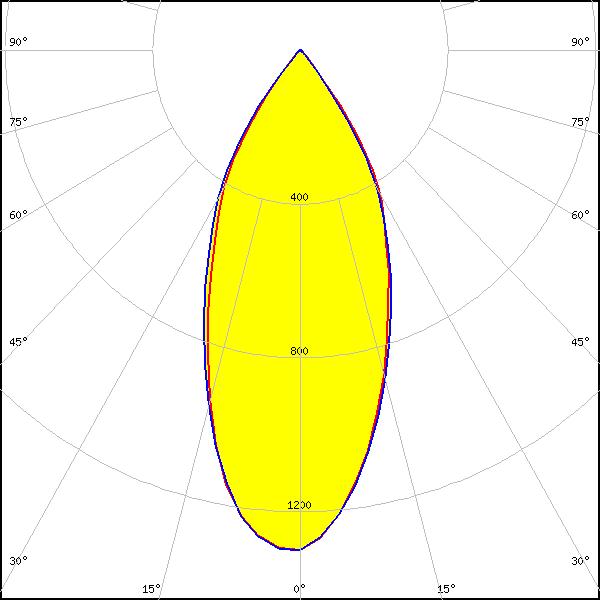

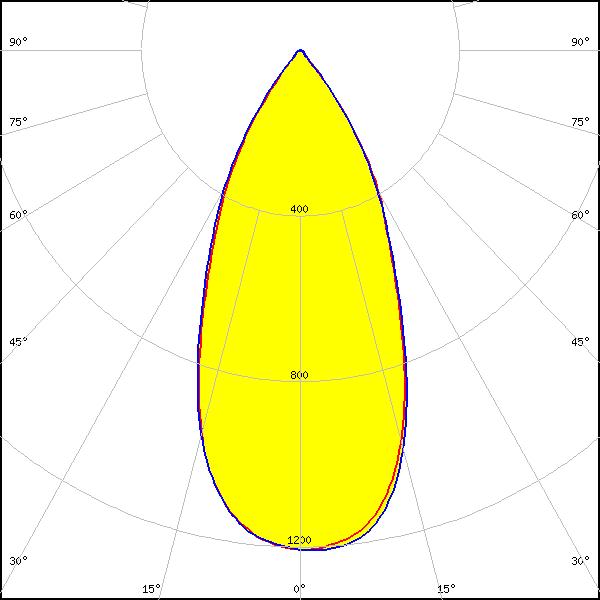

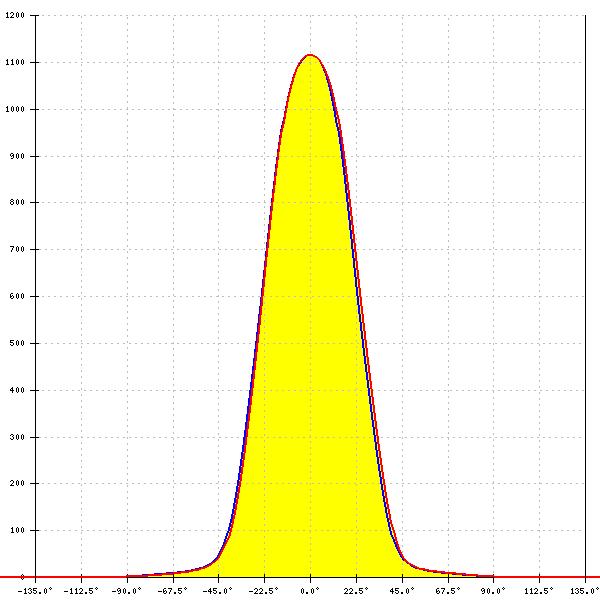

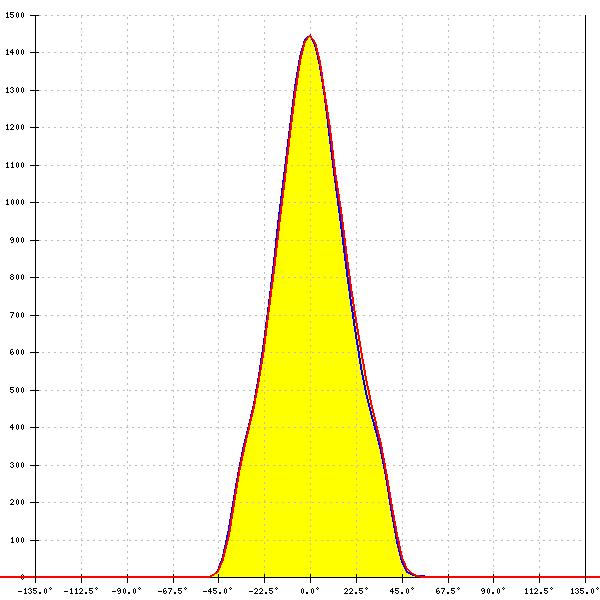

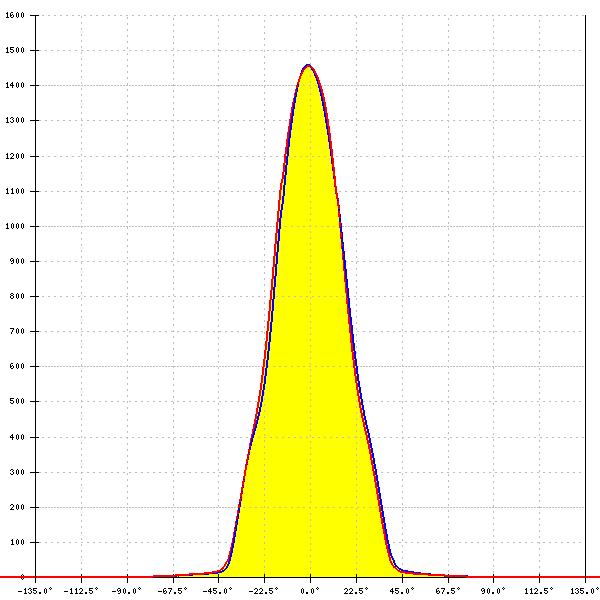

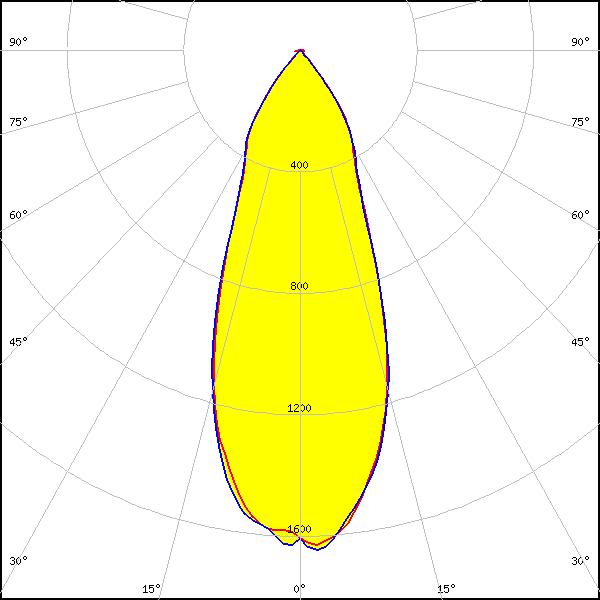

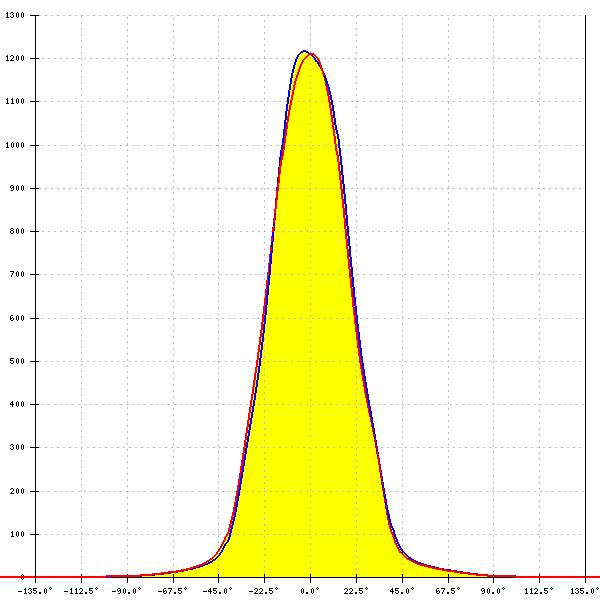

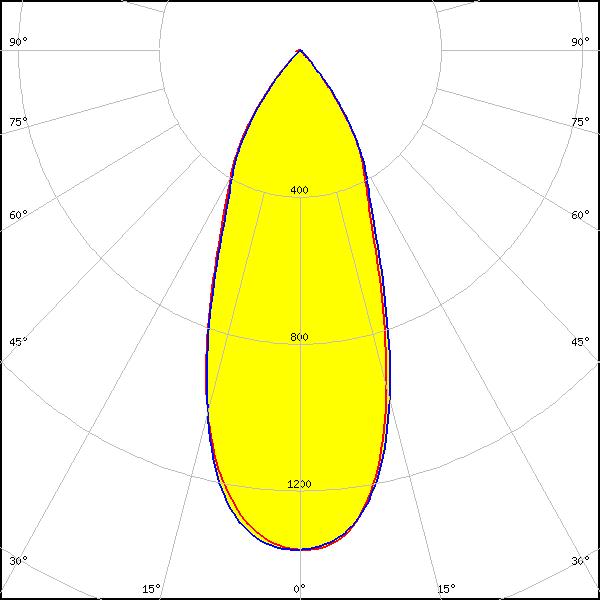

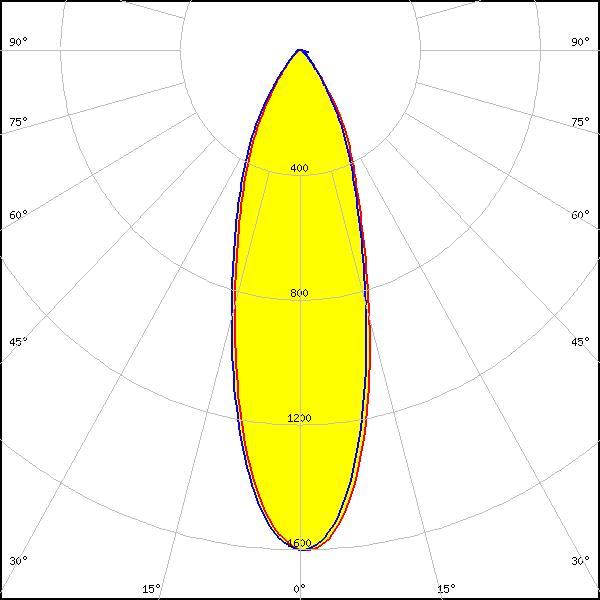

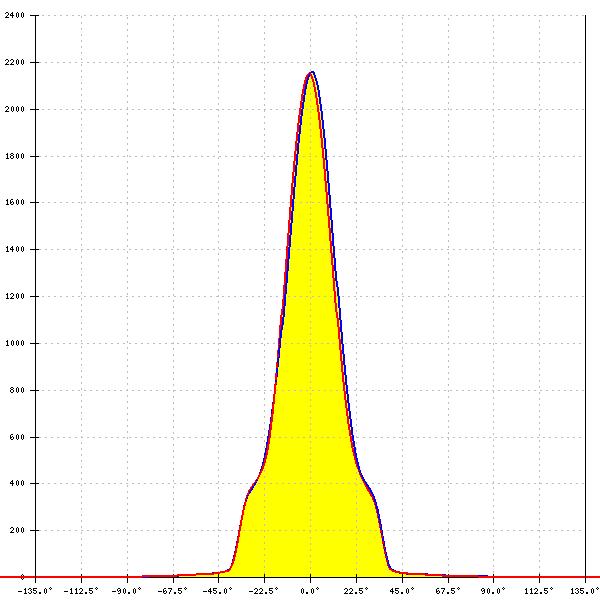

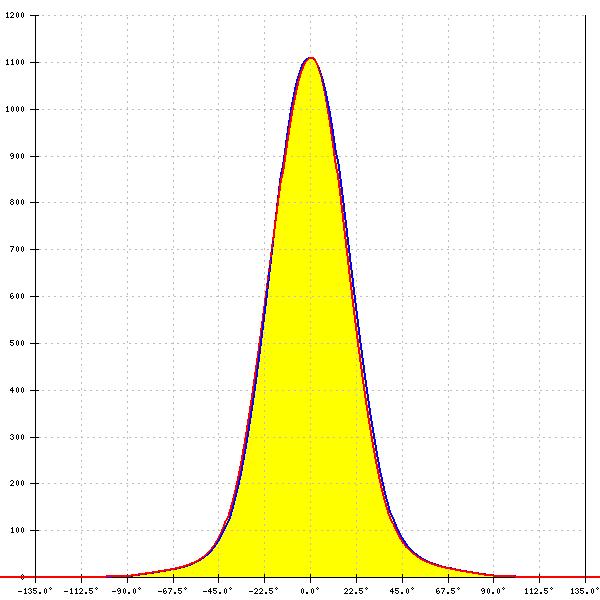

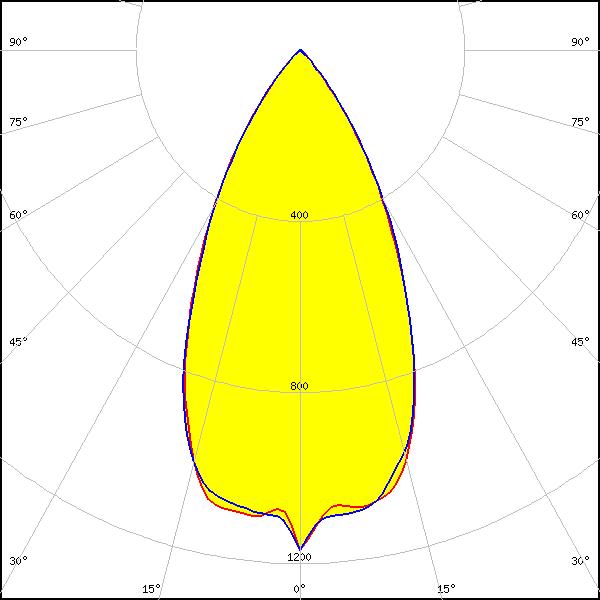

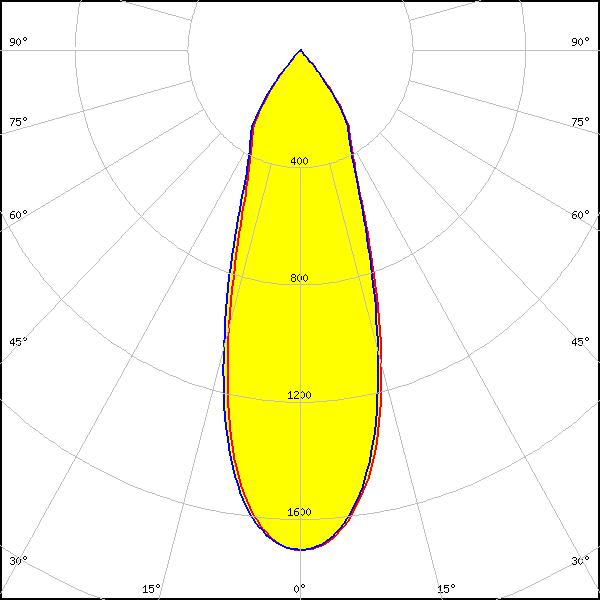

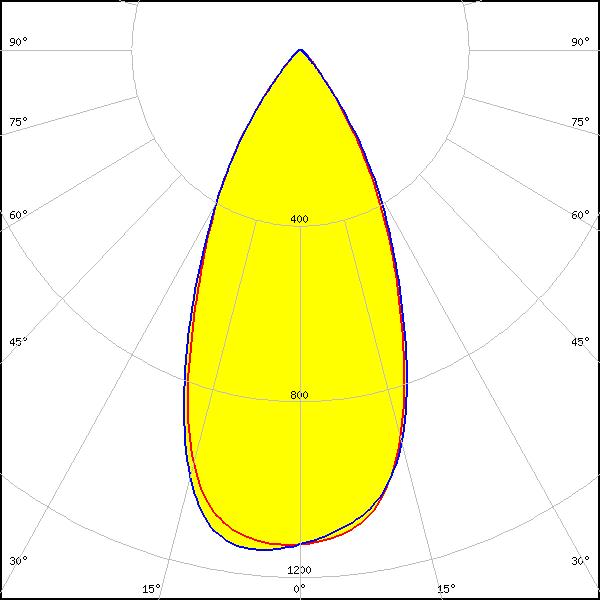

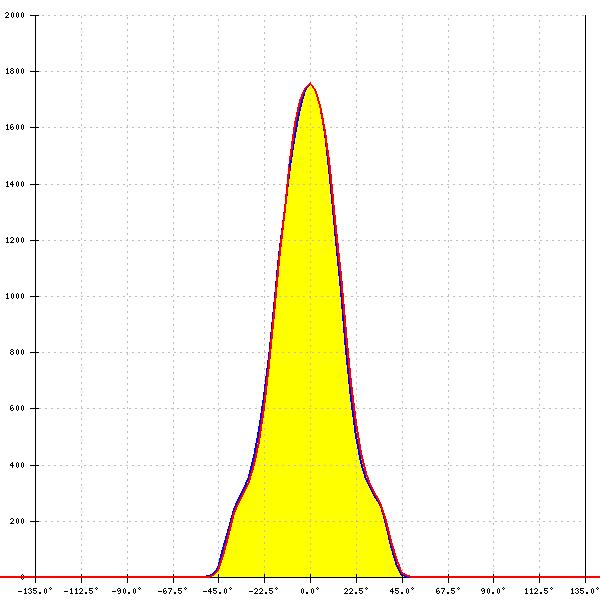

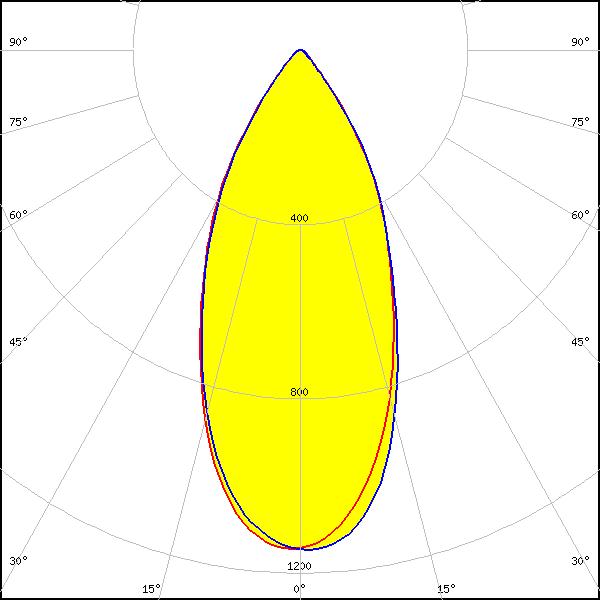

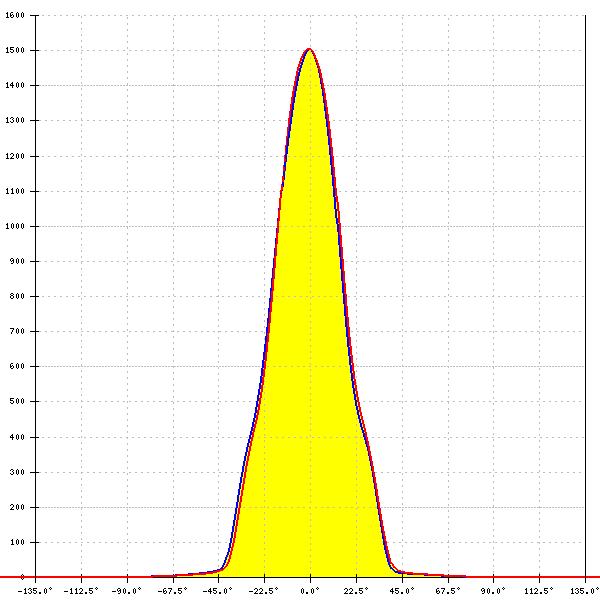

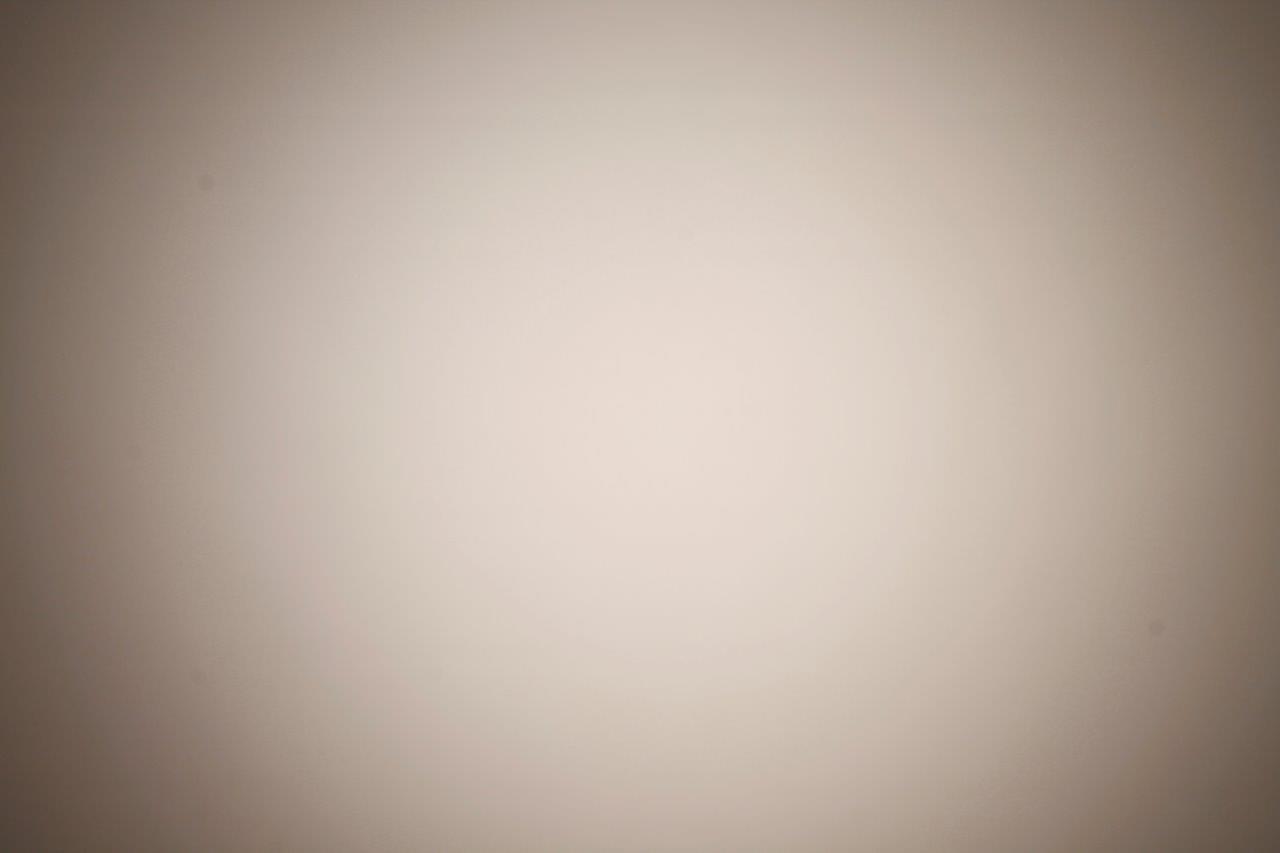

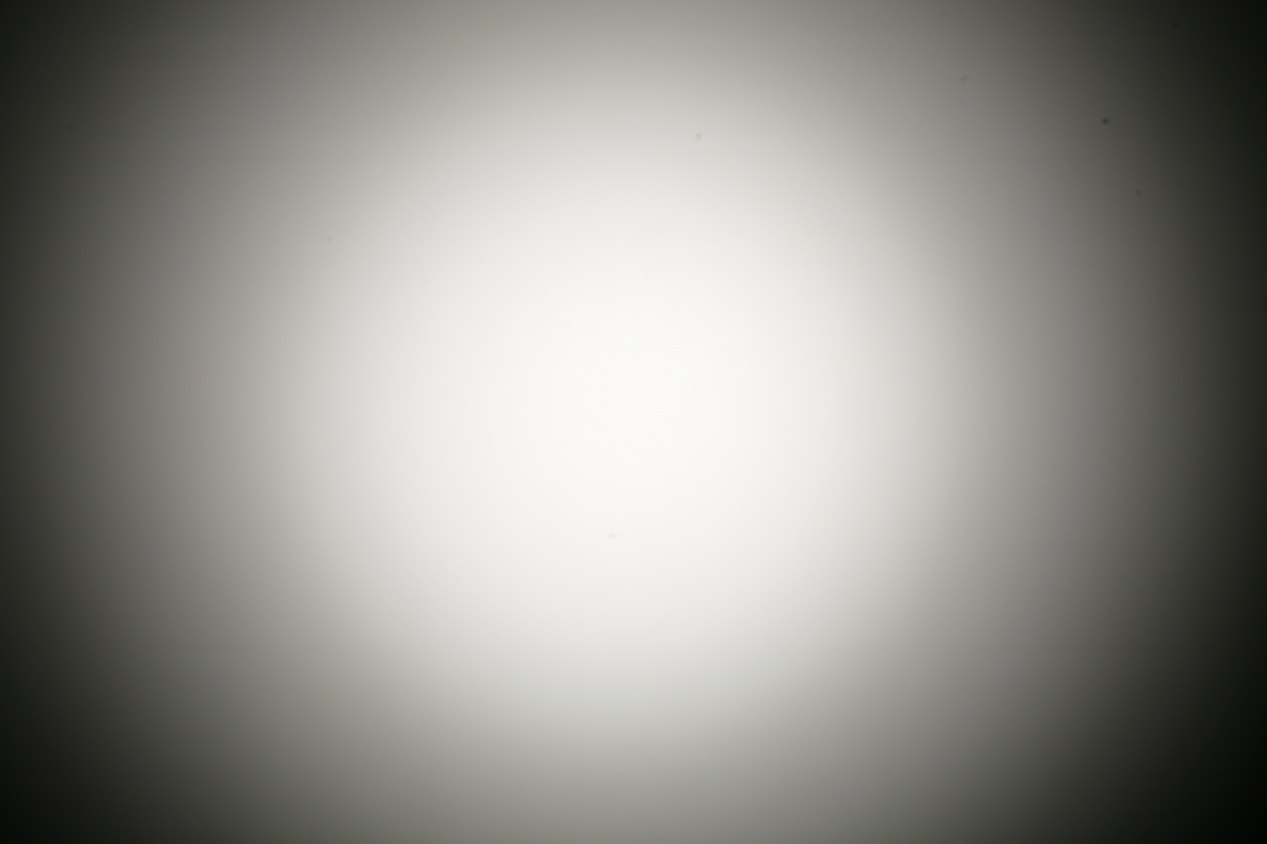

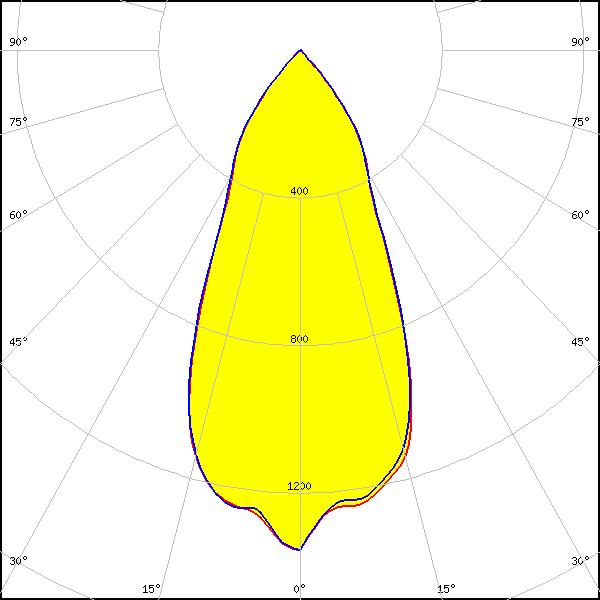

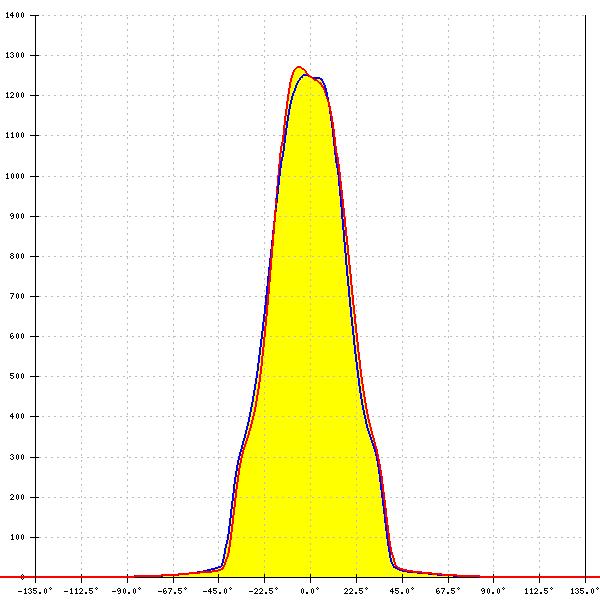

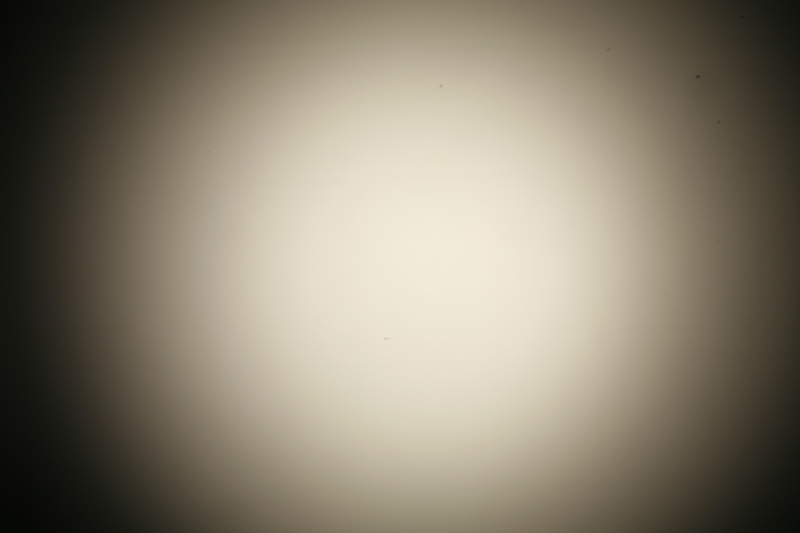

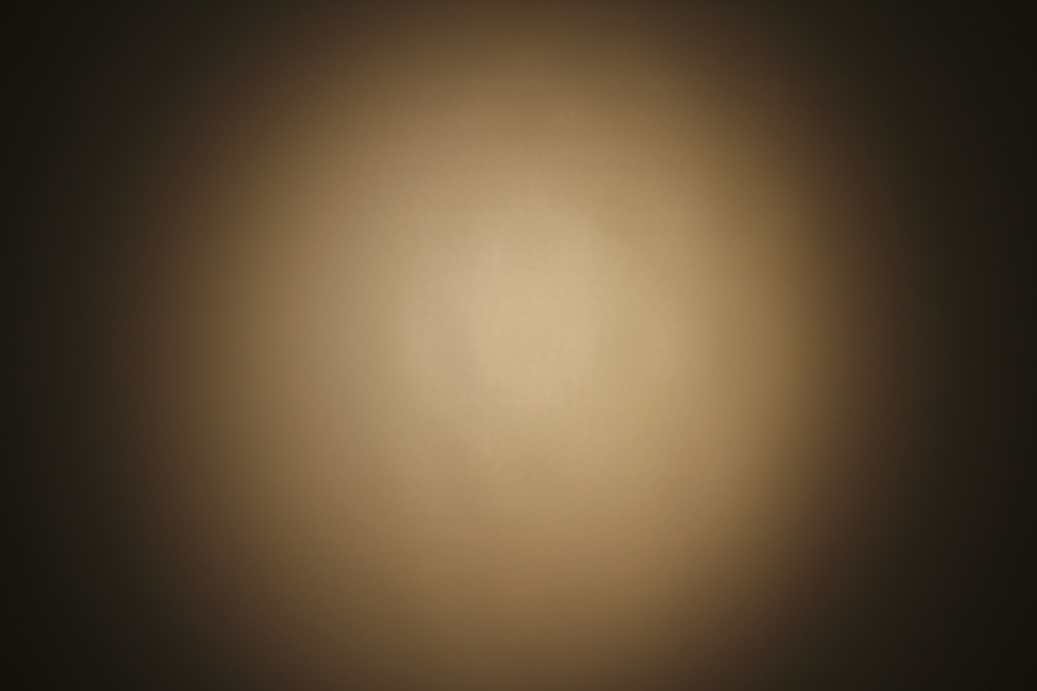

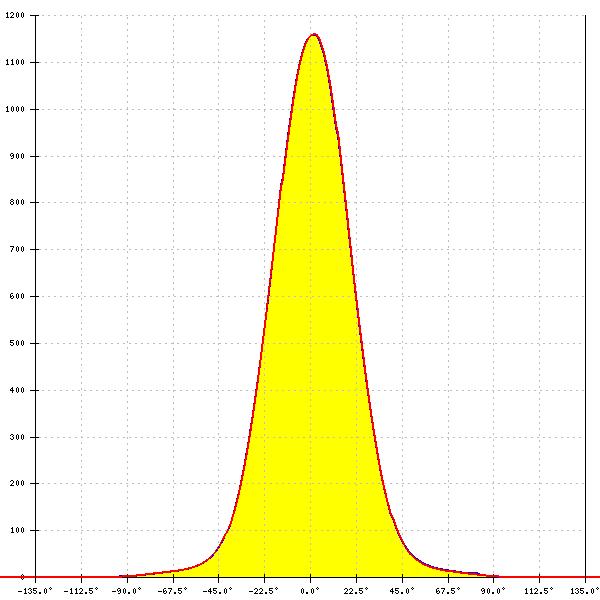

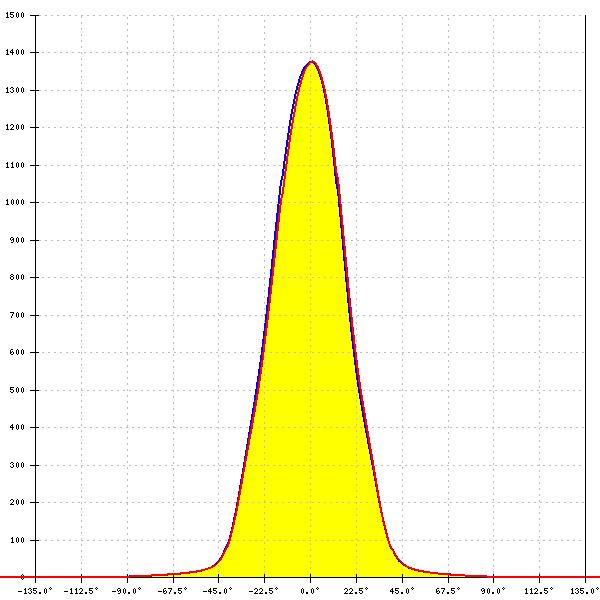

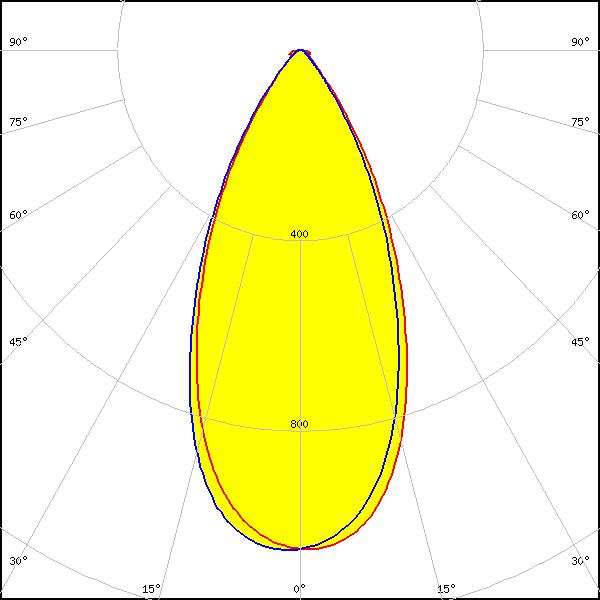

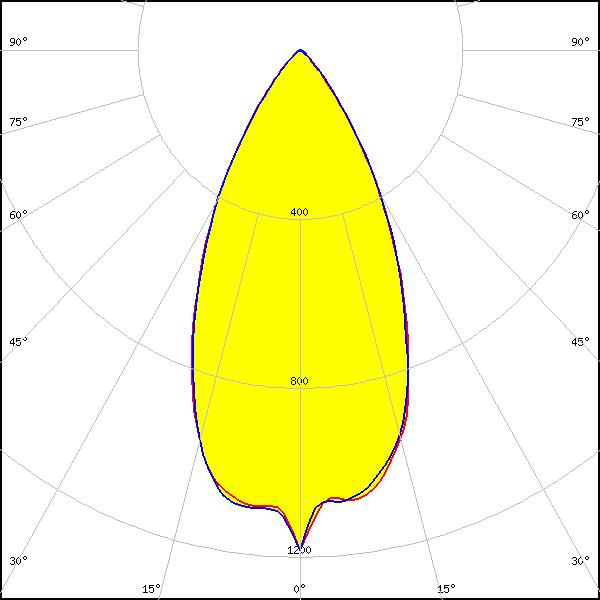

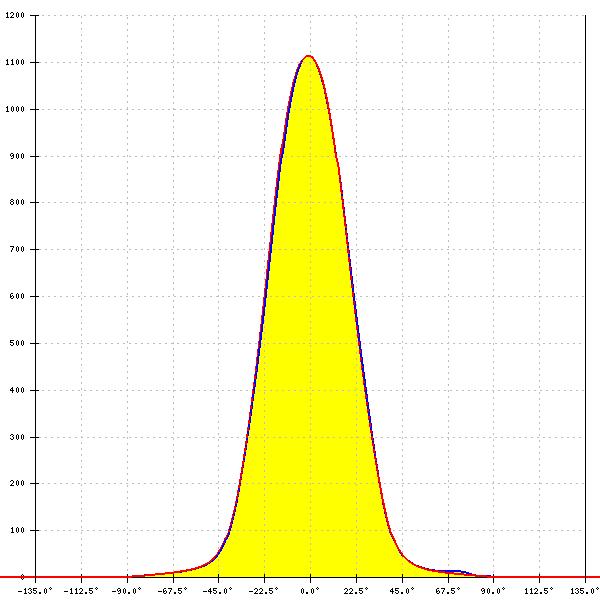

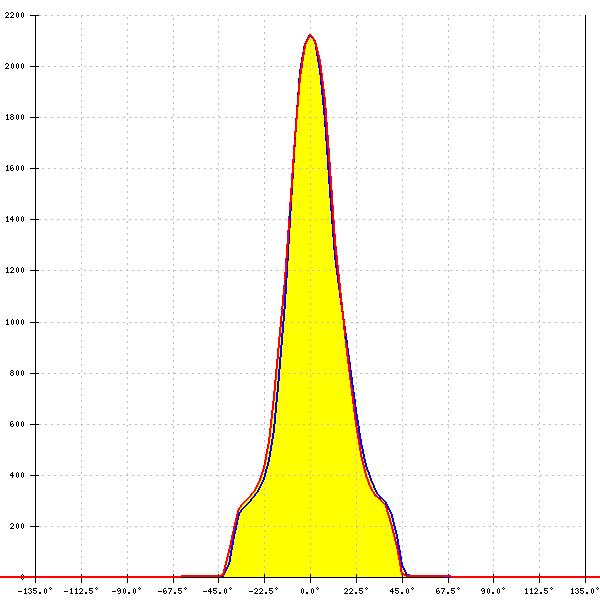

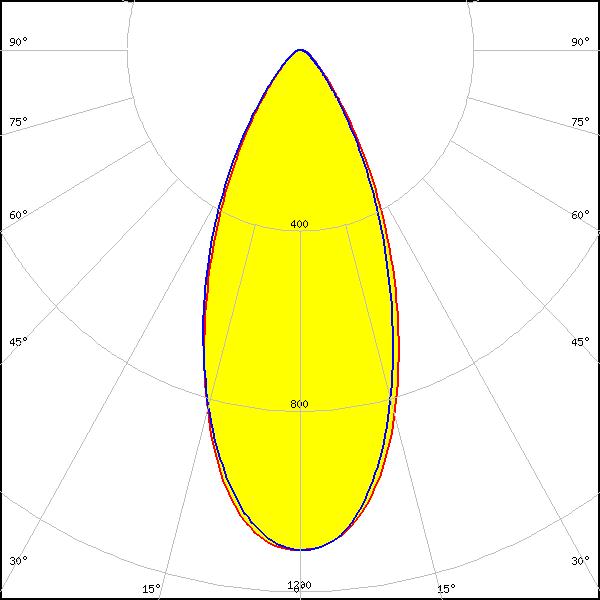

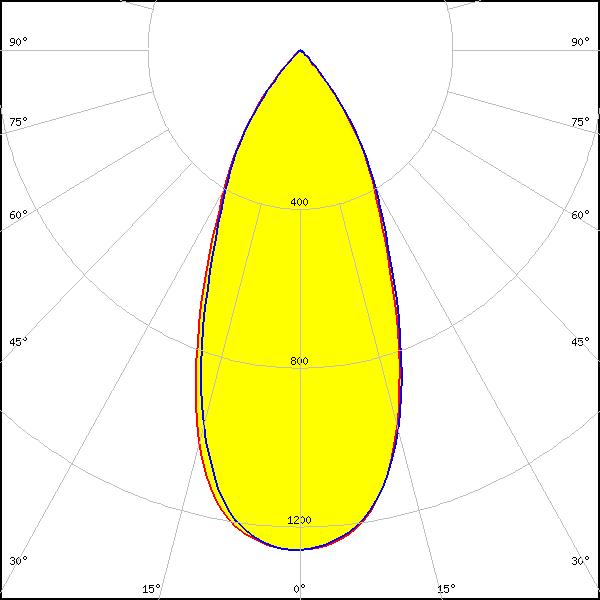

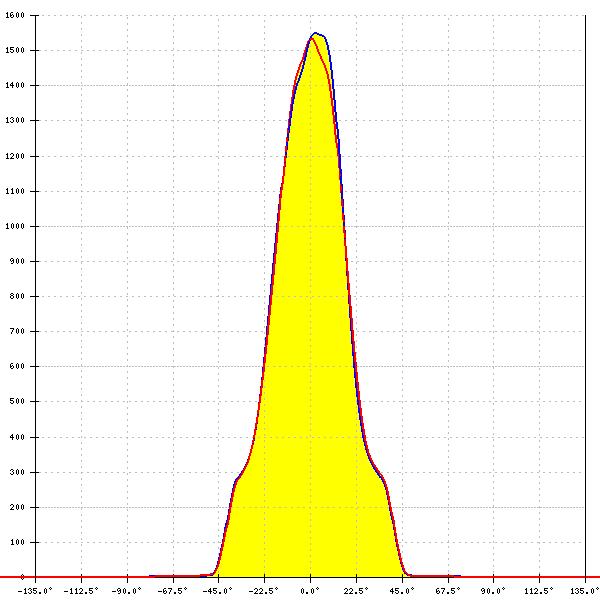

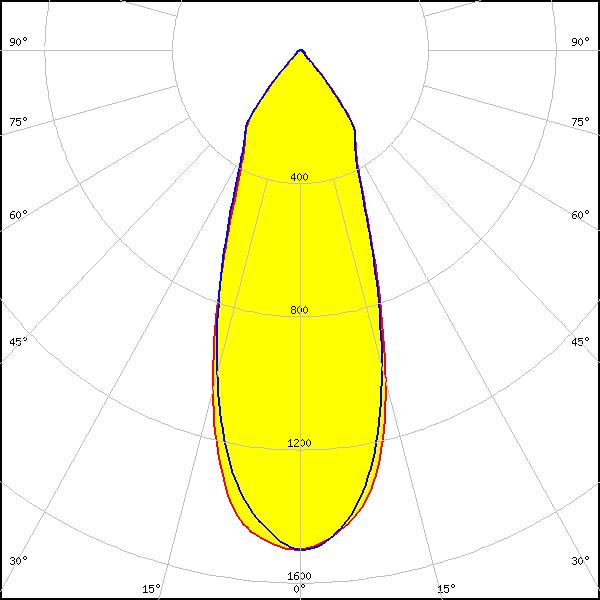

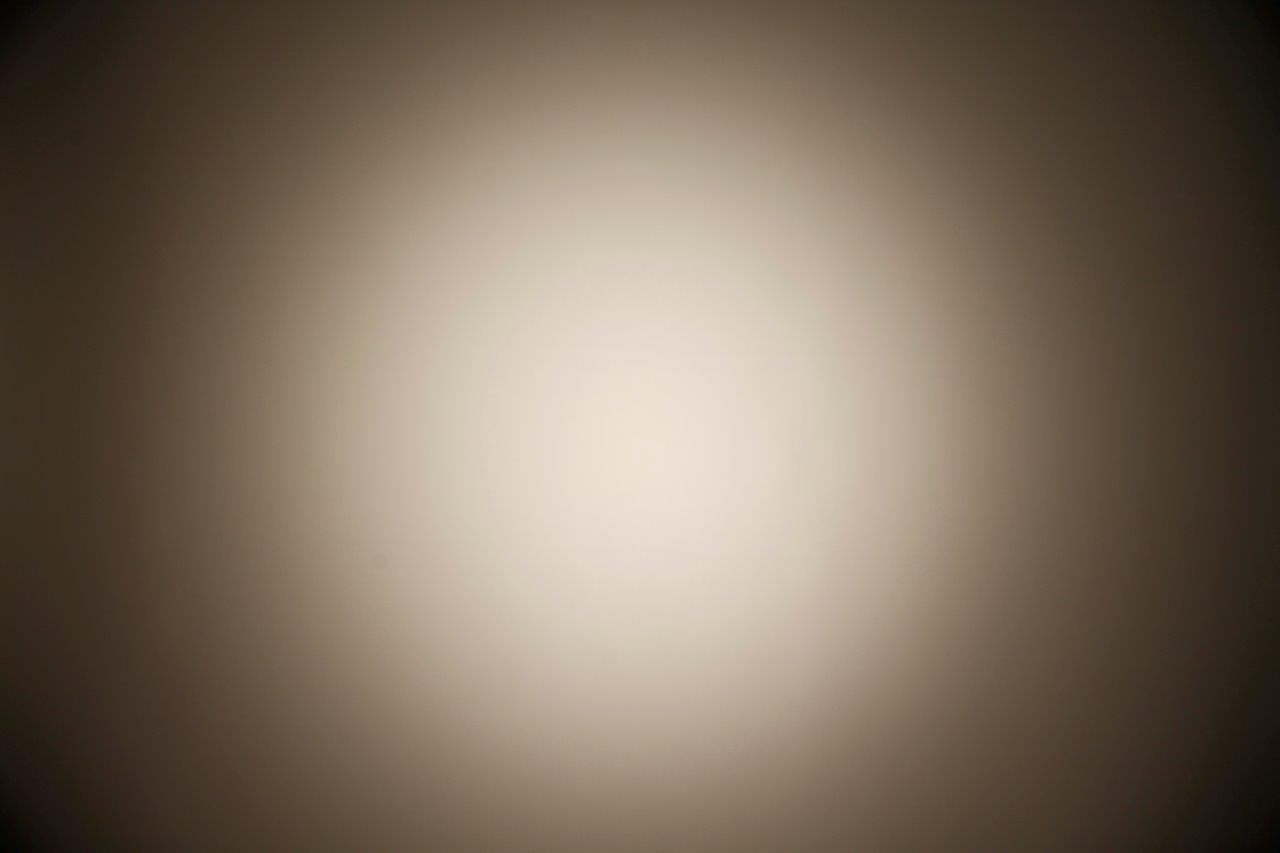

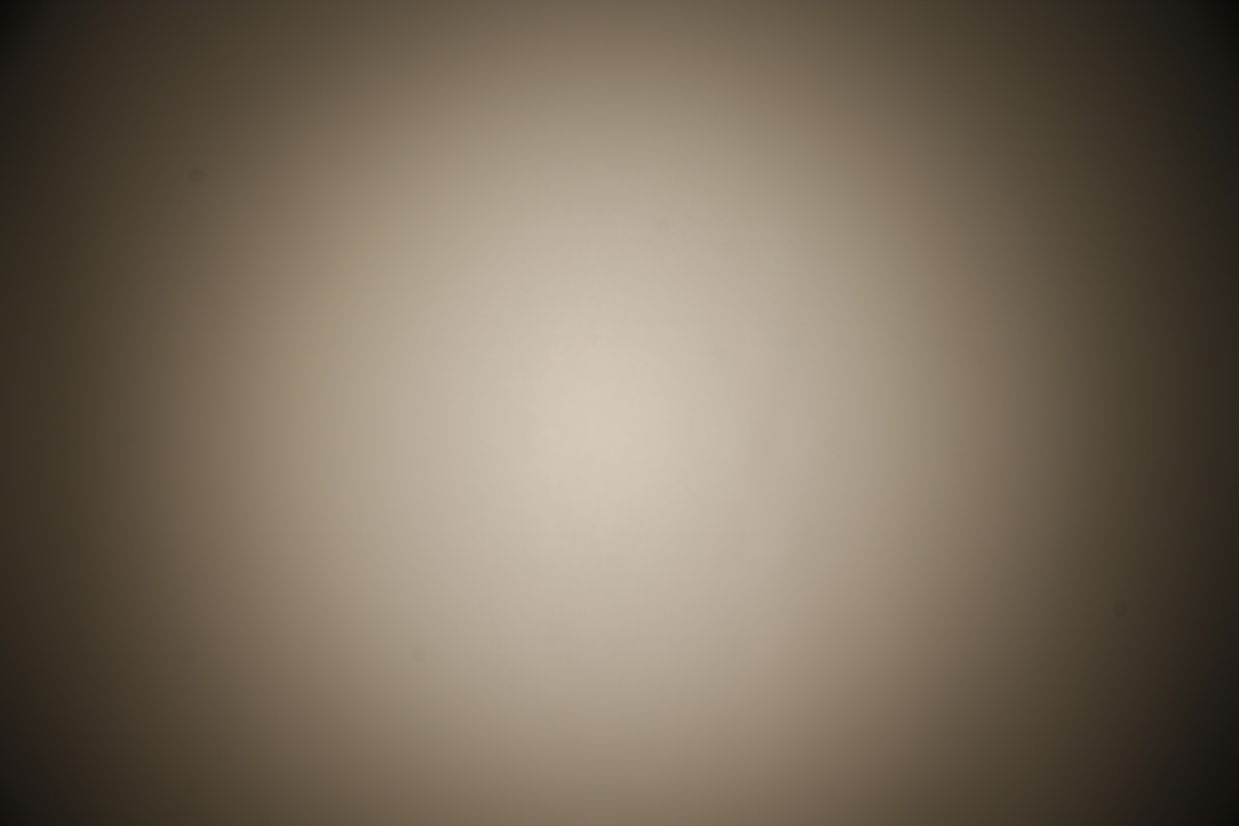

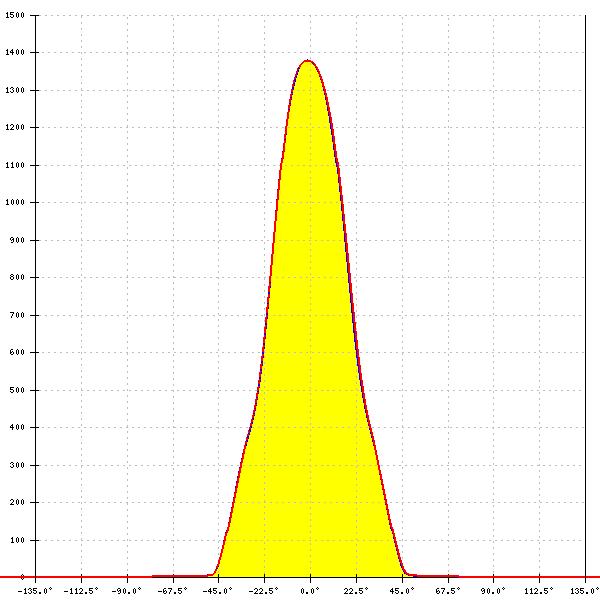

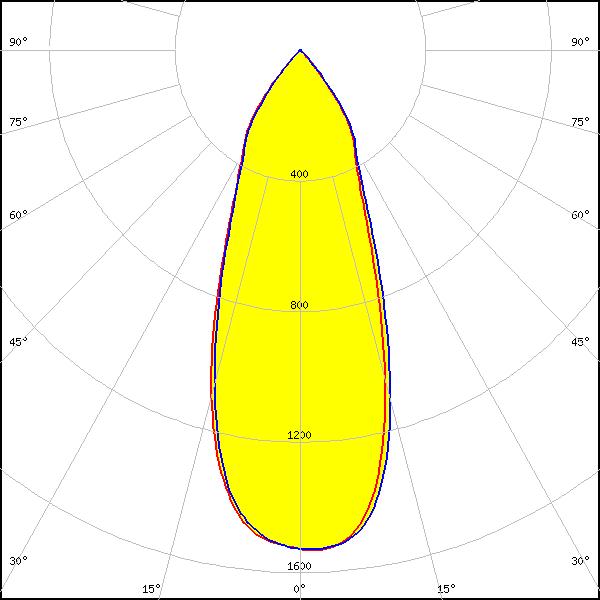

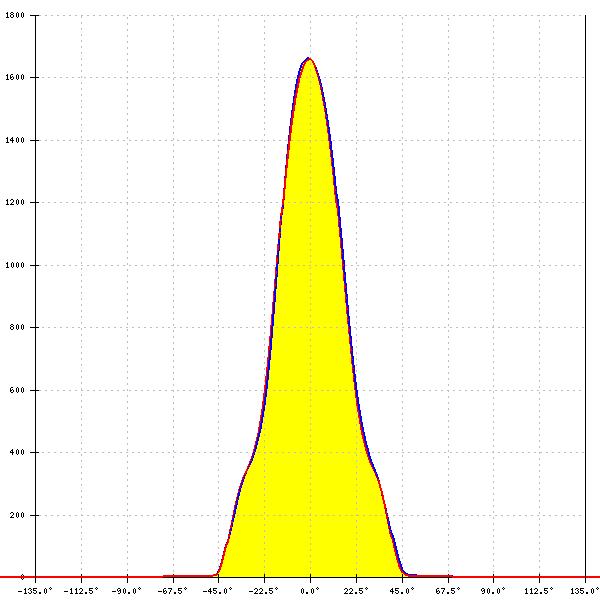

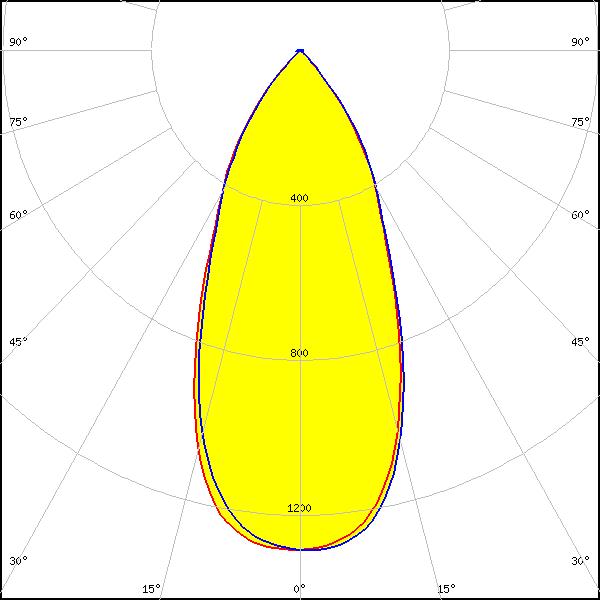

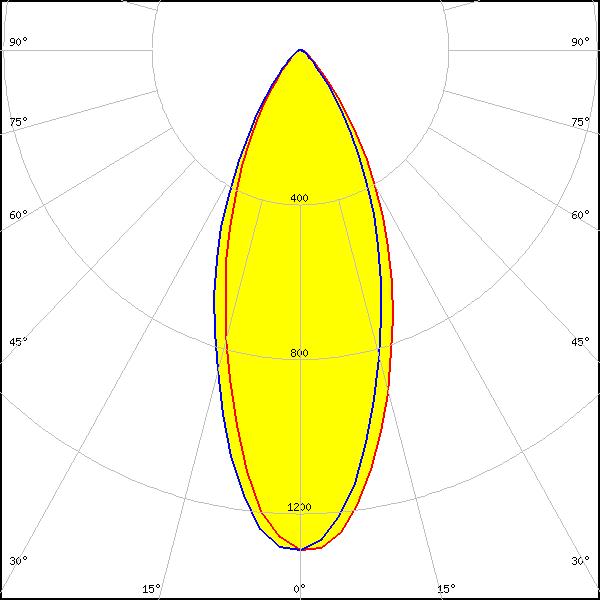

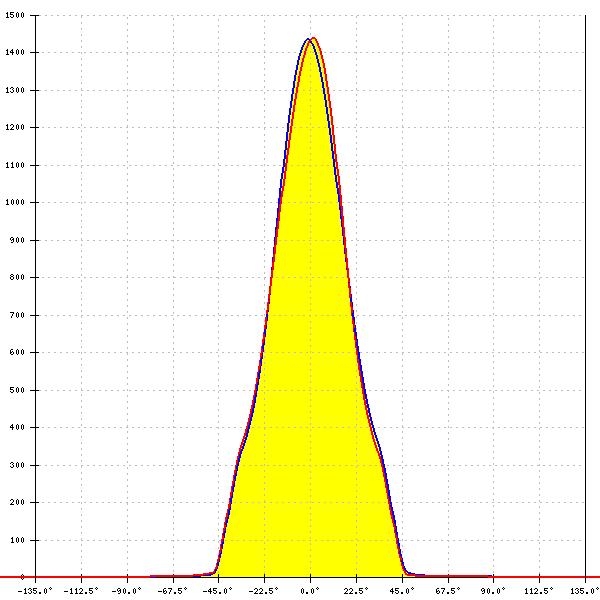

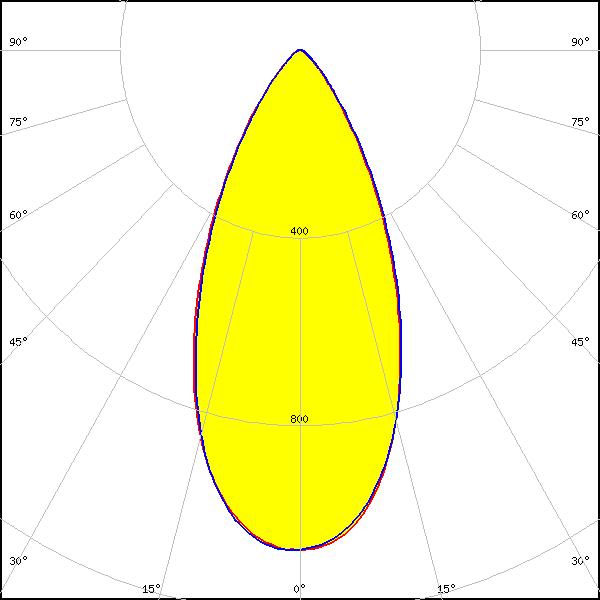

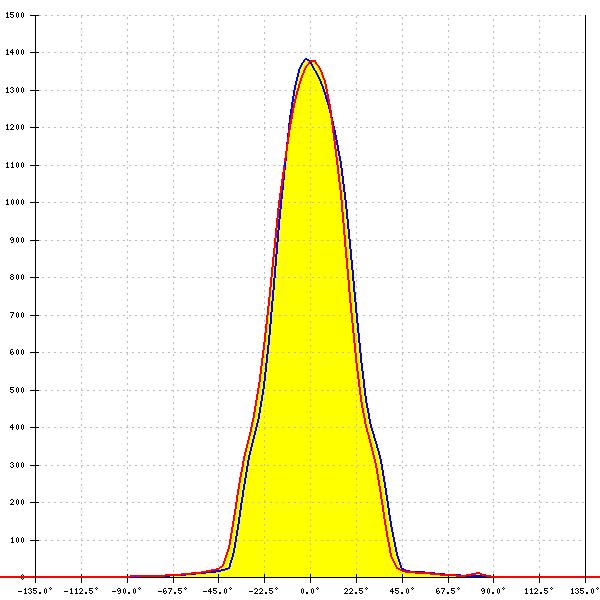

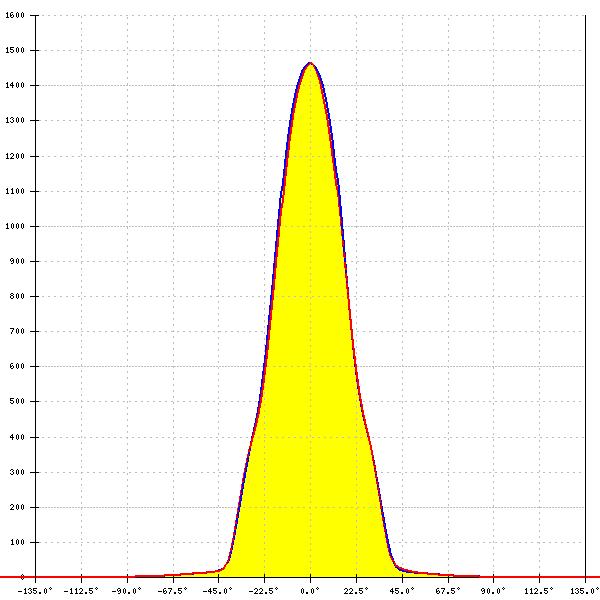

Optical results

LED: V10 Gen6
LES size: 9.9 mm
Required components:
FWHM: 39°
FWTM: 79°
Peak intensity: 1.500 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

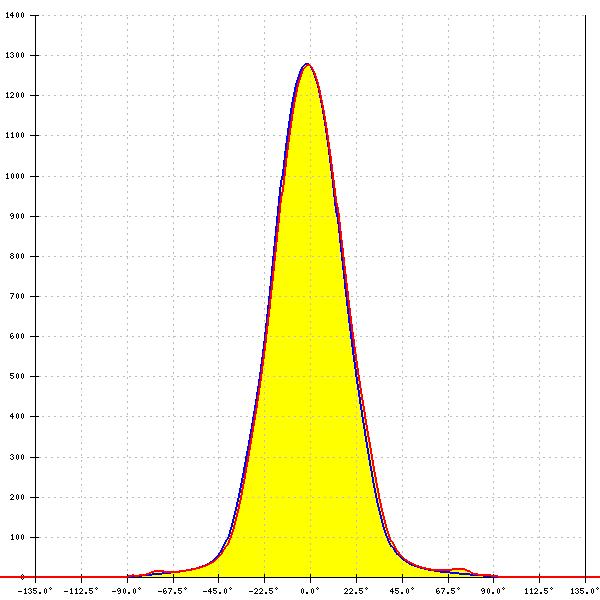

LED: V10 Gen7
LES size: 10.2 mm
Required components:
FWHM: 35°
FWTM: 76°
Peak intensity: 1.700 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: V10 Gen7
LES size: 10.2 mm
Required components:
FWHM: 40°
FWTM: 75°
Peak intensity: 1.300 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

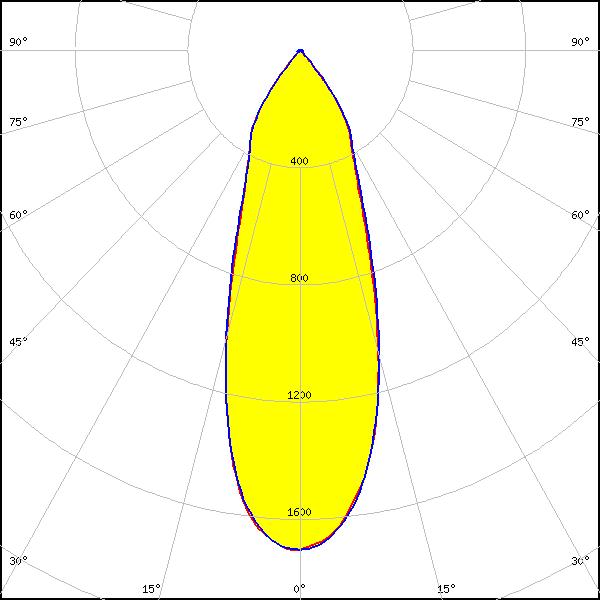

LED: V10 Gen7
LES size: 10.2 mm
Required components:
FWHM: 39°
FWTM: 73°
Peak intensity: 1.500 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

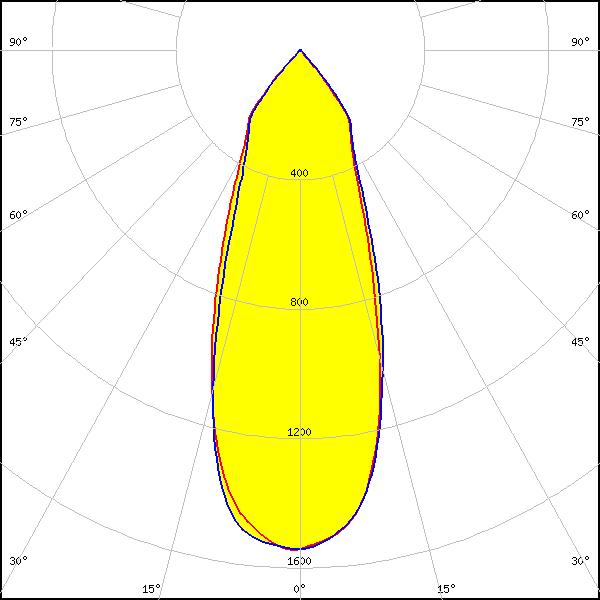

LED: V6 Gen6
LES size: 6.0 mm
Required components:
FWHM: 39°
FWTM: 81°
Peak intensity: 1.500 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: V6 Gen6
LES size: 6.0 mm
Required components:
FWHM: 44°
FWTM: 78°
Peak intensity: 1.250 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: V6 Gen6
LES size: 6.0 mm
Required components:
FWHM: 44°
FWTM: 77°
Peak intensity: 1.300 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: V6 Gen6
LES size: 6.0 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 460 Typ L1
FWHM: 27°
FWTM: 76°
Peak intensity: 2.690 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: V6 Gen6
LES size: 6.0 mm
Required components:
FWHM: 31°
FWTM: 72°
Peak intensity: 2.100 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

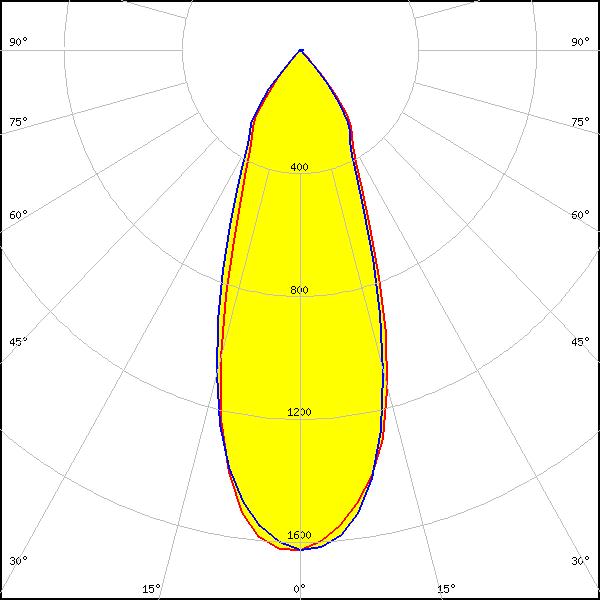

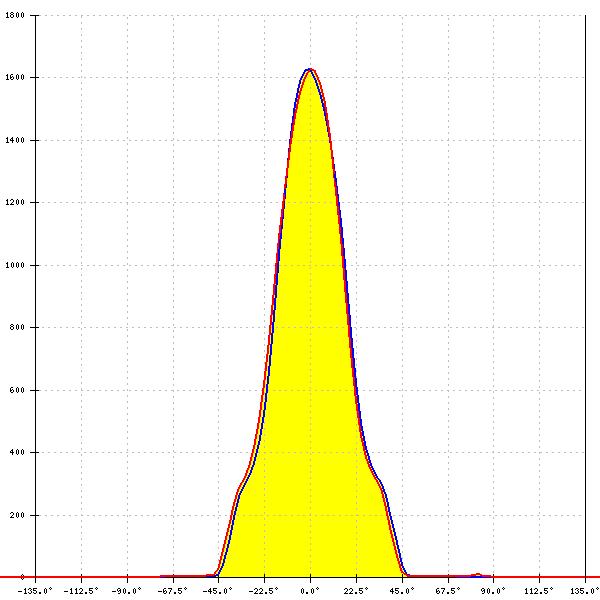

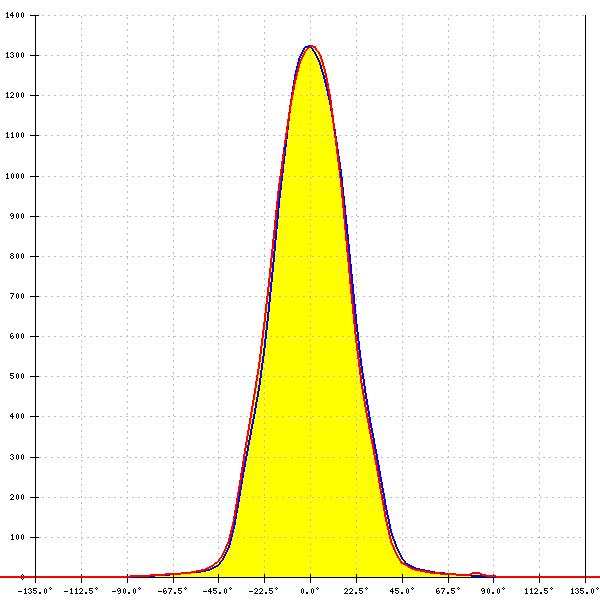

LED: V8 Gen6
LES size: 8.1 mm
Required components:
FWHM: 38°
FWTM: 79°
Peak intensity: 1.600 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: V8 Gen6
LES size: 8.1 mm
Required components:
FWHM: 43°
FWTM: 76°
Peak intensity: 1.330 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: V8 Gen6
LES size: 8.1 mm
Required components:
FWHM: 42°
FWTM: 76°
Peak intensity: 1.380 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: V8 Gen6
LES size: 8.1 mm
Required components:
FWHM: 36°
FWTM: 74°
Peak intensity: 1.800 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White

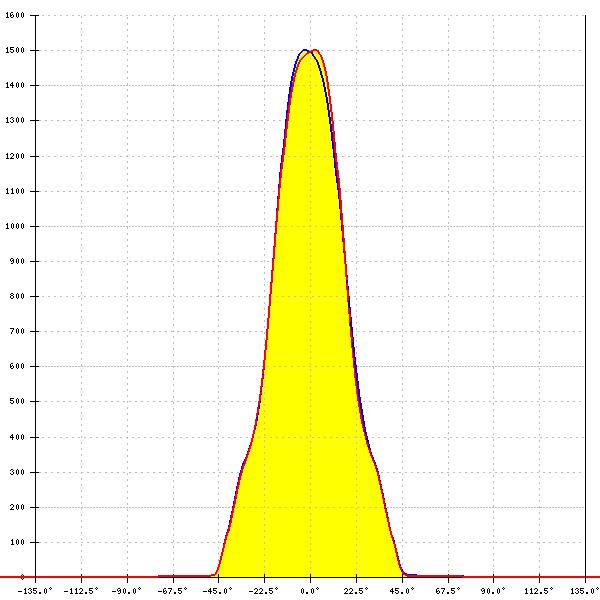

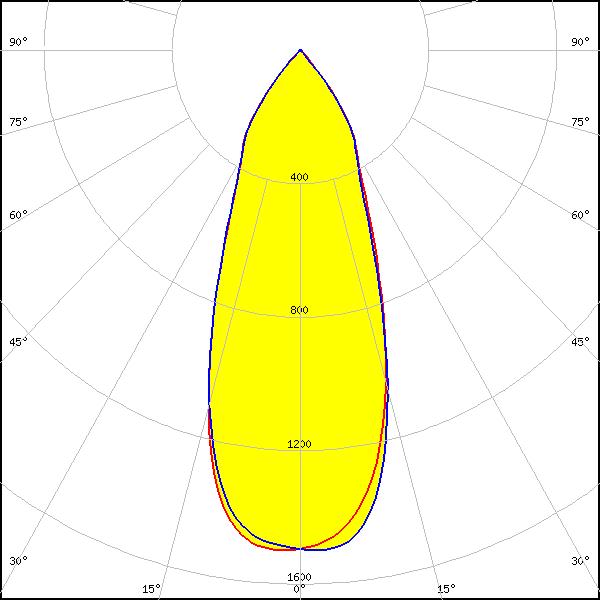

LED: VERO10
LES size: 9.9 mm
Required components:
FWHM: 40°
FWTM: 79°
Peak intensity: 1.500 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: VERO10
LES size: 9.9 mm
Required components:
FWHM: 44°
FWTM: 76°
Peak intensity: 1.300 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: VERO10
LES size: 9.9 mm
Required components:
FWHM: 44°
FWTM: 76°
Peak intensity: 1.300 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

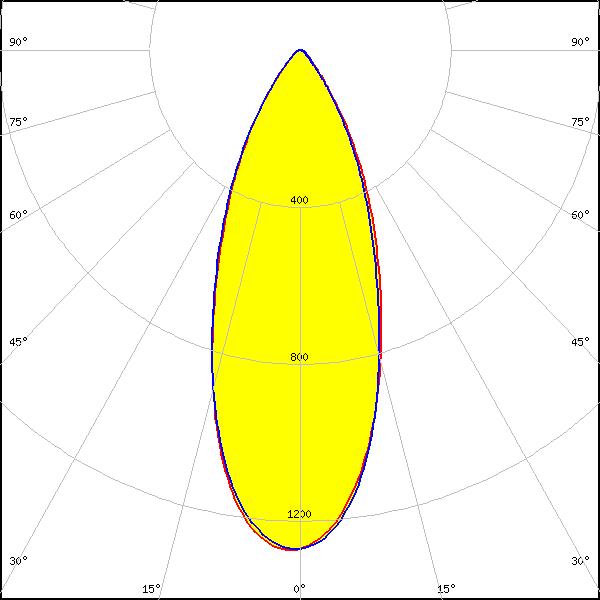

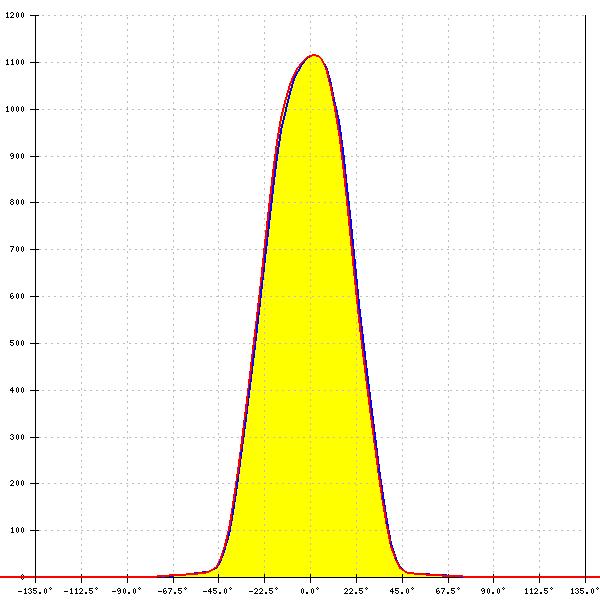

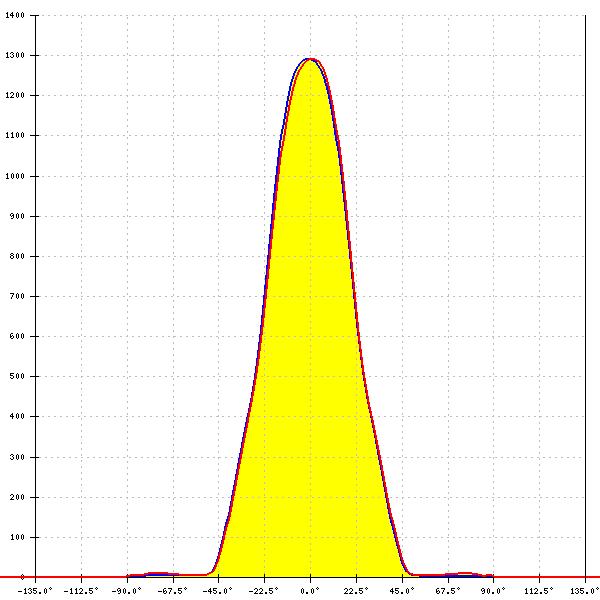

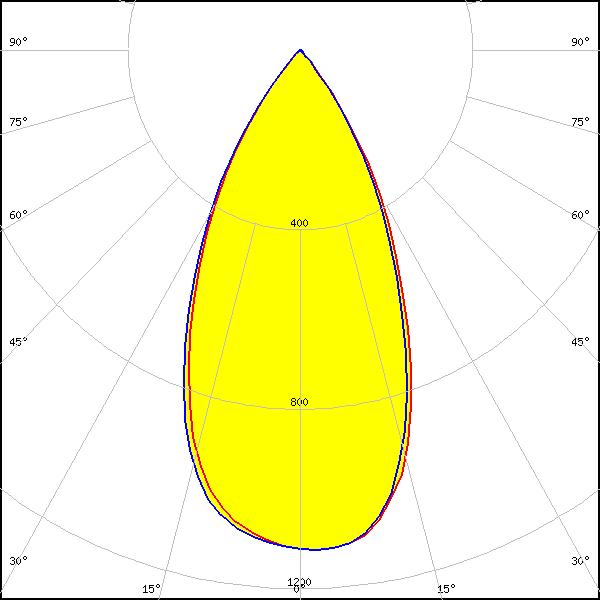

LED: VERO13
LES size: 13.4 mm
Required components:
FWHM: 46°
FWTM: 82°
Peak intensity: 1.290 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: VERO13
LES size: 13.4 mm
Required components:
FWHM: 50°
FWTM: 79°
Peak intensity: 1.120 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: VERO13
LES size: 13.4 mm
Required components:
FWHM: 51°
FWTM: 79°
Peak intensity: 1.100 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

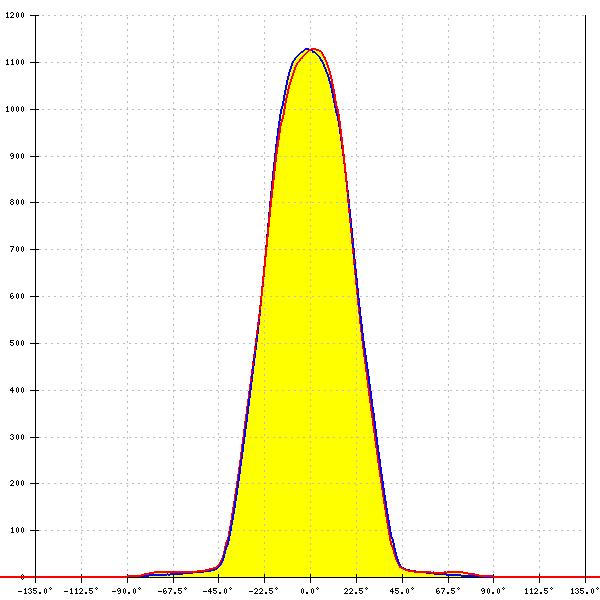

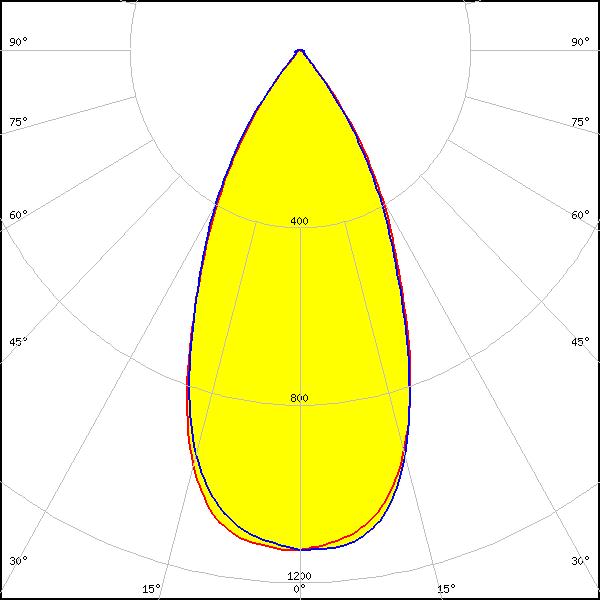

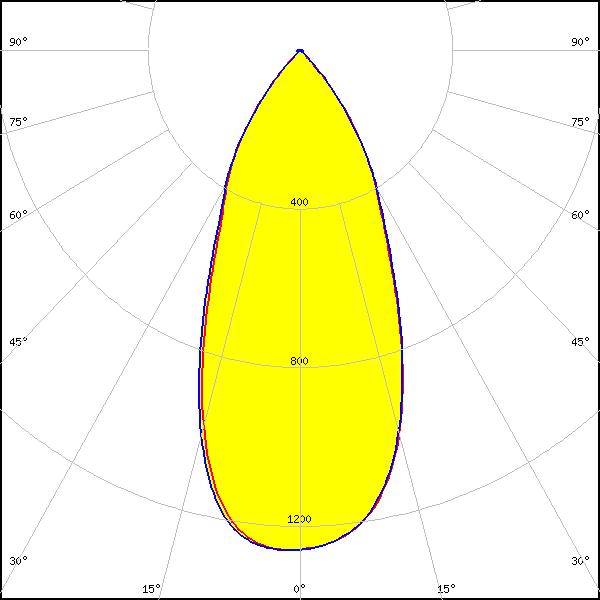

LED: Xenio Point 13mm
LES size: 13.2 mm
Required components:
FWHM: 45°
FWTM: 81°
Peak intensity: 1.260 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: Xenio Point 13mm
LES size: 13.2 mm
Required components:
FWHM: 48°
FWTM: 80°
Peak intensity: 1.050 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: Xenio Point 13mm
LES size: 13.2 mm
Required components:
FWHM: 49°
FWTM: 78°
Peak intensity: 1.130 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

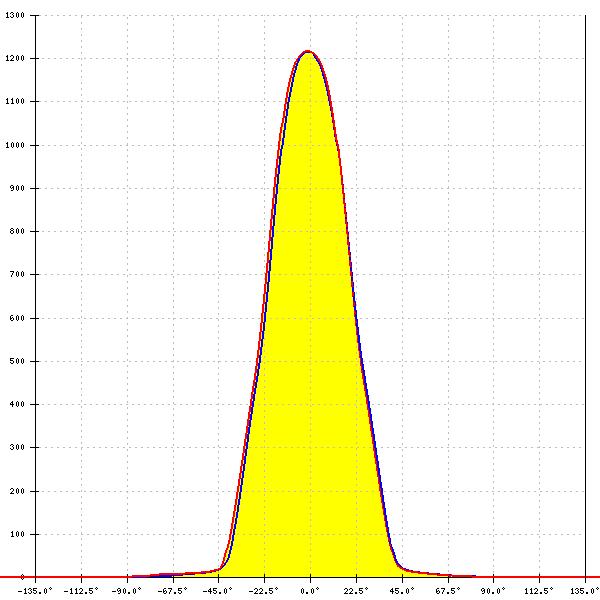

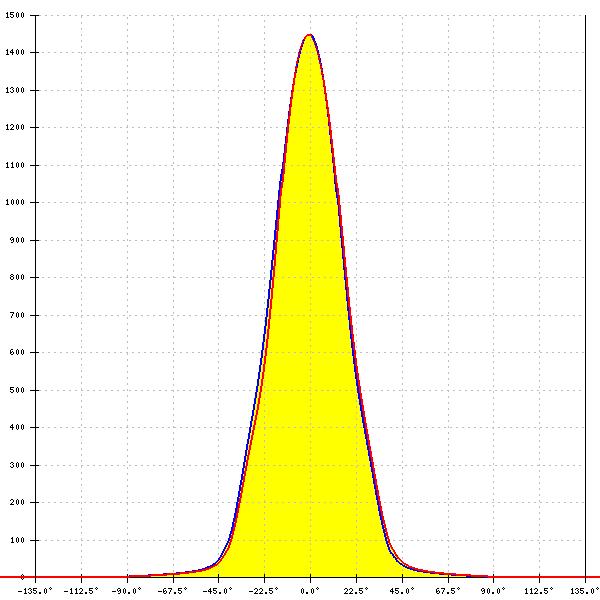

LED: CLL01x
LES size: 6.0 mm
Required components:
FWHM: 36°
FWTM: 80°
Peak intensity: 1.800 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL01x
LES size: 6.0 mm
Required components:
FWHM: 44°
FWTM: 76°
Peak intensity: 1.400 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL01x
LES size: 6.0 mm
Required components:
FWHM: 42°
FWTM: 76°
Peak intensity: 1.400 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

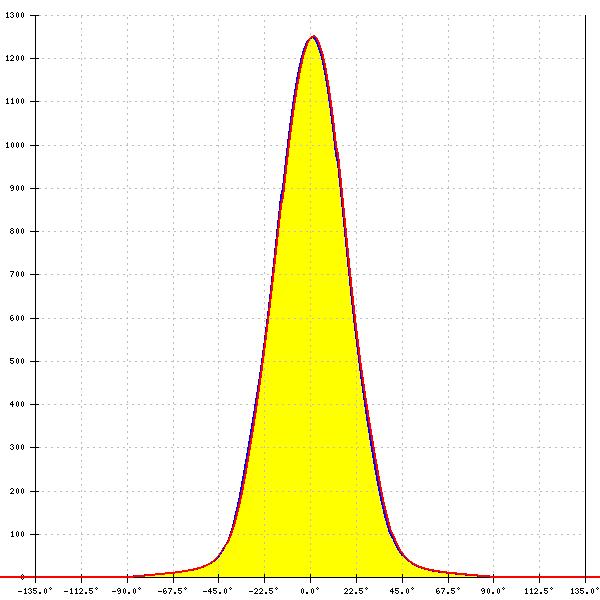

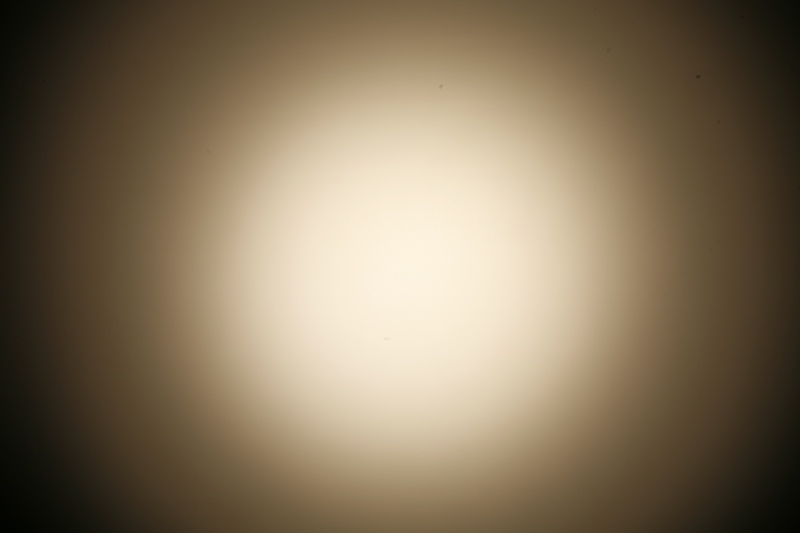

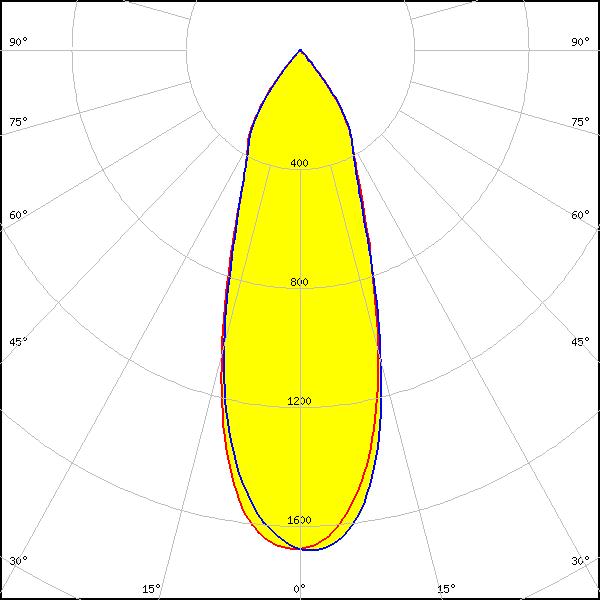

LED: CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM: 41°
FWTM: 80°
Peak intensity: 1.800 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM: 46°
FWTM: 77°
Peak intensity: 1.500 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM: 46°
FWTM: 78°
Peak intensity: 1.500 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM: 46°
FWTM: 80°
Peak intensity: 0.700 cd/lm
LEDs/each optic: 1
Light colour/type: White
LED: CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 36°
FWTM: 77°
Peak intensity: 1.700 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM: 41°
FWTM: 76°
Peak intensity: 1.300 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White
LED: CLL02x/CLU02x (LES10)
LES size: 9.8 mm
Required components:
FWHM: 39°
FWTM: 73°
Peak intensity: 1.500 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

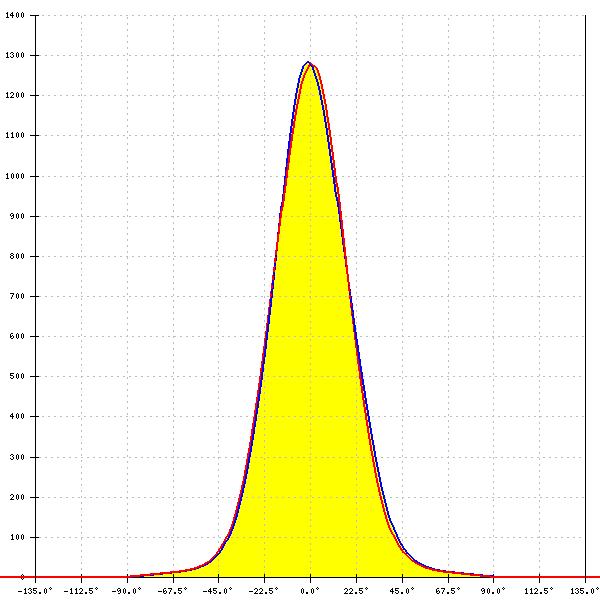

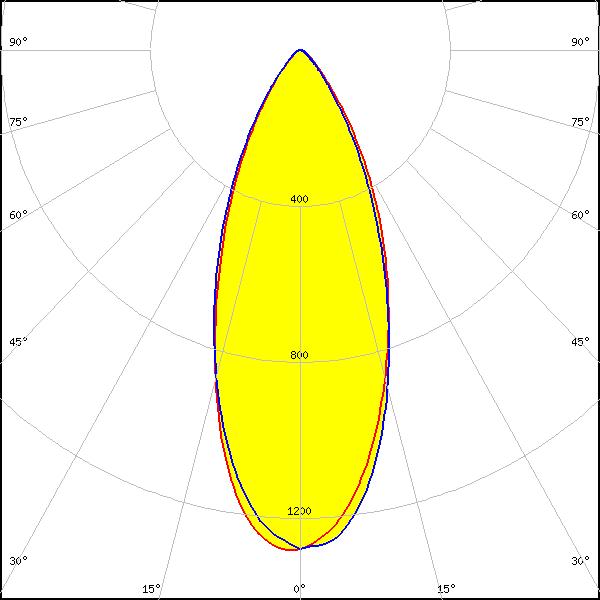

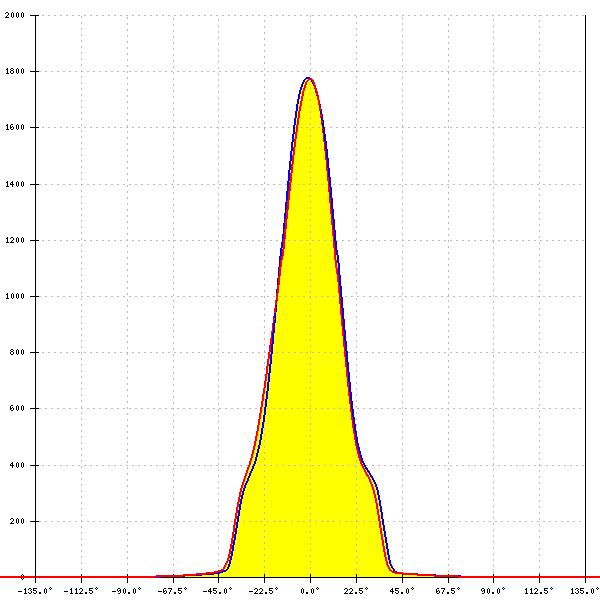

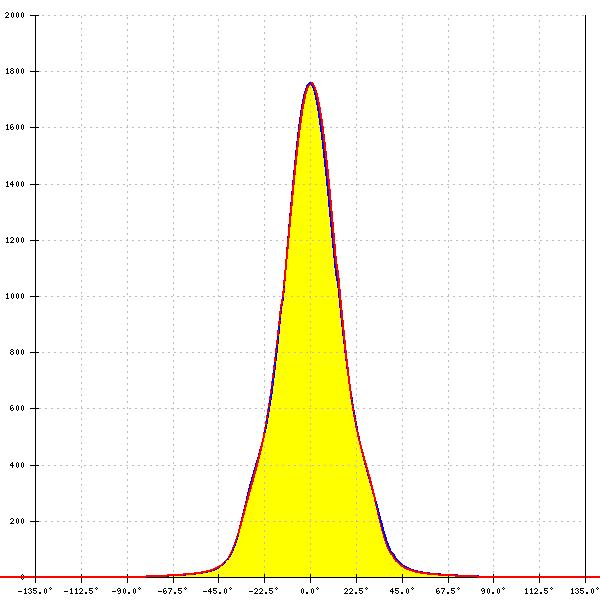

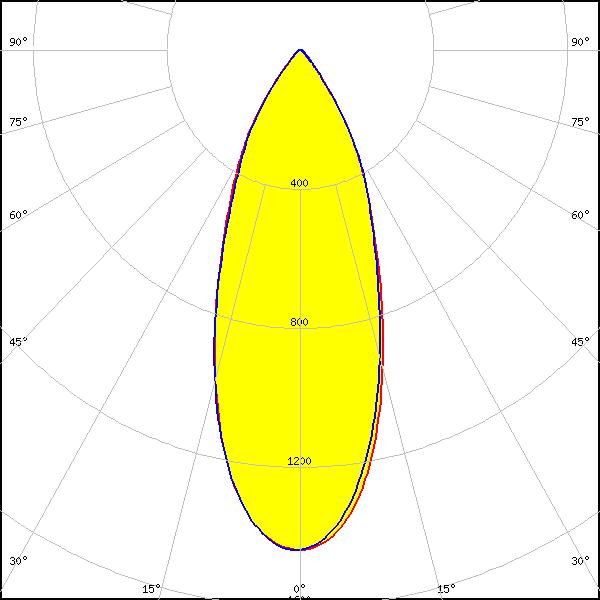

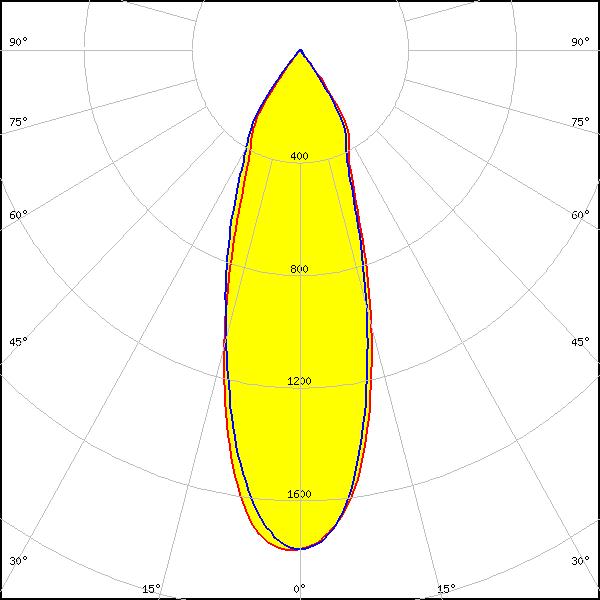

LED: CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM: 33°
FWTM: 78°
Peak intensity: 1.900 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM: 39°
FWTM: 75°
Peak intensity: 1.400 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM: 34°
FWTM: 72°
Peak intensity: 1.800 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

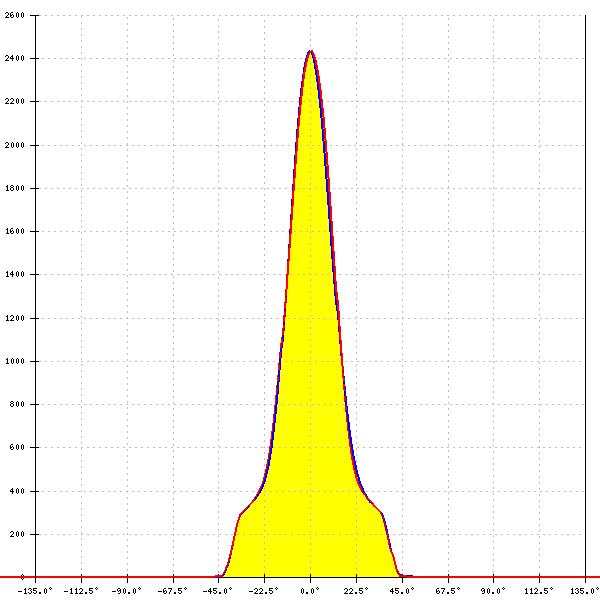

LED: CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM: 42°
FWTM: 78°
Peak intensity: 1.300 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU700/701/702/703
LES size: 6.0 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 26°
FWTM: 73°
Peak intensity: 2.400 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM: 31°
FWTM: 70°
Peak intensity: 1.800 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU700/701/702/703
LES size: 6.0 mm
Required components:
FWHM: 29°
FWTM: 69°
Peak intensity: 2.100 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

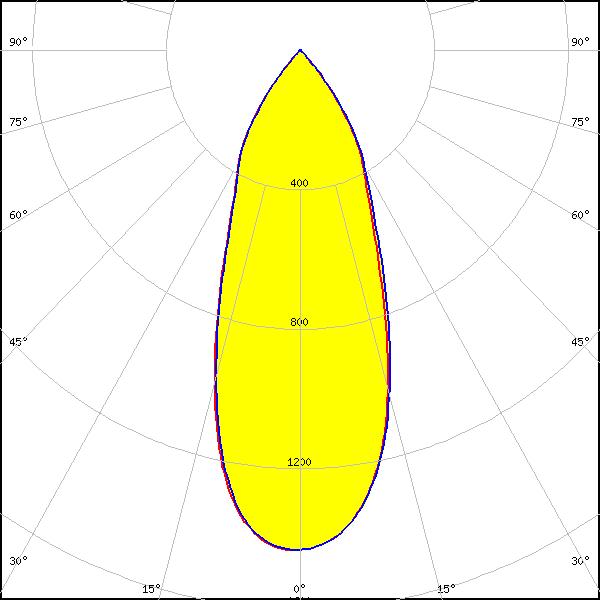

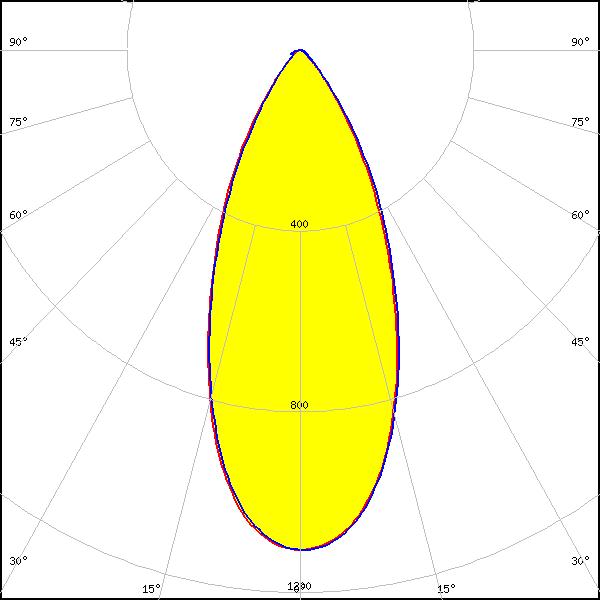

LED: CLU720/721/723
LES size: 11.0 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 433 Typ L1
FWHM: 40°
FWTM: 78°
Peak intensity: 1.400 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM: 44°
FWTM: 78°
Peak intensity: 1.100 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
LED: CLU720/721/723
LES size: 11.0 mm
Required components:
FWHM: 43°
FWTM: 74°
Peak intensity: 1.300 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

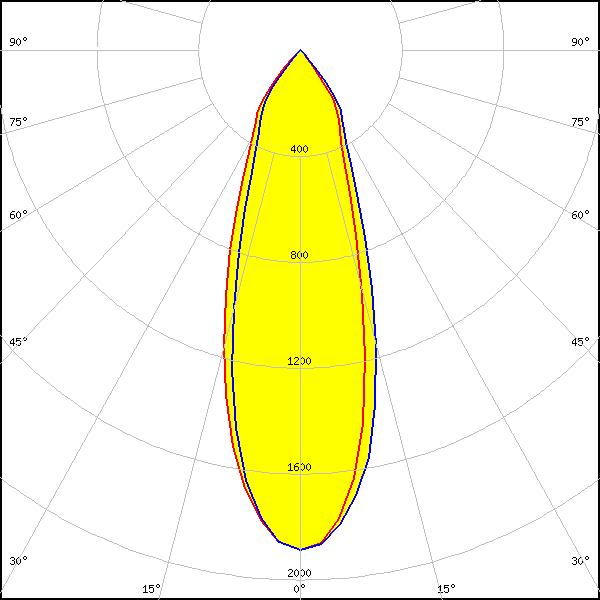

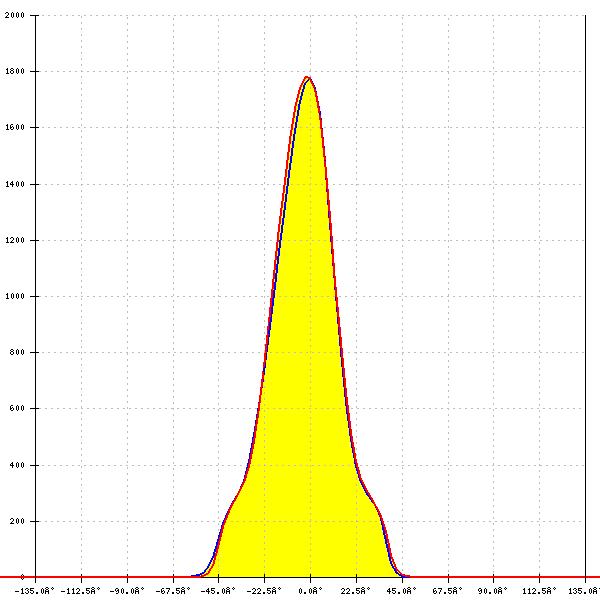

LED: CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM: 37°
FWTM: 80°
Peak intensity: 1.800 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM: 43°
FWTM: 76°
Peak intensity: 1.400 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 13xx
LES size: 6.0 mm
Required components:
FWHM: 42°
FWTM: 76°
Peak intensity: 1.500 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

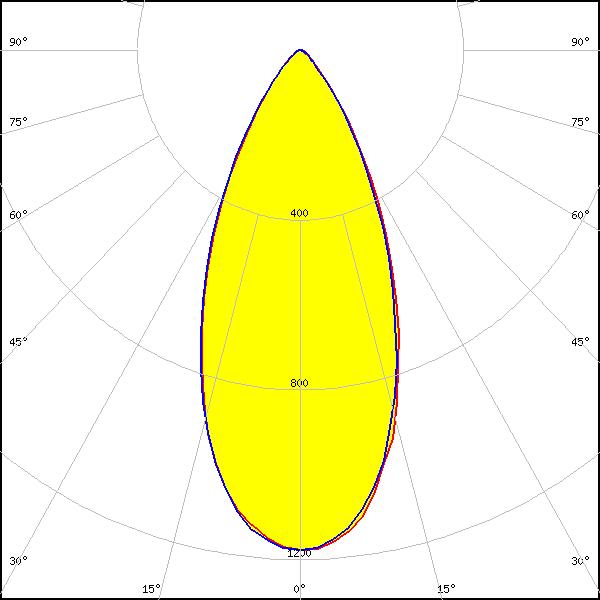

LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: 41°
FWTM: 82°
Peak intensity: 1.400 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: 47°
FWTM: 79°
Peak intensity: 1.200 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: 46°
FWTM: 79°
Peak intensity: 1.400 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: 47°
FWTM: 81°
Peak intensity: 1.200 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

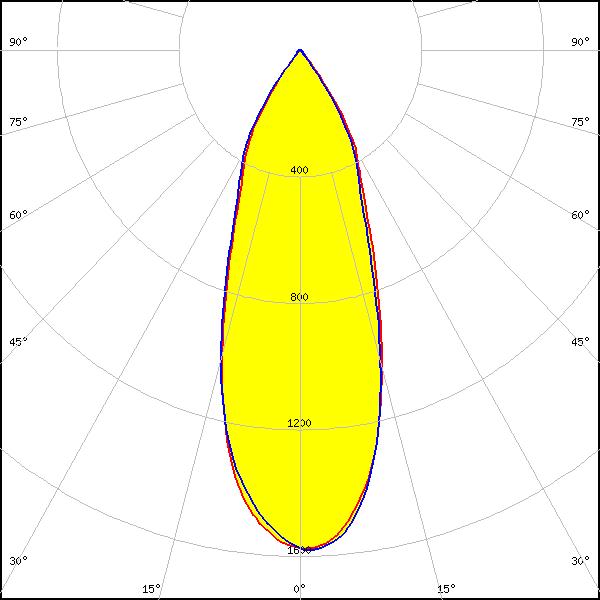

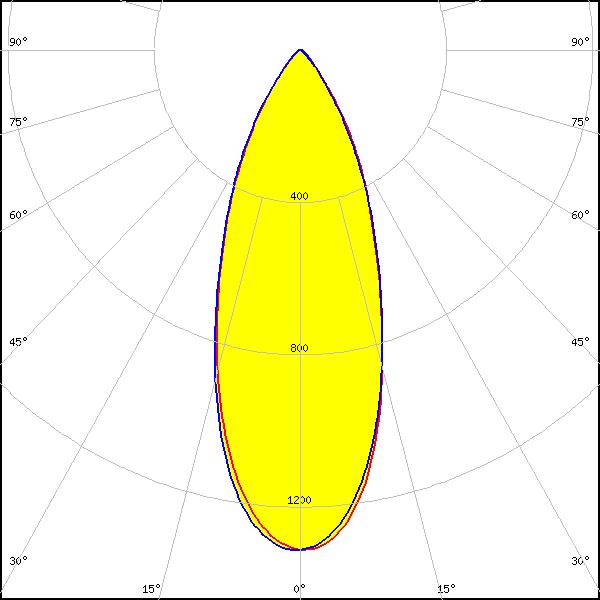

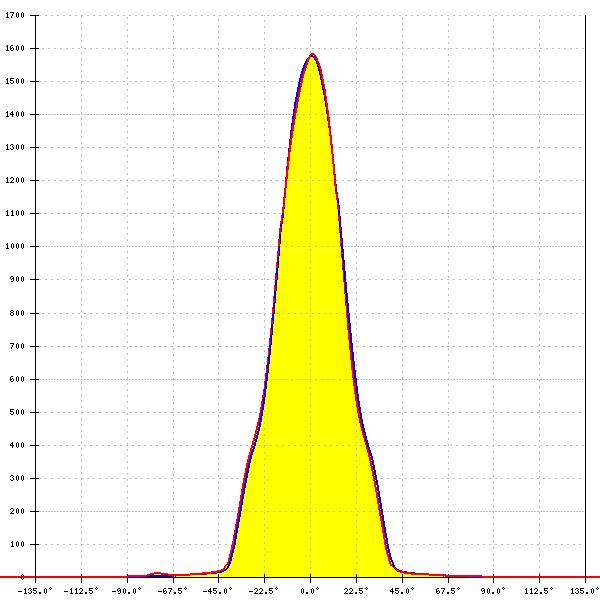

LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 441 Typ L1
FWHM: 34°
FWTM: 75°
Peak intensity: 1.800 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: 39°
FWTM: 75°
Peak intensity: 1.300 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 15xx
LES size: 8.9 mm
Required components:
FWHM: 37°
FWTM: 72°
Peak intensity: 1.600 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

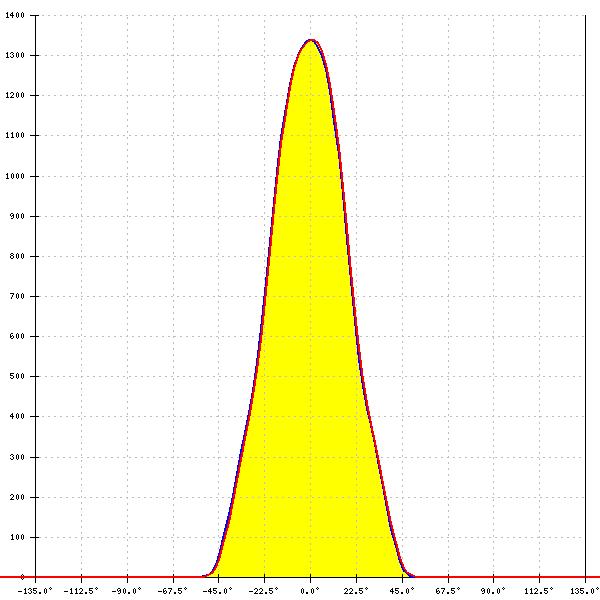

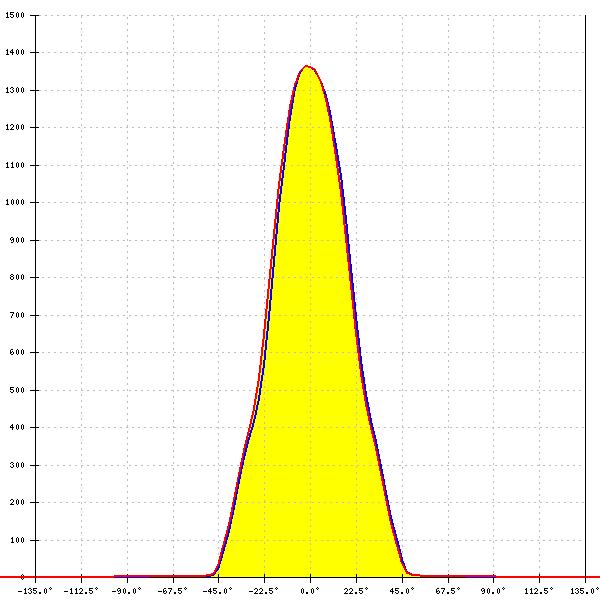

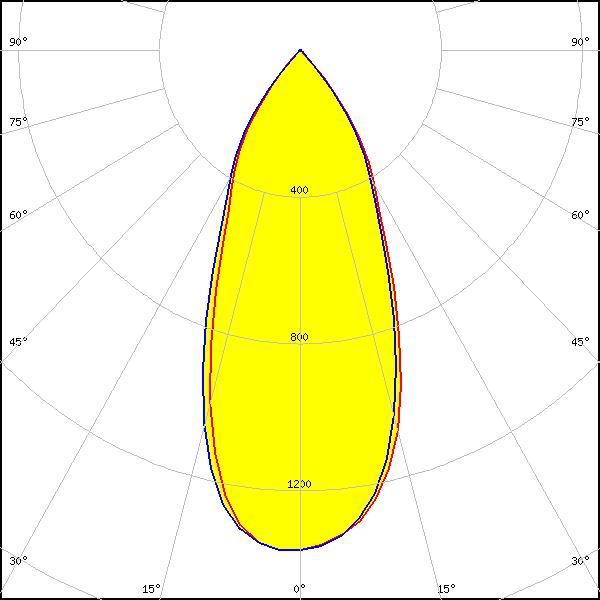

LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
IDEAL: 50-2101CR
IDEAL: 50-2100MR
FWHM: 43°
FWTM: 81°
Peak intensity: 1.370 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: CXA/B 1816 & CXA/B 1820 & CXA 1850
LES size: 12.0 mm
Required components:
FWHM: 45°
FWTM: 81°
Peak intensity: 1.300 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: MHD-E/G
LES size: 0.0 mm
Required components:
FWHM: 38°
FWTM: 82°
Peak intensity: 1.500 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: MHD-E/G
LES size: 0.0 mm
Required components:
FWHM: 45°
FWTM: 78°
Peak intensity: 1.200 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: MHD-E/G
LES size: 0.0 mm
Required components:
FWHM: 44°
FWTM: 77°
Peak intensity: 1.300 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: MHD-E/G
LES size: 0.0 mm
Required components:
FWHM: 45°
FWTM: 83°
Peak intensity: 1.100 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: MK-R
LES size: 0.0 mm
Required components:
FWHM: 30°
FWTM: 77°
Peak intensity: 2.100 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: MK-R
LES size: 0.0 mm
Required components:
FWHM: 34°
FWTM: 73°
Peak intensity: 1.660 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: MT-G
LES size: 0.0 mm
Required components:
FWHM: 48°
FWTM: 87°
Peak intensity: 1.400 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: MT-G
LES size: 0.0 mm
Required components:
FWHM: 52°
FWTM: 84°
Peak intensity: 1.200 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: MT-G
LES size: 0.0 mm
Required components:
FWHM: 52°
FWTM: 83°
Peak intensity: 1.200 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: MT-G2
LES size: 0.0 mm
Required components:
FWHM: 46°
FWTM: 86°
Peak intensity: 0.800 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: MT-G2
LES size: 0.0 mm
Required components:
FWHM: 51°
FWTM: 82°
Peak intensity: 1.200 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: MT-G2
LES size: 0.0 mm
Required components:
FWHM: 50°
FWTM: 81°
Peak intensity: 1.200 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP50
LES size: 0.0 mm
Required components:
FWHM: 33°
FWTM: 80°
Peak intensity: 1.800 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP50
LES size: 0.0 mm
Required components:
FWHM: 39°
FWTM: 76°
Peak intensity: 1.400 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP50
LES size: 0.0 mm
Required components:
FWHM: 39°
FWTM: 76°
Peak intensity: 1.500 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP50
LES size: 0.0 mm
Required components:
FWHM: 38°
FWTM: 77°
Peak intensity: 1.300 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP70
LES size: 0.0 mm
Required components:
FWHM: 39°
FWTM: 82°
Peak intensity: 1.500 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP70
LES size: 0.0 mm
Required components:
FWHM: 43°
FWTM: 77°
Peak intensity: 1.300 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP70
LES size: 0.0 mm
Required components:
FWHM: 42°
FWTM: 77°
Peak intensity: 1.300 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: XHP70
LES size: 0.0 mm
Required components:
FWHM: 44°
FWTM: 80°
Peak intensity: 1.200 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: XM-L RGBW (XMLCTW)
LES size: 0.0 mm
Required components:
FWHM: 41°
FWTM: 80°
Peak intensity: 1.300 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: XM-L RGBW (XMLDCL HD)
LES size: 0.0 mm
Required components:
FWHM: 47°
FWTM: 80°
Peak intensity: 1.210 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: RGBW
LED: XQ-E HI
LES size: 0.0 mm
Required components:
FWHM: 42°
FWTM: 82°
Peak intensity: 1.380 cd/lm
Efficiency: 87 %
LEDs/each optic: 4
Light colour/type: RGBW
LED: LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
IDEAL: 50-2100NC +50-2100MR
FWHM: 37°
FWTM: 78°
Peak intensity: 1.700 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 438 Typ L1
FWHM: 35°
FWTM: 76°
Peak intensity: 1.700 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM: 39°
FWTM: 79°
Peak intensity: 1.600 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM: 40°
FWTM: 75°
Peak intensity: 1.300 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
FWHM: 37°
FWTM: 72°
Peak intensity: 1.500 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
IDEAL: 50-2100NC +50-2100MR
C12479_MIRELLA-DL
FWHM: 41°
FWTM: 75°
Peak intensity: 1.400 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1202/1203
LES size: 9.0 mm
Required components:
IDEAL: 50-2100NC +50-2100MR
C13333_MIRELLA-CL
FWHM: 39°
FWTM: 74°
Peak intensity: 1.500 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM: 35°
FWTM: 82°
Peak intensity: 1.900 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM: 40°
FWTM: 78°
Peak intensity: 1.500 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM: 41°
FWTM: 78°
Peak intensity: 1.500 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 452 Typ L1
FWHM: 25°
FWTM: 72°
Peak intensity: 2.600 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM: 32°
FWTM: 71°
Peak intensity: 1.600 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB 1202s
LES size: 6.5 mm
Required components:
FWHM: 28°
FWTM: 69°
Peak intensity: 2.200 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB Compact
LES size: 6.5 mm
Required components:
FWHM: 35°
FWTM: 82°
Peak intensity: 1.900 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB Compact
LES size: 6.5 mm
Required components:
FWHM: 40°
FWTM: 78°
Peak intensity: 1.500 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB Compact
LES size: 6.5 mm
Required components:
FWHM: 41°
FWTM: 78°
Peak intensity: 1.500 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB Compact
LES size: 6.5 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 452 Typ L1
FWHM: 25°
FWTM: 72°
Peak intensity: 2.600 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB Compact
LES size: 6.5 mm
Required components:
FWHM: 32°
FWTM: 71°
Peak intensity: 1.600 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON CoB Compact
LES size: 6.5 mm
Required components:
FWHM: 37°
FWTM: 72°
Peak intensity: 1.500 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON K4
LES size: 7.7 mm
Required components:
FWHM: 46°
FWTM: 84°
Peak intensity: 1.260 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON K4
LES size: 7.7 mm
Required components:
FWHM: 54°
FWTM: 98°
Peak intensity: 0.870 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON Z
LES size: 0.0 mm
Required components:
FWHM: 36°
FWTM: 75°
Peak intensity: 1.500 cd/lm
Efficiency: 79 %
LEDs/each optic: 4
Light colour/type: RGBW
LED: CxM-14 (19x19)
LES size: 14.5 mm
Required components:
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-14 (19x19)
LES size: 14.5 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 433 Typ L1
FWHM: 49°
FWTM: 72°
Peak intensity: 1.000 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-14 (19x19)
LES size: 14.5 mm
Required components:
FWHM: 51°
FWTM: 81°
Peak intensity: 0.900 cd/lm
Efficiency: 70 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-6 (12x13)
LES size: 6.3 mm
Required components:
FWHM: 36°
FWTM: 79°
Peak intensity: 1.800 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: CXM-7 (13x13)
LES size: 7.5 mm
Required components:
FWHM: 38°
FWTM: 79°
Peak intensity: 1.600 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 36°
FWTM: 77°
Peak intensity: 1.700 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM: 41°
FWTM: 76°
Peak intensity: 1.300 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM: 39°
FWTM: 73°
Peak intensity: 1.500 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM: 44°
FWTM: 82°
Peak intensity: 1.300 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM: 49°
FWTM: 79°
Peak intensity: 1.100 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM: 48°
FWTM: 78°
Peak intensity: 1.200 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: CxM-9 (13.5x13.5)
LES size: 9.8 mm
Required components:
FWHM: 48°
FWTM: 83°
Peak intensity: 1.100 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
IDEAL: 50-2100NC +50-2100MR
FWHM: 43°
FWTM: 80°
Peak intensity: 1.400 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 438 Typ L1
FWHM: 41°
FWTM: 79°
Peak intensity: 1.400 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM: 46°
FWTM: 82°
Peak intensity: 1.260 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM: 46°
FWTM: 78°
Peak intensity: 1.100 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
FWHM: 45°
FWTM: 75°
Peak intensity: 1.200 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
IDEAL: 50-2100NC +50-2100MR
C12479_MIRELLA-DL
FWHM: 46°
FWTM: 77°
Peak intensity: 1.200 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 11)
LES size: 11.5 mm
Required components:
IDEAL: 50-2100NC +50-2100MR
C13333_MIRELLA-CL
FWHM: 47°
FWTM: 77°
Peak intensity: 1.200 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
IDEAL: 50-2100NC +50-2100MR
FWHM: 35°
FWTM: 77°
Peak intensity: 1.800 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 438 Typ L1
FWHM: 34°
FWTM: 76°
Peak intensity: 1.800 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM: 38°
FWTM: 78°
Peak intensity: 1.640 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM: 40°
FWTM: 75°
Peak intensity: 1.300 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
FWHM: 37°
FWTM: 73°
Peak intensity: 1.500 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
IDEAL: 50-2100NC +50-2100MR
C12479_MIRELLA-DL
FWHM: 39°
FWTM: 73°
Peak intensity: 1.400 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: COB L-Type (LES 9)
LES size: 8.7 mm
Required components:
IDEAL: 50-2100NC +50-2100MR
C13333_MIRELLA-CL
FWHM: 38°
FWTM: 73°
Peak intensity: 1.500 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: COB S-Type (LES 7)
LES size: 6.7 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 452 Typ L1
FWHM: 25°
FWTM: 72°
Peak intensity: 2.600 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: COB S-Type (LES 7)
LES size: 6.7 mm
Required components:
FWHM: 32°
FWTM: 71°
Peak intensity: 1.600 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: COB S-Type (LES 7)
LES size: 6.7 mm
Required components:
FWHM: 28°
FWTM: 69°
Peak intensity: 2.200 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

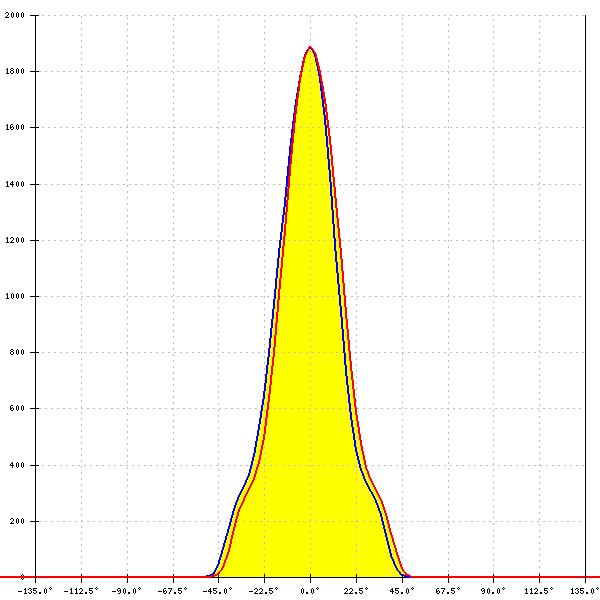

LED: NSCxL036A
LES size: 7.0 mm
Required components:
FWHM: 34°
FWTM: 76°
Peak intensity: 1.880 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: Duris S10
LES size: 0.0 mm
Required components:
FWHM: 38°
FWTM: 82°
Peak intensity: 1.700 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: Duris S10
LES size: 0.0 mm
Required components:
FWHM: 45°
FWTM: 81°
Peak intensity: 1.300 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: Duris S10
LES size: 0.0 mm
Required components:
FWHM: 43°
FWTM: -
LEDs/each optic: 1
Light colour/type: White
LED: Duris S10
LES size: 0.0 mm
Required components:
FWHM: 45°
FWTM: 82°
Peak intensity: 1.300 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: OSTAR Stage (S2WP)
LES size: 0.0 mm
Required components:
FWHM: 36°
FWTM: 78°
Peak intensity: 1.600 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

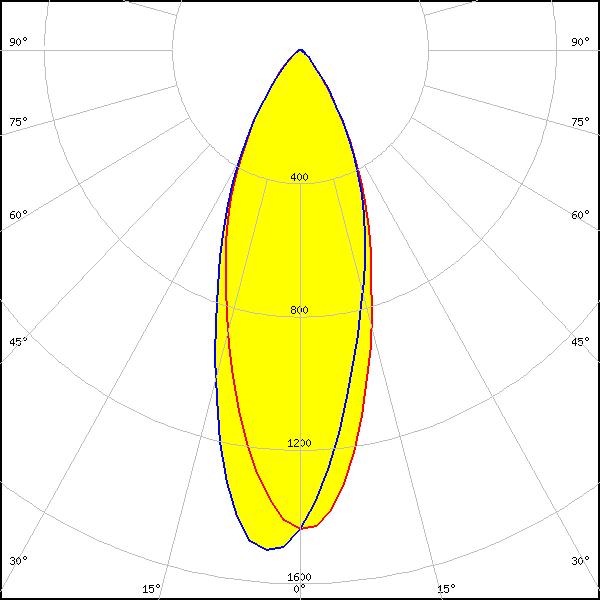

LED: Ostar-SMT RGB
LES size: 0.0 mm
Required components:
FWHM: 37°
FWTM: 77°
Peak intensity: 1.500 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: Soleriq S15
LES size: 14.7 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 433 Typ L1
FWHM: 56°
FWTM: 86°
Peak intensity: 1.081 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

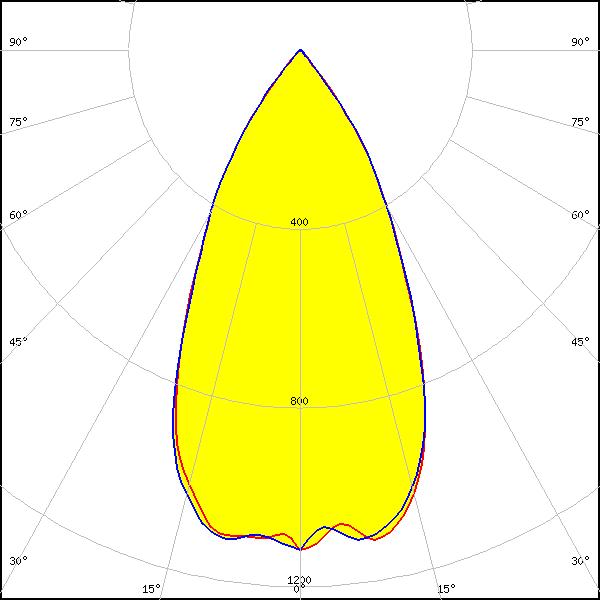

LED: Soleriq S9
LES size: 9.8 mm
Required components:
FWHM: 46°
FWTM: 82°
Peak intensity: 1.400 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
LED: Soleriq S9
LES size: 9.8 mm
Required components:
FWHM: 51°
FWTM: 80°
Peak intensity: 1.200 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: Soleriq S9
LES size: 9.8 mm
Required components:
FWHM: 52°
FWTM: 79°
Peak intensity: 1.100 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: Soleriq S9
LES size: 9.8 mm
Required components:
FWHM: 50°
FWTM: 80°
Peak intensity: 1.200 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: Soleriq S9
LES size: 9.8 mm
Required components:
FWHM: 38°
FWTM: 77°
Peak intensity: 1.700 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: LC010C
LES size: 6.0 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 479 Typ L1
FWHM: 32°
FWTM: 74°
Peak intensity: 2.200 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White
LED: LC020C
LES size: 8.0 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 479 Typ L1
FWHM: 35°
FWTM: 75°
Peak intensity: 1.900 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: LC040C
LES size: 11.0 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 480 Typ L1
FWHM: 42°
FWTM: 79°
Peak intensity: 1.400 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: ZC4/6
LES size: 8.6 mm
Required components:
C13709_PF-SOCKET-VERO13-18
Bender Wirth: 434 Typ L1
FWHM: 36°
FWTM: 77°
Peak intensity: 1.700 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: ZC4/6
LES size: 8.6 mm
Required components:
FWHM: 41°
FWTM: 76°
Peak intensity: 1.300 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White
LED: ZC4/6
LES size: 8.6 mm
Required components:
FWHM: 39°
FWTM: 73°
Peak intensity: 1.500 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: ZC4/6
LES size: 8.6 mm
Required components:
FWHM: 42°
FWTM: 82°
Peak intensity: 1.400 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White
LED: ZC4/6
LES size: 8.6 mm
Required components:
FWHM: 48°
FWTM: 80°
Peak intensity: 1.200 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: ZC4/6
LES size: 8.6 mm
Required components:
FWHM: 46°
FWTM: 78°
Peak intensity: 1.300 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

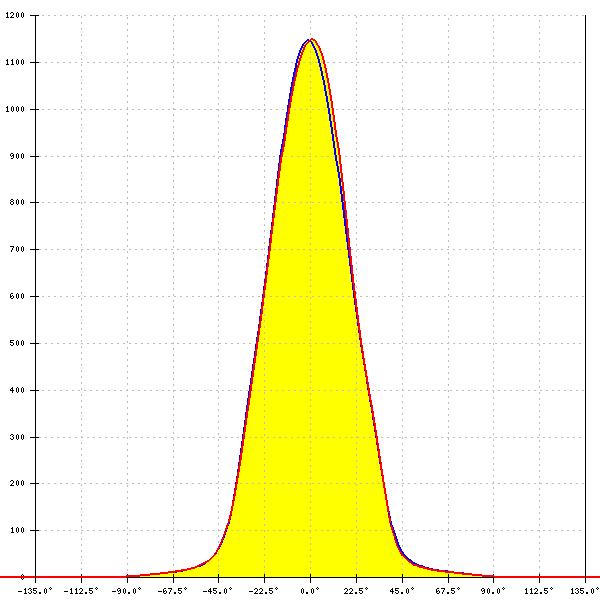

LED: Mini Zenigata (GW6BM)
LES size: 8.6 mm
Required components:
FWHM: 38°
FWTM: 81°
Peak intensity: 1.500 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
LED: Mini Zenigata (GW6BM)
LES size: 8.6 mm
Required components:
FWHM: 45°
FWTM: 80°
Peak intensity: 1.100 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: Mini Zenigata (GW6BM)
LES size: 8.6 mm
Required components:
FWHM: 46°
FWTM: 78°
Peak intensity: 1.300 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: XTM - 9mm LES
LES size: 9.0 mm
Required components:
FWHM: 35°
FWTM: 76°
Peak intensity: 1.700 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE

GET THE NEWSLETTER

X

Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
Optical results filtering
LED TYPE
LES Size
mm
Min
Max
LED Manufacturers
LED MODEL
Viewing Angle (FWHM)
°
Min
Max
CCT - LED (K)
CCT - WITH LENS (K)
BASEPART Manufacturers
BASEPART MODEL
LEDiL Accessories
