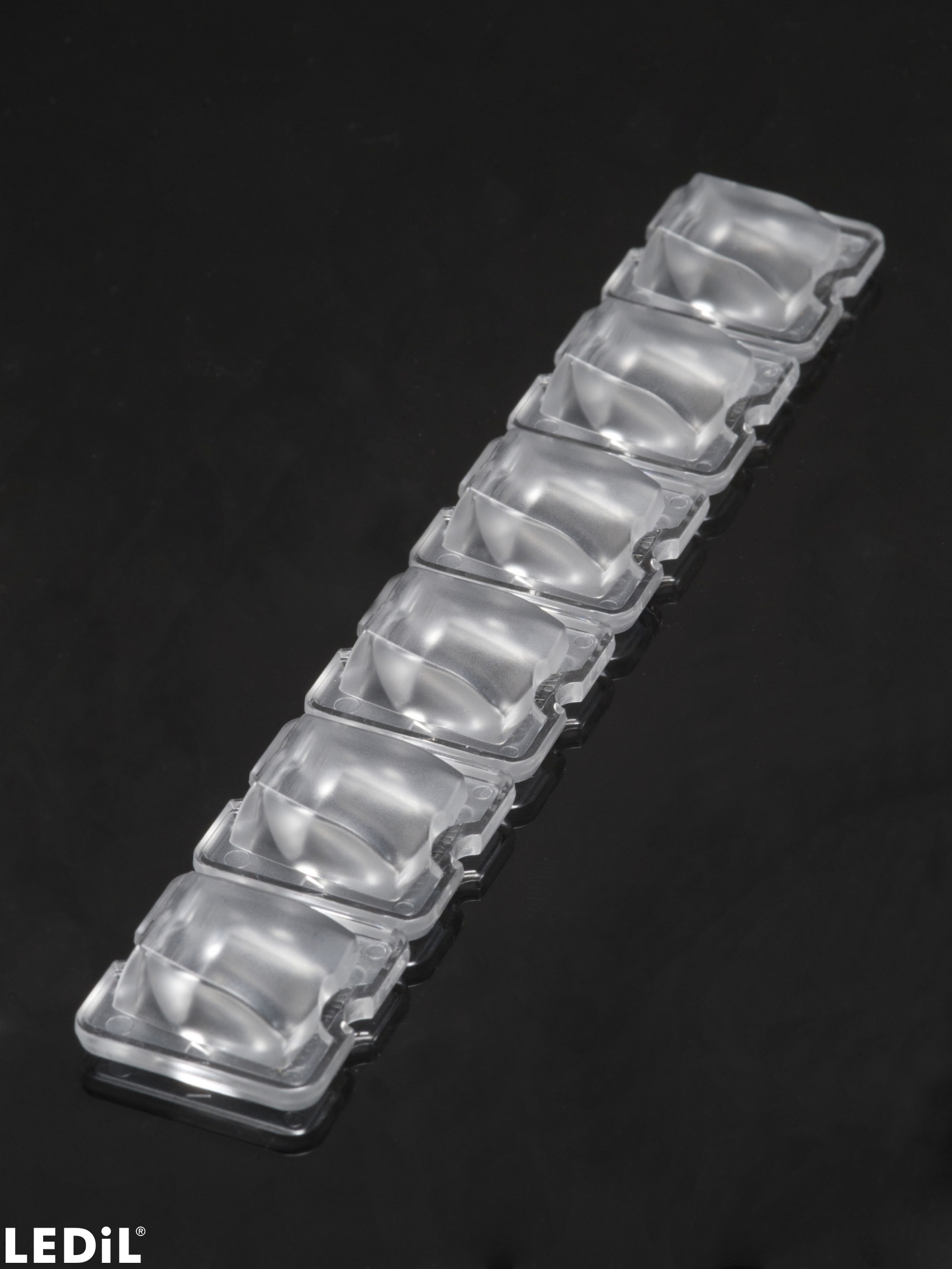

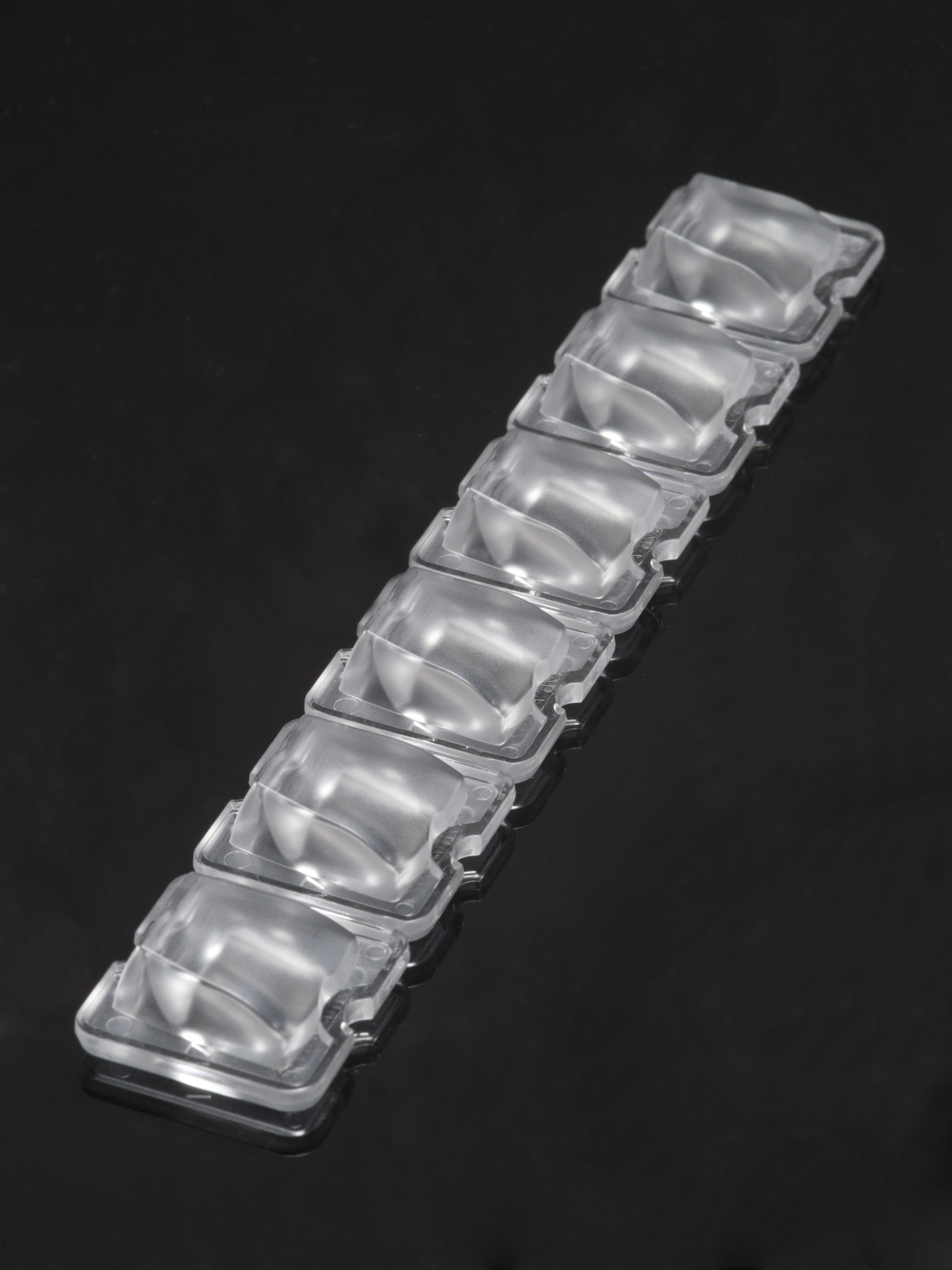

C14275_SHELLY-T-6X1-N

Asymmetric square beam for illuminating near field shelf objects and floor/ground areas in larger environments

Specification

Dimensions:

120 x 20 mm
Height:

7.00 mm
Fastening:

pin, screw
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

PMMA
Request material files from Tech Support

Ordering information

Quantity in box:

588 pcs
Box size:

480 x 280 x 300 mm
Box weight:

6.8 kg
MPQ:

28 pcs
MOQ:

28 pcs
MOQ size:

480 x 280 x 40 mm
MOQ weight:

0.7 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
3D mechanical model

Request a 3D mechanical model: C14275_SHELLY-T-6X1-N

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

C14275_SHELLY-T-6X1-N

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

News

PRODUCT NEWS - SHELLY

PCN

Product change notification NR111.a - Change of packaging quantities 211015

PCN

Product change notification NR102.a - Change of packaging quantities 230415

Application example

Shelf lighting with SHELLY

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Case story

Victory Square in Saint-Petersburg

Application guide

Fridge lighting with SHELLY-WAS and -N

Application area

Special Indoor Applications

Application area

Indoor Architectural Lighting

Optical results

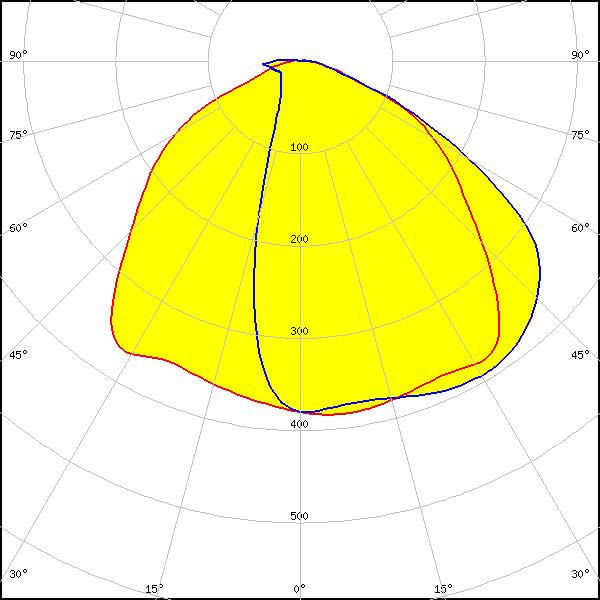

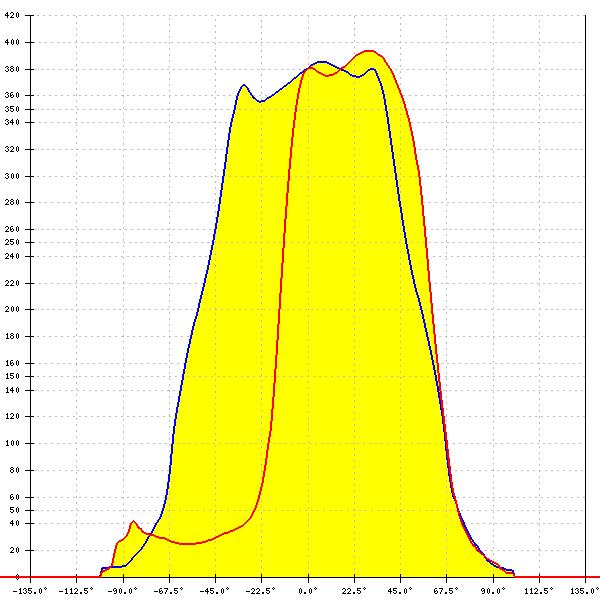

LED: XB-D

FWHM: asymmetric

Peak intensity: 0.430 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

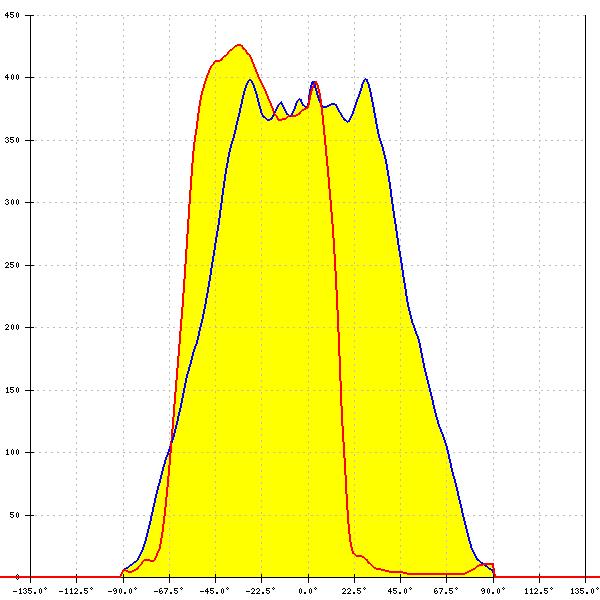

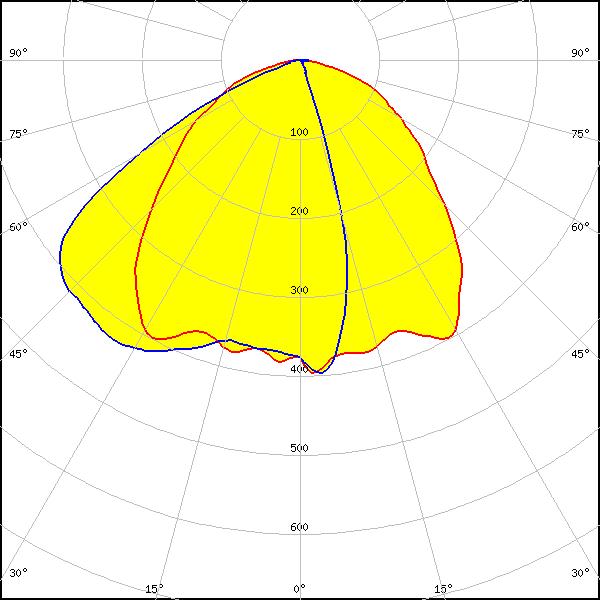

LED: XP-E

FWHM: asymmetric

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

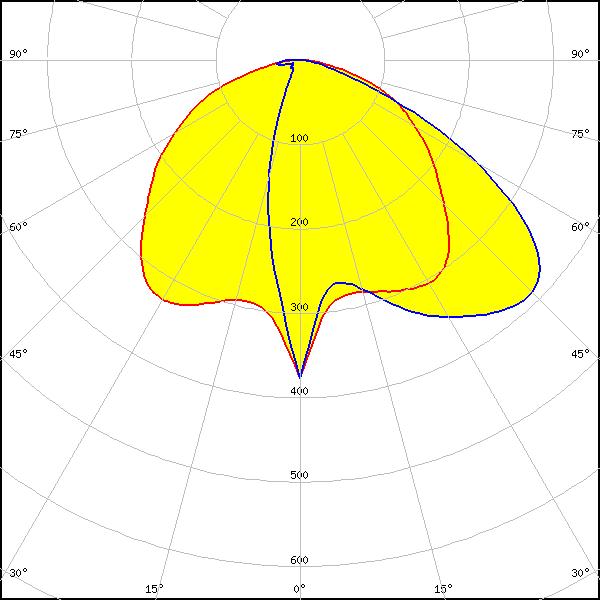

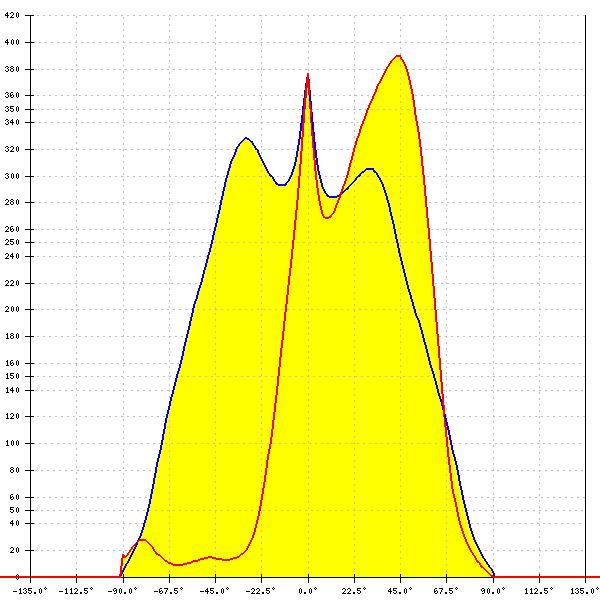

LED: XQ-D

FWHM: asymmetric

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

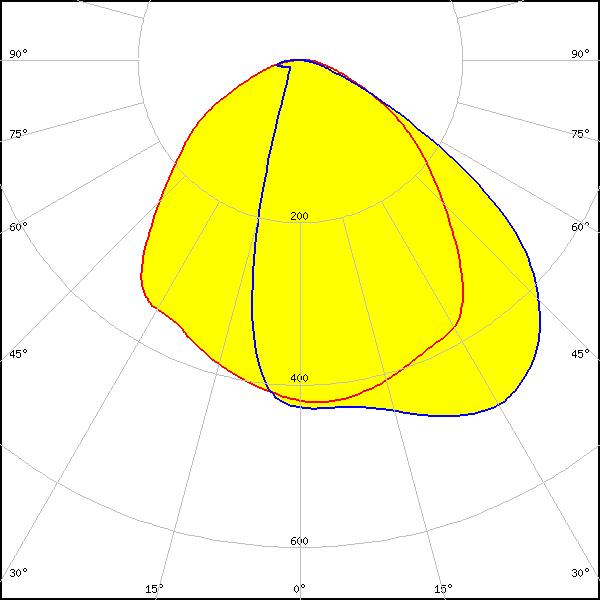

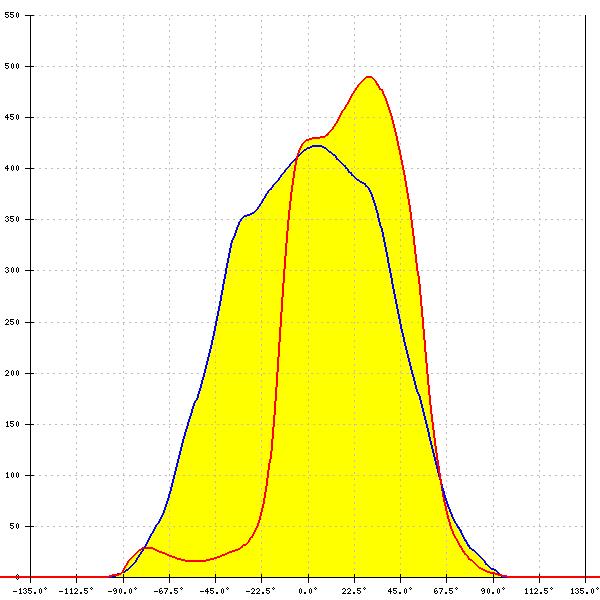

LED: XQ-E HD

FWHM: asymmetric

Peak intensity: 0.510 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

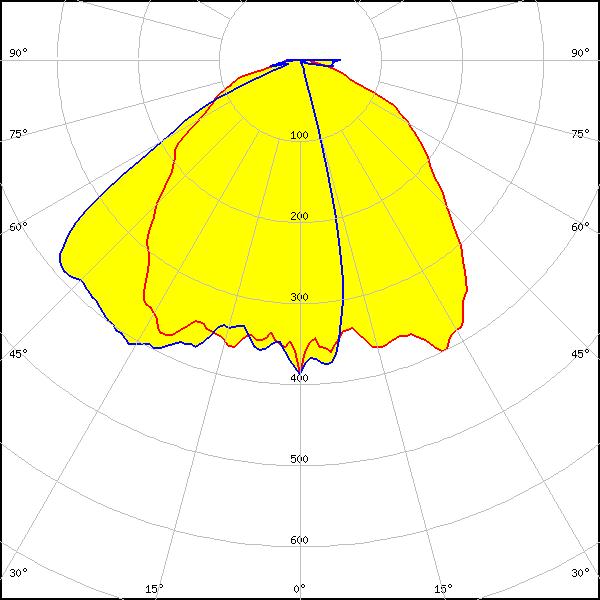

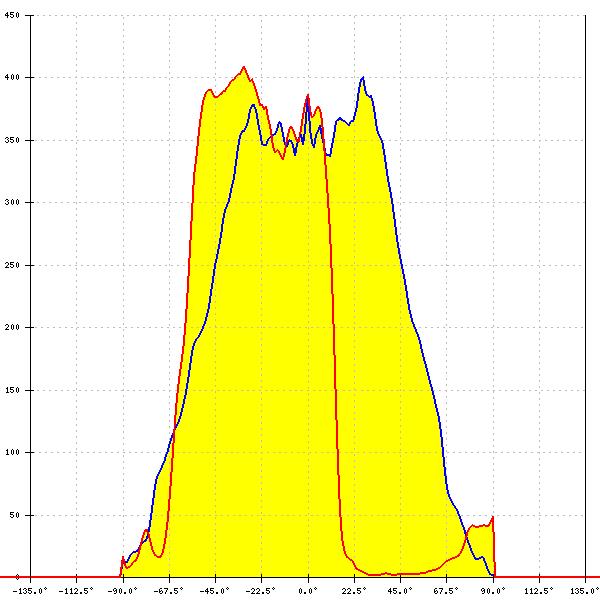

LED: XQ-E HI

FWHM: asymmetric

Peak intensity: 0.530 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

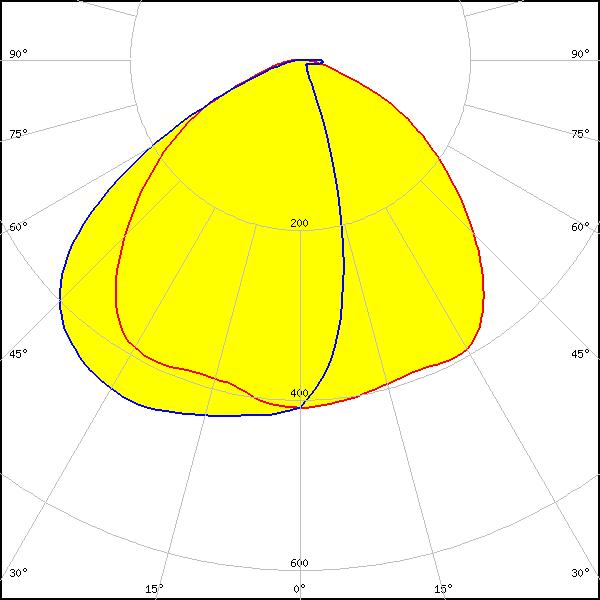

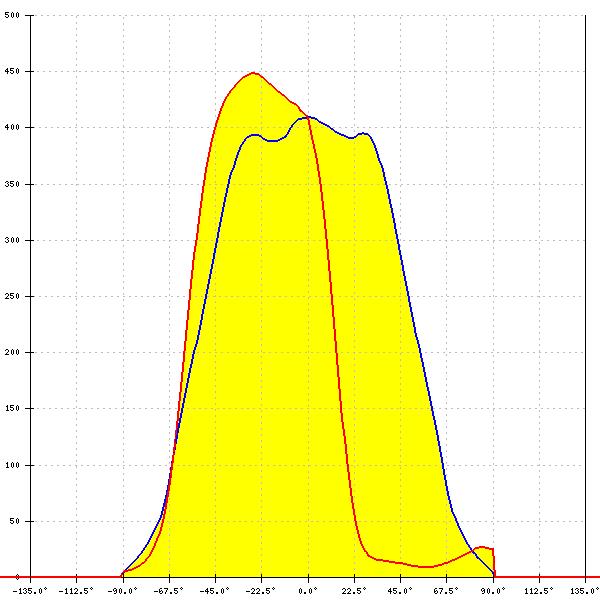

LED: LUXEON 2835 Architectural

FWHM: asymmetric

Peak intensity: 0.477 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

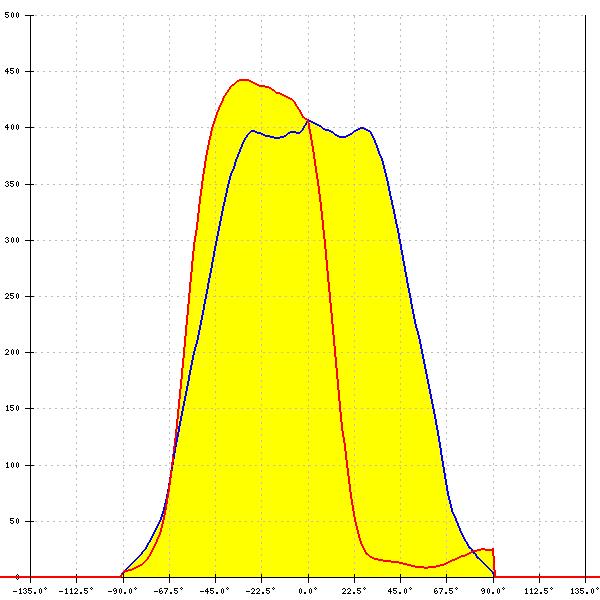

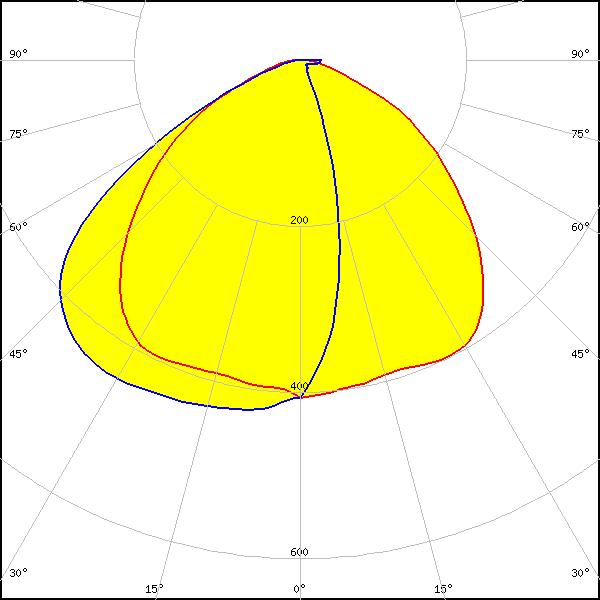

LED: LUXEON 3030 HE Plus 0B1/0C1

FWHM: asymmetric

Peak intensity: 0.474 cd/lm

Efficiency: 95 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

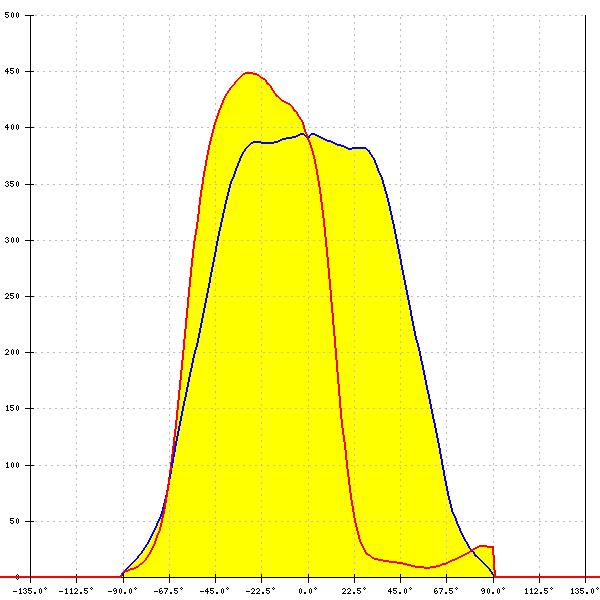

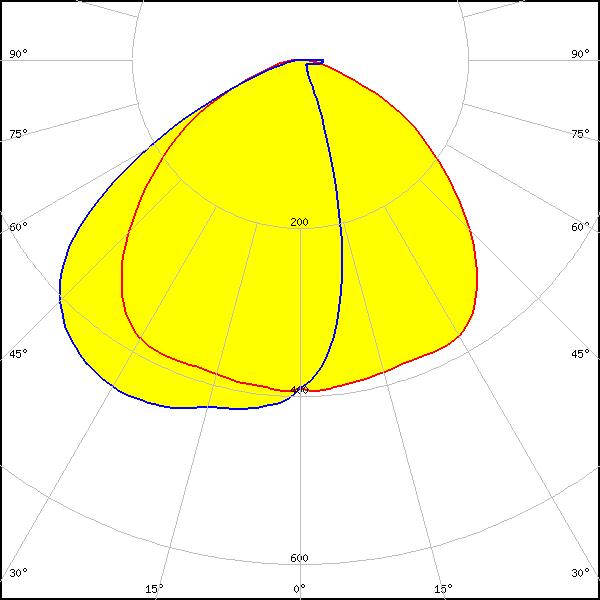

LED: LUXEON 3535L

FWHM: asymmetric

Peak intensity: 0.481 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

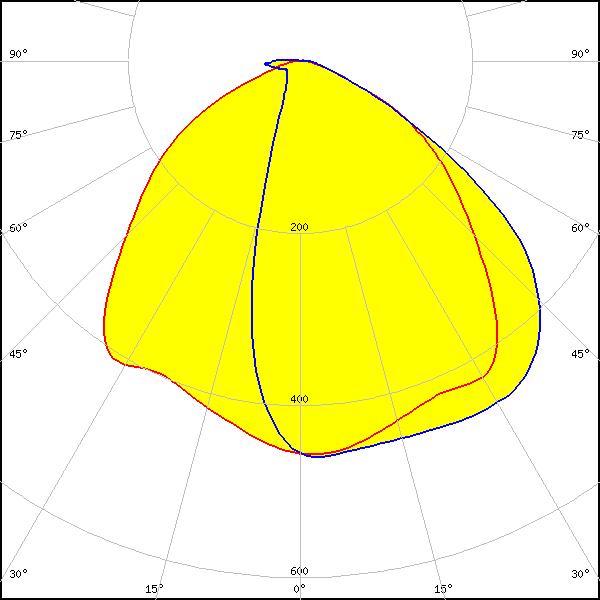

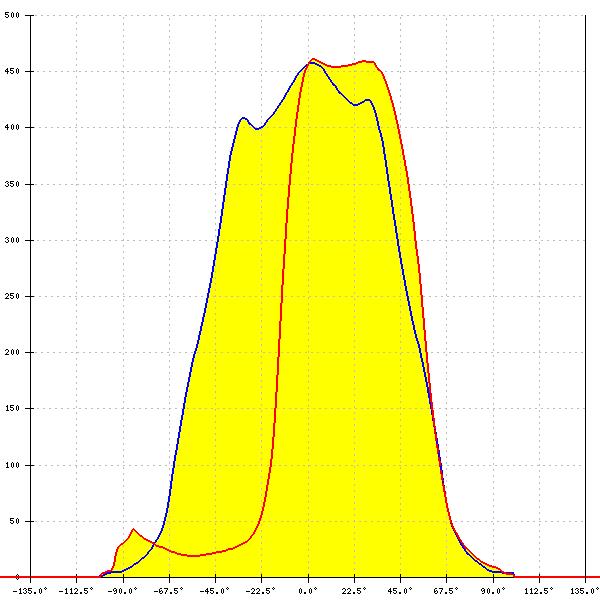

LED: LUXEON Rebel

FWHM: asymmetric

Peak intensity: 0.490 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

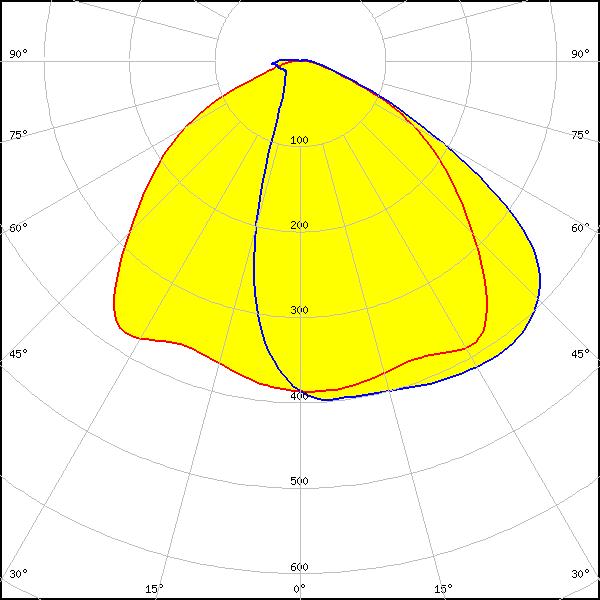

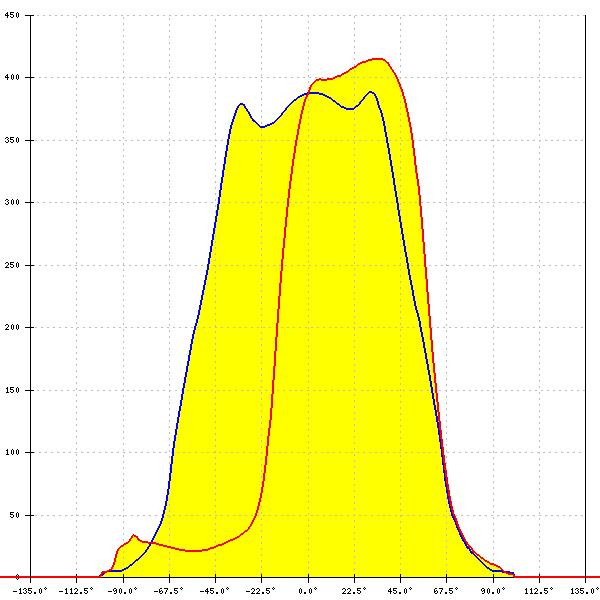

LED: LUXEON Rebel ES

FWHM: asymmetric

Peak intensity: 0.450 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

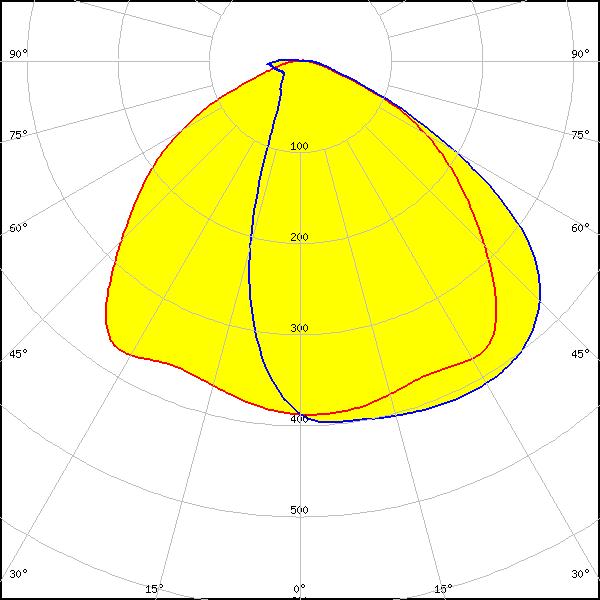

LED: LUXEON T

FWHM: asymmetric

Peak intensity: 0.440 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

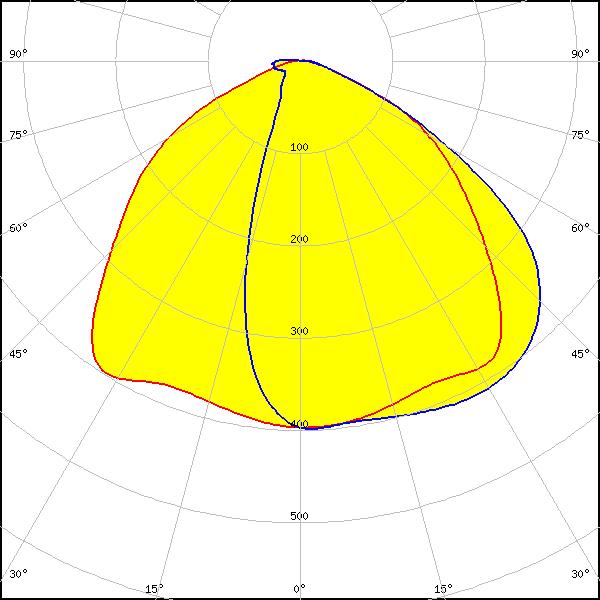

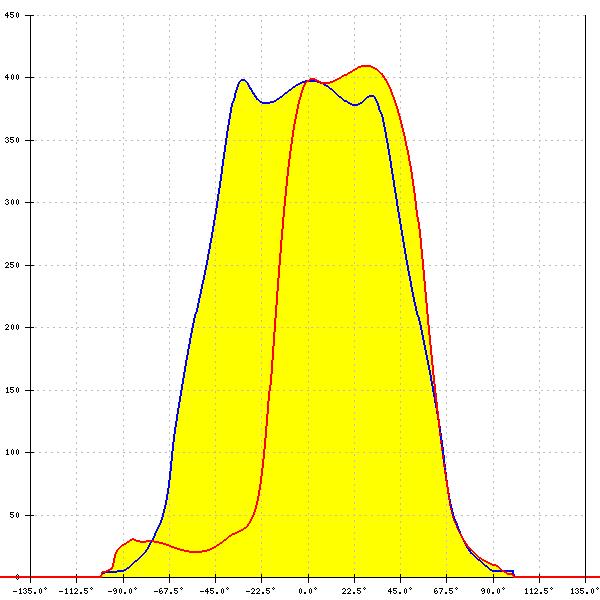

LED: LUXEON TX

FWHM: asymmetric

Peak intensity: 0.450 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

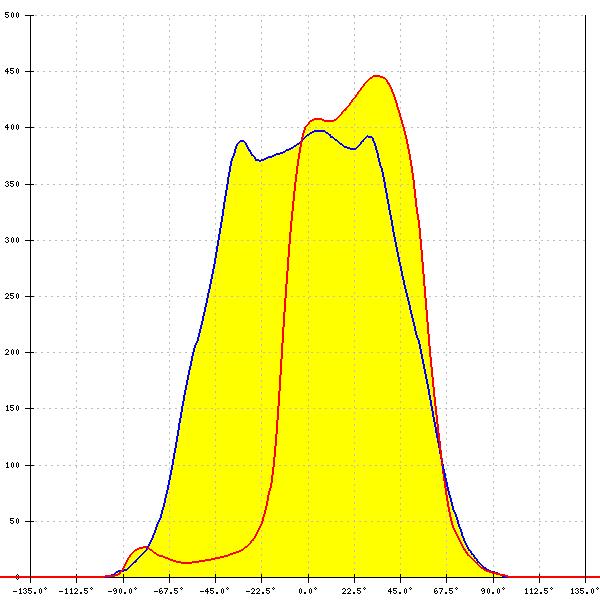

LED: LUXEON Z ES

FWHM: asymmetric

Peak intensity: 0.500 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

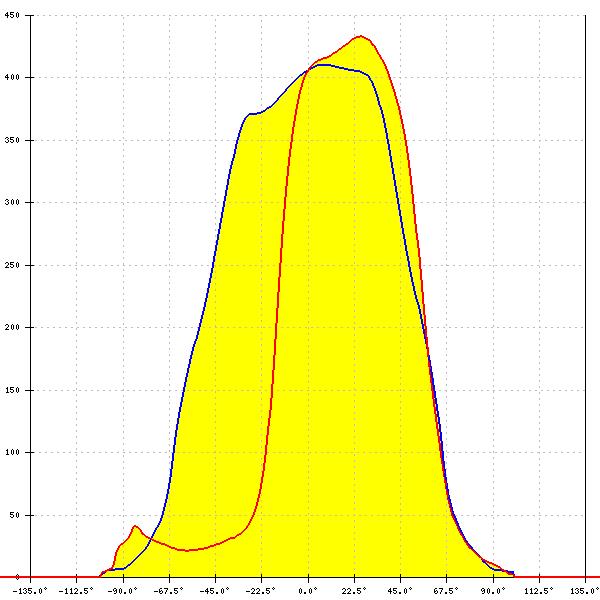

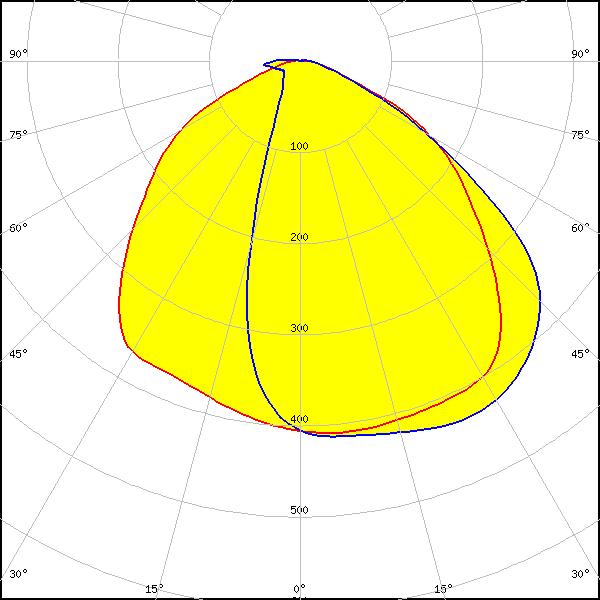

LED: NCSxx19A

FWHM: asymmetric

Peak intensity: 0.460 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

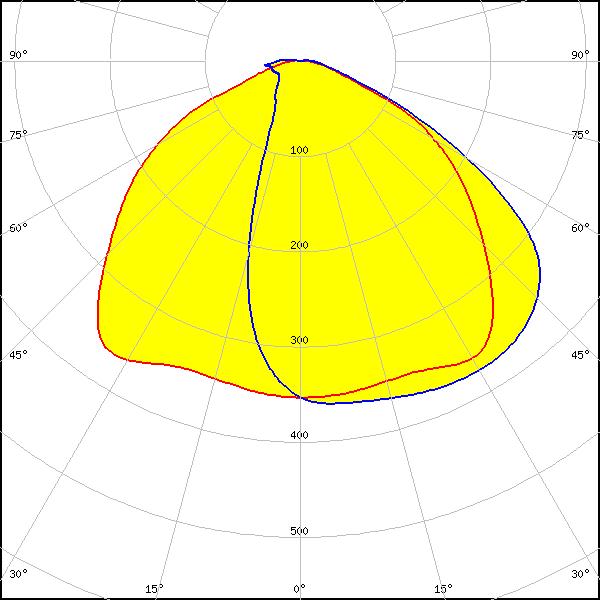

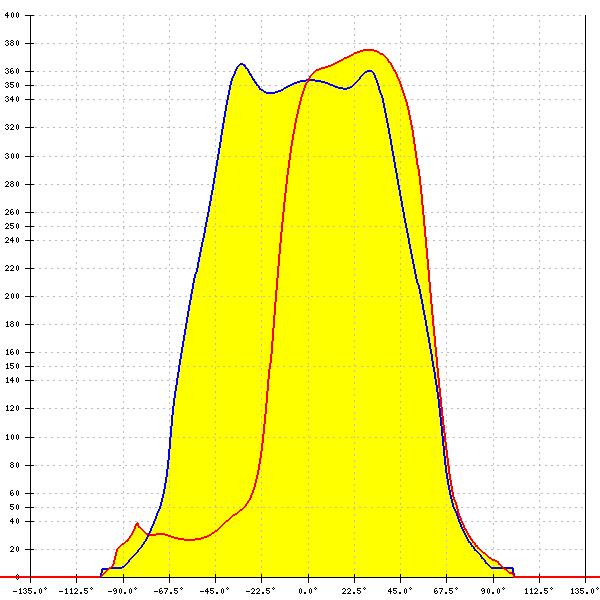

LED: NCSxx19B

FWHM: asymmetric

Peak intensity: 0.410 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

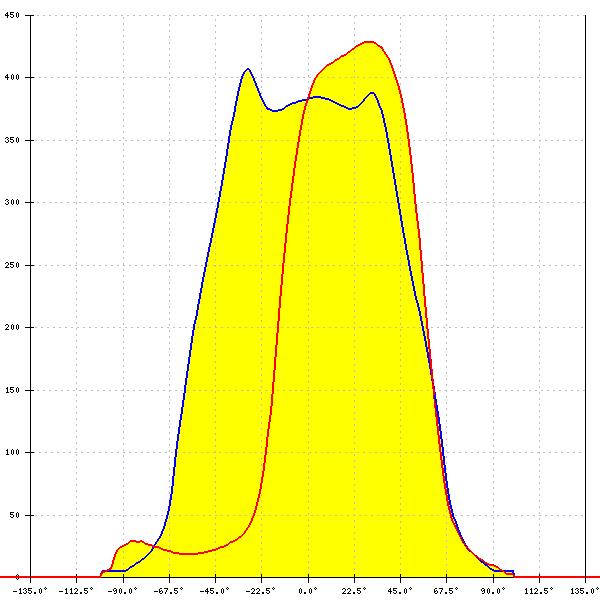

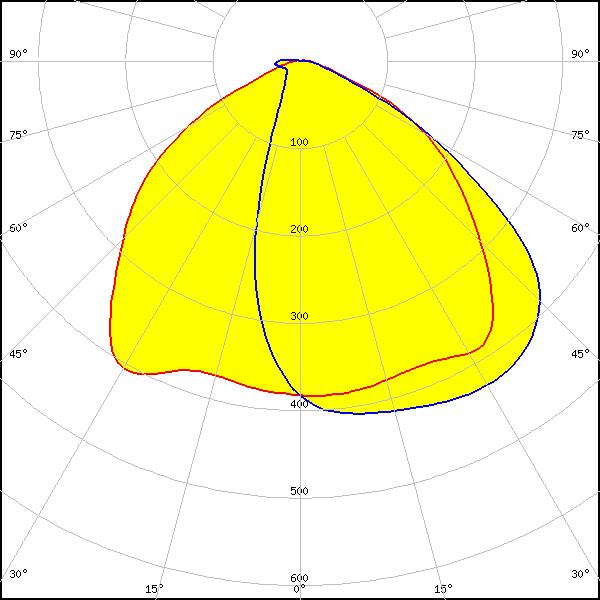

LED: NF2x757A

FWHM: asymmetric

Peak intensity: 0.460 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

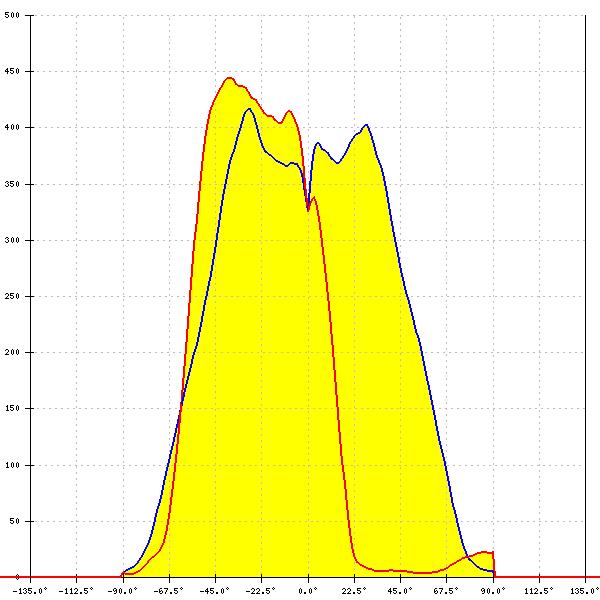

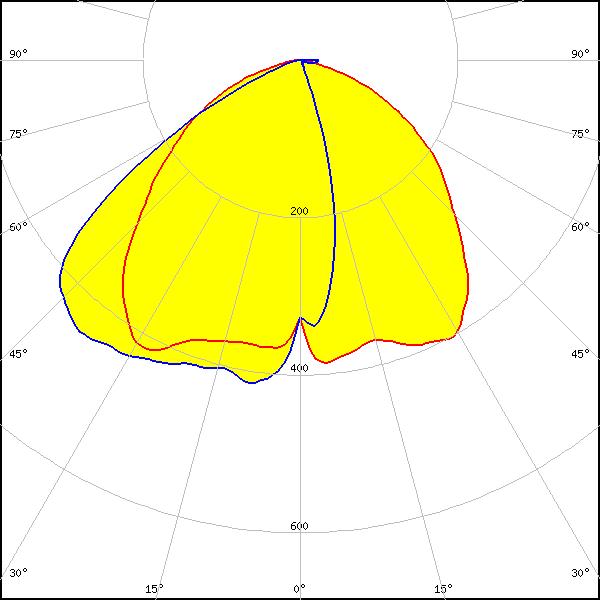

LED: NF2x757G

FWHM: asymmetric

Peak intensity: 0.500 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

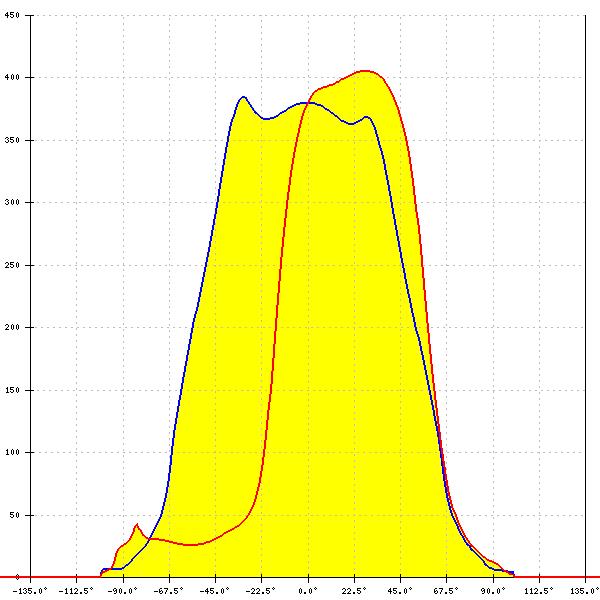

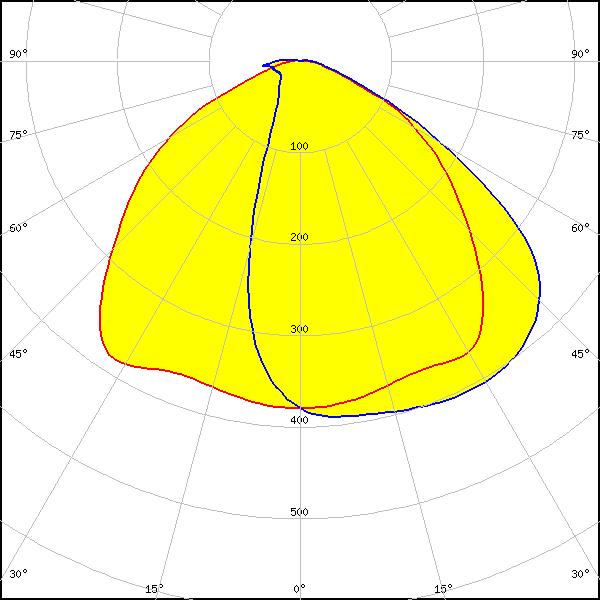

LED: NVSxx19A

FWHM: asymmetric

Peak intensity: 0.440 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

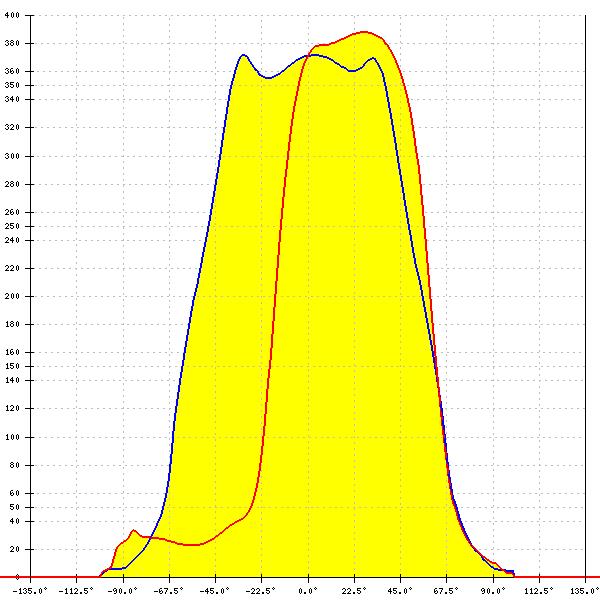

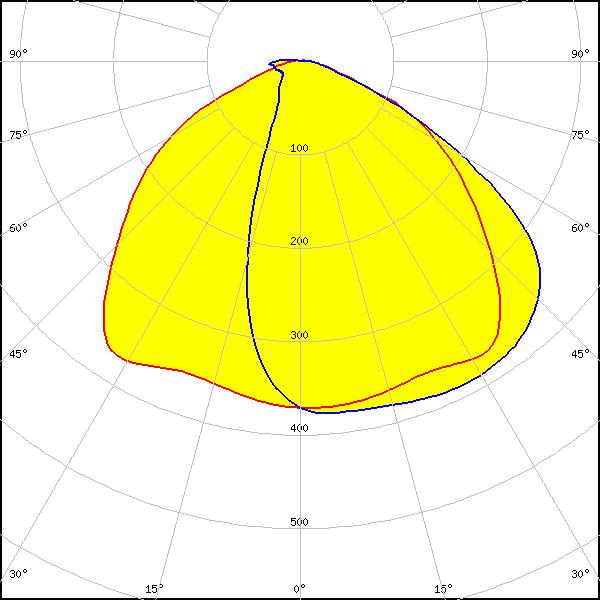

LED: NVSxx19B/NVSxx19C

FWHM: asymmetric

Peak intensity: 0.420 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

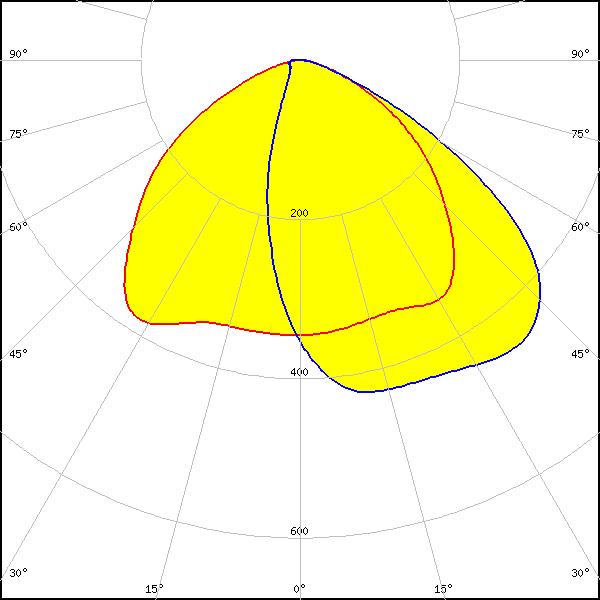

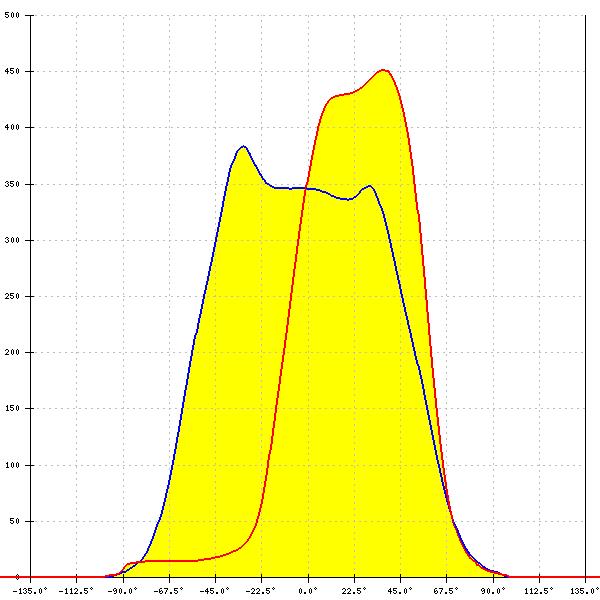

LED: DURIS S5 (2 chip)

FWHM: asymmetric

Peak intensity: 0.480 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
