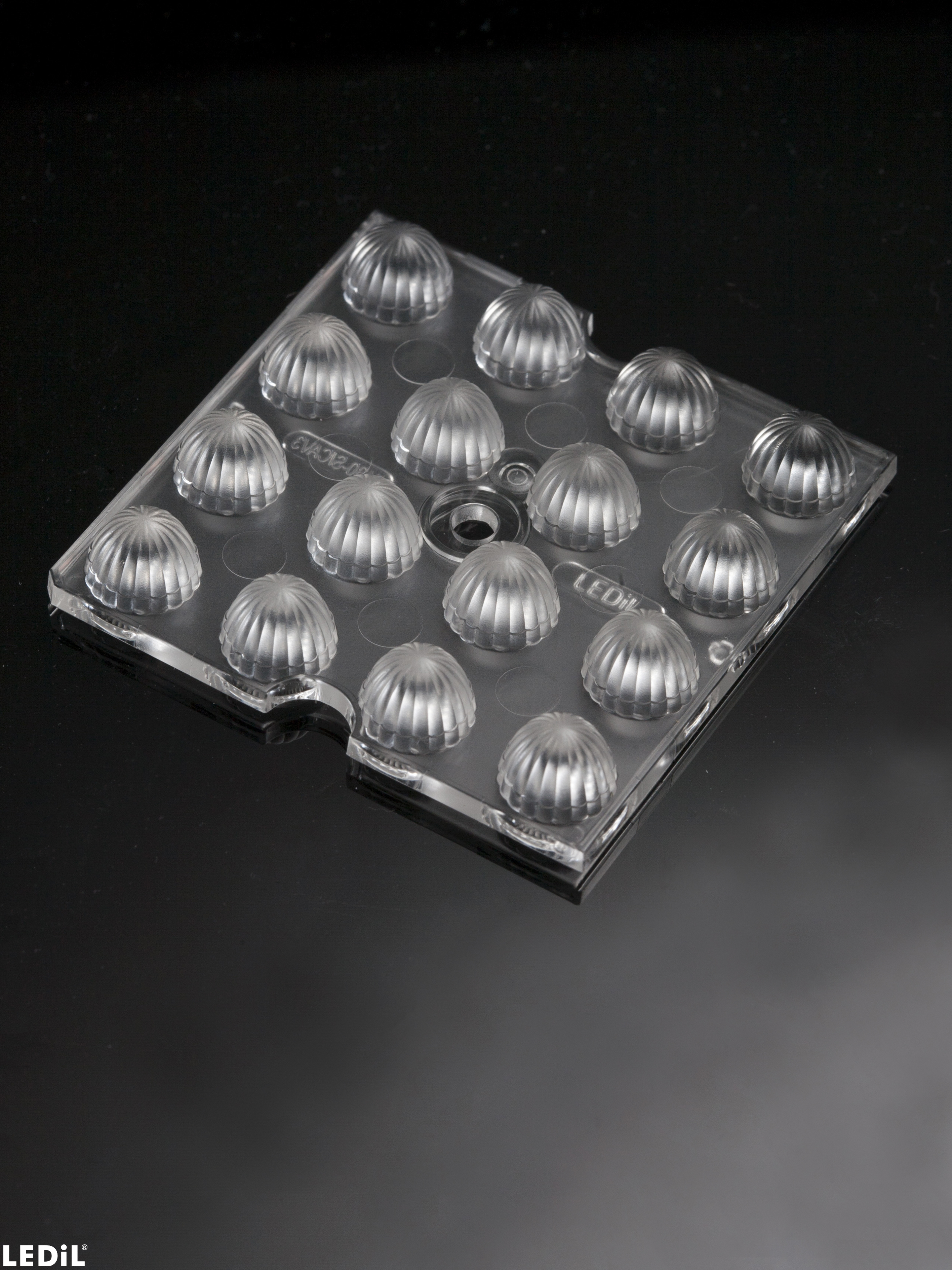

    C15430_STRADELLA-16-HB-S

    Print

    ~25° spot beam for industrial applications

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      7.50 mm
    • Fastening:
      pin, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      6.1 kg
    • MPQ:
      160 pcs
    • MOQ:
      160 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      1.5 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C15430_STRADELLA-16-HB-S
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Reference product

    E+ AVIS lighting series

    News

    PRODUCT NEWS - STRADELLA-16

    Application guide

    Guide for Street lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    News

    PRODUCT NEWS - STRADELLA FAMILY

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

    Optical results

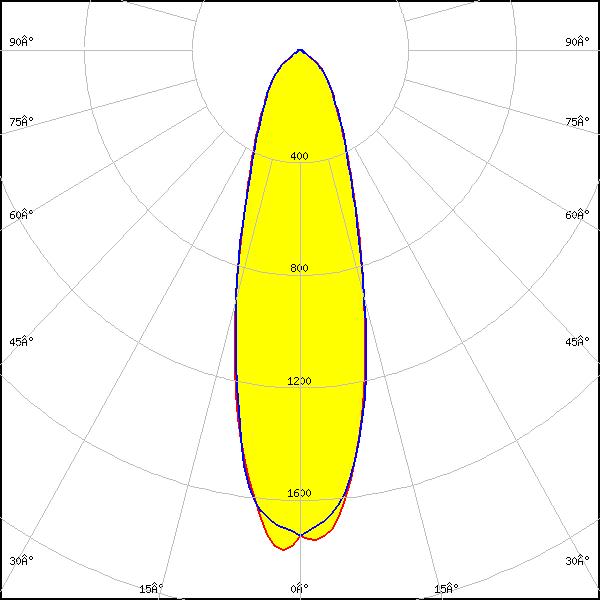

    LED: Bridgelux SMD 2835
    FWHM: 31°
    FWTM: 81°
    Peak intensity: 1.785 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

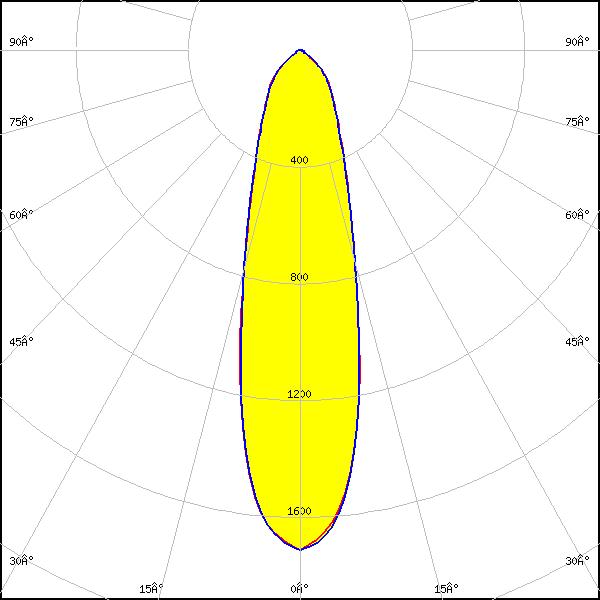

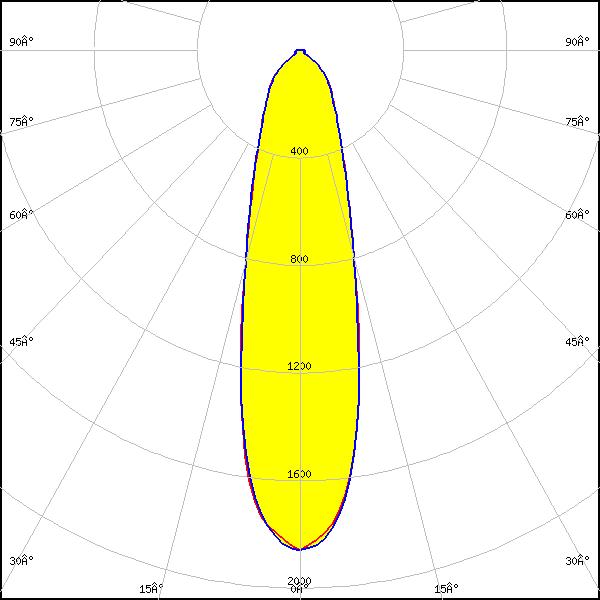

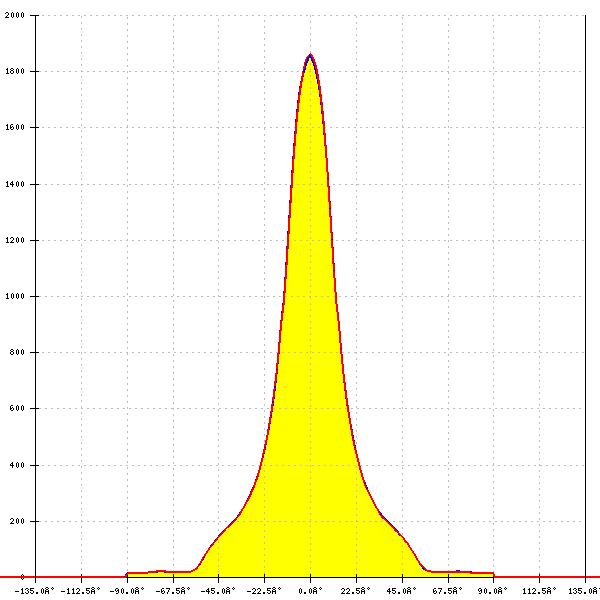

    LED: CSP 2727 (BXCP)
    FWHM: 28°
    FWTM: 80°
    Peak intensity: 1.860 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CSP 2727 (BXCP)
    FWHM: 28°
    FWTM: 80°
    Peak intensity: 1.713 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

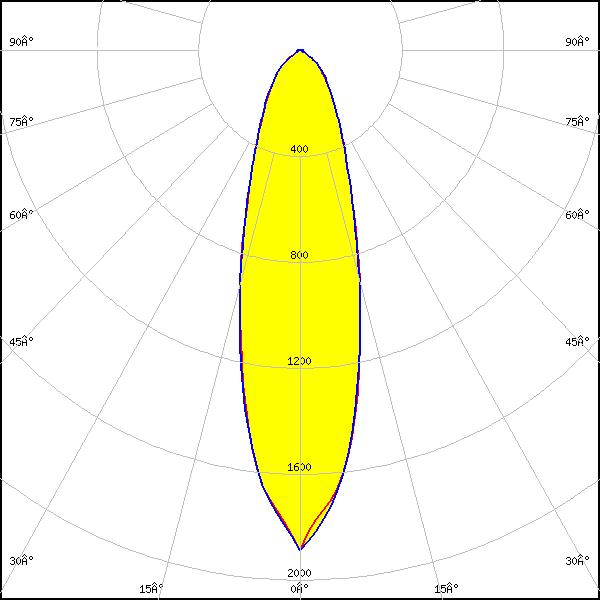

    LED: J Series 2835
    FWHM: 28°
    FWTM: 77°
    Peak intensity: 1.888 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

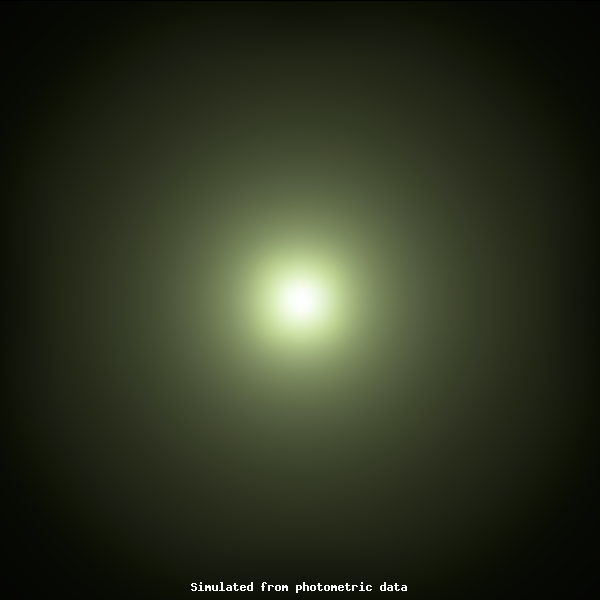

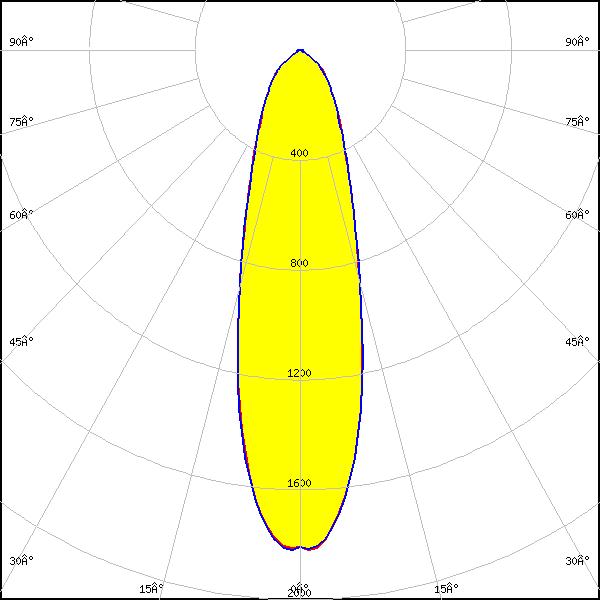

    LED: J Series 3030C
    FWHM: 30°
    FWTM: 80°
    Peak intensity: 1.827 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

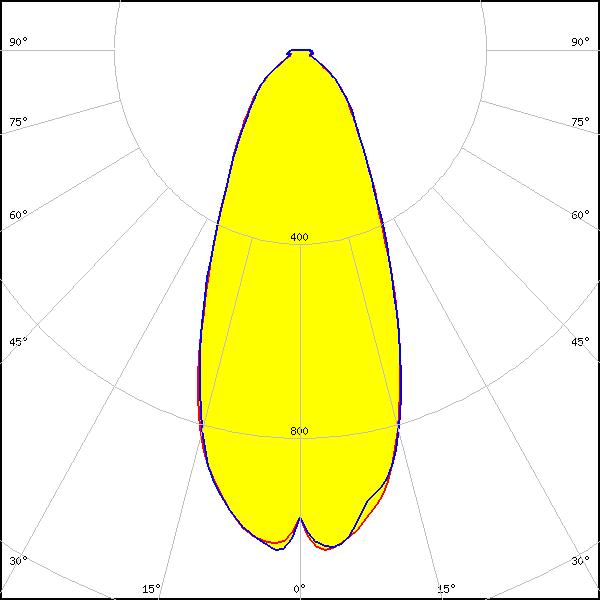

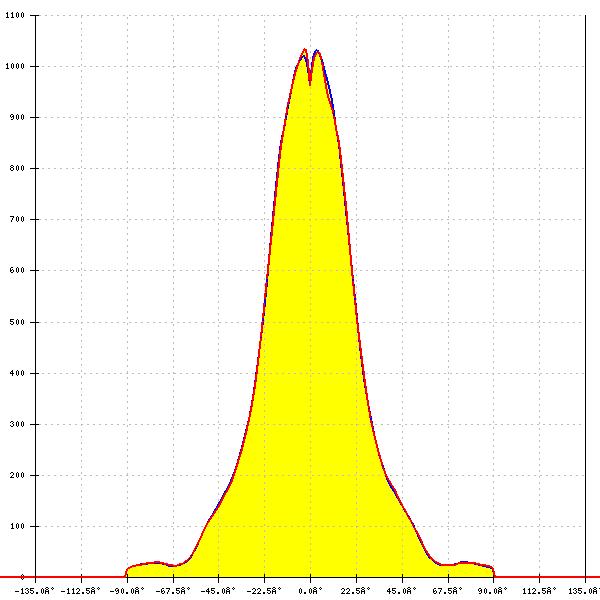

    LED: J Series 5050C 6V E Class
    FWHM: 46°
    FWTM: 101°
    Peak intensity: 1.053 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

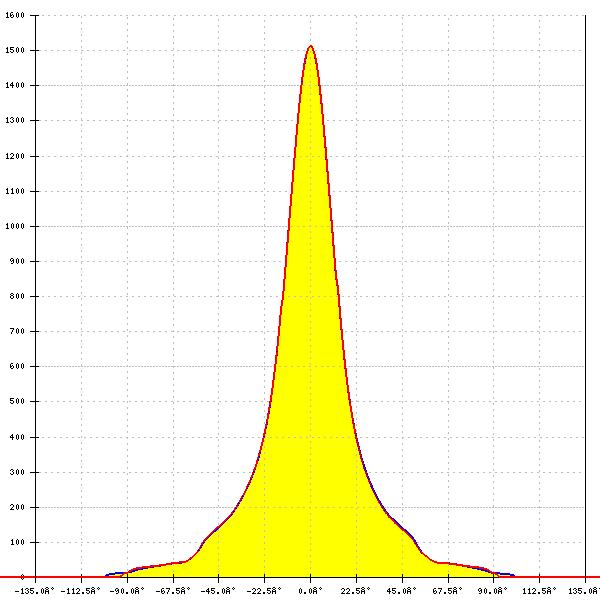

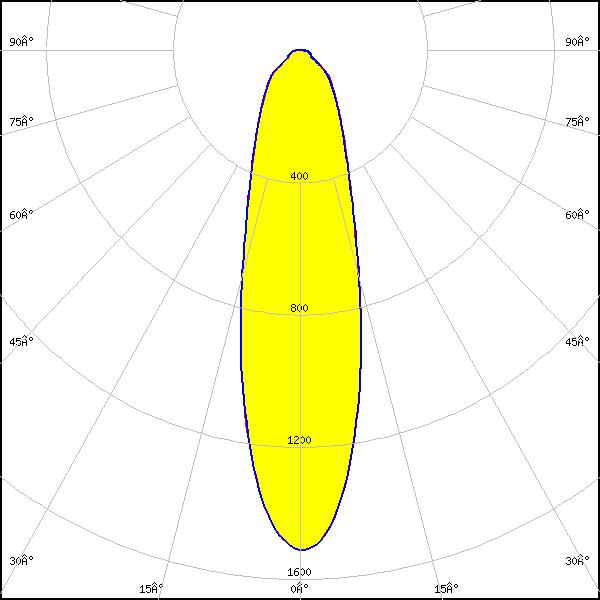

    LED: JB3030 HE B Class
    FWHM: 29°
    FWTM: 86°
    Peak intensity: 1.513 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

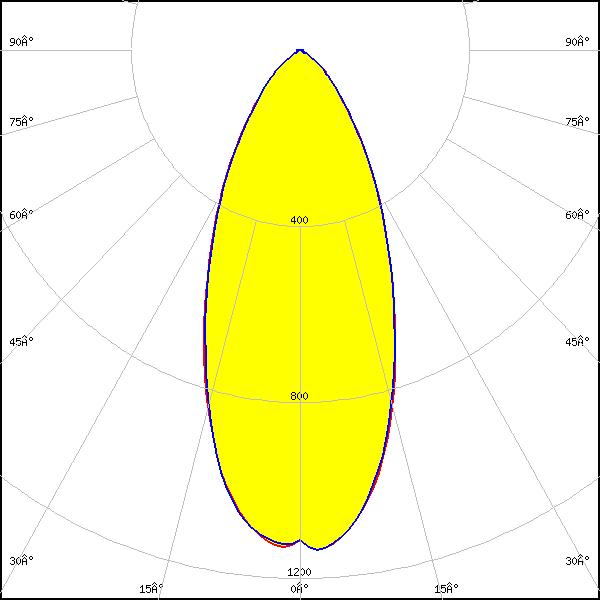

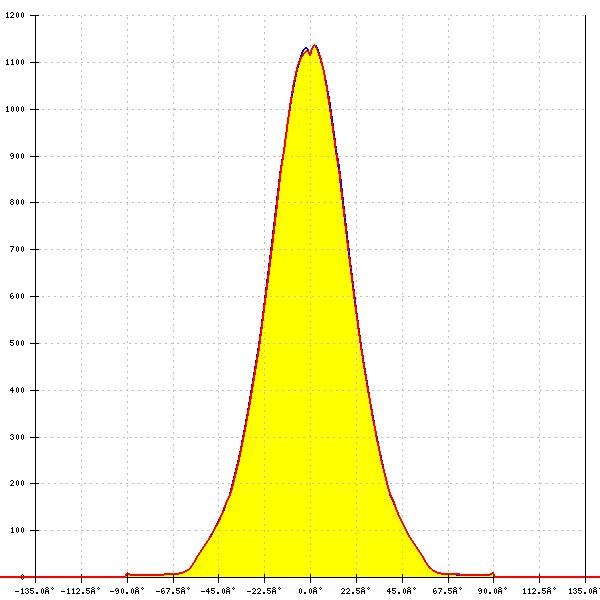

    LED: XP-G2 HE
    FWHM: 46°
    FWTM: 90°
    Peak intensity: 1.143 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

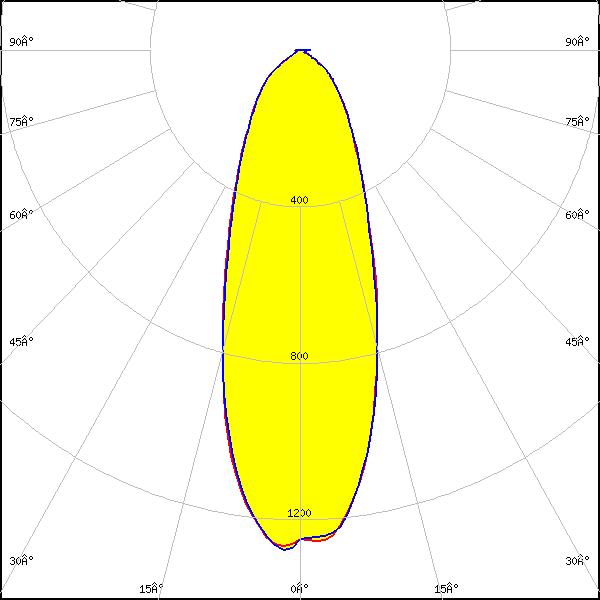

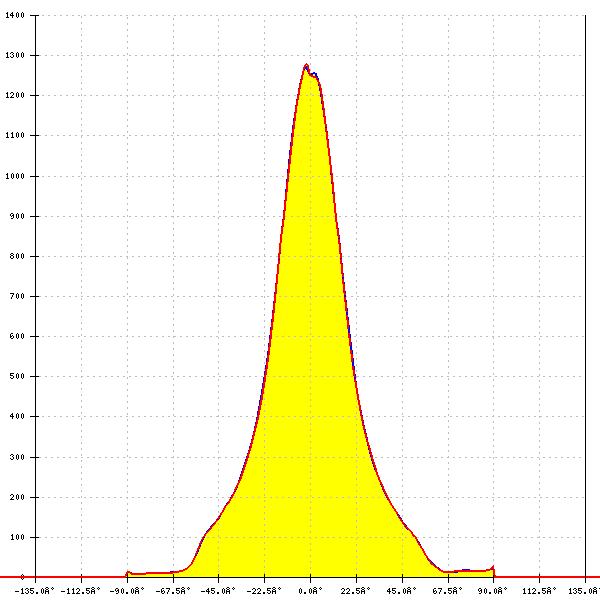

    LED: XP-G3
    FWHM: 37°
    FWTM: 95°
    Peak intensity: 1.304 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

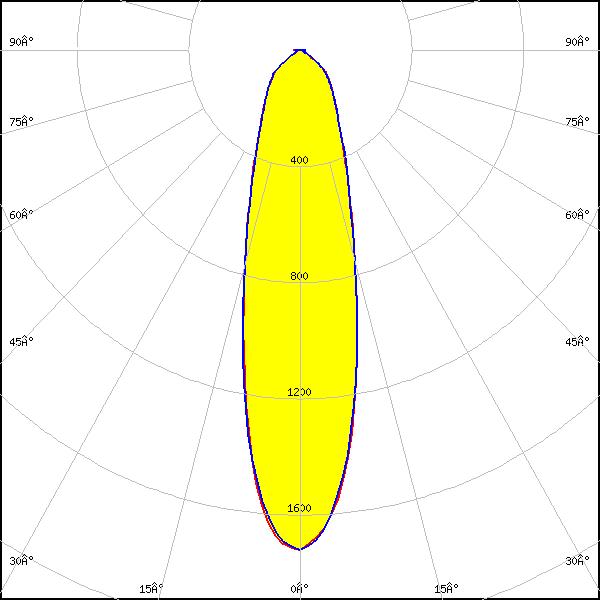

    LED: XT-E
    FWHM: 28°
    FWTM: 82°
    Peak intensity: 1.723 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

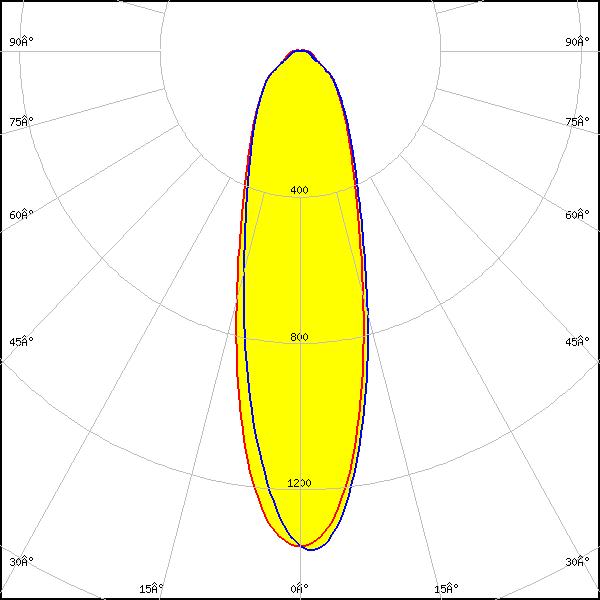

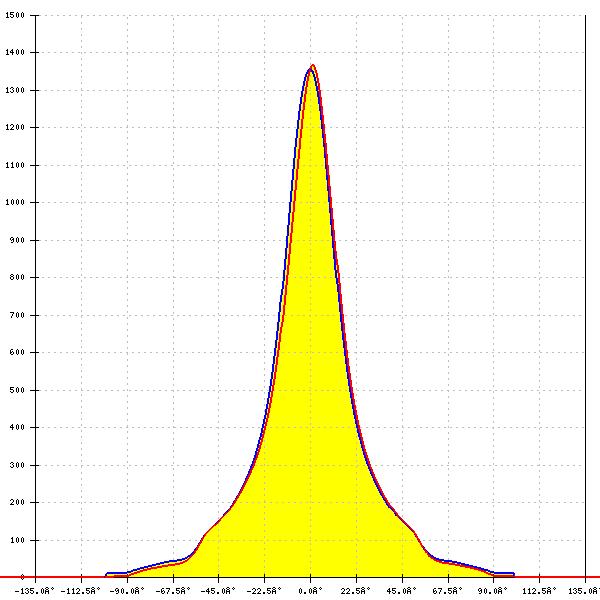

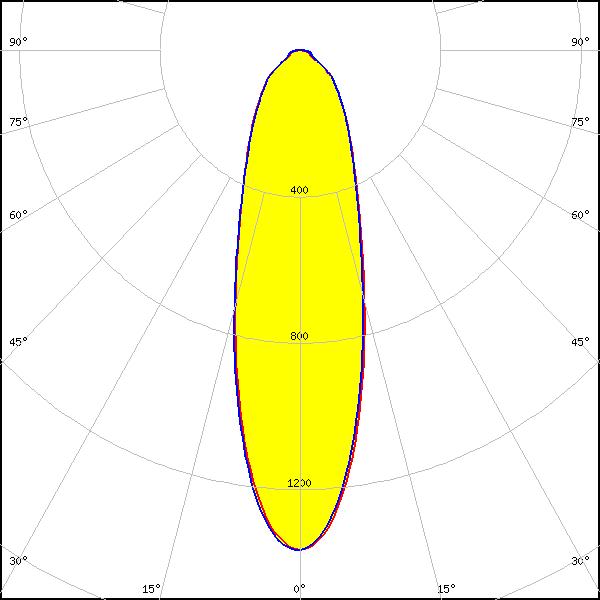

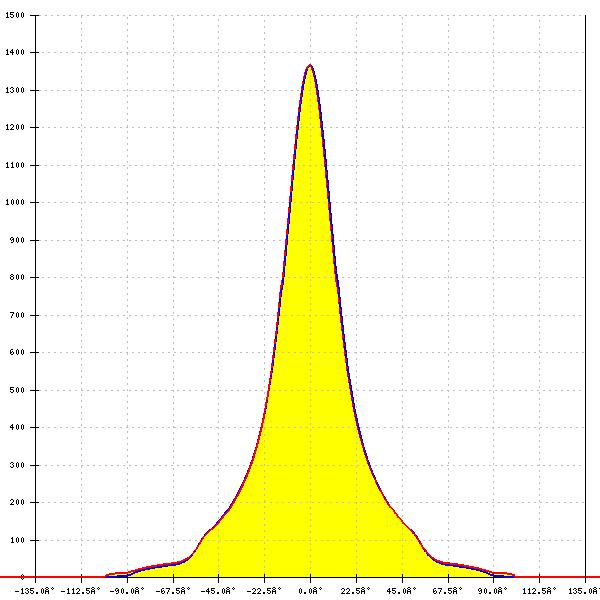

    LED: EHP-223.5x50-1604-xx-70-LS30-06-NTC
    FWHM: 30°
    FWTM: 95°
    Peak intensity: 1.367 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

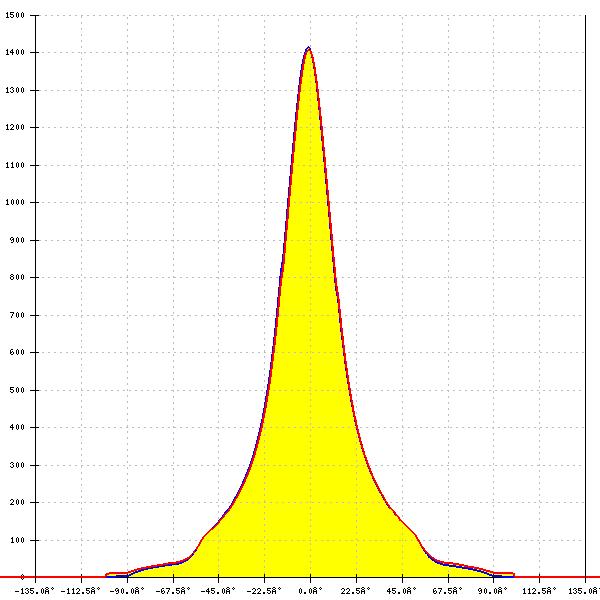

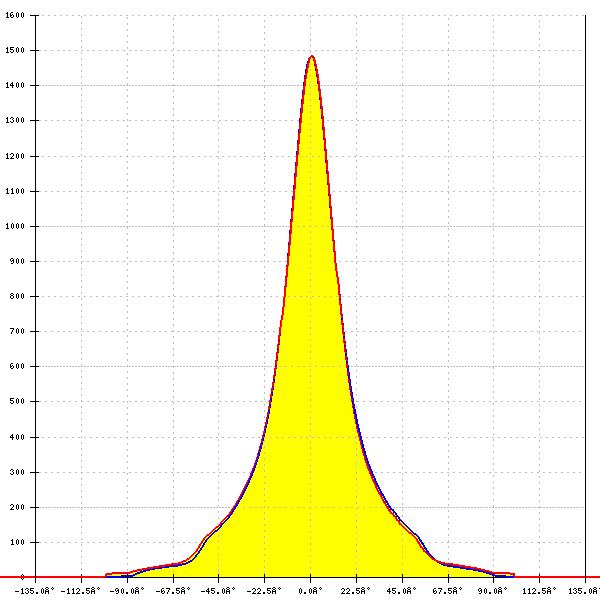

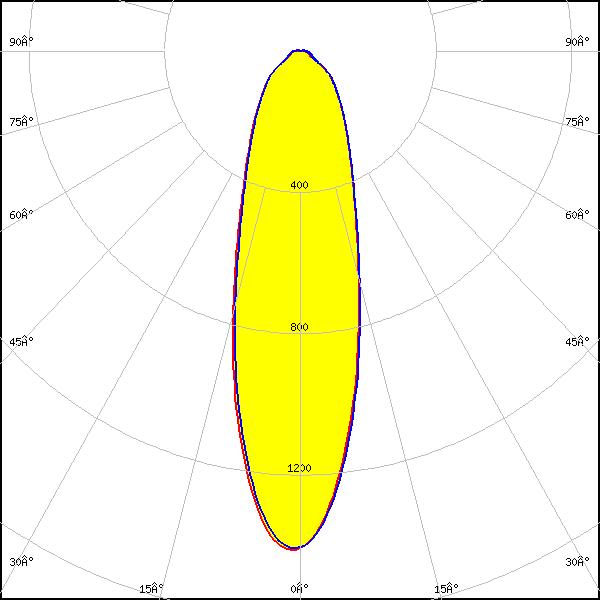

    LED: PrevaLED Brick MP 4x16
    FWHM: 30°
    FWTM: 92°
    Peak intensity: 1.400 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

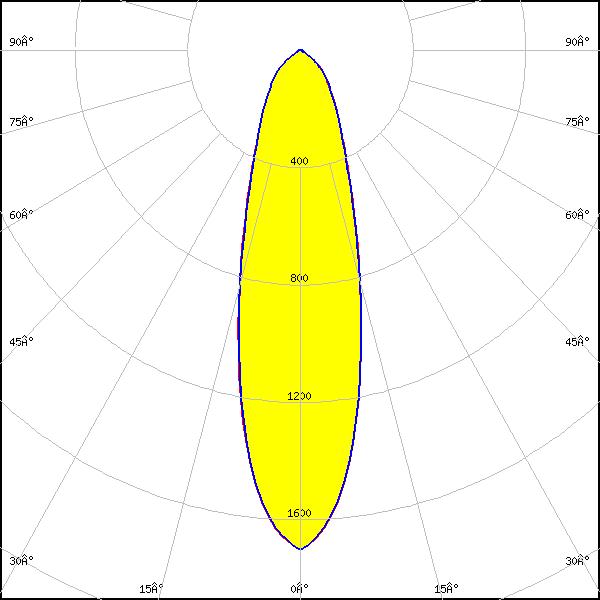

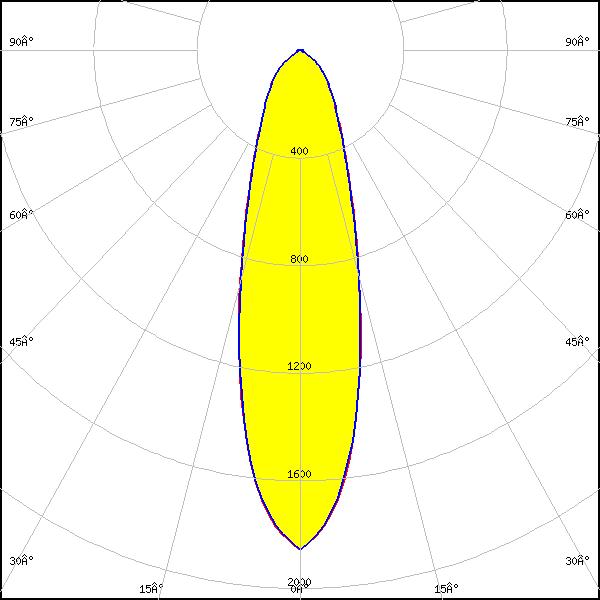

    LED: LUXEON 2835 Architectural
    FWHM: 28°
    FWTM: 78°
    Peak intensity: 1.859 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 2835 Architectural
    FWHM: 30°
    FWTM: 78°
    Peak intensity: 1.704 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

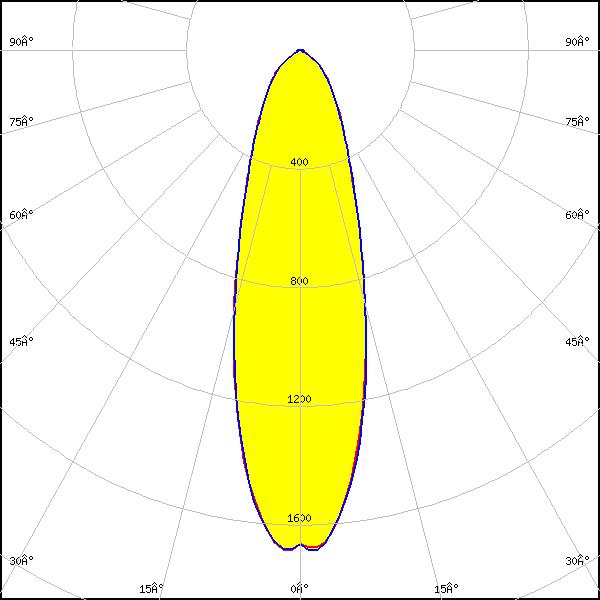

    LED: LUXEON 3030 HE Plus
    FWHM: 32°
    FWTM: 82°
    Peak intensity: 1.697 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

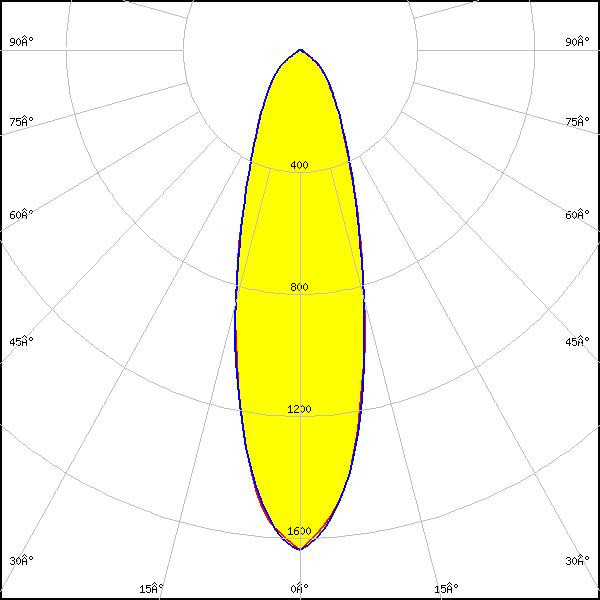

    LED: LUXEON 3535L HE PLUS
    FWHM: 30°
    FWTM: 80°
    Peak intensity: 1.640 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

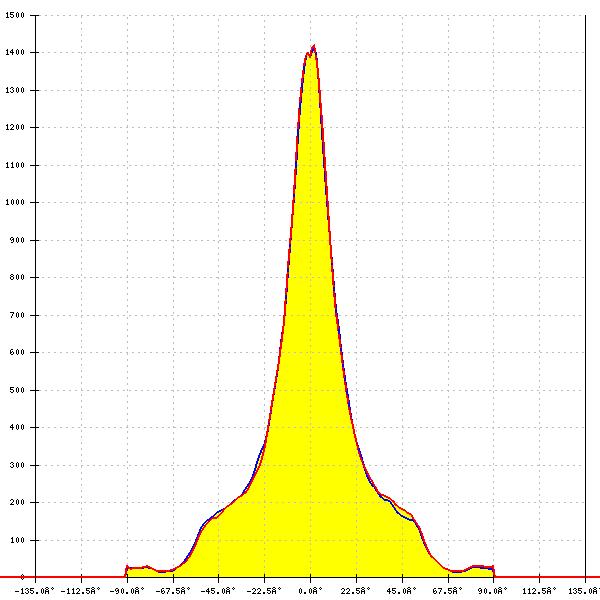

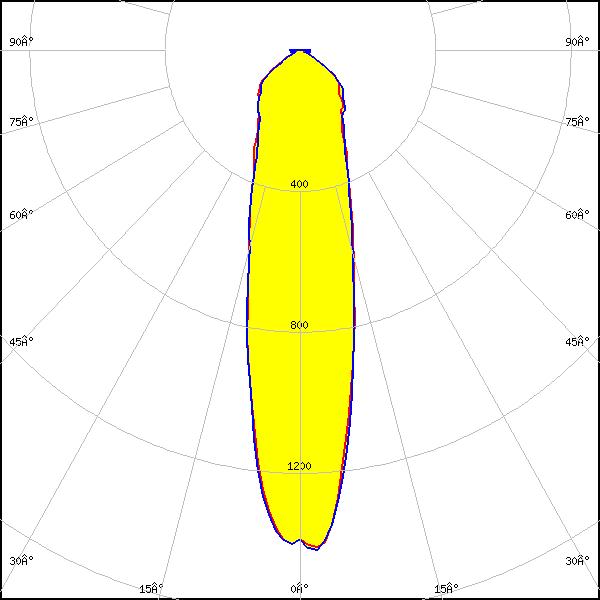

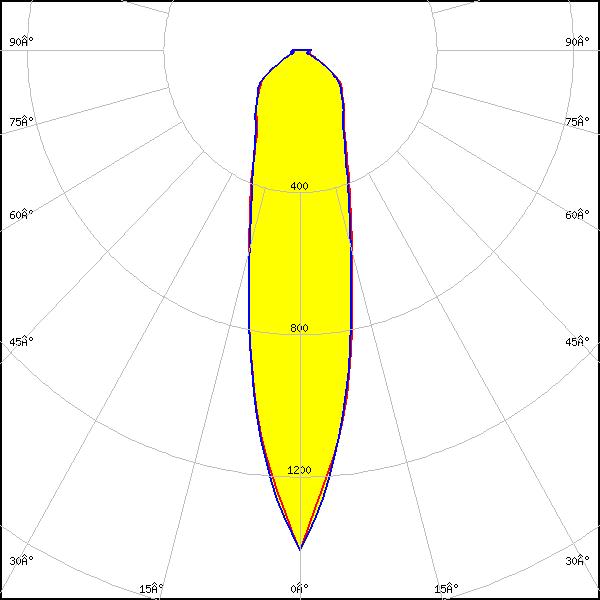

    LED: LUXEON C
    FWHM: 25°
    FWTM: 104°
    Peak intensity: 1.400 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Blue

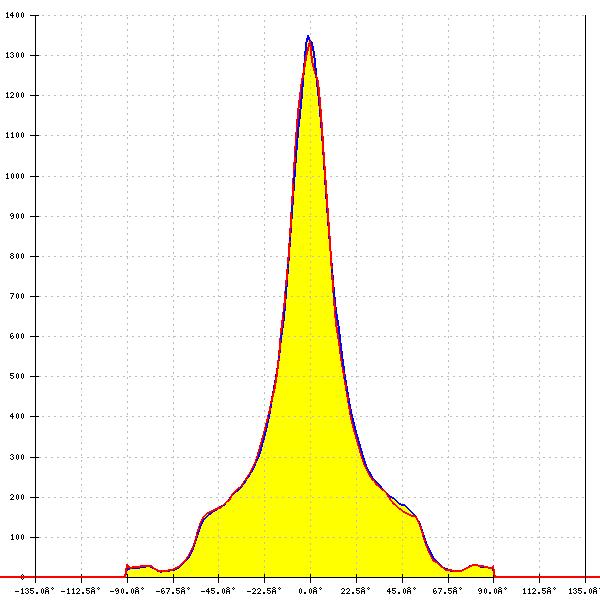

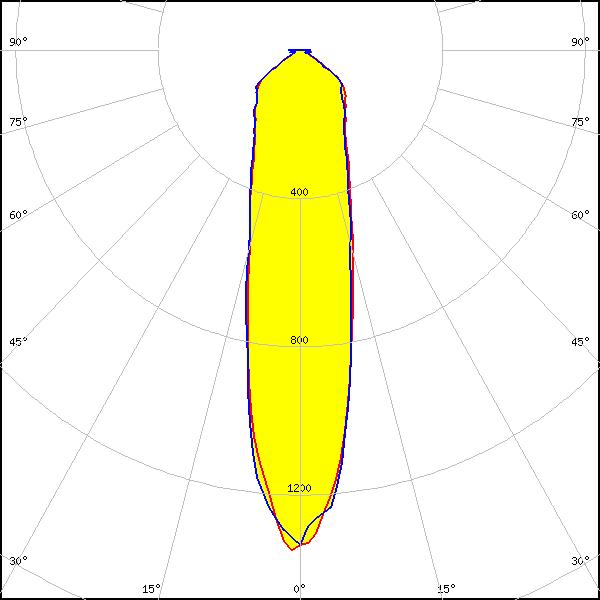

    LED: LUXEON C
    FWHM: 25°
    FWTM: 107°
    Peak intensity: 1.400 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: Green

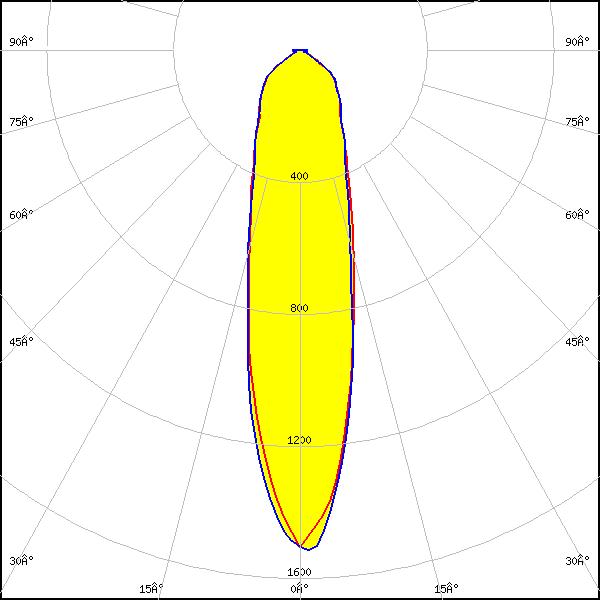

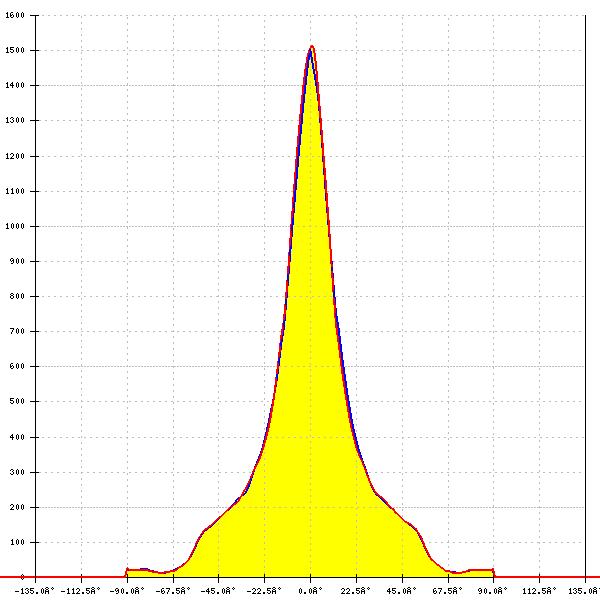

    LED: LUXEON C
    FWHM: 25°
    FWTM: 96°
    Peak intensity: 1.500 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

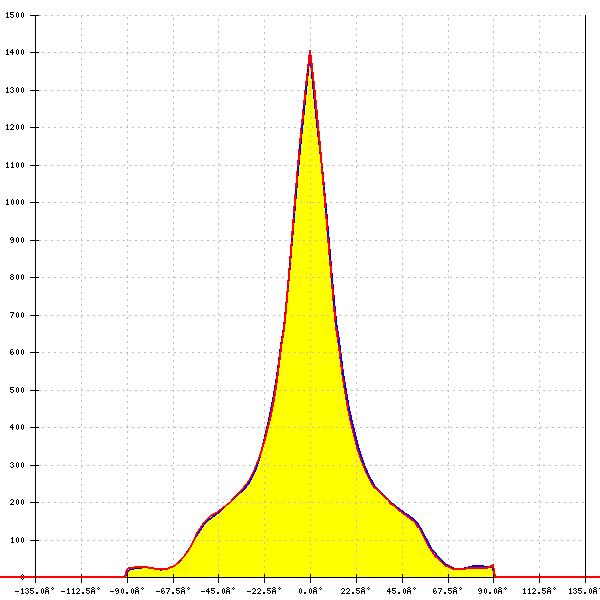

    LED: LUXEON C
    FWHM: 25°
    FWTM: 105°
    Peak intensity: 1.400 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: RGBW

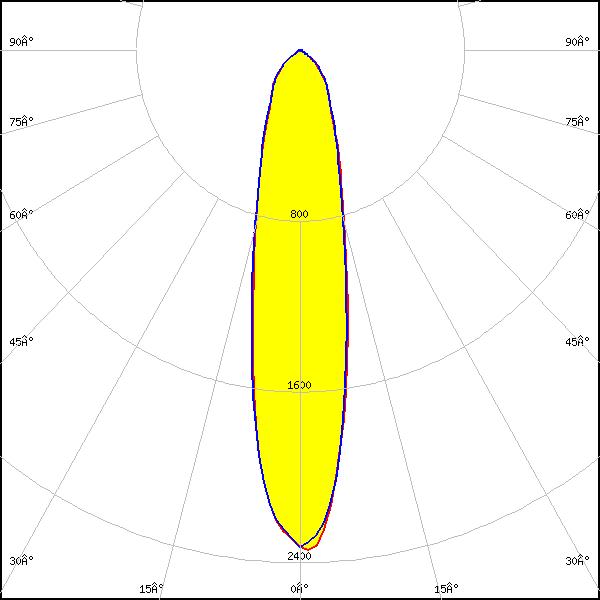

    LED: LUXEON CZ
    FWHM: 23°
    FWTM: 70°
    Peak intensity: 2.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: RGBW

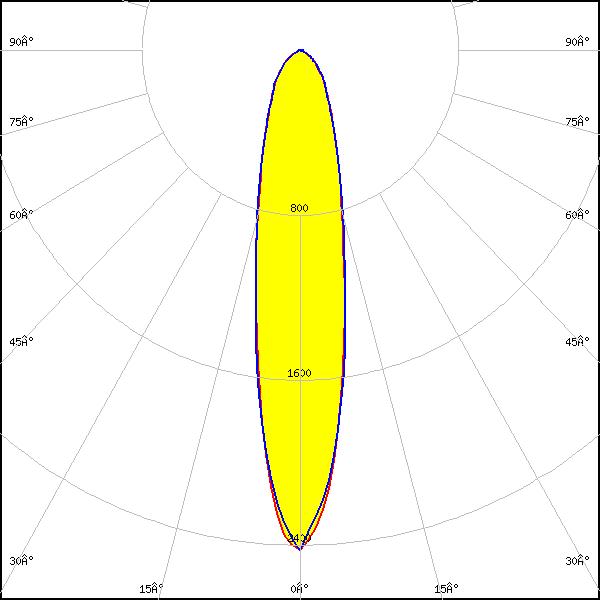

    LED: LUXEON CZ
    FWHM: 22°
    FWTM: 67°
    Peak intensity: 2.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

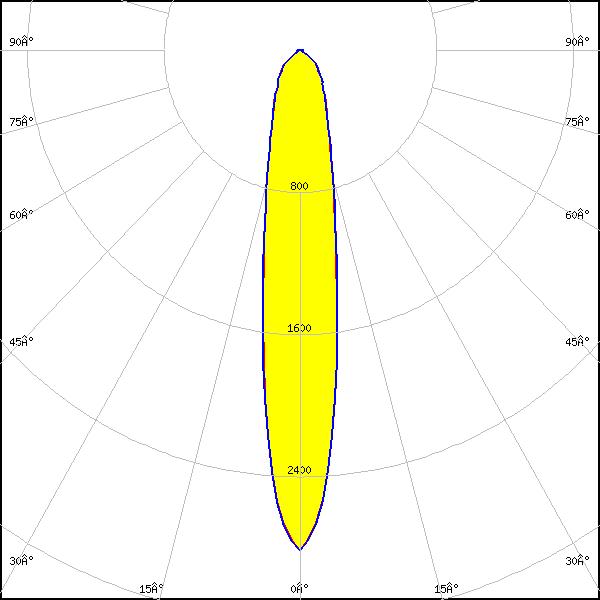

    LED: LUXEON HL1Z
    FWHM: 18°
    FWTM: 62°
    Peak intensity: 2.813 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

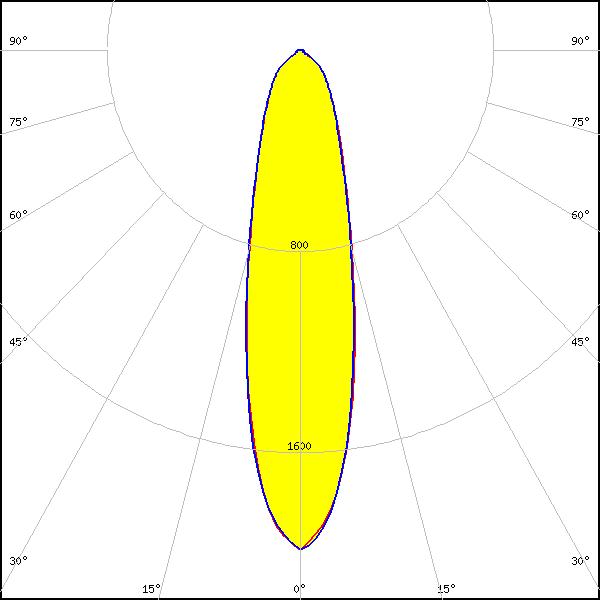

    LED: LUXEON HL2Z
    FWHM: 26°
    FWTM: 76°
    Peak intensity: 1.990 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

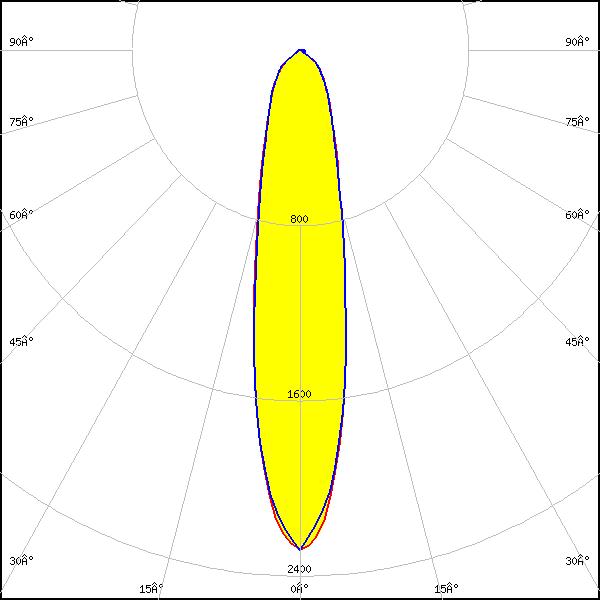

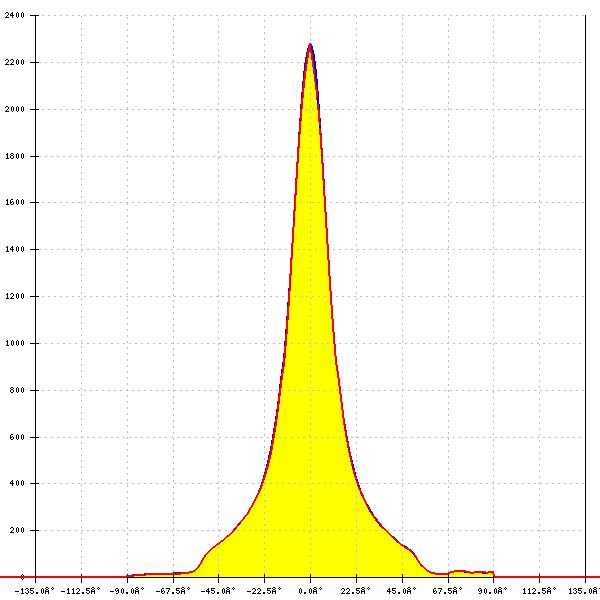

    LED: NCSxE17A
    FWHM: 22°
    FWTM: 69°
    Peak intensity: 2.282 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

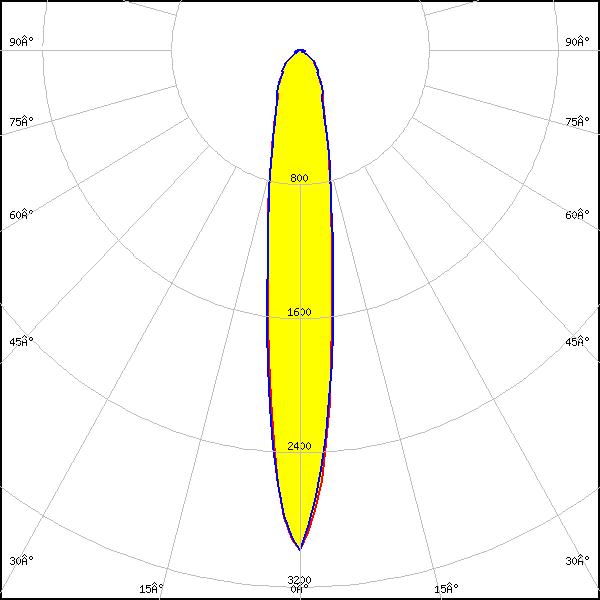

    LED: NFSWE11A
    FWHM: 16°
    FWTM: 56°
    Peak intensity: 2.982 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

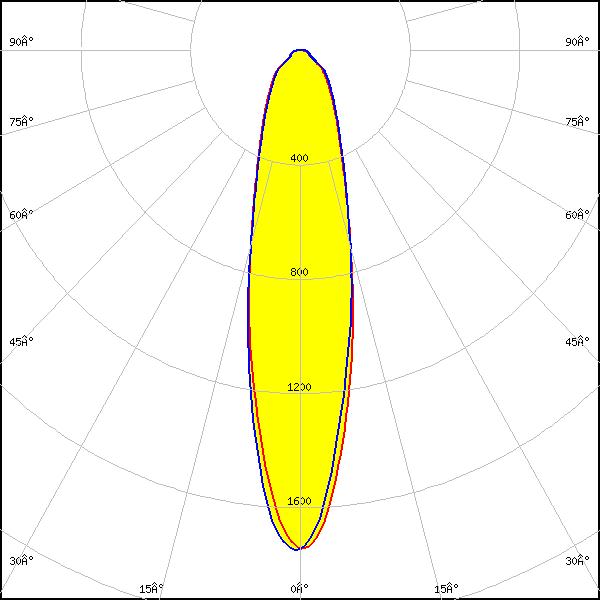

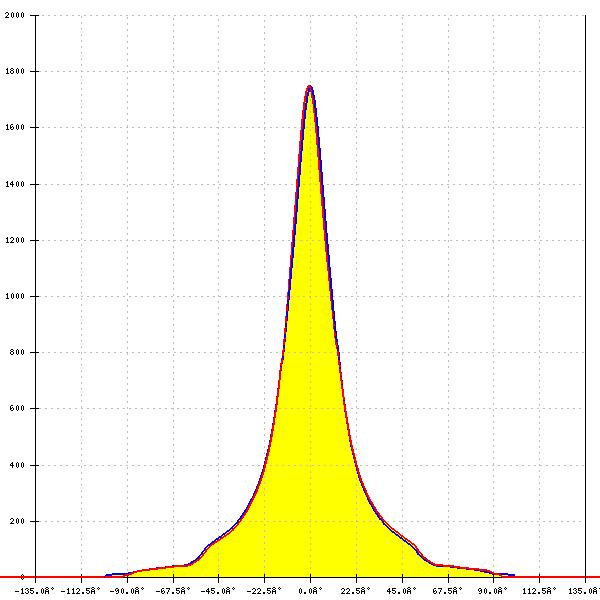

    LED: NFSx757D
    FWHM: 25°
    FWTM: 78°
    Peak intensity: 1.700 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

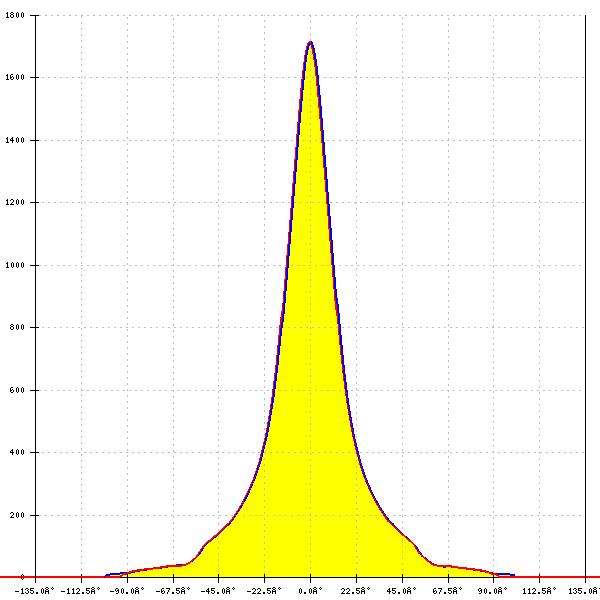

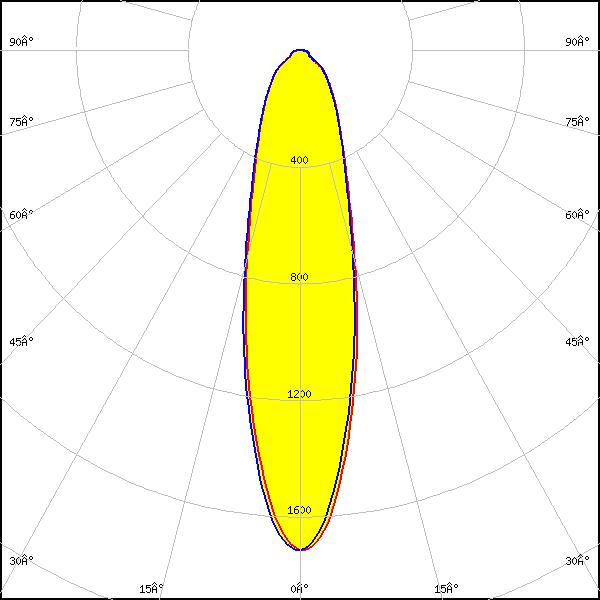

    LED: NFSx757G
    FWHM: 27°
    FWTM: 80°
    Peak intensity: 1.700 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

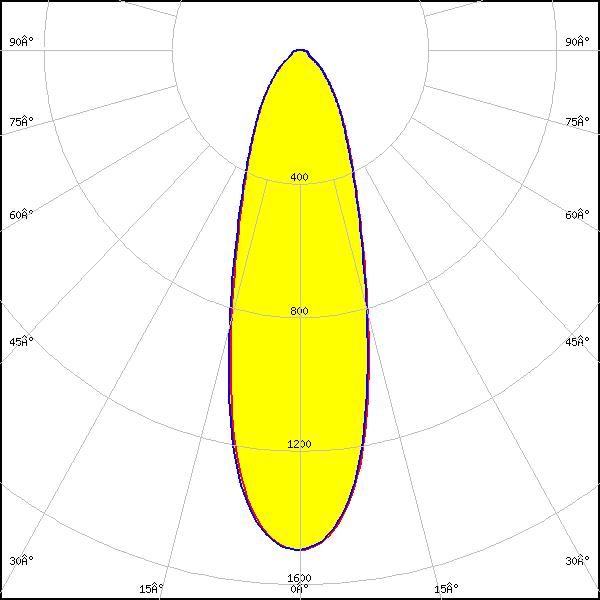

    LED: NVSW219D
    FWHM: 32°
    FWTM: 83°
    Peak intensity: 1.500 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

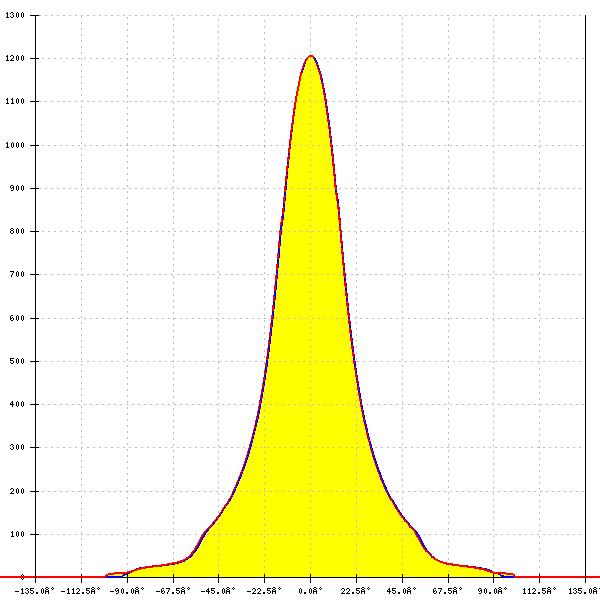

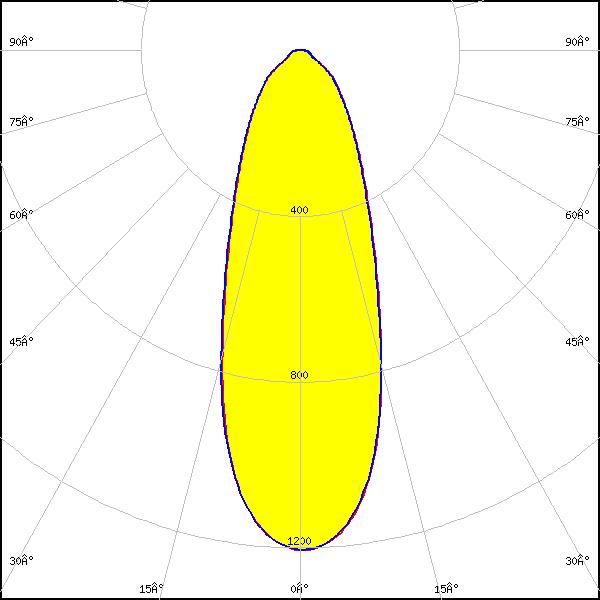

    LED: NVSW319B
    FWHM: 37°
    FWTM: 97°
    Peak intensity: 1.200 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

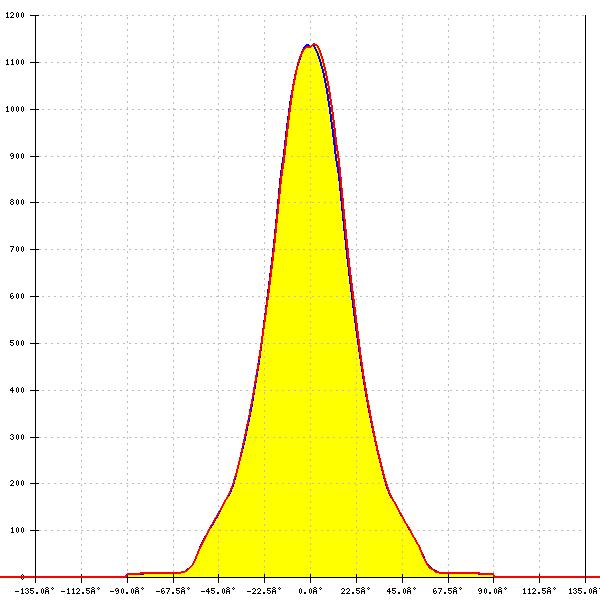

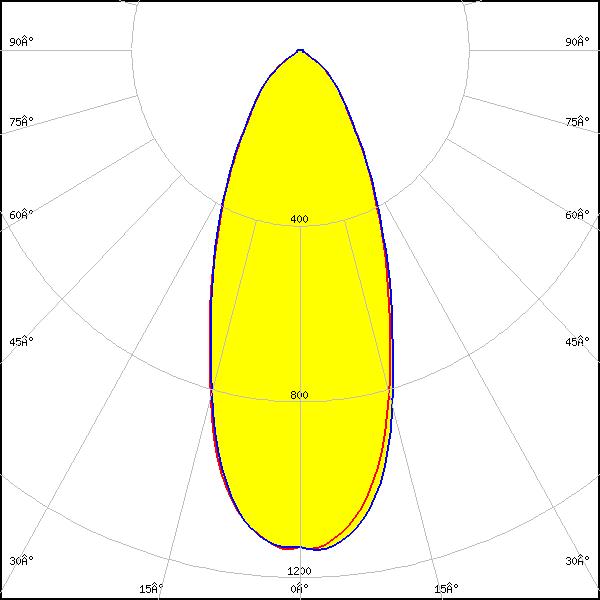

    LED: NVSW519A
    FWHM: 43°
    FWTM: 95°
    Peak intensity: 1.147 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

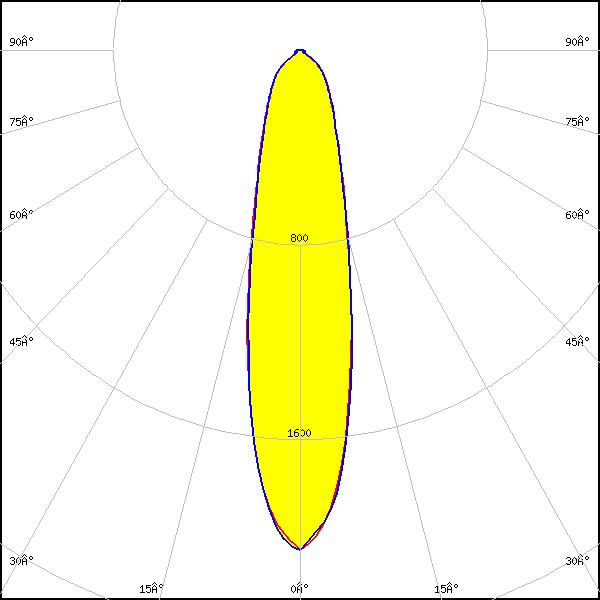

    LED: NVSxE21A
    FWHM: 25°
    FWTM: 74°
    Peak intensity: 2.100 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

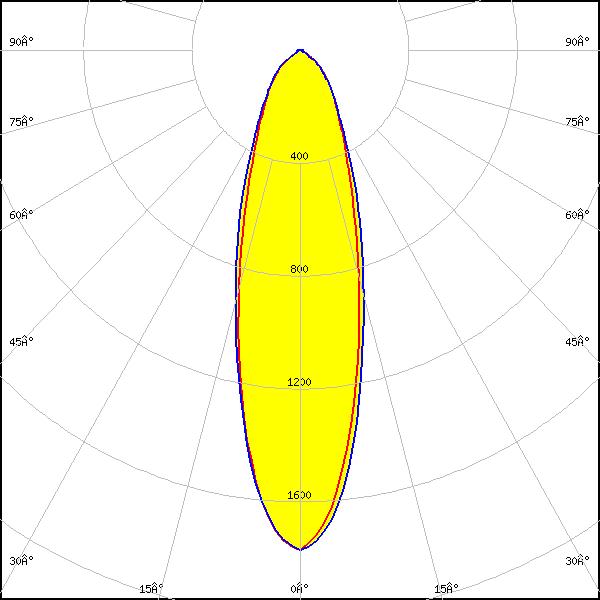

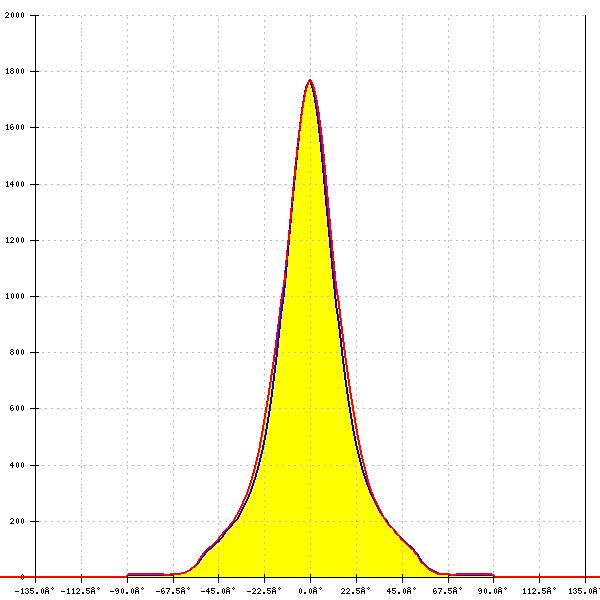

    LED: Duris E5
    FWHM: 30°
    FWTM: 80°
    Peak intensity: 1.770 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

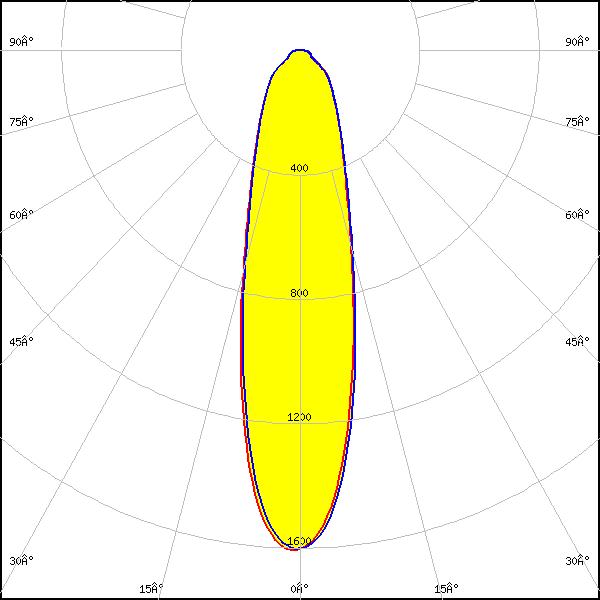

    LED: DURIS S5 (2 chip)
    FWHM: 27°
    FWTM: 83°
    Peak intensity: 1.607 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: Purple

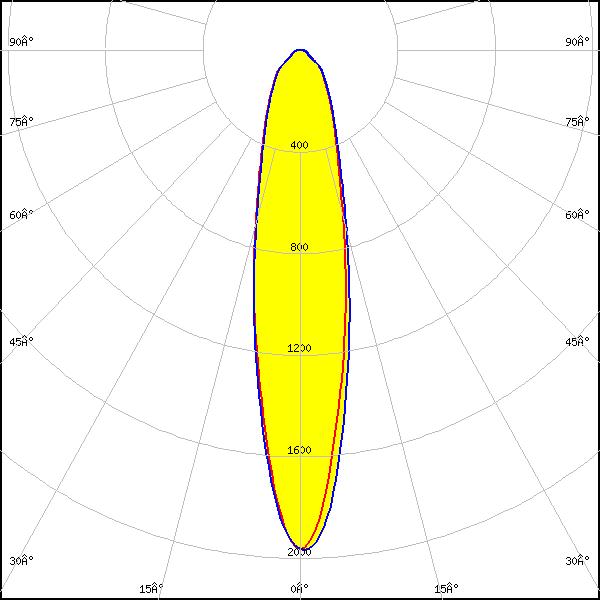

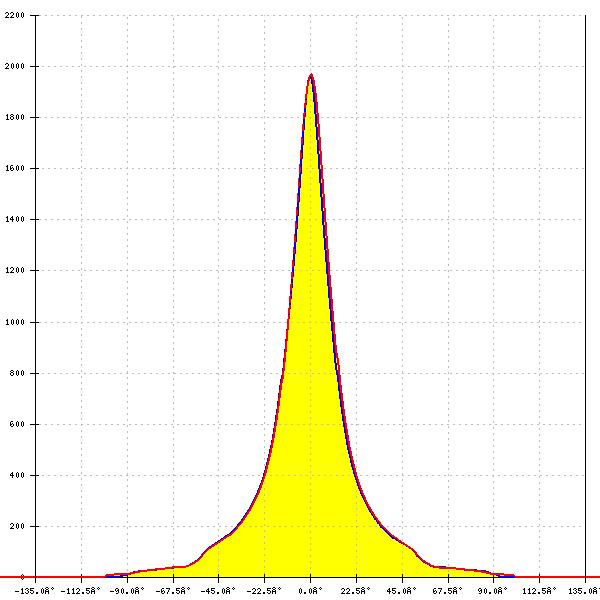

    LED: DURIS S5 (Single chip)
    FWHM: 23°
    FWTM: 72°
    Peak intensity: 2.000 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

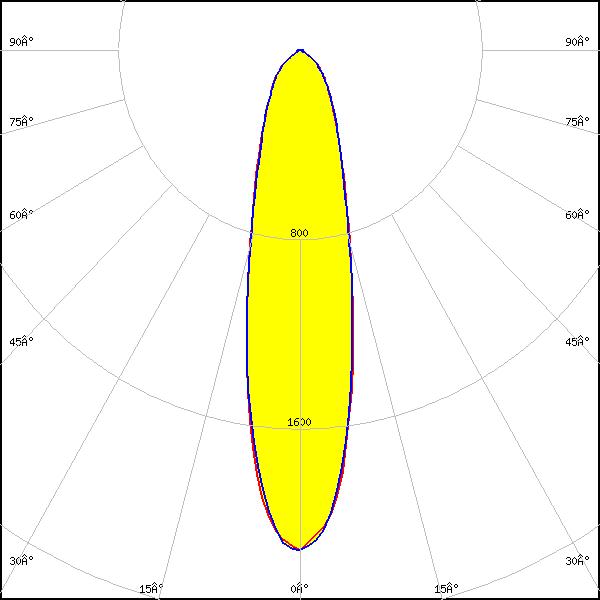

    LED: OSCONIQ C 2424 Gen1
    FWHM: 26°
    FWTM: 73°
    Peak intensity: 2.120 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

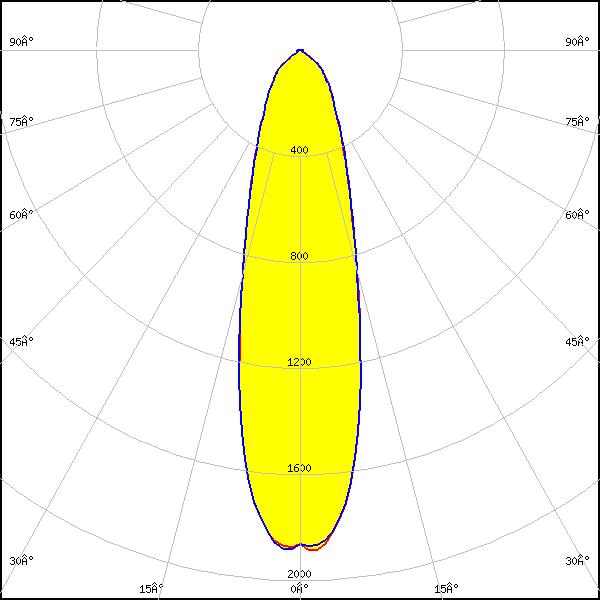

    LED: OSCONIQ C 3030
    FWHM: 28°
    FWTM: 78°
    Peak intensity: 1.895 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ C 3030
    FWHM: 28°
    FWTM: 78°
    Peak intensity: 1.737 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

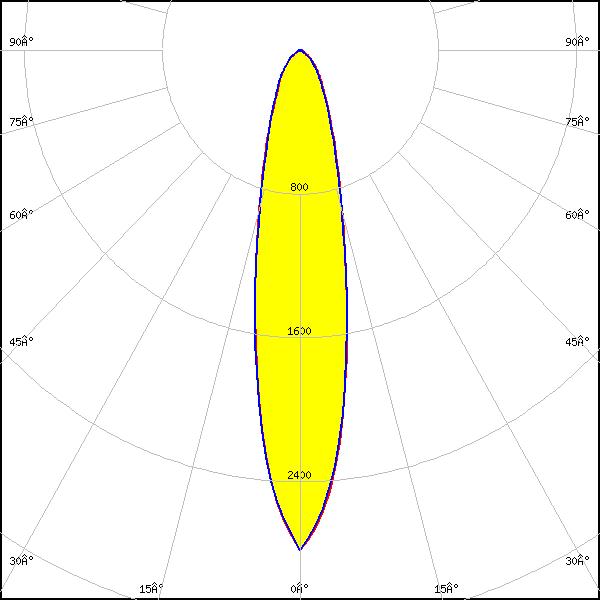

    LED: OSCONIQ P 3030
    FWHM: 22°
    FWTM: 60°
    Peak intensity: 2.783 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

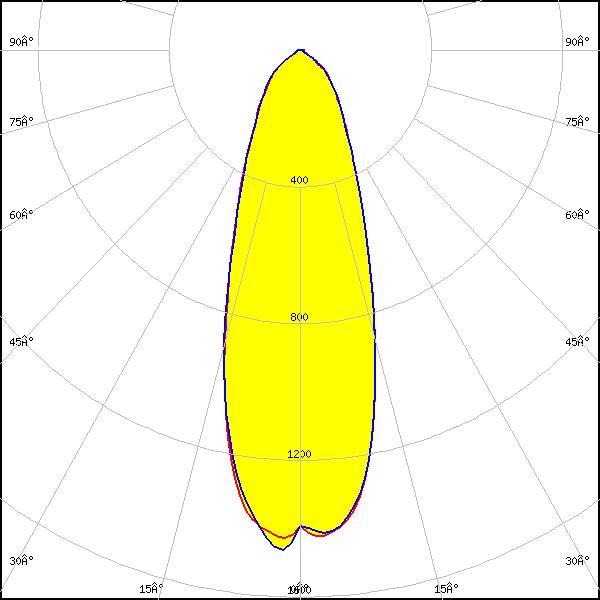

    LED: OSCONIQ P 3737 (3W version)
    FWHM: 36° + 34°
    FWTM: 88° + 87°
    Peak intensity: 1.471 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

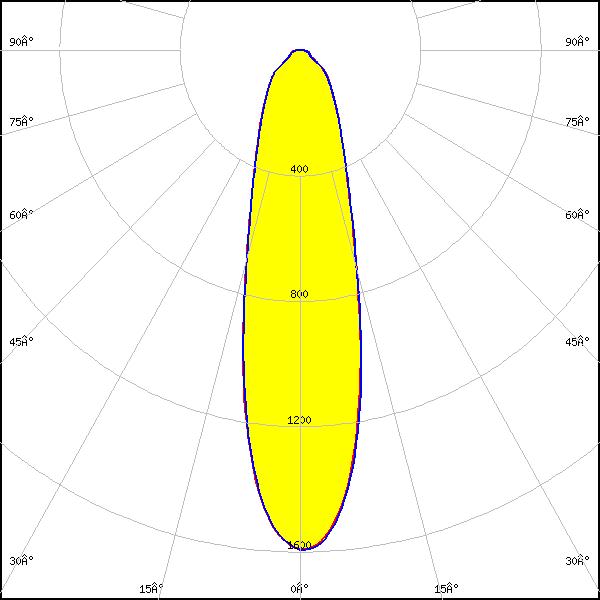

    LED: OSCONIQ S 3030 (QSLR31)
    FWHM: 28°
    FWTM: 82°
    Peak intensity: 1.596 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

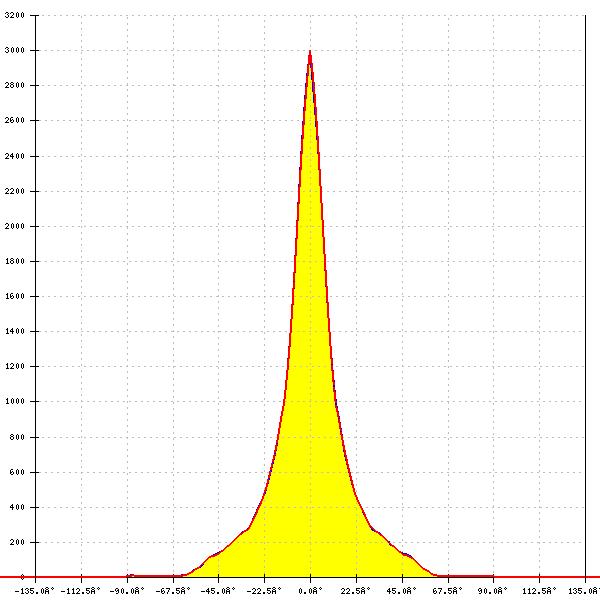

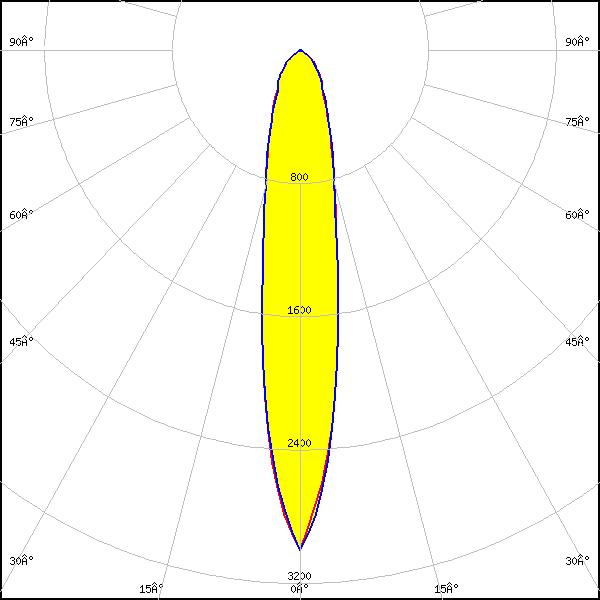

    LED: OSLON Pure 1414
    FWHM: 18°
    FWTM: 58°
    Peak intensity: 3.002 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

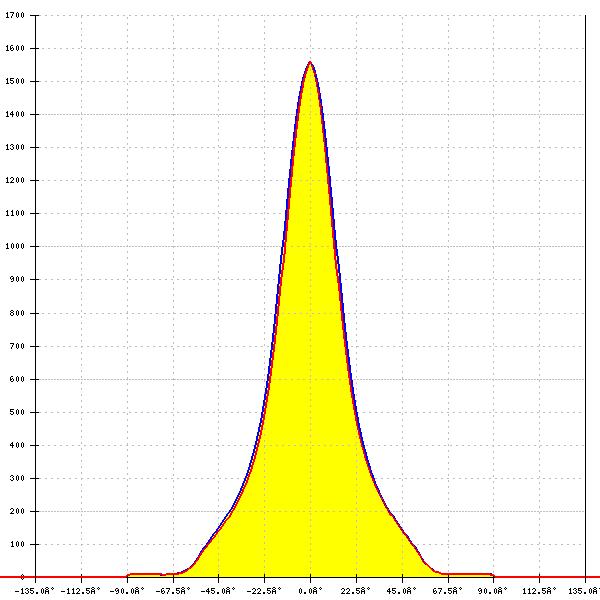

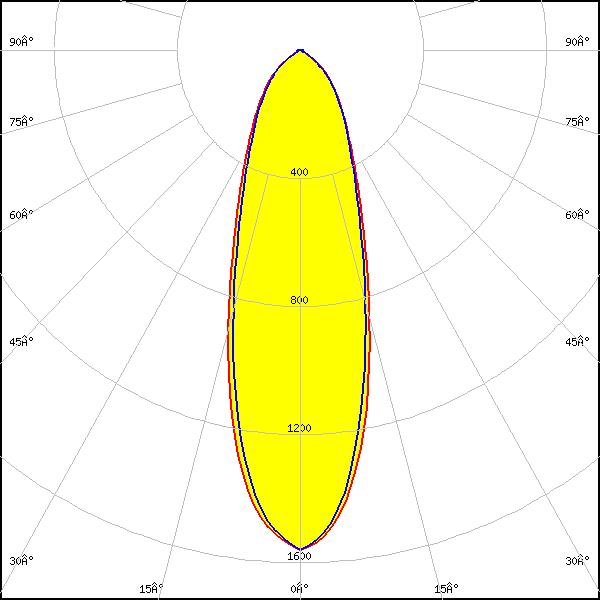

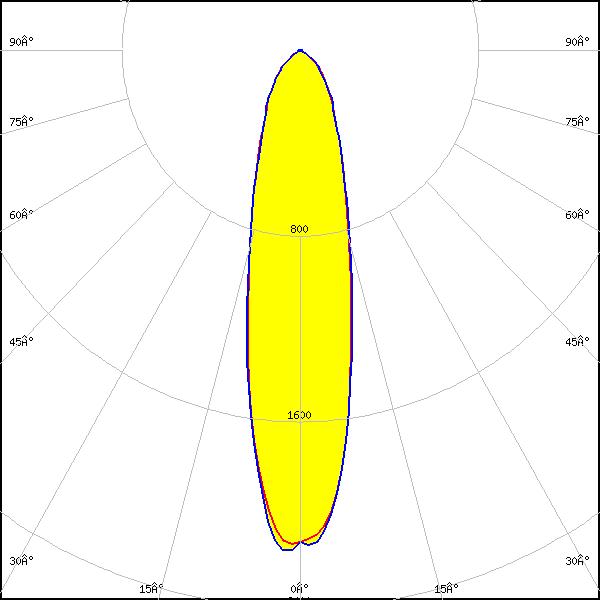

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 32°
    FWTM: 87°
    Peak intensity: 1.560 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Red
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 25°
    FWTM: 74°
    Peak intensity: 2.201 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Far Red

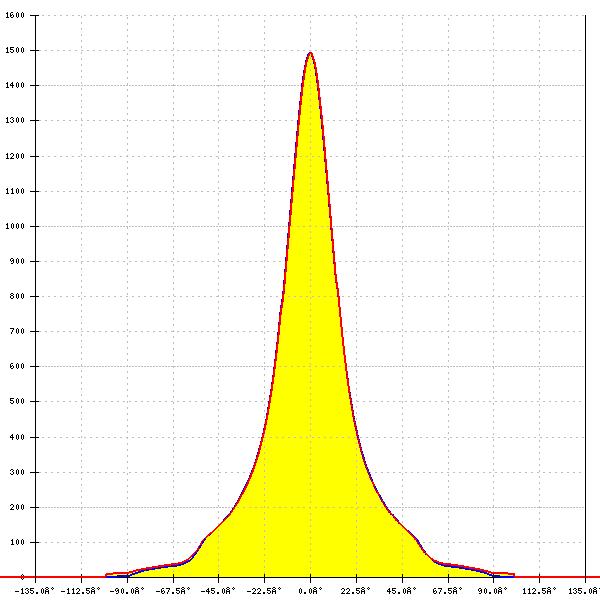

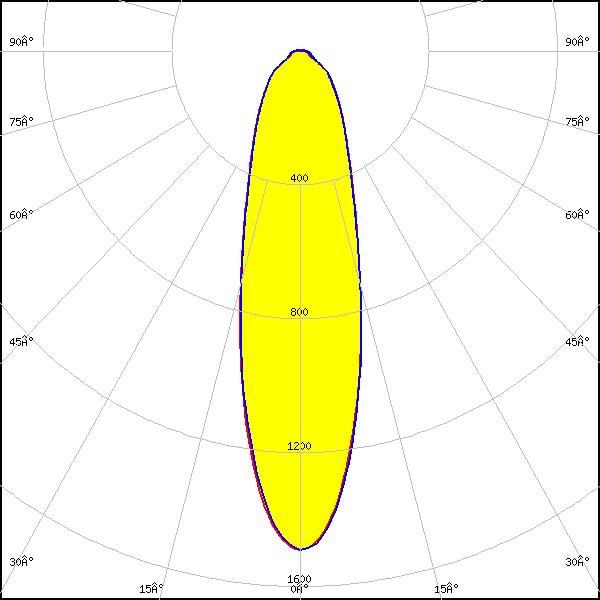

    LED: Fortimo FastFlex LED 4x16 DHE G4
    FWHM: 29°
    FWTM: 88°
    Peak intensity: 1.500 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

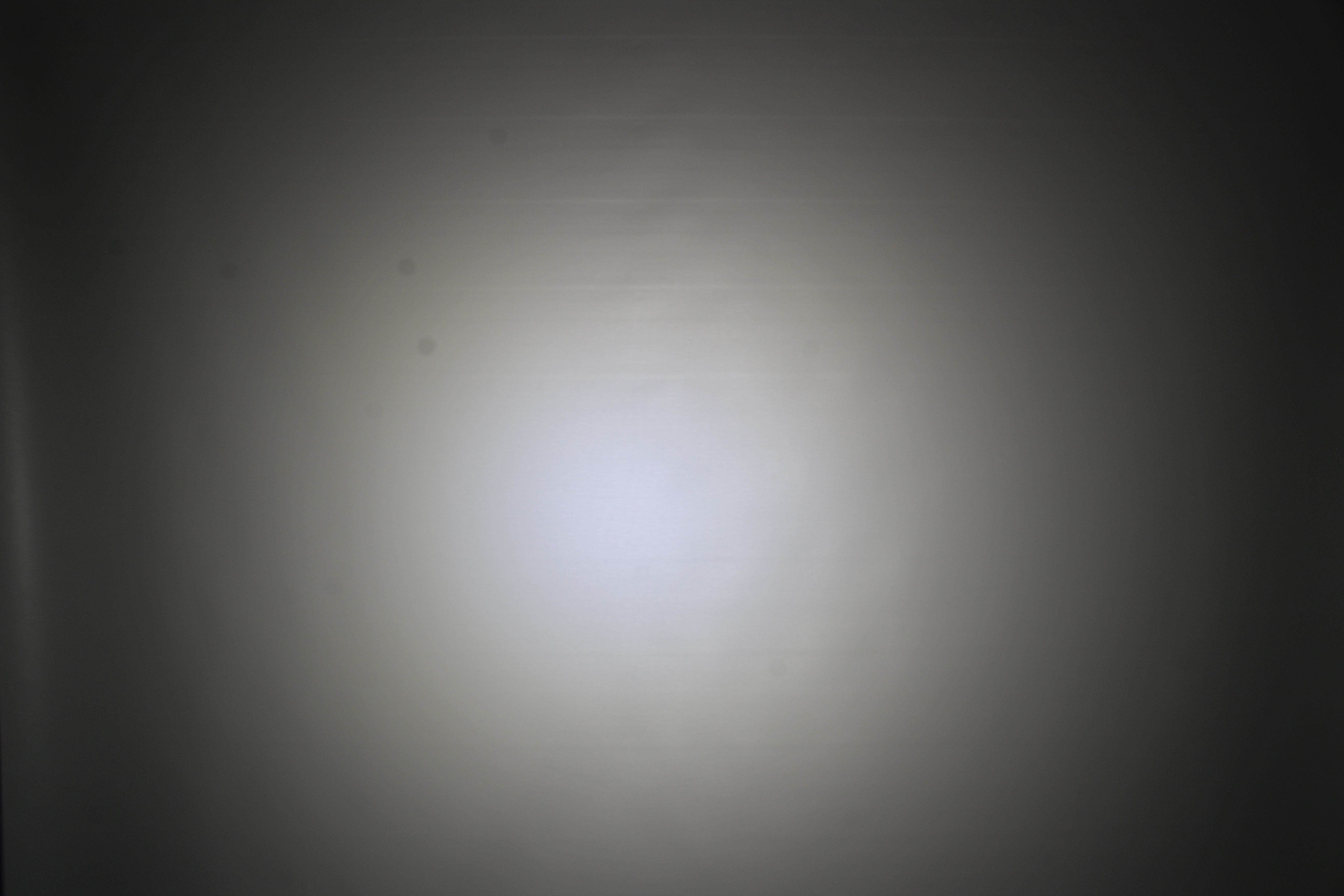

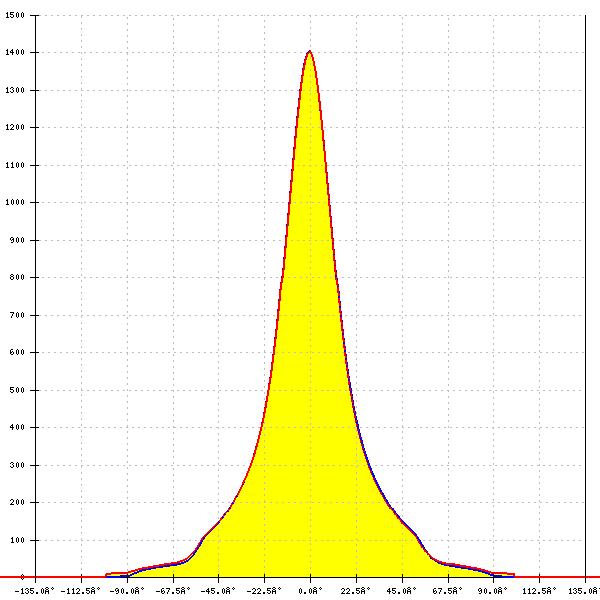

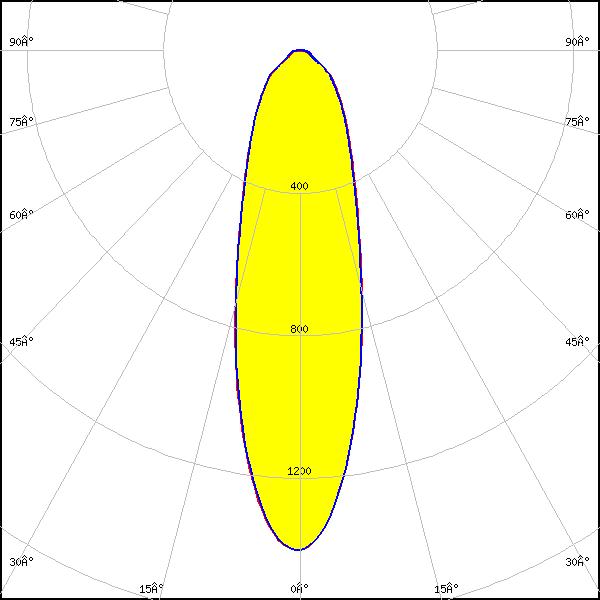

    LED: HiLOM RM64 (LM301B)
    FWHM: 30°
    FWTM: 92°
    Peak intensity: 1.400 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

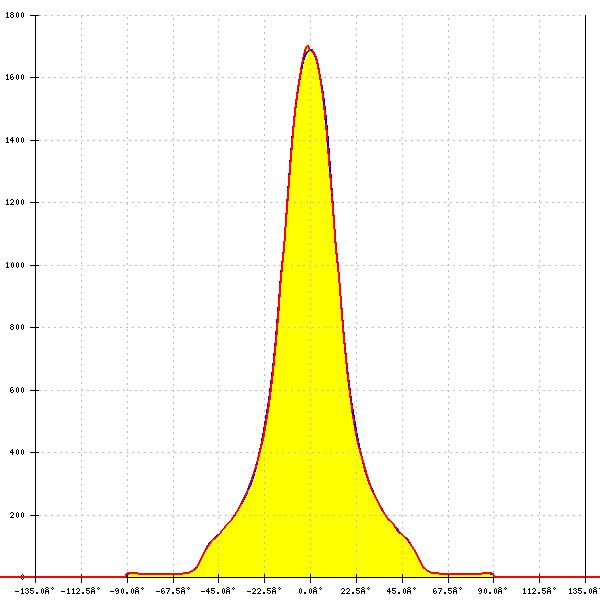

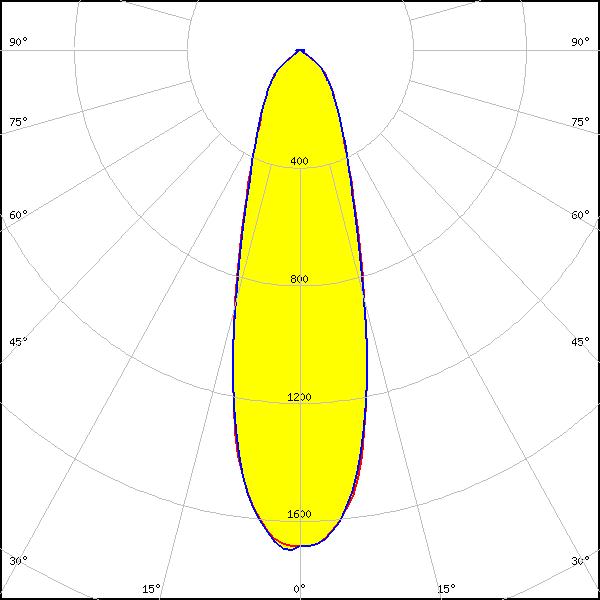

    LED: LH231B
    FWHM: 31°
    FWTM: 82°
    Peak intensity: 1.718 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

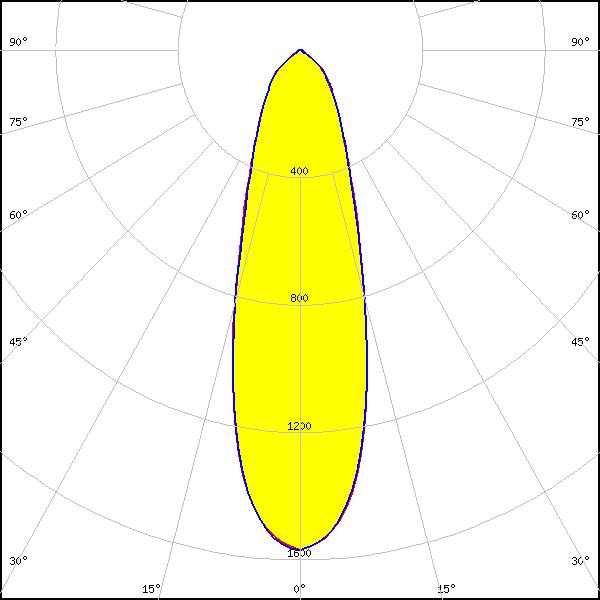

    LED: LH231B
    FWHM: 31°
    FWTM: 80°
    Peak intensity: 1.577 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

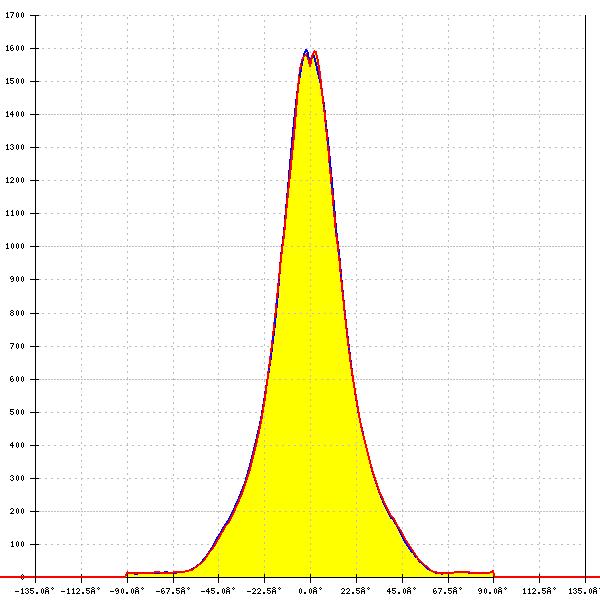

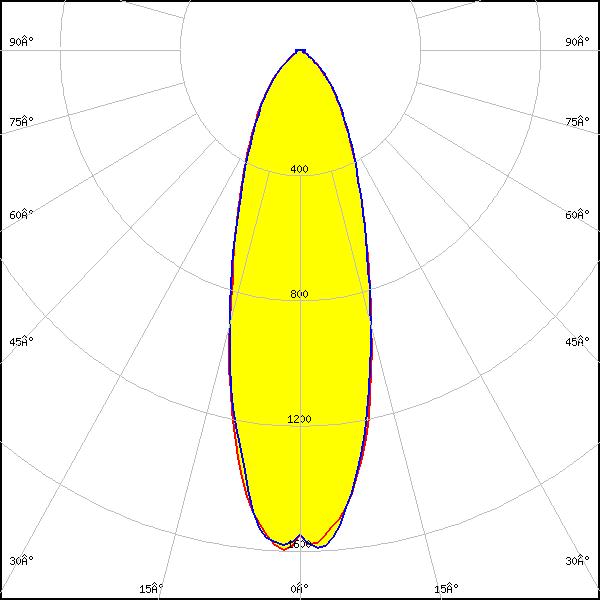

    LED: LH351B
    FWHM: 33°
    FWTM: 83°
    Peak intensity: 1.627 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

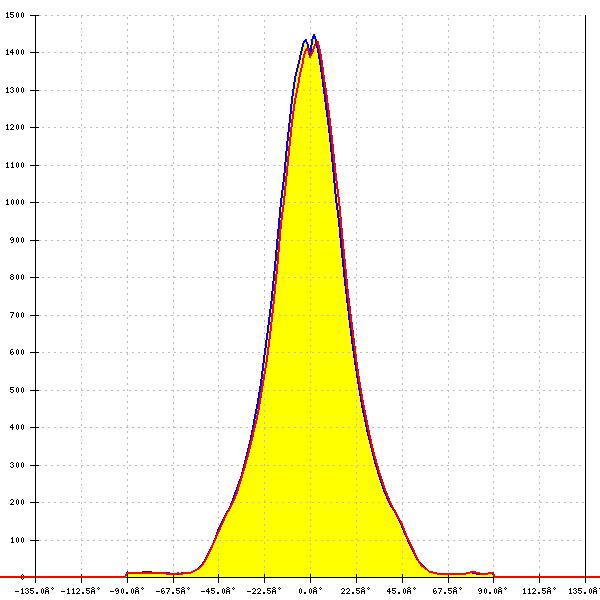

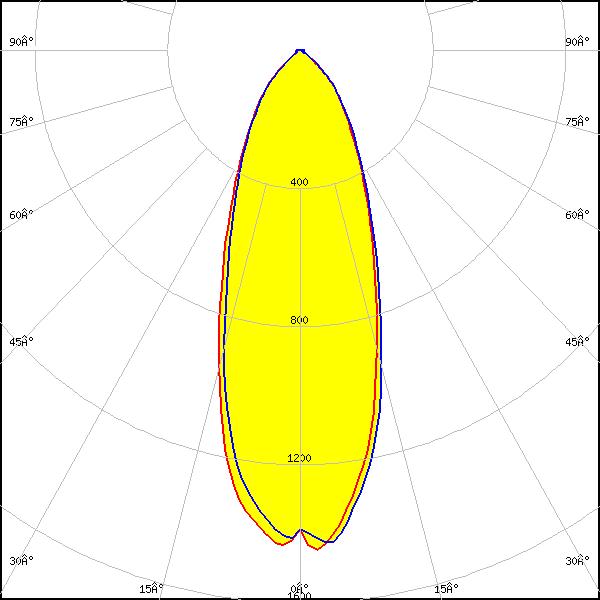

    LED: LH351C
    FWHM: 37°
    FWTM: 87°
    Peak intensity: 1.471 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

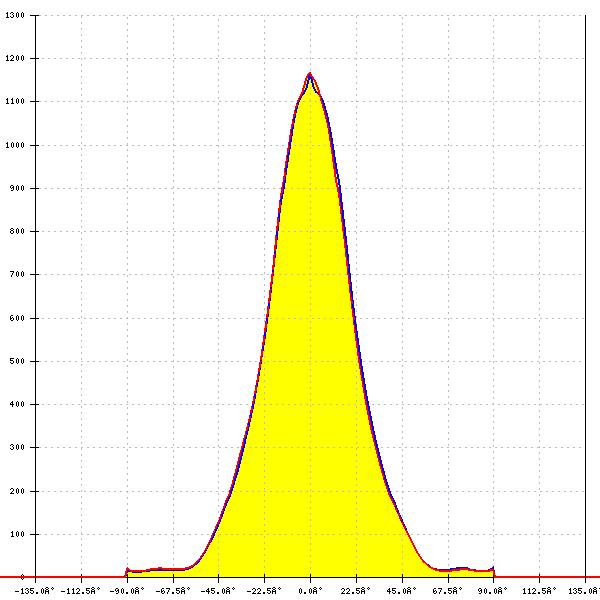

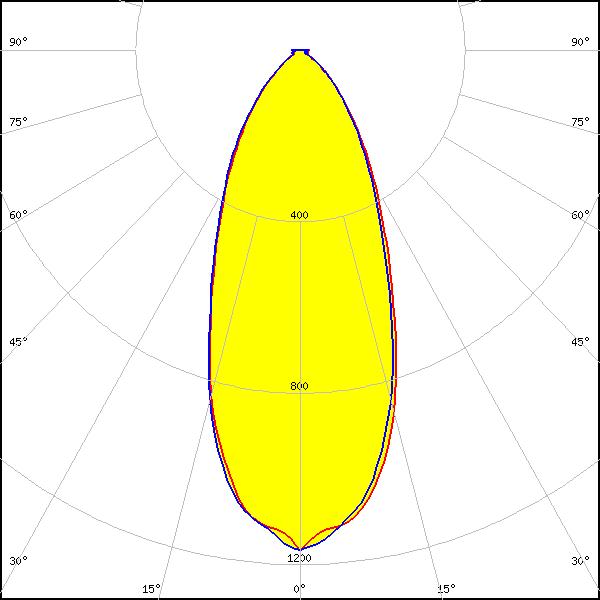

    LED: LH351D
    FWHM: 44°
    FWTM: 93°
    Peak intensity: 1.170 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

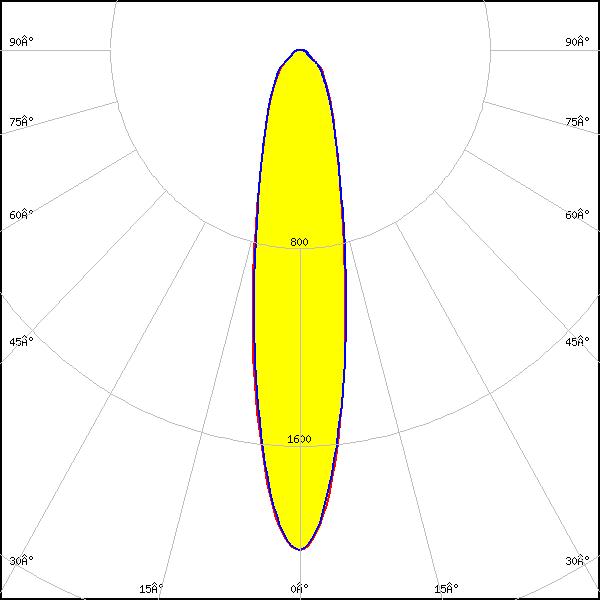

    LED: LM231 A/B
    FWHM: 22°
    FWTM: 70°
    Peak intensity: 2.000 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

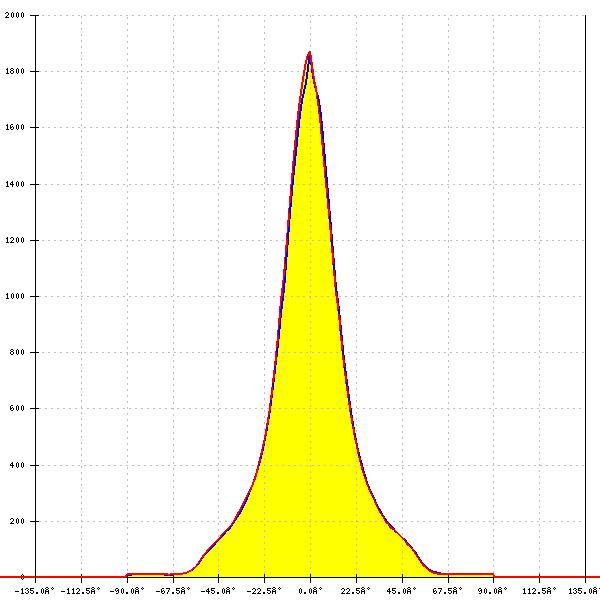

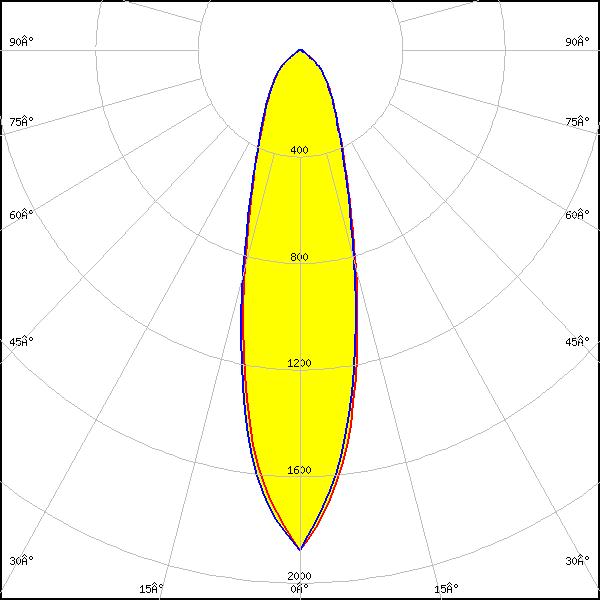

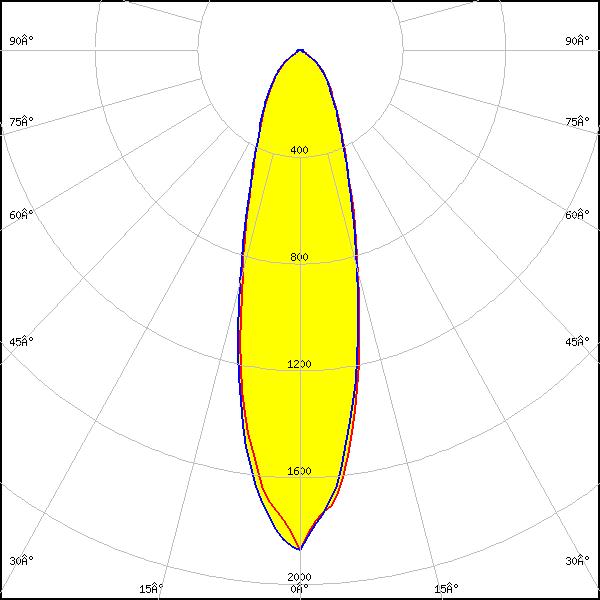

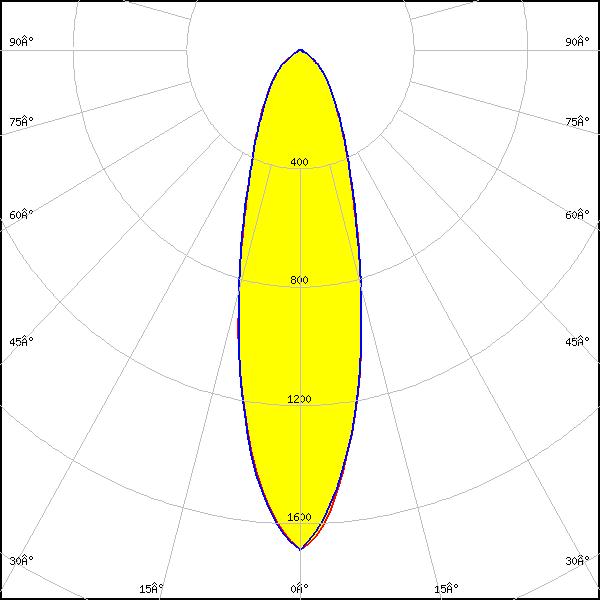

    LED: LM301B
    FWHM: 28°
    FWTM: 76°
    Peak intensity: 1.877 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM301B
    FWHM: 30°
    FWTM: 78°
    Peak intensity: 1.690 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM301B
    FWHM: 27°
    FWTM: 78°
    Peak intensity: 1.870 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

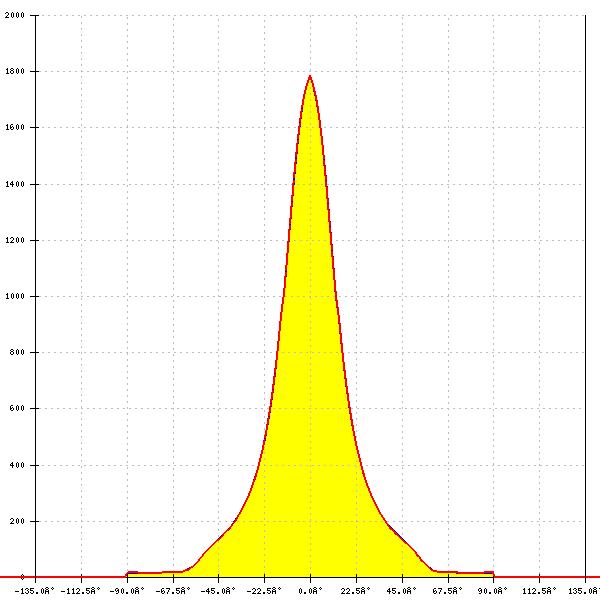

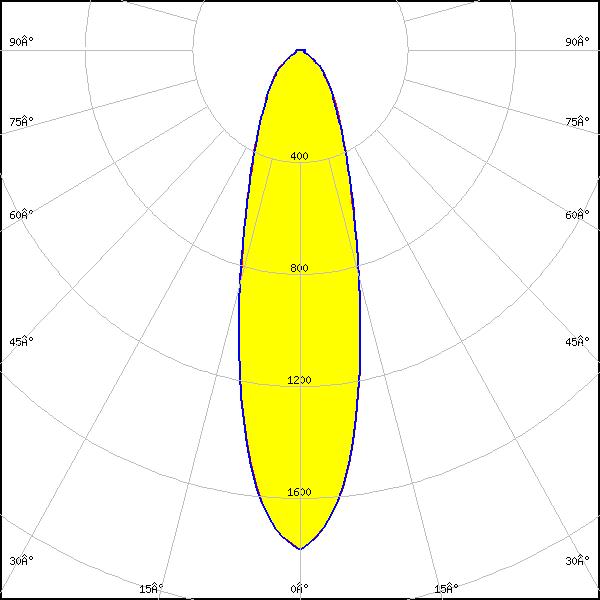

    LED: LM302D
    FWHM: 29°
    FWTM: 79°
    Peak intensity: 1.786 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

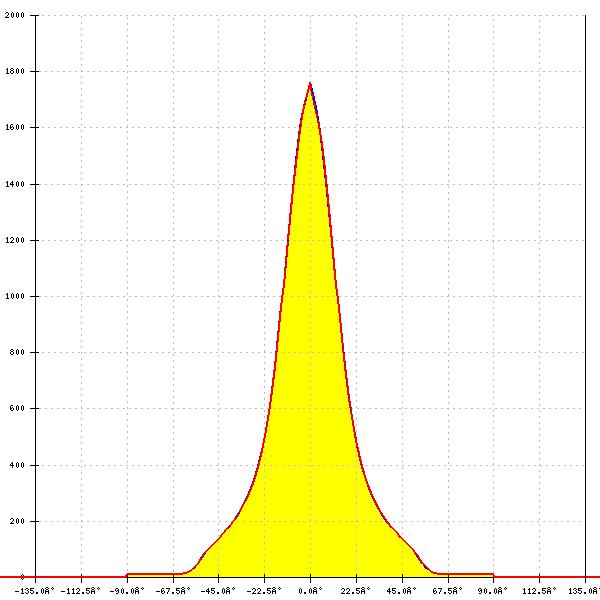

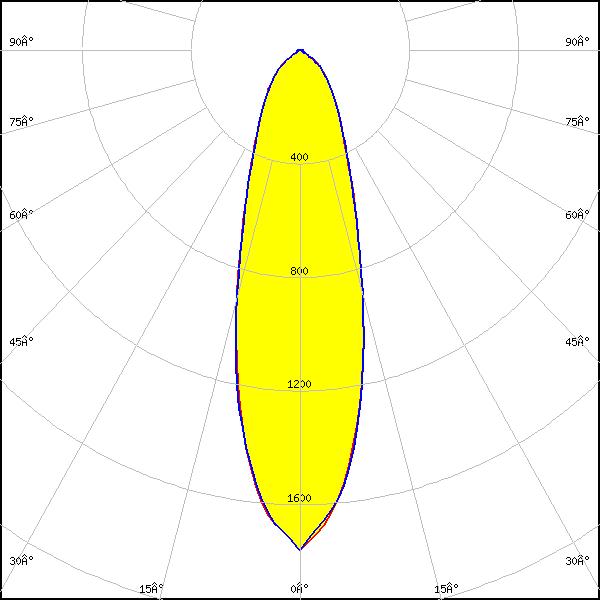

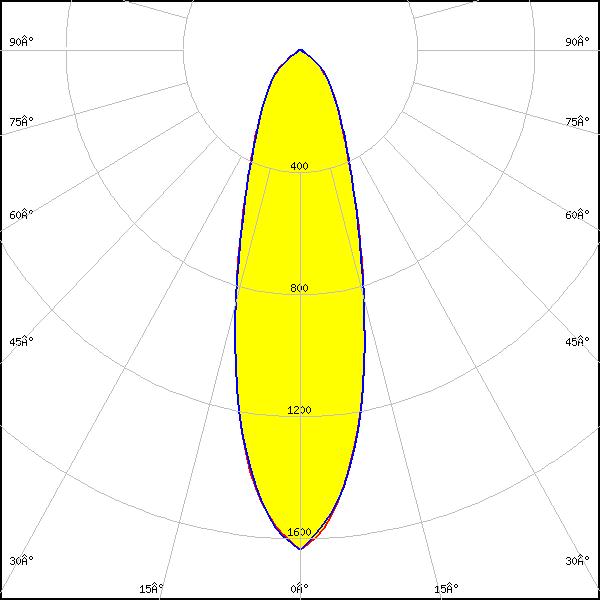

    LED: LM302Z plus
    FWHM: 30°
    FWTM: 82°
    Peak intensity: 1.638 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM302Z plus
    FWHM: 30°
    FWTM: 80°
    Peak intensity: 1.761 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

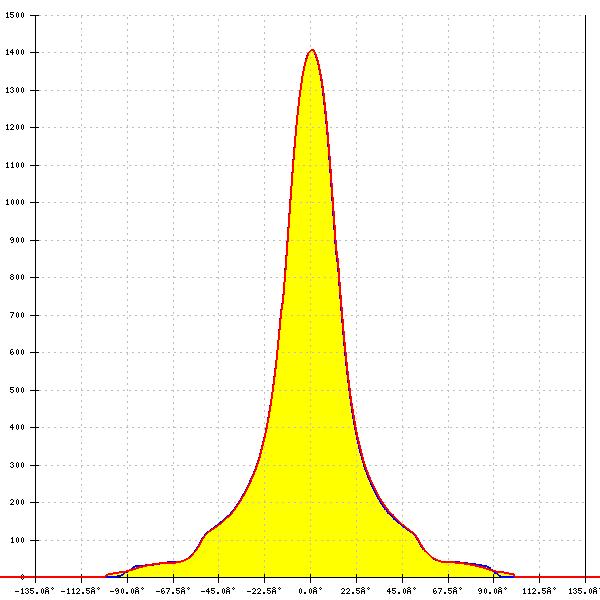

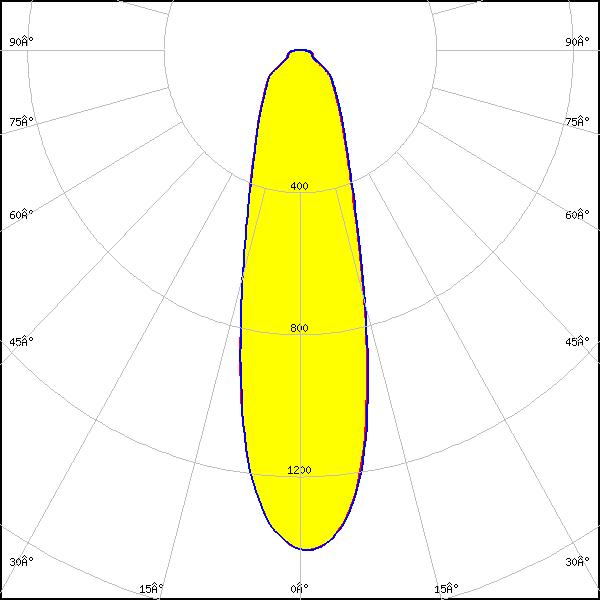

    LED: XLE-S44XTEHE (XT-E HE)
    FWHM: 29°
    FWTM: 89°
    Peak intensity: 1.410 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

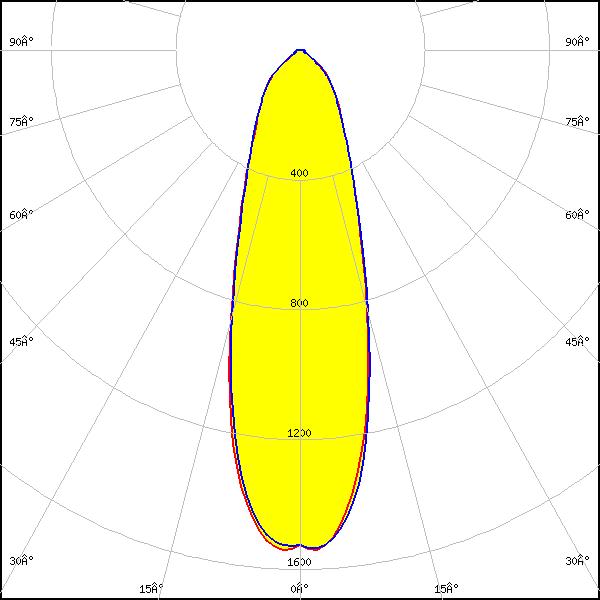

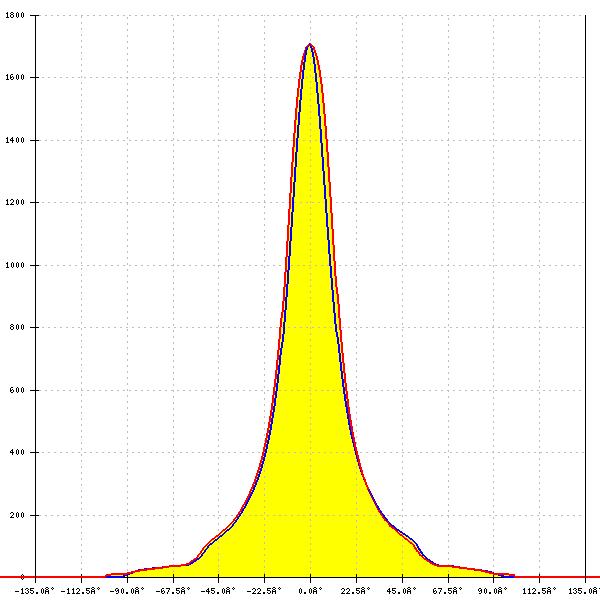

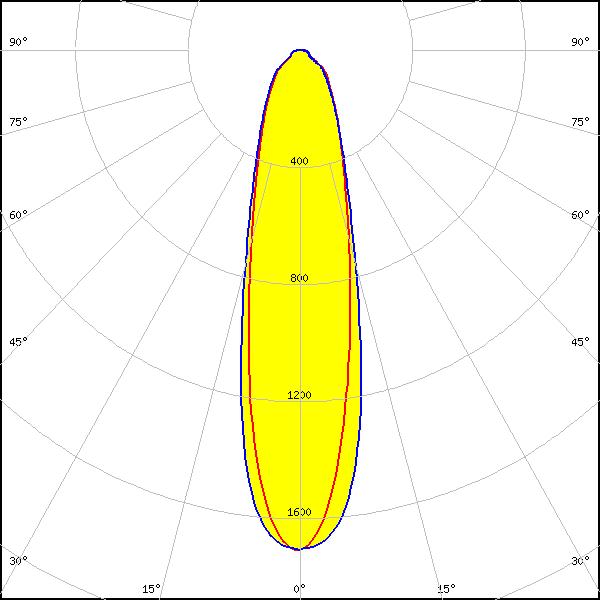

    LED: SEOUL 3030
    FWHM: 26°
    FWTM: 78°
    Peak intensity: 1.700 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

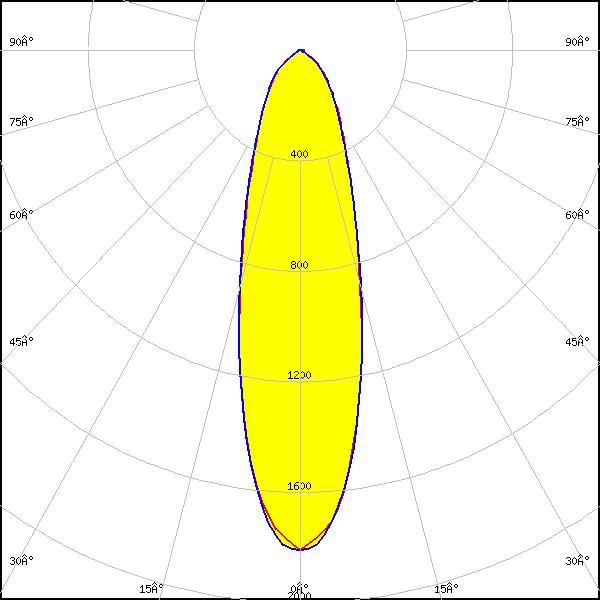

    LED: SEOUL DC 3030
    FWHM: 24°
    FWTM: 75°
    Peak intensity: 1.900 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 3030C
    FWHM: 30°
    FWTM: 80°
    Peak intensity: 1.813 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

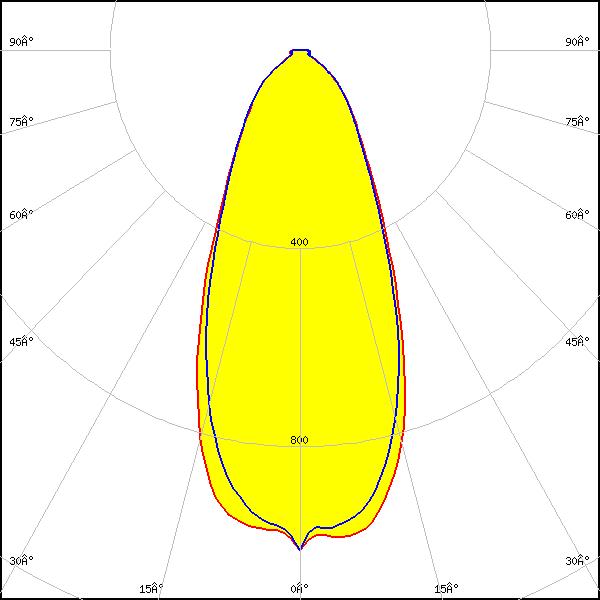

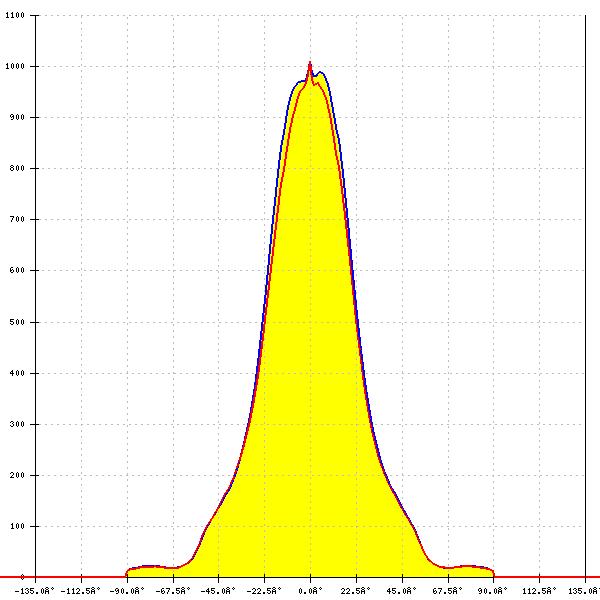

    LED: SEOUL DC 5050 6V
    FWHM: 45°
    FWTM: 100°
    Peak intensity: 1.000 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

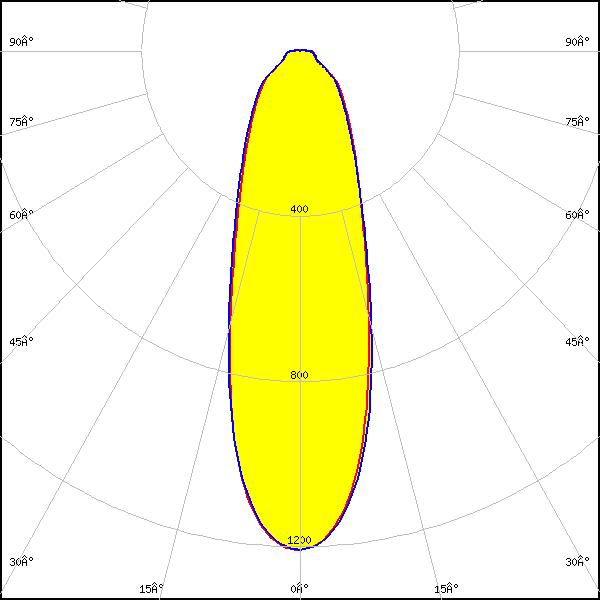

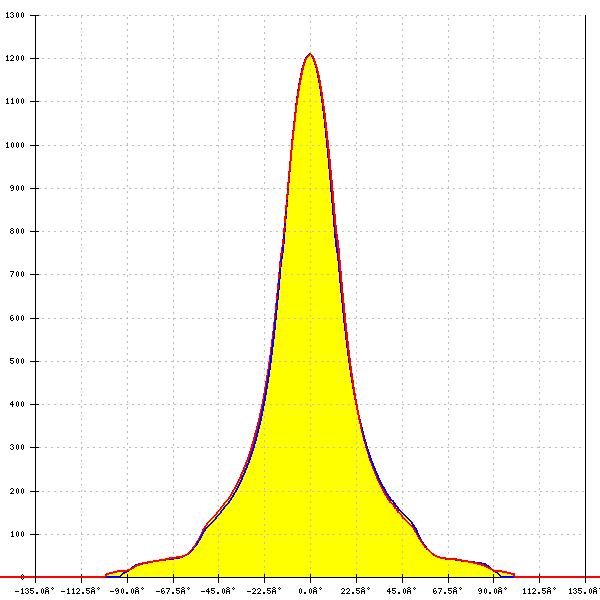

    LED: Z5M3
    FWHM: 33°
    FWTM: 100°
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

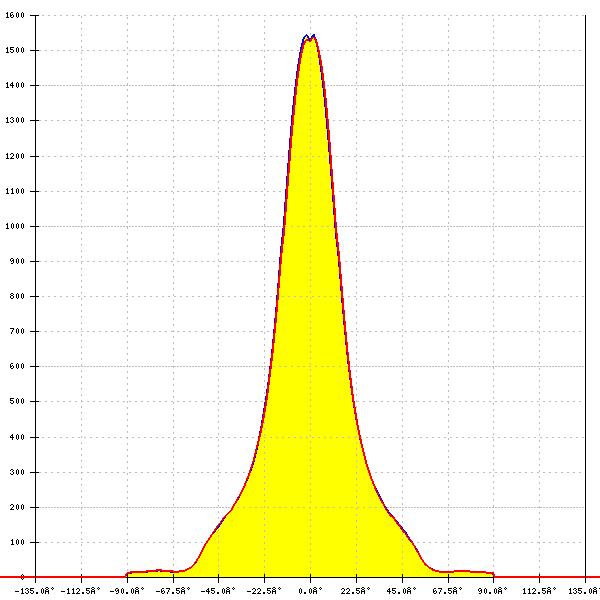

    LED: Z8Y22T
    FWHM: 31°
    FWTM: 82°
    Peak intensity: 1.620 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

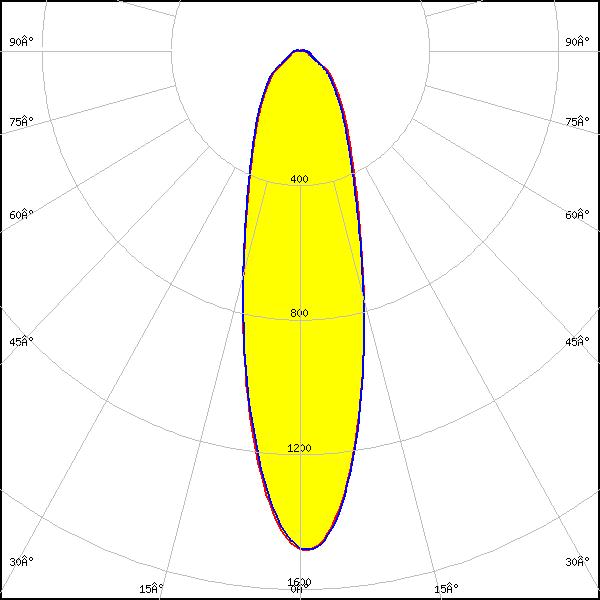

    LED: RLE 4x16 4000lm MP ADV2 OTD
    FWHM: 29°
    FWTM: 89°
    Peak intensity: 1.500 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 4x8 2000lm MP ADV2 OTD
    FWHM: 29°
    FWTM: 89°
    Peak intensity: 1.500 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE

    GET THE NEWSLETTER

    X

    Subscribe to LEDiL to get the must-read news and insights about lighting in your inbox.
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.
    Optical results filtering
    LED TYPE
    LES Size
    mm
    Min
    Max
    LED Manufacturers
    LED MODEL
    Viewing Angle (FWHM)
    °
    Min
    Max
    CCT - LED (K)
    CCT - WITH LENS (K)
    BASEPART Manufacturers
    BASEPART MODEL
    LEDiL Accessories
