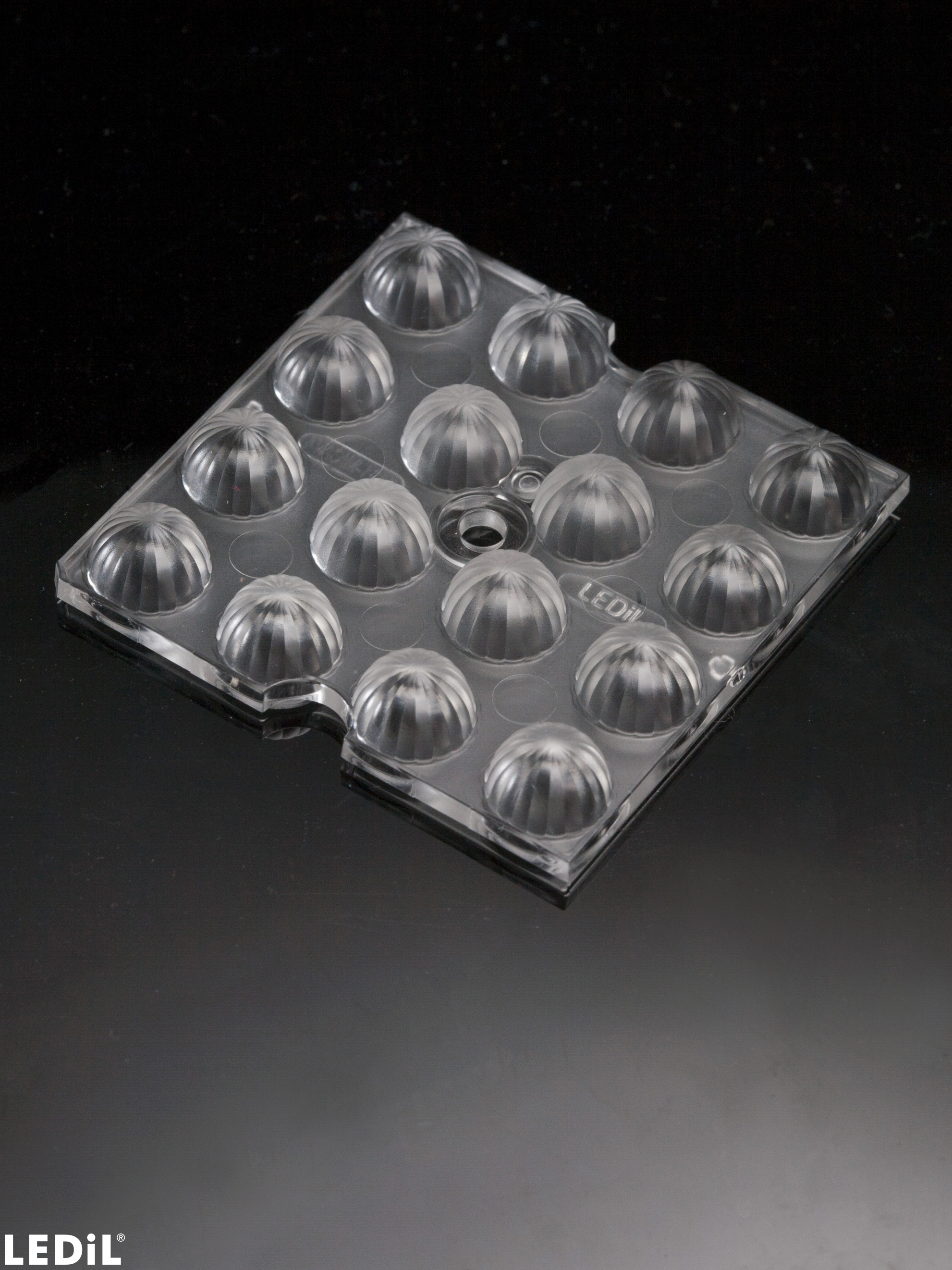

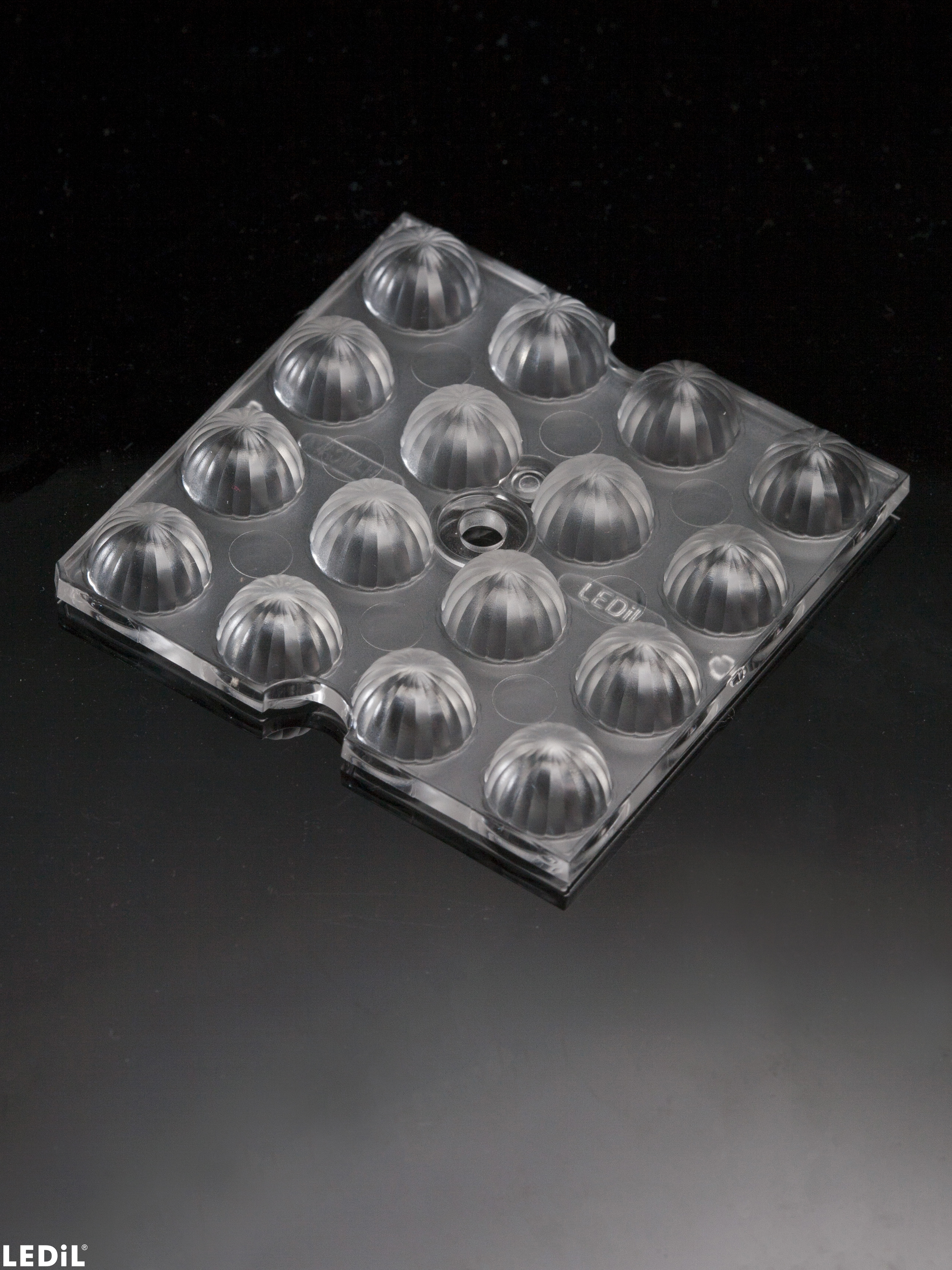

C15431_STRADELLA-16-HB-M
Print
~60° medium beam for industrial applications
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

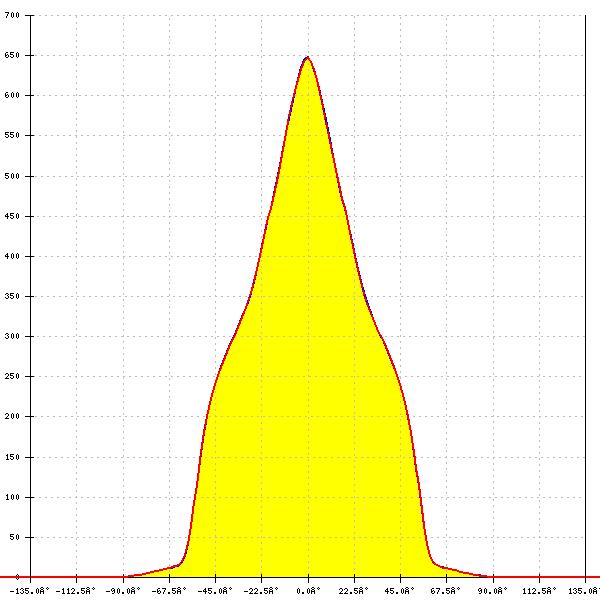

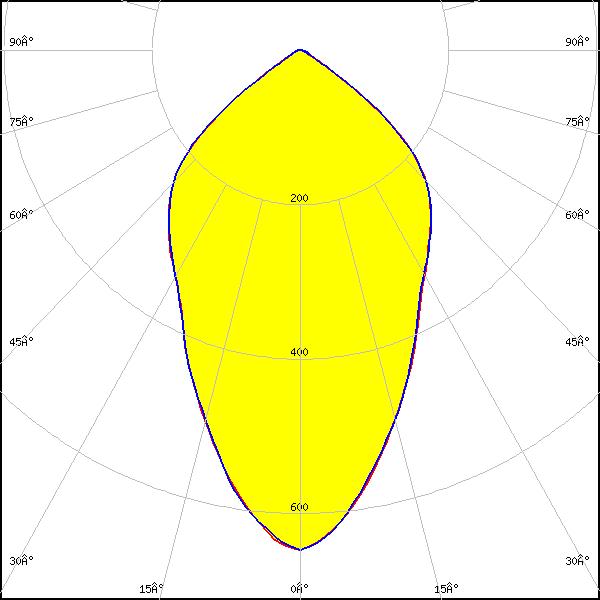

LED:

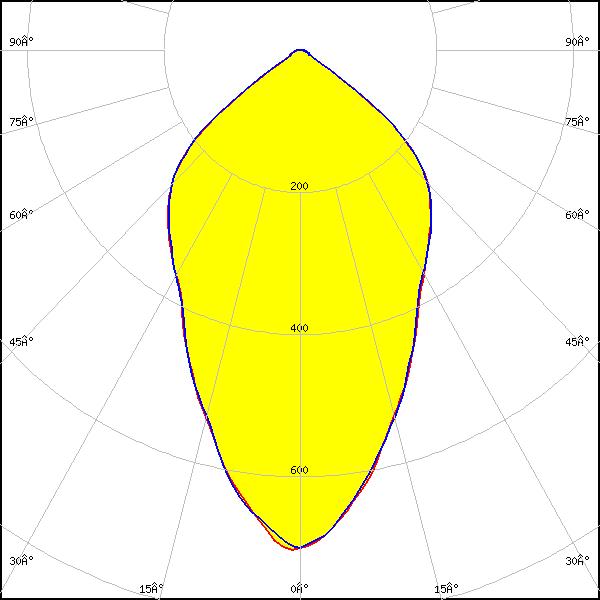

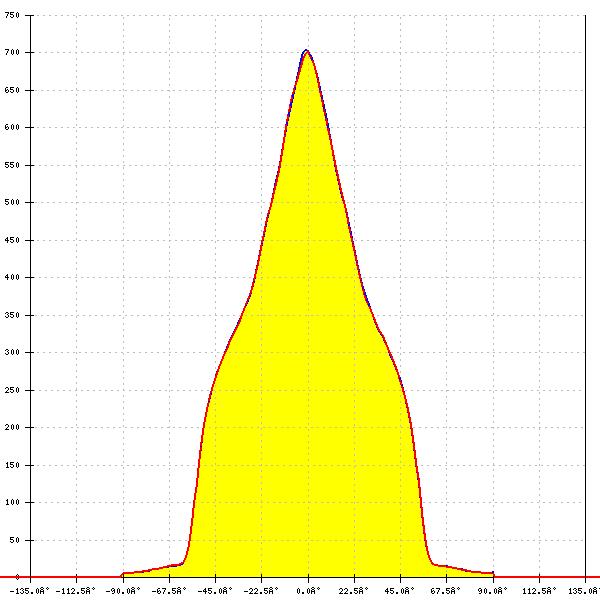

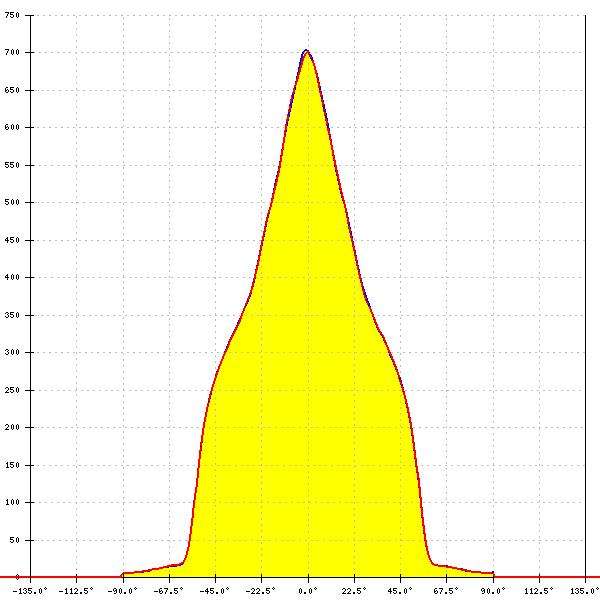

CSP 2727 (BXCP)
FWHM:
64°
FWTM:
112°
Peak intensity:
0.707 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
CSP 2727 (BXCP)
FWHM:
64°
FWTM:
112°
Peak intensity:
0.648 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

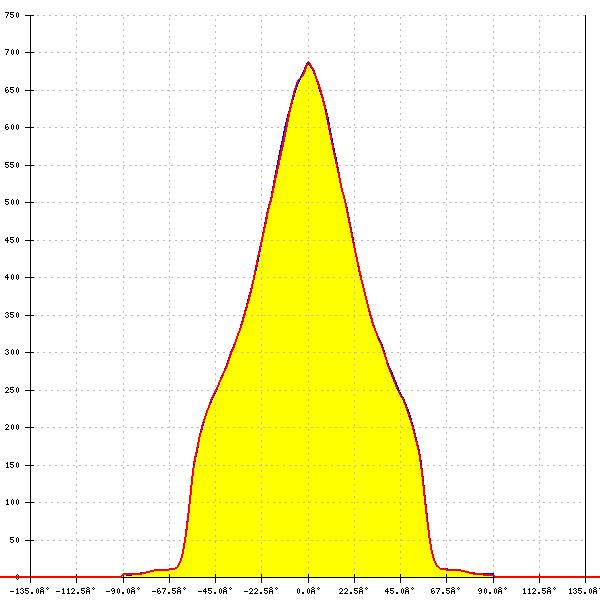

LED:

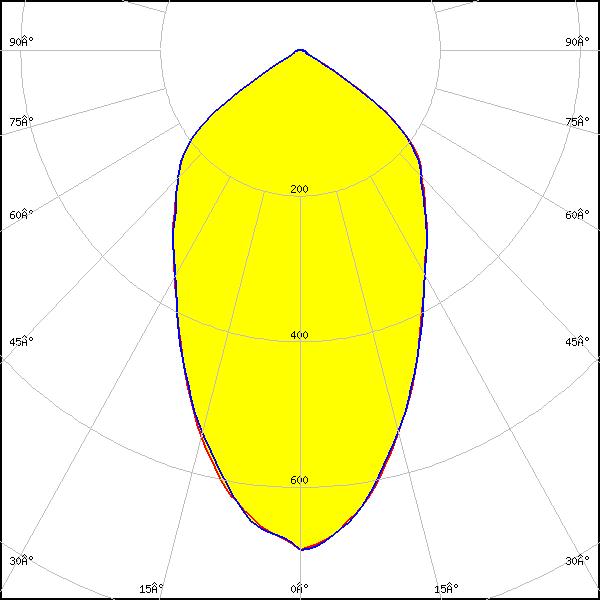

J Series 3030C
FWHM:
63° + 64°
FWTM:
117° + 117°
Peak intensity:
0.688 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

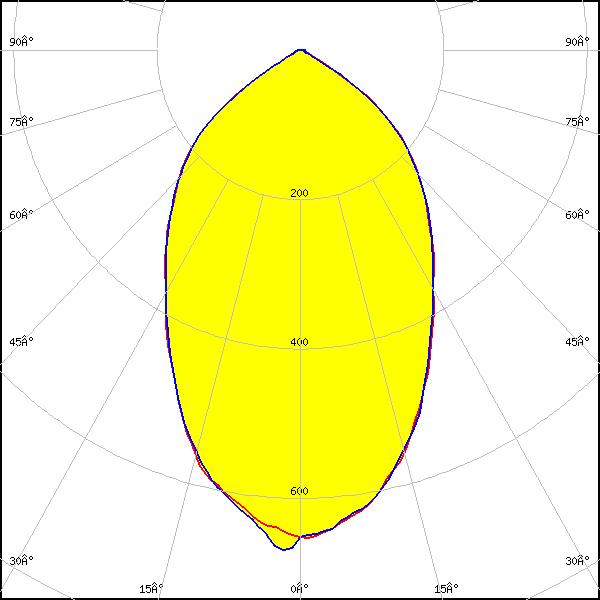

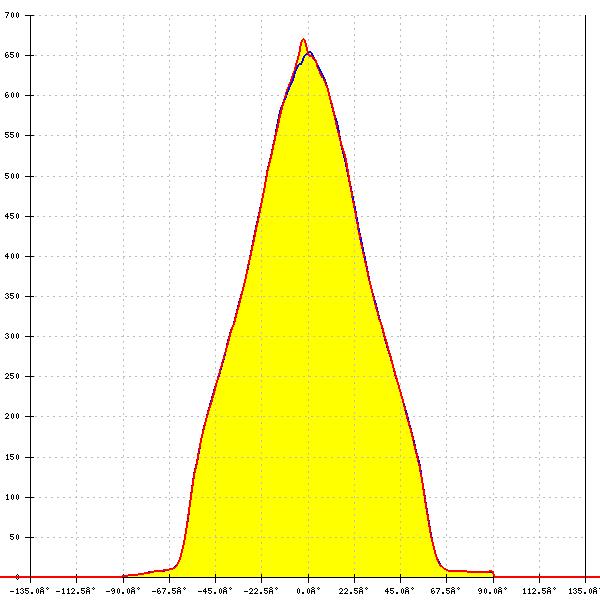

LED:
J Series 5050 Round LES
FWHM:
69°
FWTM:
117°
Peak intensity:
0.676 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

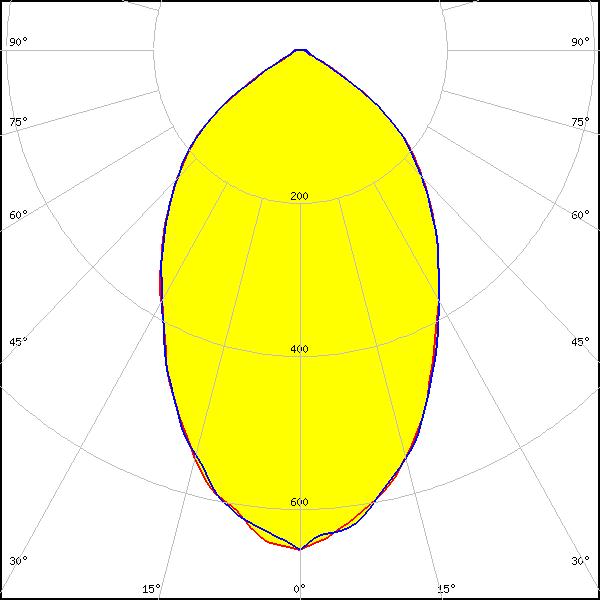

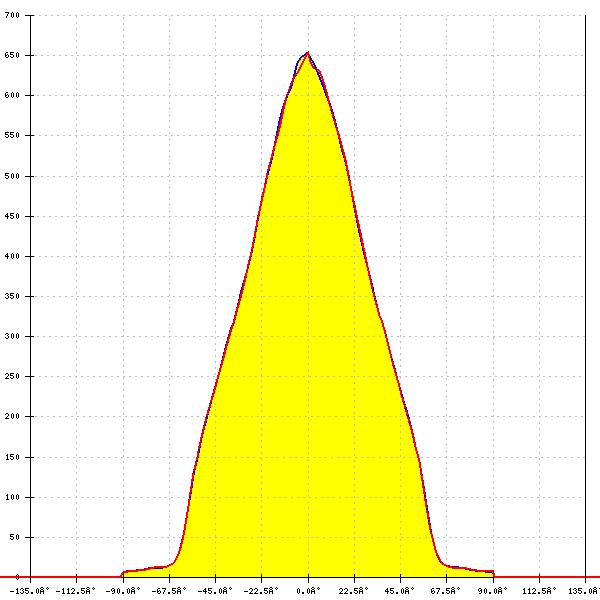

LED:
J Series 5050C 6V E Class
FWHM:
70°
FWTM:
118°
Peak intensity:
0.662 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

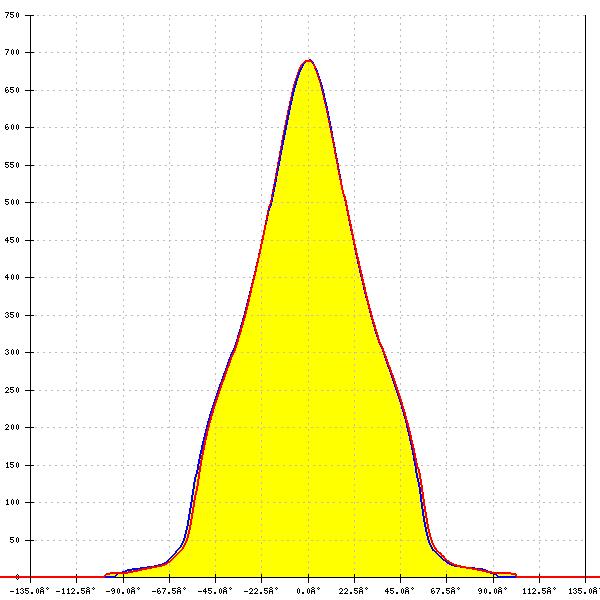

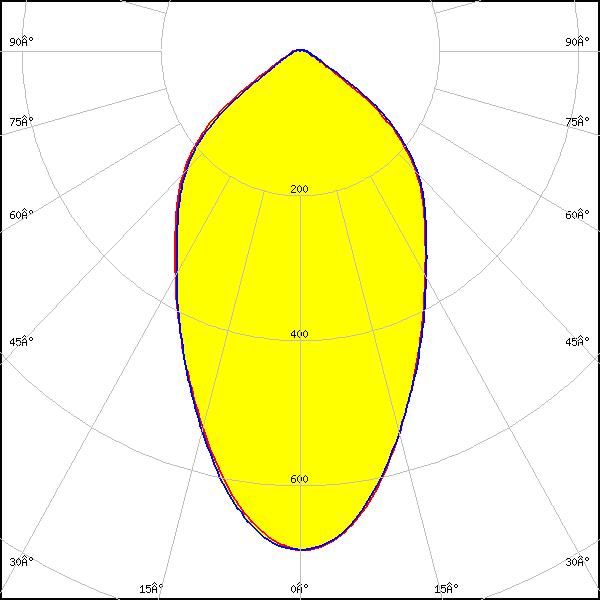

LED:
JB3030 HE B Class
FWHM:
63°
FWTM:
116°
Peak intensity:
0.689 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

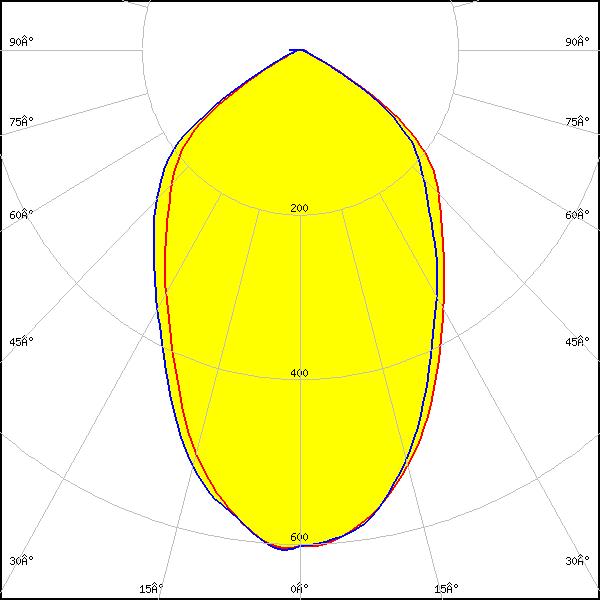

LED:

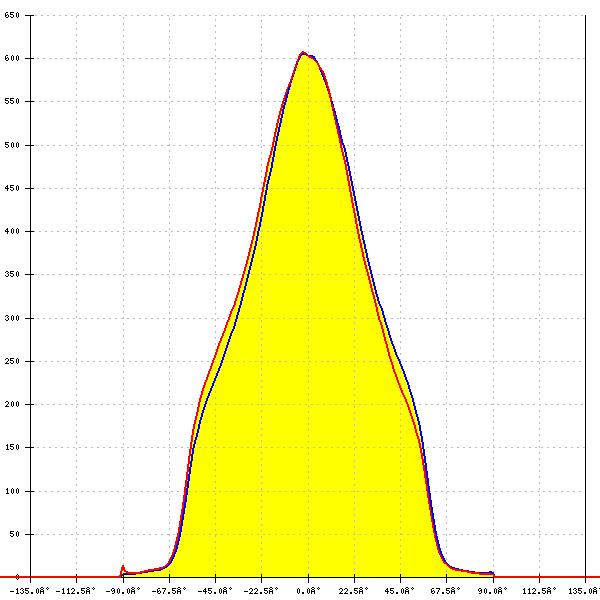

XP-G2
FWHM:
71°
FWTM:
123°
Peak intensity:
0.610 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

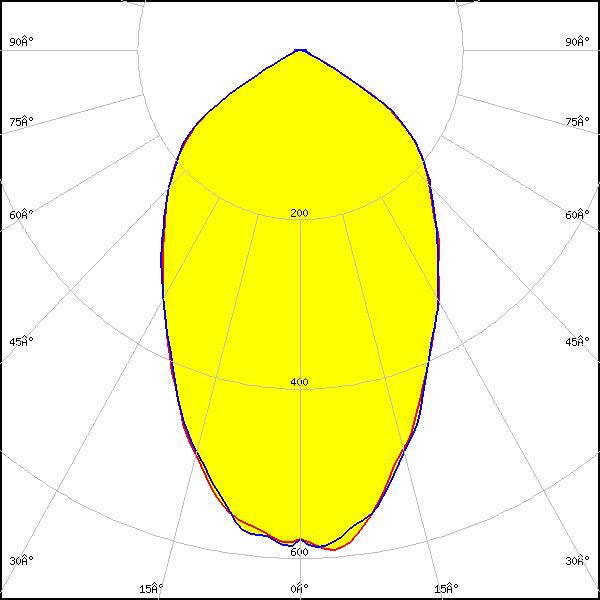

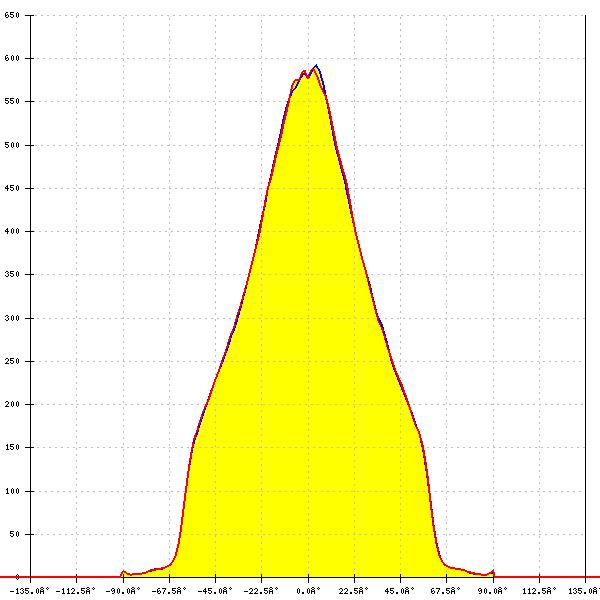

LED:
XP-G2 HE
FWHM:
70°
FWTM:
122°
Peak intensity:
0.612 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

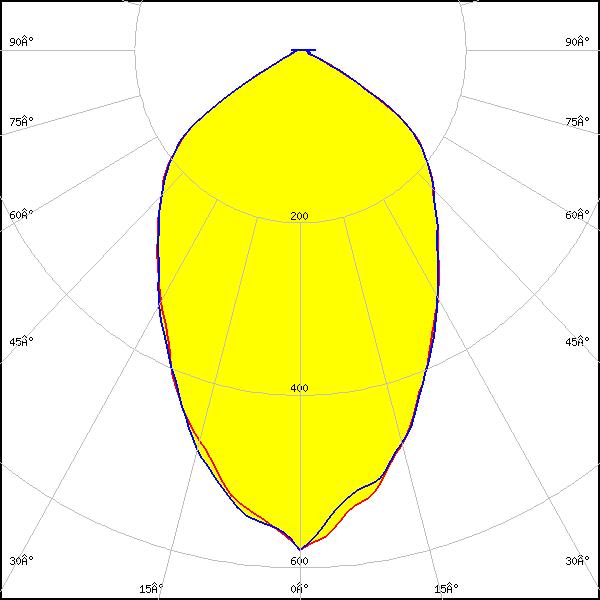

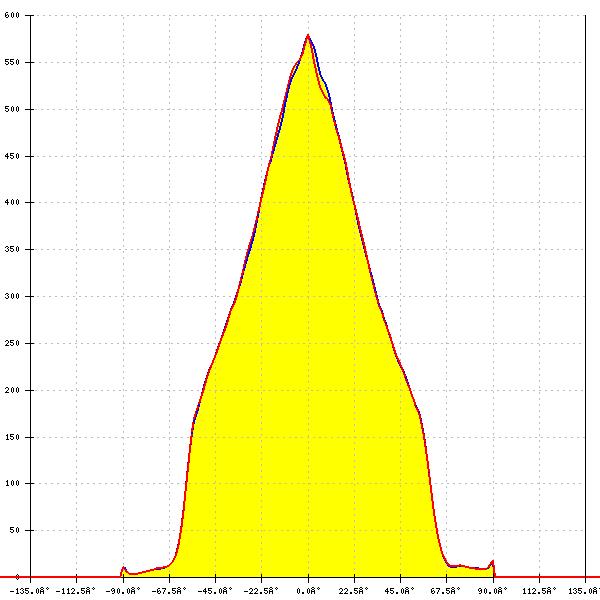

LED:
XP-G3
FWHM:
71°
FWTM:
123°
Peak intensity:
0.583 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

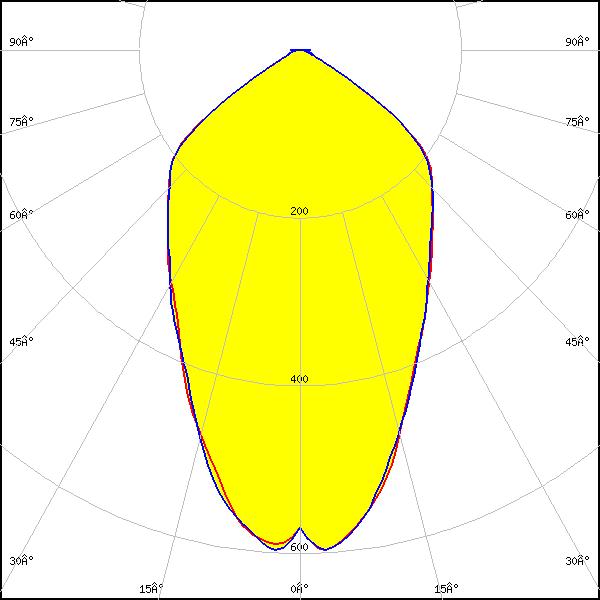

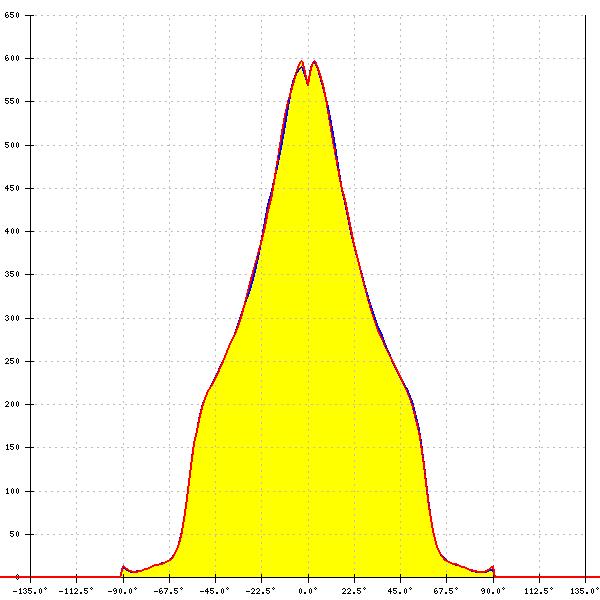

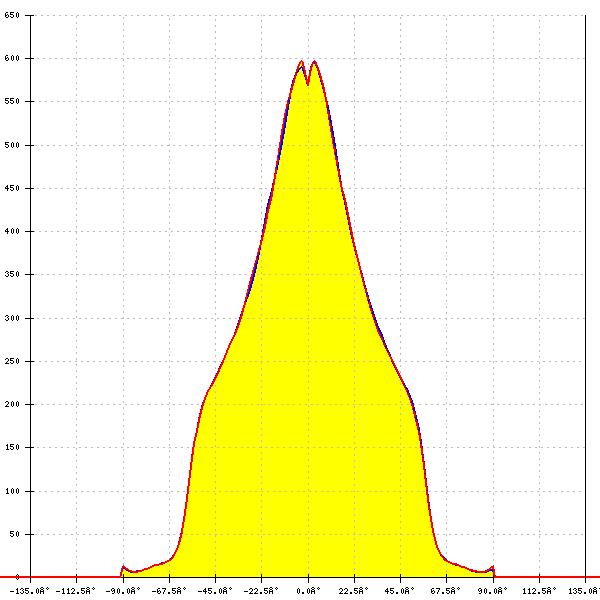

LED:
XT-E
FWHM:
66°
FWTM:
122°
Peak intensity:
0.611 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

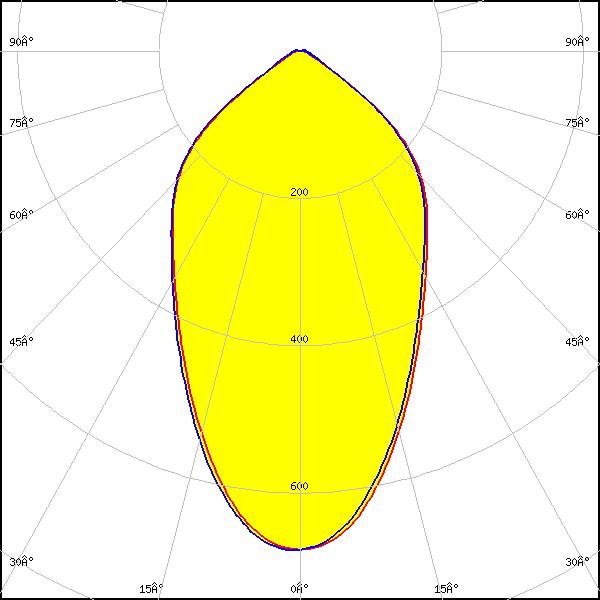

LED:
EHP-223.5x50-1604-xx-70-LS30-06-NTC
FWHM:
64°
FWTM:
115°
Peak intensity:
0.679 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

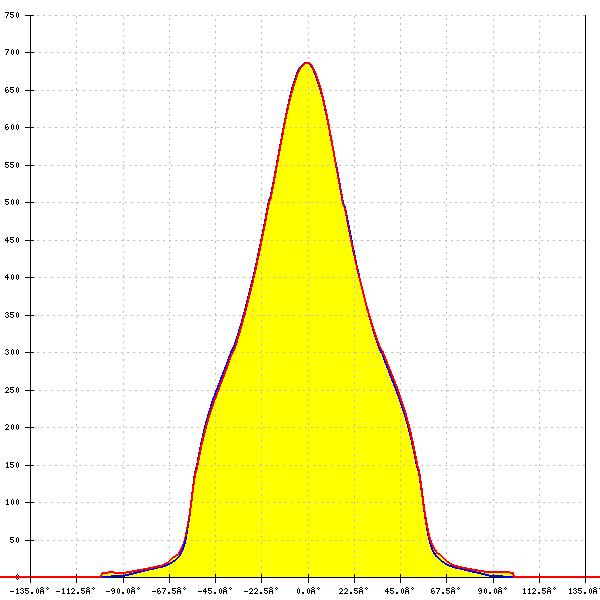

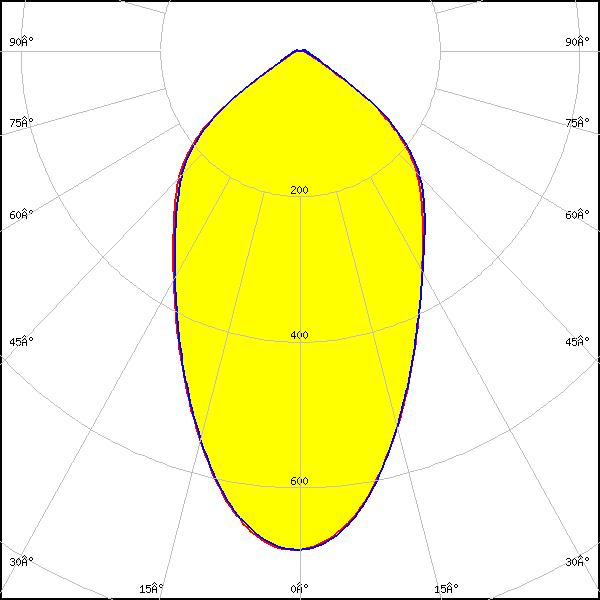

LED:
PrevaLED Brick MP 4x16
FWHM:
63°
FWTM:
116°
Peak intensity:
0.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

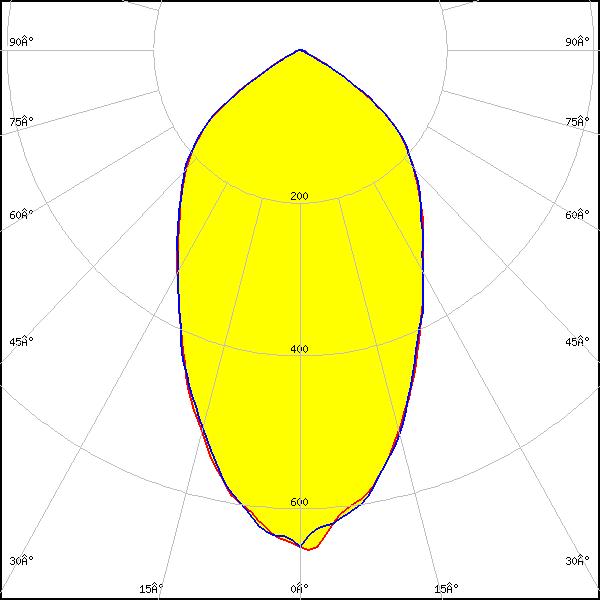

LED:

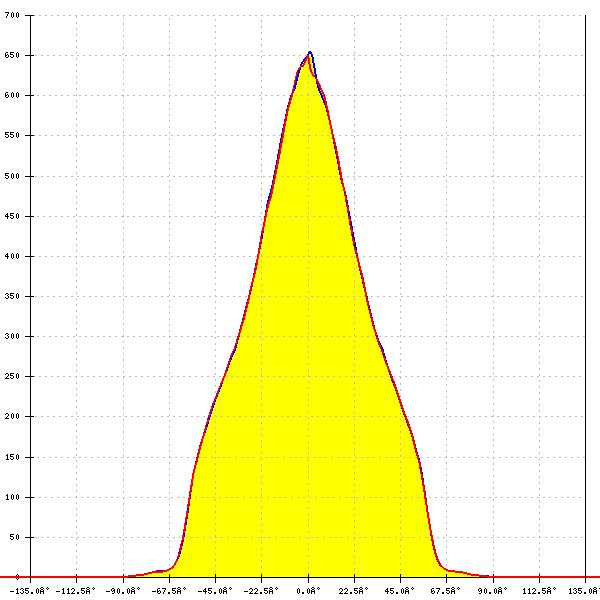

LUXEON 3535L HE PLUS
FWHM:
62°
FWTM:
118°
Peak intensity:
0.655 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

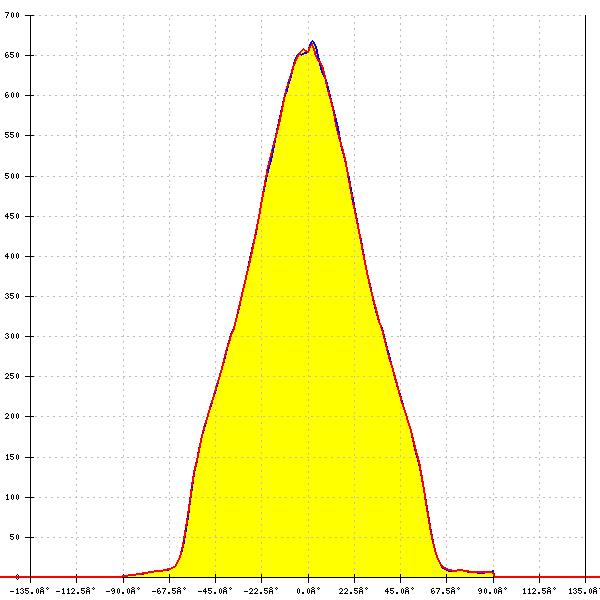

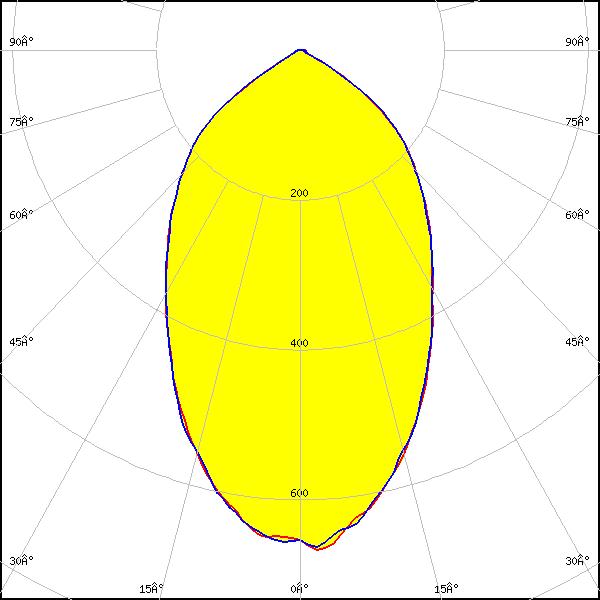

LED:
LUXEON 5050 Square LES
FWHM:
68°
FWTM:
118°
Peak intensity:
0.669 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

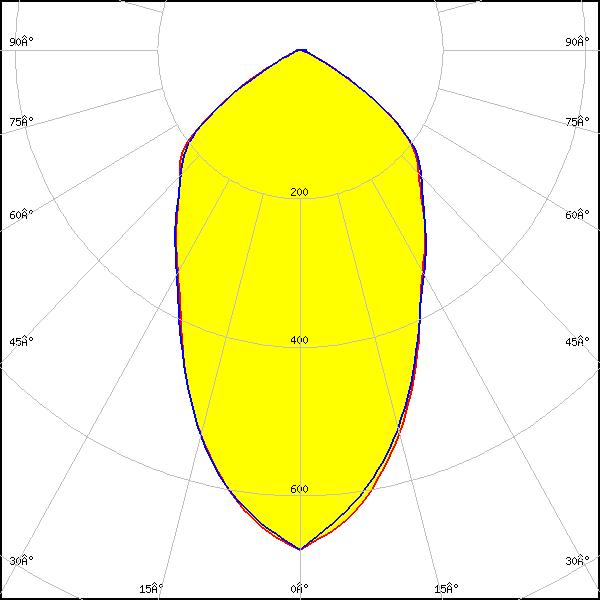

LED:

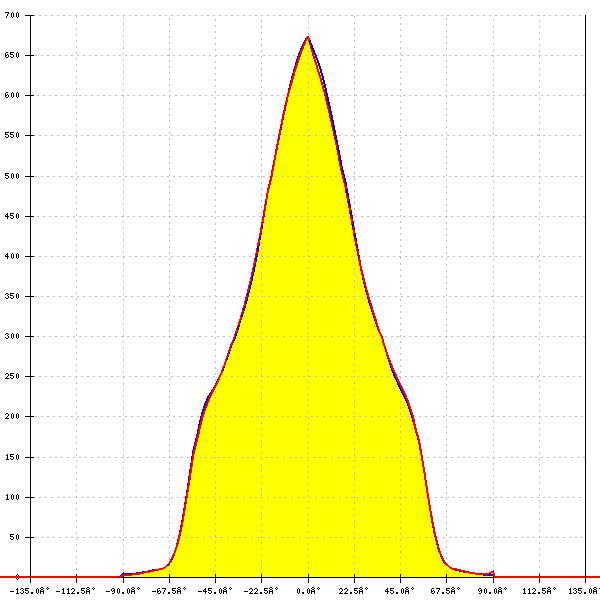

LUXEON CZ
FWHM:
62°
FWTM:
122°
Peak intensity:
0.670 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
RGBW

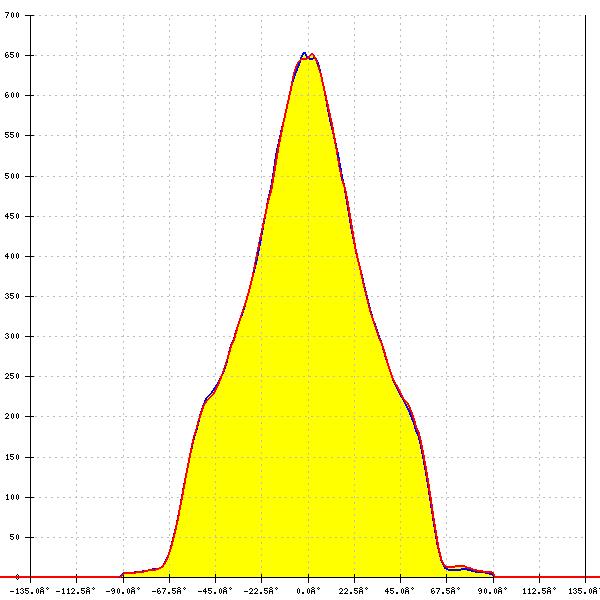

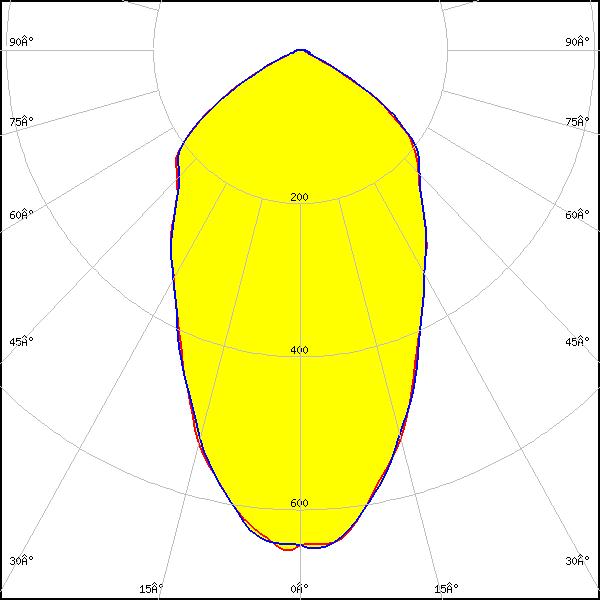

LED:
LUXEON CZ
FWHM:
64°
FWTM:
124°
Peak intensity:
0.660 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

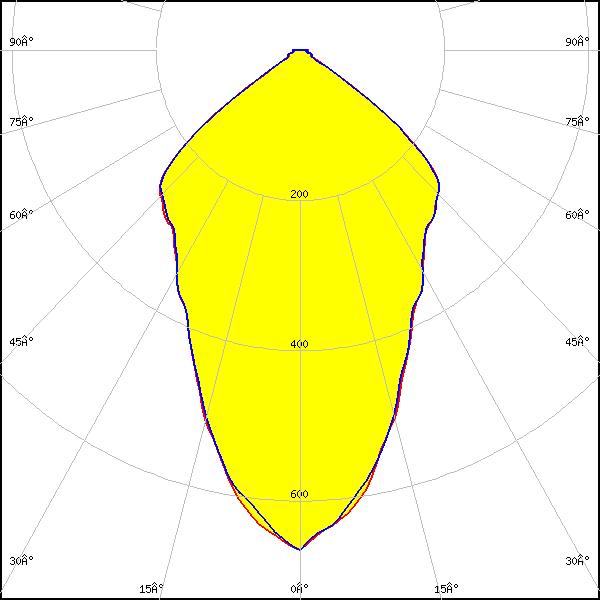

LED:

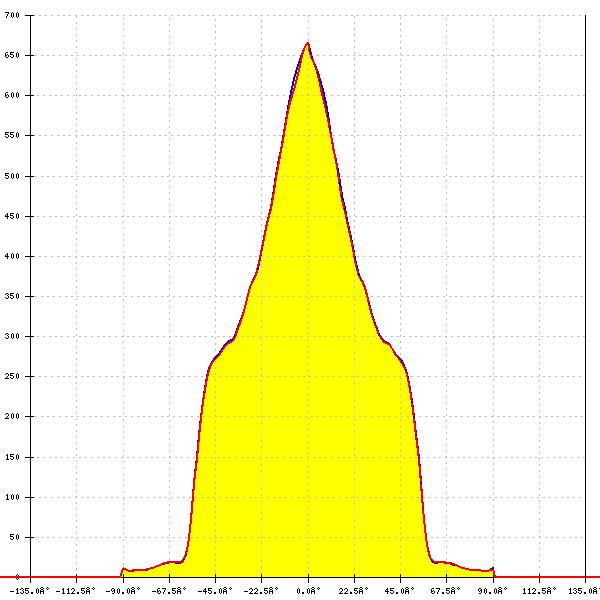

LUXEON HL1Z
FWHM:
62°
FWTM:
114°
Peak intensity:
0.666 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

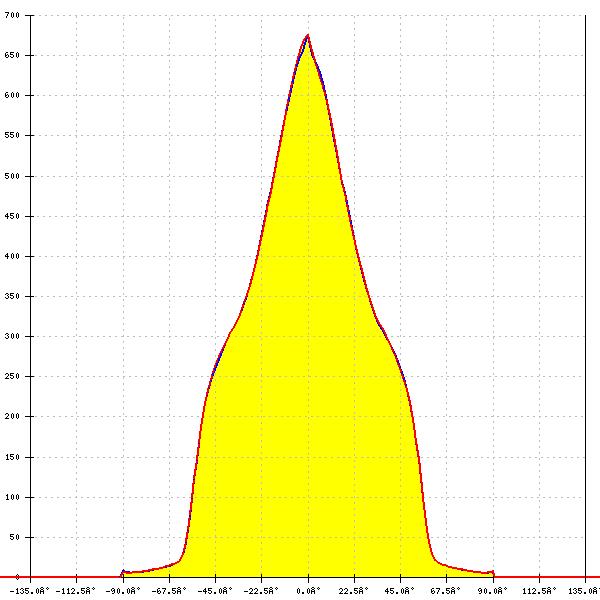

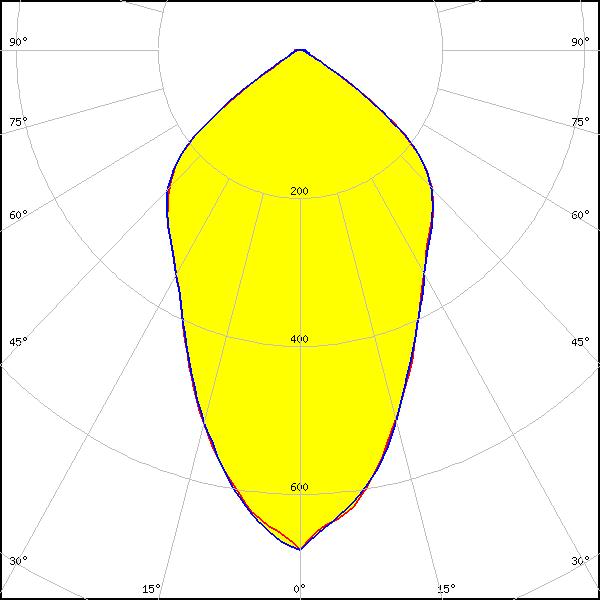

LED:
LUXEON HL2Z
FWHM:
63°
FWTM:
116°
Peak intensity:
0.676 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

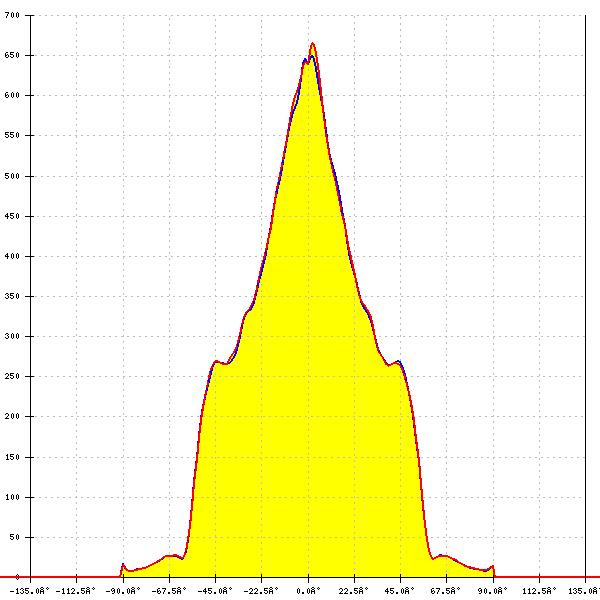

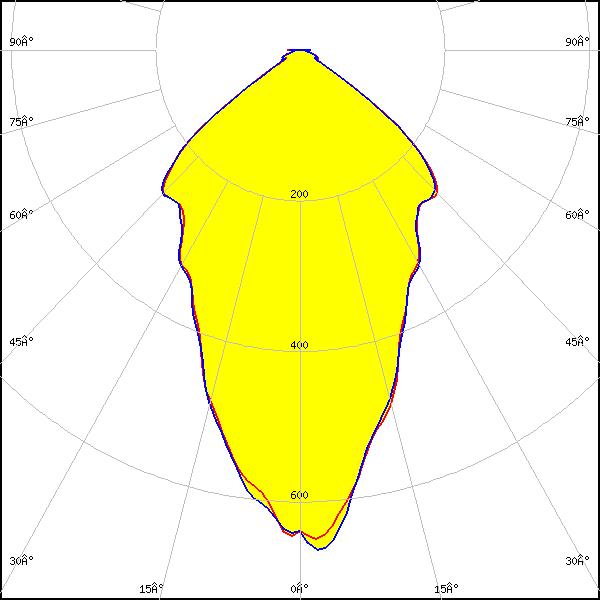

LED:
NFSWE11A
FWHM:
61° + 58°
FWTM:
114° + 114°
Peak intensity:
0.671 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

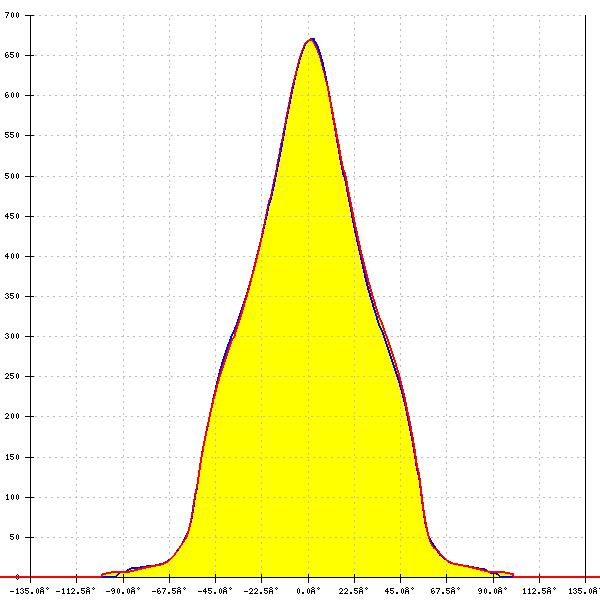

LED:

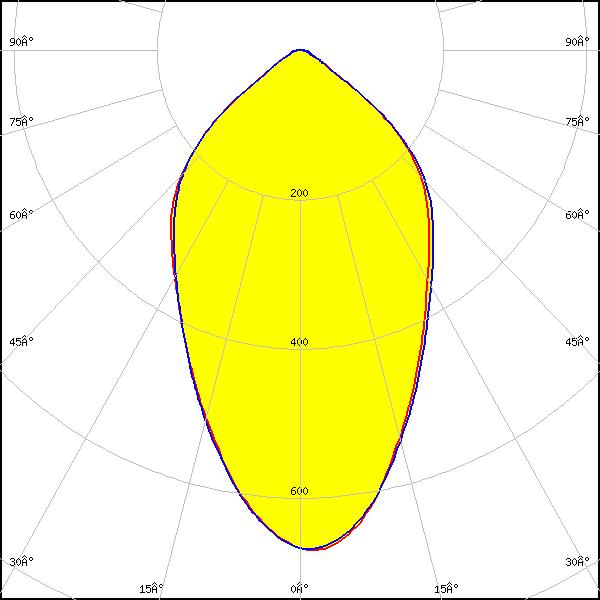

NFSx757D
FWHM:
65°
FWTM:
114°
Peak intensity:
0.670 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

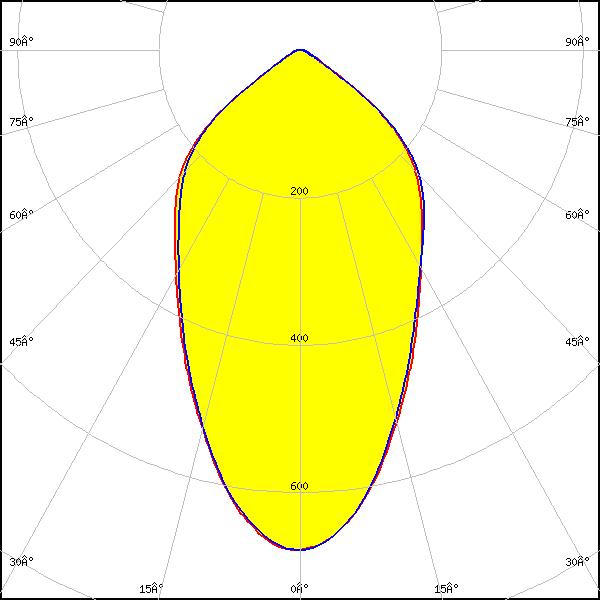

LED:

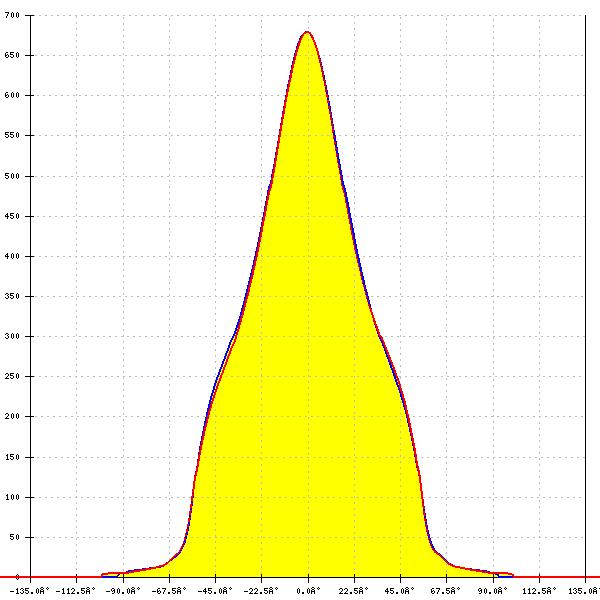

NFSx757G
FWHM:
61°
FWTM:
115°
Peak intensity:
0.680 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

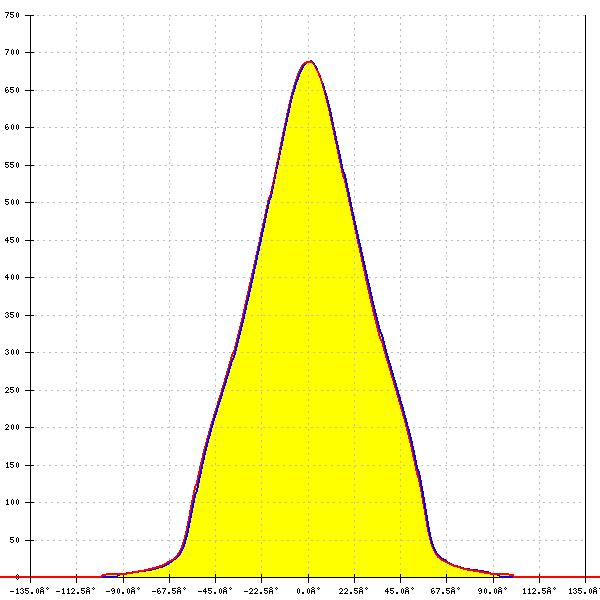

LED:

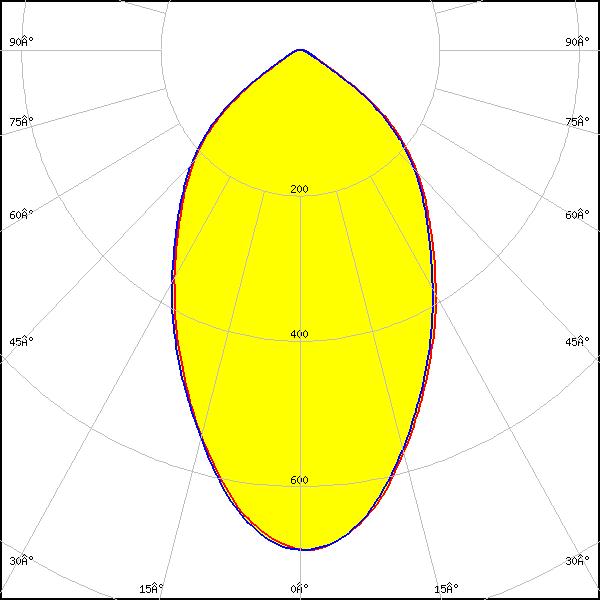

NVSW219D
FWHM:
65°
FWTM:
116°
Peak intensity:
0.690 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

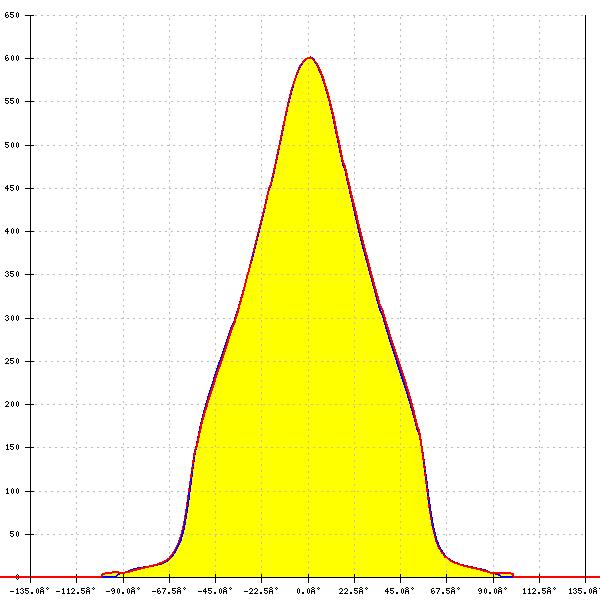

LED:

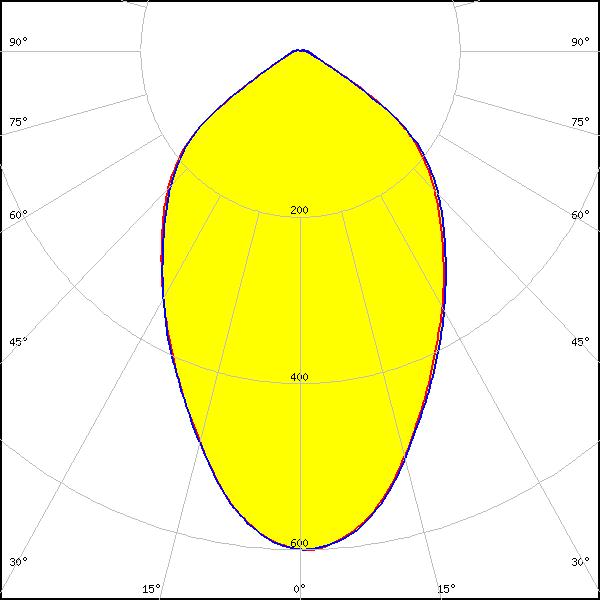

NVSW319B
FWHM:
72°
FWTM:
121°
Peak intensity:
0.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

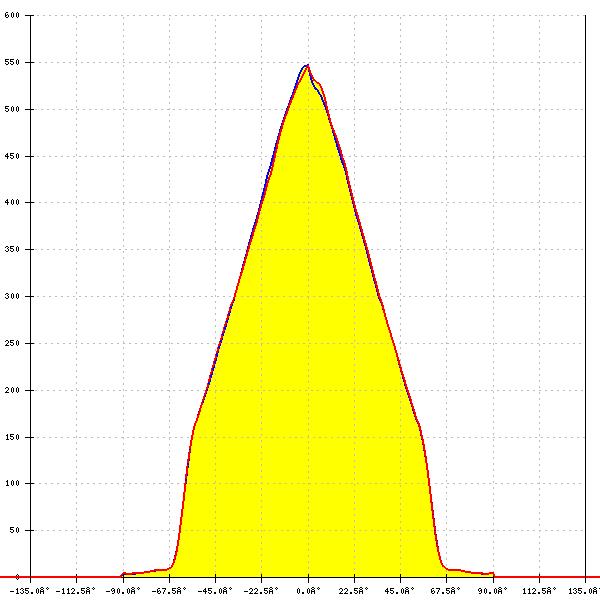

LED:

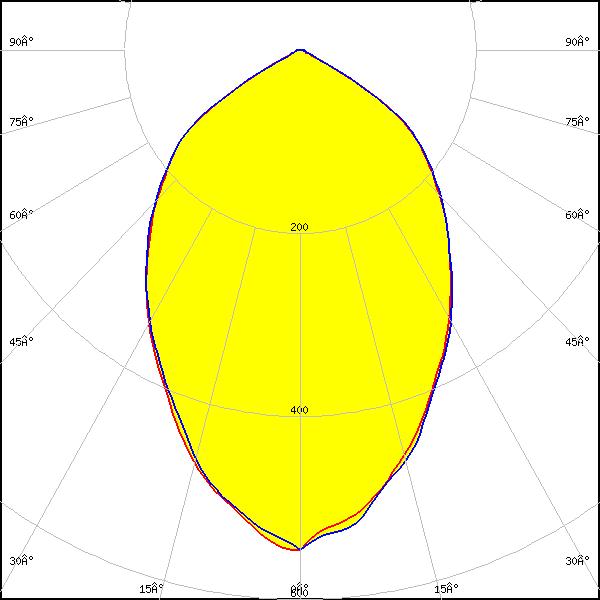

NVSW519A
FWHM:
77°
FWTM:
124°
Peak intensity:
0.546 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

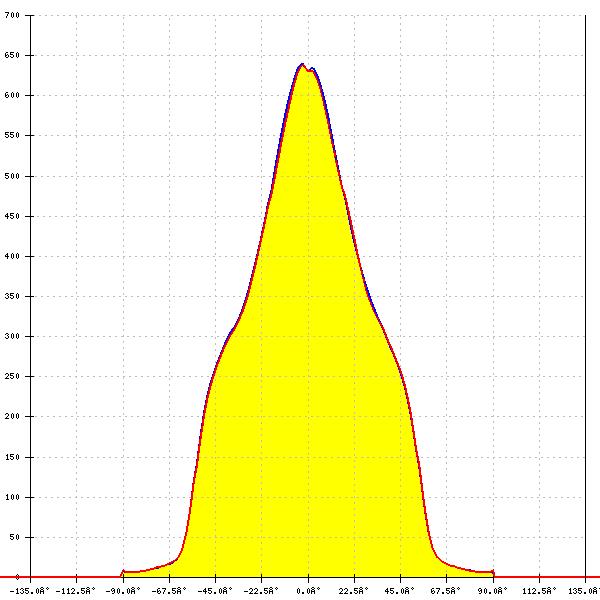

LED:

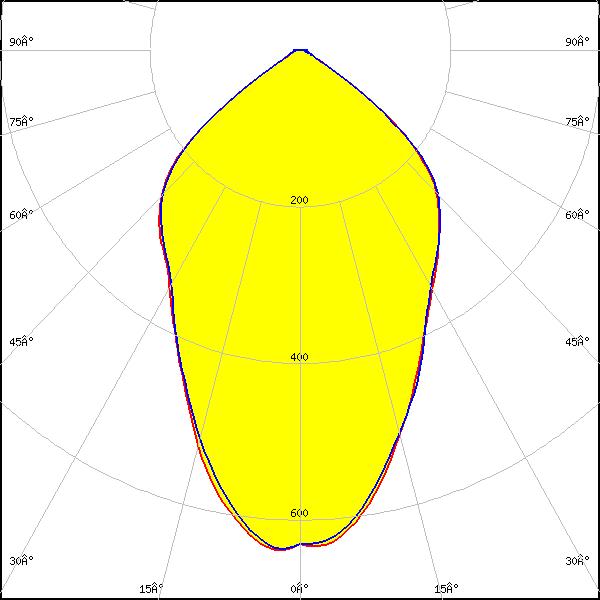

NVSxE21A
FWHM:
69°
FWTM:
117°
Peak intensity:
0.640 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

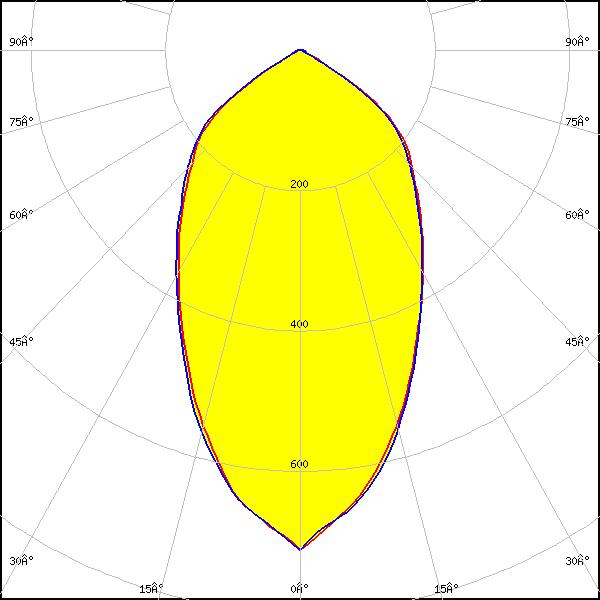

LED:

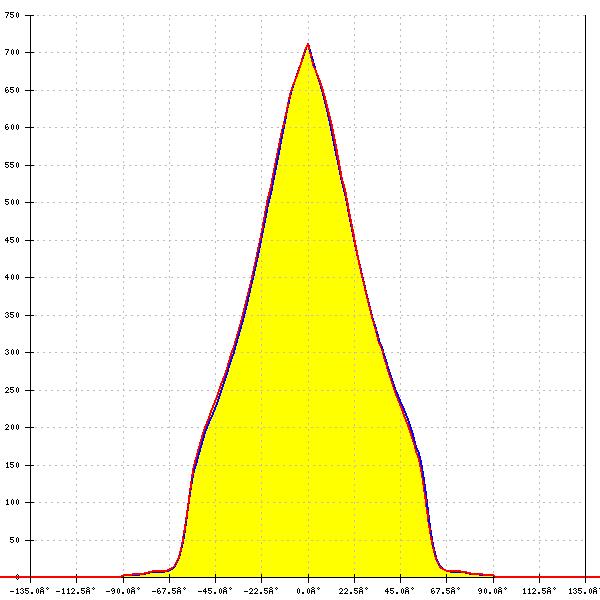

Duris E5
FWHM:
62°
FWTM:
119°
Peak intensity:
0.710 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

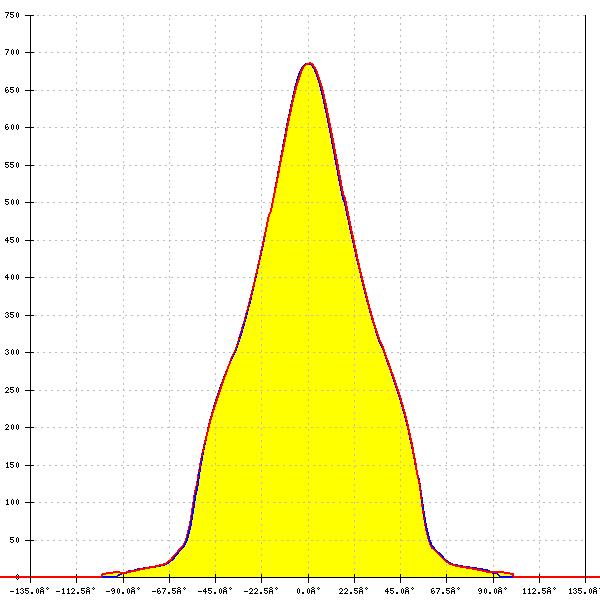

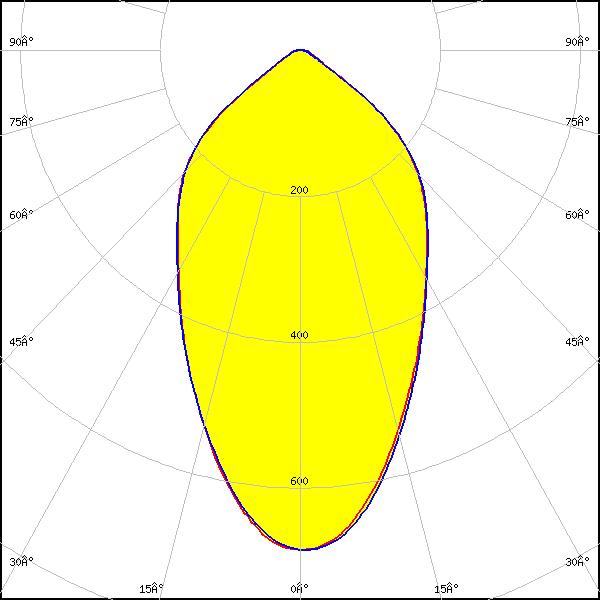

LED:
DURIS S5 (2 chip)
FWHM:
63°
FWTM:
115°
Peak intensity:
0.686 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
Purple

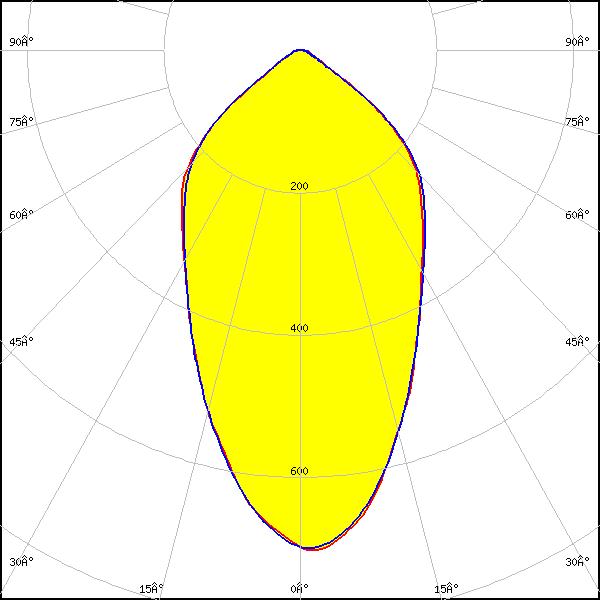

LED:

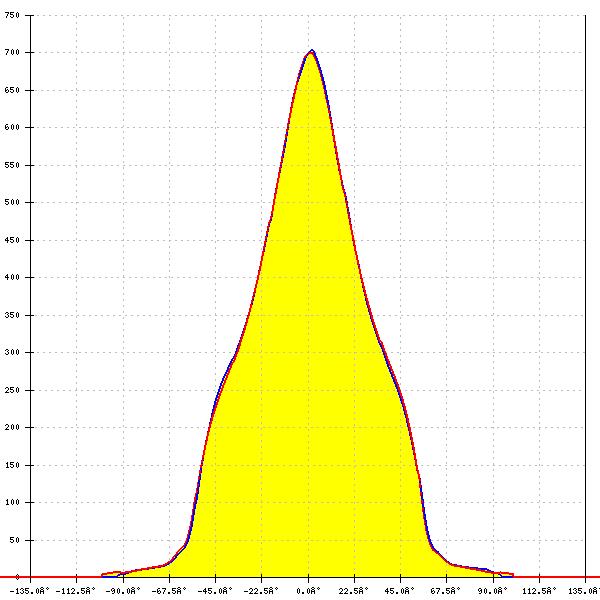

DURIS S5 (Single chip)
FWHM:
59°
FWTM:
114°
Peak intensity:
0.710 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

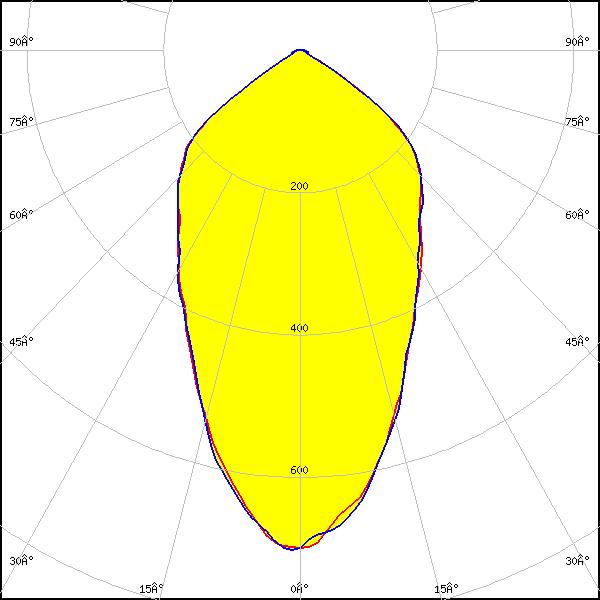

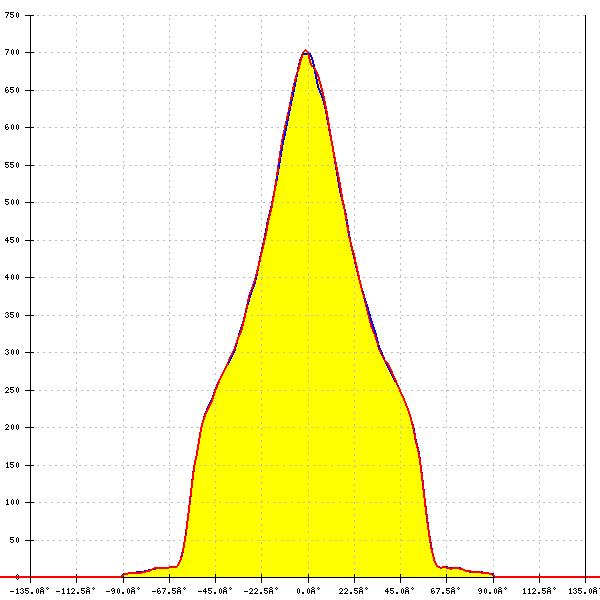

LED:
OSCONIQ C 2424 Gen1
FWHM:
61°
FWTM:
116°
Peak intensity:
0.708 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

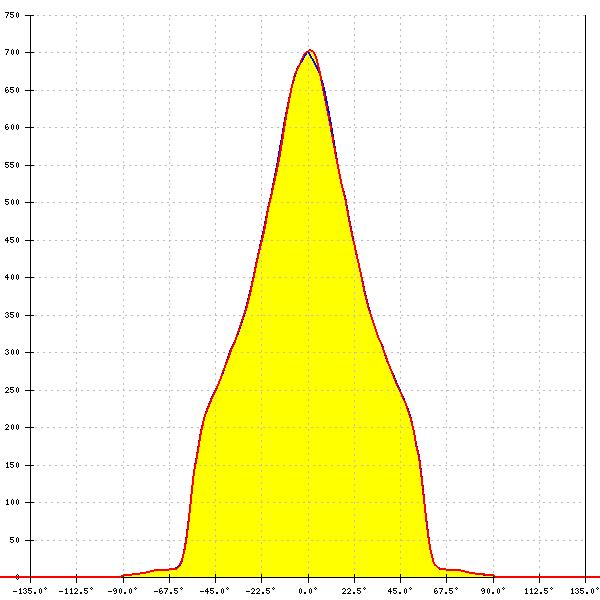

LED:

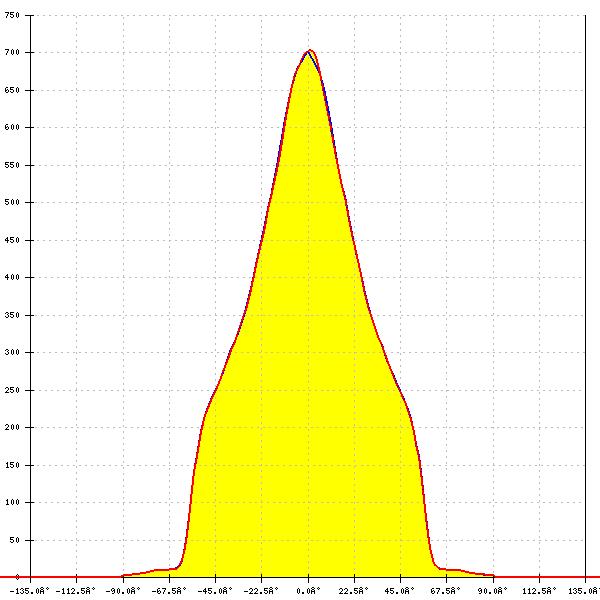

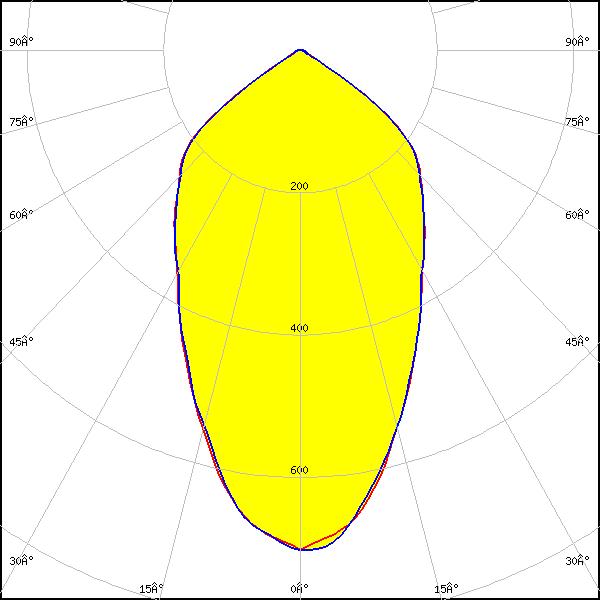

OSCONIQ C 3030
FWHM:
62°
FWTM:
116°
Peak intensity:
0.706 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 3030
FWHM:
62°
FWTM:
116°
Peak intensity:
0.650 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3030
FWHM:
52°
FWTM:
118°
Peak intensity:
0.846 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

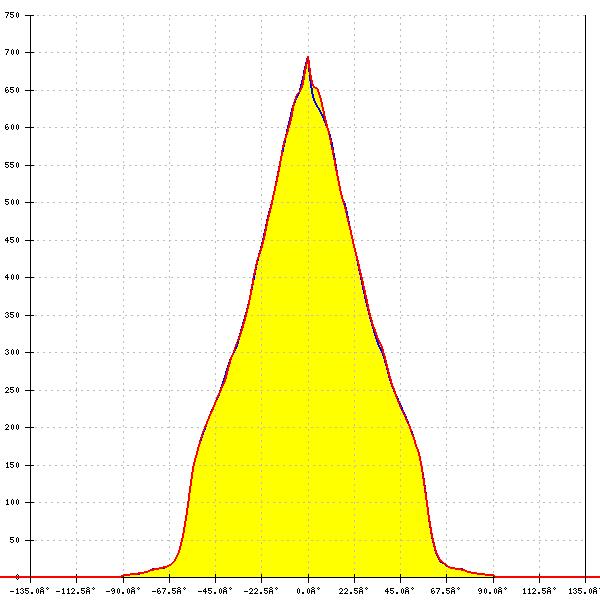

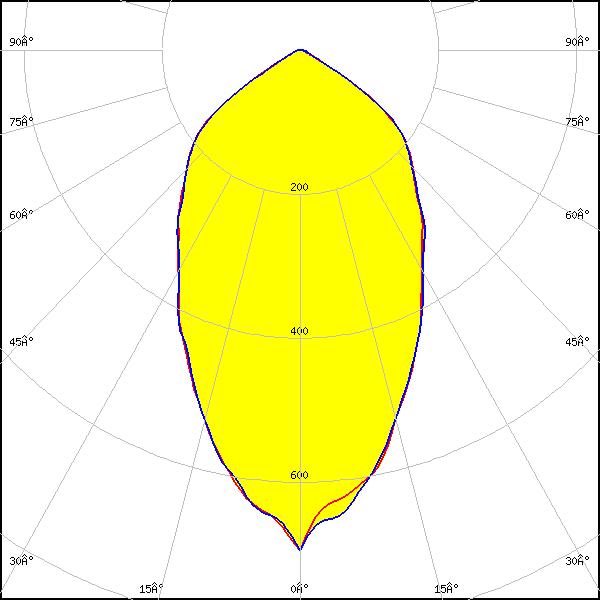

OSCONIQ P 3737 (3W version)
FWHM:
62° + 61°
FWTM:
120° + 120°
Peak intensity:
0.695 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

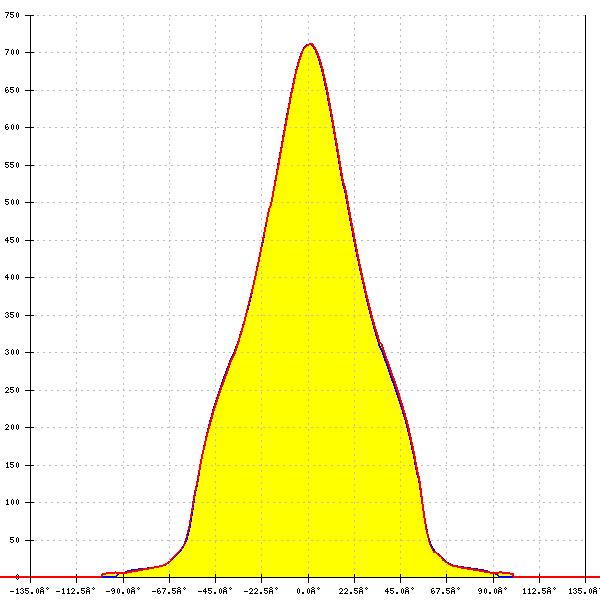

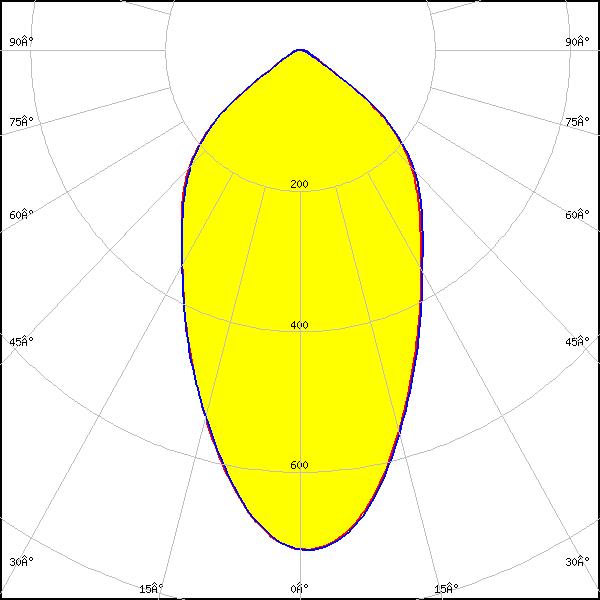

LED:
OSCONIQ S 3030 (QSLR31)
FWHM:
60°
FWTM:
114°
Peak intensity:
0.712 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

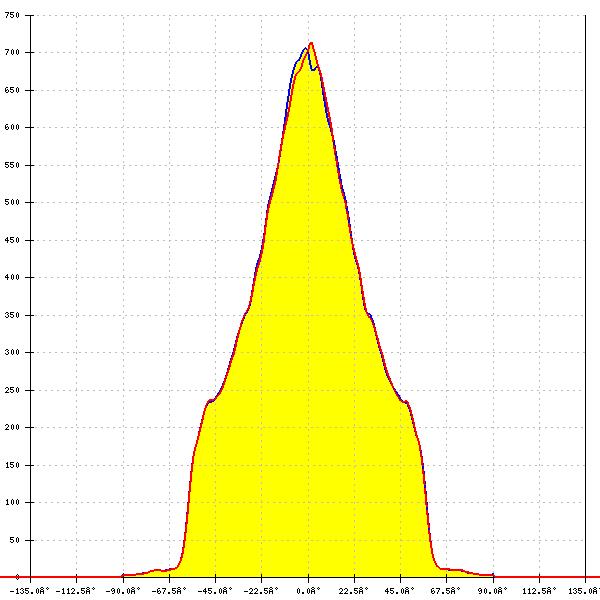

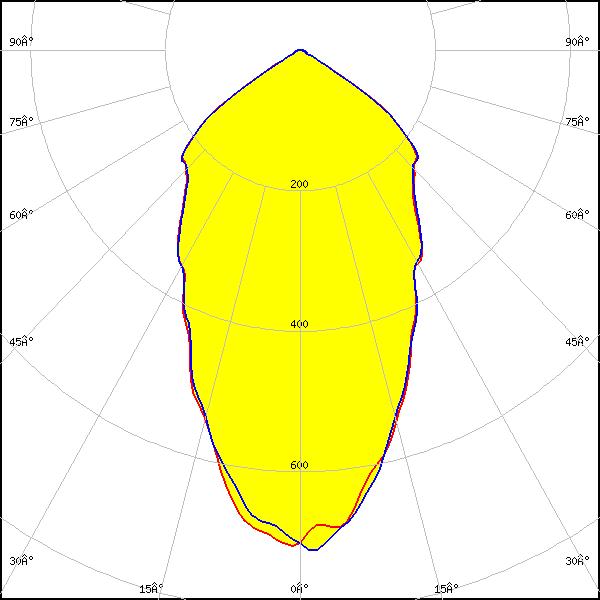

LED:
OSLON Pure 1414
FWHM:
59° + 58°
FWTM:
118° + 118°
Peak intensity:
0.730 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

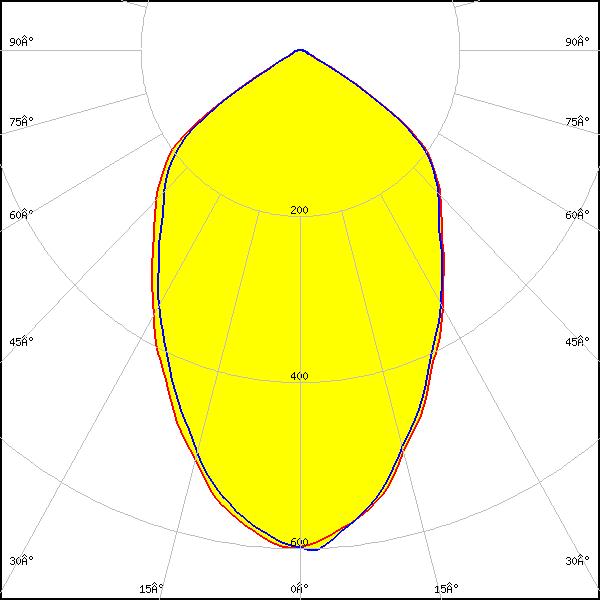

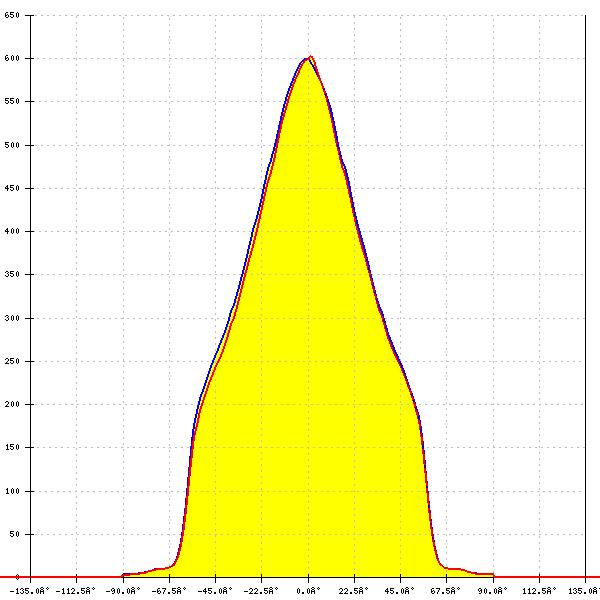

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
73°
FWTM:
120°
Peak intensity:
0.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
Red

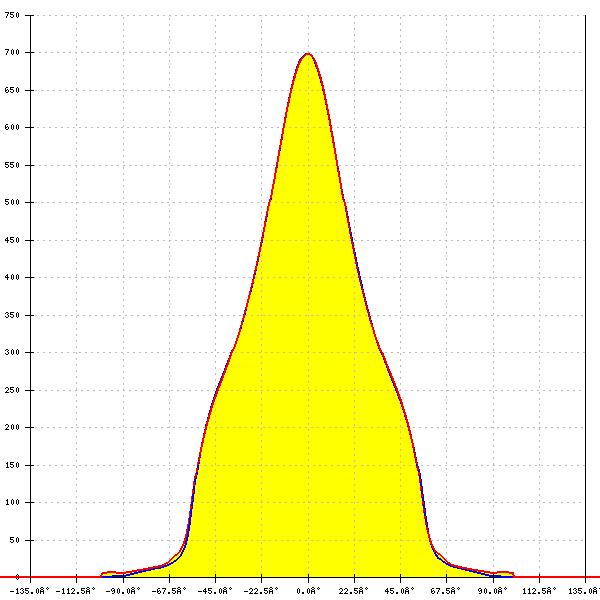

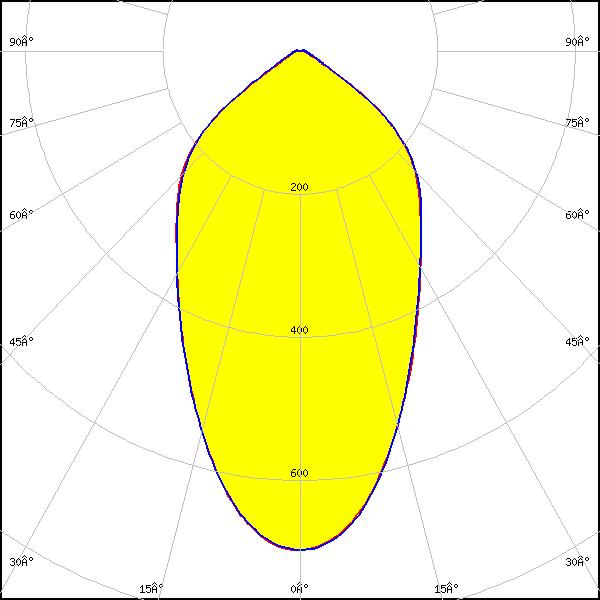

LED:
Fortimo FastFlex LED 4x16 DHE G4
FWHM:
61°
FWTM:
115°
Peak intensity:
0.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

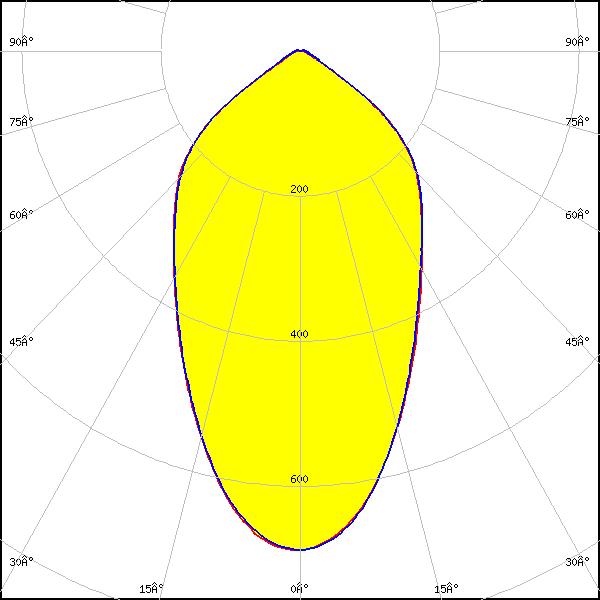

LED:
HiLOM RM64 (LM301B)
FWHM:
62°
FWTM:
116°
Peak intensity:
0.690 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

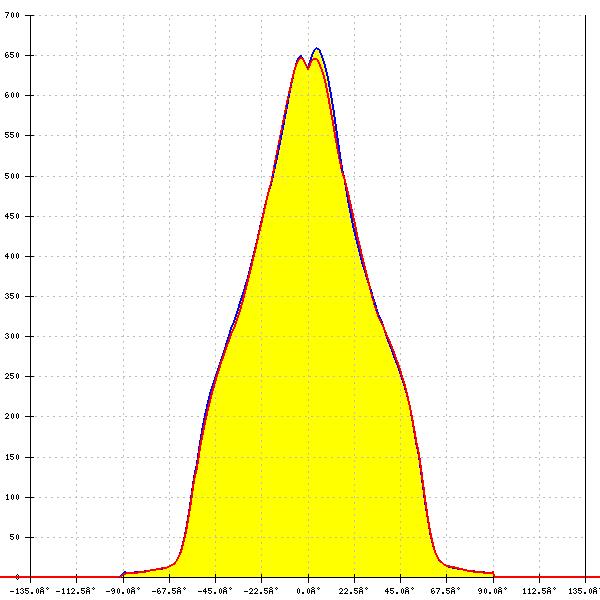

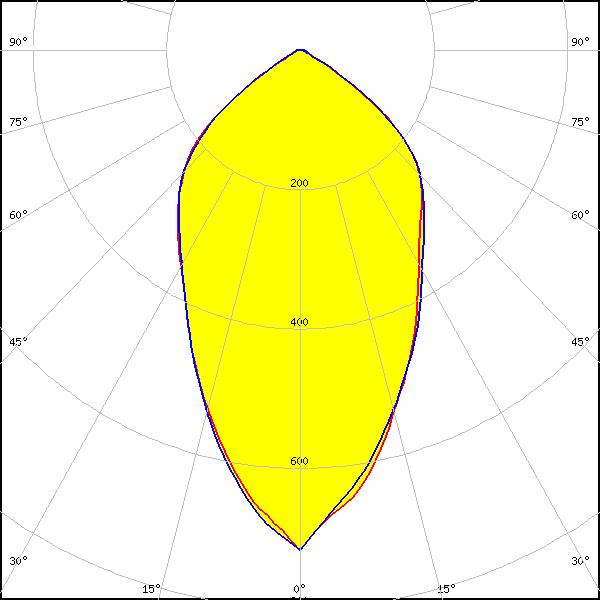

LH181B
FWHM:
60°
FWTM:
117°
Peak intensity:
0.720 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH181B
FWHM:
67°
FWTM:
118°
Peak intensity:
0.660 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

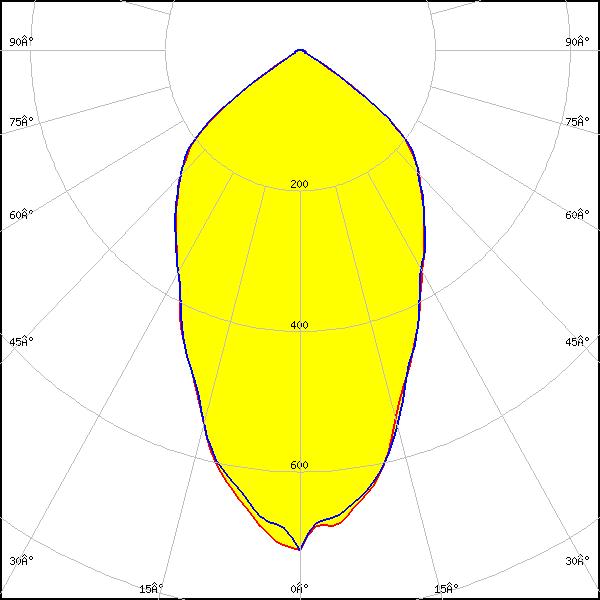

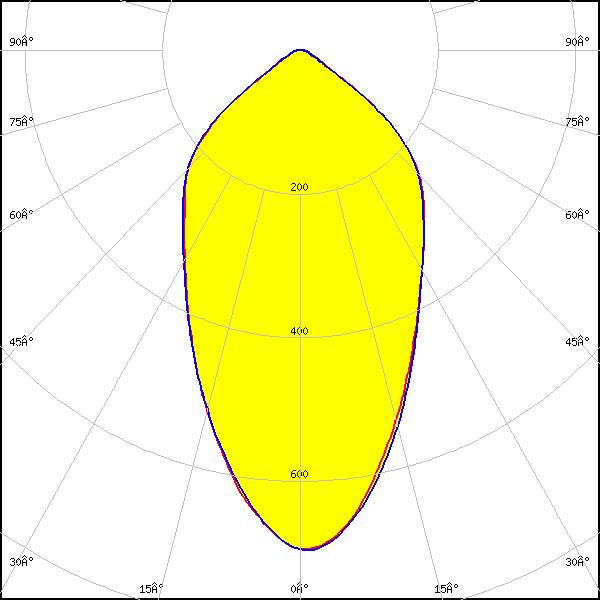

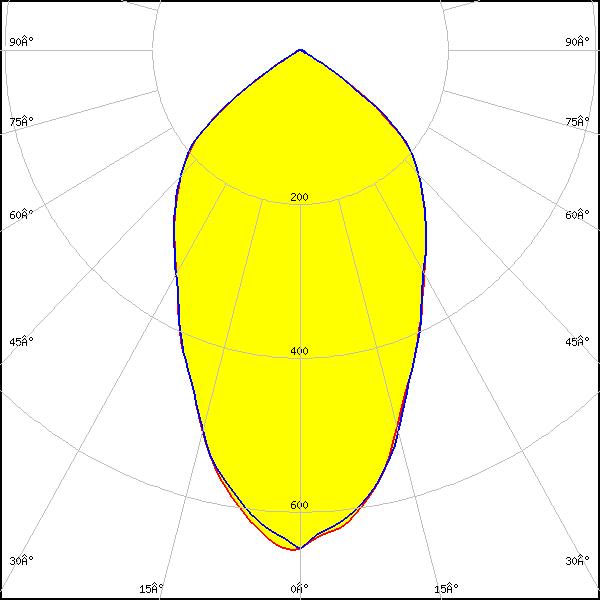

LED:

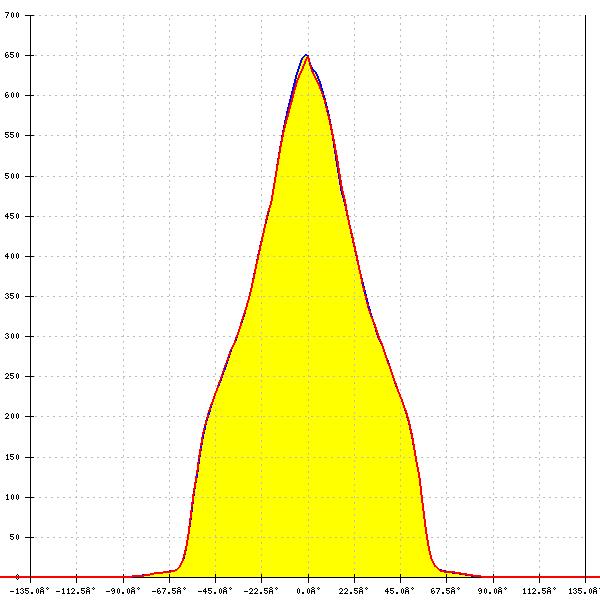

LH231B
FWHM:
62°
FWTM:
114°
Peak intensity:
0.712 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH231B
FWHM:
62°
FWTM:
114°
Peak intensity:
0.650 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

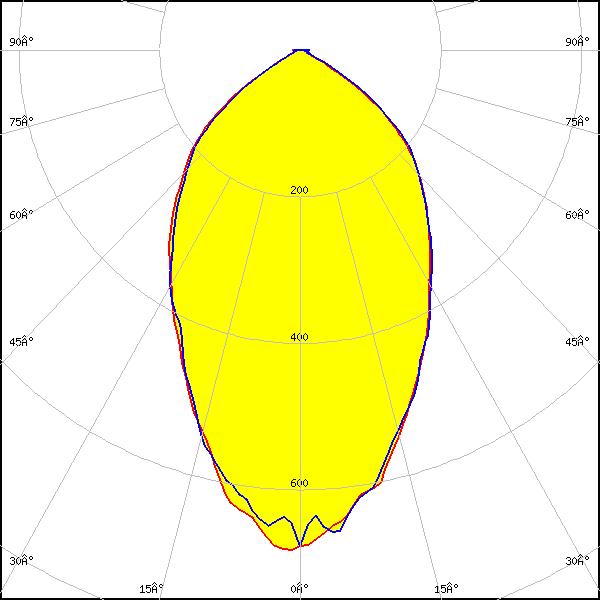

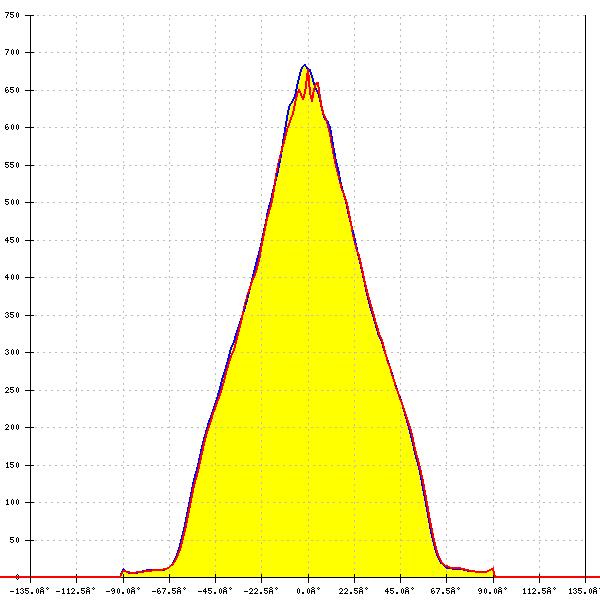

LED:
LH351B
FWHM:
66°
FWTM:
119°
Peak intensity:
0.695 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

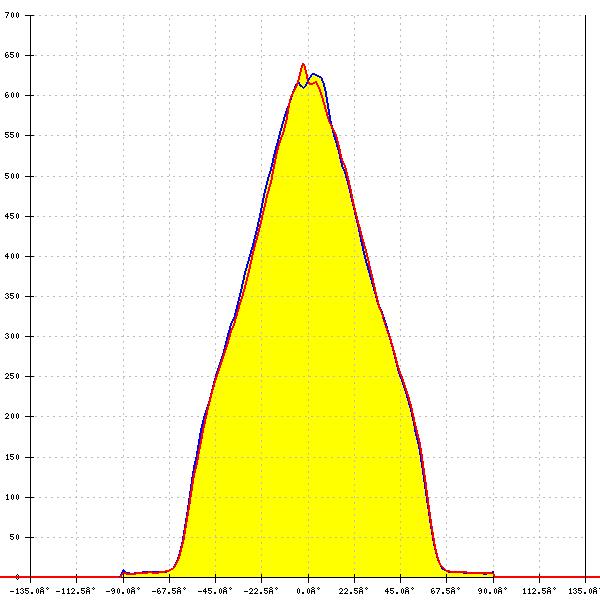

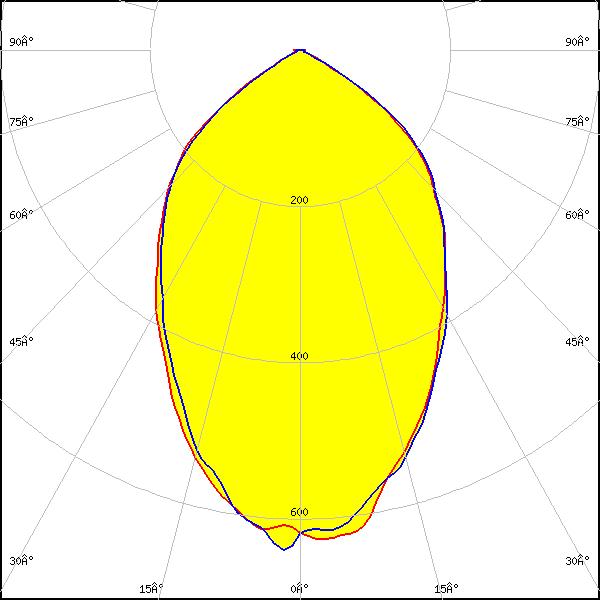

LED:
LH351C
FWHM:
79°
FWTM:
119°
Peak intensity:
0.646 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

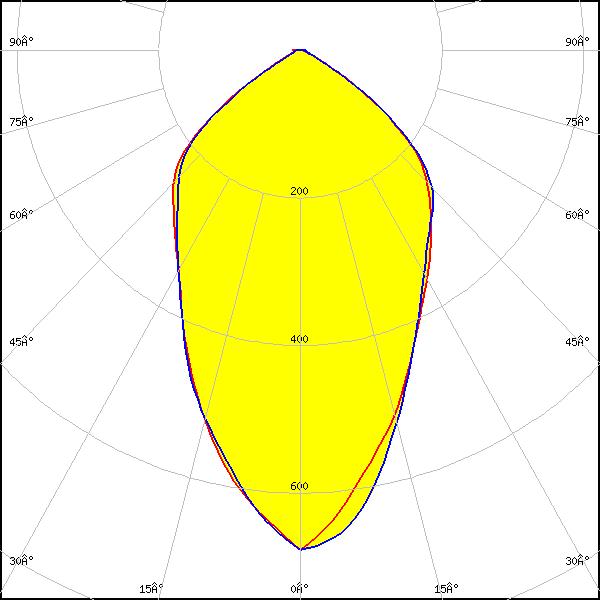

LED:
LM101B
FWHM:
63°
FWTM:
119°
Peak intensity:
0.680 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

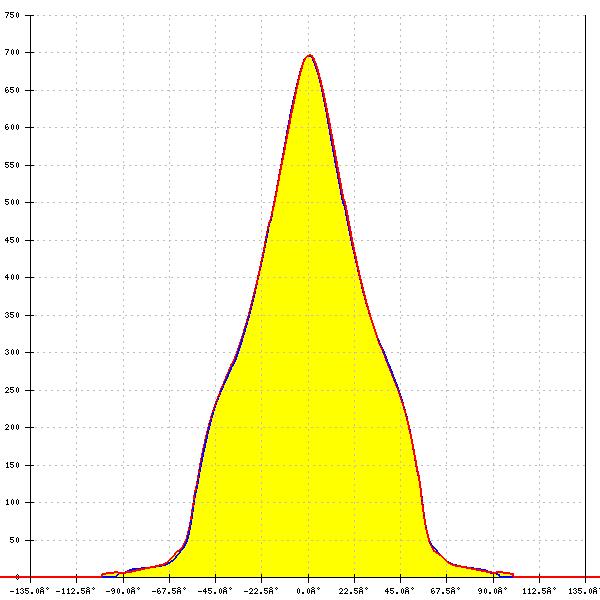

LED:
LM231 A/B
FWHM:
60°
FWTM:
114°
Peak intensity:
0.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

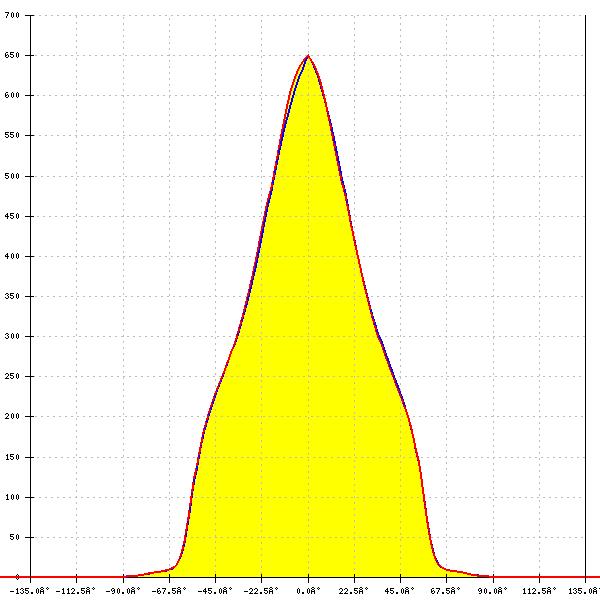

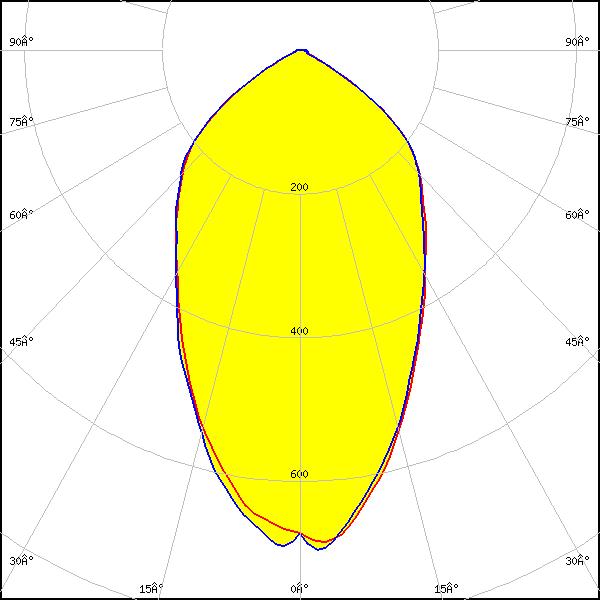

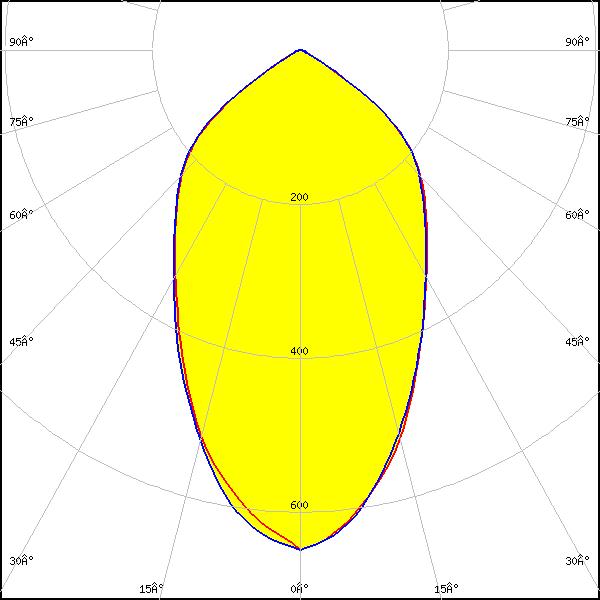

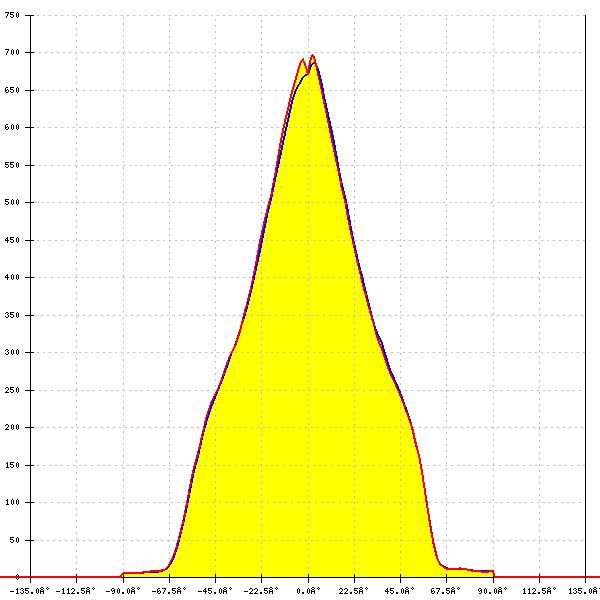

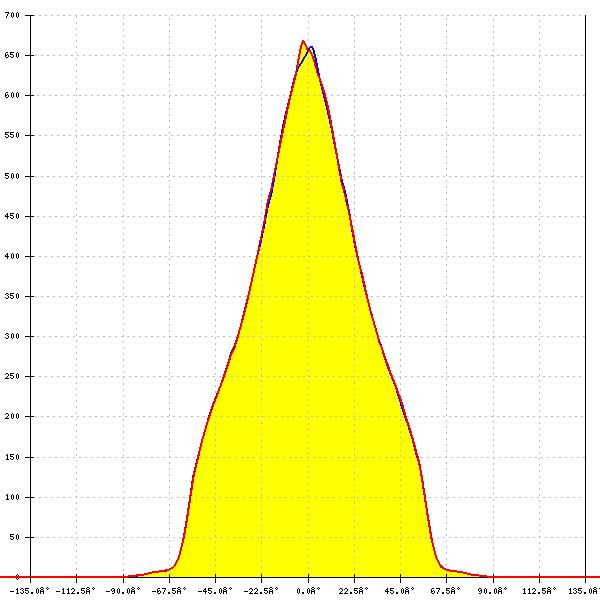

LED:
LM301B
FWHM:
63°
FWTM:
116°
Peak intensity:
0.650 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

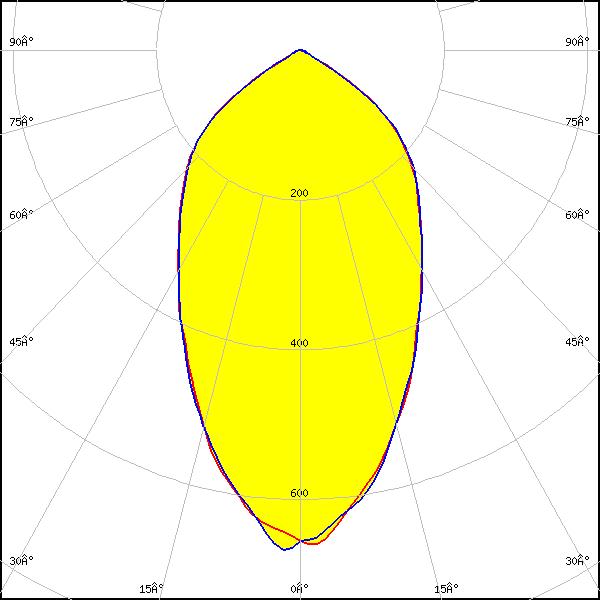

LED:
LM301B
FWHM:
62°
FWTM:
118°
Peak intensity:
0.674 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM301B
FWHM:
62°
FWTM:
120°
Peak intensity:
0.710 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

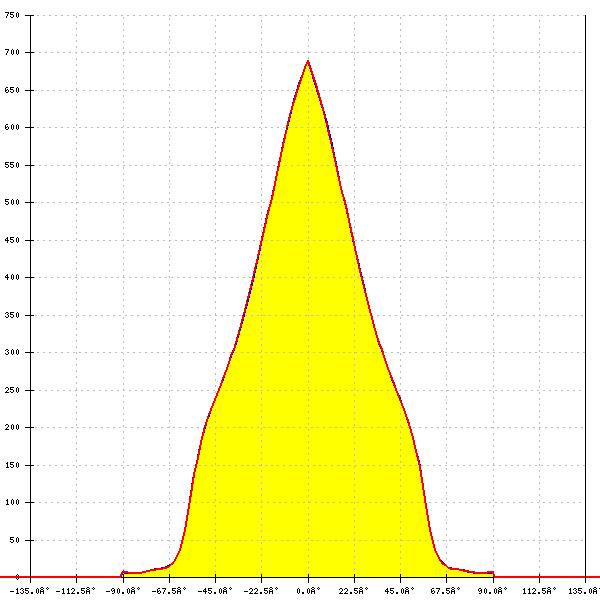

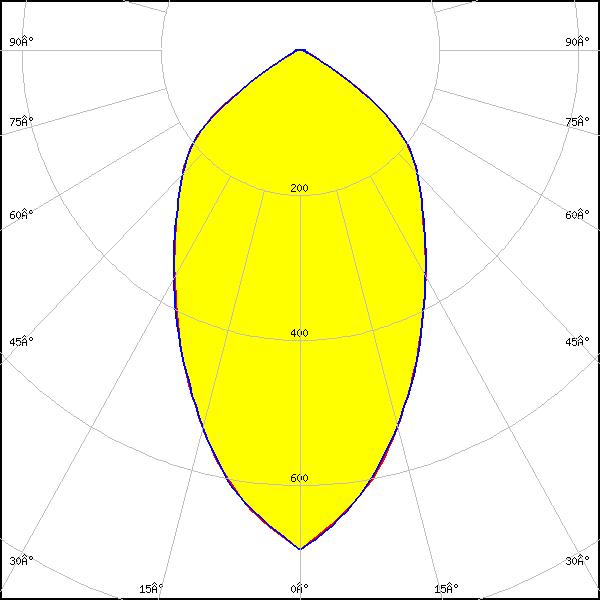

LED:
LM302D
FWHM:
64°
FWTM:
118°
Peak intensity:
0.690 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

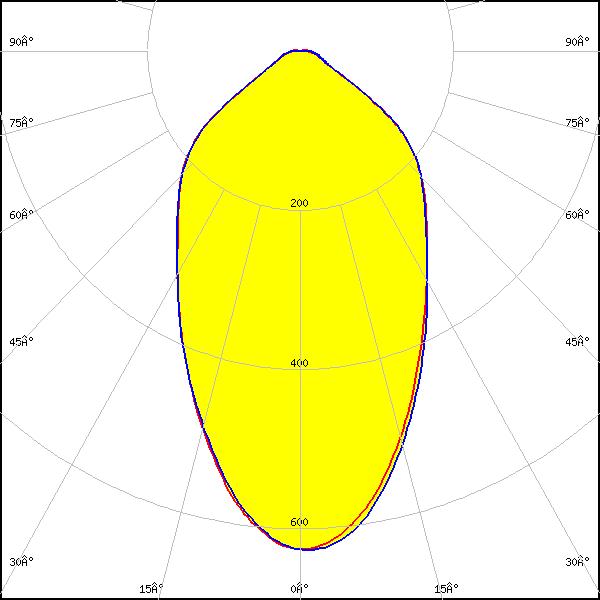

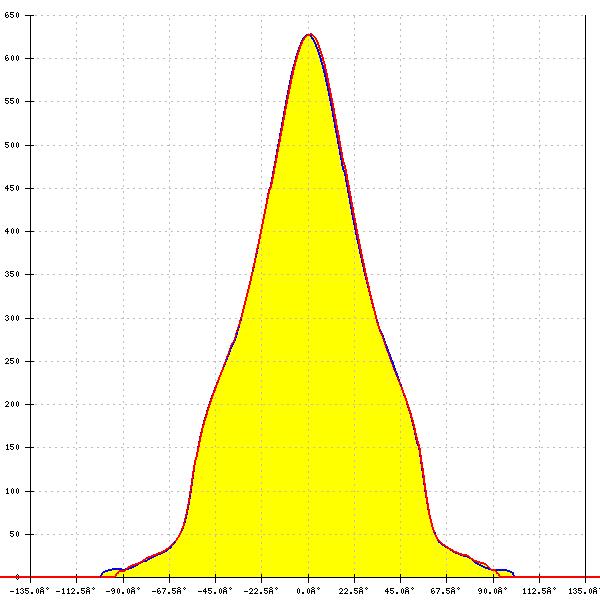

LED:
XLE-S44XTEHE (XT-E HE)
FWHM:
63°
FWTM:
120°
Peak intensity:
0.627 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

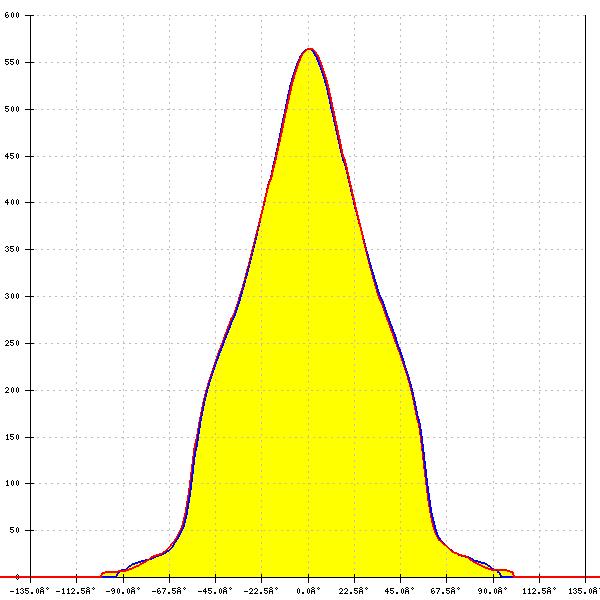

LED:

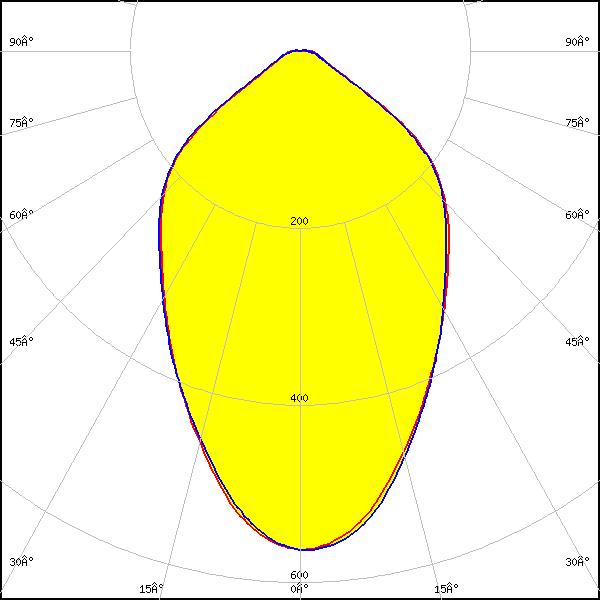

XLE-S48XPG3 (XP-G3)
FWHM:
74°
FWTM:
122°
Peak intensity:
0.560 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

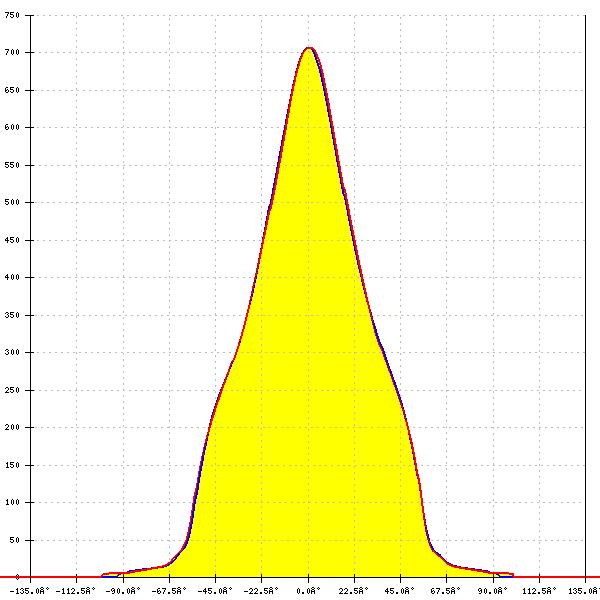

LED:

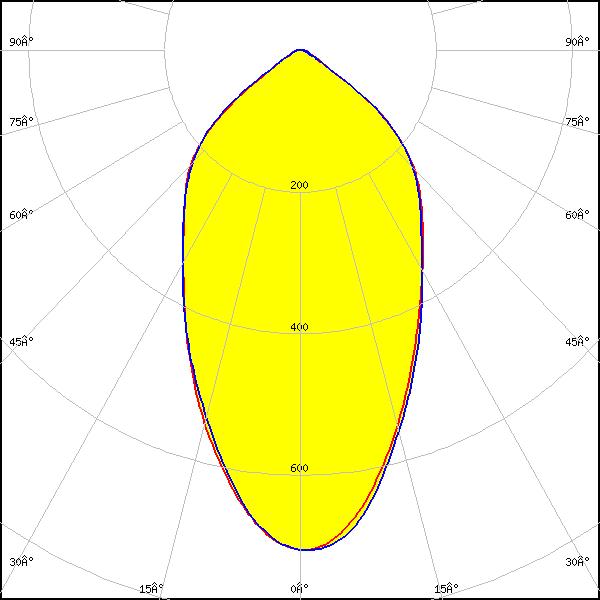

SEOUL 3030
FWHM:
60°
FWTM:
114°
Peak intensity:
0.710 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3030
FWHM:
61°
FWTM:
117°
Peak intensity:
0.710 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

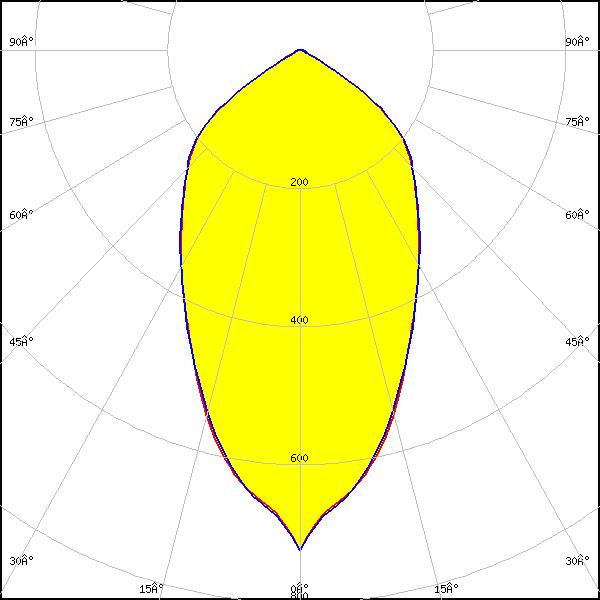

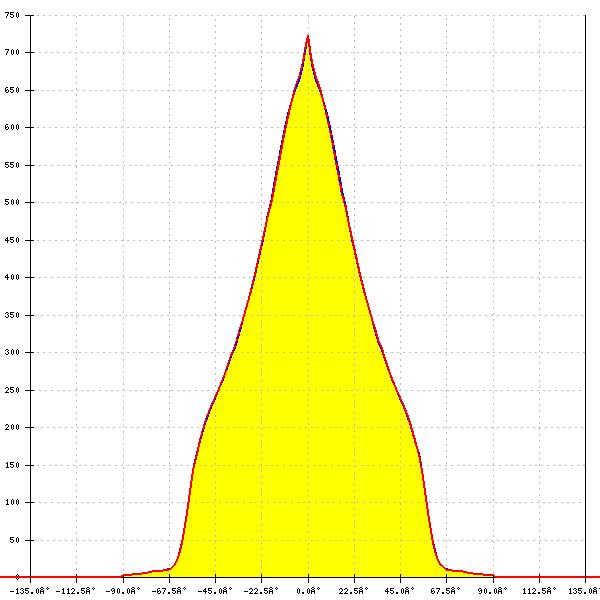

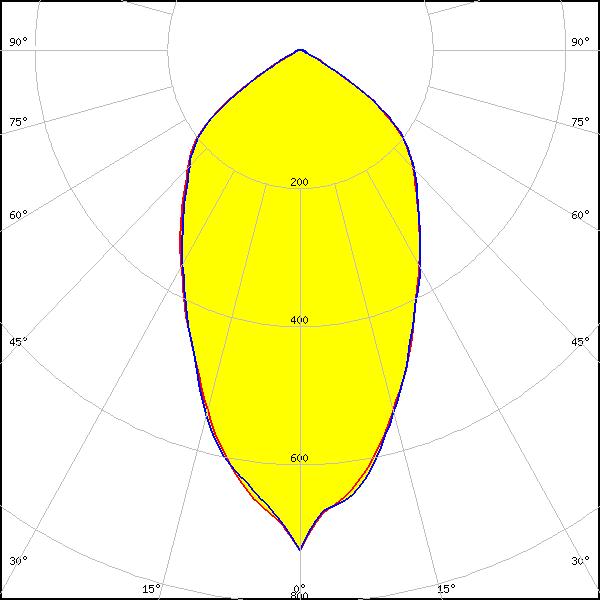

LED:

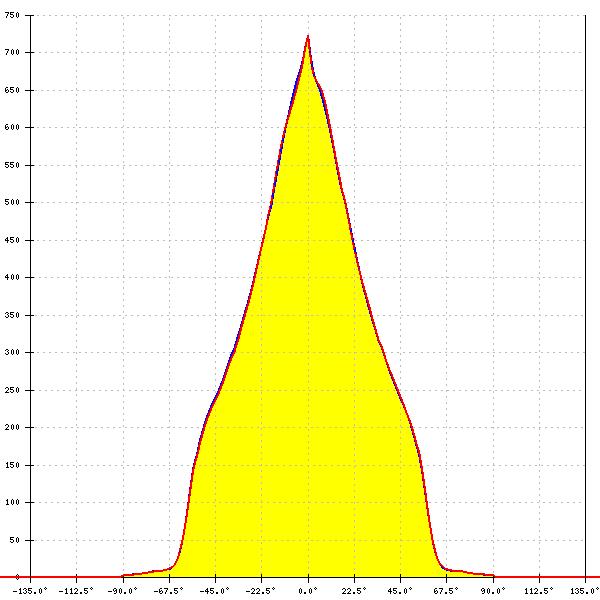

SEOUL DC 3030C
FWHM:
60°
FWTM:
119°
Peak intensity:
0.720 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

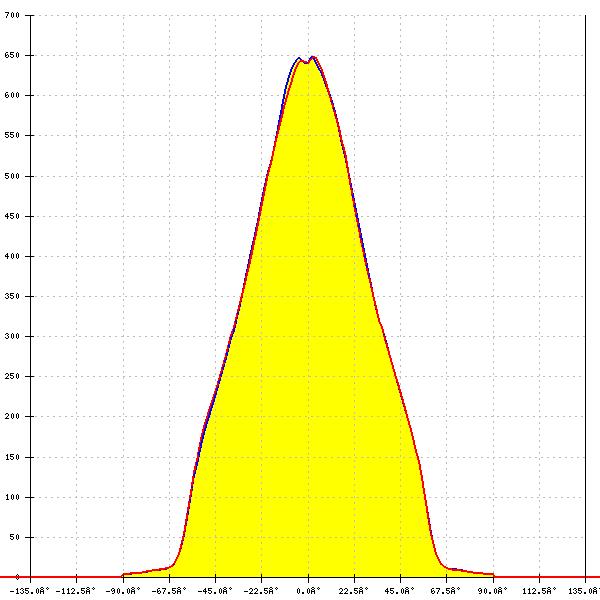

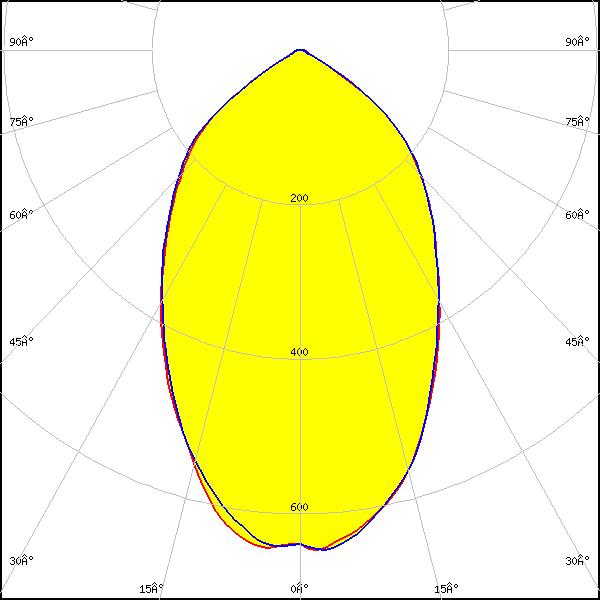

LED:
SEOUL DC 5050 6V
FWHM:
67°
FWTM:
119°
Peak intensity:
0.650 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

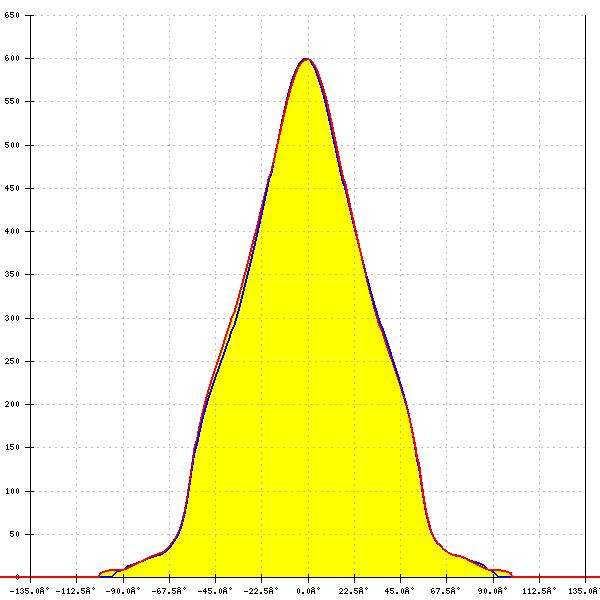

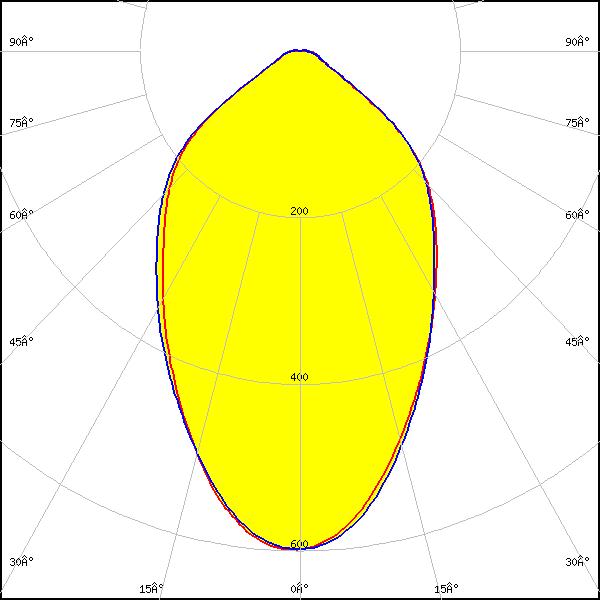

LED:
Z5M3
FWHM:
70°
FWTM:
120°
Peak intensity:
0.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

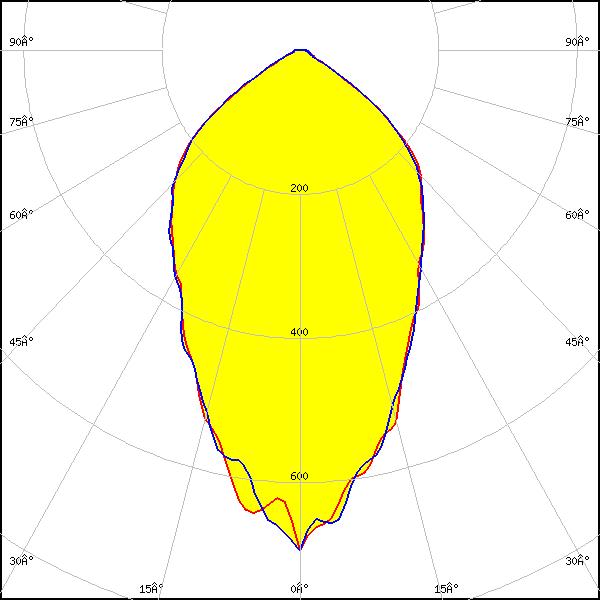

LED:

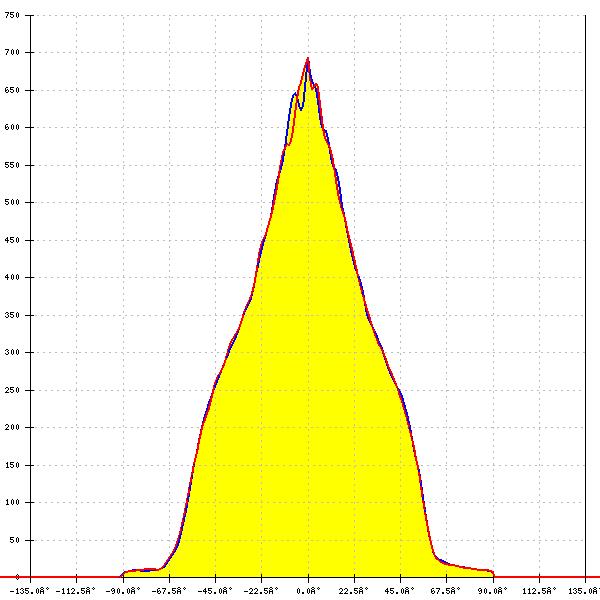

Z8Y22T
FWHM:
66°
FWTM:
119°
Peak intensity:
0.660 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

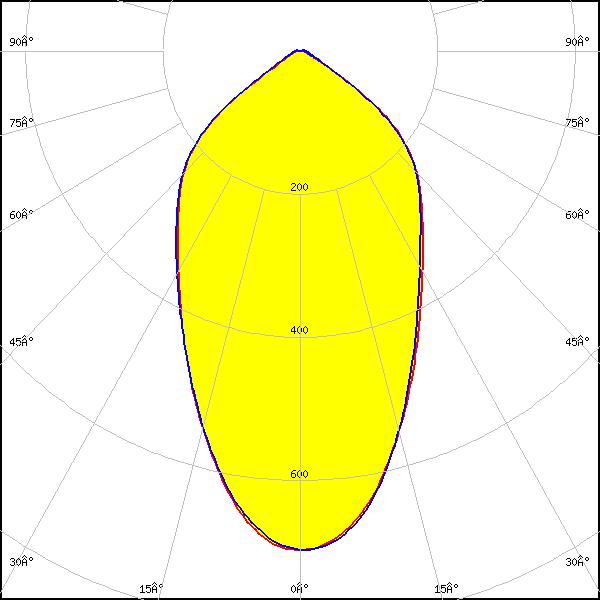

LED:

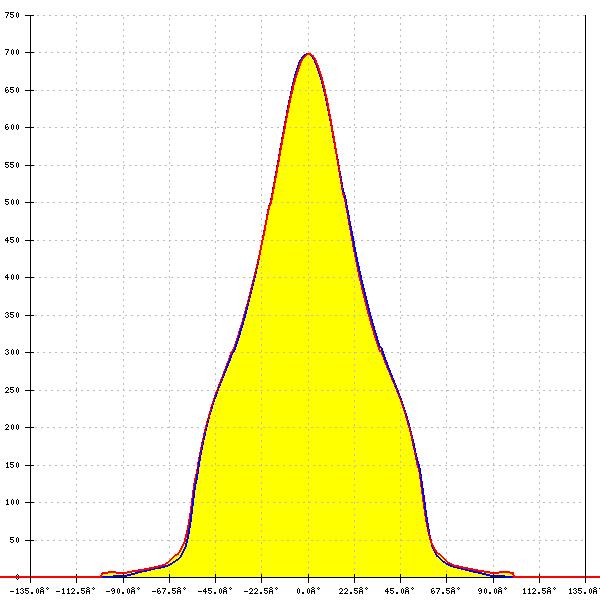

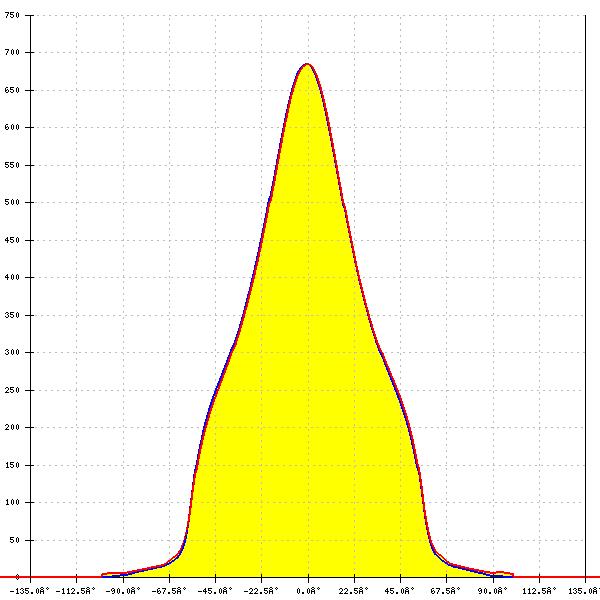

RLE 4x16 4000lm MP ADV2 OTD
FWHM:
61°
FWTM:
116°
Peak intensity:
0.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE 4x8 2000lm MP ADV2 OTD
FWHM:
61°
FWTM:
116°
Peak intensity:
0.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
