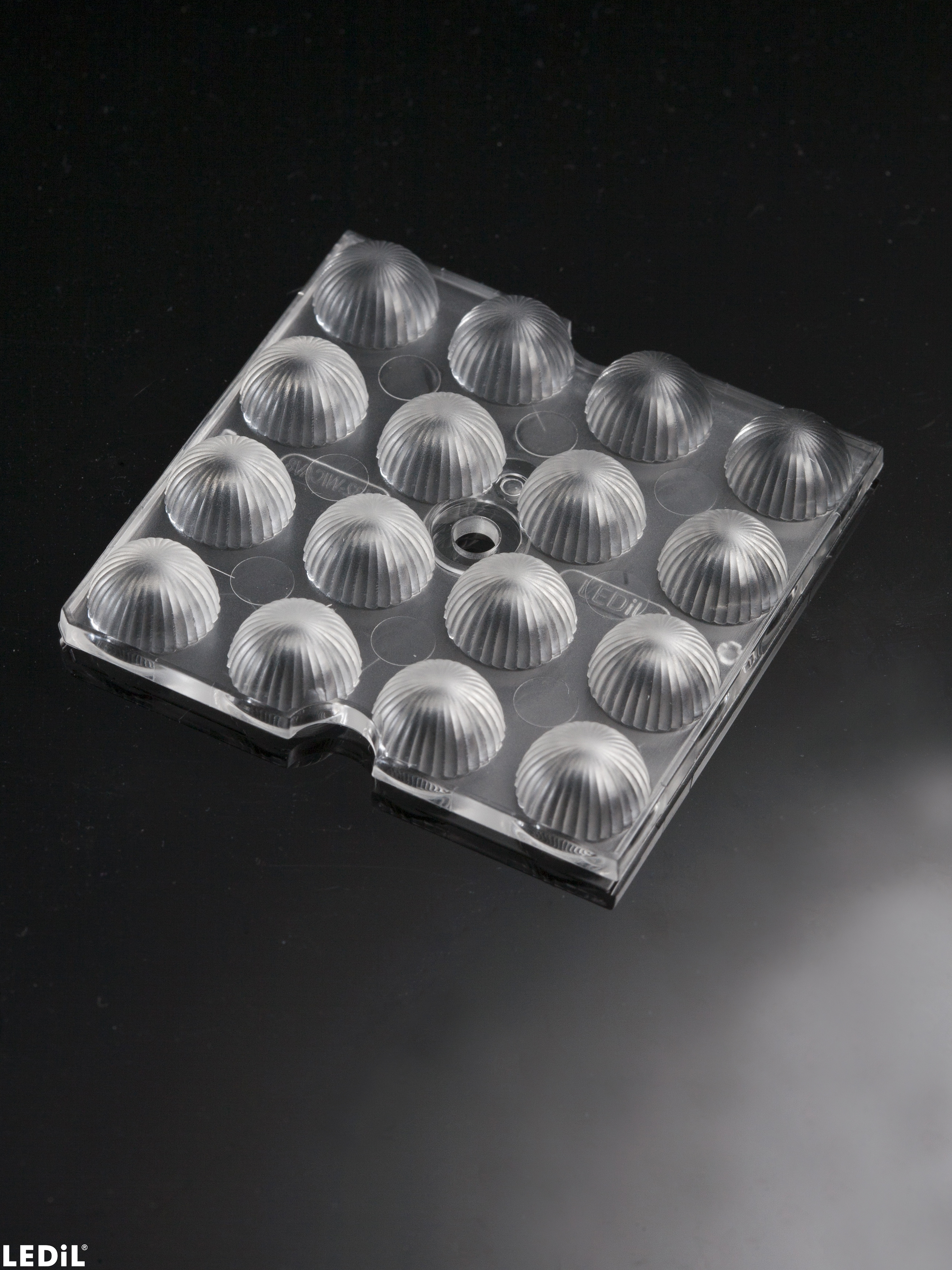

C15432_STRADELLA-16-HB-W
Print~90° wide beam for industrial applications
Specification
-
Dimensions:50 x 50 mm
-
Height:7.10 mm
-
Fastening:pin, screw
-
Colour:clear
-
RoHS and REACH compliant:Yes
Component Materials
Ordering information
-
Quantity in box:800 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:6.6 kg
-
MPQ:160 pcs
-
MOQ:160 pcs
-
MOQ size:480 x 280 x 80 mm
-
MOQ weight:1.6 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- 3D mechanical model
Related Content
Optical results

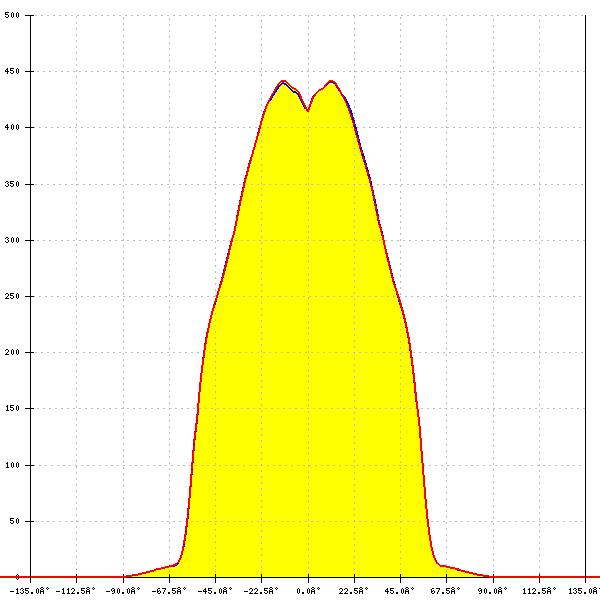

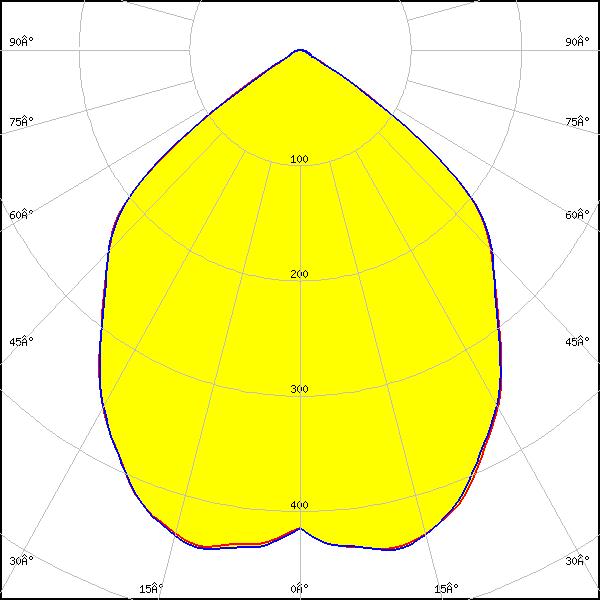

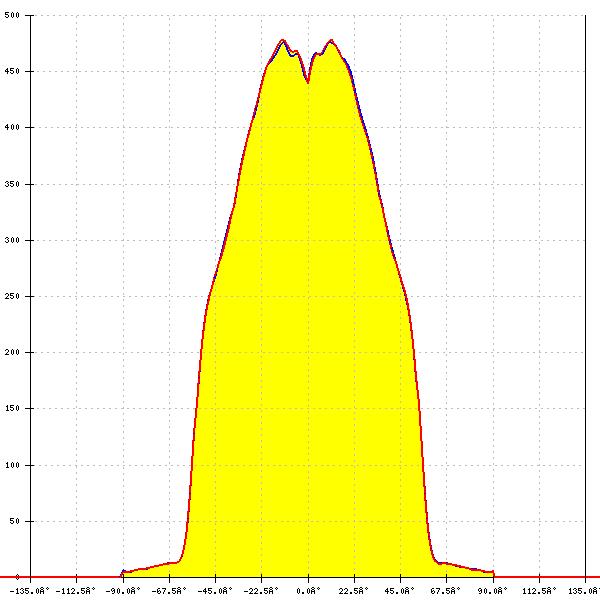

LED:
CSP 2727 (BXCP)
FWHM:
98°
FWTM:
116°
Peak intensity:
0.480 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

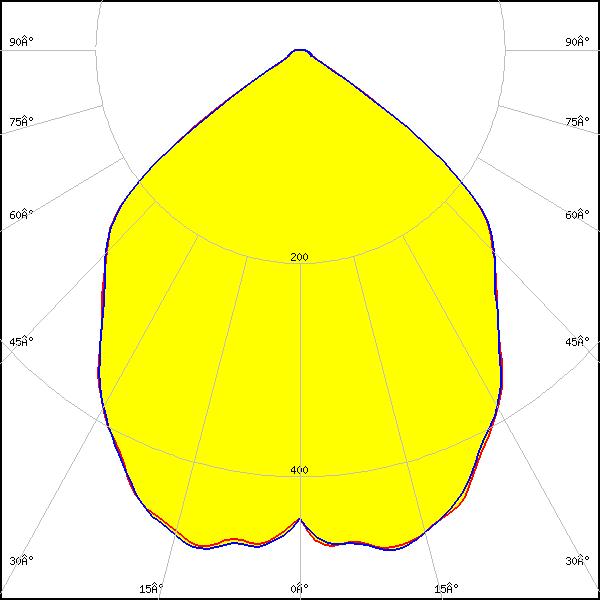

LED:
CSP 2727 (BXCP)
FWHM:
97°
FWTM:
118°
Peak intensity:
0.443 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

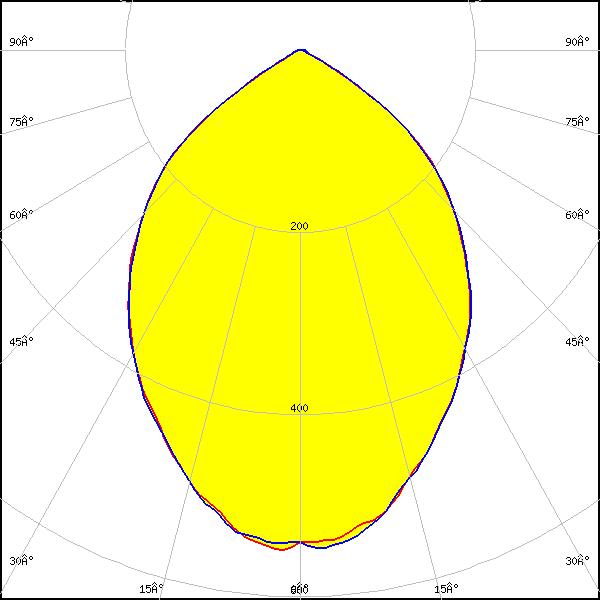

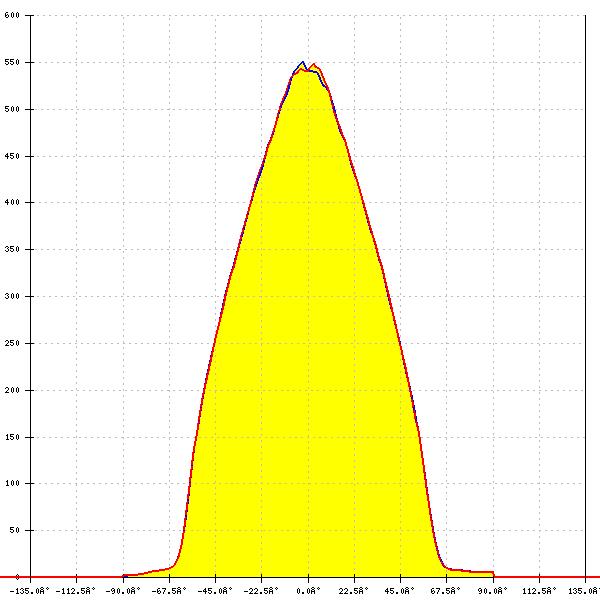

LED:
J Series 5050 6V P Class
FWHM:
85°
FWTM:
121°
Peak intensity:
0.567 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

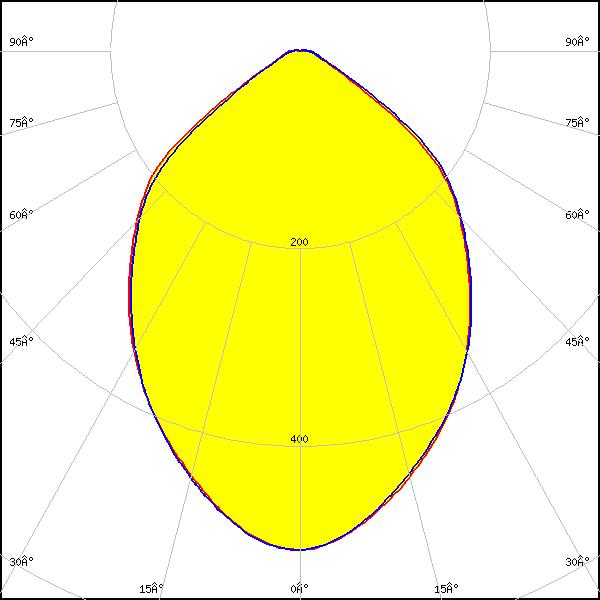

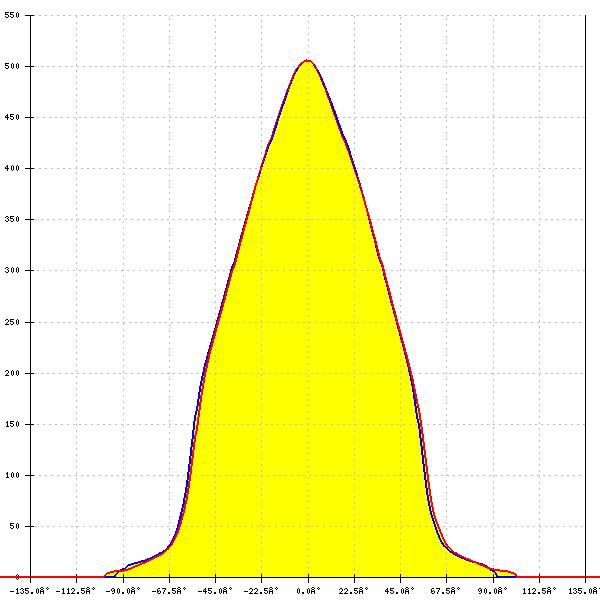

LED:
JB3030 HE B Class
FWHM:
86°
FWTM:
125°
Peak intensity:
0.506 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

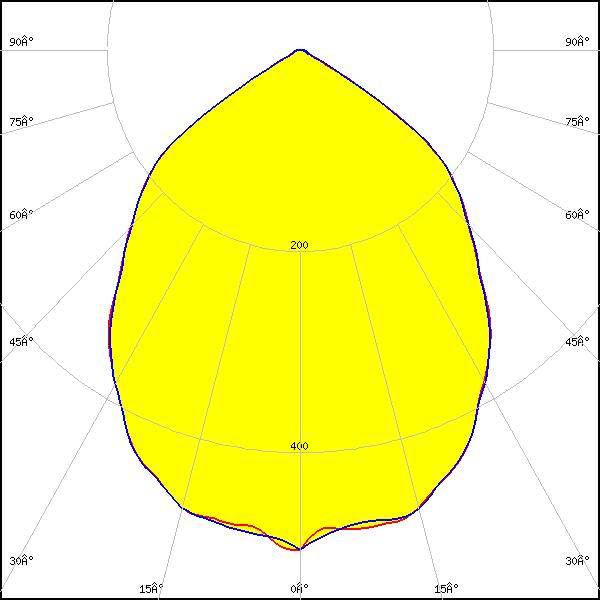

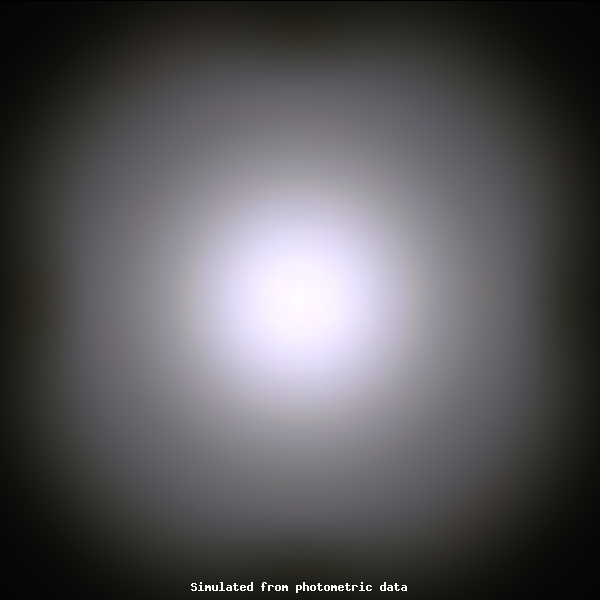

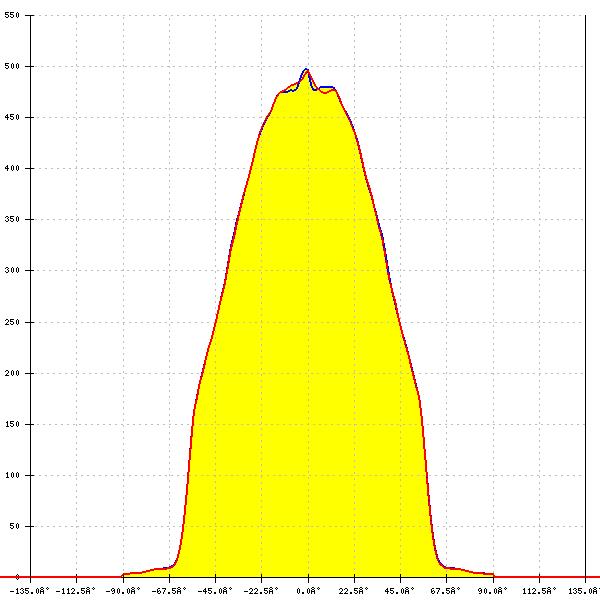

LED:
JB3030C F Class
FWHM:
90°
FWTM:
120°
Peak intensity:
0.497 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

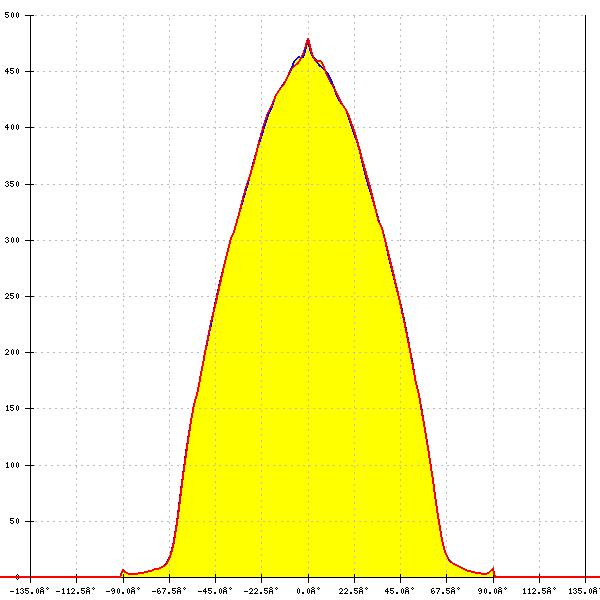

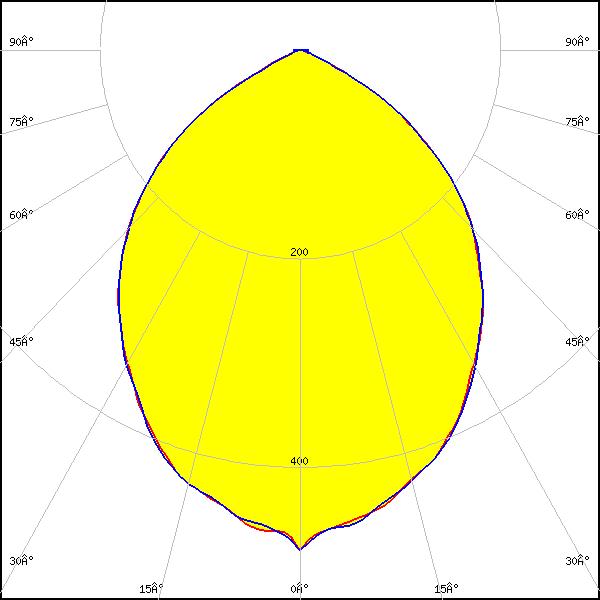

LED:
XP-G2 HE
FWHM:
91°
FWTM:
128°
Peak intensity:
0.480 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

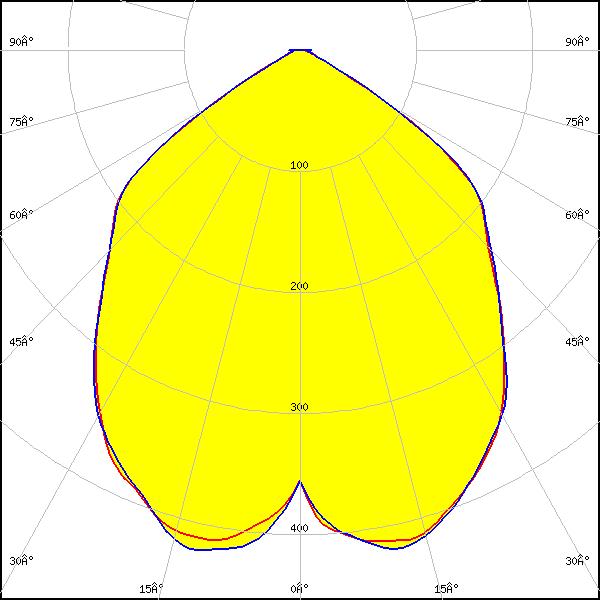

LED:

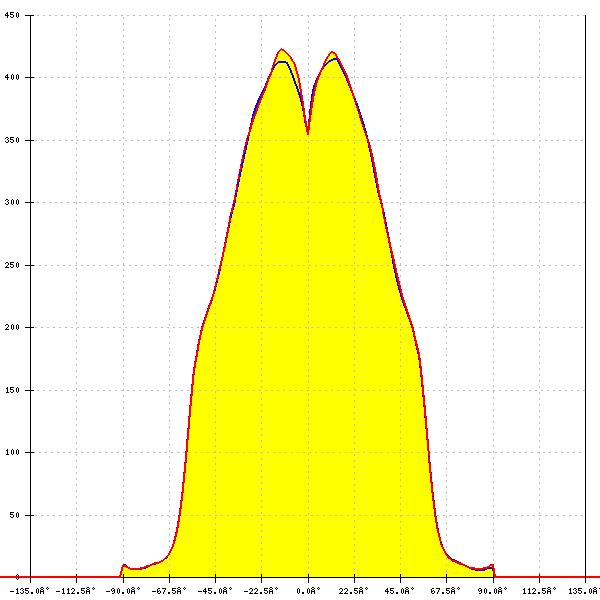

XT-E
FWHM:
99°
FWTM:
126°
Peak intensity:
0.423 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

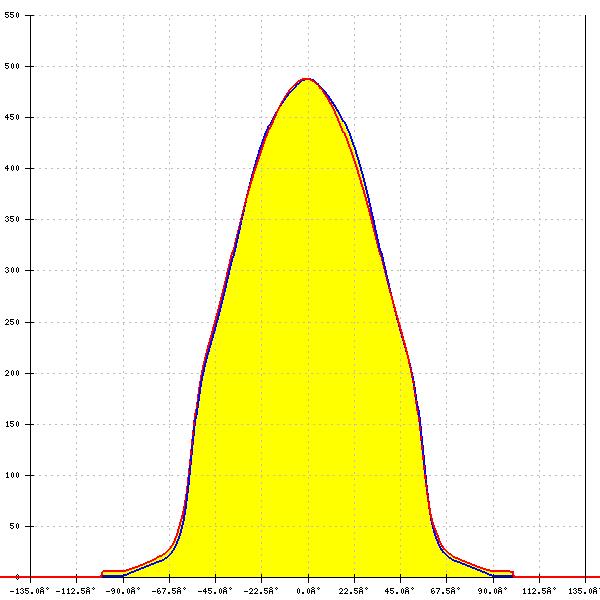

LED:

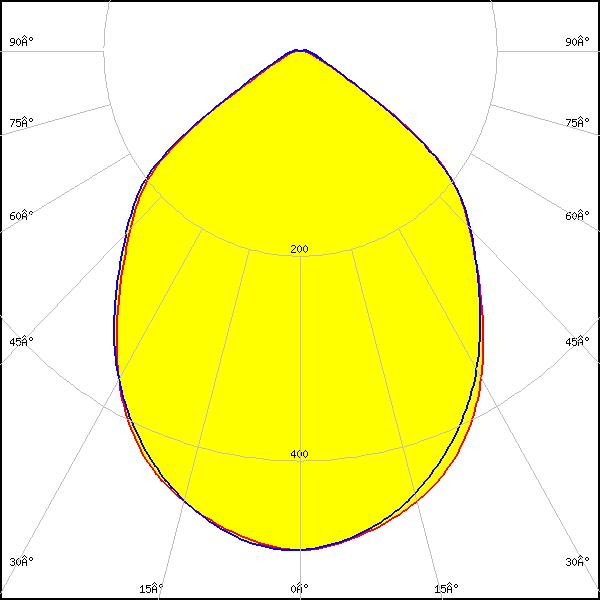

EHP-223.5x50-1604-xx-70-LS30-06-NTC
FWHM:
91°
FWTM:
124°
Peak intensity:
0.487 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

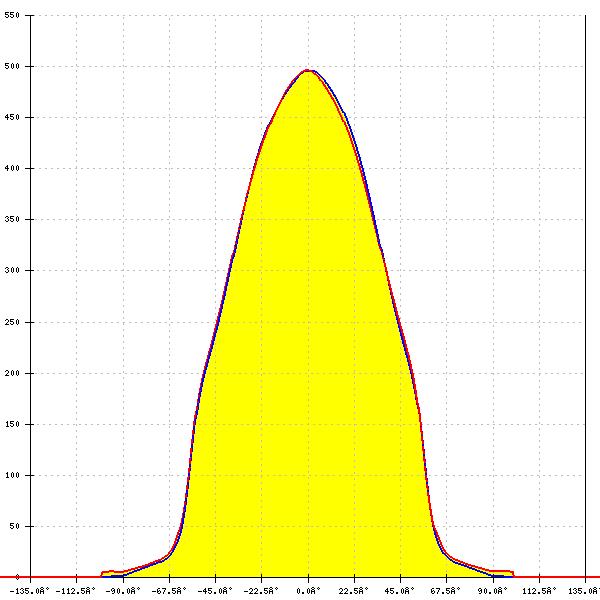

LED:

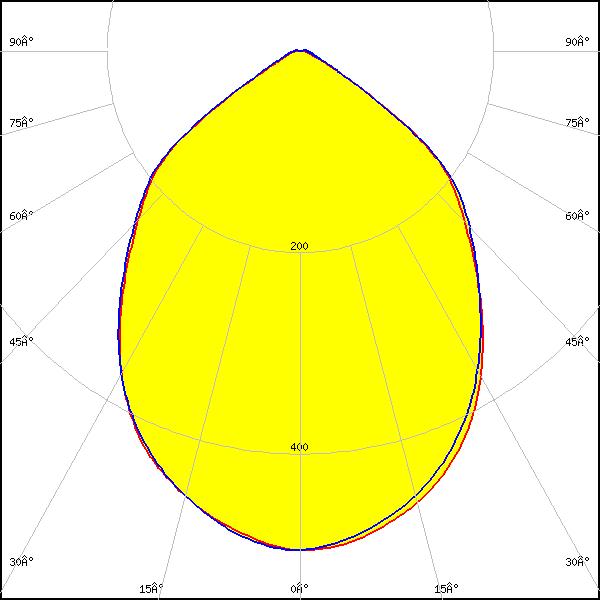

PrevaLED Brick MP 4x16
FWHM:
88°
FWTM:
122°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

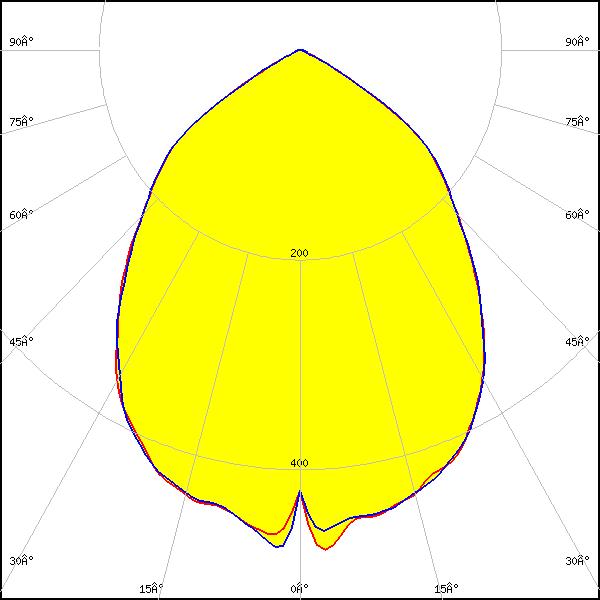

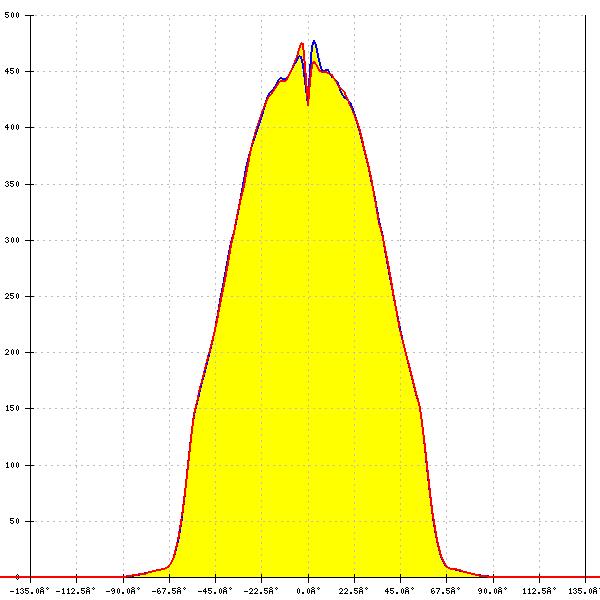

LED:
LUXEON 3535L HE PLUS
FWHM:
86°
FWTM:
123°
Peak intensity:
0.481 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

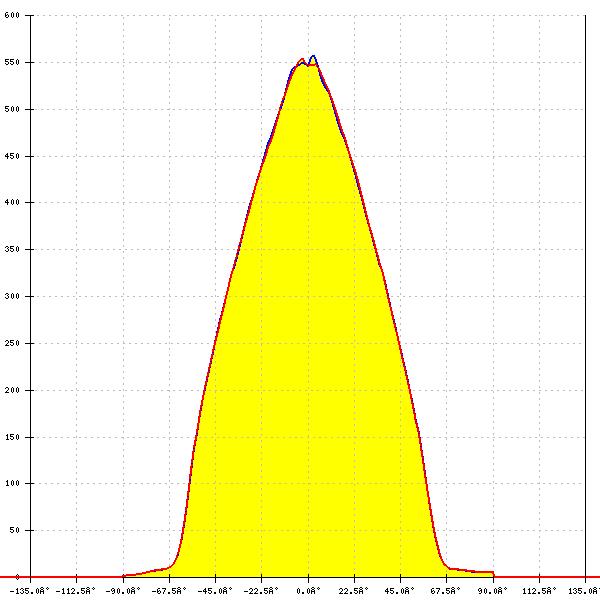

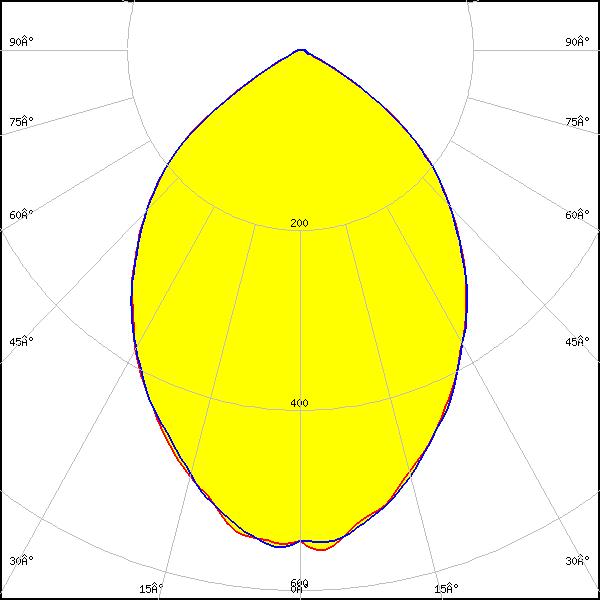

LUXEON 5050 Square LES
FWHM:
83°
FWTM:
121°
Peak intensity:
0.556 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

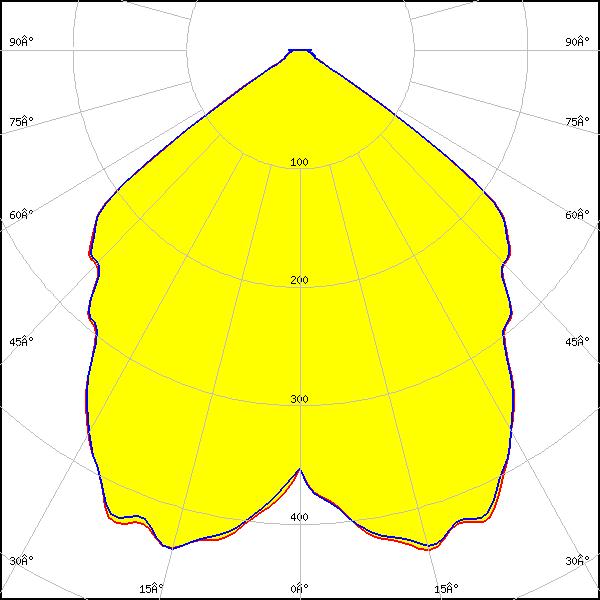

LED:

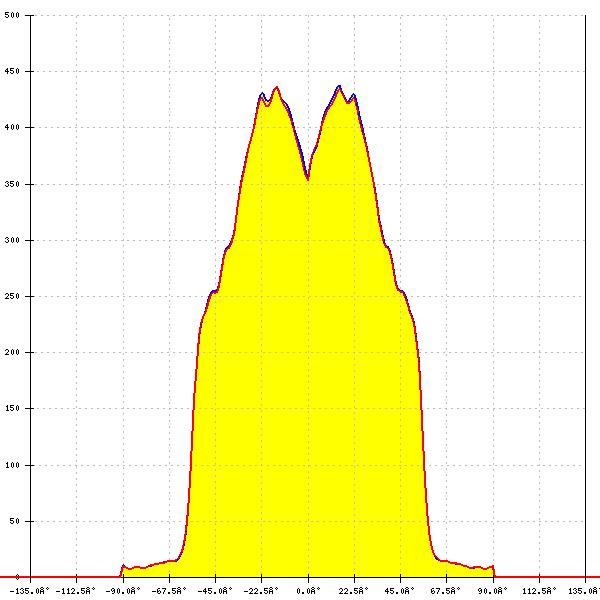

LUXEON HL1Z (White)
FWHM:
106°
FWTM:
118°
Peak intensity:
0.442 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

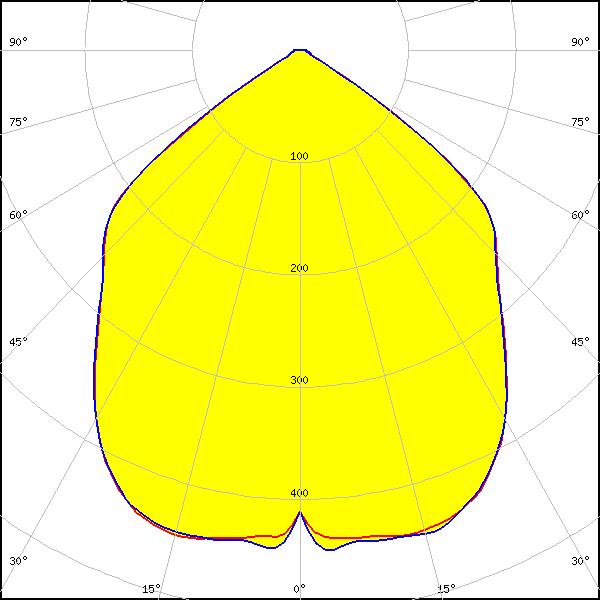

LED:

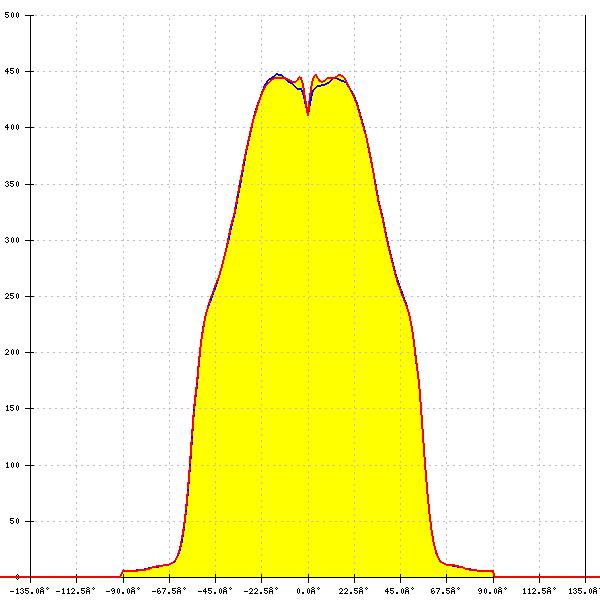

LUXEON HL2Z
FWHM:
102°
FWTM:
120°
Peak intensity:
0.451 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

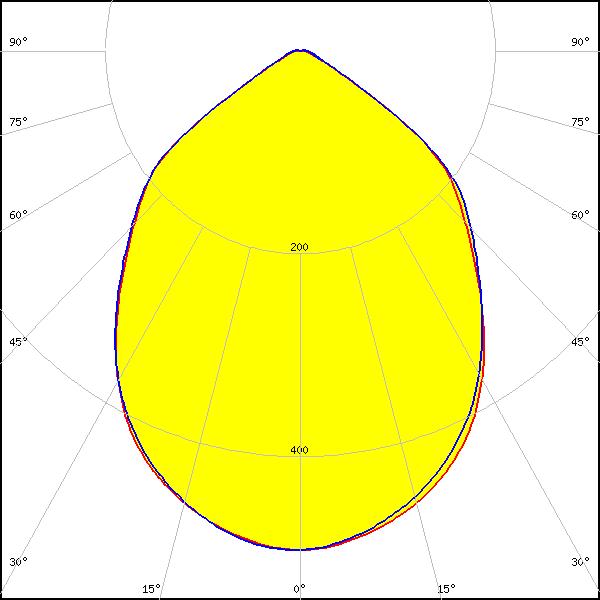

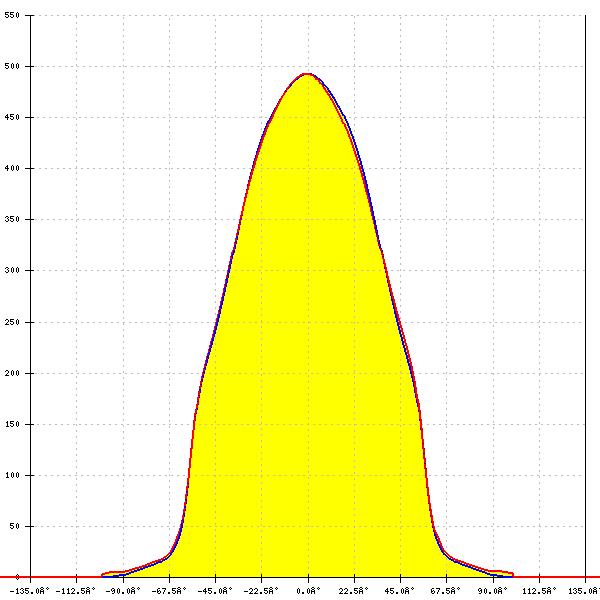

LED:
RecLED 172x50mm 3000lm 3x16 STRADELLA-16
FWHM:
90°
FWTM:
123°
Peak intensity:
0.492 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

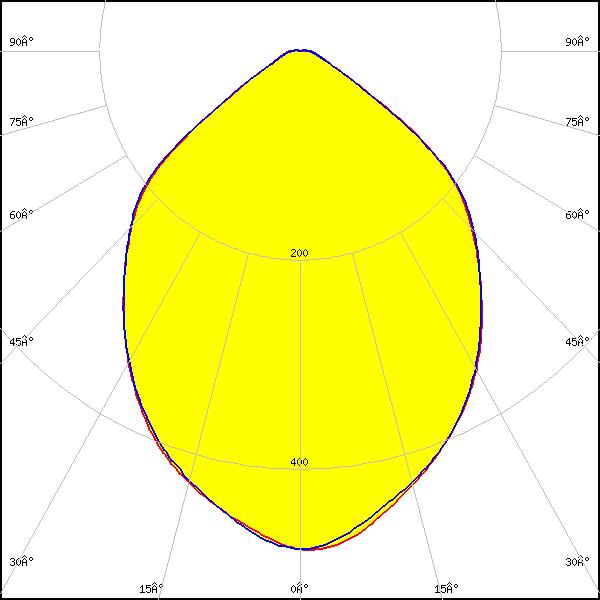

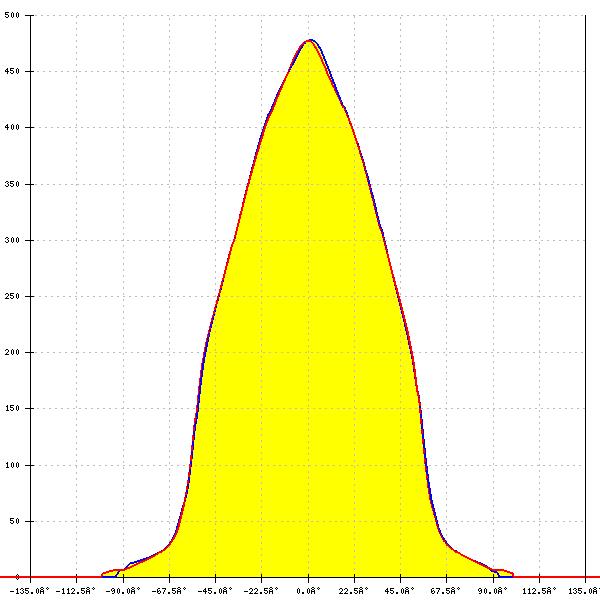

LED:
NFSx757D
FWHM:
91°
FWTM:
126°
Peak intensity:
0.480 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

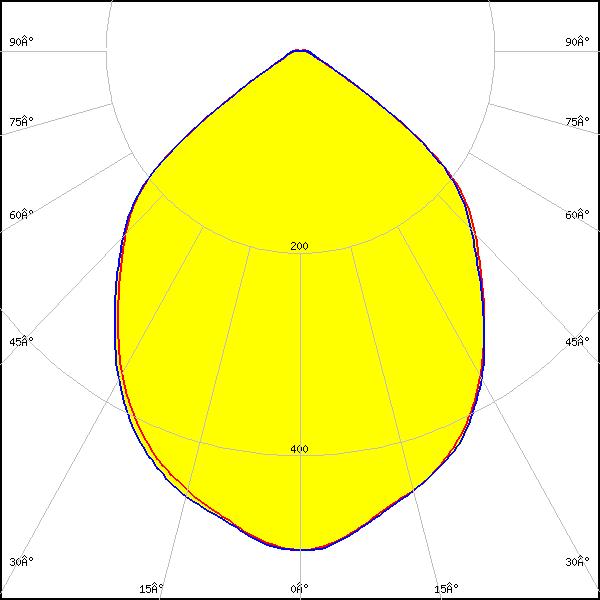

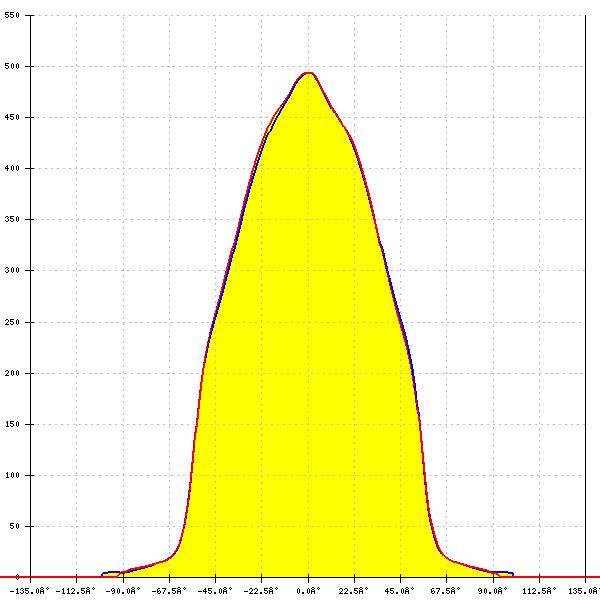

LED:
NFSx757G
FWHM:
92°
FWTM:
121°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

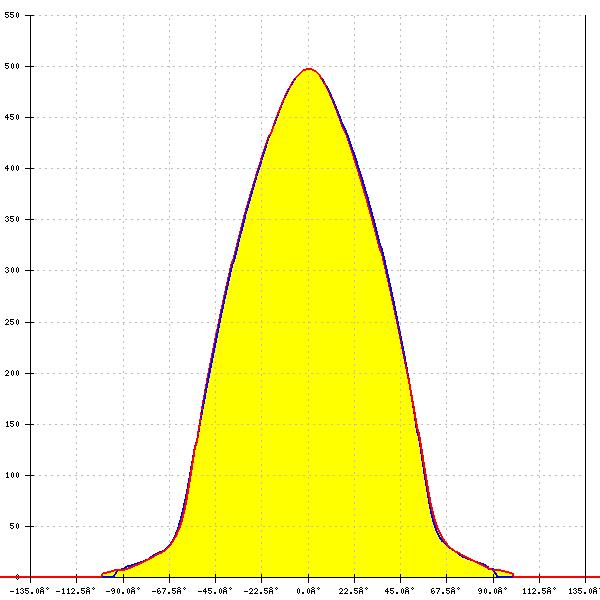

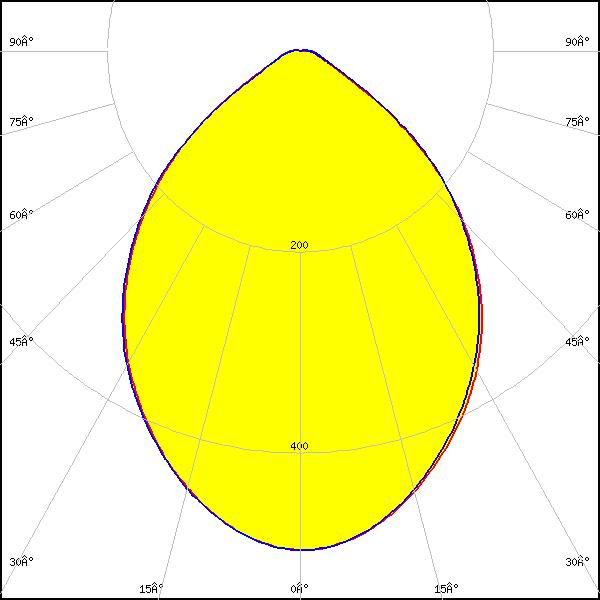

LED:
NVSW219D
FWHM:
87°
FWTM:
125°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

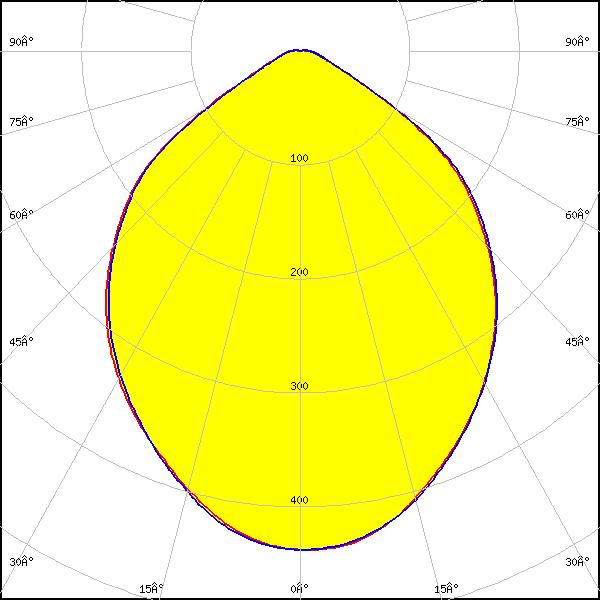

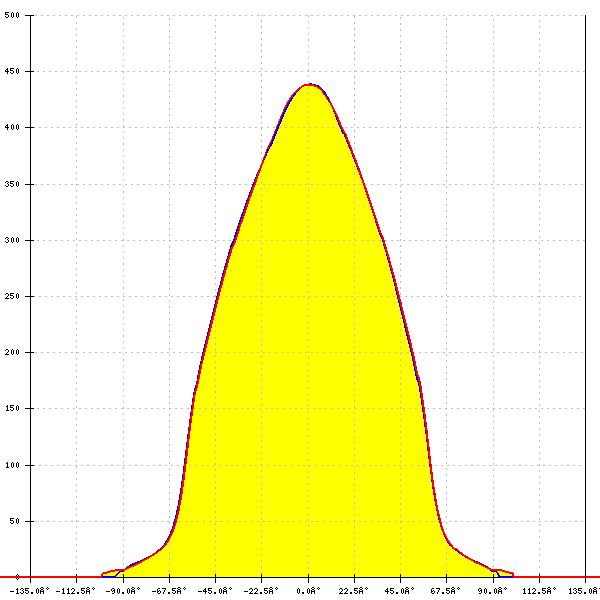

LED:
NVSW319B
FWHM:
96°
FWTM:
131°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

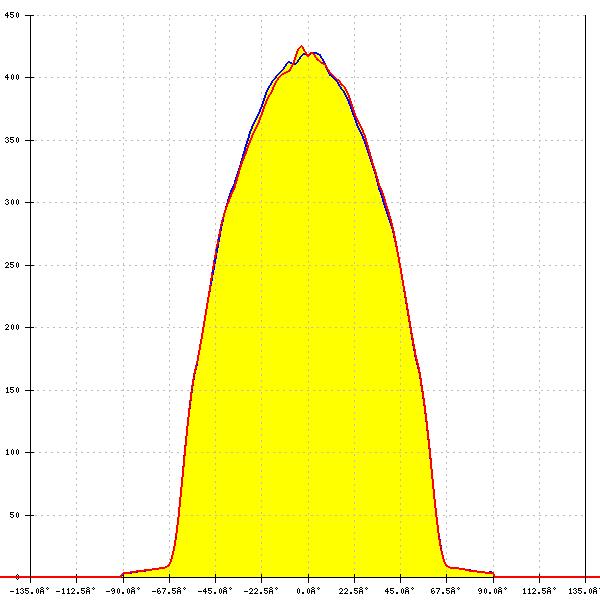

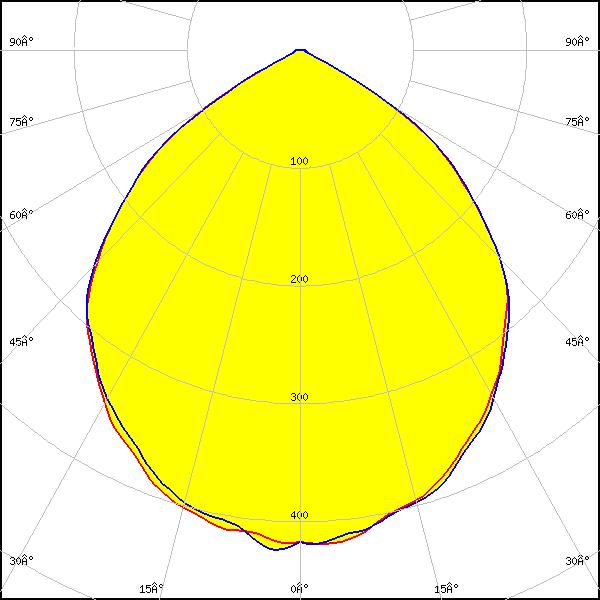

LED:
NVSW519A
FWHM:
99°
FWTM:
126°
Peak intensity:
0.429 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

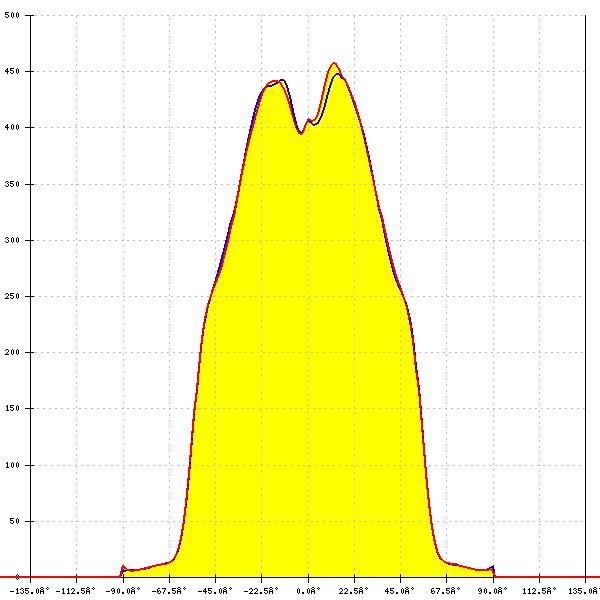

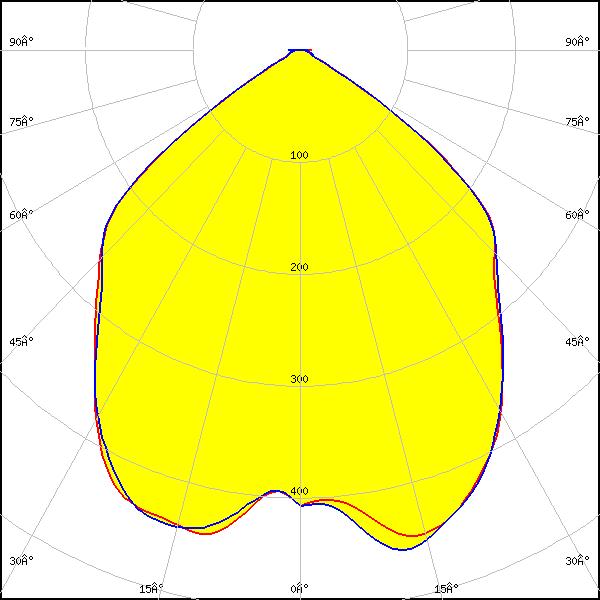

LED:
NVSxE21A
FWHM:
98°
FWTM:
121°
Peak intensity:
0.460 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

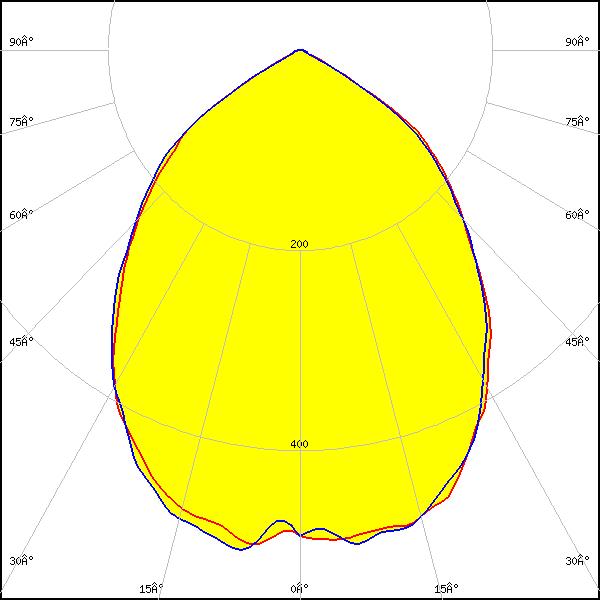

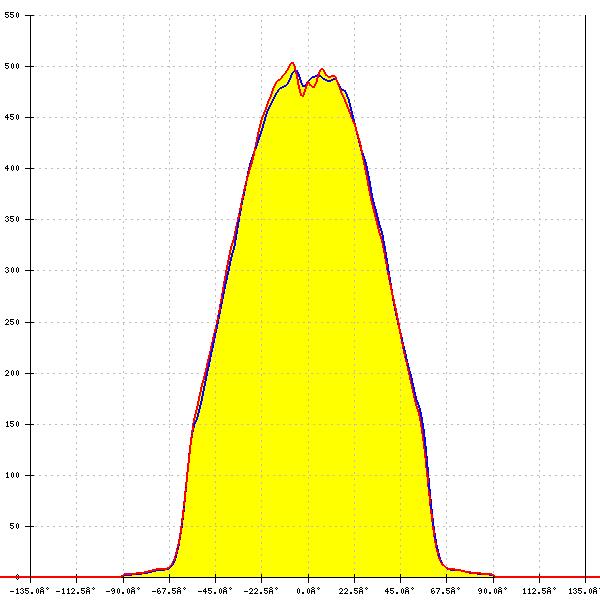

LED:
Duris E5
FWHM:
87°
FWTM:
123°
Peak intensity:
0.510 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

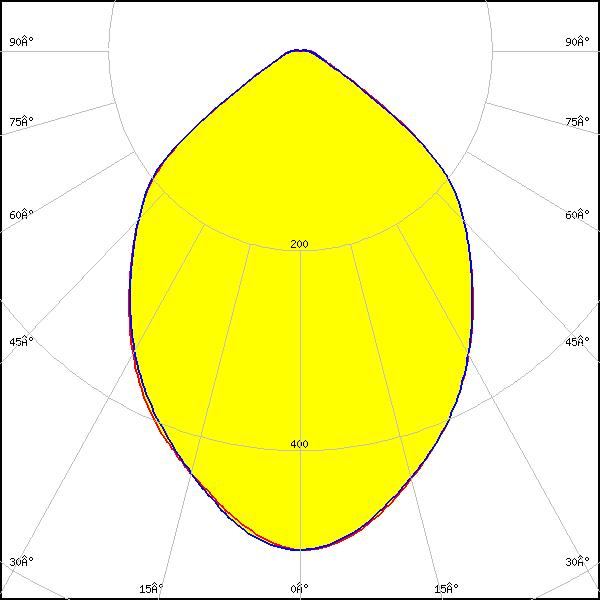

LED:

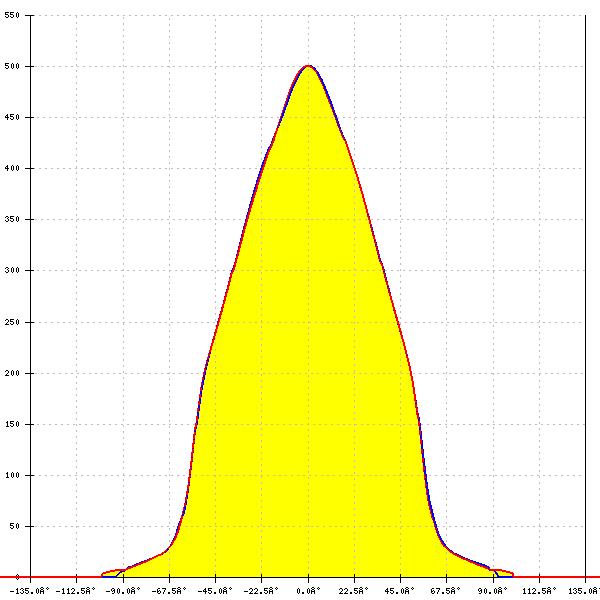

DURIS S5 (2 chip)
FWHM:
87°
FWTM:
125°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
Purple

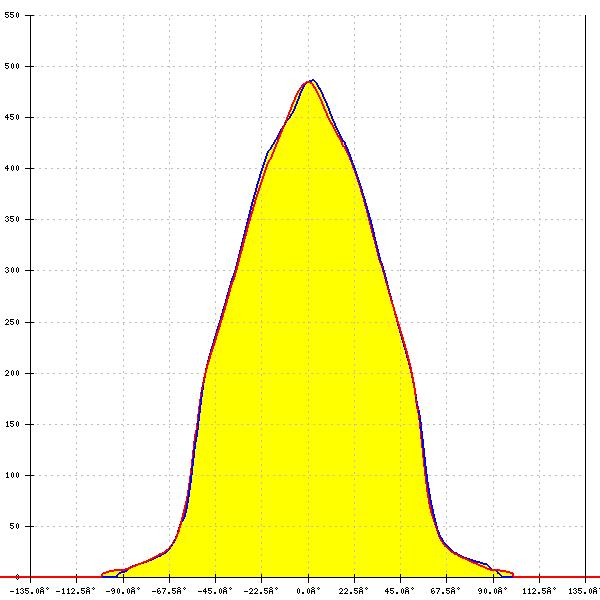

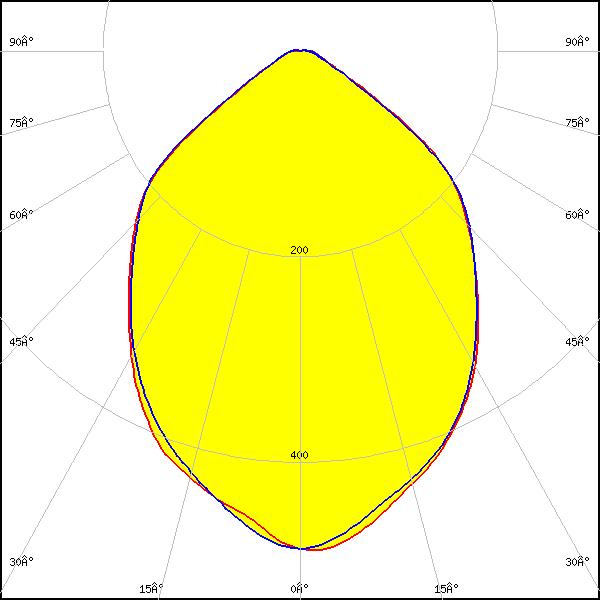

LED:
DURIS S5 (Single chip)
FWHM:
88°
FWTM:
125°
Peak intensity:
0.490 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

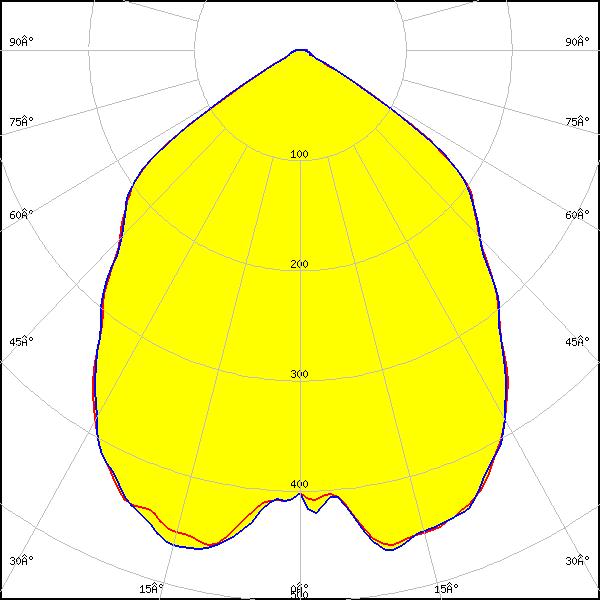

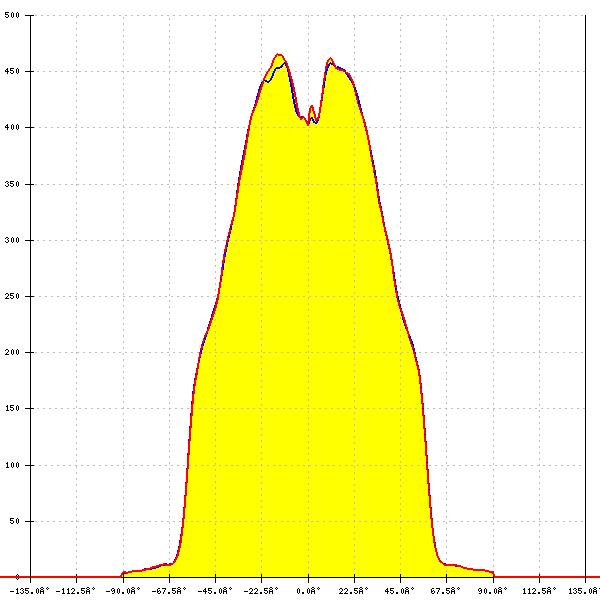

LED:
OSCONIQ C 2424 Gen1
FWHM:
94°
FWTM:
122°
Peak intensity:
0.472 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

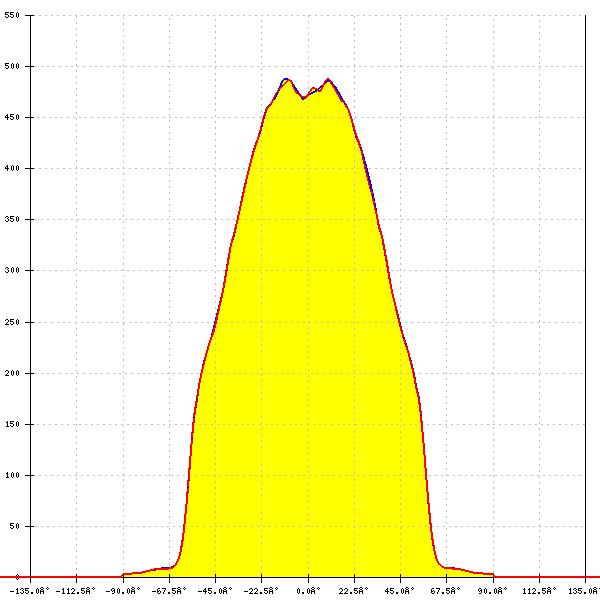

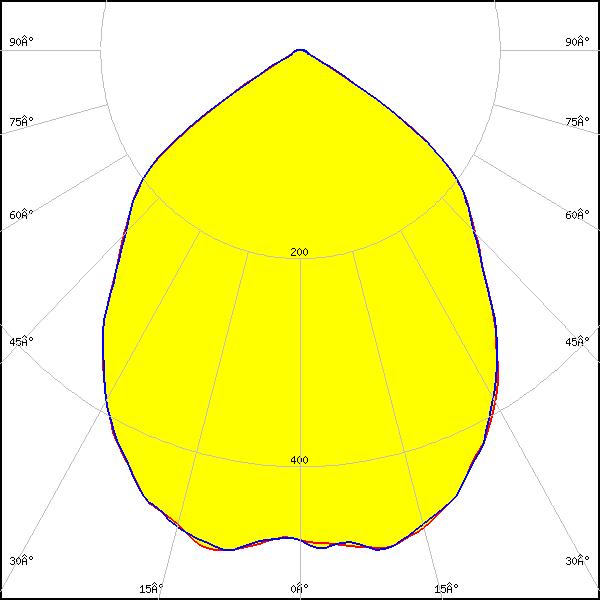

LED:
OSCONIQ C 3030
FWHM:
92° + 90°
FWTM:
120° + 120°
Peak intensity:
0.488 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 3030
FWHM:
90°
FWTM:
120°
Peak intensity:
0.451 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

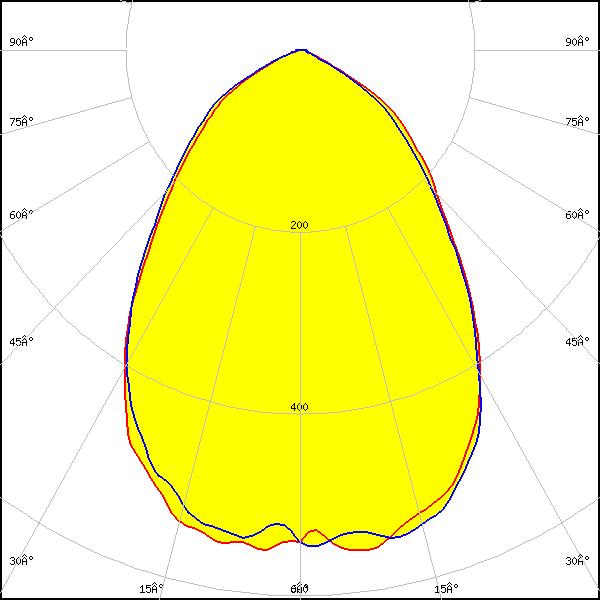

LED:

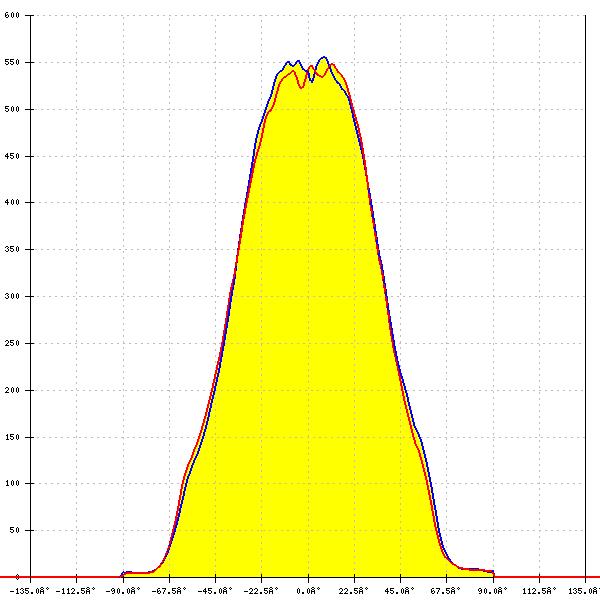

OSCONIQ P 3030
FWHM:
79°
FWTM:
128°
Peak intensity:
0.563 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

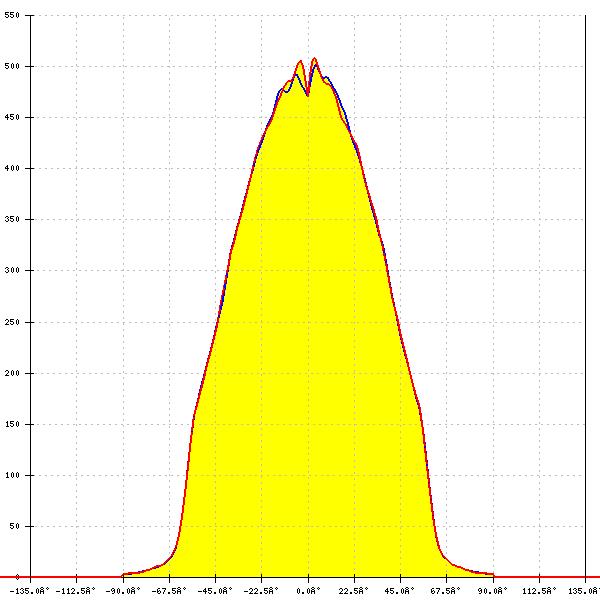

LED:

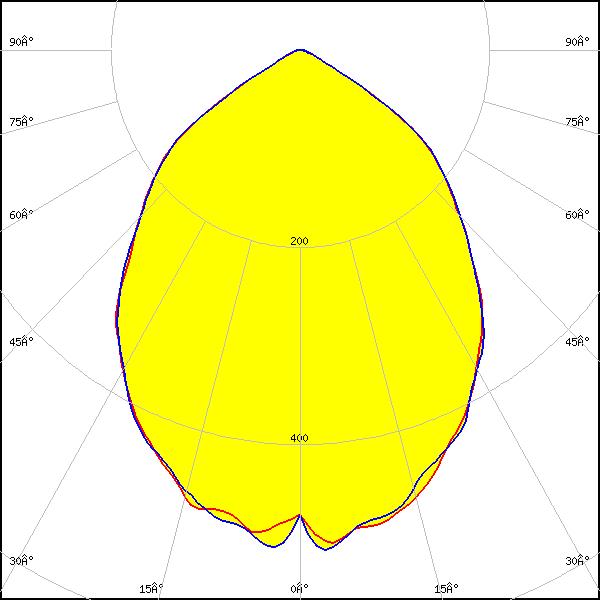

OSCONIQ P 3737 (3W) PUSTA1
FWHM:
88° + 87°
FWTM:
124° + 124°
Peak intensity:
0.510 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

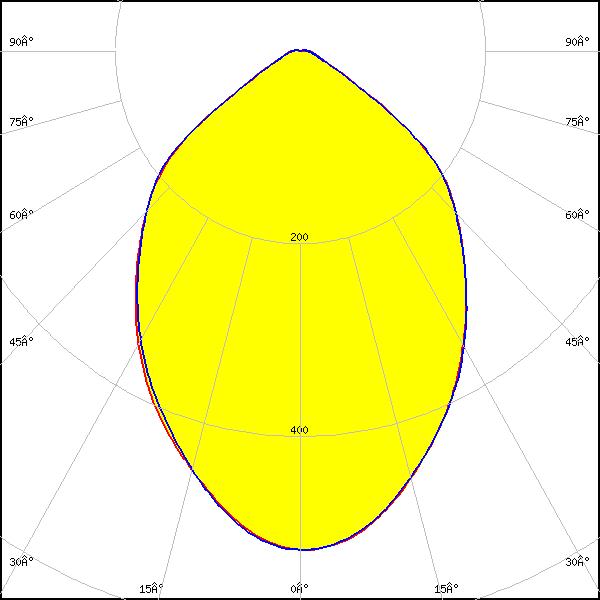

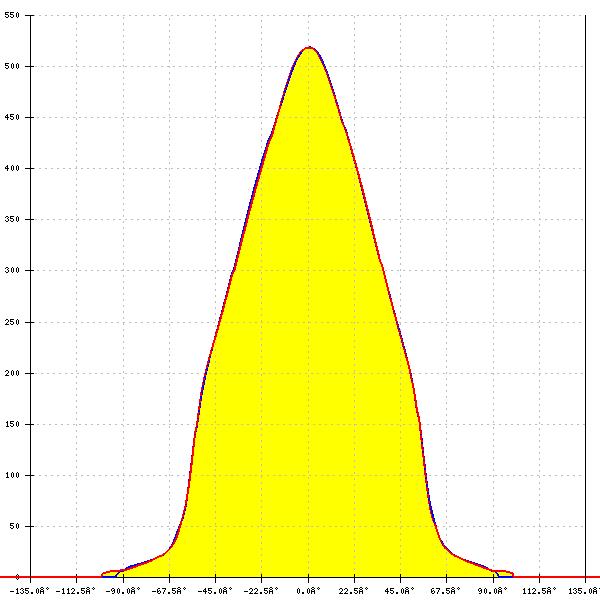

LED:
OSCONIQ S 3030 (QSLR31)
FWHM:
84°
FWTM:
124°
Peak intensity:
0.518 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

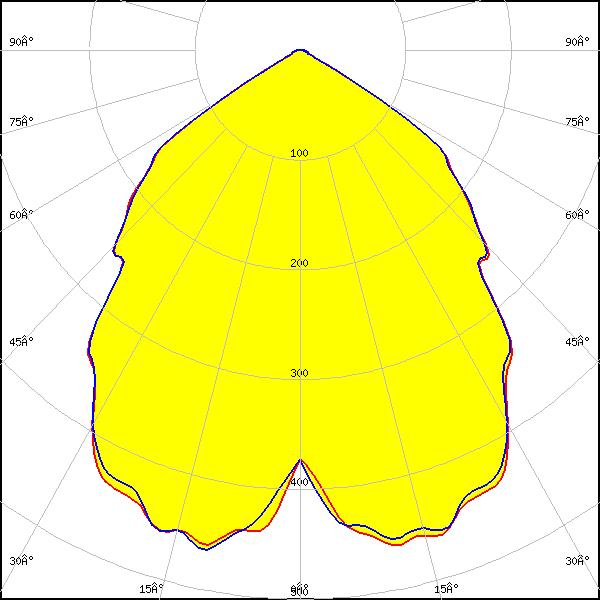

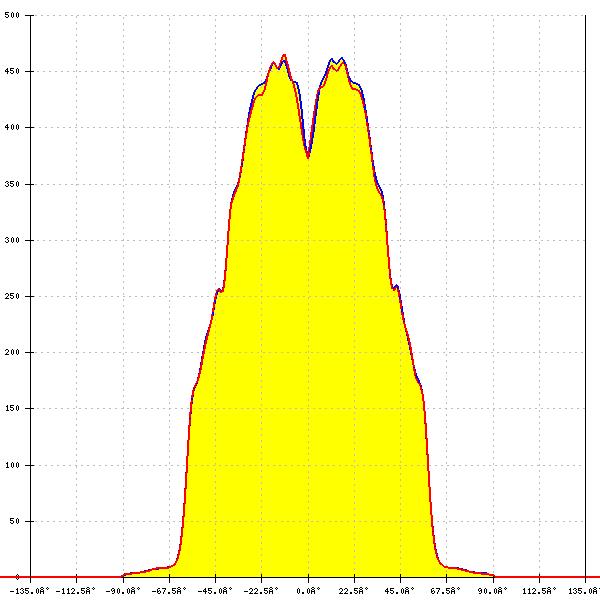

LED:
OSLON Pure 1414
FWHM:
94° + 92°
FWTM:
122° + 122°
Peak intensity:
0.472 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

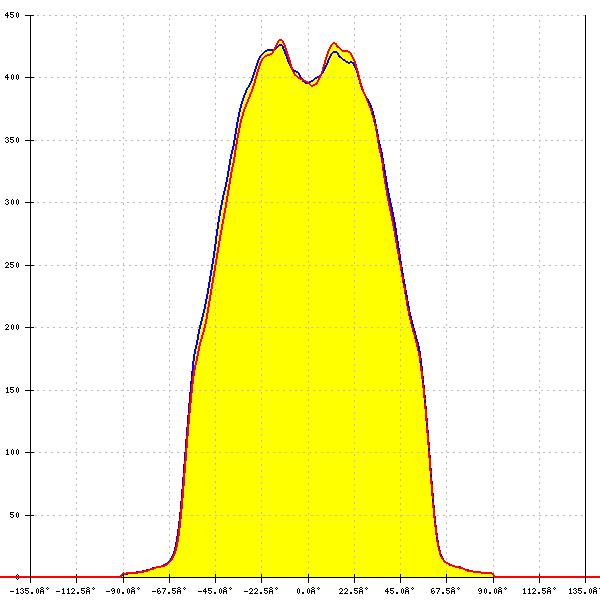

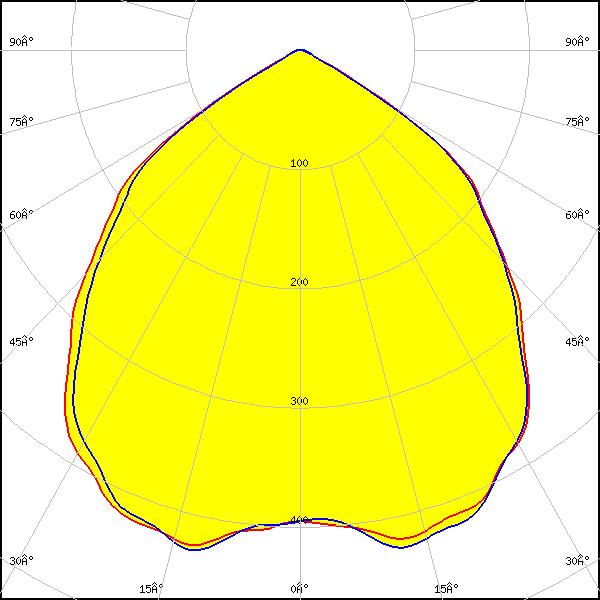

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
97°
FWTM:
124°
Peak intensity:
0.430 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
Red
LED:
SFH 4715AS
FWHM:
66°
FWTM:
106°
Peak intensity:
0.777 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
IR

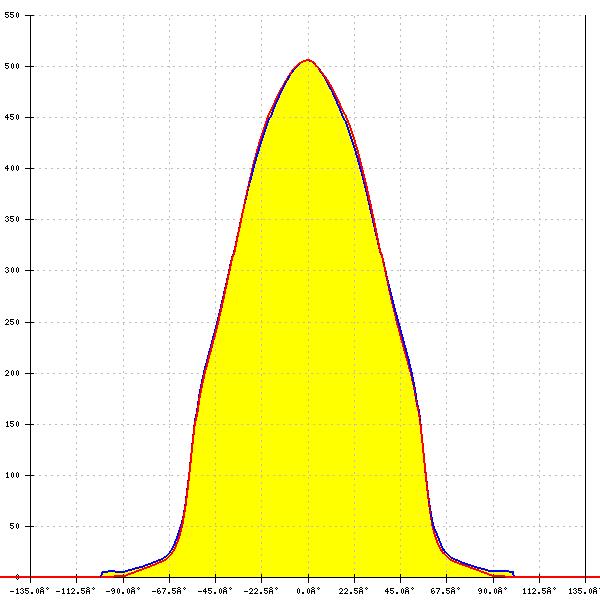

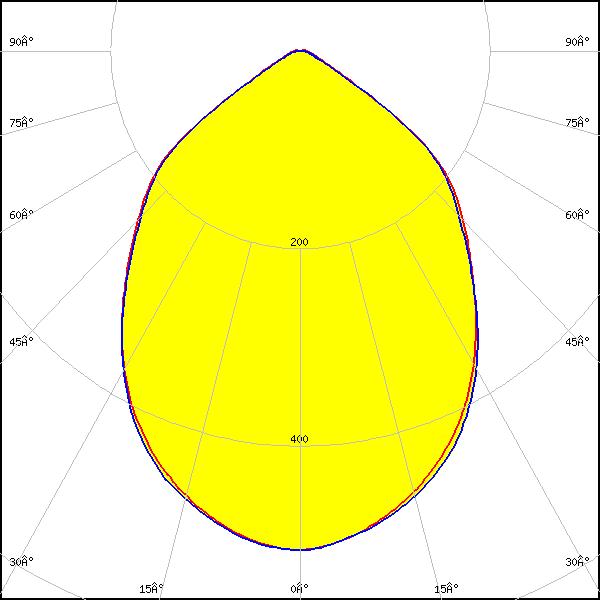

LED:
Fortimo FastFlex LED 4x16 DHE G4
FWHM:
87°
FWTM:
122°
Peak intensity:
0.510 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

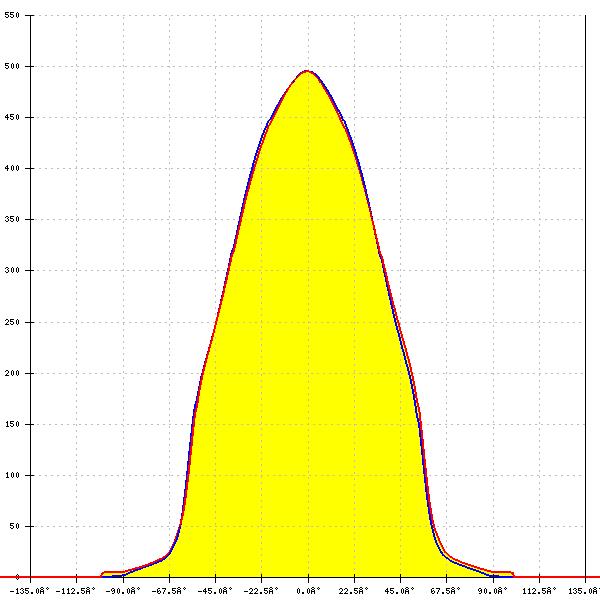

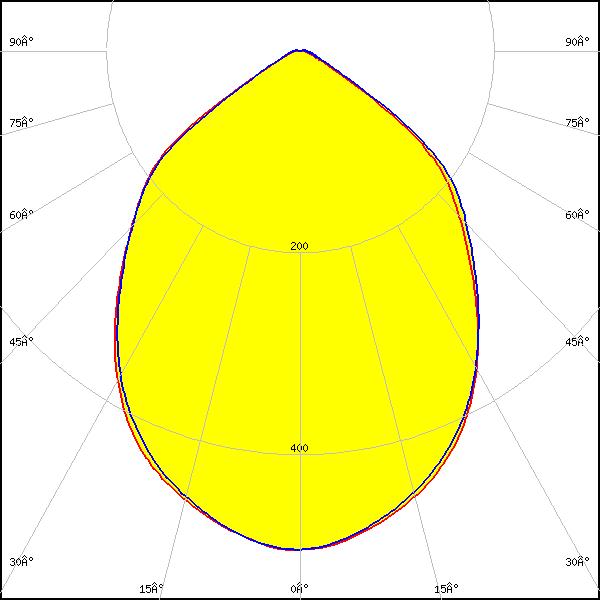

LED:
HiLOM RM64 (LM301B)
FWHM:
88°
FWTM:
123°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

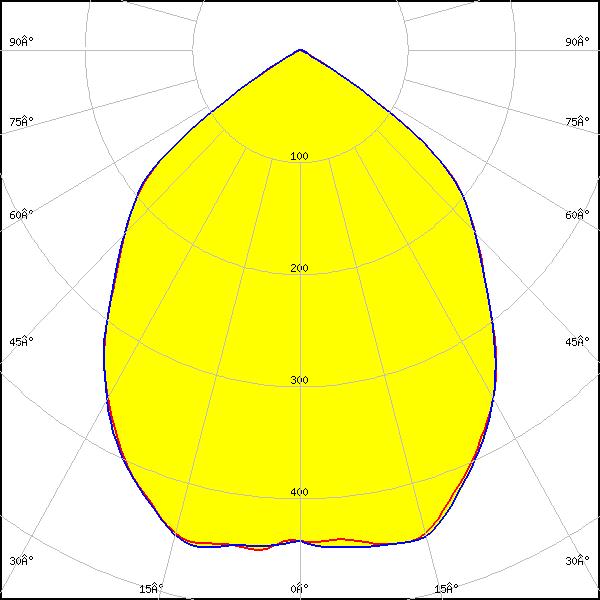

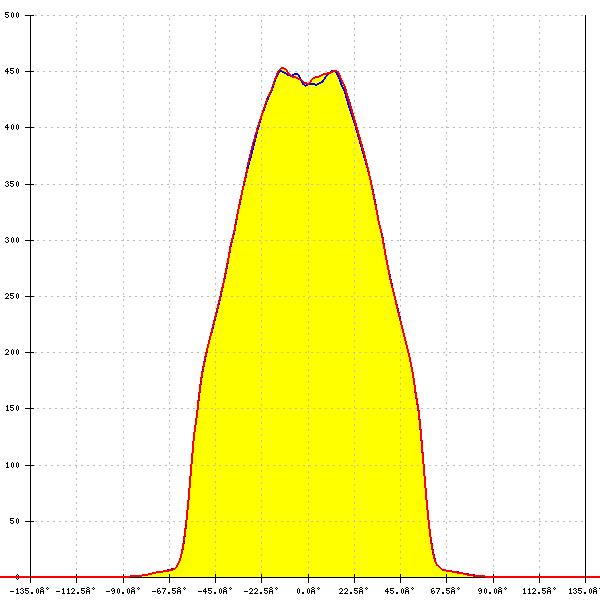

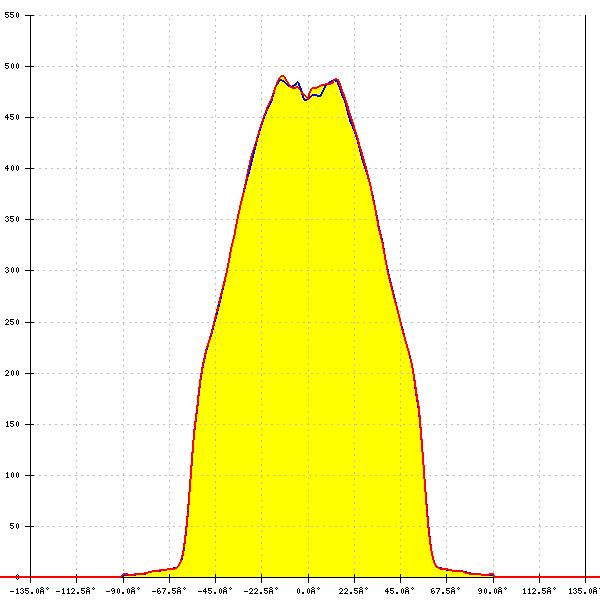

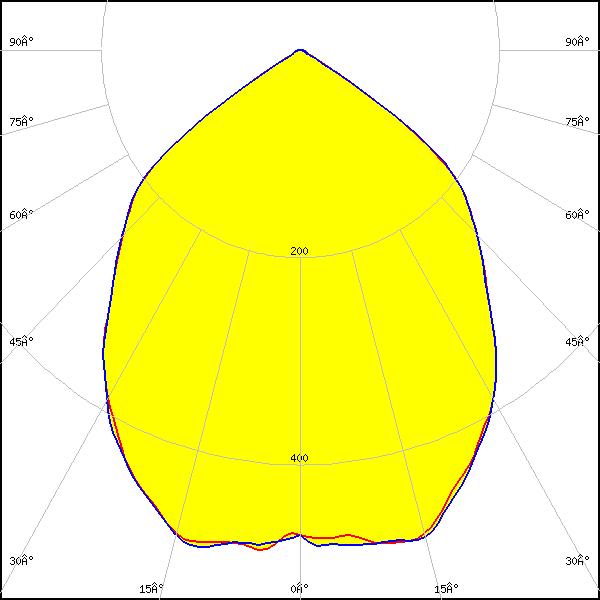

LED:
LH231B
FWHM:
92°
FWTM:
118°
Peak intensity:
0.497 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH231B
FWHM:
92°
FWTM:
118°
Peak intensity:
0.456 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

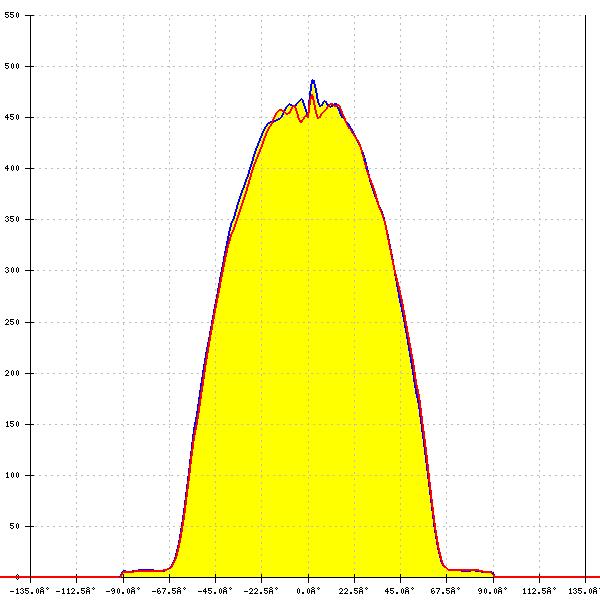

LED:

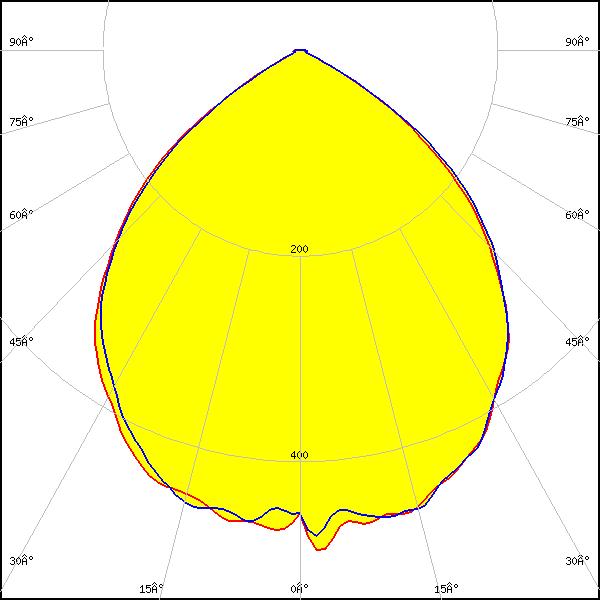

LH351C
FWHM:
97°
FWTM:
124°
Peak intensity:
0.490 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

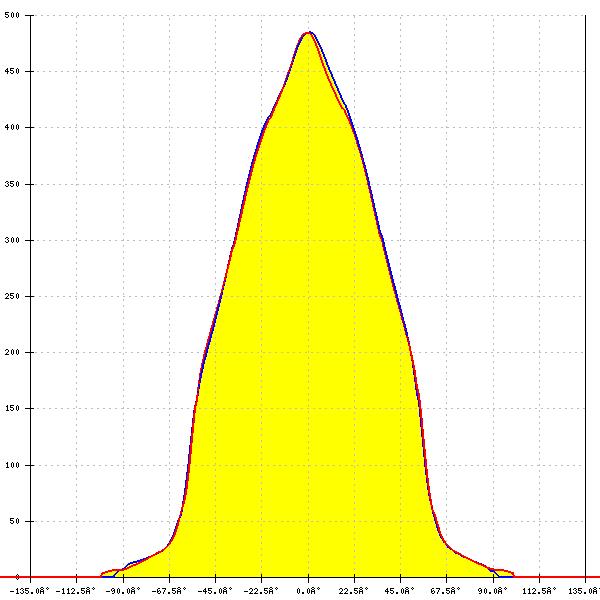

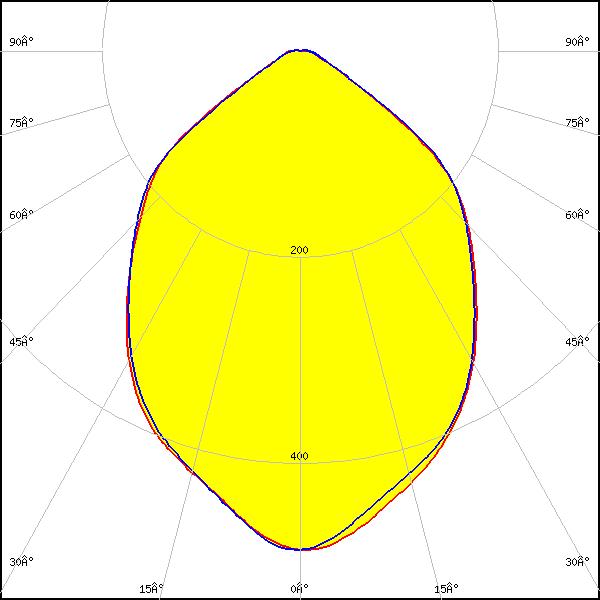

LED:
LM231 A/B
FWHM:
88°
FWTM:
126°
Peak intensity:
0.480 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

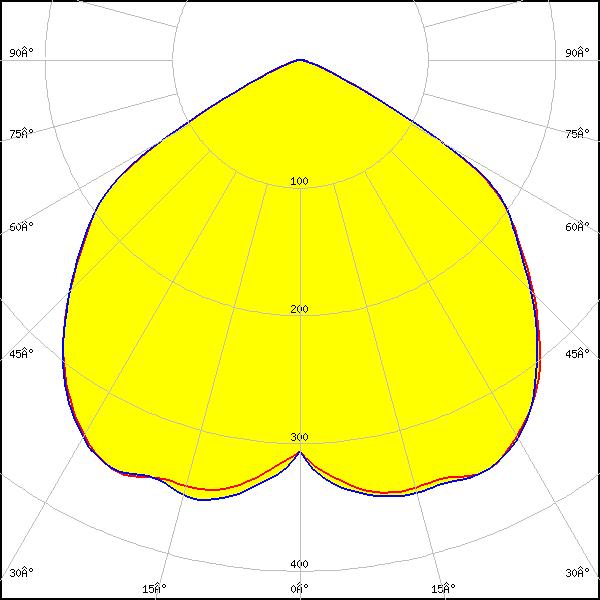

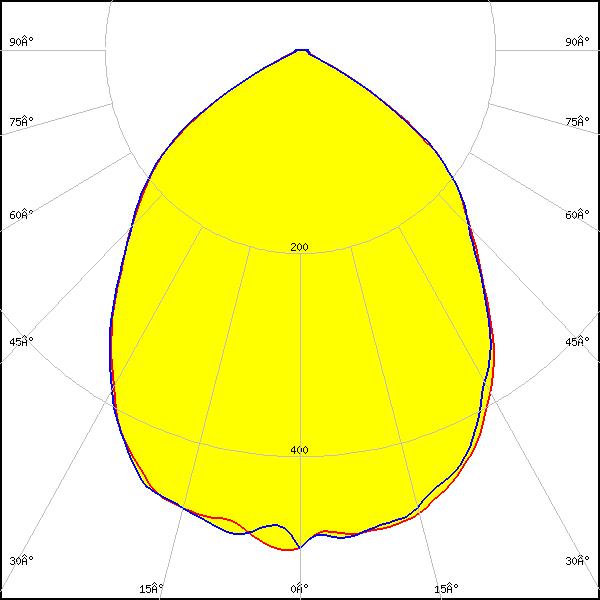

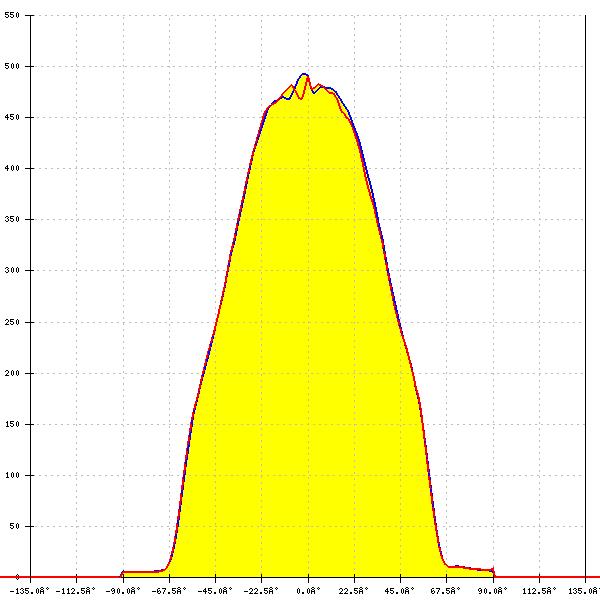

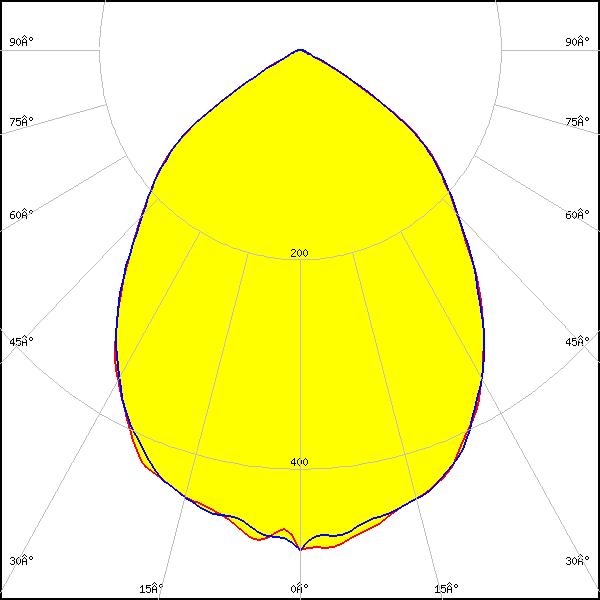

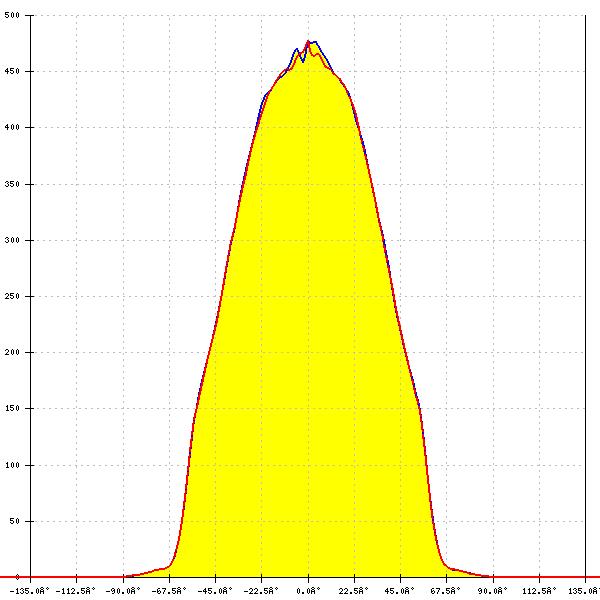

LED:

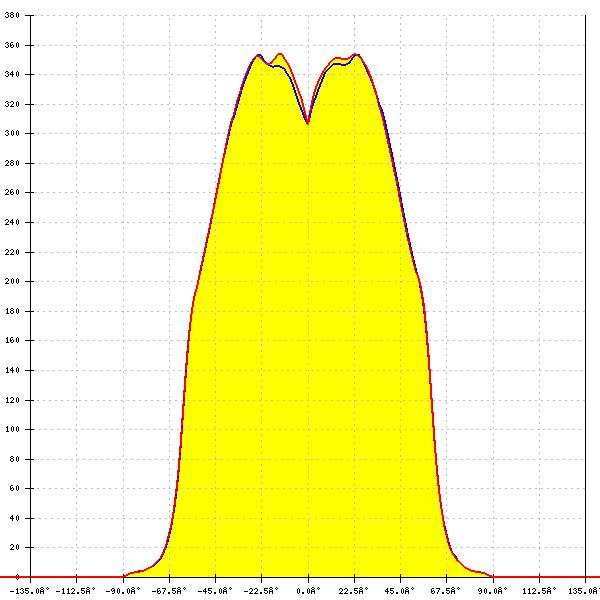

LM301B
FWHM:
113°
FWTM:
133°
Peak intensity:
0.354 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM301B
FWHM:
86°
FWTM:
122°
Peak intensity:
0.489 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LM301B
FWHM:
90°
FWTM:
125°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

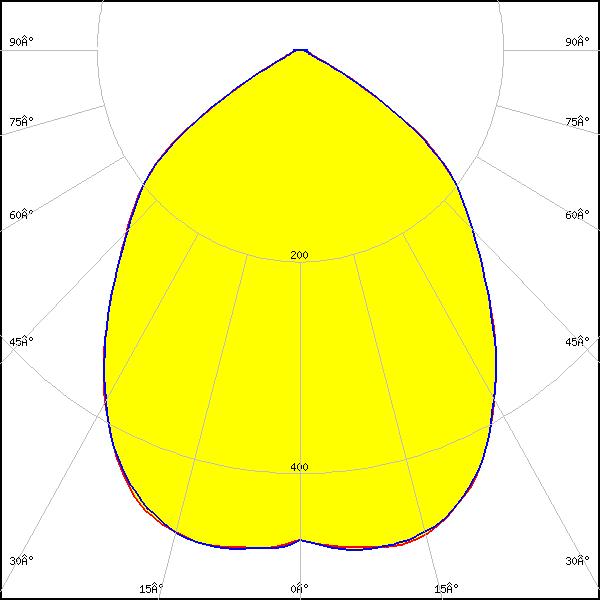

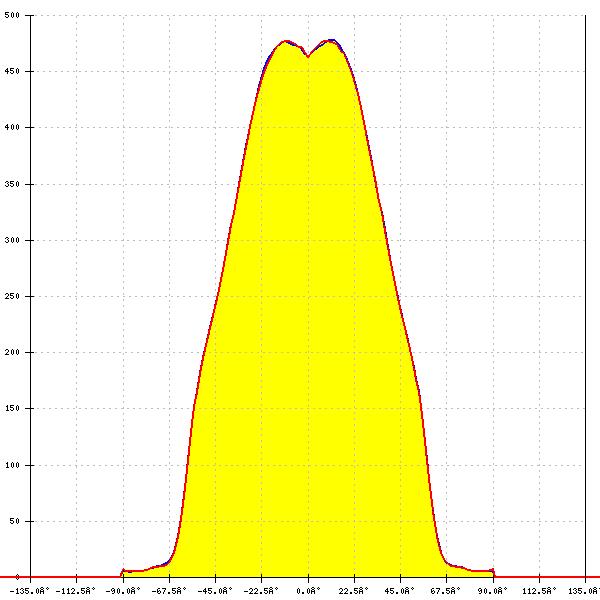

LED:
LM302D
FWHM:
90°
FWTM:
124°
Peak intensity:
0.480 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

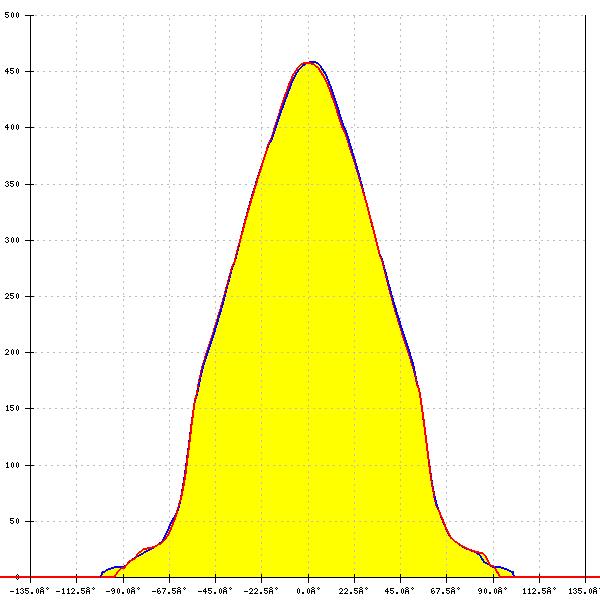

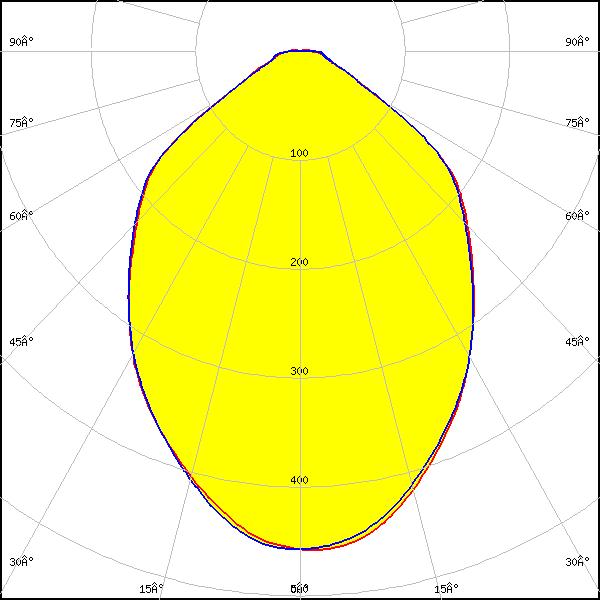

LED:
XLE-S44XTEHE (XT-E HE)
FWHM:
88°
FWTM:
133°
Peak intensity:
0.458 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

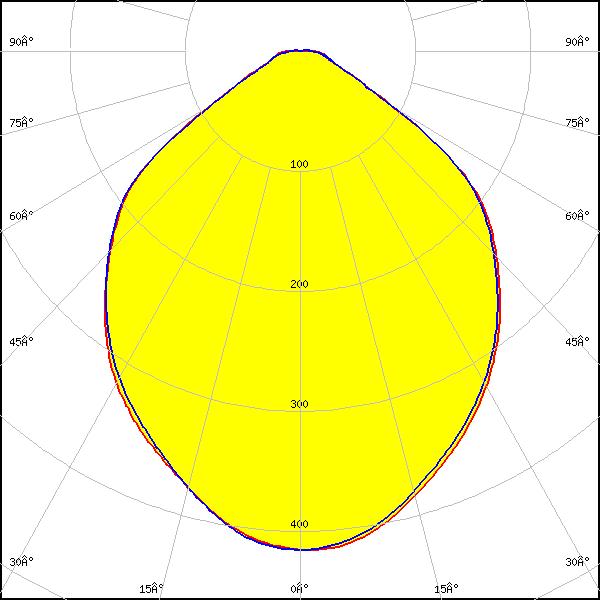

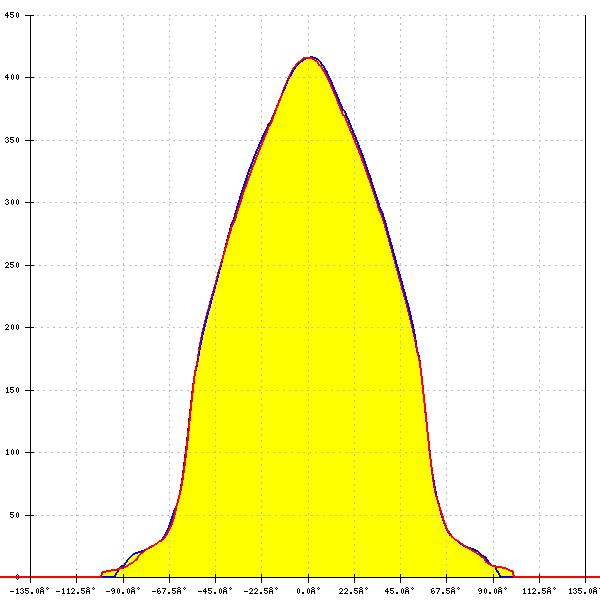

LED:
XLE-S48XPG3 (XP-G3)
FWHM:
100°
FWTM:
134°
Peak intensity:
0.420 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

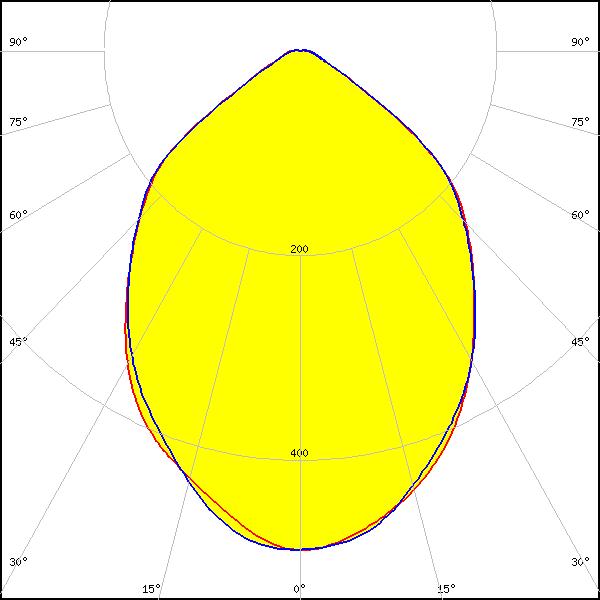

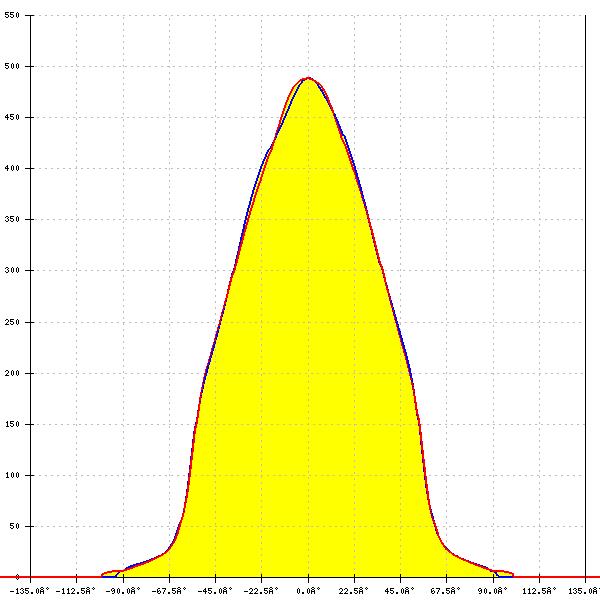

LED:
SEOUL 3030
FWHM:
87°
FWTM:
125°
Peak intensity:
0.490 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3030
FWHM:
90°
FWTM:
129°
Peak intensity:
0.480 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

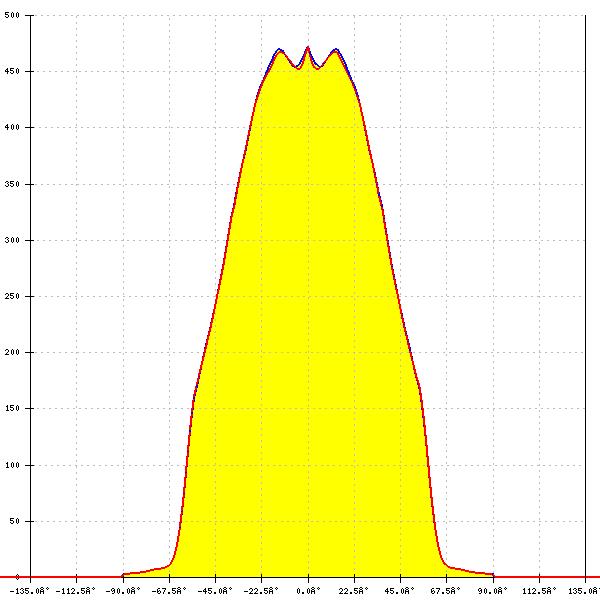

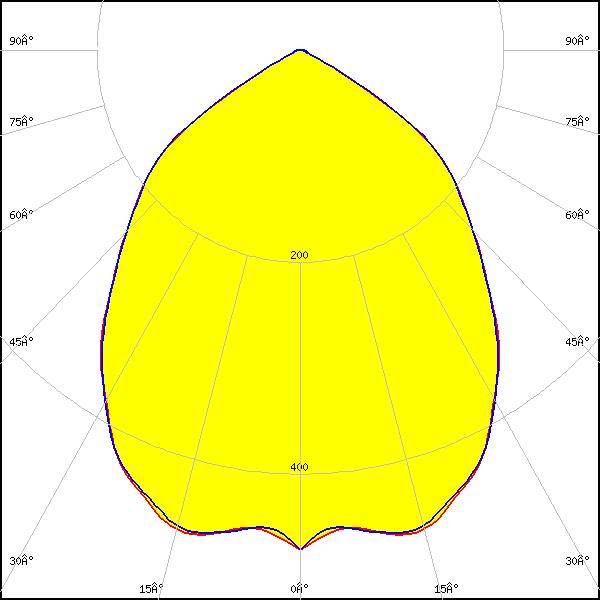

LED:
SEOUL DC 3030C
FWHM:
91°
FWTM:
124°
Peak intensity:
0.470 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

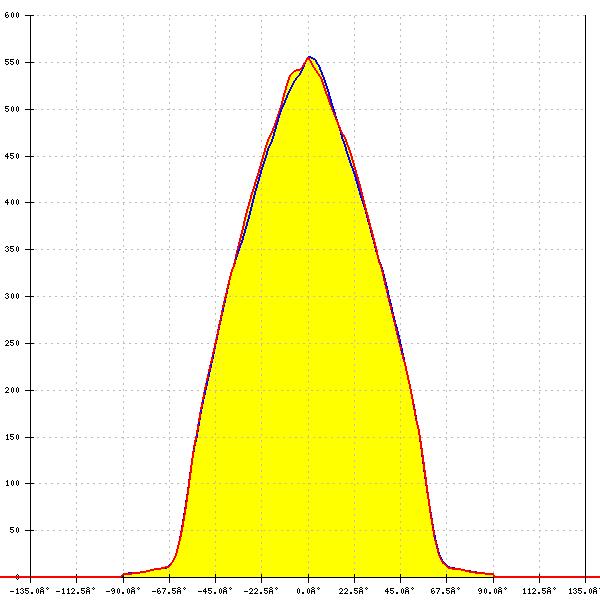

LED:

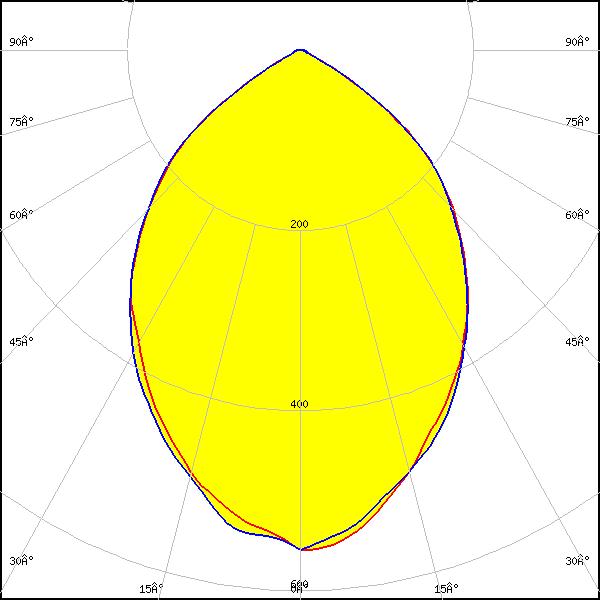

SEOUL DC 5050 6V
FWHM:
84°
FWTM:
122°
Peak intensity:
0.560 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

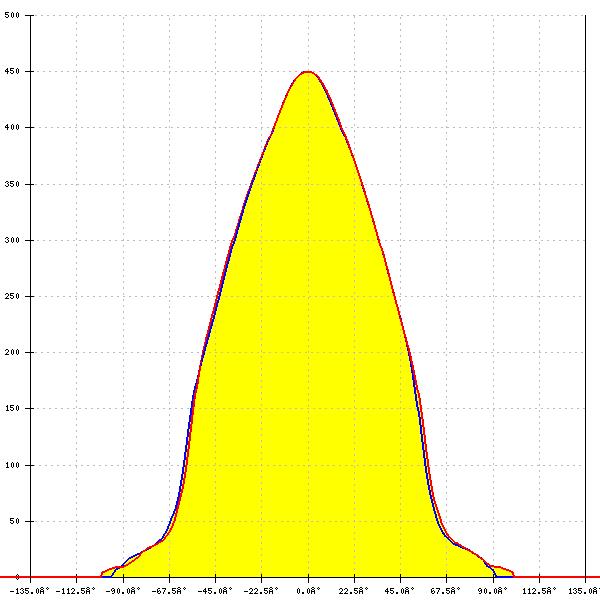

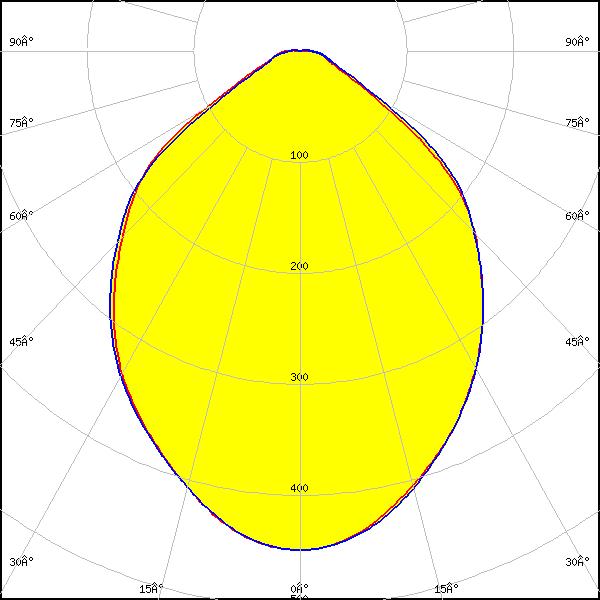

LED:
Z5M3
FWHM:
93°
FWTM:
132°
Peak intensity:
0.450 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

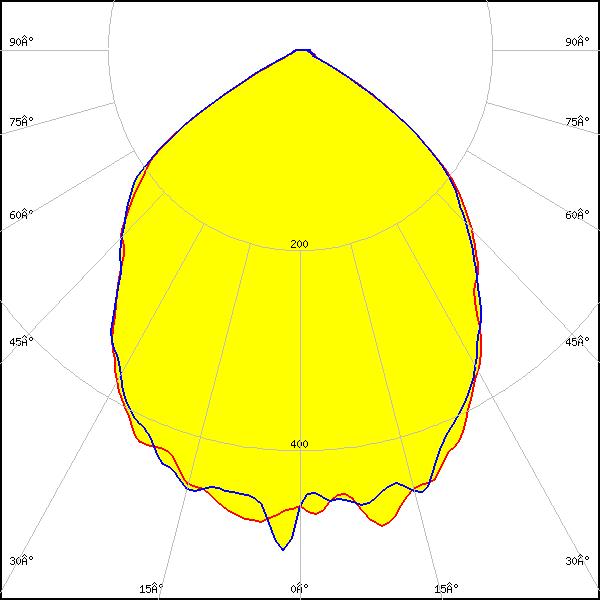

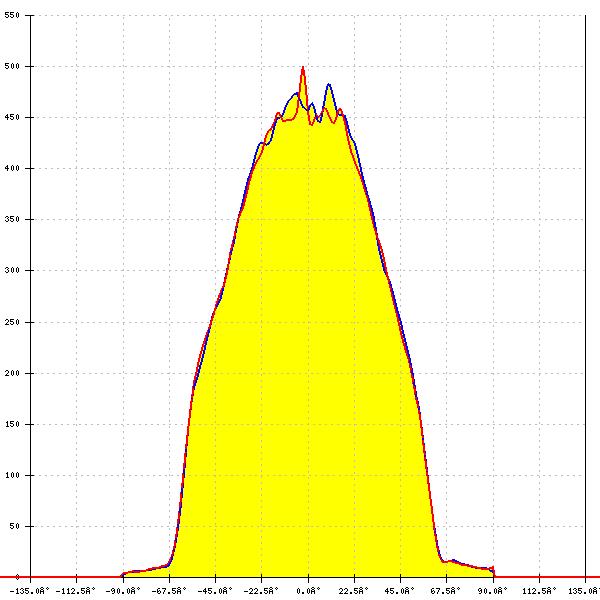

LED:
Z8Y22T
FWHM:
94°
FWTM:
124°
Peak intensity:
0.470 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

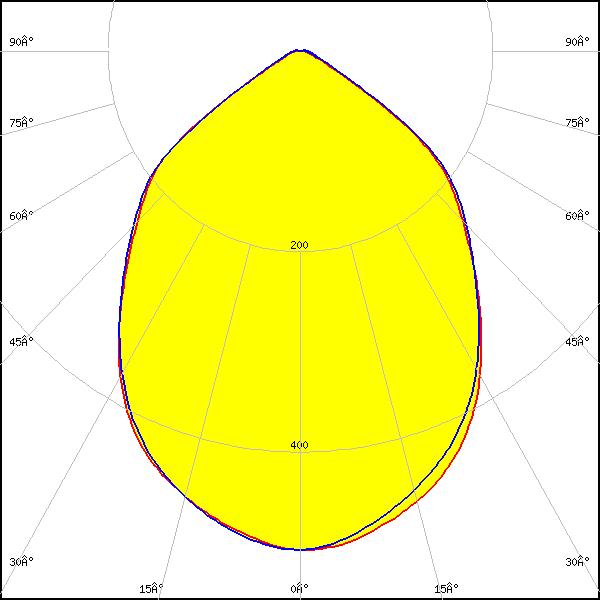

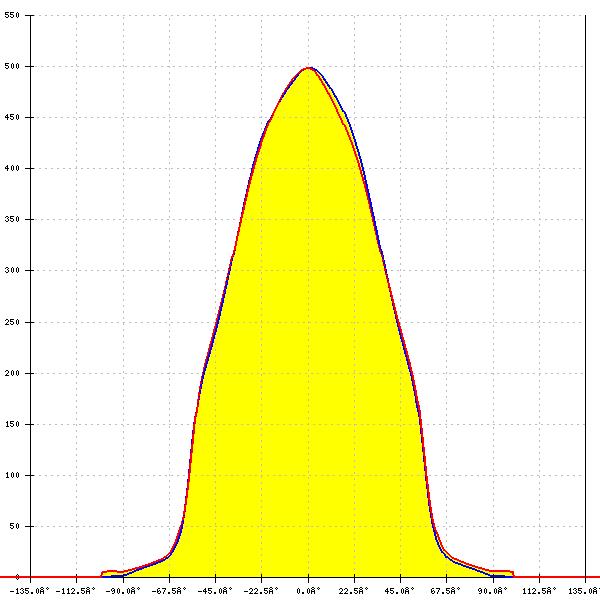

LED:
RLE 4x16 4000lm MP ADV2 OTD
FWHM:
88°
FWTM:
123°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE 4x8 2000lm MP ADV2 OTD
FWHM:
88°
FWTM:
123°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE 4x8 2000lm MP ADV2 OTD new variant
FWHM:
88°
FWTM:
121°
Peak intensity:
0.502 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
