C16040_STRADELLA-8-HB-S-PC

Print

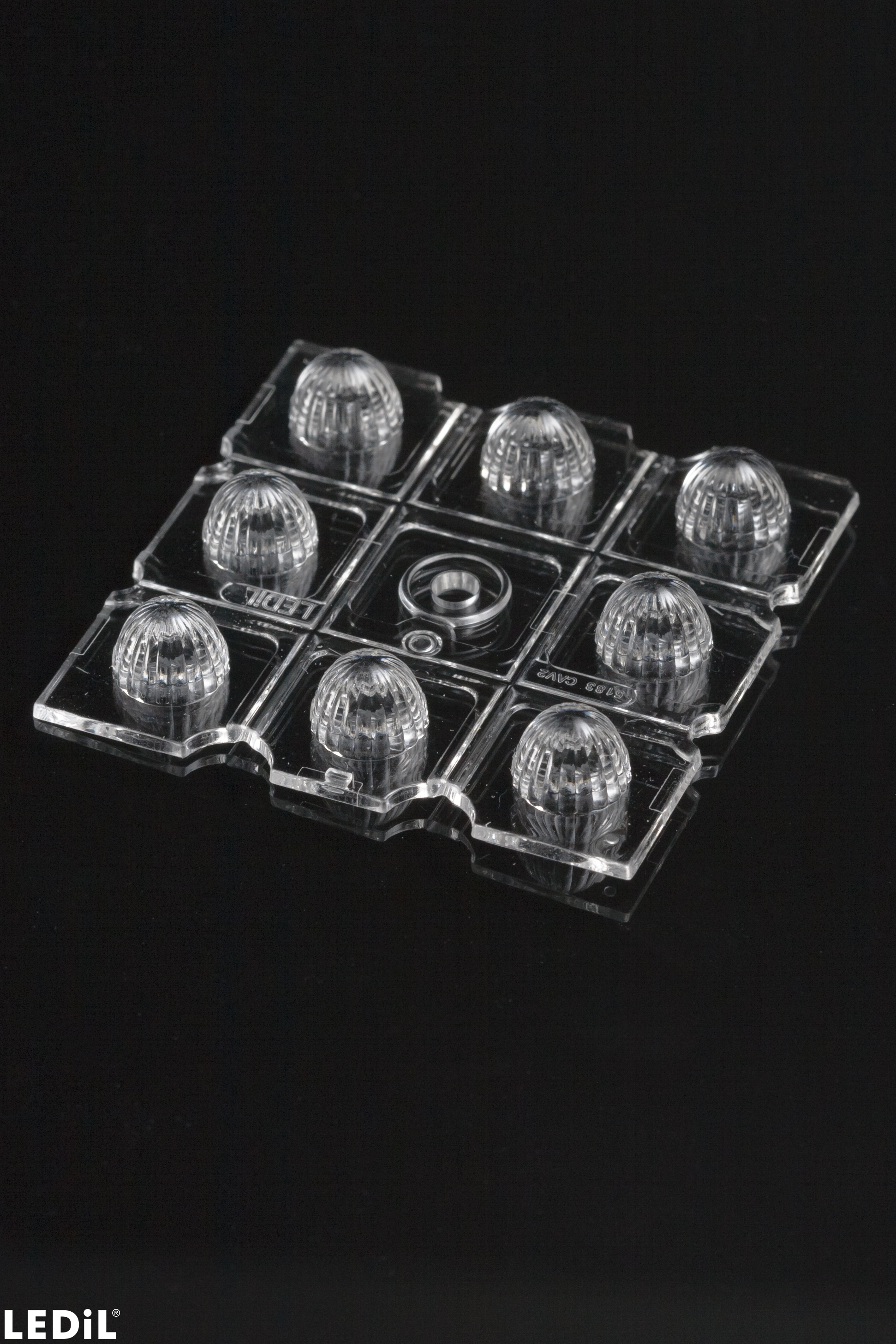

~25° spot beam for industrial applications. Variant made from PC.

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    7.50 mm
  • Fastening:
    screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    476 x 273 x 292 mm
  • Box weight:
    5.0 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.3 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C16040_STRADELLA-8-HB-S-PC

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

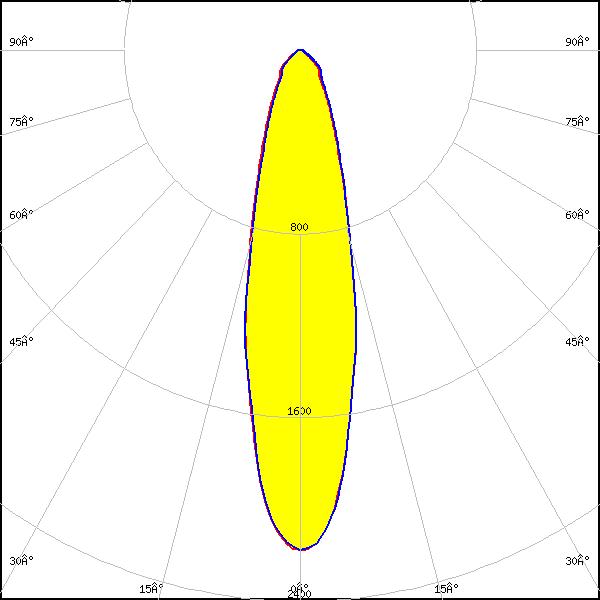

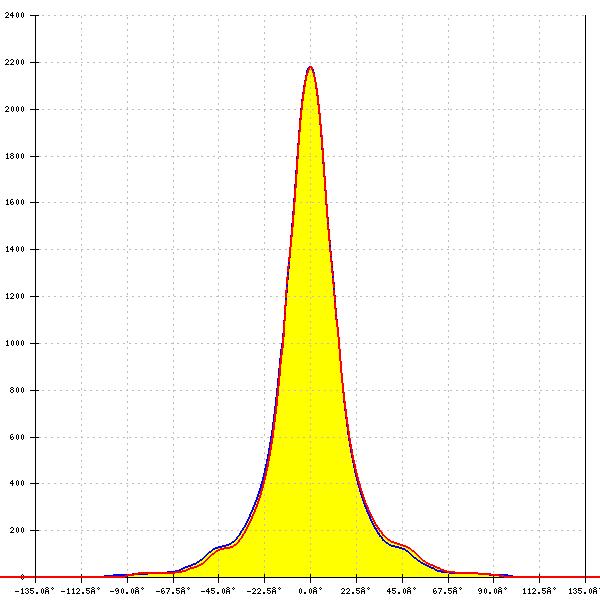

LED: J Series 3030
FWHM: 26°
FWTM: 64°
Peak intensity: 2.179 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

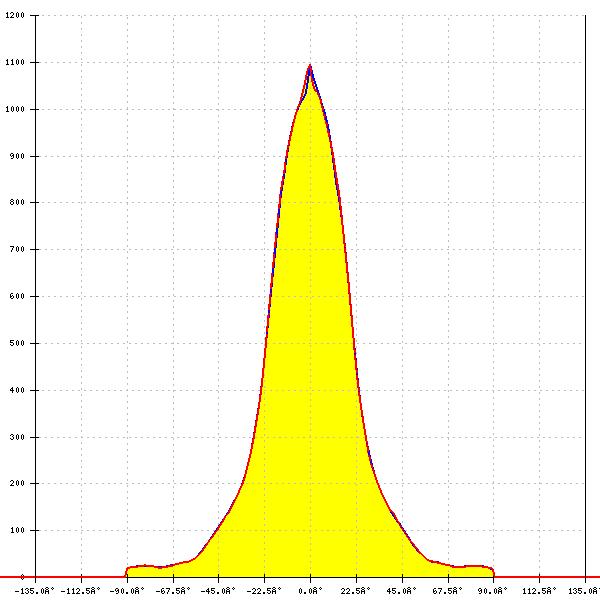

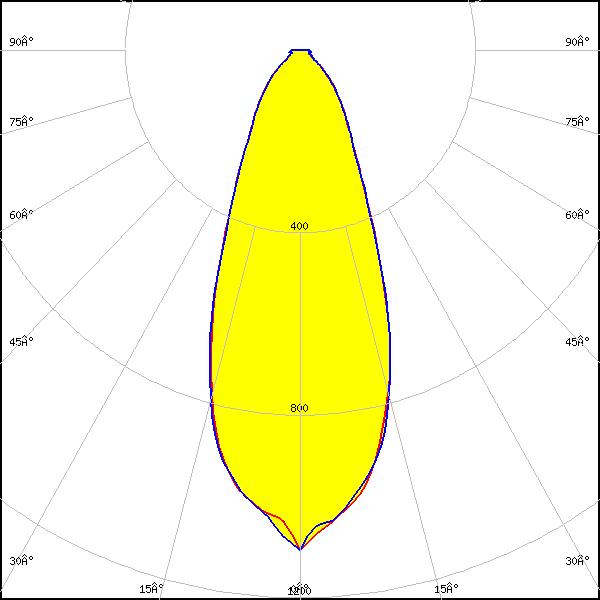

LED: J Series 5050C 6V E Class
FWHM: 40°
FWTM: 88°
Peak intensity: 1.096 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

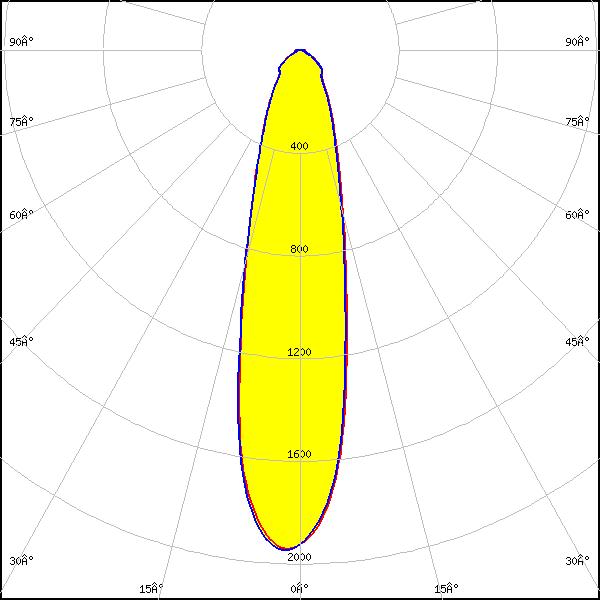

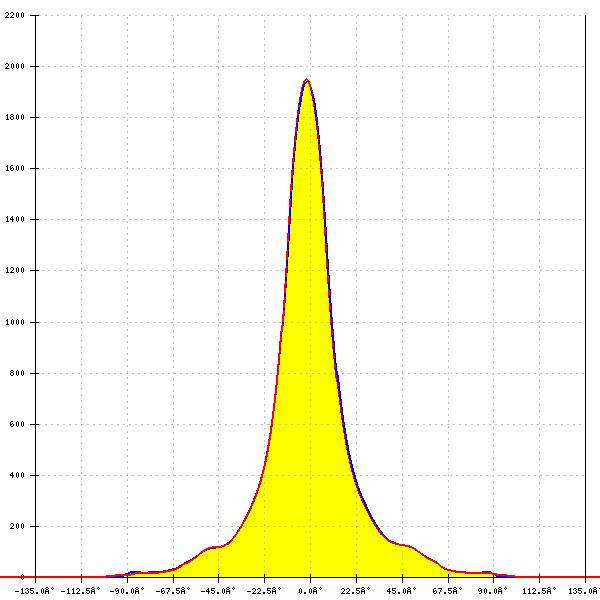

LED: XT-E
FWHM: 25°
FWTM: 68°
Peak intensity: 1.960 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

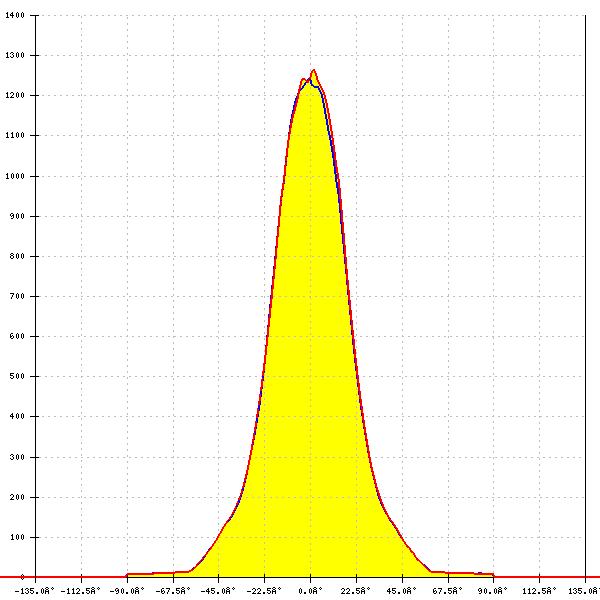

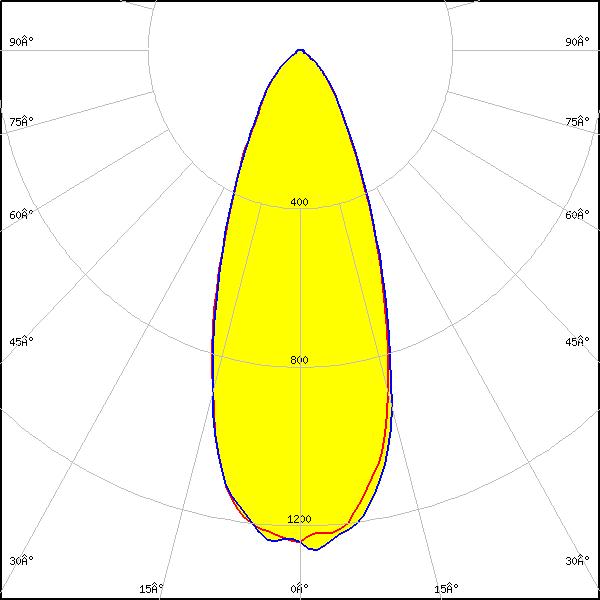

LED: NVSW519A
FWHM: 40°
FWTM: 84°
Peak intensity: 1.265 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

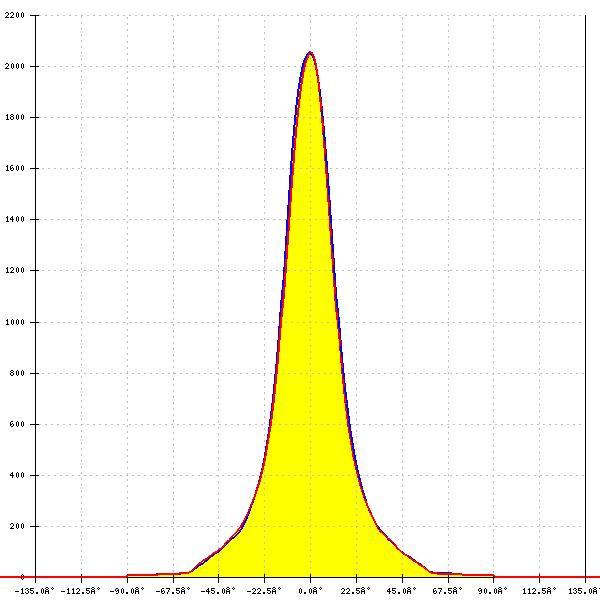

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 28°
FWTM: 66°
Peak intensity: 2.062 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

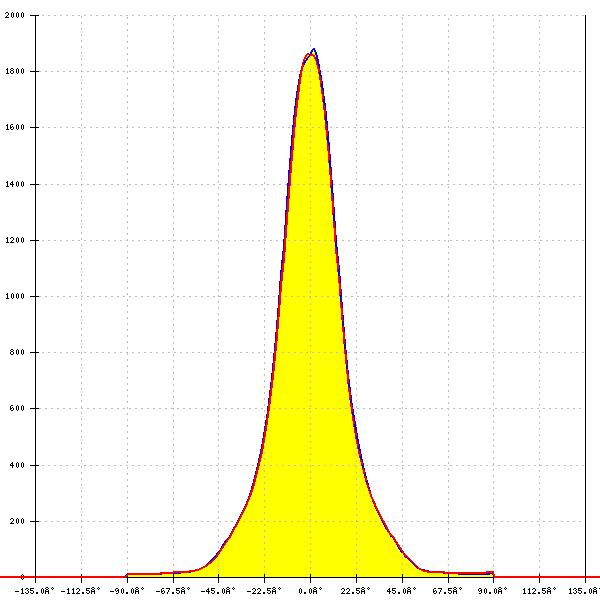

LED: LH351B
FWHM: 31°
FWTM: 73°
Peak intensity: 1.880 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

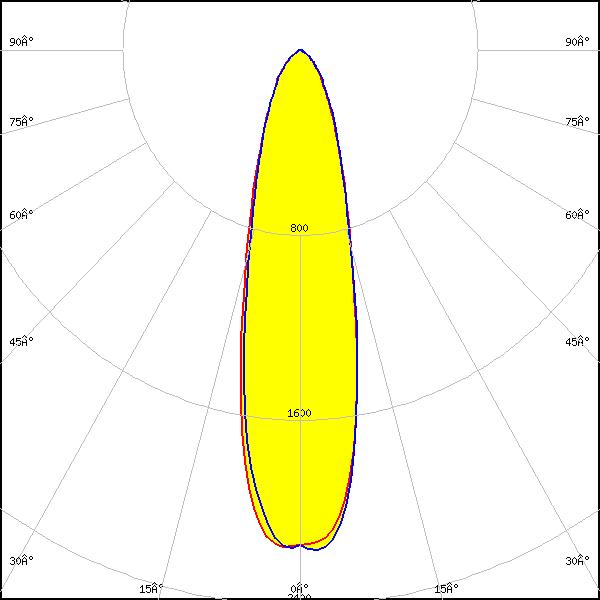

LED: Z5M1/Z5M2
FWHM: 28°
FWTM: 67°
Peak intensity: 2.190 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
