NEW STREET AND HIGH BAY BEAMS
LEDiL’s street and high bay lighting portfolio continues to grow, with several new members made from PMMA and PC.

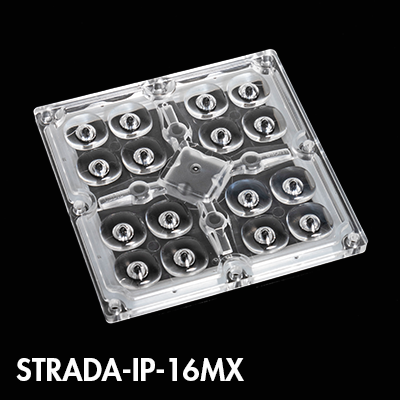

STRADA-IP-16MX-VSM, -T2-M and T3-M
The new 90 x 90 mm 16MX series is part of LEDiL’s well established MX platform. Made from PMMA, and with a silicone seal for ingress protection, the 16 lens arrays are optimized for CSP LEDs.
The IESNA Type V (VSM) beam is perfect for wide area lighting such as car parks while IESNA Type II (medium) and IESNA Type III (medium) beams offer excellent light control, illuminance uniformity and cutoff for M-class roads with their respective lighting requirements.

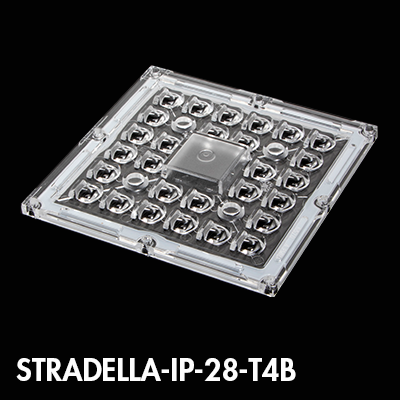

STRADELLA-IP-28-T4B and -T4B-PC
The 100 x 100 mm STRADELLA-IP-28 family gets a new street lighting beam available in both PMMA and PC. The wide IESNA Type IV forward-throw beam is suitable for wide area lighting such as car parks.

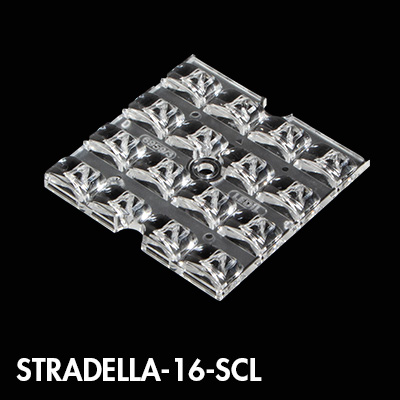

STRADELLA-16-SCL
The STRADELLA-16 family continues to expand with the addition of a 50 x 50 mm variant in PMMA and a type II/III (long) beam for very wide pole to pole distances, ideal for pedestrian walkways and residential roads.

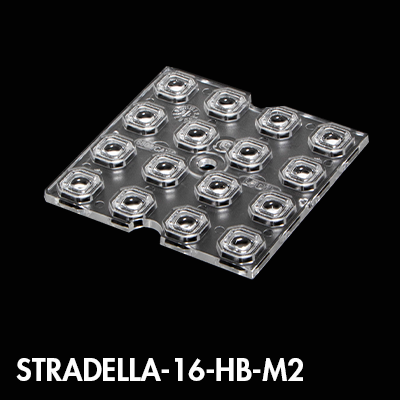

STRADELLA-16-HB-M2
Improved ~60-degree version of the 50 x 50 mm STRADELLA-16-HB-M for industrial and area lighting. This new version is made from PMMA and has excellent cutoff with low glare and less spill light.

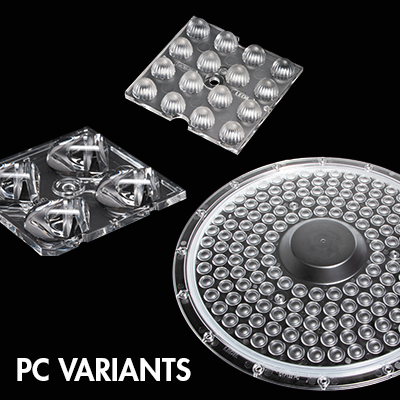

PC variants of STRADA, STRADELLA, HB and VICTORIA beams
Several STRADA-2X2, HB-2X2, STRADA-IP-2X6, HB-IP-2X6, STRADELLA and VICTORIA families now have variants made from PC.
C17027_STRADA-2X2-VSM-PC
C14928_HB-2X2-RW-PC
C16044_HB-2X2-O-PC
CS17082_STRADA-IP-2X6-VSM-PC
CS17088_HB-IP-2X6-RS-PC
CS17090_HB-IP-2X6-M-PC
CS17147_HB-IP-2X6-G2-WWW-PC
C16045_STRADELLA-8-T1-A-PC
C16038_STRADELLA-8-T2-PC
C16039_STRADELLA-8-T3-PC
C16043_STRADELLA-8-SCL-PC
C16040_STRADELLA-8-HB-S-PC
C16041_STRADELLA-8-HB-M-PC
C16042_STRADELLA-8-HB-W-PC
CS17134_VICTORIA-IP-WWW-PC
CS16981_VICTORIA-IP-W-PC
