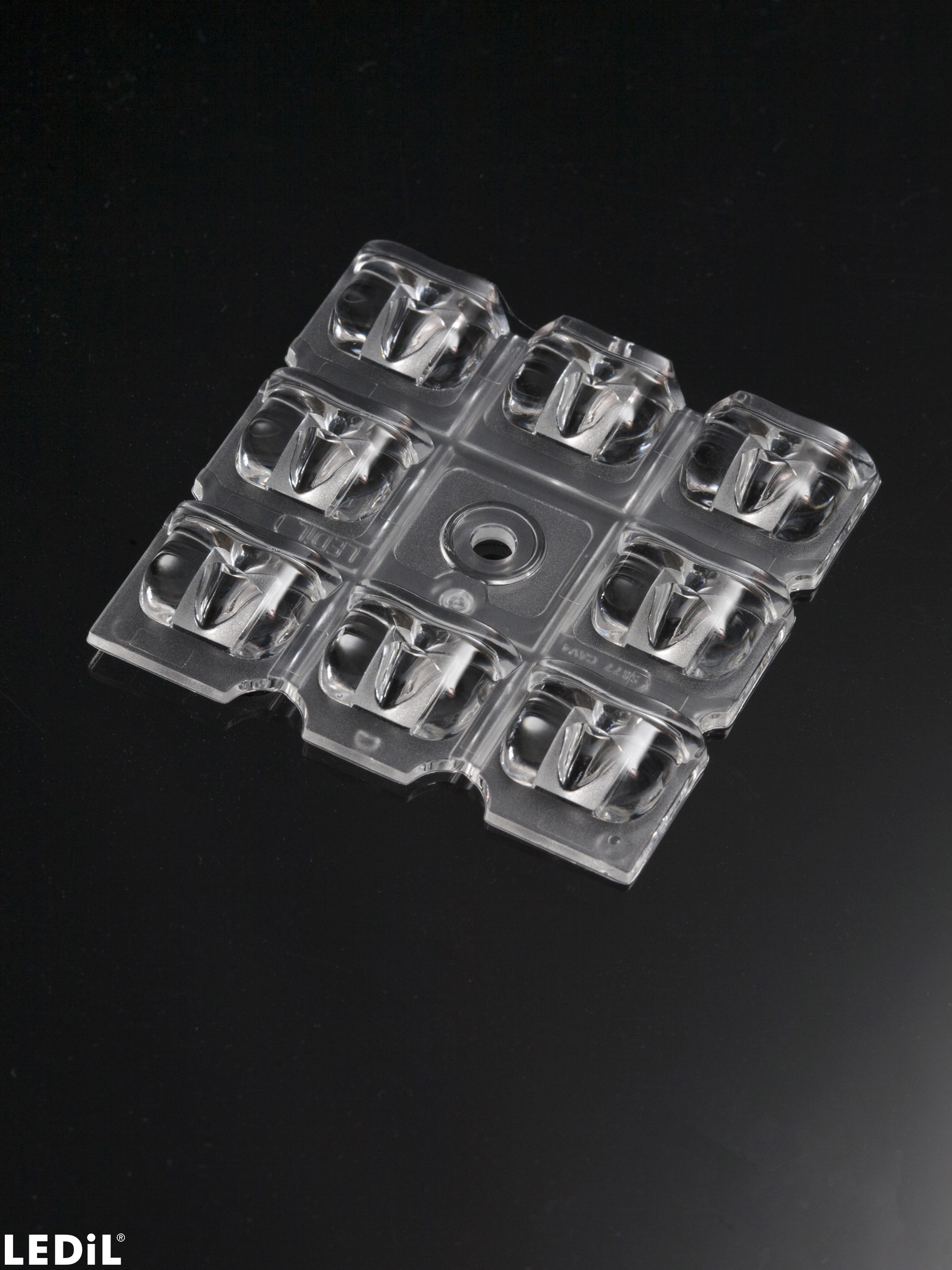

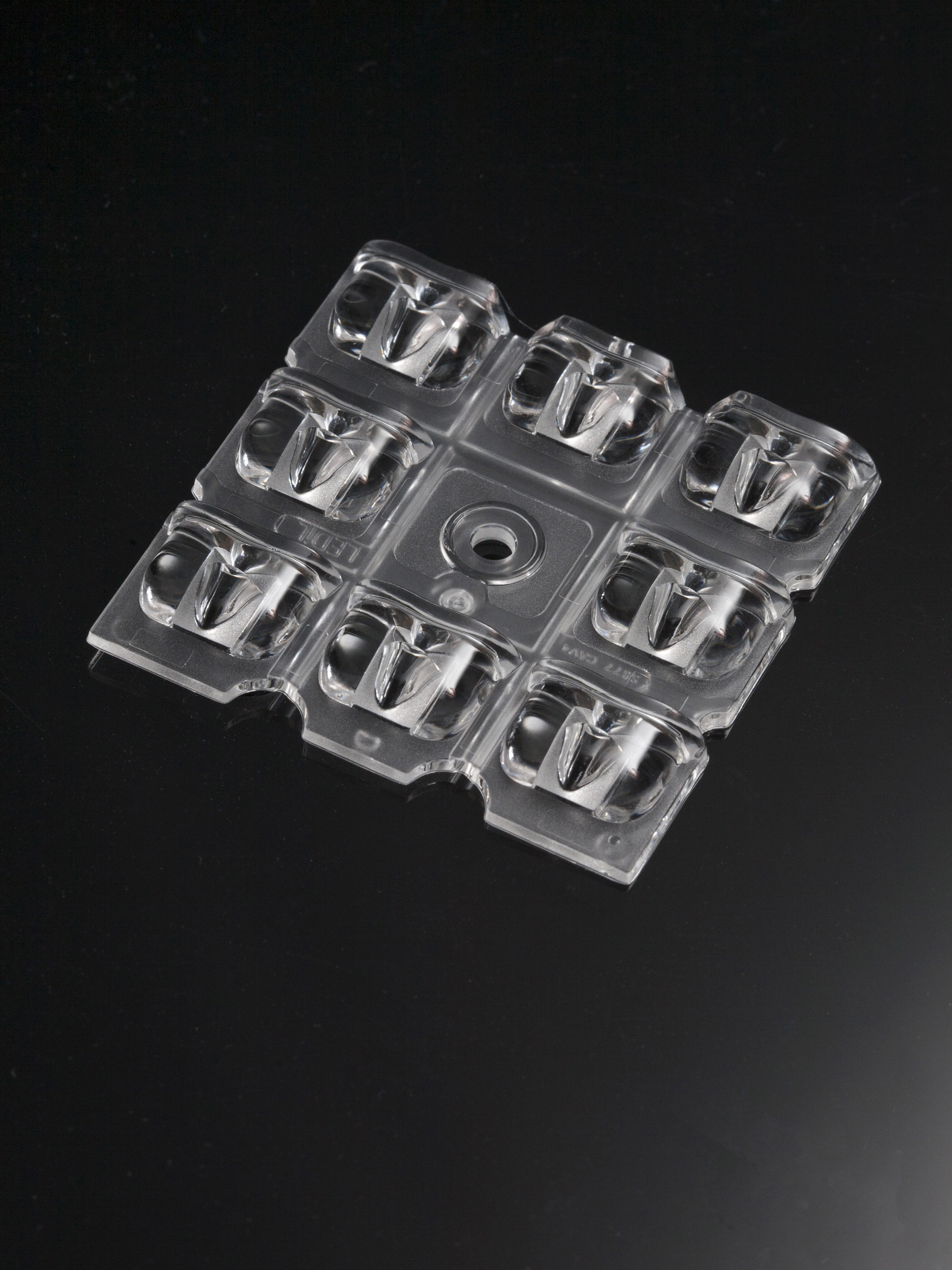

C16043_STRADELLA-8-SCL-PC

Print

Type II/III (long) beam for very wide pole to pole distances. Ideal for pedestrian walkways and residential roads. EN13201 P-classes.Variant made from PC.

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    5.40 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    476 x 273 x 292 mm
  • Box weight:
    6.2 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.4 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C16043_STRADELLA-8-SCL-PC

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

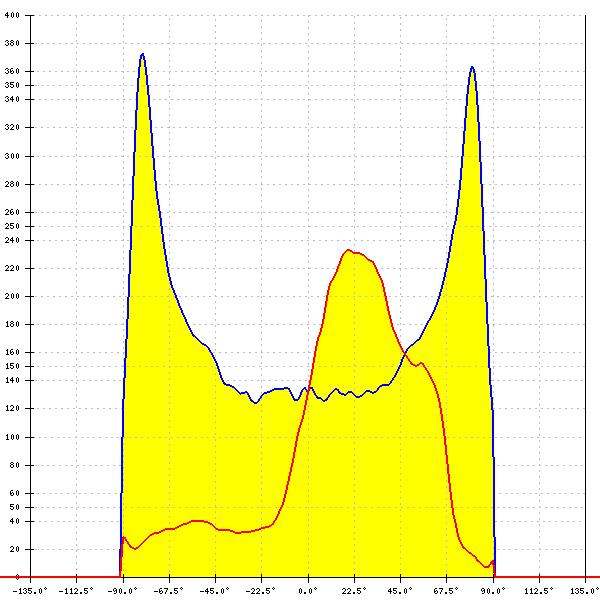

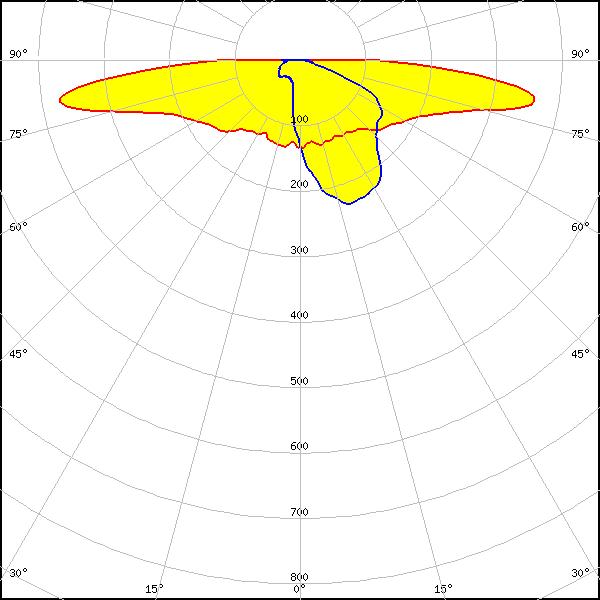

LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.533 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: XT-E
FWHM: asymmetric
Peak intensity: 0.740 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

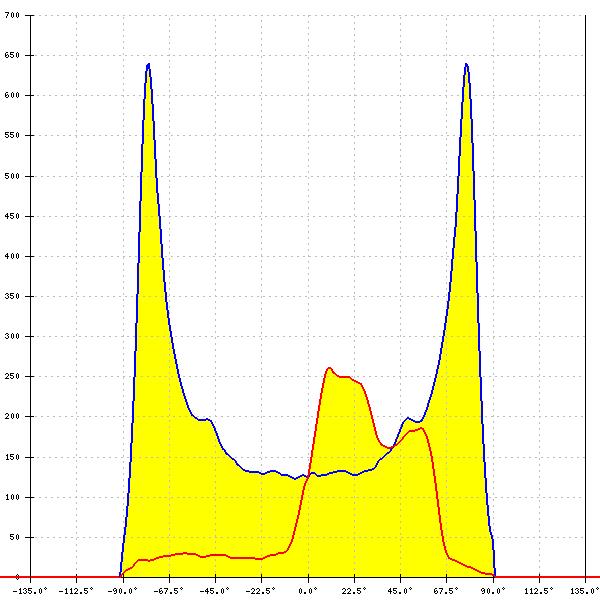

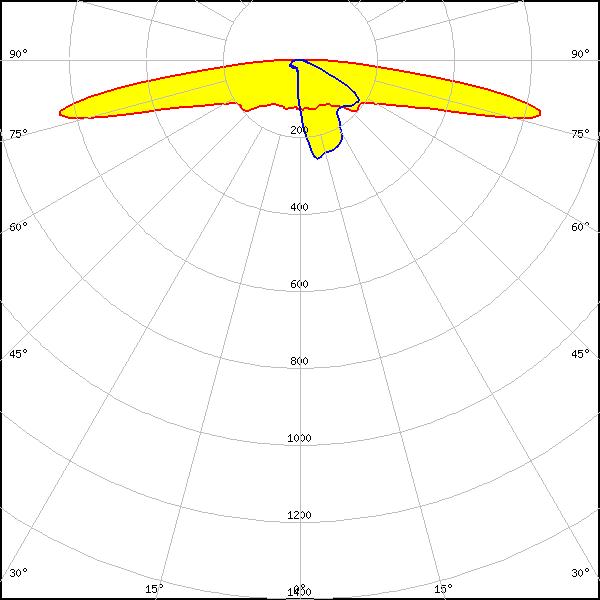

LED: OSCONIQ C 2424
FWHM: asymmetric
Peak intensity: 0.894 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour/type: White

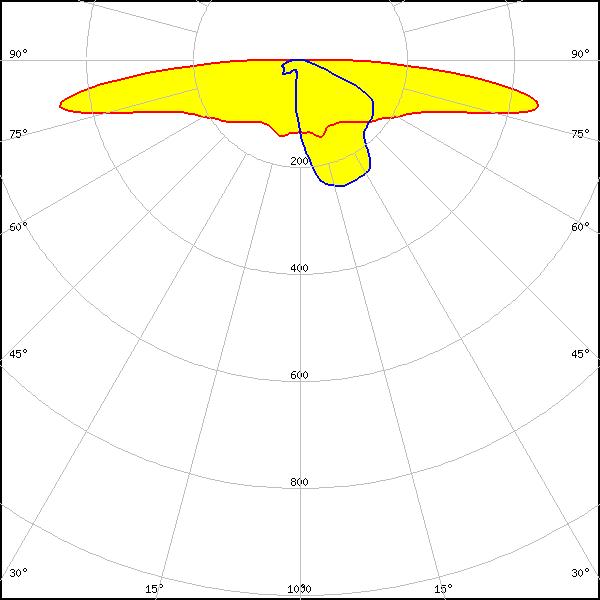

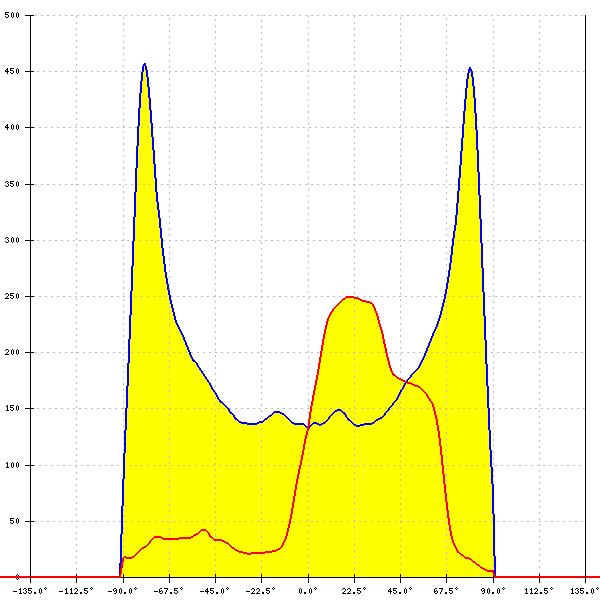

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.617 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
