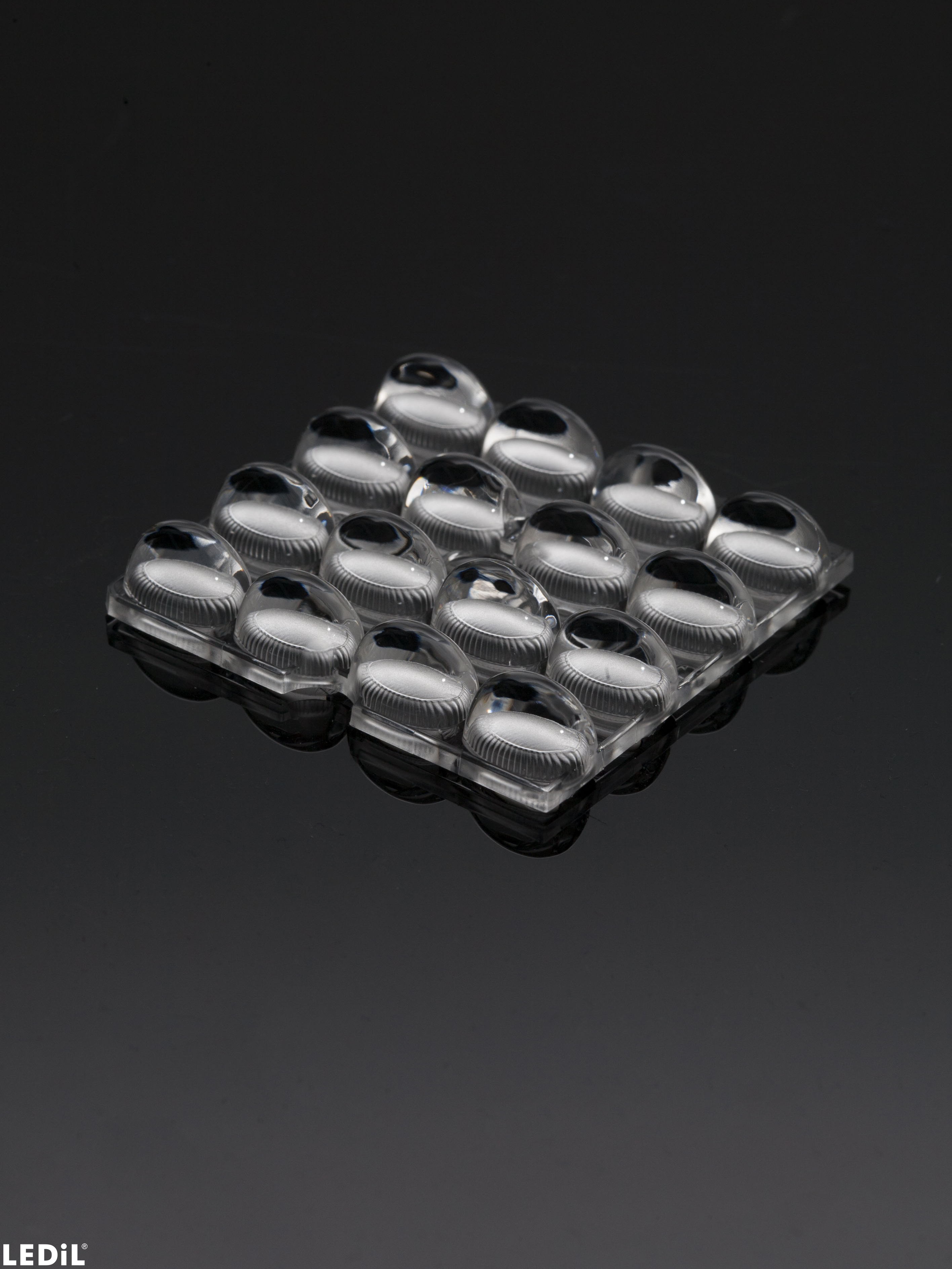

    C16156_STRADELLA-16-HB-O

    Print

    Oval beam for high bay aisles

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      8.28 mm
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      476 x 273 x 292 mm
    • Box weight:
      8.3 kg
    • MPQ:
      160 pcs
    • MOQ weight:
      0.0 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C16156_STRADELLA-16-HB-O
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Reference product

    E+ AVIS lighting series

    News

    PRODUCT NEWS - STRADELLA-16

    Application guide

    Guide for Street lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    News

    PRODUCT NEWS - STRADELLA FAMILY

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

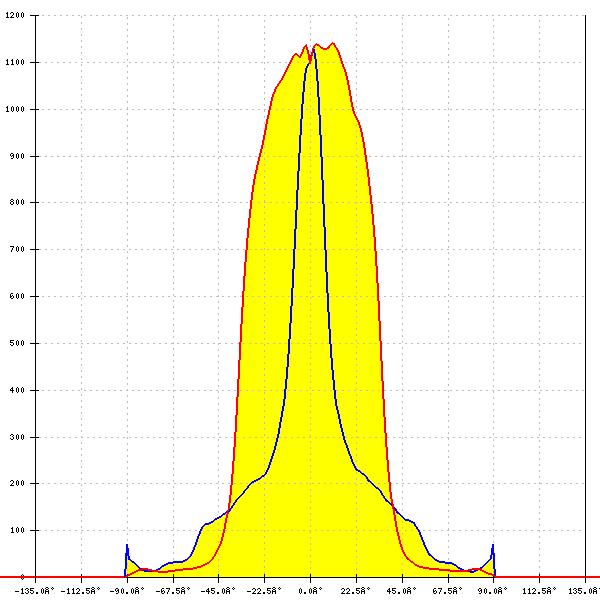

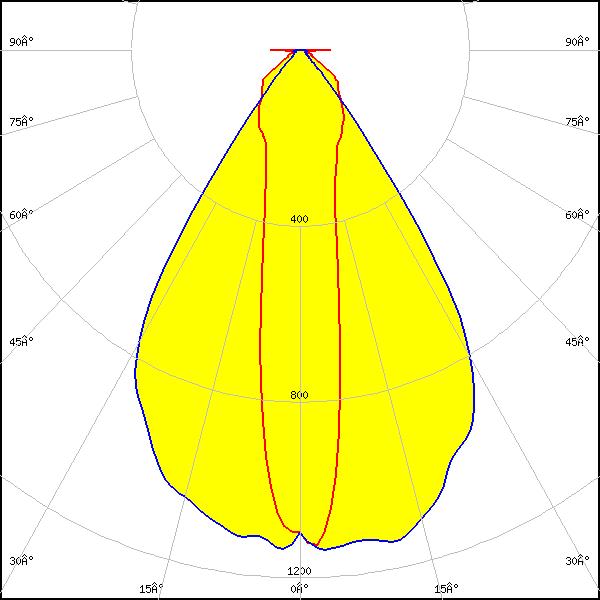

    Optical results

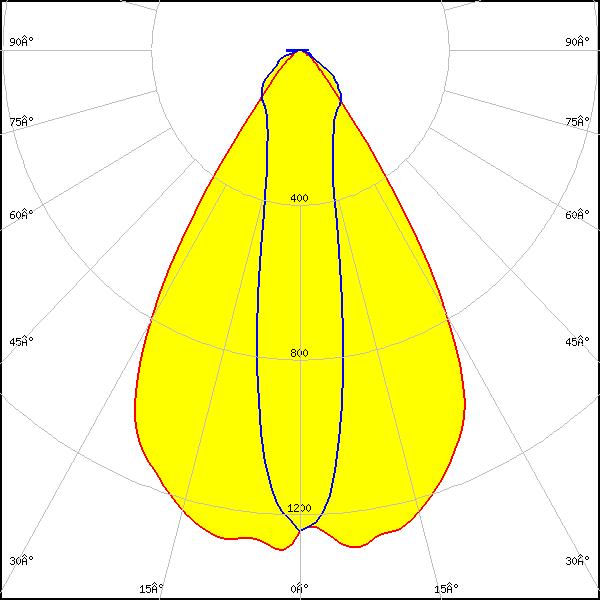

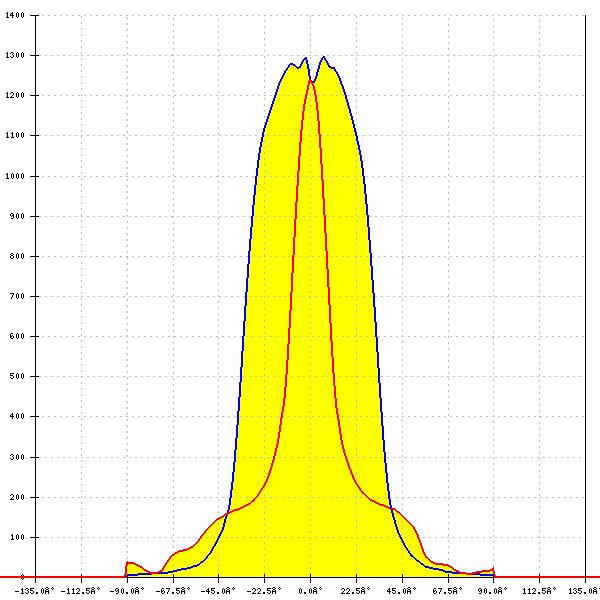

    LED: Bridgelux SMD 2835
    FWHM: 64° + 20°
    FWTM: 84° + 101°
    Peak intensity: 1.298 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

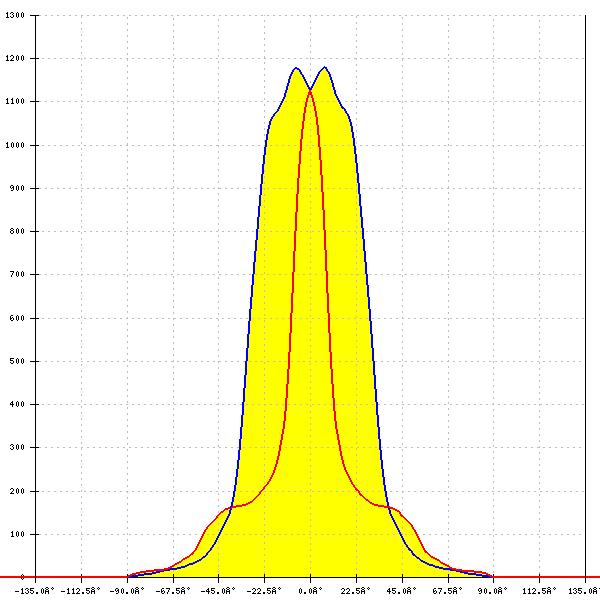

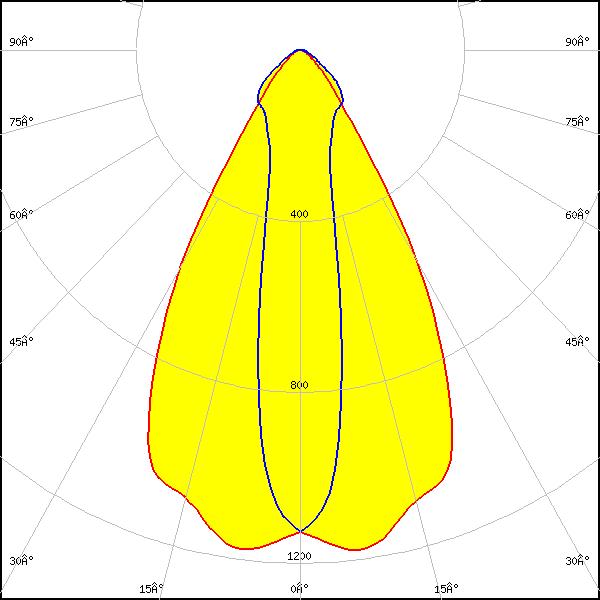

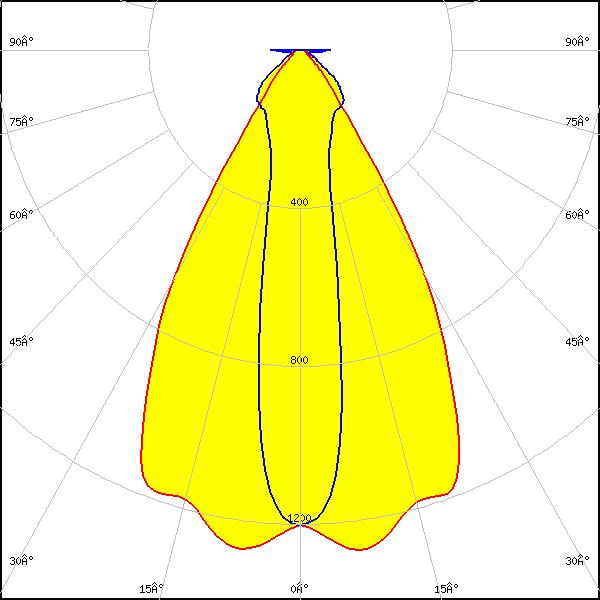

    LED: CSP 2727 (BXCP)
    FWHM: 60° + 20°
    FWTM: 82° + 102°
    Peak intensity: 1.279 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: CSP 2727 (BXCP)
    FWHM: 60° + 20°
    FWTM: 84° + 102°
    Peak intensity: 1.182 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

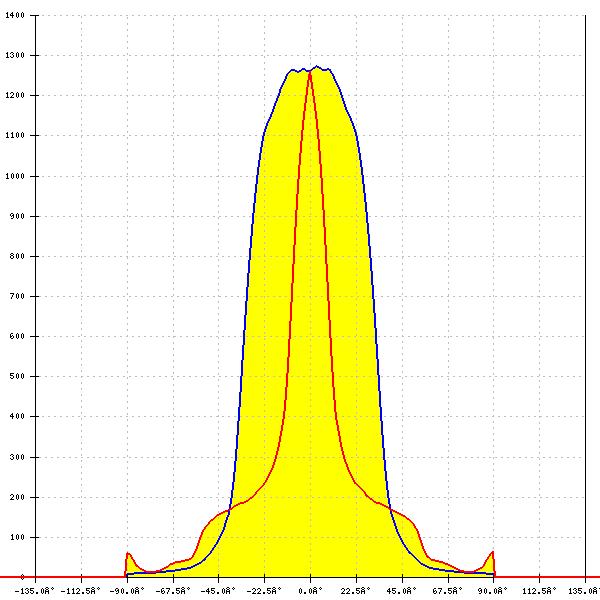

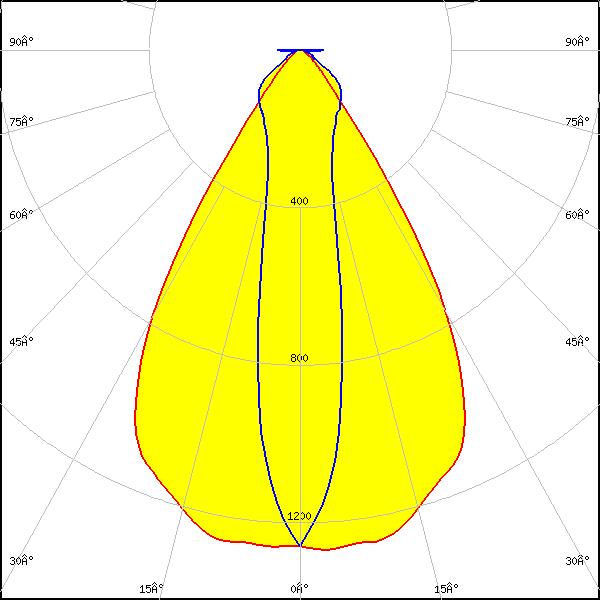

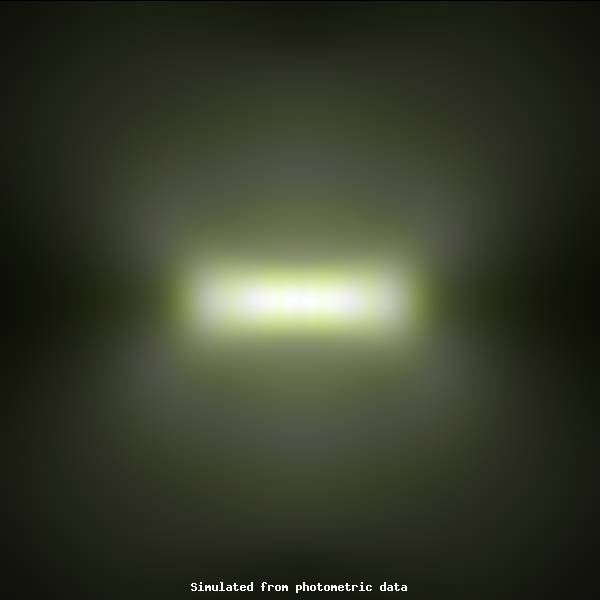

    LED: J Series 3030C
    FWHM: 64° + 20°
    FWTM: 84° + 102°
    Peak intensity: 1.280 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

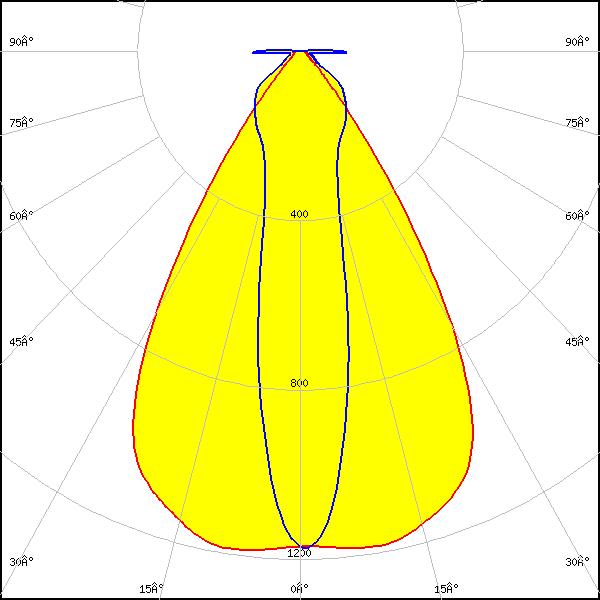

    LED: JB3030 HE B Class
    FWHM: 64° + 21°
    FWTM: 85° + 140°
    Peak intensity: 1.190 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

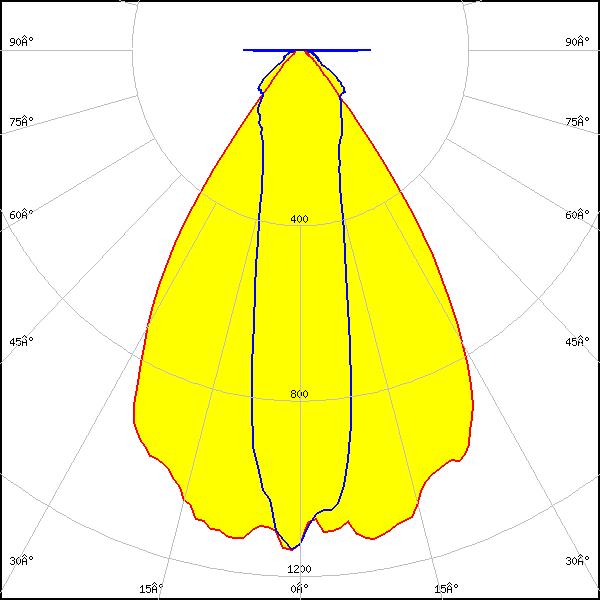

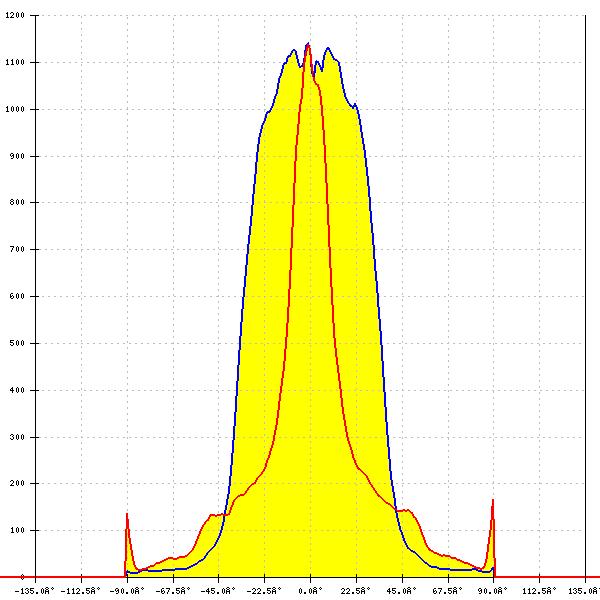

    LED: XHP35 HI
    FWHM: 67° + 22°
    FWTM: 86° + 105°
    Peak intensity: 1.100 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

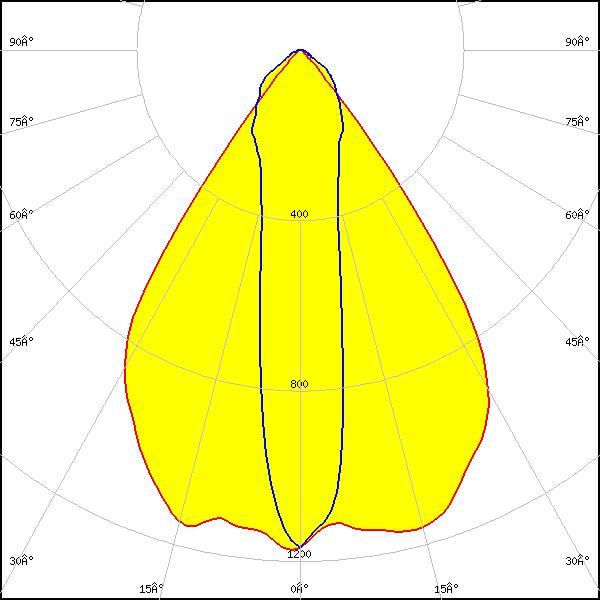

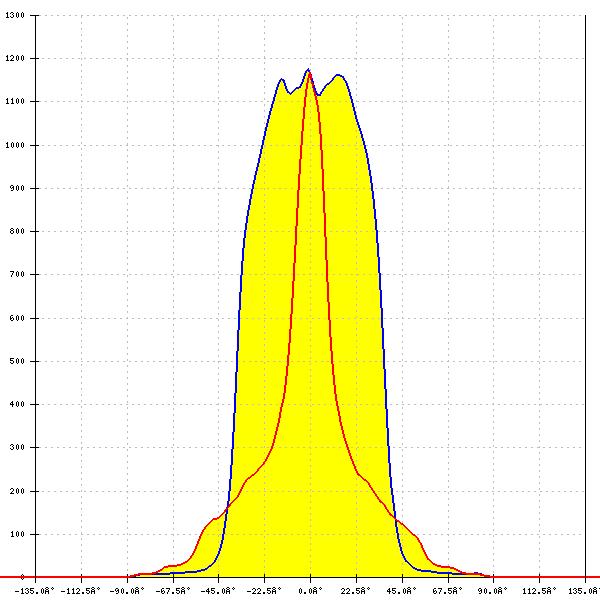

    LED: XP-G2
    FWHM: 71° + 20°
    FWTM: -1° + -1°
    Peak intensity: 1.200 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

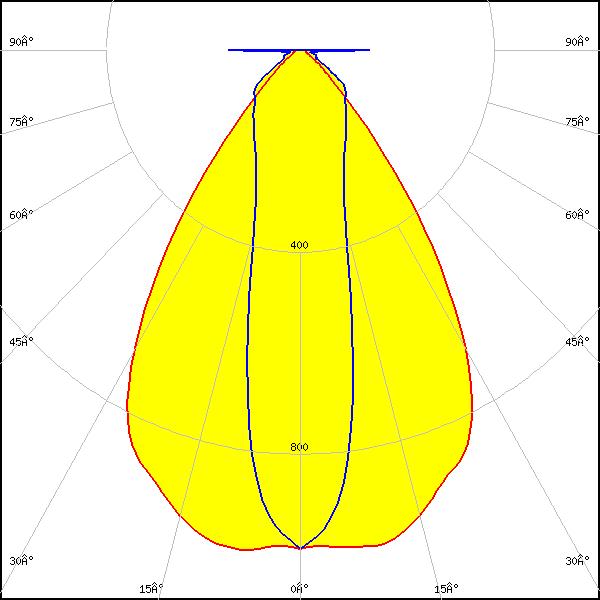

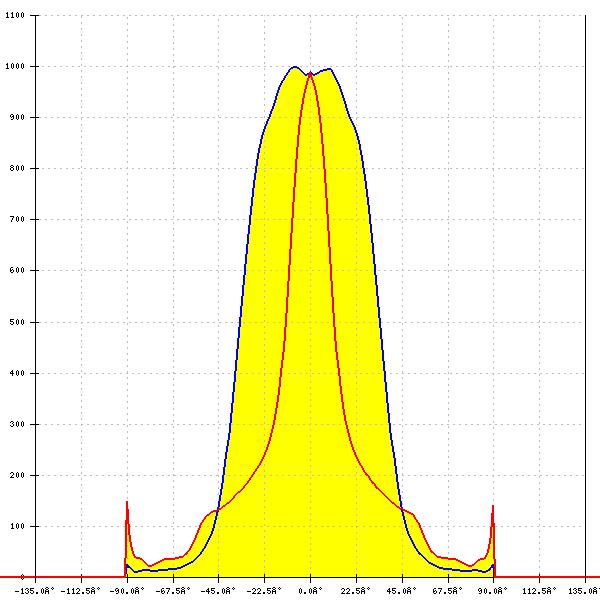

    LED: XP-G2 HE
    FWHM: 69° + 24°
    FWTM: 94° + 180°
    Peak intensity: 0.998 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

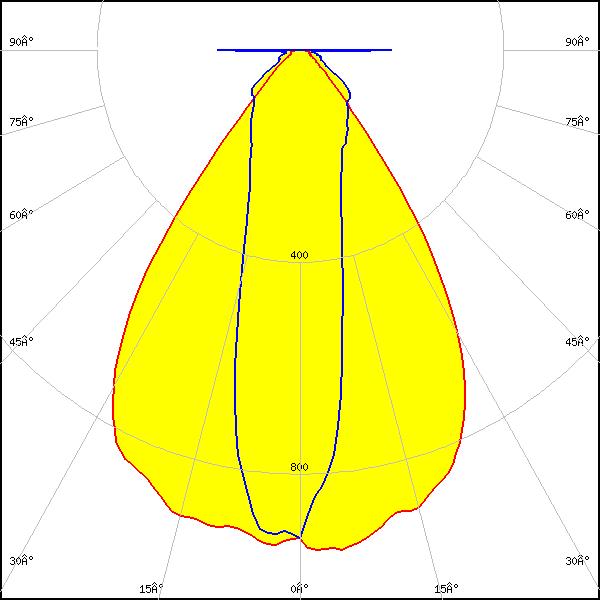

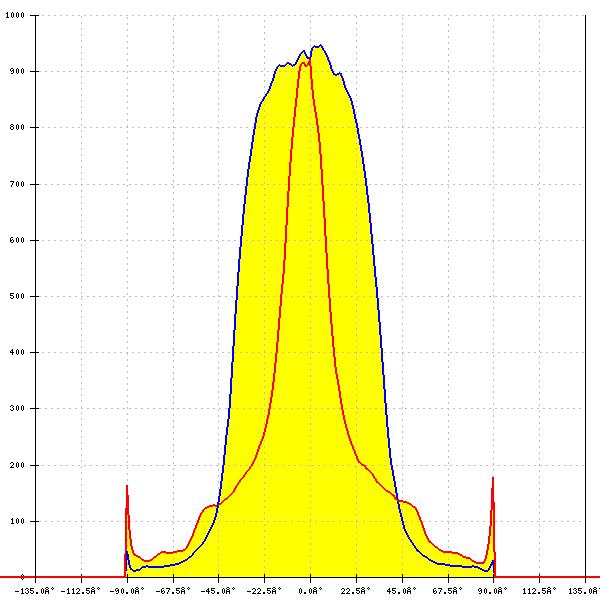

    LED: XP-G3
    FWHM: 70° + 25°
    FWTM: 93° + 111°
    Peak intensity: 0.960 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XT-E
    FWHM: 67° + 18°
    FWTM: 83° + 102°
    Peak intensity: 1.156 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

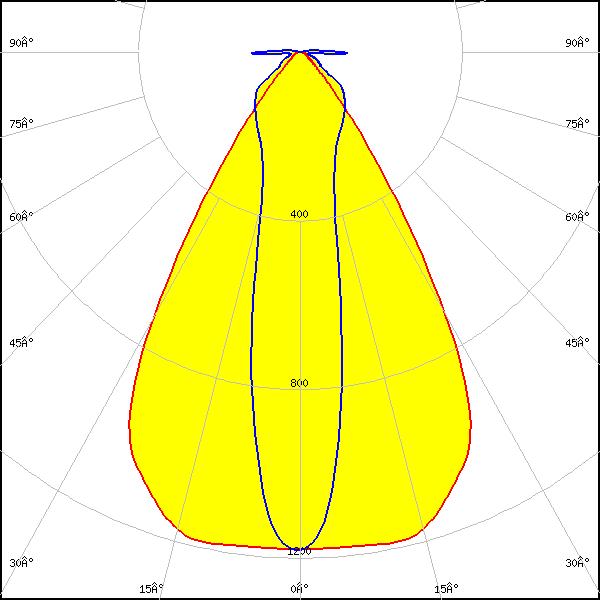

    LED: EHP-223.5x50-1604-xx-70-LS30-06-NTC
    FWHM: 64° + 20°
    FWTM: 85° + 140°
    Peak intensity: 1.189 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White

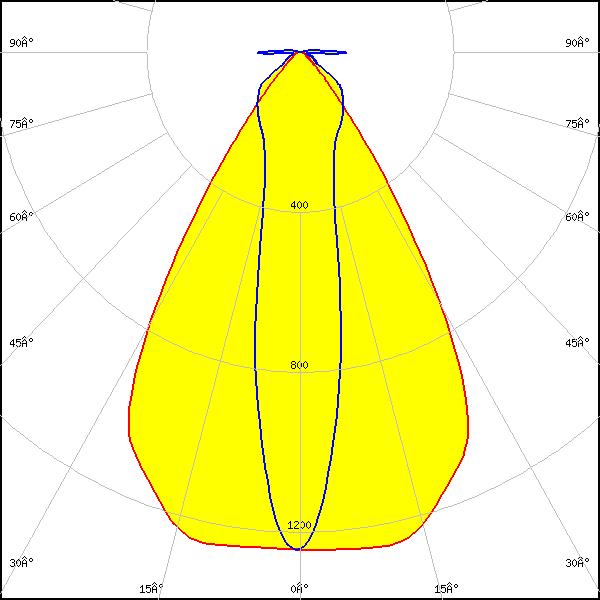

    LED: PrevaLED Brick MP 4x16
    FWHM: 64° + 20°
    FWTM: 85° + 103°
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

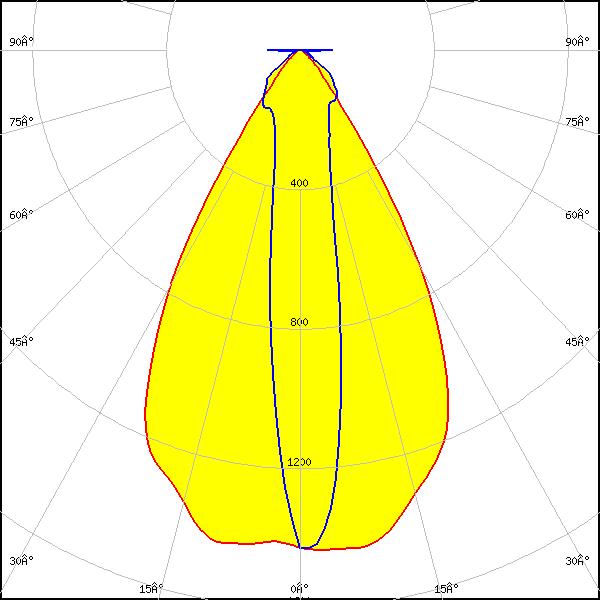

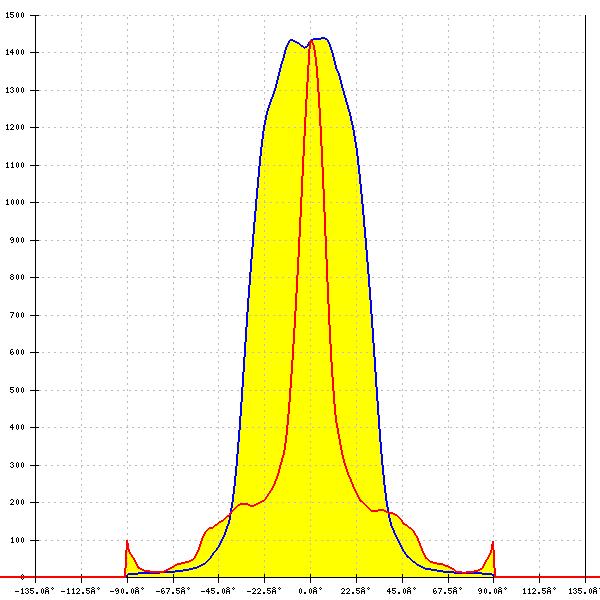

    LED: LUXEON 3030 2D (Round LES)
    FWHM: 50° + 16°
    FWTM: 80° + 89°
    Peak intensity: 1.500 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

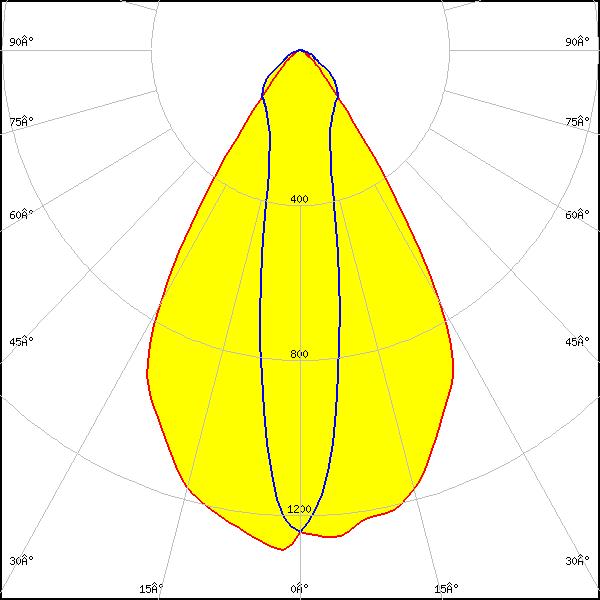

    LED: LUXEON 3535L HE PLUS
    FWHM: 64° + 20°
    FWTM: 84° + 97°
    Peak intensity: 1.290 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

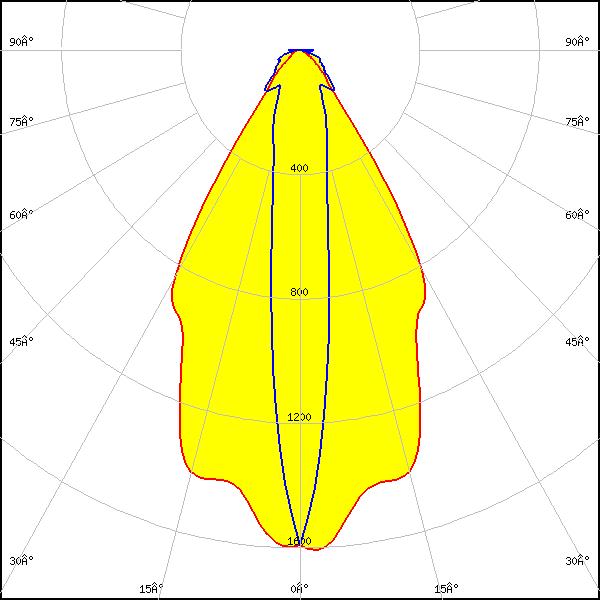

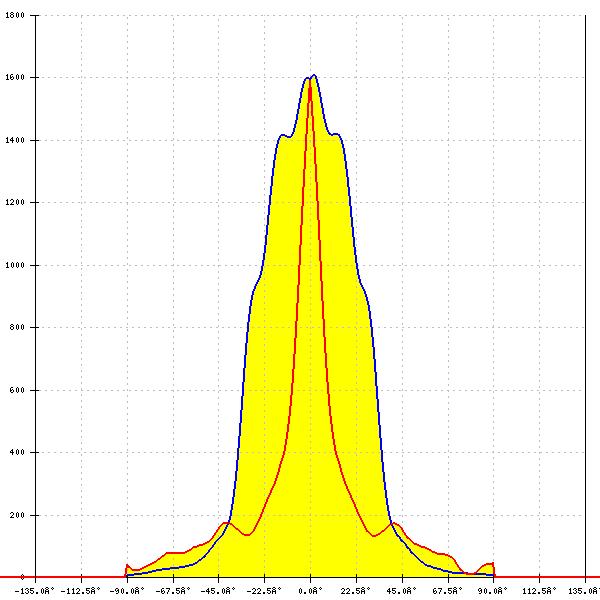

    LED: LUXEON CZ
    FWHM: 60° + 14°
    FWTM: 81° + 88°
    Peak intensity: 1.600 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

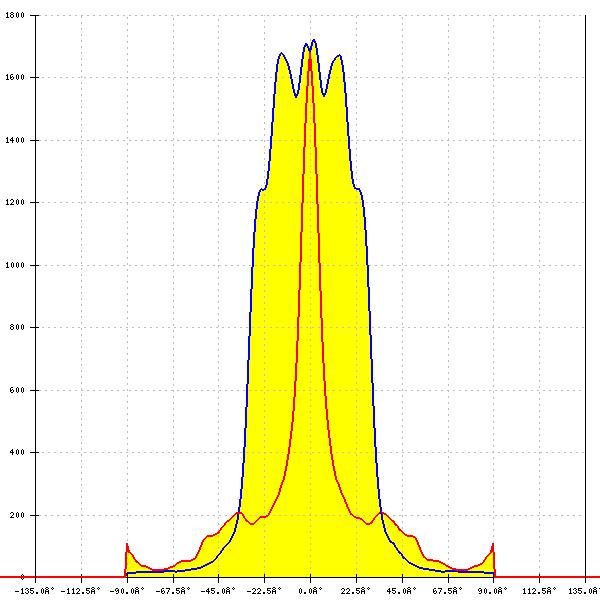

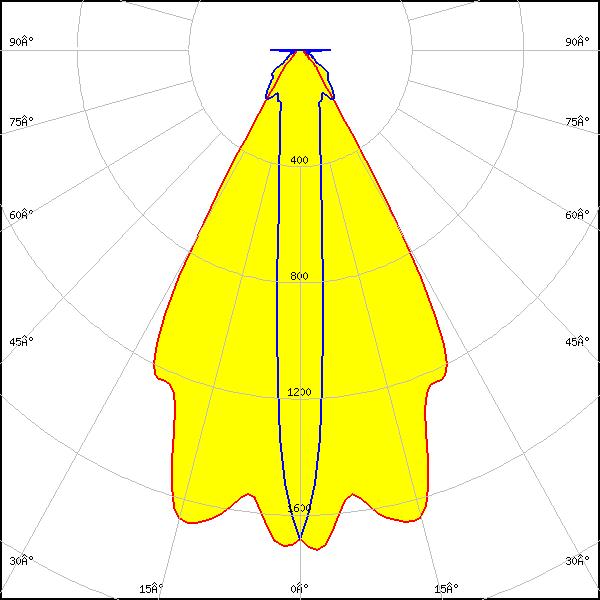

    LED: LUXEON HL1Z
    FWHM: 58° + 12°
    FWTM: 72° + 84°
    Peak intensity: 1.724 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

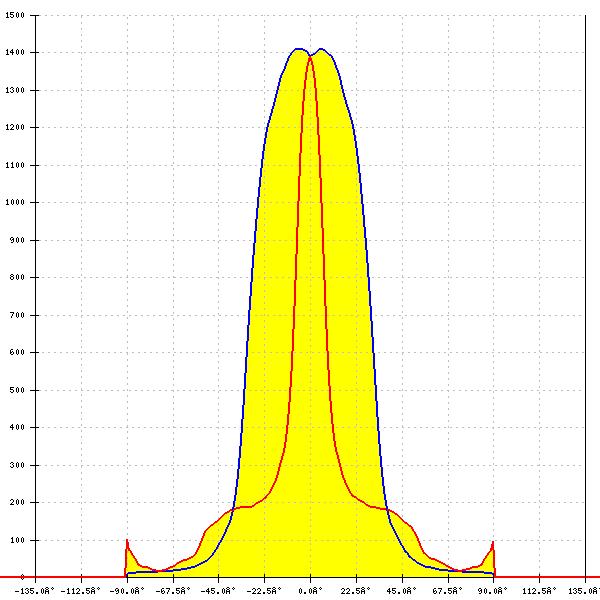

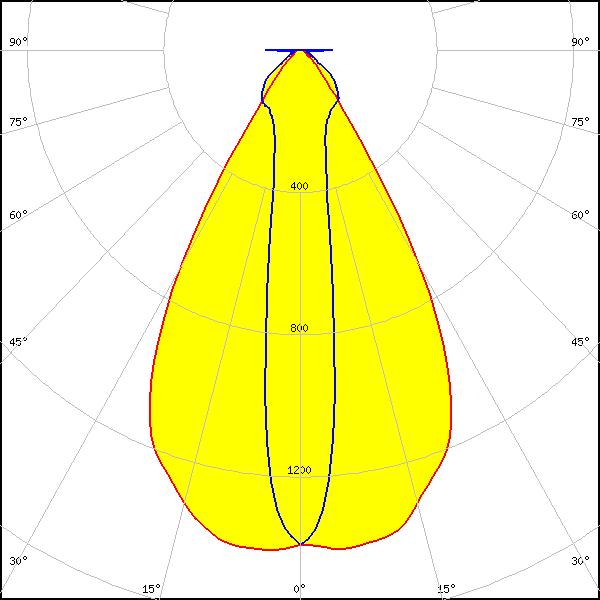

    LED: LUXEON HL2Z
    FWHM: 60° + 16°
    FWTM: 80° + 96°
    Peak intensity: 1.410 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

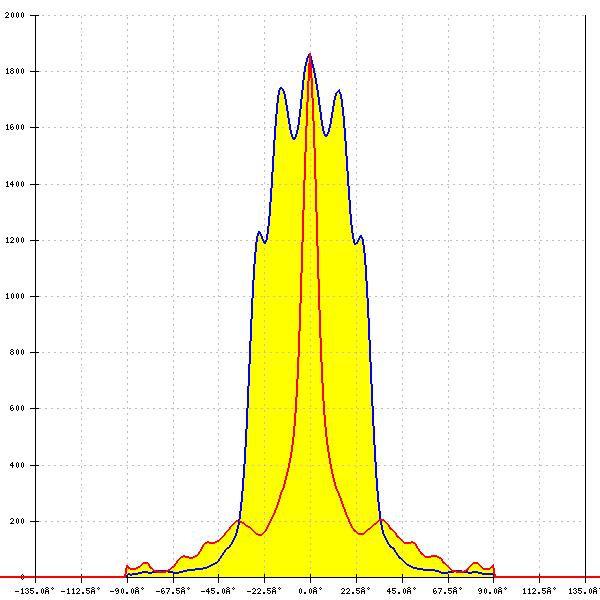

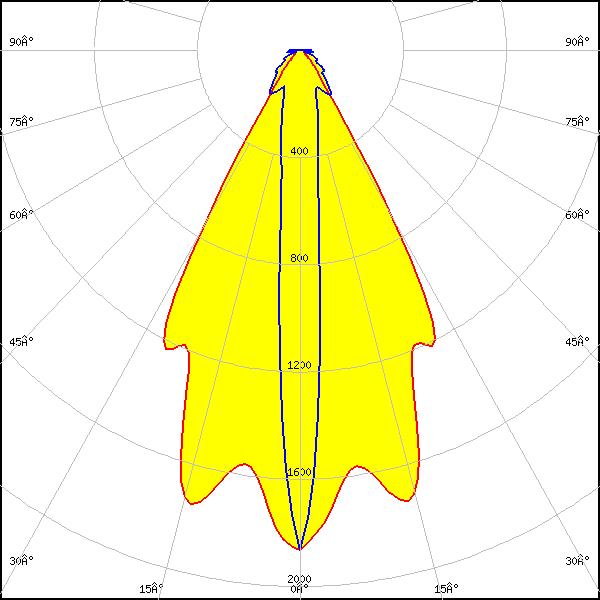

    LED: NFSWE11A
    FWHM: 58° + 10°
    FWTM: 70° + 76°
    Peak intensity: 1.866 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

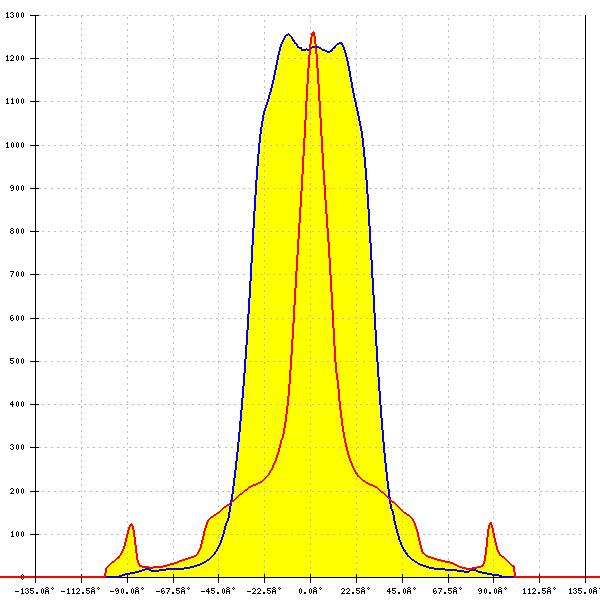

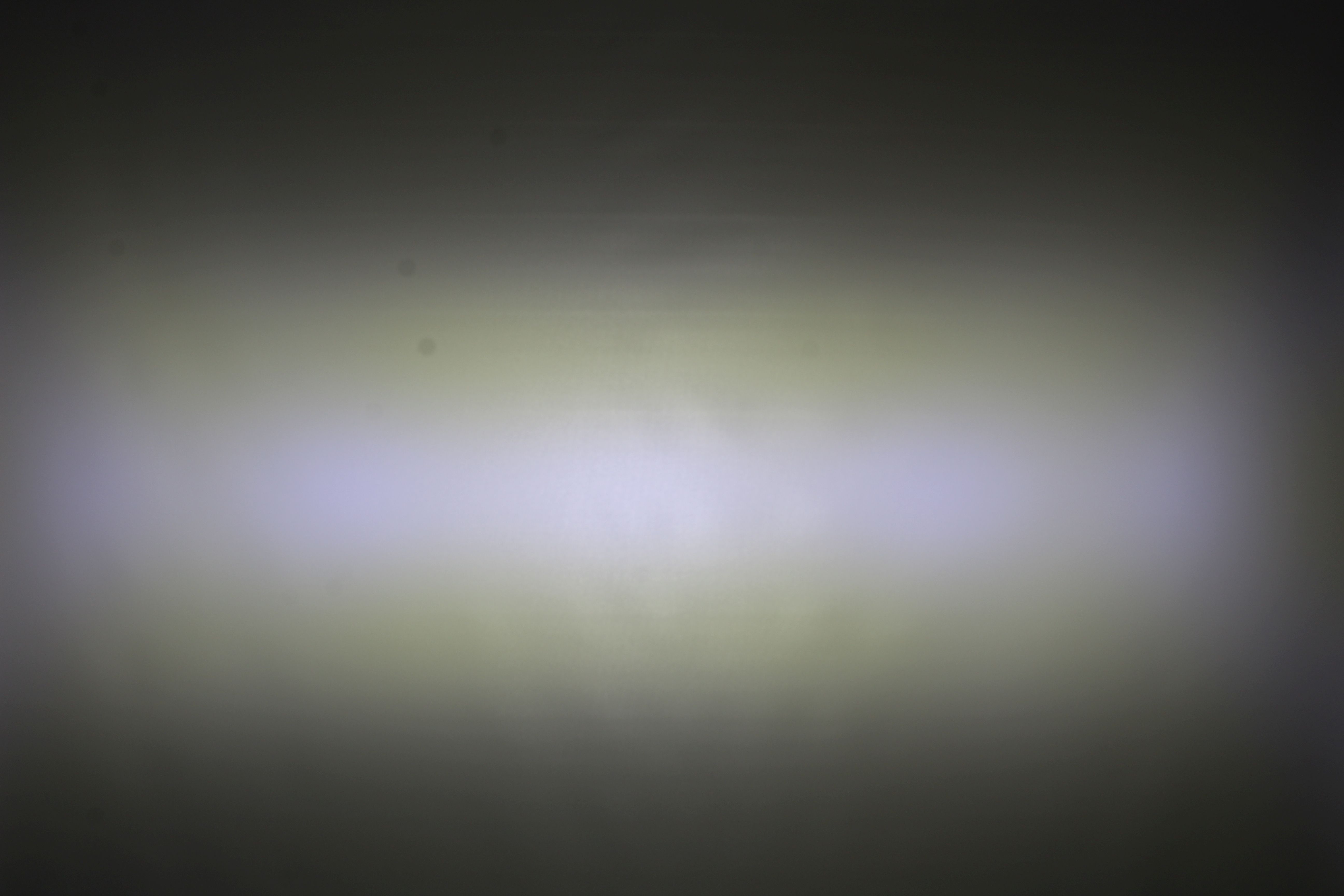

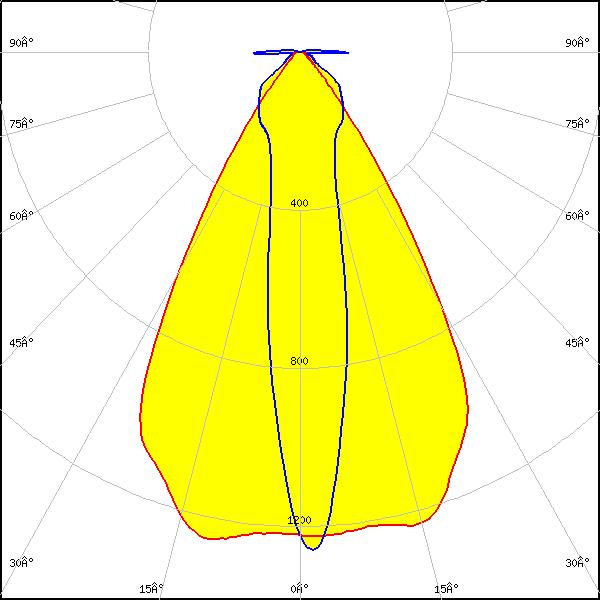

    LED: NFSx757D
    FWHM: 62° + 19°
    FWTM: 83° + 102°
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

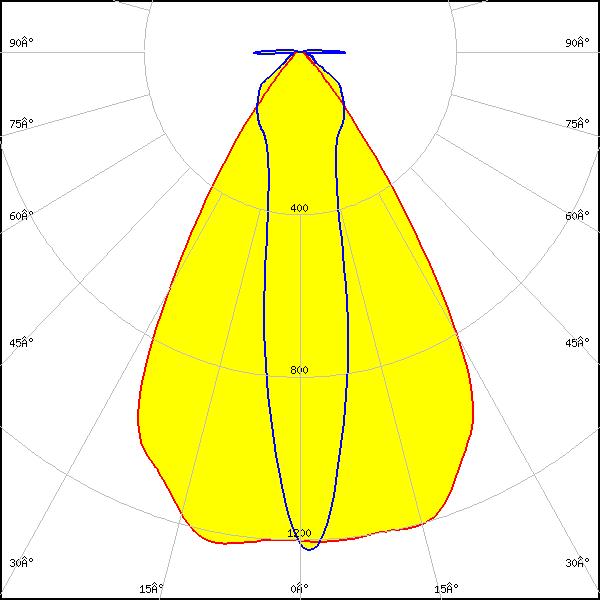

    LED: NFSx757G
    FWHM: 63° + 20°
    FWTM: 84° + 103°
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

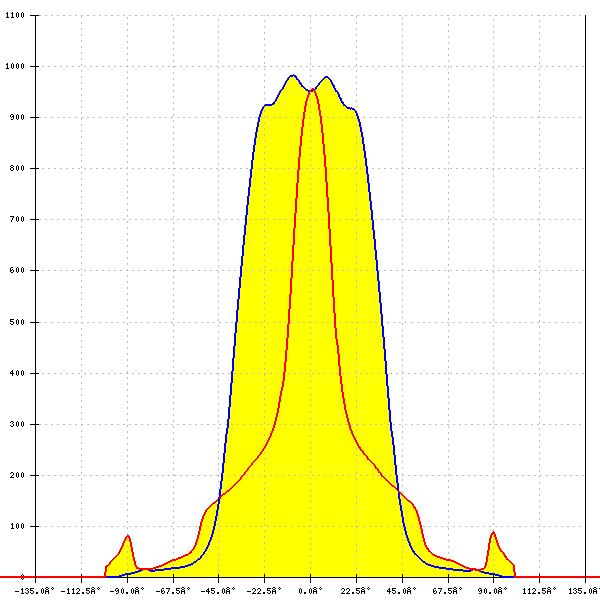

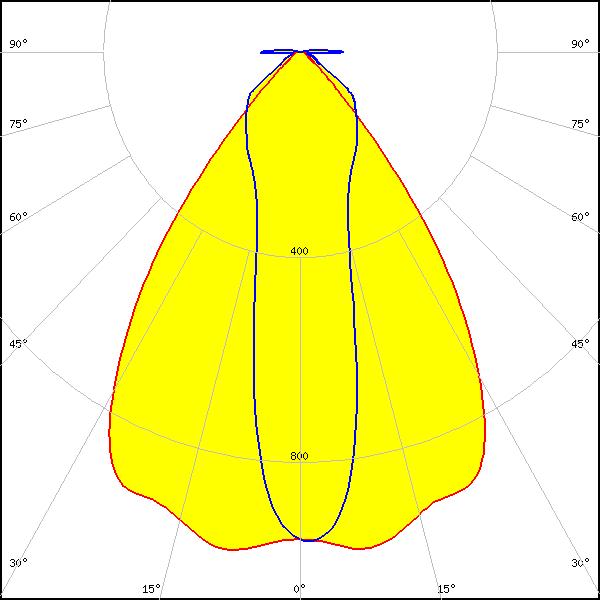

    LED: NVSW319B
    FWHM: 72° + 24°
    FWTM: 93° + 109°
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

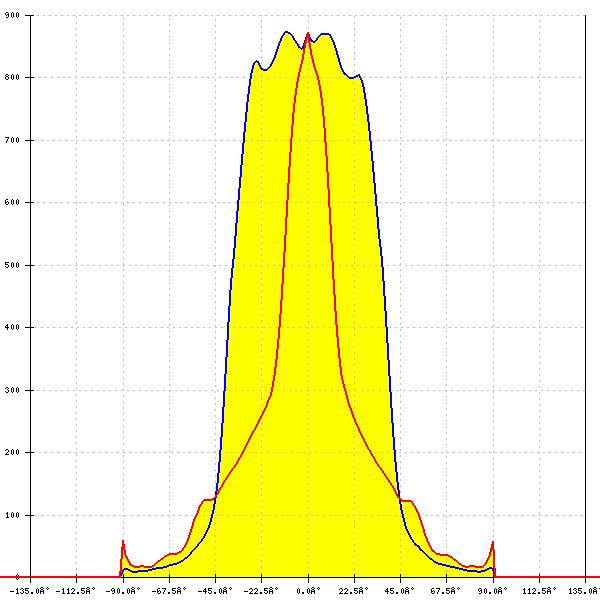

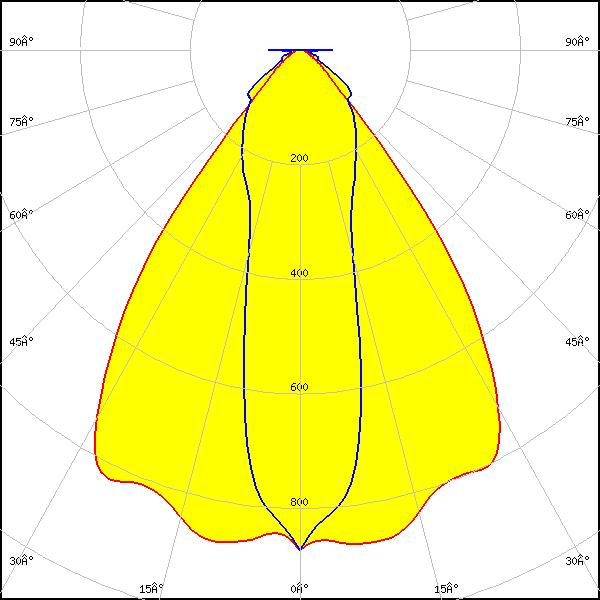

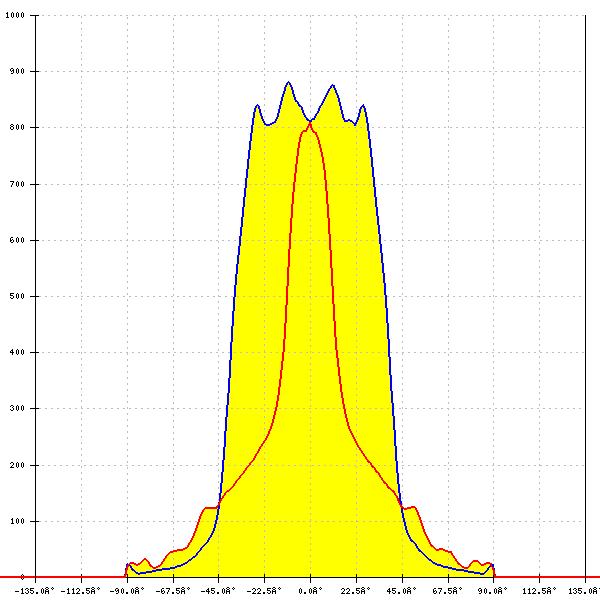

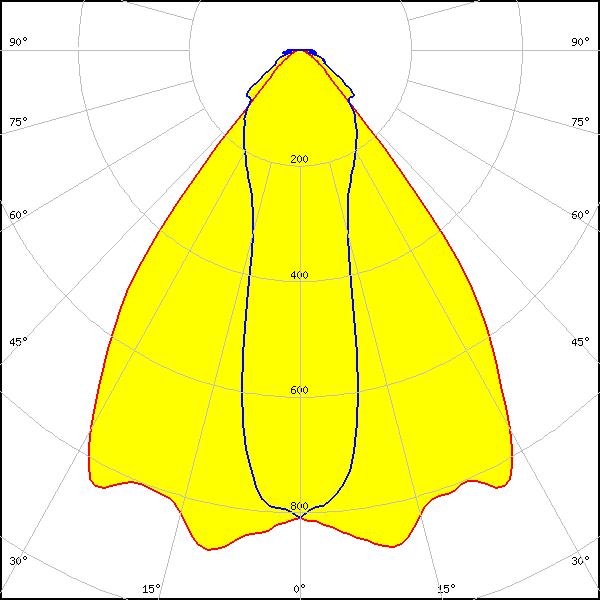

    LED: NVSW519A
    FWHM: 76° + 27°
    FWTM: 94° + 110°
    Peak intensity: 0.873 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

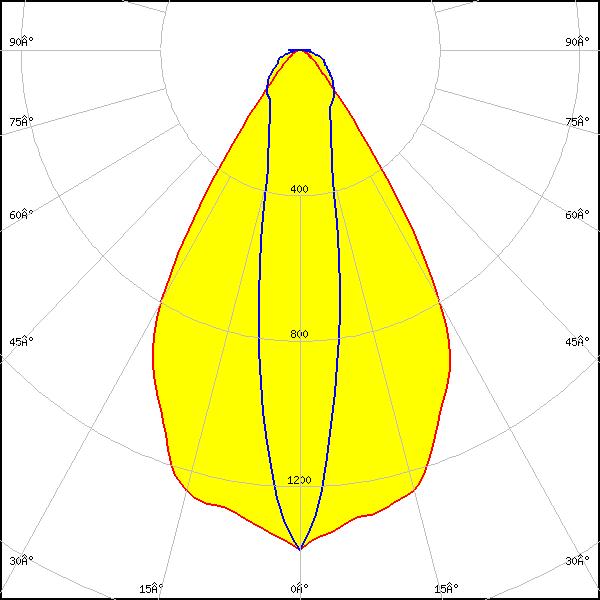

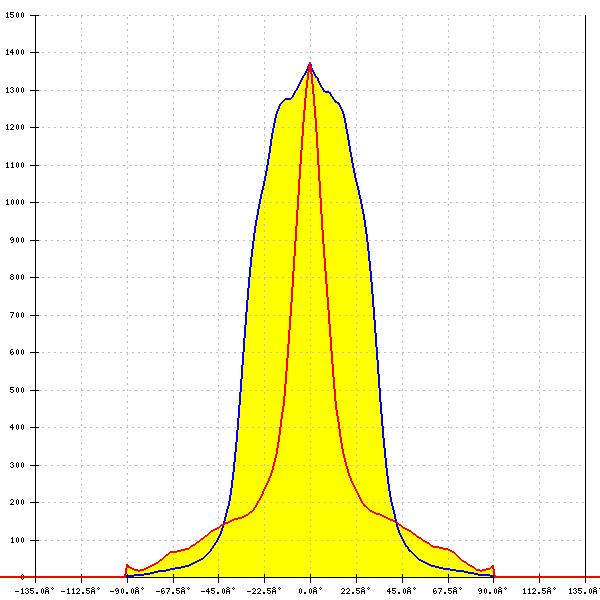

    LED: Duris E5
    FWHM: 20° + 63°
    FWTM: 85° + 88°
    Peak intensity: 1.390 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

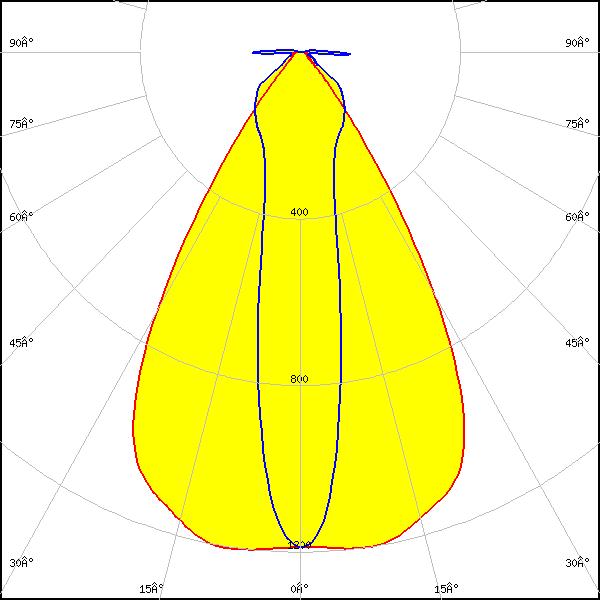

    LED: DURIS S5 (2 chip)
    FWHM: 63° + 20°
    FWTM: 84° + 177°
    Peak intensity: 1.205 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Purple

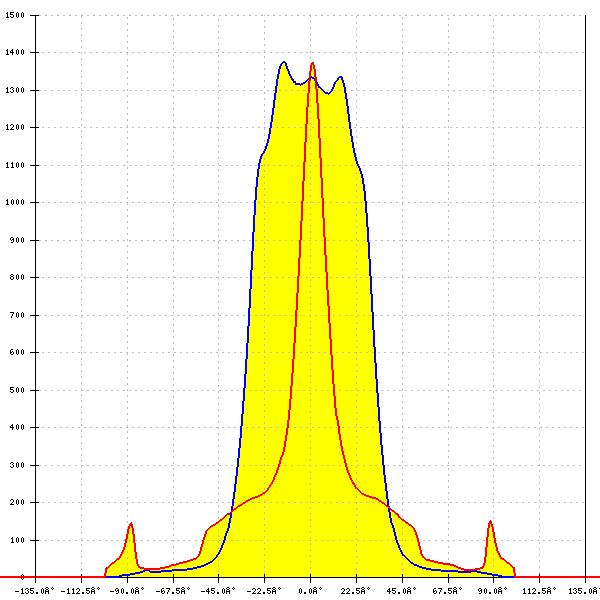

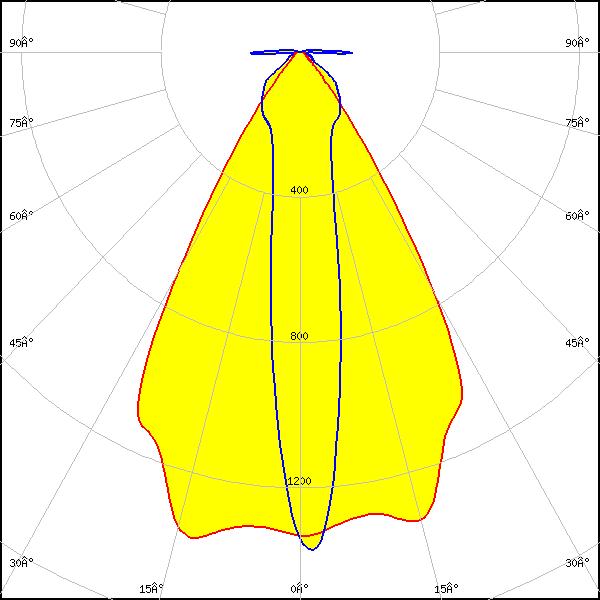

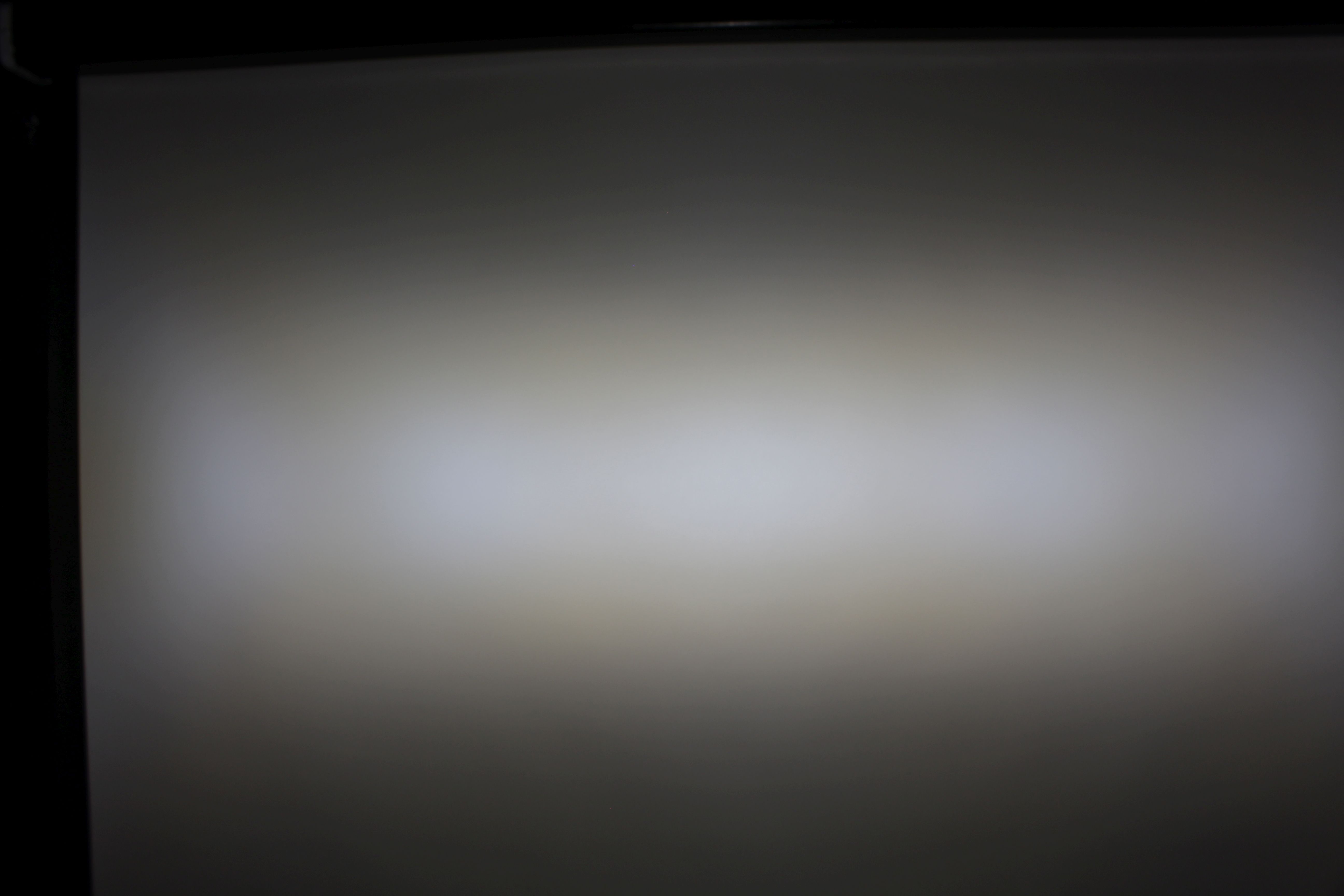

    LED: DURIS S5 (Single chip)
    FWHM: 62° + 17°
    FWTM: 81° + 178°
    Peak intensity: 1.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

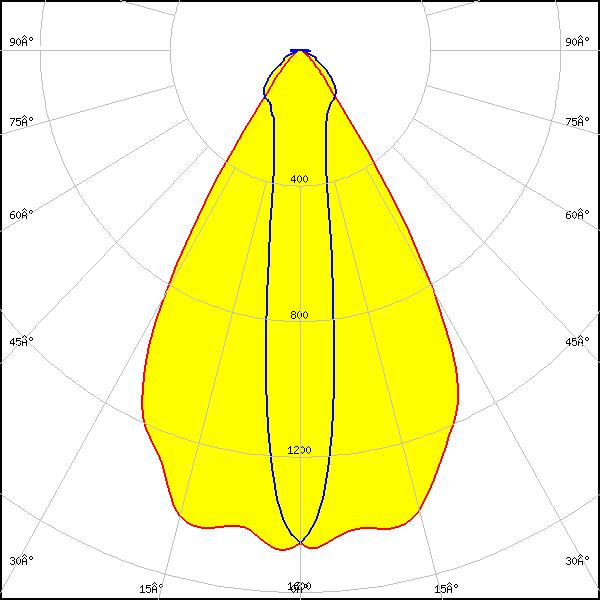

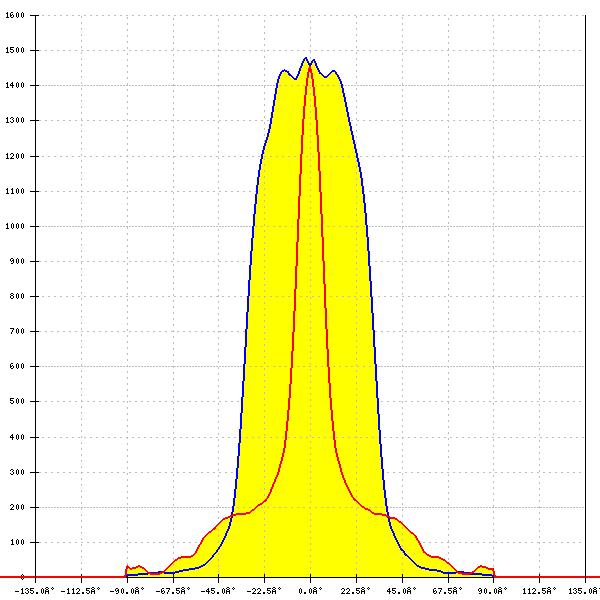

    LED: OSCONIQ C 2424 Gen1
    FWHM: 62° + 16°
    FWTM: 80° + 92°
    Peak intensity: 1.494 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

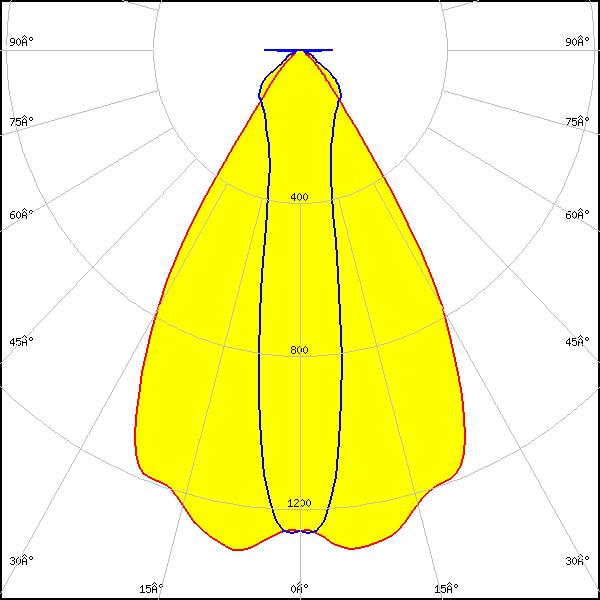

    LED: OSCONIQ C 3030
    FWHM: 64° + 20°
    FWTM: 82° + 102°
    Peak intensity: 1.319 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ C 3030
    FWHM: 62° + 20°
    FWTM: 84° + 100°
    Peak intensity: 1.216 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

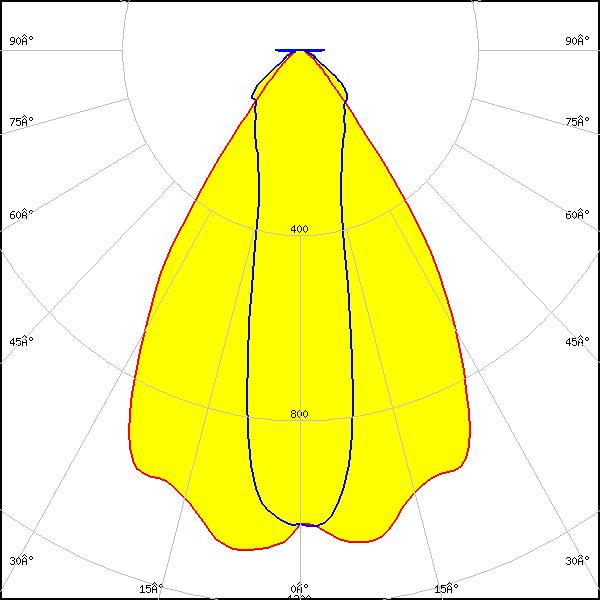

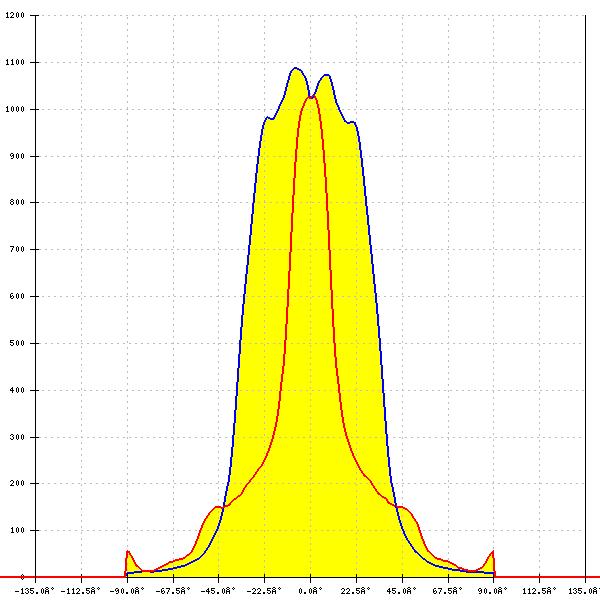

    LED: OSCONIQ P 3737 (3W version)
    FWHM: 68° + 24°
    FWTM: 90° + 108°
    Peak intensity: 1.089 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

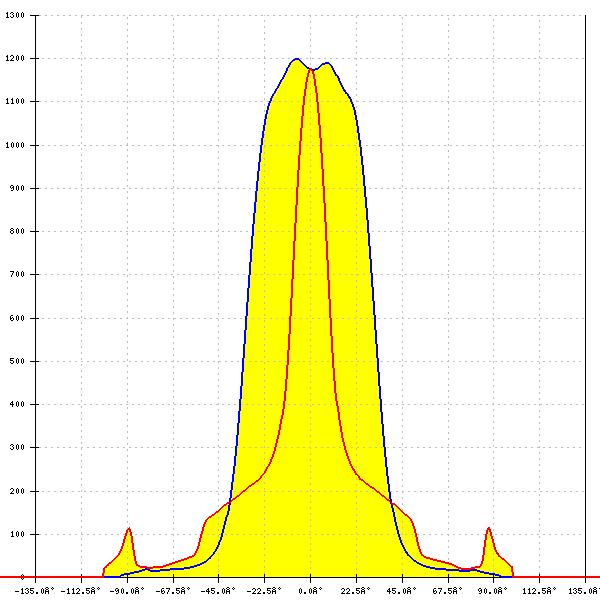

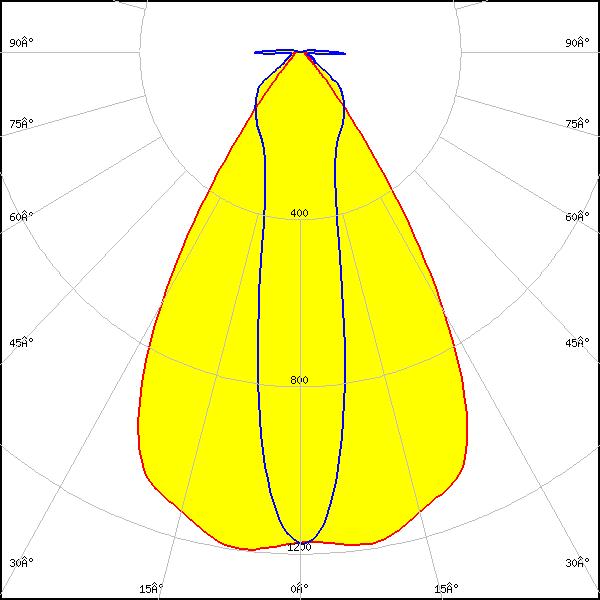

    LED: OSCONIQ S 3030 (QSLR31)
    FWHM: 64° + 21°
    FWTM: 84° + 103°
    Peak intensity: 1.198 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

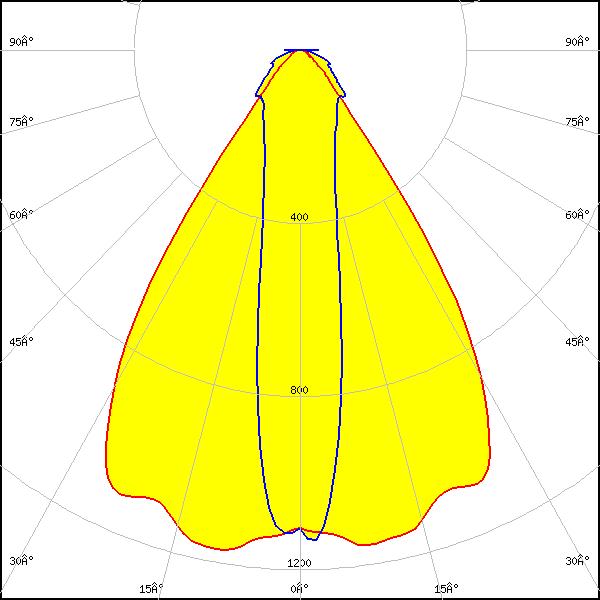

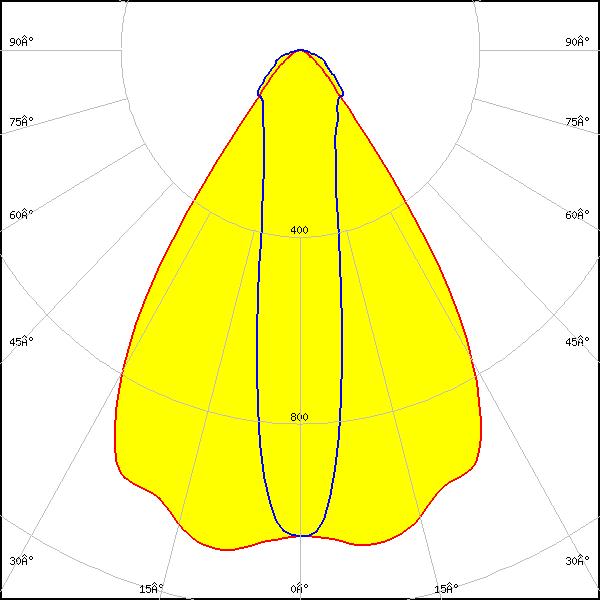

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 68° + 20°
    FWTM: 89° + 102°
    Peak intensity: 1.085 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 69° + 20°
    FWTM: 87° + 100°
    Peak intensity: 1.170 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: Red

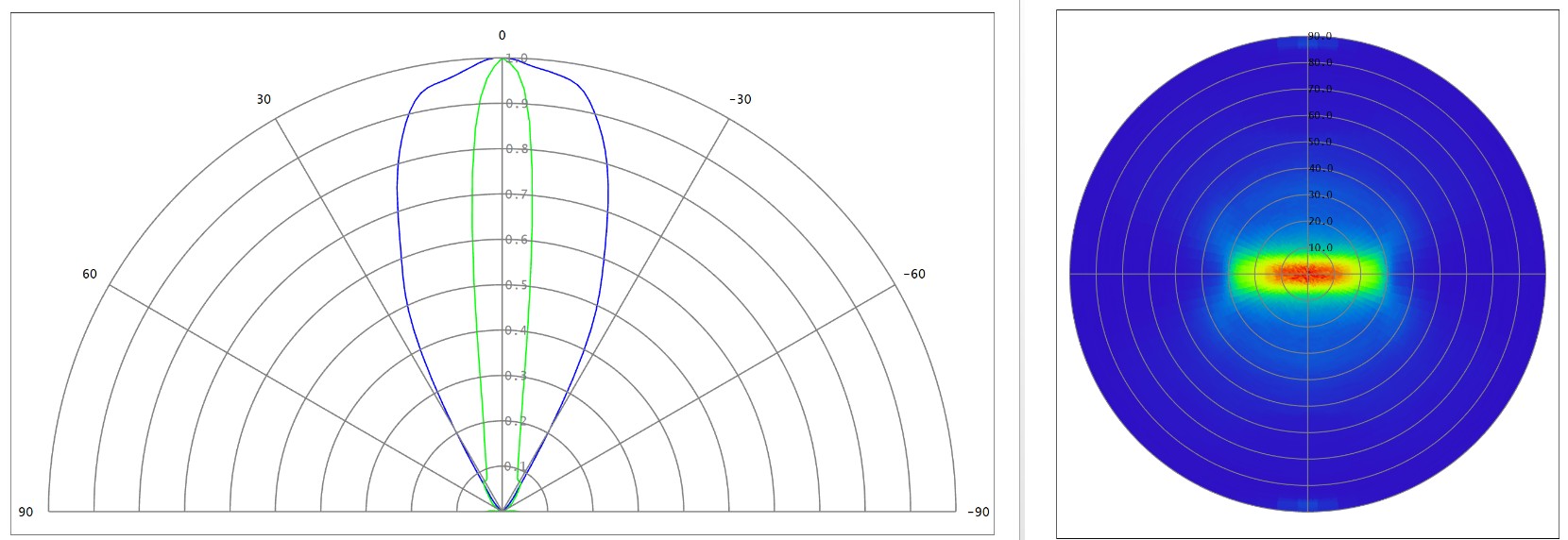

    LED: SFH 4715AS
    FWHM: 50° + 14°
    FWTM: 66° + 39°
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: IR

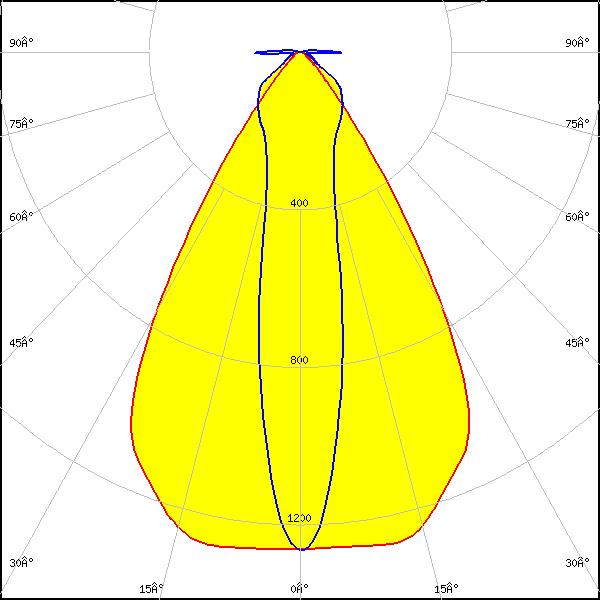

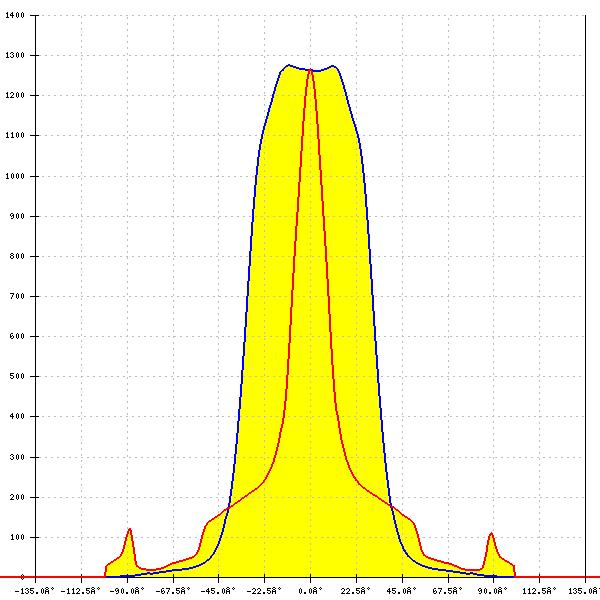

    LED: Fortimo FastFlex LED 4x16 DHE G4
    FWHM: 63° + 20°
    FWTM: 84° + 103°
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

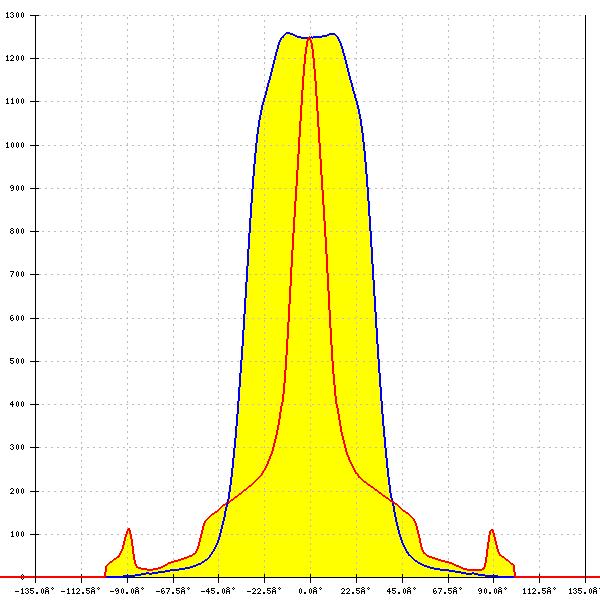

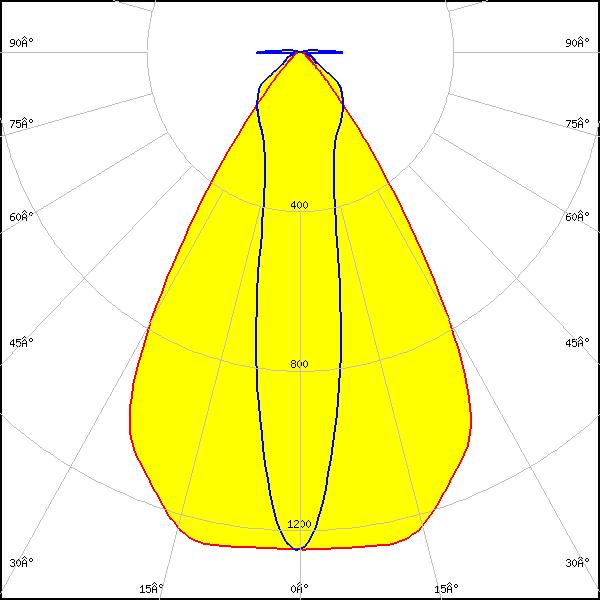

    LED: HiLOM RM64 (LM301B)
    FWHM: 64° + 20°
    FWTM: 85° + 103°
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

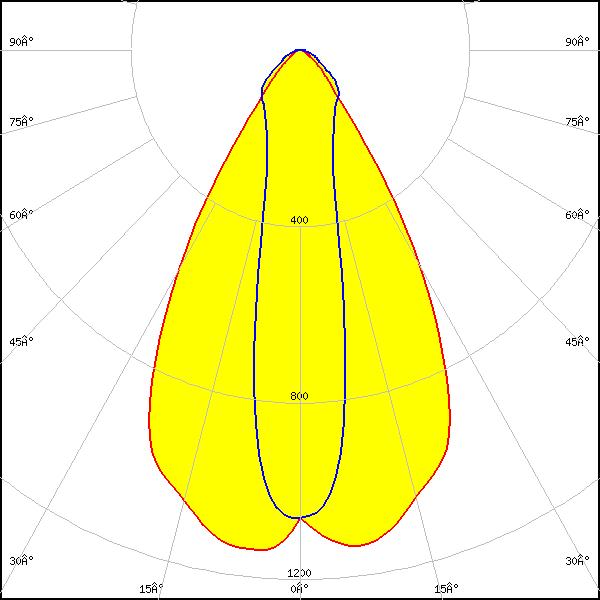

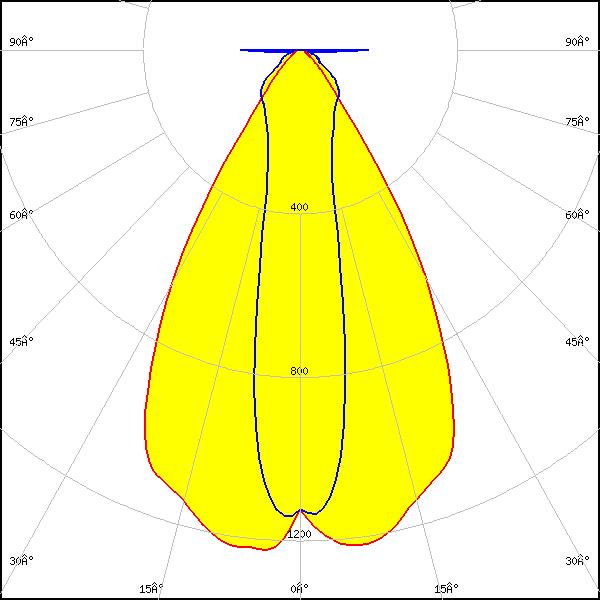

    LED: LH231B
    FWHM: 61° + 22°
    FWTM: 84° + 98°
    Peak intensity: 1.229 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LH231B
    FWHM: 60° + 22°
    FWTM: 84° + 100°
    Peak intensity: 1.138 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

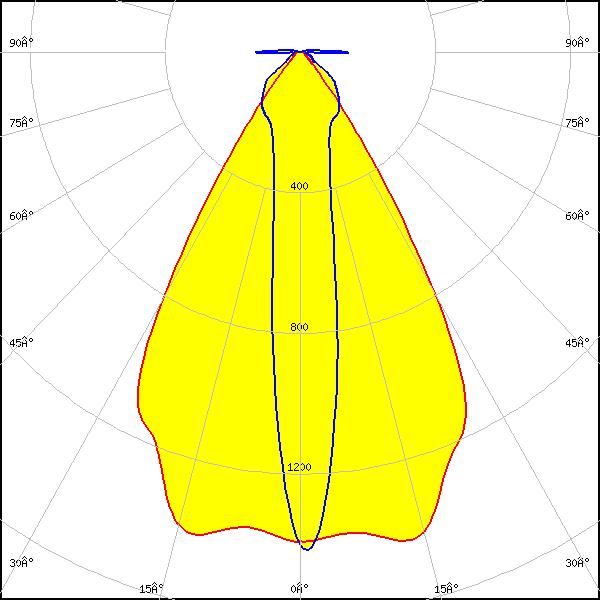

    LED: LM231 A/B
    FWHM: 62° + 15°
    FWTM: 80° + 136°
    Peak intensity: 1.400 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

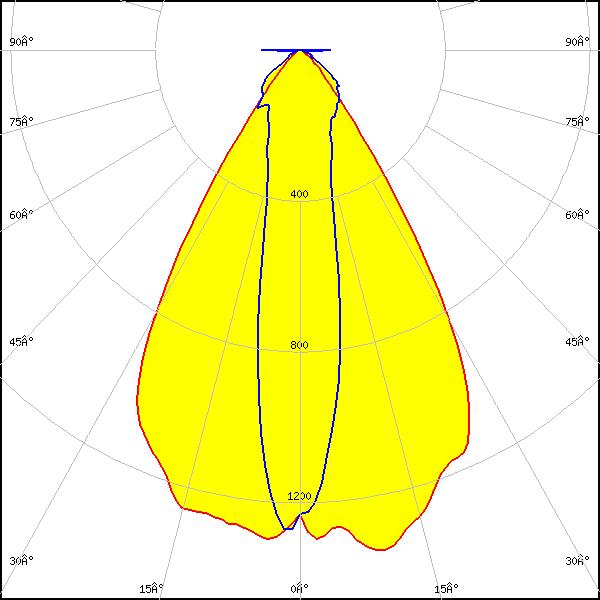

    LED: LM301B
    FWHM: 62° + 18°
    FWTM: 84° + 96°
    Peak intensity: 1.304 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

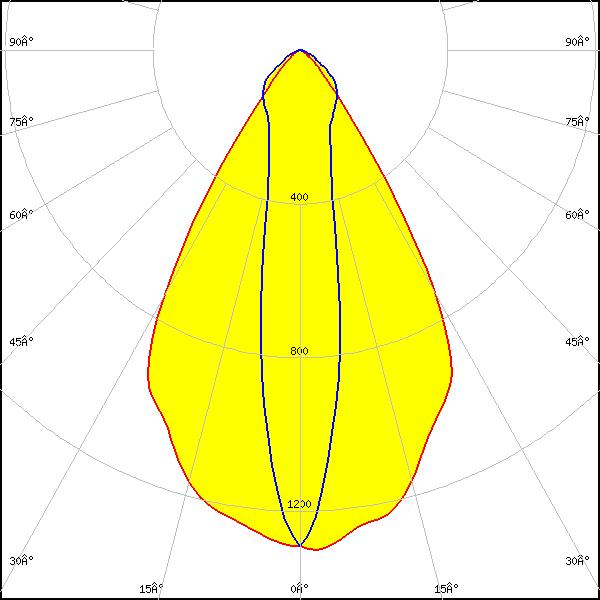

    LED: LM301B
    FWHM: 19° + 63°
    FWTM: 83° + 97°
    Peak intensity: 1.370 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

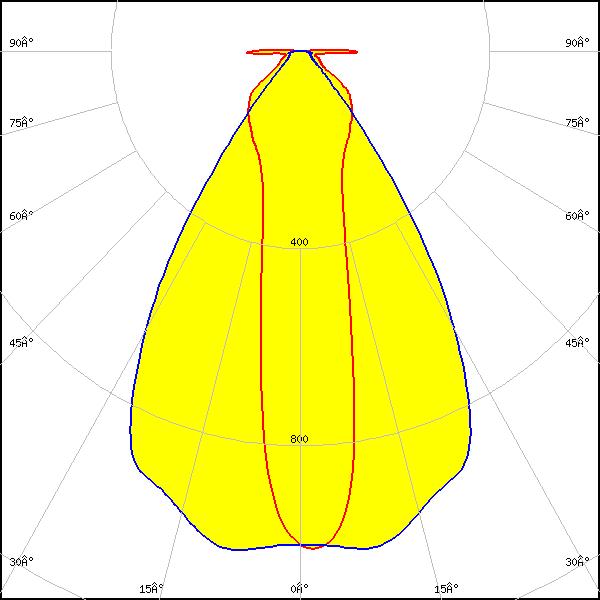

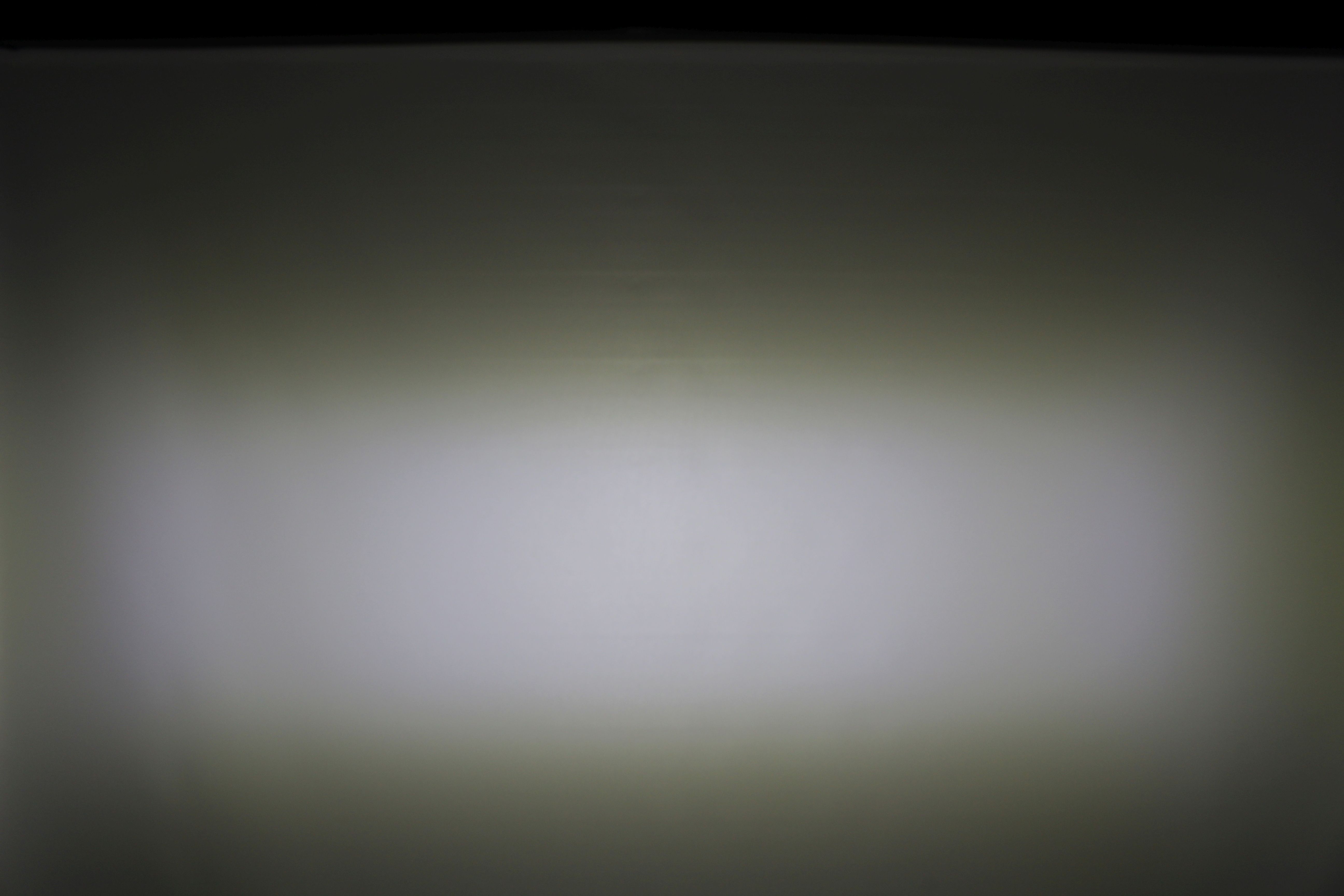

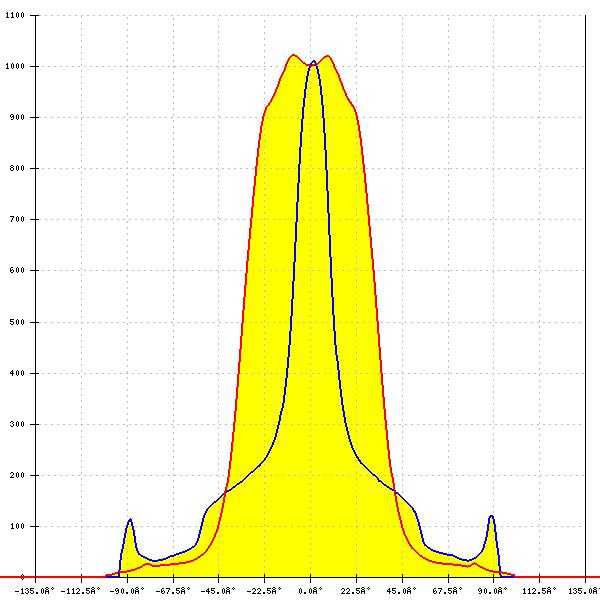

    LED: XLE-S44XTEHE (XT-E HE)
    FWHM: 66° + 21°
    FWTM: 90° + 181°
    Peak intensity: 1.030 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

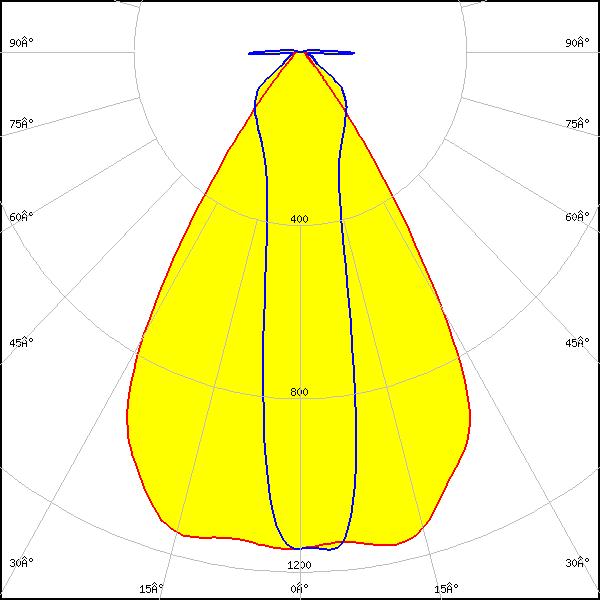

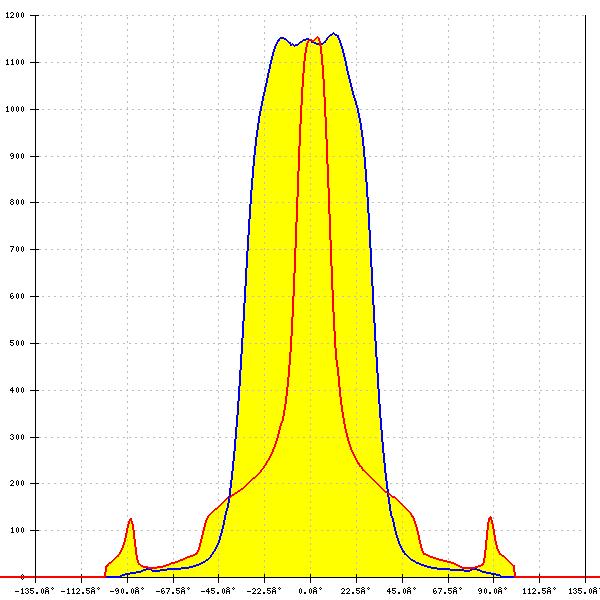

    LED: SEOUL 3030
    FWHM: 64° + 20°
    FWTM: 83° + 179°
    Peak intensity: 1.200 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 3030
    FWHM: 61° + 16°
    FWTM: 79° + 135°
    Peak intensity: 1.500 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

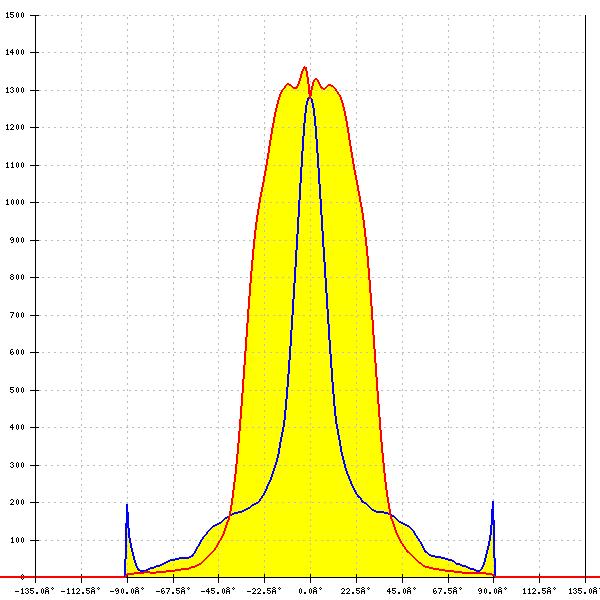

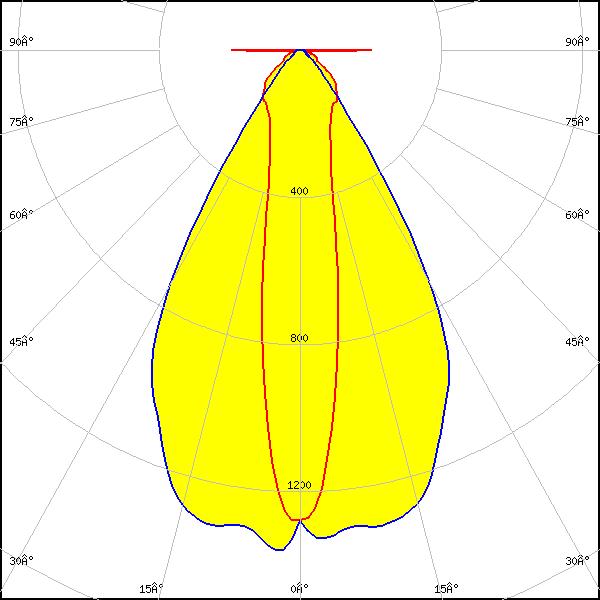

    LED: SEOUL DC 3030C
    FWHM: 62° + 20°
    FWTM: 82° + 180°
    Peak intensity: 1.361 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

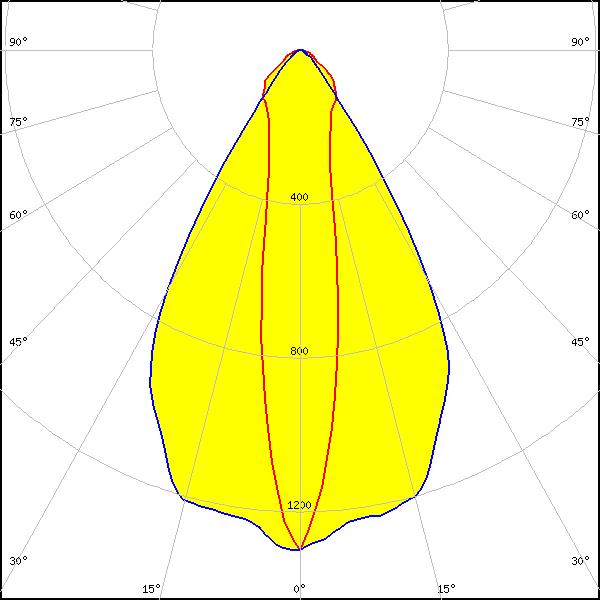

    LED: SEOUL DC 3030C
    FWHM: 18° + 62°
    FWTM: 93° + 82°
    Peak intensity: 1.300 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

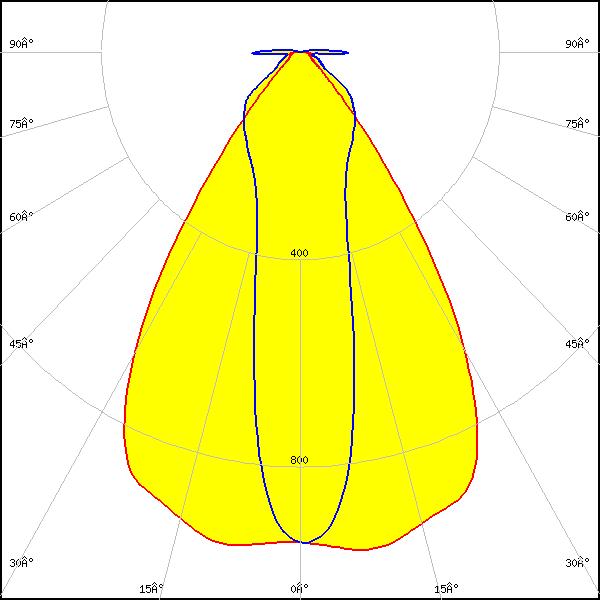

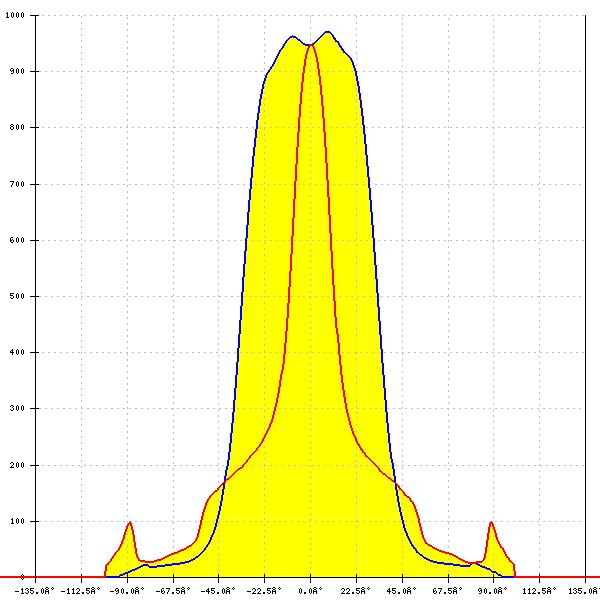

    LED: Z5M3
    FWHM: 67° + 24°
    FWTM: 91° + 179°
    Peak intensity: 1.000 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

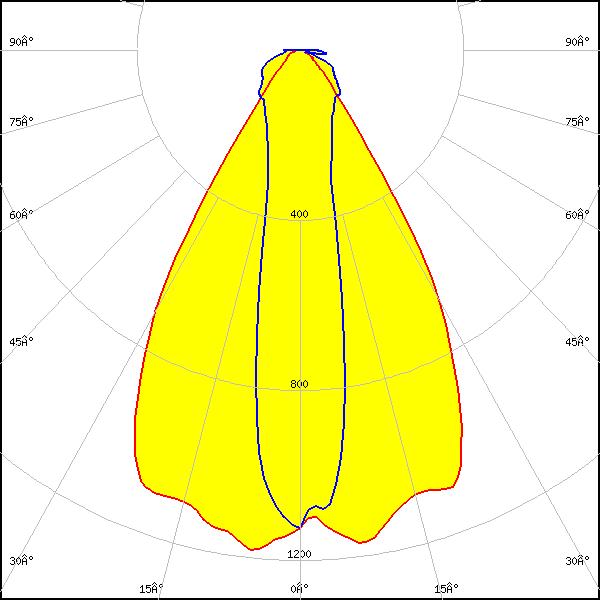

    LED: Z8Y22T
    FWHM: 63° + 20°
    FWTM: 85° + 101°
    Peak intensity: 1.190 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

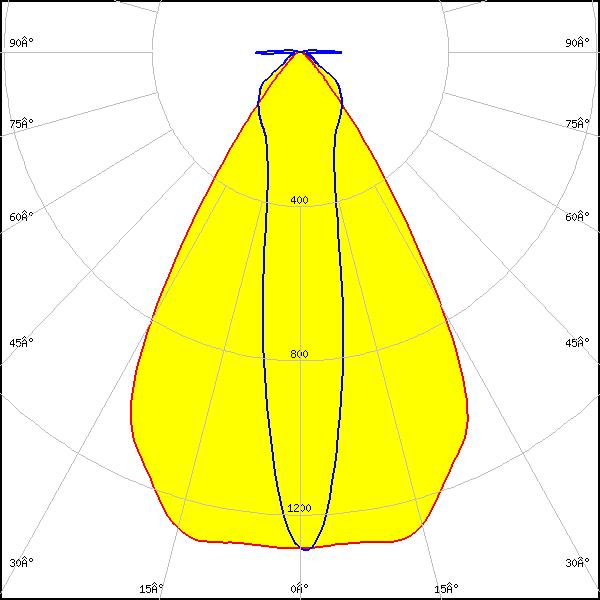

    LED: RLE 4x16 4000lm MP ADV2 OTD
    FWHM: 64° + 19°
    FWTM: 84° + 102°
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RLE 4x8 2000lm MP ADV2 OTD
    FWHM: 64° + 19°
    FWTM: 84° + 102°
    Peak intensity: 1.300 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
