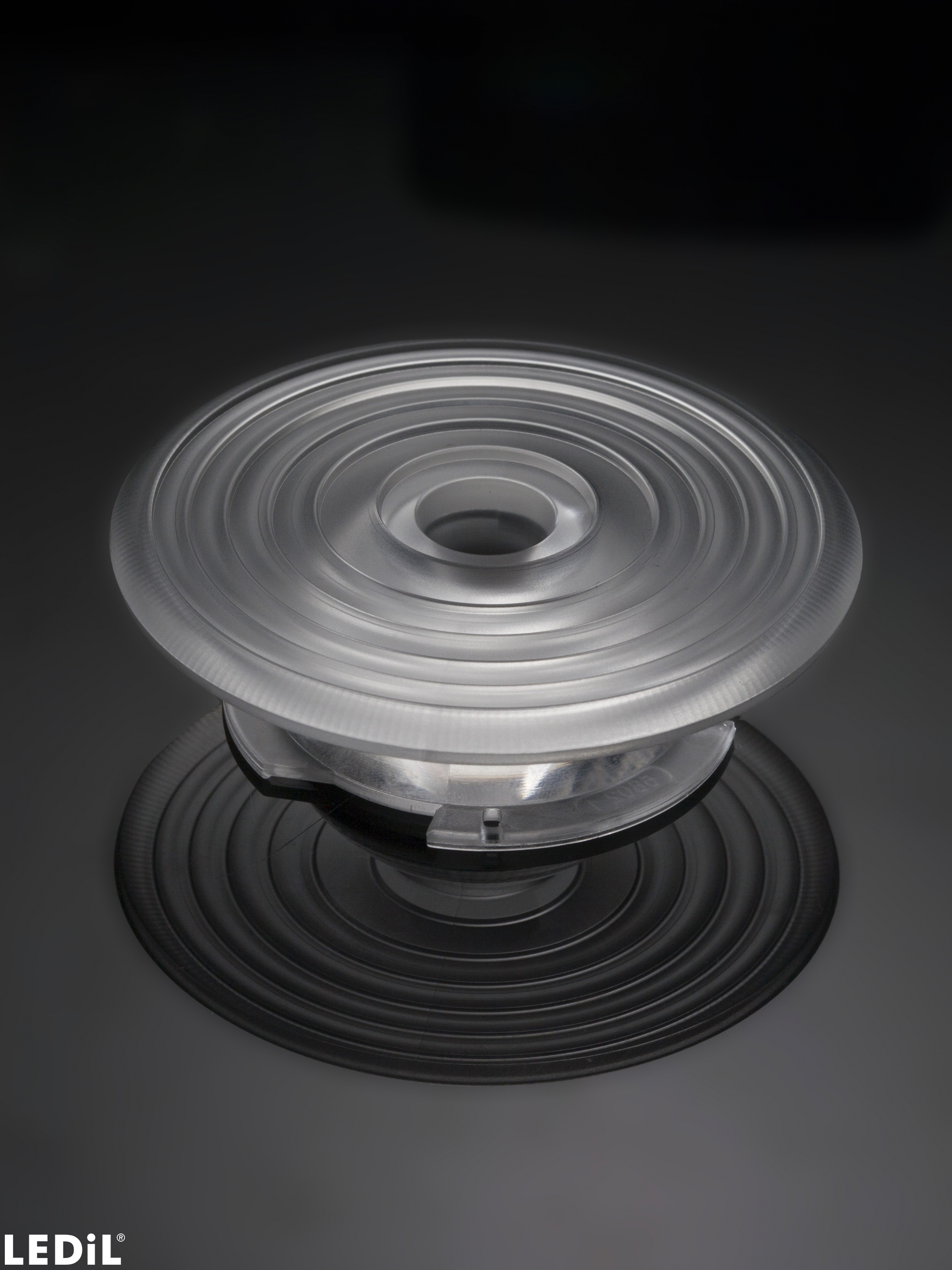

C16265_MOLLY-W-B

Print

~60° wide beam compatible with 3rd party connectors from BJB, Stucchi and Tridonic

Specification
  • Dimensions:
    70 mm
  • Height:
    22.10 mm
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    180 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    7.5 kg
  • MPQ:
    18 pcs
  • MOQ:
    36 pcs
  • MOQ size:
    480 x 280 x 70 mm
  • MOQ weight:
    1.6 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C16265_MOLLY-W-B

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

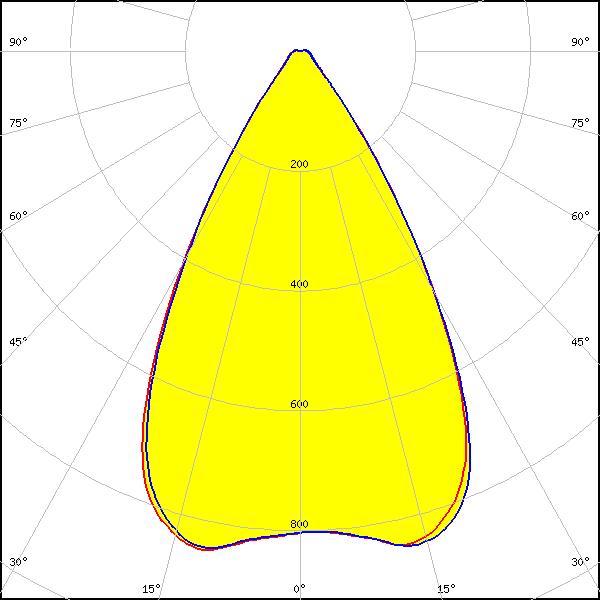

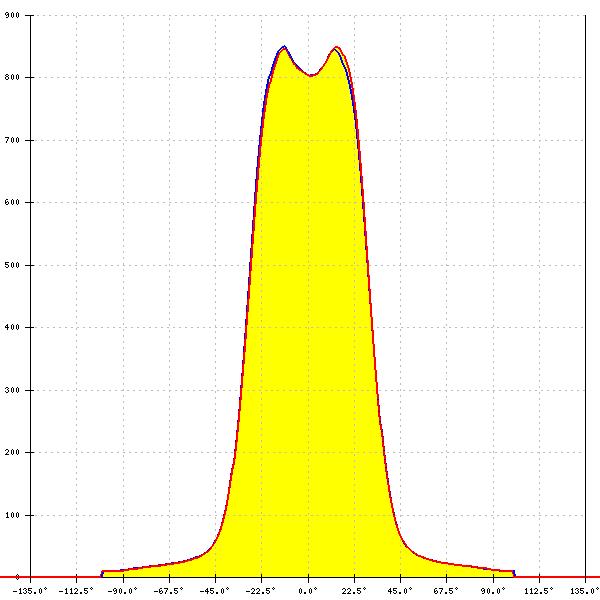

LED: CLL03x/CLU03x
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM: 62°
FWTM: 86°
Peak intensity: 0.850 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

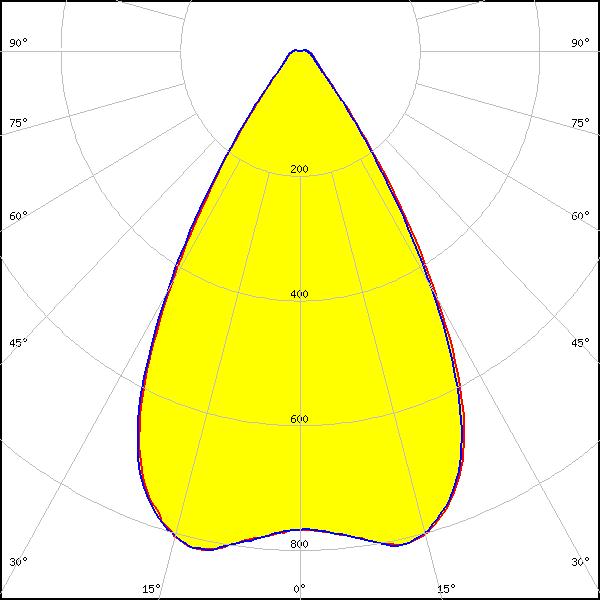

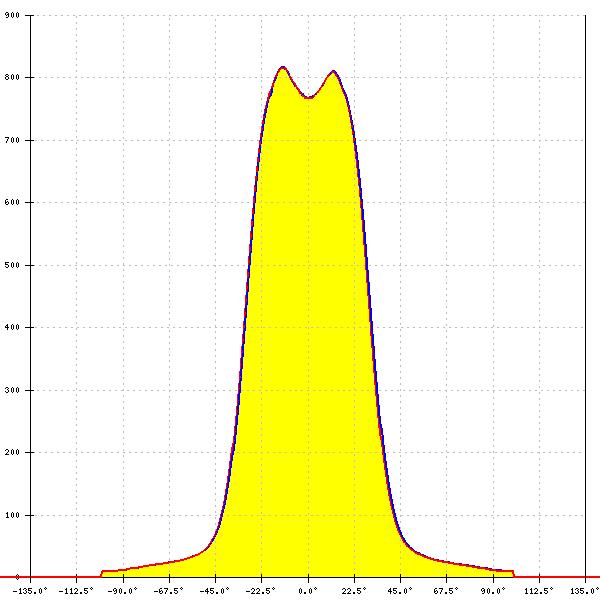

LED: LUXEON CoB 1208
LES size: 15.0 mm
Required components:
BJB: 47.319.2011
FWHM: 62°
FWTM: 87°
Peak intensity: 0.817 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

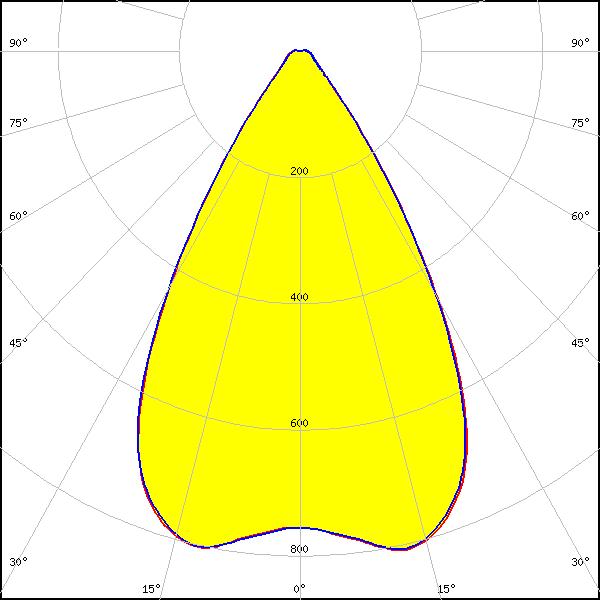

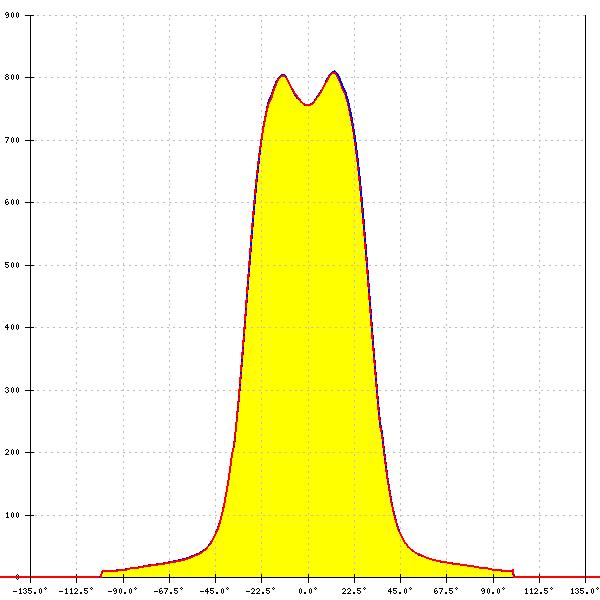

LED: SLE G7 LES15
LES size: 15.0 mm
Required components:
BJB: 47.319.2021
FWHM: 63°
FWTM: 88°
Peak intensity: 0.800 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

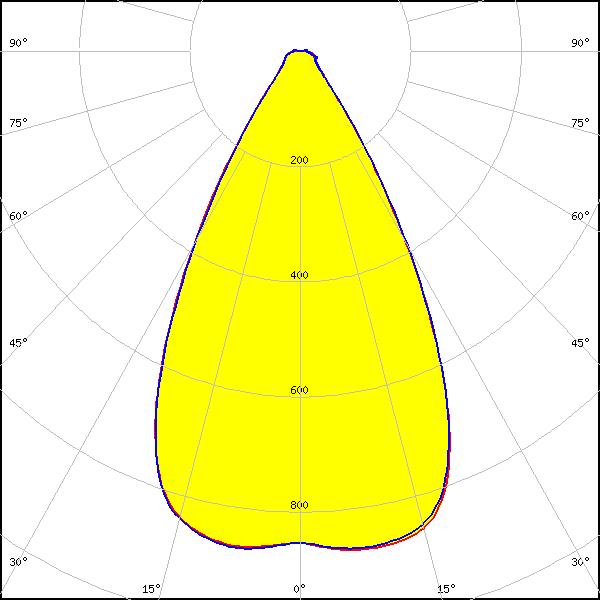

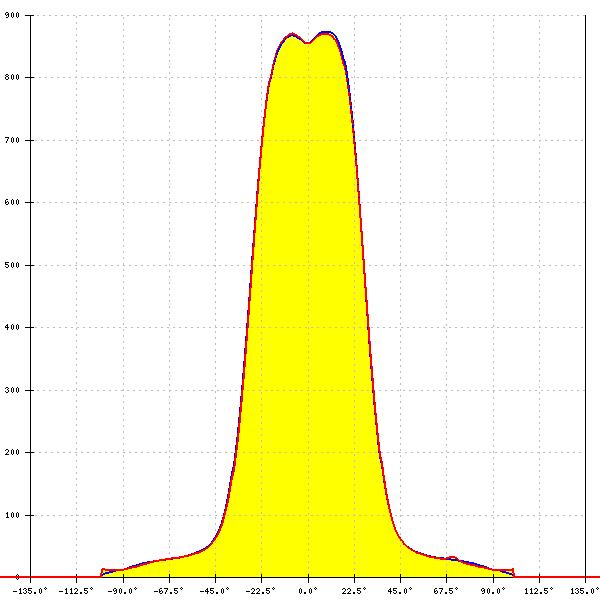

LED: SLE G7 LES17 H
FWHM: 57°
FWTM: 83°
Peak intensity: 0.870 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

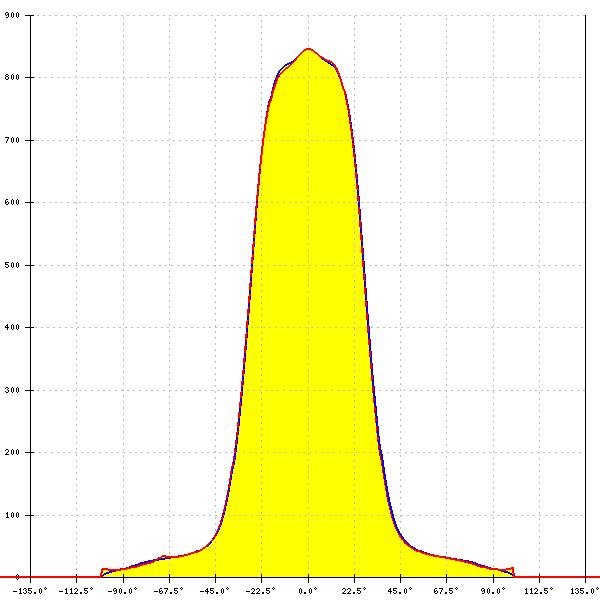

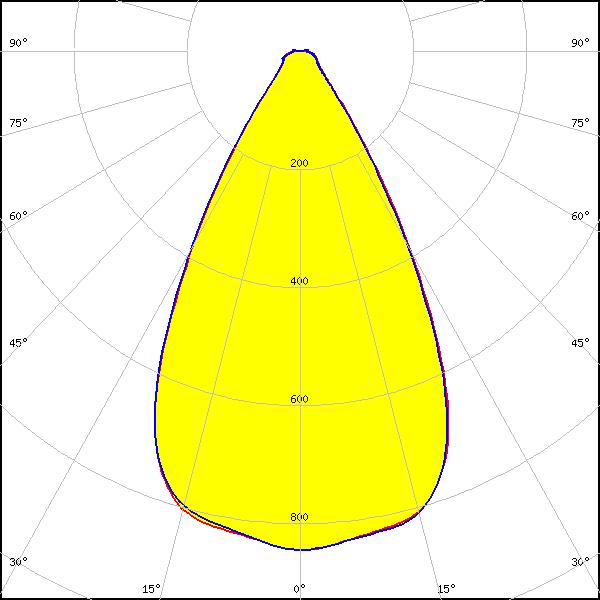

LED: SLE G7 LES21 H
FWHM: 58°
FWTM: 85°
Peak intensity: 0.850 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

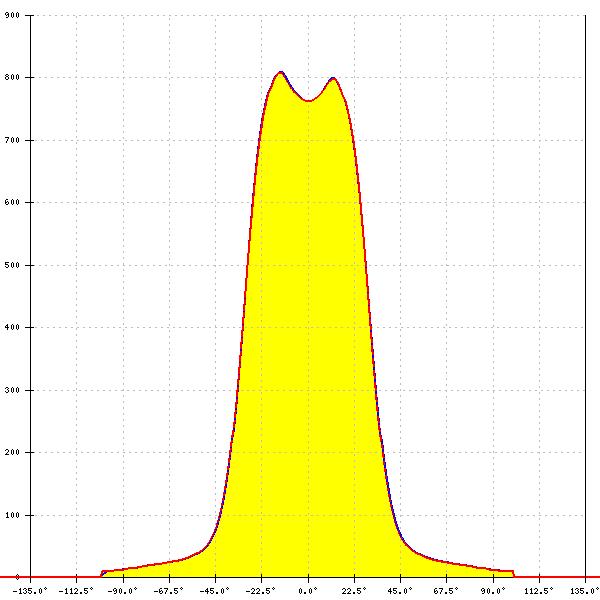

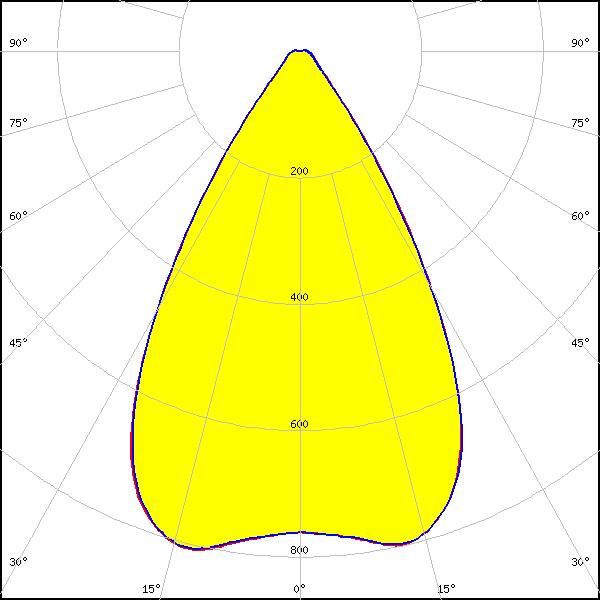

LED: XOB 14.5 mm
LES size: 14.5 mm
Required components:
BJB: 47.319.2021
FWHM: 62°
FWTM: 88°
Peak intensity: 0.813 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
