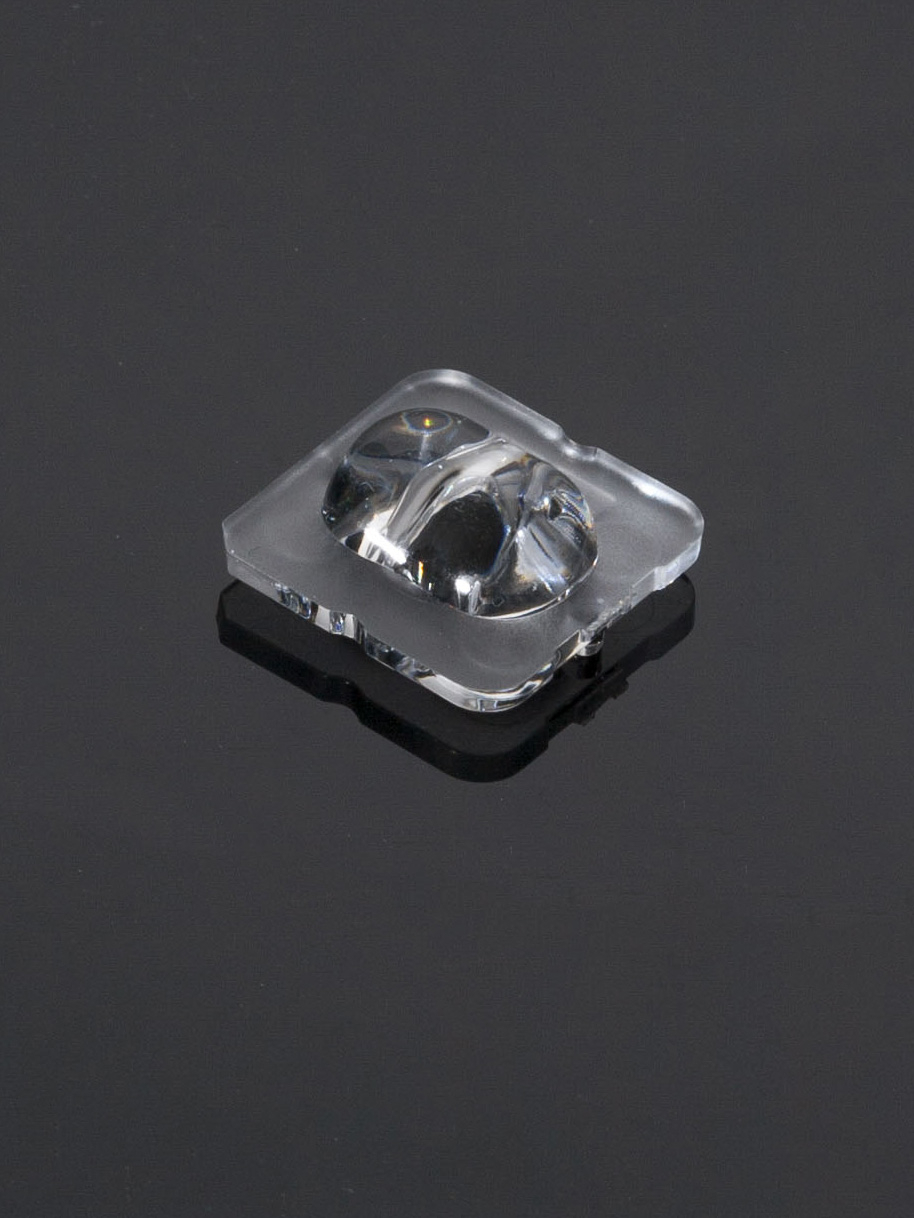

C16373_SITARA-T1-A

Print

Asymmetric IESNA Type I (short) beam designed for tilted poles. Suitable for Indian EESL specification.

Specification
  • Dimensions:
    18 x  18 mm
  • Height:
    5.9 mm
  • Fastening:
    glue, pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
  • PC

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Packing information
  • Quantity in box:
    8000 pcs
  • Box size:
    400 x 300 x 300 mm
  • Box weight:
    8.4 kg
  • MPQ:
    2000 pcs
  • MOQ:
    2000 pcs
  • MOQ size:
    280 x 190 x 130 mm
  • MOQ weight:
    2.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






Typical Applications

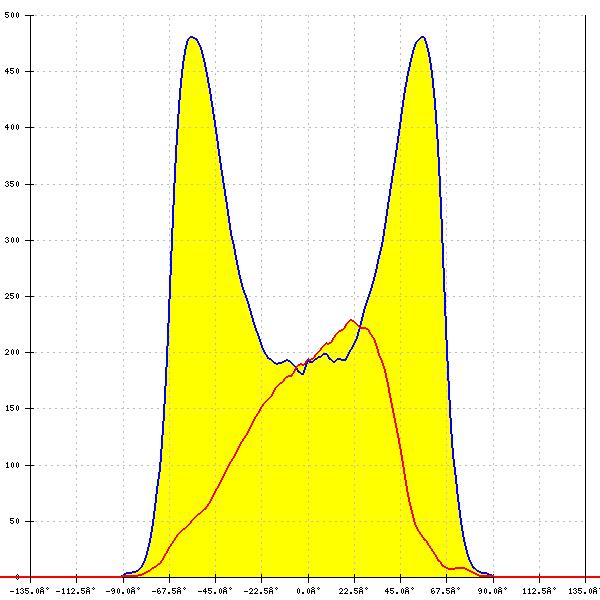

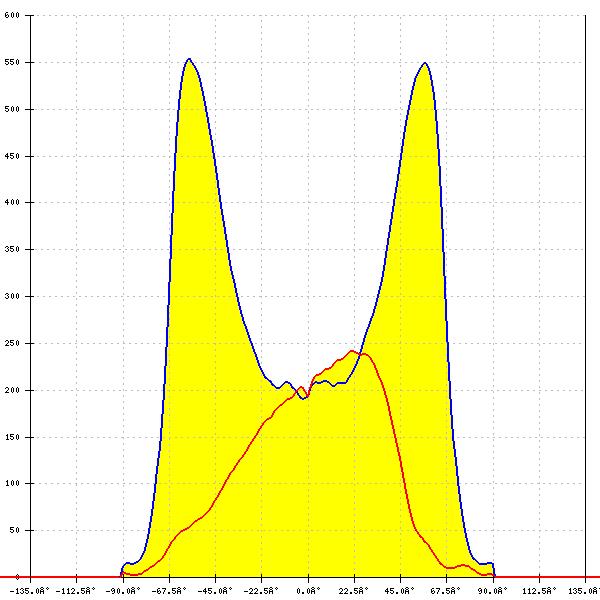

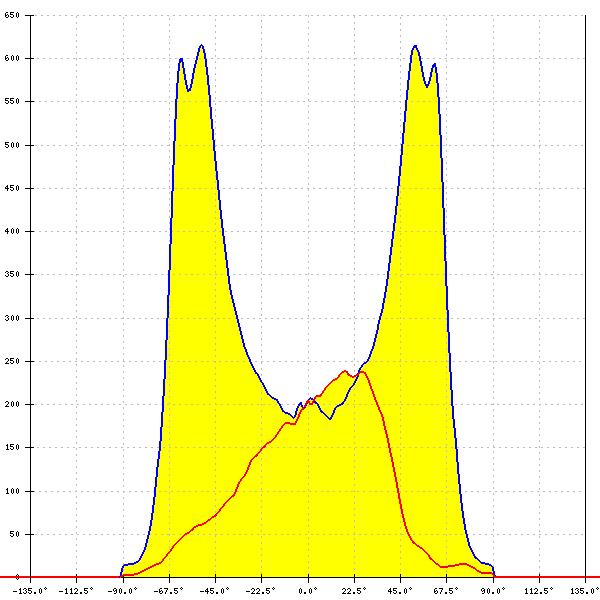

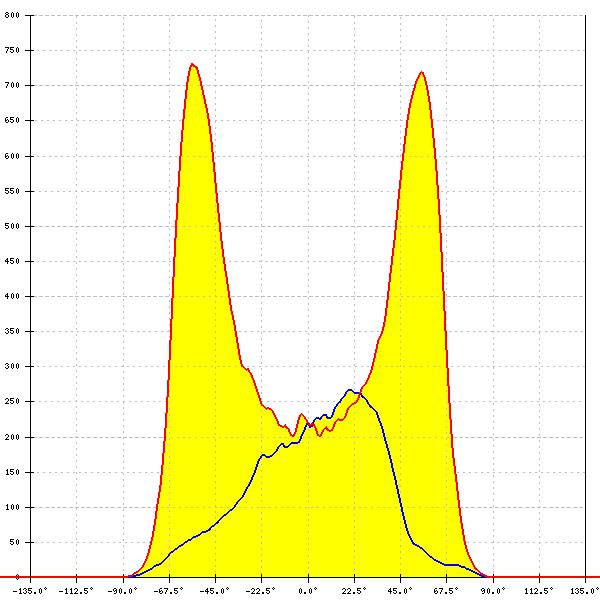

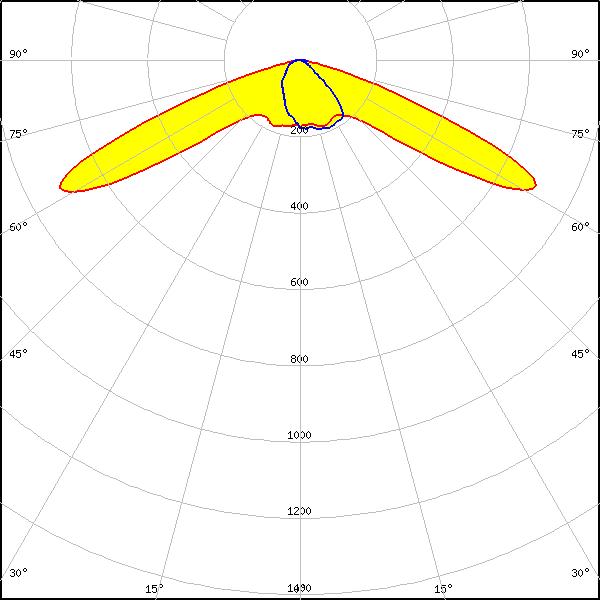

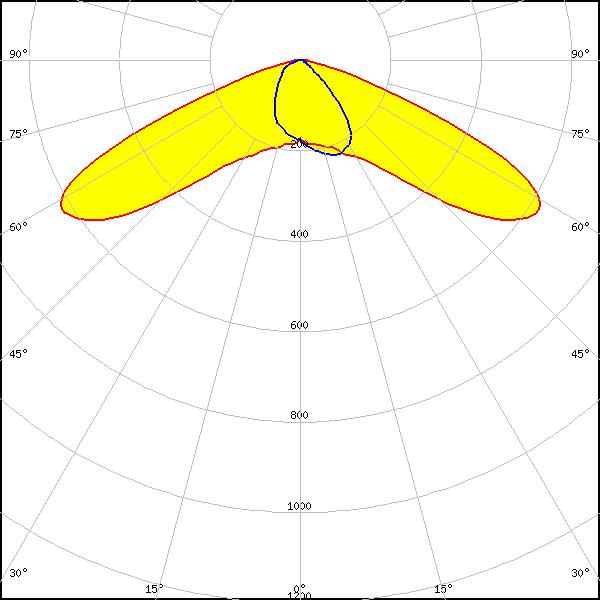

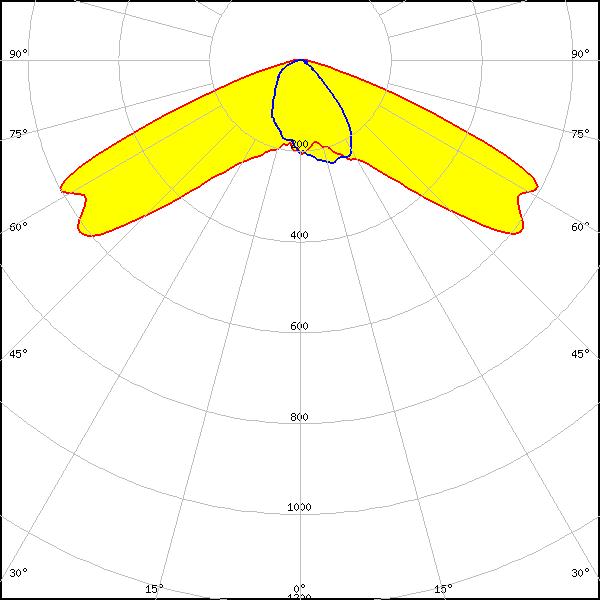

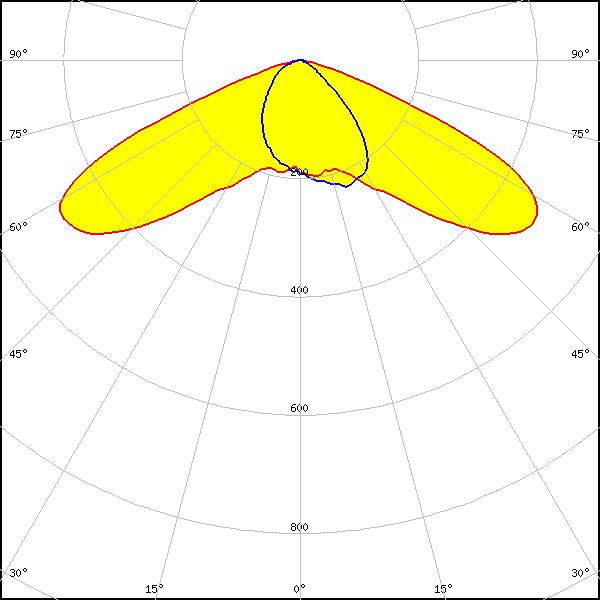

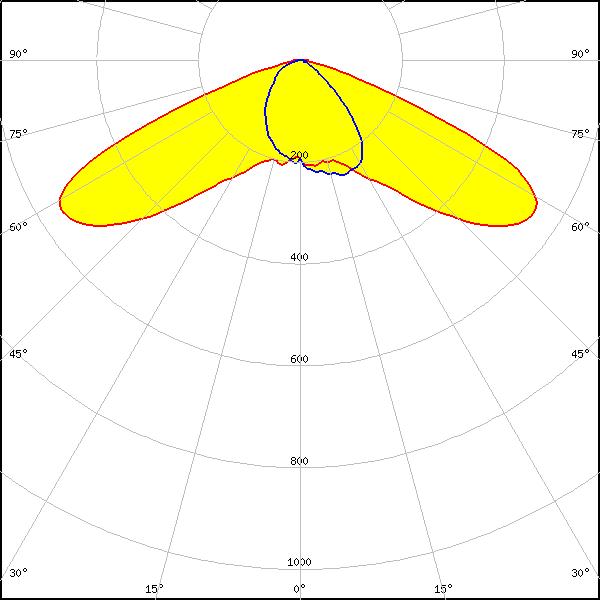

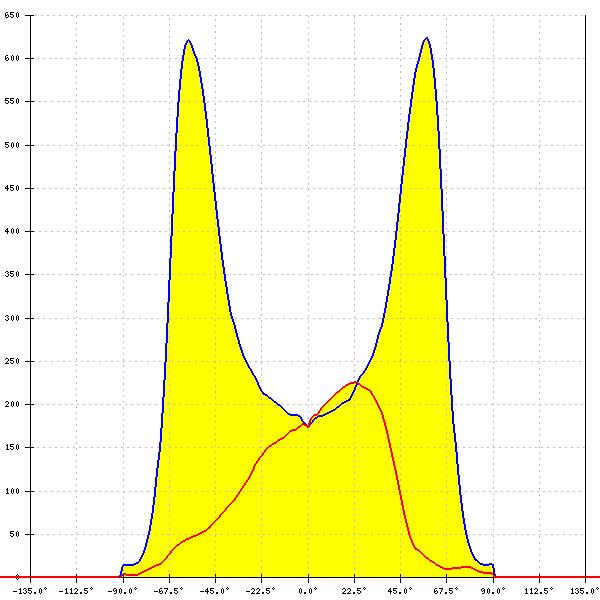

Optical results

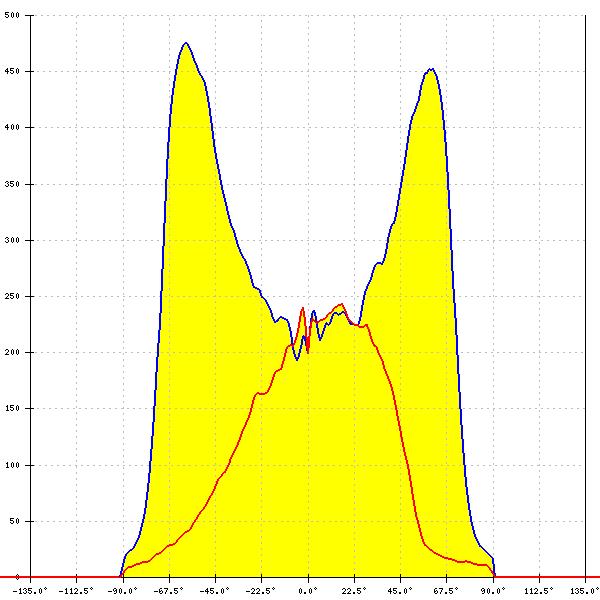

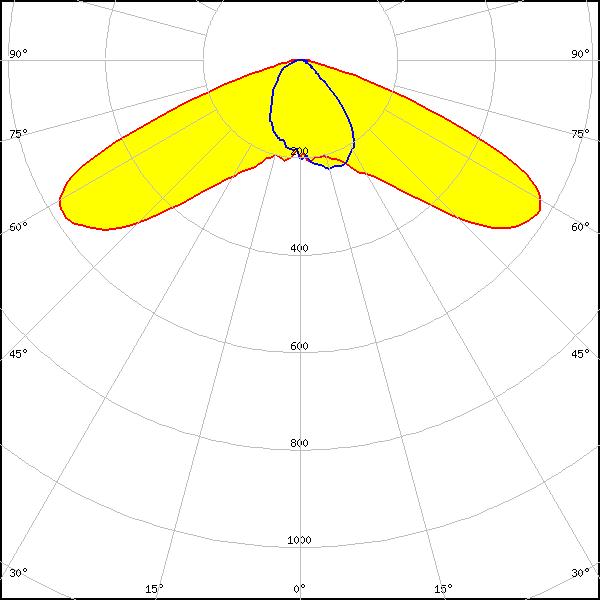

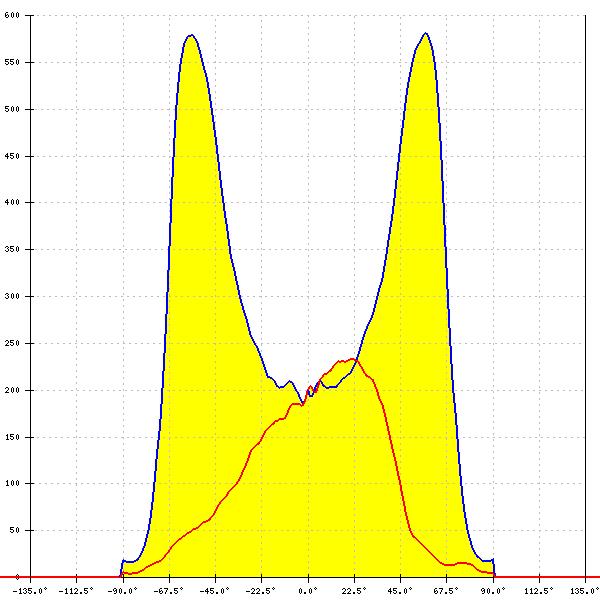

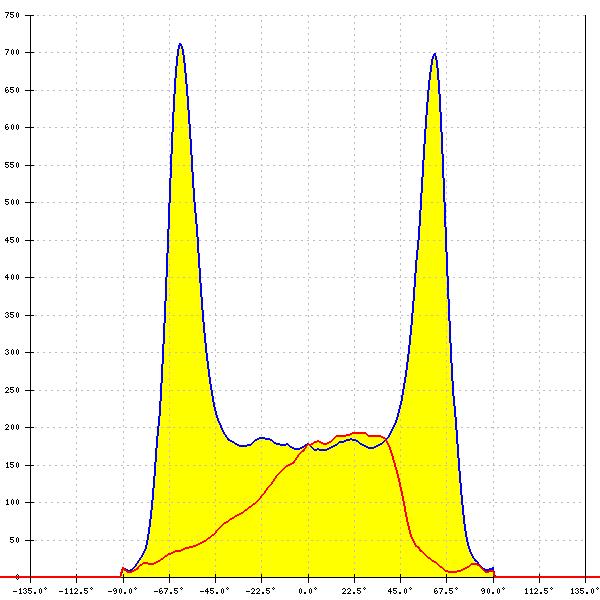

LED: Bridgelux SMD 5050
FWHM: asymmetric
Peak intensity: 0.6 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

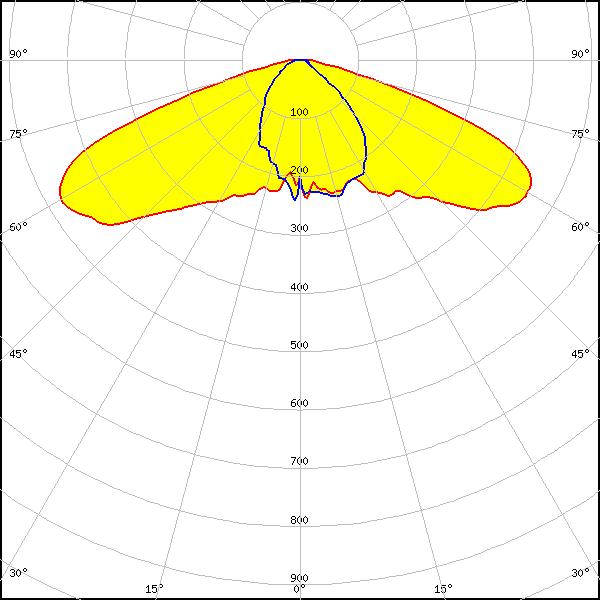

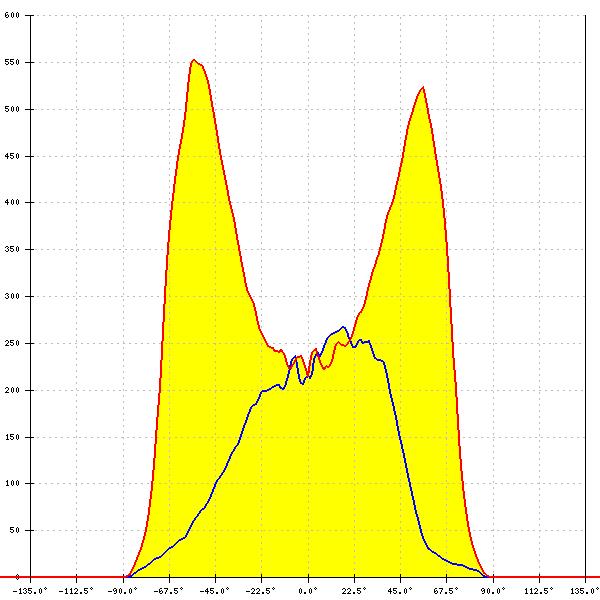

LED: MHB-A/B
Required components:
Undefined Manufacturer: Protective Plate
FWHM: asymmetric
Peak intensity: 0.0 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

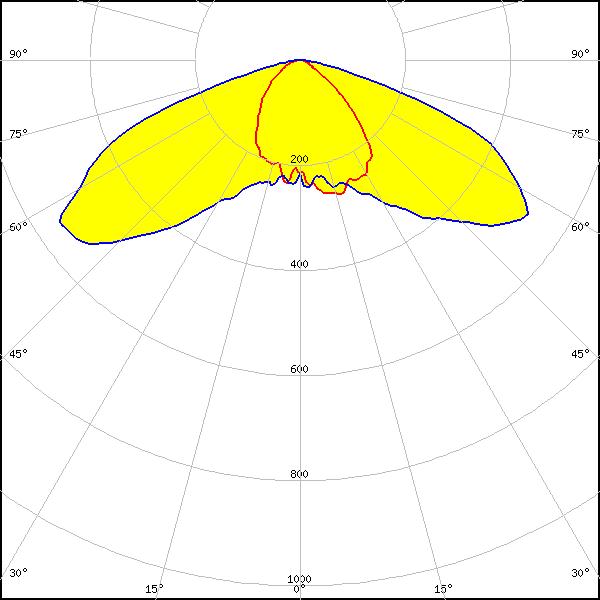

LED: MHB-A/B
FWHM: asymmetric
Peak intensity: 0.5 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

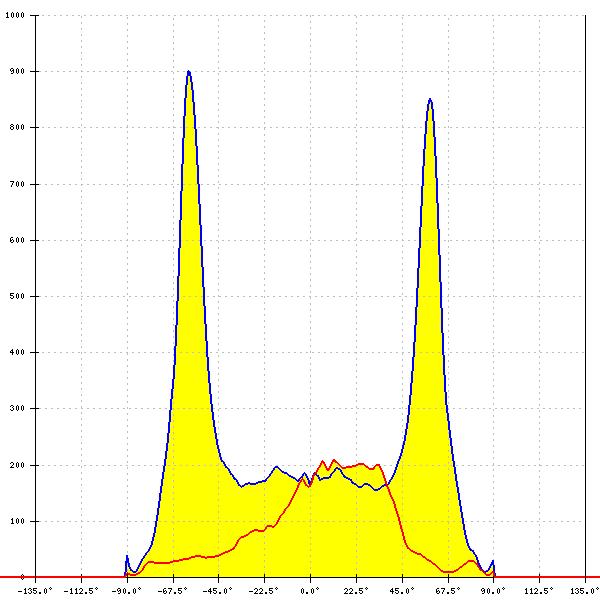

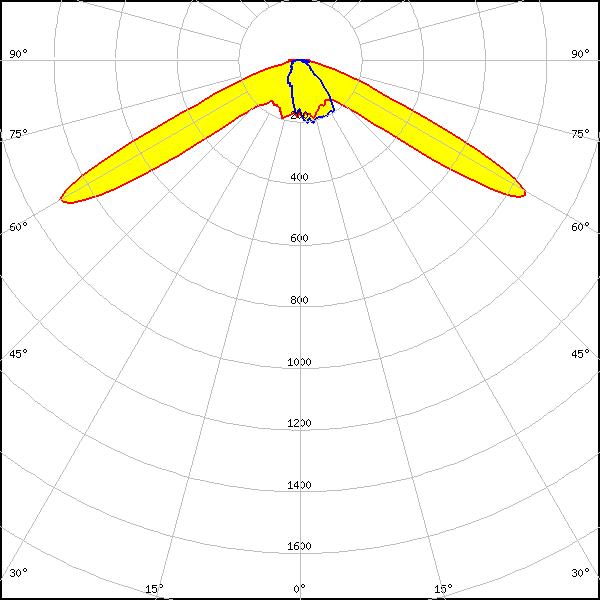

LED: XT-E
FWHM: asymmetric
Peak intensity: 1.0 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

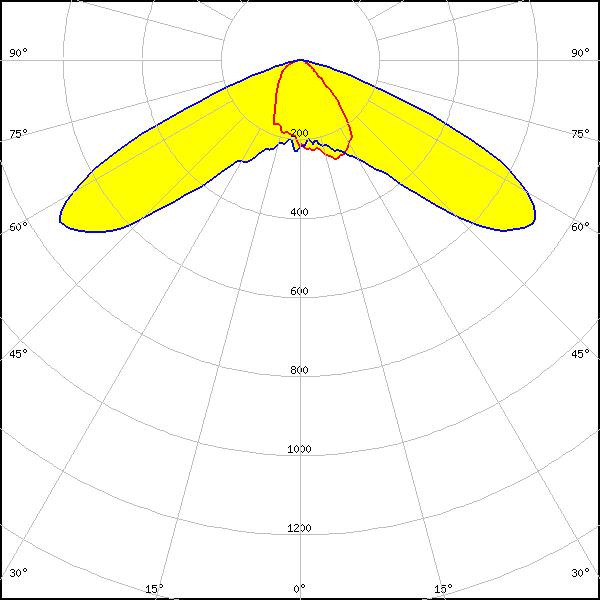

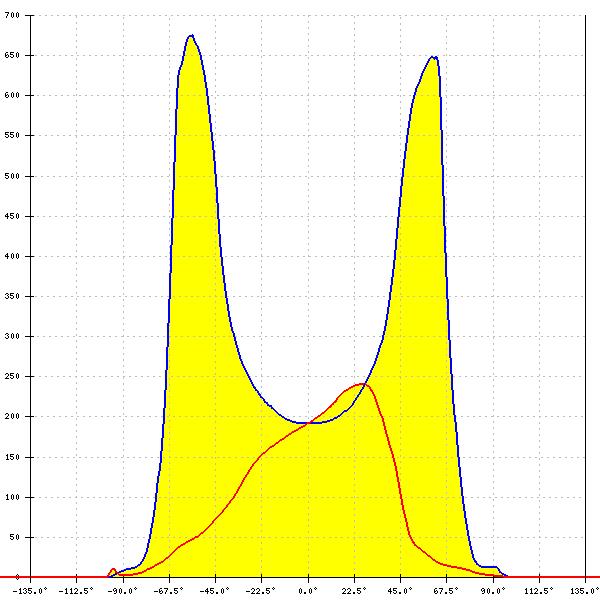

LED: LUXEON 5050
Required components:
Undefined Manufacturer: Protective Plate
FWHM: asymmetric
Peak intensity: 0.0 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

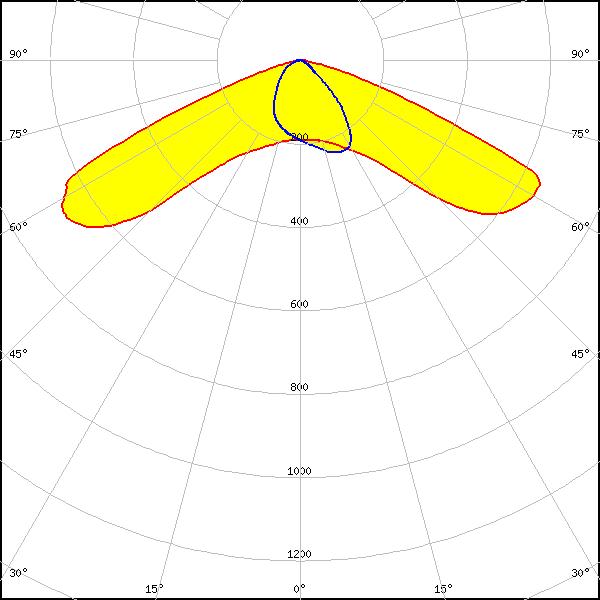

LED: LUXEON 5050
FWHM: asymmetric
Peak intensity: 0.7 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

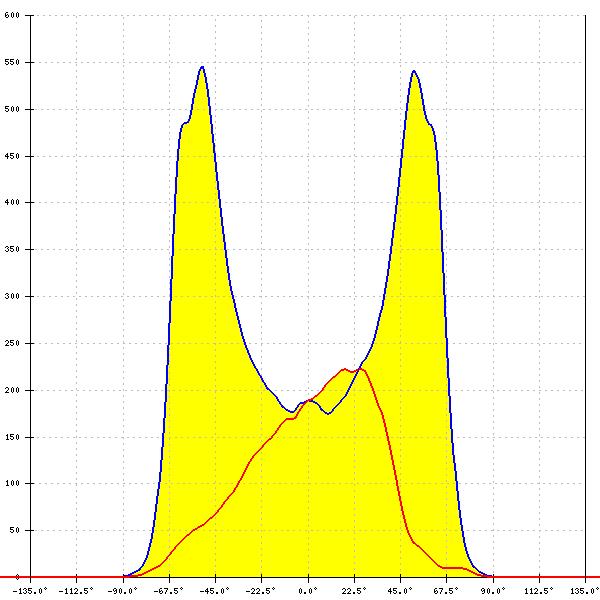

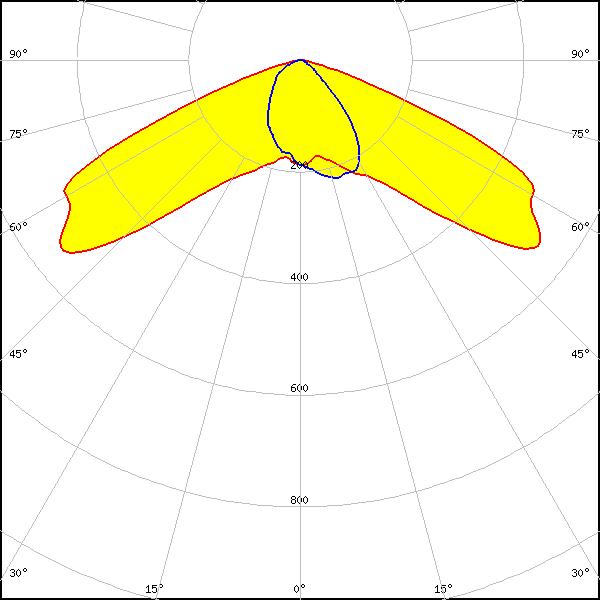

LED: Duris S8
Required components:
Undefined Manufacturer: Protective Plate
FWHM: asymmetric
Peak intensity: 0.0 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.6 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

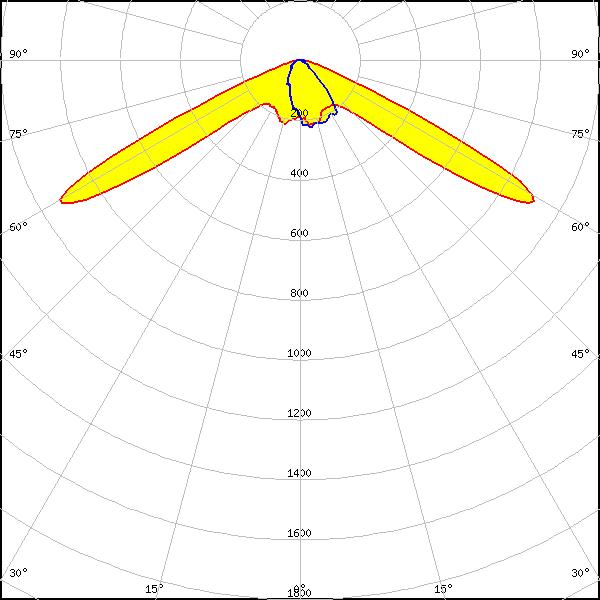

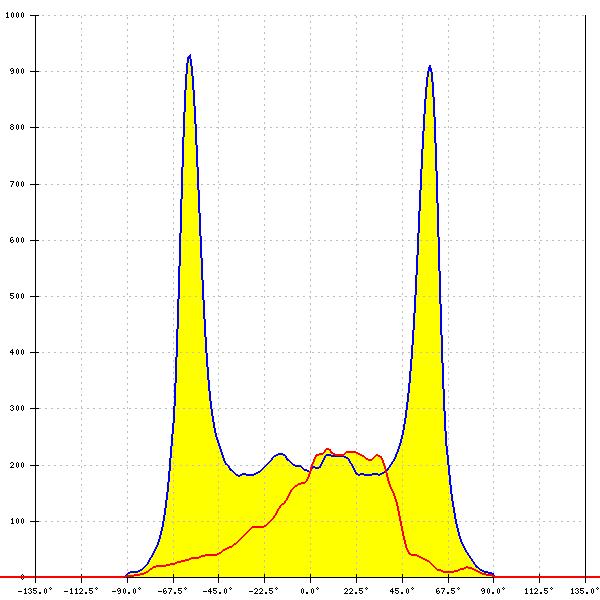

LED: OSCONIQ P 3737 (2W version)
FWHM: asymmetric
Peak intensity: 1.0 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

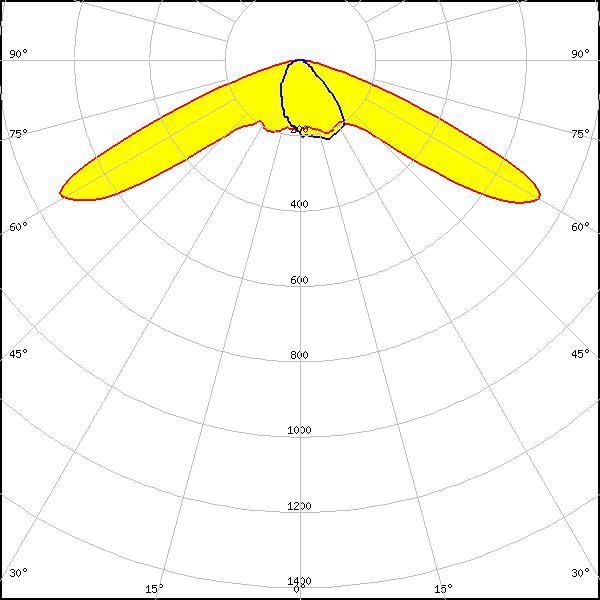

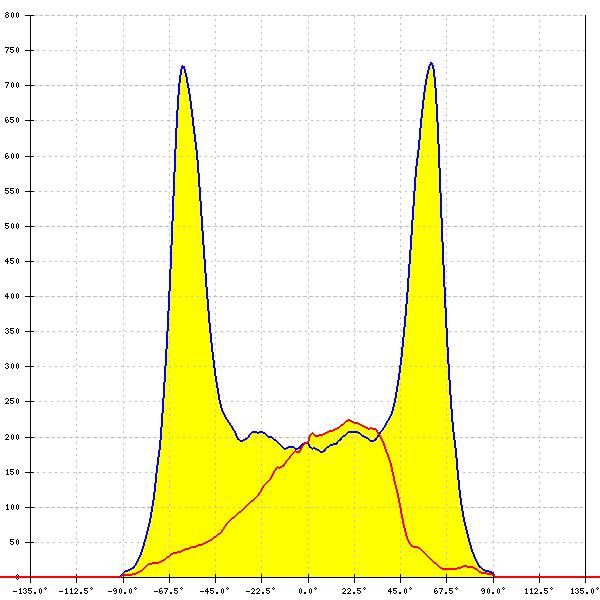

LED: OSCONIQ P 3737 (3W version)
FWHM: asymmetric
Peak intensity: 0.7 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
