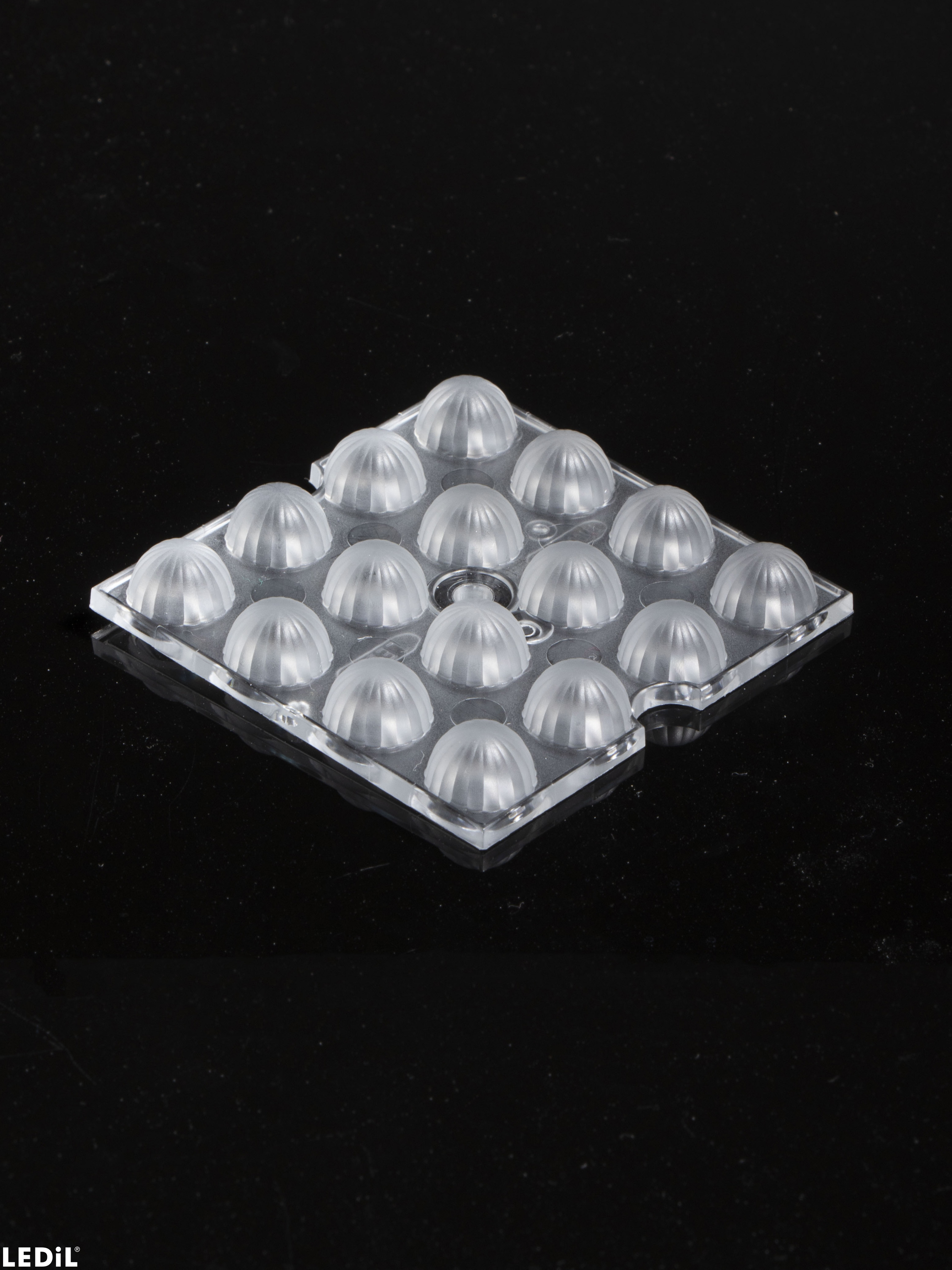

C16597_STRADELLA-16-HB-M-PC

Print

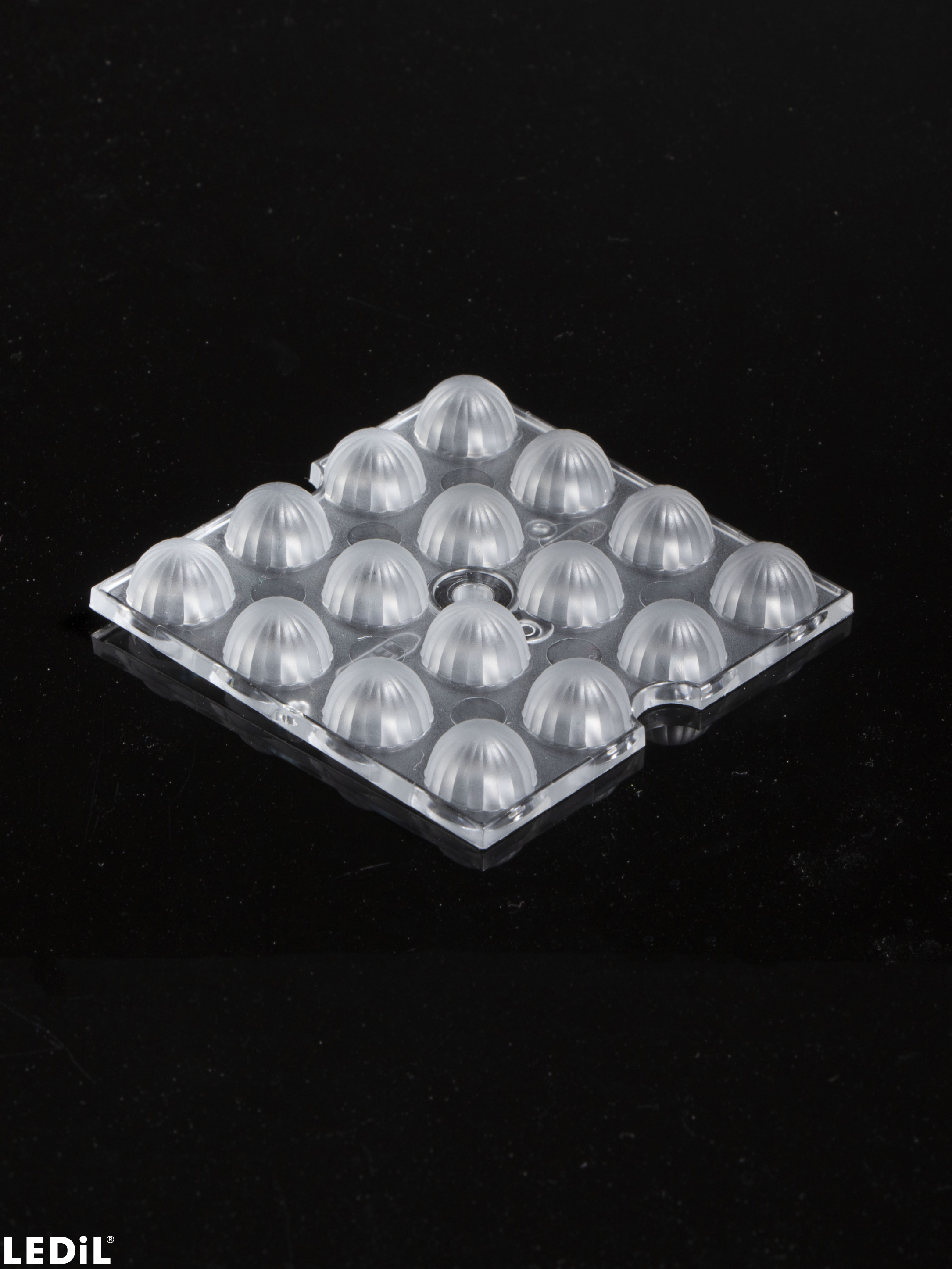

~60° medium beam for industrial applications. Variant made from PC.

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    7.50 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.2 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.5 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C16597_STRADELLA-16-HB-M-PC
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

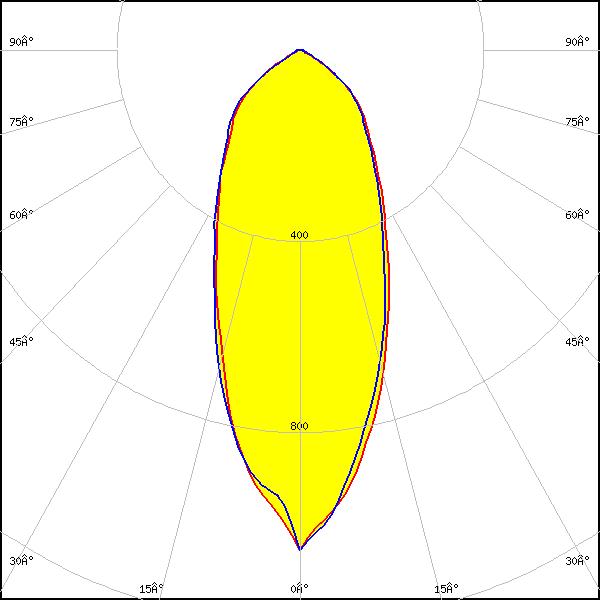

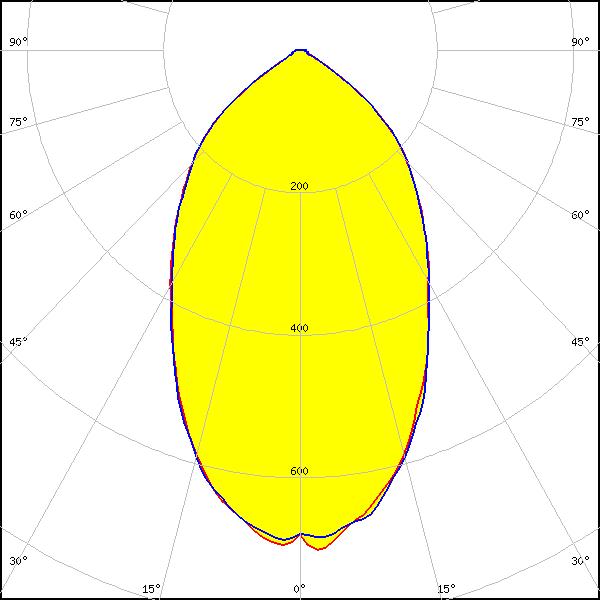

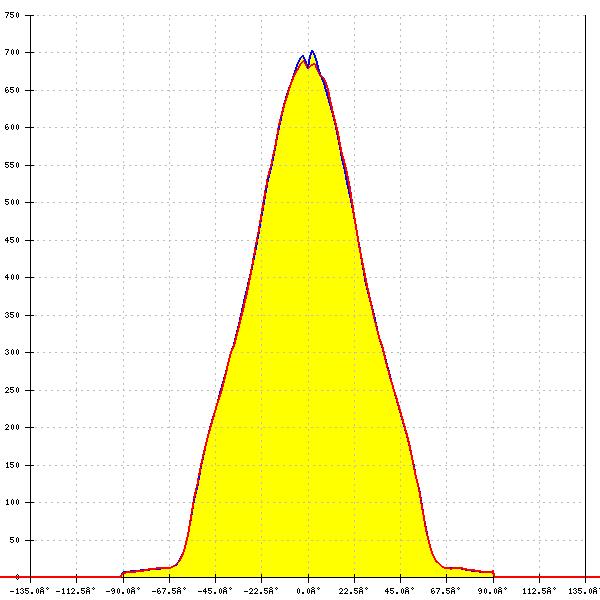

Optical results

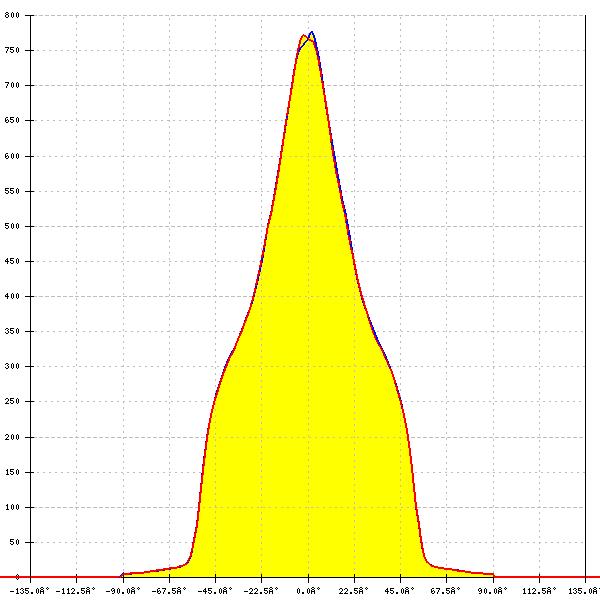

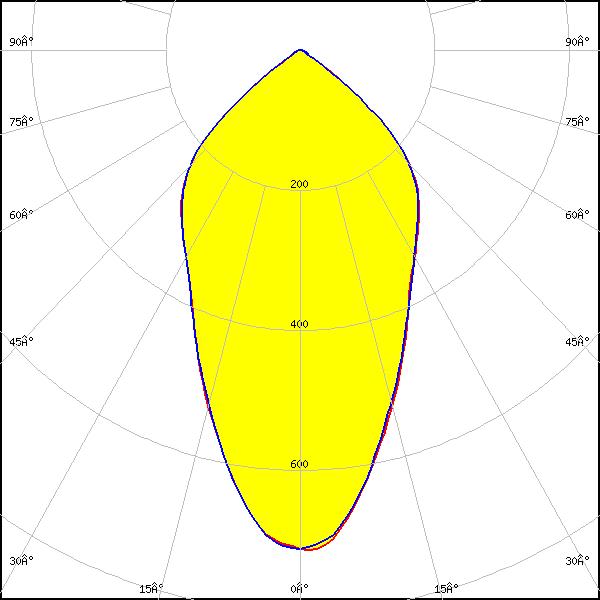

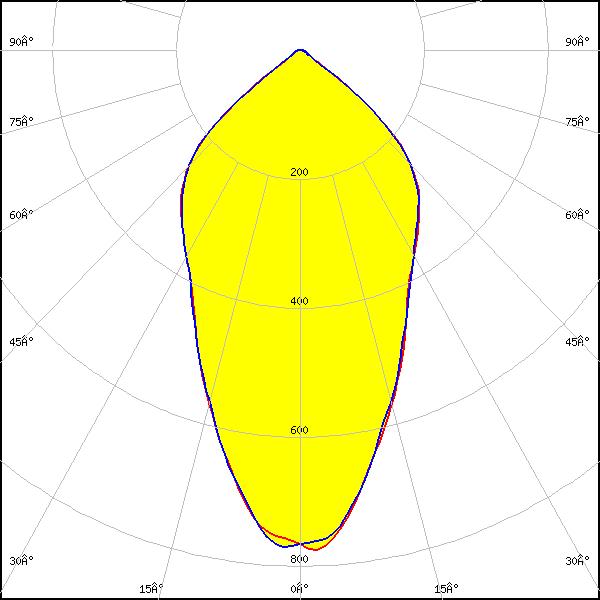

LED: CSP 2727 (BXCP)
FWHM: 55° + 56°
FWTM: 108° + 108°
Peak intensity: 0.784 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

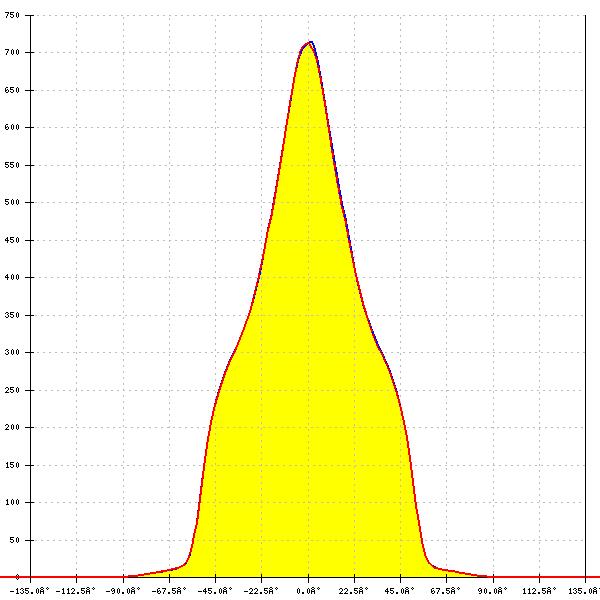

LED: CSP 2727 (BXCP)
FWHM: 56°
FWTM: 108°
Peak intensity: 0.717 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

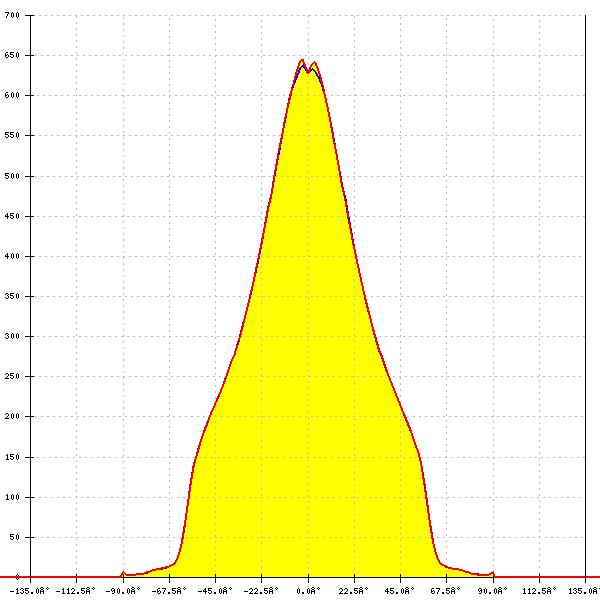

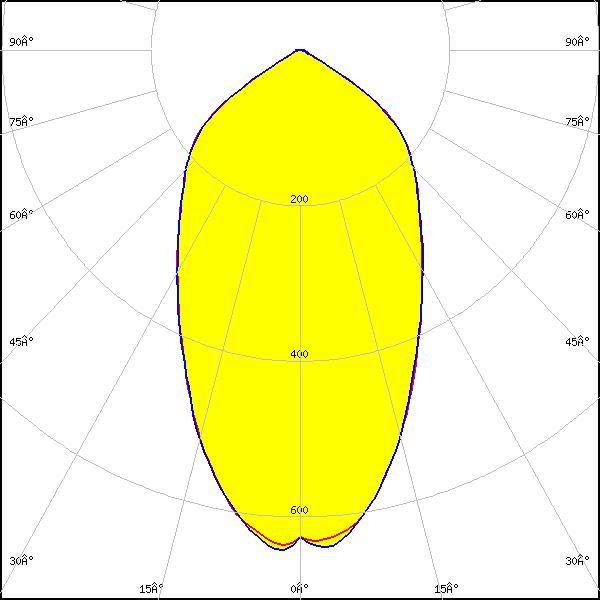

LED: XP-G2 HE
FWHM: 62°
FWTM: 120°
Peak intensity: 0.650 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

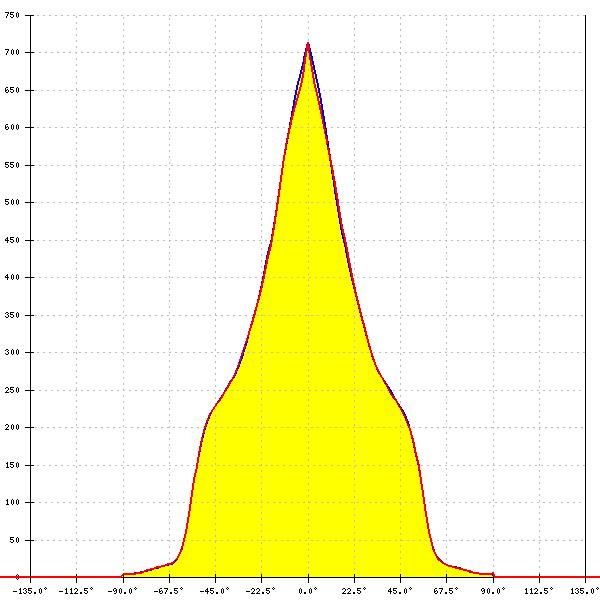

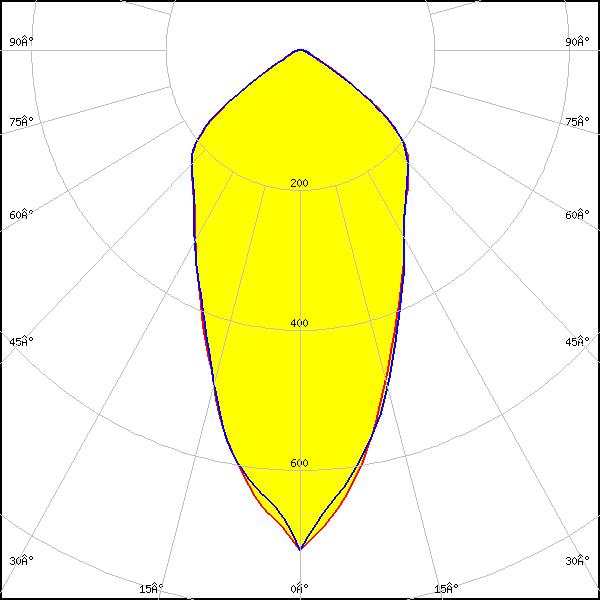

LED: XT-E
FWHM: 50°
FWTM: 116°
Peak intensity: 0.715 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

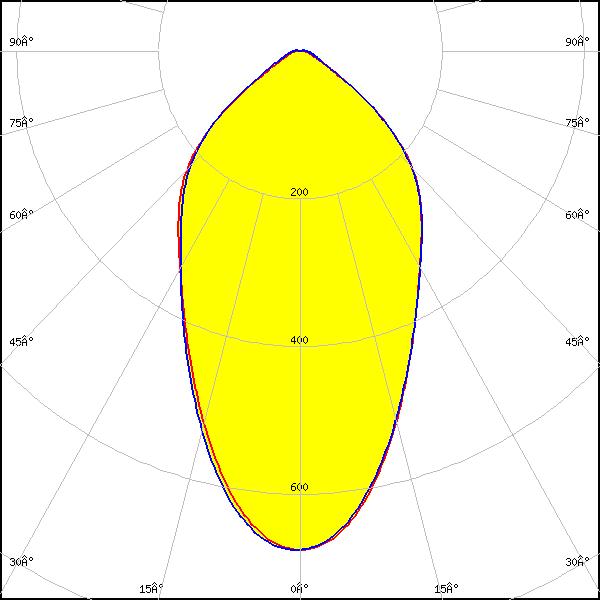

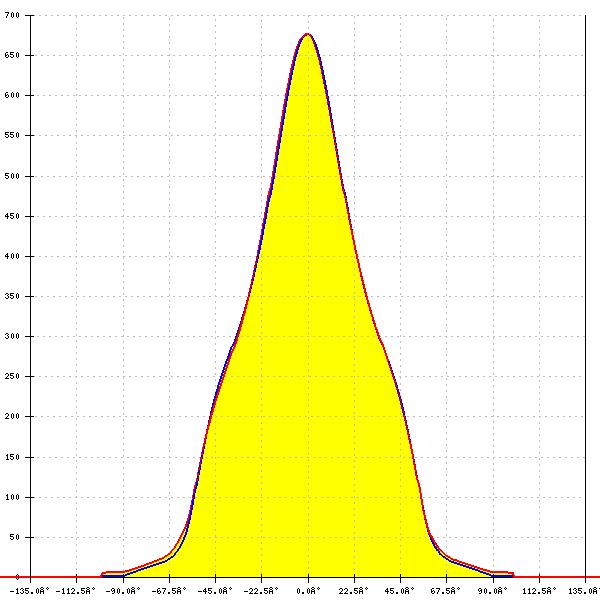

LED: EHP-223.5x50-1604-xx-70-LS30-06-NTC
FWHM: 60°
FWTM: 116°
Peak intensity: 0.677 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

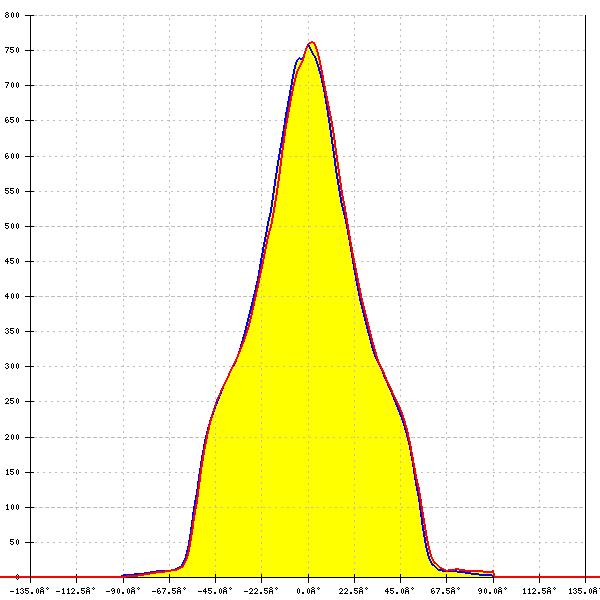

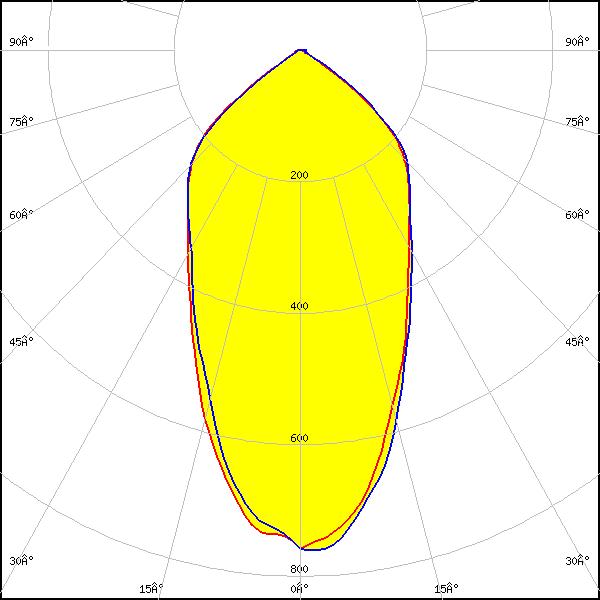

LED: LUXEON 3030 2D (Round LES)
FWHM: 55°
FWTM: 112°
Peak intensity: 0.780 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

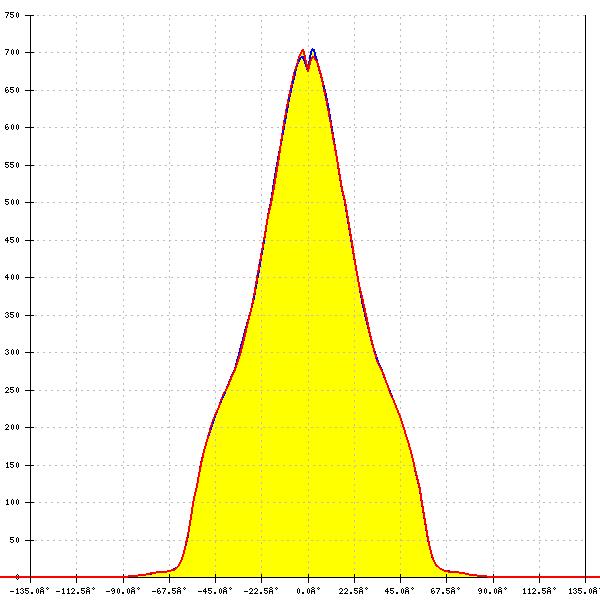

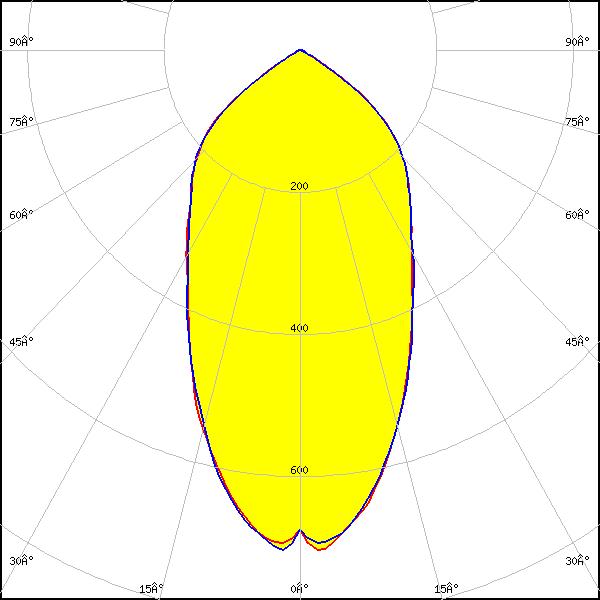

LED: LUXEON 3535L HE PLUS
FWHM: 56°
FWTM: 114°
Peak intensity: 0.716 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

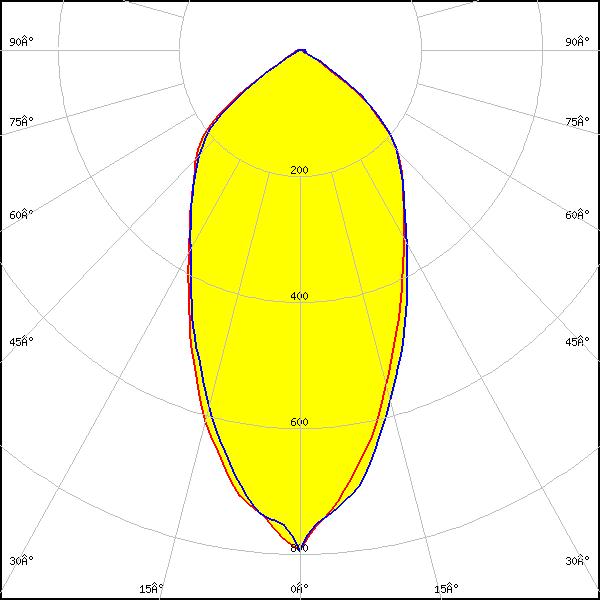

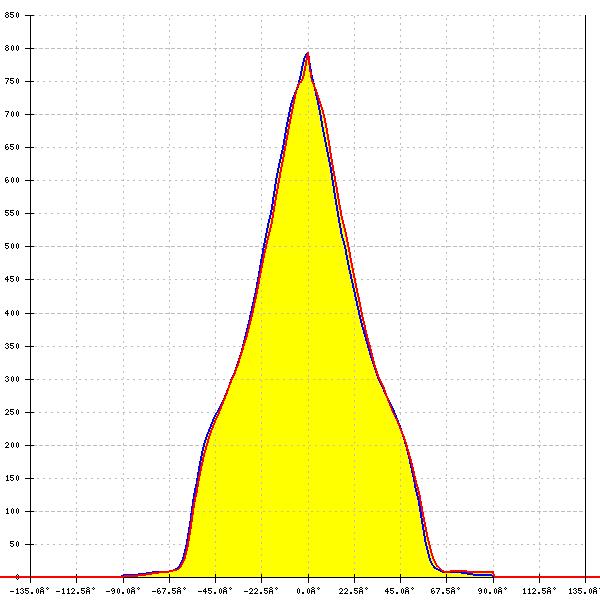

LED: NF2x757G
FWHM: 54°
FWTM: 113°
Peak intensity: 0.794 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

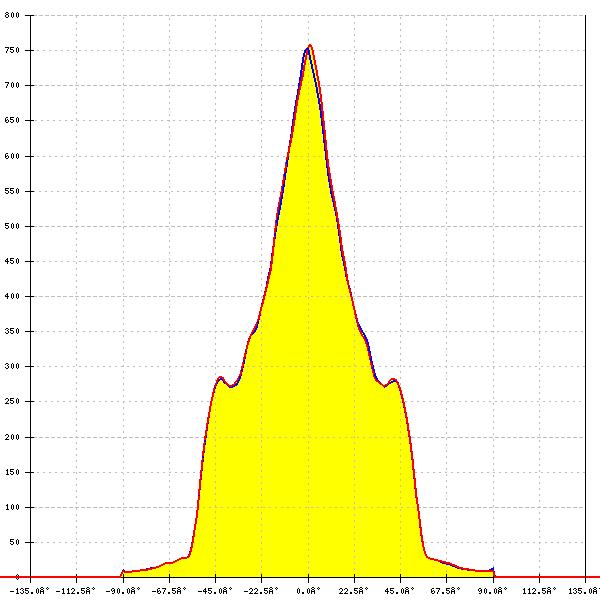

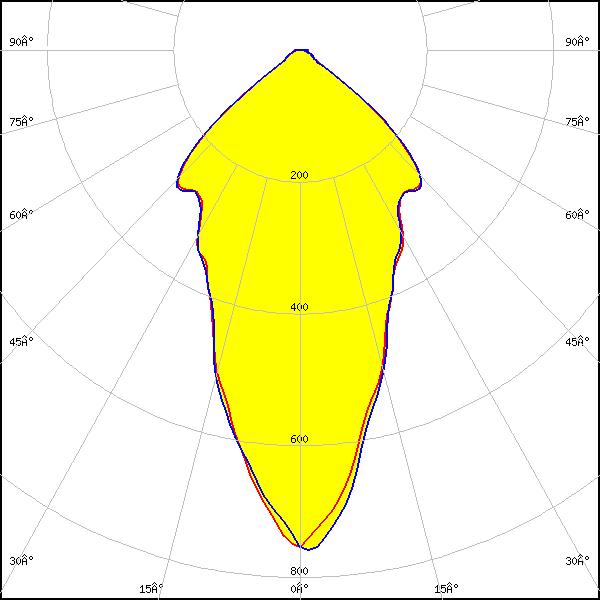

LED: NFSWE11A
FWHM: 46°
FWTM: 110°
Peak intensity: 0.763 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

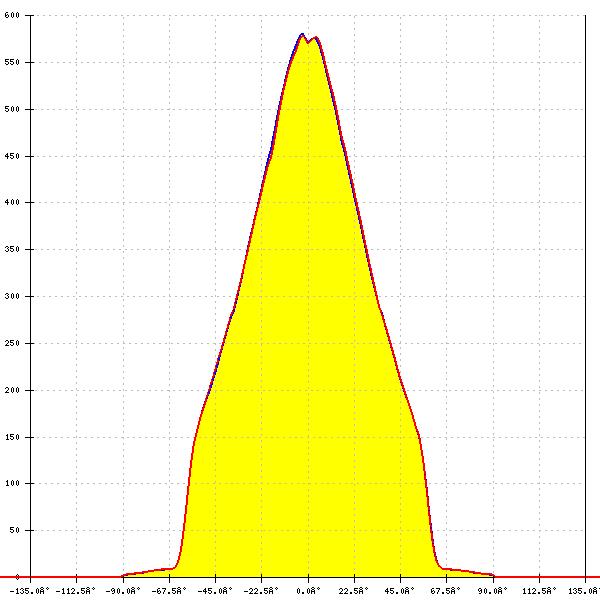

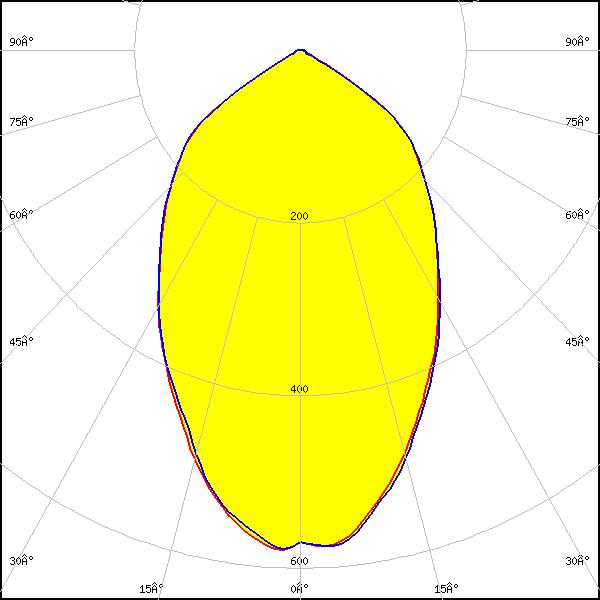

LED: NVSW519A
FWHM: 71°
FWTM: 120°
Peak intensity: 0.589 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

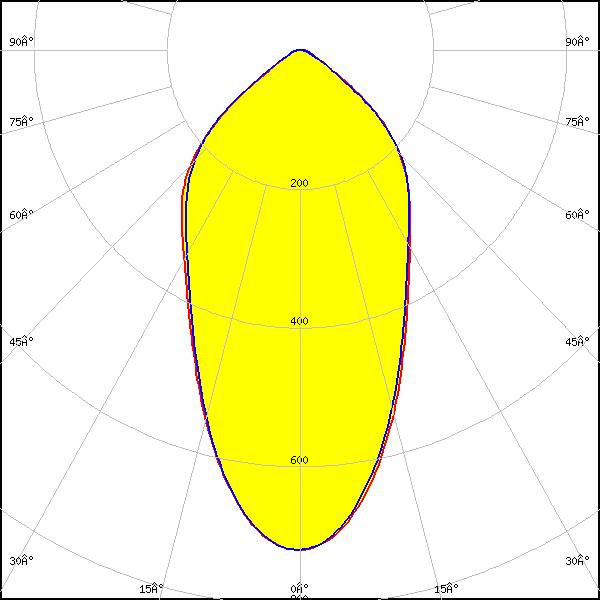

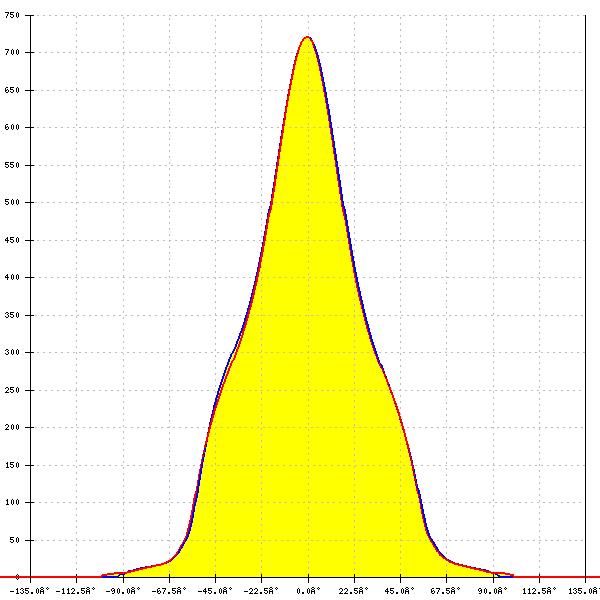

LED: Duris S5 (2 chip)
FWHM: 55°
FWTM: 114°
Peak intensity: 0.721 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: Purple

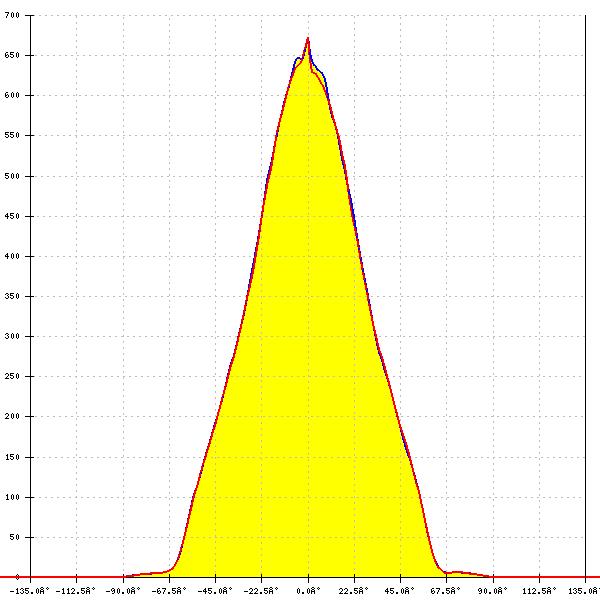

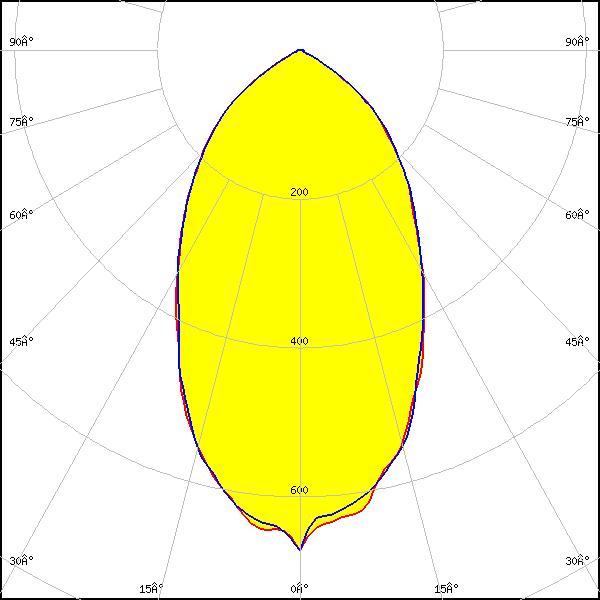

LED: Duris S8
FWHM: 61°
FWTM: 115°
Peak intensity: 0.672 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

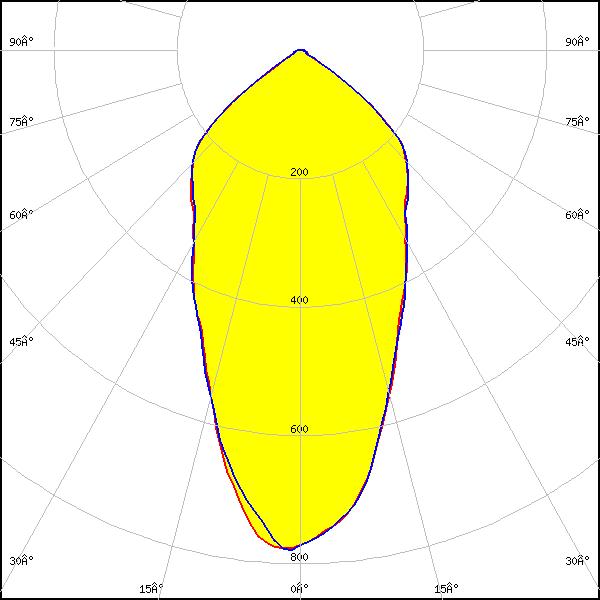

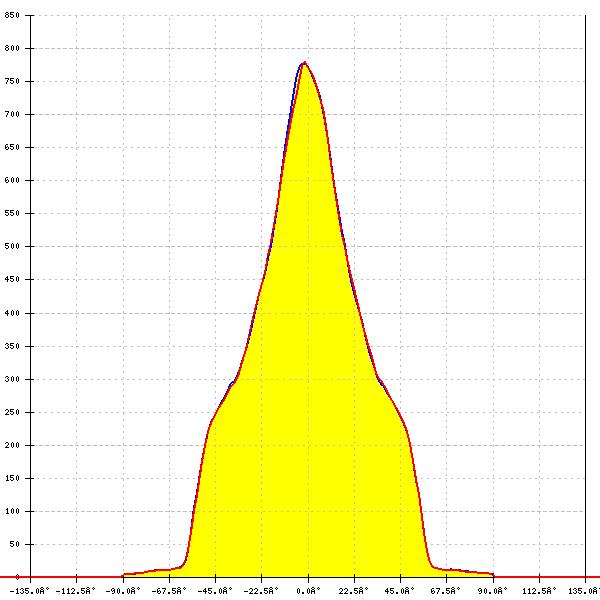

LED: OSCONIQ C 2424
FWHM: 53°
FWTM: 112°
Peak intensity: 0.794 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

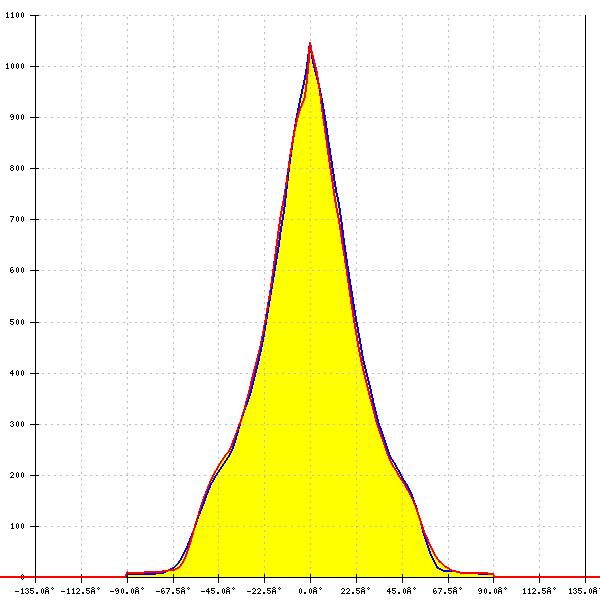

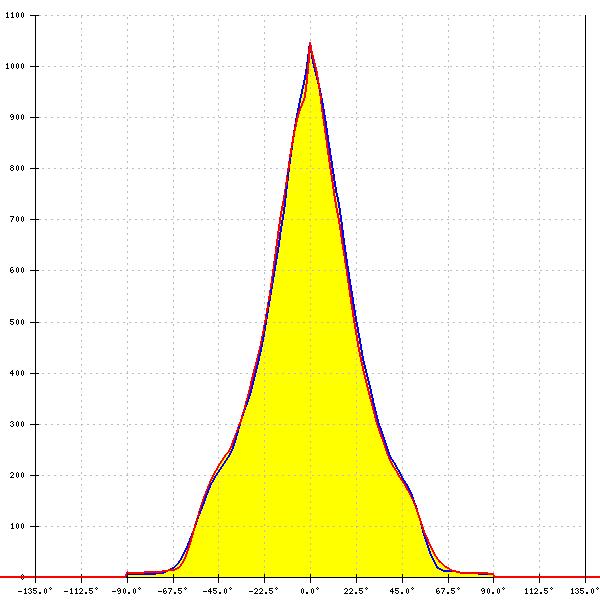

LED: OSCONIQ P 3030
FWHM: 42°
FWTM: 111°
Peak intensity: 1.047 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

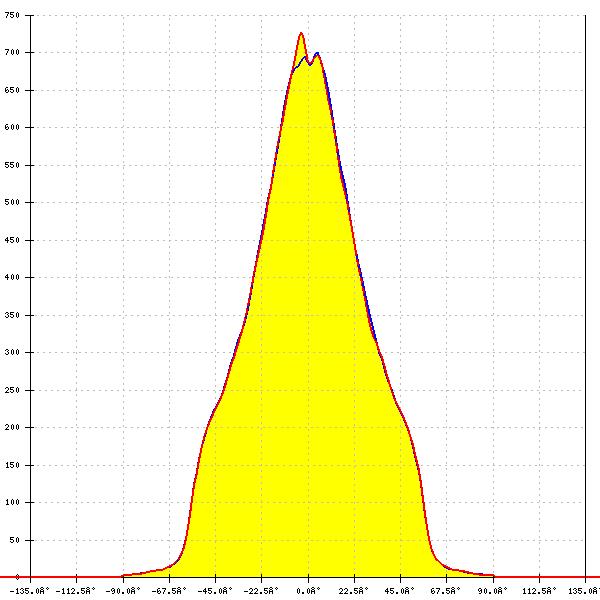

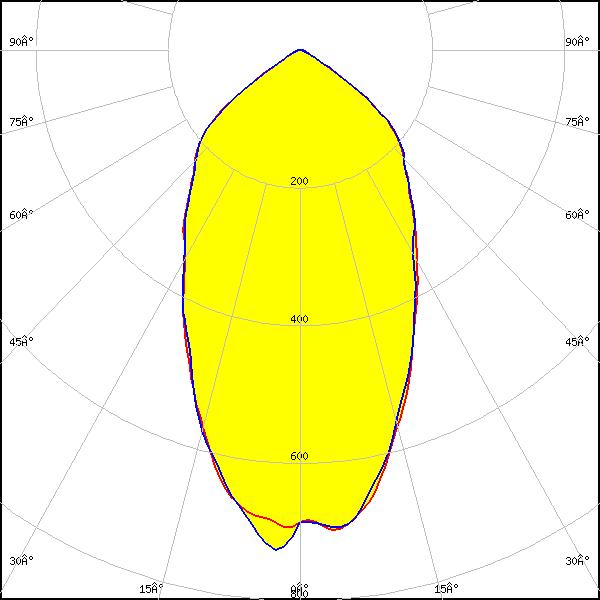

LED: OSCONIQ P 3737 (3W version)
FWHM: 60° + 58°
FWTM: 116° + 116°
Peak intensity: 0.746 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

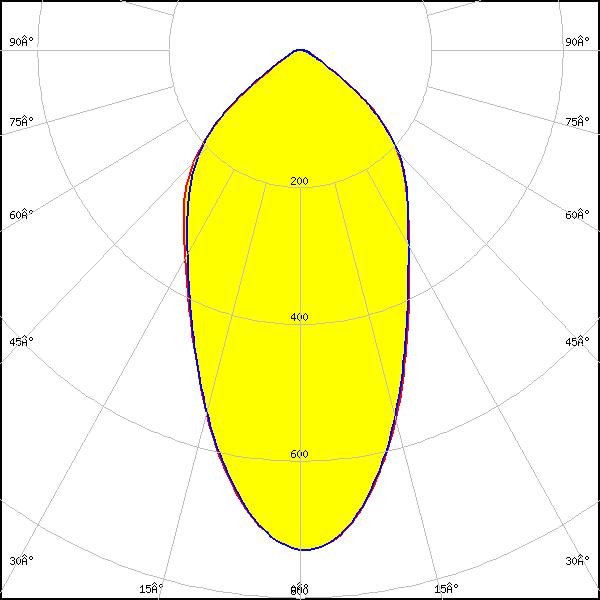

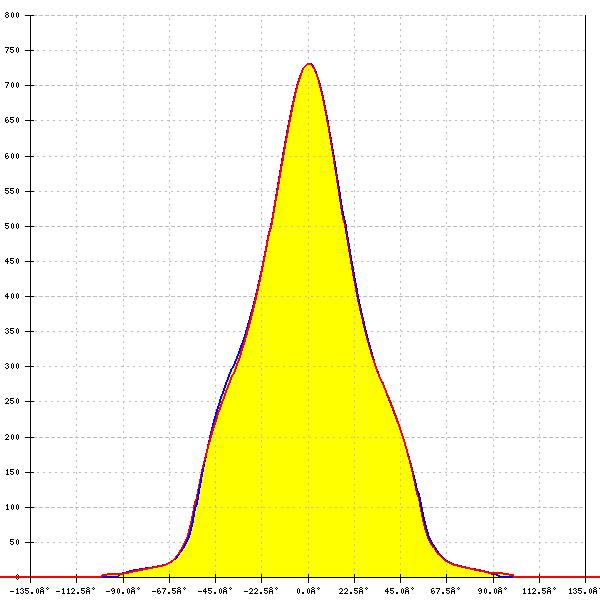

LED: OSCONIQ S 3030 (QSLR31)
FWHM: 55°
FWTM: 114°
Peak intensity: 0.731 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

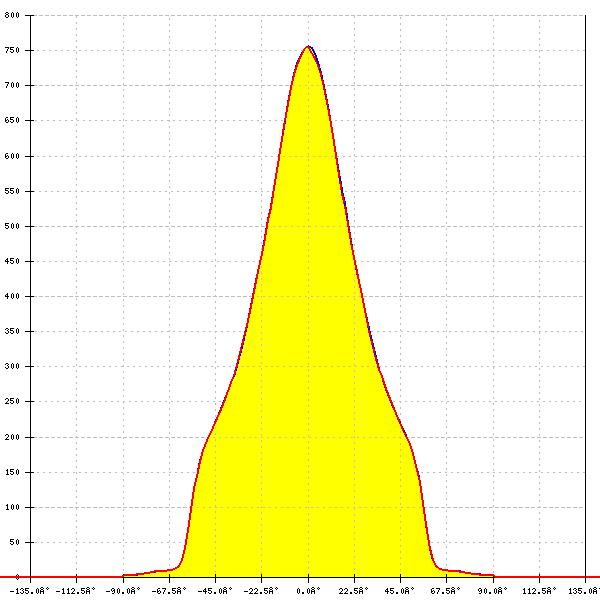

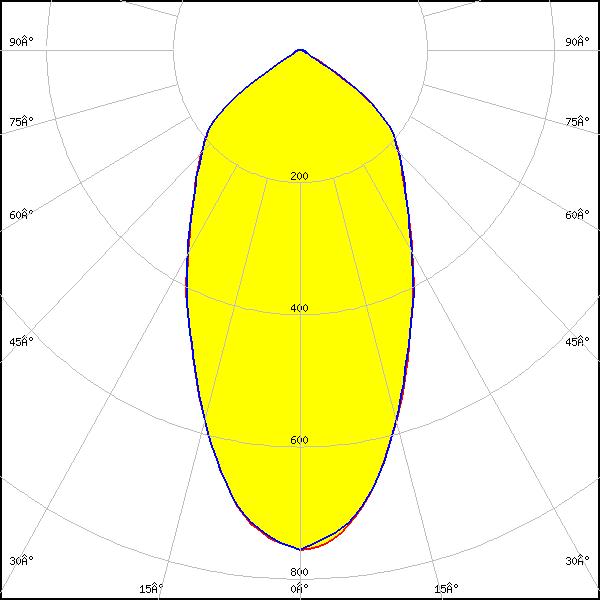

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 56°
FWTM: 115°
Peak intensity: 0.757 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

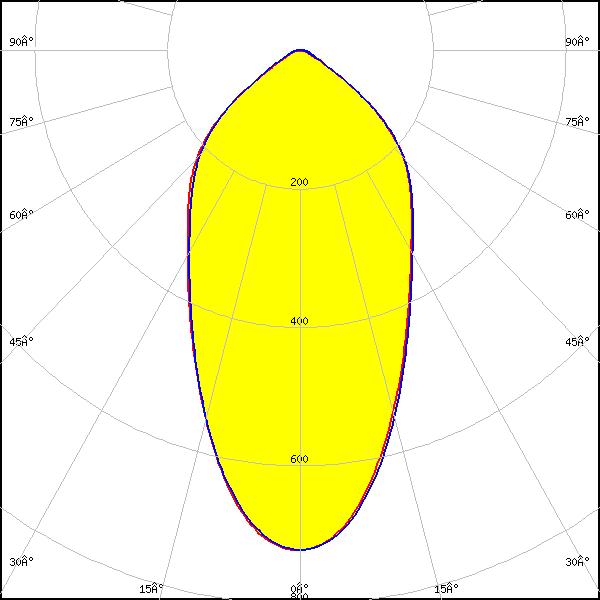

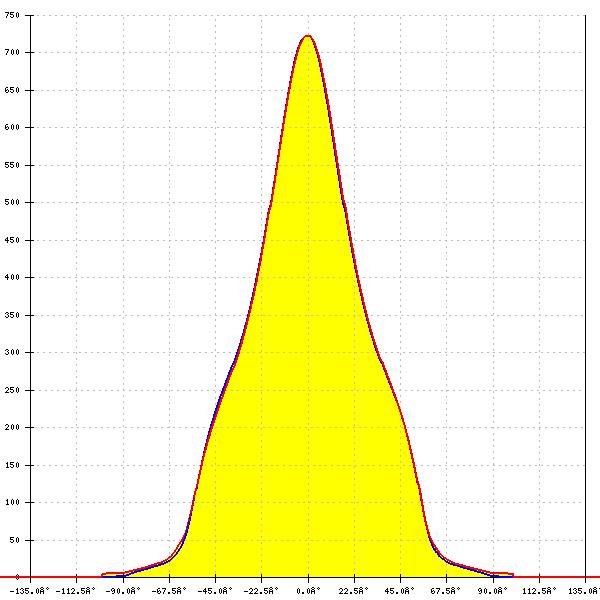

LED: HiLOM RM64 (LM301B)
FWHM: 55°
FWTM: 115°
Peak intensity: 0.720 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

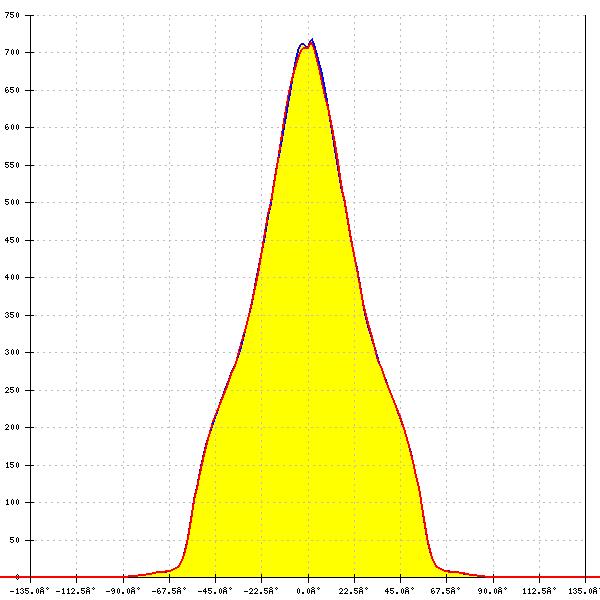

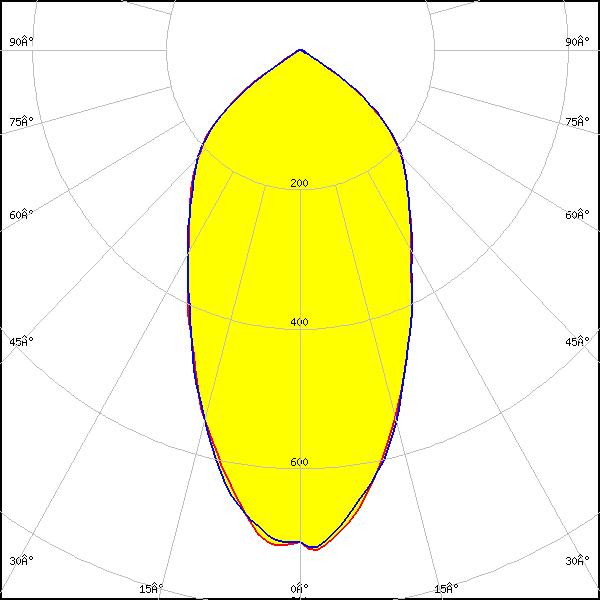

LED: LM301B
FWHM: 56°
FWTM: 114°
Peak intensity: 0.727 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

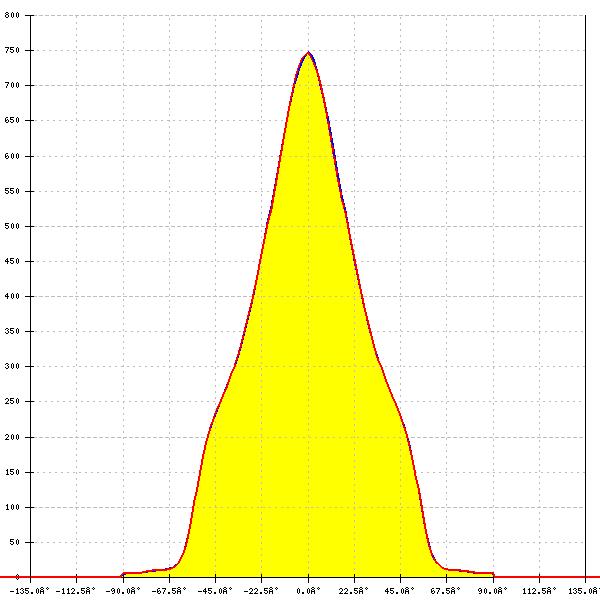

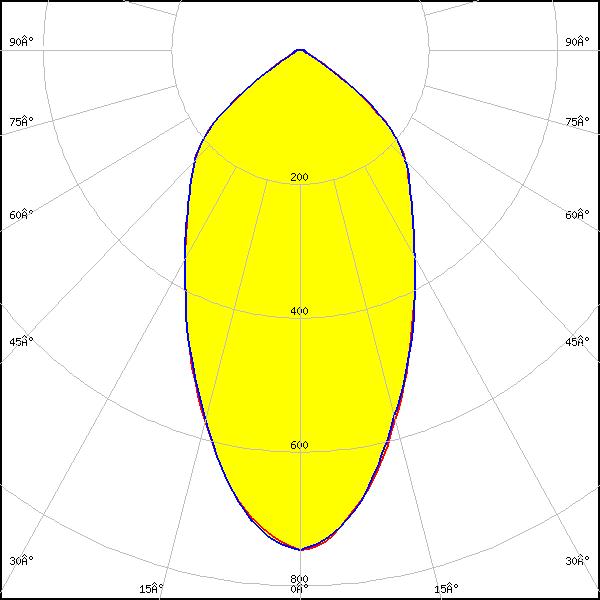

LED: LM302D
FWHM: 58°
FWTM: 114°
Peak intensity: 0.747 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

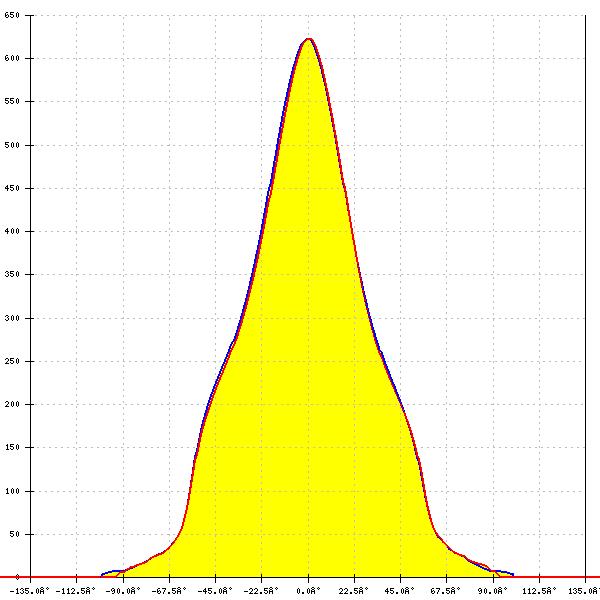

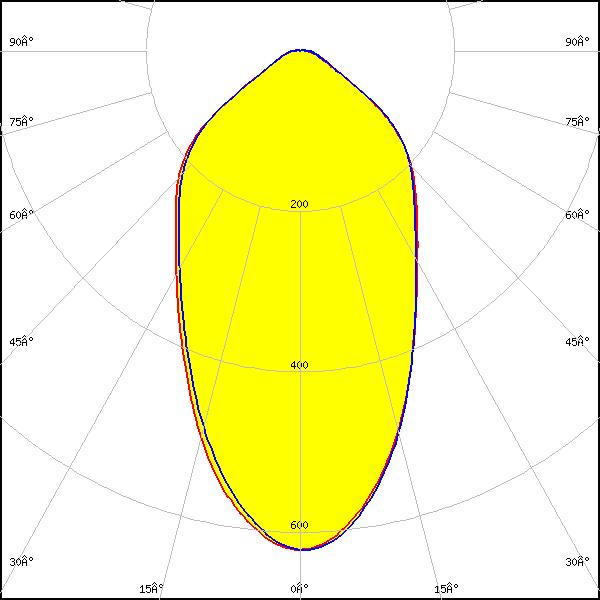

LED: XLE-S44XTEHE (XT-E HE)
FWHM: 60°
FWTM: 127°
Peak intensity: 0.623 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

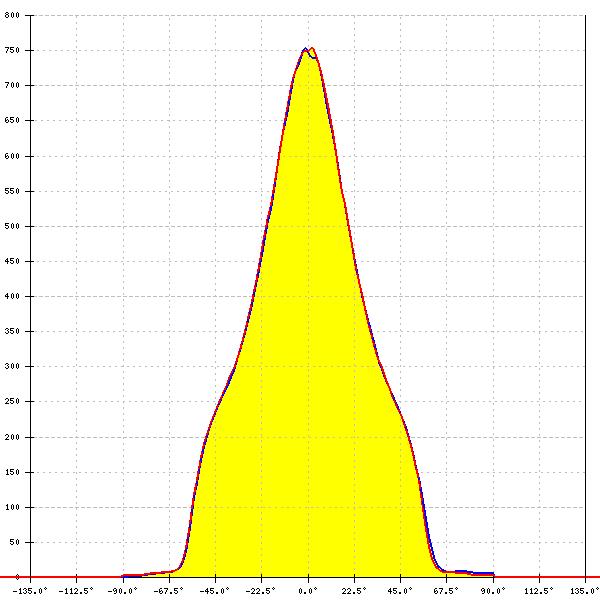

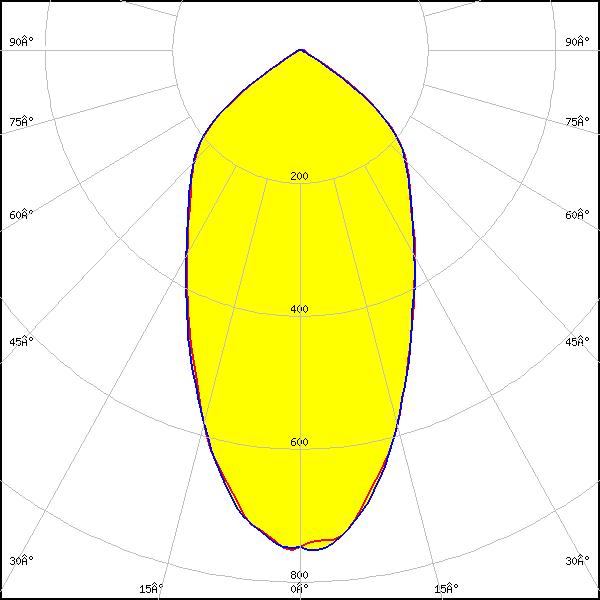

LED: SEOUL DC 3030C
FWHM: 57°
FWTM: 114°
Peak intensity: 0.769 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
