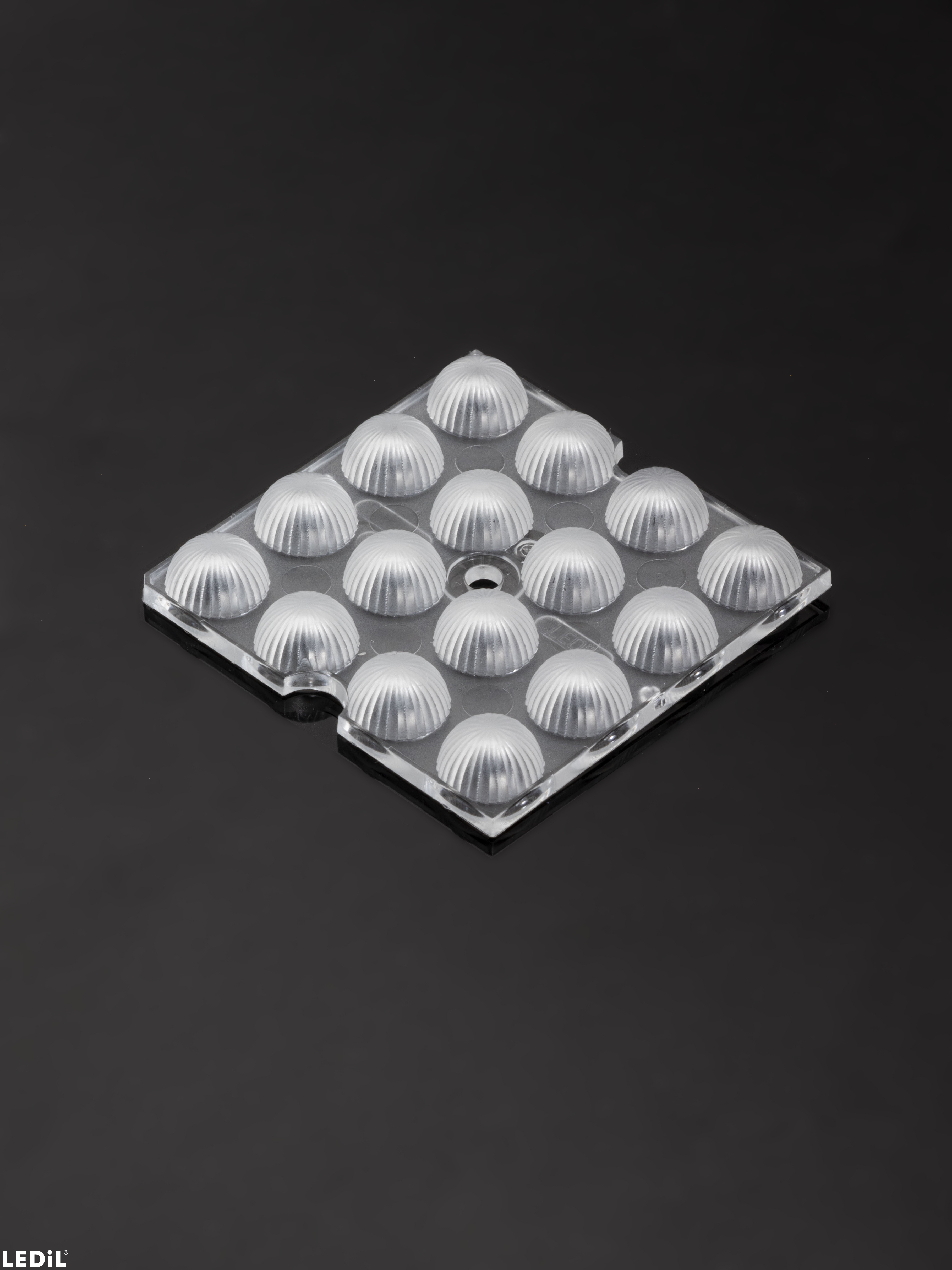

    C16598_STRADELLA-16-HB-W-PC

    Print

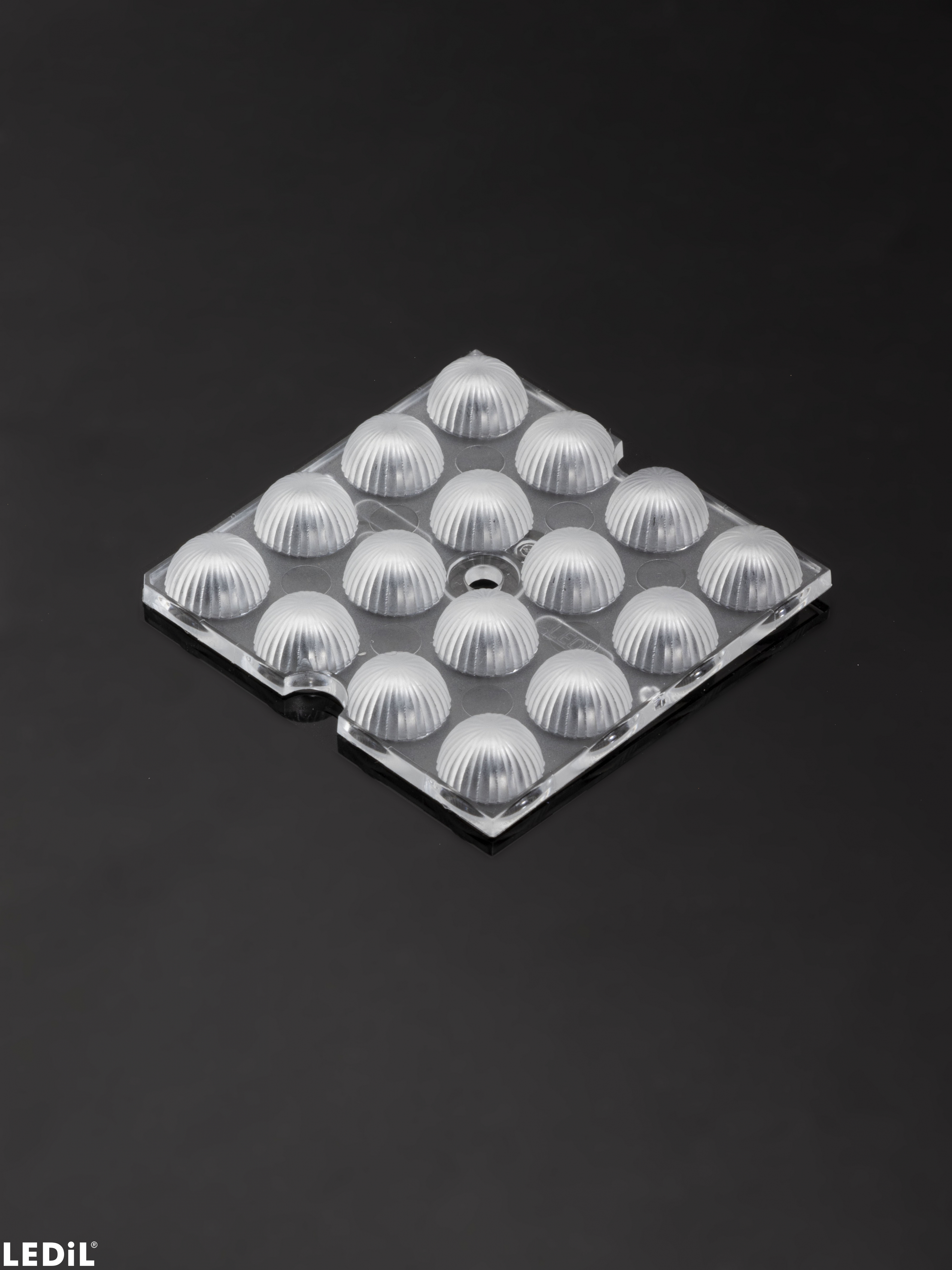

    ~90° wide beam for industrial applications. Varian made from PC.

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      7.10 mm
    • Fastening:
      pin, screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      6.4 kg
    • MPQ:
      160 pcs
    • MOQ:
      160 pcs
    • MOQ size:
      480 x 280 x 80 mm
    • MOQ weight:
      1.5 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C16598_STRADELLA-16-HB-W-PC
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New Products - 2019-03-21

    Reference product

    E+ AVIS lighting series

    News

    PRODUCT NEWS - STRADELLA-16

    Application guide

    Guide for Street lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    News

    PRODUCT NEWS - STRADELLA FAMILY

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    Application area

    Industrial Lighting

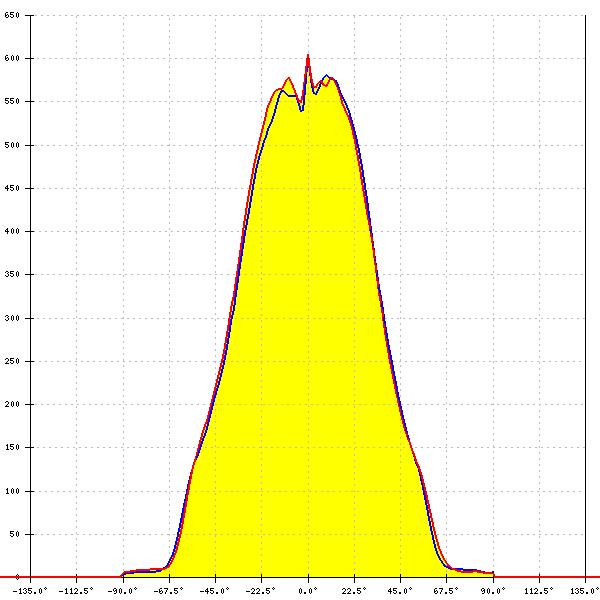

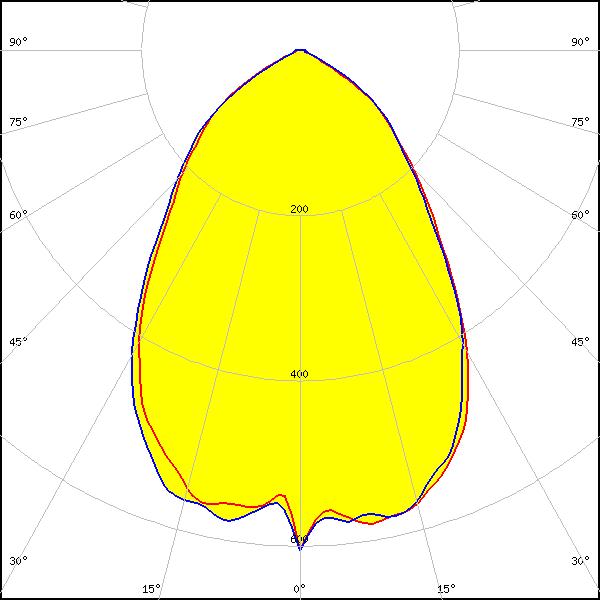

    Optical results

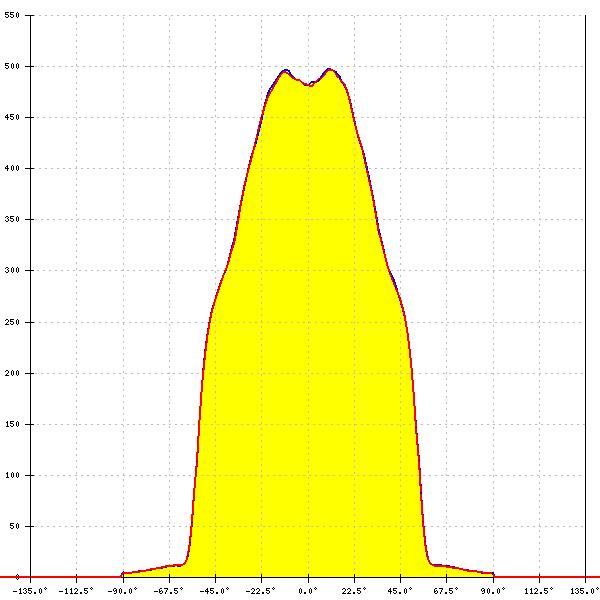

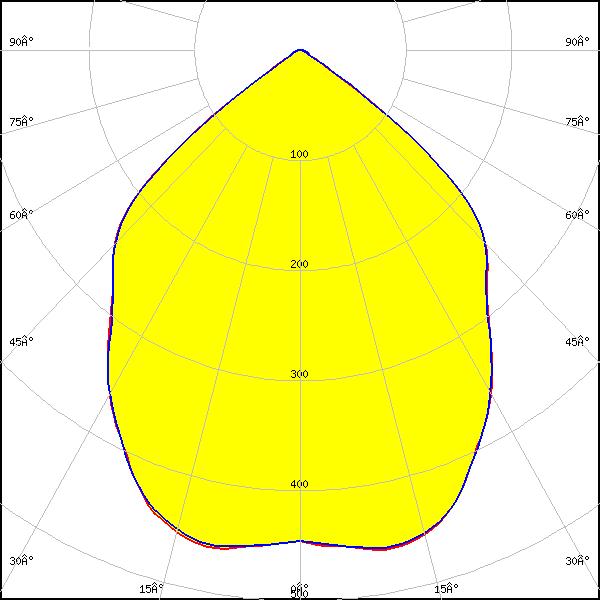

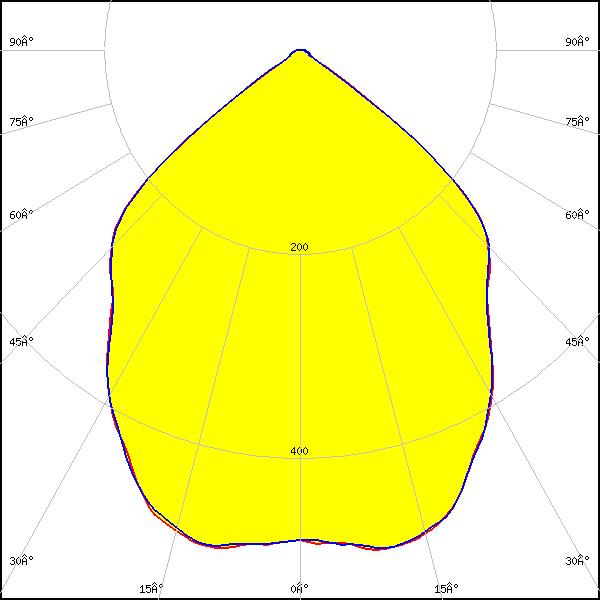

    LED: CSP 2727 (BXCP)
    FWHM: 96°
    FWTM: 112°
    Peak intensity: 0.500 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

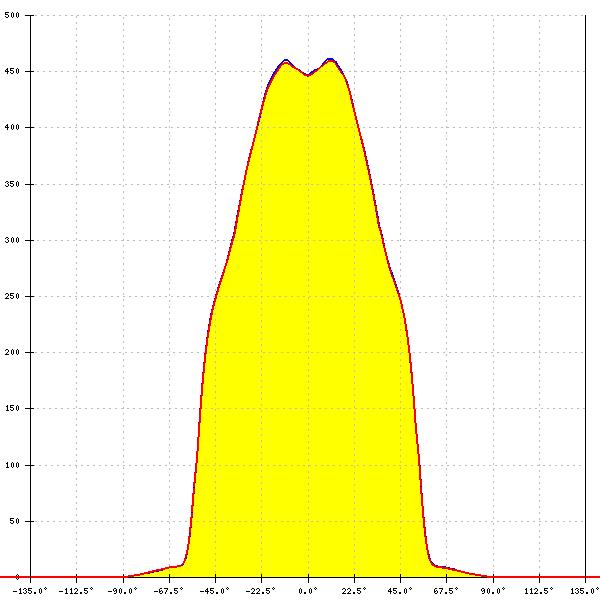

    LED: CSP 2727 (BXCP)
    FWHM: 94°
    FWTM: 114°
    Peak intensity: 0.463 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

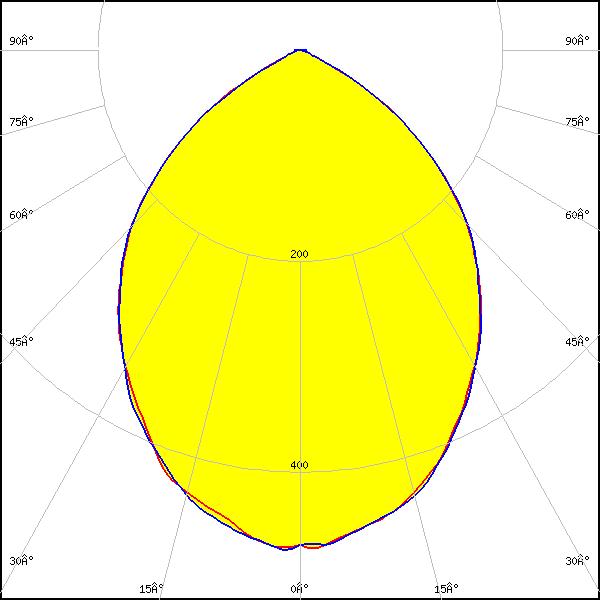

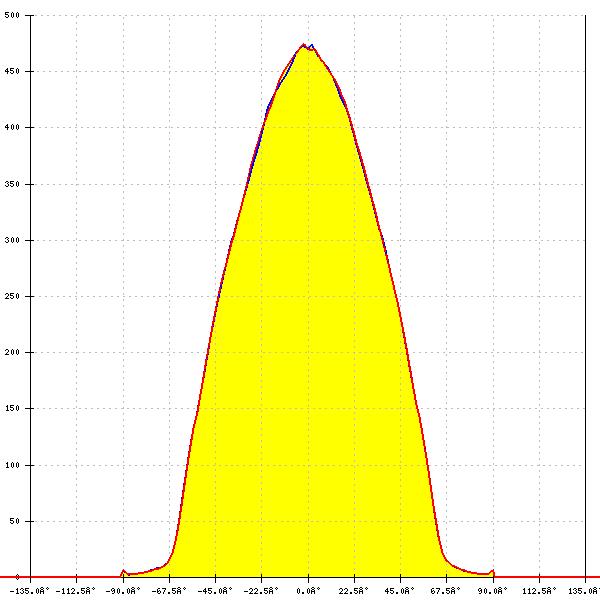

    LED: XP-G2 HE
    FWHM: 90°
    FWTM: 126°
    Peak intensity: 0.476 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

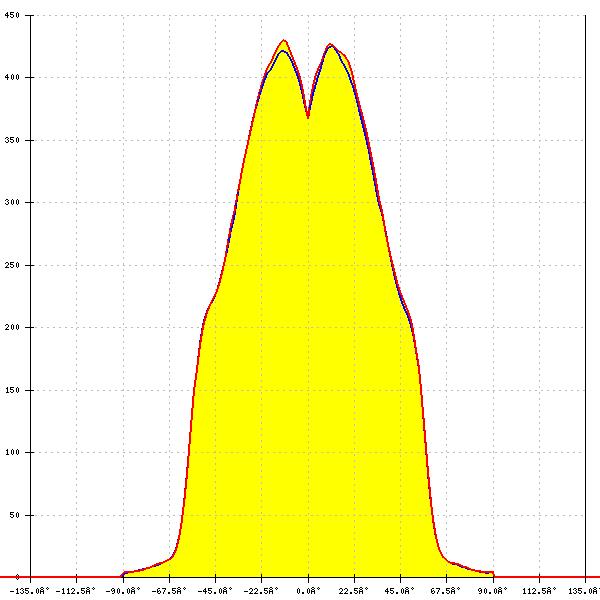

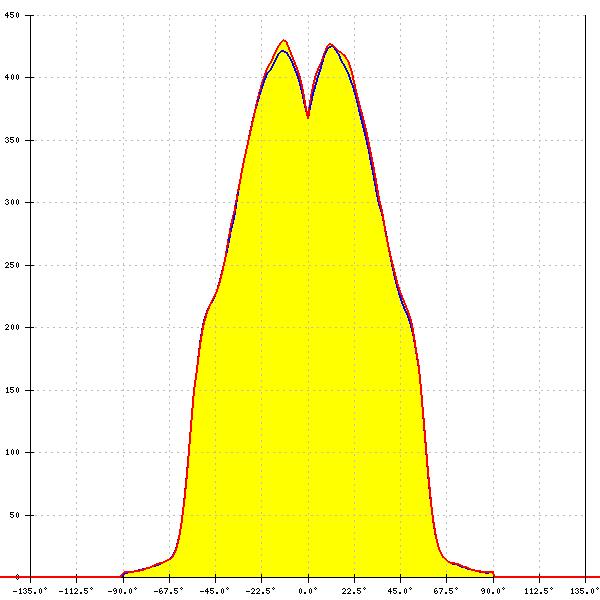

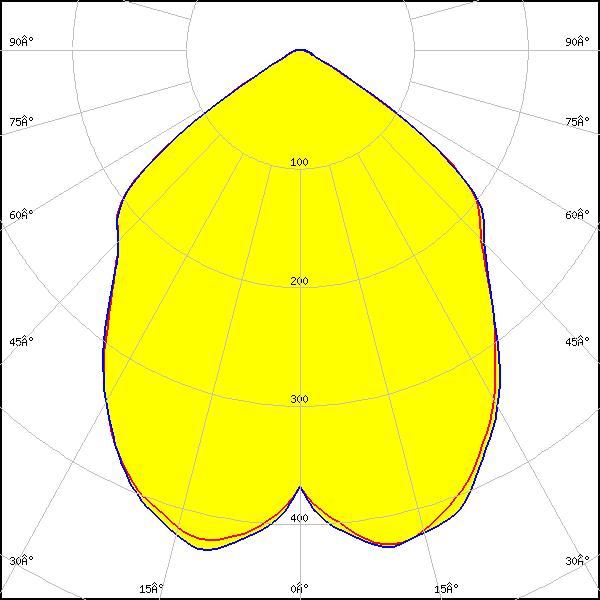

    LED: XT-E
    FWHM: 97°
    FWTM: 122°
    Peak intensity: 0.431 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

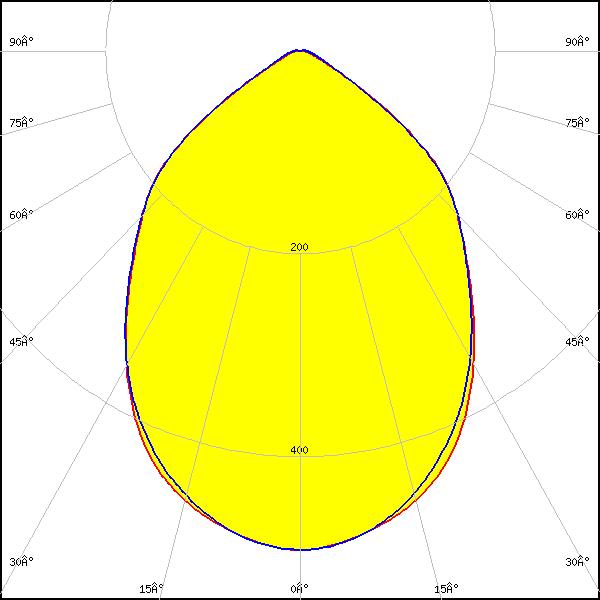

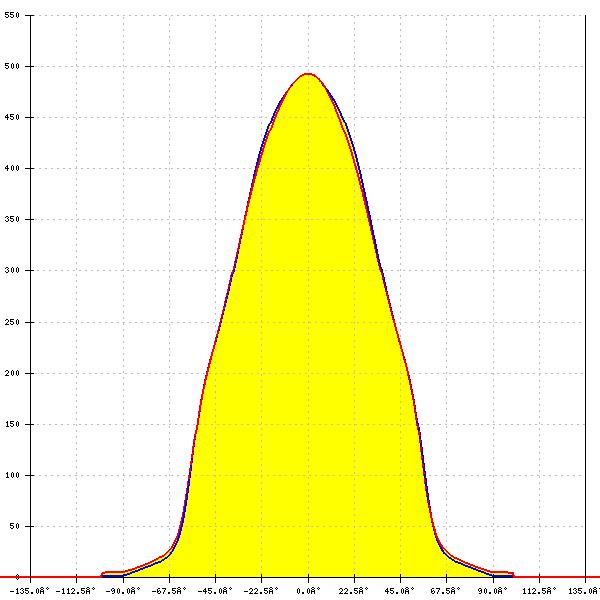

    LED: EHP-223.5x50-1604-xx-70-LS30-06-NTC
    FWHM: 85°
    FWTM: 123°
    Peak intensity: 0.493 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

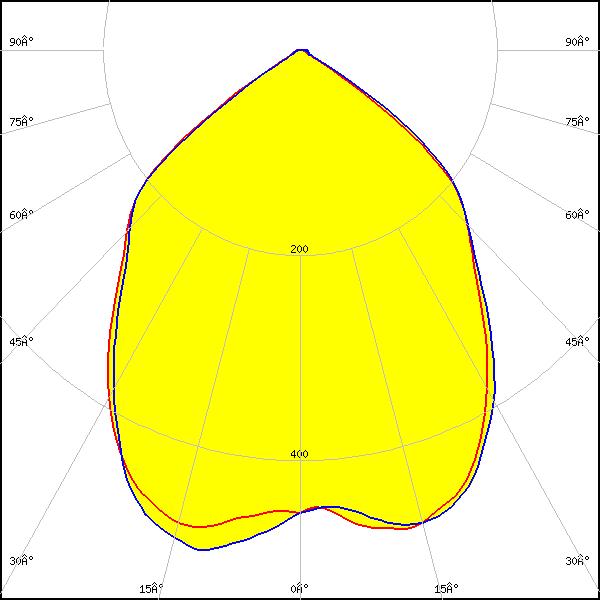

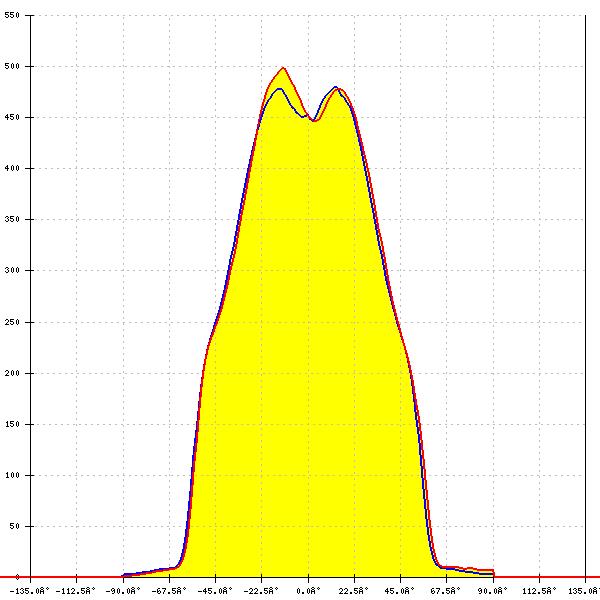

    LED: LUXEON 3030 2D (Round LES)
    FWHM: 90°
    FWTM: 117°
    Peak intensity: 0.500 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

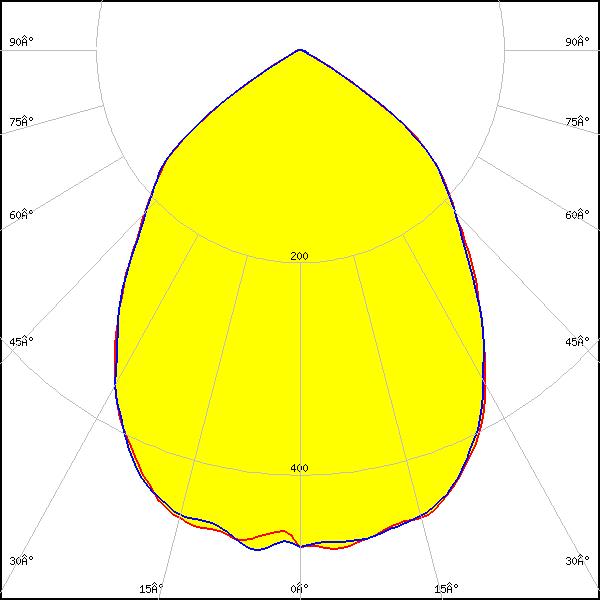

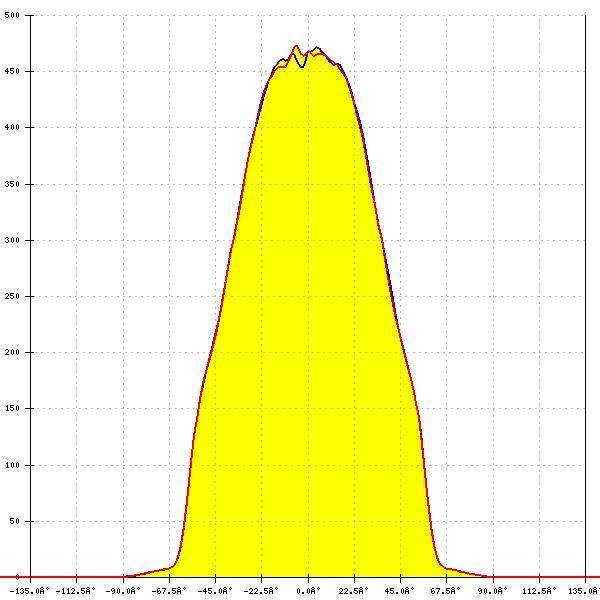

    LED: LUXEON 3535L HE PLUS
    FWHM: 85°
    FWTM: 120°
    Peak intensity: 0.480 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

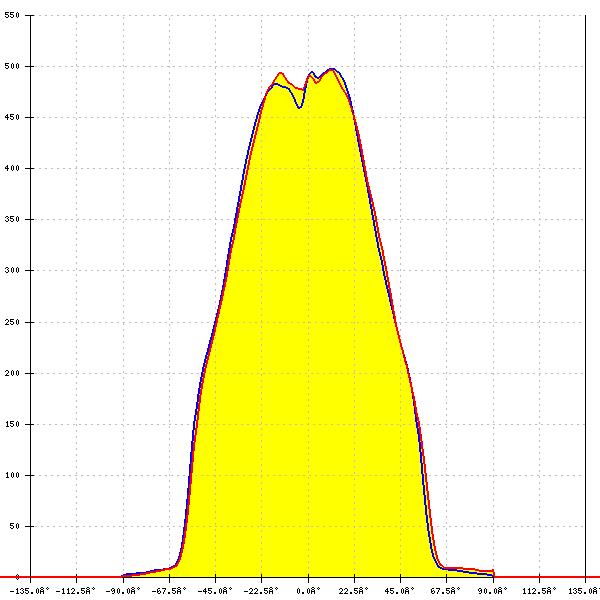

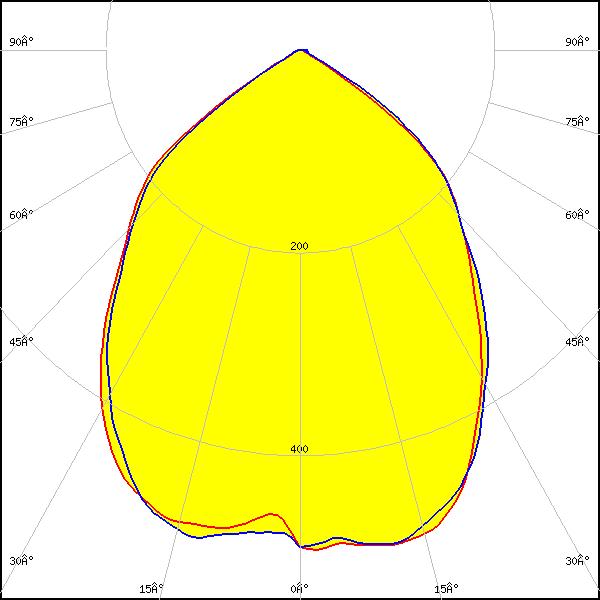

    LED: NF2x757G
    FWHM: 88°
    FWTM: 118°
    Peak intensity: 0.500 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

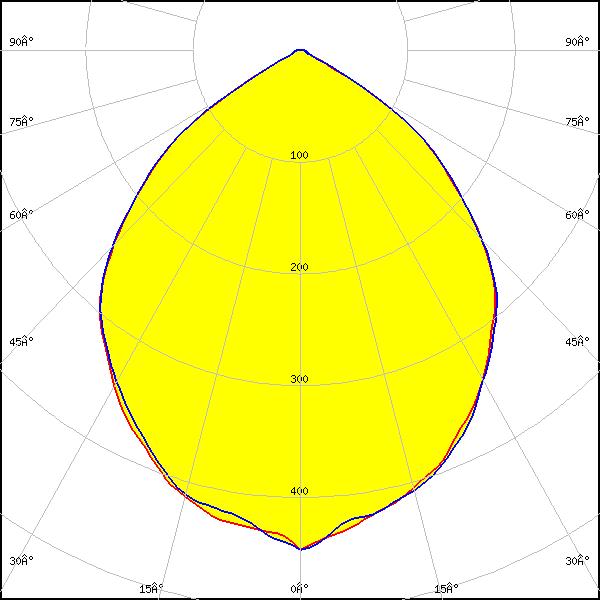

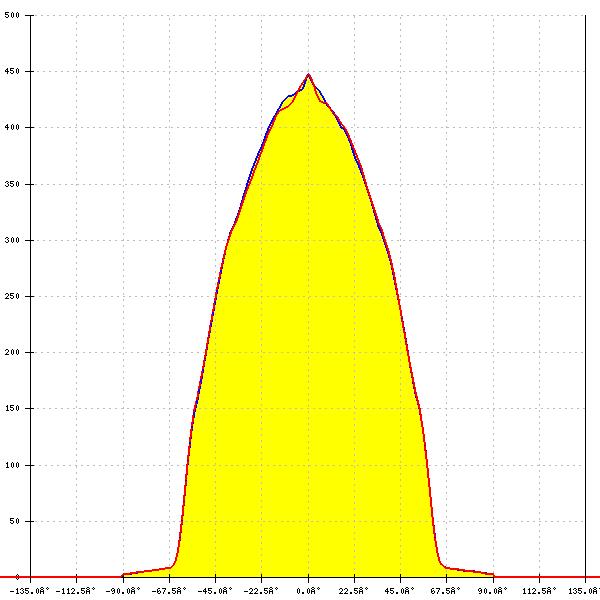

    LED: NVSW519A
    FWHM: 94°
    FWTM: 122°
    Peak intensity: 0.449 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

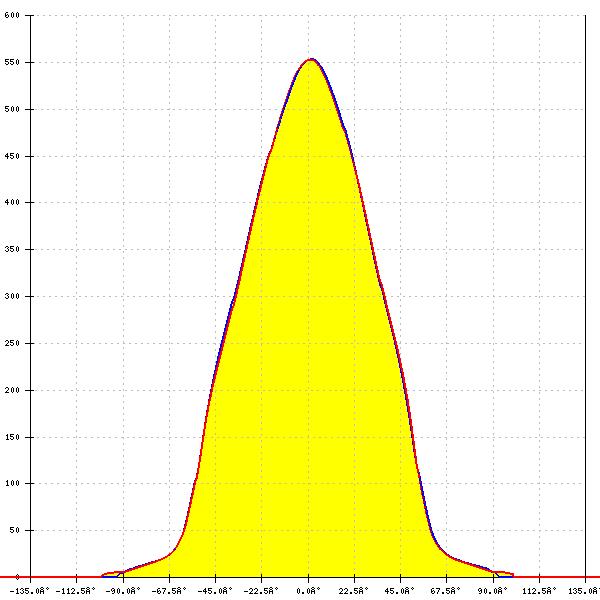

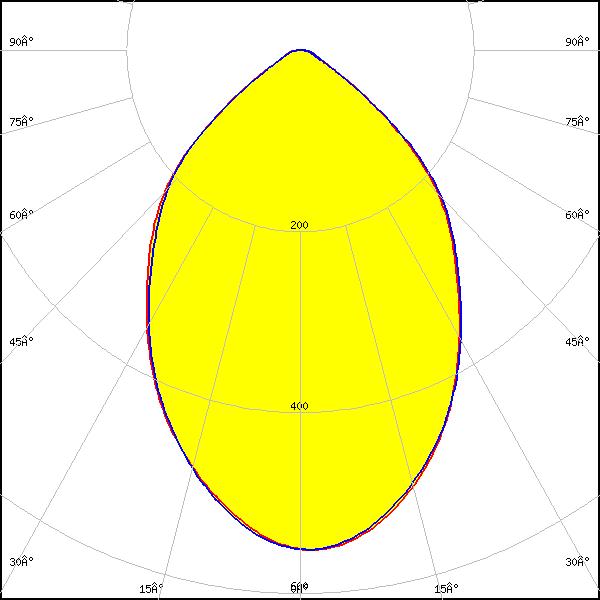

    LED: DURIS S5 (2 chip)
    FWHM: 78°
    FWTM: 119°
    Peak intensity: 0.553 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: Purple

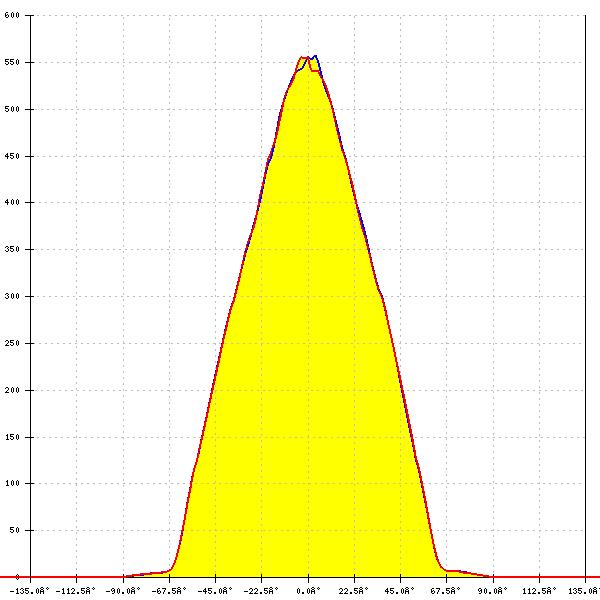

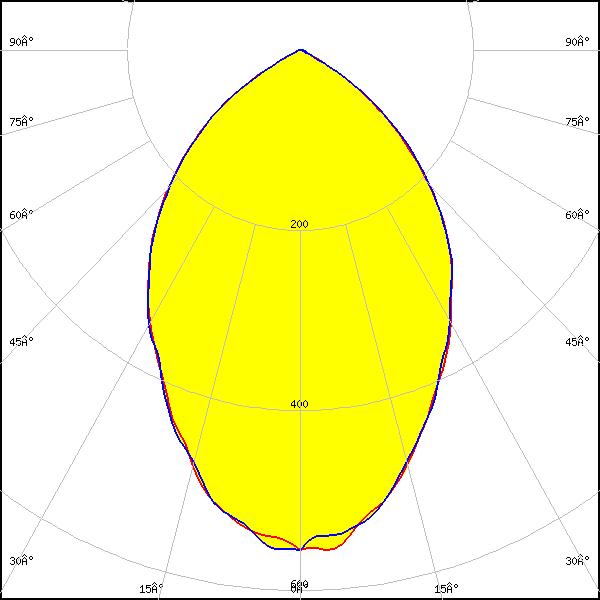

    LED: Duris S8
    FWHM: 76°
    FWTM: 119°
    Peak intensity: 0.570 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

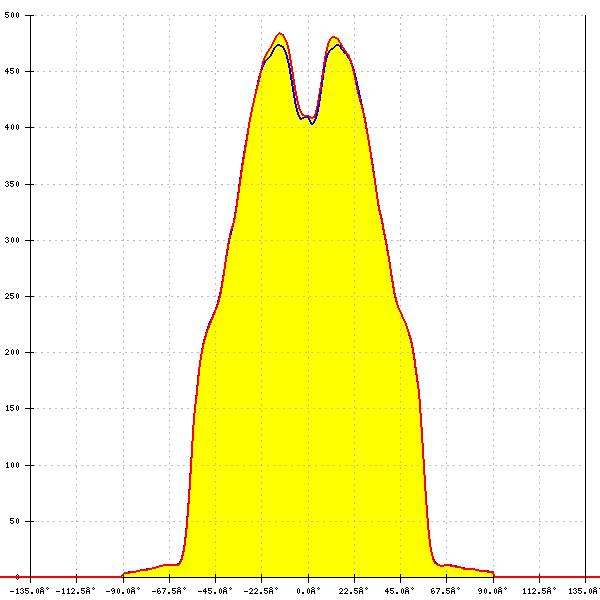

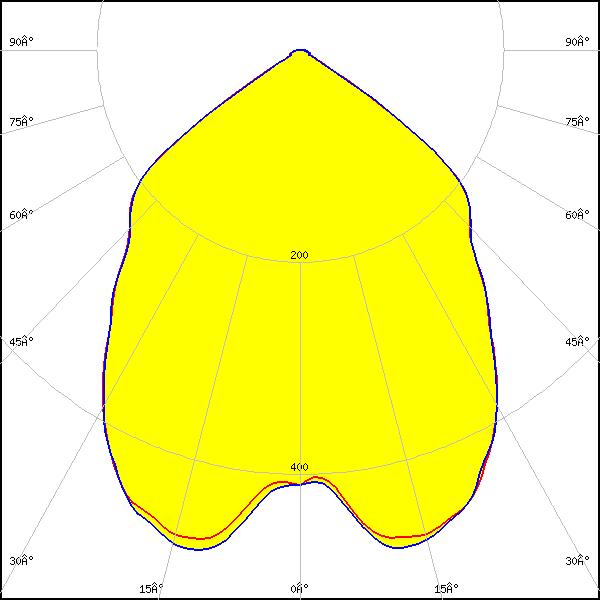

    LED: OSCONIQ C 2424 Gen1
    FWHM: 89°
    FWTM: 117°
    Peak intensity: 0.485 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

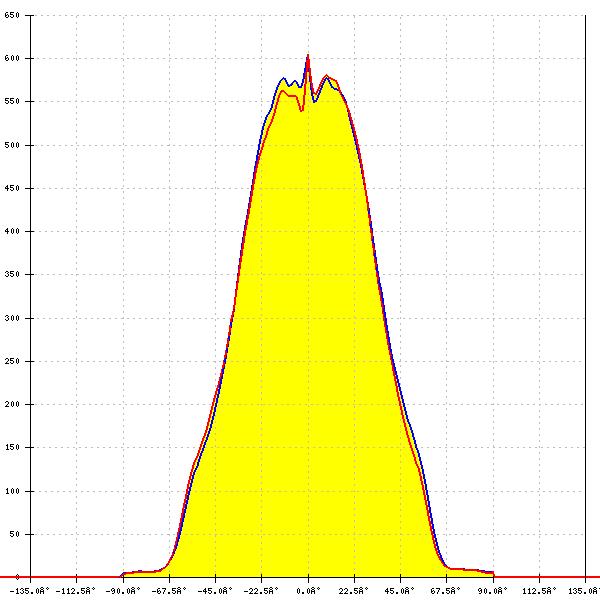

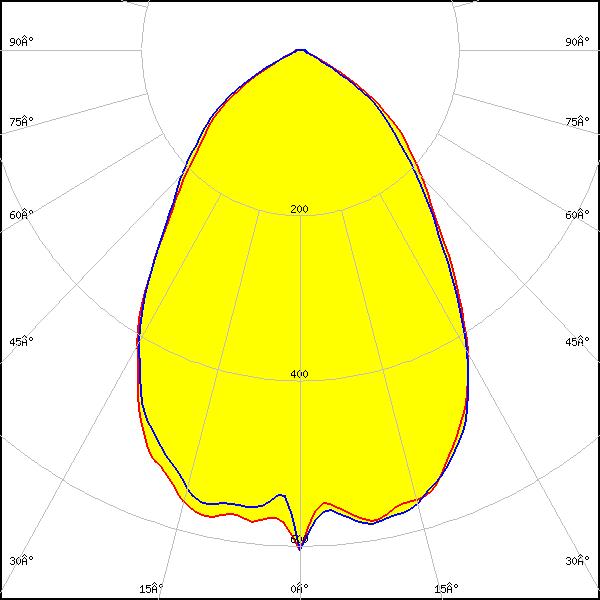

    LED: OSCONIQ P 3030
    FWHM: 74°
    FWTM: 122°
    Peak intensity: 0.605 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

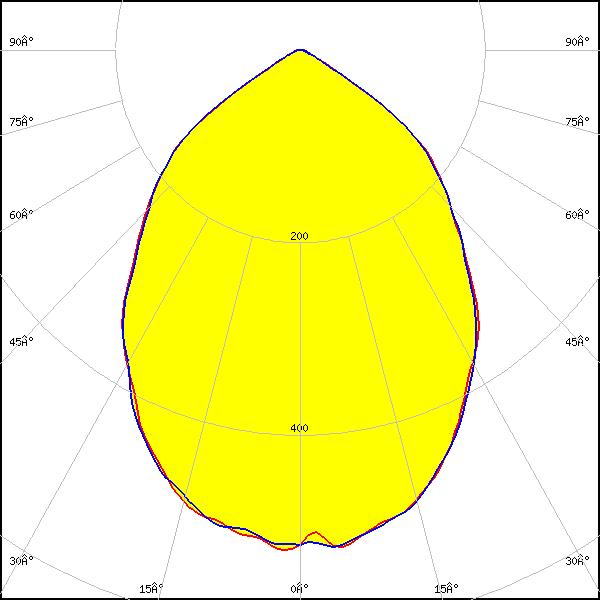

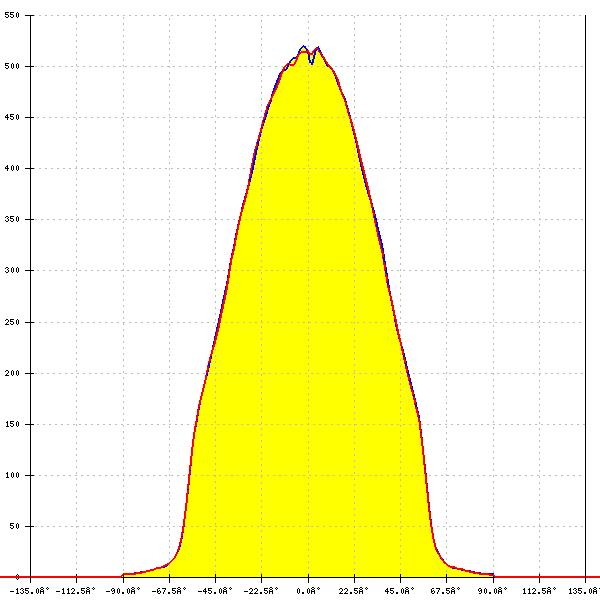

    LED: OSCONIQ P 3737 (3W) PUSTA1
    FWHM: 84°
    FWTM: 120°
    Peak intensity: 0.535 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

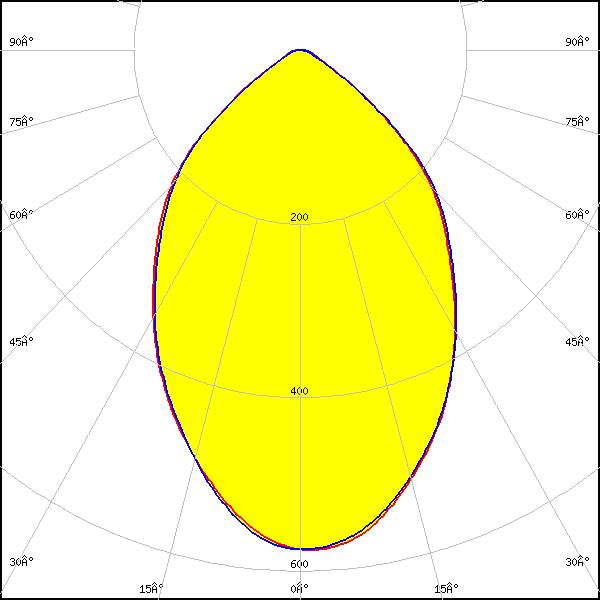

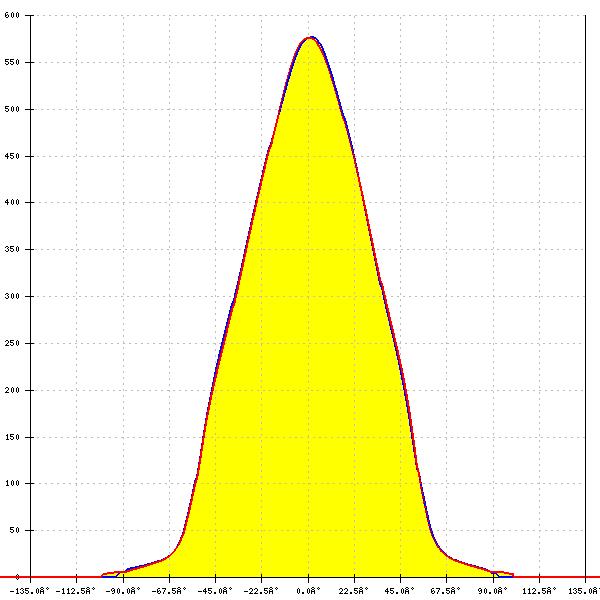

    LED: OSCONIQ S 3030 (QSLR31)
    FWHM: 75°
    FWTM: 118°
    Peak intensity: 0.576 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

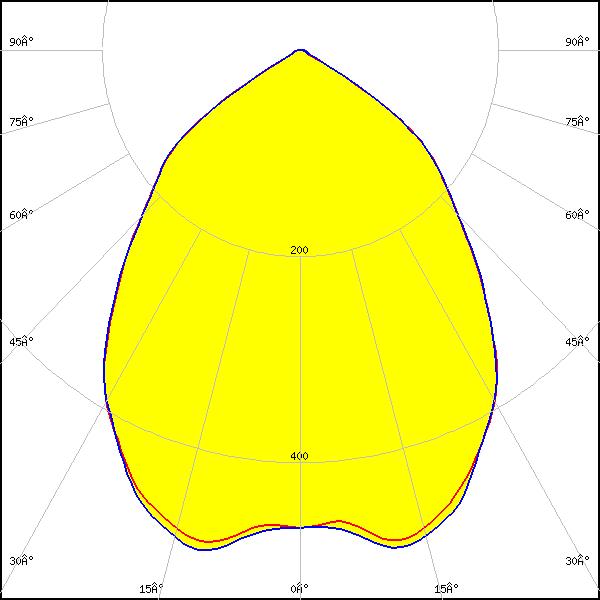

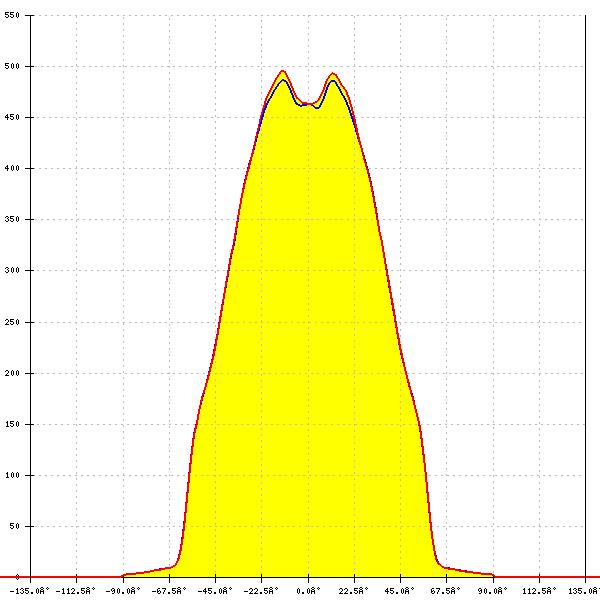

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 86°
    FWTM: 120°
    Peak intensity: 0.496 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

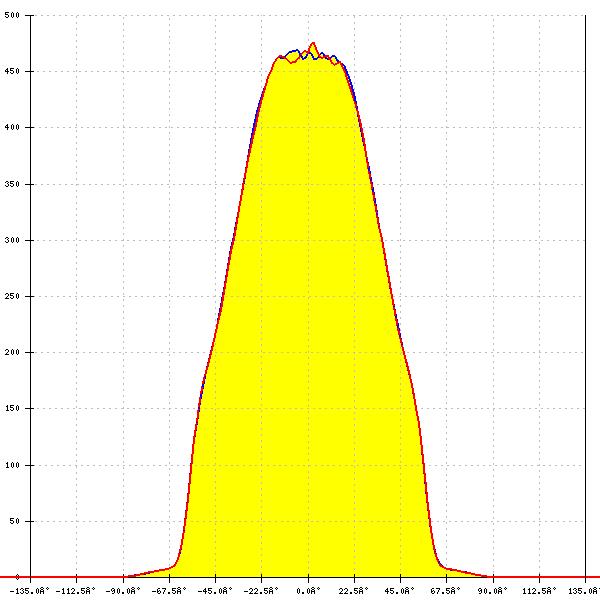

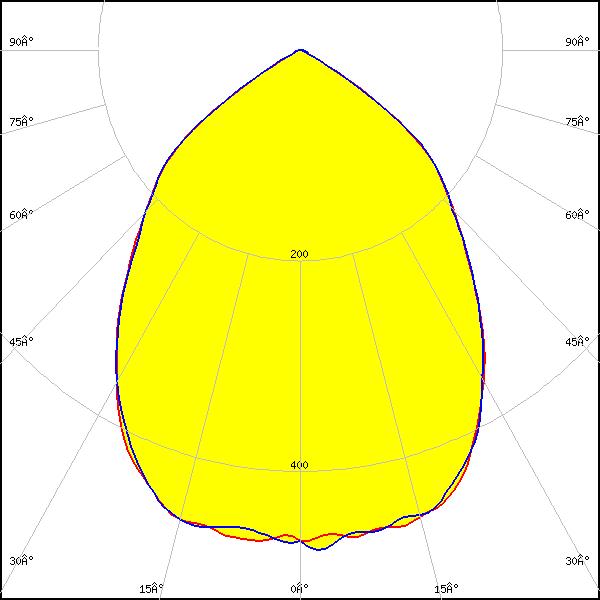

    LED: LM301B
    FWHM: 85°
    FWTM: 120°
    Peak intensity: 0.484 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

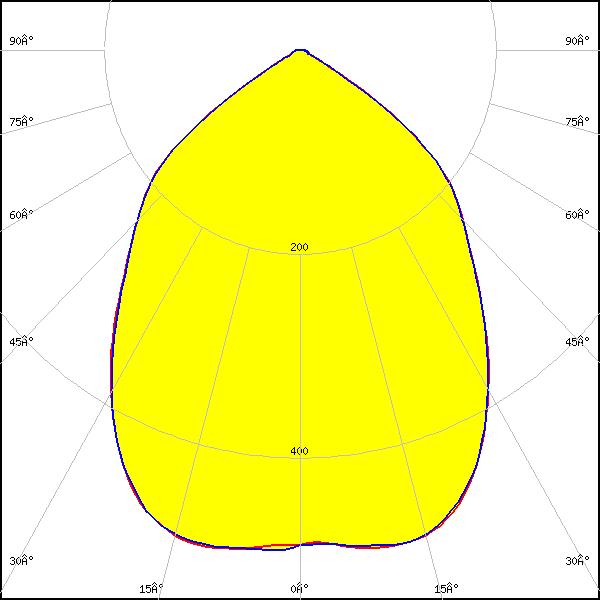

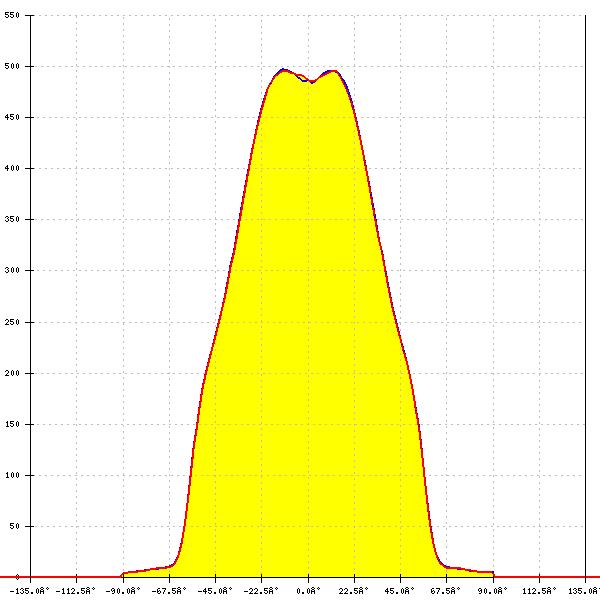

    LED: LM302D
    FWHM: 86°
    FWTM: 120°
    Peak intensity: 0.499 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

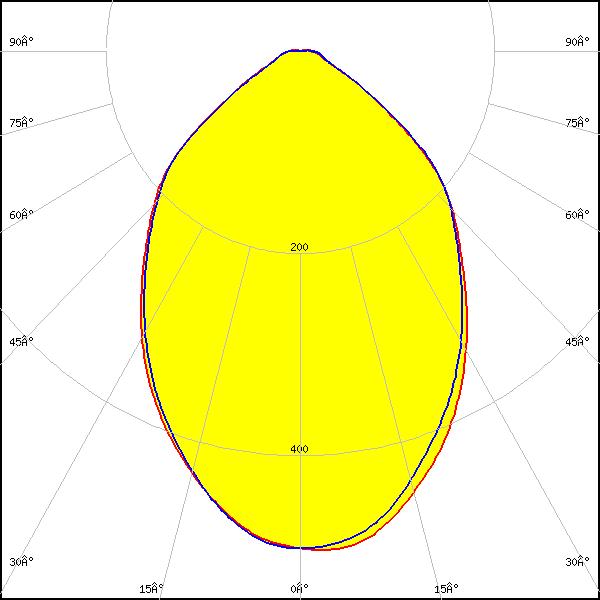

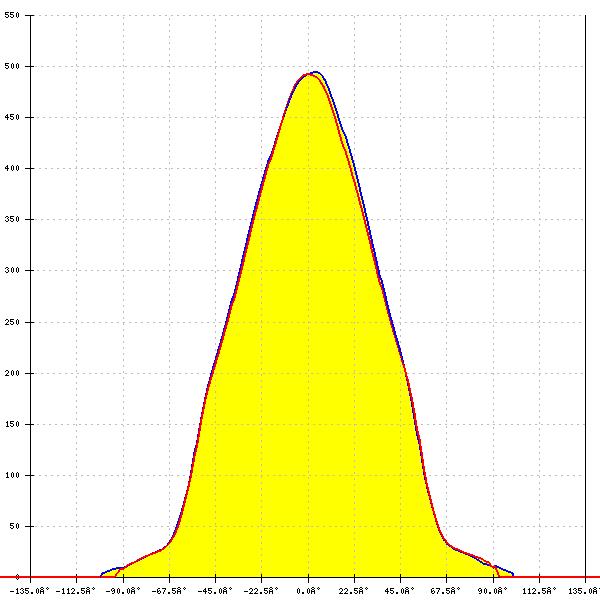

    LED: XLE-S44XTEHE (XT-E HE)
    FWHM: 80°
    FWTM: 127°
    Peak intensity: 0.495 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

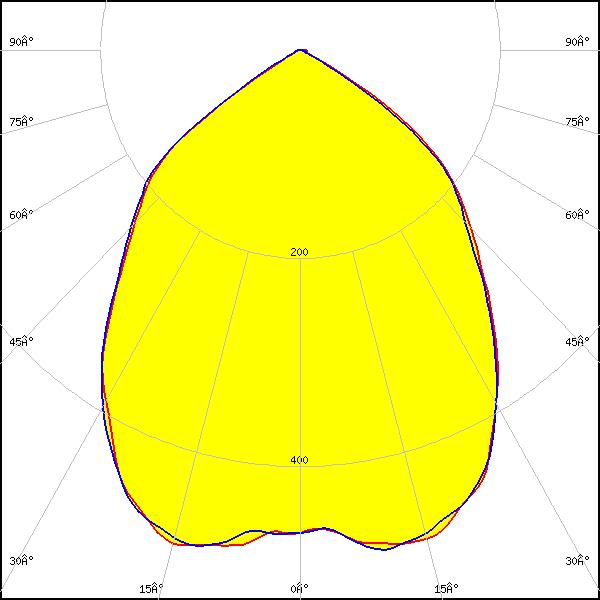

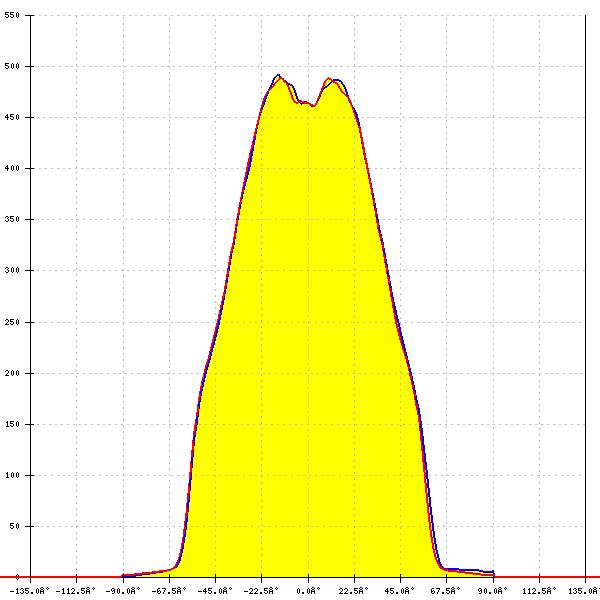

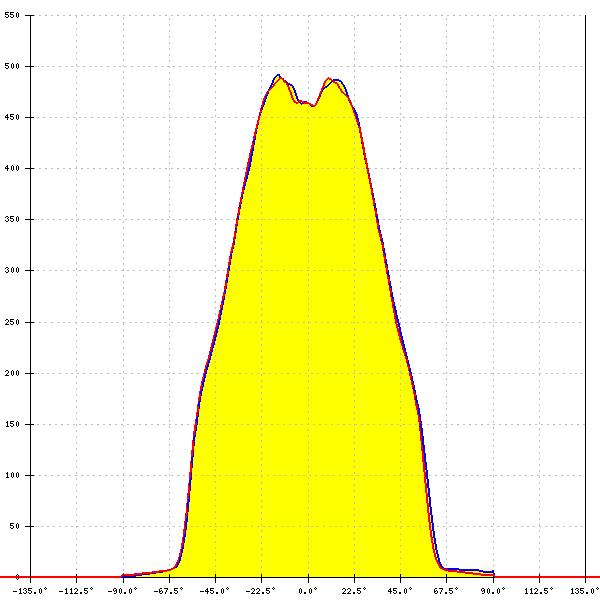

    LED: SEOUL DC 3030C
    FWHM: 88°
    FWTM: 120°
    Peak intensity: 0.491 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White
