C16599_STRADELLA-16-HB-S-PC

Print

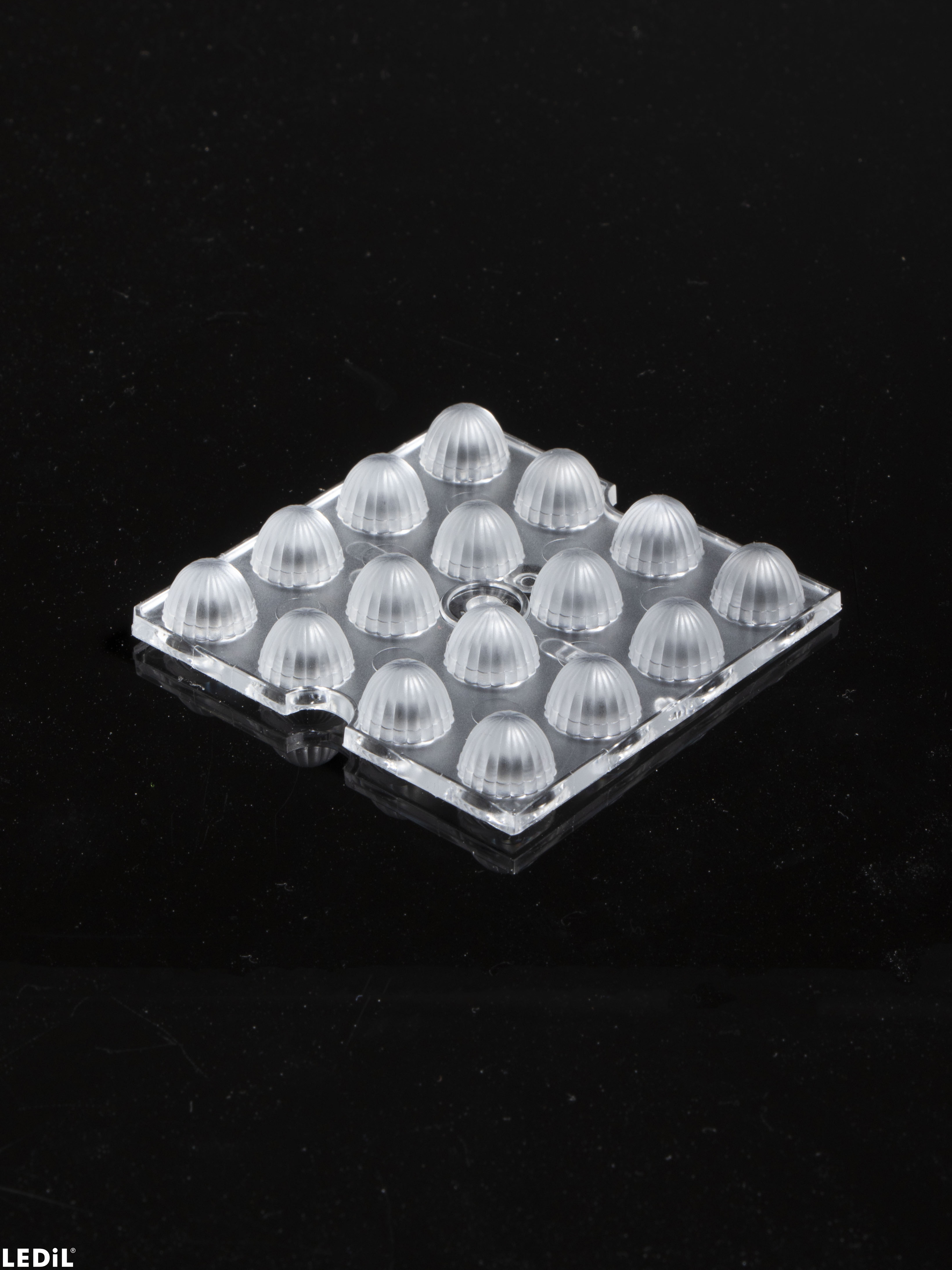

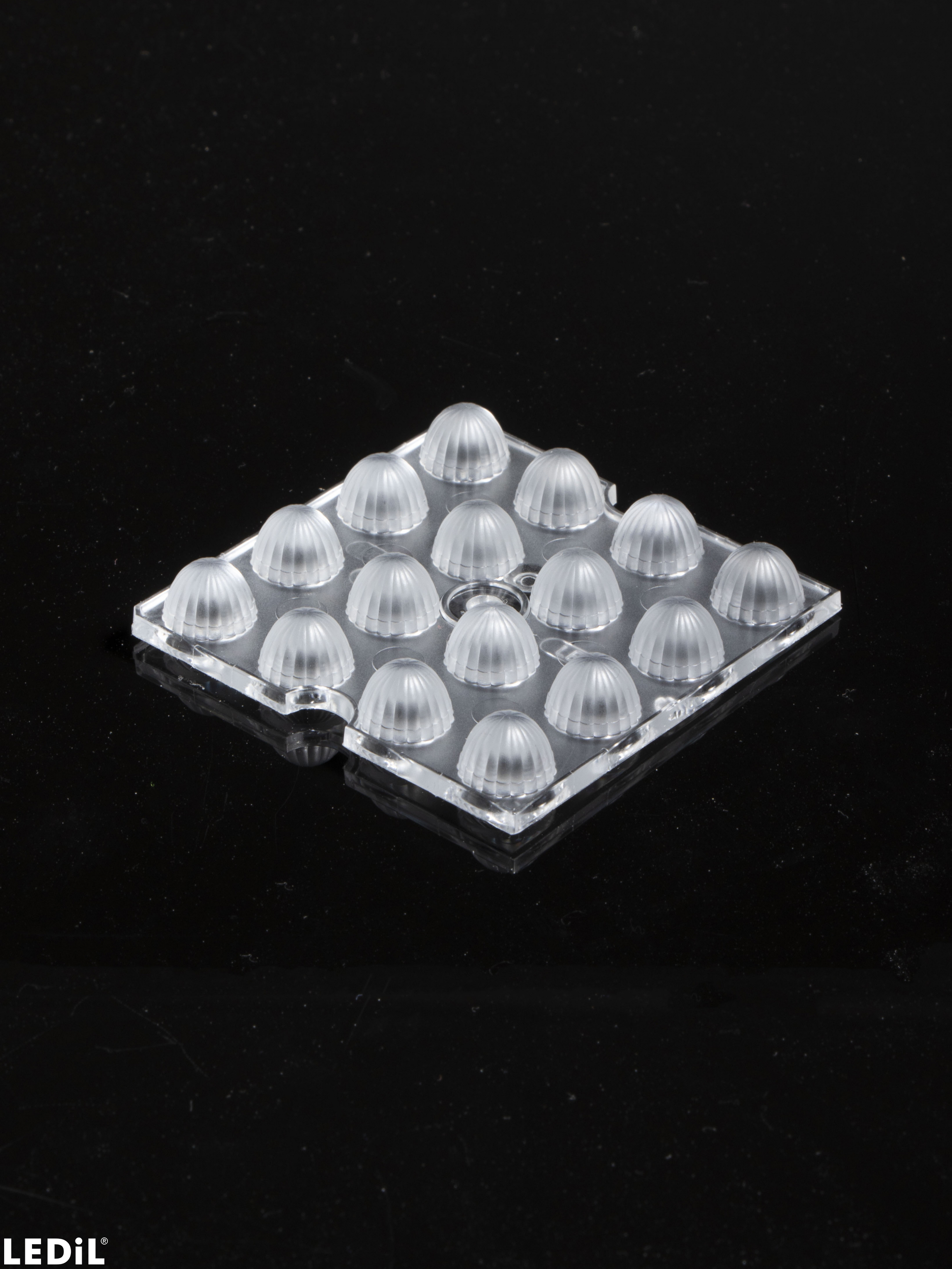

~25° spot beam for industrial applications. Variant made from PC.

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    7.5 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
  • PC

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.5 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.6 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C16599_STRADELLA-16-HB-S-PC

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

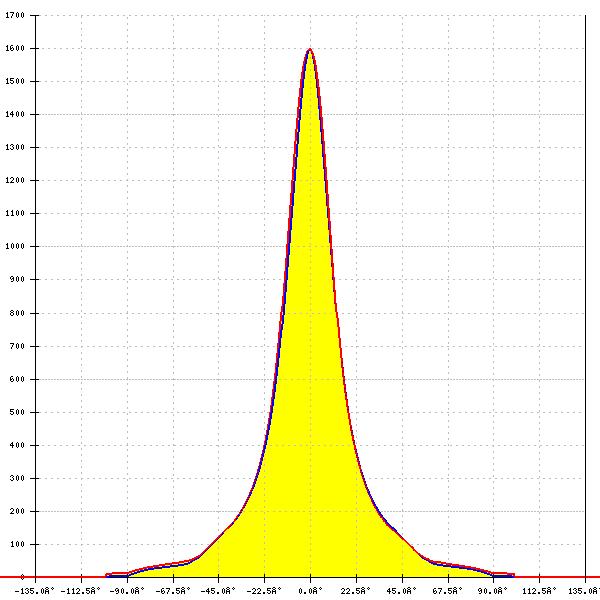

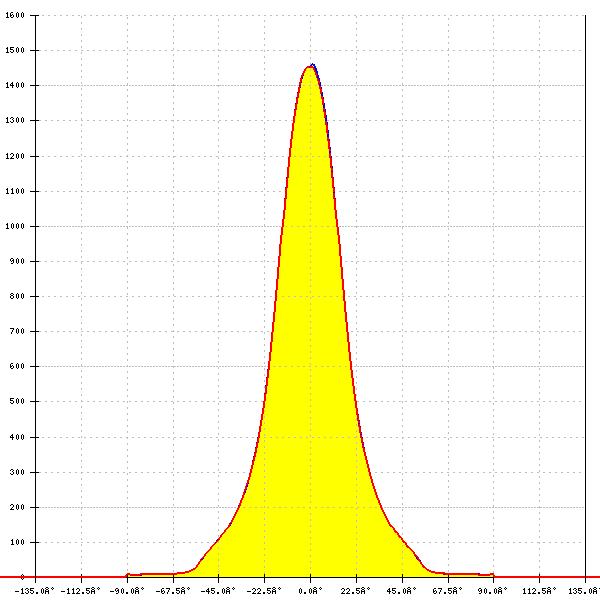

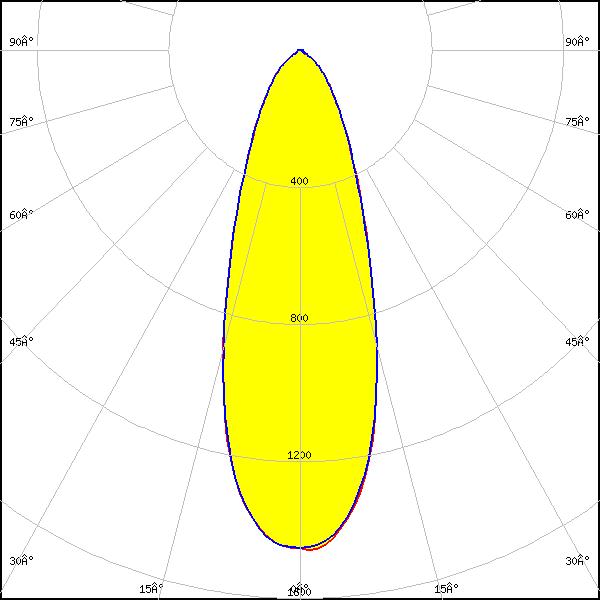

LED: XP-G2 HE
FWHM: 36°
FWTM: 80°
Peak intensity: 1.5 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

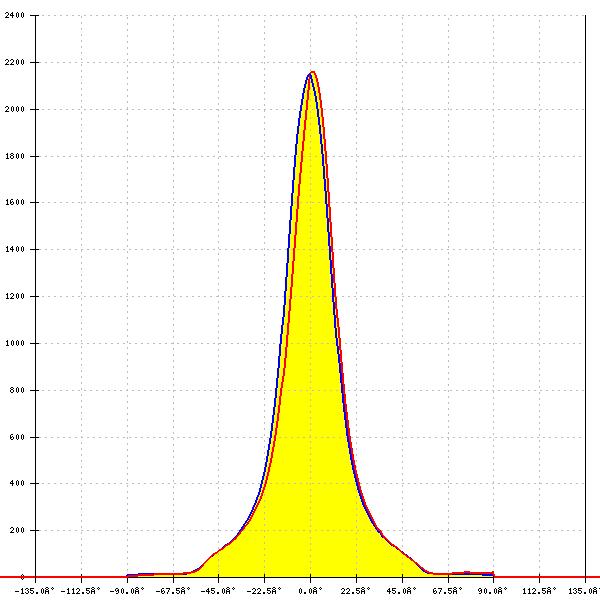

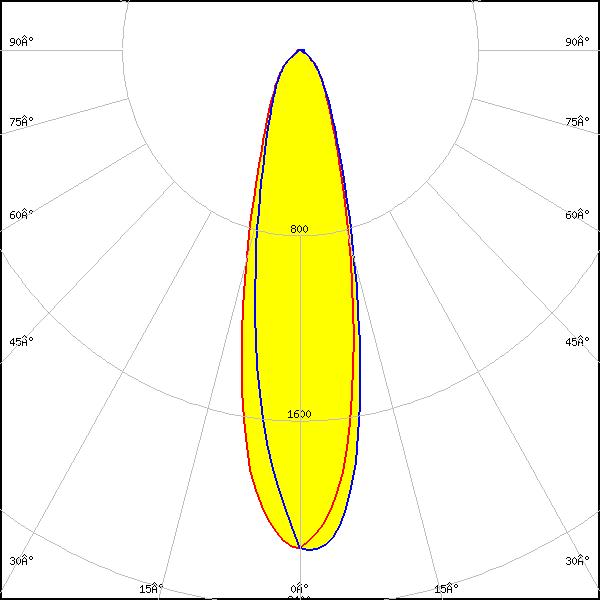

LED: LUXEON 3030 2D (Round LES)
FWHM: 26°
FWTM: 65°
Peak intensity: 2.2 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

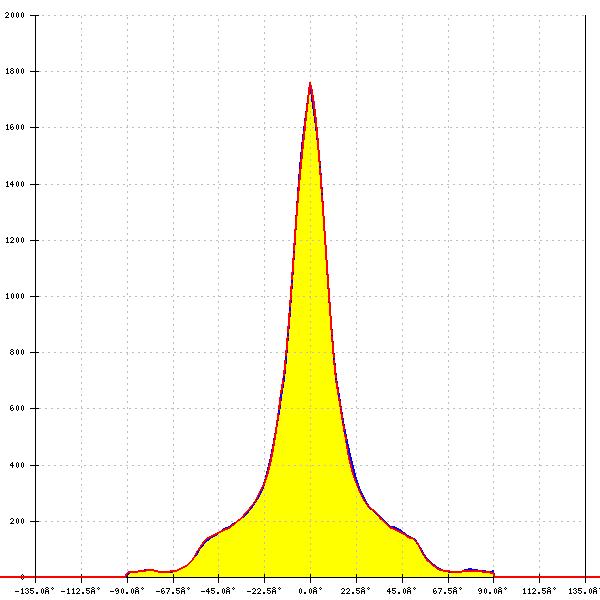

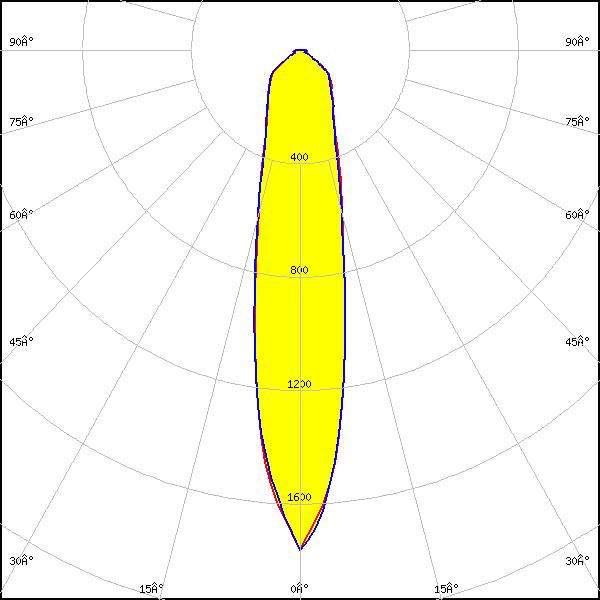

LED: LUXEON C
FWHM: 22°
FWTM: 81°
Peak intensity: 1.8 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: RGBW

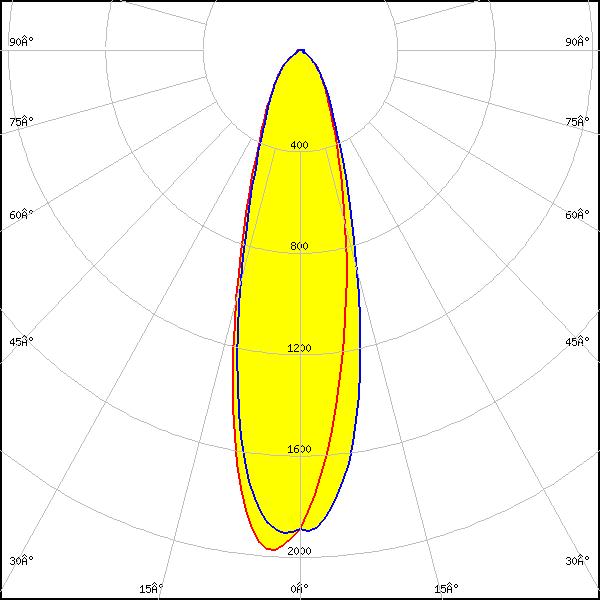

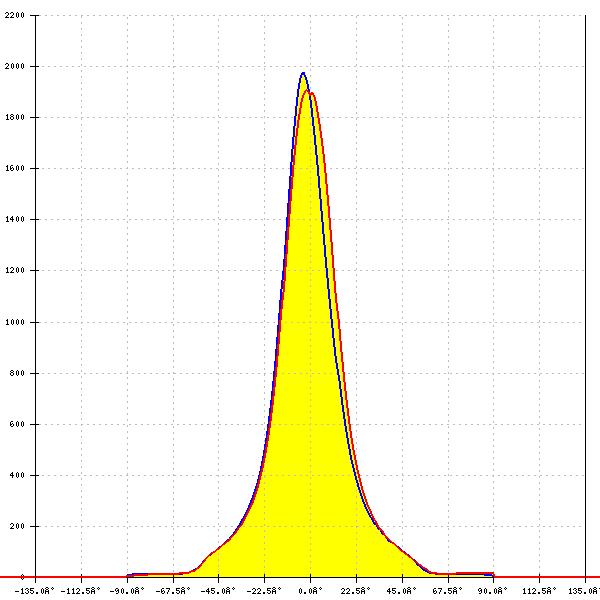

LED: NF2x757G
FWHM: 27°
FWTM: 68°
Peak intensity: 2.0 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

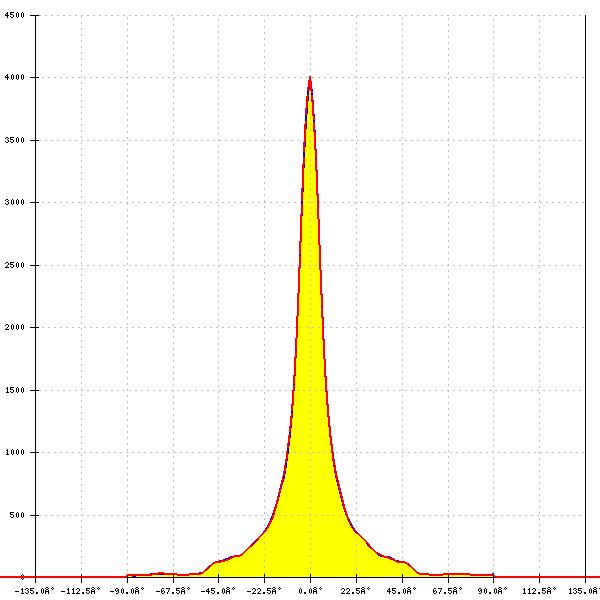

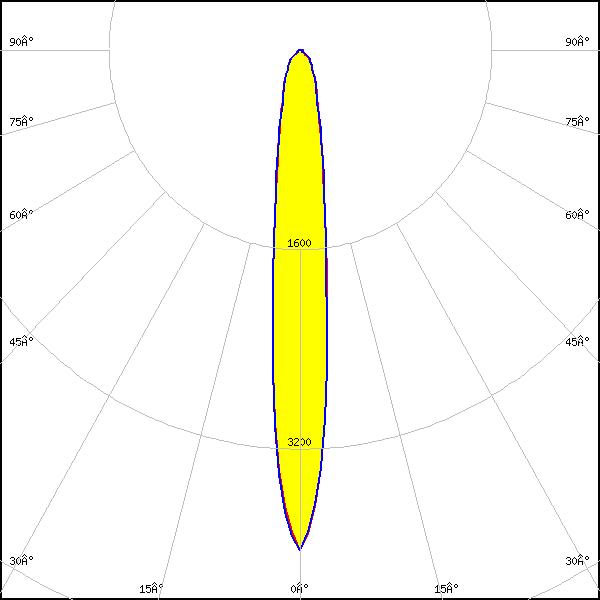

LED: NFSWE11A
FWHM: 12°
FWTM: 42°
Peak intensity: 4.0 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

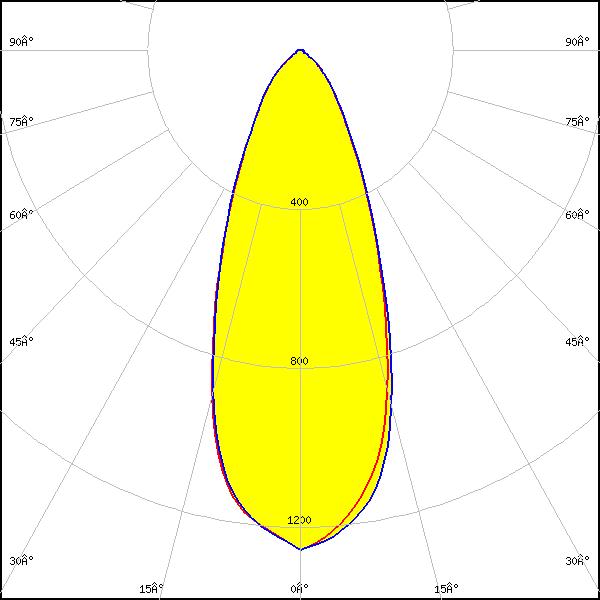

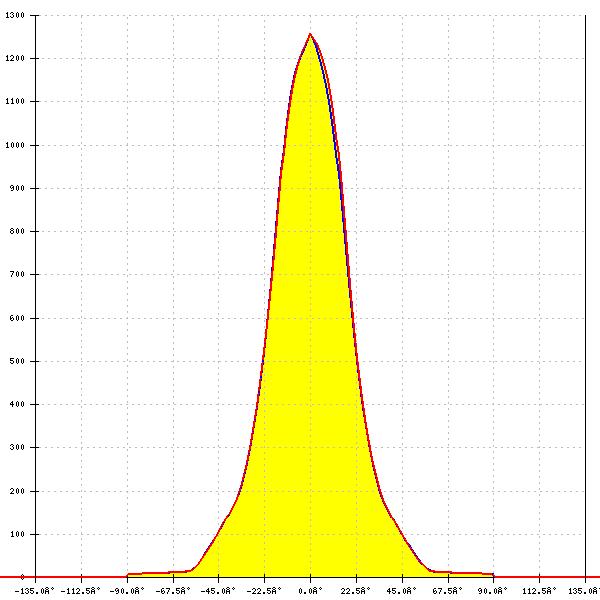

LED: NVSW519A
FWHM: 40°
FWTM: 84°
Peak intensity: 1.3 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

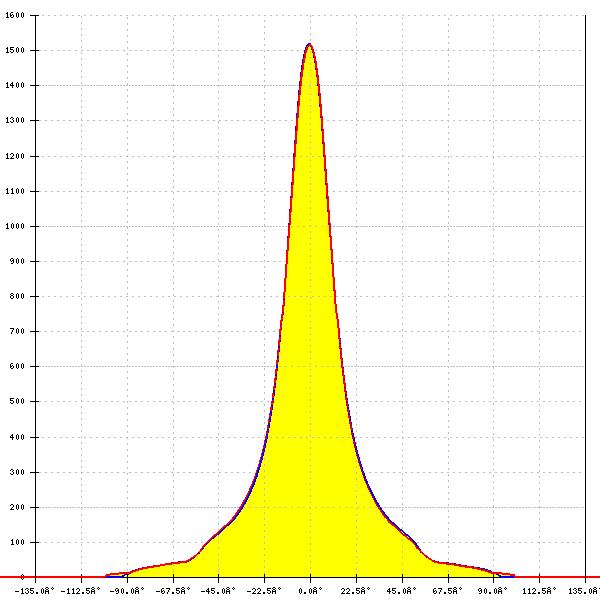

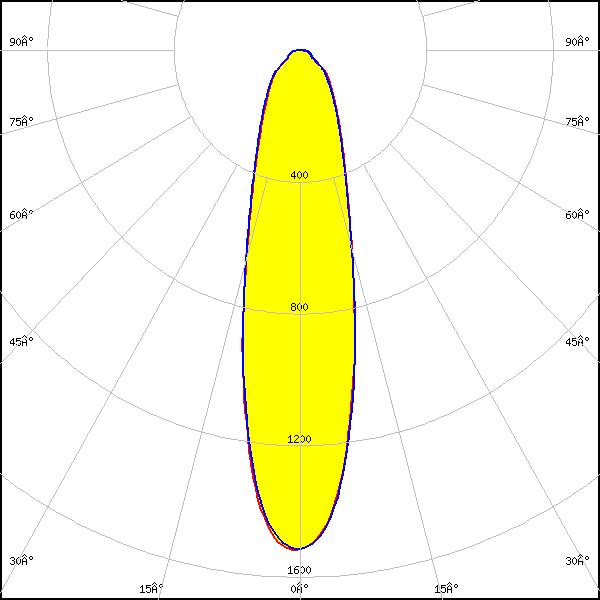

LED: Duris S5 (2 chip)
FWHM: 27°
FWTM: 81°
Peak intensity: 1.5 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: Purple

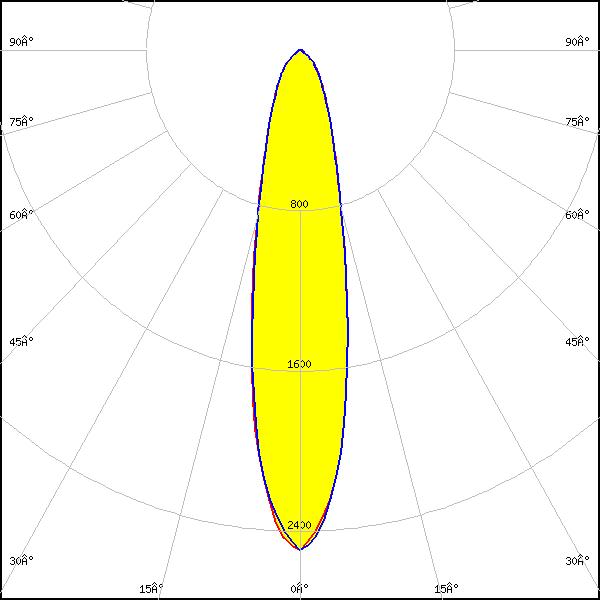

LED: OSCONIQ C 2424
FWHM: 22°
FWTM: 61°
Peak intensity: 2.5 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

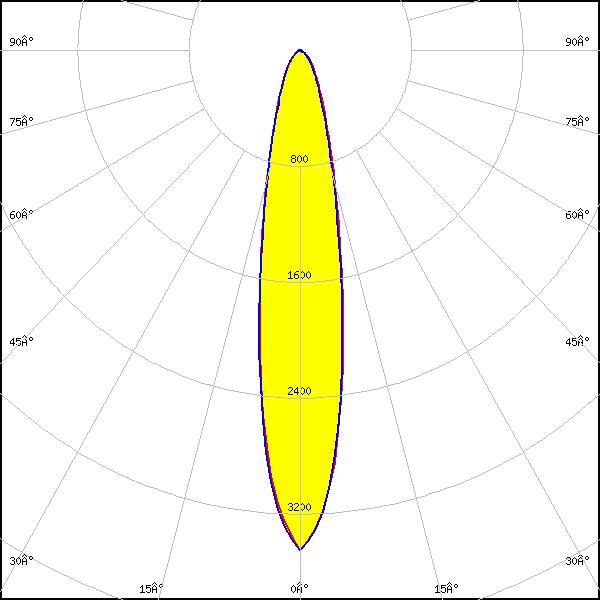

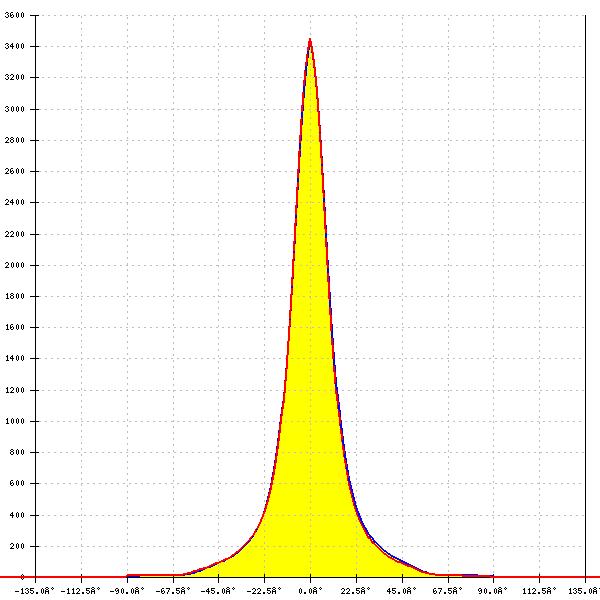

LED: OSCONIQ P 3030
FWHM: 20°
FWTM: 50°
Peak intensity: 3.5 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

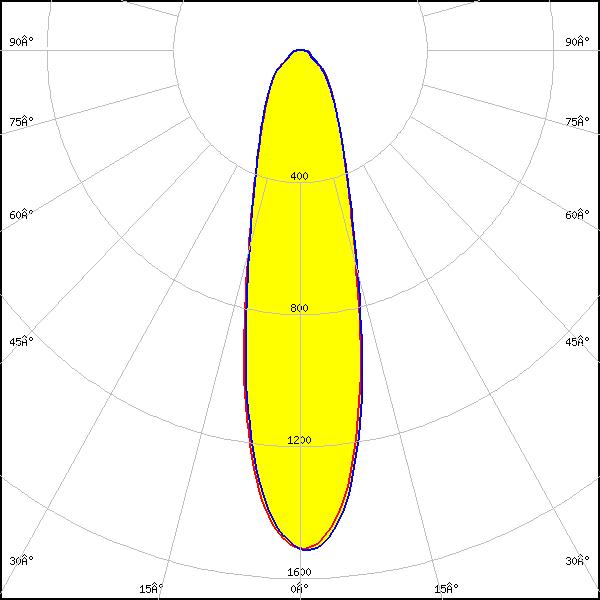

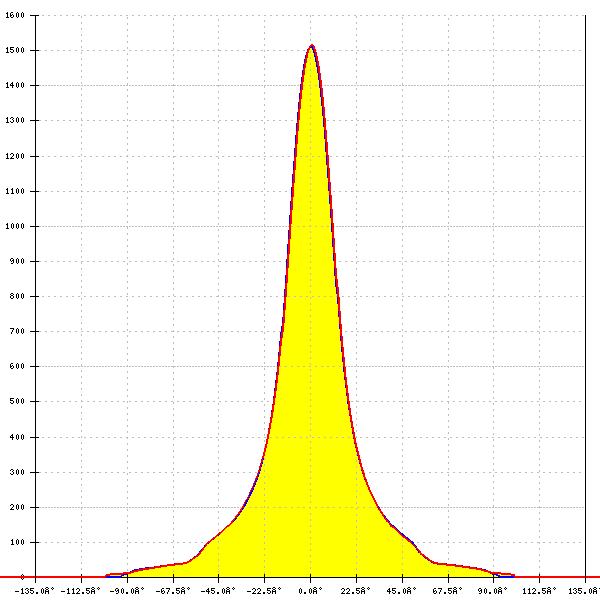

LED: OSCONIQ S 3030
FWHM: 27°
FWTM: 79°
Peak intensity: 1.5 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

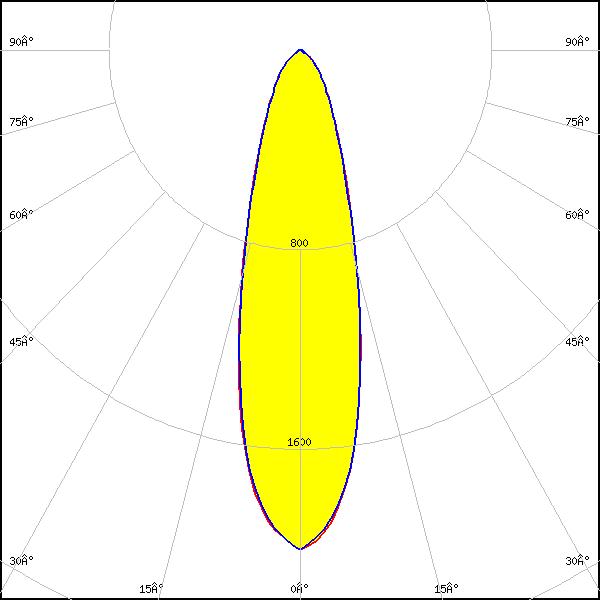

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 28°
FWTM: 68°
Peak intensity: 2.0 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

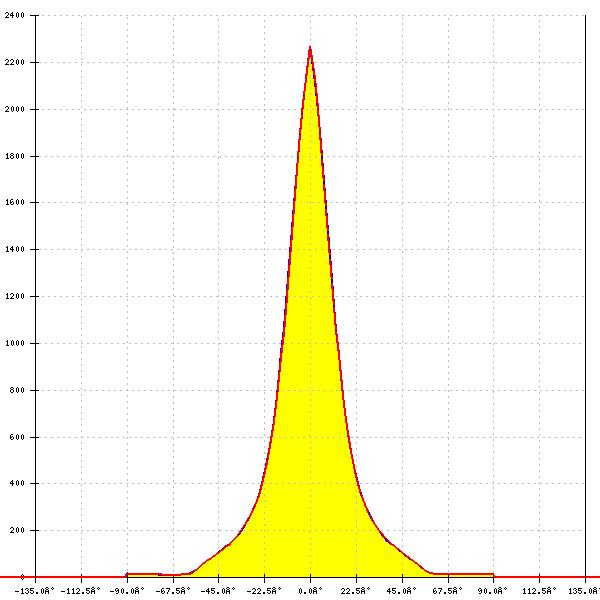

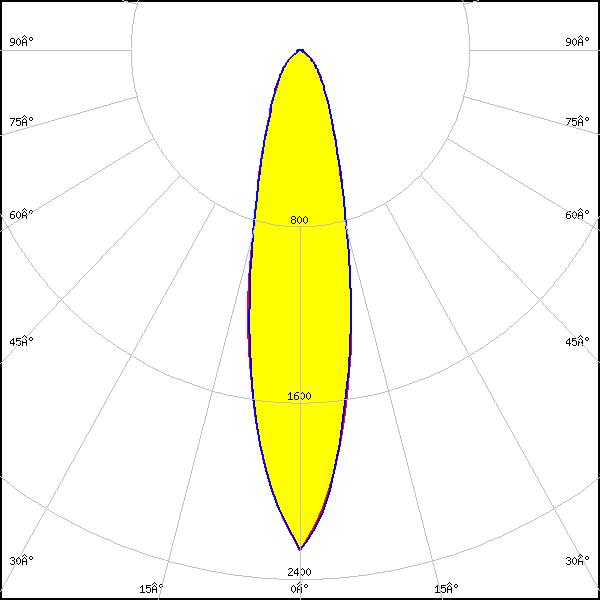

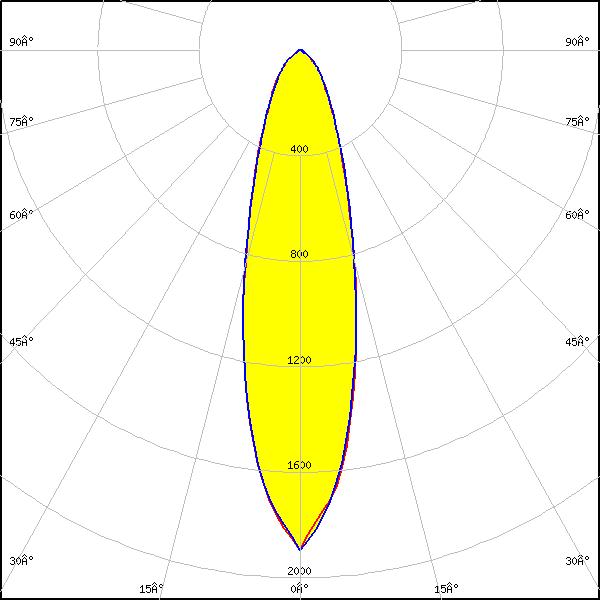

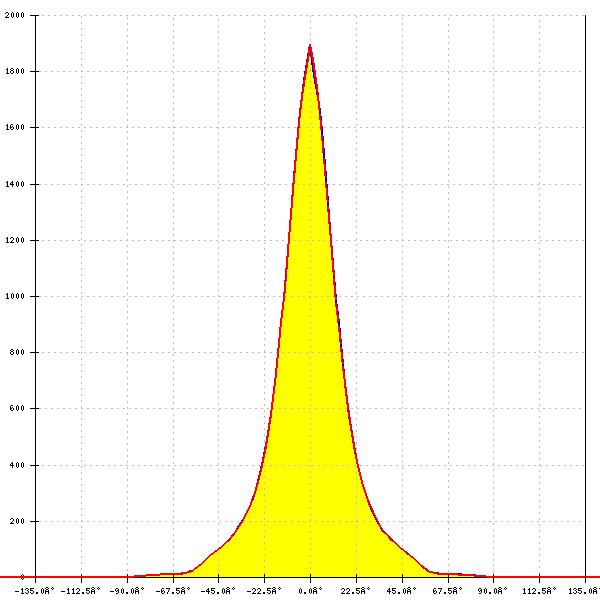

LED: LM301B
FWHM: 24°
FWTM: 64°
Peak intensity: 2.3 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

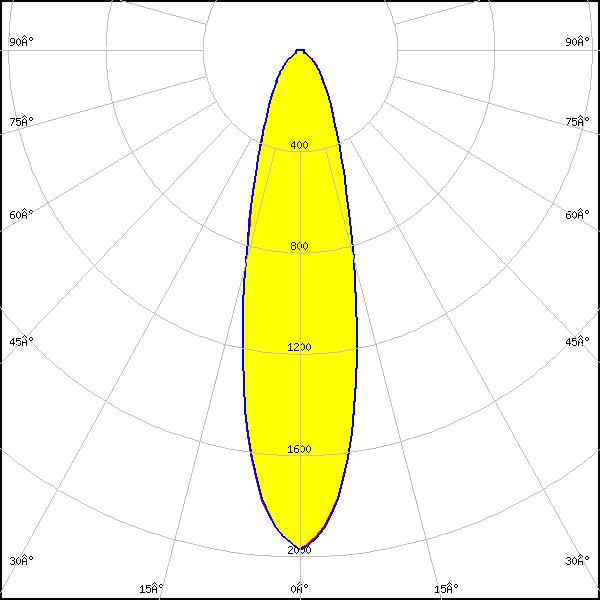

LED: LM302D
FWHM: 27°
FWTM: 68°
Peak intensity: 2.0 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: LM302Z plus
FWHM: 28°
FWTM: 66°
Peak intensity: 2.0 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

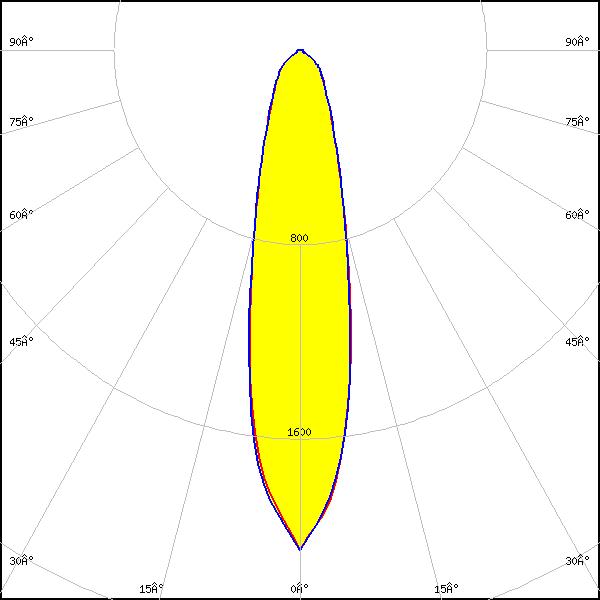

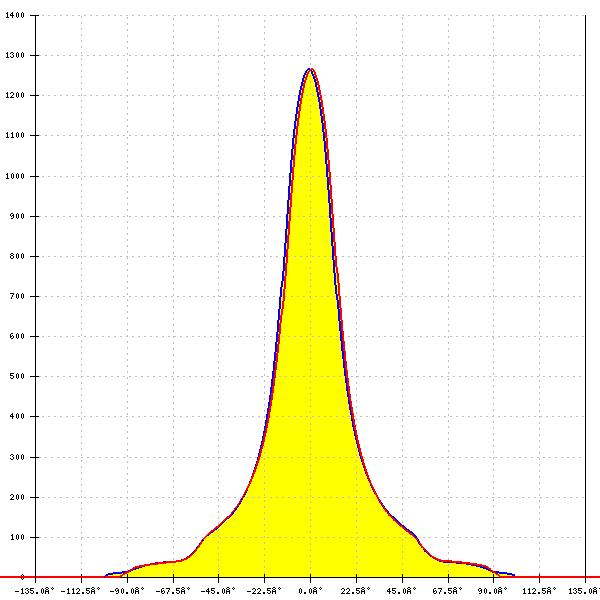

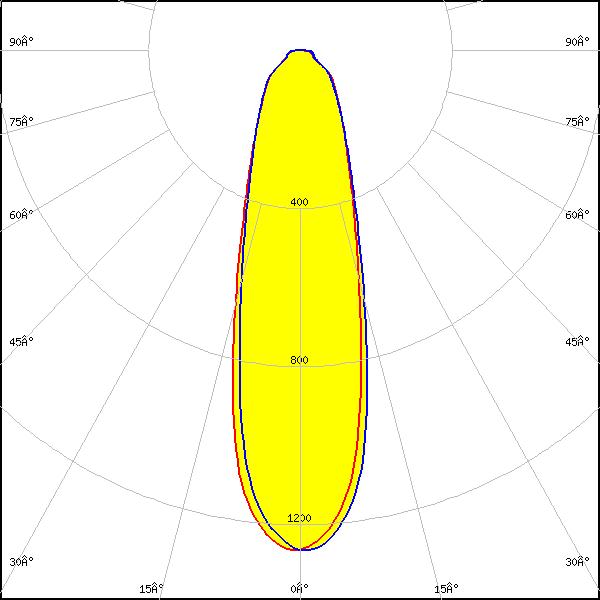

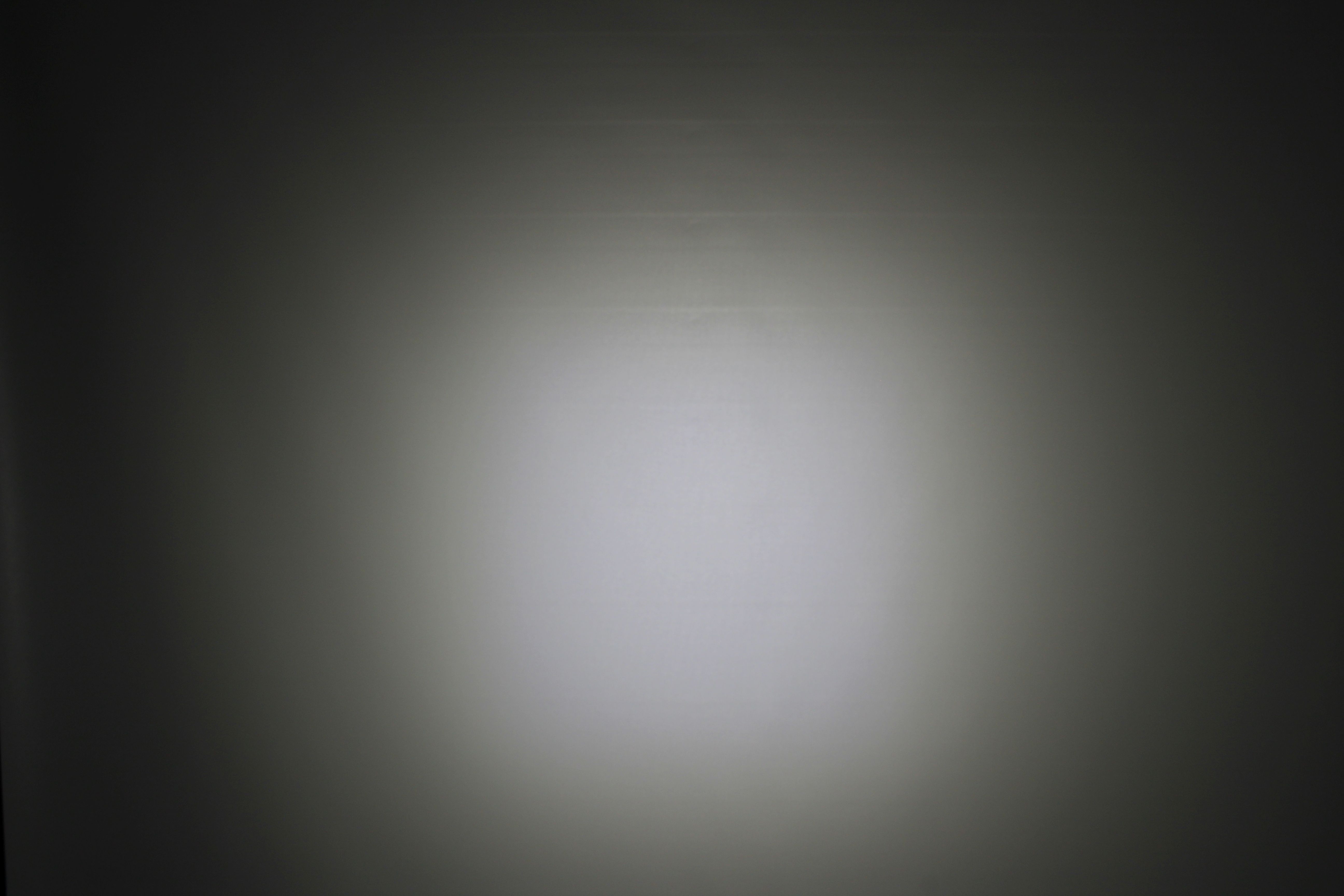

LED: XLE-S44XTEHE (XT-E HE)
FWHM: 30°
FWTM: 90°
Peak intensity: 1.3 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

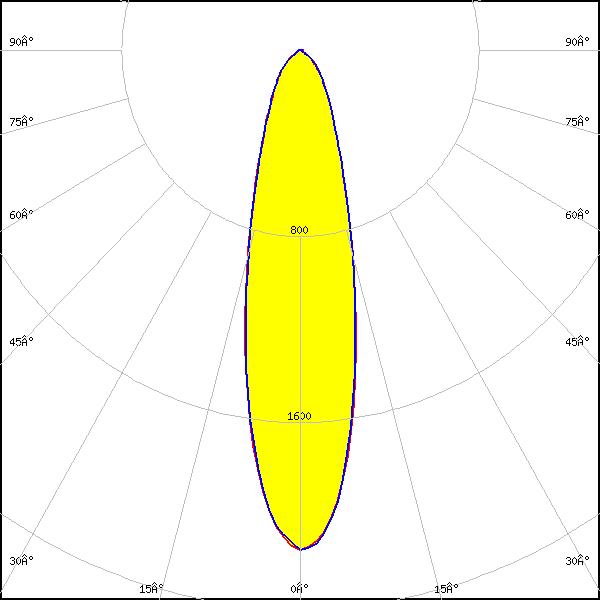

LED: SEOUL DC 3030C
FWHM: 26°
FWTM: 66°
Peak intensity: 2.2 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
