C16637_STRADA-2X2-5050-T2-C

Print

IESNA Type II (medium) beam with added house side backlight. Designed for tilted and long armatures. Variant optimized for flat 5050 size LED packages.

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    7.00 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.6 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.9 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C16637_STRADA-2X2-5050-T2-C

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

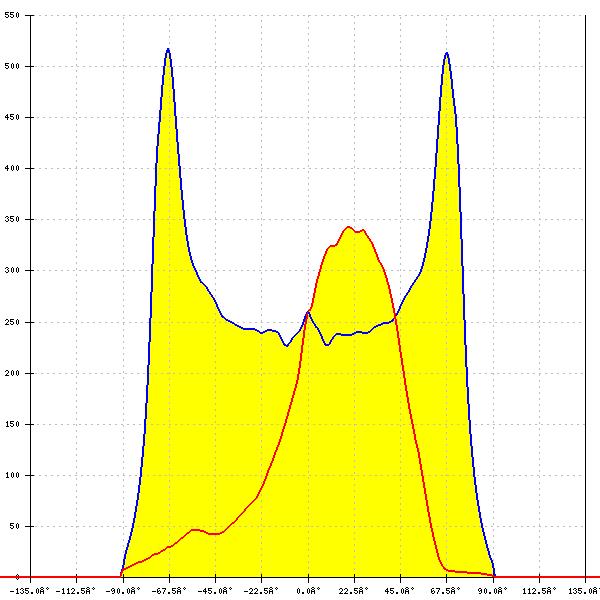

Optical results

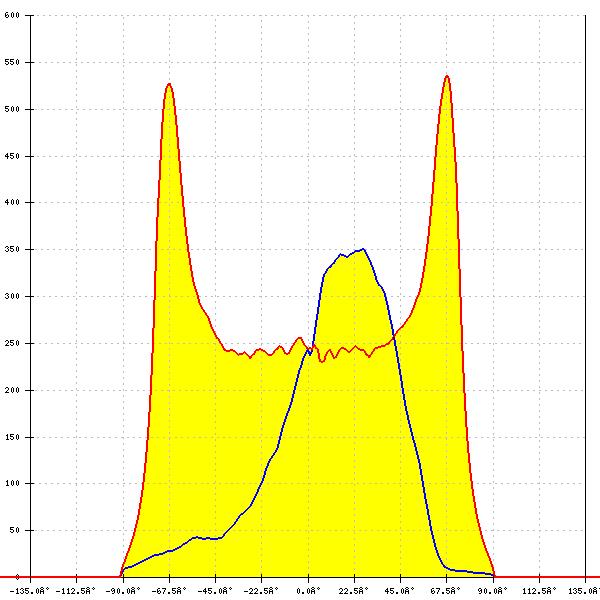

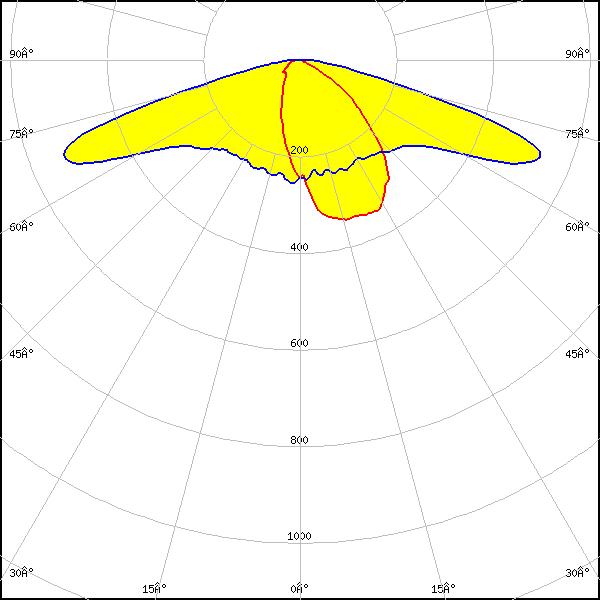

LED: Bridgelux SMD 5050
FWHM: asymmetric
Peak intensity: 0.629 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

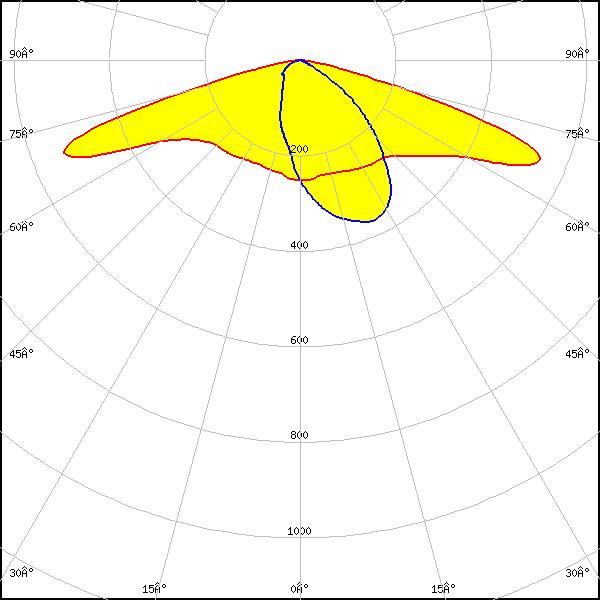

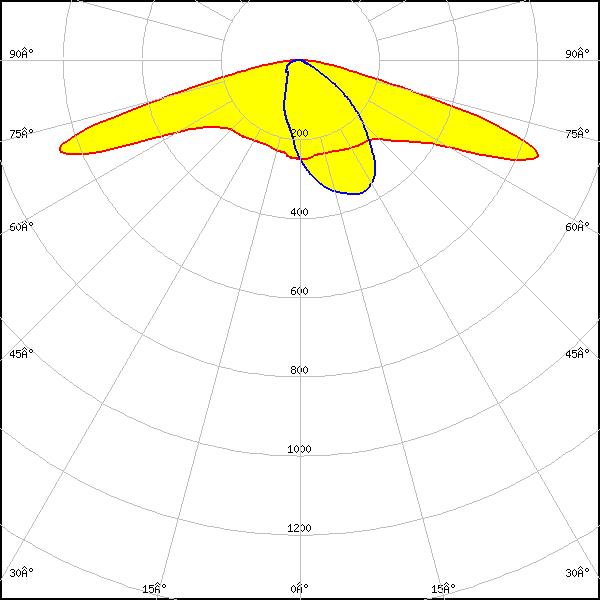

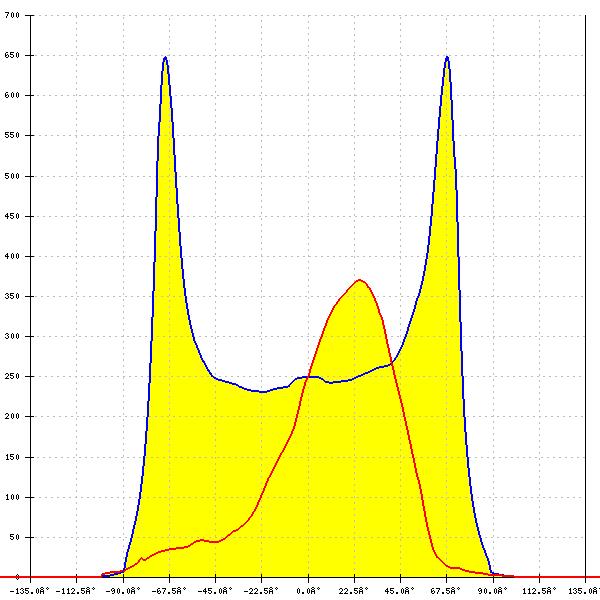

LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.687 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.578 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

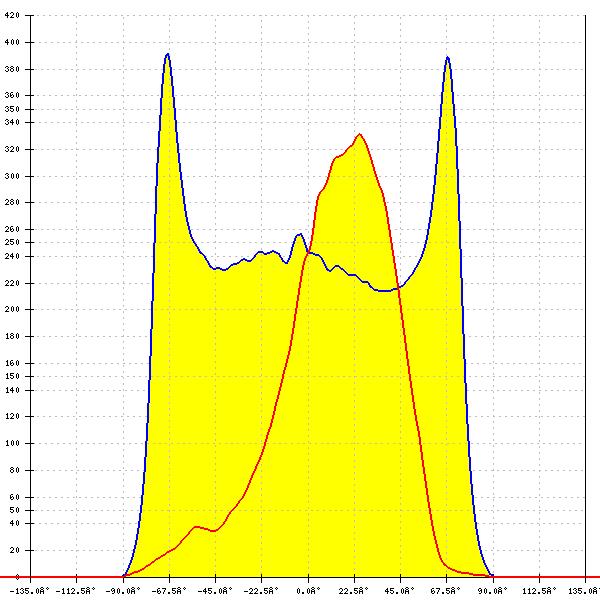

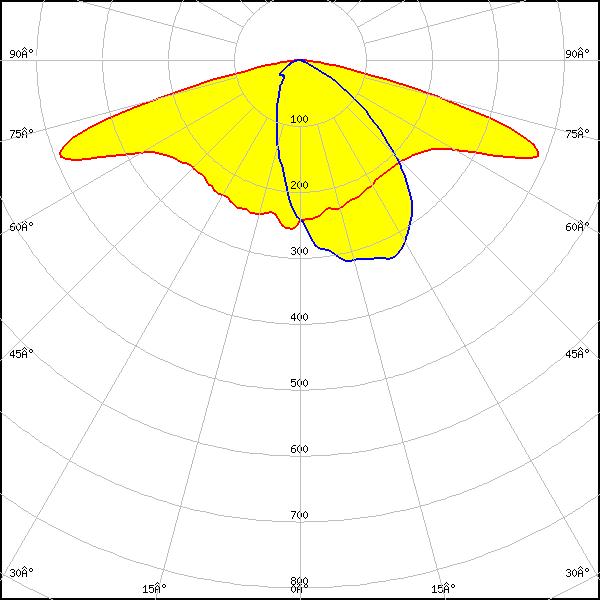

LED: J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity: 0.444 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

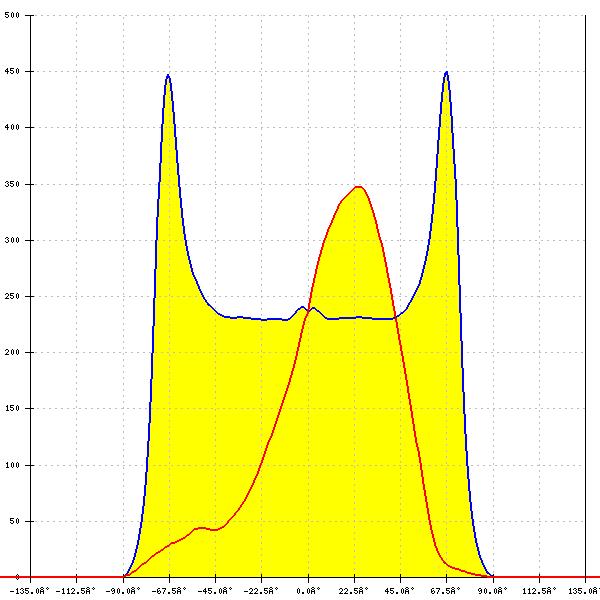

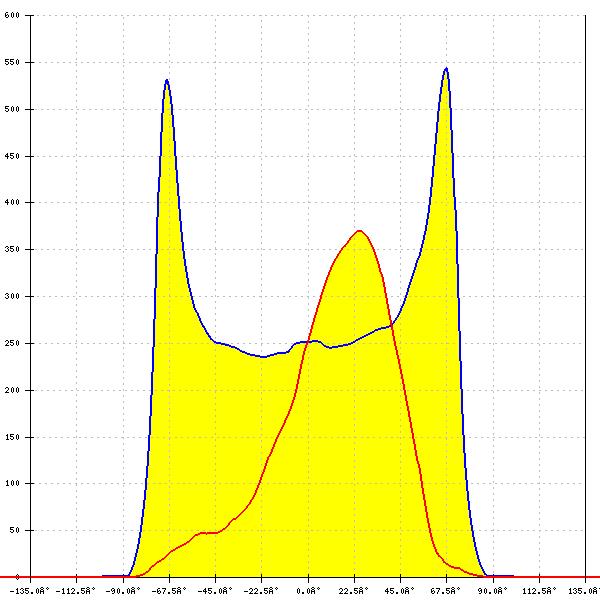

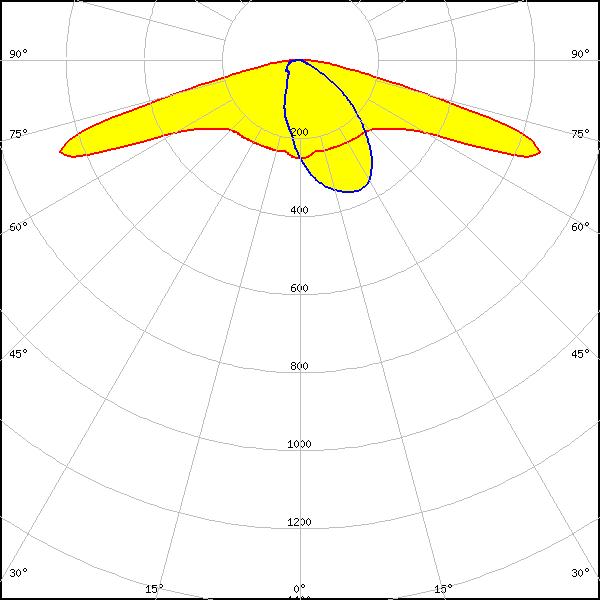

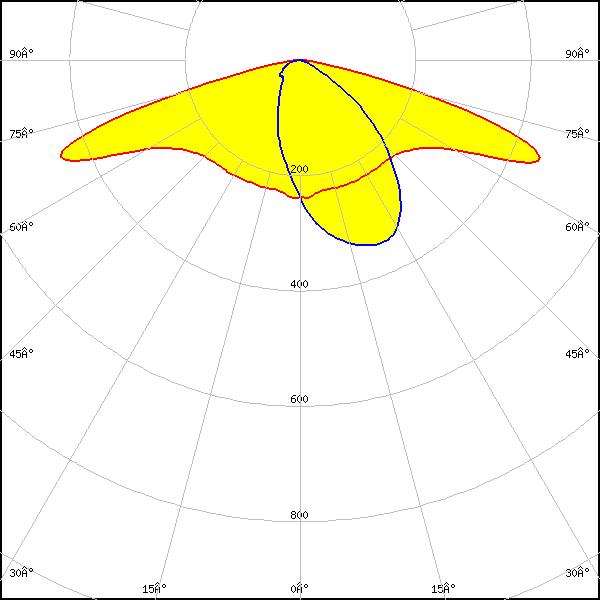

LED: J Series 5050C 6V E Class
FWHM: asymmetric
Peak intensity: 0.487 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050C 6V E Class
FWHM: asymmetric
Peak intensity: 0.720 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

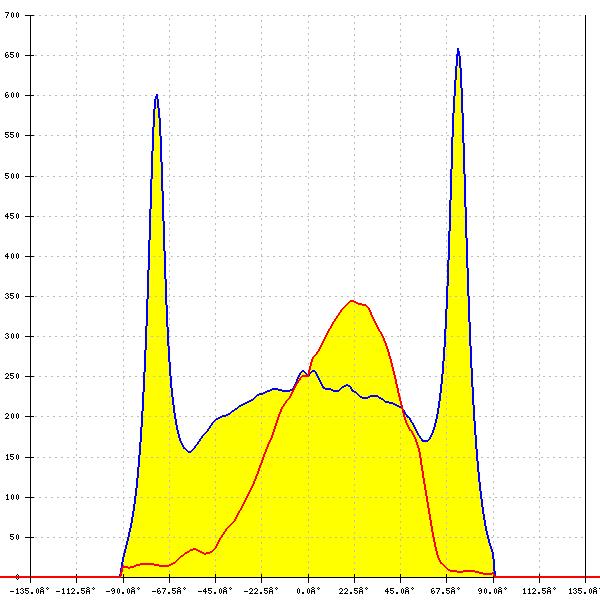

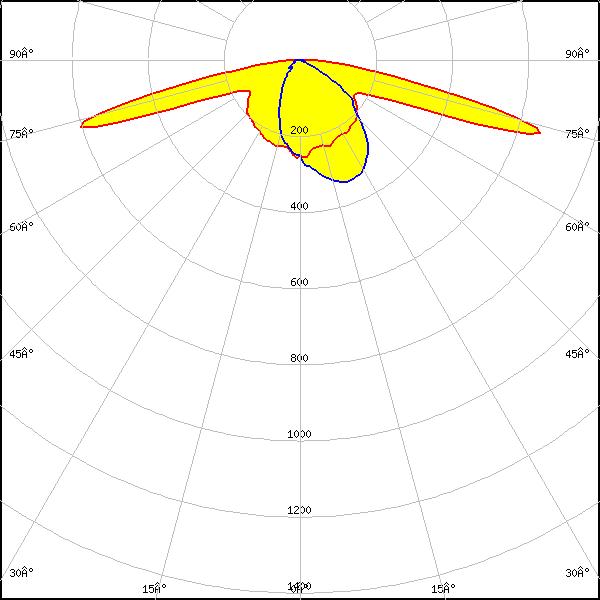

LED: XP-G2 HE
FWHM: asymmetric
Peak intensity: 0.740 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

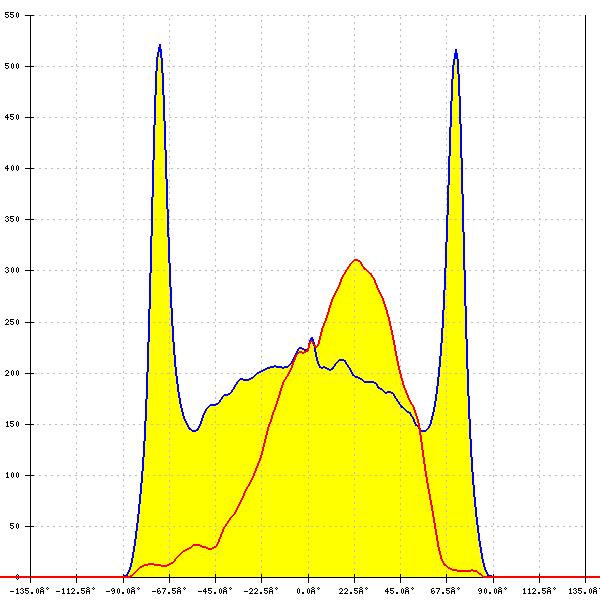

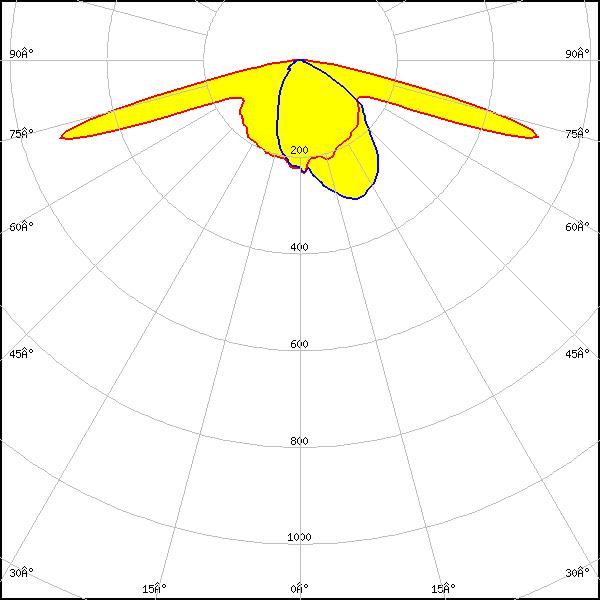

LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.611 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

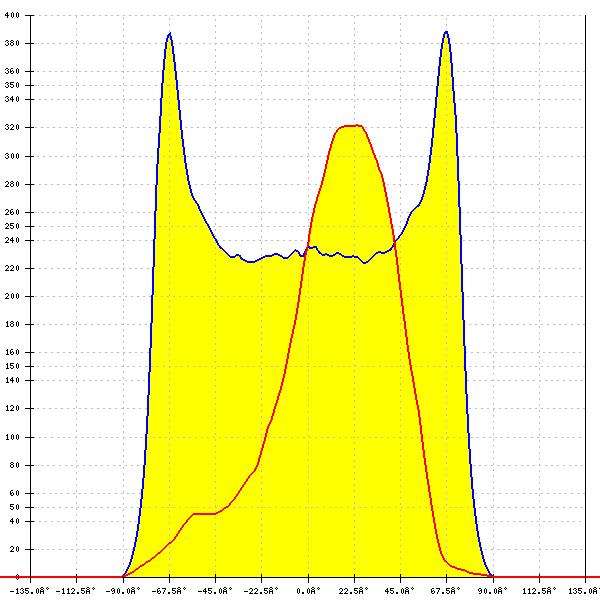

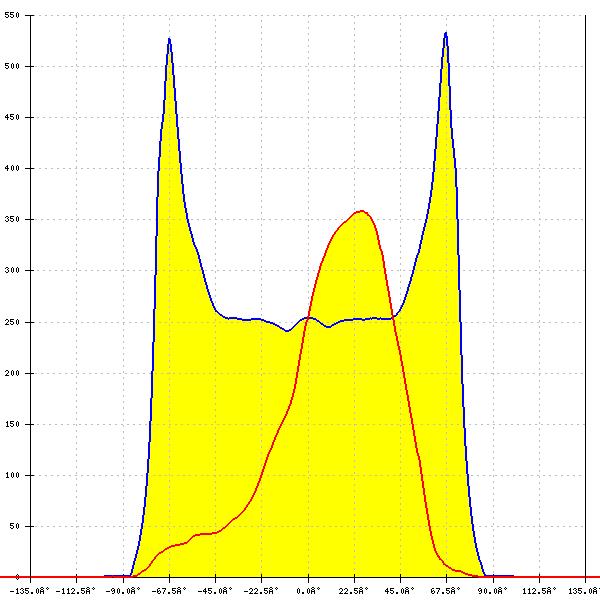

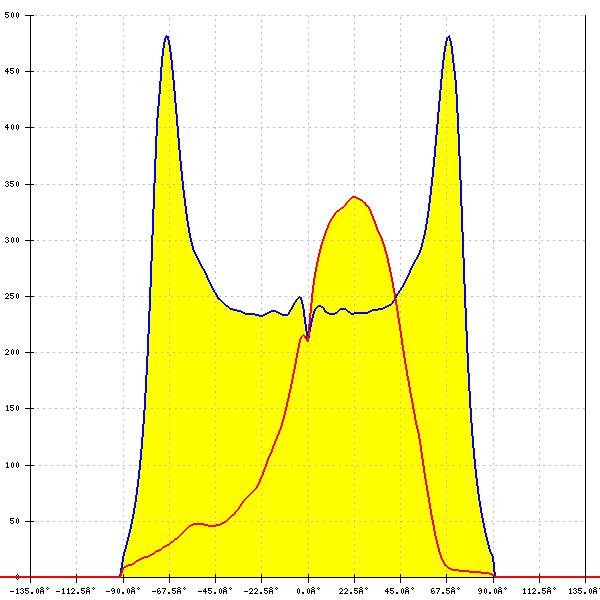

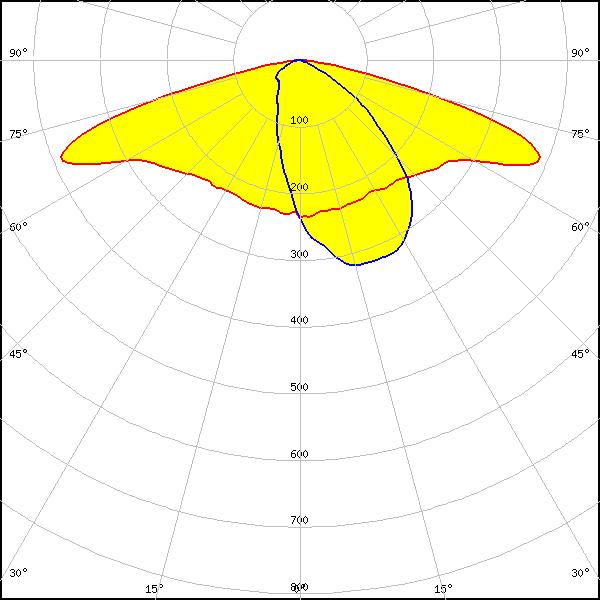

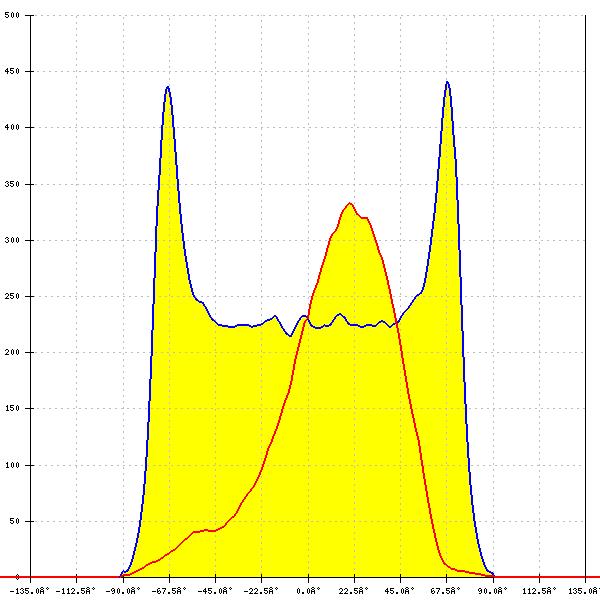

LED: LUXEON 5050 HE
FWHM: asymmetric
Peak intensity: 0.497 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.550 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.550 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

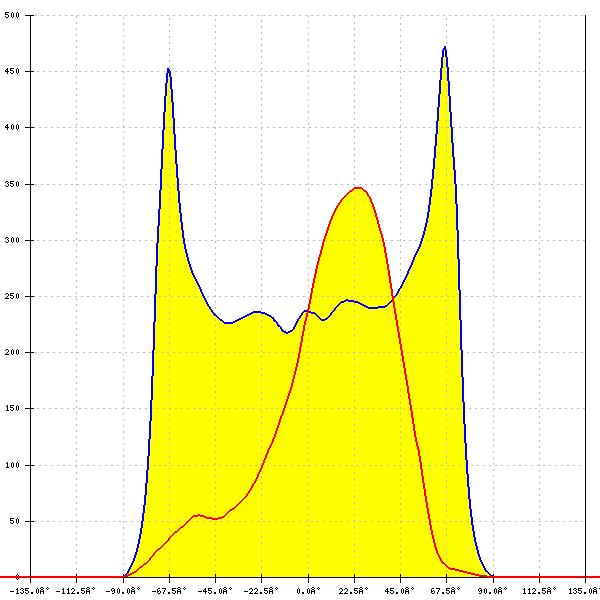

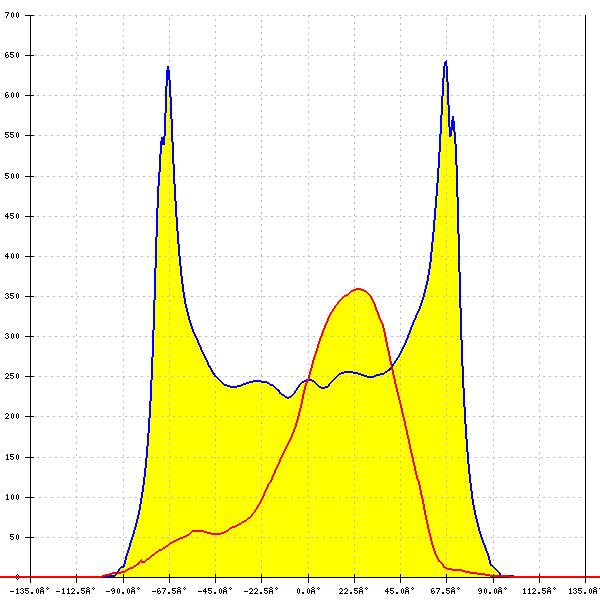

LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.515 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.689 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

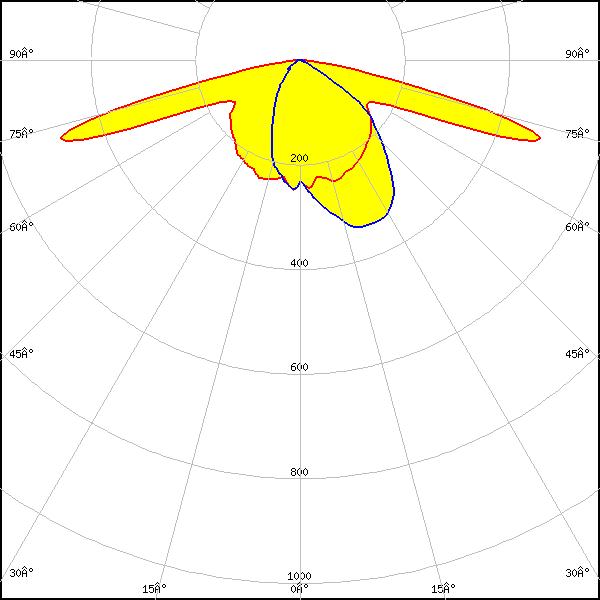

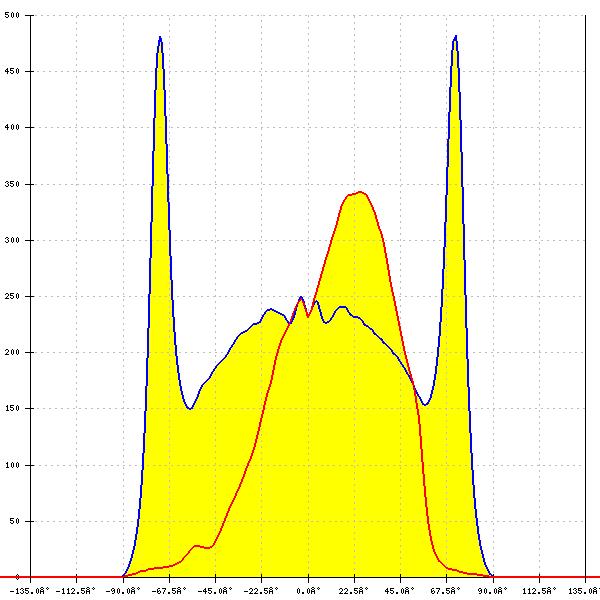

LED: LUXEON HL2X
FWHM: asymmetric
Peak intensity: 0.558 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

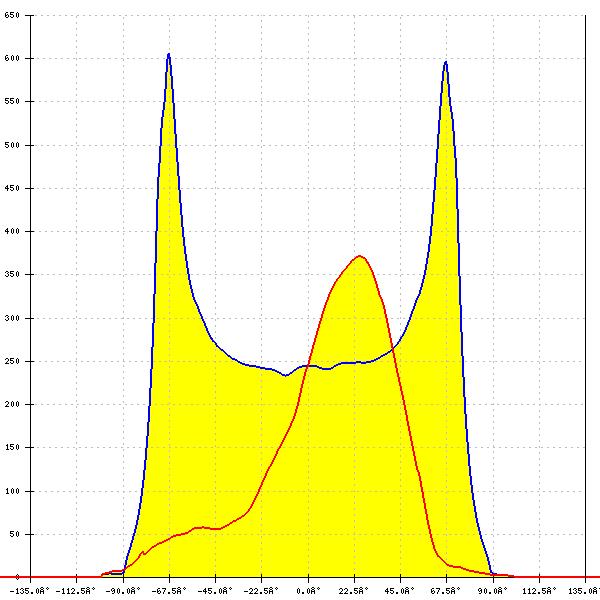

LED: LUXEON XR-5050 SQR (L213-xxxx016MRH001)
FWHM: asymmetric
Peak intensity: 0.650 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

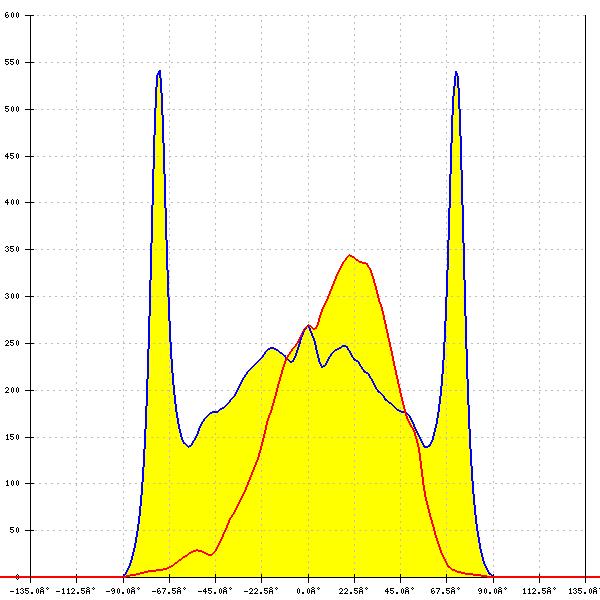

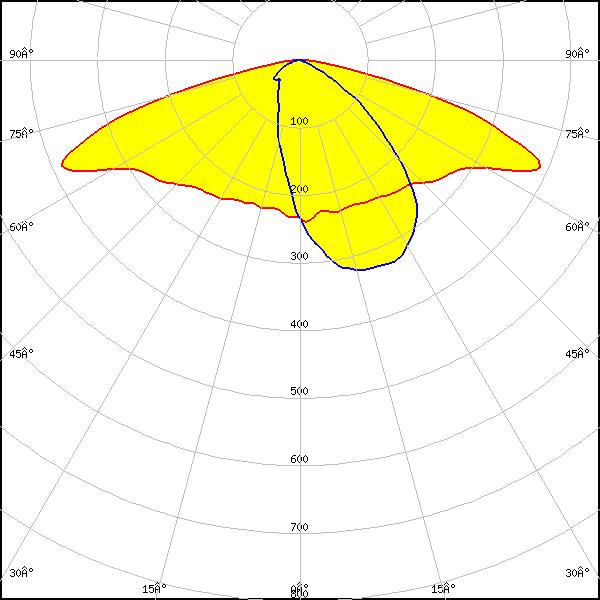

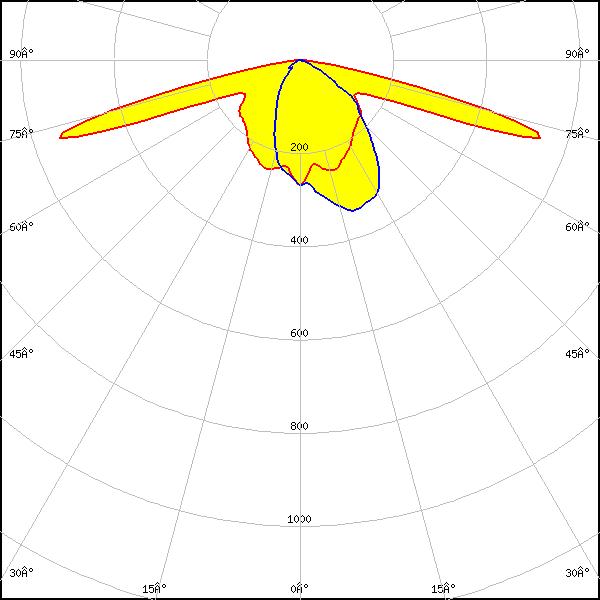

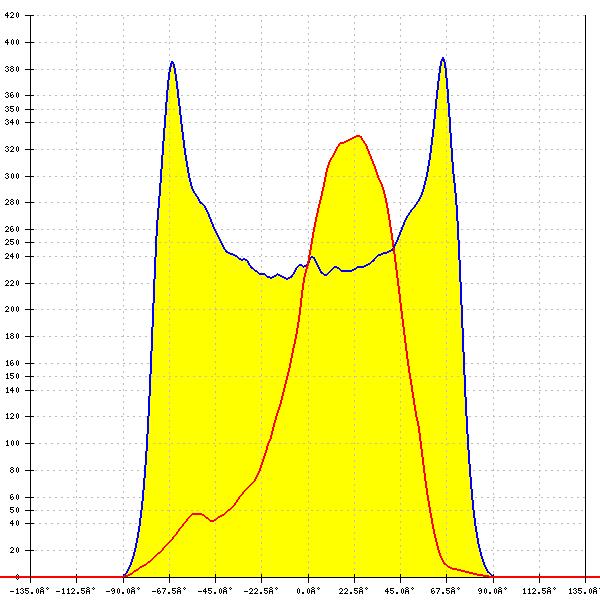

LED: RecLED 122x50mm 1900lm 730 2x4 Opt G1
FWHM: asymmetric
Peak intensity: 0.635 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White
LED: RecLED 122x50mm 2x4 5050
FWHM: asymmetric
Peak intensity: 0.427 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

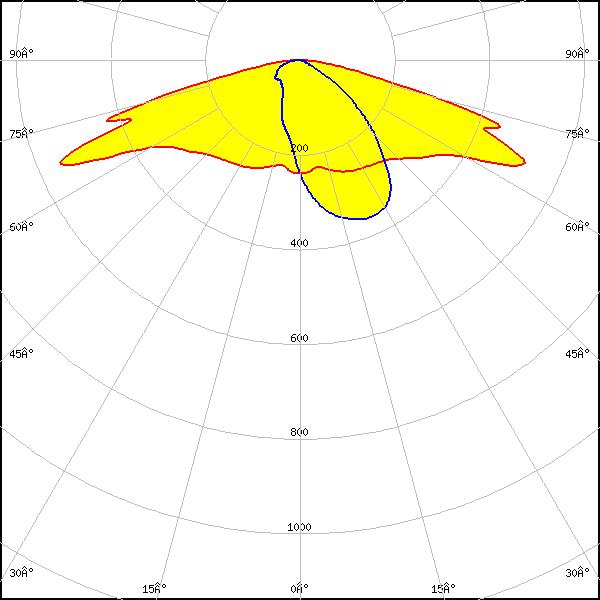

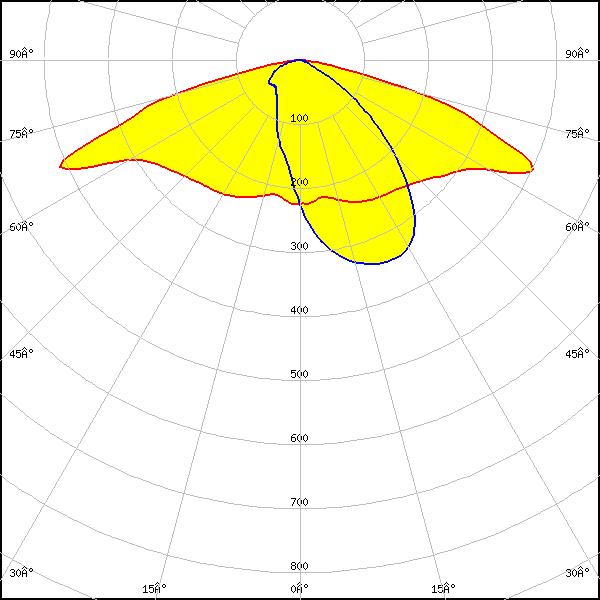

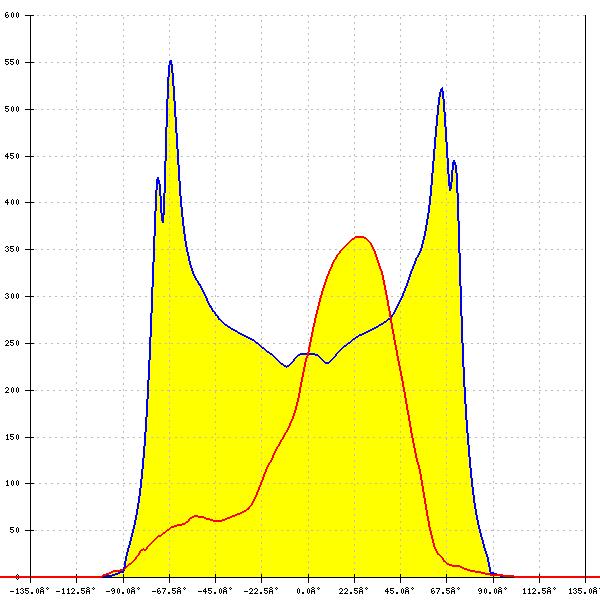

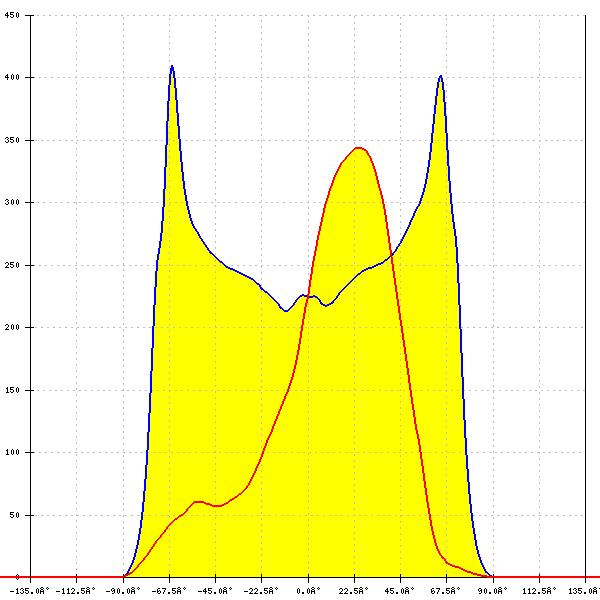

LED: RecLED 173x50mm 2900lm 740 2x6 5050 Opt G1
FWHM: asymmetric
Peak intensity: 0.608 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

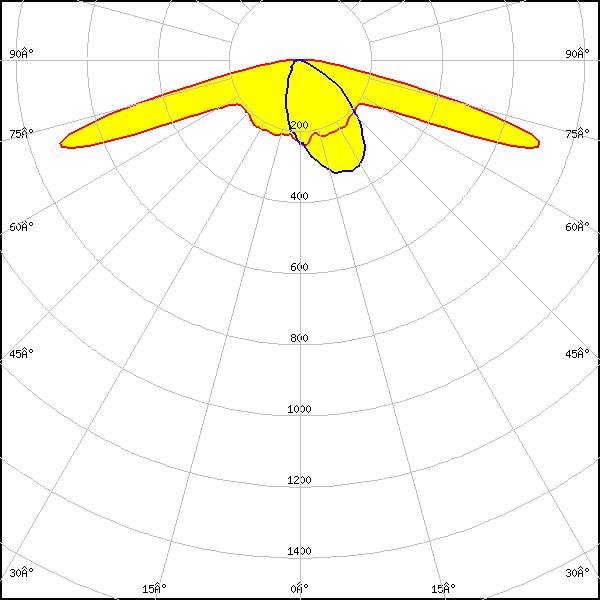

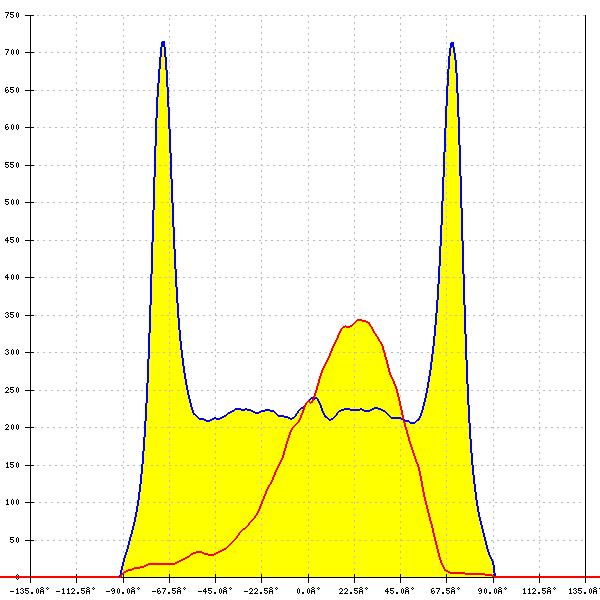

LED: NV4WB35AM
FWHM: asymmetric
Peak intensity: 0.836 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

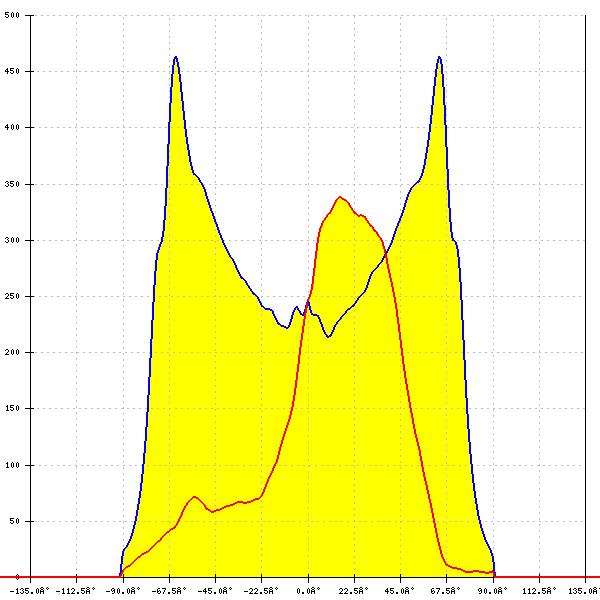

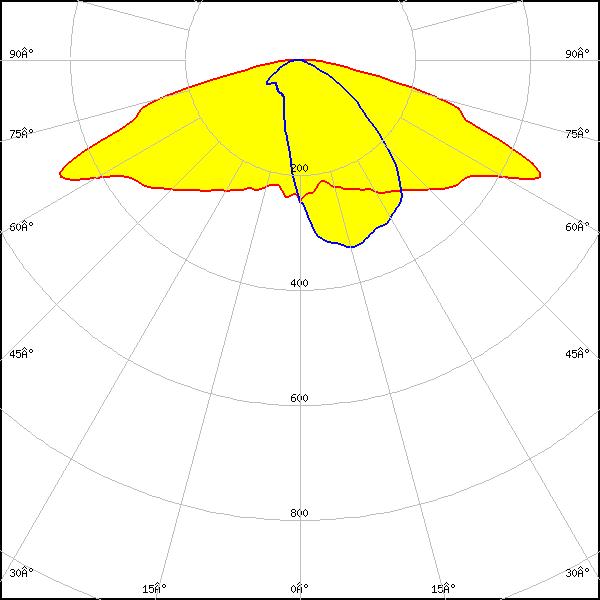

LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.499 cd/lm
Efficiency: 92 %
LEDs/each optic: 4
Light colour/type: White

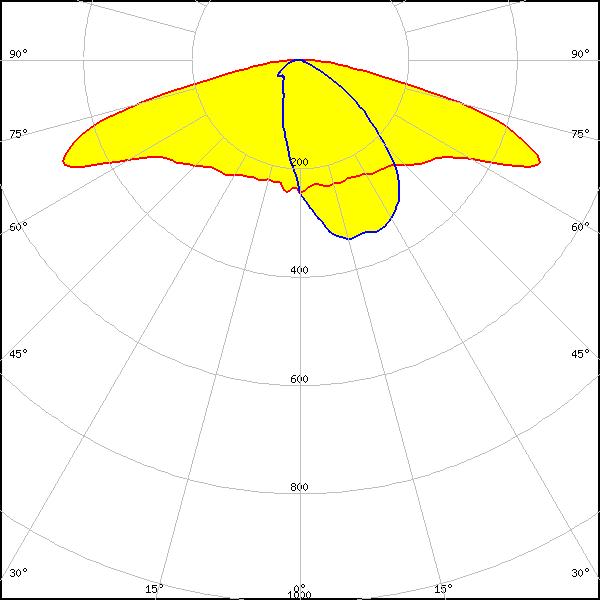

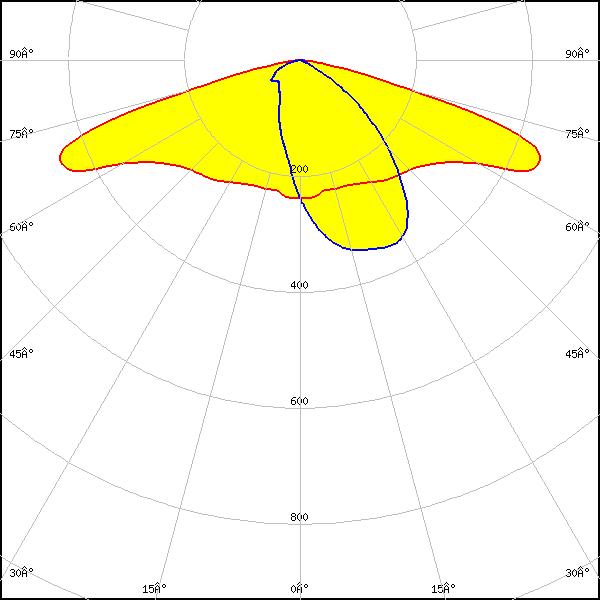

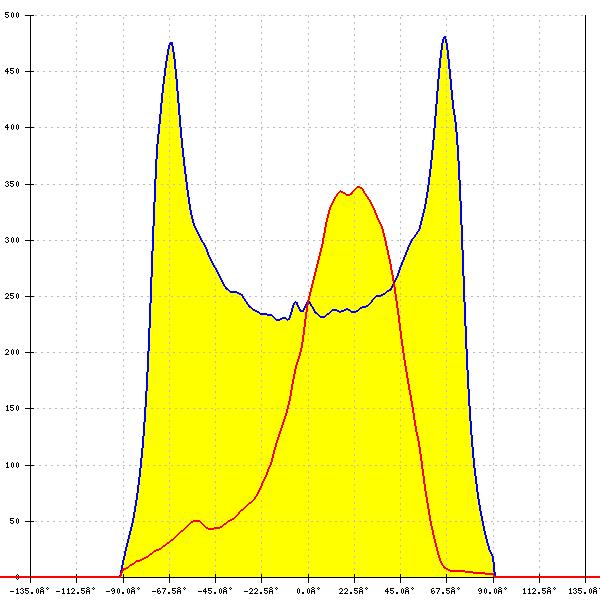

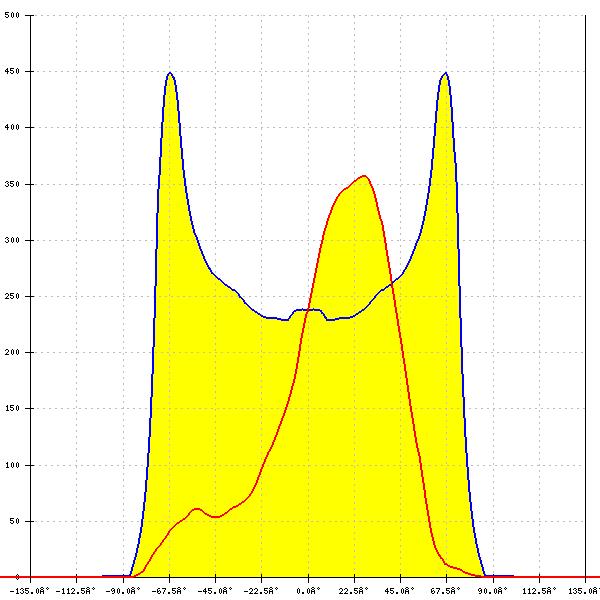

LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.480 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

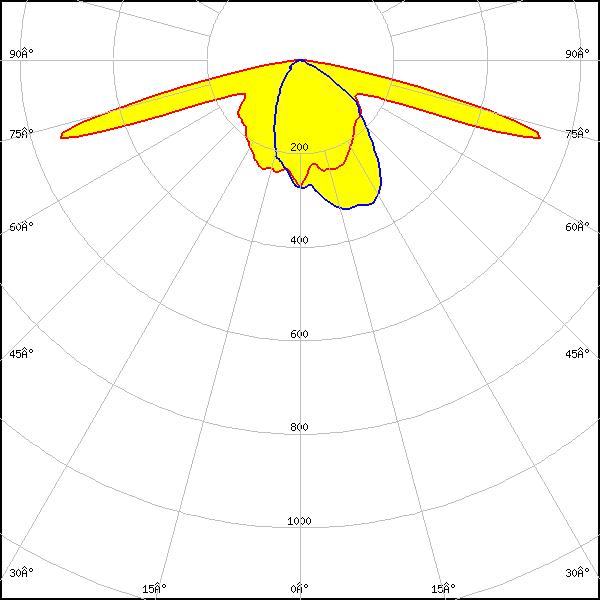

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.637 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

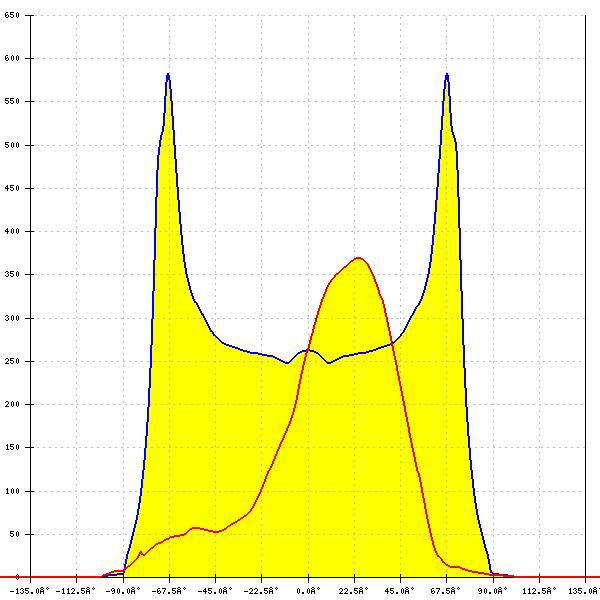

LED: Fortimo FastFlex LED 2x8 DA HE
FWHM: asymmetric
Peak intensity: 0.470 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x8 DA HE
FWHM: asymmetric
Peak intensity: 0.644 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour/type: White

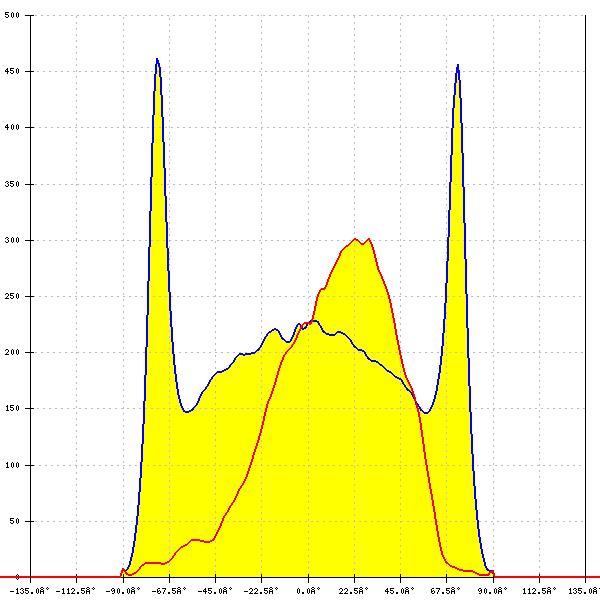

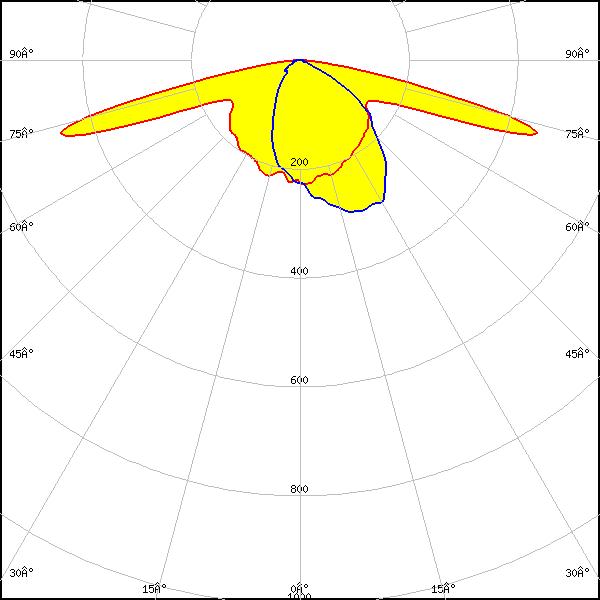

LED: Fortimo FastFlex LED 2x8 DAX G4
FWHM: asymmetric
Peak intensity: 0.530 cd/lm
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

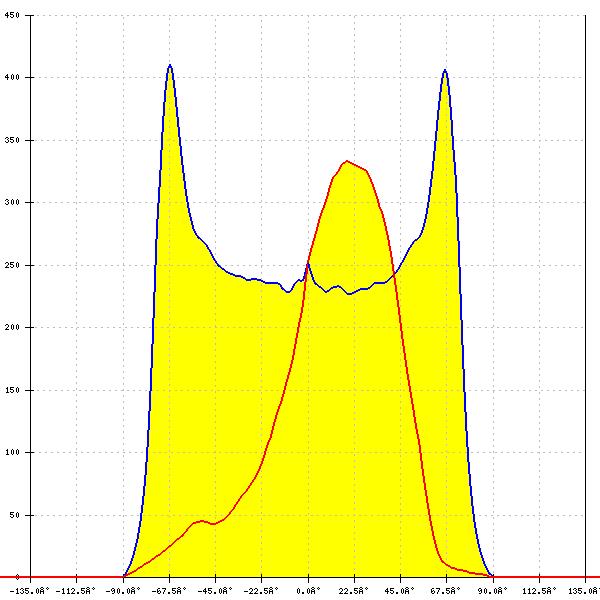

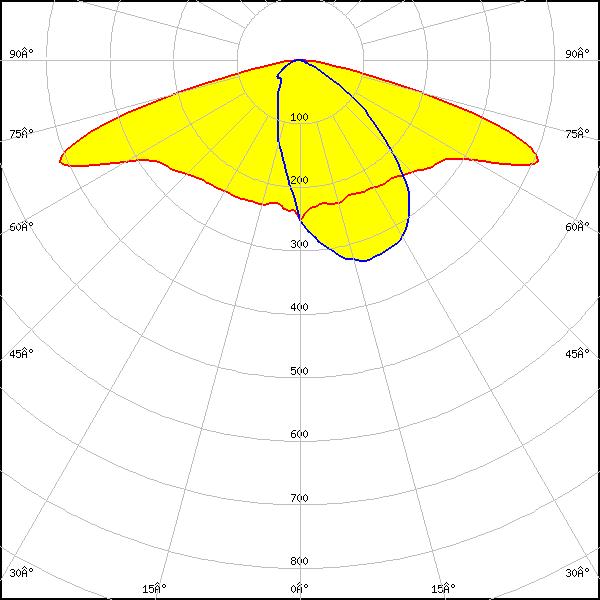

LED: LH502C
FWHM: asymmetric
Peak intensity: 0.458 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

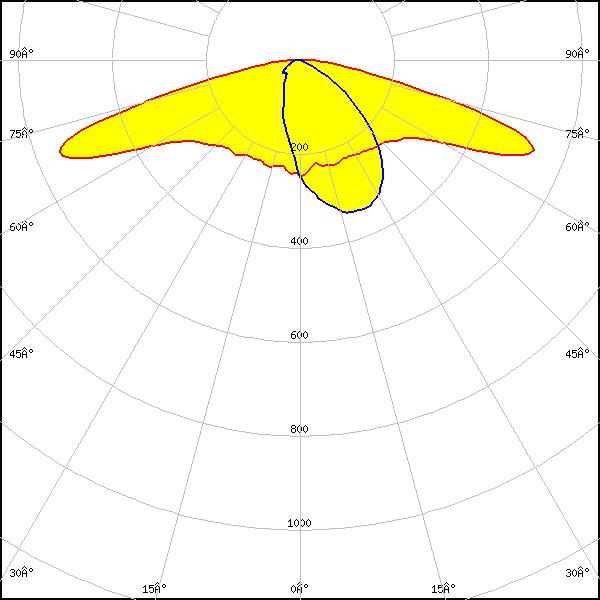

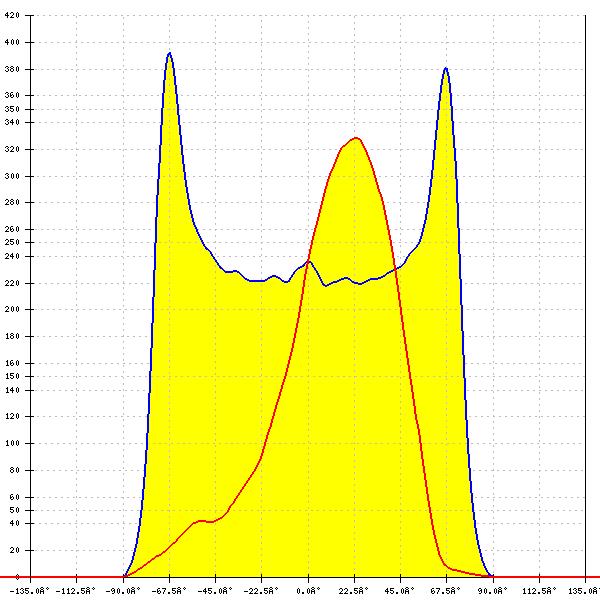

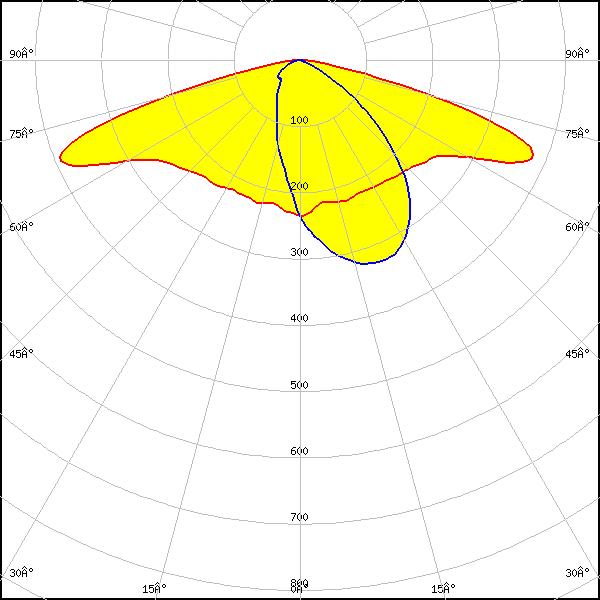

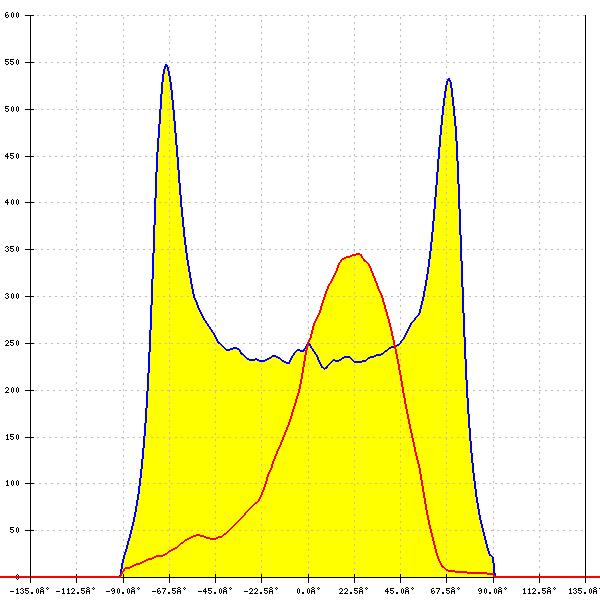

LED: LH502D
FWHM: asymmetric
Peak intensity: 0.619 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: LH502D
FWHM: asymmetric
Peak intensity: 0.430 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

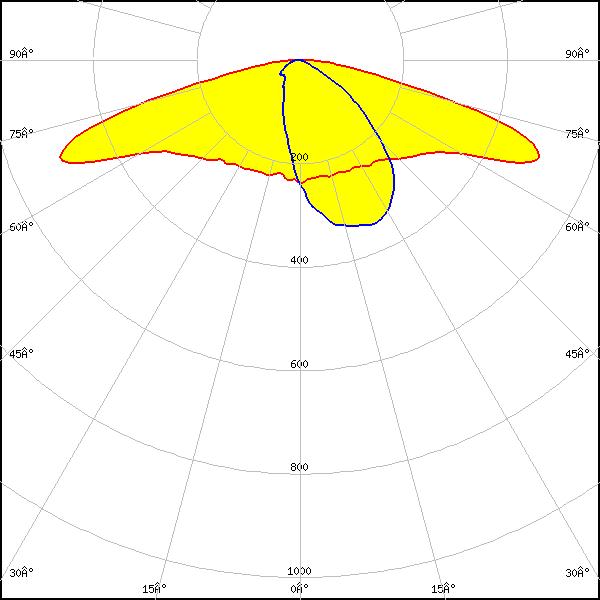

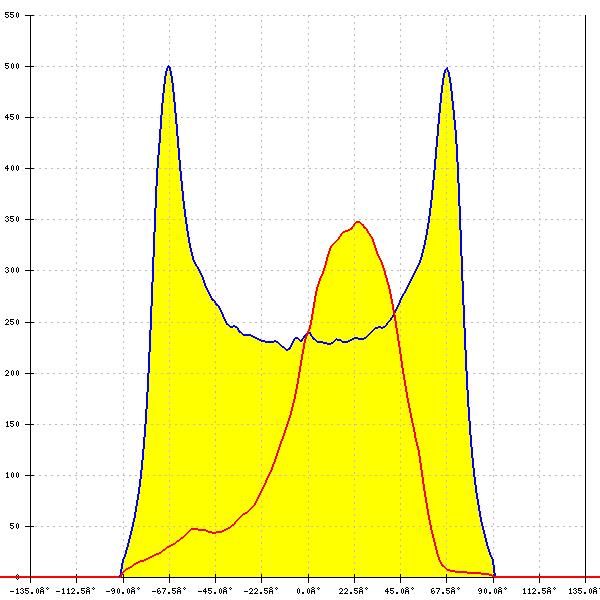

LED: MJT 5050
FWHM: asymmetric
Peak intensity: 0.562 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

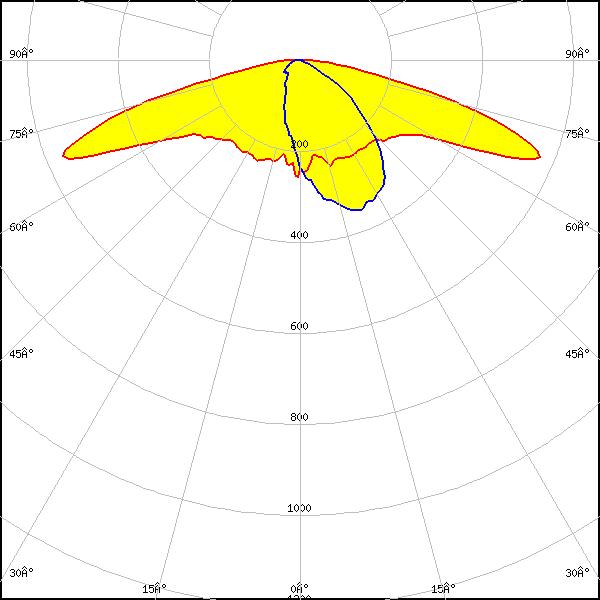

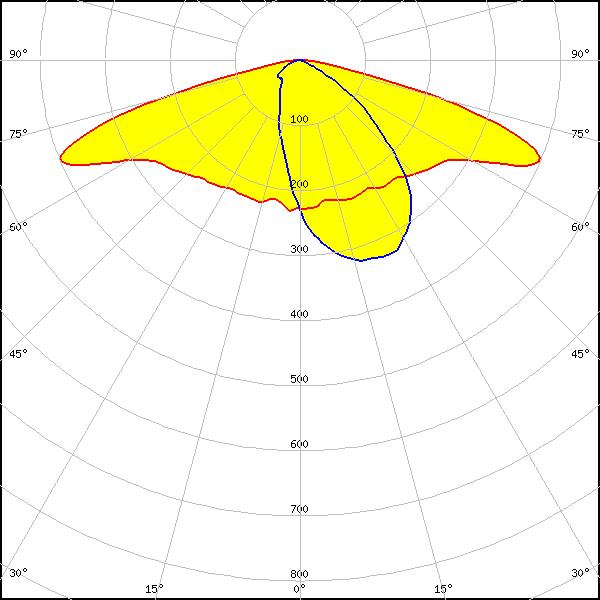

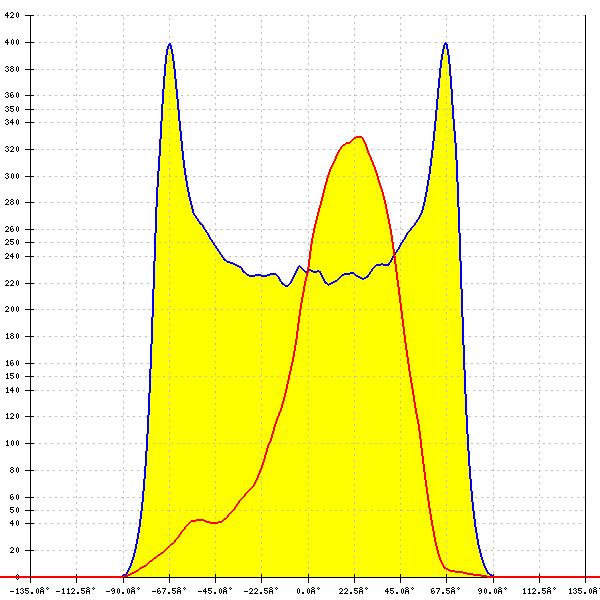

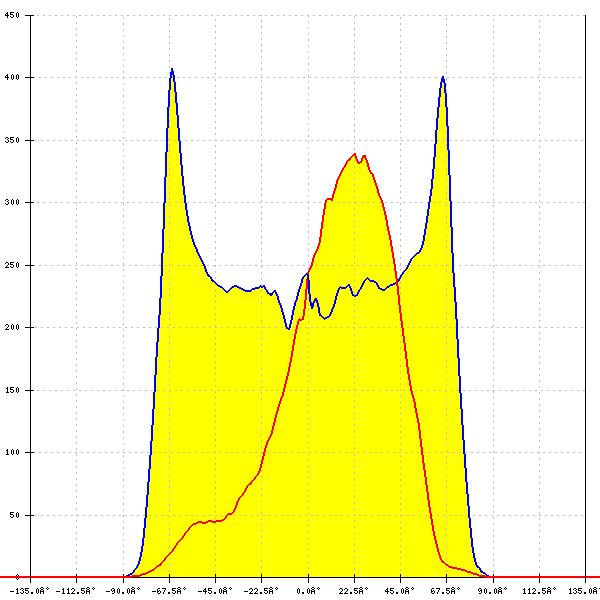

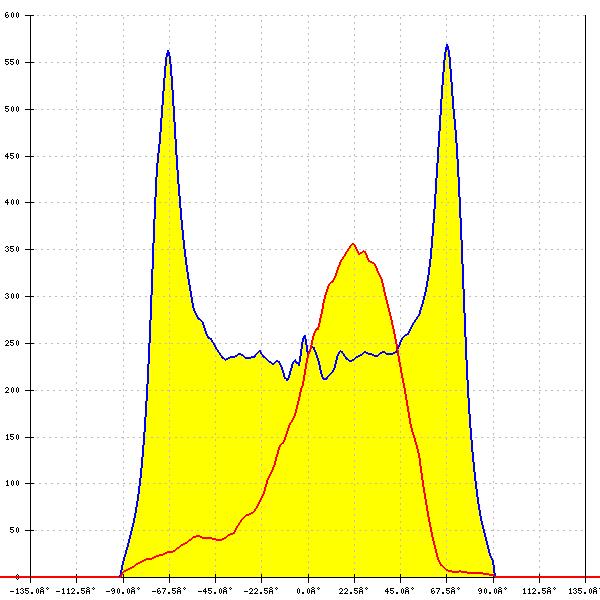

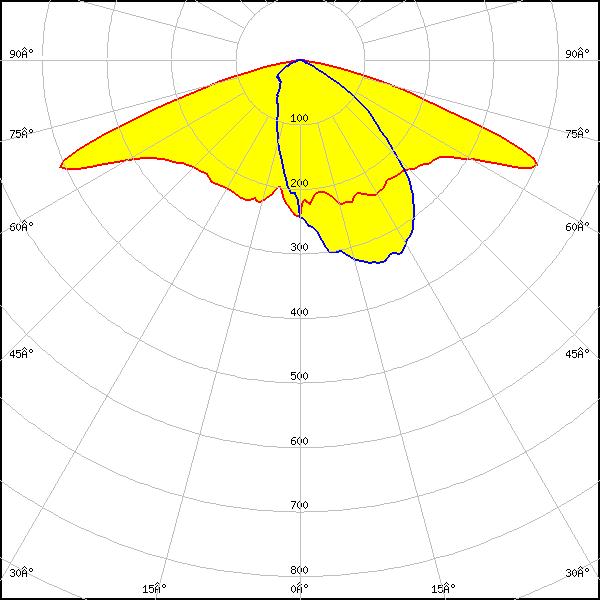

LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 0.670 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 0.480 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

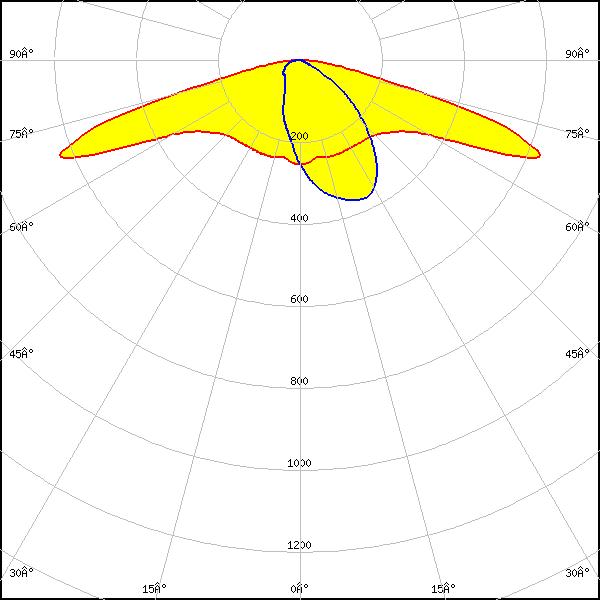

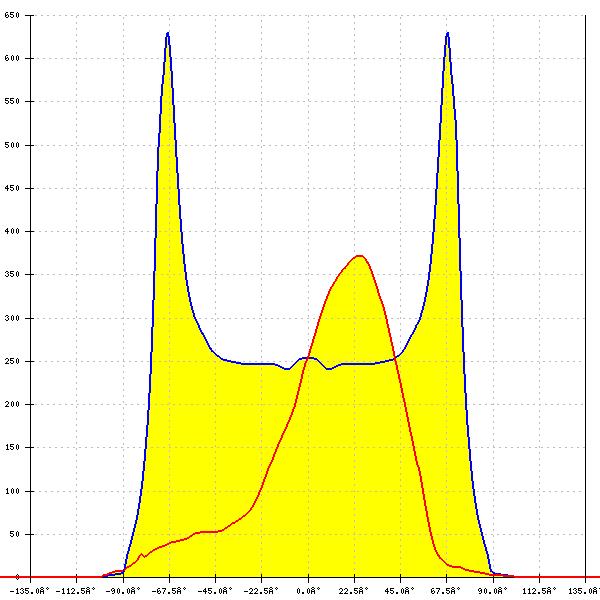

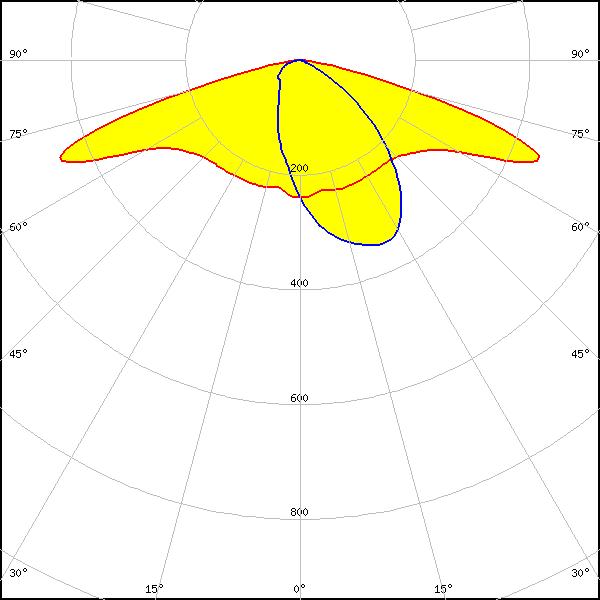

LED: RLE 2x8 6000lm HP HE EXC3 OTD
FWHM: asymmetric
Peak intensity: 0.693 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
