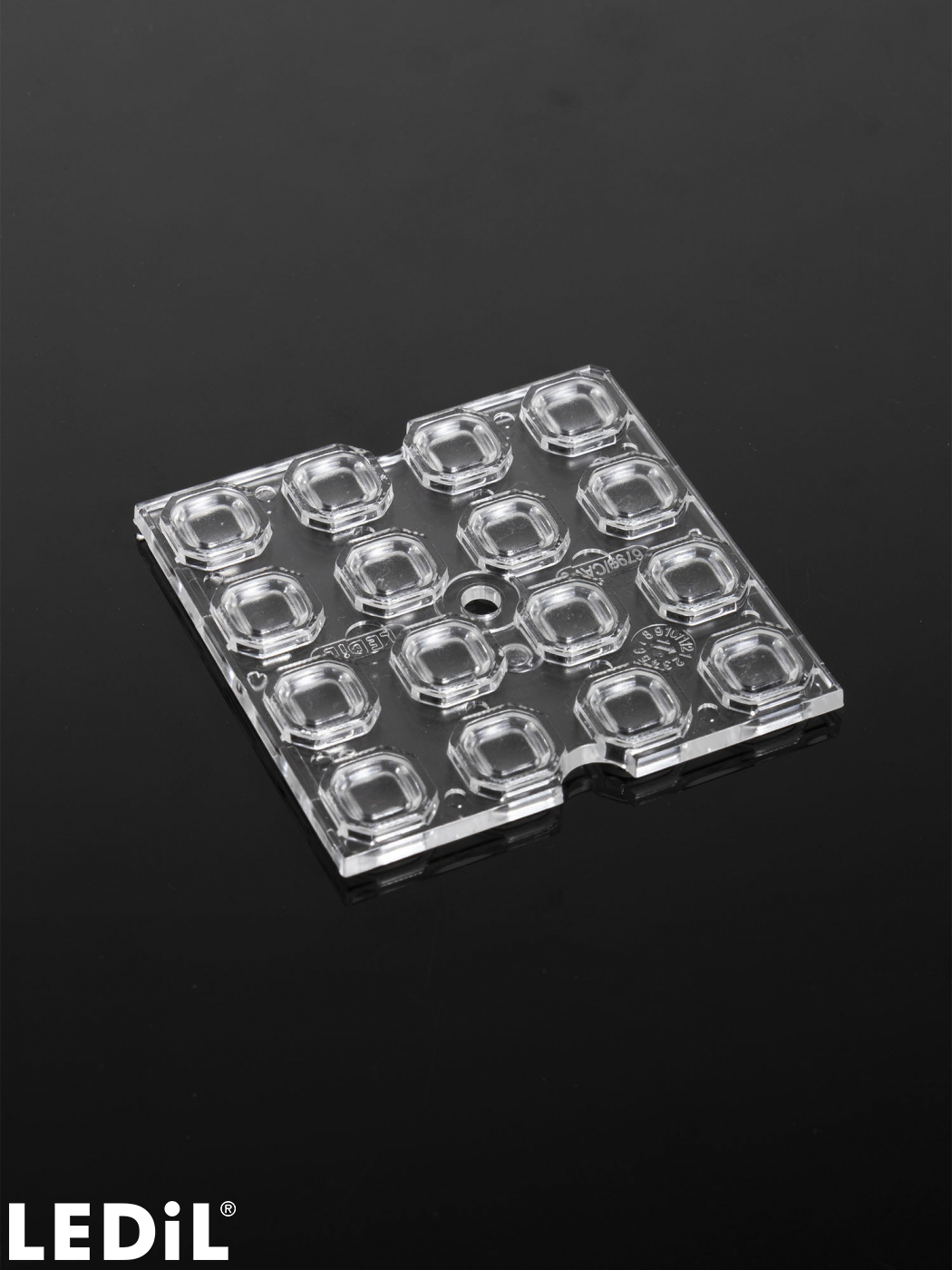

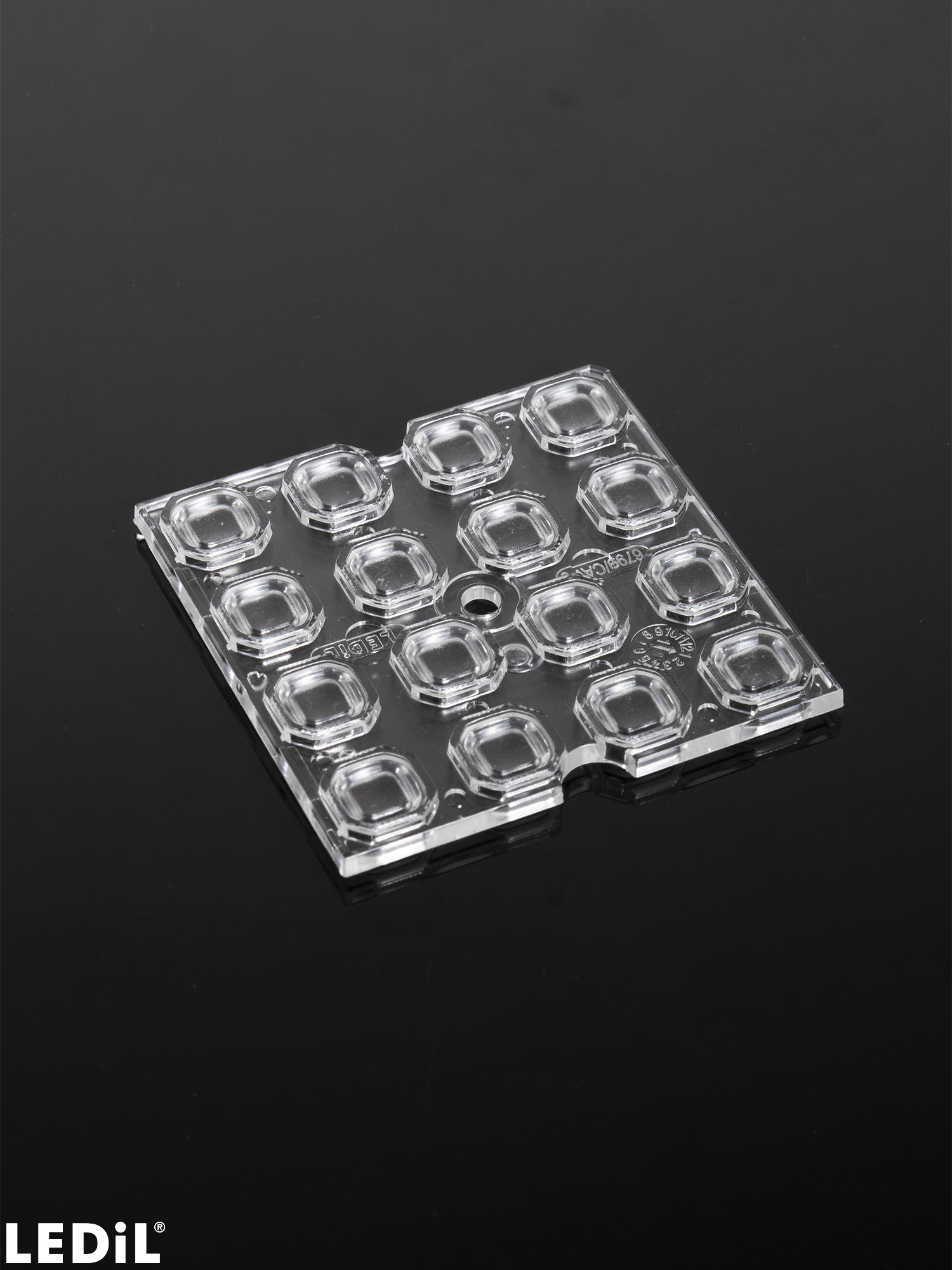

C16799_STRADELLA-16-HB-W2

Print

~90° medium beam for industrial applications. Improved version with excellent cutoff and low glare.

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    3.20 mm
  • Fastening:
    pin, screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    5.0 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.2 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C16799_STRADELLA-16-HB-W2

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

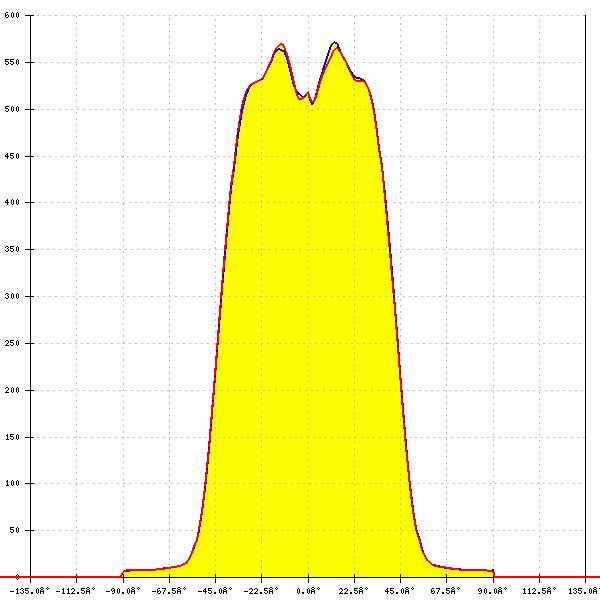

Optical results

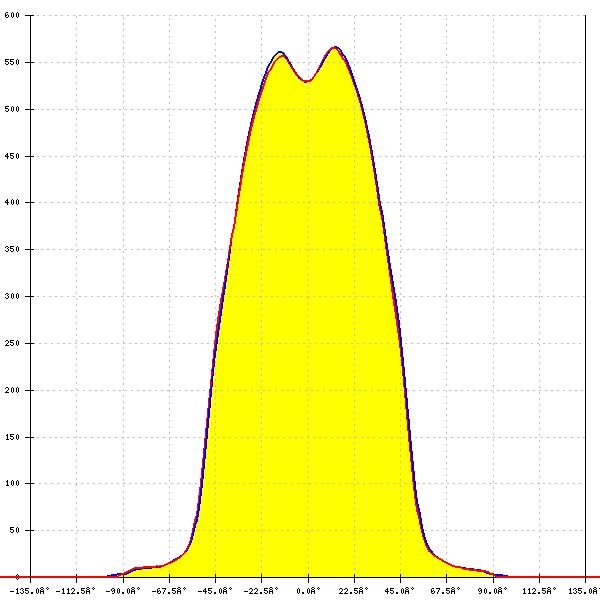

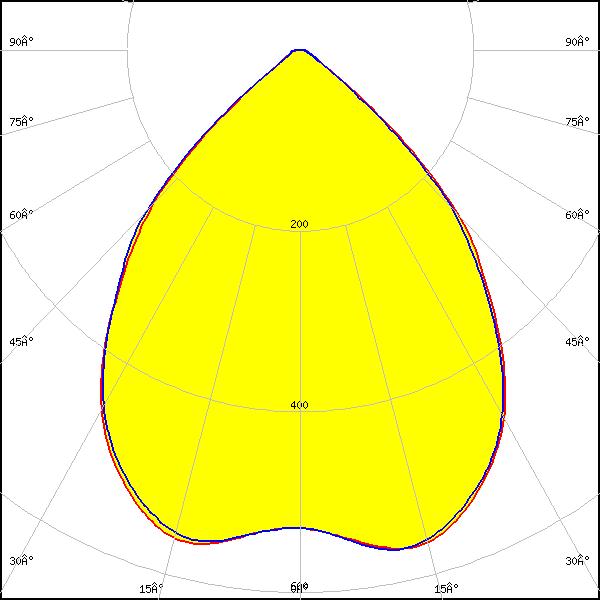

LED: J Series 3030
FWHM: 86°
FWTM: 110°
Peak intensity: 0.582 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

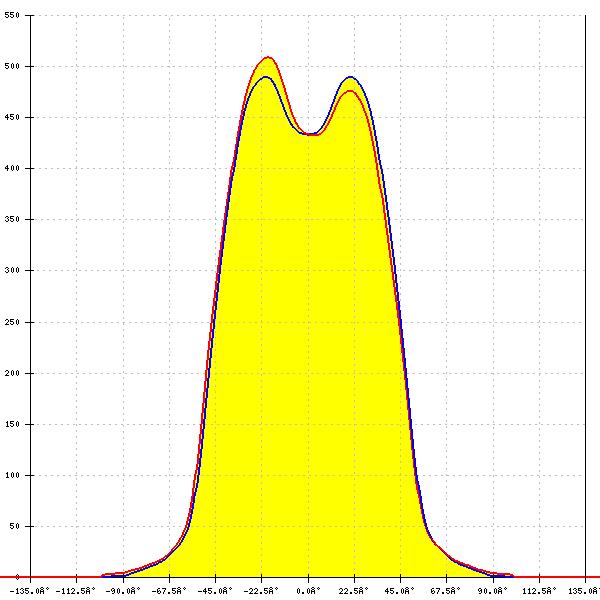

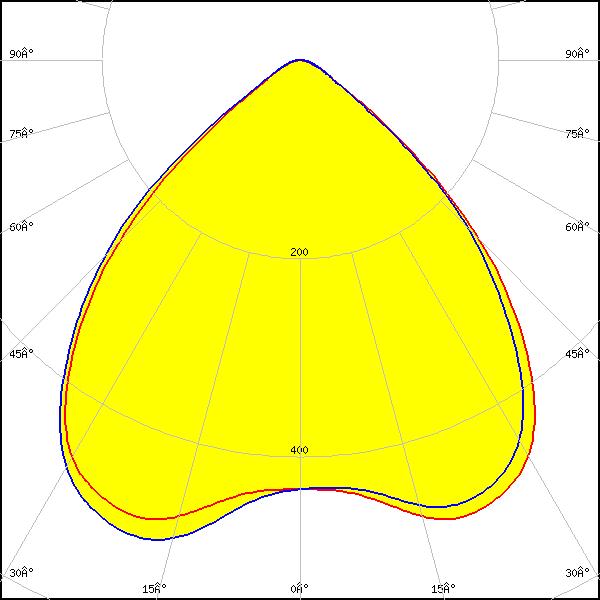

LED: EHP-223.5x50-1604-xx-70-LS30-06-NTC
FWHM: 91°
FWTM: 116°
Peak intensity: 0.526 cd/lm
Efficiency: 98 %
LEDs/each optic: 1
Light colour: White

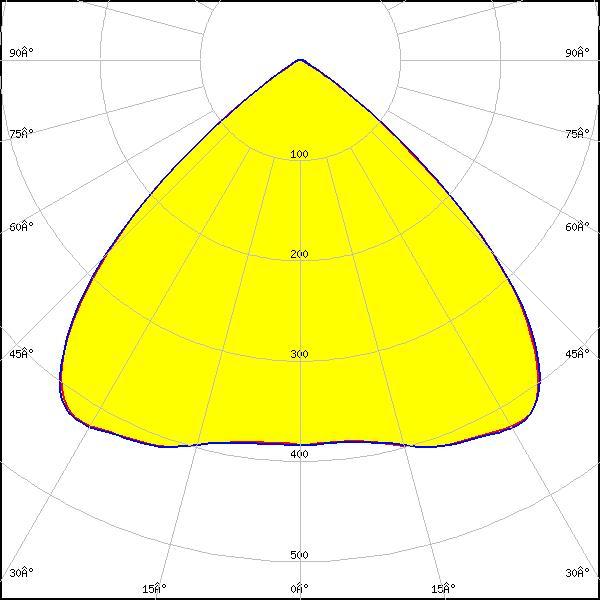

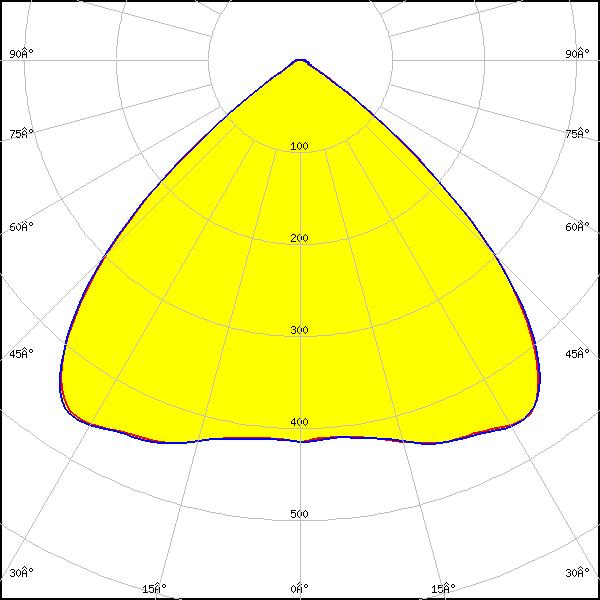

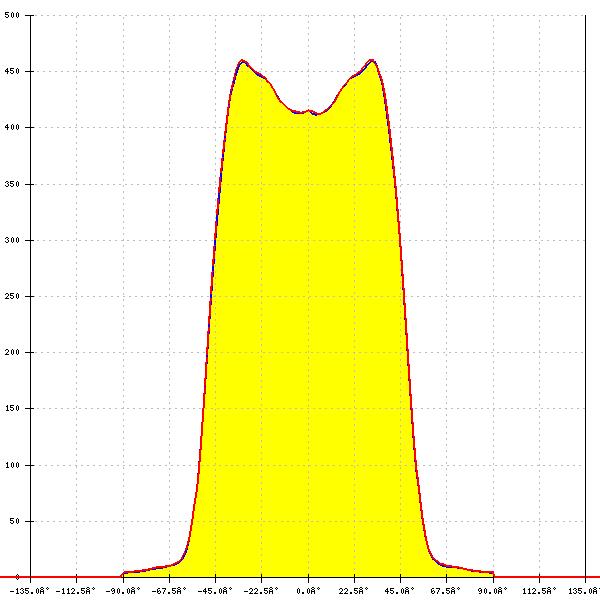

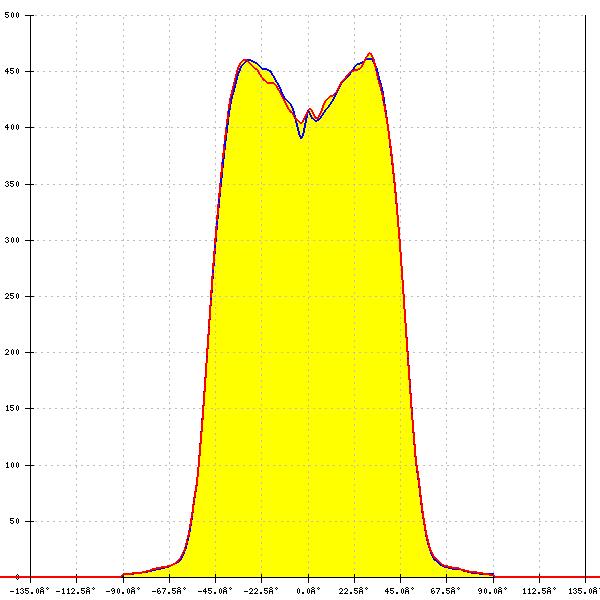

LED: LUXEON 2835 Line
FWHM: 96°
FWTM: 112°
Peak intensity: 0.460 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON 2835 Line
FWHM: 96°
FWTM: 112°
Peak intensity: 0.424 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

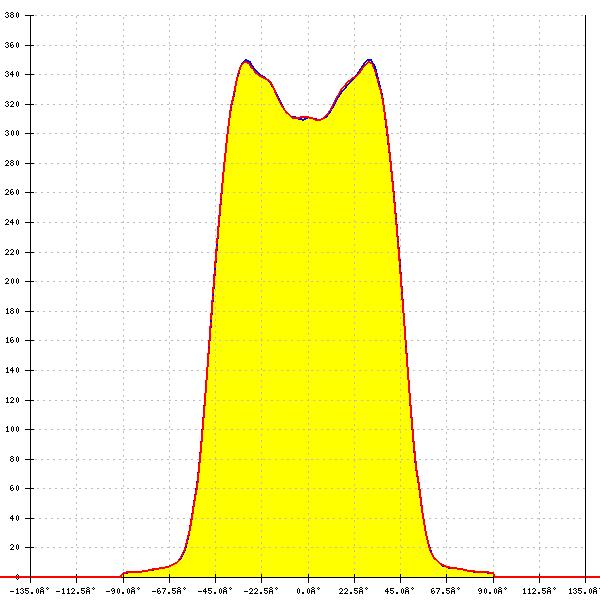

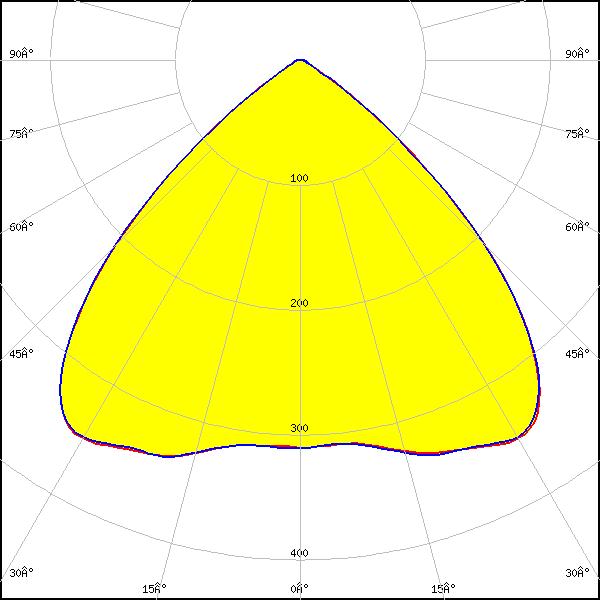

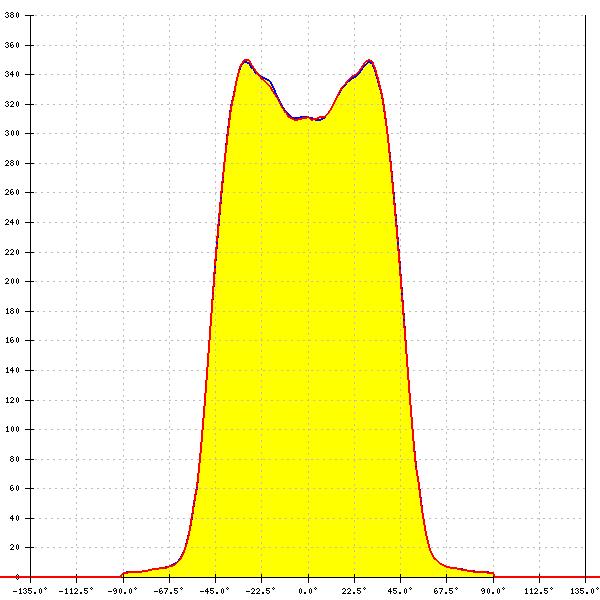

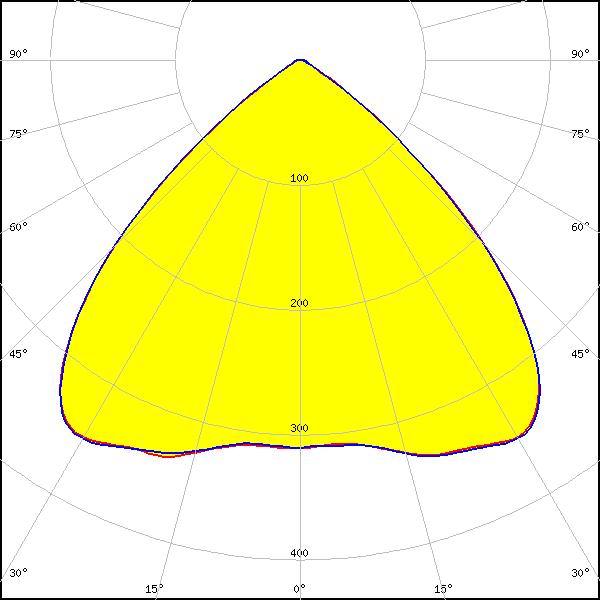

LED: Duris S5 (2 chip)
FWHM: 94°
FWTM: 114°
Peak intensity: 0.350 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour: White

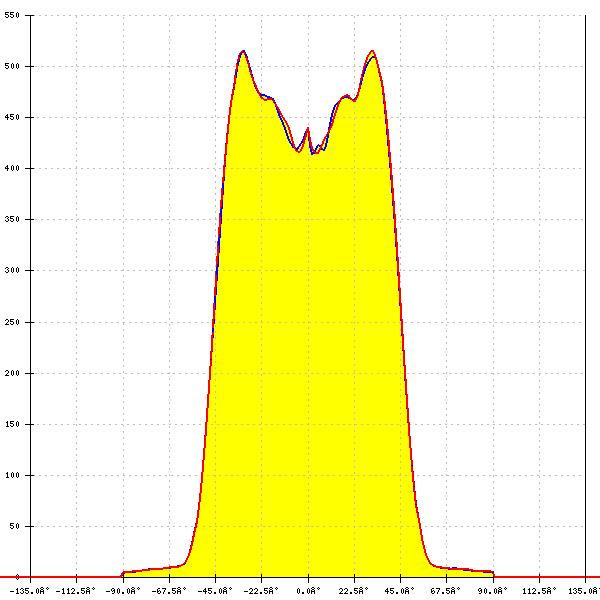

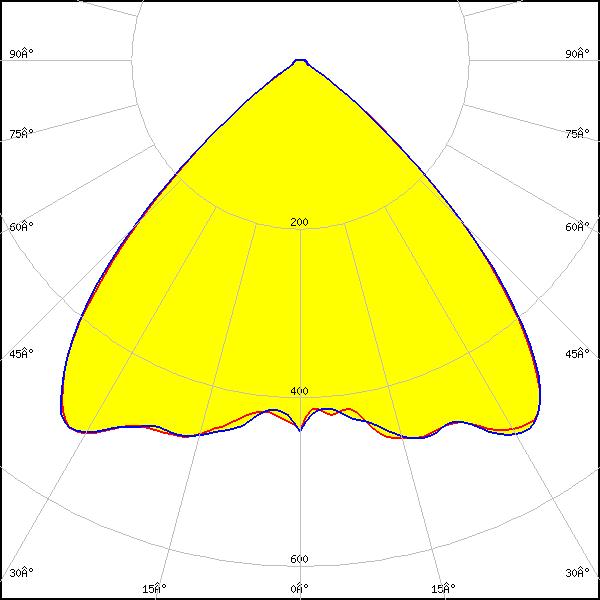

LED: OSCONIQ C 2424
FWHM: 92°
FWTM: 108°
Peak intensity: 0.515 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

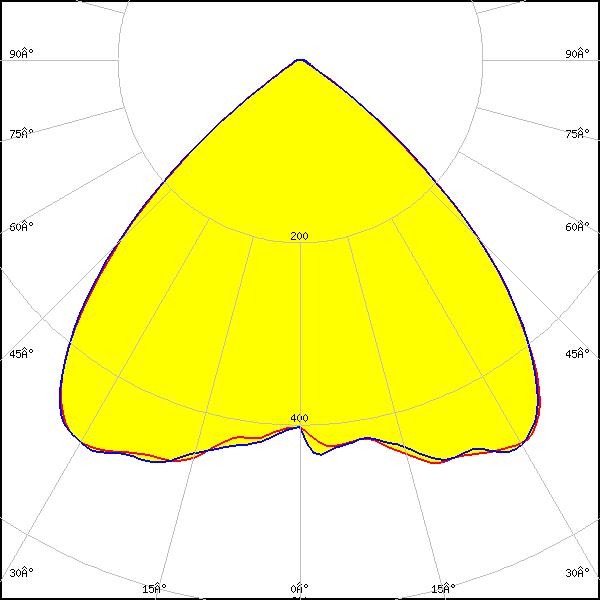

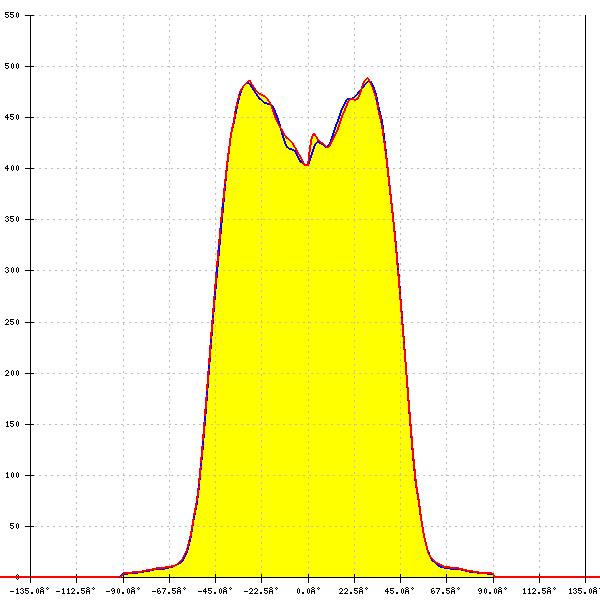

LED: OSCONIQ S 3030
FWHM: 93°
FWTM: 112°
Peak intensity: 0.488 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

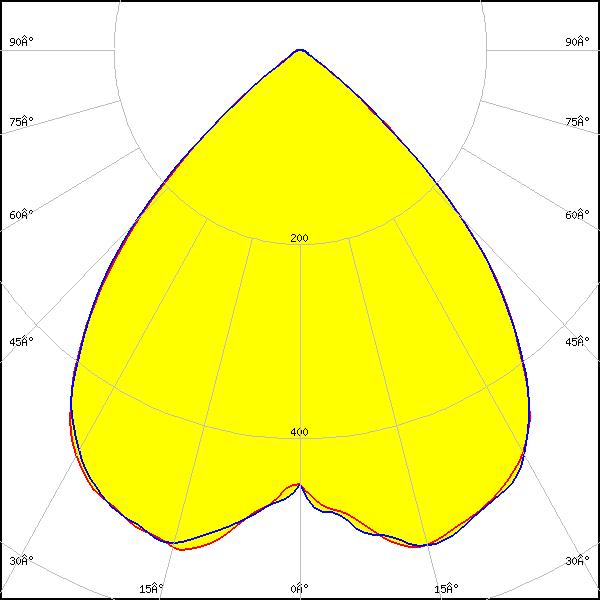

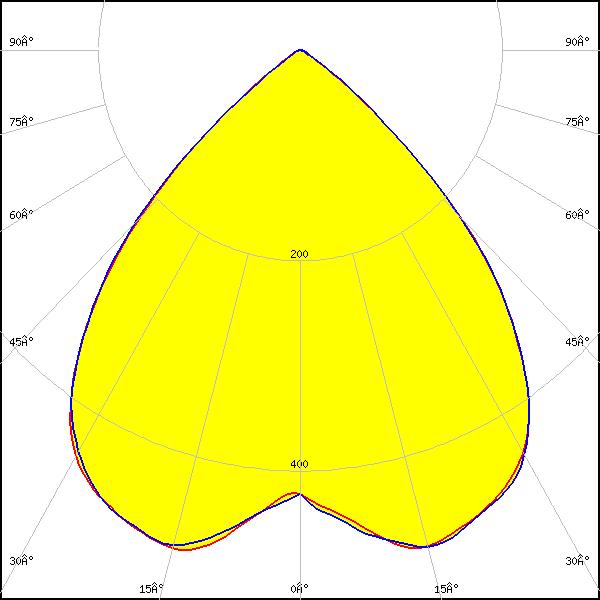

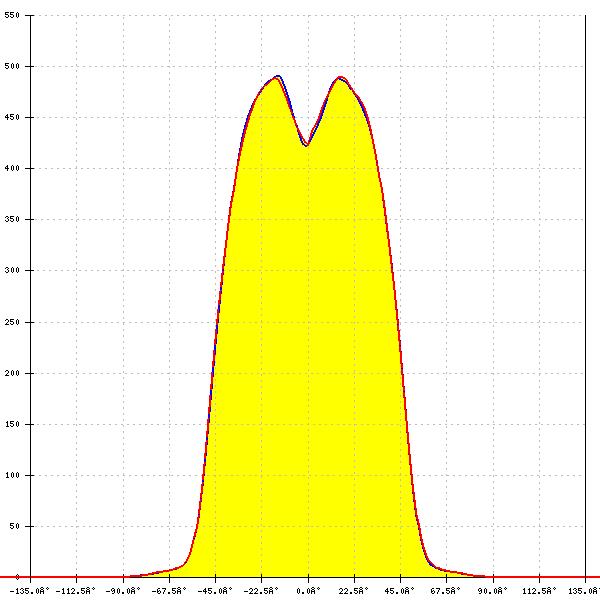

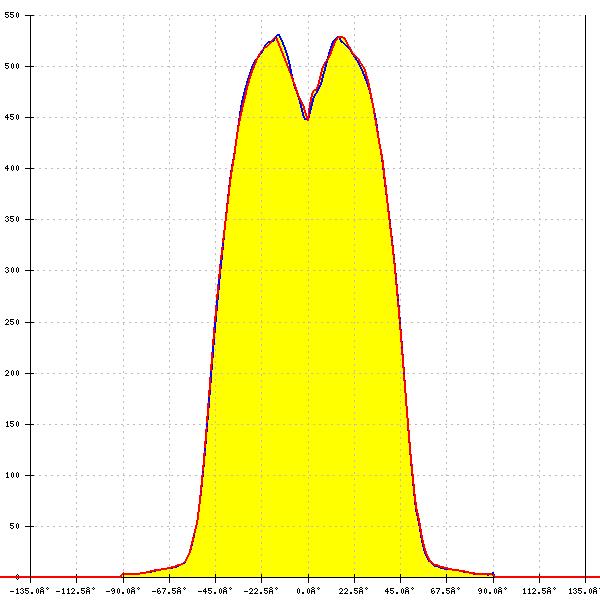

LED: LH231B
FWHM: 88°
FWTM: 108°
Peak intensity: 0.543 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
LED: LH231B
FWHM: 88°
FWTM: 108°
Peak intensity: 0.501 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

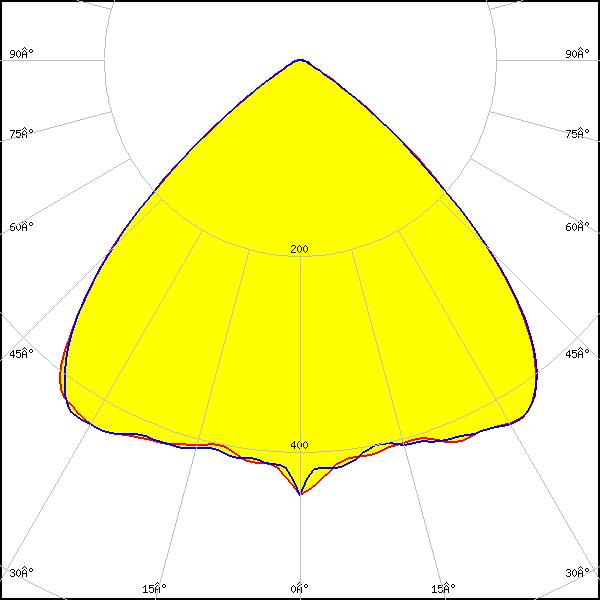

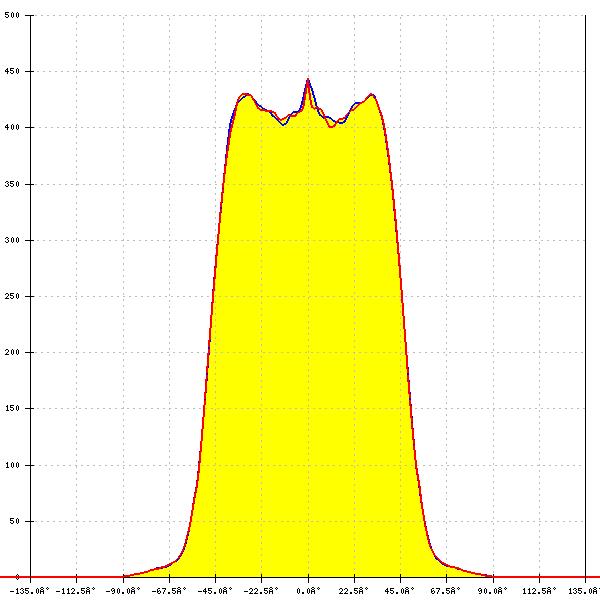

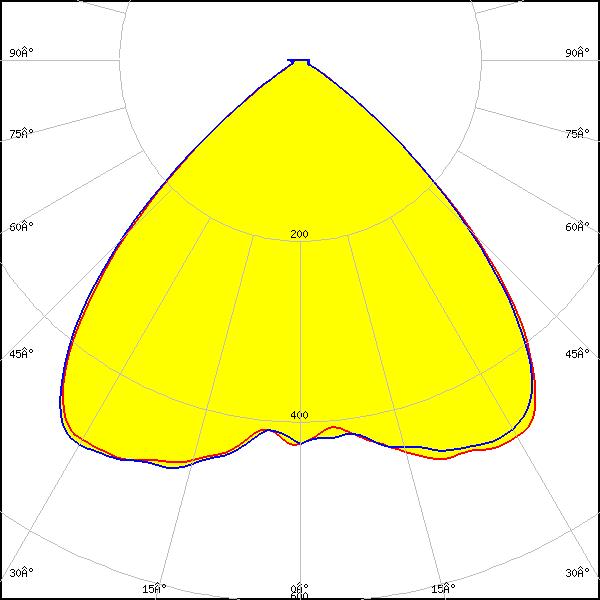

LED: LM301B
FWHM: 92°
FWTM: 112°
Peak intensity: 0.490 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

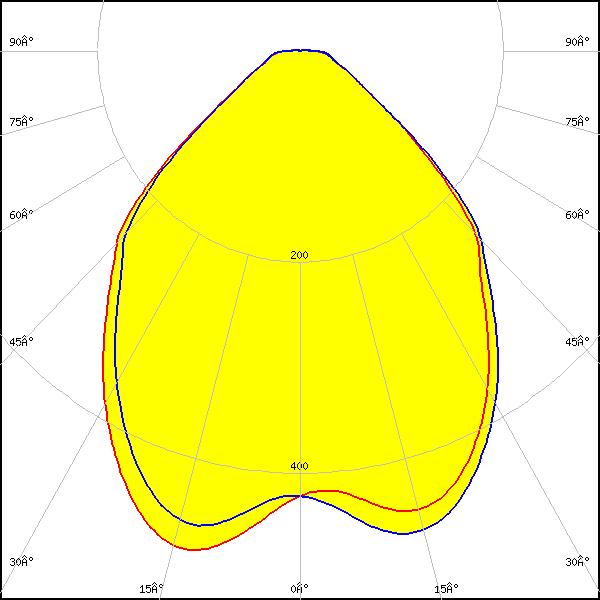

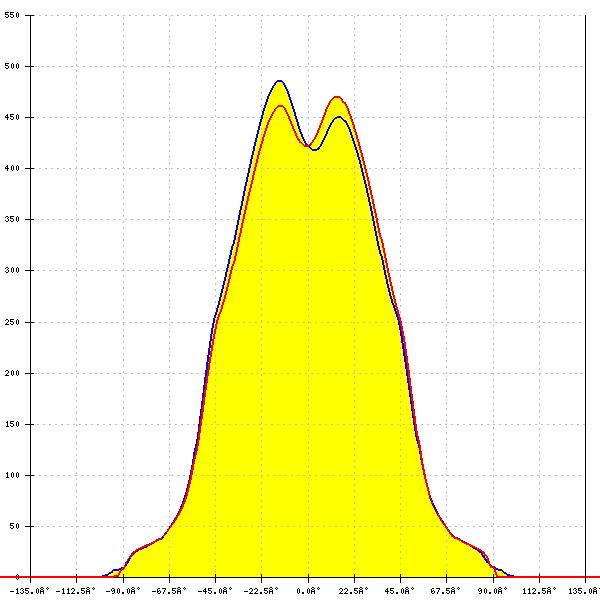

LED: XLE-S44XTEHE (XT-E HE)
FWHM: 96°
FWTM: 139°
Peak intensity: 0.496 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

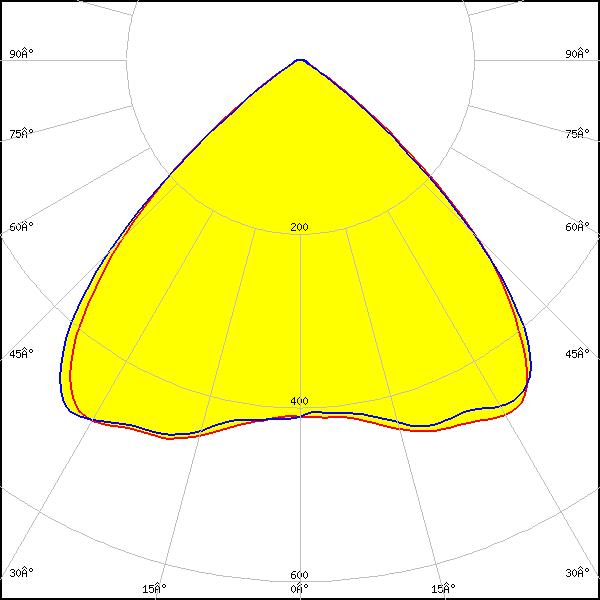

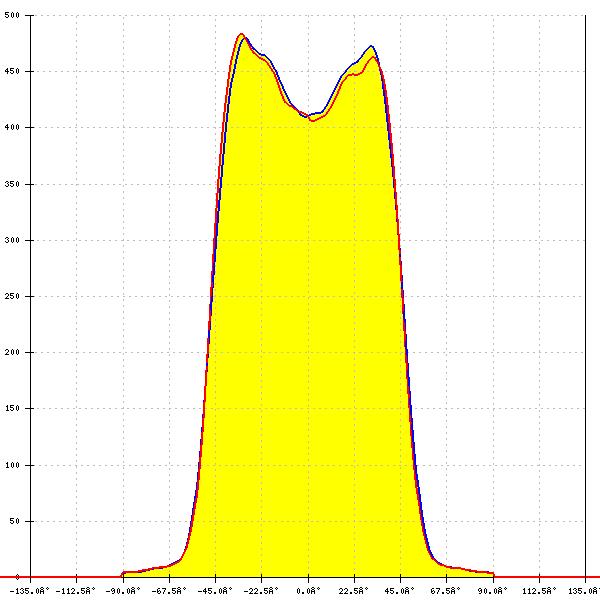

LED: SEOUL 3030
FWHM: 92°
FWTM: 112°
Peak intensity: 0.483 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

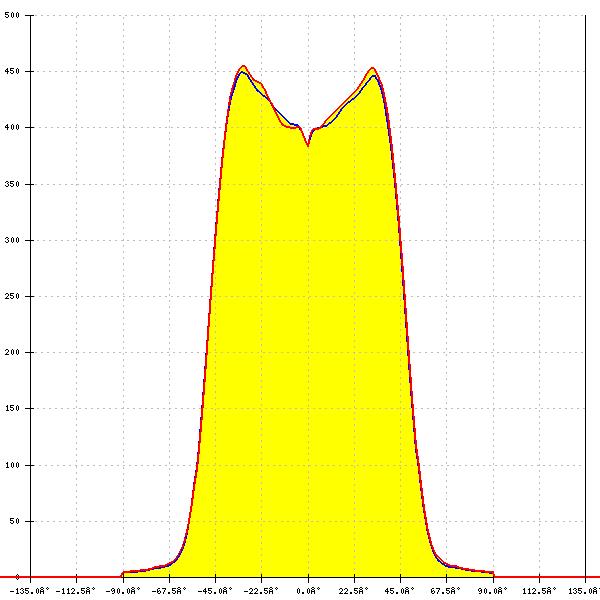

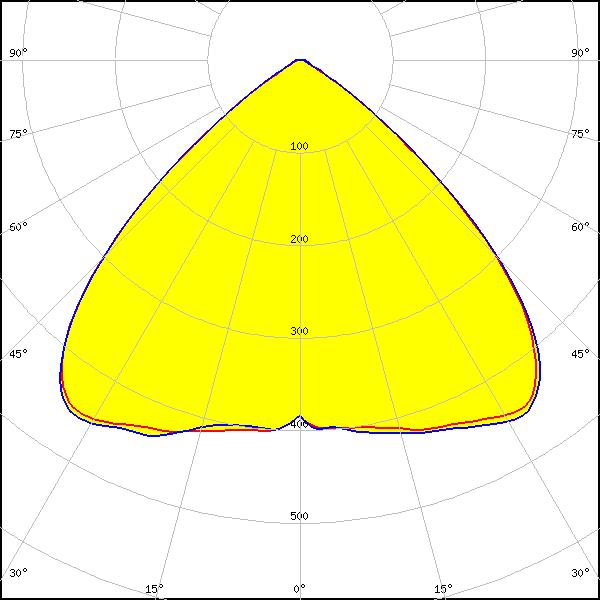

LED: SEOUL DC 3030C
FWHM: 96°
FWTM: 115°
Peak intensity: 0.450 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White
