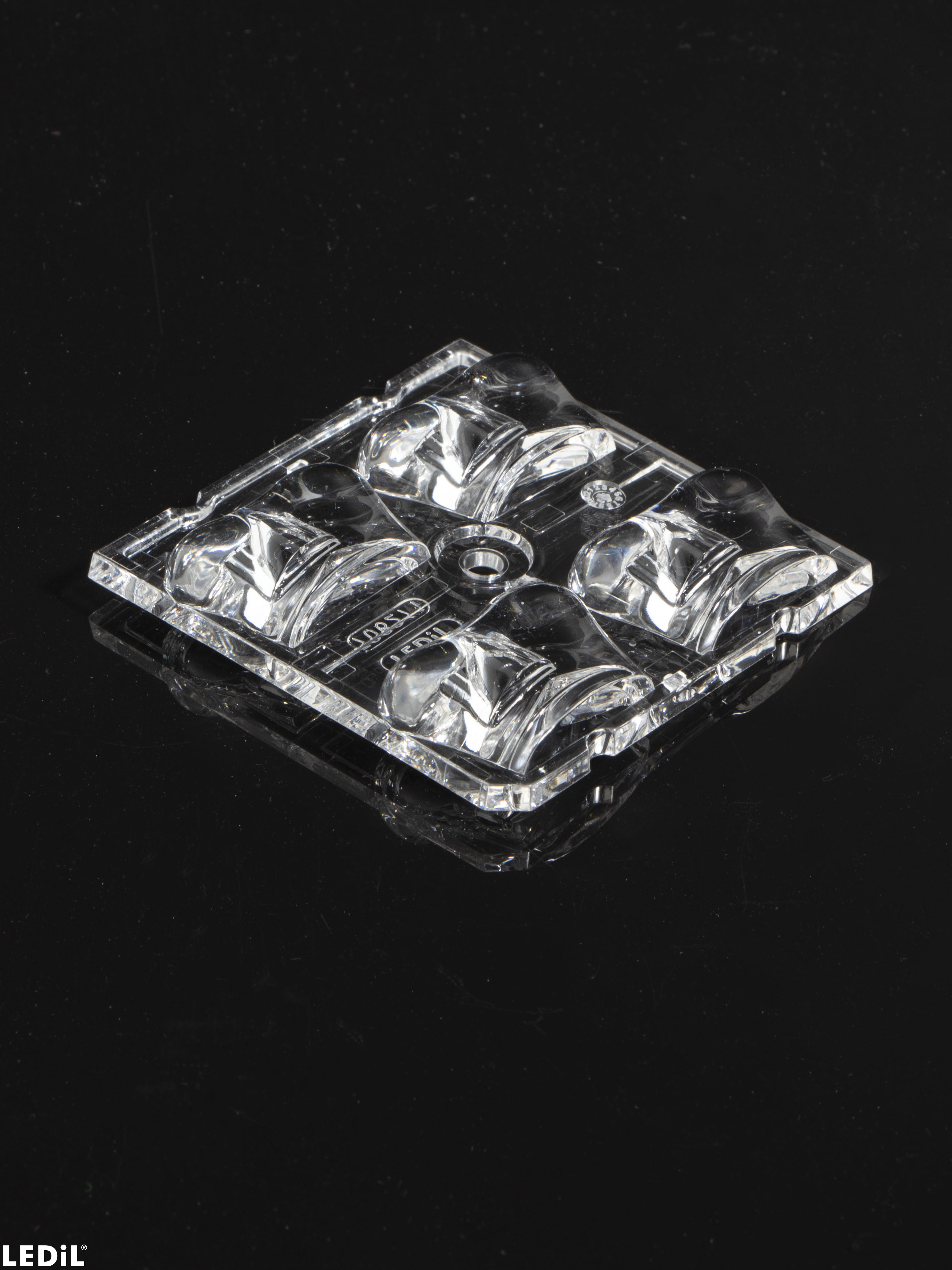

C17062_STRADA-2X2-5050-T2-C2

Print

IESNA Type II (medium) beam with added house side backlight. Designed for tilted and long armatures. Variant optimized for flat 5050 size LED packages.

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    7.41 mm
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    10.0 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    2.2 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C17062_STRADA-2X2-5050-T2-C2

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

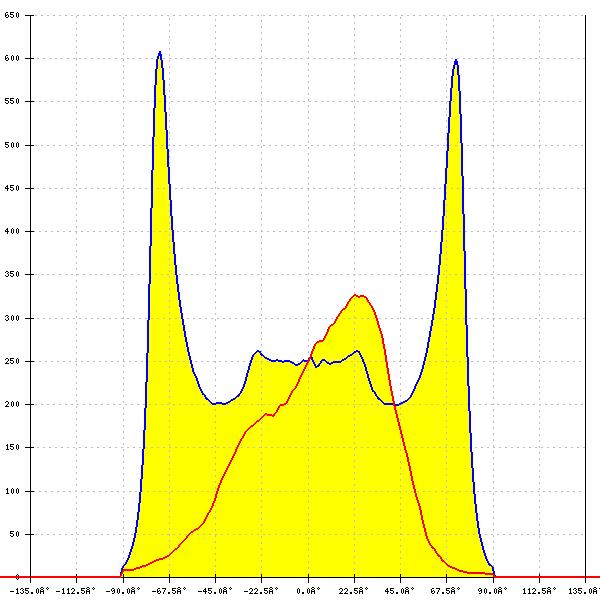

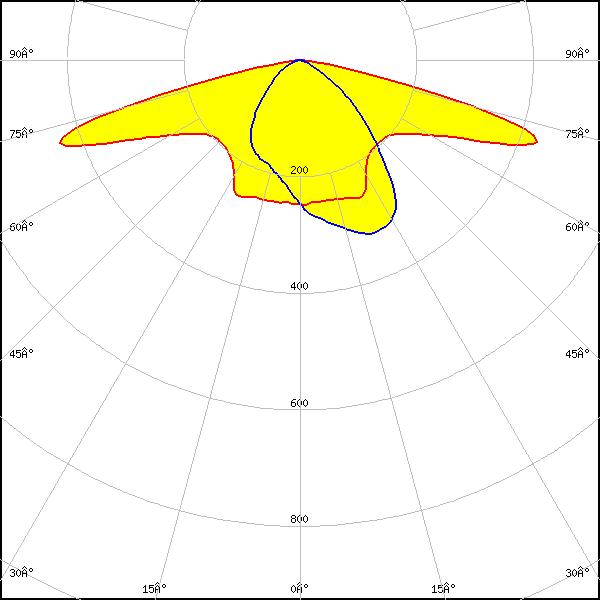

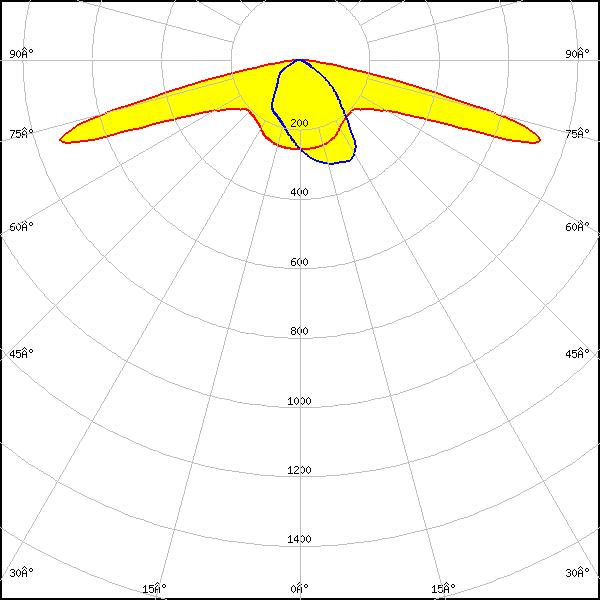

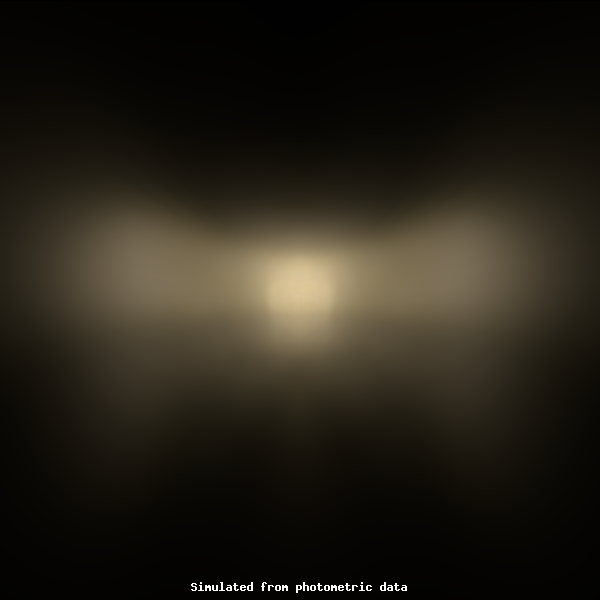

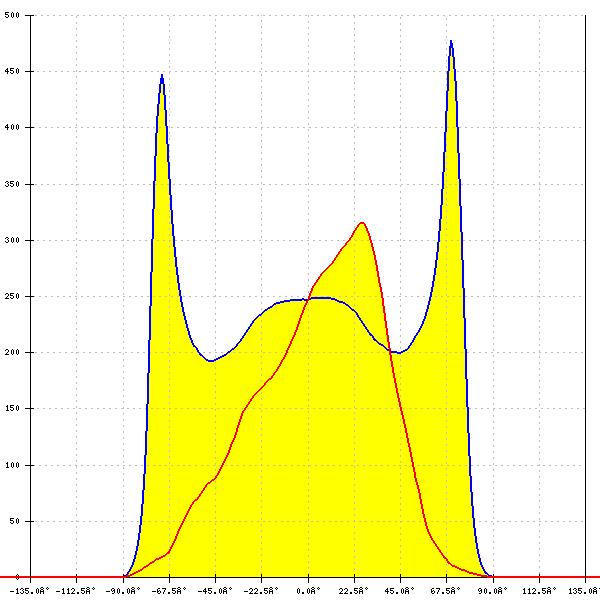

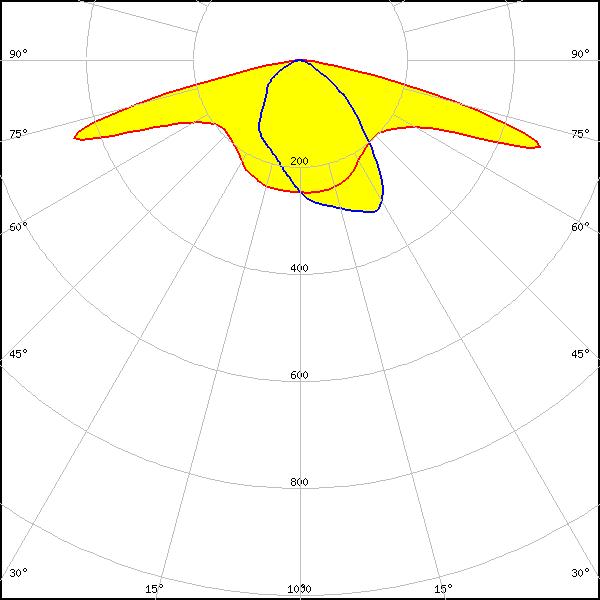

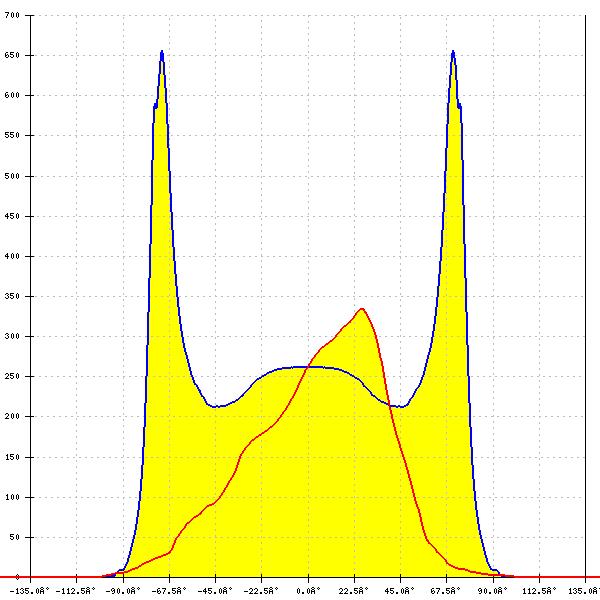

Optical results

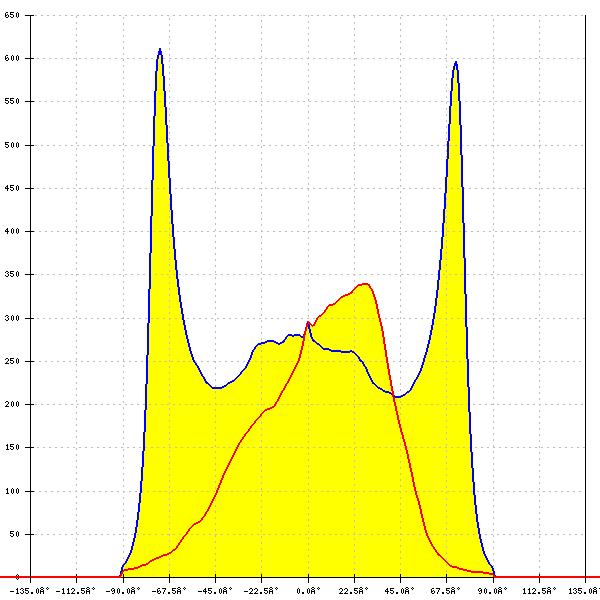

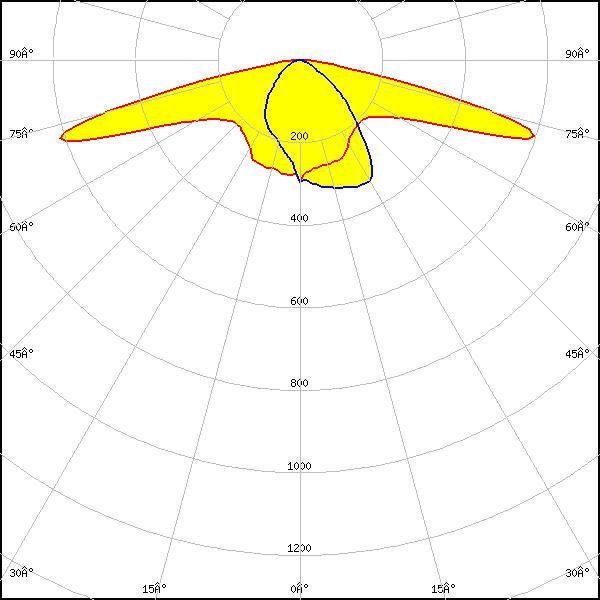

LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.537 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.816 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.767 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

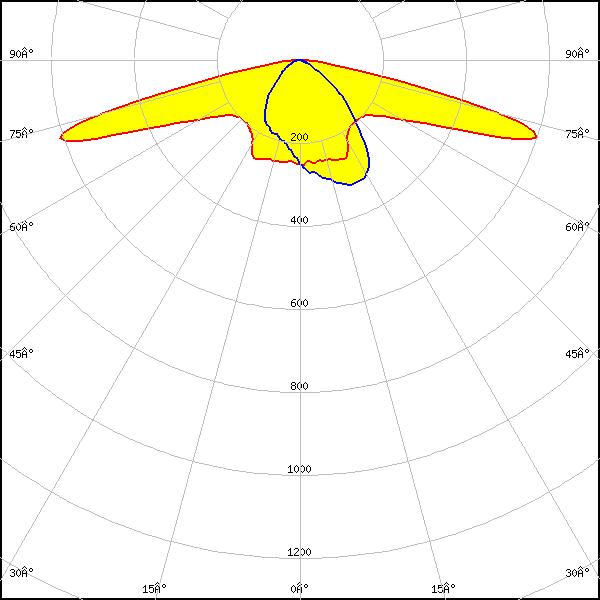

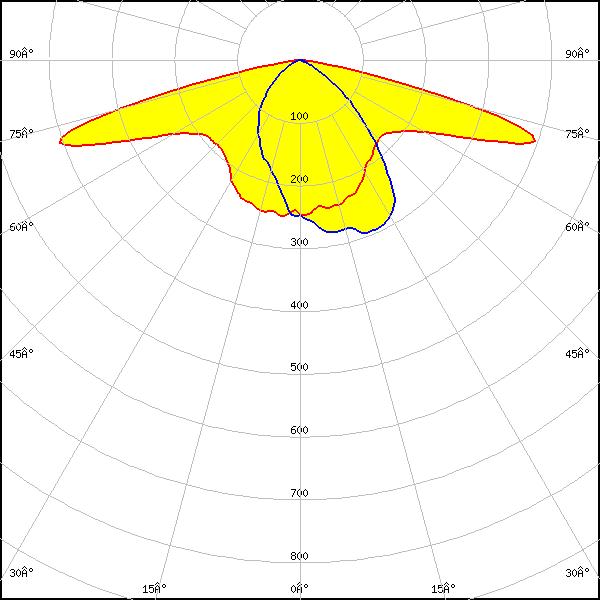

LED: J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity: 0.497 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White

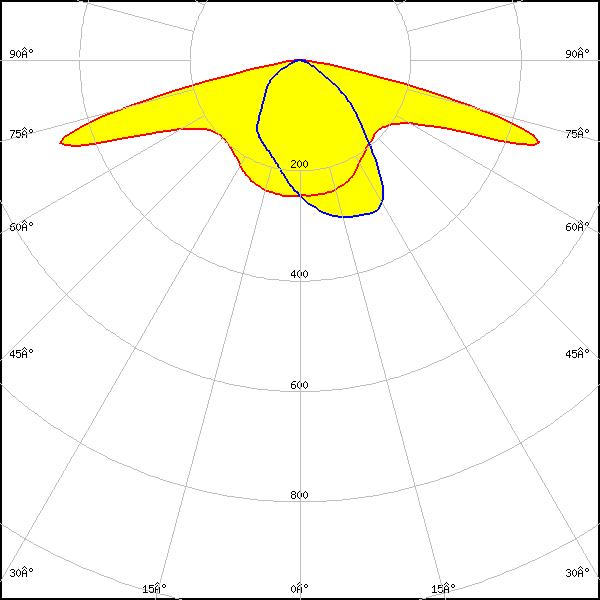

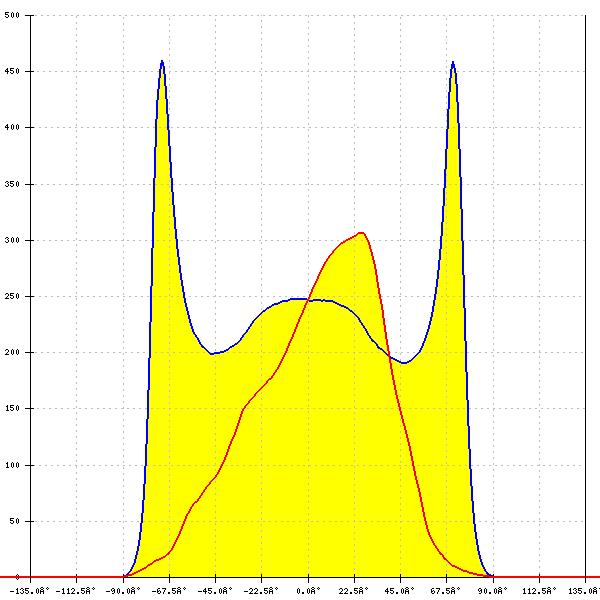

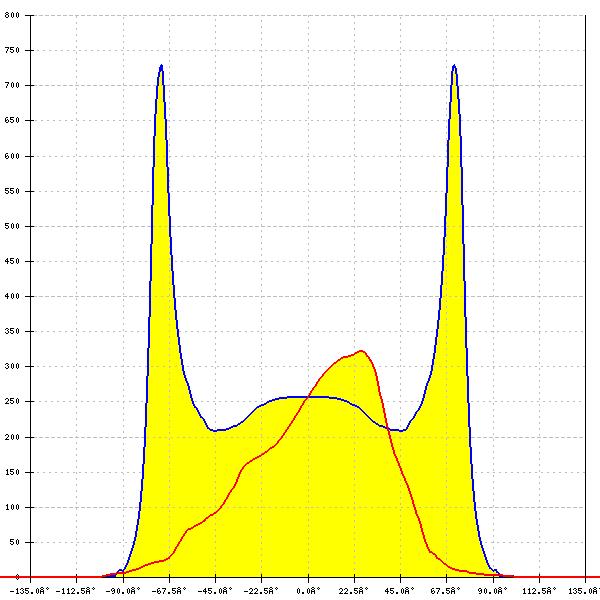

LED: J Series 5050C 6V E Class
FWHM: asymmetric
Peak intensity: 0.558 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White
LED: J Series 5050C 6V E Class
FWHM: asymmetric
Peak intensity: 0.954 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

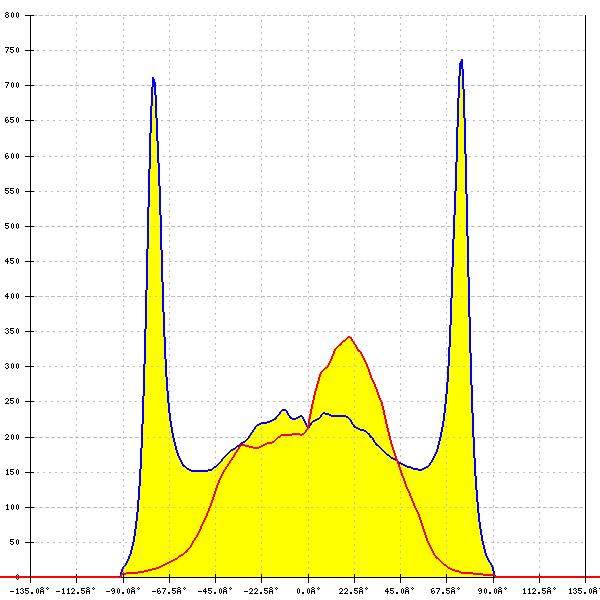

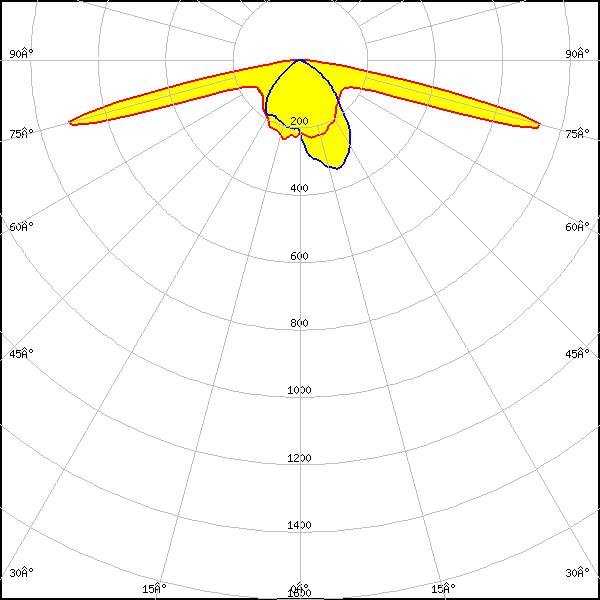

LED: XP-G2
FWHM: asymmetric
Peak intensity: 0.950 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

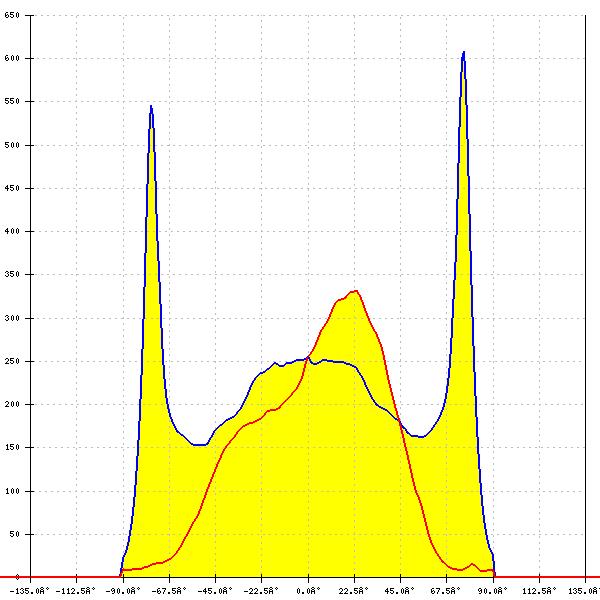

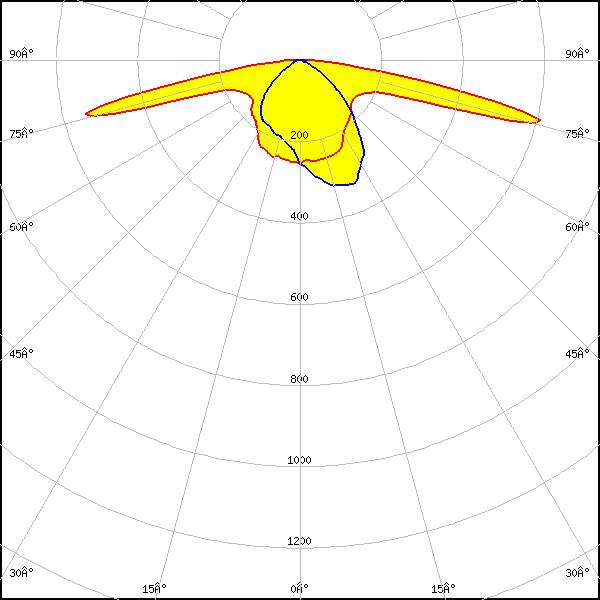

LED: XP-G2 HE
FWHM: asymmetric
Peak intensity: 0.820 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

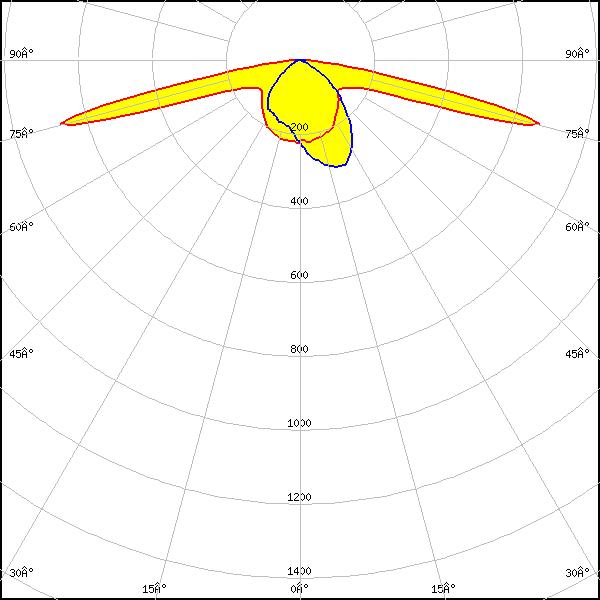

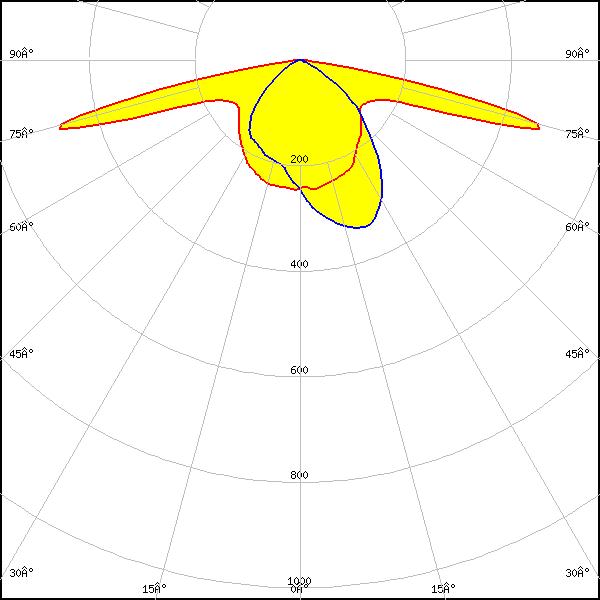

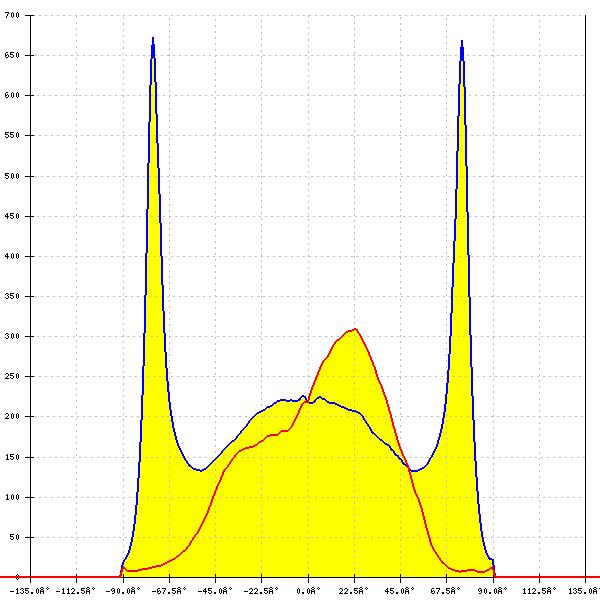

LED: XP-G3
FWHM: asymmetric
Peak intensity: 1.053 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

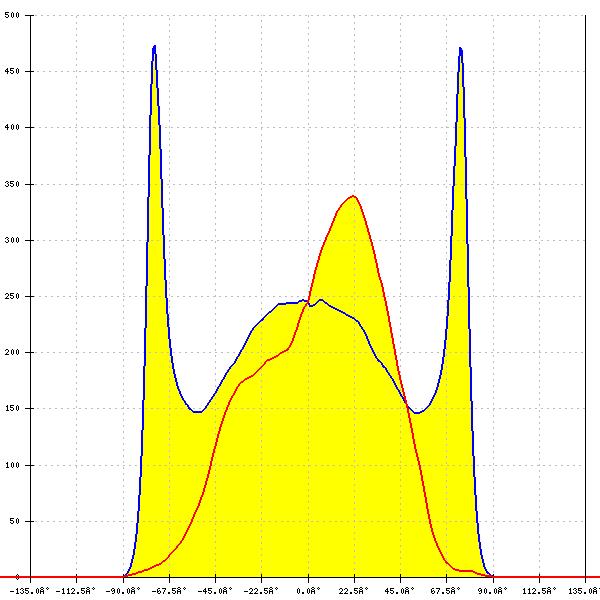

LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.607 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

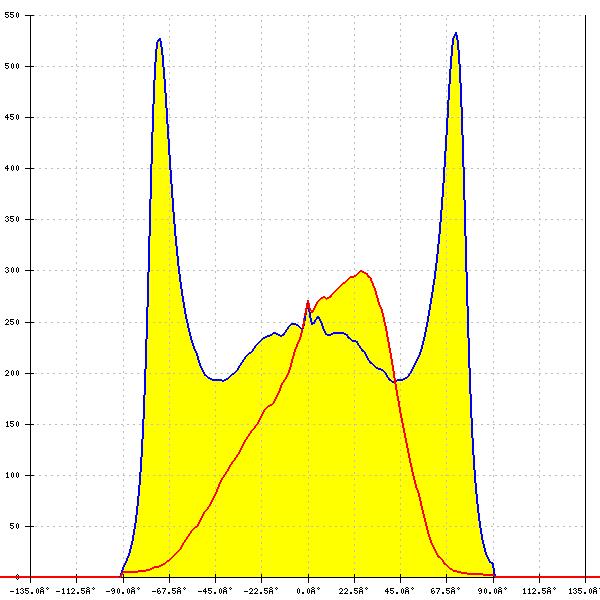

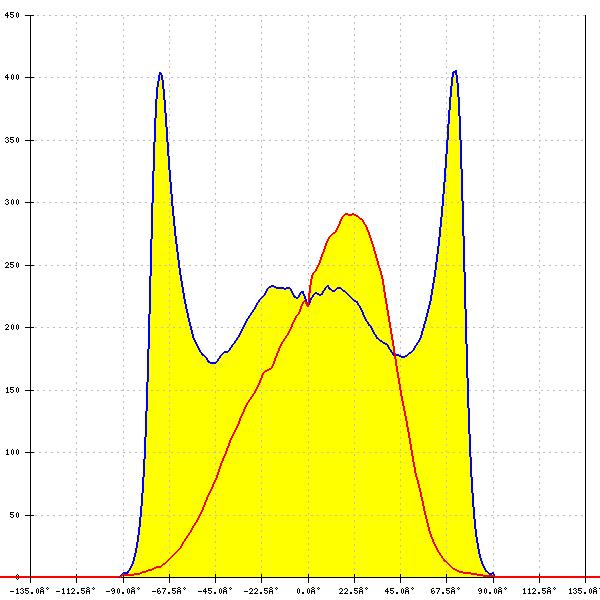

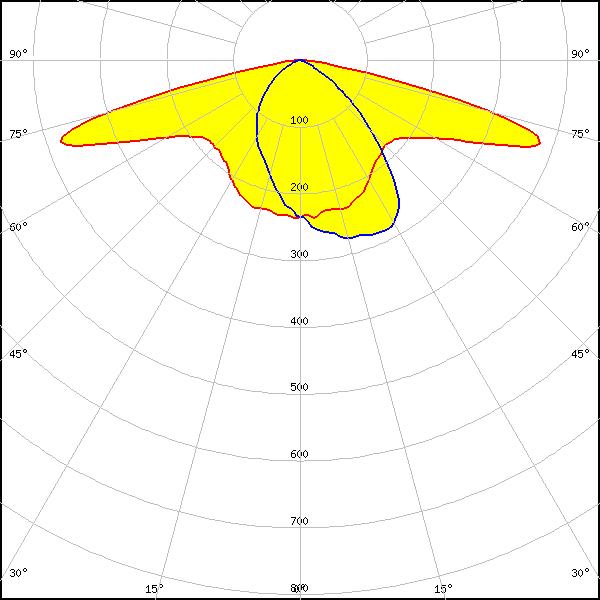

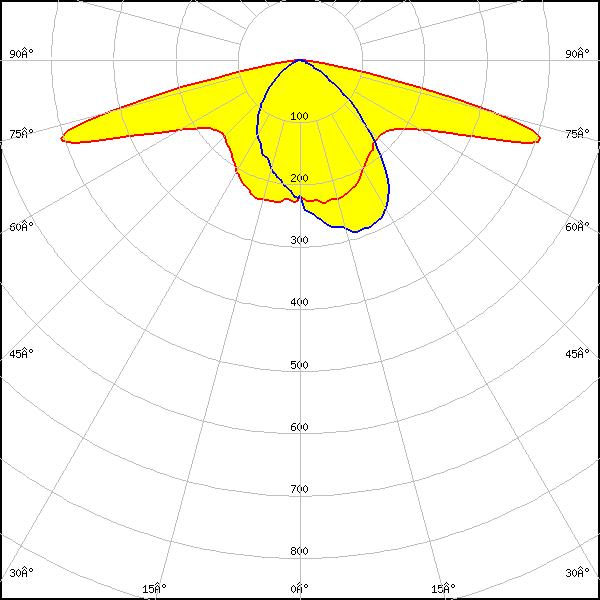

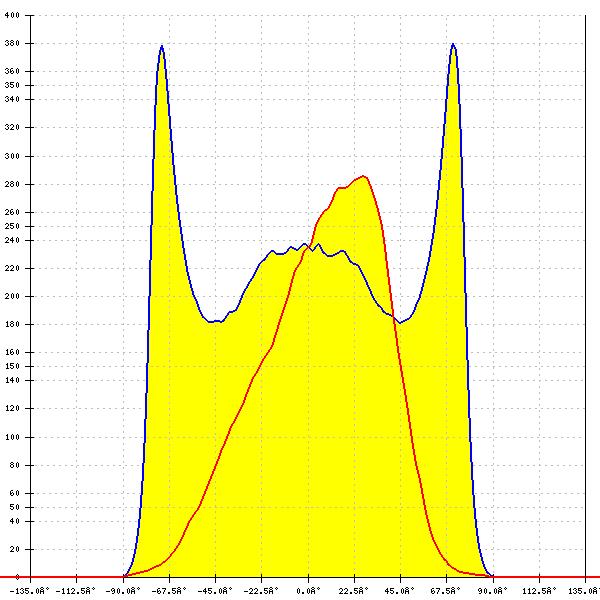

LED: LUXEON 5050 HE
FWHM: asymmetric
Peak intensity: 0.516 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.520 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

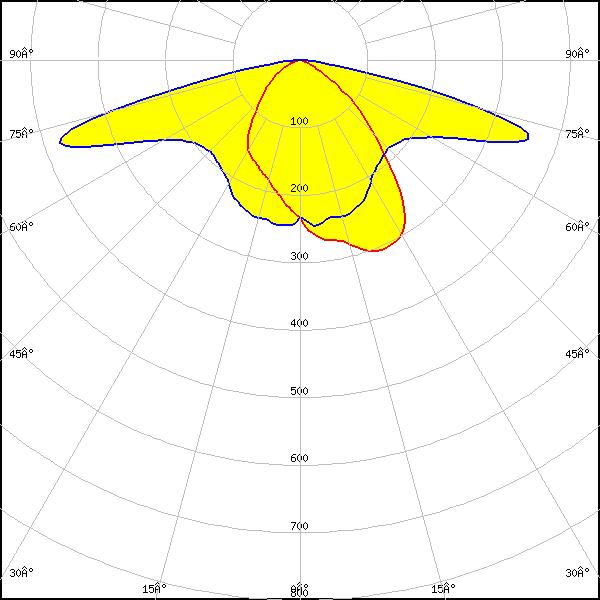

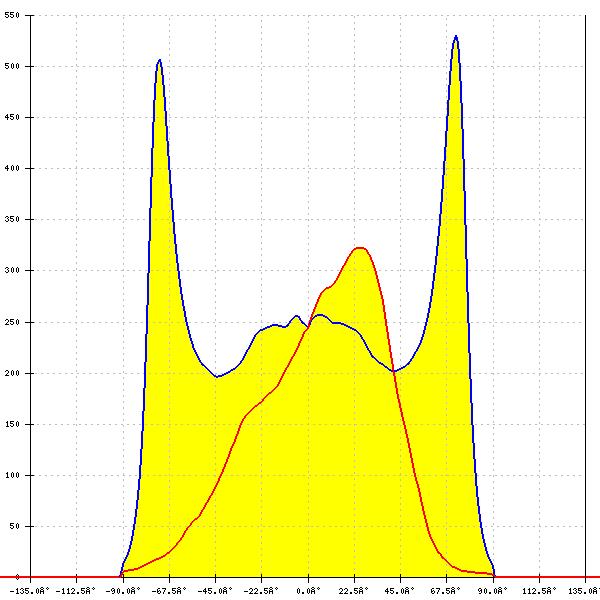

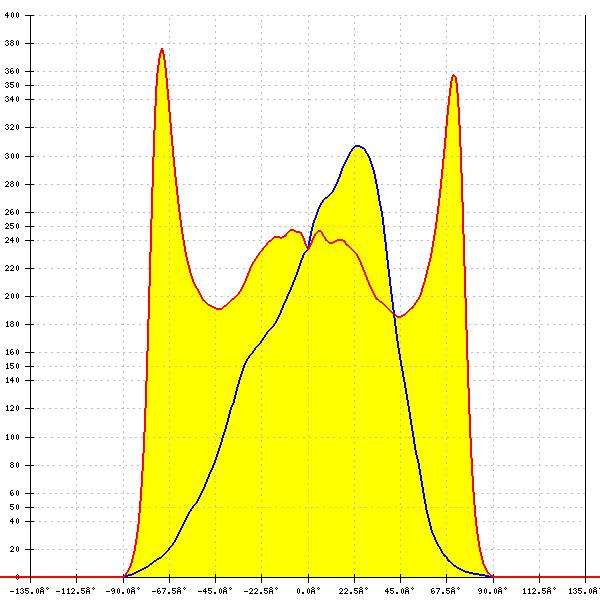

LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.451 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.640 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White

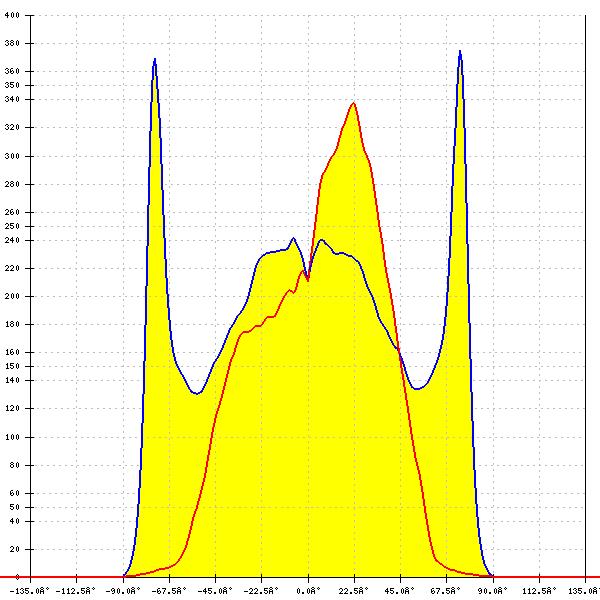

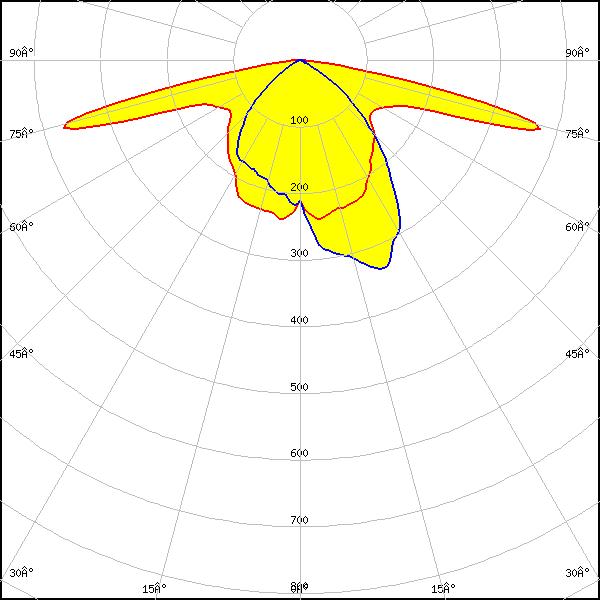

LED: LUXEON HL2X
FWHM: asymmetric
Peak intensity: 0.527 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

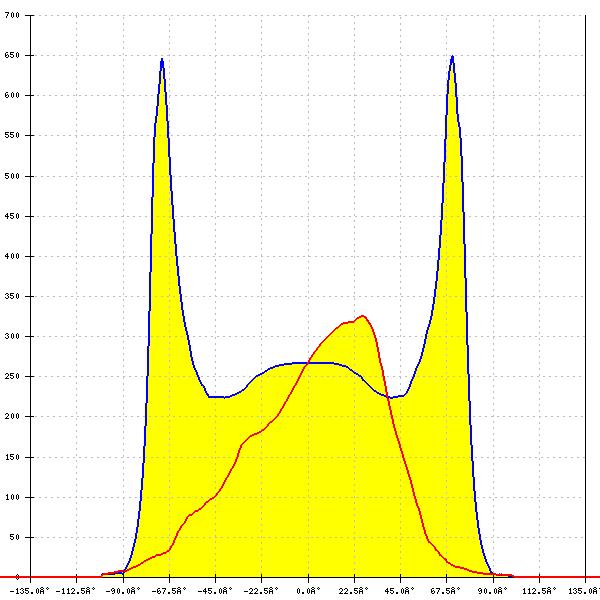

LED: LUXEON XR-5050 SQR (L213-xxxx016MRH001)
FWHM: asymmetric
Peak intensity: 0.869 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

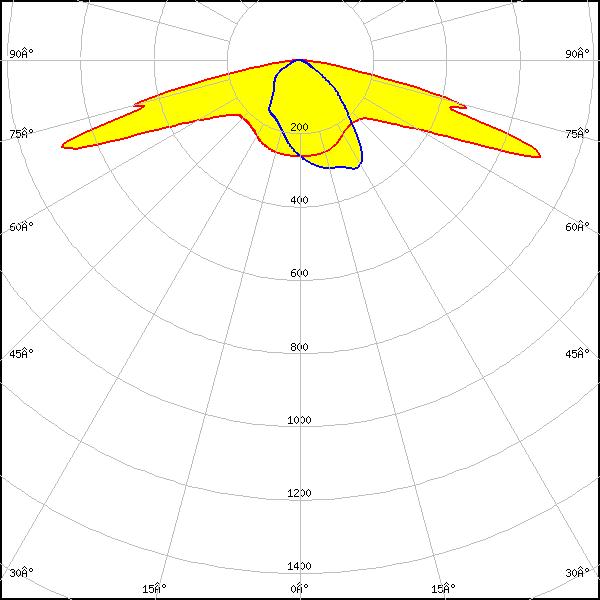

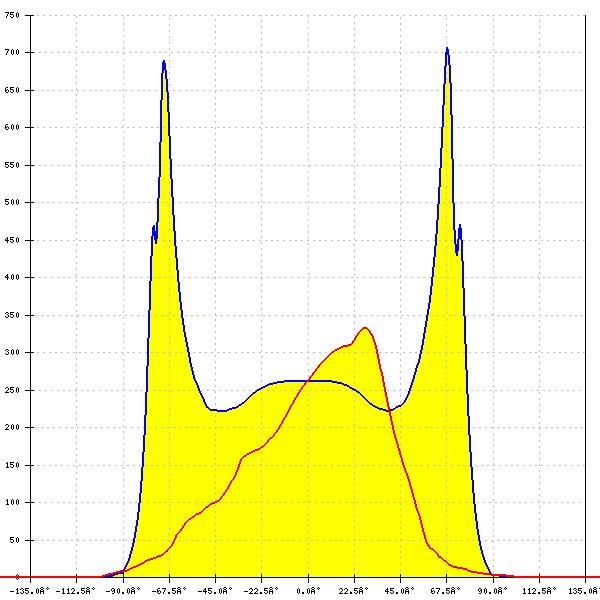

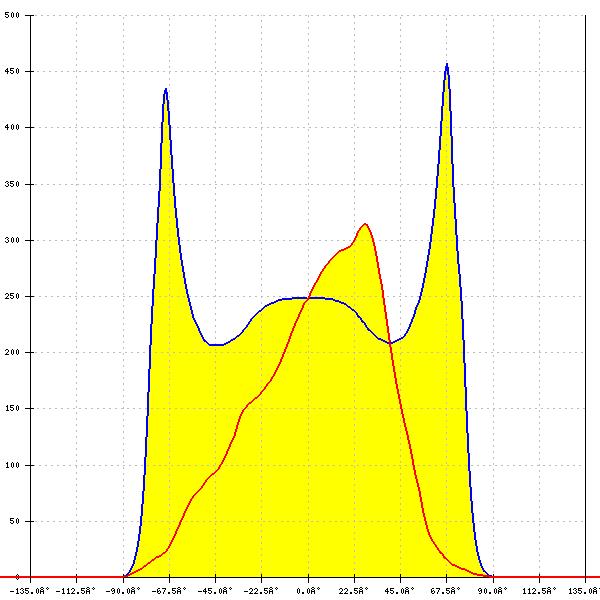

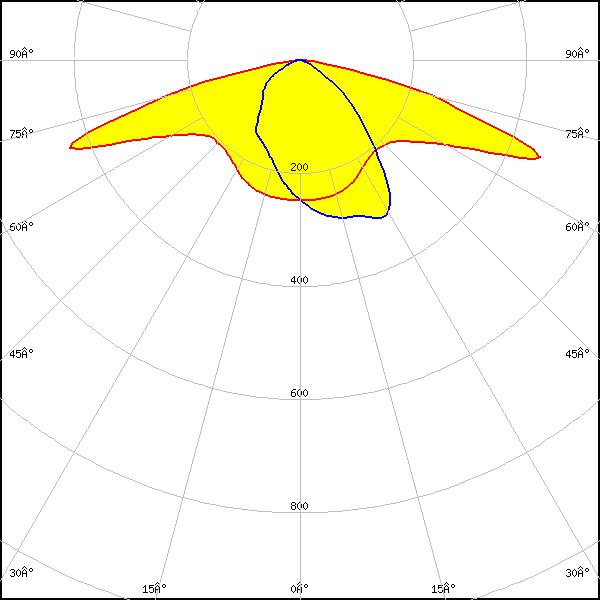

LED: RecLED 173x50mm 2900lm 740 2x6 5050 Opt G1
FWHM: asymmetric
Peak intensity: 0.872 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

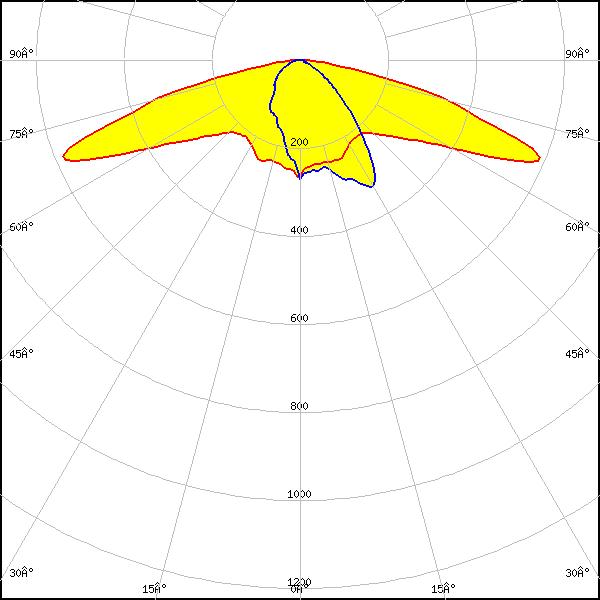

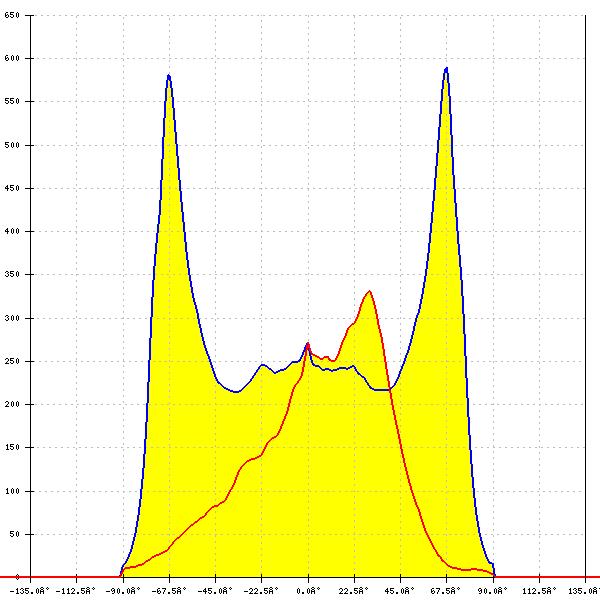

LED: NVSxE21A
FWHM: asymmetric
Peak intensity: 0.612 cd/lm
Efficiency: 91 %
LEDs/each optic: 4
Light colour/type: White

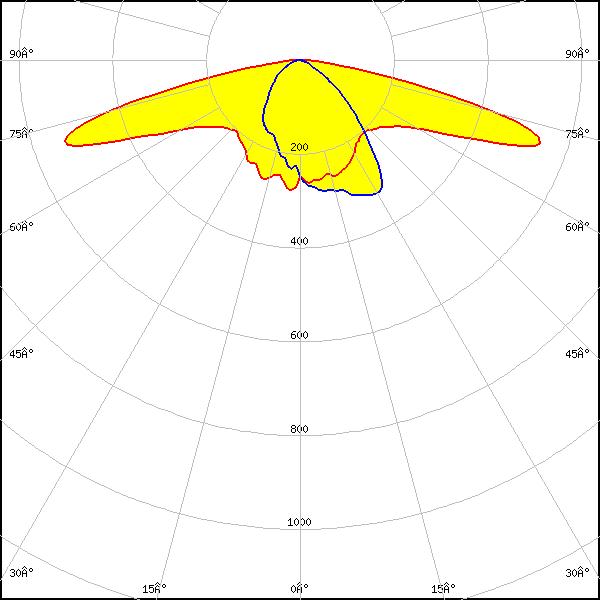

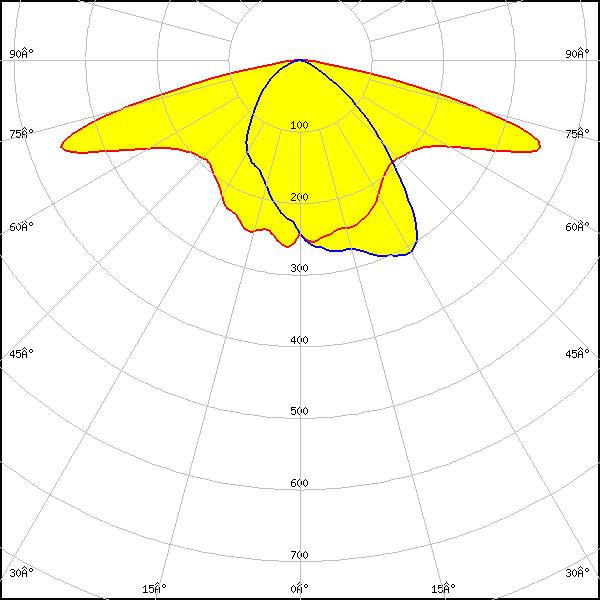

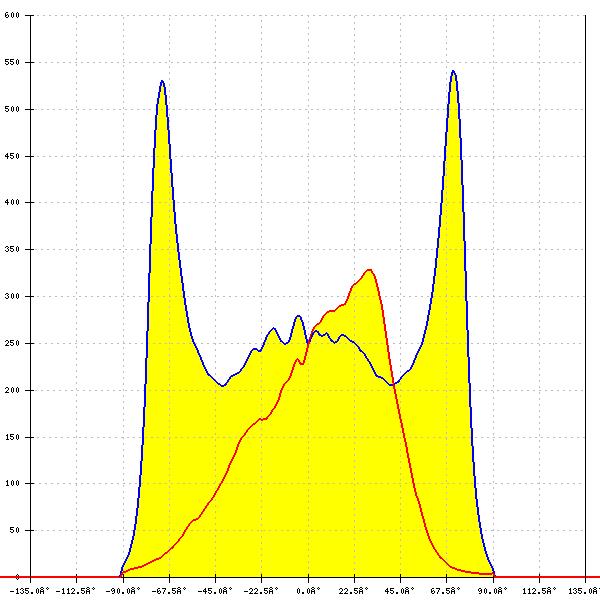

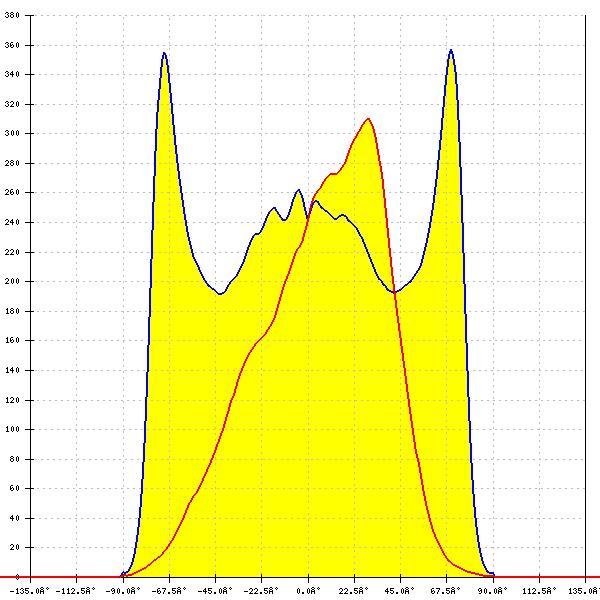

LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.407 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.637 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

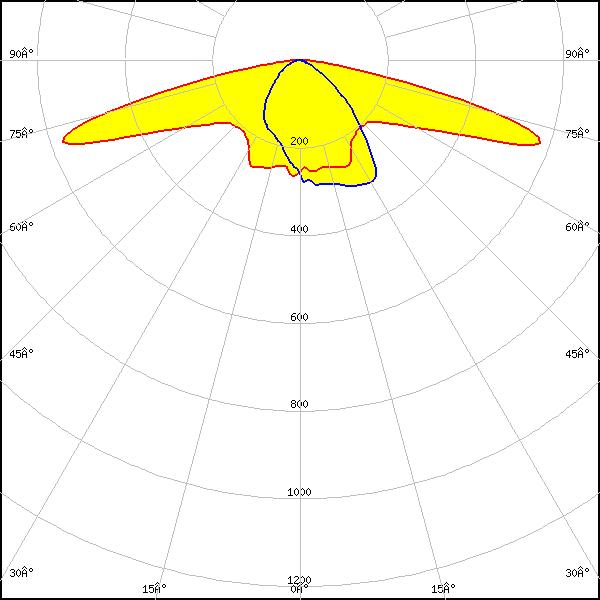

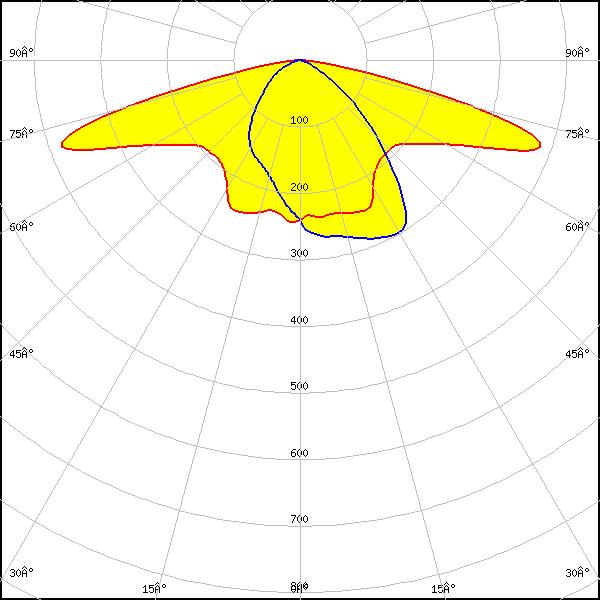

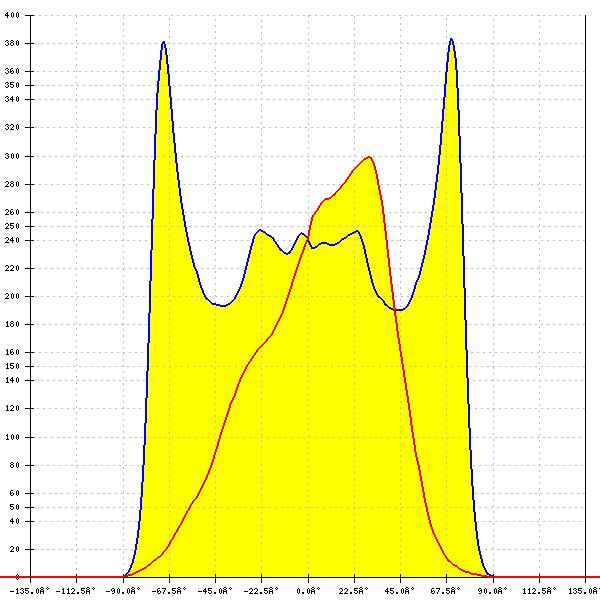

LED: OSCONIQ S 5050
FWHM: asymmetric
Peak intensity: 0.693 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ S 5050
FWHM: asymmetric
Peak intensity: 0.434 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

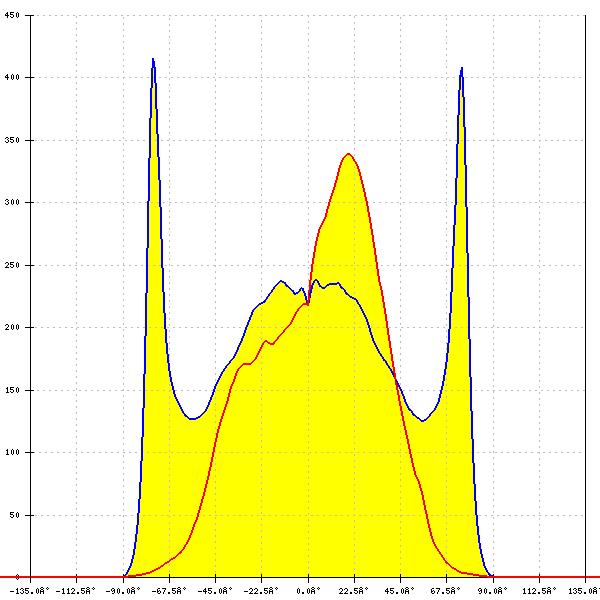

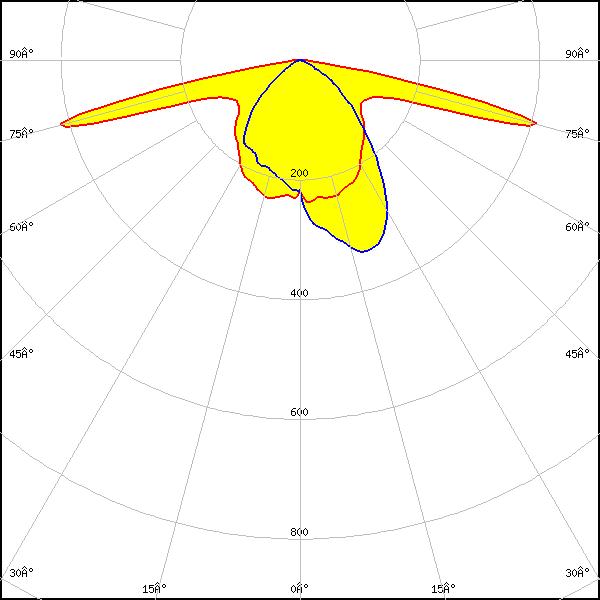

LED: OSLON Square CSSRM2/CSSRM3
FWHM: asymmetric
Peak intensity: 0.592 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White

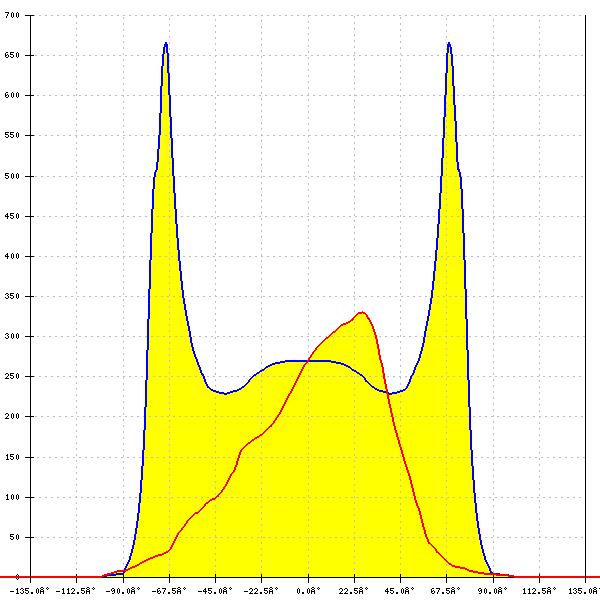

LED: Fortimo FastFlex LED 2x8 DA HE
FWHM: asymmetric
Peak intensity: 0.521 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
LED: Fortimo FastFlex LED 2x8 DA HE
FWHM: asymmetric
Peak intensity: 0.873 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White

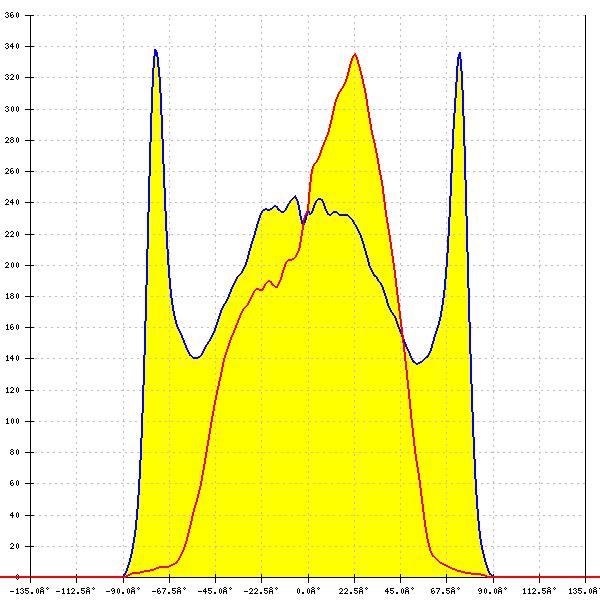

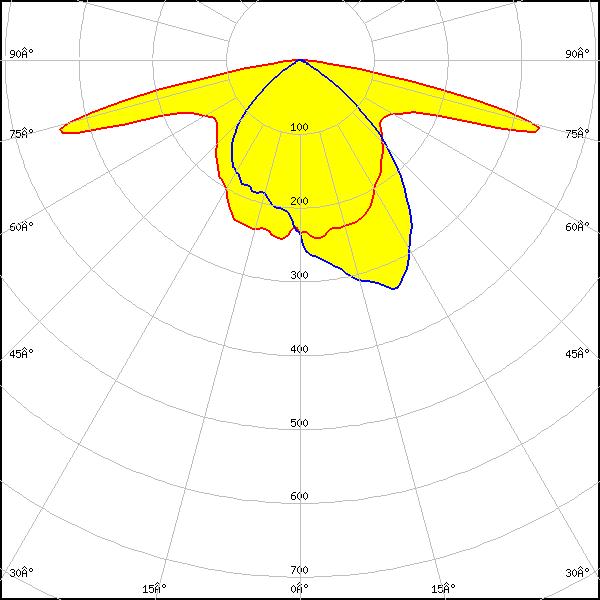

LED: LH351C
FWHM: asymmetric
Peak intensity: 0.469 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

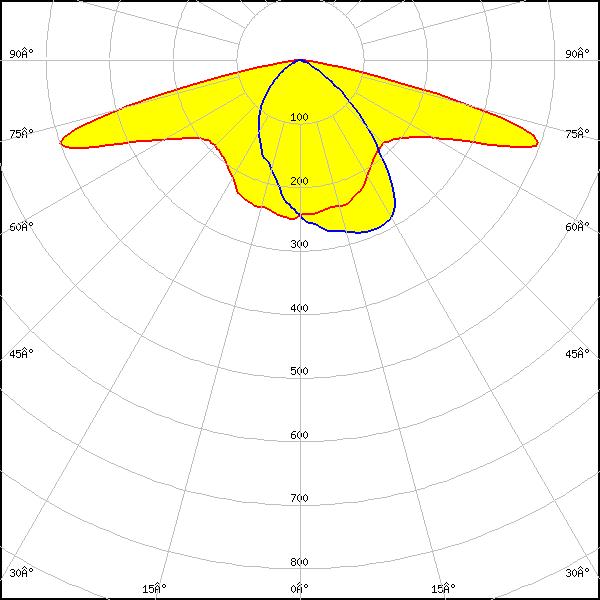

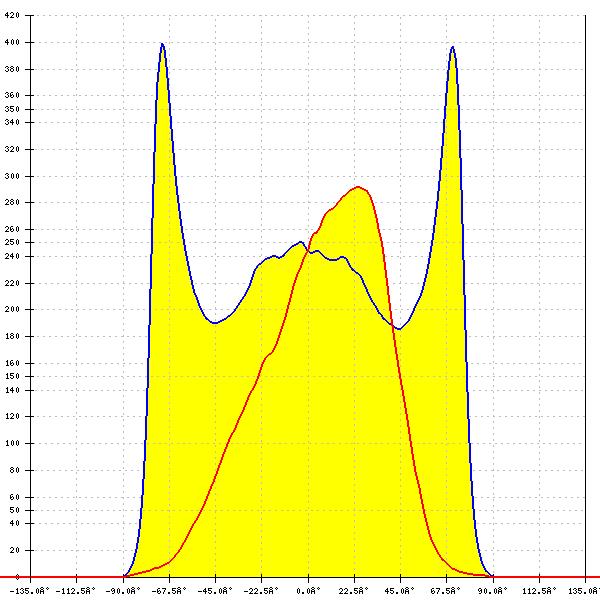

LED: LH502C
FWHM: asymmetric
Peak intensity: 0.485 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White

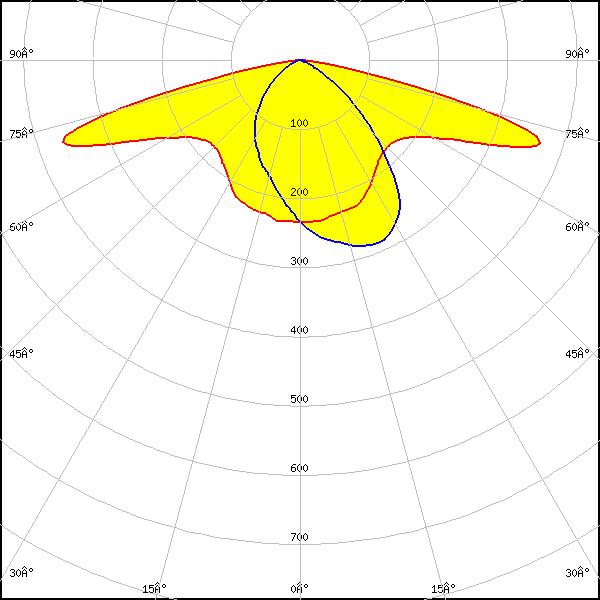

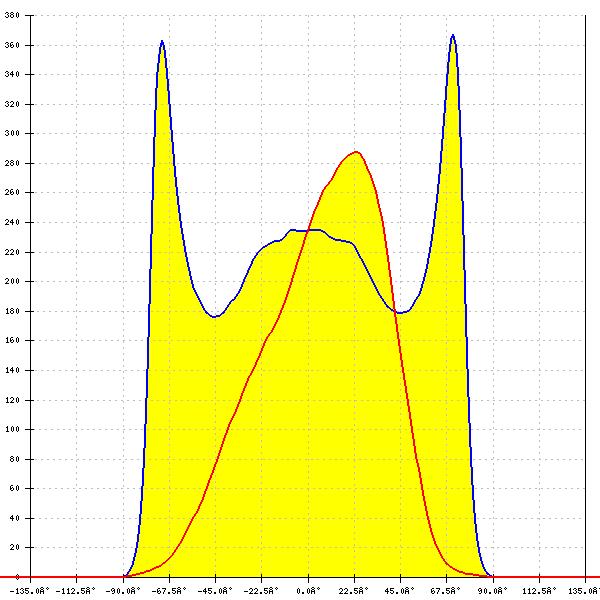

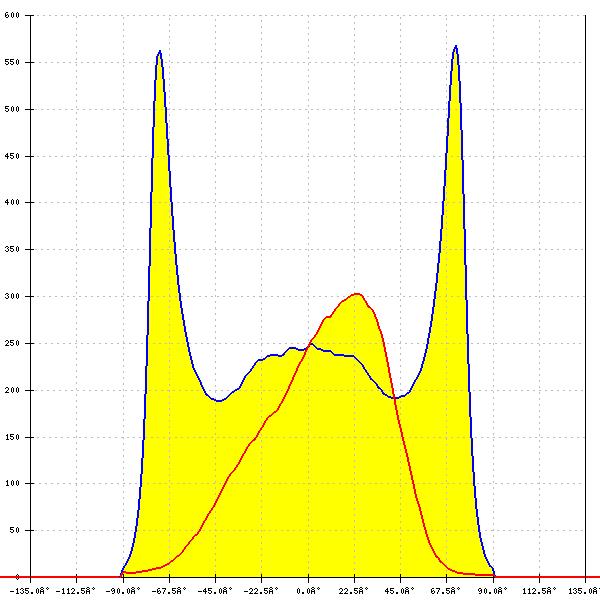

LED: LH502D
FWHM: asymmetric
Peak intensity: 0.429 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White
LED: LH502D
FWHM: asymmetric
Peak intensity: 0.717 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

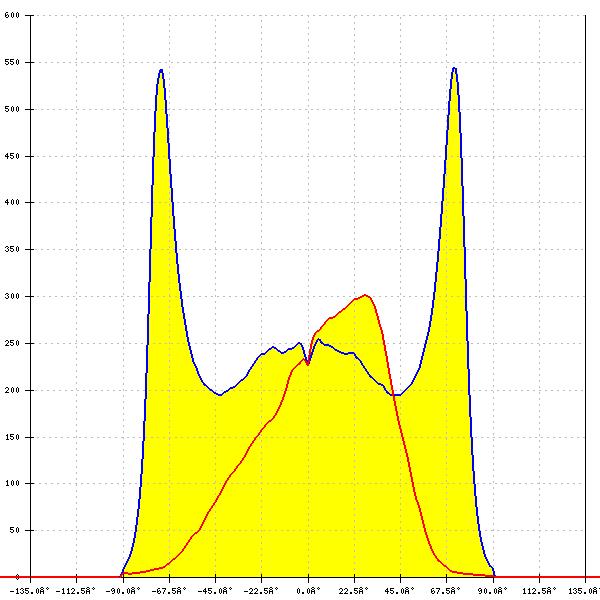

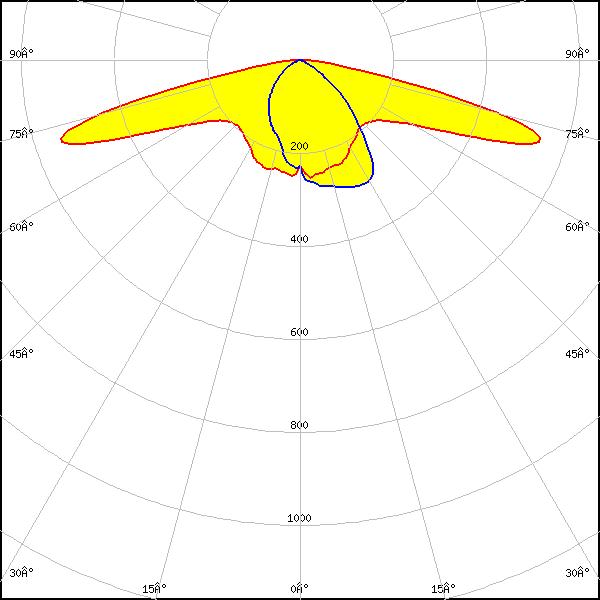

LED: MJT 5050
FWHM: asymmetric
Peak intensity: 0.666 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

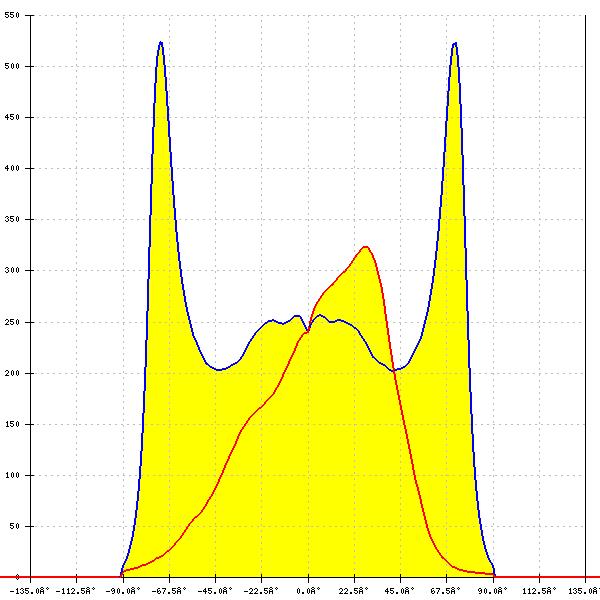

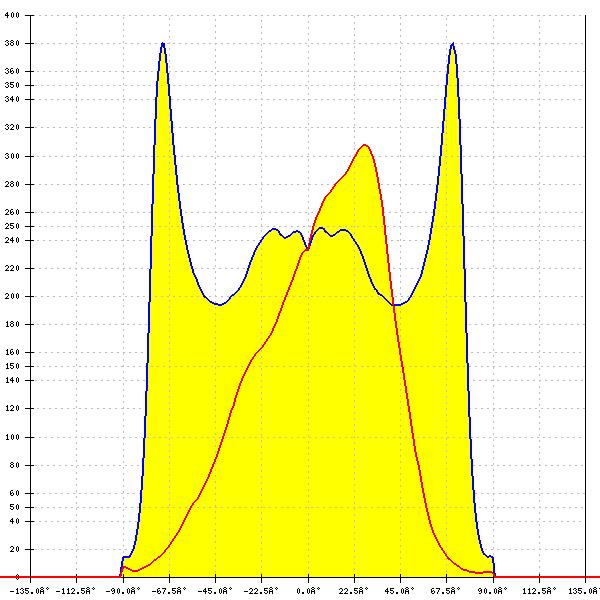

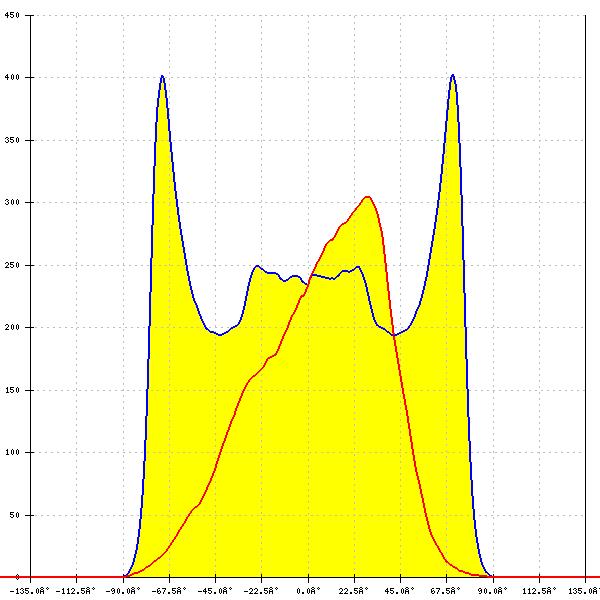

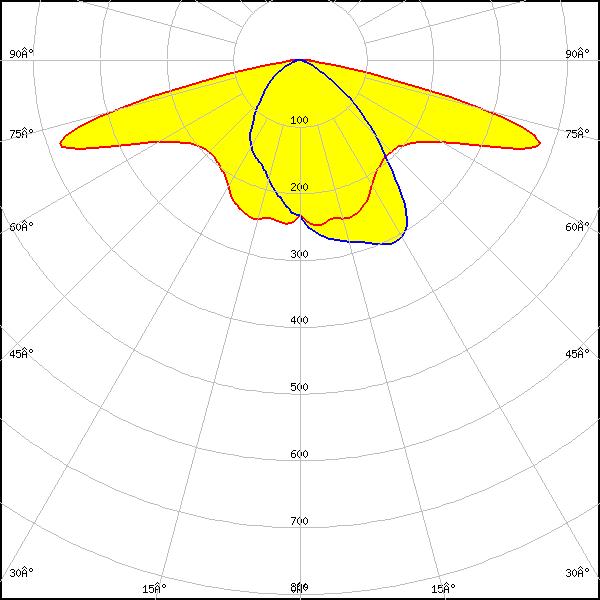

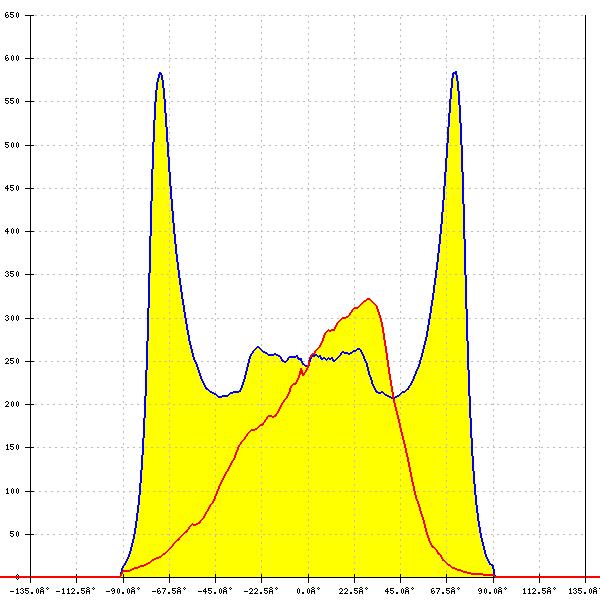

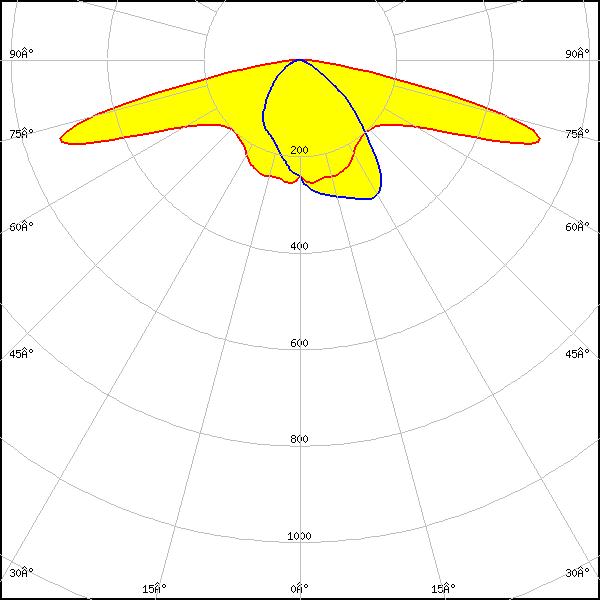

LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 0.619 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 0.448 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

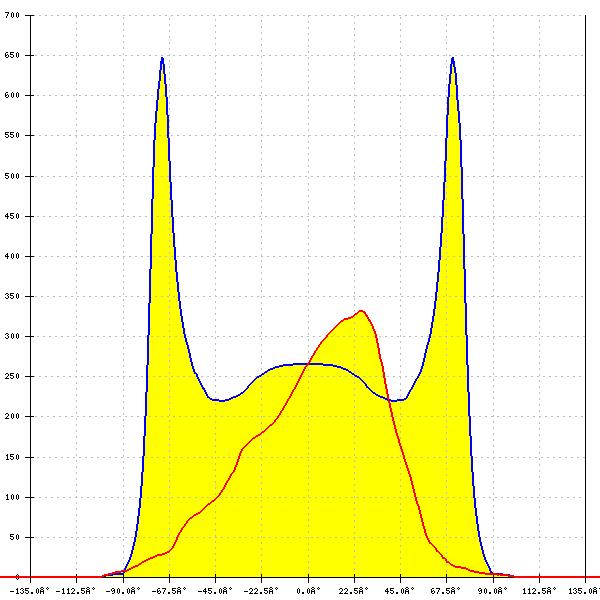

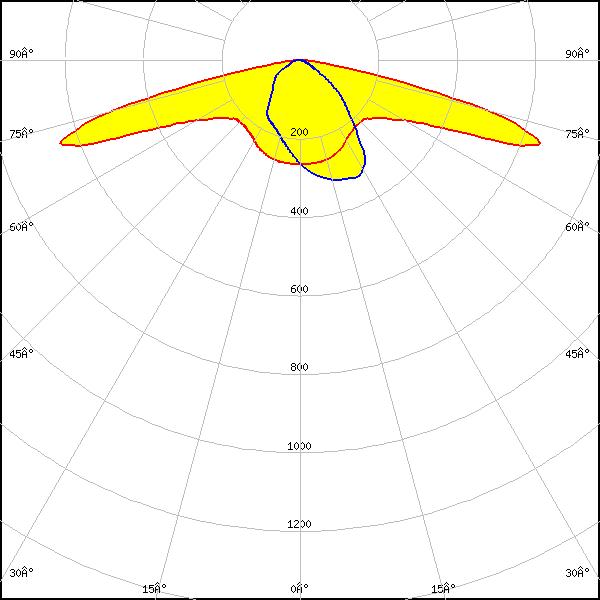

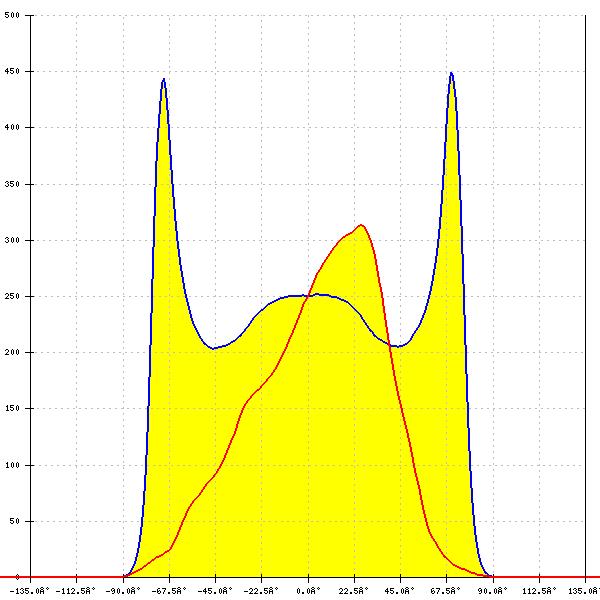

LED: RLE 2x8 6000lm HP HE EXC3 OTD
FWHM: asymmetric
Peak intensity: 0.934 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour/type: White
