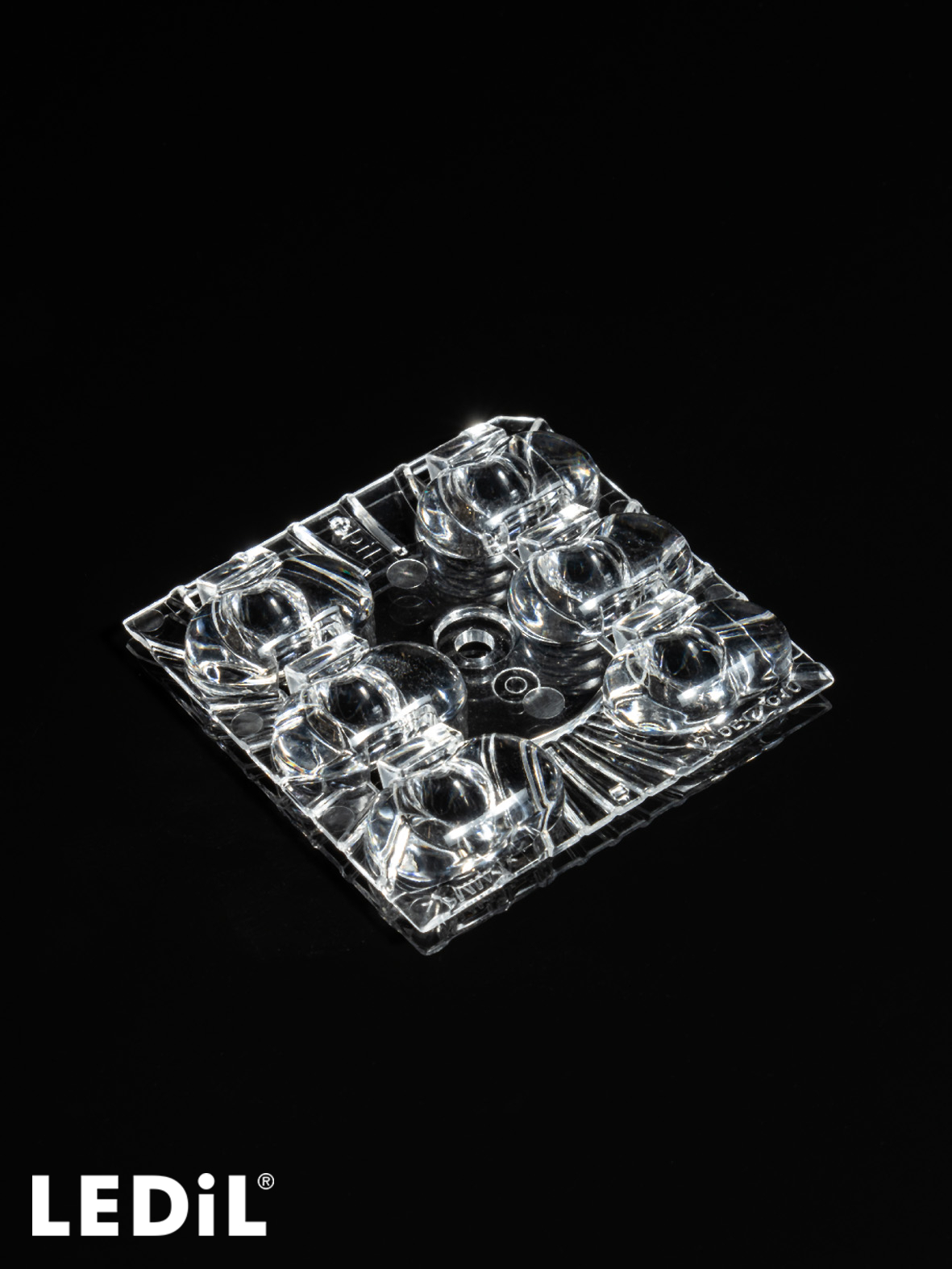

    C19542_STRADA-2X3-5050-T3

    Print

    IESNA Type III (medium) beam for roads that are equal to or wider than mounting height.

    Specification
    • Dimensions:
      50 x  50 mm
    • Height:
      8.33 mm
    • Fastening:
      screw
    • Colour:
      clear
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials
    Ordering information
    • Quantity in box:
      800 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.3 kg
    • MPQ:
      160 pcs
    • MOQ:
      800 pcs
    • MOQ size:
      480 x 280 x 300 mm
    • MOQ weight:
      8.3 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C19542_STRADA-2X3-5050-T3
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    New beams and products – October 2024

    Application guide

    Guide for Street lighting optics

    Catalogue

    LEDiL Latest products catalogue 2026

    News

    New beams and products - September 2024

    News

    STRADA-2X3 – Cut costs, not quality

    Application guide

    Guide for Urban lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application guide

    Street lighting optics - 2020_v.1.1_WEB

    Application area

    Architectural Outdoor Lighting

    Application area

    Area and Car Park Lighting

    Application area

    Street Lighting

    Application area

    Indoor Architectural Lighting

    AVAILABLE LEDiL ACCESSORIES

    STRADA-2X3-SHD-BLK

    Black shade for additional backlight control.

    STRADA-2X3-SHD-WHT

    White shade for additional backlight control.

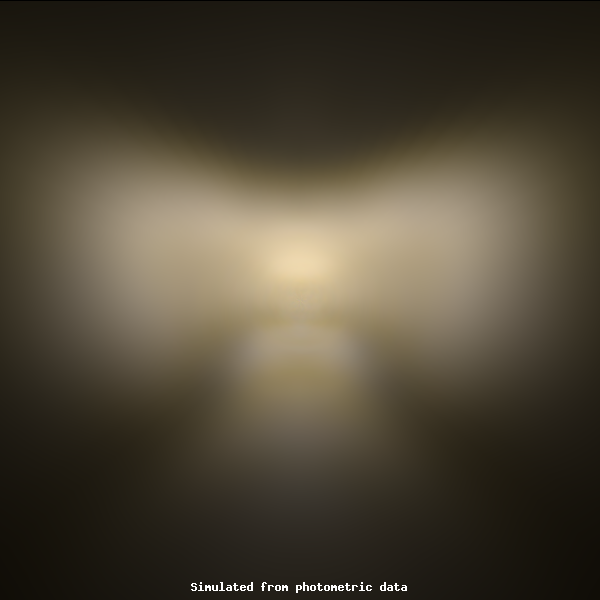

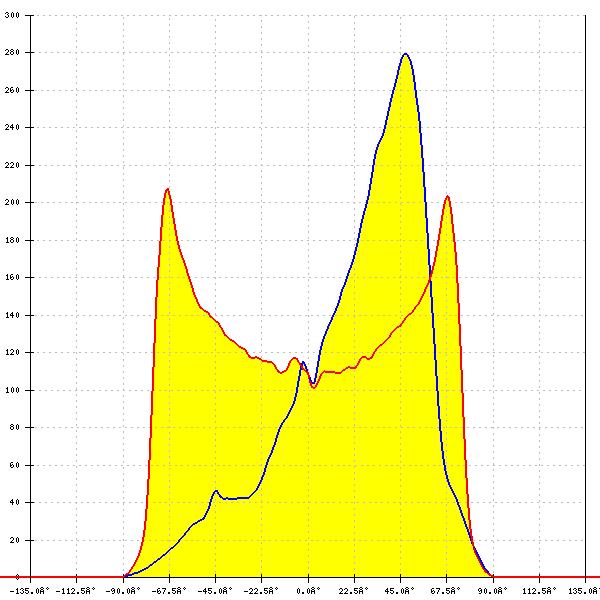

    Optical results

    LED: Bridgelux SMD 3535 (3B1)
    FWHM: asymmetric
    Peak intensity: 0.493 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

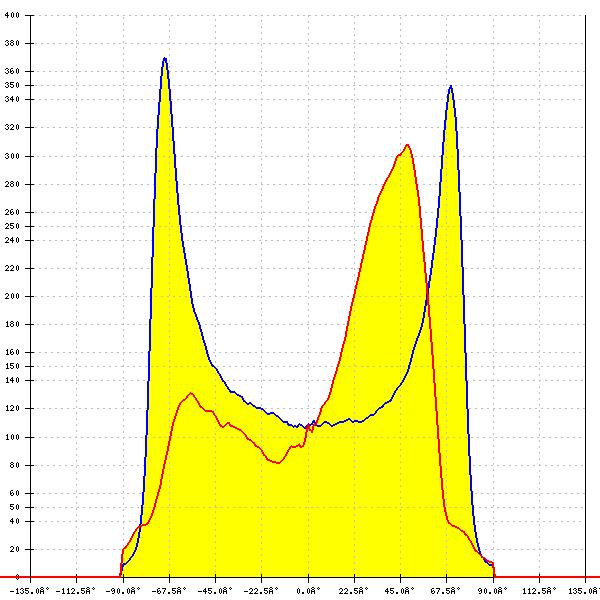

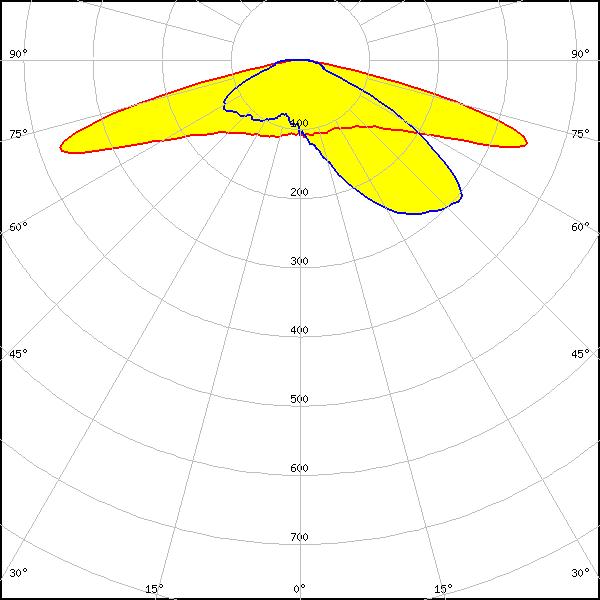

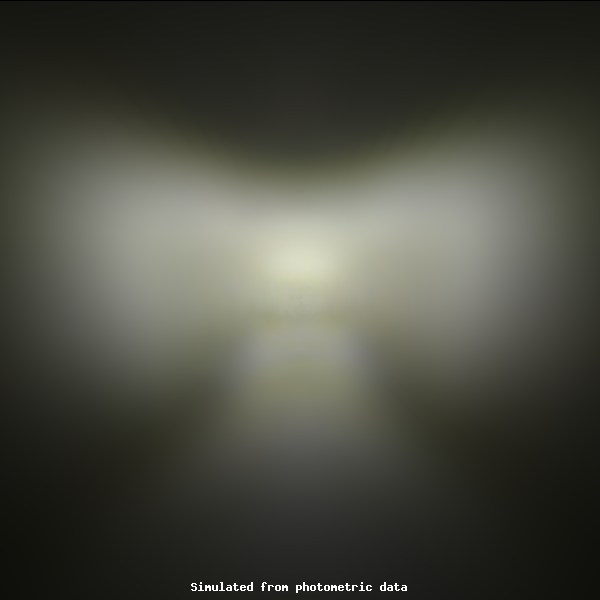

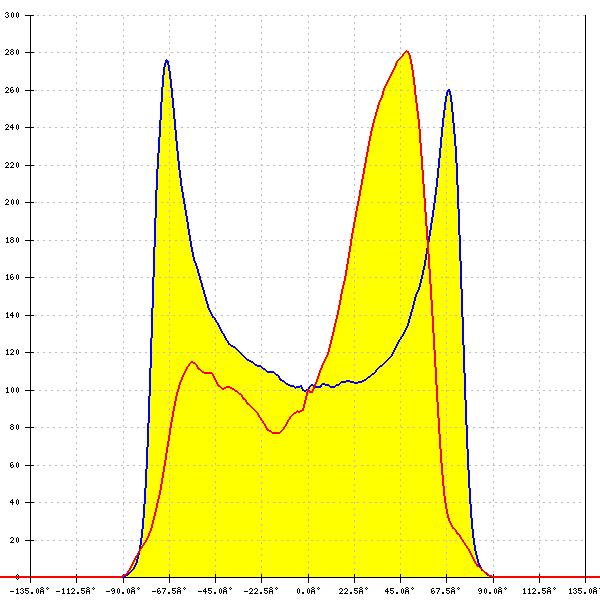

    LED: J Series 5050B 6V K Class
    FWHM: asymmetric
    Peak intensity: 0.669 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

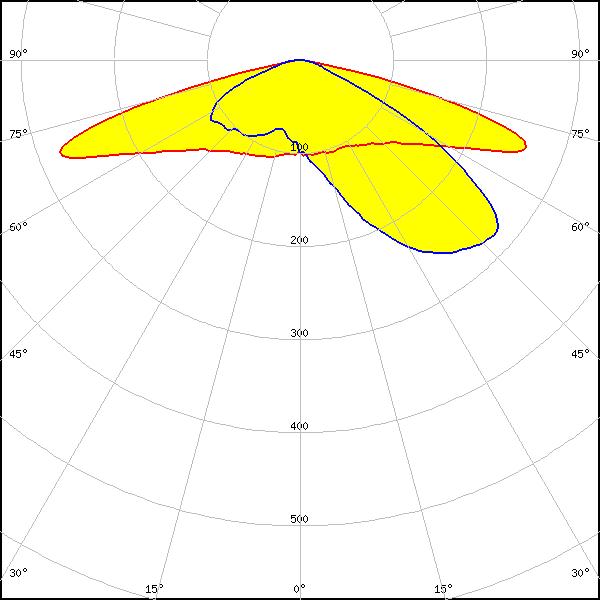

    LED: J Series 5050B 6V K Class
    FWHM: asymmetric
    Peak intensity: 0.459 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

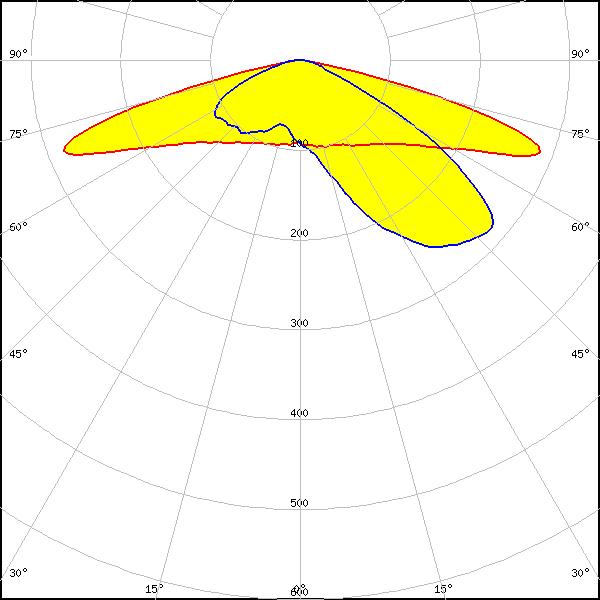

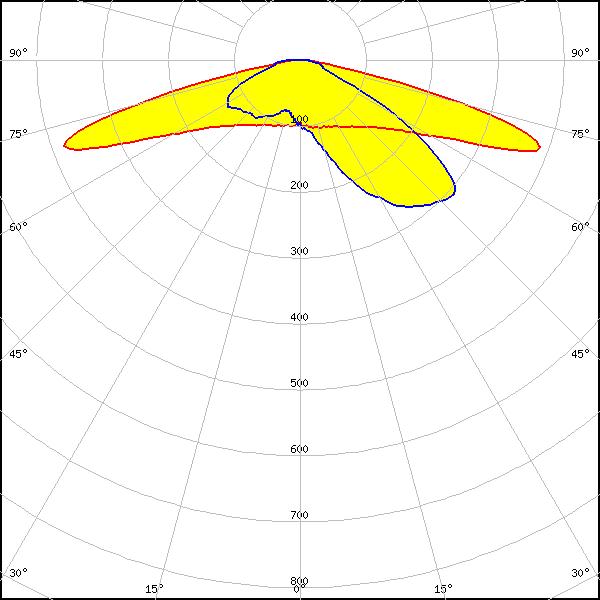

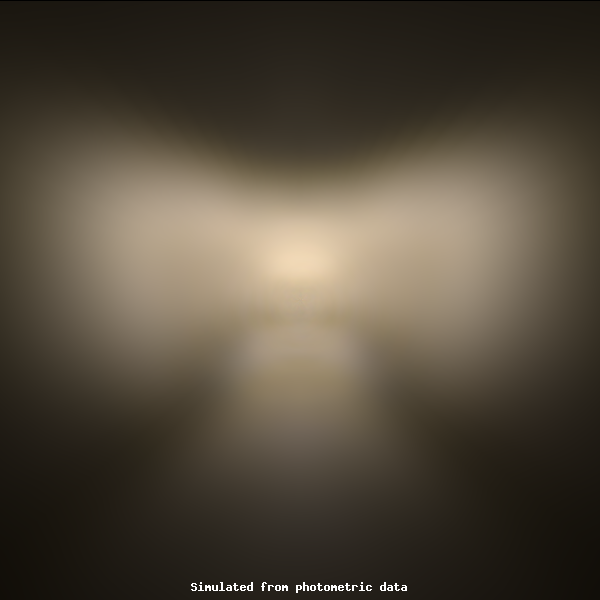

    LED: J Series 5050C 6V E Class
    FWHM: asymmetric
    Peak intensity: 0.699 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050C 6V E Class
    FWHM: asymmetric
    Peak intensity: 0.479 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

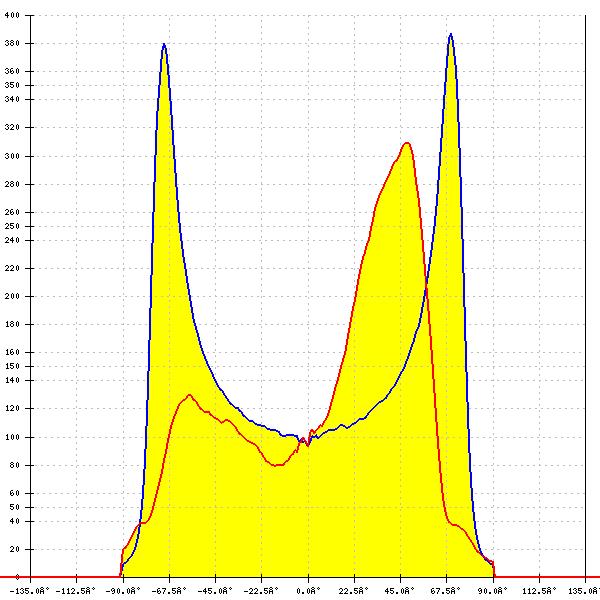

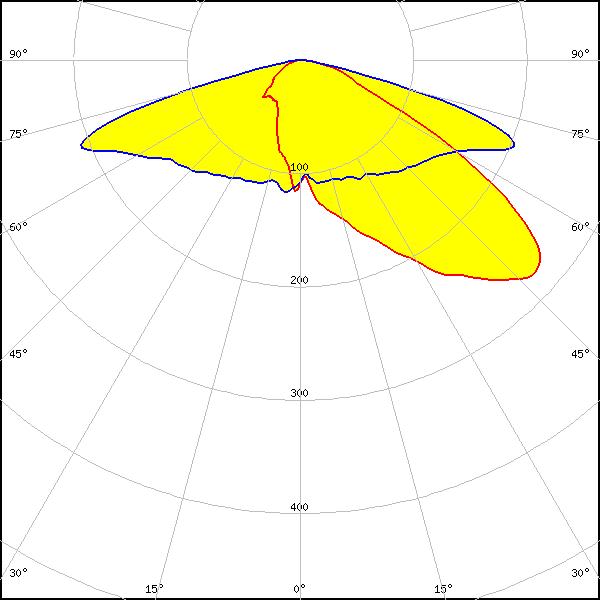

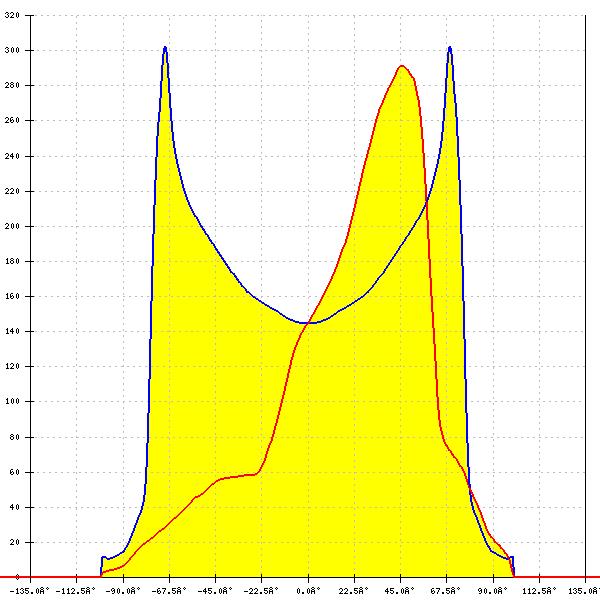

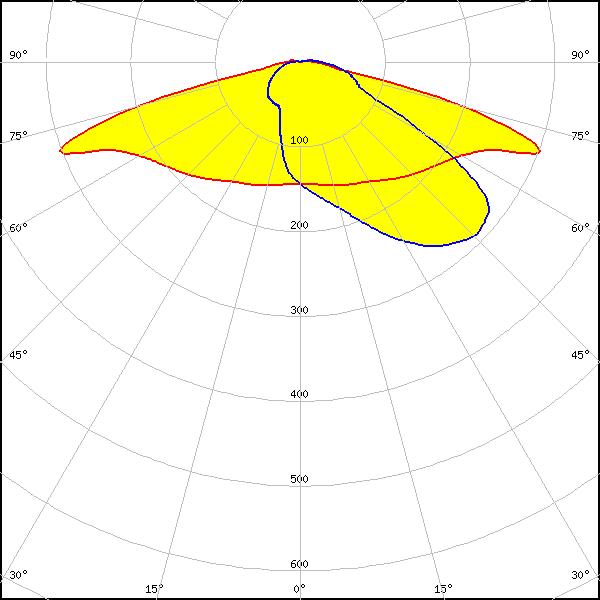

    LED: J Series 5050C 6V E Class
    Required components:
    L20660_STRADA-2X3-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.462 cd/lm
    Efficiency: 64 %
    LEDs/each optic: 1
    Light colour/type: White

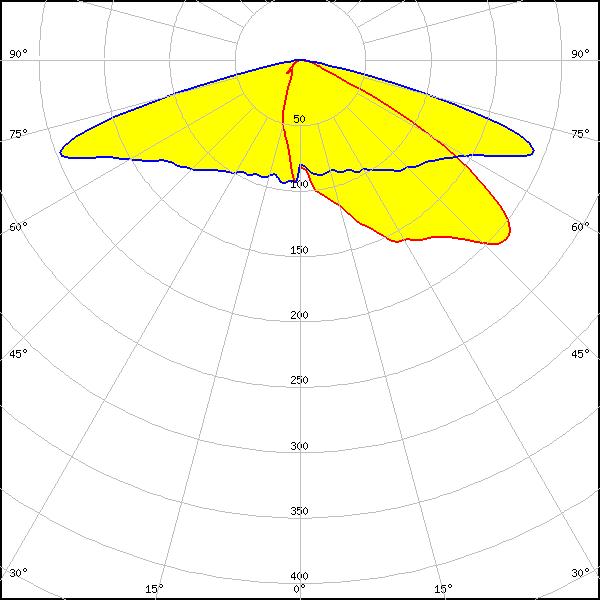

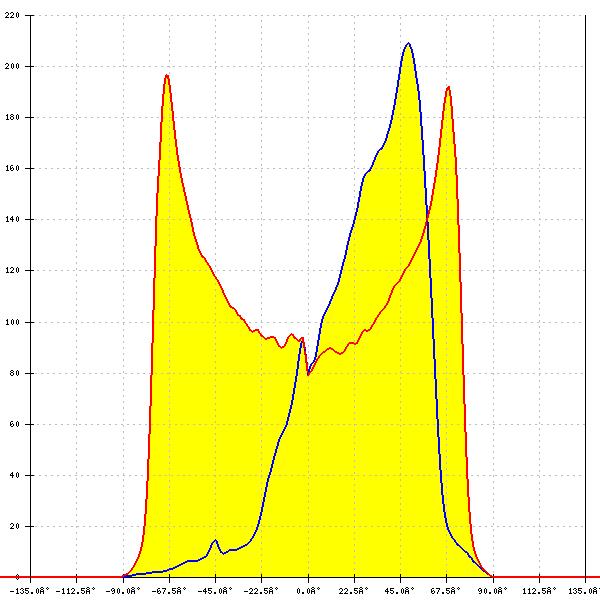

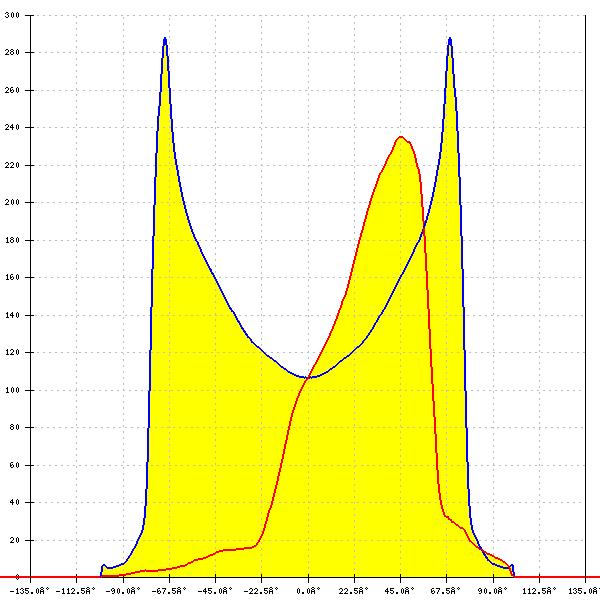

    LED: J Series 5050C 6V E Class
    Required components:
    L20659_STRADA-2X3-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.449 cd/lm
    Efficiency: 51 %
    LEDs/each optic: 1
    Light colour/type: White

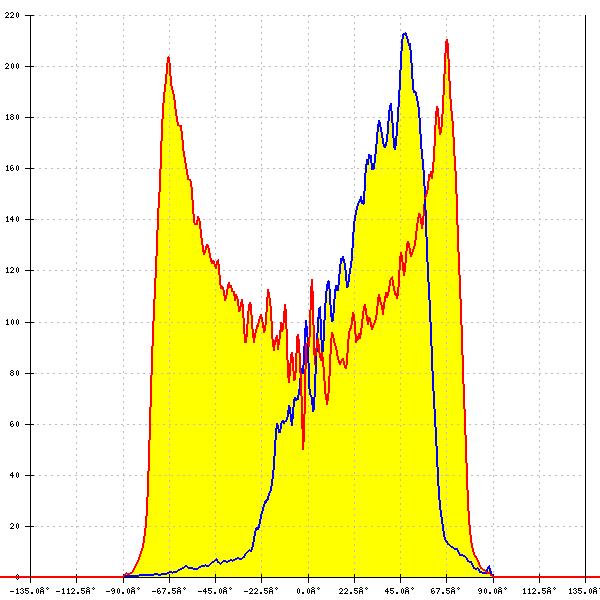

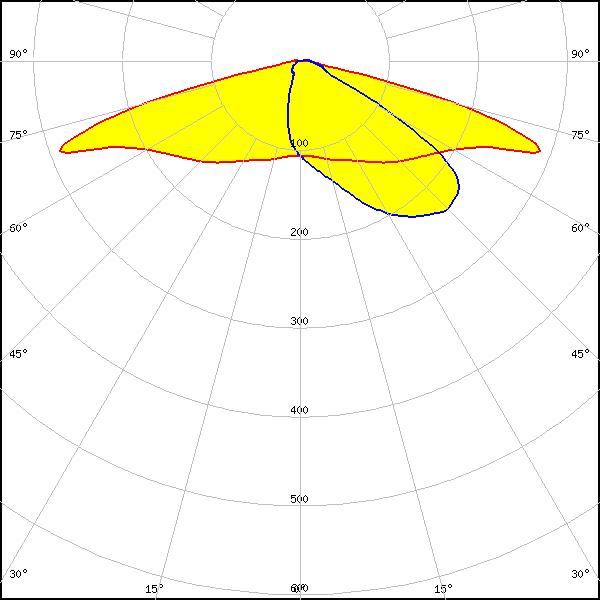

    LED: J Series 5050C 6V E Class
    Required components:
    L20659_STRADA-2X3-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.651 cd/lm
    Efficiency: 65 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: J Series 5050C 6V E Class
    Required components:
    L20660_STRADA-2X3-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.684 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

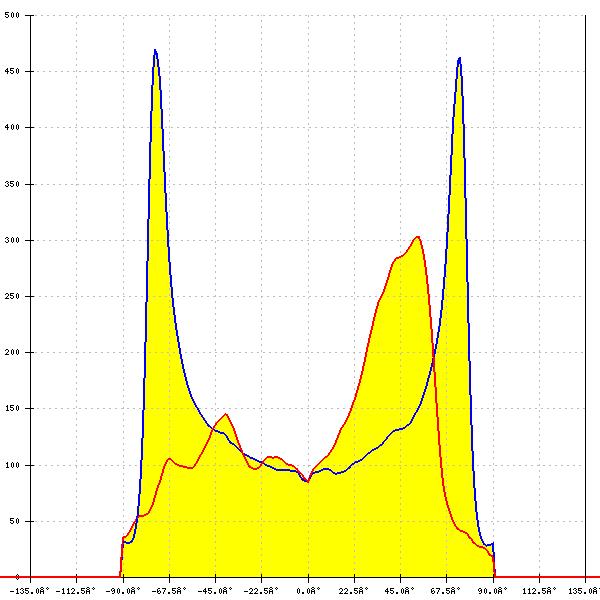

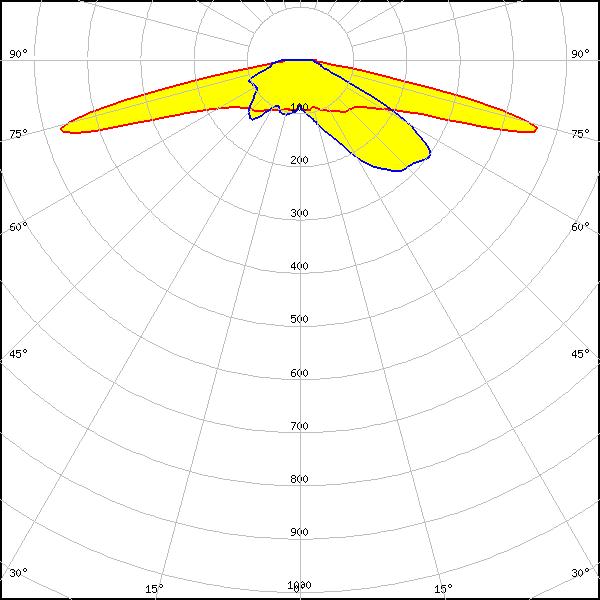

    LED: XP-G3
    FWHM: asymmetric
    Peak intensity: 0.712 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

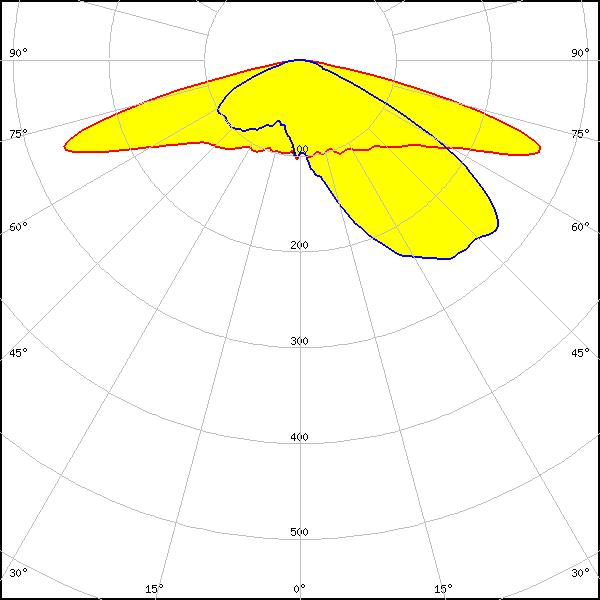

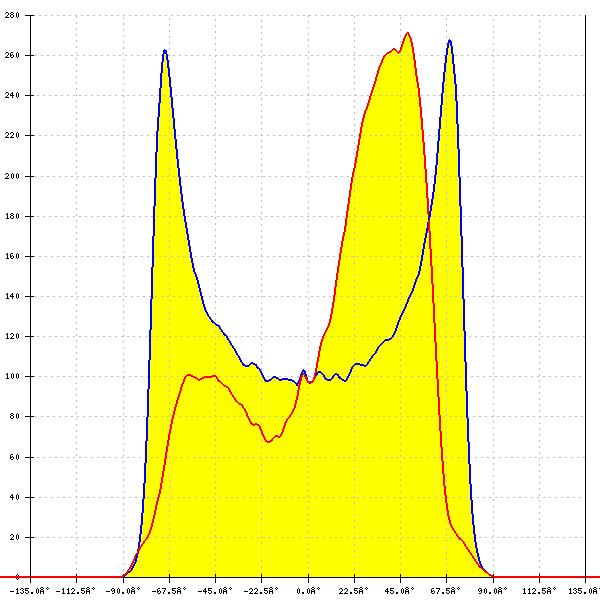

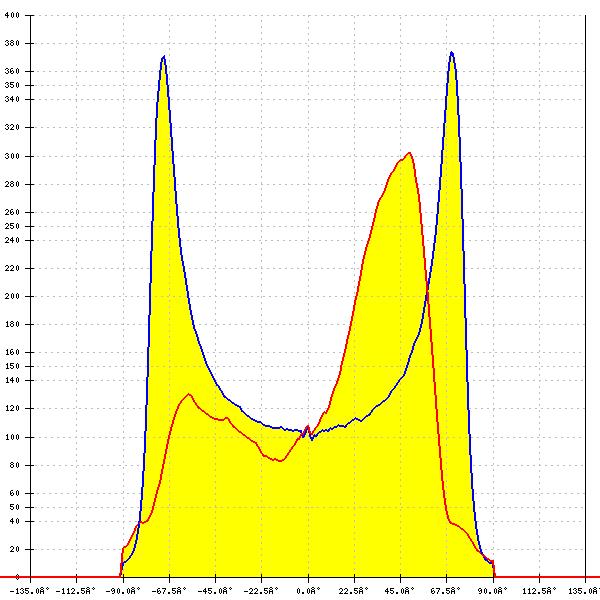

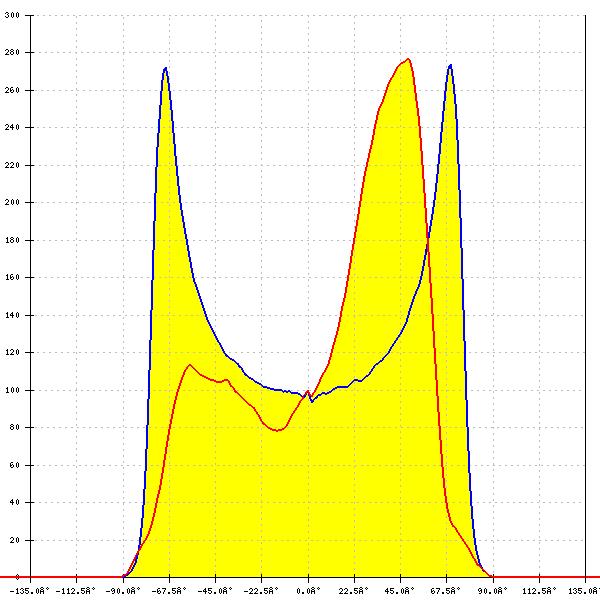

    LED: LUXEON 5050 HE
    FWHM: asymmetric
    Peak intensity: 0.680 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 HE
    FWHM: asymmetric
    Peak intensity: 0.461 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

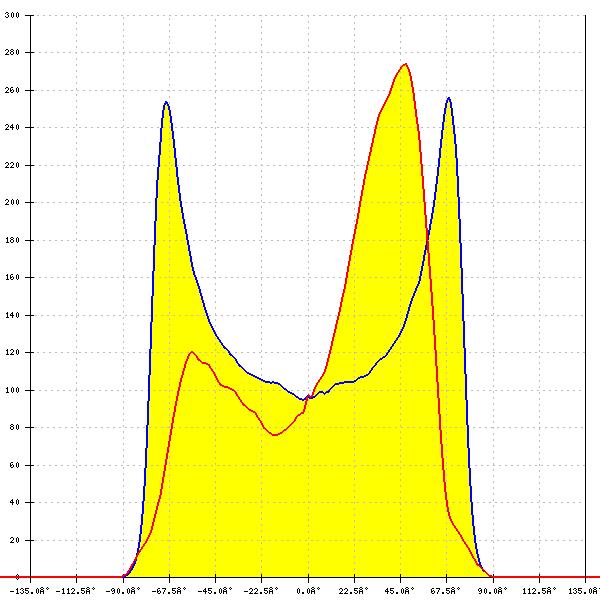

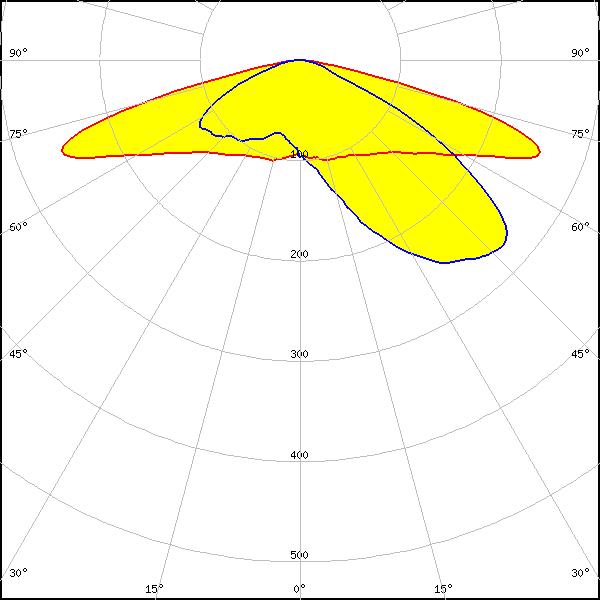

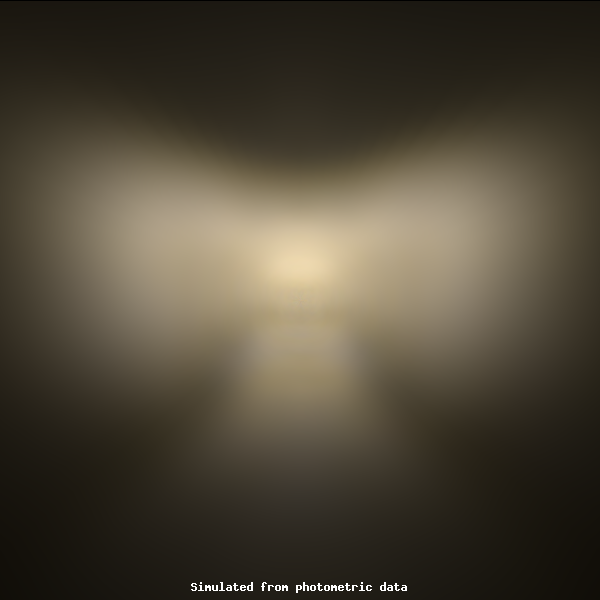

    LED: LUXEON 5050 HE Plus
    FWHM: asymmetric
    Peak intensity: 0.645 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

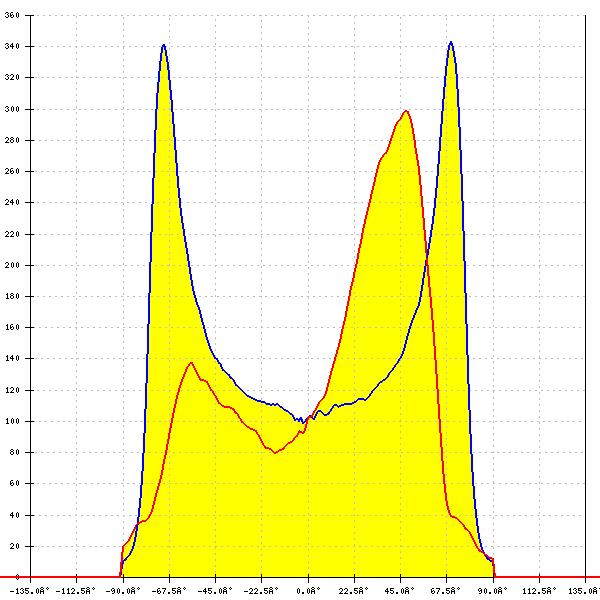

    LED: LUXEON 5050 HE Plus
    FWHM: asymmetric
    Peak intensity: 0.438 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White

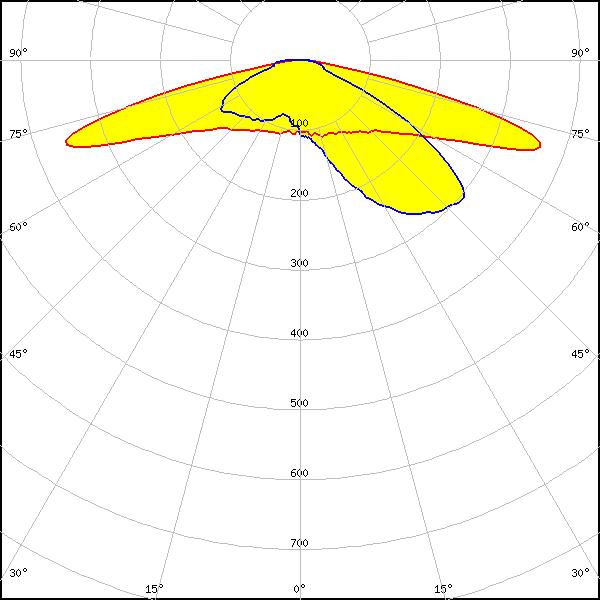

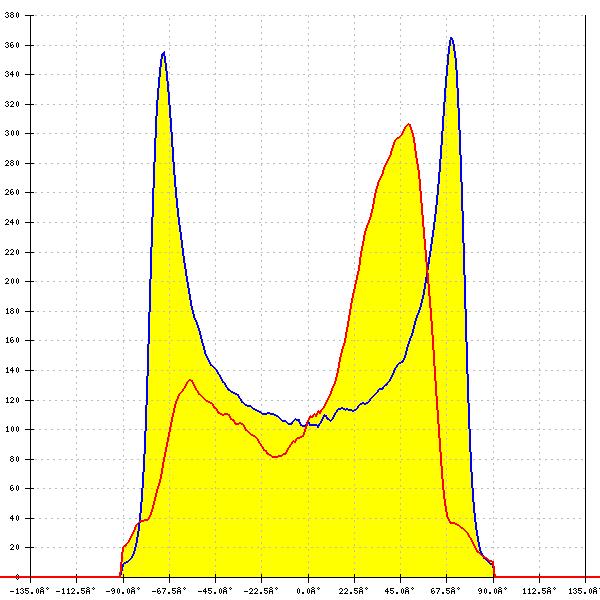

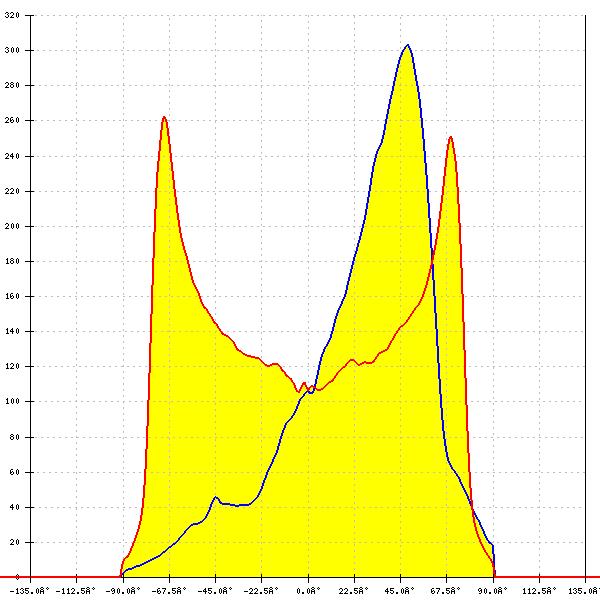

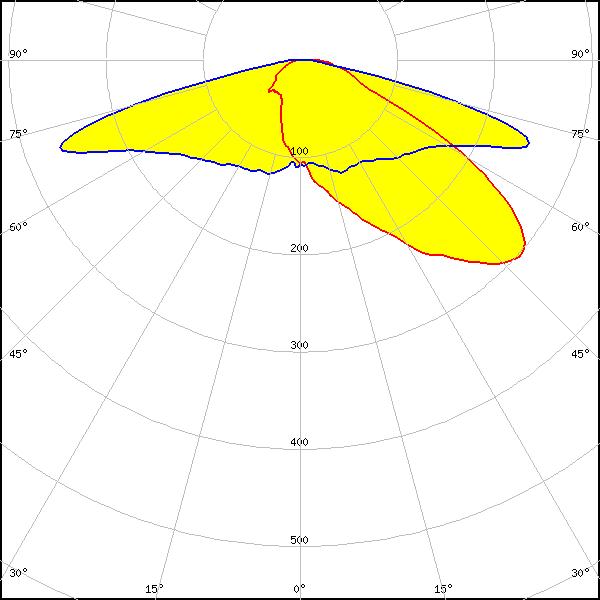

    LED: LUXEON 5050 Square LES
    Required components:
    L20660_STRADA-2X3-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.603 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

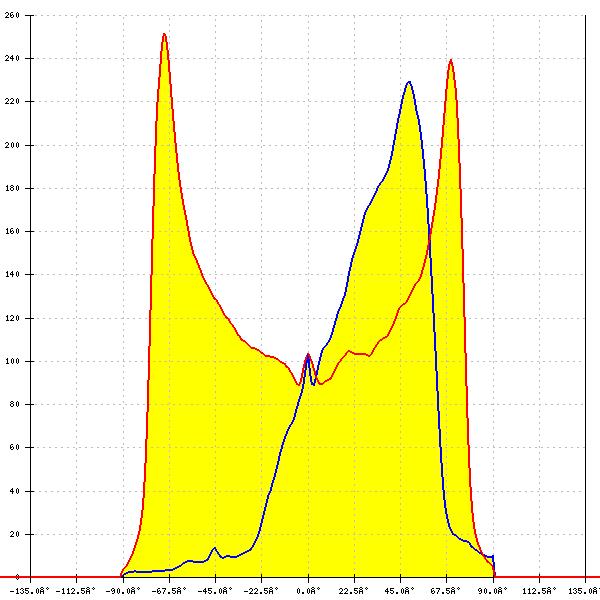

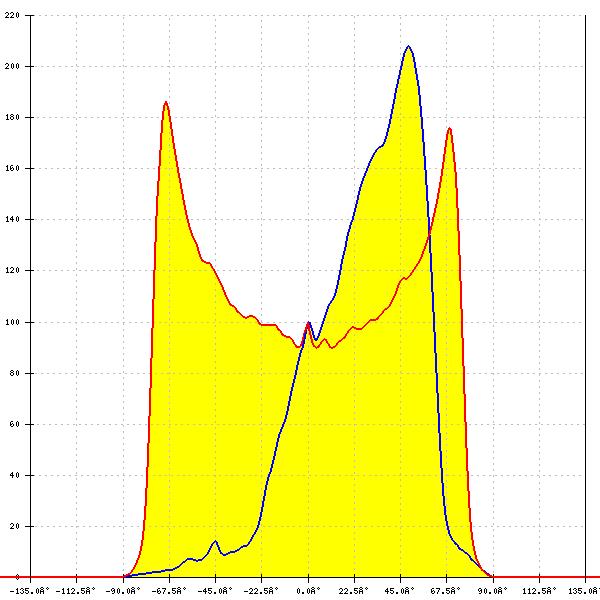

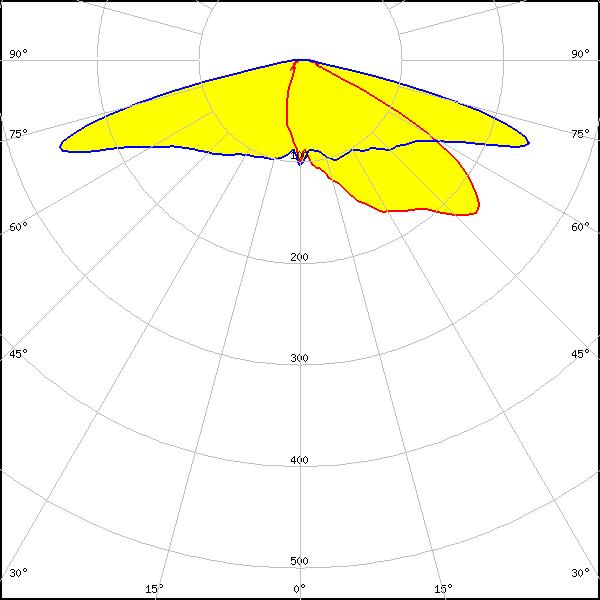

    LED: LUXEON 5050 Square LES
    Required components:
    L20659_STRADA-2X3-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.585 cd/lm
    Efficiency: 61 %
    LEDs/each optic: 1
    Light colour/type: White

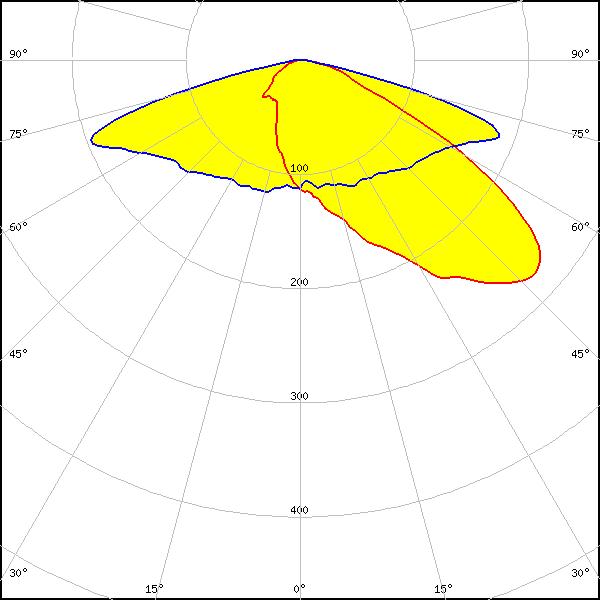

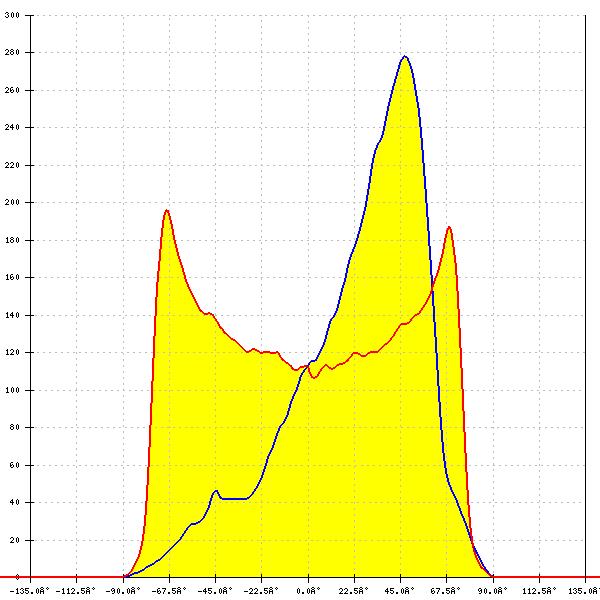

    LED: LUXEON 5050 Square LES
    Required components:
    L20660_STRADA-2X3-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.436 cd/lm
    Efficiency: 64 %
    LEDs/each optic: 1
    Light colour/type: White

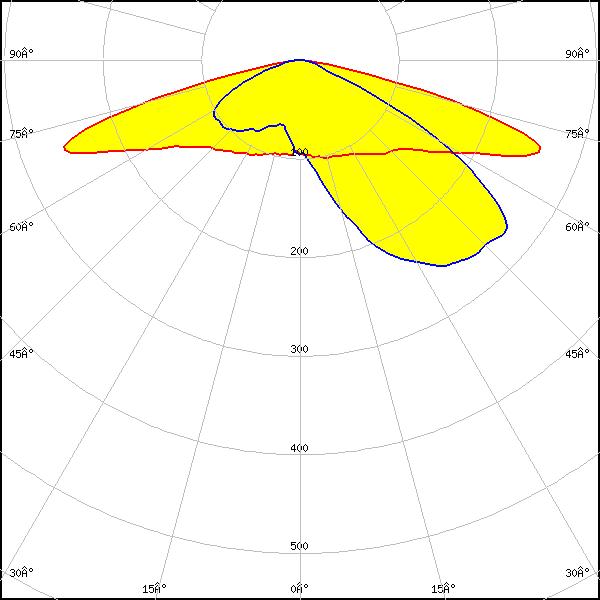

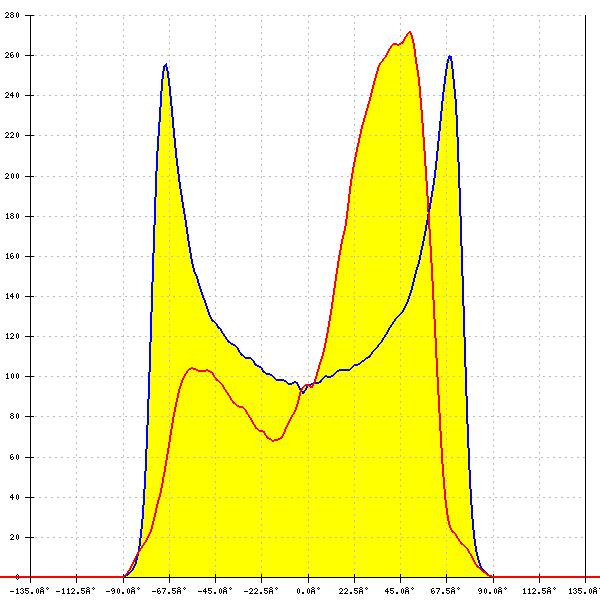

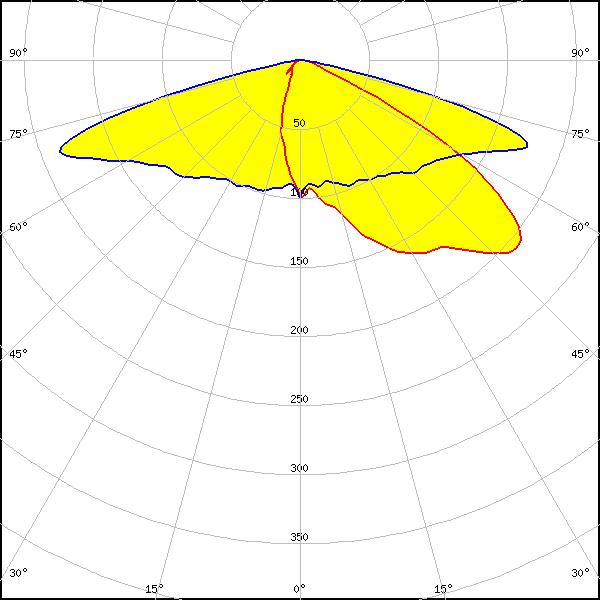

    LED: LUXEON 5050 Square LES
    Required components:
    L20659_STRADA-2X3-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.419 cd/lm
    Efficiency: 51 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.673 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LUXEON 5050 Square LES
    FWHM: asymmetric
    Peak intensity: 0.455 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

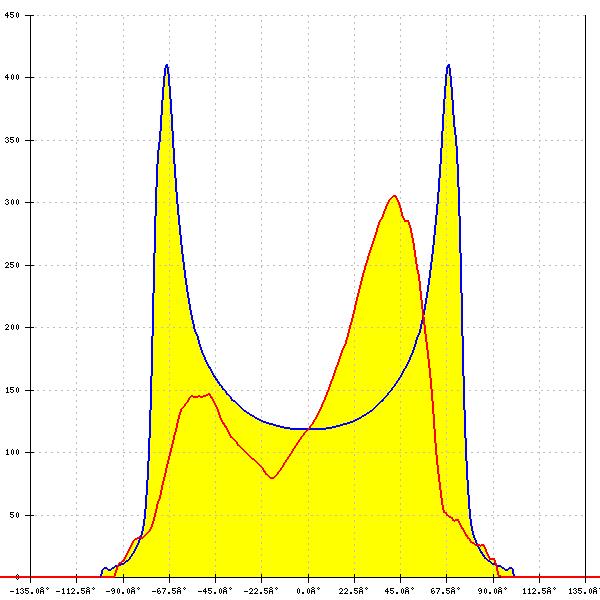

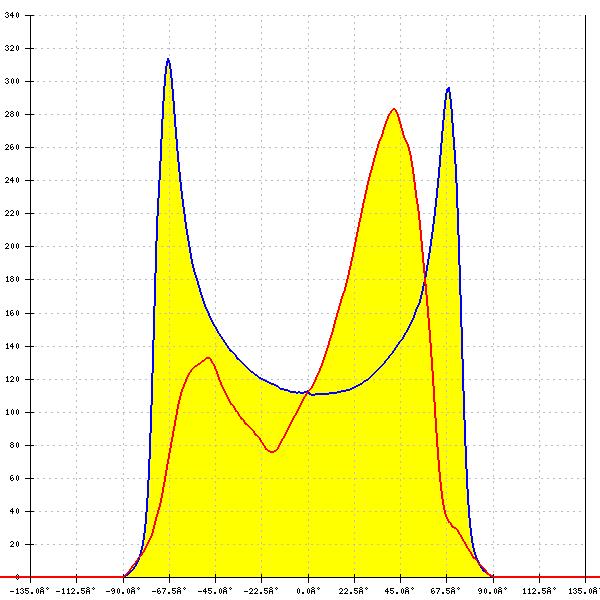

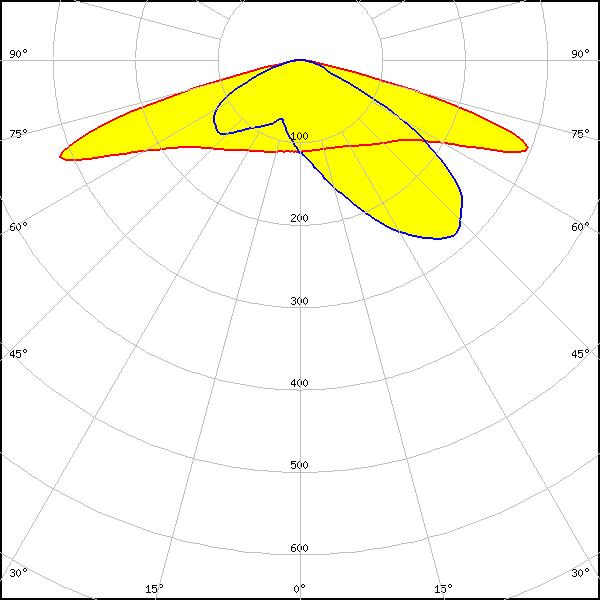

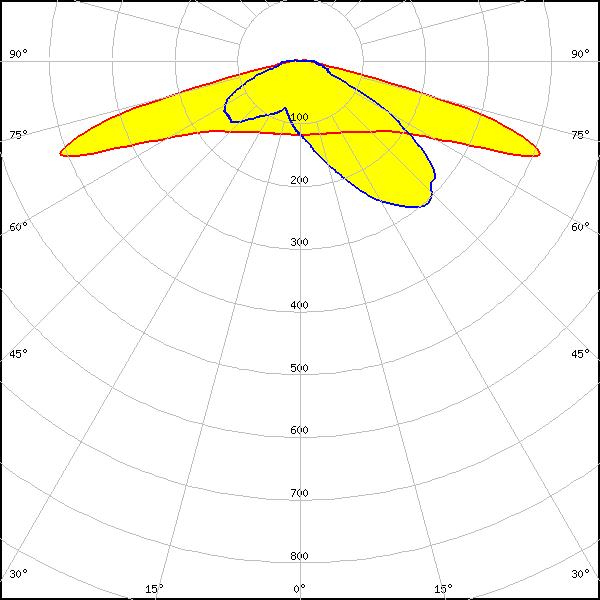

    LED: Flexus 2x3 G1 6x5050
    FWHM: asymmetric
    Peak intensity: 0.493 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Flexus 2x3 G1 6x5050
    FWHM: asymmetric
    Peak intensity: 0.743 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

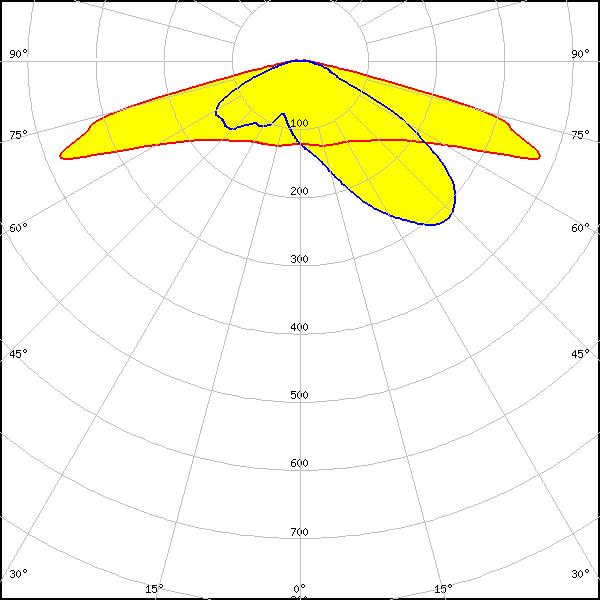

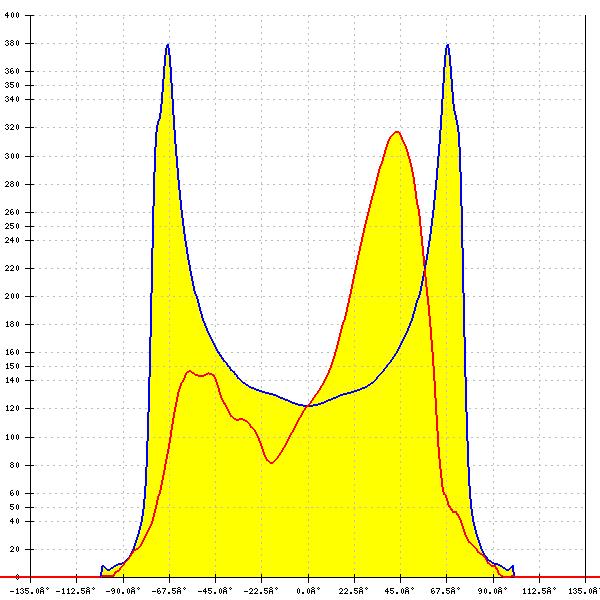

    LED: RecLED 122x50mm 1900lm 2x 2x3 5050 NTC Opt G2
    FWHM: asymmetric
    Peak intensity: 0.721 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

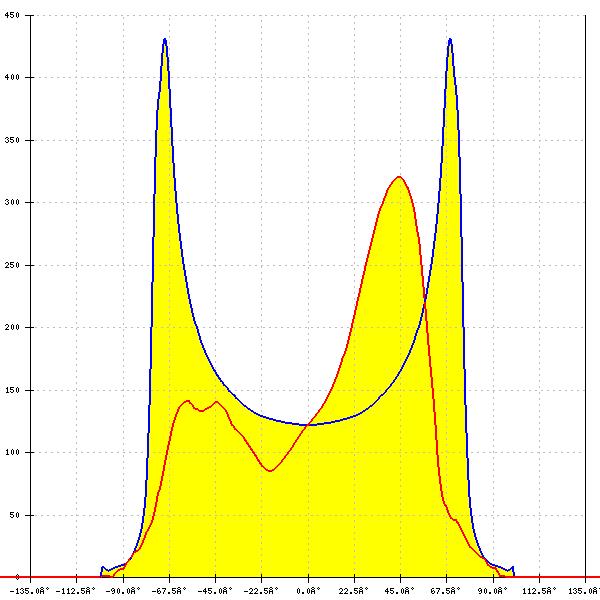

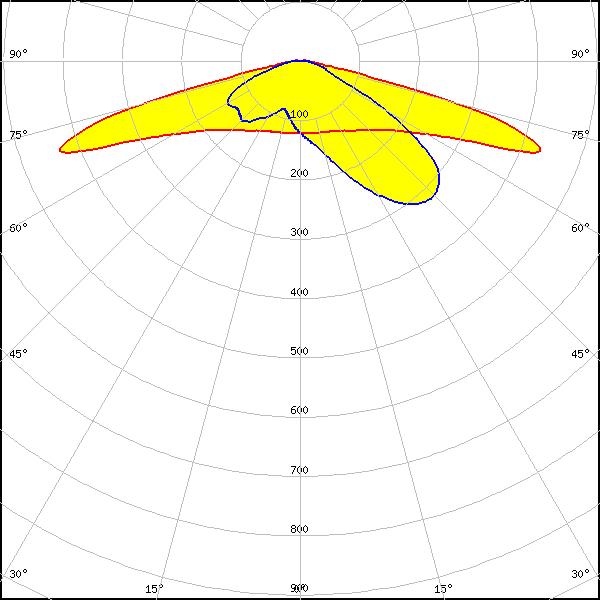

    LED: RecLED 122x50mm 1900lm 2x 2x3 5050 NTC Opt G3
    FWHM: asymmetric
    Peak intensity: 0.726 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

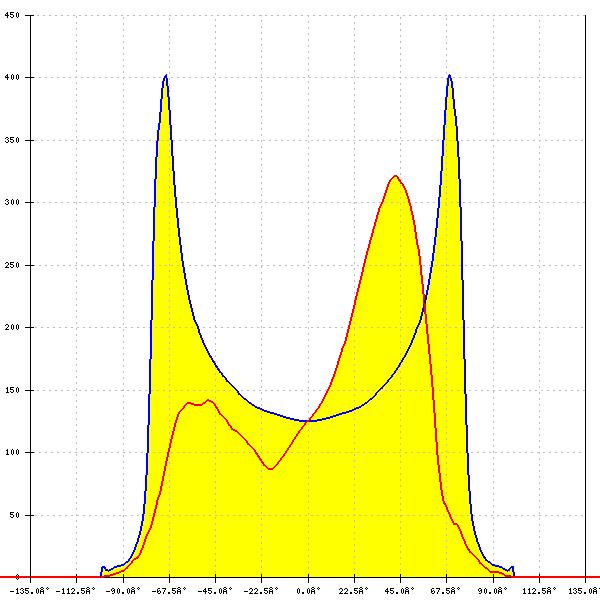

    LED: RecLED 224x50mm 3800lm 740 72V 4x 2x3 5050 LHP NTC G6
    FWHM: asymmetric
    Peak intensity: 0.703 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: RecLED 224x50mm 3800lm 740 72V 4x 2x3 5050 S9 NTC G5
    FWHM: asymmetric
    Peak intensity: 0.718 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

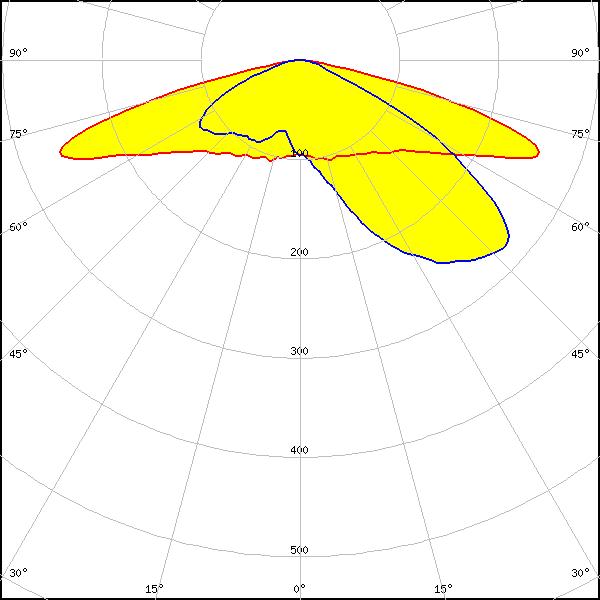

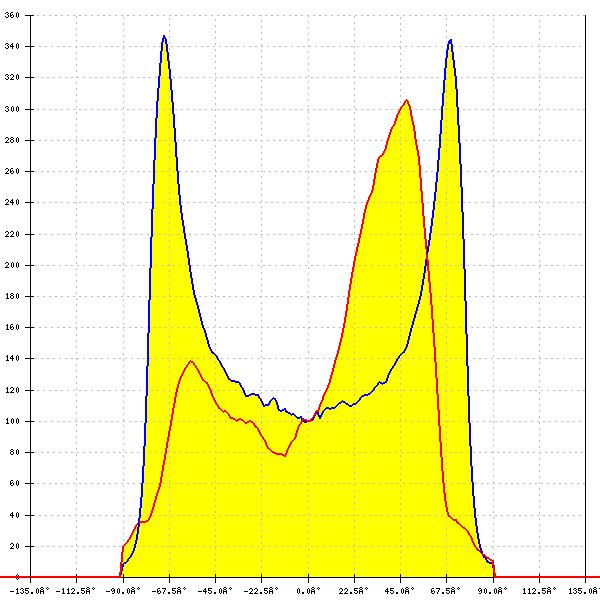

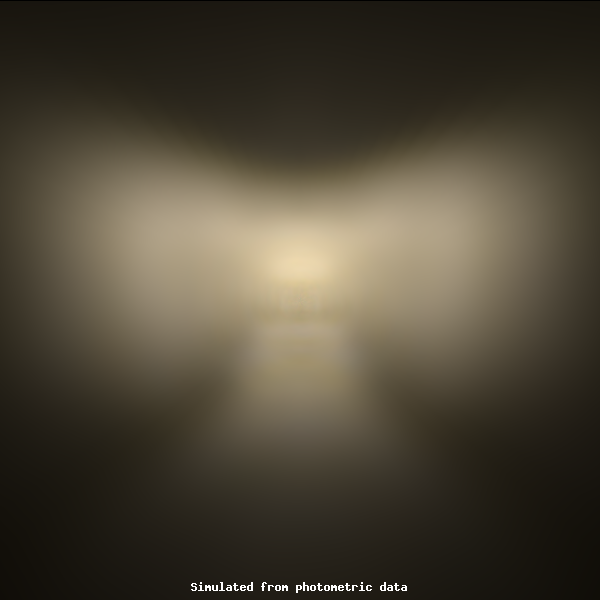

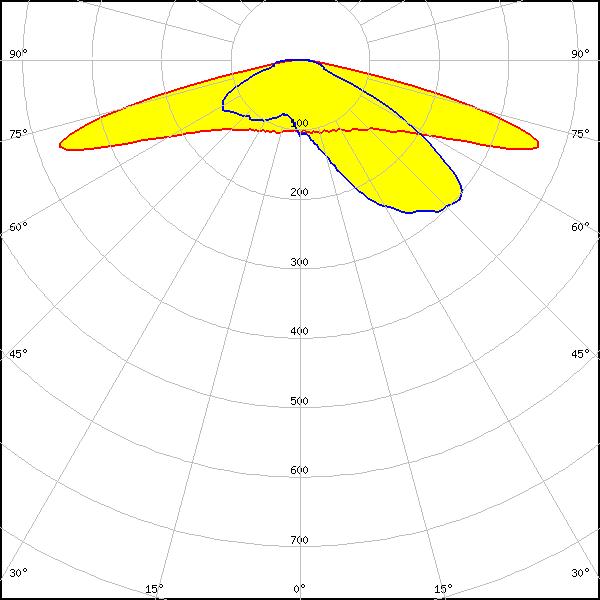

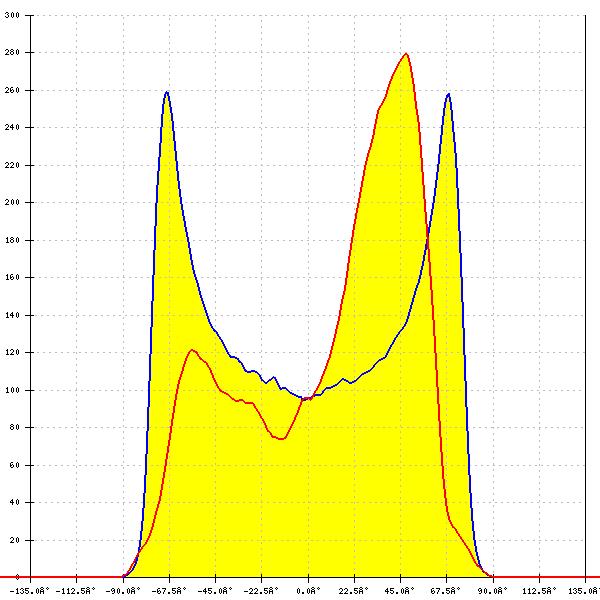

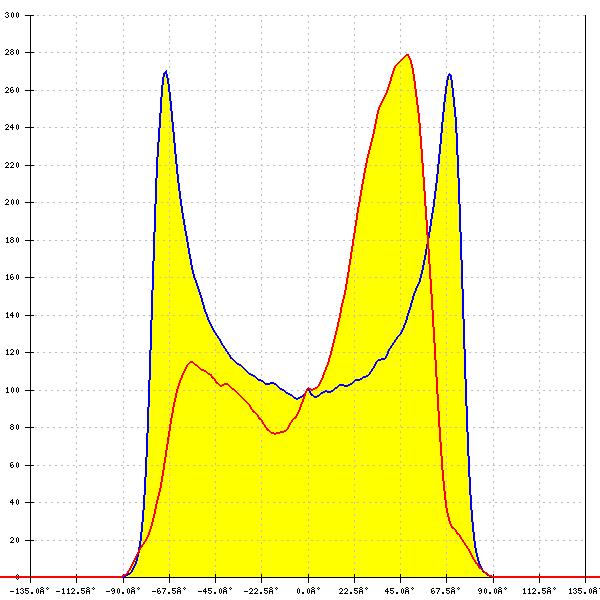

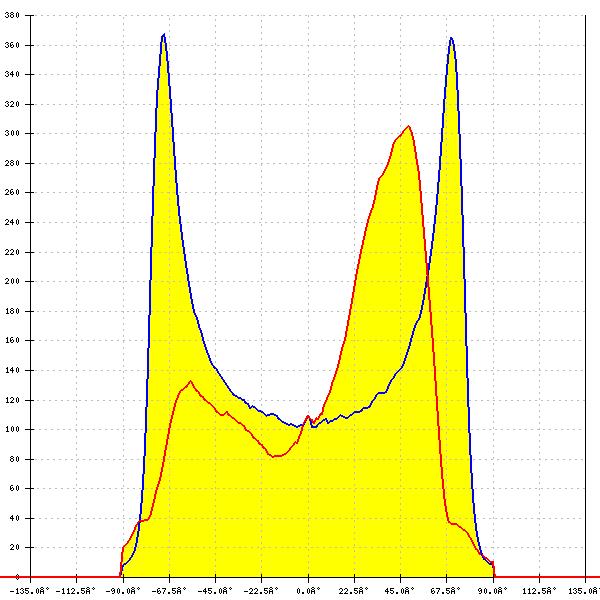

    LED: DURIS S 5050 24 V
    FWHM: asymmetric
    Peak intensity: 0.655 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

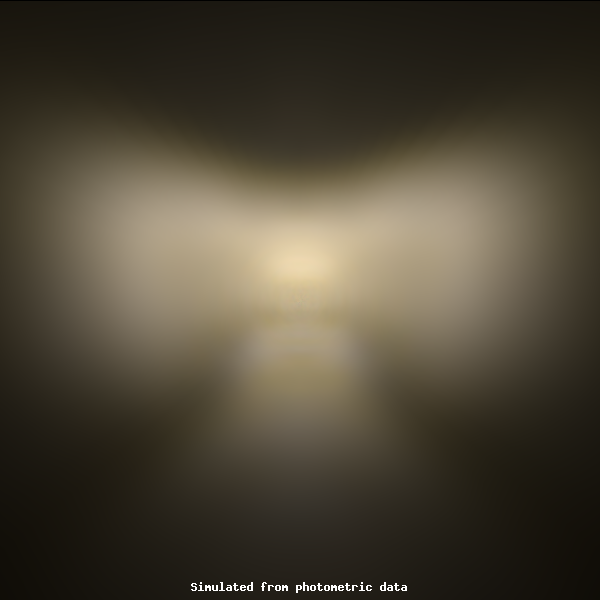

    LED: DURIS S 5050 24 V
    FWHM: asymmetric
    Peak intensity: 0.447 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: DURIS S 5050 6V
    FWHM: asymmetric
    Peak intensity: 0.680 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: DURIS S 5050 6V
    FWHM: asymmetric
    Peak intensity: 0.460 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 (Q9LR33)
    FWHM: asymmetric
    Peak intensity: 0.660 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 (Q9LR33)
    FWHM: asymmetric
    Peak intensity: 0.453 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 (Q9LR35)
    FWHM: asymmetric
    Peak intensity: 0.692 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 (Q9LR35)
    FWHM: asymmetric
    Peak intensity: 0.464 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White

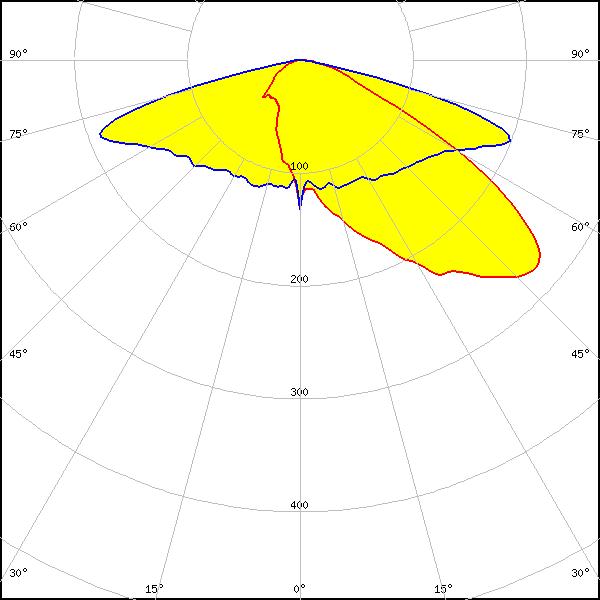

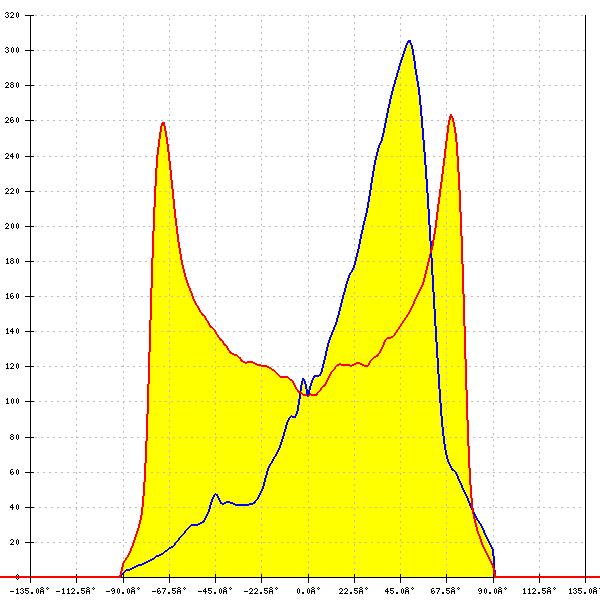

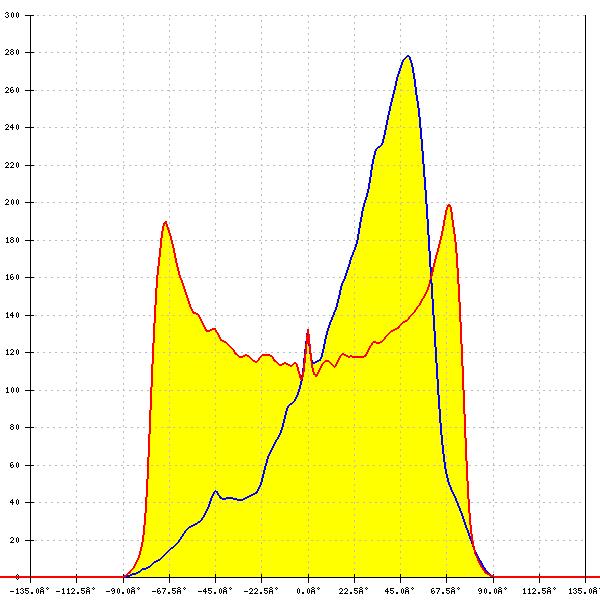

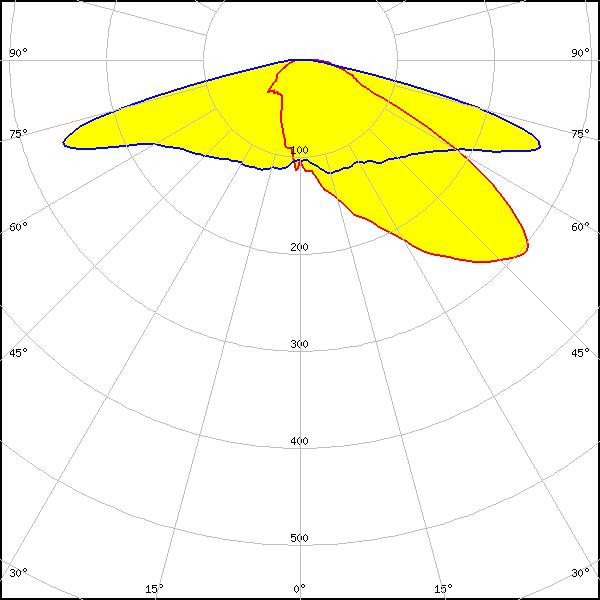

    LED: OSCONIQ S 5050 (Q9LR35)
    Required components:
    L20660_STRADA-2X3-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.614 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

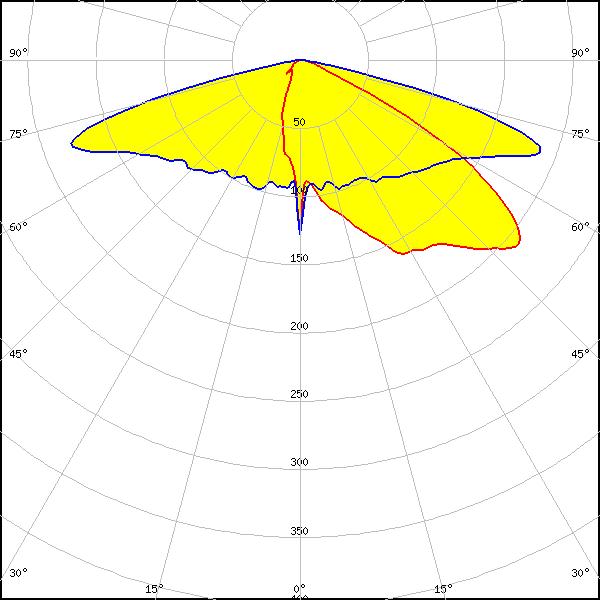

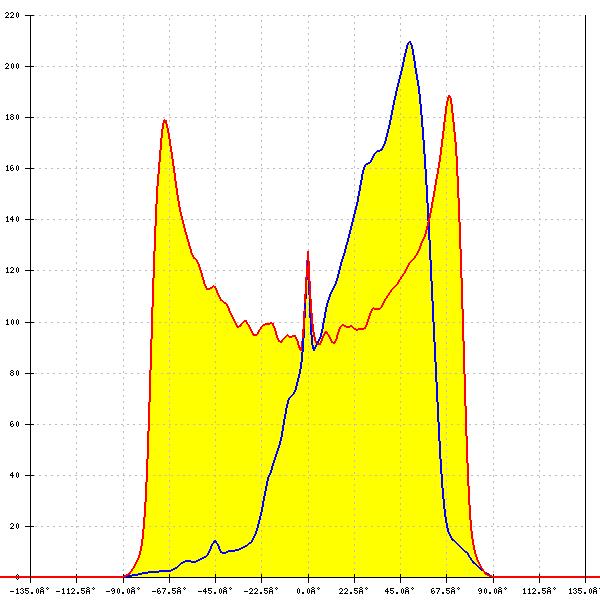

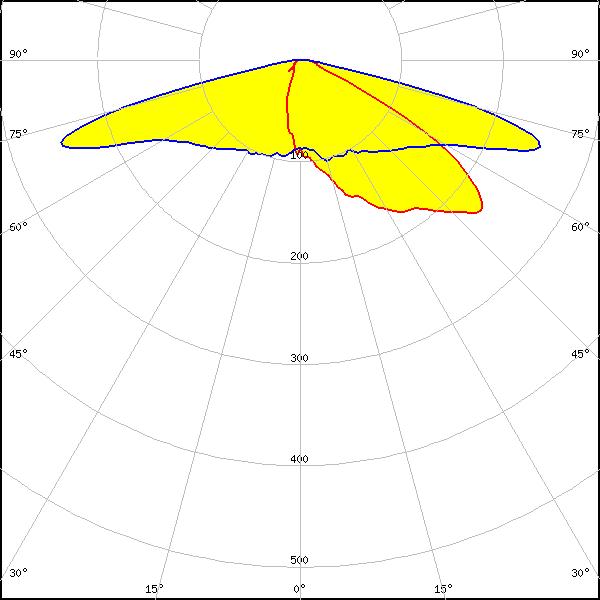

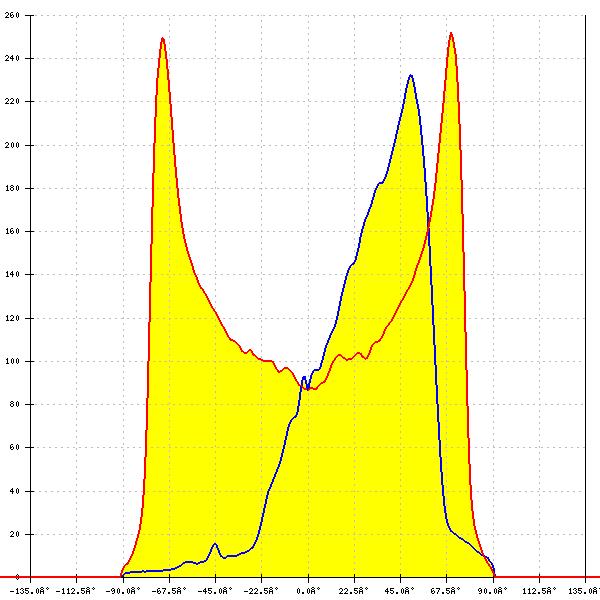

    LED: OSCONIQ S 5050 (Q9LR35)
    Required components:
    L20659_STRADA-2X3-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.595 cd/lm
    Efficiency: 61 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 (Q9LR35)
    Required components:
    L20660_STRADA-2X3-SHD-WHT
    FWHM: asymmetric
    Peak intensity: 0.440 cd/lm
    Efficiency: 64 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ S 5050 (Q9LR35)
    Required components:
    L20659_STRADA-2X3-SHD-BLK
    FWHM: asymmetric
    Peak intensity: 0.424 cd/lm
    Efficiency: 51 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x12 DA (2x3) UHE
    FWHM: asymmetric
    Peak intensity: 0.455 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Fortimo FastFlex LED 2x12 DA (2x3) UHE
    FWHM: asymmetric
    Peak intensity: 0.701 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

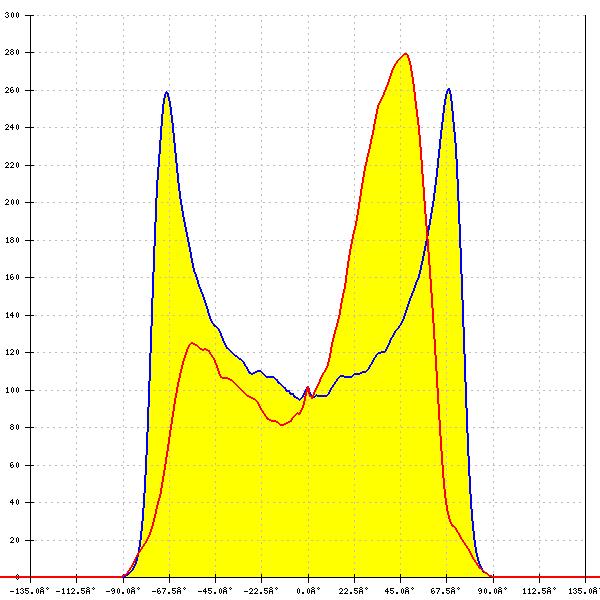

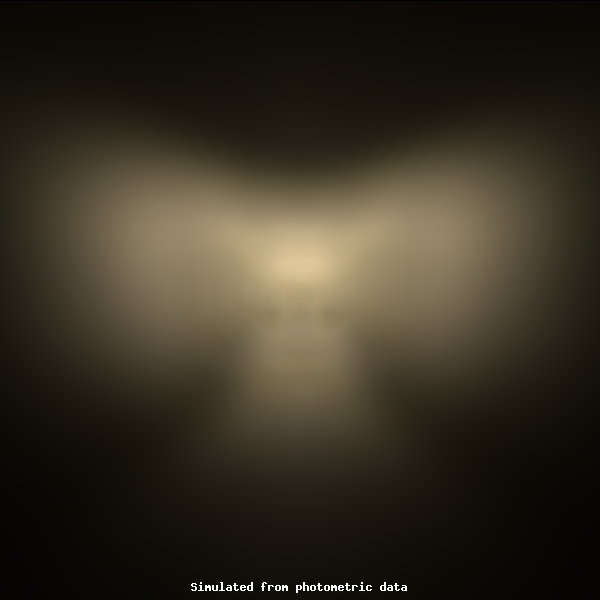

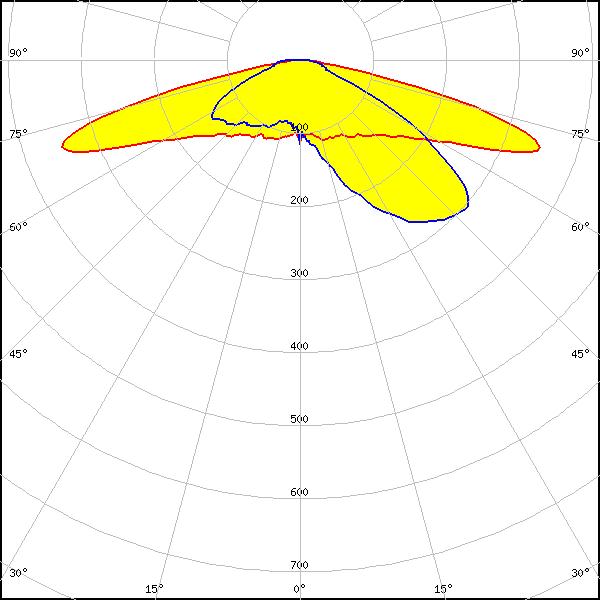

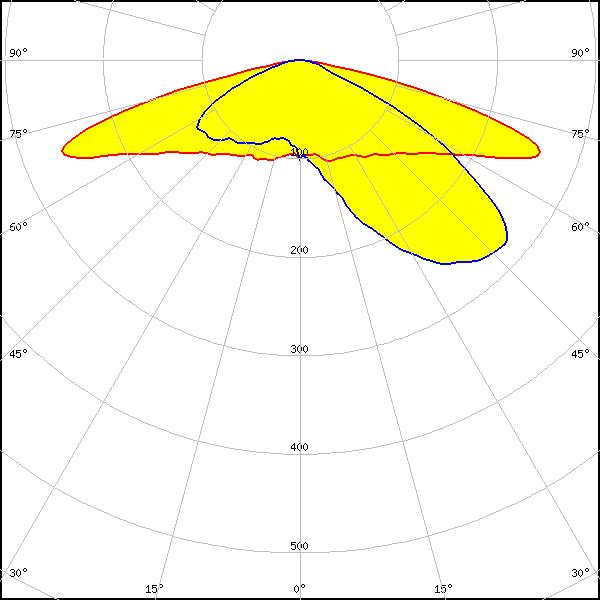

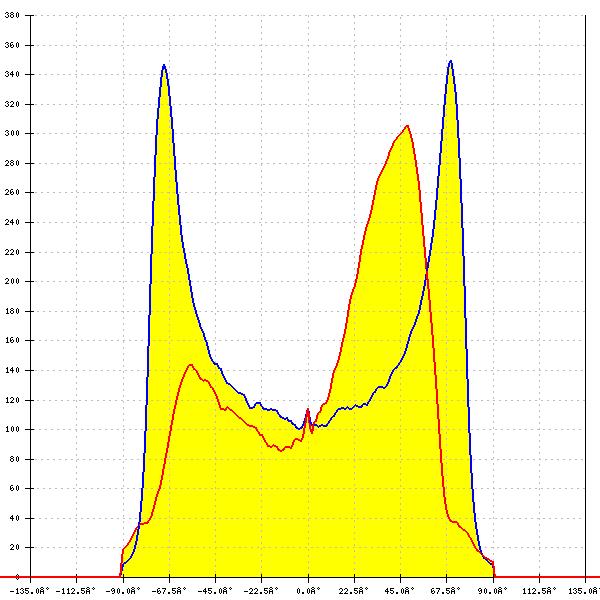

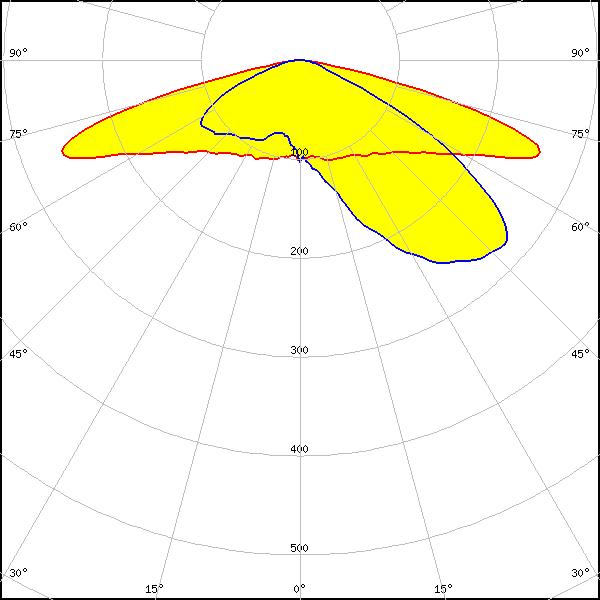

    LED: Seoul 5050 G-Series
    FWHM: asymmetric
    Peak intensity: 0.651 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Seoul 5050 G-Series
    FWHM: asymmetric
    Peak intensity: 0.446 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
