STRADA-2X3 – Cut costs, not quality

Driving LEDs like there is a brighter tomorrow



LEDiL’s well-known STRADA family is now available in a 2X3 layout with a 50×50 mm footprint. By fitting more LEDs into the same area, they can be driven at lower currents, increasing efficacy, producing more lumens per watt, and reducing energy consumption. Additionally, reduced heat generation can help to enhance the lifespan of the LEDs.

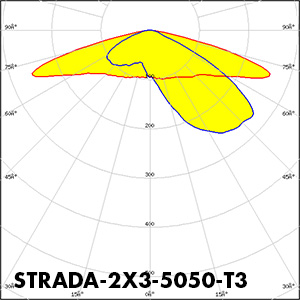

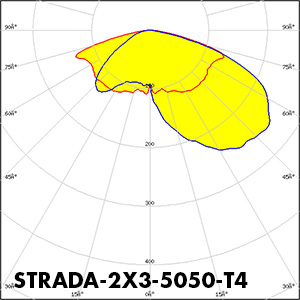

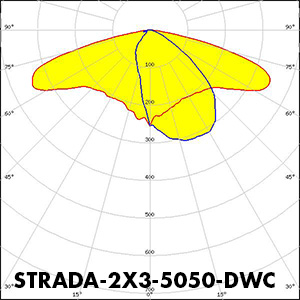

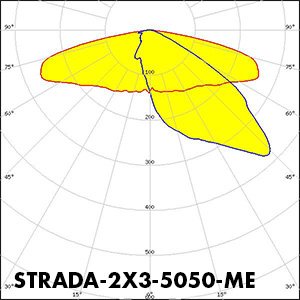

LEDiL_STRADA-2X3-5050-T2_Polar_2LEDiL_STRADA-2X3-5050_T3_PolarLEDiL_STRADA-2X3-5050_T4_PolarLEDiL_STRADA-2X3-5050-VSM_Polar_2

Performance with quality

STRADA-2X3-5050 LED optics are designed for outdoor applications that require superior light quality and uniformity, while also maximising energy efficiency (W/lm) and minimising costs. With patented beam technology, and advanced light control, fewer luminaires are needed due to the ability to extend pole distances, thus reducing installation and maintenance costs.

Versatility and support

Use the same lenses and luminaires to choose between extreme efficiency when under-driving, or maximum output at full power. With two new beams available—and more on the way—alongside the already released HB-2X3 with symmetrical beams for industrial and indoor lighting, LEDiL’s 2X3 led optics meet the varying demands of different lighting projects worldwide.


Get_2D_LEDiLGet_3D_LEDiL

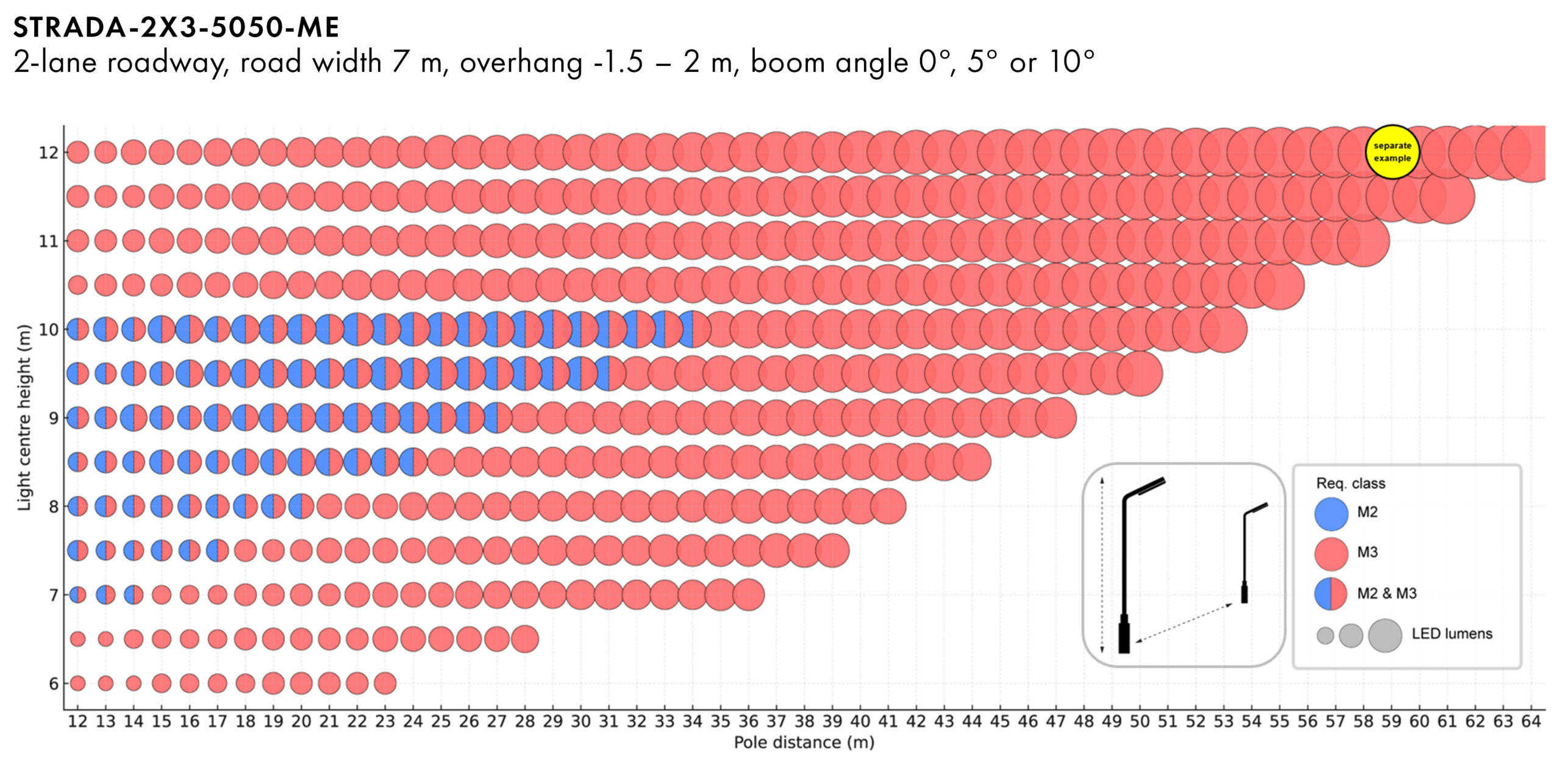

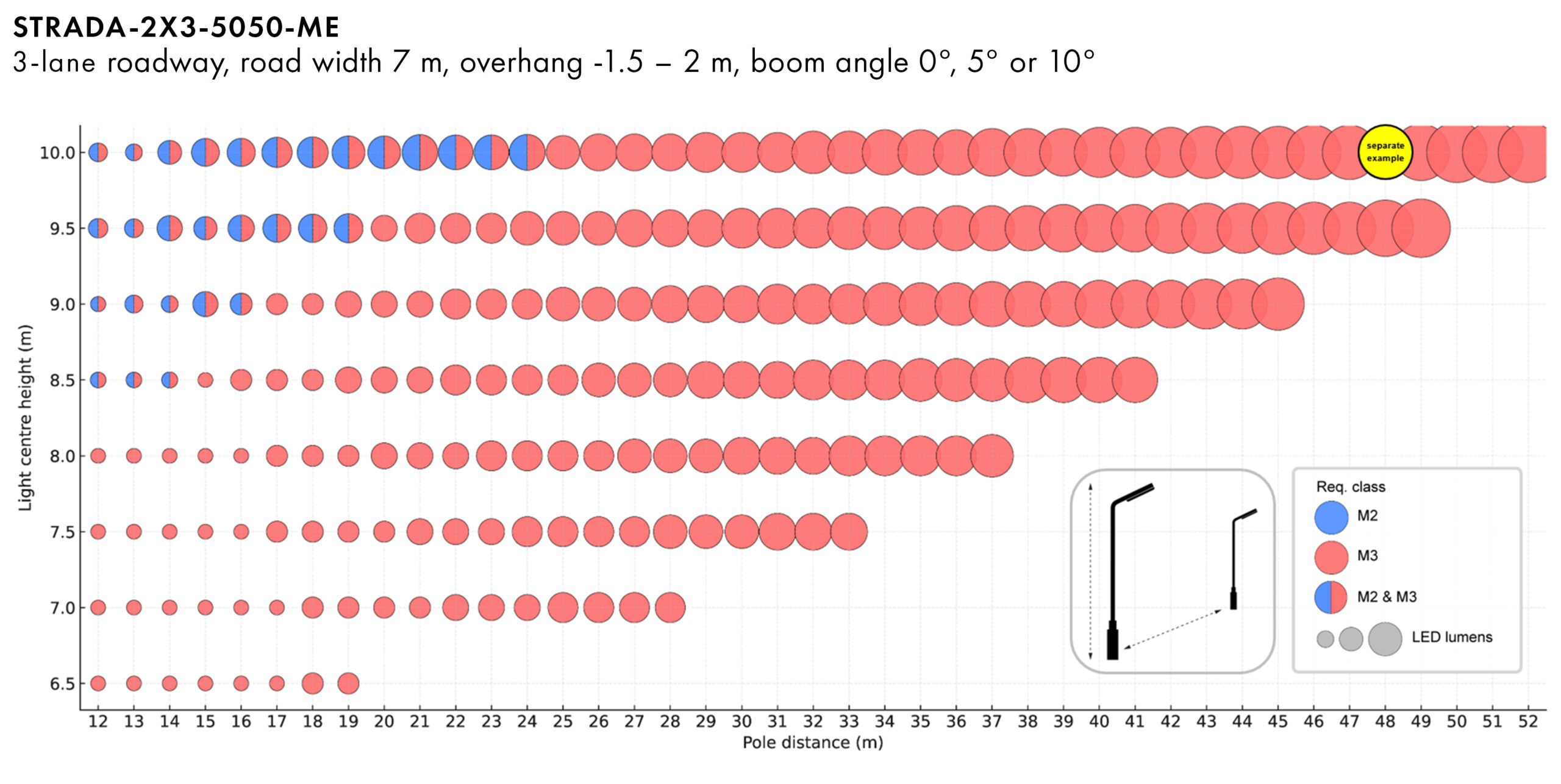

MH & pole distance calculations

See how C3 and M3 street lighting requirements can be met with different mounting height and pole distance setups in the table below.



LEDiL_STRADA-2X3-5050-T2_Mounting_height_and_pole_distance_calculations

Setups vary in LED lumens, boom angle and overhang. For more specific results please consult LEDiL Tech support.



Contact our sales or tech support to discuss the best solutions for your project.
