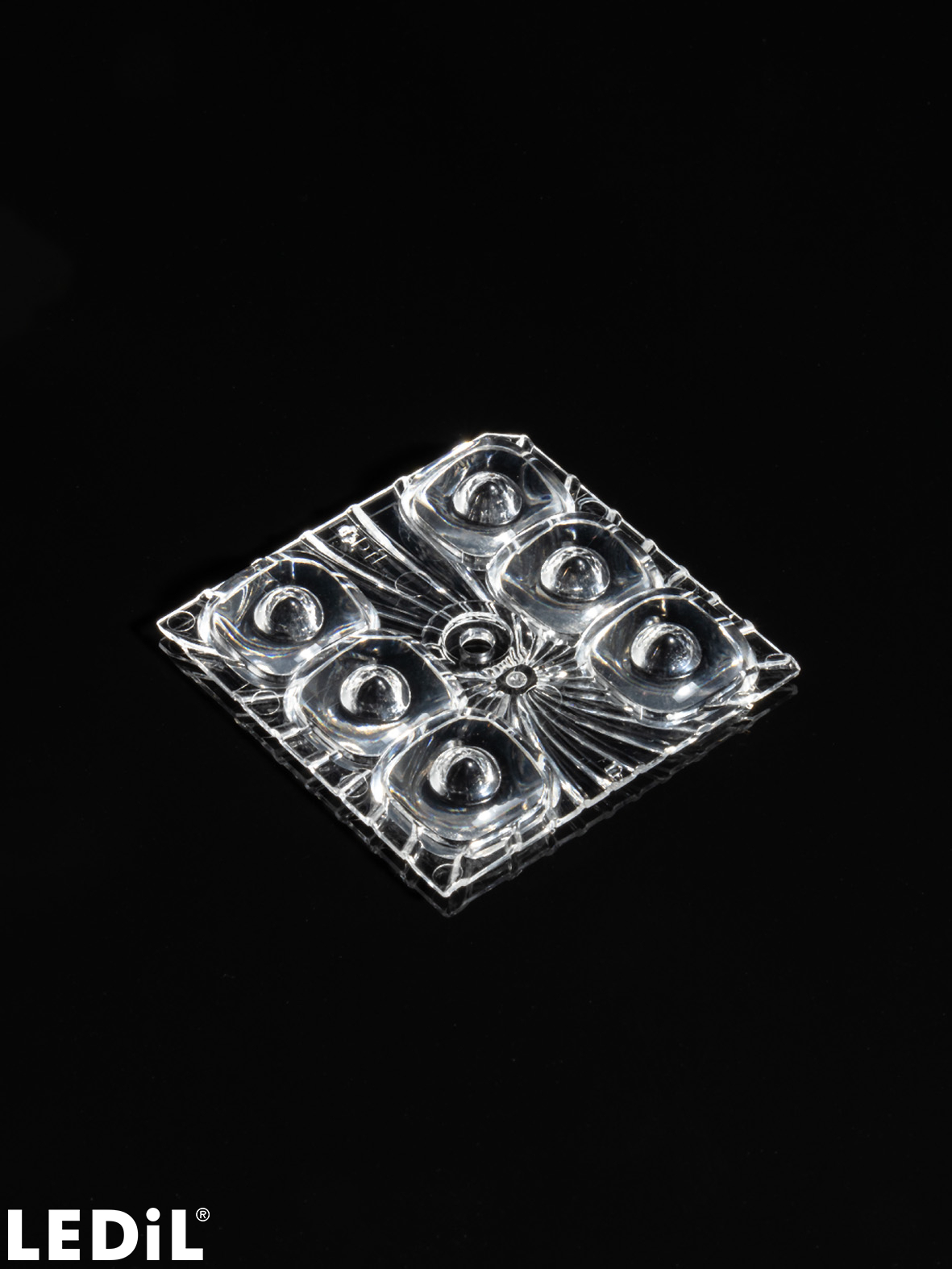

C19544_STRADA-2X3-5050-VSM
Print
IESNA Type V (square) beam for wide areas lighting such as car parks.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

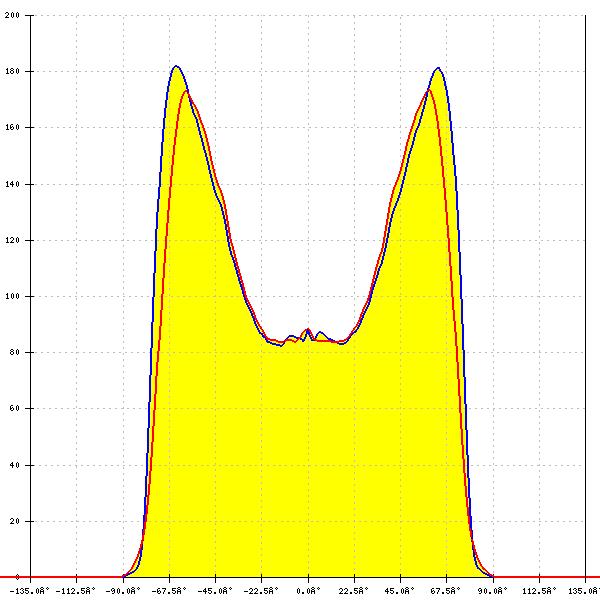

LED:

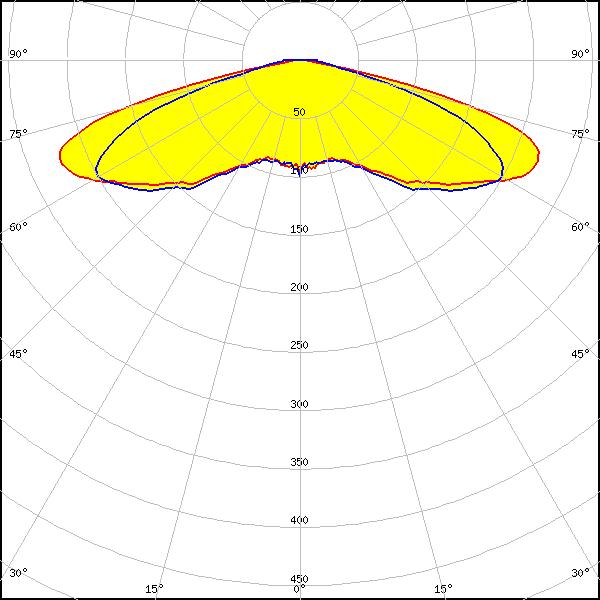

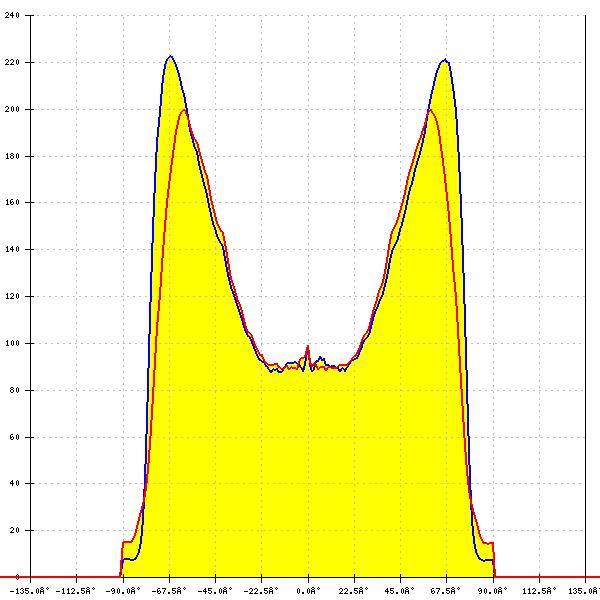

J Series 5050C 6V E Class
FWHM:
152° + 146°
FWTM:
160° + 166°
Peak intensity:
0.350 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050C 6V E Class
FWHM:
150° + 144°
FWTM:
160° + 158°
Peak intensity:
0.242 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:

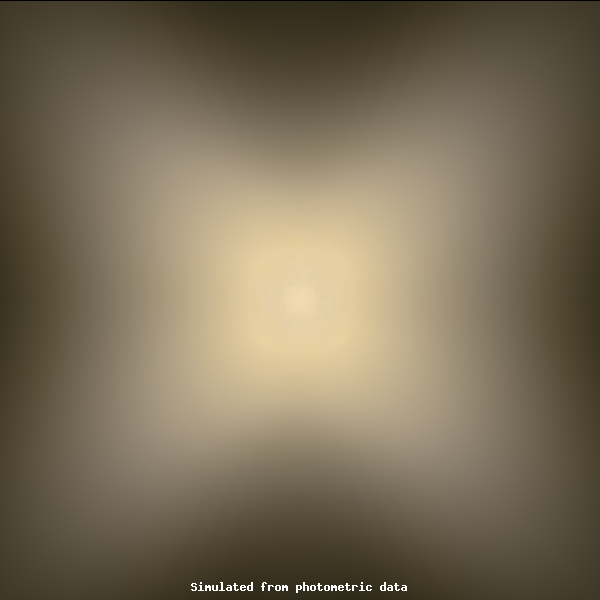

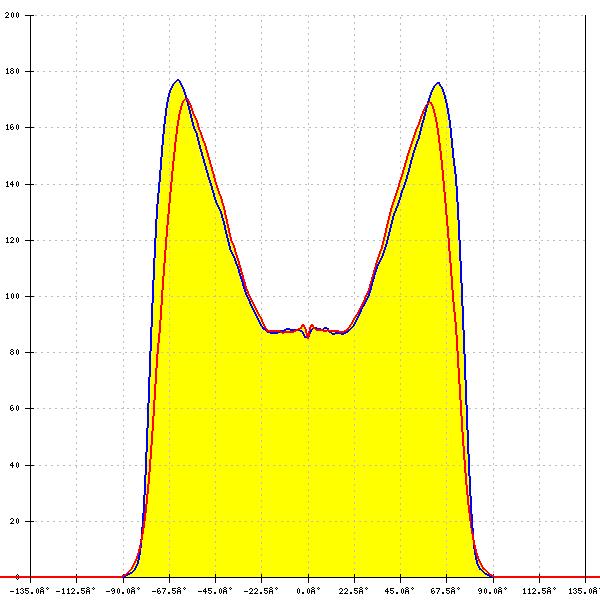

LUXEON 5050 HE
FWHM:
154° + 148°
FWTM:
162° + 167°
Peak intensity:
0.339 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

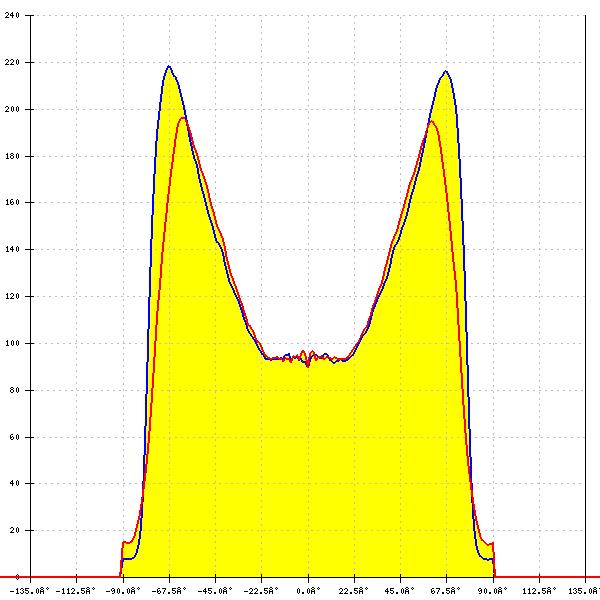

LUXEON 5050 HE
FWHM:
152° + 144°
FWTM:
160° + 160°
Peak intensity:
0.232 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

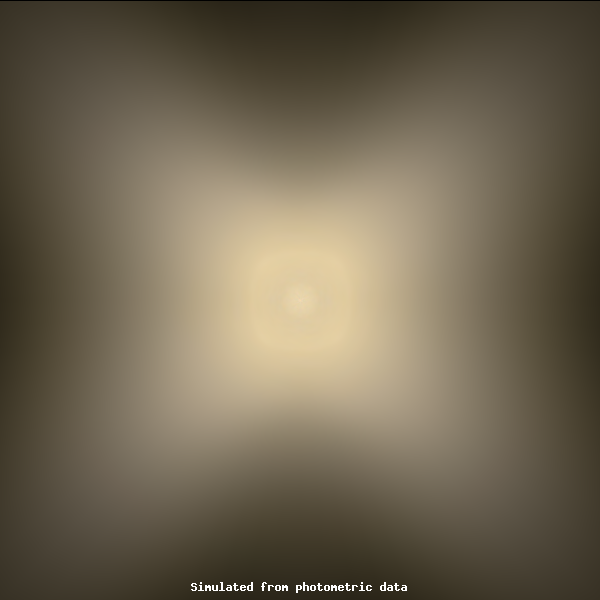

LED:

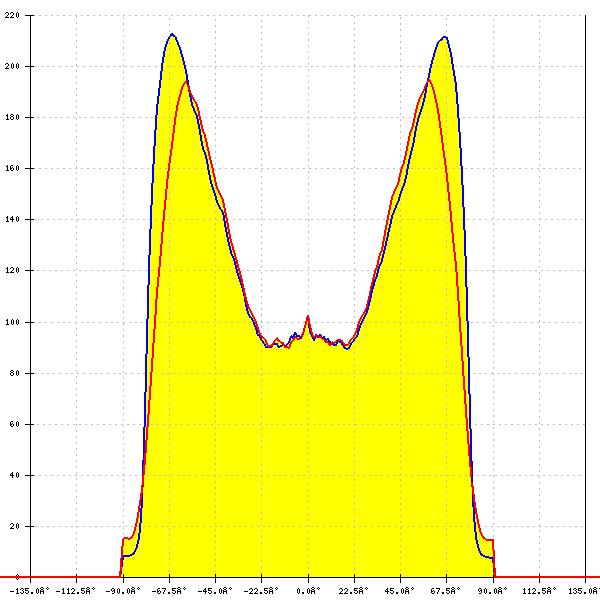

LUXEON 5050 HE Plus
FWHM:
156° + 148°
FWTM:
162° + 168°
Peak intensity:
0.319 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 HE Plus
FWHM:
152° + 144°
FWTM:
161° + 160°
Peak intensity:
0.225 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

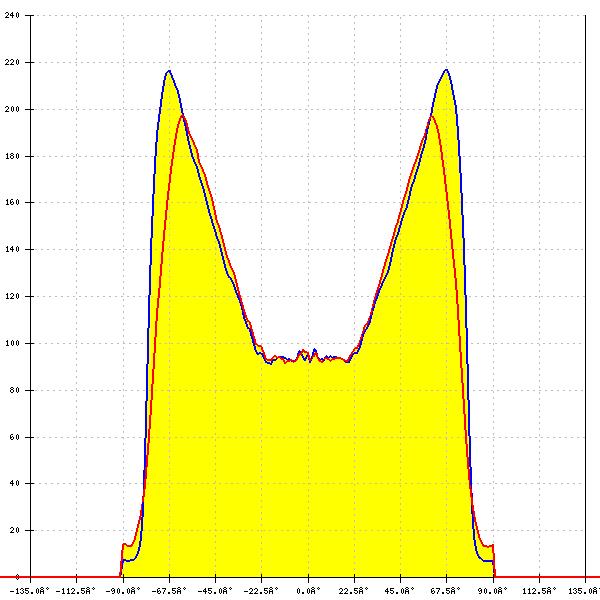

LED:

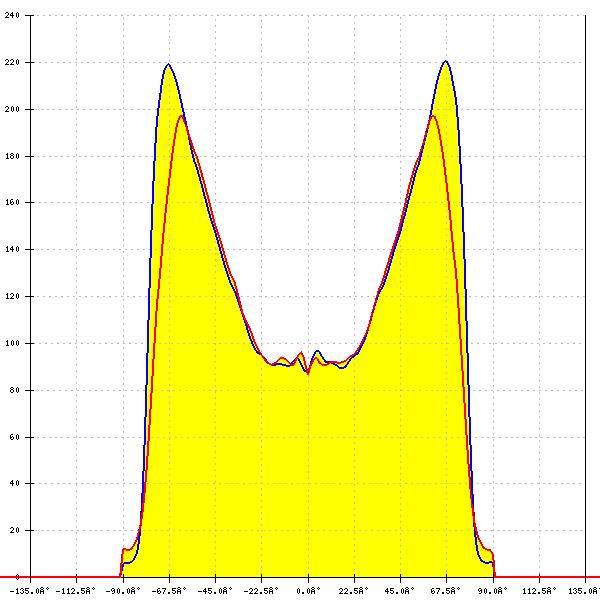

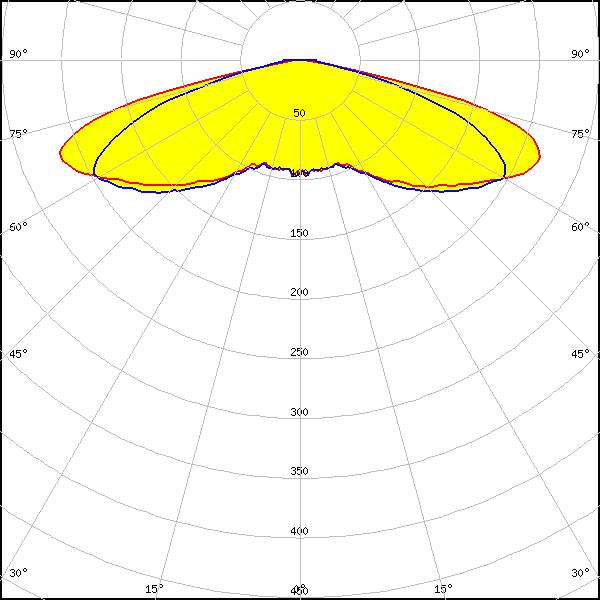

LUXEON 5050 Square LES
FWHM:
154° + 148°
FWTM:
162° + 166°
Peak intensity:
0.336 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

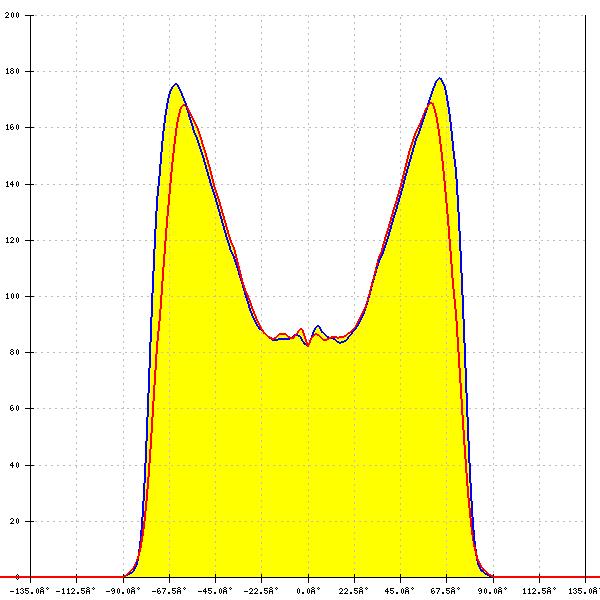

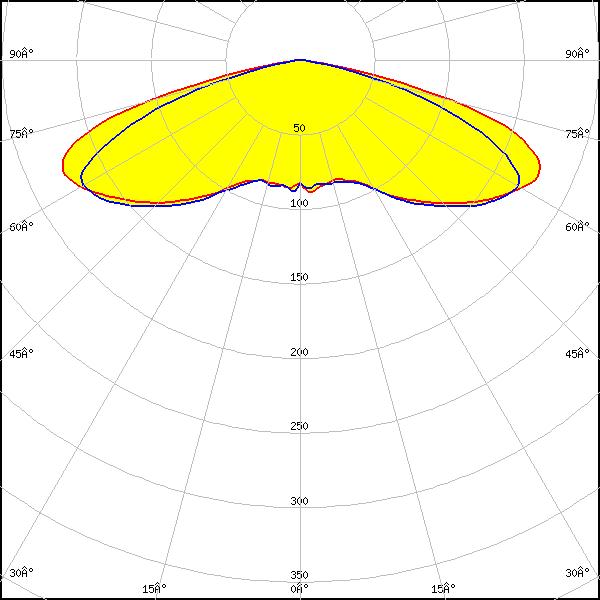

LUXEON 5050 Square LES
FWHM:
152° + 144°
FWTM:
160° + 160°
Peak intensity:
0.232 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White

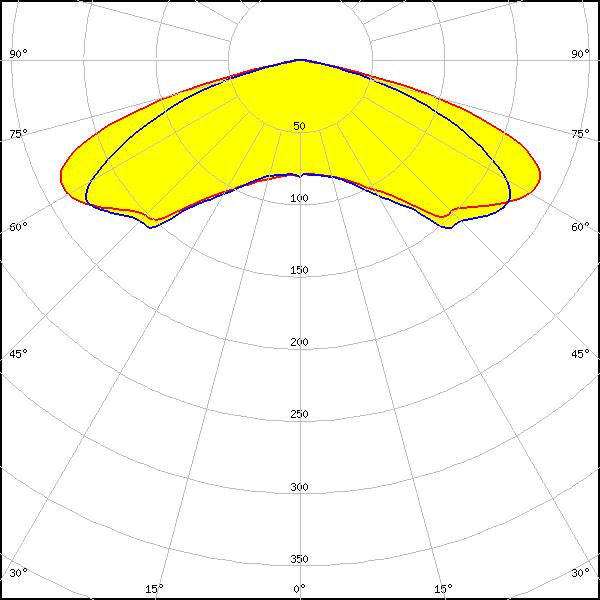

LED:

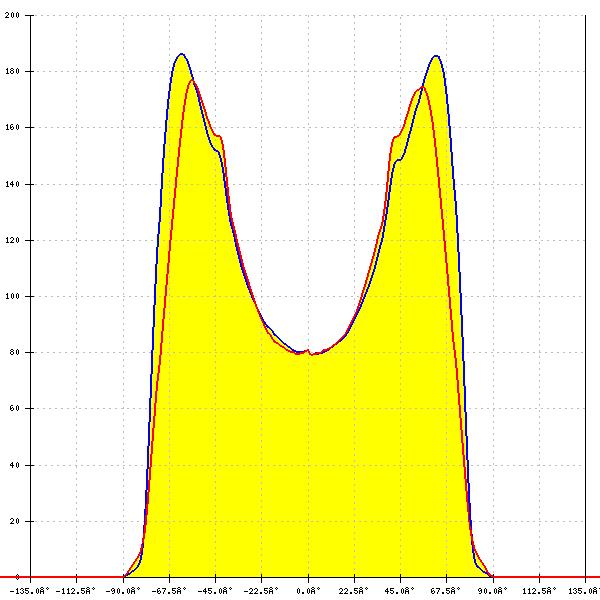

Flexus 2x3 G1 6x5050
FWHM:
146°
FWTM:
158°
Peak intensity:
0.241 cd/lm
Efficiency:
77 %
LEDs/each optic:
1
Light colour/type:
White
LED:

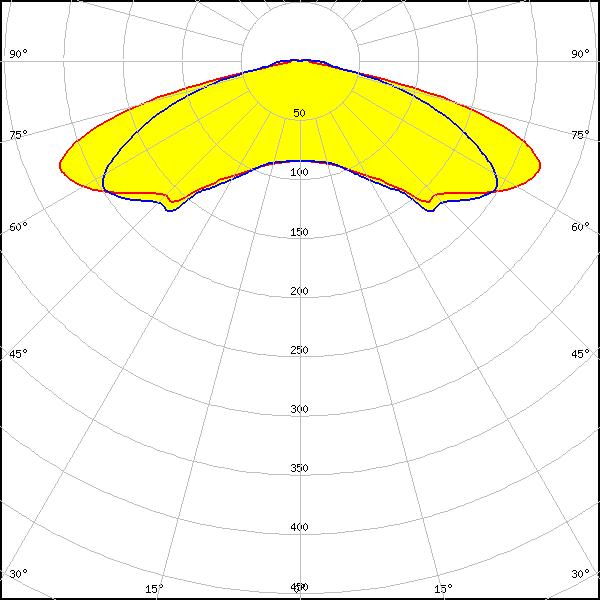

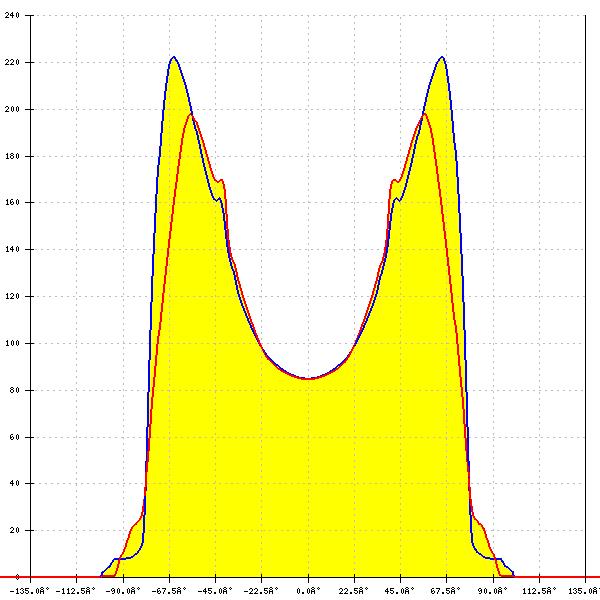

Flexus 2x3 G1 6x5050
FWHM: asymmetric
Peak intensity:
0.345 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

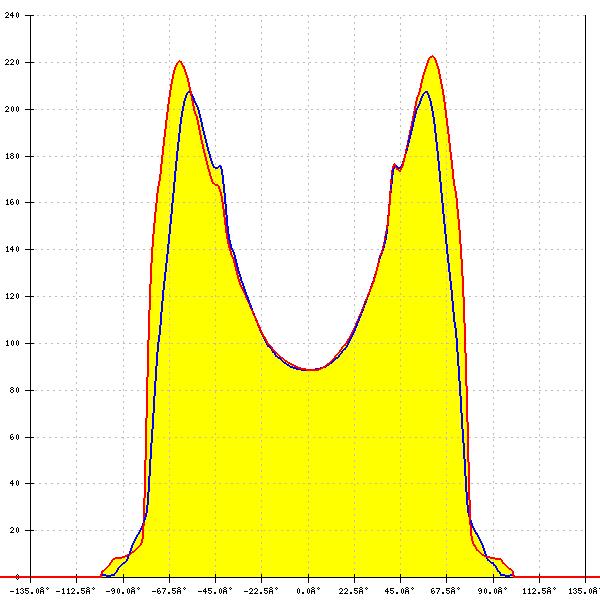

RecLED 122x50mm 1900lm 2x 2x3 5050 NTC Opt G2
FWHM: asymmetric
Peak intensity:
0.329 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

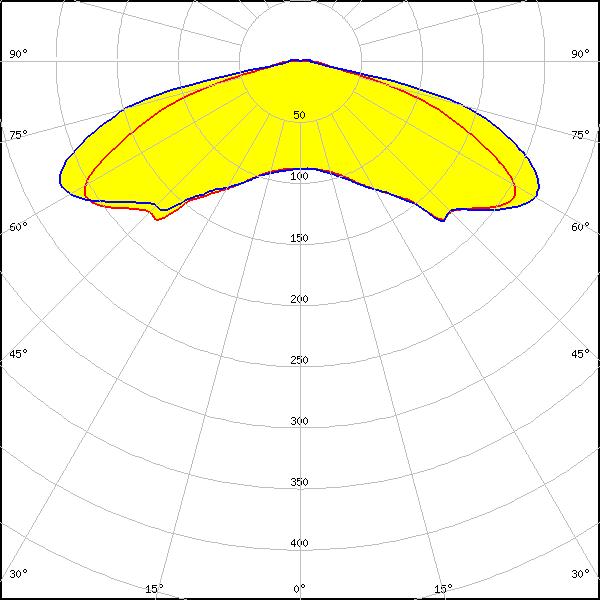

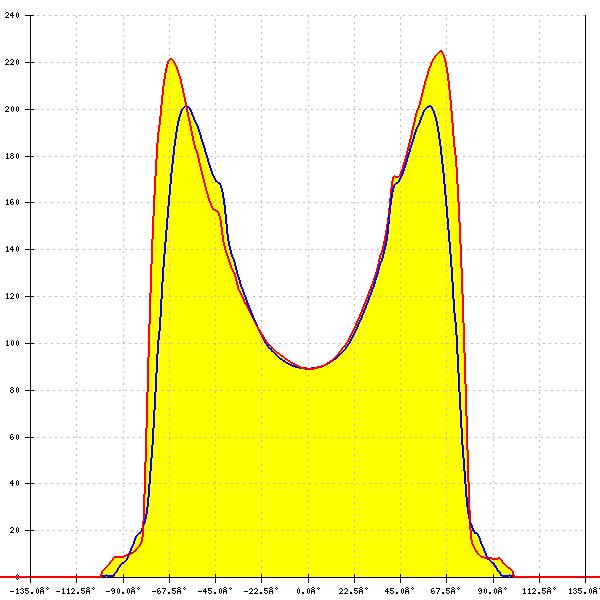

LED:

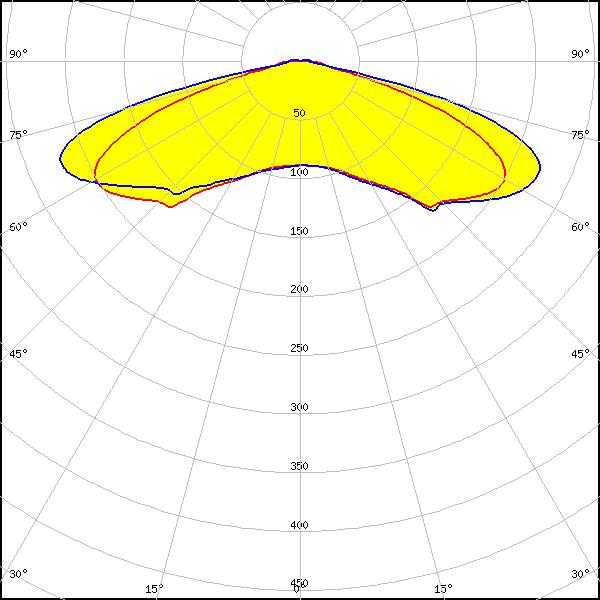

RecLED 122x50mm 1900lm 2x 2x3 5050 NTC Opt G3
FWHM: asymmetric
Peak intensity:
0.365 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White

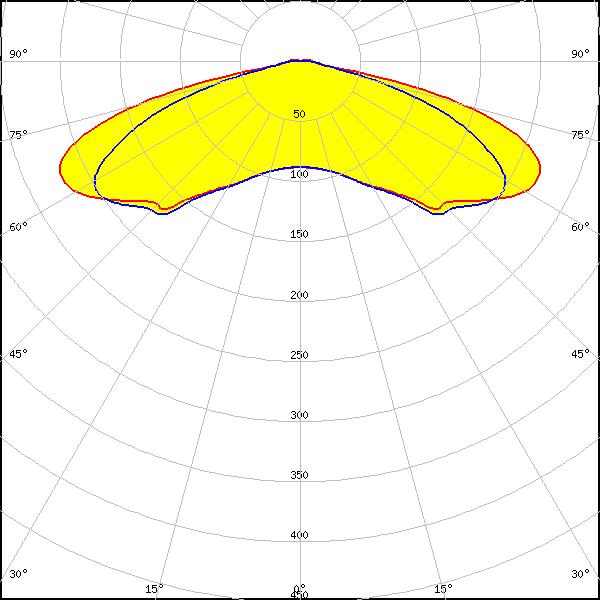

LED:
RecLED 224x50mm 3800lm 740 72V 4x 2x3 5050 LHP NTC G6
FWHM: asymmetric
Peak intensity:
0.340 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White

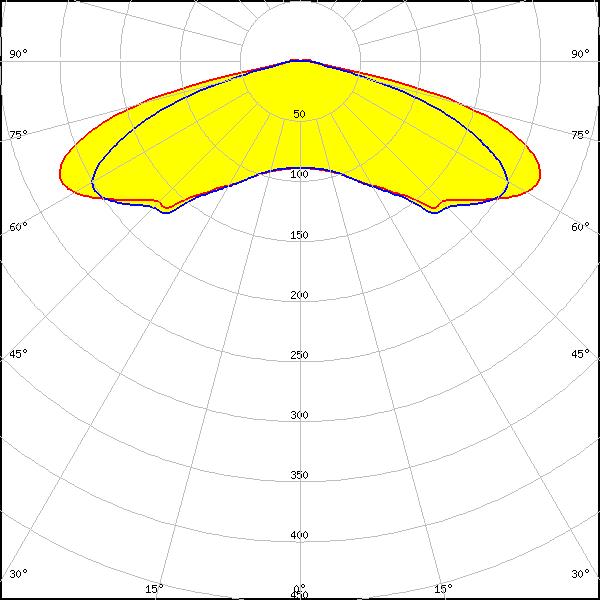

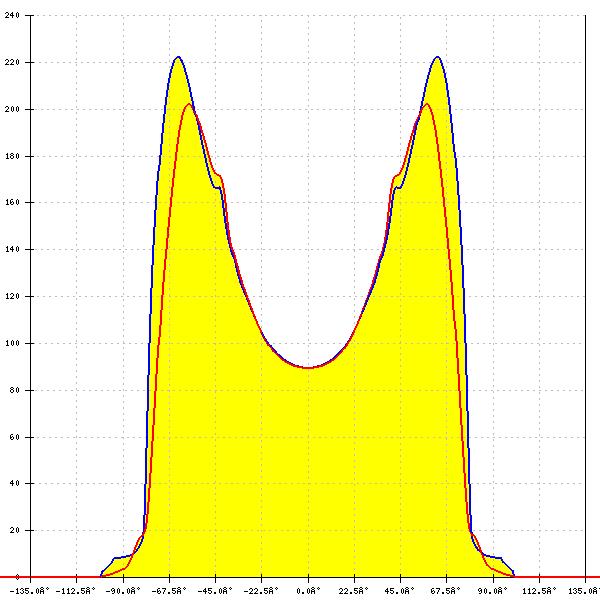

LED:
RecLED 224x50mm 3800lm 740 72V 4x 2x3 5050 S9 NTC G5
FWHM: asymmetric
Peak intensity:
0.345 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White

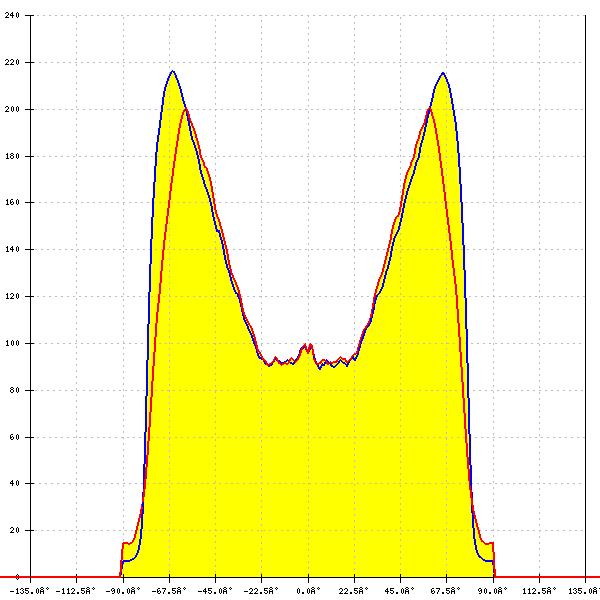

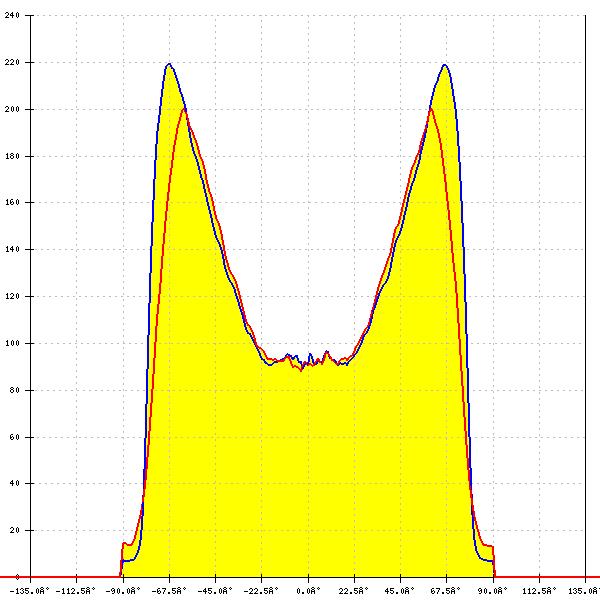

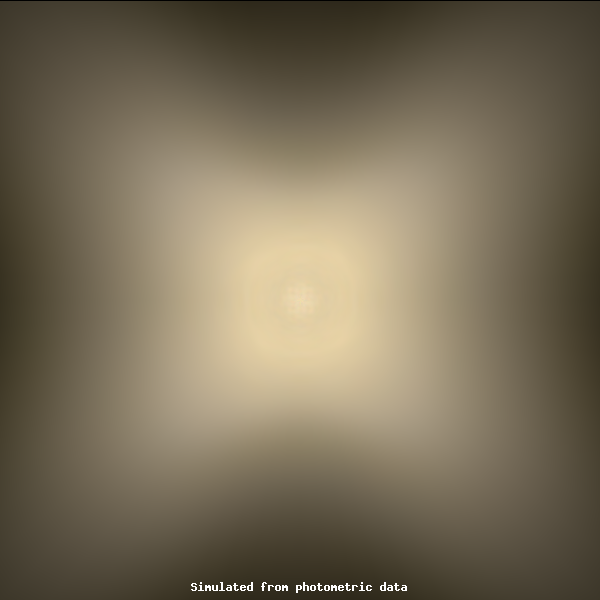

LED:

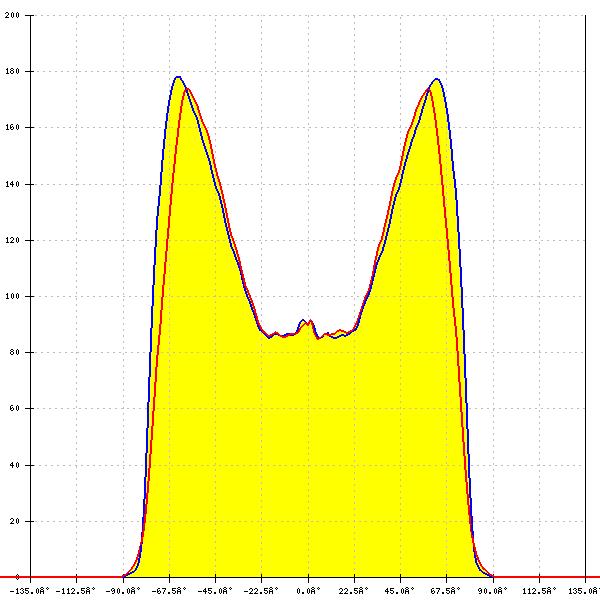

DURIS S 5050 24 V
FWHM:
154° + 148°
FWTM:
162° + 166°
Peak intensity:
0.326 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

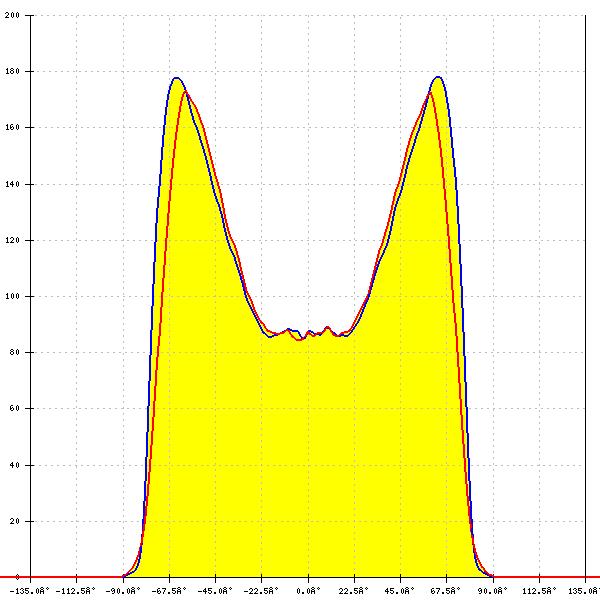

DURIS S 5050 24 V
FWHM:
152° + 144°
FWTM:
160° + 160°
Peak intensity:
0.231 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:
DURIS S 5050 6V
FWHM:
154° + 148°
FWTM:
162° + 166°
Peak intensity:
0.339 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
DURIS S 5050 6V
FWHM:
152° + 144°
FWTM:
160° + 160°
Peak intensity:
0.235 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 (Q9LR33)
FWHM:
154° + 148°
FWTM:
162° + 166°
Peak intensity:
0.324 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 (Q9LR33)
FWHM:
152° + 144°
FWTM:
160° + 158°
Peak intensity:
0.232 cd/lm
Efficiency:
76 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 (Q9LR35)
FWHM:
154° + 148°
FWTM:
162° + 166°
Peak intensity:
0.347 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 (Q9LR35)
FWHM:
152° + 146°
FWTM:
160° + 160°
Peak intensity:
0.235 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x12 DA (2x3) UHE
FWHM: asymmetric
Peak intensity:
0.242 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Fortimo FastFlex LED 2x12 DA (2x3) UHE
FWHM: asymmetric
Peak intensity:
0.337 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

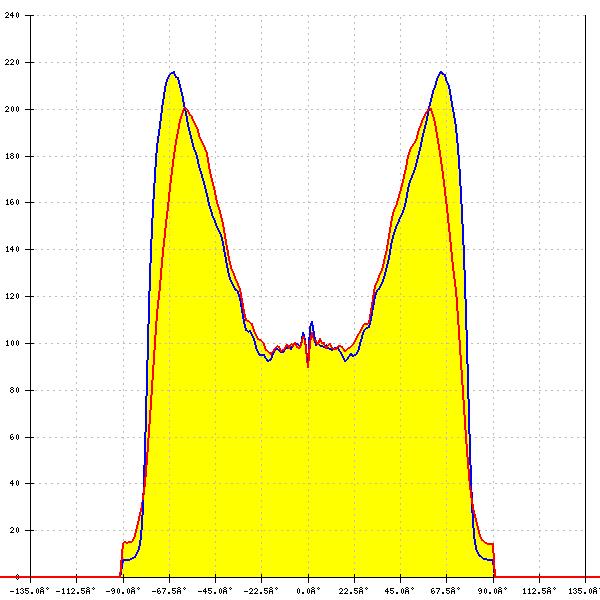

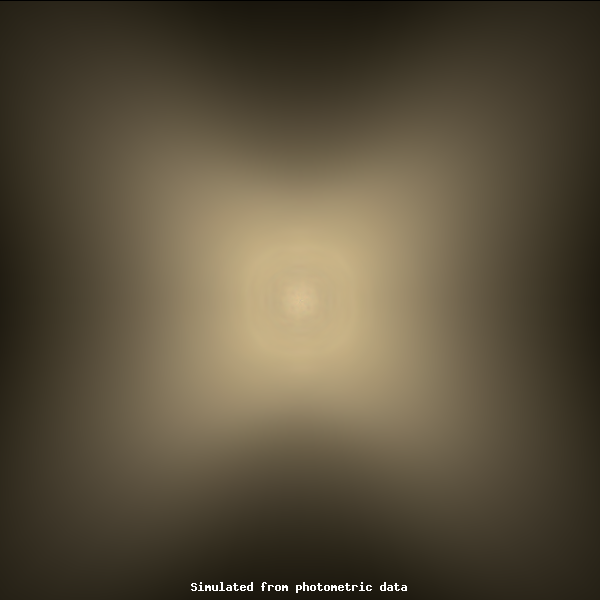

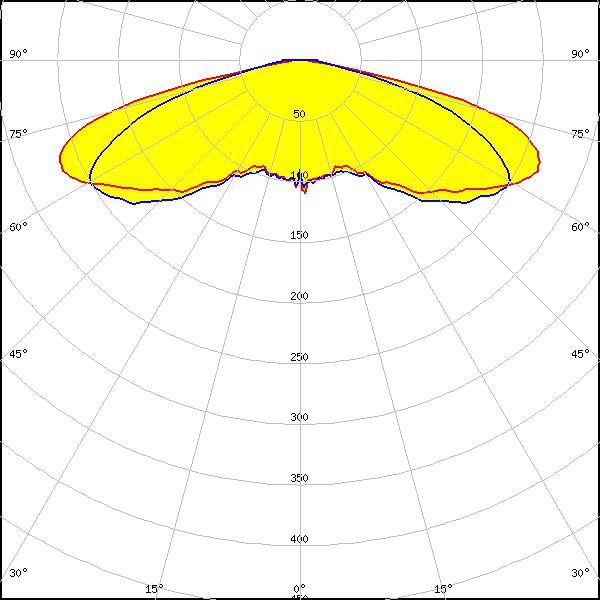

Seoul 5050 G-Series
FWHM:
154° + 148°
FWTM:
162° + 166°
Peak intensity:
0.326 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

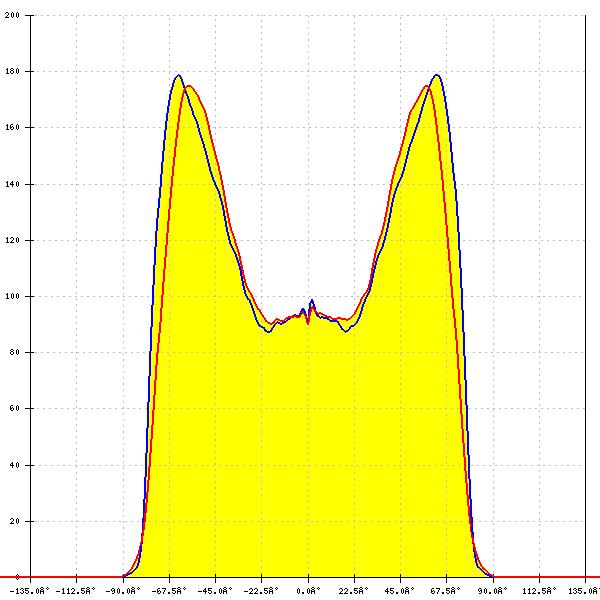

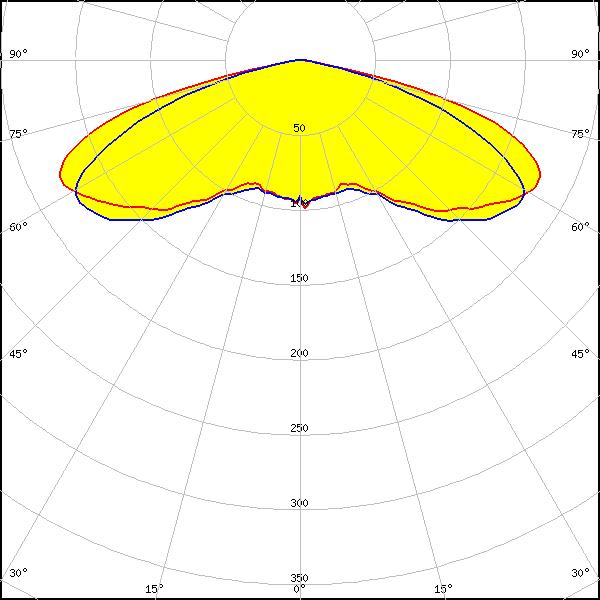

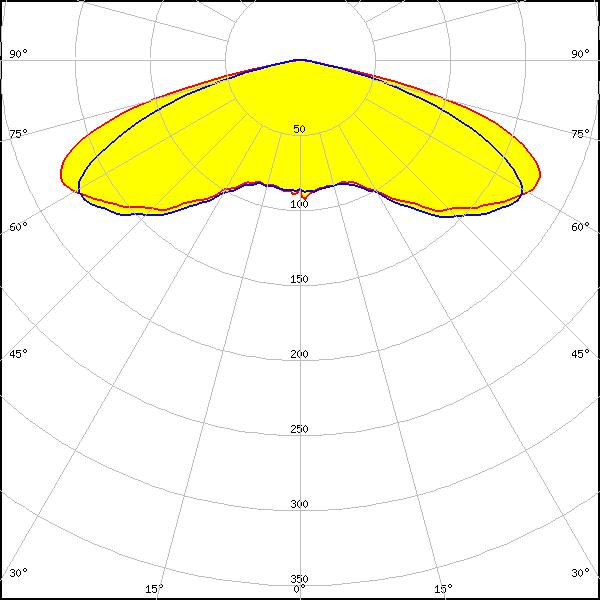

Seoul 5050 G-Series
FWHM:
152° + 144°
FWTM:
160° + 160°
Peak intensity:
0.231 cd/lm
Efficiency:
75 %
LEDs/each optic:
1
Light colour/type:
White
