CA11264_HEIDI-D
Print
~10° diffused spot beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:
XB-D
FWHM:
10°
FWTM:
22°
Peak intensity:
12.550 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XB-H
FWHM:
11°
FWTM:
25°
Peak intensity:
12.700 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

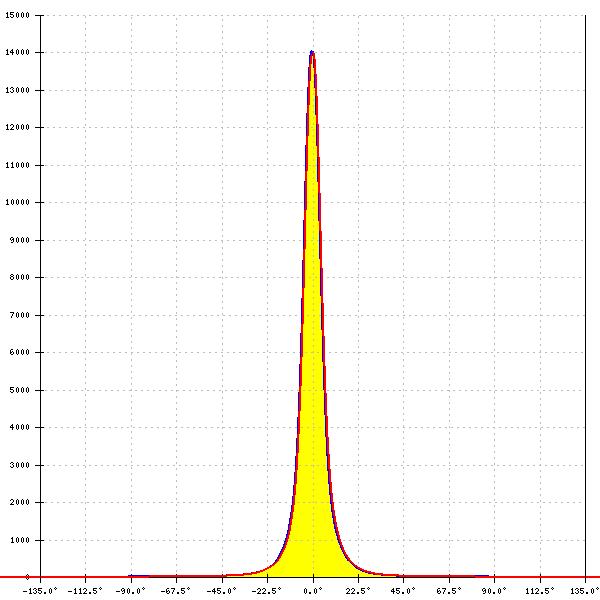

LED:

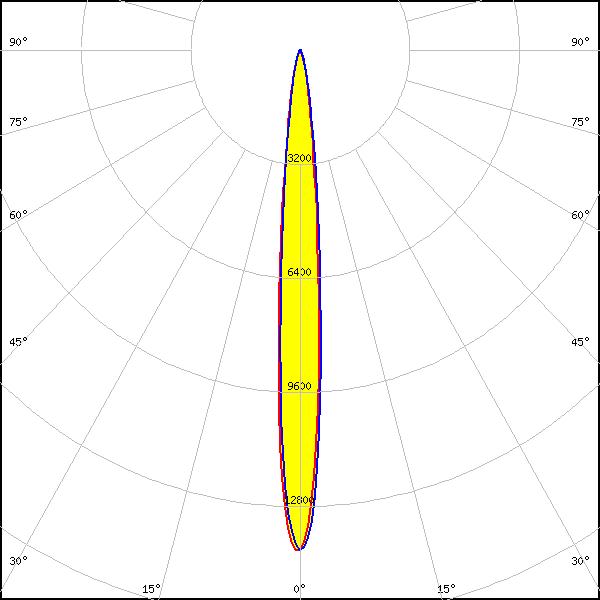

XD16
FWHM:
10°
FWTM:
22°
Peak intensity:
14.100 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-E
FWHM:
9°
FWTM:
18°
Peak intensity:
22.000 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

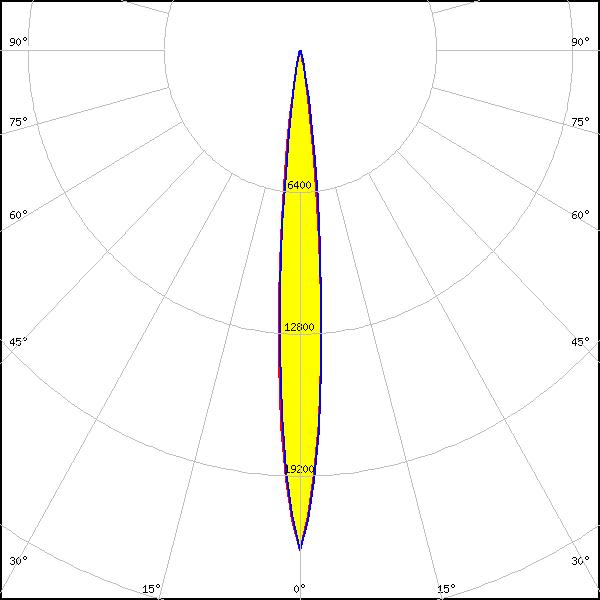

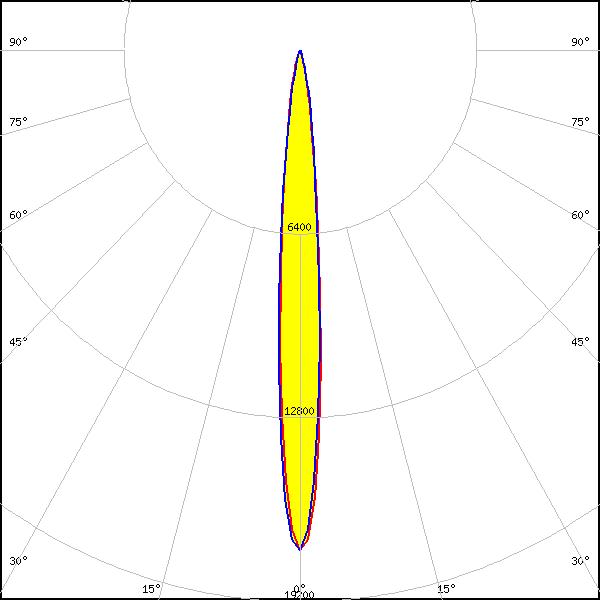

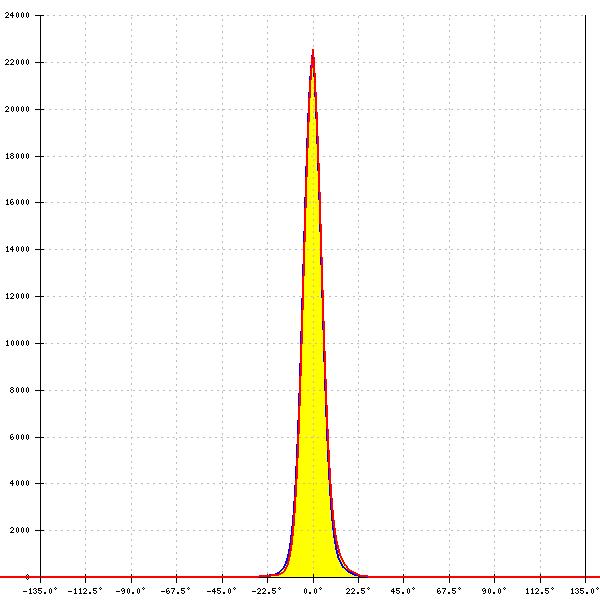

LED:
XP-E2
FWHM:
10°
FWTM:
20°
Peak intensity:
22.550 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
Green

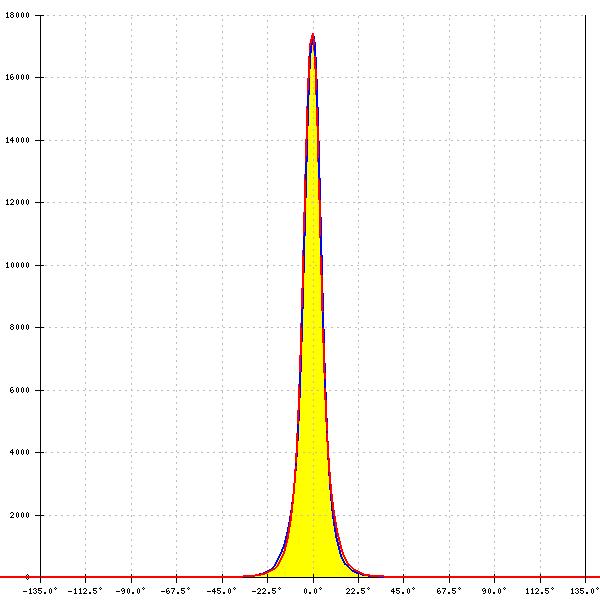

LED:
XP-E2
FWHM:
10°
FWTM:
23°
Peak intensity:
17.400 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

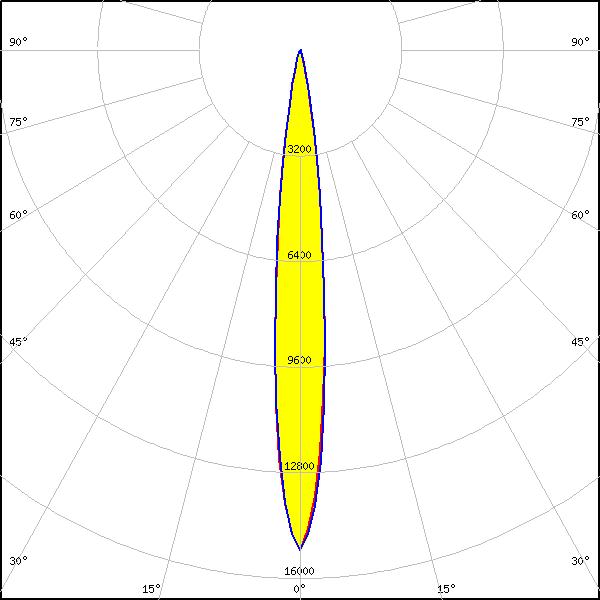

LED:
XP-G
FWHM:
12°
FWTM:
23°
Peak intensity:
14.500 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
FWHM:
11°
FWTM:
24°
Peak intensity:
15.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

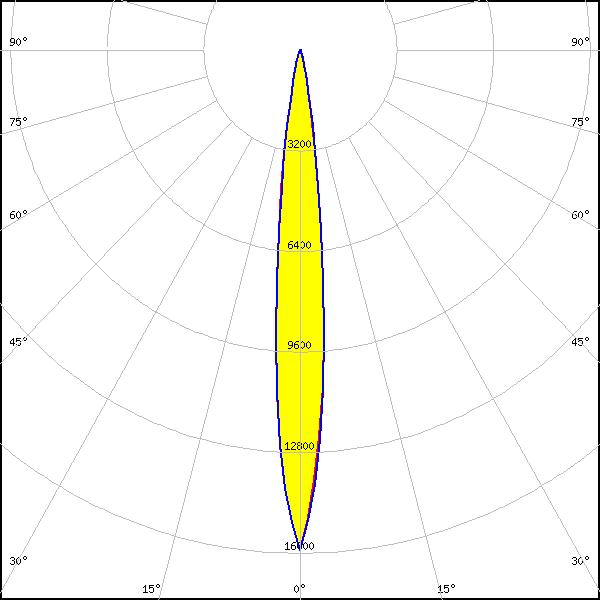

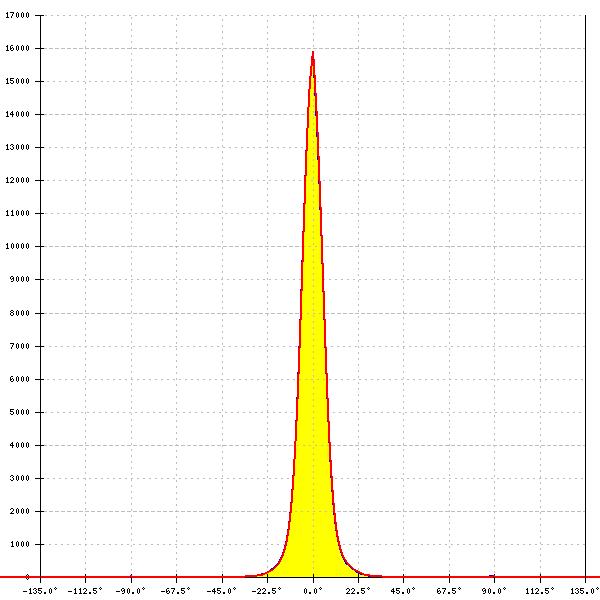

LED:
XP-L HI
FWHM:
12°
FWTM:
22°
Peak intensity:
15.913 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

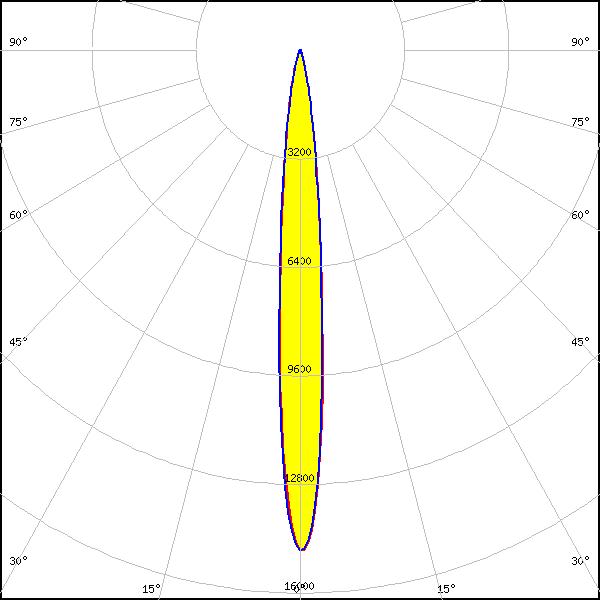

LED:

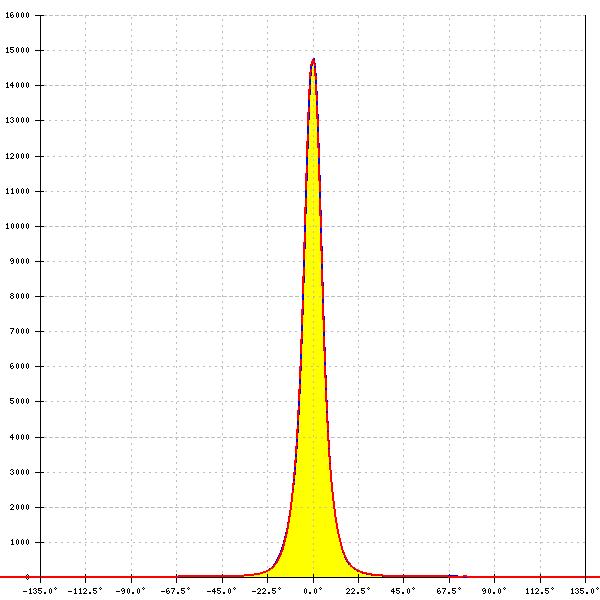

XQ-E HD
FWHM:
10°
FWTM:
24°
Peak intensity:
14.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

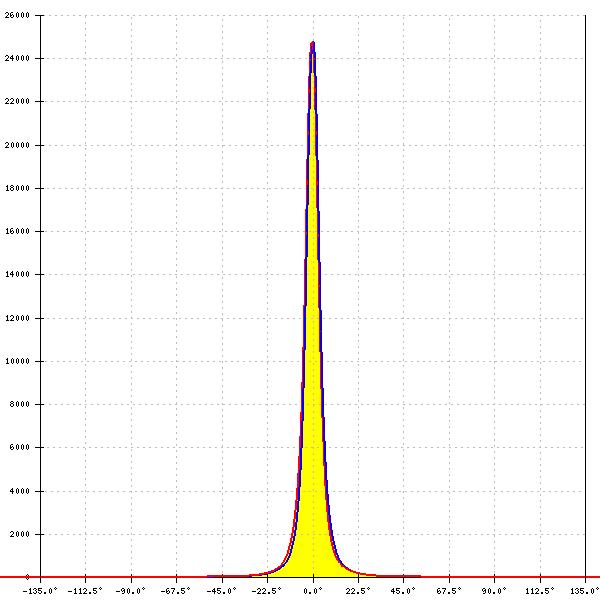

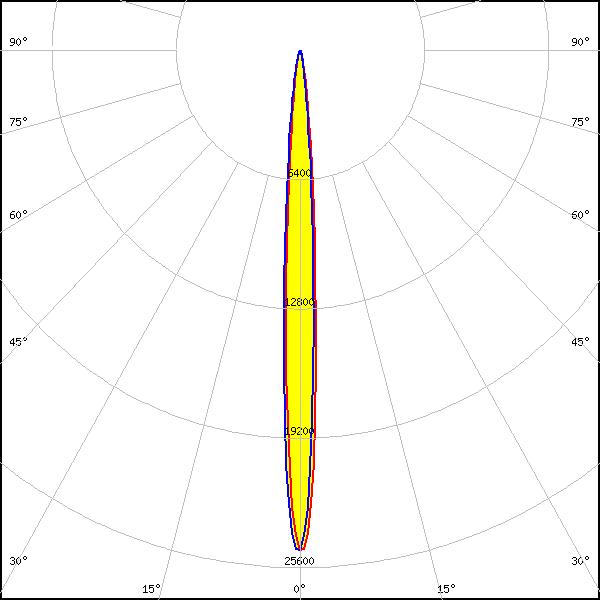

LED:
XQ-E HI
FWHM:
7°
FWTM:
17°
Peak intensity:
24.800 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

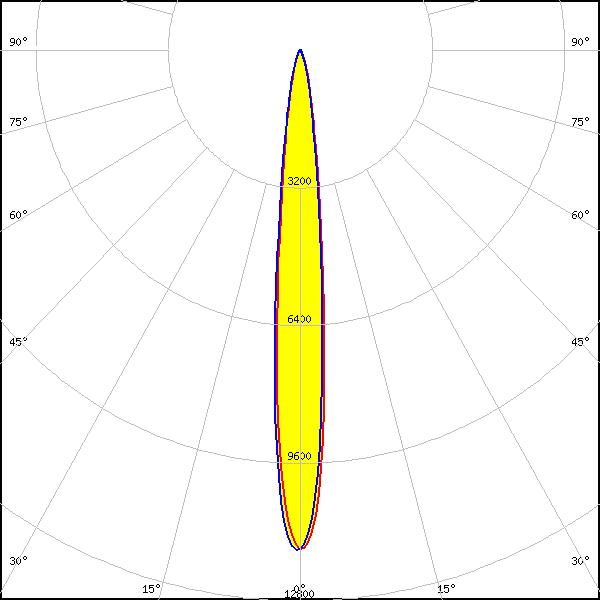

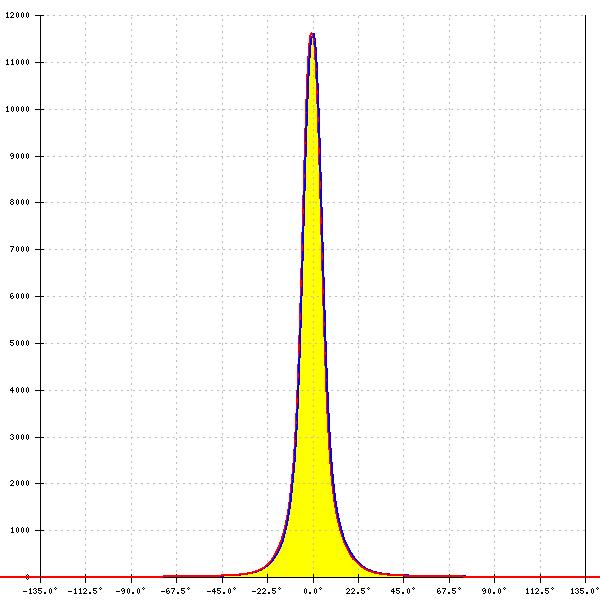

LED:
XT-E
FWHM:
11°
FWTM:
26°
Peak intensity:
11.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

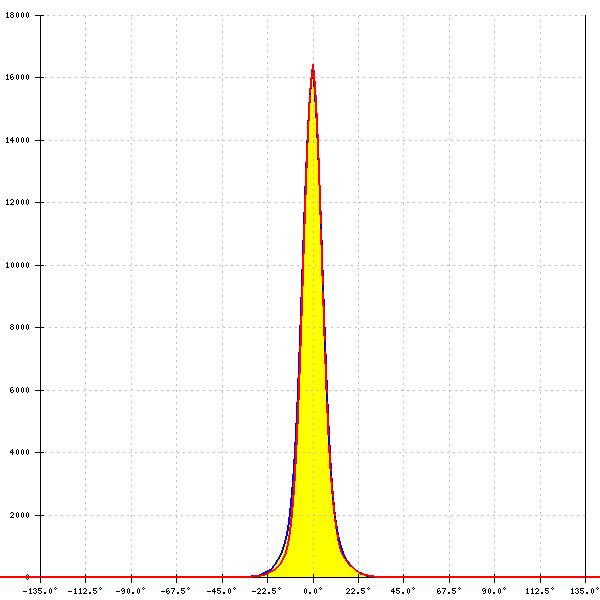

LED:

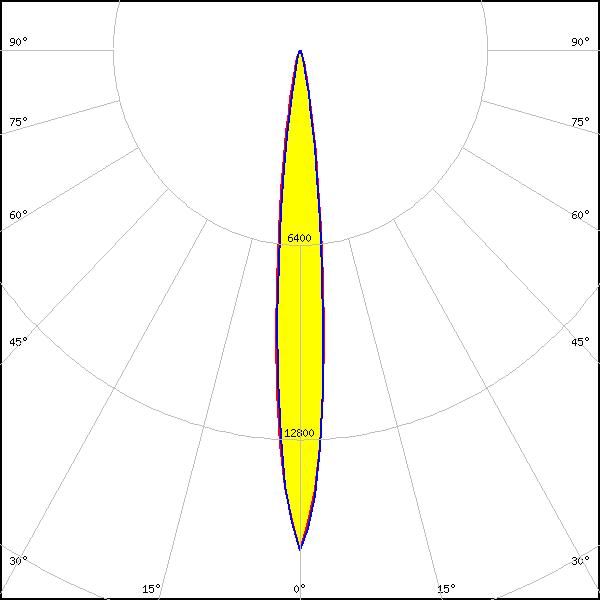

LUXEON 3030 HV
FWHM:
11°
FWTM:
23°
Peak intensity:
16.430 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

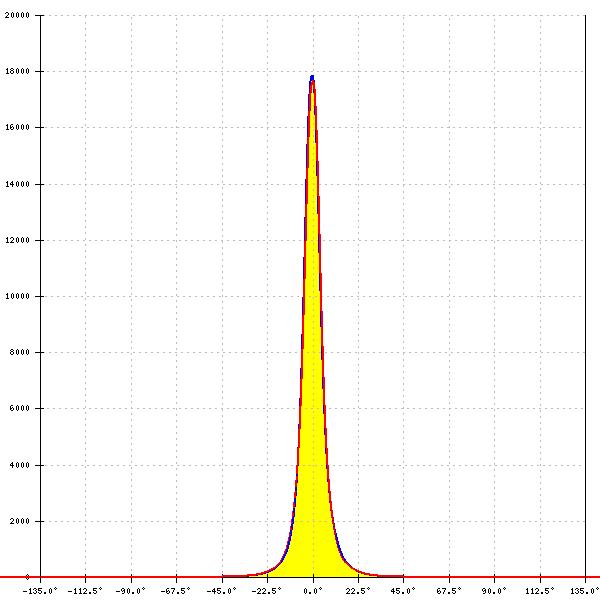

LED:

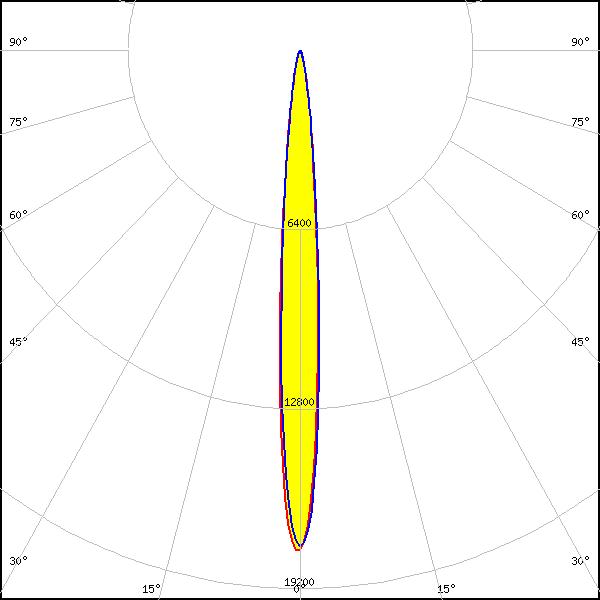

LUXEON C
FWHM:
9°
FWTM:
21°
Peak intensity:
17.800 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

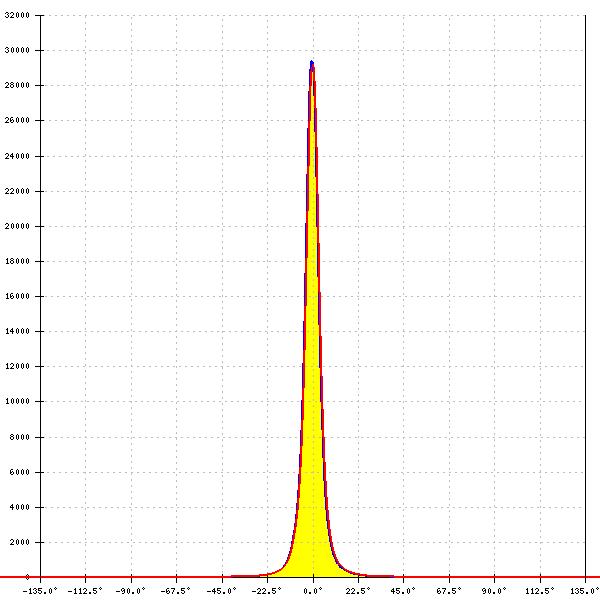

LED:

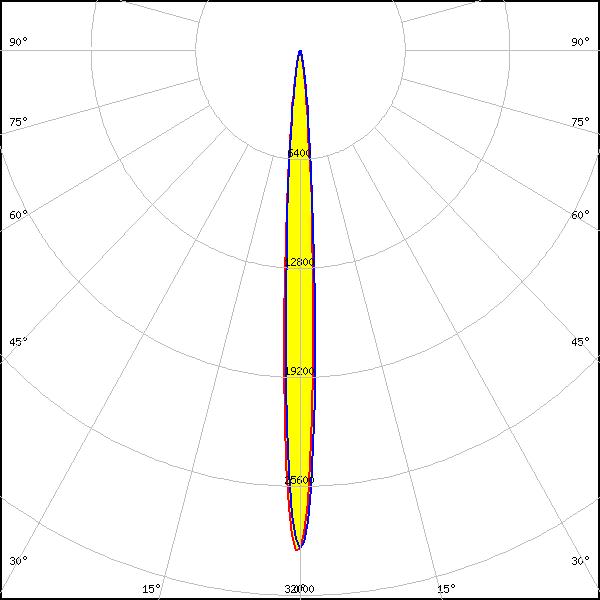

LUXEON CZ
FWHM:
7°
FWTM:
16°
Peak intensity:
29.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

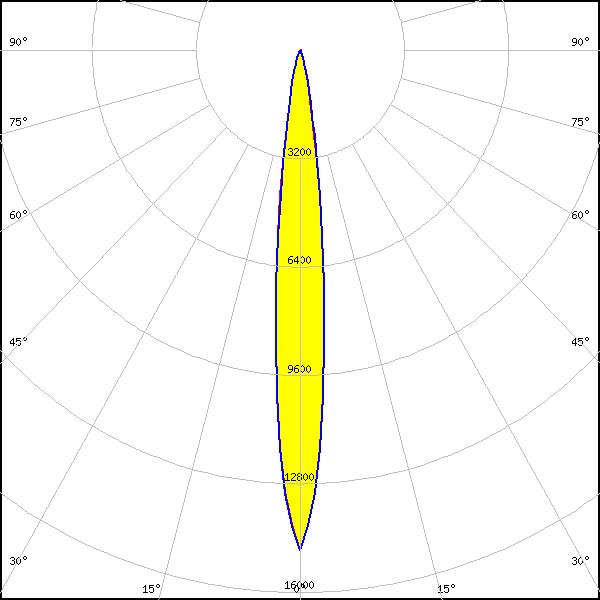

LED:

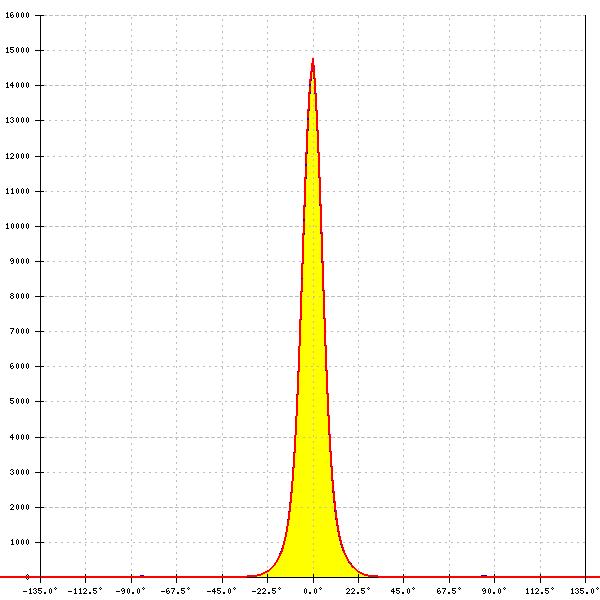

LUXEON HL2Z
FWHM:
12°
FWTM:
24°
Peak intensity:
14.763 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

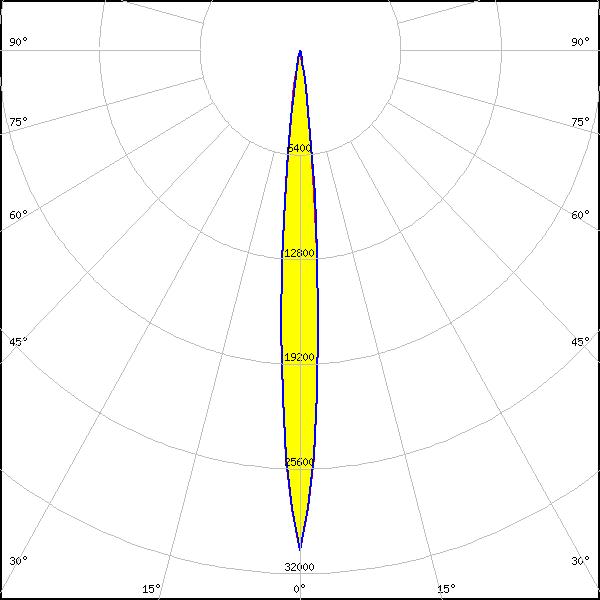

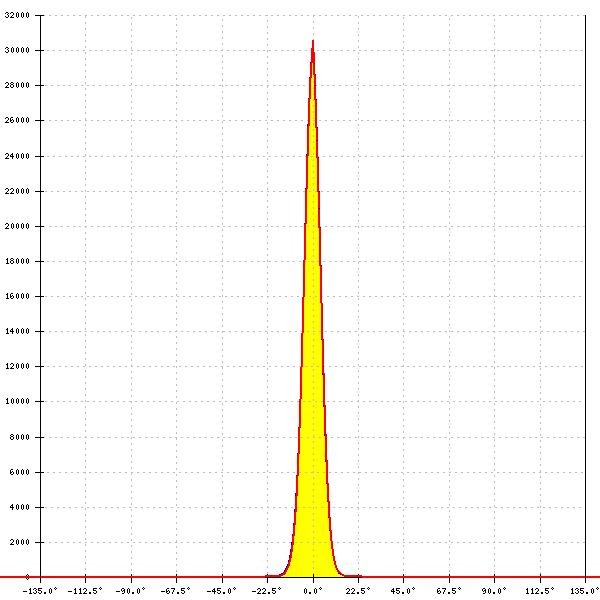

LED:
LUXEON Rubix
FWHM:
8°
FWTM:
18°
Peak intensity:
30.580 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
Red

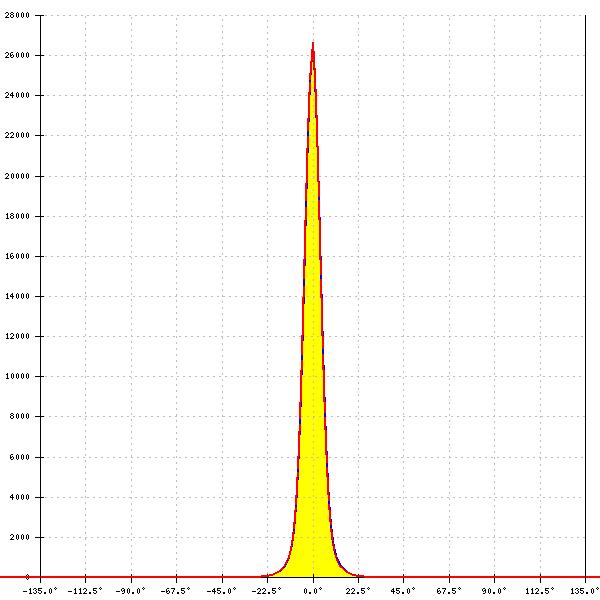

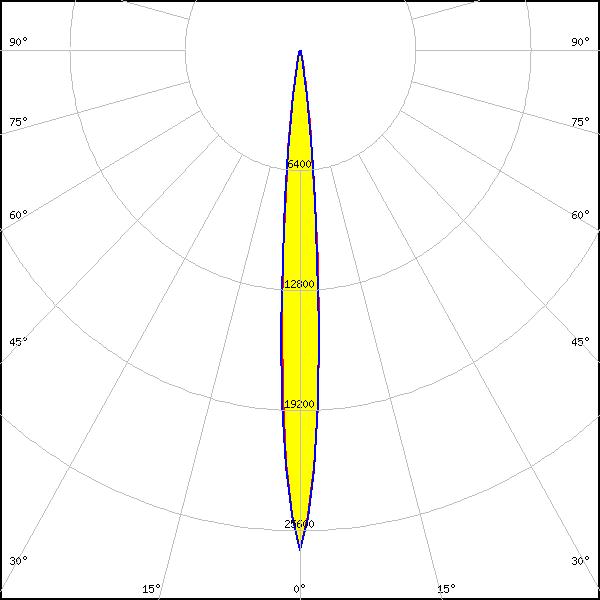

LED:
LUXEON SunPlus 20 Line (120 deg)
FWHM:
8°
FWTM:
18°
Peak intensity:
26.651 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

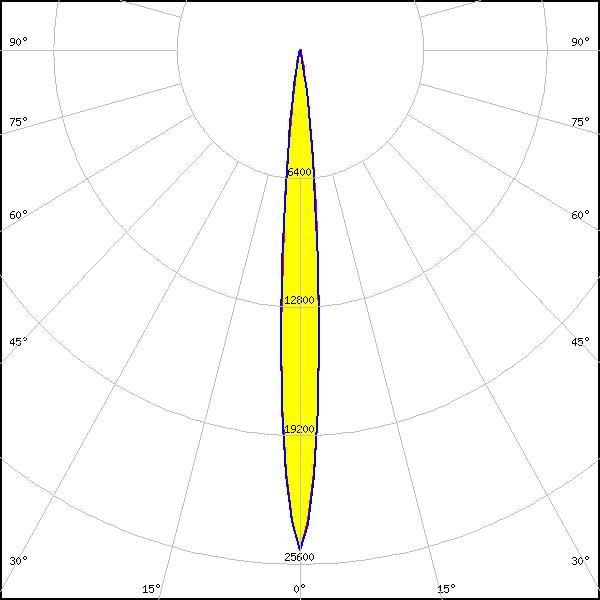

LED:
LUXEON SunPlus 20 Line (150 deg)
FWHM:
8°
FWTM:
18°
Peak intensity:
24.913 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

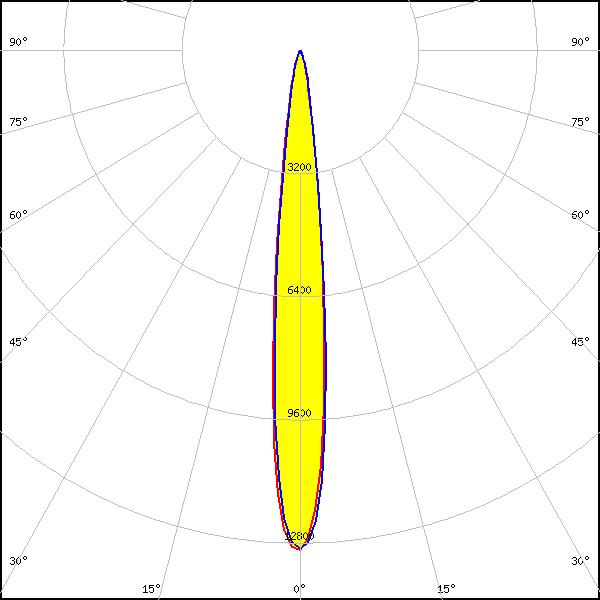

LED:
LUXEON T
FWHM:
12°
FWTM:
25°
Peak intensity:
11.500 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

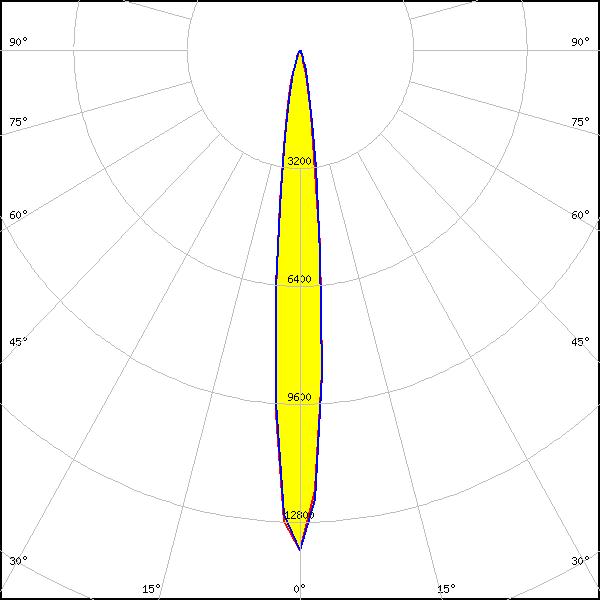

LED:

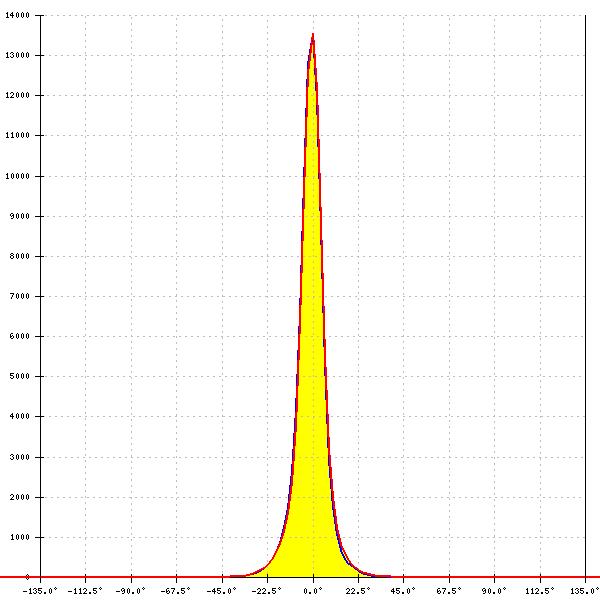

LUXEON TX
FWHM:
12°
FWTM:
25°
Peak intensity:
13.600 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

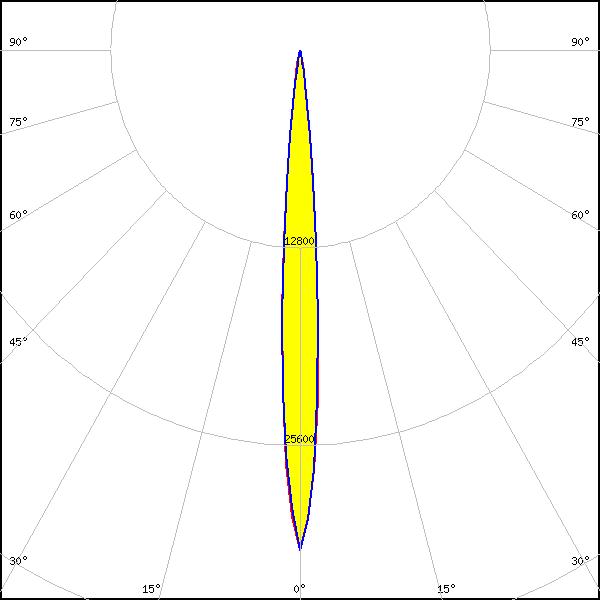

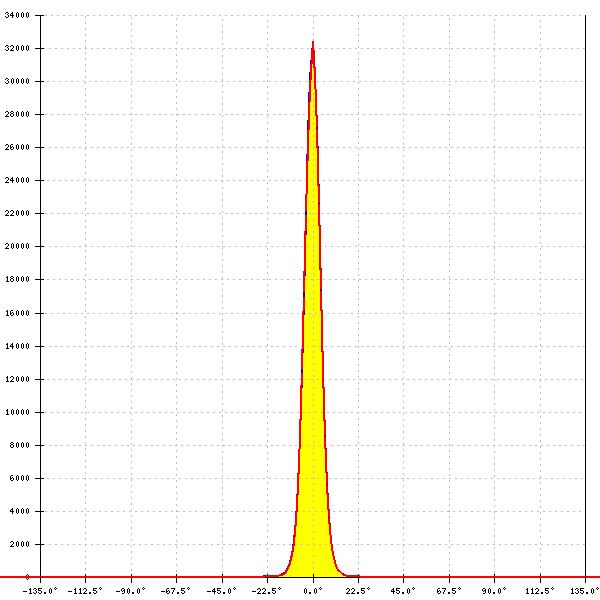

LED:
LUXEON Z
FWHM:
9°
FWTM:
17°
Peak intensity:
32.403 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

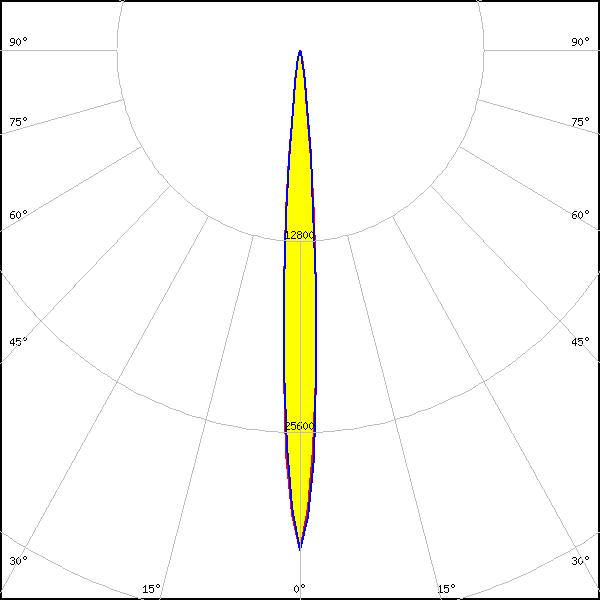

LED:

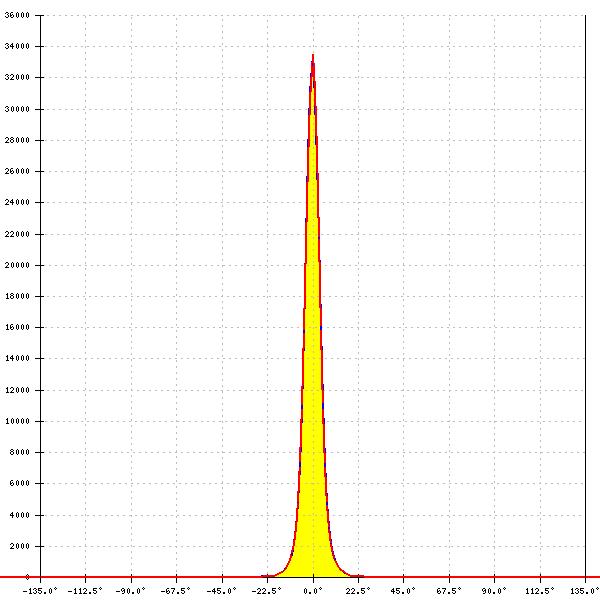

LUXEON Z ES
FWHM:
8°
FWTM:
16°
Peak intensity:
33.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

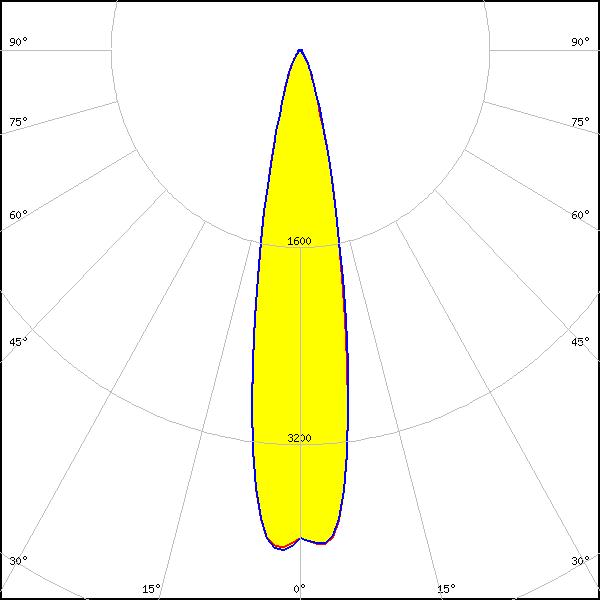

LED:
NCSxE17A
FWHM:
22°
FWTM:
42°
Peak intensity:
4.075 cd/lm
Efficiency:
93 %
LEDs/each optic:
4
Light colour/type:
White
LED:
NCSxx19A
FWHM:
9°
FWTM:
23°
Peak intensity:
11.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

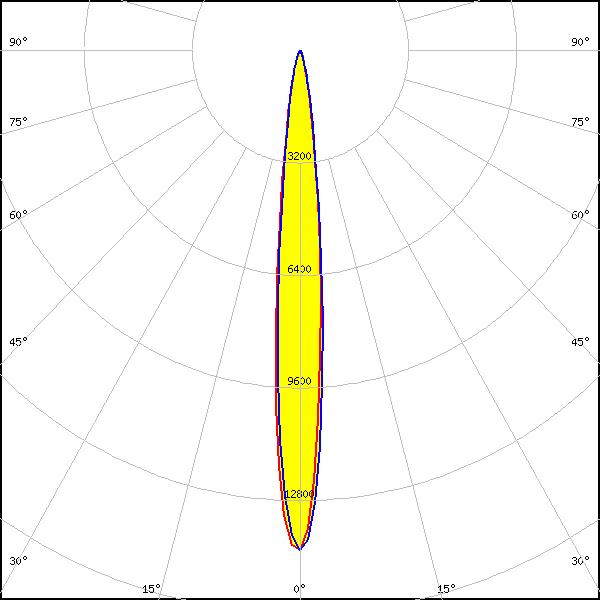

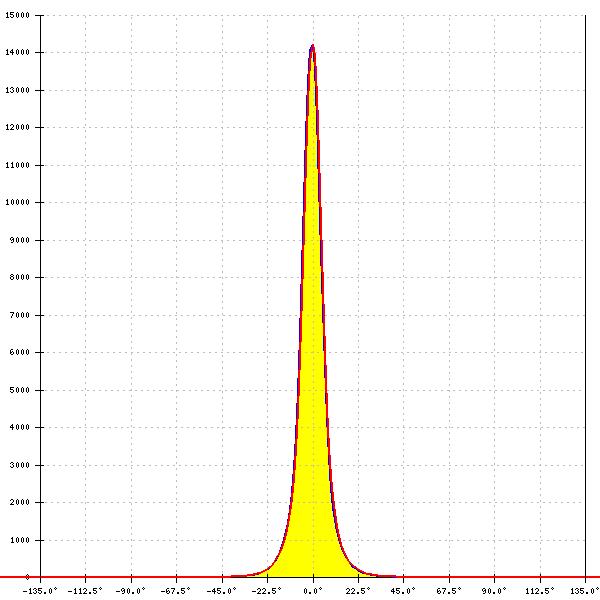

LED:
NCSxx19B
FWHM:
11°
FWTM:
25°
Peak intensity:
14.200 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19A
FWHM:
12°
FWTM:
29°
Peak intensity:
8.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

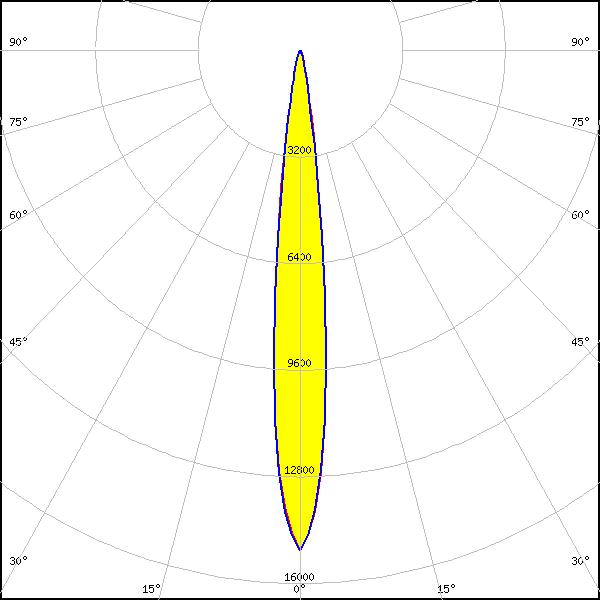

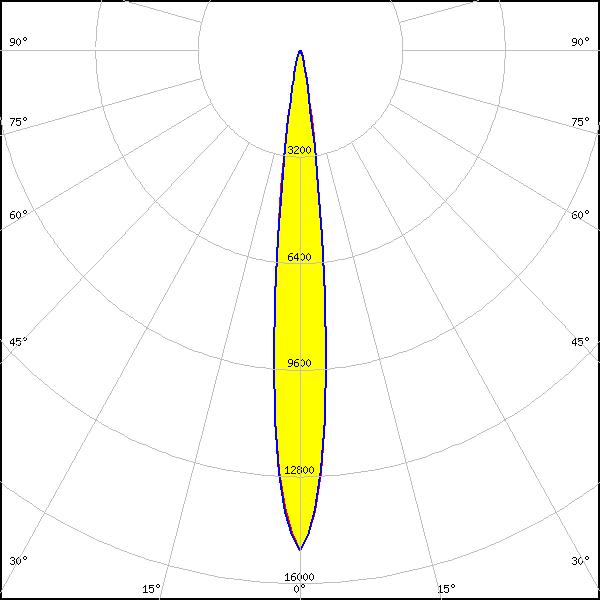

LED:
NVSxx19B/NVSxx19C
FWHM:
12°
FWTM:
22°
Peak intensity:
15.005 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM:
14°
FWTM:
30°
Peak intensity:
10.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

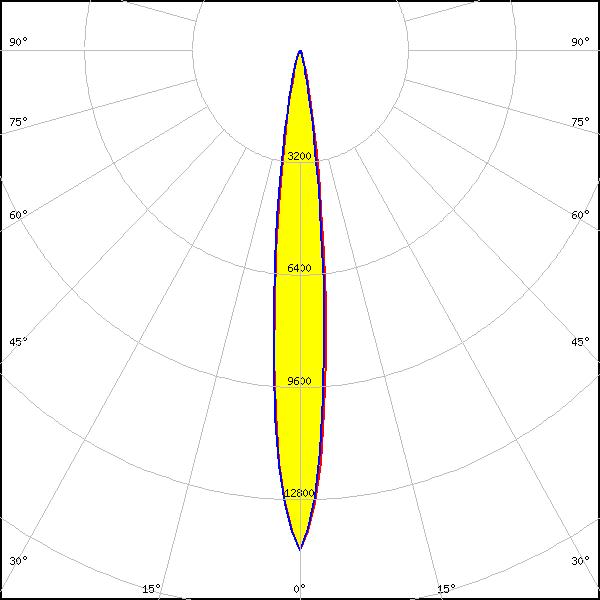

LED:
DURIS S5 (Single chip)
FWHM:
12°
FWTM:
24°
Peak intensity:
14.241 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

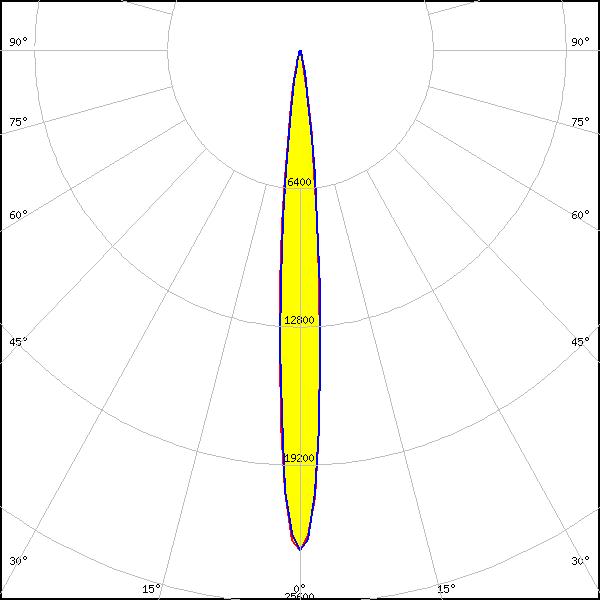

LED:

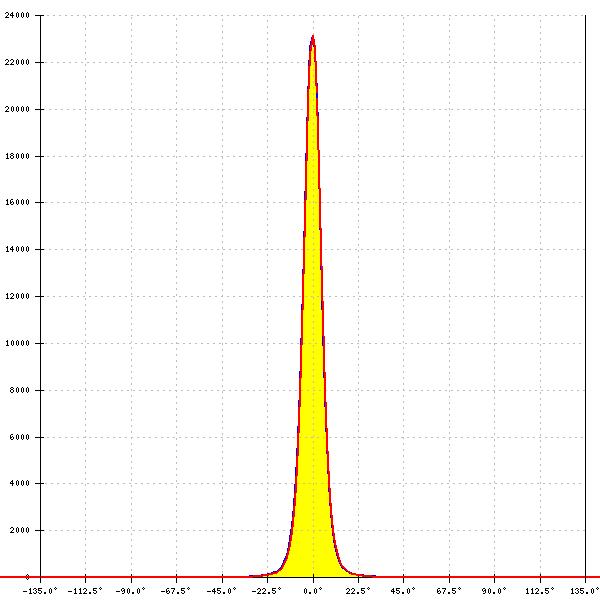

OSCONIQ P 3030
FWHM:
9°
FWTM:
20°
Peak intensity:
23.134 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

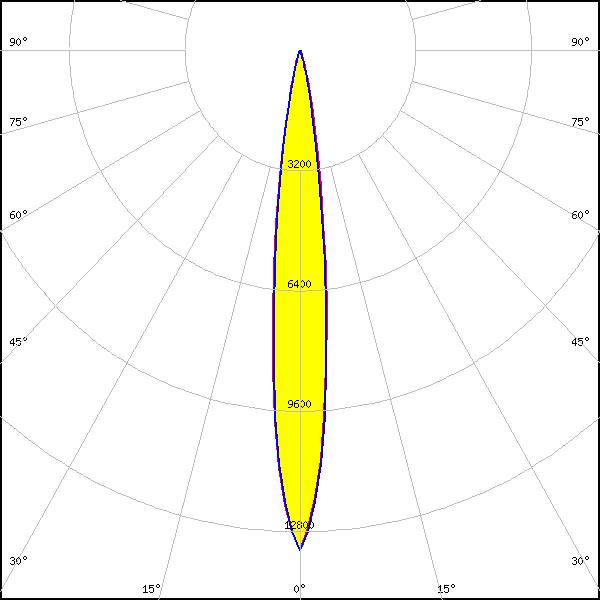

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
13°
FWTM:
26°
Peak intensity:
13.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square EC
FWHM:
10°
FWTM:
22°
Peak intensity:
12.900 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

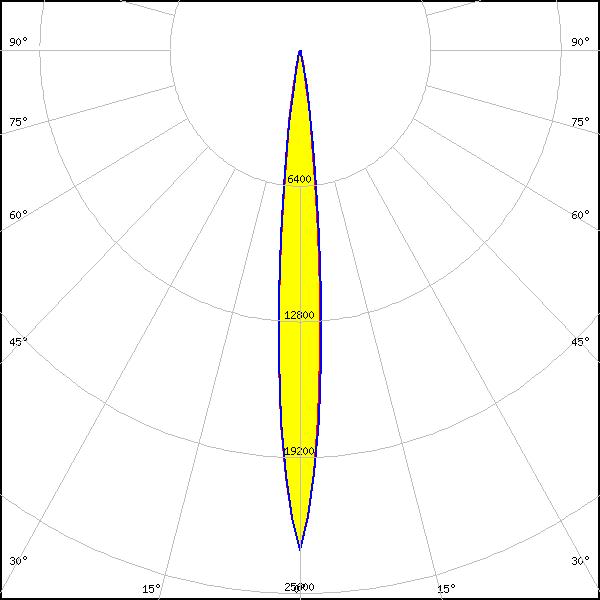

OSLON SSL 150
FWHM:
10°
FWTM:
20°
Peak intensity:
23.571 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

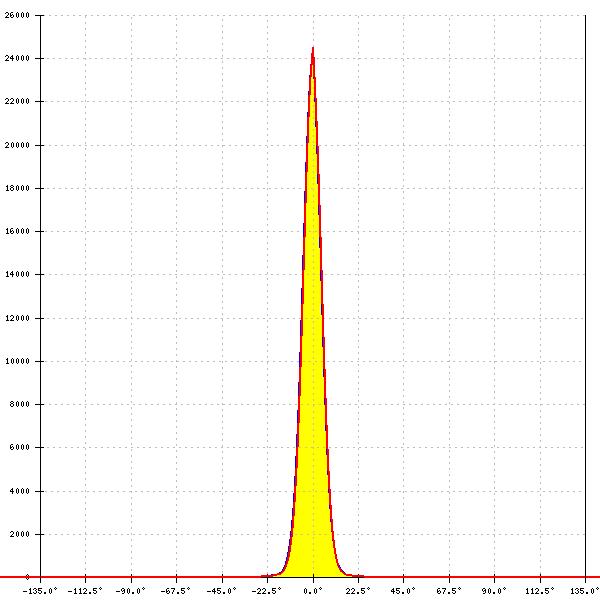

LED:
OSLON SSL 150
FWHM:
10°
FWTM:
19°
Peak intensity:
24.504 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
Red
LED:
OSLON SSL 150
FWHM:
9°
FWTM:
22°
Peak intensity:
15.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

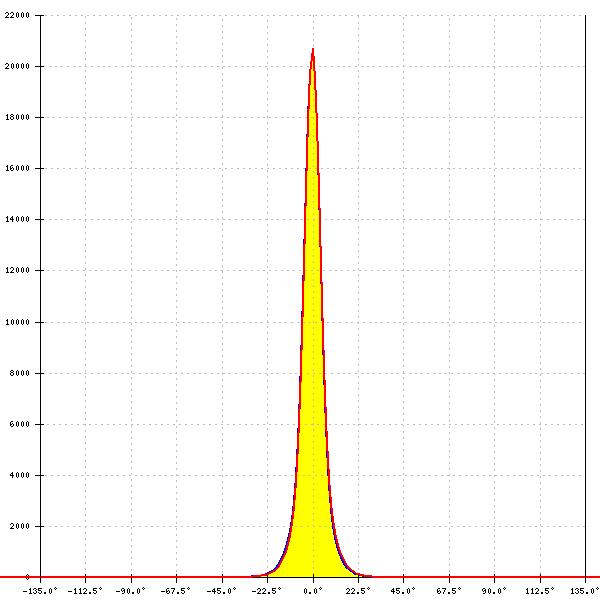

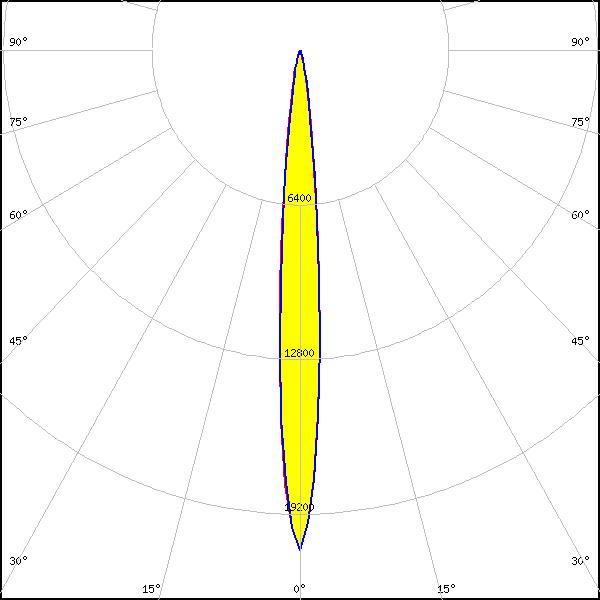

LED:
OSLON SSL 80
FWHM:
9°
FWTM:
21°
Peak intensity:
20.070 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SFH 4170S
FWHM:
9°
FWTM:
17°
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
IR

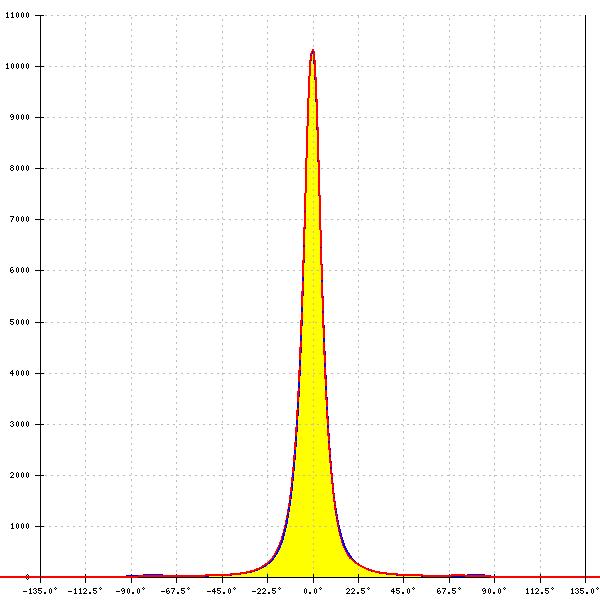

LED:

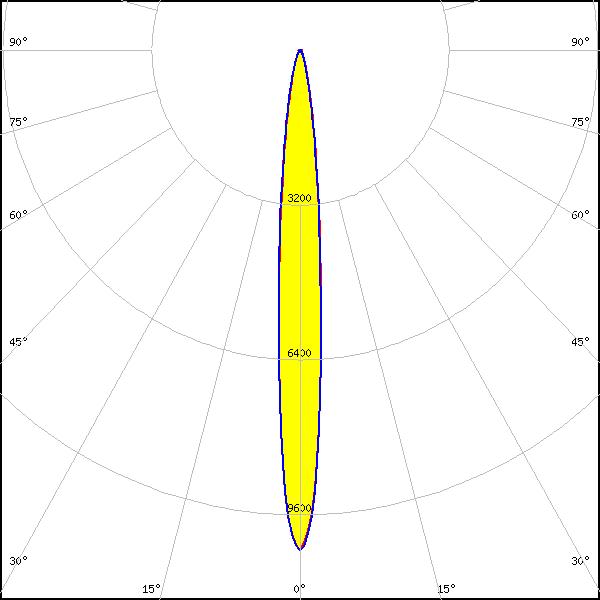

LH181A
FWHM:
10°
FWTM:
26°
Peak intensity:
10.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

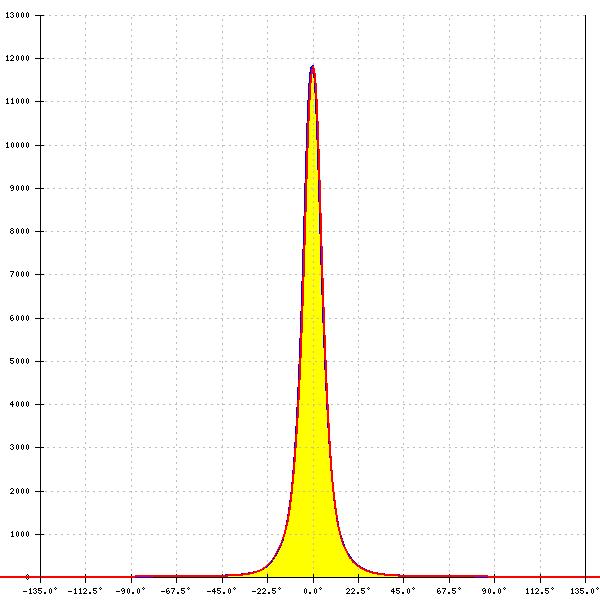

LED:

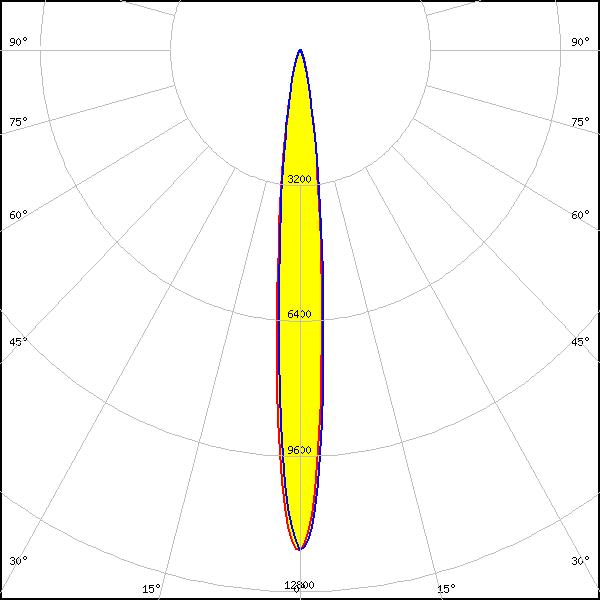

LH181B
FWHM:
11°
FWTM:
25°
Peak intensity:
11.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

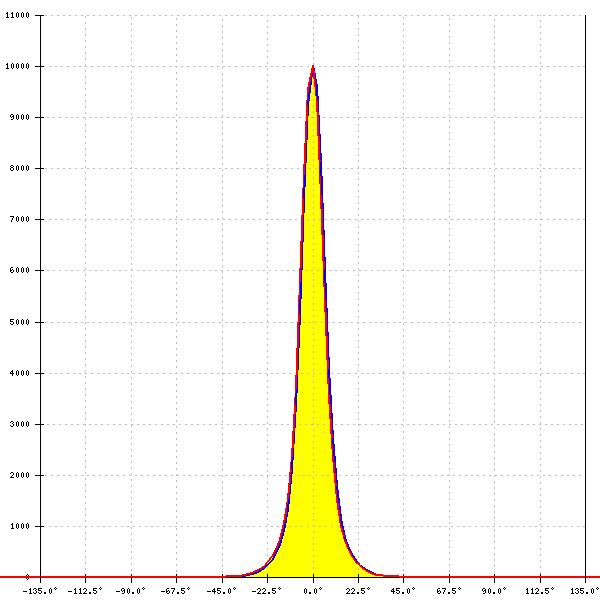

LH351B
FWHM:
14°
FWTM:
29°
Peak intensity:
10.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

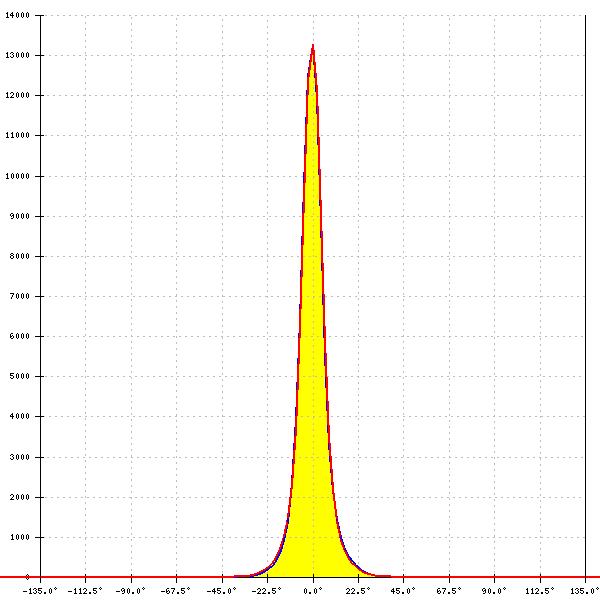

LED:

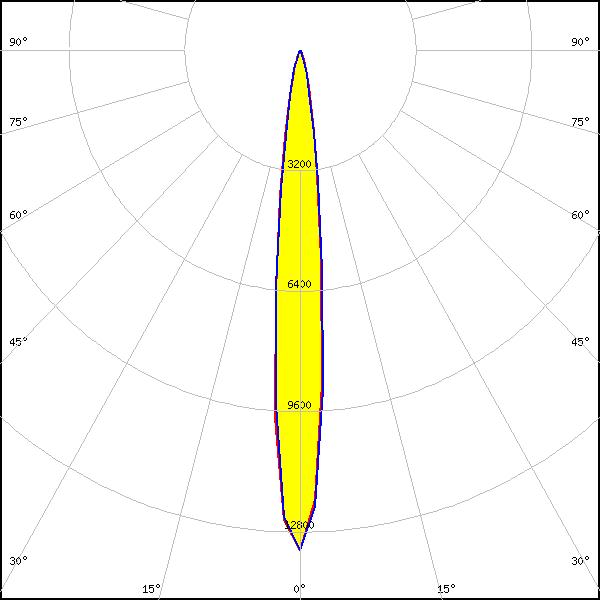

LH351Z
FWHM:
12°
FWTM:
26°
Peak intensity:
13.300 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5
FWHM:
8°
FWTM:
20°
Peak intensity:
22.300 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

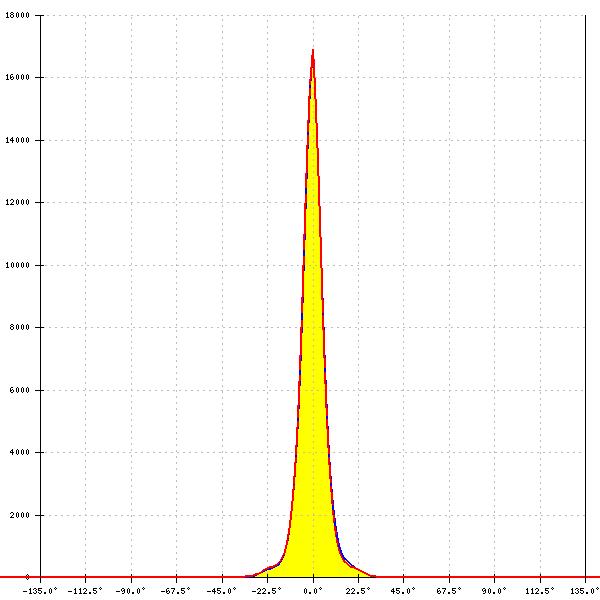

LED:

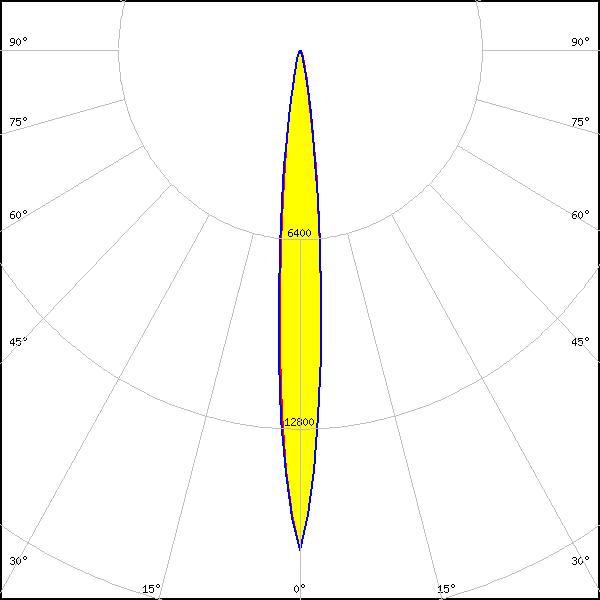

Z5M1/Z5M2
FWHM:
10°
FWTM:
22°
Peak intensity:
17.000 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Double Dome (GM2BB)
LEDs/each optic:
1
Light colour/type:
White
