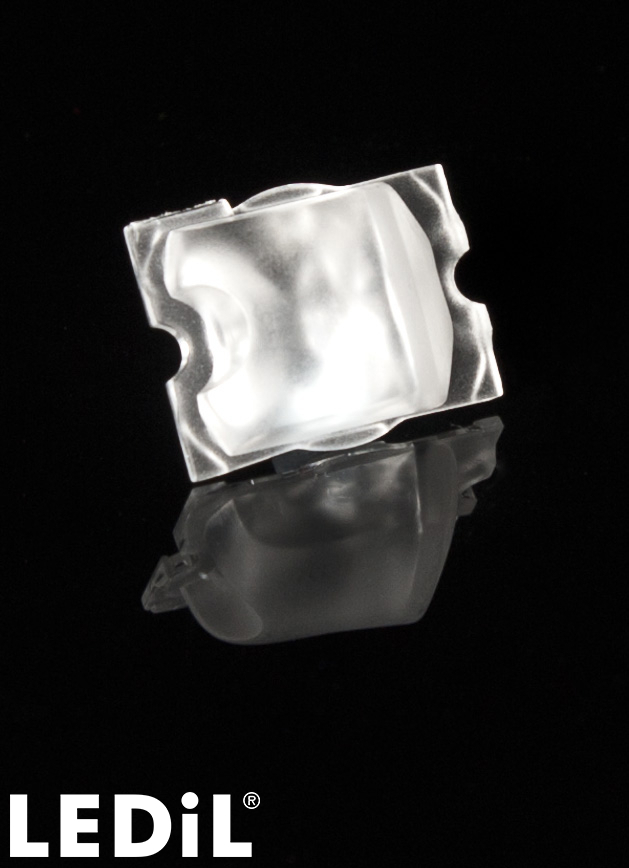

CA13477_STRADA-FT

Forward throw beam for area lighting. Assembly with installation tape.

Specification

Dimensions:

20 x 16 mm
Height:

8.30 mm
Fastening:

tape, pin, screw
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

STRADA-FT
Single lens
PMMA
VOSU-WU-M-365-TAPE
Tape
Acryl tape
Request material files from Tech Support

Ordering information

Quantity in box:

3600 pcs
Box size:

451 x 254 x 197 mm
Box weight:

5.5 kg
MPQ:

240 pcs
MOQ:

240 pcs
MOQ size:

480 x 280 x 20 mm
MOQ weight:

0.7 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
3D mechanical model

Request a 3D mechanical model: CA13477_STRADA-FT

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

CA13477_STRADA-FT

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

News

PRODUCT NEWS - STRADA-F SERIES

Application example

ME4a with STRADA-FT and STRADA-FW

PCN

Product change notification NR101.a - Change of packaging quantities 290115

Application example

Parking lot lighting with STRADA-FT

Application example

Freeway lighting with STRADA-FT and -FW

Application area

Tunnel and Transportation Lighting

Application guide

Guide for Urban lighting optics

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Application guide

Street lighting optics - 2020_v.1.1_WEB

Application area

Architectural Outdoor Lighting

Application area

Area and Car Park Lighting

Application area

Street Lighting

Application area

Indoor Architectural Lighting

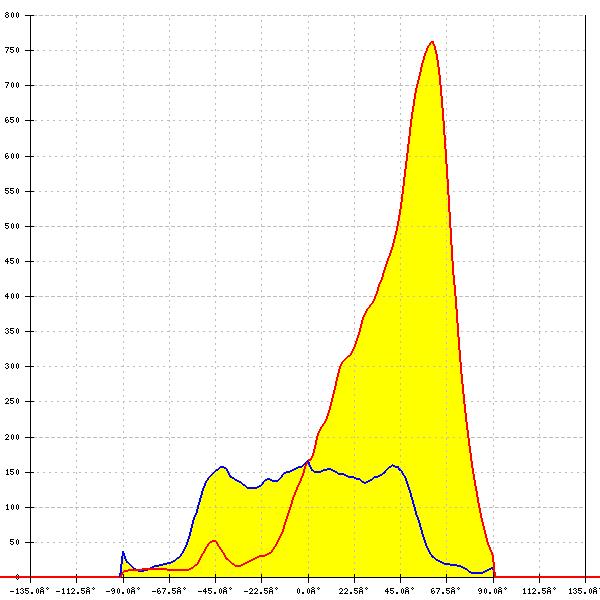

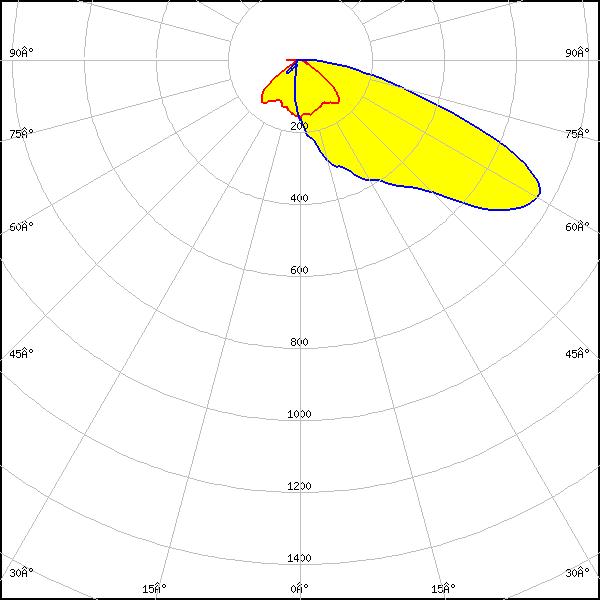

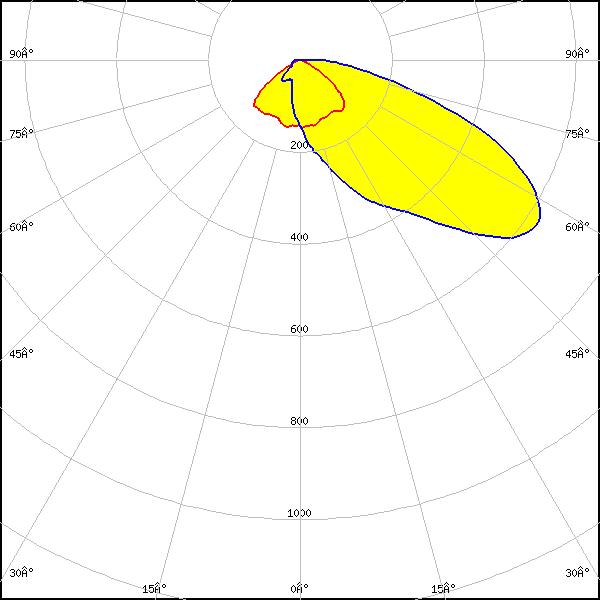

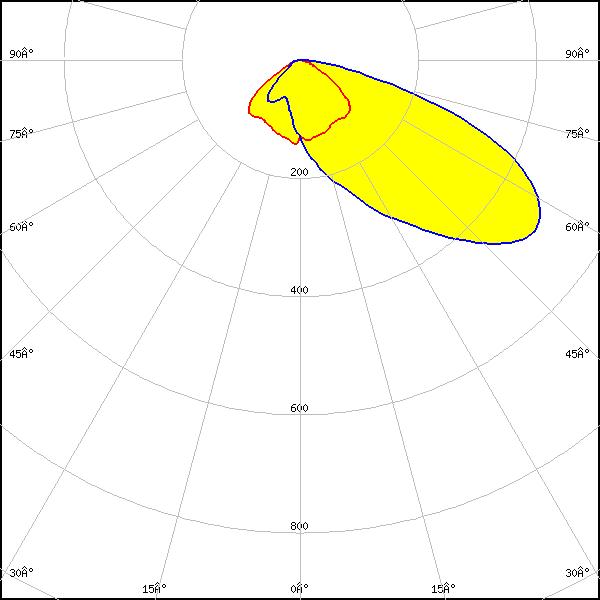

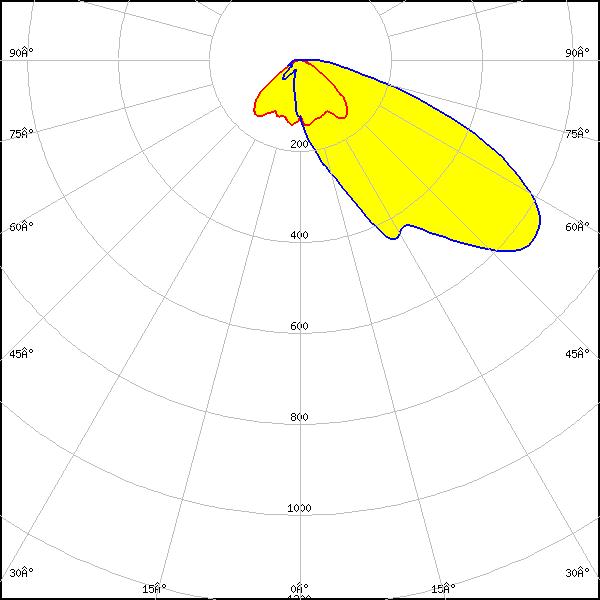

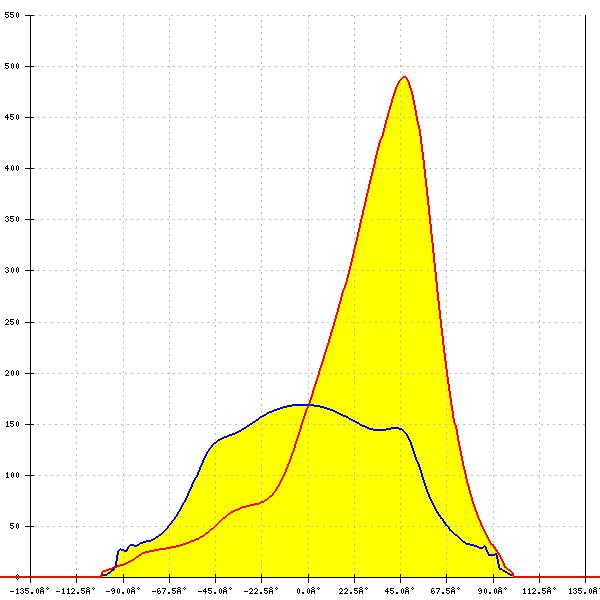

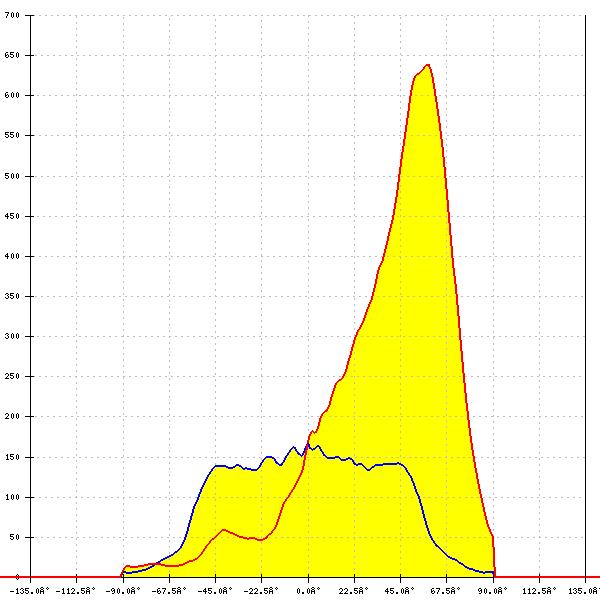

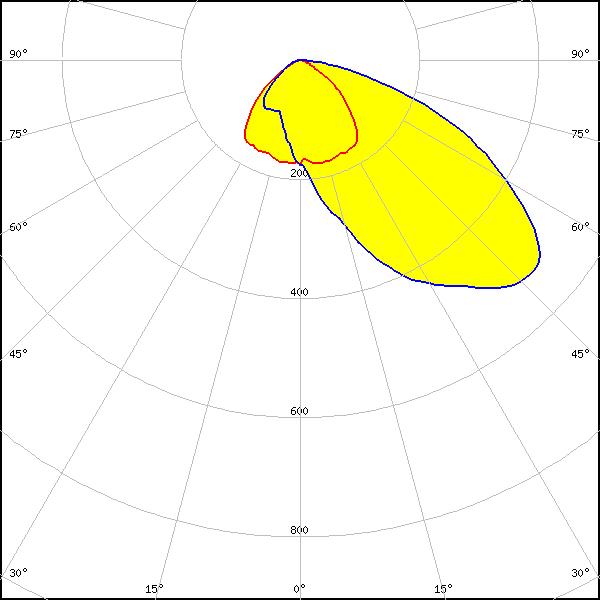

Optical results

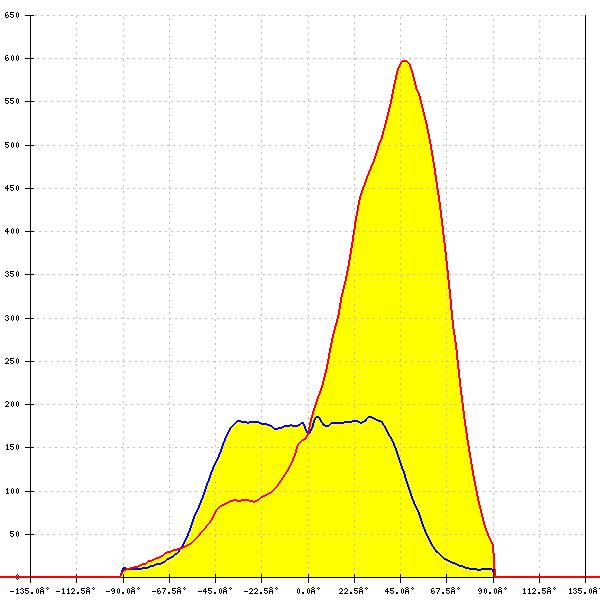

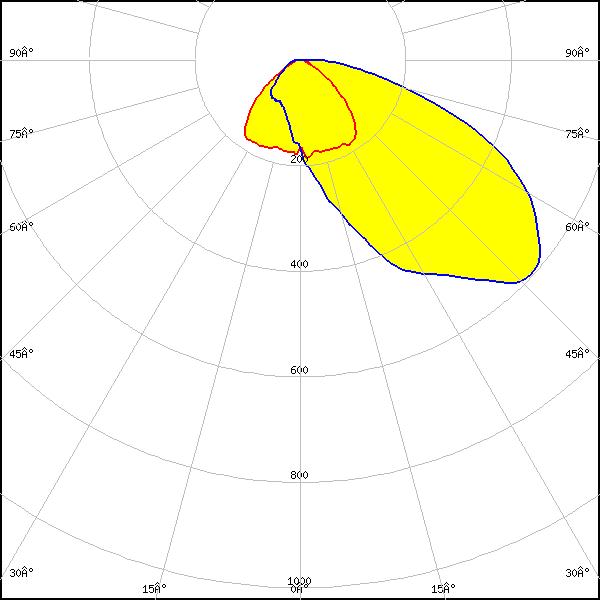

LED: J Series 5050C 6V E Class

FWHM: asymmetric

Peak intensity: 0.597 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

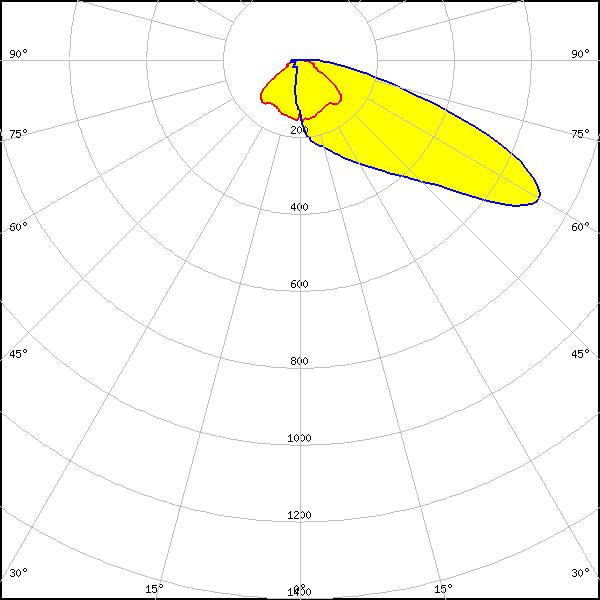

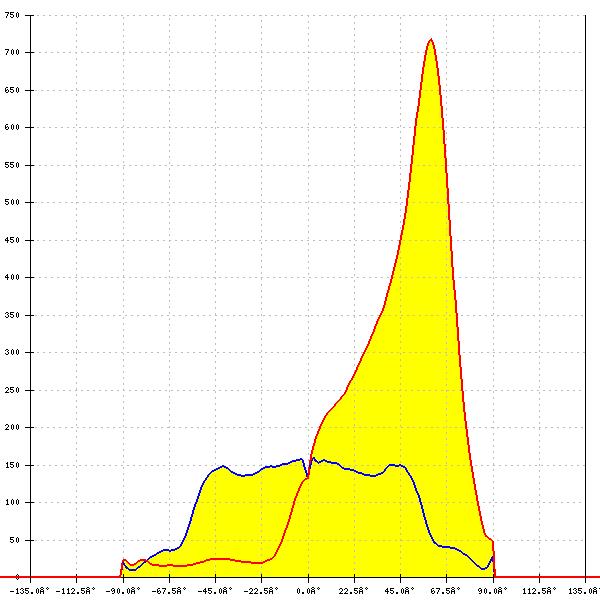

LED: XE-G

FWHM: asymmetric

Peak intensity: 0.816 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

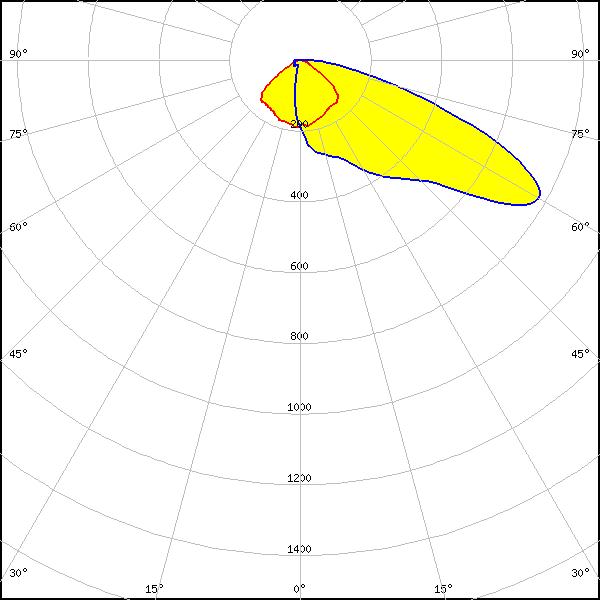

LED: XP-E2

FWHM: asymmetric

Peak intensity: 0.816 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: XP-G2

FWHM: asymmetric

Peak intensity: 0.700 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

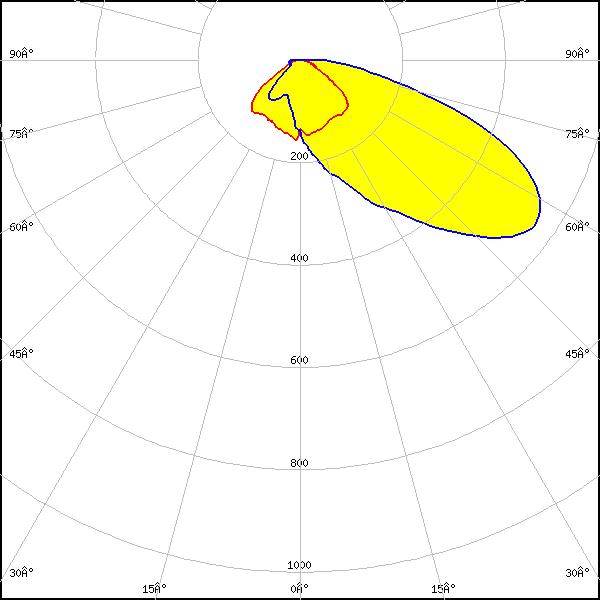

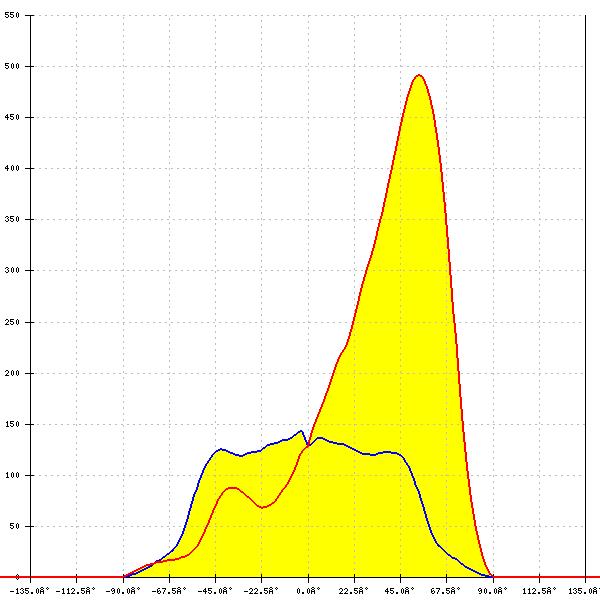

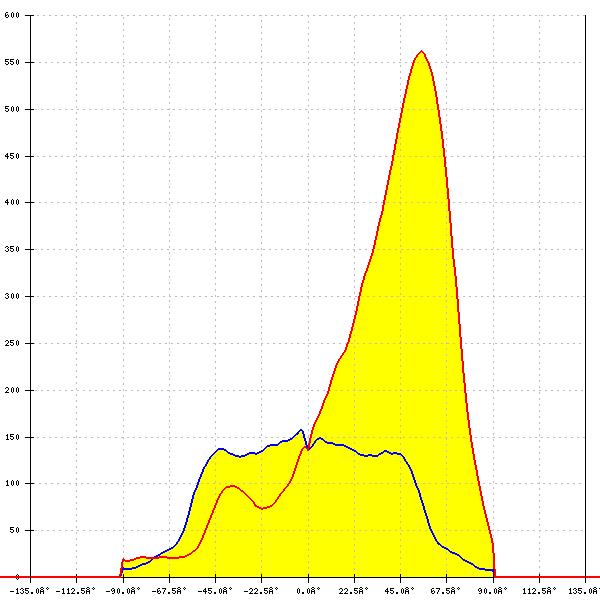

LED: XP-G3

FWHM: asymmetric

Peak intensity: 0.619 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: XP-G3

FWHM: asymmetric

Peak intensity: 0.491 cd/lm

Efficiency: 74 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

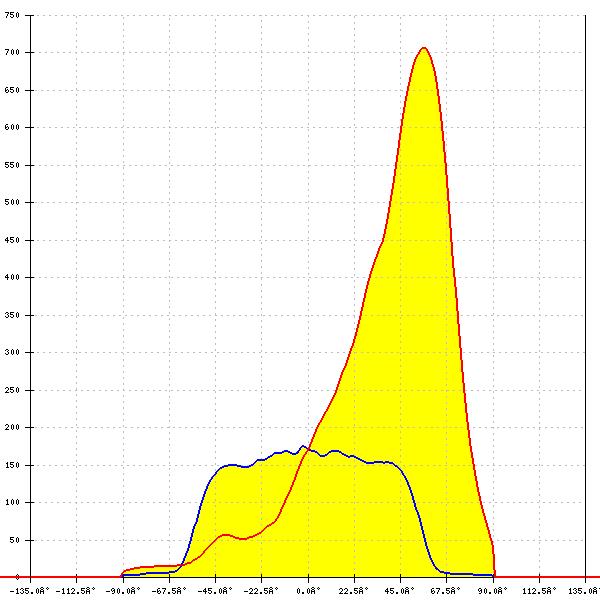

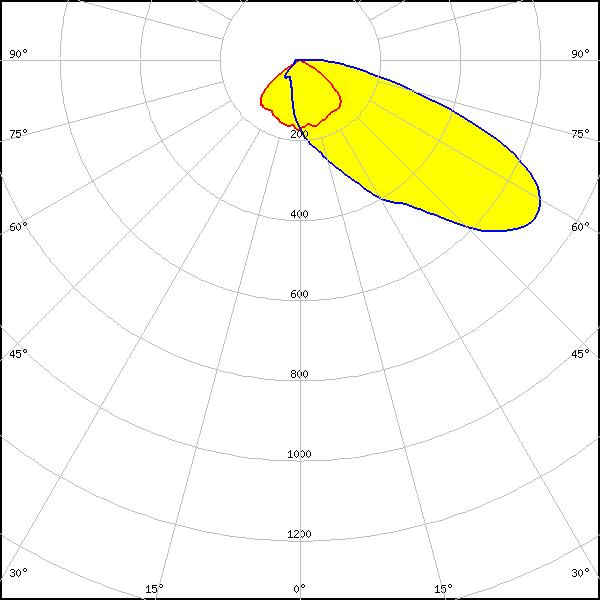

LED: XP-G4

FWHM: asymmetric

Peak intensity: 0.707 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

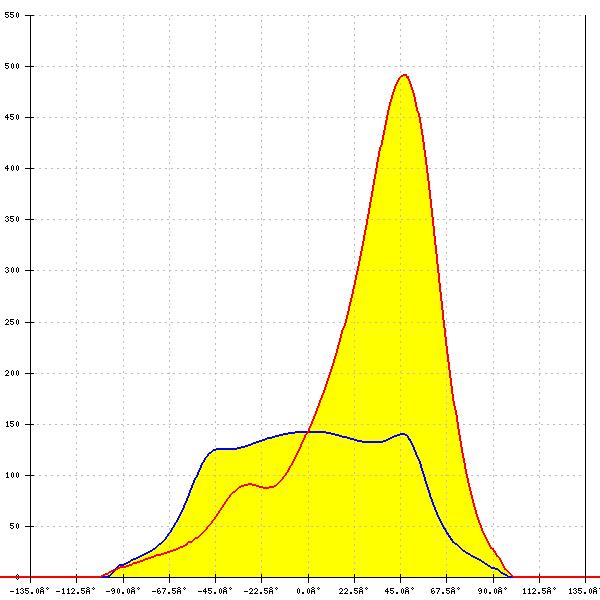

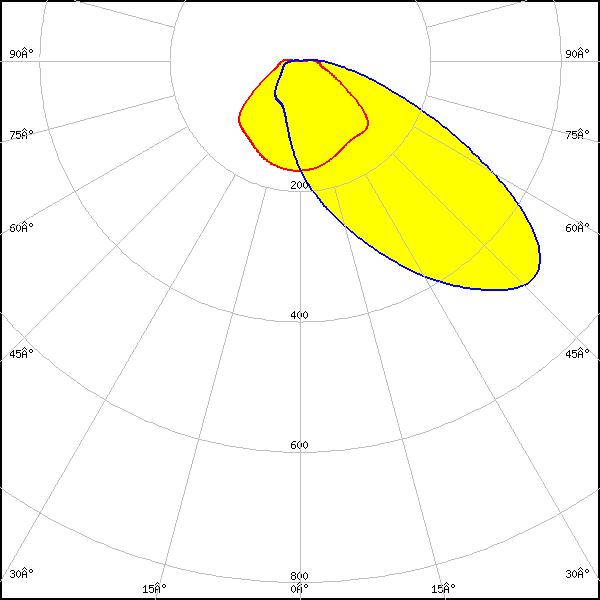

LED: XT-E

FWHM: asymmetric

Peak intensity: 0.490 cd/lm

Efficiency: 87 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

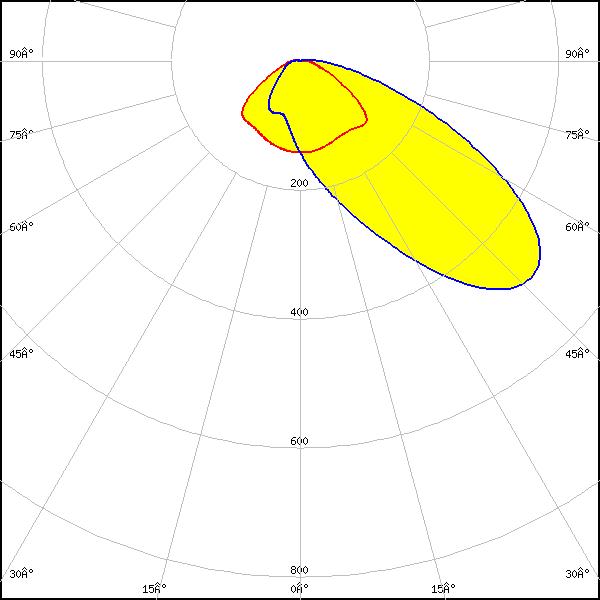

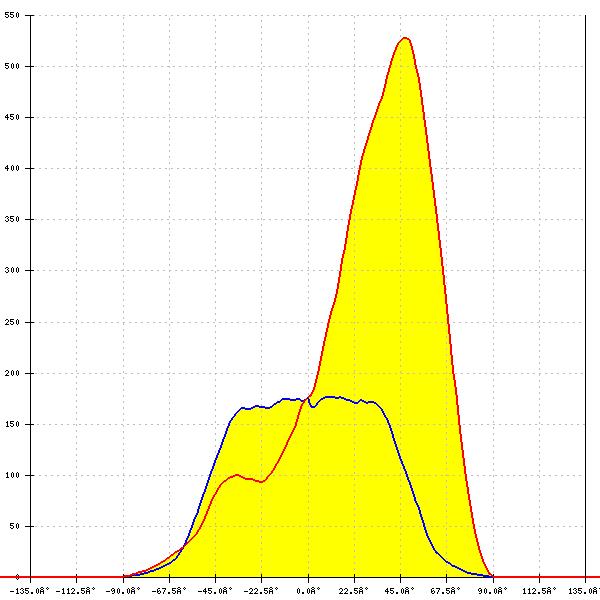

LED: LUXEON 5050 Square LES

FWHM: asymmetric

Peak intensity: 0.528 cd/lm

Efficiency: 78 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: NVSW319B

FWHM: asymmetric

Peak intensity: 0.490 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

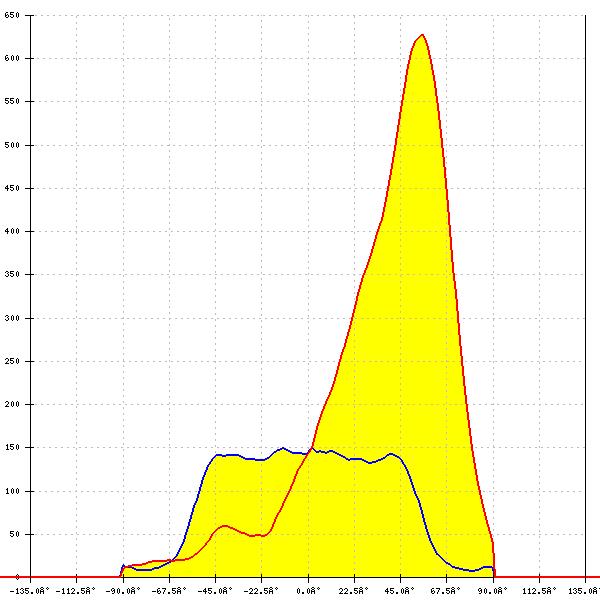

LED: NVSxx19B/NVSxx19C

FWHM: asymmetric

Peak intensity: 0.664 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

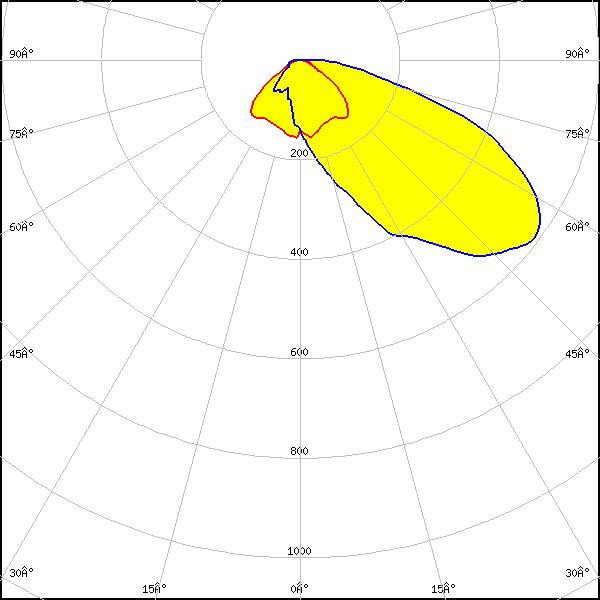

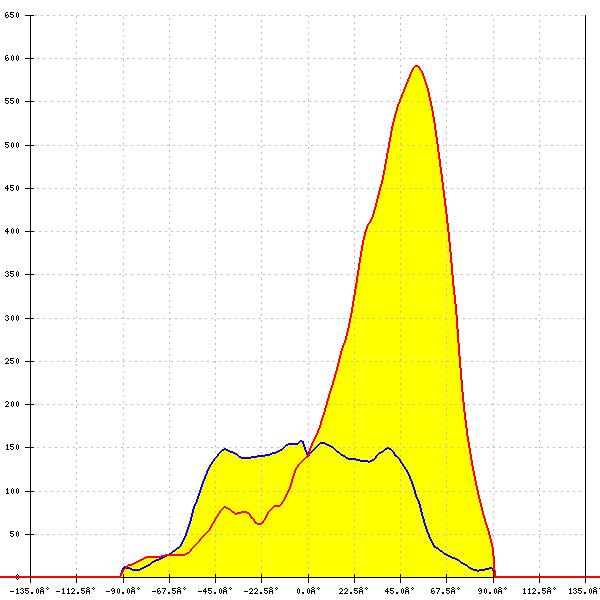

LED: OSCONIQ P 3737 (3W) PUSTA1

FWHM: asymmetric

Peak intensity: 0.600 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

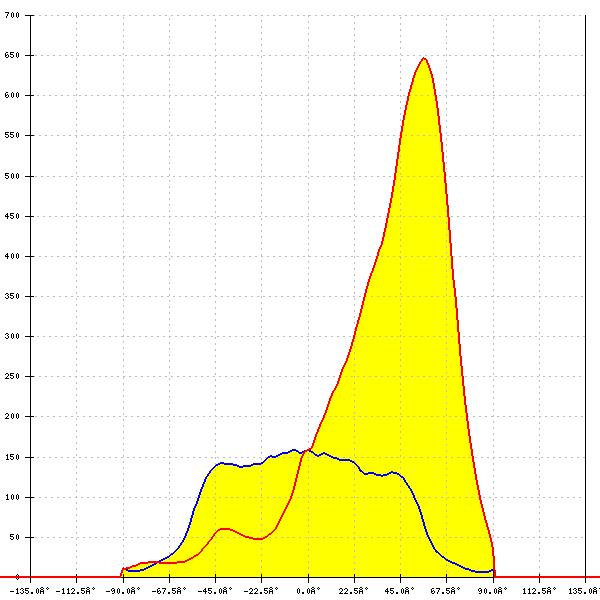

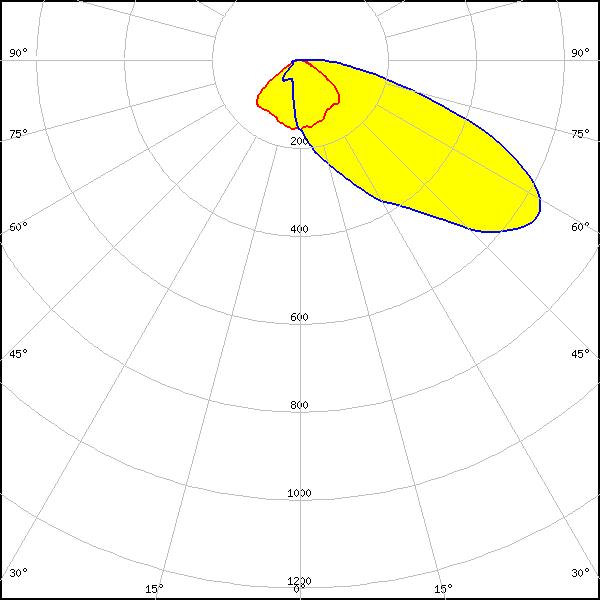

LED: OSLON Square CSSRM2/CSSRM3

FWHM: asymmetric

Peak intensity: 0.661 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: OSLON Square PC

FWHM: asymmetric

Peak intensity: 0.770 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

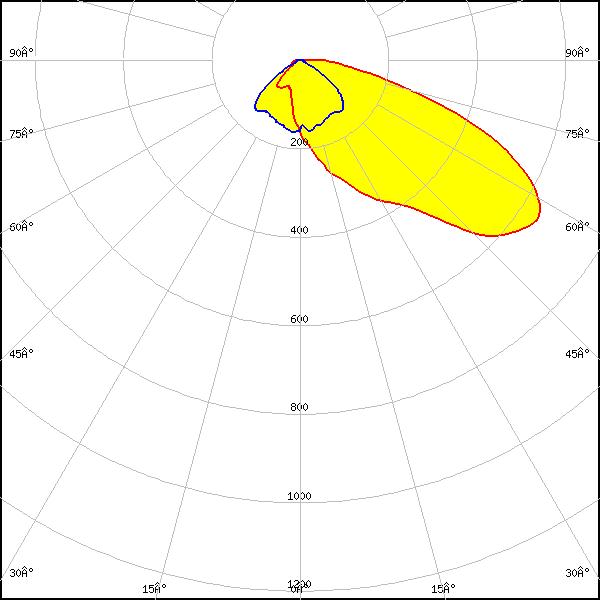

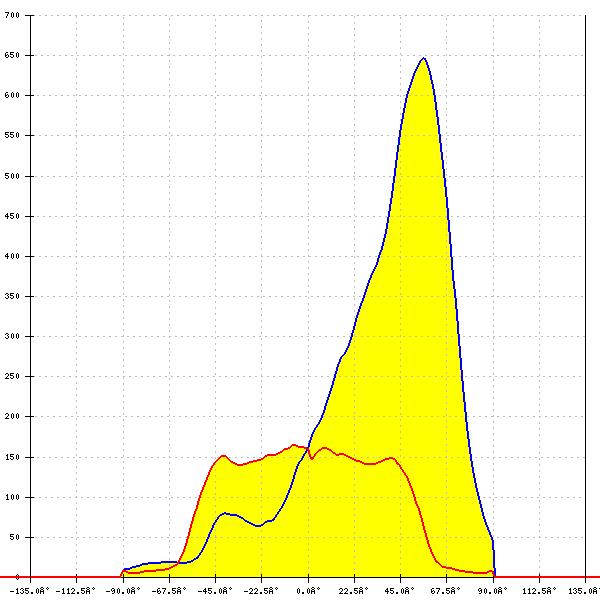

LED: LH351B

FWHM: asymmetric

Peak intensity: 0.672 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

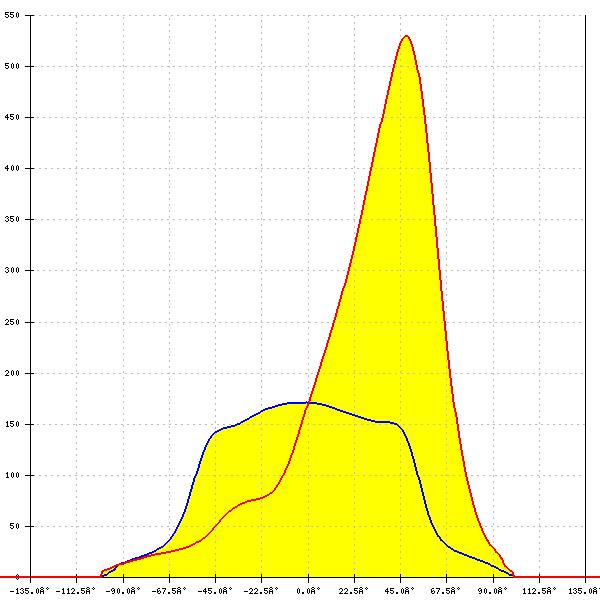

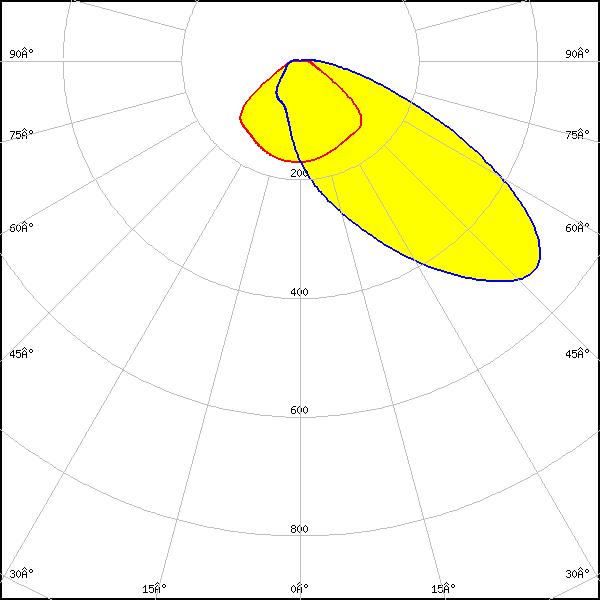

LED: LH351Z

FWHM: asymmetric

Peak intensity: 0.530 cd/lm

Efficiency: 87 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

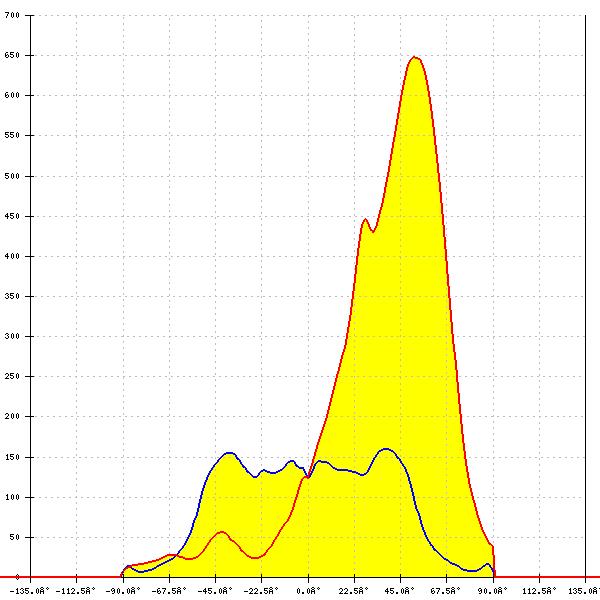

LED: LM302Z plus

FWHM: asymmetric

Peak intensity: 0.711 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
