    CA17181_YASMEEN-30-RS

    Print

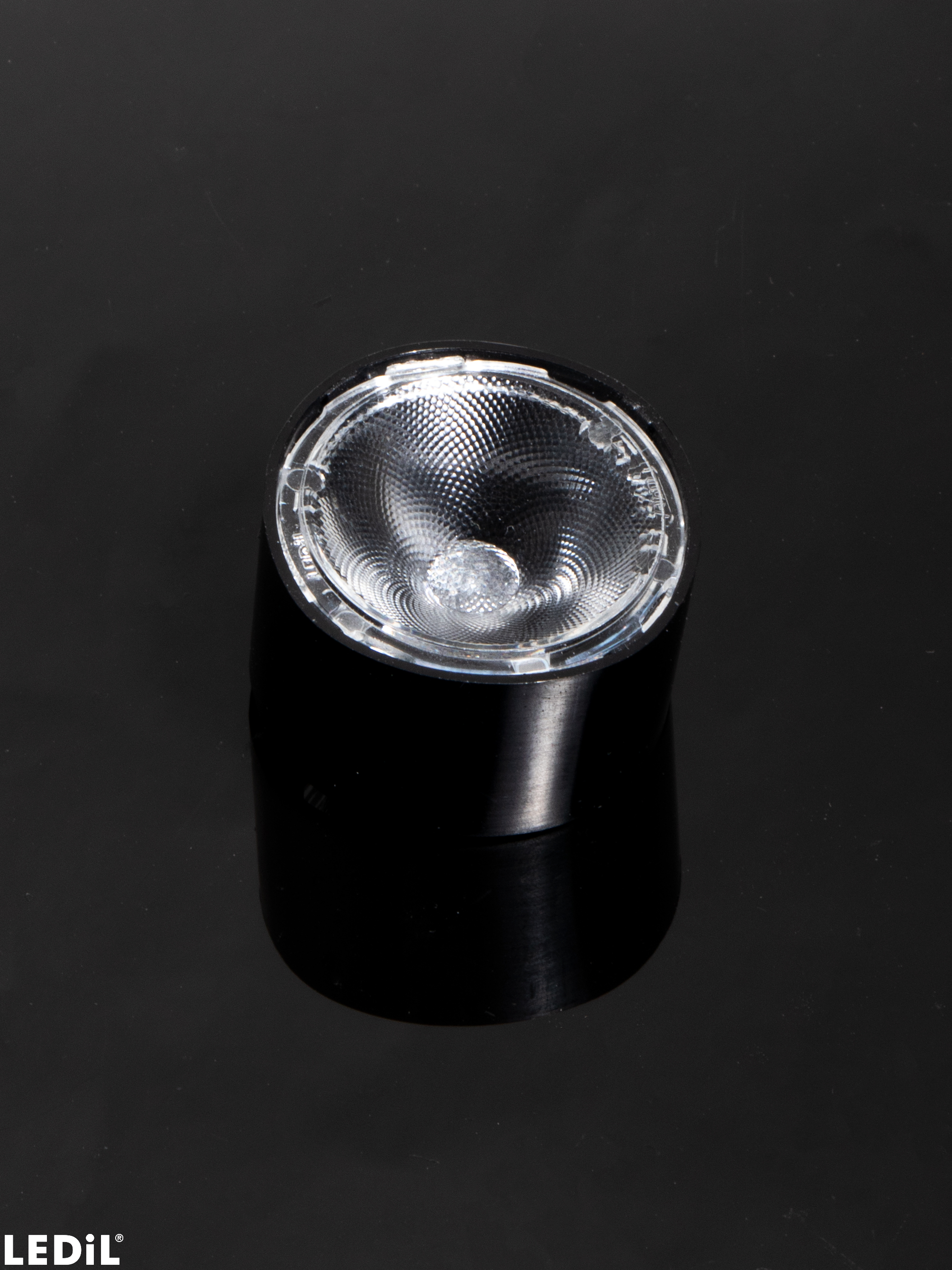

    ~11° spot beam. Variant with holder.

    Specification
    • Dimensions:
      32 mm
    • Height:
      18.91 mm
    • Fastening:
      tape, pin
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      792 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      7.7 kg
    • MPQ:
      66 pcs
    • MOQ:
      132 pcs
    • MOQ size:
      480 x 280 x 70 mm
    • MOQ weight:
      1.6 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA17181_YASMEEN-30-RS
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Product video

    YASMEEN - The best optic in class

    News

    YASMEEN – redefining track lighting

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Application example

    Spot lighting with YASMEEN

    News

    YASMEEN – supreme light quality and beam control

    Application area

    Indoor Architectural Lighting

    Application guide

    Guide for Retail Lighting Optics

    Application guide

    Guide for Architectural lighting optics

    Catalogue

    LEDiL Latest products catalogue

    Article

    Explore new retail lighting opportunities

    Application area

    Retail Lighting

    Optical results

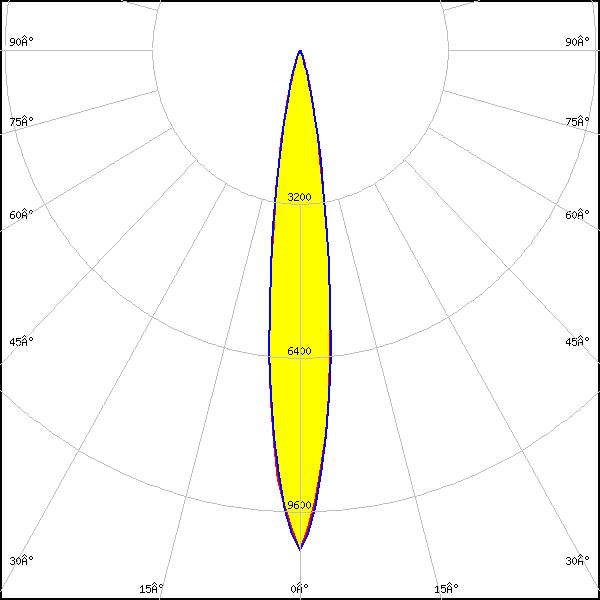

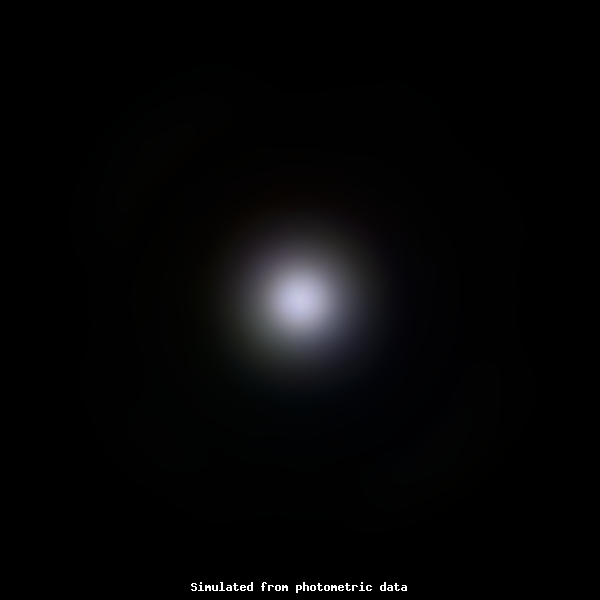

    LED: SMD 3838 RGBW 3V
    FWHM: 14°
    FWTM: 30°
    Peak intensity: 10.398 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: RGBW

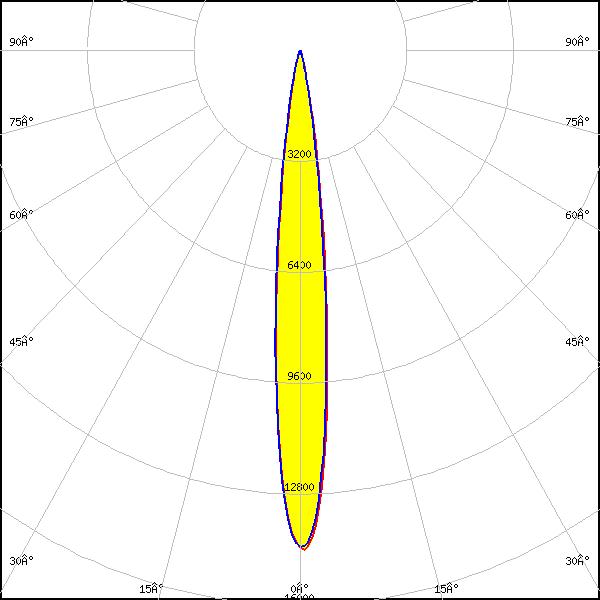

    LED: XHP35 HI
    FWHM: 12°
    FWTM: 23°
    Peak intensity: 14.427 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

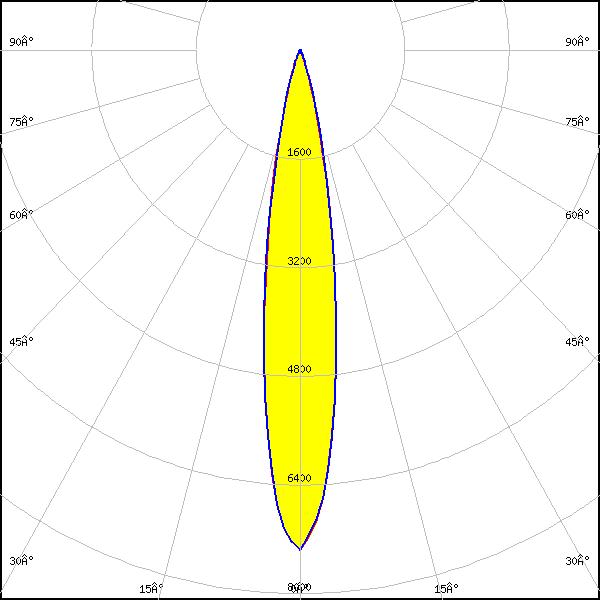

    LED: XHP35.2 HD
    FWHM: 18°
    FWTM: 33°
    Peak intensity: 7.363 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

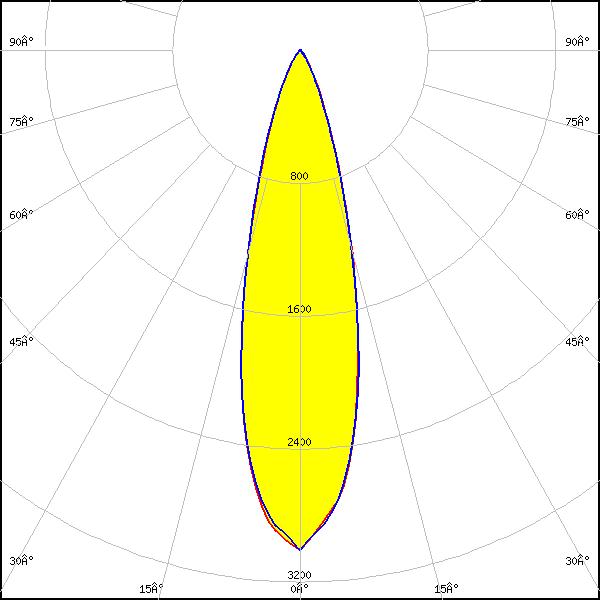

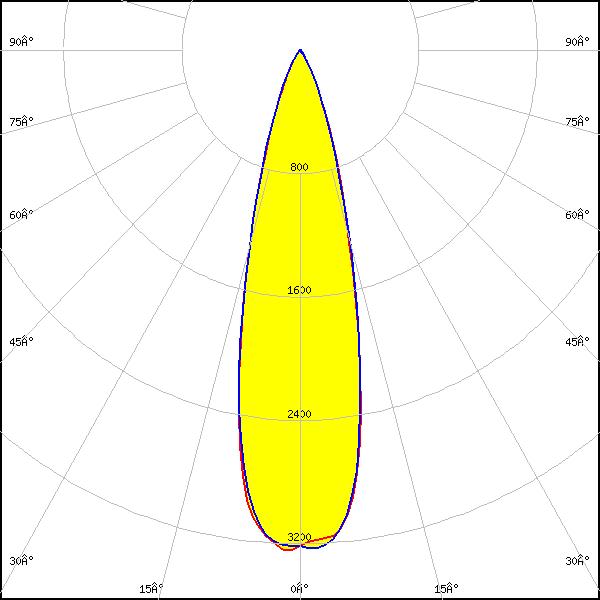

    LED: XHP70
    FWHM: 26°
    FWTM: 49°
    Peak intensity: 3.338 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP70.2
    FWHM: 28°
    FWTM: 51°
    Peak intensity: 3.010 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

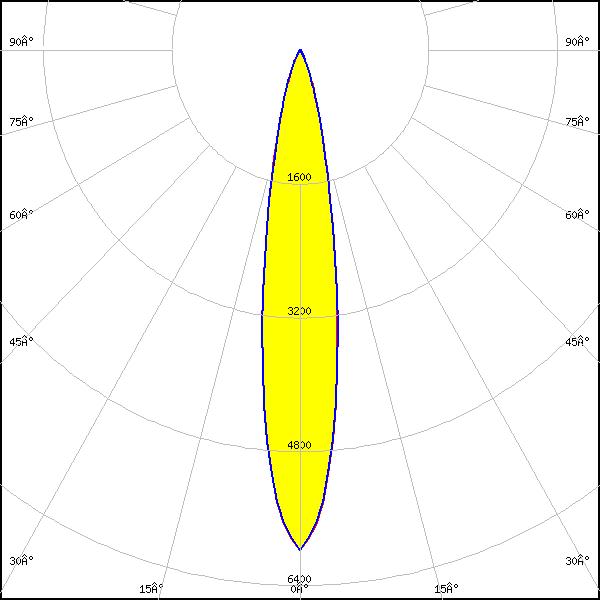

    LED: XHP70.3 HI
    FWHM: 18°
    FWTM: 38°
    Peak intensity: 5.979 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

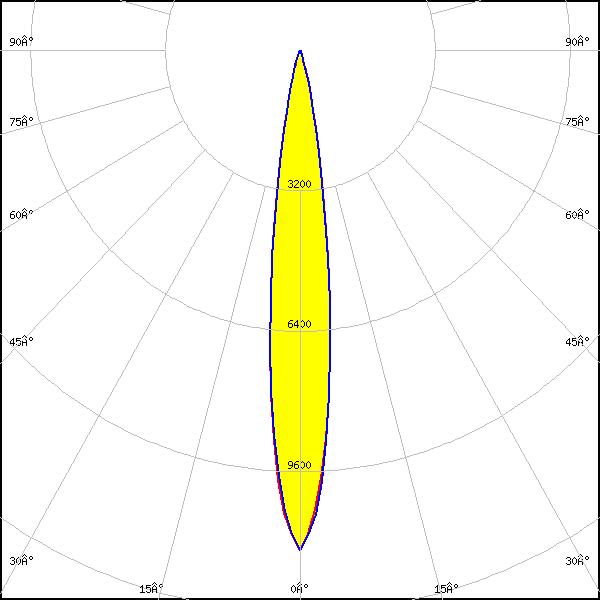

    LED: XM-L
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 11.393 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

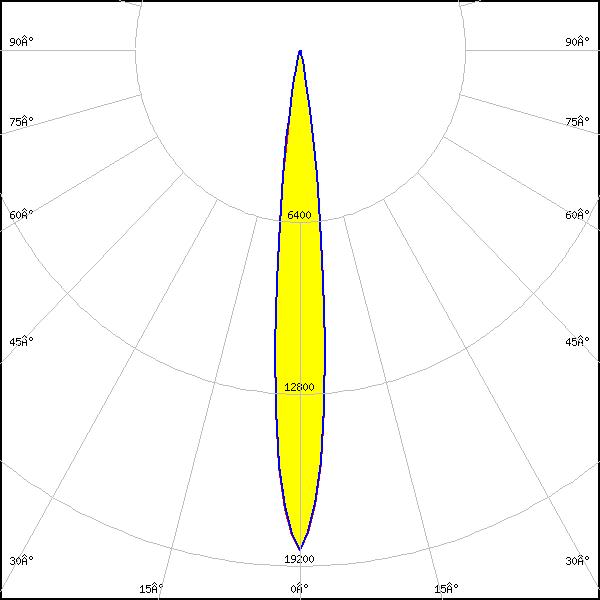

    LED: XP-E2
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 18.614 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

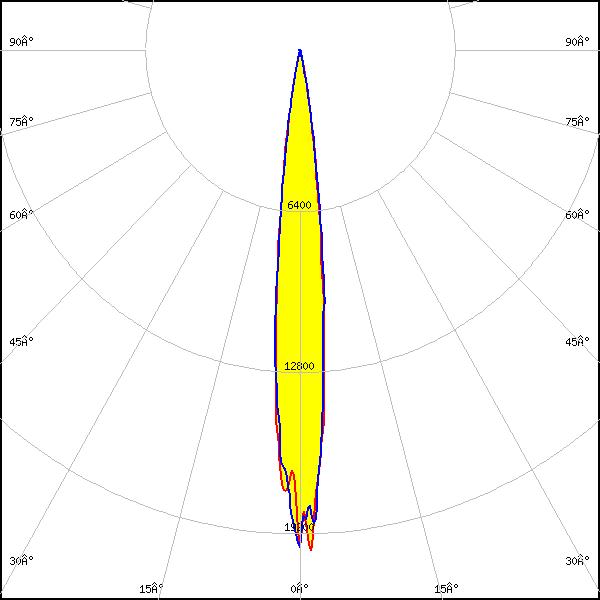

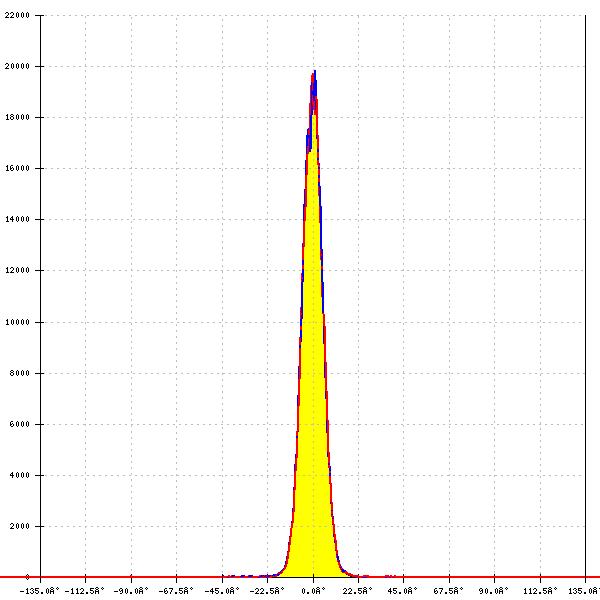

    LED: XP-G2
    FWHM: 11°
    FWTM: 21°
    Peak intensity: 22.740 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

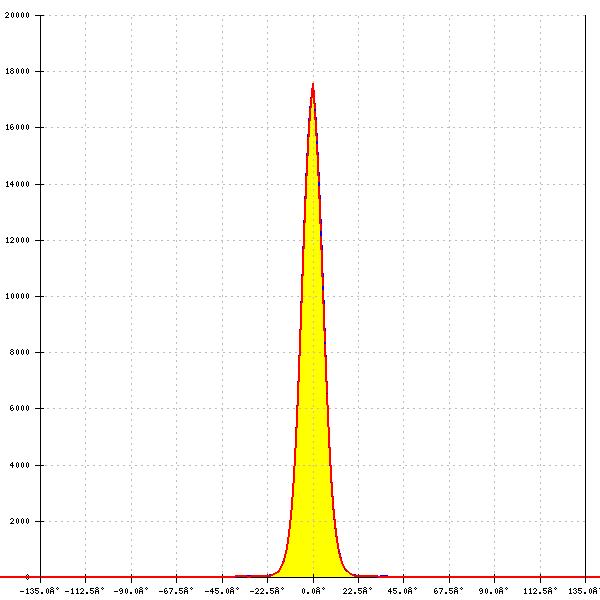

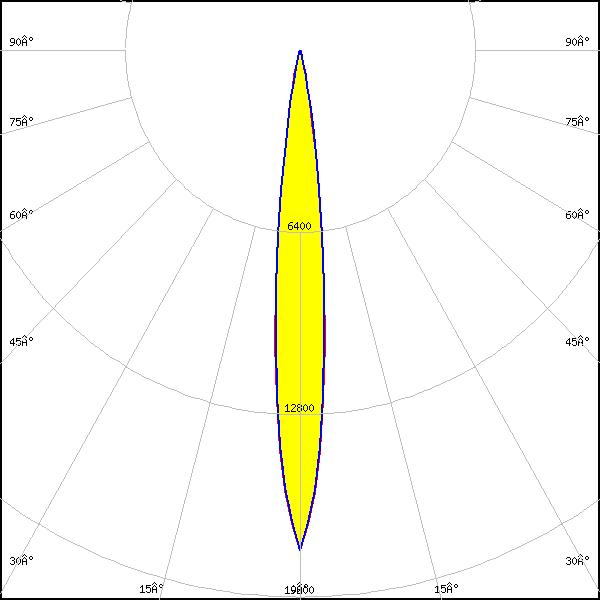

    LED: XP-G4
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 17.564 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

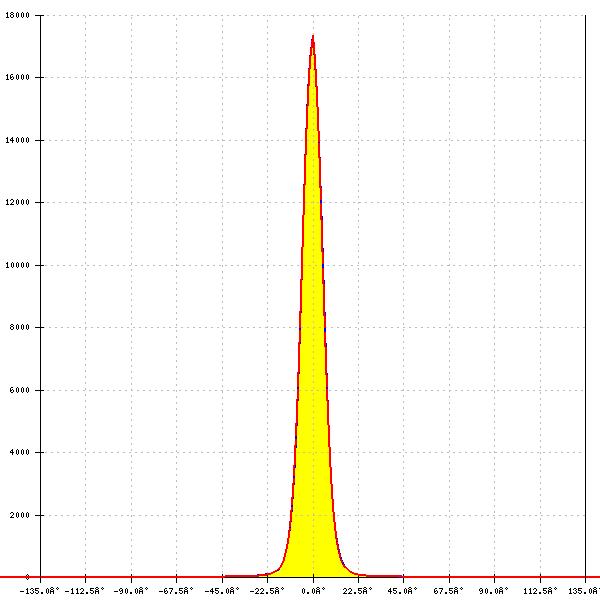

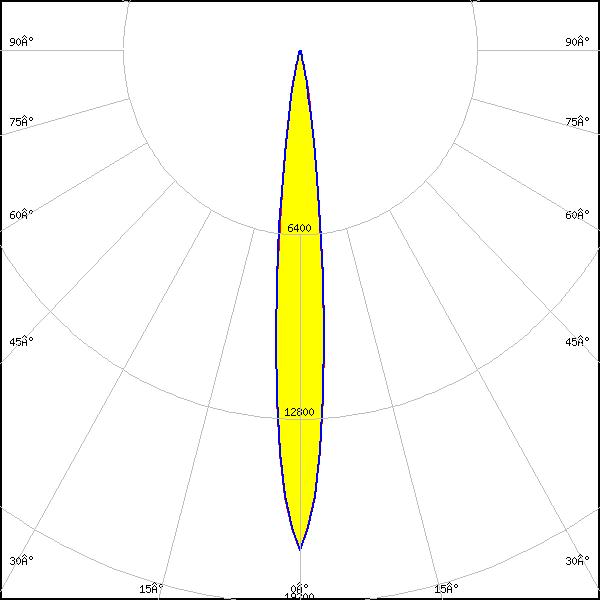

    LED: XP-G4 HI
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 17.352 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

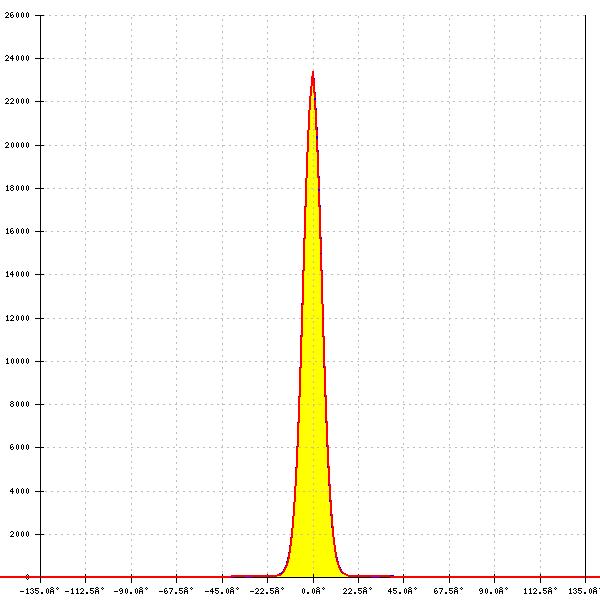

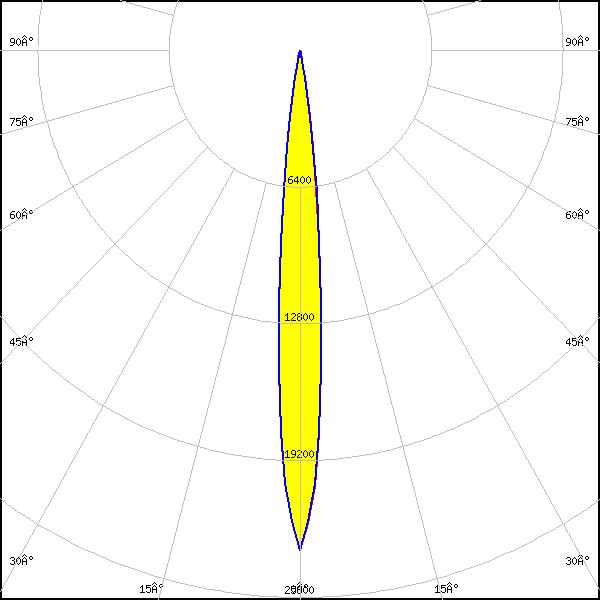

    LED: XP-P
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 23.405 cd/lm
    Efficiency: 96 %
    LEDs/each optic: 1
    Light colour/type: White

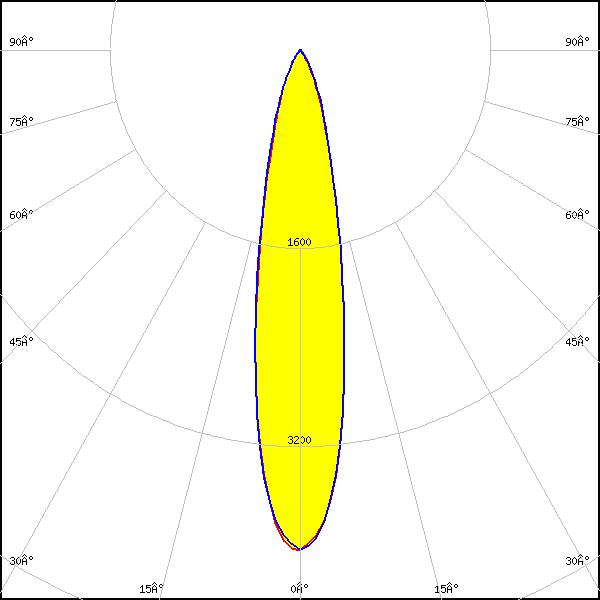

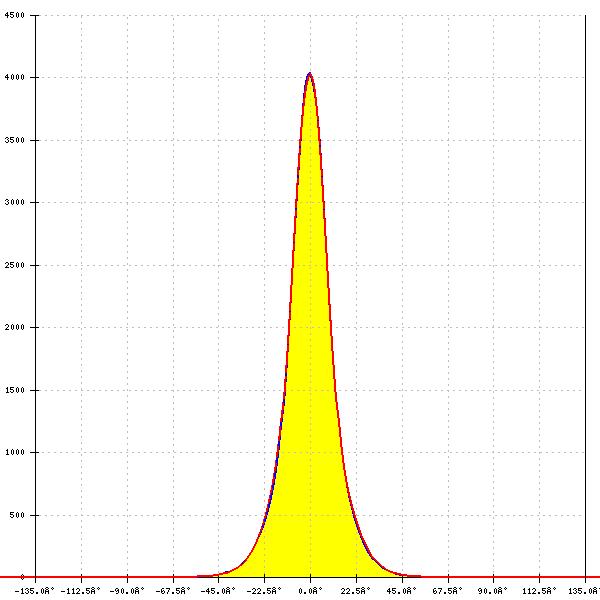

    LED: LUXEON 7070
    FWHM: 20°
    FWTM: 47°
    Peak intensity: 4.047 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

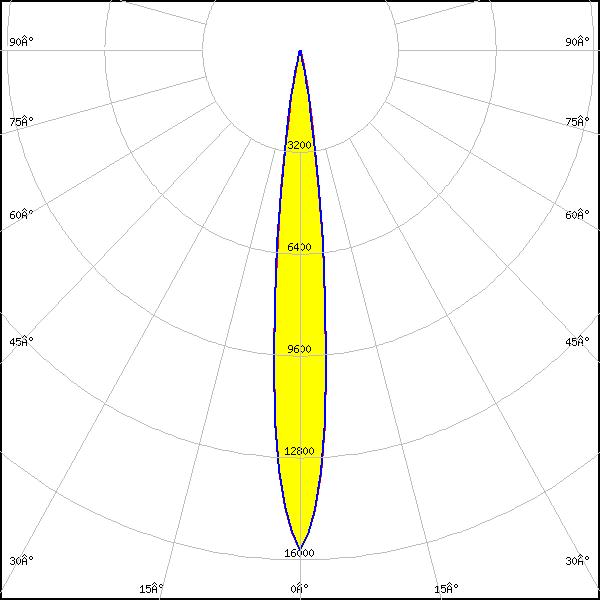

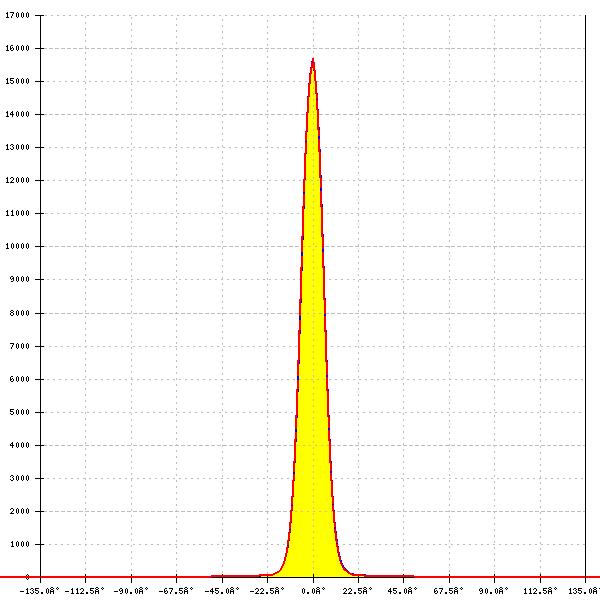

    LED: LUXEON C
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 15.704 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

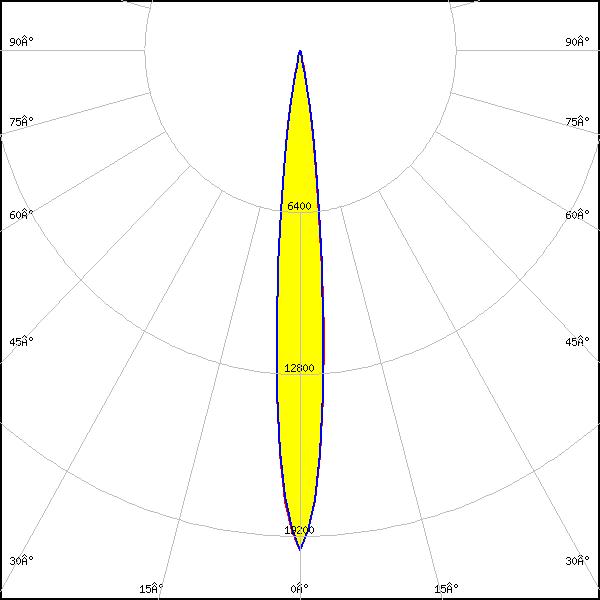

    LED: LUXEON CZ
    FWHM: 11°
    FWTM: 20°
    Peak intensity: 19.751 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

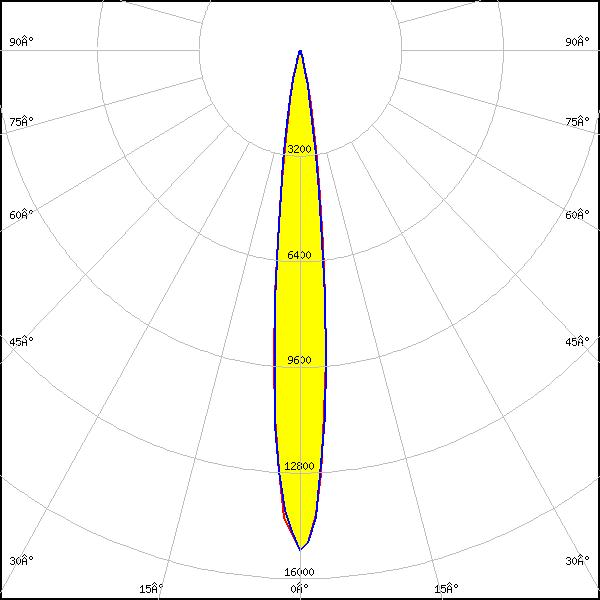

    LED: LUXEON HL4Z
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 15.402 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

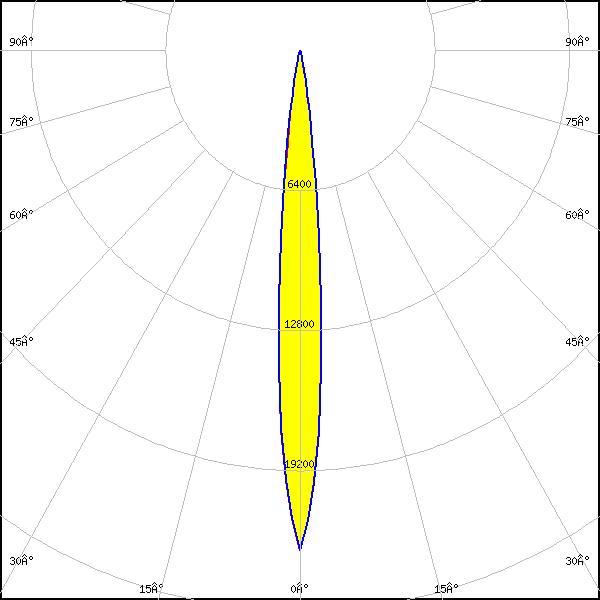

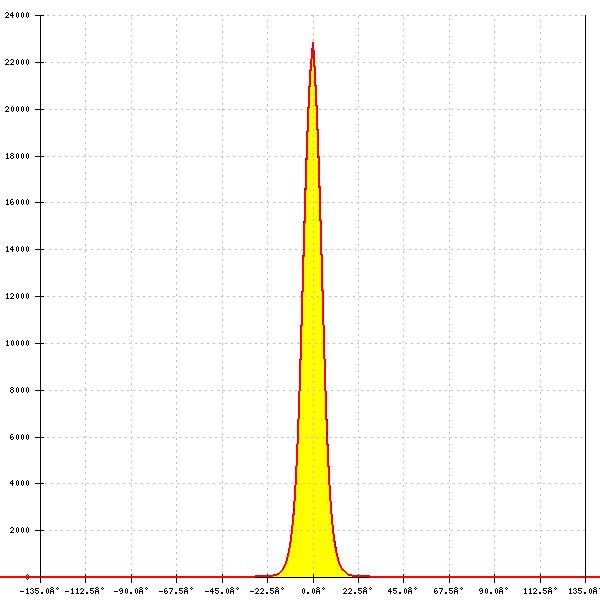

    LED: SFT-12R-W-A
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 22.829 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

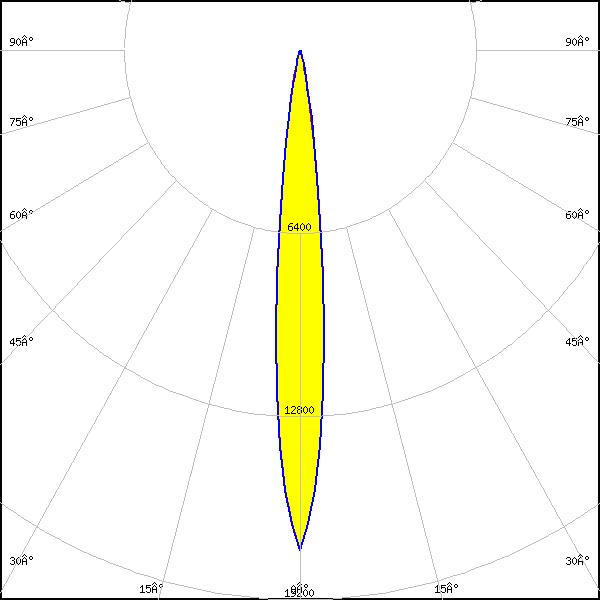

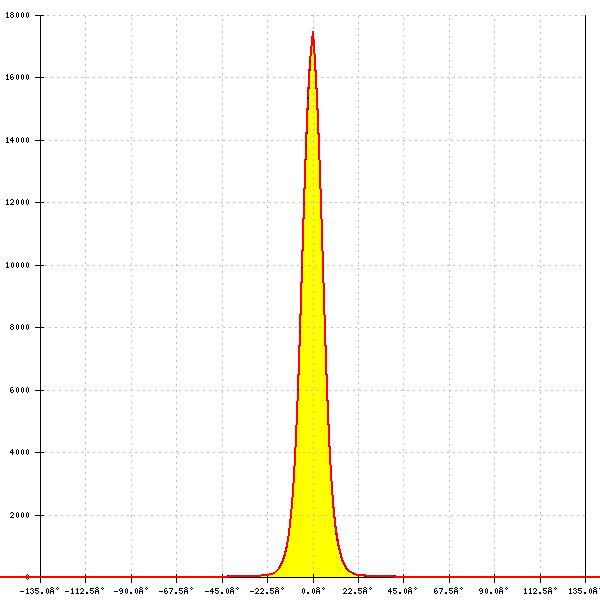

    LED: SST-20 Gen2
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 17.473 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

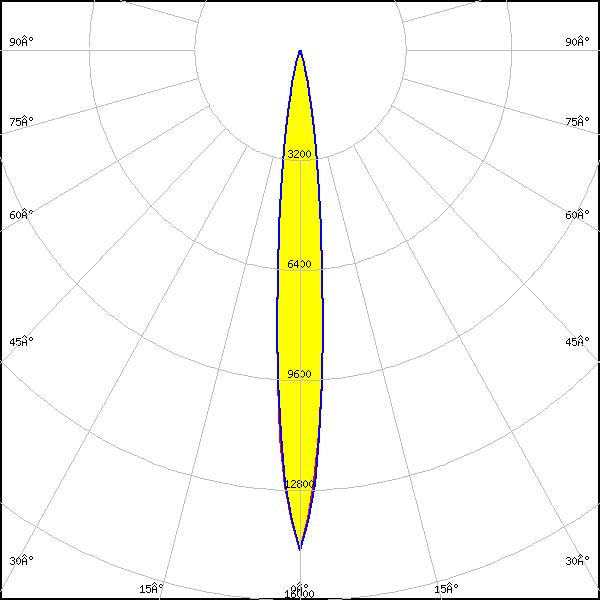

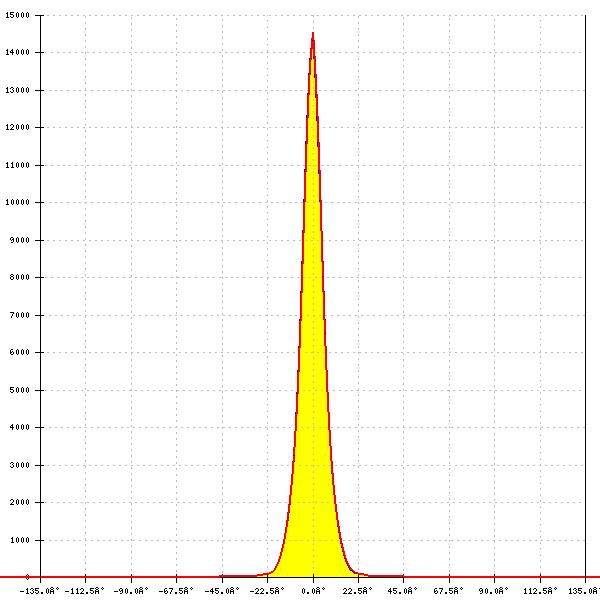

    LED: NCSxE17A
    FWHM: 10°
    FWTM: 24°
    Peak intensity: 14.542 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

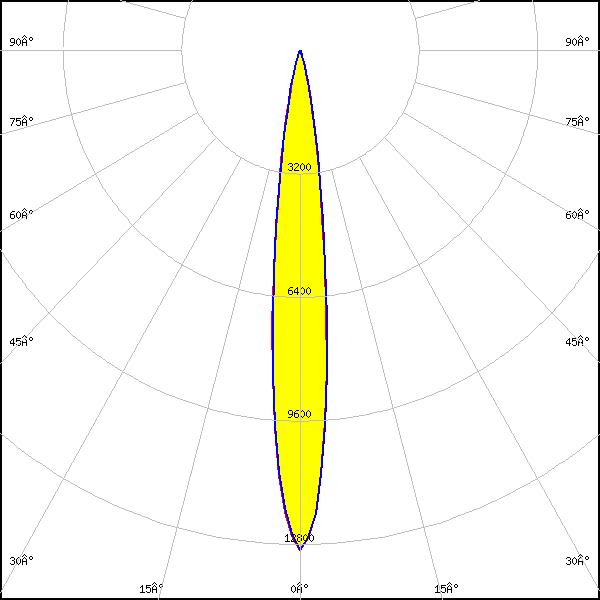

    LED: NF2x757G
    FWHM: 12°
    FWTM: 26°
    Peak intensity: 12.953 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

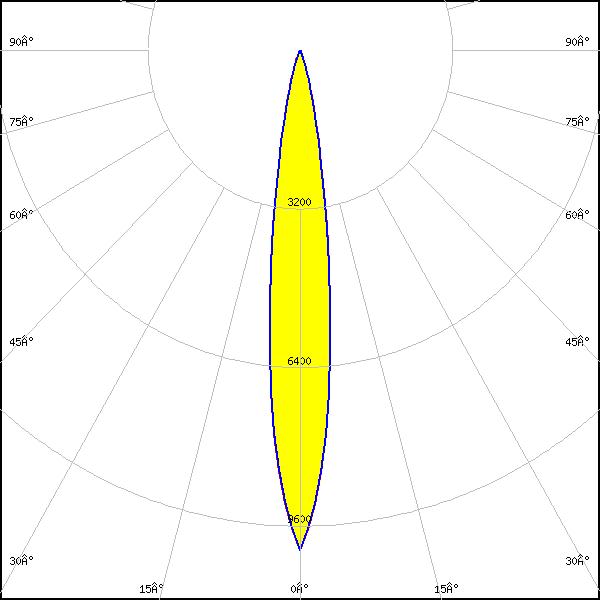

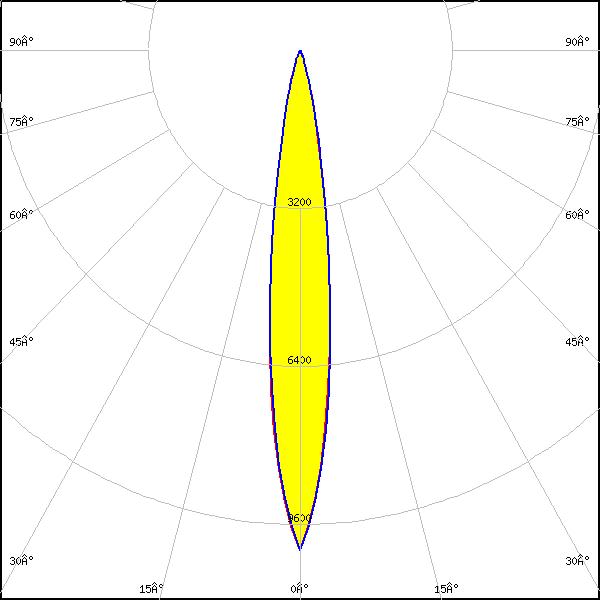

    LED: NV4WB35AM
    FWHM: 14°
    FWTM: 30°
    Peak intensity: 10.124 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NV4WB35AM
    FWHM: 14°
    FWTM: 30°
    Peak intensity: 10.091 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

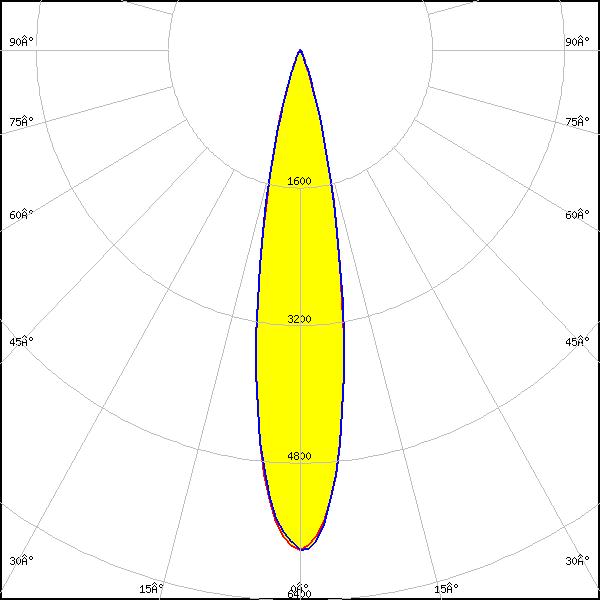

    LED: NV4x144A
    FWHM: 20°
    FWTM: 38°
    Peak intensity: 5.817 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

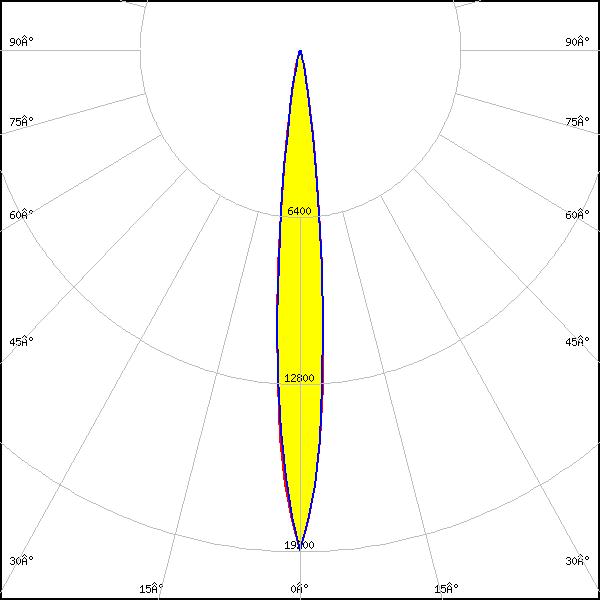

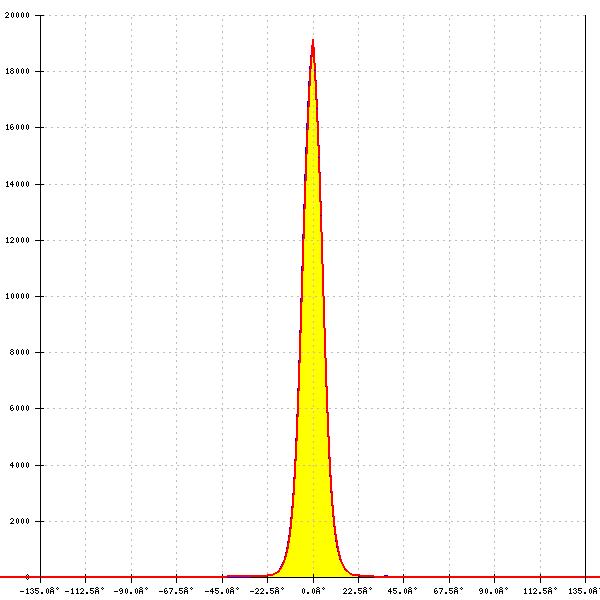

    LED: NVSW219C-V2
    FWHM: 10°
    FWTM: 22°
    Peak intensity: 19.150 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

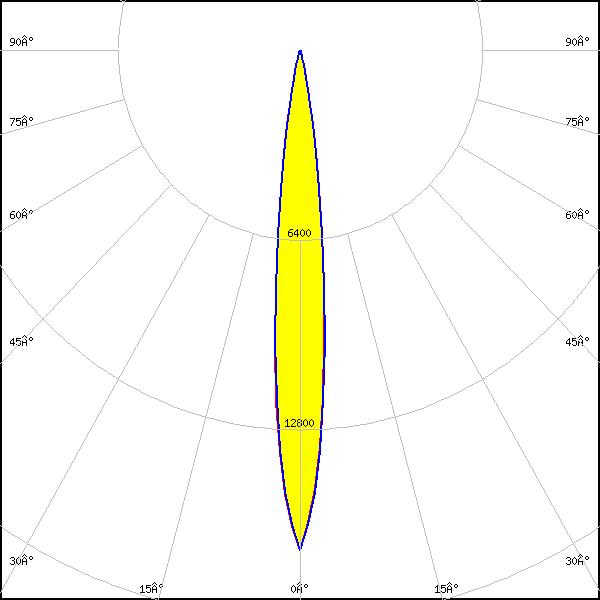

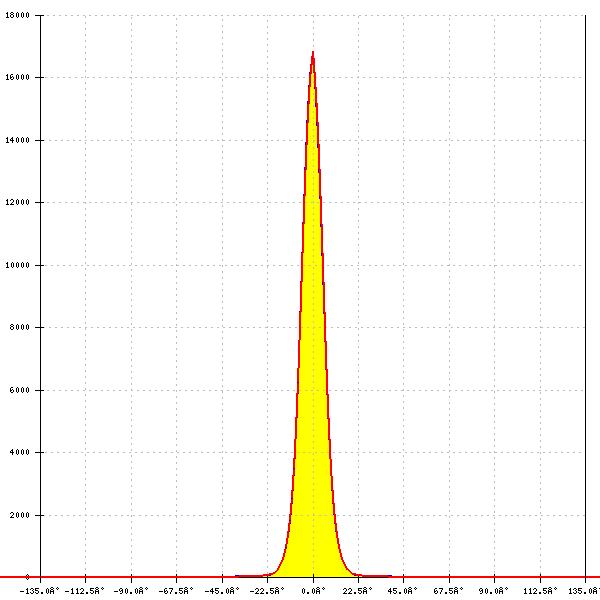

    LED: NVSW719AC
    FWHM: 12°
    FWTM: 22°
    Peak intensity: 16.863 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White

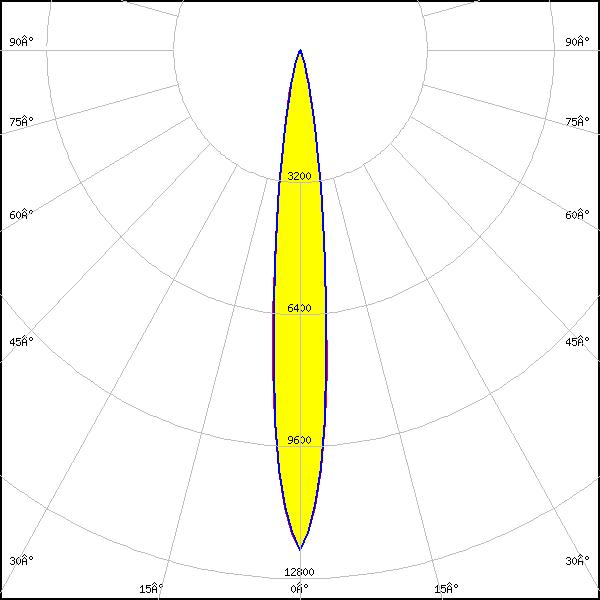

    LED: NVSxE21A
    FWHM: 12°
    FWTM: 28°
    Peak intensity: 12.114 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

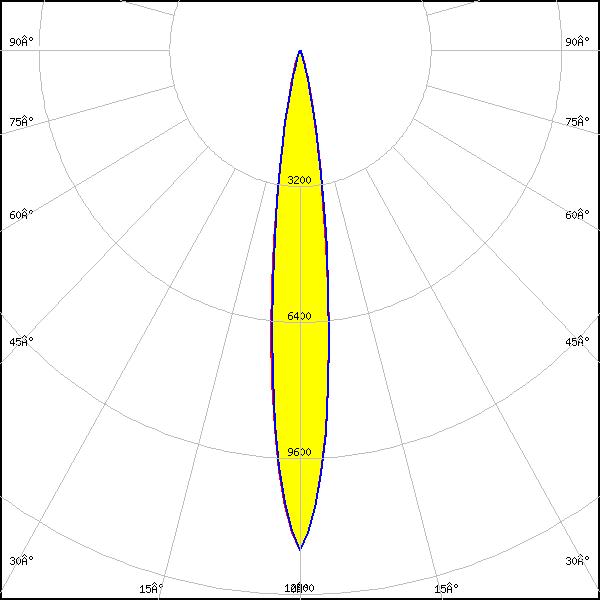

    LED: OSCONIQ P 3737 (3W version)
    FWHM: 14°
    FWTM: 28°
    Peak intensity: 11.760 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

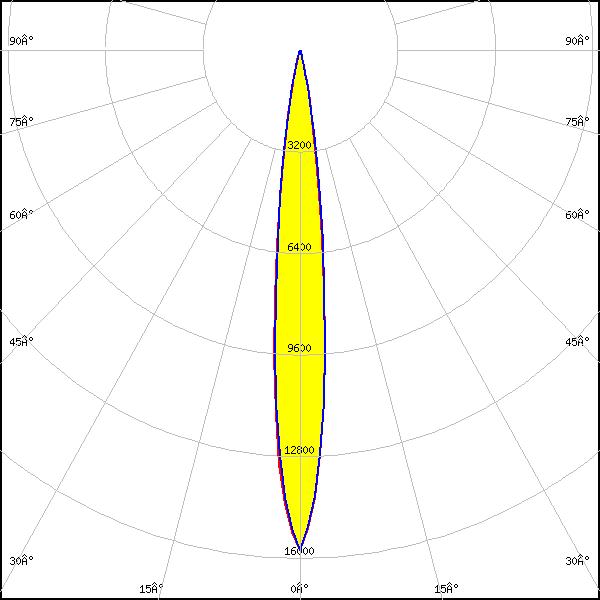

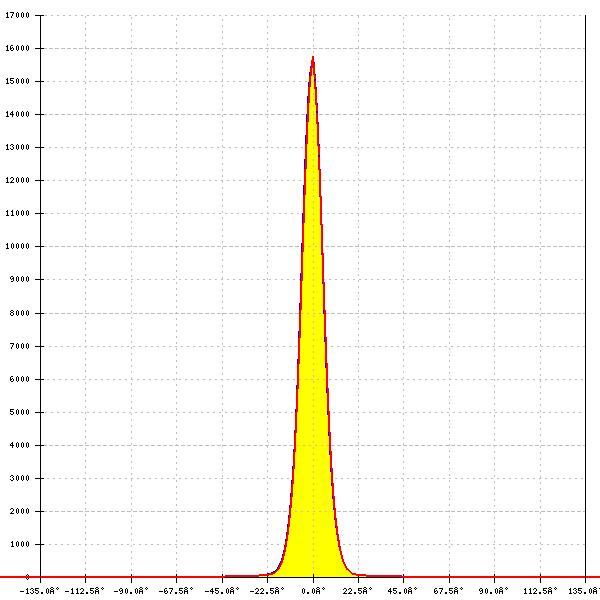

    LED: OSLON Square CSSRM2/CSSRM3
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 15.755 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

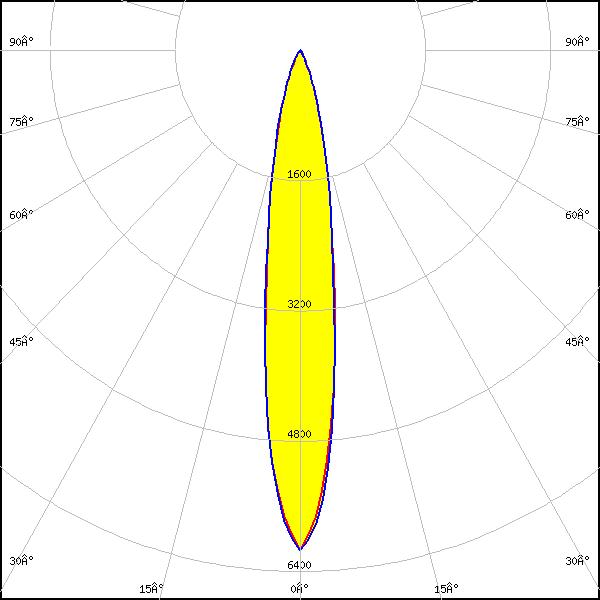

    LED: LH151B
    FWHM: 16°
    FWTM: 39°
    Peak intensity: 6.140 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 4
    Light colour/type: White

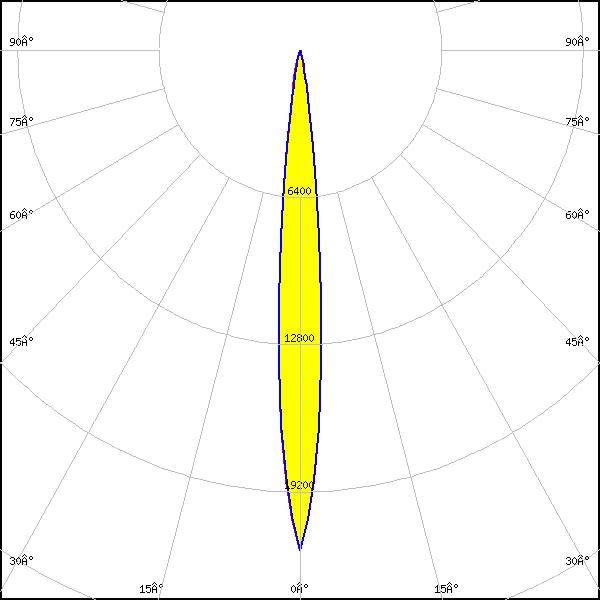

    LED: LH351C
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 21.739 cd/lm
    Efficiency: 94 %
    LEDs/each optic: 1
    Light colour/type: White

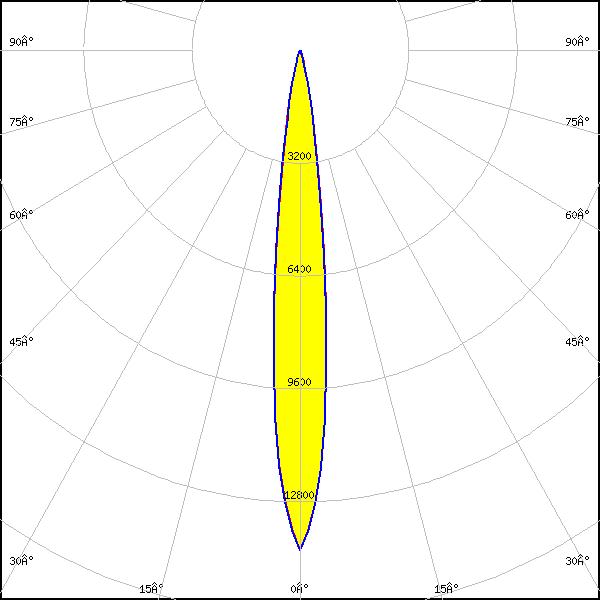

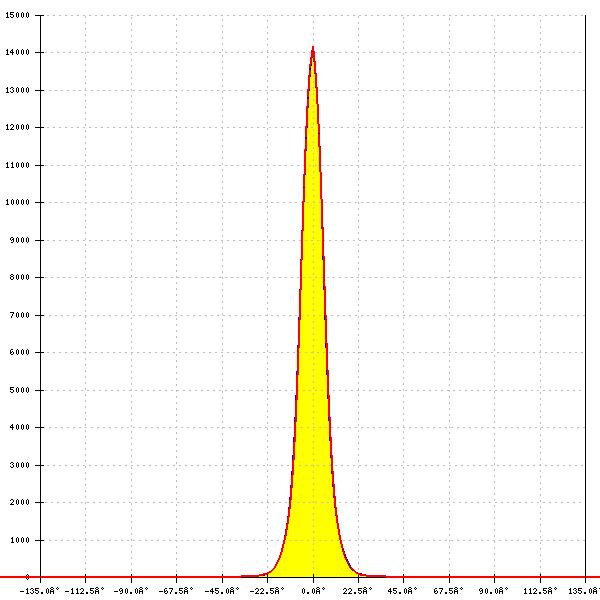

    LED: LH351D
    FWHM: 12°
    FWTM: 24°
    Peak intensity: 14.183 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
