CP12944_LARISA-W-CLIP8
Print
~50° wide beam. Clip fastening for 0.8 mm thick PCB
Component Materials
- LARISA-WSingle lensPMMA
- LARISA-HOLDER-CLIP8HolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

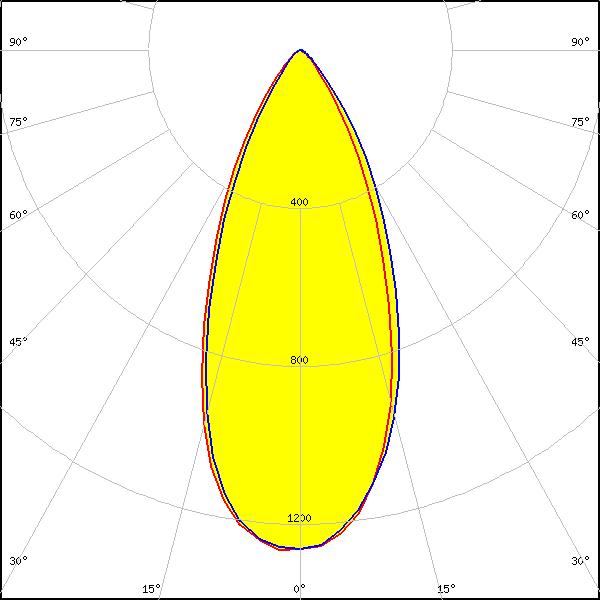

LED:
XB-D
FWHM:
45°
FWTM:
78°
Peak intensity:
1.300 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

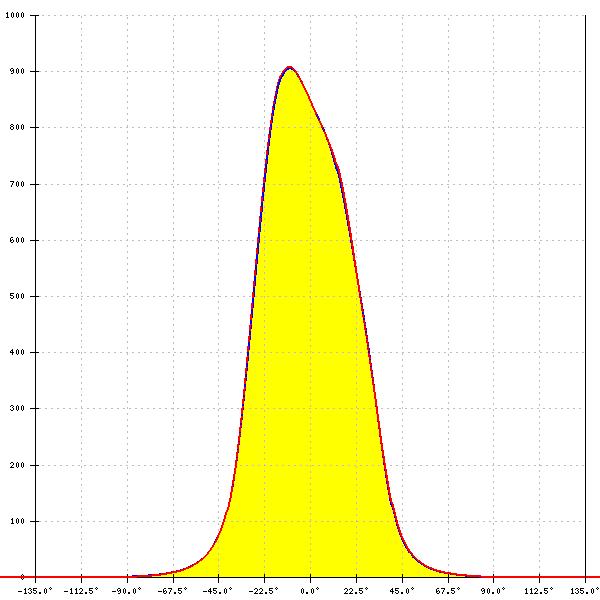

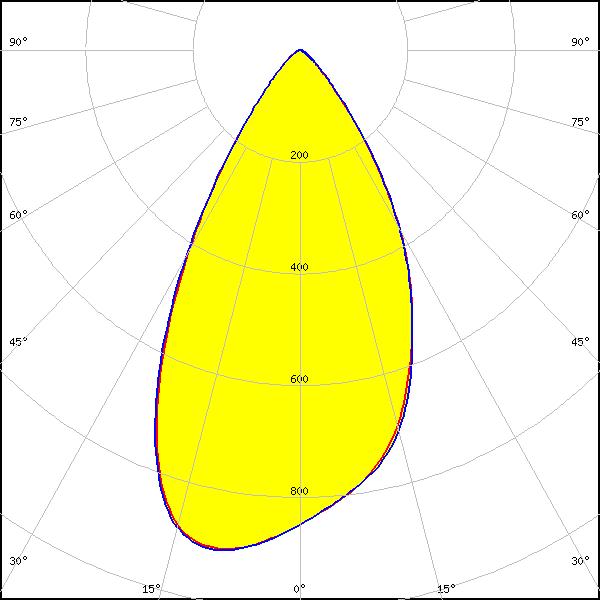

LED:
XD16
FWHM:
56°
FWTM:
86°
Peak intensity:
0.930 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

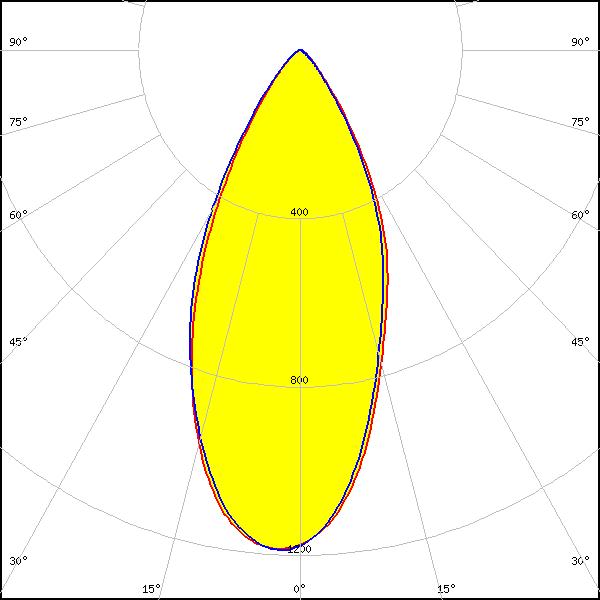

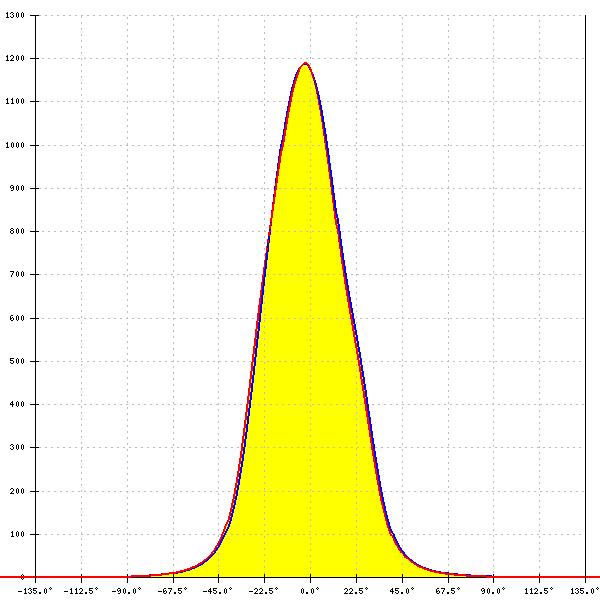

LED:
XQ-E HD
FWHM:
46°
FWTM:
80°
Peak intensity:
1.200 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XQ-E HI
FWHM:
47°
FWTM:
73°
Peak intensity:
1.513 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

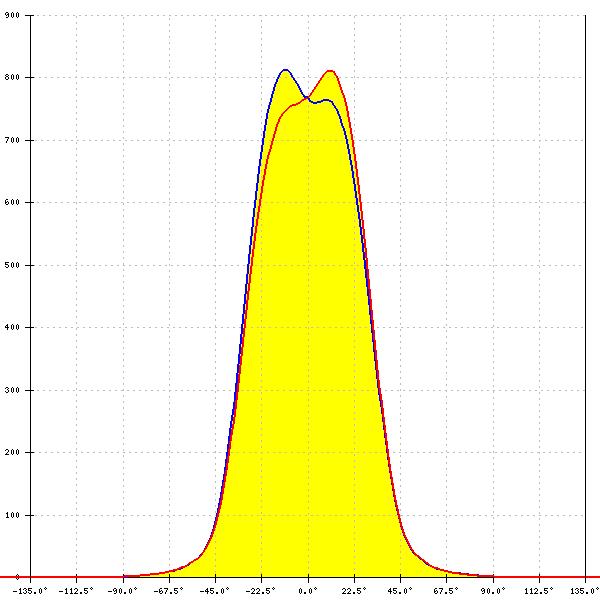

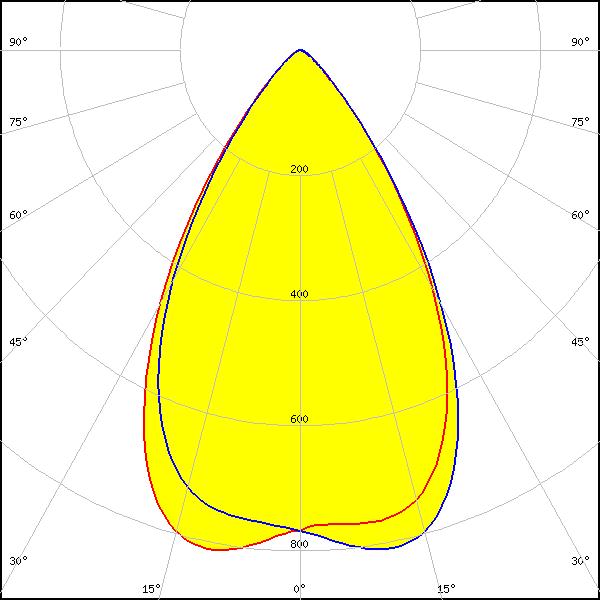

LED:
LUXEON A
FWHM:
63°
FWTM:
91°
Peak intensity:
0.800 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

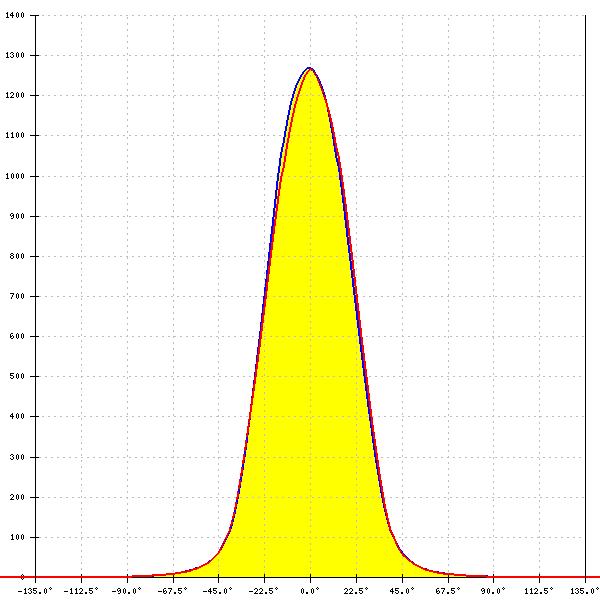

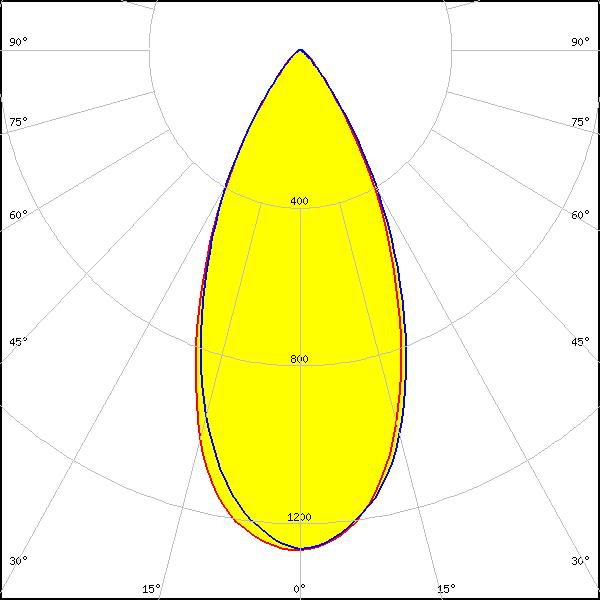

LED:
LUXEON Rebel
FWHM:
47°
FWTM:
78°
Peak intensity:
1.300 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

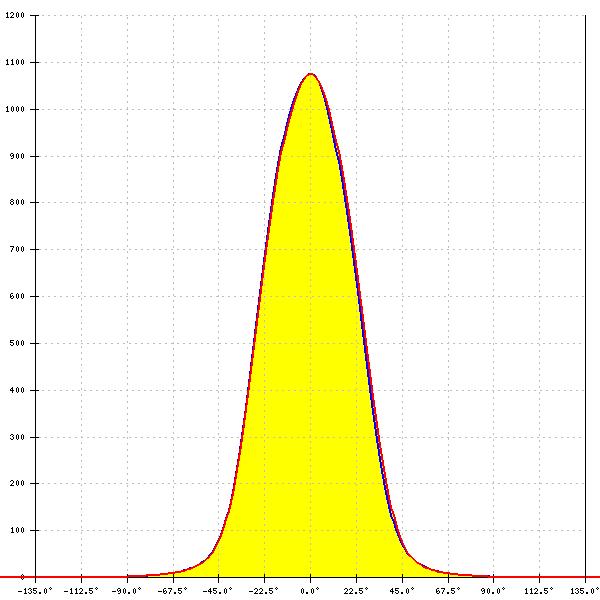

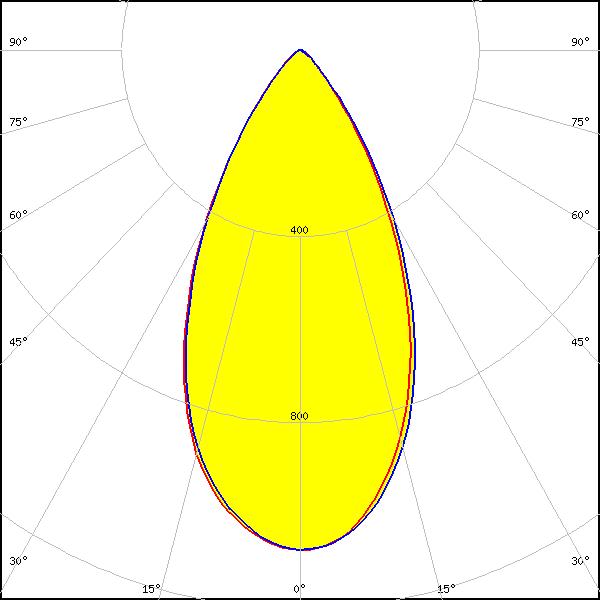

LED:
LUXEON Rebel ES
FWHM:
52°
FWTM:
85°
Peak intensity:
1.100 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Z
FWHM:
32°
FWTM:
68°
Peak intensity:
2.090 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

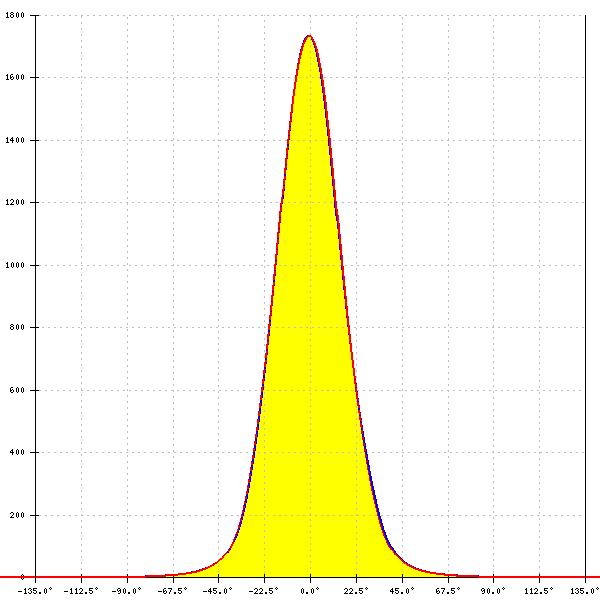

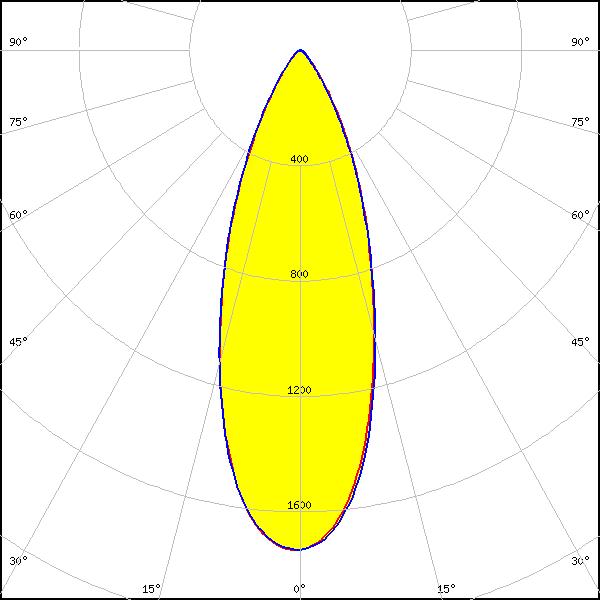

LED:
LUXEON Z ES
FWHM:
37°
FWTM:
69°
Peak intensity:
1.740 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

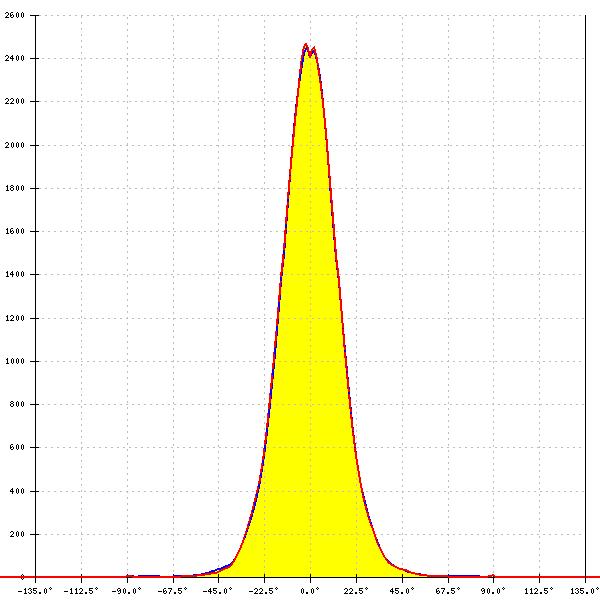

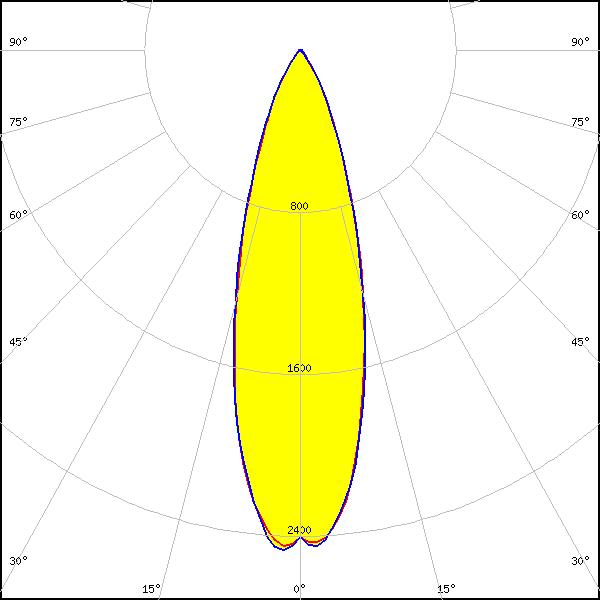

LED:
NCSxE17A
FWHM:
30°
FWTM:
60°
Peak intensity:
2.502 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

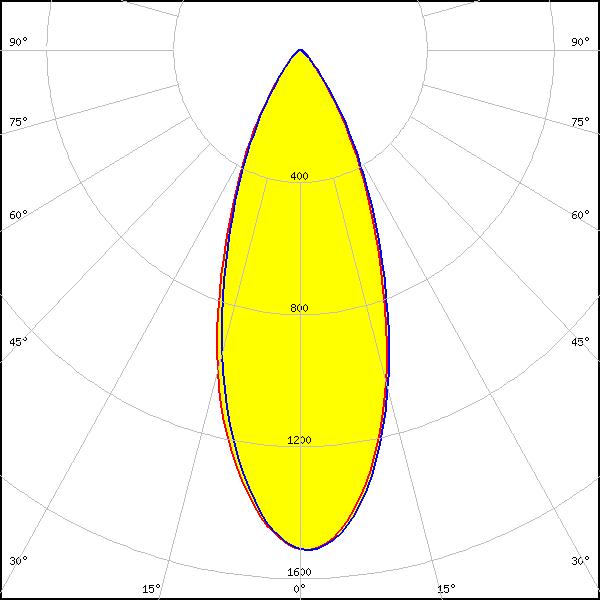

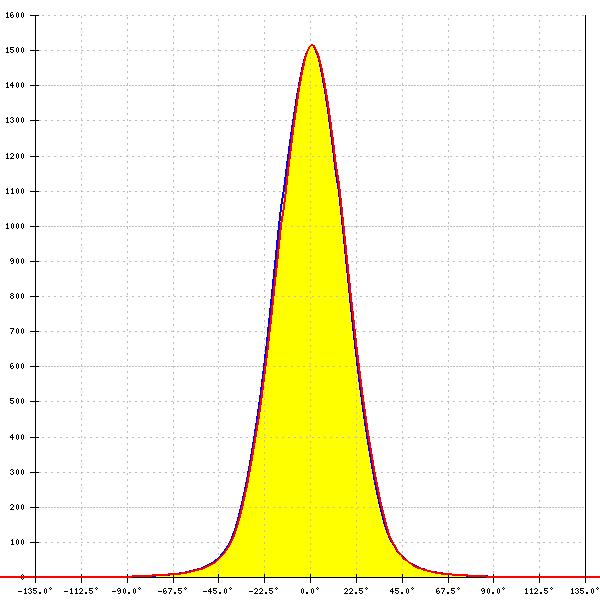

LED:
NCSxx19A
FWHM:
39°
FWTM:
73°
Peak intensity:
1.500 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NF2x757A
FWHM:
37°
FWTM:
72°
Peak intensity:
1.660 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NF2x757G
FWHM:
40°
FWTM:
75°
Peak intensity:
1.430 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

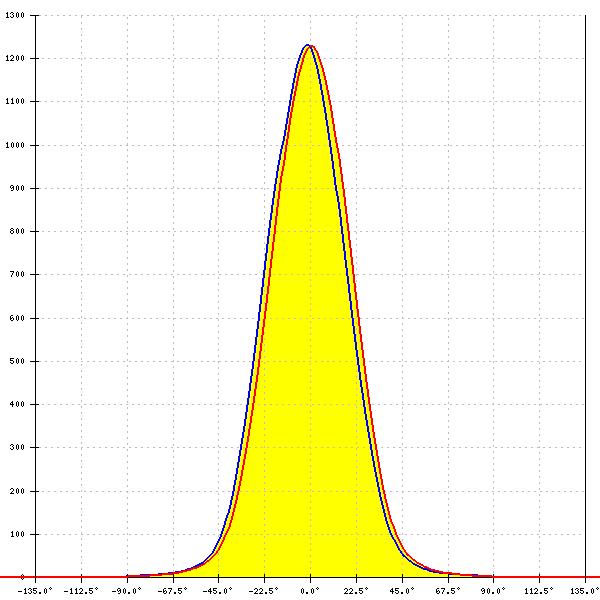

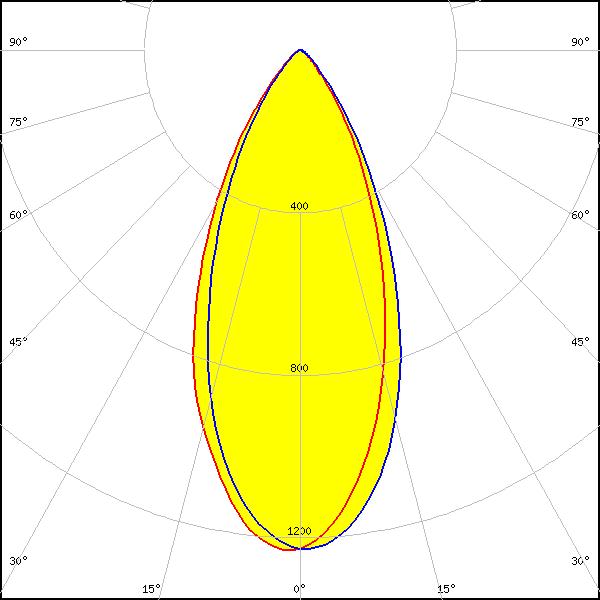

LED:

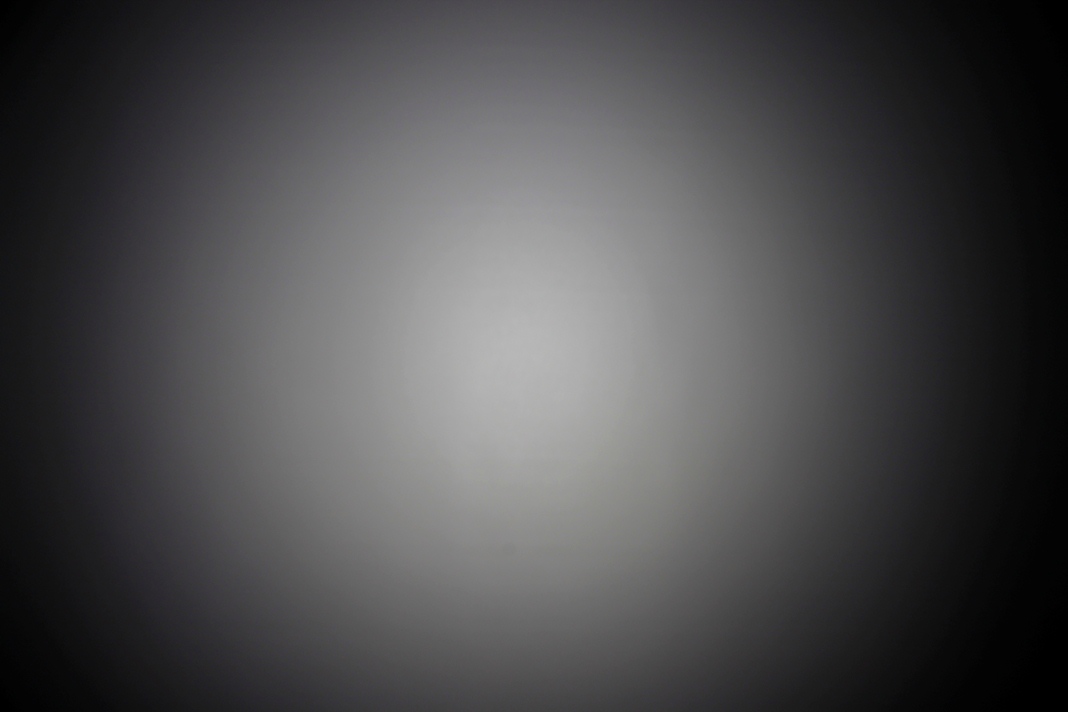

NVSxx19A
FWHM:
45°
FWTM:
80°
Peak intensity:
1.200 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

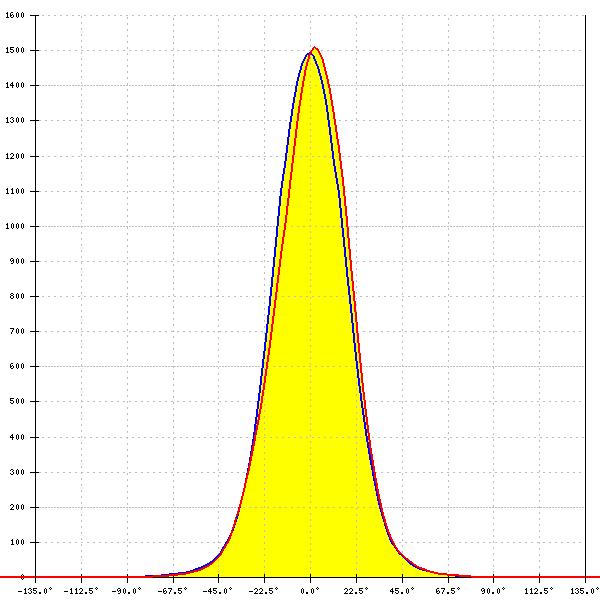

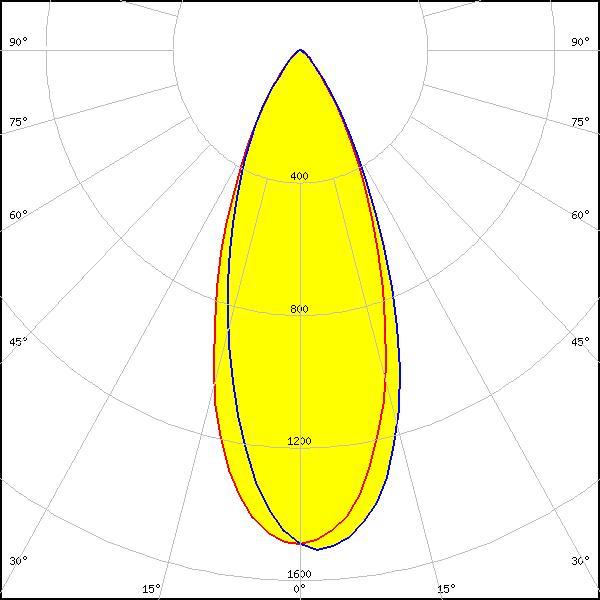

LED:

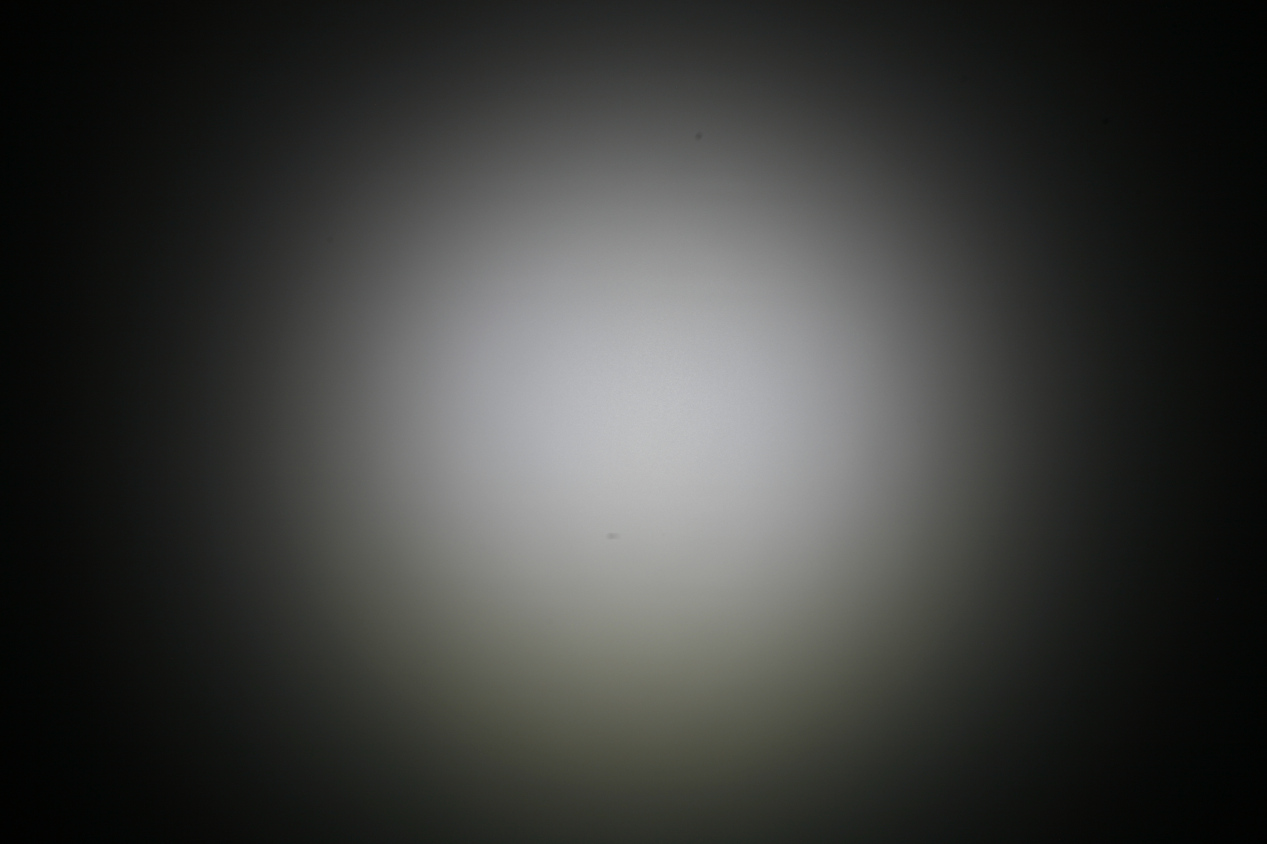

DURIS S5 (2 chip)
FWHM:
41°
FWTM:
76°
Peak intensity:
1.500 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square EC
FWHM:
46°
FWTM:
83°
Peak intensity:
1.100 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

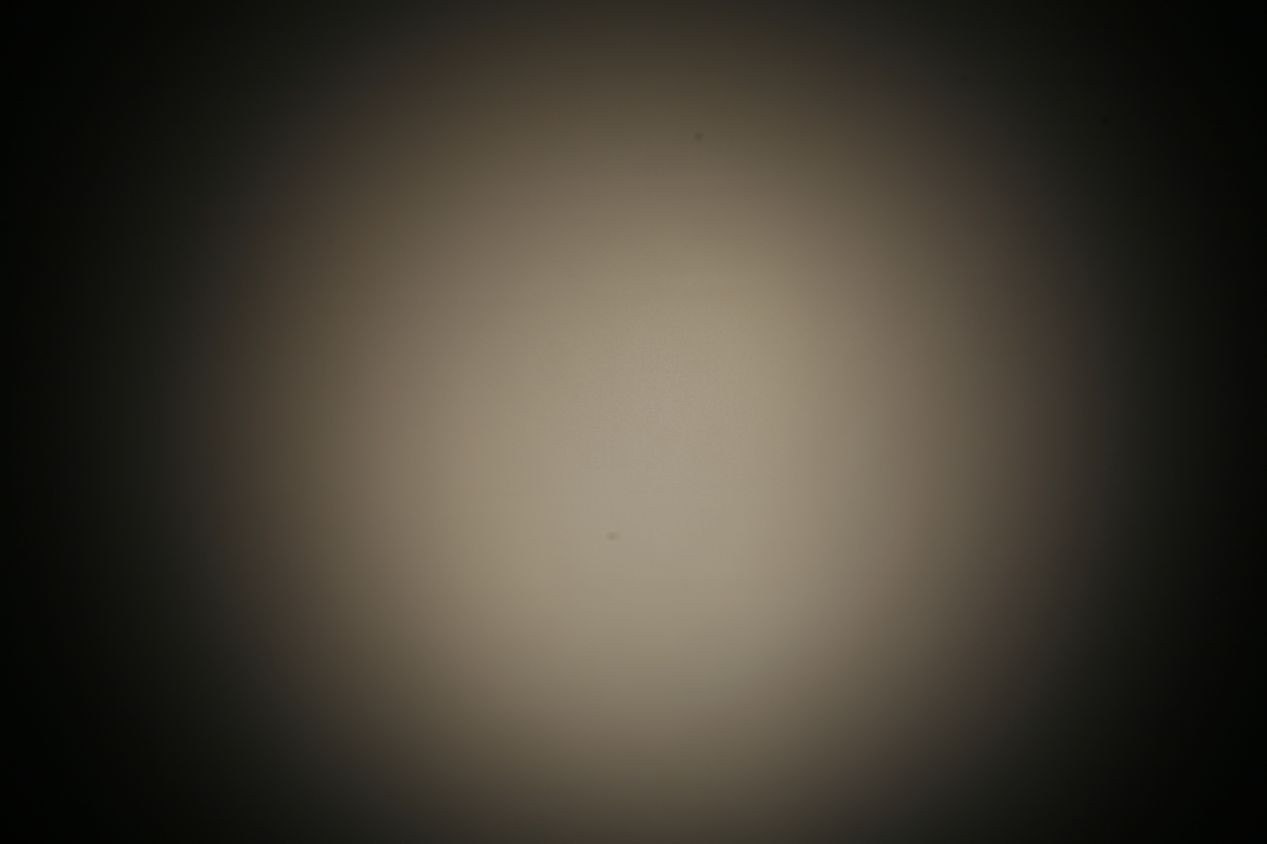

OSLON SSL 150
FWHM:
55°
FWTM:
81°
Peak intensity:
1.200 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 80
FWHM:
49°
FWTM:
80°
Peak intensity:
1.160 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White
