    CP12947_LARISA-WW-CLIP16

    Print

    ~55° wide beam. Clip fastening for 1.6 mm thick PCB

    Specification
    • Dimensions:
      10 x  10 mm
    • Height:
      7.50 mm
    • Fastening:
      glue, clips
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      10000 pcs
    • Box size:
      300 x 250 x 250 mm
    • MPQ:
      100 pcs
    • MOQ:
      300 pcs
    • MOQ size:
      230 x 160 x 30 mm
    • MOQ weight:
      0.2 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CP12947_LARISA-WW-CLIP16
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR126.c - Change in product mechanics 190916

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    News

    PRODUCT NEWS - LARISA

    Application area

    Indoor Architectural Lighting

    Application area

    Retail Lighting

    Optical results

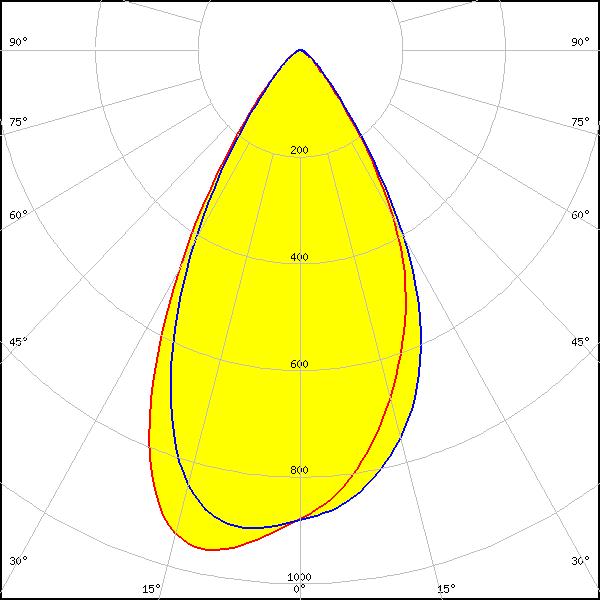

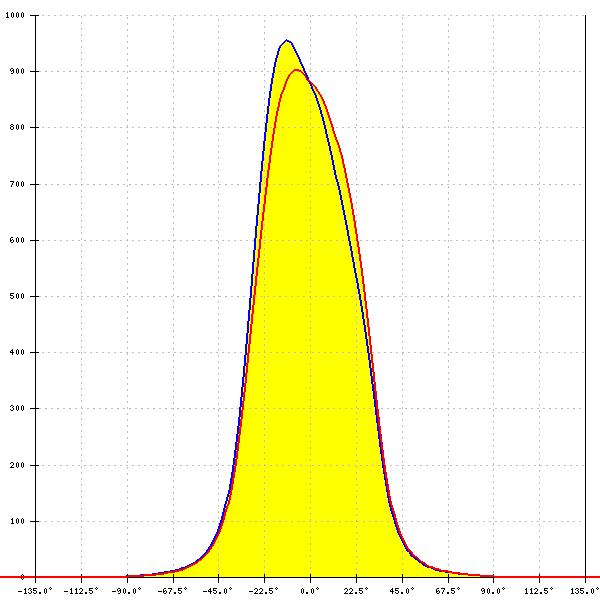

    LED: XB-D
    FWHM: 57°
    FWTM: 86°
    Peak intensity: 0.900 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

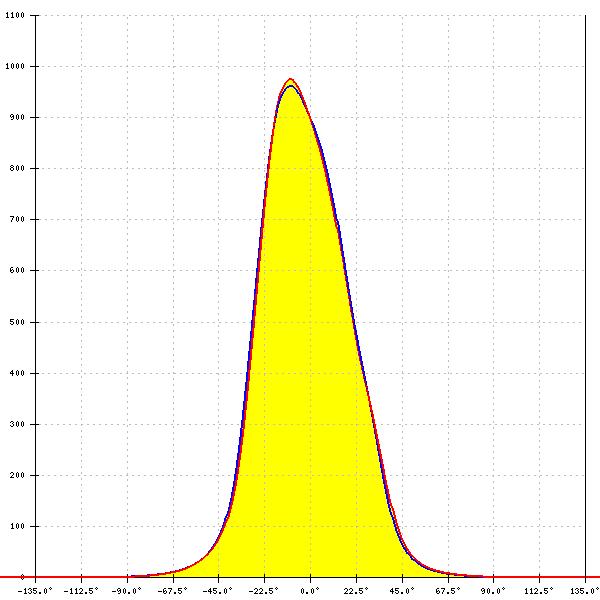

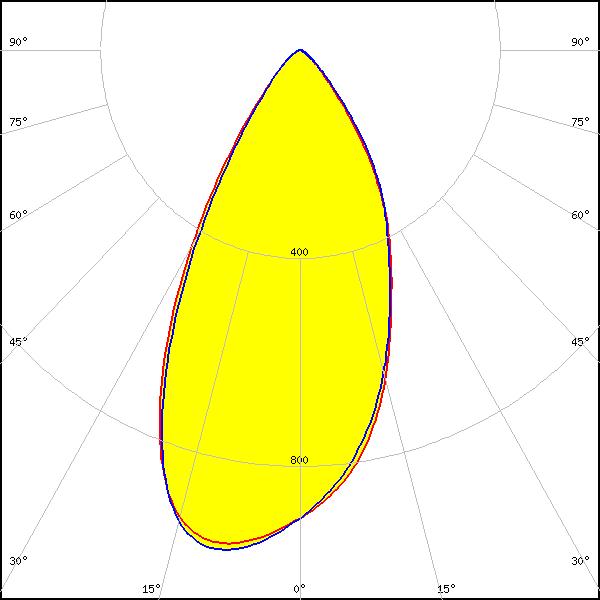

    LED: XD16
    FWHM: 50°
    FWTM: 85°
    Peak intensity: 1.000 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

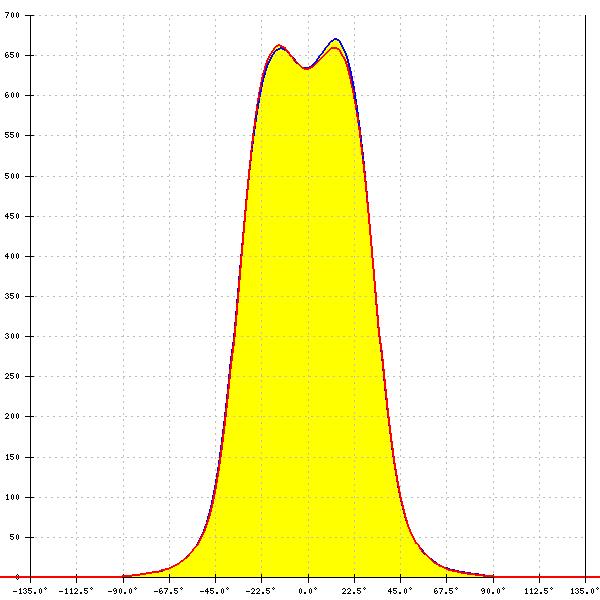

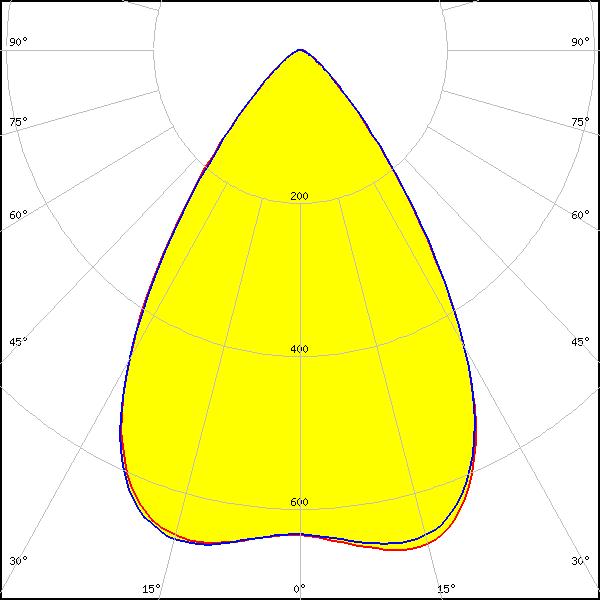

    LED: LUXEON A
    FWHM: 70°
    FWTM: 99°
    Peak intensity: 0.700 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

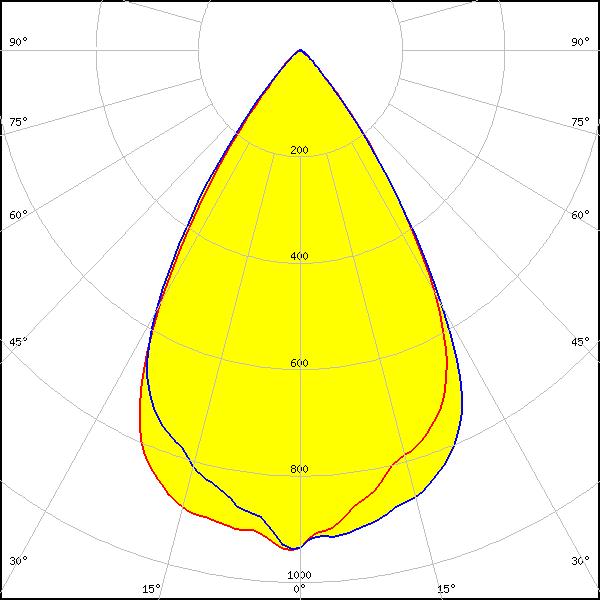

    LED: LUXEON Rebel
    FWHM: 63°
    FWTM: 85°
    Peak intensity: 0.942 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: Green
    LED: LUXEON Rebel
    FWHM: 62°
    FWTM: 90°
    Peak intensity: 0.900 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

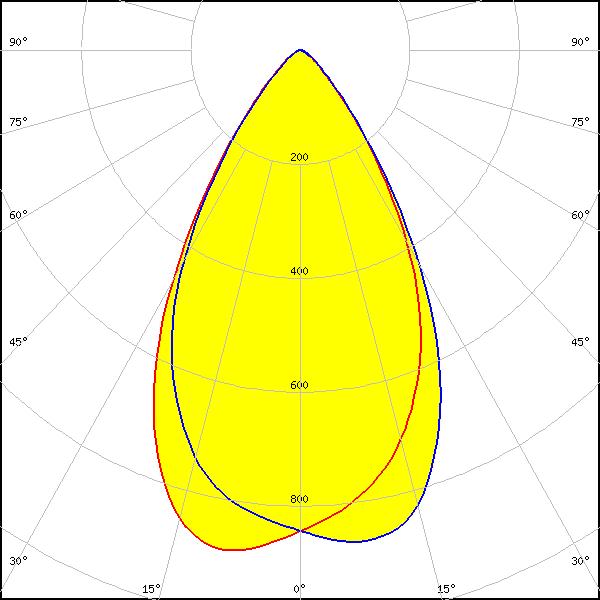

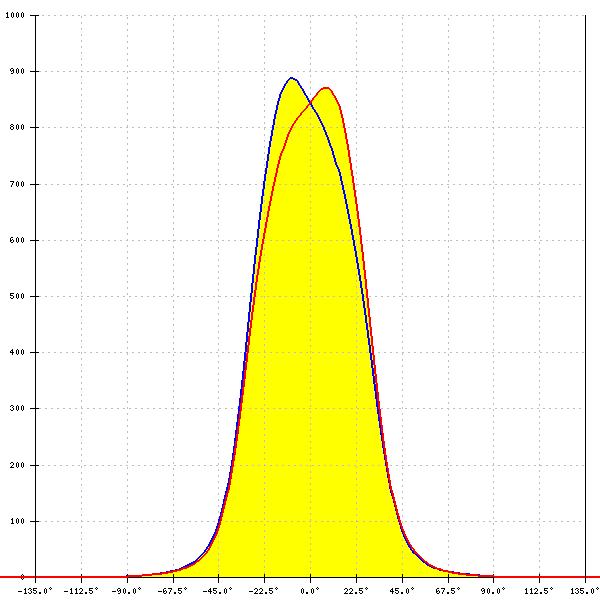

    LED: LUXEON Rebel ES
    FWHM: 60°
    FWTM: 90°
    Peak intensity: 0.900 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

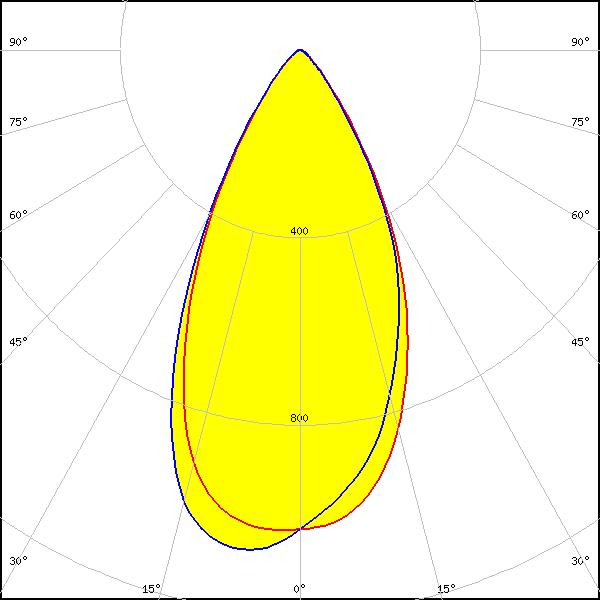

    LED: NCSxx19A
    FWHM: 52°
    FWTM: 82°
    Peak intensity: 1.000 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

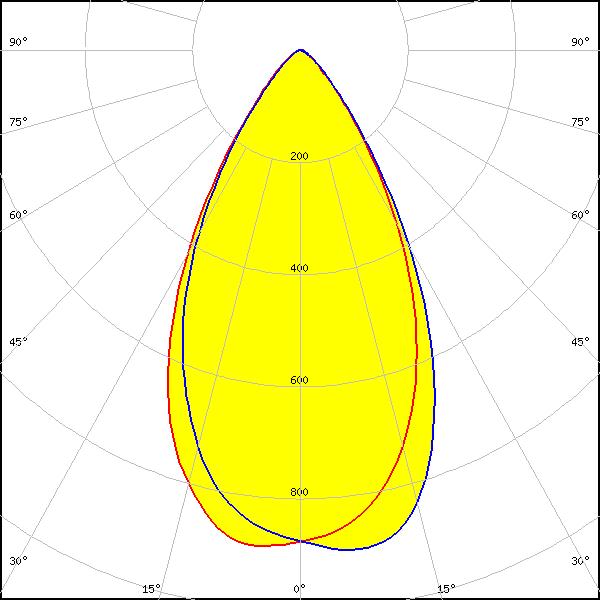

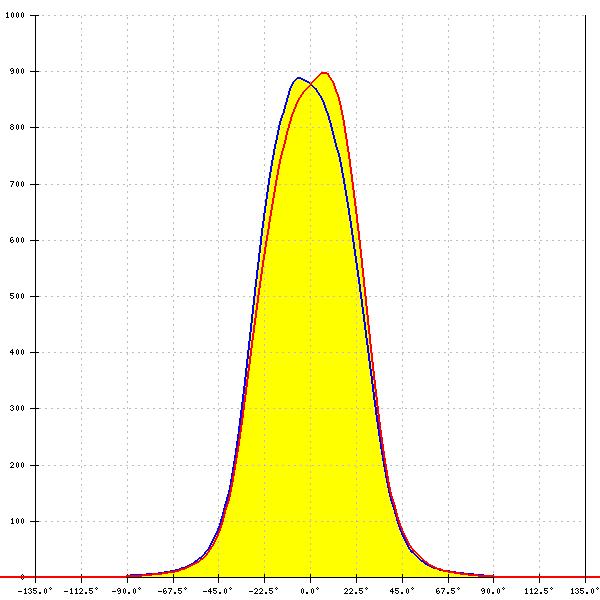

    LED: NVSxx19A
    FWHM: 57°
    FWTM: 88°
    Peak intensity: 0.900 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: DURIS S5 (2 chip)
    FWHM: 50°
    FWTM: 84°
    Peak intensity: 1.200 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

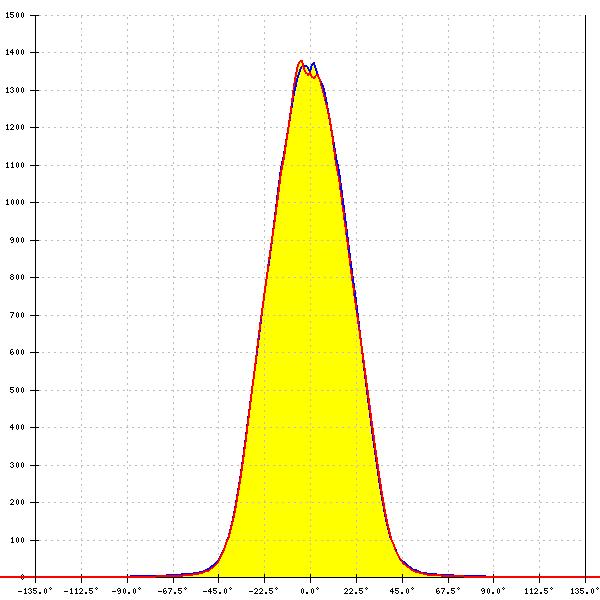

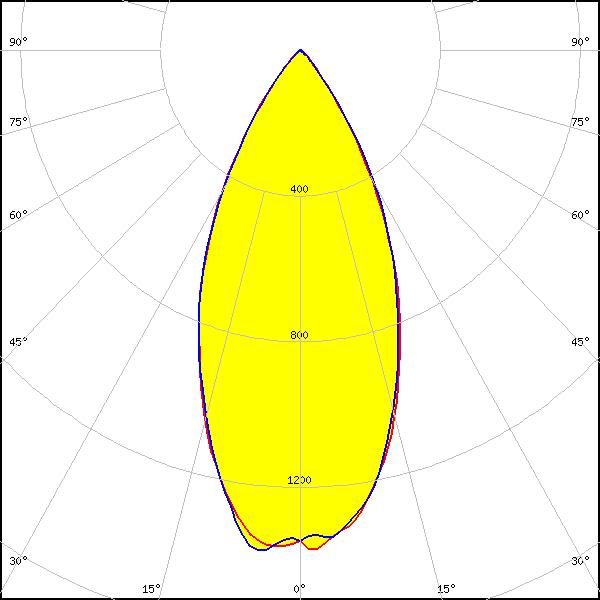

    LED: OSCONIQ P 2226
    FWHM: 48°
    FWTM: 77°
    Peak intensity: 1.405 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

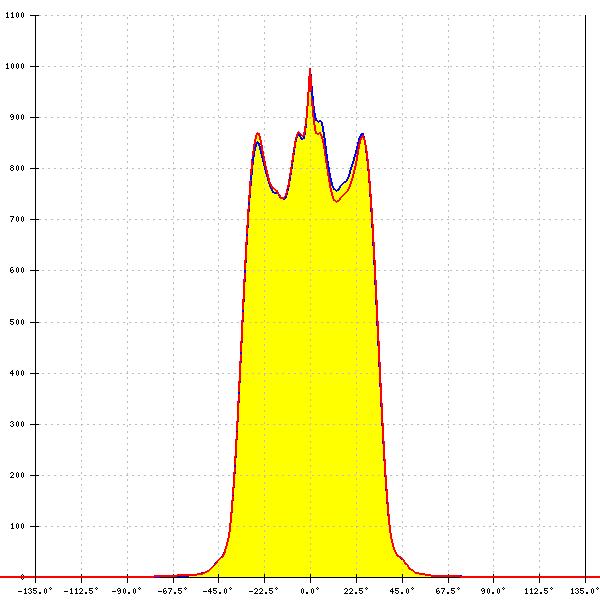

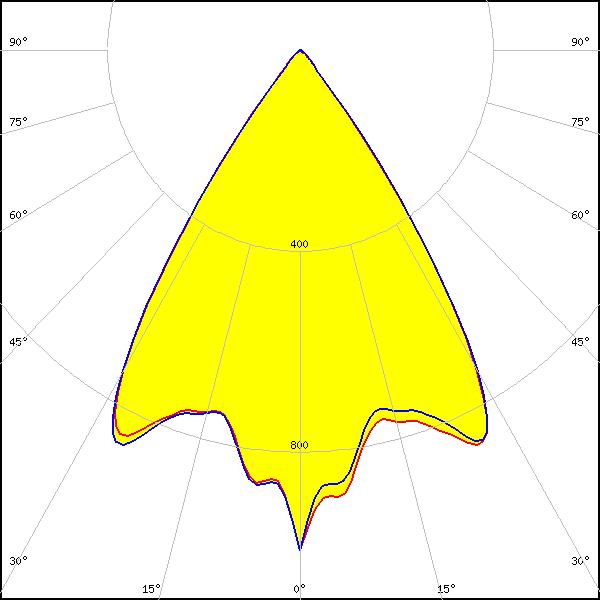

    LED: OSLON Pure 1414
    FWHM: 66°
    FWTM: 78°
    Peak intensity: 0.996 cd/lm
    Efficiency: 95 %
    LEDs/each optic: 1
    Light colour/type: White

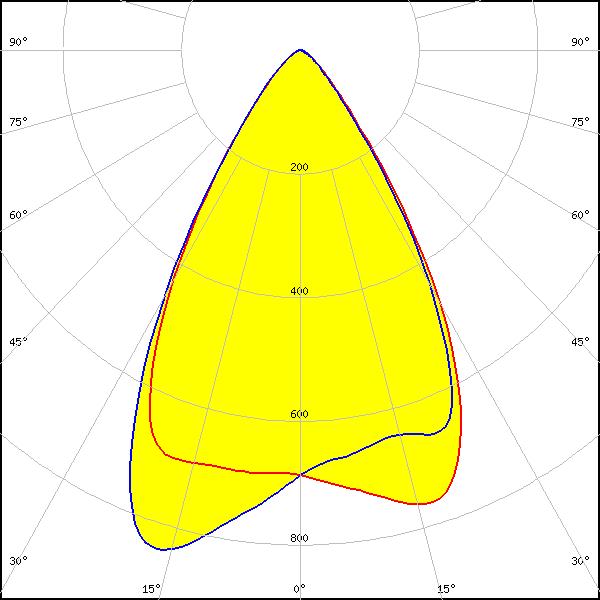

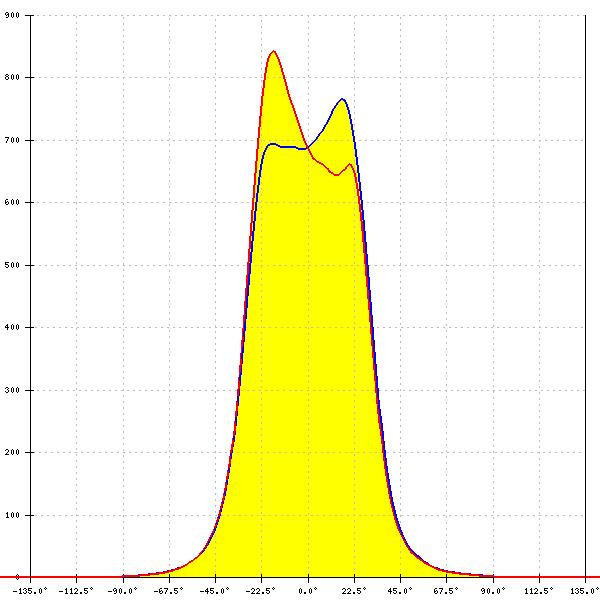

    LED: OSLON SSL 80
    FWHM: 66°
    FWTM: 92°
    Peak intensity: 0.900 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
