CP15305_LARISA-M-PIN
Print

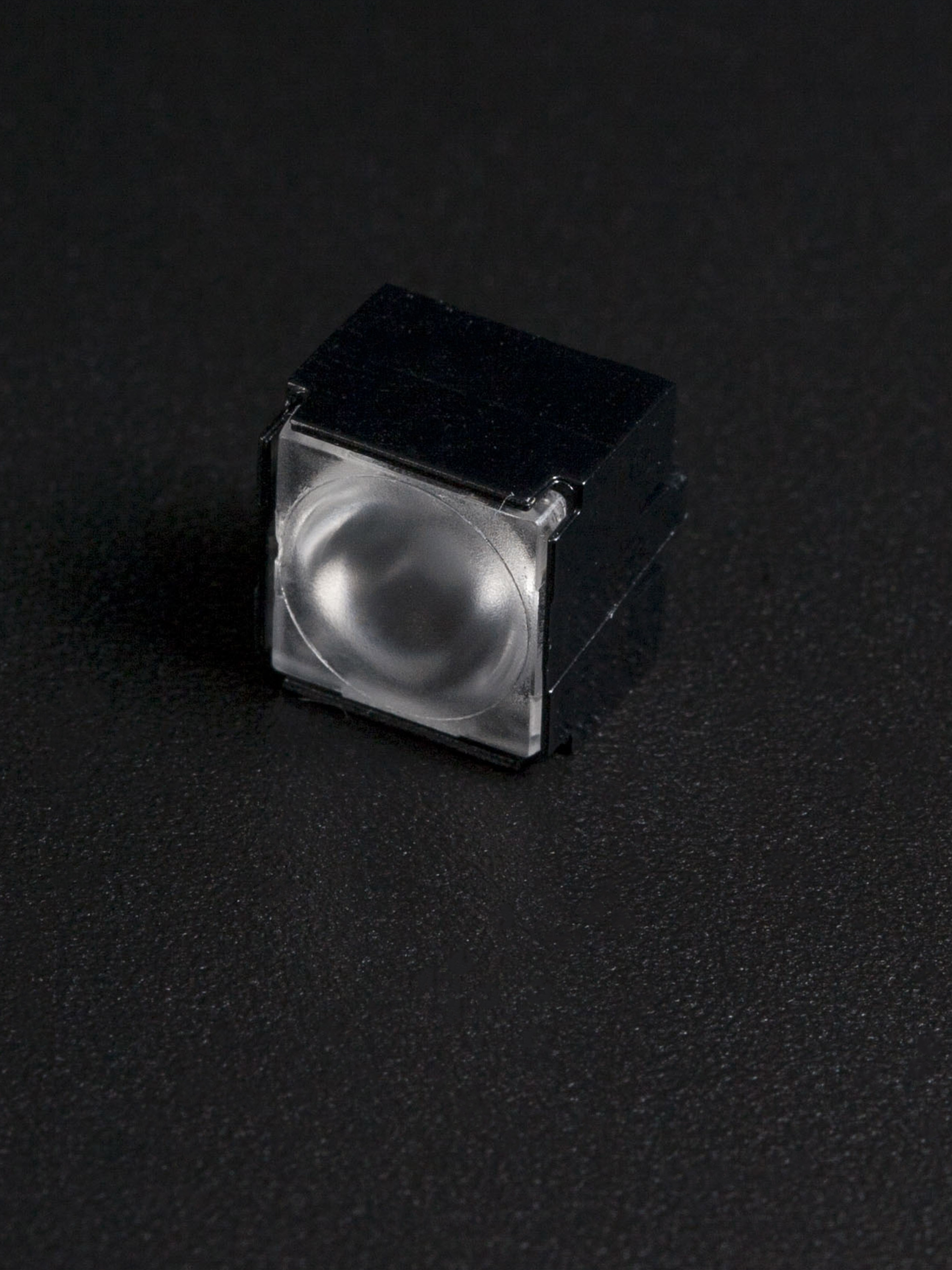

~30° medium beam and holder with location pins
Component Materials
- LARISA-MSingle lensPMMA
- LARISA-HOLDER-PINHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:

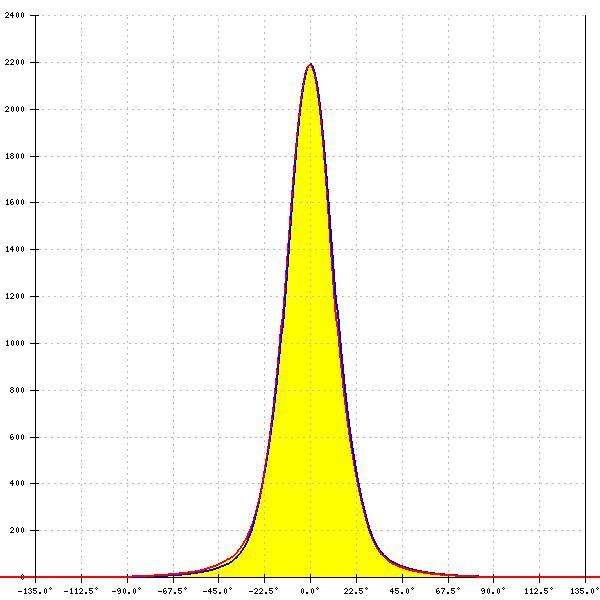

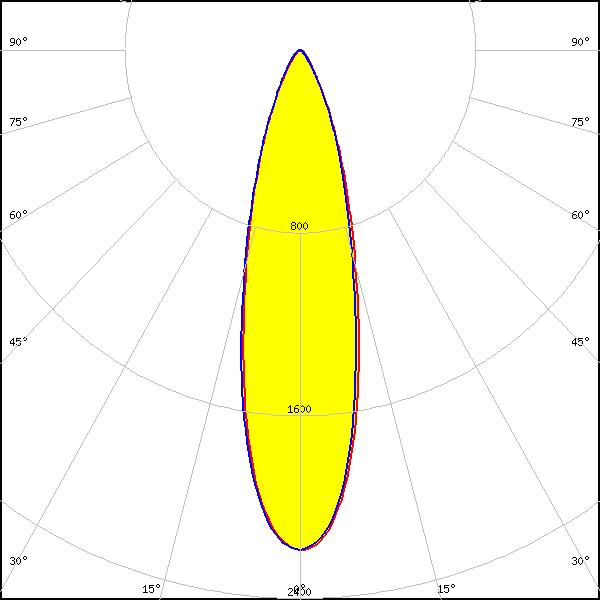

XD16
FWHM:
27°
FWTM:
57°
Peak intensity:
2.200 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White
LED:

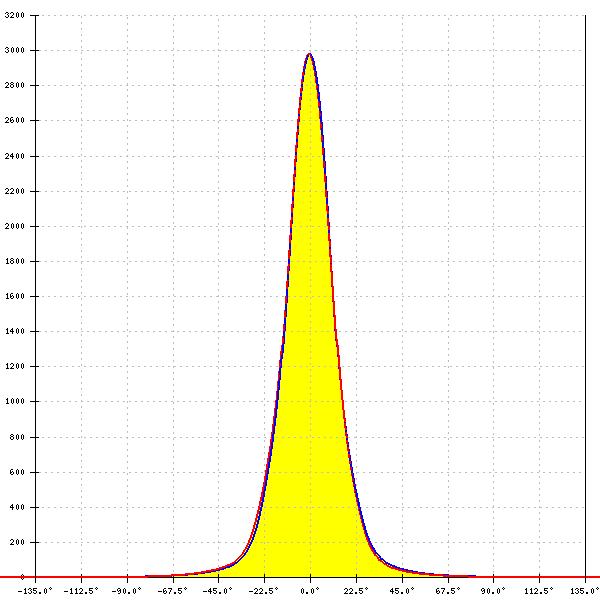

XQ-E HD
FWHM:
25°
FWTM:
53°
Peak intensity:
3.000 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

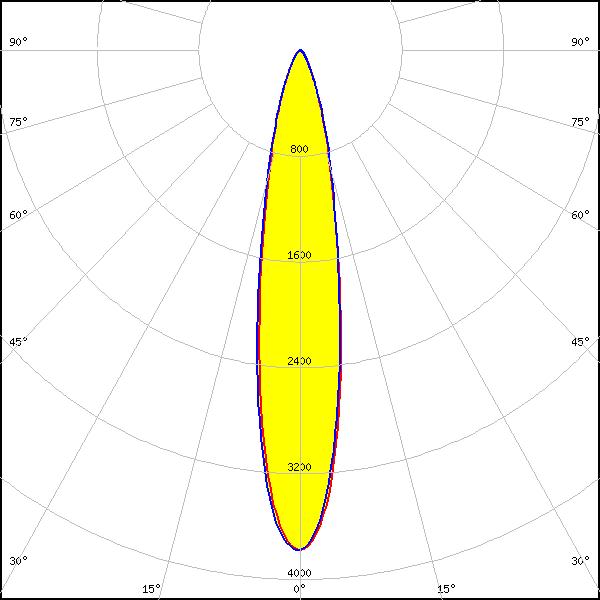

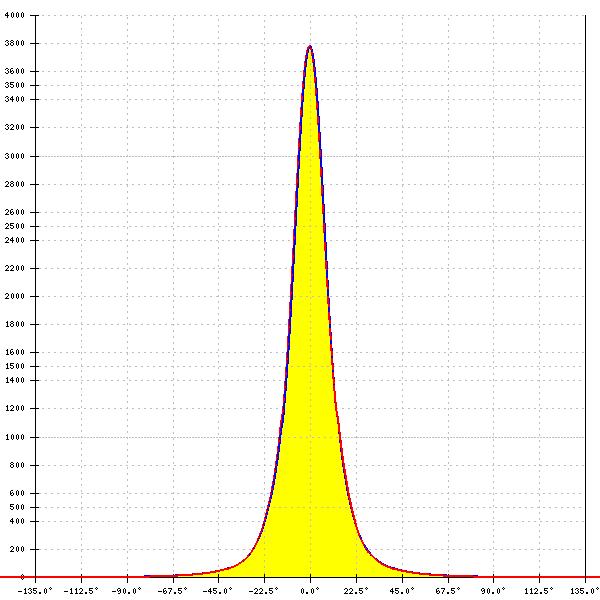

XQ-E HI
FWHM:
19°
FWTM:
45°
Peak intensity:
3.800 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

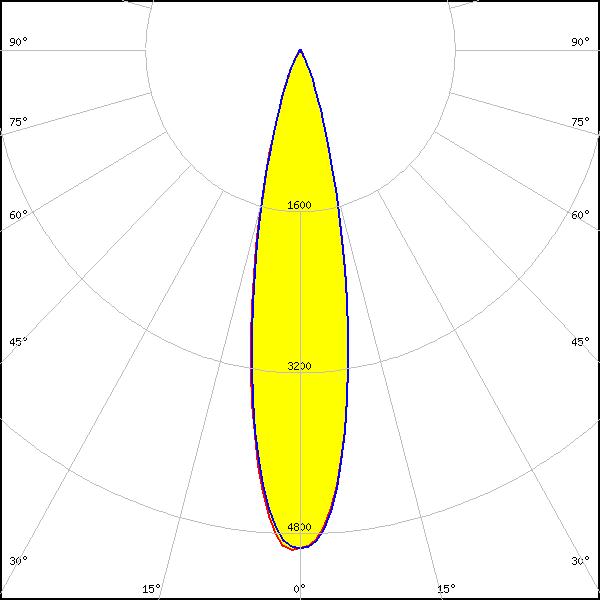

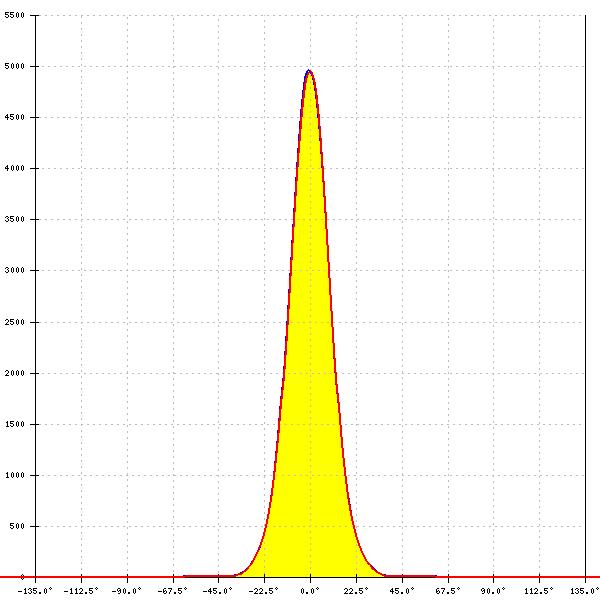

LED:
LUXEON Rubix
FWHM:
22°
FWTM:
43°
Peak intensity:
4.969 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

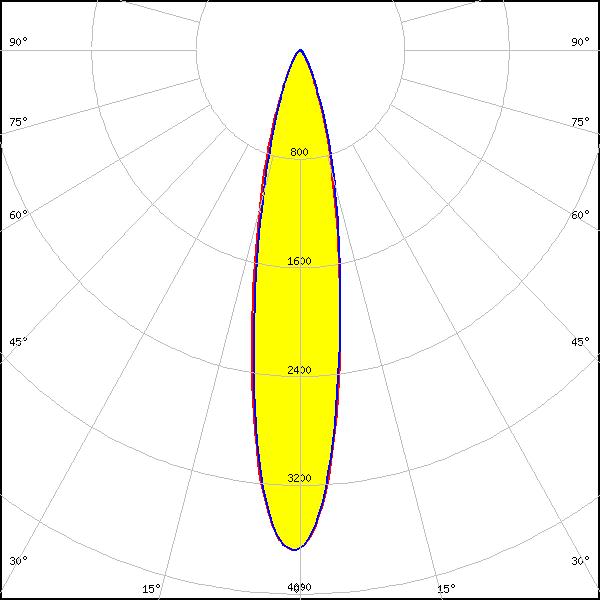

LED:

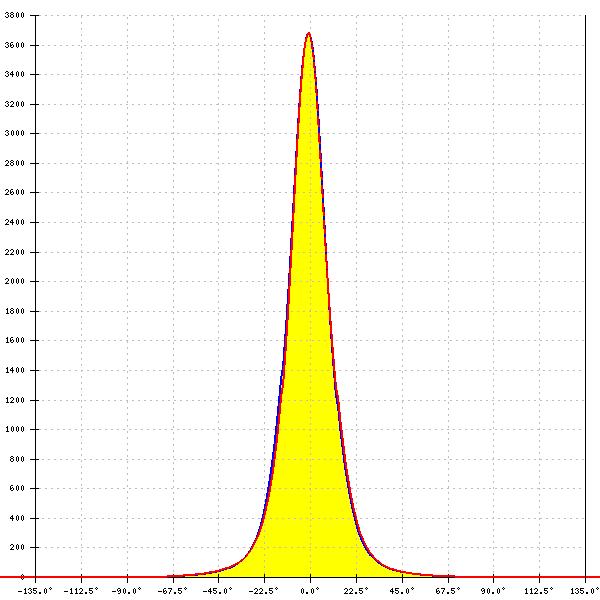

LUXEON Z
FWHM:
21°
FWTM:
46°
Peak intensity:
3.700 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

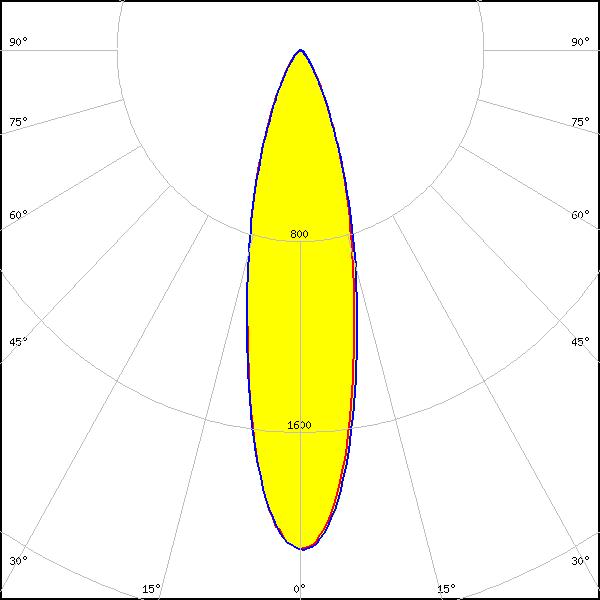

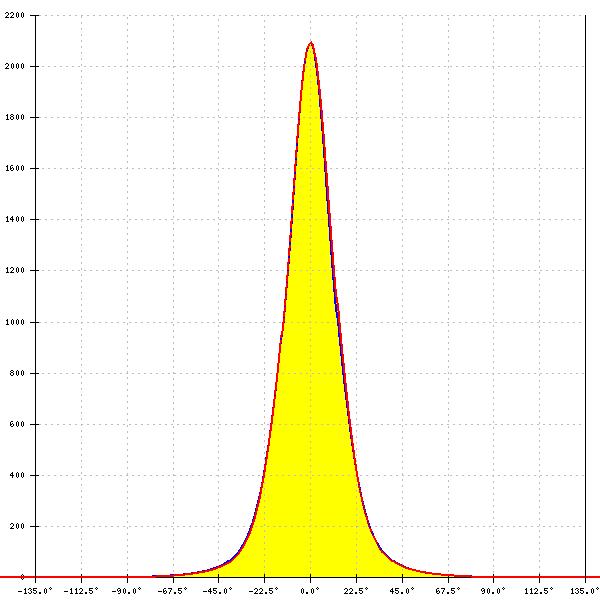

NCSxE17A
FWHM:
26°
FWTM:
57°
Peak intensity:
2.100 cd/lm
Efficiency:
69 %
LEDs/each optic:
1
Light colour/type:
White
LED:

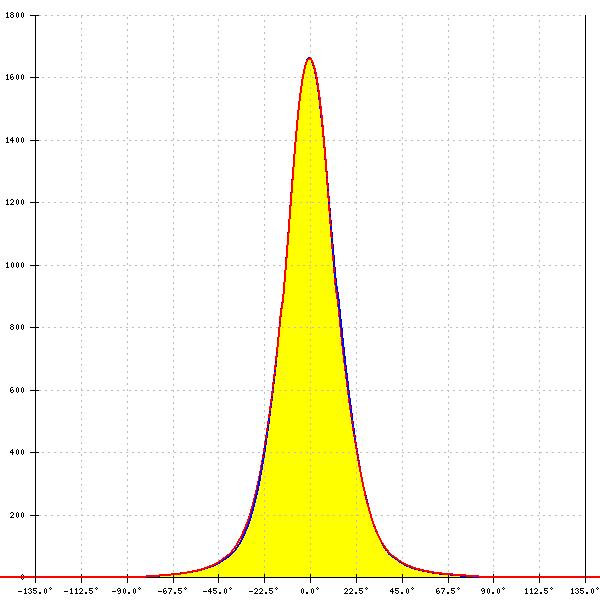

NVSxE21A
FWHM:
29°
FWTM:
29°
Peak intensity:
1.700 cd/lm
Efficiency:
66 %
LEDs/each optic:
1
Light colour/type:
White
LED:

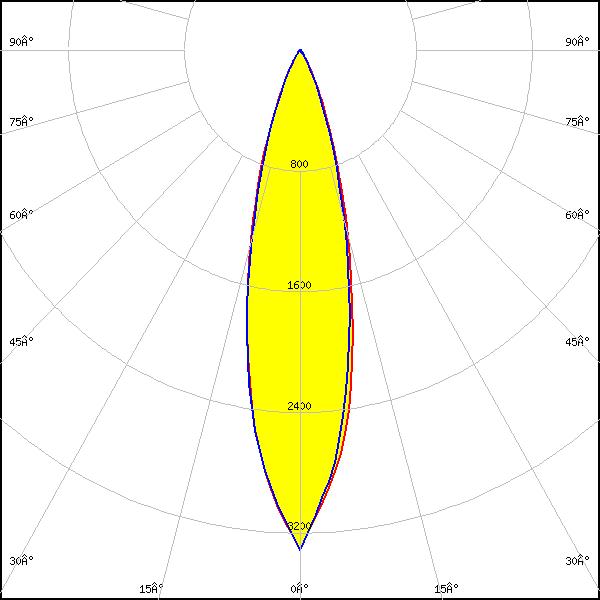

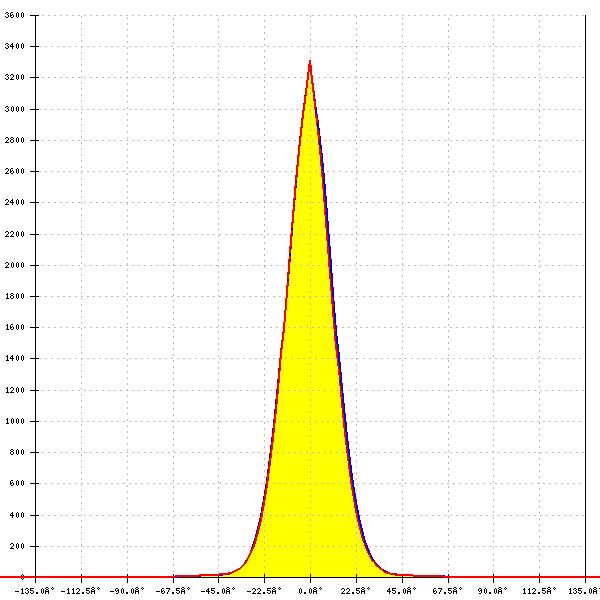

OSLON SSL 80
FWHM:
25°
FWTM:
56°
Peak intensity:
2.910 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
